Article

Greek Fir Seeds and Cones as Underestimated Source of Essential Oil: Composition and Biological Properties

1
Institute of Natural Products and Cosmetics, Faculty of Biotechnology and Food Sciences, Lodz University of Technology, Stefanowskiego Street 2/22, 90-537 Lodz, Poland
2
Department of Medicinal Chemistry, Faculty of Pharmacy with the Division of Laboratory Medicine, Medical University of Bialystok, Mickiewicza Street 2D, 15-222 Bialystok, Poland
3
Department of Diagnostic Immunology, Pomeranian Medical University in Szczecin, Powstancow Wielkopolskich Street 72, 70-111 Szczecin, Poland
*
Author to whom correspondence should be addressed.
Appl. Sci. 2023, 13(24), 13238; https://doi.org/10.3390/app132413238
Submission received: 6 November 2023 / Revised: 10 December 2023 / Accepted: 11 December 2023 / Published: 14 December 2023
(This article belongs to the Special Issue Plant-Based Compounds or Extractions for Medical Applications)

Abstract

:
Greek fir (Abies cephalonica) seeds and cone scales were used, for the first time, for an analysis of their biologically active volatile compounds. It was observed that the yield of seed essential oil was 18%, which, among plants, is impressive. The seed essential oil was characterized by a distinctive forest scent with a subtle lemon undertone. The determination of the chemical compositions of the hydrodistilled oils isolated from the seeds and cone scales, achieved via chromatographic and spectroscopic methods (MS, NMR), revealed more than 100 compounds, mostly monoterpene hydrocarbons. The above methods allowed for the identification of 99.4% and 98.3% of the total seed and cone scale oil compositions, respectively. Limonene in its enantiomeric levorotatory form (S) constituted over 80% of the essential oil isolated from the Abies cephalonica seeds. This abundance of limonene makes them a potential natural source for obtaining this compound, which has demonstrated various biological properties. The main cone essential oil compounds were α- and β-pinenes as well as limonene. The cytotoxic effects of both essential oils were analyzed using the MTT assay in skin fibroblasts, keratinocytes, and melanoma cell lines, in the range of 0.012–0.2 μL/mL of essential oil. The cone scale essential oil was slightly more cytotoxic and induced a decrease in the cell viability in concentrations of 0.05–0.1 μL/mL, with small differences between the cell lines. The tested essential oils did not have selective effects on the melanoma cells (A375 and C32) when compared with normal cells. Both the seed and cone scale essential oils revealed good antimicrobial effects on Staphylococcus aureus and Escherichia coli.

Graphical Abstract

1. Introduction

Greek fir, scientifically known as Abies cephalonica Loudon, is a species of fir tree native to southern Greece, specifically in the Peloponnese mountains, on Mt. Aenos on the island of Kefalonia, on Mt. Parnitha in Attica, and on the island of Euboea [1]. While Greek fir has been primarily valued for its timber [2], it also holds cultural and traditional significance in the region. The Abies cephalonica needles with short twigs can be used to isolate essential oil. Fir essential oil (EO) is known for its invigorating and uplifting scent. It is used in aromatherapy and the fragrance industry for its fresh and woody aroma [3]. Various parts of the Greek fir tree, including the bark and resin, have been used in traditional medicine [4]. The resin has been historically used for its healing properties and as an ingredient in pharmacology. Greek fir wood has been traditionally used for various purposes due to its durability, strength, and resistance to decay. It has been used in construction for beams, flooring, and furniture making. The timber is known for its attractive grain patterns and is sought after for decorative purposes [2]. Greek fir trees are often used as Christmas trees in Greece and other countries. These trees are cut and decorated with ornaments and lights during the holiday season [2]. This species of fir tree is considered an important symbol of the natural heritage of Greece. It is often associated with the country’s rugged mountains and is featured in folklore, art, and literature as a representation of strength, endurance, and beauty. In Poland, Greek fir grows much slower than in Greece or the Balkans. It is found only in gardens in Poland. The species prefers sun, moderately fertile, permeable, slightly moist soil, and moisture in the air, but it tolerates drought and heat well, which is very important in light of climate change [2,4,5].
The traditional use of Abies cephalonica EO is not as extensively documented as that of some other essential oils (EOs) [6,7]. However, like other fir EOs, it has been used in various ways for its aromatic and potential therapeutic properties. Greek fir EO (needle oil) is known for its fresh, woody, and invigorating scent. In aromatherapy, it has been used to promote a sense of grounding, mental clarity, and emotional balance. It is often used in diffusers and inhalers or added to massage oils and bath products to create a calming and uplifting atmosphere. Fir EOs have been used traditionally to support respiratory health. The inhalation of the EO or its diffusion may help to clear congestion, alleviate coughs, and promote easier breathing [8]. Abies cephalonica EO has been employed for its potential analgesic and anti-inflammatory properties. It may be used topically, diluted in a carrier oil, to massage sore muscles and joints, providing relief and relaxation. While the traditional use of Greek fir EO in skincare is not well documented, fir EOs, in general, are sometimes used in natural skincare products. They are believed to have cleansing, purifying, and toning effects on the skin. However, caution should be exercised, and a patch test is recommended, as EOs can cause skin irritation in some individuals. It is important to mention that traditional uses of EOs are based on historical practices and anecdotal evidence, and they may not have undergone extensive scientific research or regulatory approval. If the usage of Greek fir EO for any purpose is taken into consideration, it is advisable to consult with a qualified aromatherapist or healthcare professional to ensure safe and appropriate usage [9,10,11].
Abies cephalonica is a relatively underexplored fir species. Unlike a handful of studies that have examined the volatile compounds in its needles and bark [1,7,11,12,13,14,15], there has been a notable absence of research on the EOs found in intact seeds and cones. This gap in knowledge extends to both their chemical compositions and potential biological functions. Therefore, this study’s main aim was to carry out a comparative analysis based on the contents, chemical profiles, and biological effects of EOs isolated from the seeds and cone scales of the Greek fir. The EOs were subjected to testing against pathogenic microbial strains: Staphylococcus aureus and Escherichia coli, which are the bacteria that most often cause skin infections. However, Escherichia coli, which is commonly found in the gut, may also be a causative agent when the epidermal barrier is damaged [16,17]. Notably, this is a pioneering investigation exploring the cytotoxic activities of fir EOs against melanoma cells and comparing them with those against dermal fibroblasts and keratinocytes. The ultimate aim was to evaluate the potential of using fir EOs as natural products in cosmetics.

2. Materials and Methods

2.1. Greek Fir Seeds and Cone Scales

Ripe cones were hand-picked from the upper crown of the Abies cephalonica in autumn 2012, and the analysis was performed in 2013. The tree is the property of the Polish Botanical Garden located in the middle of Poland (Lodz), the employees of which confirmed the species affiliation. The samples were stored in a freezer. The voucher specimens (nos. I-28/Acl/N/2012 and I-28/Acl/S/2012) of the seeds and cone scales were deposited at the Institute of Natural Products and Cosmetics, Lodz, Poland.

2.2. Parameters of Hydrodistillation

Hydrodistillation was preceded by the additional preparation of the raw material—seeds were husked from cones and ground in a mill. Fir EOs from cone scales and grounded seeds were isolated via hydrodistillation for 4 h in a Clevenger-type glass apparatus [18], as was performed during similar experiments [19]. Hydrodistillations were performed 5 times in parallel. The hydrodistillation was also performed in the Clevenger apparatus (Farmakopea Polska VIII) for 4 h.

2.3. GC-MS Analysis of Essential Oils

The detection and quantification of the EO volatiles were performed using a Thermo Electron gas chromatograph (GC) coupled with a DSQ II quadrupole mass spectrometer (MS) and flame ionization detector (FID) (Thermo Fisher Scientific, Waltham, MA, USA). Simultaneous chromatographic analyses with the FID as a detector and spectroscopic scanning were performed based on an MS-FID splitter (SGE Analytical Science, Ringwood, Melbourne, VIC, Australia). MS spectra were recorded in the range of m/z 50–550, after electron impact ionization at 70 eV. Before analysis, the samples were dissolved (1:5) in a mixture of hexane:diethyl ether (1:1) (Poch Production, Gliwice, Poland). The injected samples (1 μL) were distributed in the split chamber, and the split ratio was 1:2–1:10. The chromatograph device was equipped with two columns. The first was a capillary, non-polar column: Restek Rtx-1 MS (60 m × 0.25 mm i.d.; film thickness: 0.25 μm) (Fisher Scientific, Loughborough, UK). The operating conditions were as follows: temp. program: 50 °C (3 min)–300 °C (30 min) at a rising rate temperature of 4 °C/min; the temperatures of the GC injector and GC detector were 280 °C and 300 °C, respectively, during analysis, as the carrier gas helium was used (constant pressure: 300 kPa). The second, enantioselective column was the Chirasil-Dex CB (Agilent, Santa Clara, CA, USA), the parameters of which were as follows: 30 m × 0.25 mm i.d.; 0.25 μm df; the enantiomers were separated at 50 °C (3 min)–220 °C (30 min) at a rate 4 °C/min; the injector was 240 °C and the detector was 250 °C; nitrogen, at a flow rate of 1.0 mL/min, was used as the carrier gas. In this column, the resolution of the levorotatory enantiomers and dextrorotatory enantiomers of the chosen monoterpene hydrocarbons (Sigma Aldrich, St. Louis, MO, USA) was performed. The area normalization method was used as the quantification method. The above methodology was used in previously published material [19].

2.4. Nuclear Magnetic Resonance Spectroscopy

1H-NMR spectroscopy was performed using a Bruker Avance DPX 250 NMR Spectrometer (Bruker, Rheinstetten, Germany) at the Institute of Organic Chemistry, Lodz University of Technology, at an operating frequency of 250 MHz. CDCl3 (99.95% for NMR, Merck Millipore, Burlington, MA, USA) and TMS (99%, Sigma-Aldrich) were used as the solvent and internal standard, respectively (Institute of Organic Chemistry, Lodz University of Technology).

2.5. Isolation of Volatiles

To increase the reliability of the analysis over the GC-MS, which sometimes gives ambiguous results, we tried to isolate pure compounds, and as many as possible. To isolate the selected volatiles, the seed EO (25.5 g) was fractional-distilled under reduced pressure. The rectification residue (1.63 g) was subjected to flash chromatography (FC) based on silica gel 60 (0.040–0.063 mm mesh, Merck) in a glass FC column of a 30 mm diameter, with, at first, n-hexane (Poch Production, Gliwice, Poland) as eluent, and then increasing amounts of diethyl ether (Poch Production, Gliwice, Poland), under the nitrogen as a propellant. The eluent was collected in 15 mL tubes. The separation was monitored via the thin-layer chromatography (TLC) method on a Kieselgel 60 aluminum plate (Merck). This methodology was also used in our previous experiments [19]. Seventeen fractions (1–17) were collected. All were analyzed using the above-described GC-MS method. Structures of 14 EO compounds were confirmed using 1H-NMR spectroscopy: 1 (264 mg) (E)-β-caryophyllene (25.6%), longifolene (22.0%); 2 (110 mg) α-humulene (61.1%), β-elemene (10.1%); 6 (138 mg) α-terpinyl acetate (40.9%), dihydroagarofurane (19.9%); 7 (38 mg) (E,E)-farnesyl acetate (58.3%); 8 (208 mg) (E)-β-caryophyllene epoxide (38.7%); 9 (55 mg) (E,E)-farnesal (27.4%); 10 (25 mg) γ-eudesmol (28.1%), (E)-nerolidol (15.8%); 14 (101 mg) (E,E)-farnesol (38.0%),β-elemol (14.0%). The masses of the fractions are presented in the first brackets, and the percentages of volatiles identified with the GC-FID detector are shown in the second brackets.

2.6. Determination of Essential Oil Composition

Identification of the EO compounds was achieved in a few ways, as cited before [19]. Firstly, a comparison of the collected mass spectra with spectra in the following mass libraries was performed: NIST98.1 and Wiley, 10th edition. Secondly, the relative retention indices of the experimental compounds on the non-polar column were compared with the literature RIs on the non-polar column. Thirdly, a comparison of the 1H-NMR spectra of the isolated volatiles with literature data or a crafted NMR database (deposited at the Institute of Natural Products and Cosmetics, Lodz University of Technology) was performed. The identification of the enantiomers of the levorotatory and dextrorotatory forms of the monoterpene hydrocarbons α- and β-pinene, limonene, and camphene was based on the (−)- and (+)-standards of the above volatiles using a Chirasil-Dex CB column (Agilent, Santa Clara, CA, USA). To see details of gas chromatograms of EOs and fractions of seed EO as well NMR-spectra of seed EO fractions see the Supplementary Materials: Section S1.

2.7. Cell Viability Assay

Skin fibroblasts that were typical for healthy human (CCD25Sk) and melanoma (C32) cells were bought and delivered from the American Type Culture Collection (Manassas, VA, USA). HaCaT keratinocytes were ordered in AddexBio (San Diego, CA, USA). Skin cells of melanoma (A375) were purchased from Sigma-Aldrich (St. Louis, MO, USA). All cells were cultured in Dulbecco’s Modified Eagle Medium supplemented with 10% fetal bovine serum and 1% penicillin/streptomycin (Gibco, Waltham, MA, USA) in a 5% CO2 incubator at 37 °C. The cytotoxic activity of the essential oils was determined using the 3-(4,5-dimethyl-2-thiazolyl)-2,5-diphenyl-2H-tetrazolium bromide (MTT, Sigma-Aldrich) assay. Cells were seeded at a density of 1 × 104 cells per well in 96-well plates. Cells were treated with fir seed and fir cone EOs at concentrations of 0.012, 0.025, 0.05, 0.1, and 0.2 μL/mL for 24 h. EOs were dissolved in DMSO and diluted with the medium. The final DMSO concentration in the culture medium never exceeded 0.1%. A solution of 0.1% DMSO was used as the control sample. After treatment with EO, MTT solution was added, and the cells were incubated at 37 °C for 4 h in the dark. Subsequently, the medium was discarded, and violet formazan was dissolved in the solution of Sorensen’s glycine buffer in DMSO. The optical density was measured in a microplate reader at a wavelength of 570 nm. The half-maximal inhibitory concentration (IC50) was calculated using GraphPad Prism 7 software. Independent experiments were performed in triplicate.

2.8. Antibacterial Activity

Two reference strains belonging to the strain collection of the Department of Microbiology, Immunology and Laboratory Medicine, Pomeranian Medical University, in Szczecin (Poland), were used in the current study: Staphylococcus aureus ATCC 29213 (methicillin-susceptible S. aureus (MSSA)) and Escherichia coli ATCC 8739. All microorganisms were cultured on Columbia agar with 5% sheep blood (bioMeriéux, Warsaw, Poland) and incubated for 18 h at 37 °C.
The minimum inhibitory concentrations (MICs) of the EOs, thymol (positive control; Sigma-Aldrich, Darmstadt, Germany), and gentamicin sulfate (positive control; solution for injections; Krka, Novo Mesto, Slovenia) against S. aureus and E. coli were evaluated via the serial microdilution method in Mueller–Hinton broth (MHB) (Sigma-Aldrich, Darmstadt, Germany). The study was performed according to the Clinical and Laboratory Standards Institute recommendations [18,19,20]. In brief, 50 µL of a suitable concentration of EOs/thymol/gentamicin sulfate was added to a microwell plate. Concentrations of EOs from 250 to 0.12 µL/mL were made using Tween 80 (1.0%, v/v) (Sigma-Aldrich, Darmstadt, Germany). Concentrations of thymol from 625 to 1.22 µg/mL were made using dimethyl sulfoxide (DMSO) (2.0%, v/v) (Loba Chemie, Mumbai, India). Moreover, concentrations of gentamicin sulfate from 625 to 0.31 µg/mL were prepared. In the next step, 50 µL of microbial suspension at 106 CFU/mL was added to the microplate. After incubation (18 h at 37 °C), the MICs for the EOs/thymol/gentamicin sulfate were estimated via a resazurin (Sigma-Aldrich, Darmstadt, Germany) assay [21,22]. The bacteria suspension with 1.0% (v/v) Tween 80 or 2.0% (v/v) DMSO was regarded as a negative control.
Next, the minimum bactericidal concentrations (MBCs) were evaluated by transferring 20 µL from the microwells that displayed no signs of growth to a new 96-well microplate containing MHB [20,21,22]. The microplate was incubated for 18 h at 37 °C. The MBCs were examined in the wells in which no bacterial growth was noticed. To evaluate the effectiveness of the EOs/thymol/gentamicin sulfate, the MBC/MIC ratio was determined (MBC/MIC ratio ≤ 4—bactericidal effectiveness; MBC/MIC ratio > 4—bacteriostatic effectiveness) [23].

2.9. Statistical Analysis

Statistical analysis was performed using GraphPad Prism software version 7.04 (GraphPad Software, San Diego, CA, USA). A one-way ANOVA followed by Tukey’s test was used. Data were reported as means ± standard deviations. Values of p < 0.05 were considered statistically significant.

3. Results and Discussion

3.1. Contents and Compositions of Volatile Compounds from Seeds and Cones of Greek Fir

The below-described experiments are the continuation of the research on EOs hydrodistilled from seeds and cones (cone scales) from different coniferous trees [18,24,25,26]. Many of these plant materials are unknown, probably due to difficulties during the collection of cones with ripe seeds.
The essential oil (EO) isolated from Abies cephalonica seeds displayed a high yield, nearly 30 times greater than that obtained from the cone scales (0.58–0.66%; averaging 0.62%). In fact, it reached an impressive level of 18.22%, with a range between 17.46% and 19.13%. The seed essential oil possessed an alluring, forest-fresh, citrus-like aroma, in contrast to the less appealing, resinous, earthy scent with a hint of lemon notes found in the cone scale EO. This difference in aroma is attributed to the seed oil’s lower limonene content and the higher concentration of high-boiling volatile compounds, which were detected in the cone scale EO. Notably, the yield of Abies cephalonica seed EO (18.2%) surpassed those of previously reported Abies concolor seed EO (5.4%) and Abies koreana seed EO (4.9%) [18,24]. It also outperformed the most aromatic material to date:Abies alba seed EO (7.4–14.3%) [25].
Through chromatographic and spectroscopic techniques, we successfully identified a total of 101 compounds within the EOs isolated from the Greek fir. These compounds constituted 99.4% of the total seed EO composition and 98.3% of the total cone scale EO composition. Chromatograms of both EOs are shown in Figure 1. Additionally, the structures of 13 volatiles in the Greek fir seed EO were confirmed using 1H-NMR spectroscopy.
The specific compounds identified in both the seed and cone scale EOs are listed in Table 1. In both the seed and cone EOs, the predominant group of terpenes detected were monoterpene hydrocarbons, constituting 95.6% of the total seed EO and 88.6% of the total cone scale EO. This composition aligns with those of previously published Abies cephalonica needle or bark EOs, in which the concentration of this terpene group typically fell within the range of 80–90% [1,7,12,13,14,15]. Monoterpene hydrocarbons were similarly the primary chemical group found in the EOs obtained from the seeds and cones of all the previously explored fir species: Abies concolor [18], Abies koreana [24], and Abies alba [25].
The predominant monoterpene hydrocarbon and, at the same time, the main constituent of the tested seed essential oil was limonene (80.4%). In contrast, the EO from cone scales primarily consisted of α-pinene (54.0%), limonene (18.8%), and β-pinene (14.2%). It is worth noting that in both the tested EOs, the levorotatory forms of limonene, α-pinene, β-pinene, and camphene were the dominant enantiomers, accounting for 95.2–100.0% of the total EO composition. Detailed results are presented in Table 2.
Limonene, particularly its levorotatory enantiomer, was a key flavor compound in both the seed and cone EOs of Greek fir, with enantiomeric excess (ee) values of 97.6% and 93.5%, respectively. This pattern of limonene dominance has also been observed in essential oils from Californian [18], silver [24,25], and Korean [24] fir seeds. Despite variations in the populations of Greek fir trees, the main constituents of monoterpene hydrocarbons, including limonene and α- and β-pinene, remained consistent in our Abies cephalonica cone oils, mirroring previous findings on needle and bark essential oils from different Greek fir populations [1,7,12,13,14,15].

3.2. Cytotoxic Activity

The cytotoxic effects of the fir seed and fir cone EOs in the range of 0.012–0.2 μL/mL were analyzed using the MTT assay in skin fibroblasts, keratinocytes, and two melanoma cell lines: A375 and C32. As shown in Figure 2, both EOs induced a decrease in the cell viability in a concentration-dependent manner. However, the cone essential oil was slightly more cytotoxic than the seed EO. This is consistent with our previous studies on Pinaceae family members, which showed that the EO from the cones of Abies concolor is slightly more cytotoxic than the EO from its seeds [18]. The cone EO of fir is also almost two times more cytotoxic to fibroblasts than EOs from Picea pungens, Picea orientalis, and Abies concolor cones [18,26]. Neither the cone nor seed EOs had selective effects on melanoma cells when compared with normal cells. The lack of selective reduction in the cancer cell viability was shown previously in a study on EOs from Abies alba and Abies koreana seeds and cones in breast cancer [24,25].

3.3. Antimicrobial Activities of Greek Fir Essential Oils

Seed and cone scale EOs of Abies cephalonica were evaluated for their antibacterial effectiveness against two reference strains: S. aureus ATCC 29213 and E. coli ATCC 8739. In the present study, it was shown that both reference strains were susceptible to the tested EOs. The results exhibited that the cone EO had greater antibacterial activity than that isolated from seeds; however, both were characterized by bactericidal effectiveness. Moreover, in comparison to the thymol and gentamicin sulfate (positive controls), the cone EO exhibited higher and lower antibacterial activities, respectively. The detailed results of the experiments are shown in Table 3.
According to the available literature, there are few data on the antibacterial effectiveness of Abies cephalonica EO against microorganisms; however, in experiments that were based on EO from the needles of twigs, Mitić et al. [7] showed that the MICs of Greek fir EO against the S. aureus ATCC 6538 and E. coli ATCC 8739 strains were 0.62 and 10.0 mg/mL, respectively. Comparable results were observed in a study by Tsasi et al. [1], in which the antimicrobial activity of Greek fir needle EO was confirmed against S. aureus ATCC 6538 and E. coli ATCC 35210 (MIC = 2.5 ± 0.010 mg/mL). It is worth emphasizing that the MIC results obtained in the current study were lower in comparison to the abovementioned data but quite similar to the results obtained in our former studies [18]. We proved the antimicrobial properties (the MIC ranged from 25 to 33 µL/mL) of Abies concolor EOs isolated from seeds and cones against the E. coli ATCC 25922 and S. aureus ATCC 43300 strains.

4. Conclusions

In summary, this is the first extensive study that focused on the chemical compositions and biological activities of seed and cone EOs from Greek fir. Abies cephalonica seeds are a valuable source of EO and possess an intriguing, fresh, forest-like scent, while the EO from cone scales contains relatively fewer volatile compounds. While the quantitative and qualitative makeup compositions of the tested seed and cone EOs differ, they both primarily consist of monoterpene hydrocarbons. The seed EO is predominantly characterized by its high limonene content, while the cone EO is composed of α-pinene, β-pinene, and limonene. Notably, the significant presence of the levorotatory form of these main terpenes is a distinctive feature of Abies species. The results indicate that the EOs derived from Abies cephalonica seeds and cone scales exhibit no adverse effects on human skin fibroblasts and keratinocytes when used at low concentrations and cultured for 24 h. Furthermore, the tested EOs, especially those from the cones, have promising antimicrobial properties, which could offer a compelling therapeutic option, particularly at a time when bacterial resistance to conventional antibiotics is on the rise. Surprisingly, the seeds of the Greek fir tree can serve as an excellent source of essential oil and enantiomerically pure natural limonene. In the current era of natural and organic product trends, this rich source of EO and (S)-limonene might serve as a viable alternative to synthetic fragrance compositions. However, the usage of Greek fir essential oil as a raw material in cosmetics needs to be controlled due to the high content of limonene, which is one of the volatile allergens according to European Union regulations. This research material is the first study on the chemical compositions and biological properties of essential oils from Greek fir.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/app132413238/s1, details of gas chromatograms of EOs and fractions of seed EO as well NMR-spectra of seed EO fractions see the Supplementary Materials: Section S1.

Author Contributions

Conceptualization, A.W.-B.; methodology, experiments, and analysis, A.W.-B., Ł.S. and P.K.; writing—original draft, A.W.-B., E.M., Ł.S. and P.K.; writing—review and editing, A.W.-B., E.M., P.K. and Ł.S.; visualization, A.W.-B. and Ł.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this study are available in the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tsasi, G.; Danalatos, G.; Tomou, E.M.; Sakadani, E.; Bethanis, M.; Kolokouris, A.; Skaltsa, H. Chemical composition and antimicrobial activity of the essential oil of Abies cephalonica Loudon from Mount Ainos (Kefalonia, Greece). J. Essent Oil Res. 2022, 34, 143–147. [Google Scholar] [CrossRef]
  2. Alizoti, P.G.; Fady, B.; Prada, M.A.; Vendramin, G.G. Technical Guidelines for Genetic Conservation and Use of Mediterranean Firs (Abies spp.); Bioversity International: Rome, Italy, 2011. [Google Scholar]
  3. Behxhet, M.; Dashnor, N.; Avni, H. Chemical composition of the essential oils obtaind from needles and twigs of Abies alba and Abies borisi-regis growing in Kosovo. Research 2021, 25, 26–39. [Google Scholar]
  4. Mikaili, P.; Sharifi, M.; Sarahroodi, S. Medicinal Trees and Shrubs Introduced and Cultivated in Iran: A Pharmacological Approach. Adv. Environ. Biol. 2012, 6, 183–189. [Google Scholar]
  5. Góra, J.; Lis, A. Essential Oils of Great Value; Lodz University of Technology Press: Lodz, Poland, 2012. [Google Scholar]
  6. Koukos, P.K.; Papadopoulou, K.I.; Papagiannopoulos, A.D.; Th Patiaka, D. Essential oils of the twigs of some conifers grown in Greece. Eur. J. Wood Wood Prod. 2001, 58, 437–438. [Google Scholar] [CrossRef]
  7. Mitić, Z.S.; Stojanović-Radić, Z.Z.; Jovanović, S.; Cvetković, V.J.; Nikolić, J.S.; Ickovski, J.D.; Mitrović, T.L.; Nikolić, B.M.; Zlatković, B.K.; Stojanović, G.S. Essential Oils of Three Balkan Abies Species: Chemical Profiles, Antimicrobial Activity and Toxicity toward Artemia salina and Drosophila melanogaster. Chem. Biodiv. 2022, 19, e202200235. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, C.; Lee, G.; Song, C. The Effect of Short-Term Inhalation of Fir Essential Oil on Autonomic Nervous Activity in Middle-aged Women. Explore 2023, 19, 820–826. [Google Scholar] [CrossRef] [PubMed]
  9. Ali, B.; Al-Wabel, N.A.; Shams, S.; Ahamad, A.; Khan, S.A.; Anwar, F. Essential oils used in aromatherapy: A systemic review. Asian Pac. J. Trop. Biomed. 2015, 5, 589–598. [Google Scholar] [CrossRef]
  10. Thielmann, J.; Muranyi, P.; Kazman, P. Screening essential oils for their antimicrobial activities against the foodborne pathogenic bacteria Escherichia coli and Staphylococcus aureus. Heliyon 2019, 5, e01860. [Google Scholar] [CrossRef]
  11. Tumen, I.; Akkol, E.K.; Süntar, I.; Kele, H. Wound repair and anti-inflammatory potential of essential oils from cones of Pinaceae: Preclinical experimental research in animal models. J. Ethnopharmacol. 2011, 137, 1215–1220. [Google Scholar] [CrossRef]
  12. Nikolic, J.S.; Zlatkovic, B.K.; Jovanovic, S.C.; Stojanovic, G.S.; Marin, P.D.; Mitic, Z.S. Needle volatiles as chemophenetic markers in differentiation of natural populations of Abies alba, A. x borisii-regis, and A. cephalonica. Phytochemistry 2021, 183, 112612. [Google Scholar] [CrossRef]
  13. Koedam, A. Composition of the volatile leaf oil from Greek fir (Abies cephalonica Loud.). Fitoterapia 1981, 52, 25–30. [Google Scholar]
  14. Skorupski, M.; Jagodzinski, A.M.; Zytkowiak, R.; Karolewski, P. Differences in chemical composition of needle and leaf litter from exotic and native tree species stands. Dendrobiology 2012, 68, 101–112. [Google Scholar]
  15. Roussisa, V.; Couladis, M.; Tzakou, O.; Loukisa, A.; Petrakis, P.V.; Dukic, N.M.; Jancic, R. A Comparative Study on the Needle Volatile Constituents of Three Abies Species Grown in South Balkans, Essent. Oil Res. 2000, 12, 42–46. [Google Scholar]
  16. Gläser, R.; Harder, J.; Lange, H.; Bartels, J.; Christophers, E.; Schröder, J.M. Antimicrobial psoriasin (S100A7) protects human skin from Escherichia coli infection. Nat. Immunol. 2005, 6, 57–64. [Google Scholar] [CrossRef] [PubMed]
  17. Petkovsek, Z.; Elersic, K.; Gubina, M.; Zgur-Bertok, D.; Starcic Erjavec, M. Virulence potential of Escherichia coli isolates from skin and soft tissue infections. J. Clin. Microbiol. 2009, 7, 1811–1817. [Google Scholar] [CrossRef] [PubMed]
  18. Mazurek, A.P. (main editor); Polish Pharmacopoeia, 6th ed.; Polish Society of Pharmacy: Warsaw, Poland, 2002. [Google Scholar]
  19. Wajs-Bonikowska, A.; Szoka, Ł.; Karna, E.; Wiktorowska-Owczarek, A.; Sienkiewicz, M. Abies concolor seeds and cones as new source of essential oils-composition and biological activity. Molecules 2017, 22, 1880. [Google Scholar] [CrossRef]
  20. CLSI. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria that Grow Aerobically, Approved Standard, 9th ed.; CLSI document M07-A9; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2012. [Google Scholar]
  21. Ferreira Sarrazin, L.A.; Bezerra Oliveira, R.; Soares Barata, L.E.; Veras Mourão, R.H. Chemical composition and antimicrobial activity of the essential oil of Lippia grandis Schauer (Verbenaceae) from the western Amazon. Food Chem. 2012, 134, 1474–1478. [Google Scholar] [CrossRef]
  22. Andrews, J.M. Determination of minimum inhibitory concentrations. J. Antimicrob. Chemother. 2001, 48, 5–16. [Google Scholar] [CrossRef]
  23. Mogana, R.; Adhhikari, A.; Tzar, M.N.; Ramliza, R.; Wiart, C. Antibacterial activities of the extracts, fractions and isolated compounds from Canarium patentinervium Miq. against bacterial clinical isolates. BMC Complement. Med. Ther. 2020, 20, 55. [Google Scholar] [CrossRef]
  24. Wajs-Bonikowska, A.; Sienkiewicz, M.; Stobiecka, A.; Maciąg, A.; Szoka, Ł.; Karna, E. Chemical composition and biological activity of Abies alba and A. koreana seed and cone essential oils and characterization of their seed hydrolates. Chem Biodivers. 2015, 12, 407–418. [Google Scholar] [CrossRef]
  25. Wajs, A.; Urbańska, J.; Zaleśkiewicz, E.; Bonikowski, R. Composition of essential oil from seeds and cones of Abies alba. Nat. Prod. Commun. 2010, 5, 1291–1294. [Google Scholar] [PubMed]
  26. Wajs-Bonikowska, A.; Szoka, Ł.; Karna, E.; Wiktorowska-Owczarek, A.; Sienkiewicz, M. Composition and biological activity of Picea pungens and Picea orientalis seed and cone essential oils. Chem. Biodivers. 2017, 14, e1600264. [Google Scholar] [CrossRef] [PubMed]

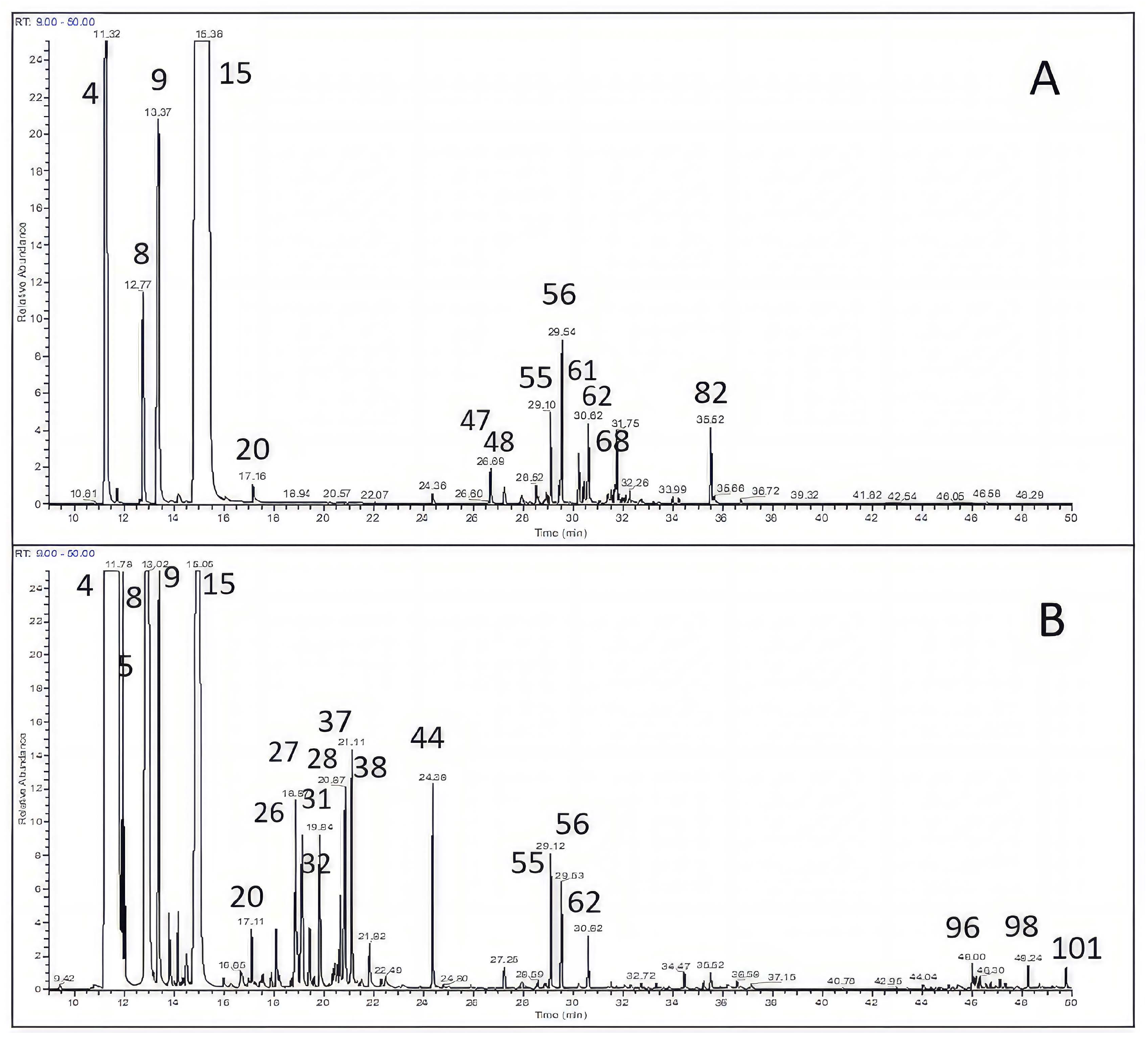

Figure 1. The gas chromatograms of (A) seed and (B) cone essential oils (numbers refer to compounds listed in Table 1).
Figure 1. The gas chromatograms of (A) seed and (B) cone essential oils (numbers refer to compounds listed in Table 1).
Applsci 13 13238 g001

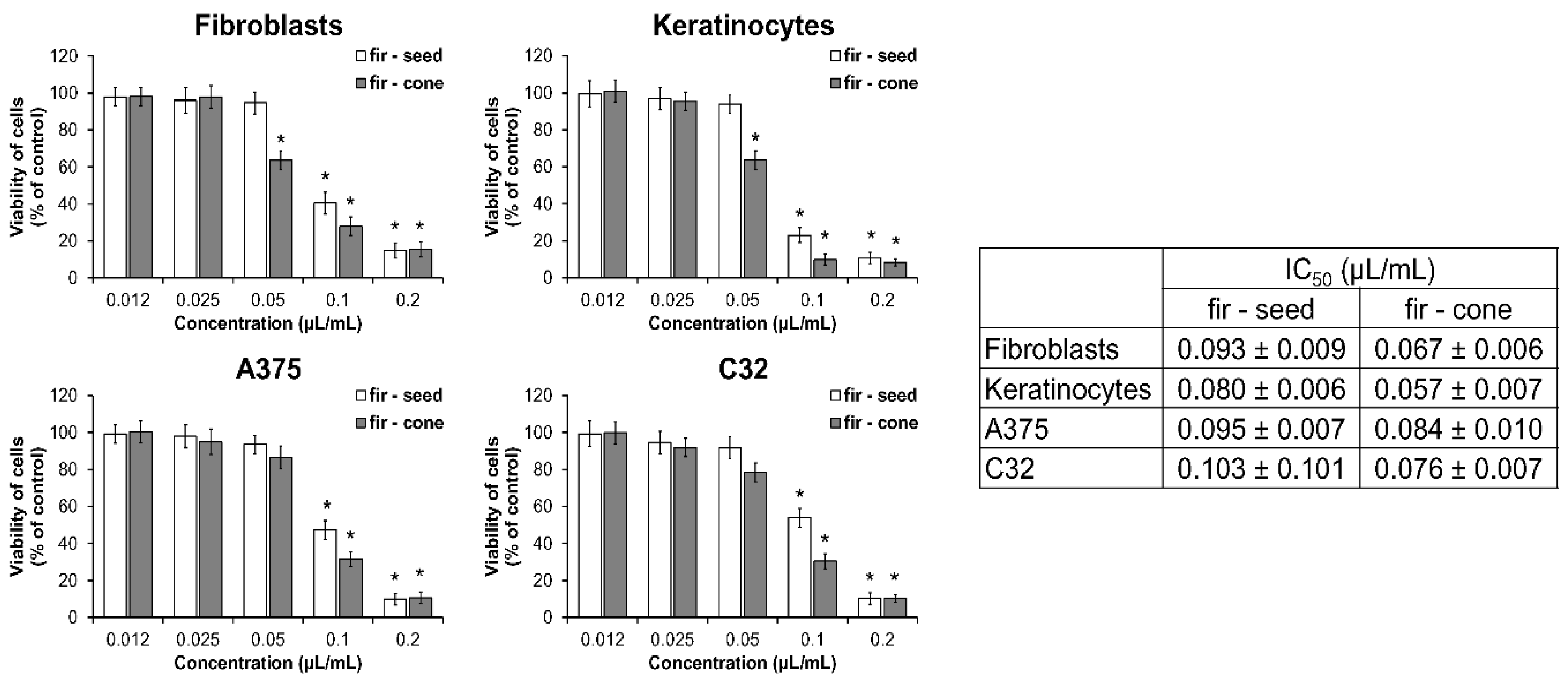

Figure 2. The viability of skin fibroblasts, keratinocytes, and melanoma cells (A375, C32) treated with fir seed and fir cone EOs for 24 h in MTT assay. The data are presented as the mean ± standard deviation of three independent experiments performed in triplicate (* p < 0.05 compared to the 0.1% DMSO-treated group).
Figure 2. The viability of skin fibroblasts, keratinocytes, and melanoma cells (A375, C32) treated with fir seed and fir cone EOs for 24 h in MTT assay. The data are presented as the mean ± standard deviation of three independent experiments performed in triplicate (* p < 0.05 compared to the 0.1% DMSO-treated group).
Applsci 13 13238 g002
Table 1. The chemical compositions of the Greek fir essential oils isolated from seeds and cone scales.
Table 1. The chemical compositions of the Greek fir essential oils isolated from seeds and cone scales.
No.CompoundSEEDCONERI exp.RI lit.Identification Method
[%][%]
1Santenemtn.d.tr.878884RI, MS
2Tricyclenemttr.0.1919927RI, MS
3α-Thujenemttr.n.d.930932RI, MS
4α-Pinenemt8.854.0943936RI, MS
5Camphenemt0.11.1948950RI, MS
6Thuja-2,4-(10)-dienemttr.0.6950946RI, MS
7Sabinenemttr.tr.964973RI, MS
8β-Pinenemt1.514.2976978RI, MS
9β-Myrcenemt4.02.6986987RI, MS
10α-Phelandrenemttr.n.d.9991002RI, MS
11δ-Car-3-enemt0.20.310051010RI, MS
12α-Terpinenemttr.0.110101013RI, MS
13p-Cymenemttr.0.210131015RI, MS
14p-Menth-1-enemtn.d.tr.10181017RI, MS
15Limonenemt80.414.810281025RI, MS
16γ-Terpinenemt0.20.110511051RI, MS
17Myrtenolmton.d.0.110591178RI, MS
18cis-Verbenolmton.d.0.210681132RI, MS
19p-Cymenenemtn.d.0.110771075RI, MS
20Terpinolenemt0.20.210801081RI, MS
21α-Pinene oxidemton.d.0.110831082RI, MS
22Linaloolmton.d.0.110911086RI, MS
23α-Fencholmton.d.0.110991099RI, MS
24α-Campholenalmton.d.0.311051105RI, MS
25Camphormton.d.0.111201123RI, MS
26 + 27trans-Pinocarveol + trans-Verbenolmton.d.1.011241126 + 1137RI, MS
27 + 28trans-Verbenol + α-Phellandrene-8-olmton.d.0.911311137 + 1140RI, MS
29 + 30Pinocamphone + Pinocarvonemton.d.0.311391140 + 1147RI, MS
31 + 32β-Phellandrene-8-ol + Borneolmton.d.0.811491150 + 1150RI, MS
32Borneolmtotr.11491150RI, MS
33Terpinen-4-olmtotr.tr.11601164RI, MS
34p-Cymen-8-olmton.d.0.211651169RI, MS
35Isopinocarveolmton.d.0.111681170RI, MS
36Myrtenalmton.d.0.311701172RI, MS
37α-Terpineolmtotr.1.011761176RI, MS
38Myrtenolmton.d.1.011821178RI, MS
39Verbenonemton.d.0.111891183RI, MS
40cis-Carvotanacetonemton.d.0.111931195RI, MS
41trans-Carveolmton.d.0.212011200RI, MS
42cis-Carveolmton.d.0.112141210RI, MS
43Carvonemton.d.0.112191214RI, MS
44Bornyl acetatemto0.10.712701270RI, MS
45trans-Pinocarveyl acetatemton.d.tr.12811287RI, MS
46δ-Elemenestn.d.tr.13111334RI, MS
47 + 48δ-Elemene + α-Terpinyl acetatest + mto0.2n.d.13341340 + 13351H, RI, MS
49α-Longipinenest0.10.113501360RI, MS
50Cyclosativenesttr.tr.13681378RI, MS
51α-Ylangenesttr.n.d.13711376RI, MS
52Longicyclenestn.d.tr.13711382RI, MS
53β-Elemene + Sativenest0.1tr.13891389 + 13941H, RI, MS
54β-Longipinenest0.1tr.13971403RI, MS
55Longifolenest0.40.5140414111H, RI, MS
56(E)-β-Caryophyllenest0.70.4141714211H, RI, MS
57Aristolenestn.d.tr.14371423RI, MS
58γ-Elemenesttr.n.d.14281429RI, MS
59Guaia-6,9-dienest0.2n.d.14381443RI, MS
60Isogermacrene Dst0.1n.d.14441455RI, MS
61 + 62Cadina-3,5-diene + α-Humulenest0.5n.d.14501450 + 1455RI, MS
62α-Humulenestn.d.0.2145014551H, RI, MS
63Alloaromadendrenesttr.n.d.14521462RI, MS
64Cadina-4,11-dienest0.1n.d.14741462RI, MS
652-epi-(E)-β-Caryophyllenest0.1n.d.14781467RI, MS
66α-Amorphenestn.d.tr.14741477RI, MS
67γ-Muurolenest0.1n.d.14821474RI, MS
68β-Cadinenest0.3n.d.14841483RI, MS
69β-Selinenest0.1n.d.14871486RI, MS
70α-Selinenesttr.n.d.14911494RI, MS
71Dihydroagarofuranst0.1n.d.149515001H, RI, MS
72γ-Cadinenest0.1n.d.14991507RI, MS
73β-Bisabolenesttr.tr.15011503RI, MS
747-epi-α-Selinenesttr.n.d.15131519RI, MS
75δ-Cadinenesttr.n.d.15151520RI, MS
76trans-α-Bisabolenestn.d.tr.15331530RI, MS
77β-Elemolstotr.n.d.153715411H, RI, MS
78(E)-Nerolidolstotr.tr.155015531H, RI, MS
79Eudesma-5,7(11)-dienesttr.n.d.15551543RI, MS
80(E)-β-Caryophyllene epoxidestotr.0.1157015781H, RI, MS
81Humulene epoxideston.d.tr.15951602RI, MS
82Selin-6-en-4-olsto0.30.116041612RI, MS
83Selin-7(11)-en-4α-olston.d.tr.16091617RI, MS
84γ-Eudesmolstotr.n.d.161616181H, RI, MS
851-epi-Cubenolston.d.tr.16171623RI, MS
86Cubedolston.d.tr.16191630RI, MS
87Cubenolstotr.n.d.16221630RI, MS
88T-Cadinol + T-Muurololston.d.tr.16281633 + 1633RI, MS
89β-Eudesmolstotr.n.d.16401641RI, MS
90α-Cadinolston.d.tr.16401643RI, MS
91Intermedeolstotr.tr.16451657RI, MS
92(Z,E)-Farnesalstotr.n.d.16801683RI, MS
93(E,E)-Farnesolstotr.n.d.170617081H, RI, MS
94(E,E)-Farnesalstotr.n.d.172017221H, RI, MS
95(E,E)-Farnesyl acetatestotr.n.d.182618221H, RI, MS
96Manoyl oxidedton.d.0.119882007RI, MS
97Isopimara-7,15-dienedtn.d.tr.19941999RI, MS
98Abieta-7,13-dienedtn.d.0.120802084RI, MS
99Abieta-8(14),13(15)-dienedttr.0.121442152RI, MS
100Dehydroabietaldton.d.0.122382260RI, MS
101Abietaldton.d.0.322912261RI, MS
Sum of identified compounds99.498.3
Σ mt95.488.4
Σ mto0.17.3
Σ st3.31.2
Σ sto0.50.2
Σ dttr.0.2
Σ dto00.5
Yield of essential oil (%)18.220.62
RI lit.—literature retention index on non-polar column; RI exp.—experimental retention index on non-polar column; n.d.—not detected; tr.—trace (amount lower than 0.05%); MS—mass spectrometry; 1H—1H-NMR spectroscopy; mt—monoterpene hydrocarbons; mto—oxygenated derivatives of mt; st—sesquiterpene hydrocarbons; sto—oxygenated derivatives of st; dt—diterpene hydrocarbons; dto—oxygenated derivatives of dt.
Table 2. Contribution of the levorotatory and dextrorotatory forms of enantiomers (%) with enantiomeric excess (ee) of the main Greek fir seed and cone monoterpenes.
Table 2. Contribution of the levorotatory and dextrorotatory forms of enantiomers (%) with enantiomeric excess (ee) of the main Greek fir seed and cone monoterpenes.
Enantiomer/Enantiomeric ExcessAbies cephalonica
SeedCone
(S)-(−)-Limonene (%)97.693.5
(R)-(+)-Limonene (%)2.46.5
ee95.287.0
(1S,5S)-(−)-α-Pinene (%)90.091.4
(1R,5R)-(+)-α-Pinene (%)10.08.6
ee94.282.8
(S)-(−)-Camphene (%)-81.8
(R)-(+)-Camphene (%)-18.2
ee-
(1S,5S)-(−)-β-Pinene (%)99.893.3
(1R,5R)-(+)-β-Pinene (%)0.26.7
ee100.086.6
Table 3. The antibacterial effectiveness of the Abies cephalonica seed and cone scale essential oils (seed EO, cone EO) against reference strains.
Table 3. The antibacterial effectiveness of the Abies cephalonica seed and cone scale essential oils (seed EO, cone EO) against reference strains.
SubstanceMIC 2MBC 3MBC/MIC Ratio 4Effectiveness
Staphylococcus aureus ATCC 29213
Seed EO3.91 ± 0.00 A15.63 ± 0.00 A4Bactericidal
Cone EO0.49 ± 0.00 A0.81 ± 0.28 A2Bactericidal
Thymol 11.90 ± 0.00 B3.80 ± 0.00 B2Bactericidal
Gentamicin sulfate 10.31 ± 0.00 B0.61 ± 0.00 B2Bactericidal
Escherichia coli ATCC 8739
Seed EO7.81 ± 0.00 A31.25 ± 0.00 A4Bactericidal
Cone EO1.63 ± 0.56 A3.91 ± 0.00 A2Bactericidal
Thymol 14.07 ± 1.41 B8.13 ± 2.81 B2Bactericidal
Gentamicin sulfate 10.51 ± 0.18 B1.22 ± 0.00 B2Bactericidal
1 Positive controls; 2 MIC—minimum inhibitory concentration; 3 MBC—minimum bactericidal concentration; 4 MBC/MIC ratio ≤ 4—bactericidal; MBC/MIC ratio > 4—bacteriostatic; A µL/mL; B µg/mL.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wajs-Bonikowska, A.; Szoka, Ł.; Kwiatkowski, P.; Maciejczyk, E. Greek Fir Seeds and Cones as Underestimated Source of Essential Oil: Composition and Biological Properties. Appl. Sci. 2023, 13, 13238. https://doi.org/10.3390/app132413238

AMA Style

Wajs-Bonikowska A, Szoka Ł, Kwiatkowski P, Maciejczyk E. Greek Fir Seeds and Cones as Underestimated Source of Essential Oil: Composition and Biological Properties. Applied Sciences. 2023; 13(24):13238. https://doi.org/10.3390/app132413238

Chicago/Turabian Style

Wajs-Bonikowska, Anna, Łukasz Szoka, Paweł Kwiatkowski, and Ewa Maciejczyk. 2023. "Greek Fir Seeds and Cones as Underestimated Source of Essential Oil: Composition and Biological Properties" Applied Sciences 13, no. 24: 13238. https://doi.org/10.3390/app132413238

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
