Study on Shear Mechanical Properties and Fracture Evolution Mechanism of Irregular Serrated Rock Discontinuities

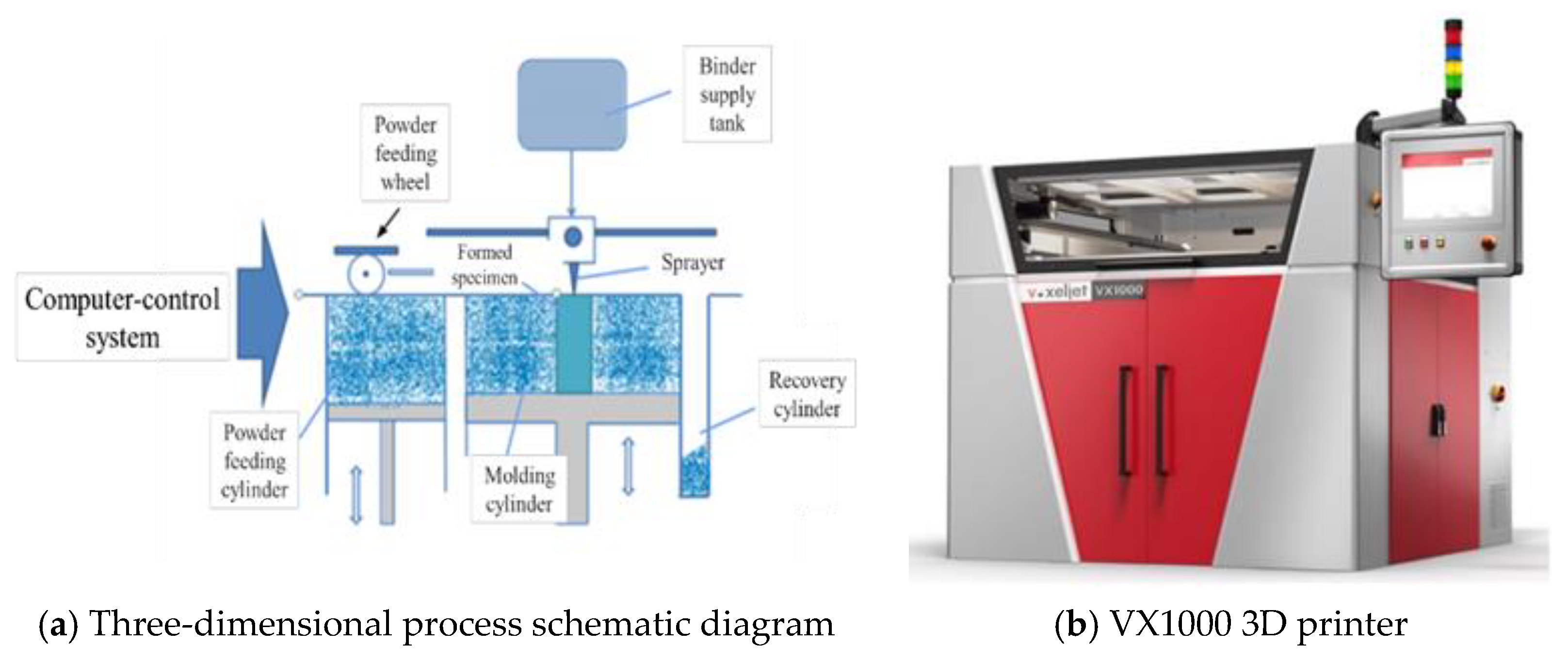

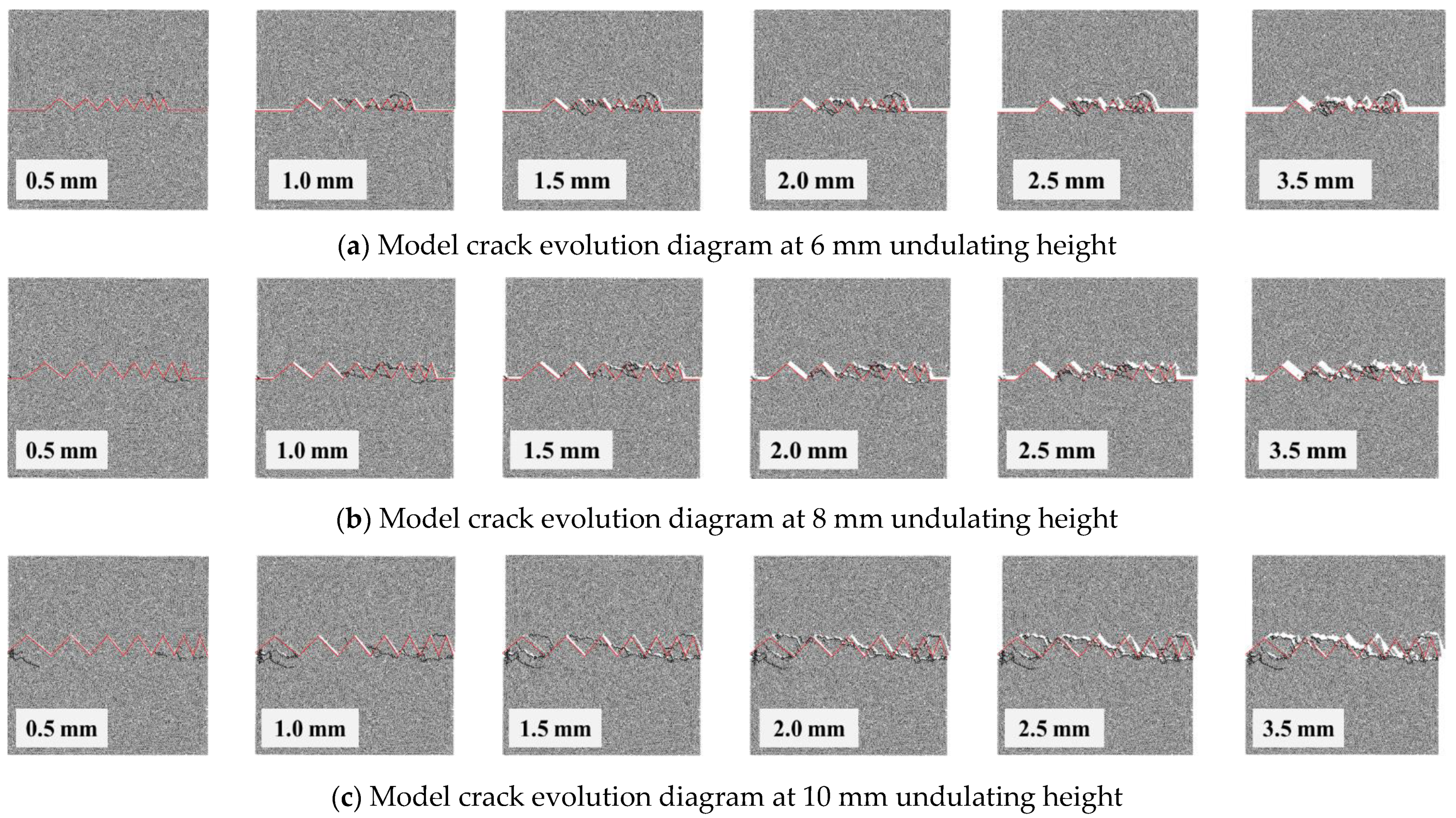

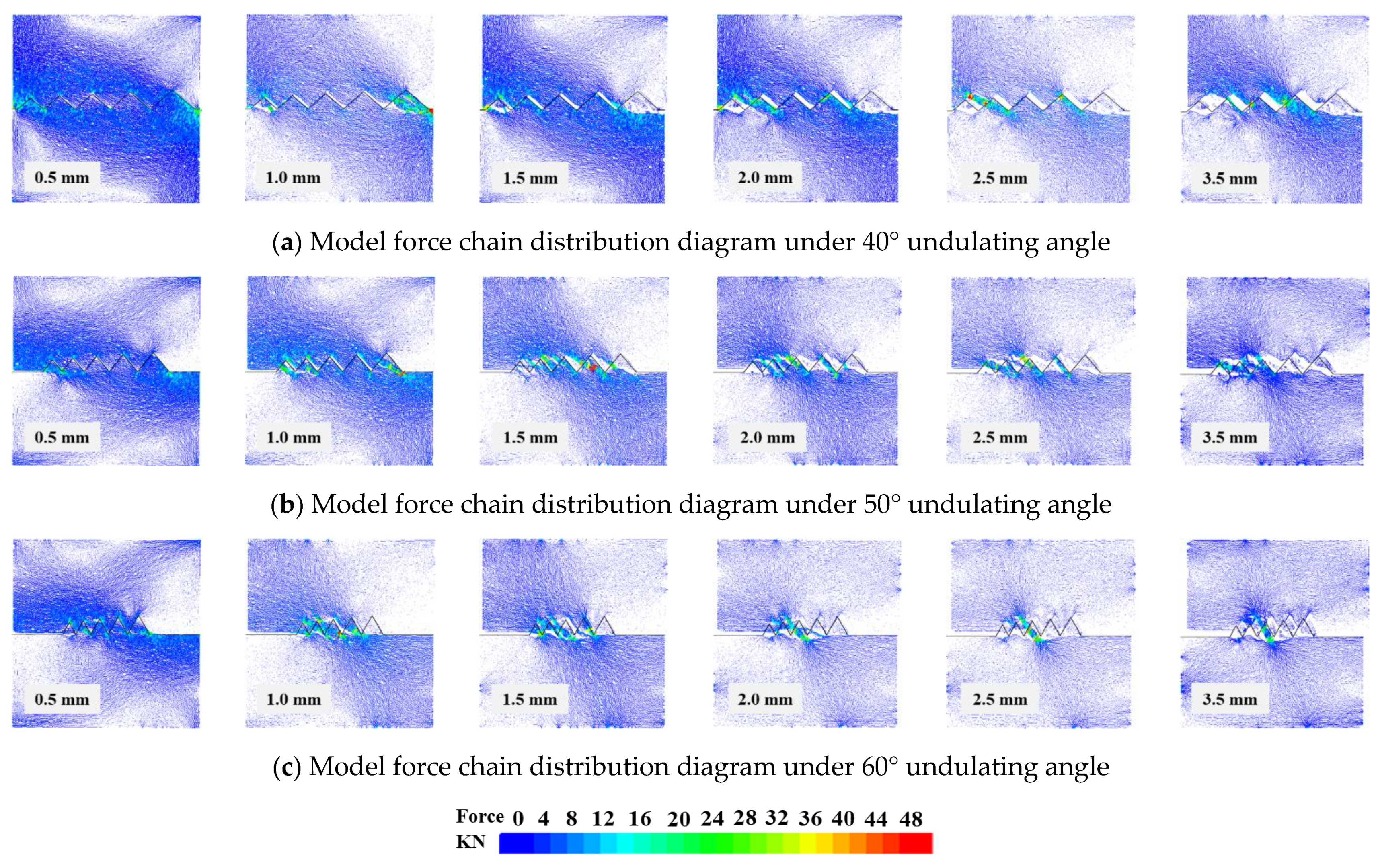

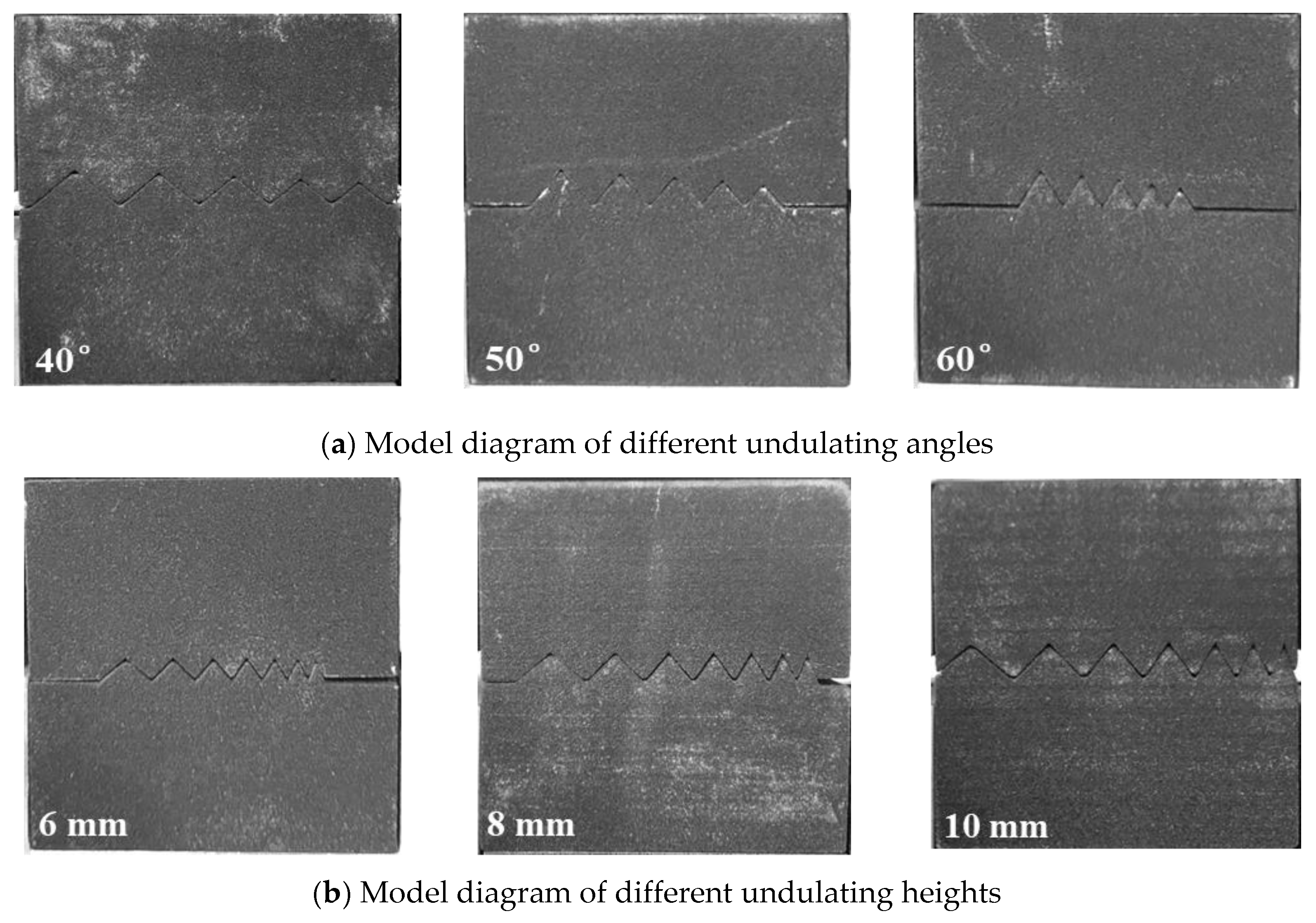

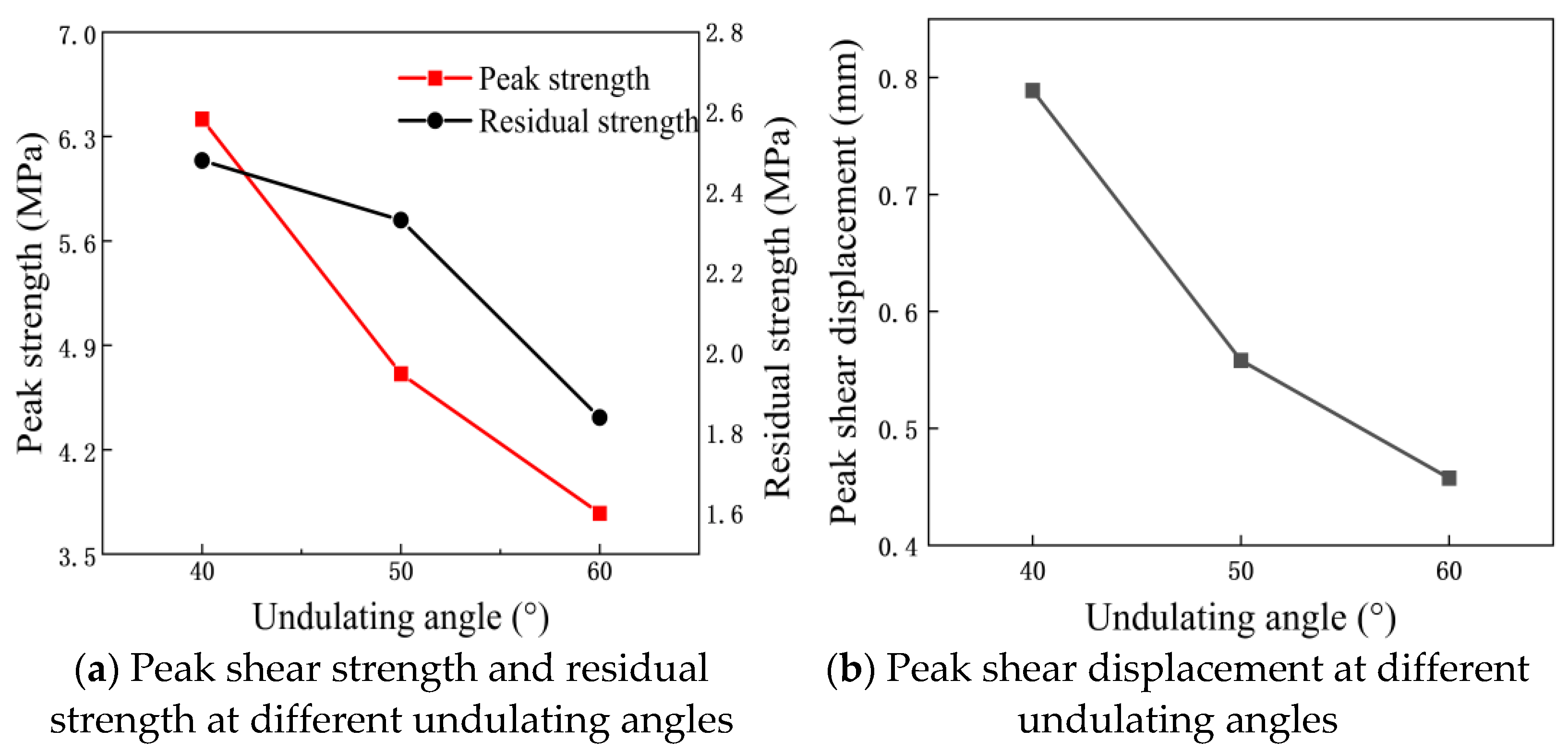

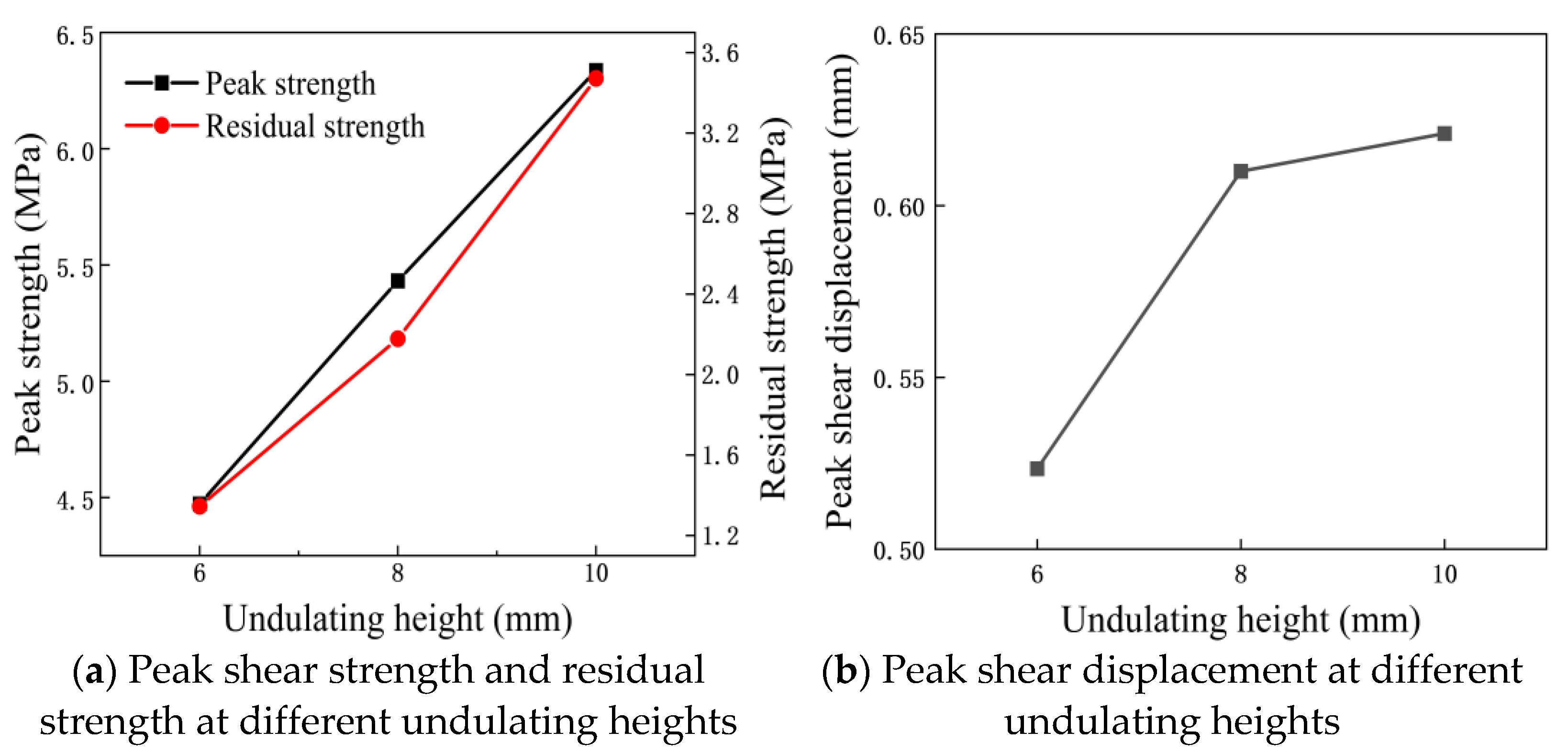

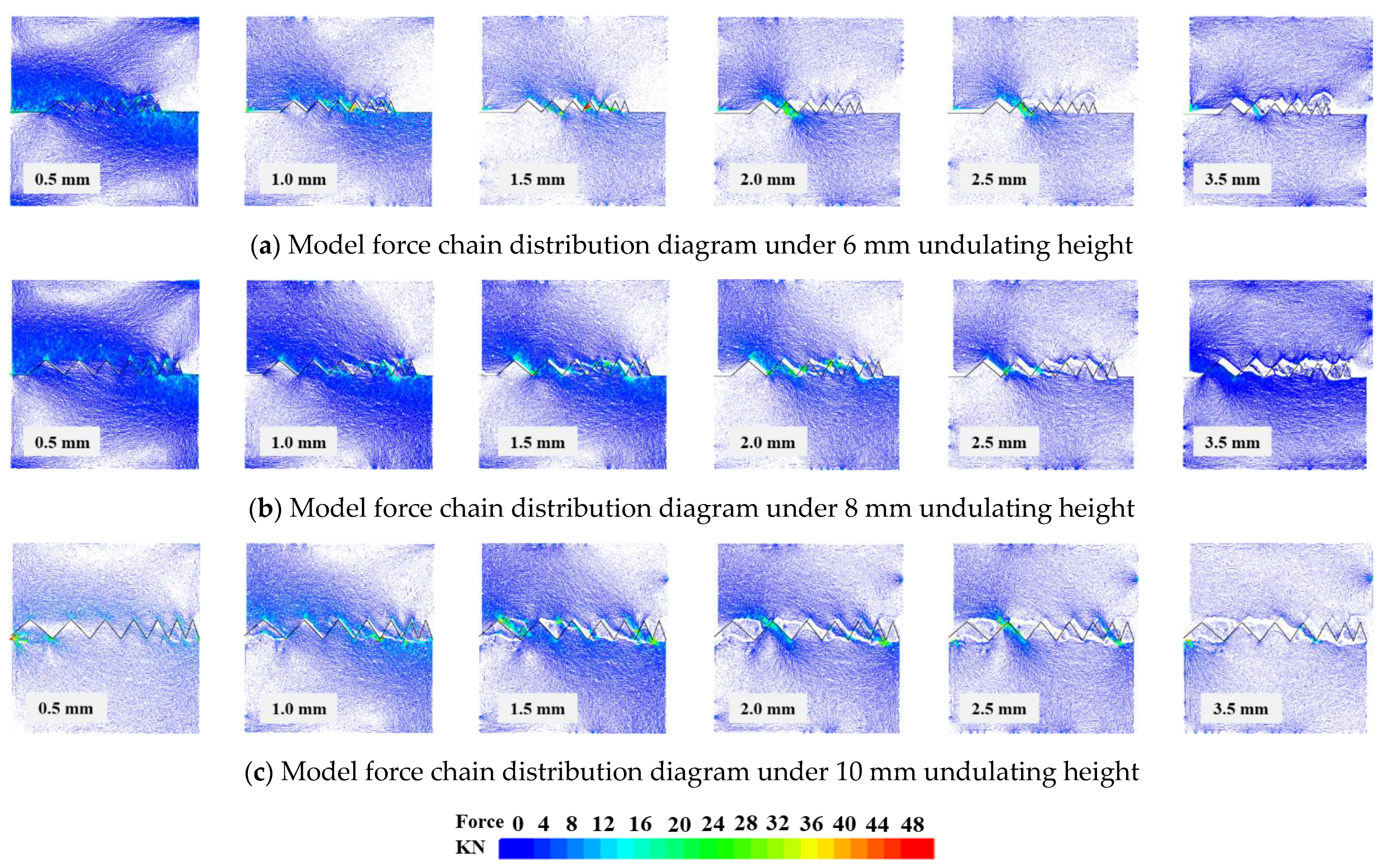

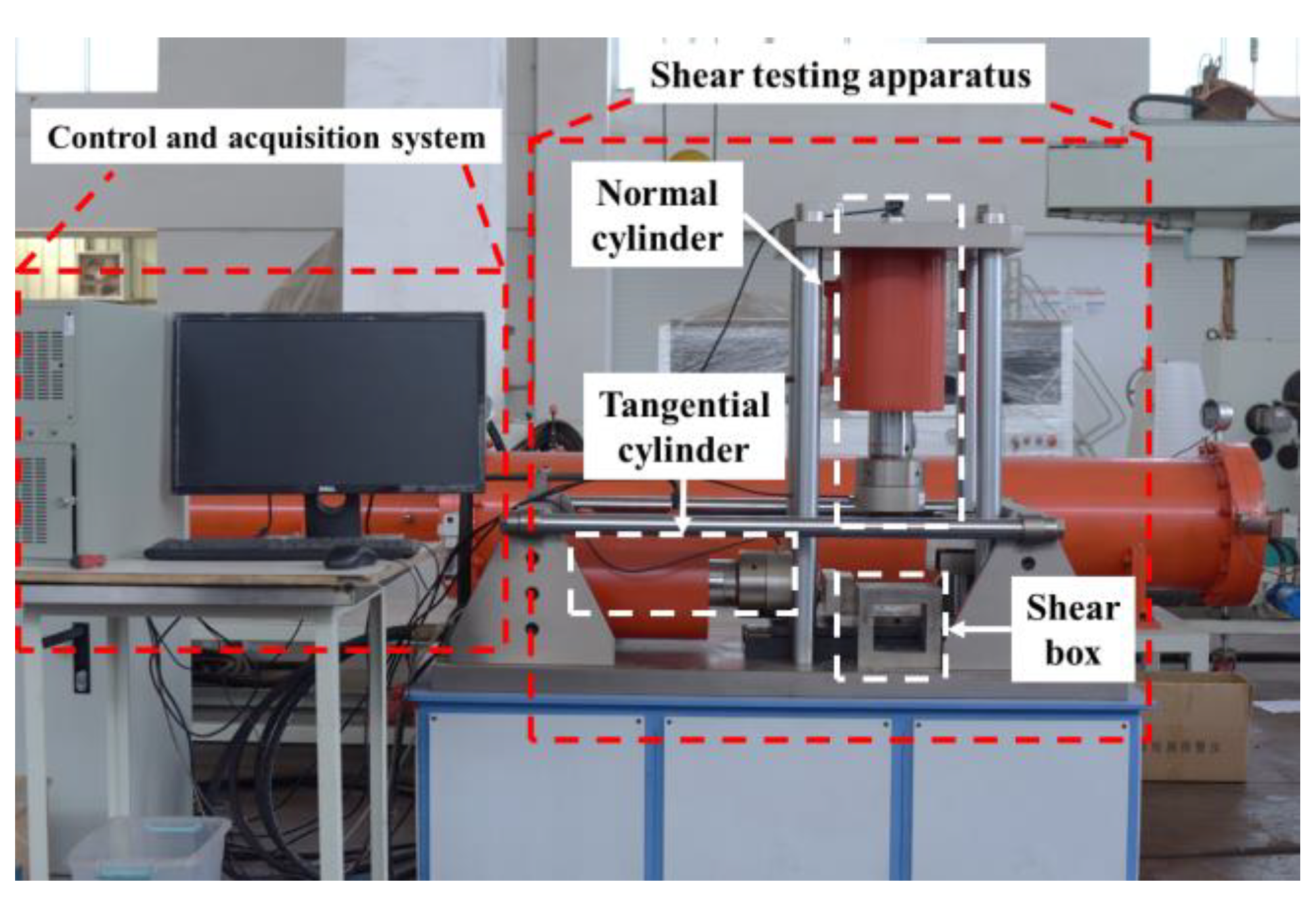

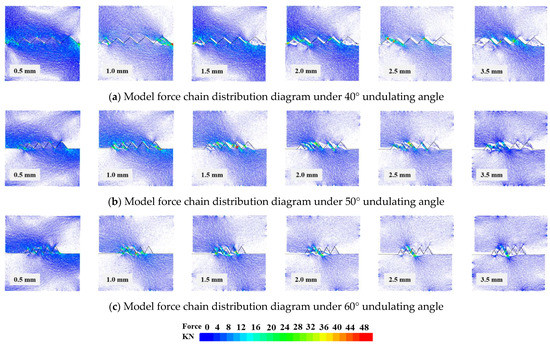

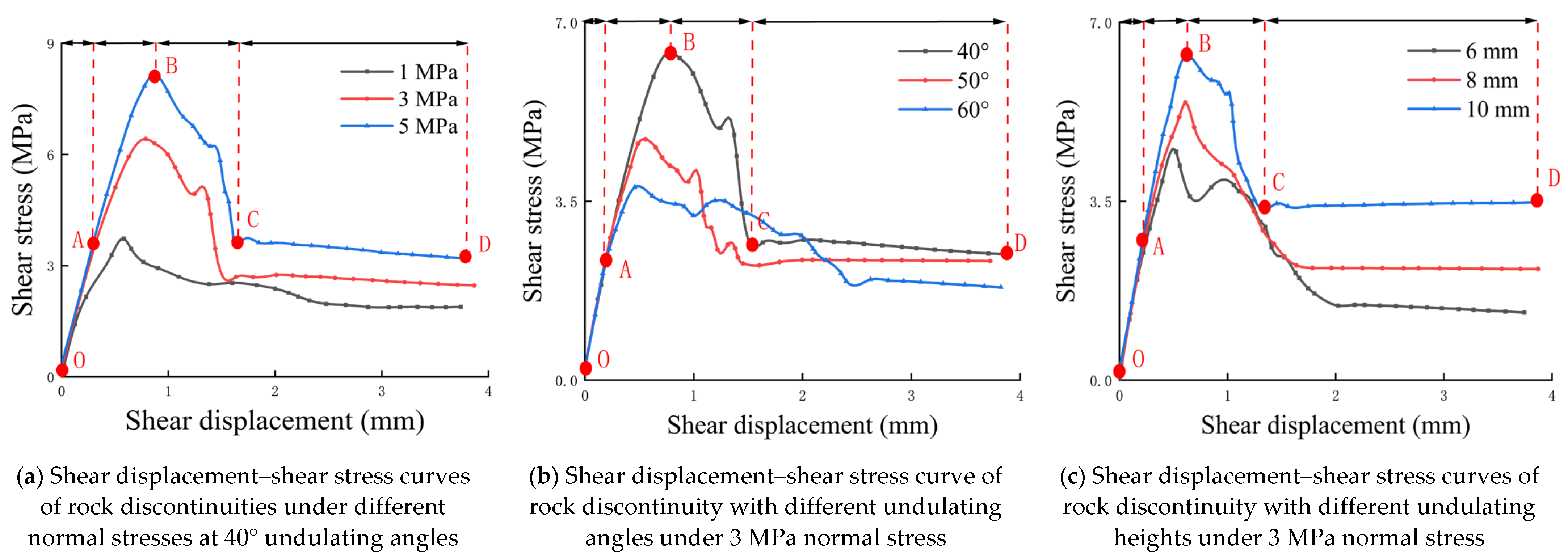

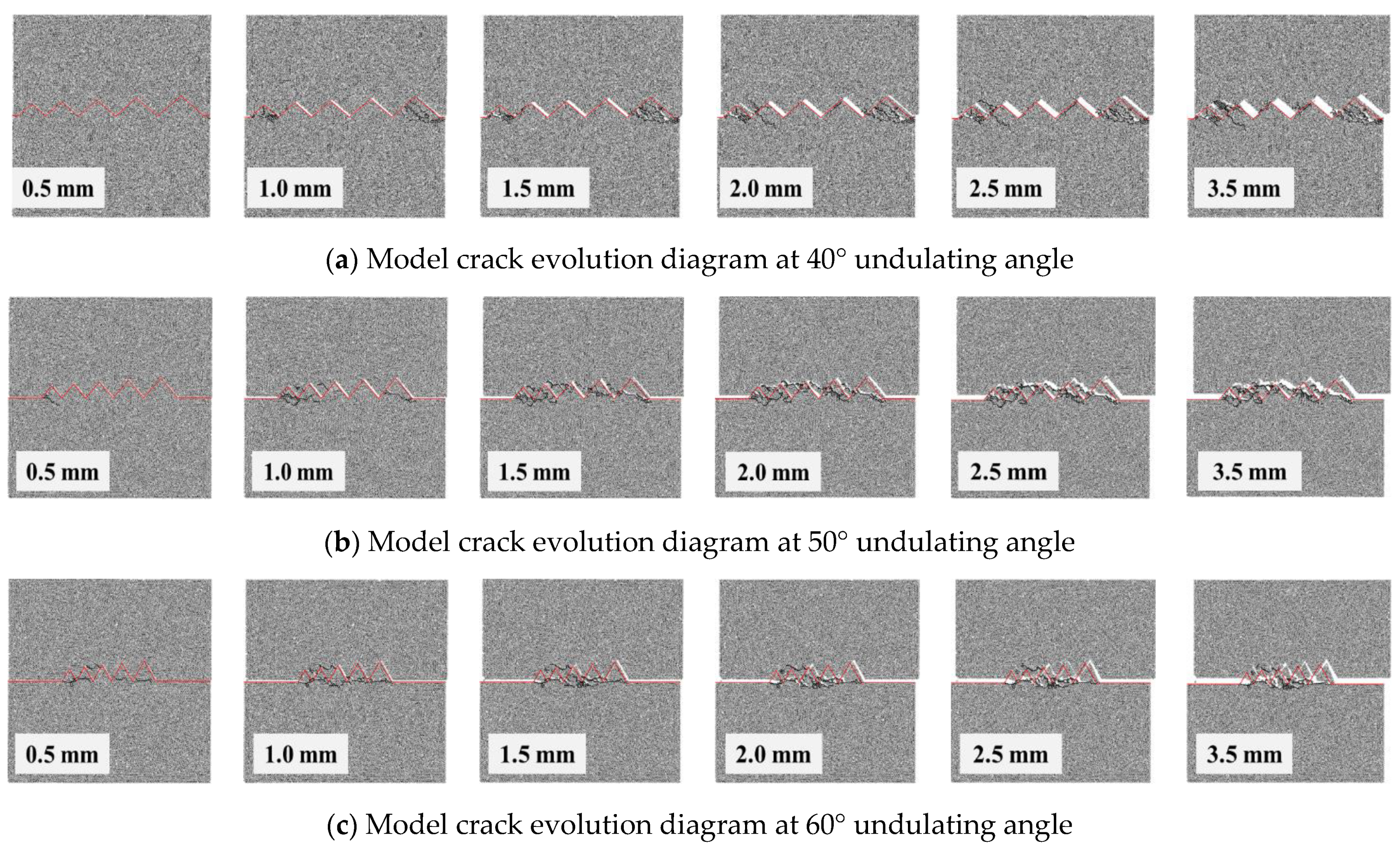

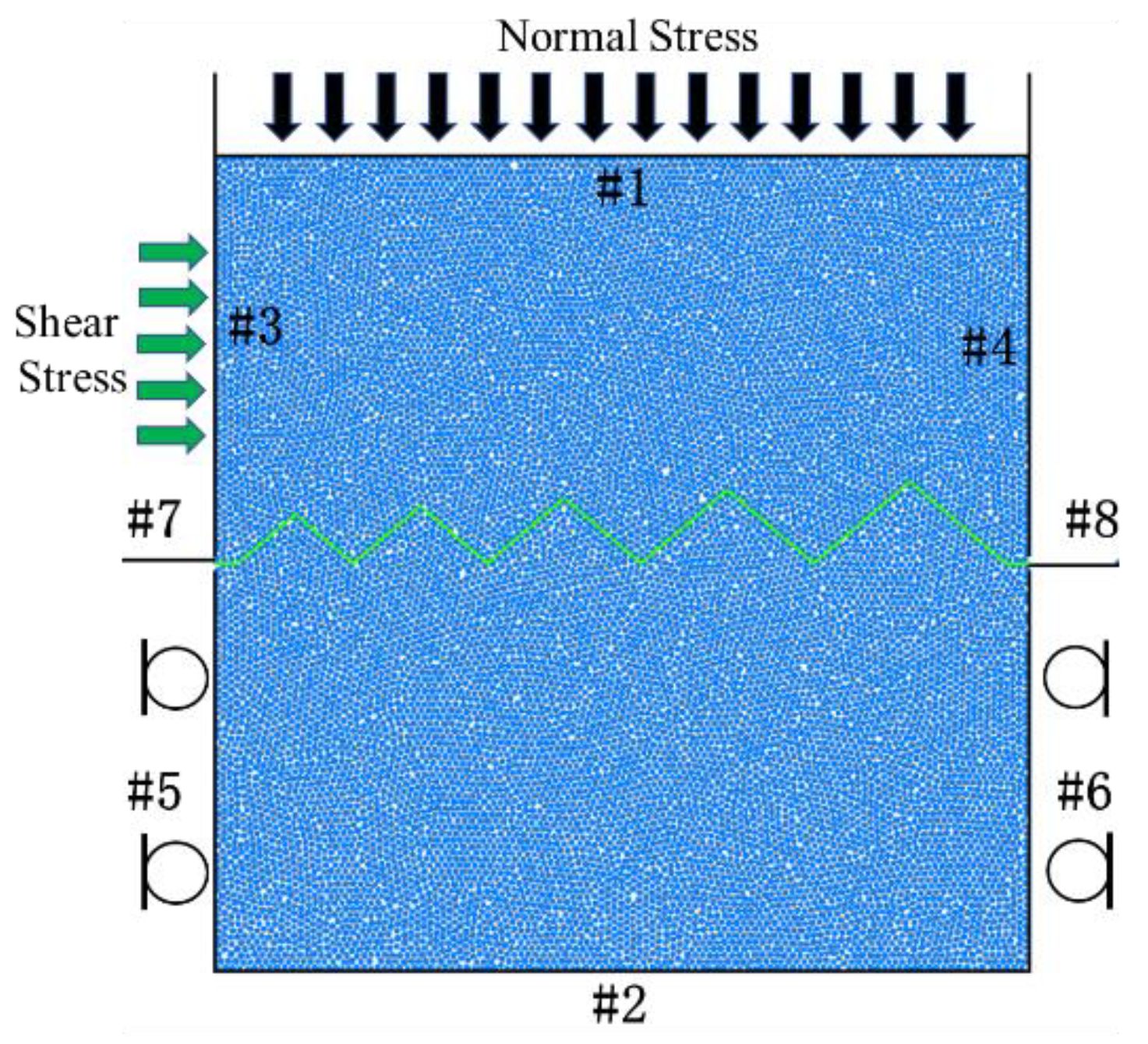

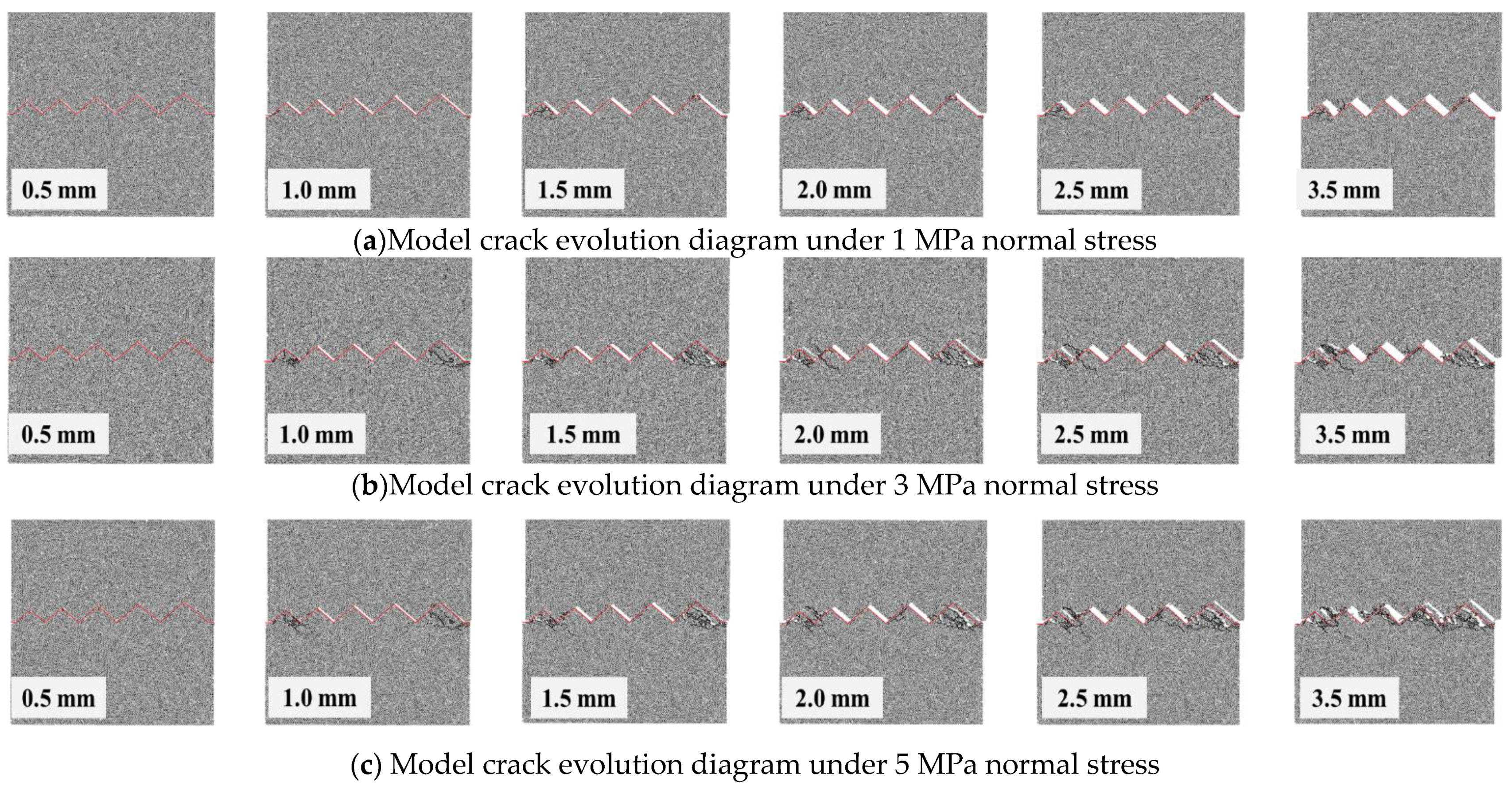

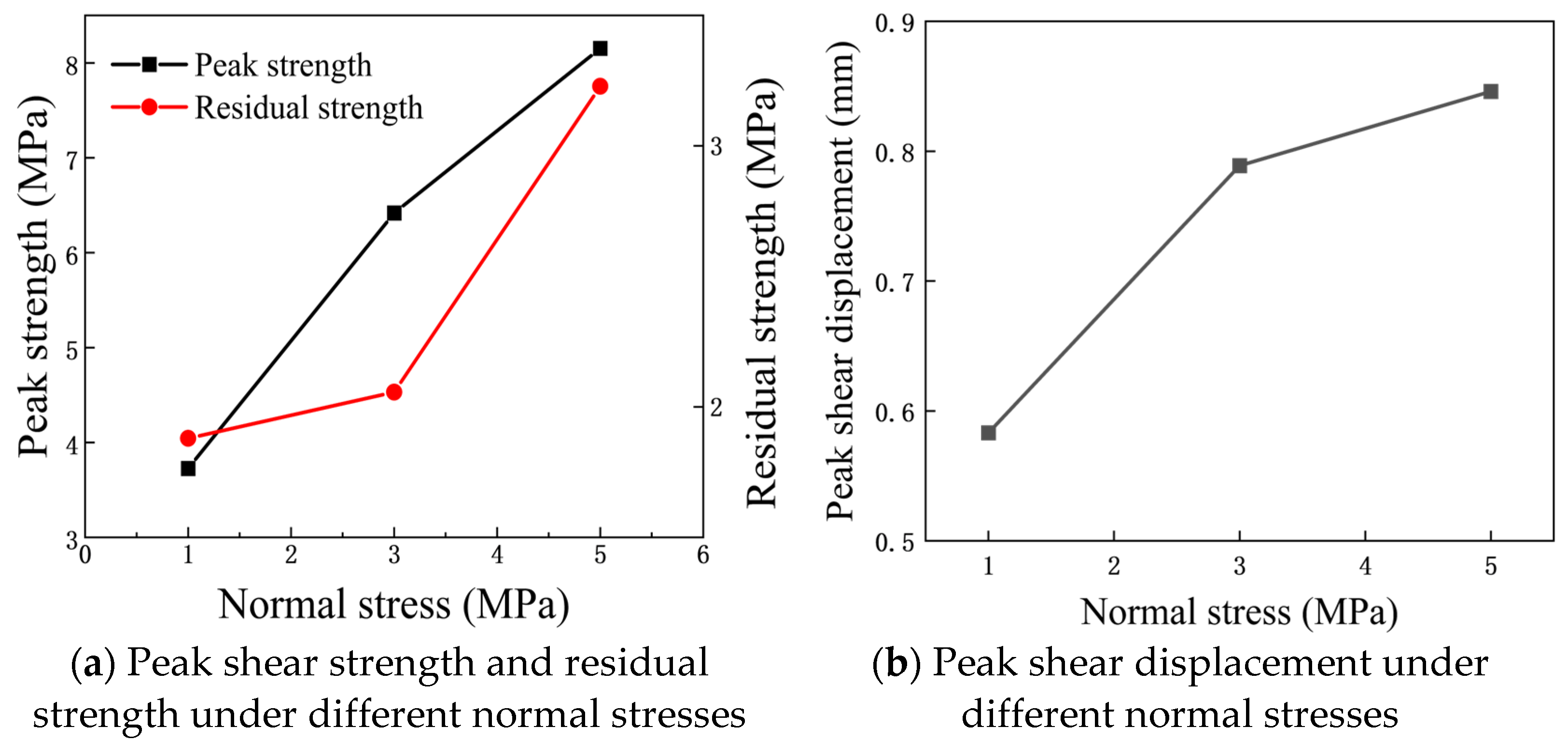

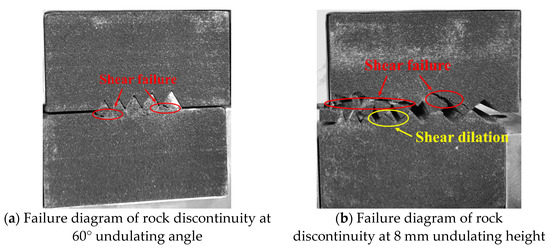

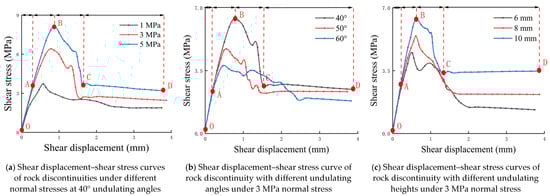

To analyze the shear characteristics and mesoscopic failure mechanism of irregular serrated rock discontinuities, a great deal of interview samples of irregular serrated structures were made by 3D printing technology, and laboratory shear tests were carried out on them under different normal stresses. At the same time, PFC numerical simulation software is used to establish relevant models to study the evolution of microcracks and the distribution characteristics of the force chain on the rock discontinuity during the shear process. The results show that the shear mechanical properties of irregular serrated rock discontinuities are affected by normal stress, undulating angle, and undulating height. The shear strength increases with the increase of normal stress and undulating height, and decreases with the increase of undulating angle. The numerical simulation results show that the irregular structural surface cracks under different undulation angles, which first start at the near force end serration root on both sides and further evolve to the adjacent serrations, while the irregular structural surface cracks under different undulation heights, which first start at the serration root with the lowest height and expand to the adjacent serrations. At the same time, the number of cracks increases with the increase of normal stress and the force chain is mainly distributed near the sawtooth surface. The force chain is more concentrated near the near force end sawtooth and at the tip and root of the rest of the sawtooth. At the same time, the direction of the force chain is approximately perpendicular to the force surface of the sawtooth. The research results are helpful in further understanding the shear mechanical properties and differences of irregular serrated rock discontinuities.
