1. Introduction
Accelerometers are often employed in the field to analyze an athlete’s running style as they are low cost, lightweight and have low power requirements [
1]. Estimating joint angles is possible with multiple accelerometer setups by placing sensors on the relative segments above and/or below the joint [
2,
3,
4,
5]. However, they require extensive setup and data processing procedures to overcome errors associated with longitudinal analysis, such as sensor misalignment [
6]. As a result, measuring the acceleration profile of a single segment and inferring changes in kinematics has often been a methodology employed in running-related studies that have analyzed a participant’s running style over longer periods [
7,
8,
9,
10,
11].
During foot contact, ground reaction forces are transmitted upwards through the kinetic chain, causing the individual segments to accelerate [
12]. The accelerations and subsequent velocities of each segment depend on the force transferred by the previous segment and the kinematic and anthropometric profiles of the segments [
12]. Observing differences/changes in peak segmental accelerations has been previously employed within running-based studies to analyze the kinematic alterations within an individual’s running style [
10,
13,
14]. Suboptimal running kinematics can cause excessive soft tissue and bone stress during running, leading to injury [
15] or reduced performance [
16]. It is essential for sports science and medicine practitioners to ensure their athletes remain healthy and perform at a high level. Therefore, insights into an athlete’s running kinematics will be beneficial to manage training load appropriately or to measure progress during an athlete’s injury rehabilitation.
Employing a single accelerometer with minimal setup and data processing procedures to analyze running style is favorable when analyzing in the field with more than one athlete. Global positioning (GPS) devices are used with team sports athletes to monitor their training load by analyzing derivatives of distance and speed during training and match play [
17]. These devices also contain an embedded tri-axial accelerometer, and most manufacturers’ software calculates peak acceleration instances during a training session [
18], offering a potentially convenient method to analyze an athlete’s running style from already available data. When analyzing these peak accelerations, it is important to consider the mounting site of the accelerometer. The surrounding joints/segments of the segment to which the accelerometer is attached will influence the magnitude of the peak accelerations, and changes in running kinematics will alter the intersegmental transfer of force throughout the kinetic chain [
14]. This has been previously shown at the shank, where peak accelerometer accelerations have increased when the position of the shank becomes more anteriorly rotated due to increased knee flexion [
7]. The GPS devices, however, are positioned in a vest on the posterior aspect of the upper trunk. Therefore, the acceleration peaks captured by the accelerometer will potentially be influenced by the kinematics of the trunk, pelvis, thigh, shank and foot segments.
There has been a limited amount of research that has analyzed the effects of running kinematics on the acceleration profile of the trunk. Lindsay, Yaggie and McGregor (2014) investigated the contributions of the lower limb kinematics on the root mean square acceleration (overall magnitude of acceleration over the whole gait cycle) of an accelerometer placed on the lower trunk close to the center of mass. Sagittal plane kinematics of the hip, knee and ankle at initial foot contact, midstance and terminal foot contact were significantly correlated to the acceleration profile of the lower trunk [
19]. Due to its size and anatomical structure, the trunk contains two segments: lower and upper [
20]; the acceleration profiles of these two segments differ during running [
21]. It has been previously suggested that the positioning of the GPS-based accelerometer device on the upper trunk was inappropriate for detecting changes in lower limb kinematics when analyzing the overall magnitude of acceleration during running due to noise caused within the acceleration profile by upper-limb movement [
22]. However, the experimental setup in that study [
22] did not allow for lower limb kinematics to be captured, so it remains unclear whether there is a relationship between running kinematics and the acceleration profile of the upper trunk. Furthermore, analyzing the peak acceleration of the upper trunk during foot contact, instead of the overall magnitude of acceleration, may provide a more sensitive measure to differences in running kinematics as utilized in other settings.
Naturally, there are inter-subject variations in running kinematics within a population of athletes. A simple method of inducing intra-subject changes is to alter the running speed [
23,
24]. As running speed increases, ground reaction forces and segment velocities increase and as a result, compensatory mechanisms of the musculoskeletal system are employed to attain stability of the trunk segments [
25]. To gain a comprehensive insight into the intersegmental relationship between the lower body and trunk, analysis must be conducted over several different running speeds.
Therefore, this study aimed to determine the effects of running kinematics, over several speeds, on the peak upper trunk segmental accelerations during foot contact captured with an accelerometer embedded in a commonly used GPS device by achieving the following objectives: (1) determine which joint/segments have the largest effect on the peak upper trunk accelerations at initial foot contact (IFC), midstance (MS) and terminal foot contact (TFC); (2) highlight the intersegmental relationship between segment velocities throughout the kinetic chain during foot contact by determining which segments influence the peak accelerations of the upper trunk.
Understanding which running kinematics have the greatest effect on the accelerometer data will allow sports science and medicine practitioners to use GPS-based accelerometer data to measure an athlete’s running style in the field. We hypothesize that there will be a significant relationship between running kinematics and the peak accelerations captured by the GPS-embedded accelerometer.
2. Materials and Methods
2.1. Experimental Set Up
Thirteen male participants (age: 27 ± 3.7 years, height: 1.81 ± 0.06 m, mass: 82.7 ± 6.2 kg) with extensive running experience were recruited for this study. Participants completed a single trial of treadmill running (1 degree inclination) for 40 s at 9 different speeds starting at 10 km/h and proceeding to 18 km/h at 1 km/h increments. Maximum rest time was allowed between sets to ensure minimal fatigue accumulation. Participants were provided with standardized running shoes (Puma Anzarun) and wore an appropriately sized standard issue vest containing a GPS device (Statsports Apex, Northern Ireland, UK) which contained an embedded high-frequency tri-axial accelerometer. Each trial was captured by an 18-camera motion capture system (Vicon, Oxford, UK). Ethical clearance for this testing procedure was granted by the Staffordshire University Research Ethics Committee and all participants gave informed written consent prior to testing.
2.2. Data Processing
Eighteen optical cameras (VICON MXT40, Oxford, UK) recorded the coordinate data of fifty-four infrared markers (14 mm) attached to the participants at a frequency of 100 Hz. A modified Istituto Ortopedico Rizzoli (IOR) marker set with five additional clusters attached to the left thigh, right thigh, left shank, right shank and the posterior aspect of the GPS device [
26,
27,
28] was employed to calculate kinematic variables. The global coordinate system defined the X-axis to represent anterior–posterior movement (positively oriented forward), the Y-axis for medio-lateral movement (positively oriented to the left), and the Z-axis for vertical movement (positively oriented upward). The coordinate data was then transferred from the Vicon Nexus software version-2.8.2 to Visual 3D (C-Motion Inc., Germantown, MD, USA) and filtered (4th order Butterworth, 10 Hz cut-off frequency).
The tri-axial accelerometer embedded within the GPS device was mounted around the posterior aspect of the thoracic spine (T2) and housed vertically within a standard issue vest. The orientation of the device aligned the Y-axis to vertical (VT) acceleration (positive in the upward direction), the X-axis to medio-lateral (ML) acceleration (positive in the left direction), and the Z-axis to anterior–posterior (AP) acceleration (positive in the forward direction). Time series data of the accelerometer was recorded at 100 Hz. Raw accelerometer data was transferred from the STATSports Apex software version-2.0 to Visual 3D software version-2022 (C-Motion Inc., Germantown, MD, USA).
To synchronize the data between the optical motion capture system and accelerometer, an assistant ‘tapped’ the GPS device in a downward vertical direction at the beginning of each trial. The frame of the tap was identified in both data sets. Ten consecutive gait cycles were selected for analysis following a 20 s ramp period to allow for participants to reach the target running speed.
2.3. Running Kinematic Variables
A total of 160 kinematics variables were calculated during key gait events of foot stance to provide a comprehensive insight into the intersegmental relationship between joint/segment angles and subsequent segment velocities throughout the stance phase. A kinematic method [
29,
30] was employed to determine IFC, MS and TFC. Three-dimensional joint/segment angles were calculated for the thorax, trunk, pelvis, hip, thigh, knee, shank, ankle and foot at IFC, MS and TFC. Additionally, three-dimensional peak segment velocities were calculated for the thorax, trunk, pelvis, thigh, shank and foot during the two subphases of foot stance (IFC–MS and MS–TFC). Averages of each variable were calculated across the ten gait cycles.
2.4. Accelerometer Variables
Peak accelerometer accelerations during foot stance were calculated by initially identifying the time events of IFC and TFC within the accelerometer data (as per the authors’ prior study). Within each instance of foot stance, the peak acceleration values for each axis and resultant (RES) acceleration were identified. The averages of the peak acceleration values were calculated across the ten cycles for each axis and resultant acceleration.
2.5. Statistical Analysis
Generalized linear mixed model (GLMM) analysis was selected as the appropriate method of establishing the effects of the running kinematics (fixed effects) on peak accelerometer accelerations (dependent variables) due to the study design containing multiple measures per subject. GLMMs are regression models that allow for autocorrelation and are therefore preferred when observations are not independent and contain repeated measures [
31,
32]. The data structure of the fixed effect and dependent variables were continuous, so a linear model with identity link function f(x) = x was employed.
A series of GLMMs were conducted due to the number of fixed effect and dependent variables. Fixed effect variables were separated into two categories, and the running speed was defined as the repeated measure. Category 1 contained the joint/segment three-dimensional kinematics at IFC, MS and TFC. Category 2 contained the peak segmental velocities between IFC–MS and MS–TFC. Preliminary GLMM analysis was conducted on the individual joint/segment kinematics, separately for category 1 and 2 variables against each dependent variable, to filter out non-significant variables (p value > 0.05).
The remaining category 1 and 2 fixed effect variables were then further analyzed by GLMM against each dependent variable. A type III F-test was used to determine the magnitude of the effect of each fixed effect variable (F value), whether it was direct or inverse (fixed effect coefficient) and if it was significant (p value < 0.05). Averages and standard deviations of all F values were calculated to separate the significant fixed effect variables into groups of small effect: F value < average—(0.5 * standard deviation); medium effect: F value > average—(0.5 * standard deviation) and < average + (0.5 * standard deviation); large effect: F value > average + (0.5 * standard deviation). Mean difference (g) between the actual and predicted peak accelerometer accelerations with 95% limits of agreement (LOA) were also calculated from the GLMMs to assess accuracy of each model. In addition, residual effect estimates were calculated to understand the residual effect of running speed on the GLMMs. Statistical analysis was conducted using SPSS software version-29.0.0.0 (IBM Corporation, Armonk, NY, USA).
3. Results
GLMMs for category 1 and 2 fixed effect variables showed a significant relationship for all dependent variables (
p < 0.05,
Table 1). Model summaries of the category 1 fixed effect GLMMs to estimate the peak accelerations were RES (mean difference: −0.01 g; LOA: −0.43 g, 0.42 g; F value: 54.18;
p < 0.05), VT (mean difference: −0.01 g; LOA: −0.49 g, 0.47 g; F value: 48.06;
p < 0.05), AP (mean difference: 0.00 g; LOA: −0.16 g, 0.17 g; F value: 56.43;
p < 0.05) and ML (mean difference: −0.01 g; LOA: −0.20 g, 0.18 g; F value: 33.41;
p < 0.05). Model summaries of the category 2 fixed effect GLMMs to estimate the peak accelerations were RES (mean difference: 0.00 g; LOA: −0.42 g, 0.43 g; F value: 720.83;
p < 0.05), VT (mean difference: −0.01 g; LOA: −0.61 g, 0.64 g; F value: 149.79;
p < 0.05), AP (mean difference: 0.00 g; LOA: −0.21 g, 0.21 g; F value: 53.93;
p < 0.05) and ML (mean difference: 0.00 g; LOA: −0.17 g, 0.17 g; F value: 55.38;
p < 0.05). Significant residual effects of running speed were observed on peak RES, VT and ML accelerations for category 1 fixed effect variables (
p < 0.05,
Table 2). However, running speed had significant residual effects on all peak accelerations for category 2 fixed effect variables (
p < 0.05,
Table 3).
F-test results showed significant effects (

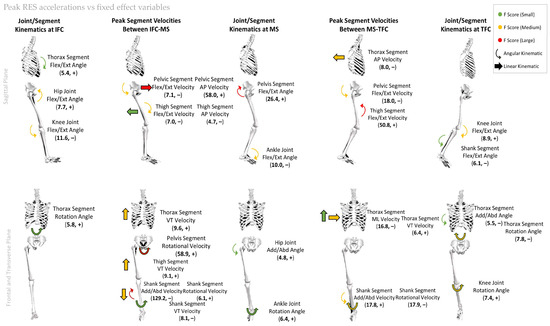

p < 0.05) of category 1 fixed effect variables on the peak accelerations in the upper-trunk-mounted accelerometer, which varied between axes and were dependent on the phase during contact. For peak RES accelerations, the thorax (IFC), pelvis (MS), hip (IFC and MS), knee (IFC and TFC), shank (TFC) and ankle (MS) had significant (
p < 0.05) F values ranging from 5.4 to 26.4 (

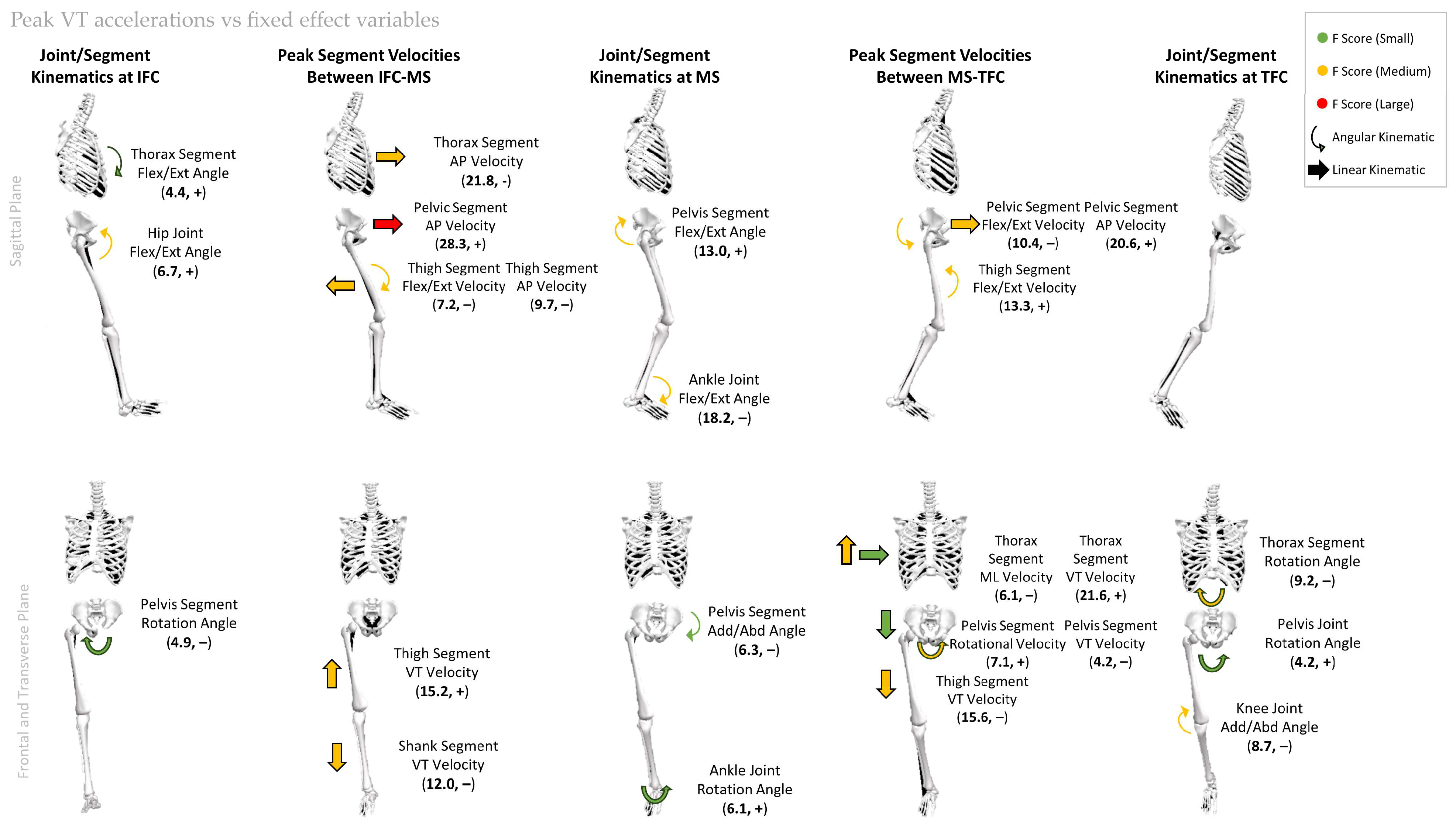

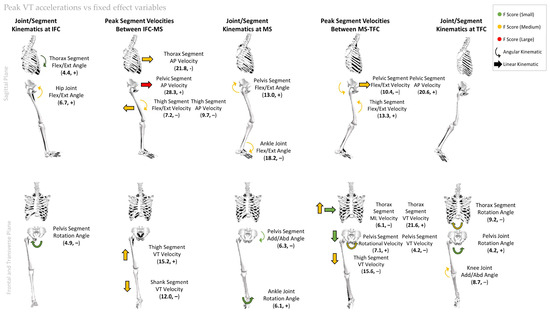

Figure 1). For peak VT accelerations, the thorax (IFC and TFC), pelvis (IFC, MS and TFC), hip (IFC), knee (TFC) and ankle (MS) had significant (
p < 0.05) F values ranging from 4.2 to 18.2 (

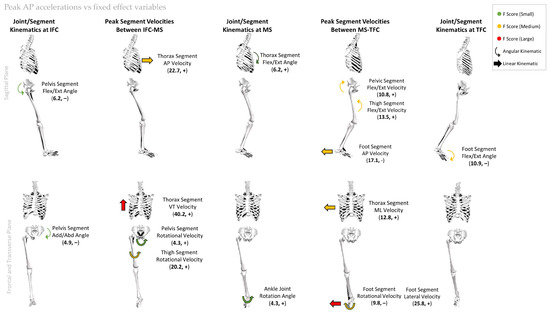

Figure 2). For peak AP accelerations, the thorax (MS), pelvis (IFC), ankle (MS), and foot (TFC) had significant (
p < 0.05) F values ranging from 4.3 to 10.9 (

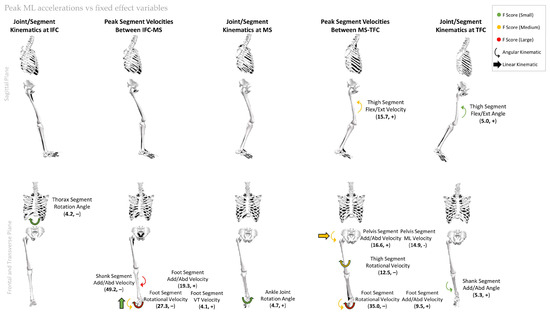

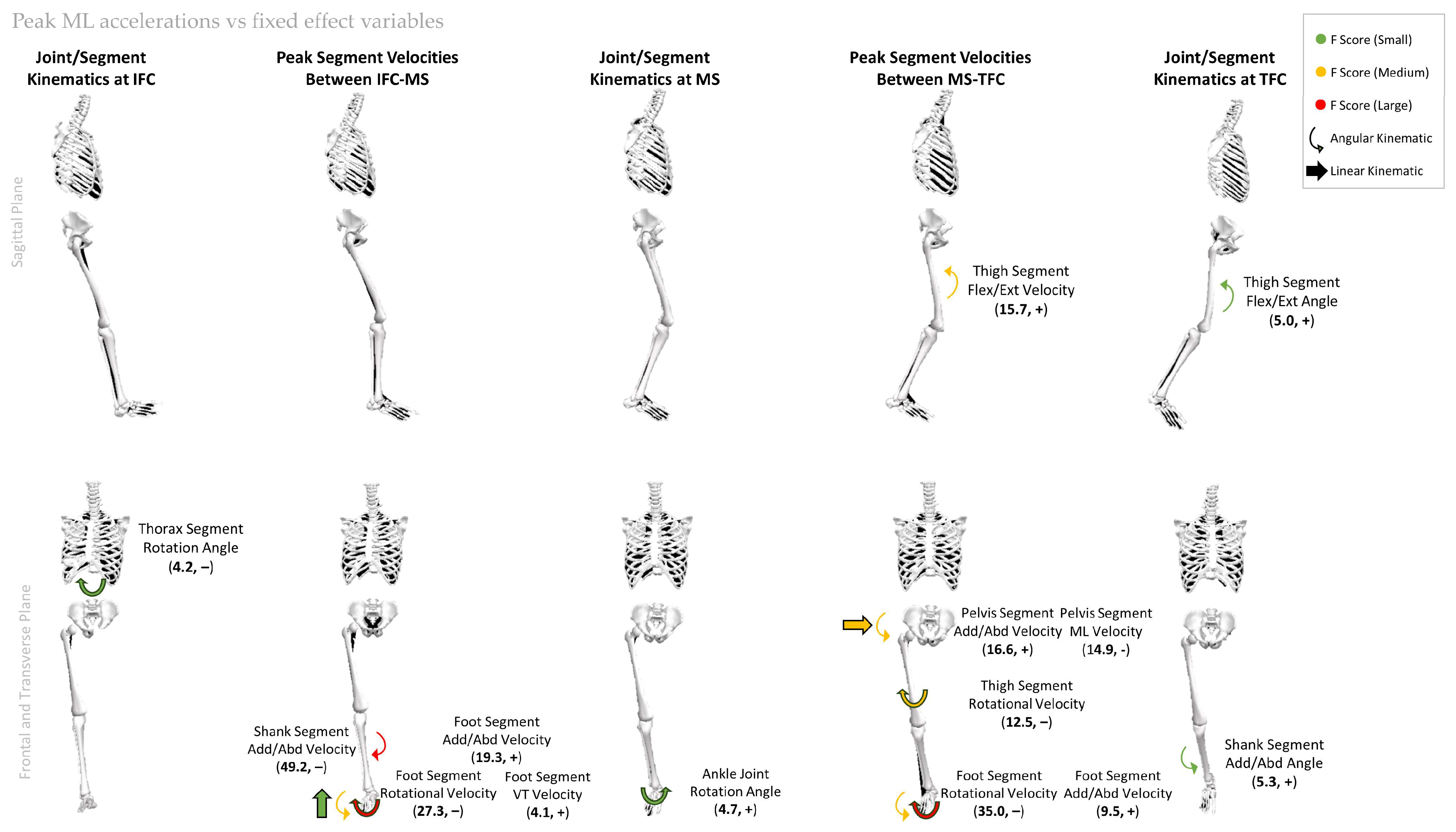

Figure 3). Lastly, for peak ML accelerations, the thorax (MS), pelvis (IFC), ankle (MS) and foot (TFC) all had significant (
p < 0.05) F values ranging from 4.2 to 5.3 (
Figure 4).
Category 2 fixed effect variables had significant effects in both subphases of foot contact (IFC–MS and MS–TFC) and the largest range in F values (4.2–129.2). For RES, VT and AP peak accelerations, the thorax, pelvis and thigh significantly affected both subphases (
p < 0.05,
Figure 1,
Figure 2 and
Figure 3). The shank had a significant effect in both subphases for RES but only in IFC–MS for VT and ML acceleration peaks (
p < 0.05,
Figure 1,
Figure 2 and
Figure 4). The foot also had a significant effect in AP during MS–TFC and during both subphases for ML acceleration peaks (
p < 0.05,
Figure 3 and
Figure 4). In addition, the pelvis and thigh significantly affected ML acceleration peak during MS–TFC (
p < 0.05,
Figure 4).
4. Discussion
The present study aimed to determine the effects of running kinematics during foot contact on the peak upper trunk accelerations captured by an accelerometer embedded within a commonly used GPS tracking device. Variables of running kinematics were separated into two categories: joint/segment kinematics at IFC, MS and TFC, and peak segment velocities between IFC–MS and MS–TFC. Analyzing these variables independently, through GLMMs, allowed for insights into which joint/segments have the largest effect on the peak upper trunk accelerations, during which key gait event this occurs and the effect of the subsequent peak velocities of the bodily segments during the impact (IFC–MS) and propulsion (MS–TFC) subphases of foot contact.
GLMM summaries showed that category 2 fixed effect variables (peak segment velocities) had a larger effect (F value) than the category 1 fixed effect variables (joint/segment kinematics) on the RES, VT and ML accelerometer peak accelerations (
Table 1). In addition, running speed had a greater residual effect on the category 2 fixed variables (
Table 2). To our knowledge, these comparisons have not been previously reported; however, they substantiate the relationships described by Derrick (2004) on the determinants of bodily segmental accelerations when exposed to impact forces during running. These findings infer that including segment velocities in future studies can lead to a better understanding of the intersegmental relationship during running instead of focusing on joint kinematics alone, as seen in previous studies [
7,
19,
33].
It has previously been well documented that increased joint stiffness and stability around the lower limb segments result in less GRF attenuation and more force transferring up the kinetic chain, leading to greater impact and propulsion forces during running [
19,
34,
35]. Our results support findings from Lindsay et al. (2014) as decreased knee flexion at IFC increases the shank segment’s stability, reducing the shank’s peak linear and angular velocities during the impact subphase (IFC–MS) and causing greater peak accelerometer accelerations (
Figure 1). The shank segment had the largest effect on peak RES (F value = 129.2,
Figure 1) and ML (F value = 49.2,
Figure 4) accelerometer accelerations of all peak segment velocities, thus displaying its important role in the transfer of GRF throughout the kinetic chain.
Additionally, during MS, the role of the ankle is apparent as there is a medium-sized effect of decreased ankle flexion resulting in larger RES (F value = 10.0,
Figure 1) and VT (F value = 18.2,
Figure 2) peak accelerations, suggesting that larger acceleration peaks are related to reduced decoupling of the ankle joint. Increased joint stiffness can increase propulsion forces capabilities during stance [
35], resulting in larger peak segment velocities. This is shown in the propulsion subphase (MS–TFC) as increased peak angular (flexion) velocity of the thigh has a large to medium-sized effect on the peak accelerometer accelerations in all axes (
Figure 1,
Figure 2,
Figure 3 and
Figure 4). Furthermore, large to medium-sized effects were observed for foot segment linear (posterior and medial) and angular (internal rotation) peak velocities on the AP and ML peak accelerometer accelerations (
Figure 3 and
Figure 4). These findings differ from previous investigations [
19] as the ankle flexion angle was associated with TFC and they did not analyze segmental velocities, possibly due to the different accelerometer mounting sites.
The proximal joints and segments of the trunk were shown in our results also to influence the peak accelerometer accelerations. During impact (IFC–MS), the second largest effect on peak RES accelerometer accelerations was observed at the pelvis segment (F value = 58.0,
Figure 1). Increased hip flexion at IFC, which also supports previous findings [
19], reduces the effective mass of the pelvis segment [
12], causing increased linear (anterior) and angular (internal rotation) peak velocities during impact (IFC–MS) (
Figure 1). This results in increased flexion of the pelvis at MS due to the pelvis decoupling to support the deceleration of the trunk segment post-impact as it supports trunk stability. During propulsion (MS–TFC), there are medium-sized effects of pelvis angular (extension and internal rotation) and linear (anterior) peak velocities, which contribute to larger RES and VT peak accelerometer accelerations (
Figure 1 and
Figure 2). Conversely, reduced extension peak velocities (increased flexion) at the pelvis contributed to larger AP peak accelerometer accelerations, and greater frontal plane peak velocities at the pelvis resulted in larger ML peak accelerometer accelerations (
Figure 3 and
Figure 4). This indicates that insights can be gained into pelvis extension and stability properties of athletes by analyzing the differences between VT, AP and ML peak accelerometer accelerations.
Furthermore, similar differences between the peak accelerometer accelerations were also observed regarding the thorax segment velocities. Reduced peak linear (anterior) velocity during impact and increased peak linear (vertical) velocity during propulsion of the thorax resulted in larger VT peak accelerometer accelerations (
Figure 2). Whereas increased linear (vertical and anterior) peak velocity during impact and increased linear (lateral) peak velocity during propulsion of the thorax resulted in larger AP peak accelerometer accelerations (
Figure 3). As force is transferred from the pelvis to the trunk, the surrounding musculature is activated to maintain stability and influences the subsequent displacement of the trunk segment [
25]. Therefore, our results suggest that analyzing the differences between the VT and AP peak accelerometer accelerations may provide insights into these mechanisms.
Findings from this study show that GRF attenuation properties of the surrounding joints to the shank segment and the kinematics of the pelvis in maintaining trunk stability, specifically at MS, have the largest effects on the peak accelerometer accelerations. Practical applications of these findings are that peak accelerometer accelerations could be valuable in analyzing an athlete’s rehabilitation from an ACL reconstruction, as this has been shown to affect knee extension during running [
36]. Alternatively, observing the differences between the axis of peak accelerometer accelerations throughout an athlete’s training session may be used to provide insight into the level of neuromuscular fatigue affecting the stability of pelvis/trunk segments [
37,
38].
While a direct comparison of our results to those of Lindsey et al. (2014) was not possible due to the differences in statistical analysis between the studies, similar findings were observed regarding the significant effects of the hip and knee flexion/extension angle on the RES acceleration profile at IFC (
Figure 1).
The present study utilized GLMMs as repeated measures were present, whereas Lindsey et al. (2014) employed a stepwise regression analysis. Lindsey et al. (2014) mounted their accelerometer on the lower trunk. Therefore, it can be suggested that hip and knee kinematics at IFC affect both the lower and upper trunk acceleration profiles.
In addition, our results refute previous suggestions [
22] that the mounting site of the accelerometer on the upper trunk is unacceptable for observing changes in lower limb running kinematics. The limitations of the present study are that the findings only apply to straight-line running, as the trials were conducted on a treadmill. It is suggested that practitioners utilize the coordinate data from the GPS devices to ensure instances of straight-line running are selected when applying the current findings to field-based running style analysis [
39]. Treadmill running was selected in the study design to control the running speed and to induce intra-subject variations in running kinematics by altering the speed between each trial. As a result, ground reaction forces were not captured due to the absence of an embedded force platform. Considering the residual effects of the running speed observed, especially in the category 2 fixed effect variables, understanding the associated changes in joint/segment kinetics with each running speed and how they differed across a wider variety of running styles would have provided a more comprehensive insight into the effect of different running styles on the GPS-based accelerometer accelerations. The outcome of this study was favorable, considering the significant associations found with relatively small participants. In the future, having a bigger sample size would allow for further verifications of the outcome of this study.
