Figure 1.
Construction phase of Renwan Ruhe Bridge.
Figure 1.
Construction phase of Renwan Ruhe Bridge.

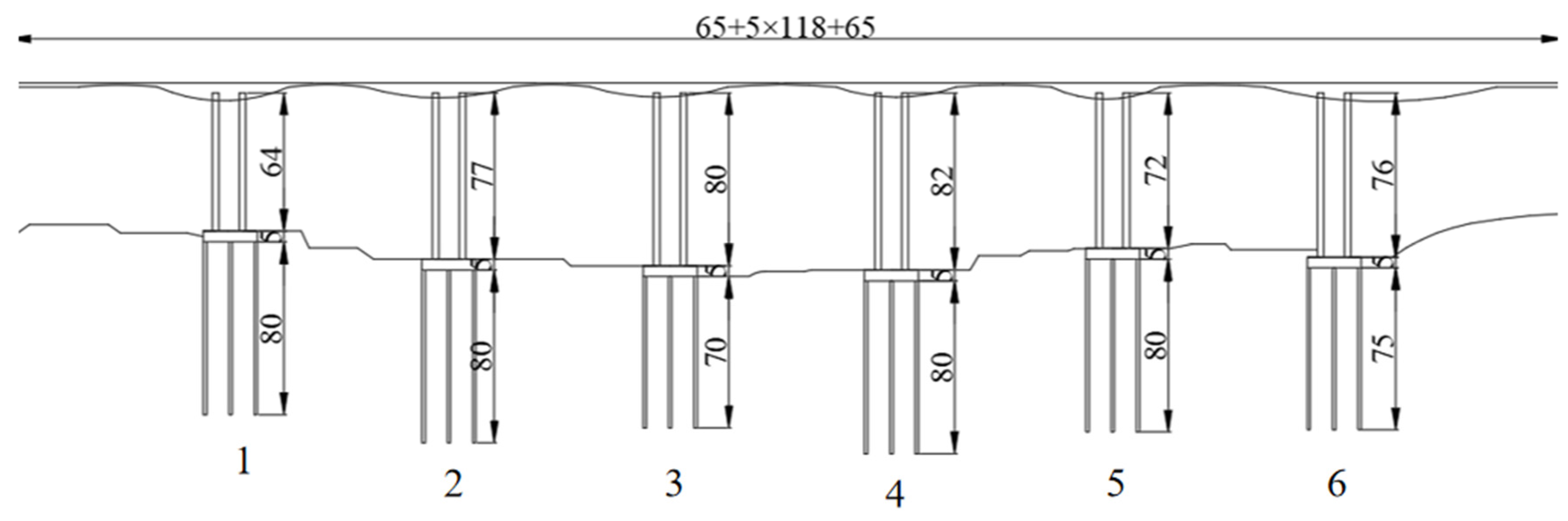

Figure 2.
General arrangement of the bridge.
Figure 2.
General arrangement of the bridge.

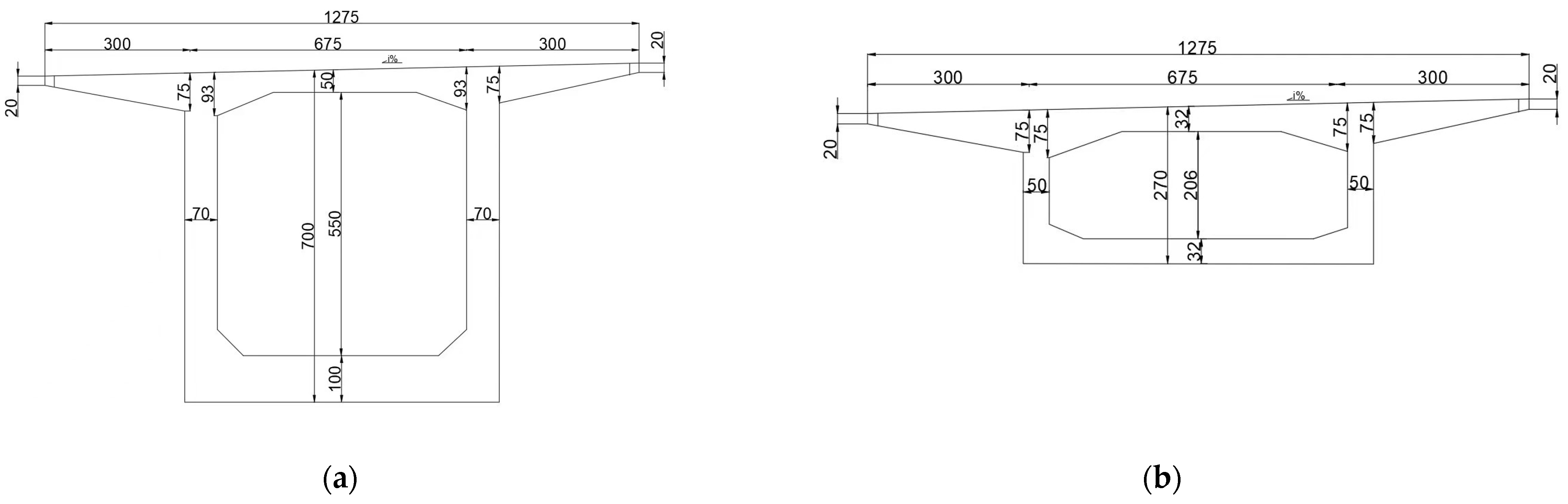

Figure 3.
Cross-sections of the main girder (cm): (a) Cross-section at the top of the pier; (b) Cross- section at mid-span.
Figure 3.
Cross-sections of the main girder (cm): (a) Cross-section at the top of the pier; (b) Cross- section at mid-span.

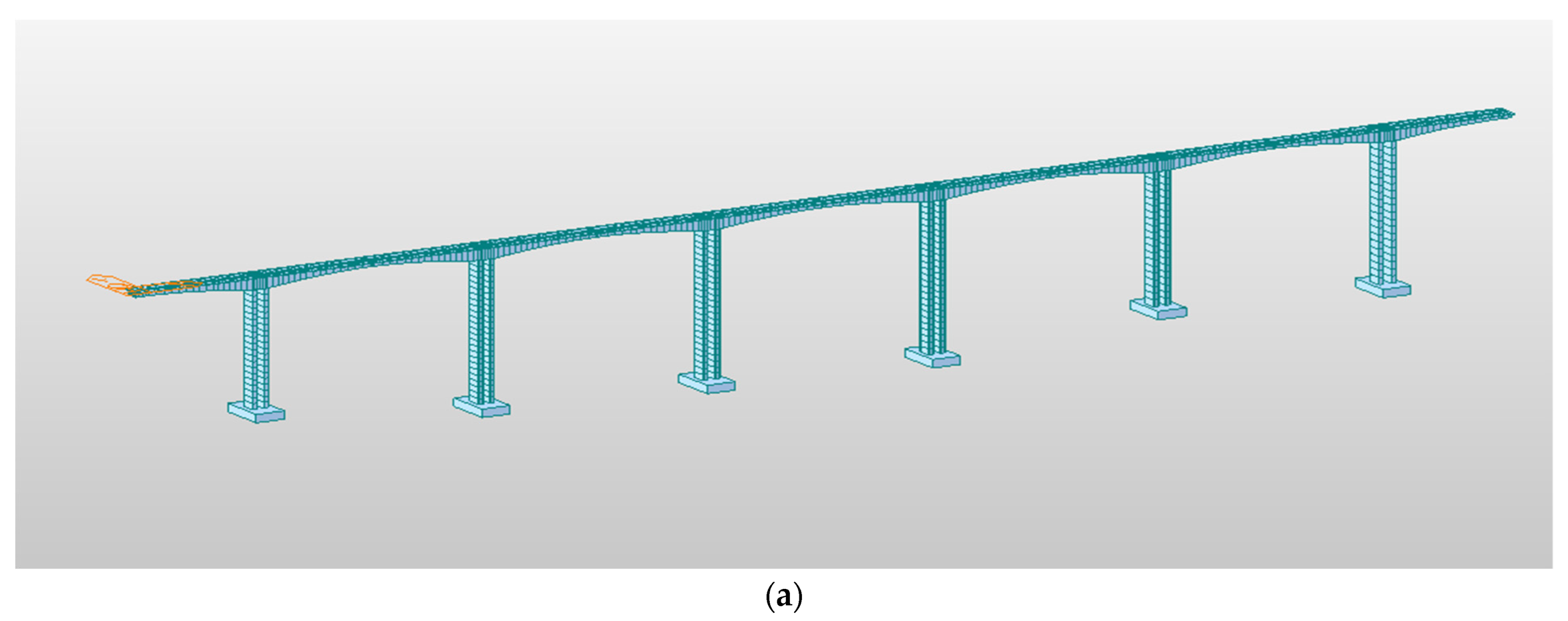

Figure 4.
Numerical sections: (a) pier-bottom consolidation model; (b) pile-soil interaction model; (c) pile-soil interaction model (OpenSees).
Figure 4.
Numerical sections: (a) pier-bottom consolidation model; (b) pile-soil interaction model; (c) pile-soil interaction model (OpenSees).
Figure 5.
Bridge vibration patterns: (a) first-order vibration pattern (Model (a)); (b) second-order vibration pattern (Model (a)); (c) first-order vibration pattern (Model (b)); (d) second-order vibration pattern (Model (b)).
Figure 5.
Bridge vibration patterns: (a) first-order vibration pattern (Model (a)); (b) second-order vibration pattern (Model (a)); (c) first-order vibration pattern (Model (b)); (d) second-order vibration pattern (Model (b)).

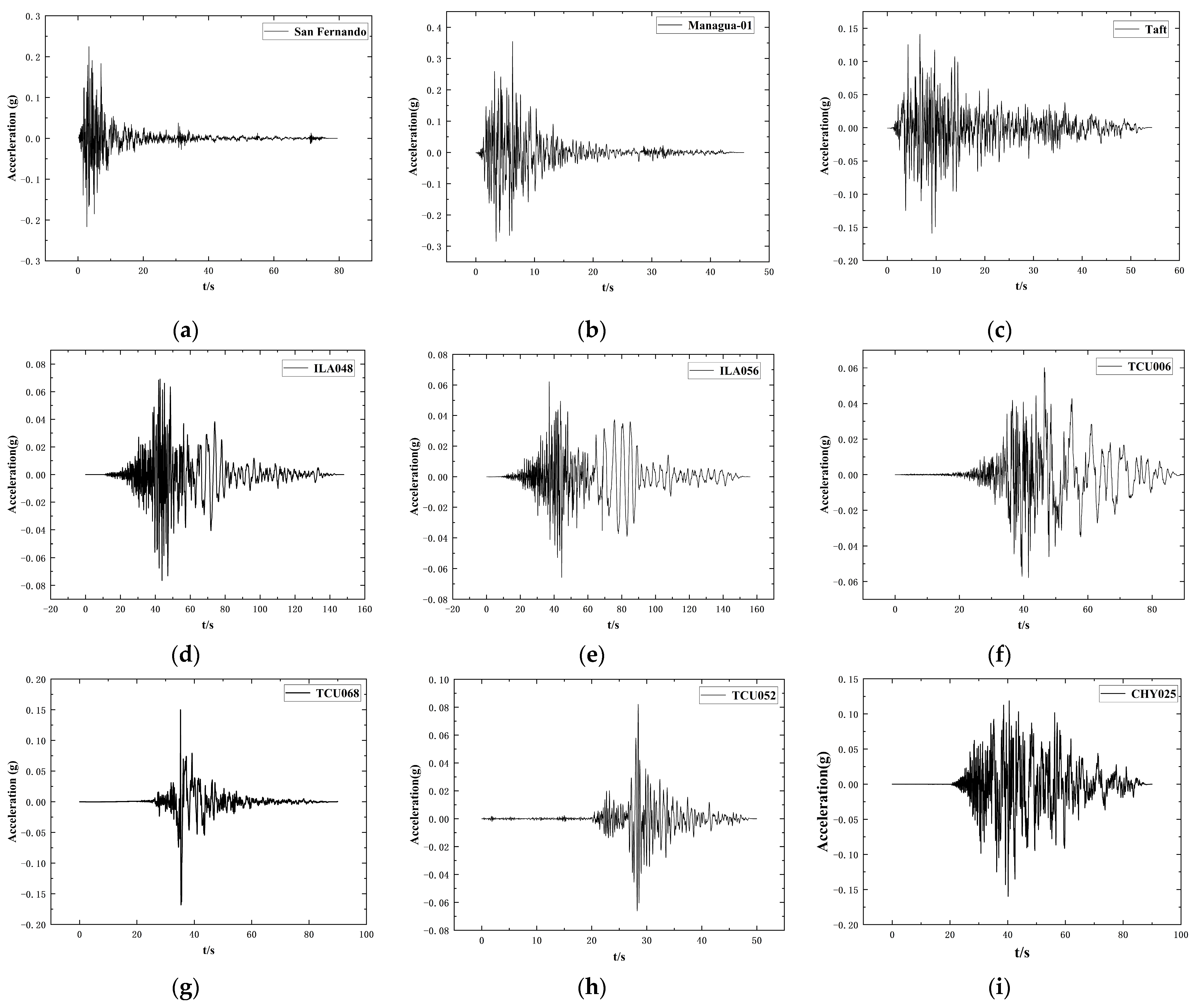

Figure 6.
Ground motion time-range curves: (a) San Fernando; (b) Managua01; (c) Taft; (d) ILA048; (e) ILA056; (f) TCU006; (g) TCU068; (h) TCU052; (i) CHY025.
Figure 6.
Ground motion time-range curves: (a) San Fernando; (b) Managua01; (c) Taft; (d) ILA048; (e) ILA056; (f) TCU006; (g) TCU068; (h) TCU052; (i) CHY025.
Figure 7.
Ground motion acceleration response spectra: (a) ordinary ground shaking acceleration response spectra; (b) far-field long-period ground shaking acceleration response spectra; (c) near-field long-period ground shaking acceleration response spectra.
Figure 7.
Ground motion acceleration response spectra: (a) ordinary ground shaking acceleration response spectra; (b) far-field long-period ground shaking acceleration response spectra; (c) near-field long-period ground shaking acceleration response spectra.

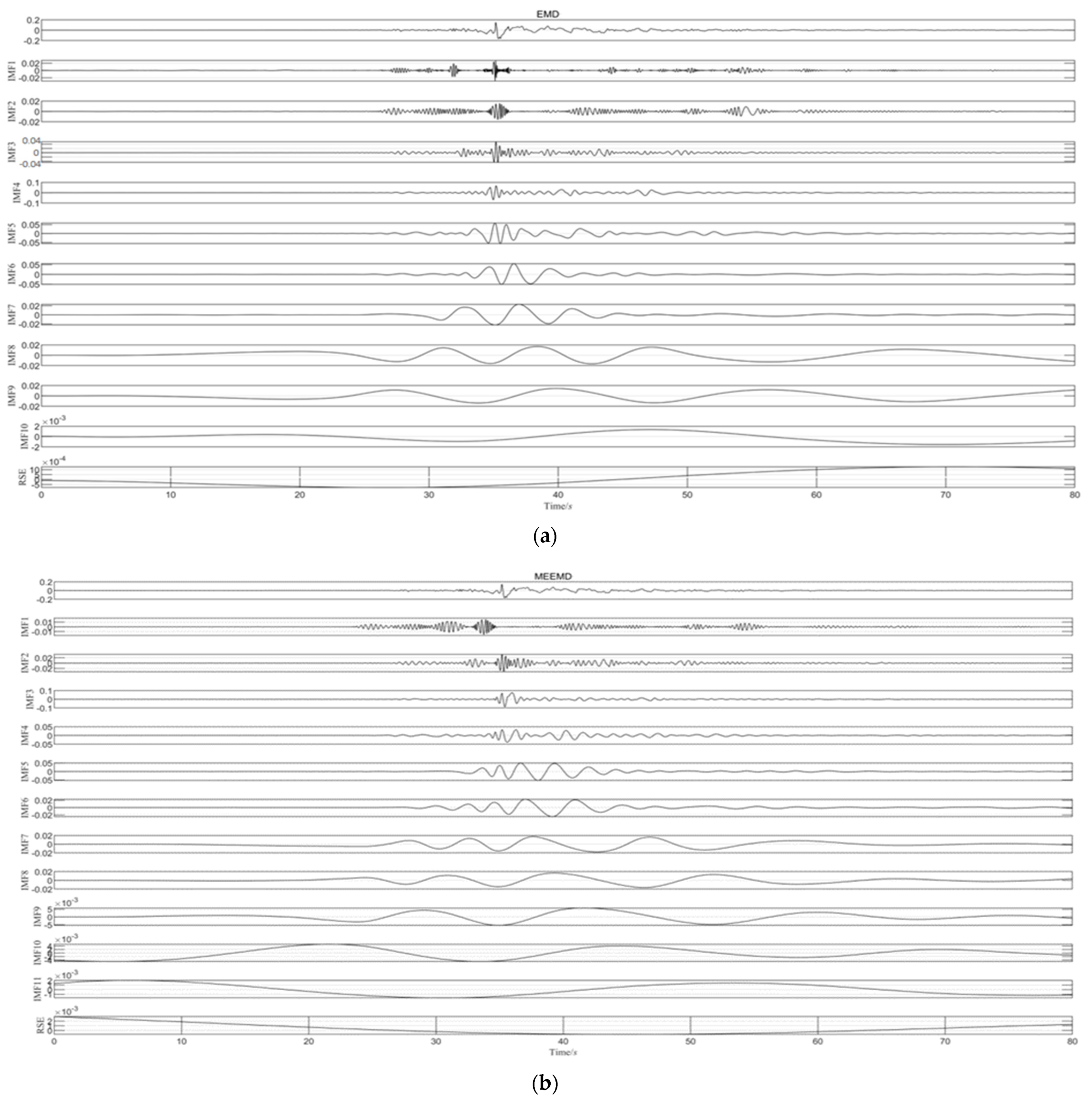

Figure 8.
Decomposition of TCU068: (a) EMD method; (b) MEEMD method.
Figure 8.
Decomposition of TCU068: (a) EMD method; (b) MEEMD method.

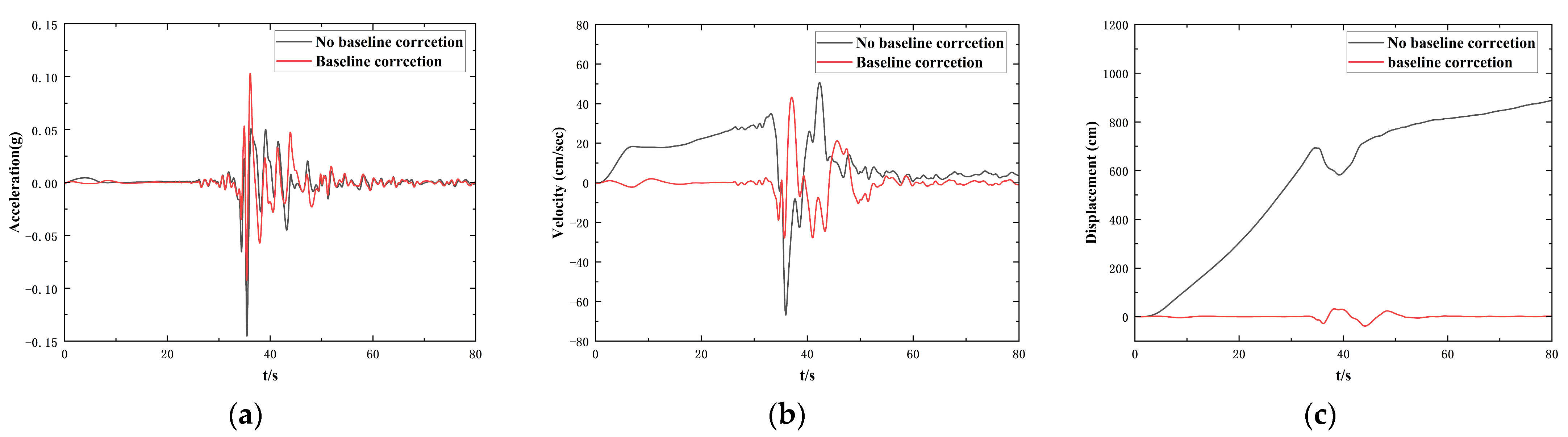

Figure 9.
Comparison of the long-period component before and after basis correction: (a) Acceleration time course (TCU068LPC); (b) Velocity time course (TCU068LPC); (c) Displacement time course (TCU068LPC).
Figure 9.
Comparison of the long-period component before and after basis correction: (a) Acceleration time course (TCU068LPC); (b) Velocity time course (TCU068LPC); (c) Displacement time course (TCU068LPC).
Figure 10.
Component time curve of TCU068: (a) acceleration (LPC); (b) acceleration (SPC); (c) velocity (LPC); (d) velocity (SPC); (e) displacement (LPC); (f) displacement (SPC).
Figure 10.
Component time curve of TCU068: (a) acceleration (LPC); (b) acceleration (SPC); (c) velocity (LPC); (d) velocity (SPC); (e) displacement (LPC); (f) displacement (SPC).

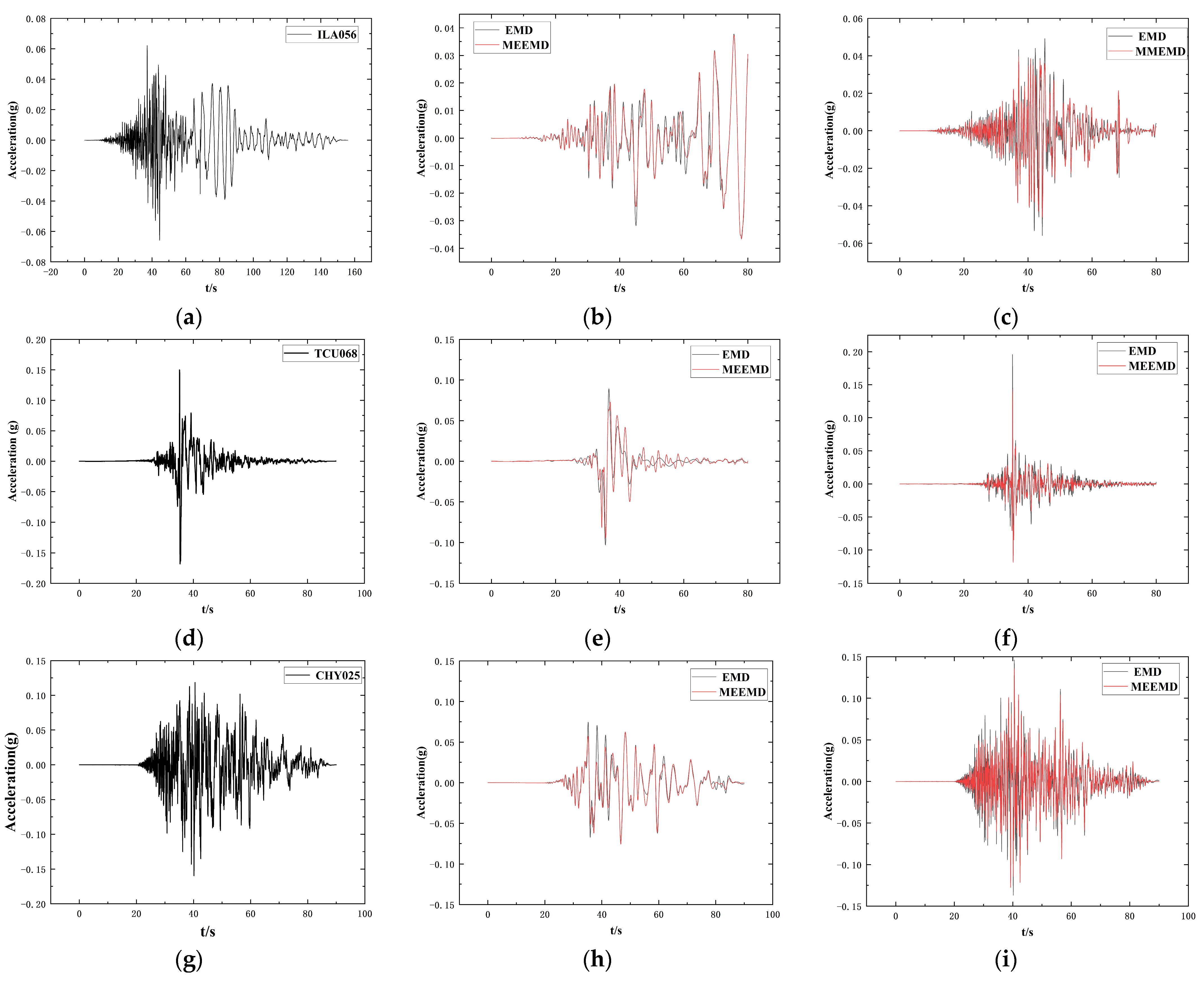

Figure 11.
Time-range curves of acceleration components of three long-period ground shocks: (a) ILA056(ORG); (b) CU068(LPC); (c) ILA056(SPC); (d) TCU068 (ORG); (e) TCU068 (LPC); (f) TCU068(SPC); (g) CHY025(ORG); (h) CHY025 (LPC); (i) CHY025 (SPC).
Figure 11.
Time-range curves of acceleration components of three long-period ground shocks: (a) ILA056(ORG); (b) CU068(LPC); (c) ILA056(SPC); (d) TCU068 (ORG); (e) TCU068 (LPC); (f) TCU068(SPC); (g) CHY025(ORG); (h) CHY025 (LPC); (i) CHY025 (SPC).

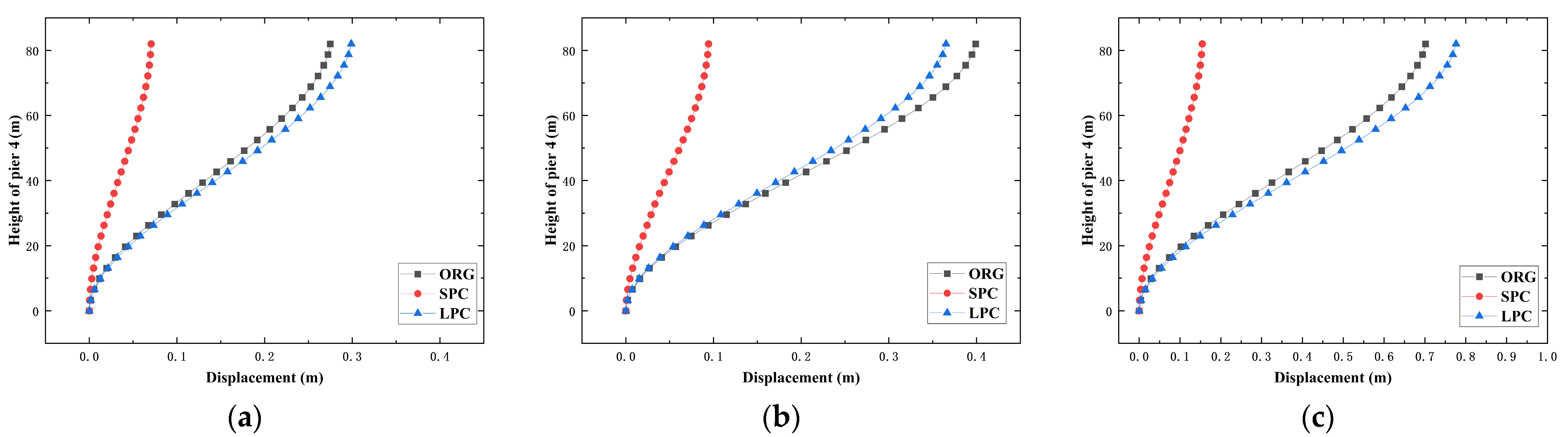

Figure 12.
Displacement response of pier No. 4 with different pier heights (EMD): (a) ILA056; (b) TCU068; (c) CHY025.
Figure 12.
Displacement response of pier No. 4 with different pier heights (EMD): (a) ILA056; (b) TCU068; (c) CHY025.

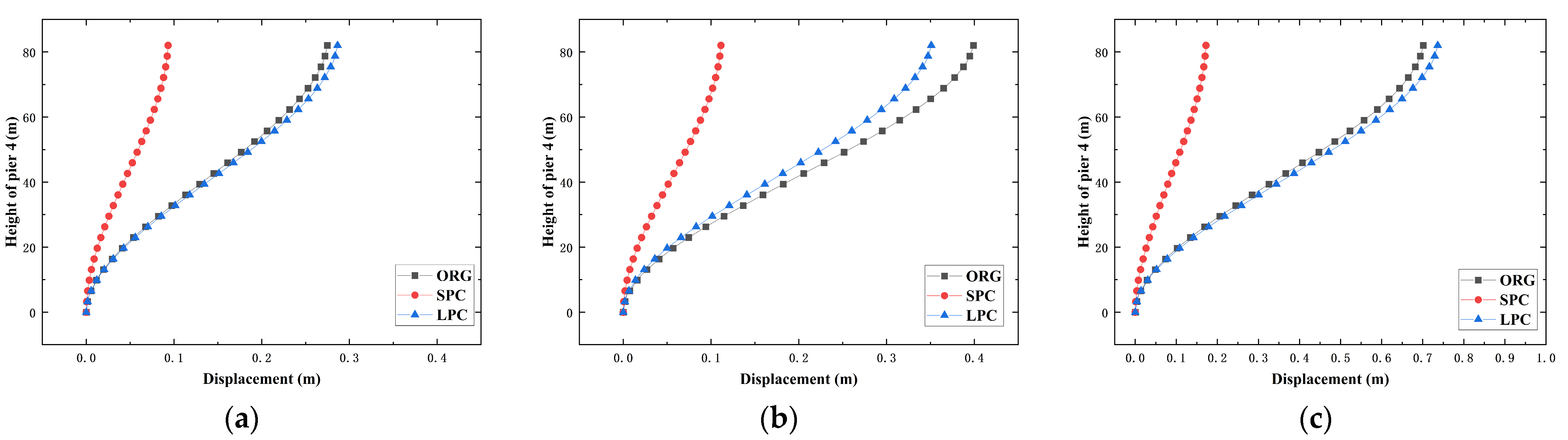

Figure 13.
Displacement response of pier No. 4 with different pier heights (MEEMD): (a) ILA056; (b) TCU068; (c) CHY025.
Figure 13.
Displacement response of pier No. 4 with different pier heights (MEEMD): (a) ILA056; (b) TCU068; (c) CHY025.

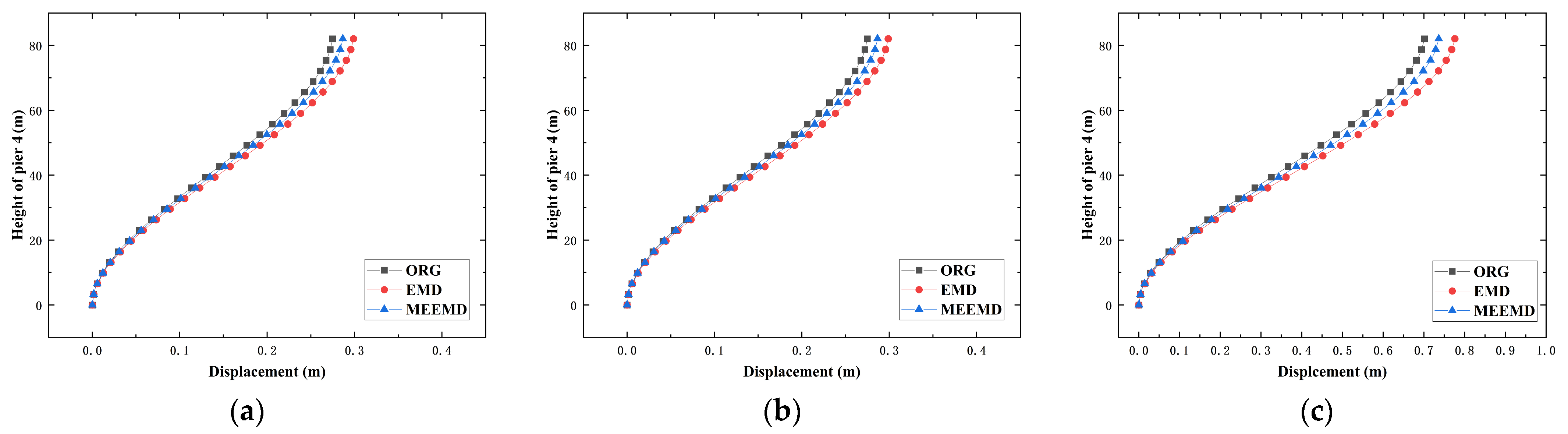

Figure 14.
Displacement response of pier No. 4 with different pier heights (EMD and MEEMD): (a) ILA056; (b) TCU068; (c) CHY025.
Figure 14.
Displacement response of pier No. 4 with different pier heights (EMD and MEEMD): (a) ILA056; (b) TCU068; (c) CHY025.

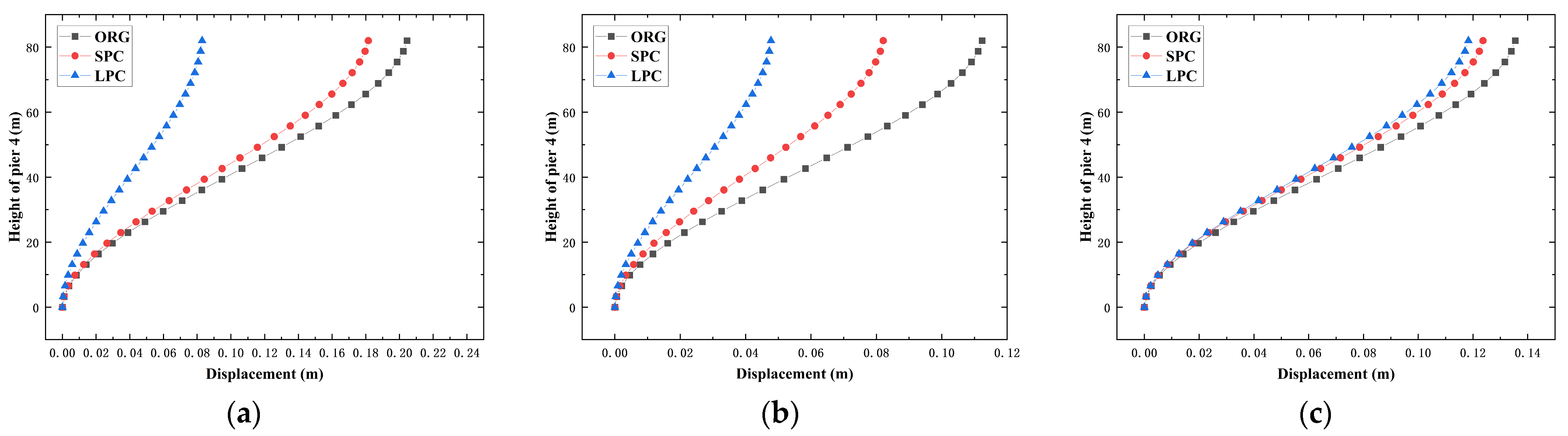

Figure 15.
The No. 4 pier’s displacement response in model I under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.
Figure 15.
The No. 4 pier’s displacement response in model I under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.

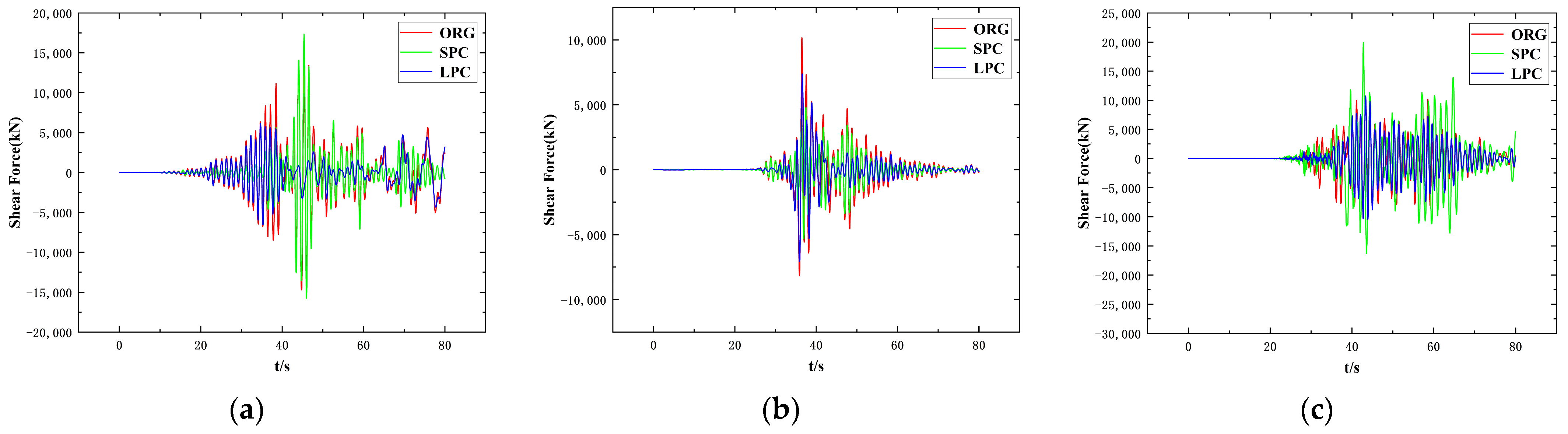

Figure 16.
Shear response at the bottom of the No. 4 pier in model I under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.
Figure 16.
Shear response at the bottom of the No. 4 pier in model I under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.

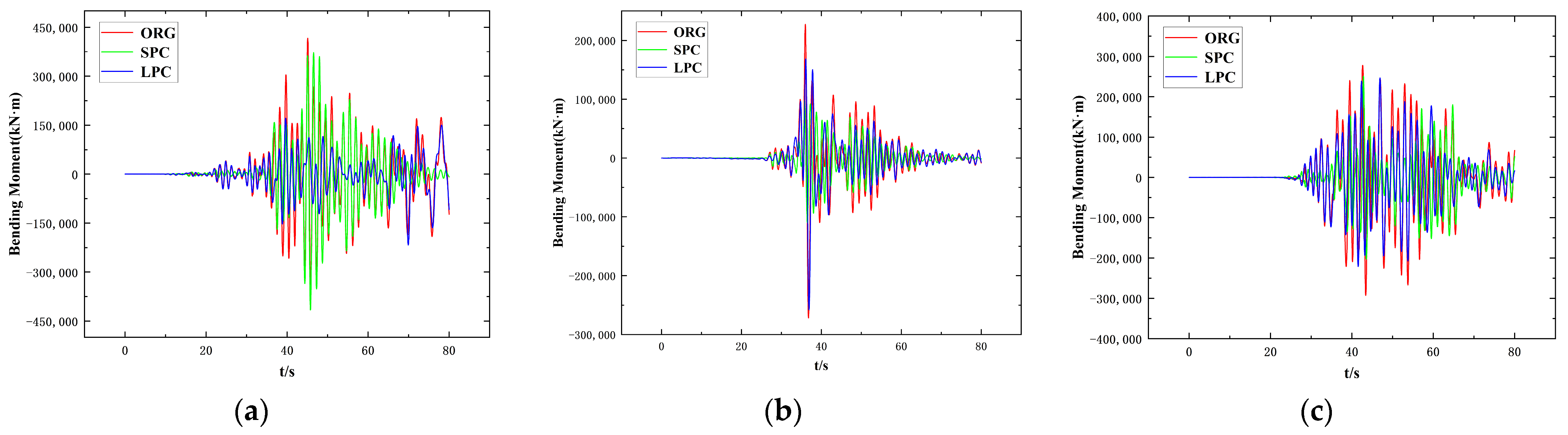

Figure 17.
Bending moment response at the bottom of the No. 4 pier in model I under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.
Figure 17.
Bending moment response at the bottom of the No. 4 pier in model I under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.

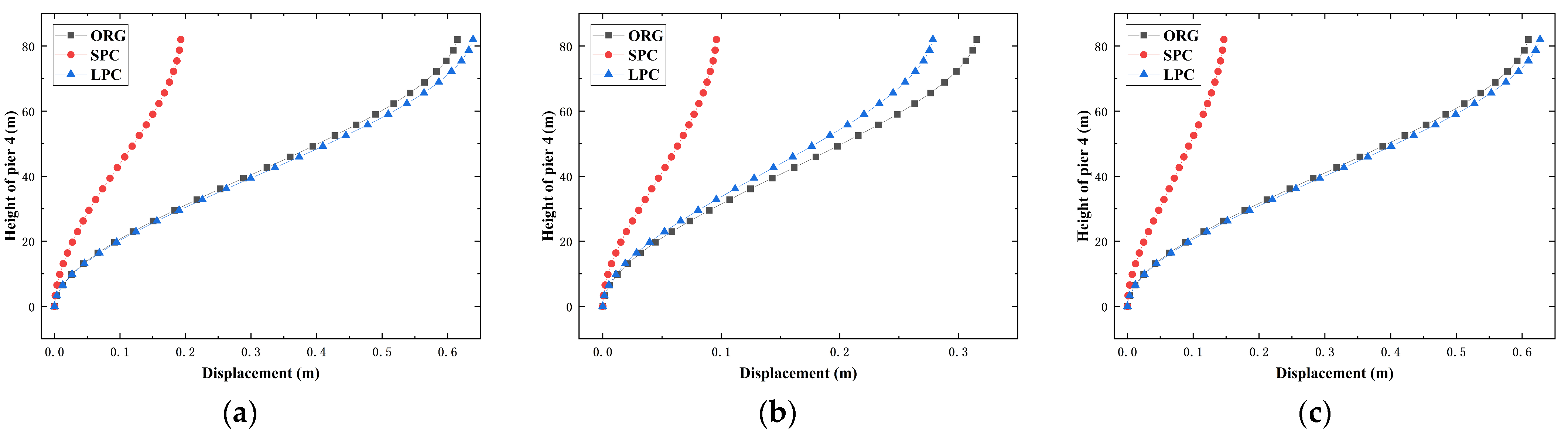

Figure 18.
The No. 4 pier’s displacement response in model II under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.
Figure 18.
The No. 4 pier’s displacement response in model II under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.

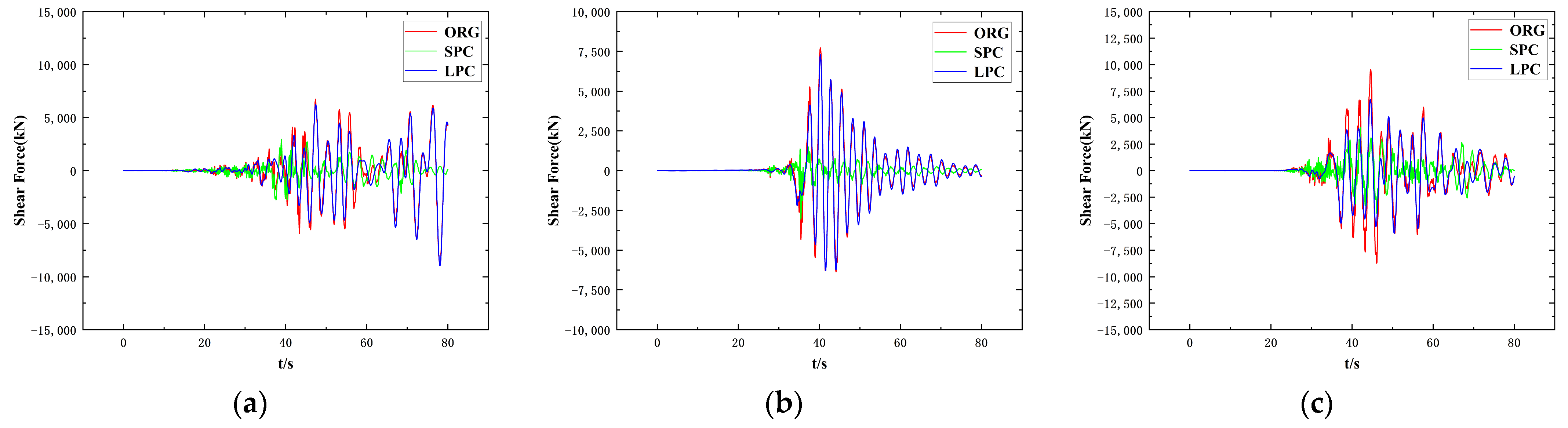

Figure 19.
Shear response at the bottom of the No. 4 in model II under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.
Figure 19.
Shear response at the bottom of the No. 4 in model II under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.

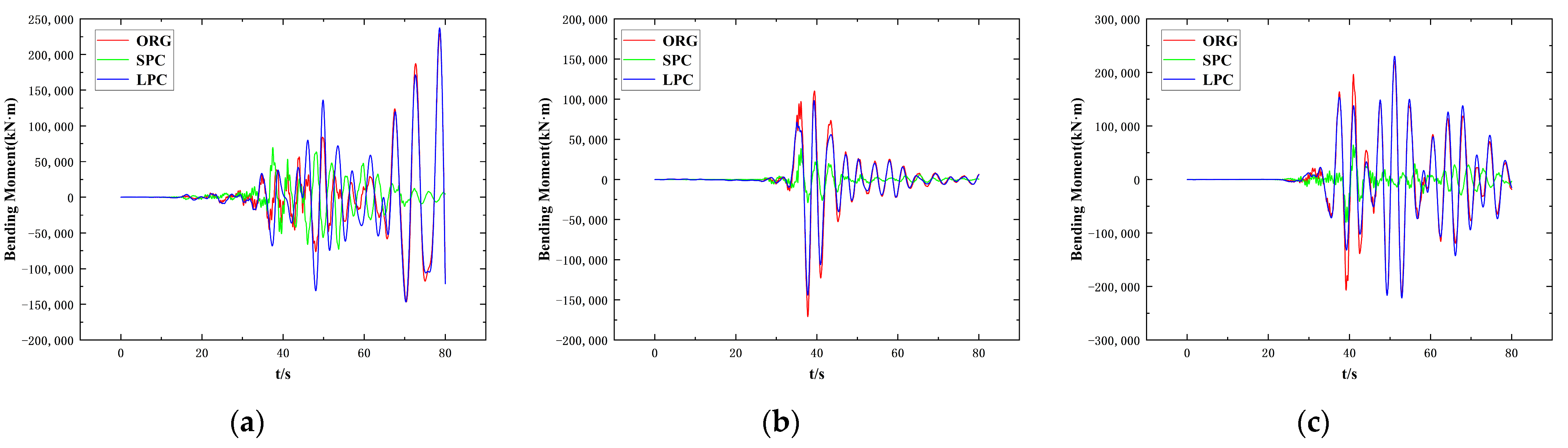

Figure 20.
Bending moment response at the bottom of the No. 4 in model II under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.
Figure 20.
Bending moment response at the bottom of the No. 4 in model II under original ground vibration and its components: (a) ILA056; (b) TCU068; (c) CHY025.

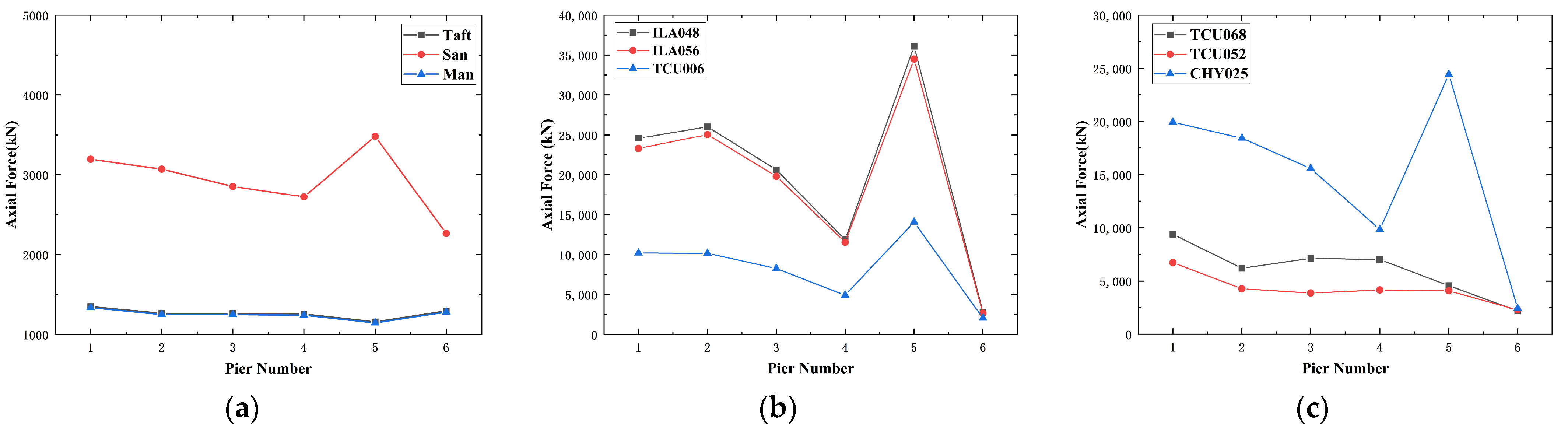

Figure 21.
Axial force at the base of the Nos. 1–6 piers: (a) ordinary ground shaking; (b) far-field long-period ground shaking in the far field; (c) near-field long-period ground shaking.
Figure 21.
Axial force at the base of the Nos. 1–6 piers: (a) ordinary ground shaking; (b) far-field long-period ground shaking in the far field; (c) near-field long-period ground shaking.
Figure 22.
Shear force at the base of the Nos. 1–6 piers: (a) ordinary ground shaking; (b) far-field long-period ground shaking in the far field; (c) near-field long-period ground shaking.
Figure 22.
Shear force at the base of the Nos. 1–6 piers: (a) ordinary ground shaking; (b) far-field long-period ground shaking in the far field; (c) near-field long-period ground shaking.
Figure 23.
Bending moment at the base of the Nos. 1–6 piers: (a) ordinary ground shaking; (b) far-field long-period ground shaking in the far field; (c) near-field long-period ground shaking.
Figure 23.
Bending moment at the base of the Nos. 1–6 piers: (a) ordinary ground shaking; (b) far-field long-period ground shaking in the far field; (c) near-field long-period ground shaking.
Table 1.
Dynamic Characteristics.
Table 1.
Dynamic Characteristics.
Number | Pier Bottom Consolidation Model | Pile-Soil Interaction Model |
---|
(a) | (b) | (c) | Relative Error (%) |
---|
1 | 3.676 | 3.872 | 3.865 | 0.18 |
2 | 2.82 | 3.012 | 2.976 | 1.2 |
3 | 2.431 | 2.598 | 2.573 | 0.96 |
4 | 2.02 | 2.132 | 2.06 | 3.38 |
5 | 1.537 | 1.598 | 1.565 | 2.06 |
Table 2.
Ground Motion Selection.
Table 2.
Ground Motion Selection.
Type of Ground Motion | Serial Number | Ground Motion | PGV/PGA |
---|
Ordinary ground shaking | No. 1 | San Fernando | 0.095 |
No. 2 | Managua-01 | 0.082 |
No. 3 | Taft | 0.073 |
Far-field long-period ground shaking | No. 4 | ILA048 | 0.33 |
No. 5 | ILA056 | 0.48 |
No. 6 | TCU006 | 0.24 |
Near-field long-period ground shaking | No. 7 | TCU068 | 0.141 |
No. 8 | TCU052 | 0.088 |
No. 9 | CHY025 | 0.321 |
Table 3.
The parameters of each IMF component Tr (s).
Table 3.
The parameters of each IMF component Tr (s).
Ground Motion | Tr/s | IMF1 | IMF2 | IMF3 | IMF4 | IMF5 | IMF6 | IMF7 | IMF8 | IMF9 | IMF10 | IMF11 |
---|
ILA056 | EMD | 1.126 | 1.004 | 1.326 | 2.022 | 5.169 | 6.215 | 7.11 | 5.95 | 5.168 | 5.124 | - |
MEEMD | 0.966 | 1.519 | 2.338 | 5.233 | 7.427 | 6.407 | 5.115 | - | - | - | - |
TCU068 | EMD | 0.282 | 0.536 | 0.432 | 0.831 | 1.54 | 2.405 | 4.18 | 7.445 | 7.058 | 5.08 | - |
MEEMD | 0.415 | 0.492 | 0.817 | 2.647 | 3.19 | 7.321 | 6.88 | 7.519 | 5.383 | 5.39 | 5.45 |
CHY025 | EMD | 0.271 | 0.5 | 0.762 | 1.31 | 3.101 | 4.01 | 5.268 | 6.901 | 7.698 | 5.29 | 5.109 |
MEEMD | 0.557 | 1.39 | 1.70 | 2.256 | 4.099 | 6.711 | 7.856 | 6.224 | 5.126 | - | - |
Table 4.
MEEMD-based separation of the reconstructed Tr.
Table 4.
MEEMD-based separation of the reconstructed Tr.
Ground Motion | Component | Tr (s) |
---|
ILA056 | SPC | 1.31 |
LPC | 4.79 |
TCU068 | SPC | 0.703 |
LPC | 3.283 |
CHY025 | SPC | 1.215 |
LPC | 3.68 |
Table 5.
Displacement of the bottom of the Nos. 1–6 piers under ordinary ground shaking (m).
Table 5.
Displacement of the bottom of the Nos. 1–6 piers under ordinary ground shaking (m).
Pier Number | Taft | San | Man |
---|
1 | −0.03761 | 0.30474 | −0.03717 |
2 | −0.03788 | 0.30407 | −0.03744 |
3 | −0.03859 | 0.30503 | −0.03814 |
4 | −0.03934 | 0.30585 | −0.03888 |
5 | −0.03970 | 0.30337 | −0.03923 |
6 | −0.04136 | 0.30805 | −0.04088 |
Table 6.
Displacement of the bottom of the Nos. 1–6 piers under far-field long-period ground shaking (m).
Table 6.
Displacement of the bottom of the Nos. 1–6 piers under far-field long-period ground shaking (m).
Pier Number | ILA048 | ILA056 | TCU006 |
---|
1 | −1.42952 | −1.36661 | 0.55033 |
2 | −1.42647 | −1.36357 | 0.54900 |
3 | −1.43088 | −1.36773 | 0.55043 |
4 | −1.43495 | −1.37151 | 0.55180 |
5 | −1.42358 | −1.36063 | 0.54717 |
6 | −1.44559 | −1.38152 | 0.55519 |
Table 7.
Displacement of the bottom of the Nos. 1–6 piers under near-field long-period ground shaking (m).
Table 7.
Displacement of the bottom of the Nos. 1–6 piers under near-field long-period ground shaking (m).
Pier Number | TCU068 | TCU052 | CHY025 |
---|
1 | −0.004796 | 0.04027 | −0.87333 |
2 | −0.010031 | 0.03907 | −0.87185 |
3 | −0.012538 | 0.03783 | −0.87502 |
4 | −0.012741 | 0.03819 | −0.87837 |
5 | −0.009579 | 0.03813 | −0.87177 |
6 | −0.003719 | 0.03968 | −0.88678 |
