Harmonic Detection Method Based on Parameter Optimization VMD-IWT Combined Noise Reduction
Abstract
:1. Introduction
2. VMD Parameter Optimization and Wavelet Noise Reduction
2.1. Variational Mode Decomposition
2.2. Optimize VMD Based on RIME
2.2.1. Initial Population
2.2.2. Soft Rime Search
2.2.3. Hard Rime Piercing
2.2.4. Greedy Choice

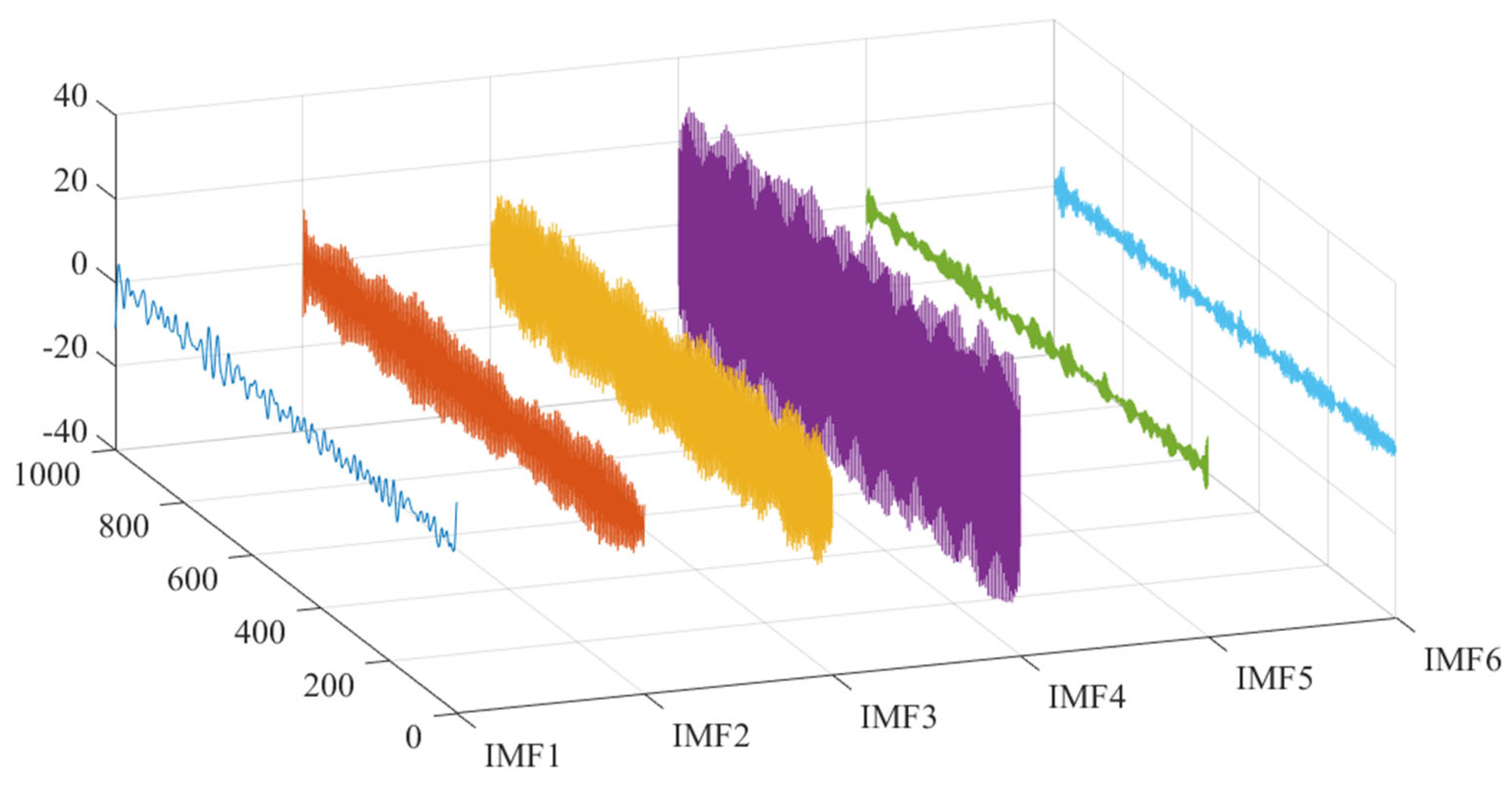

2.3. IMF Component Screening

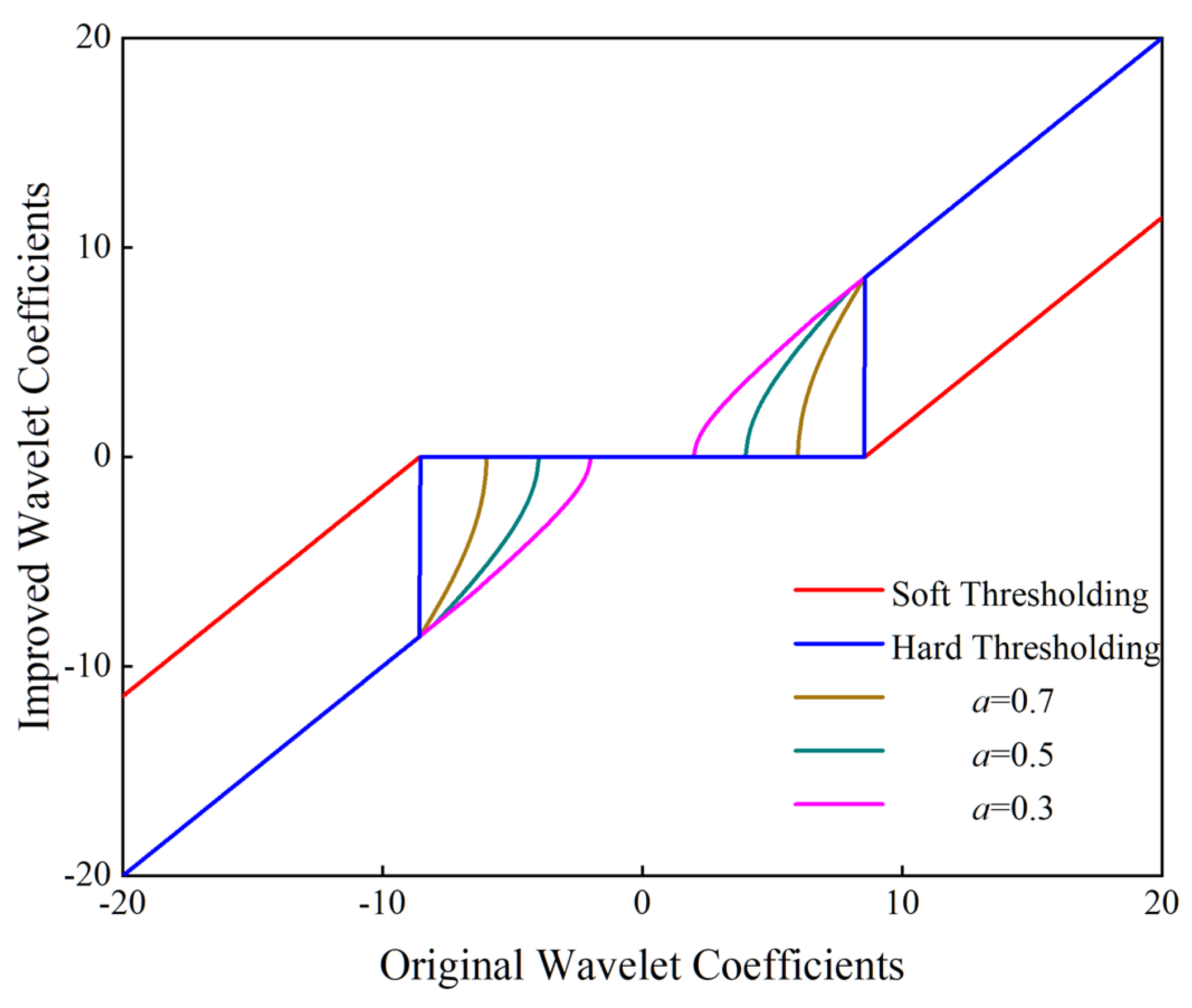

2.4. Improved Wavelet Thresholding Denoising
3. Harmonic Detection Process Based on RIME-VMD-IWT
- Step 1:
- Read the harmonic signal data and preprocess it with noise.
- Step 2:
- RIME was employed in the search for the optimal parameters K and α in VMD, utilizing sample entropy as the fitness function during the iterative process. Through RIME, the individual with the minimum sample entropy was identified, and the corresponding parameter combination [K,α] of this individual was designated as the optimal parameter set for VMD.
- Step 3:
- After the noisy signal is decomposed by VMD, K modal components are obtained. Based on the correlation coefficient of each IMF, the components are categorized into effective IMFs and ineffective IMFs.
- Step 4:
- The invalid IMFs are eliminated, and the effective IMFs undergo de-noising treatment using IWT, resulting in the reconstruction of the signal and obtaining the final de-noised harmonic signal.
- Step 5:
- Utilize the Hilbert transform to extract amplitude, frequency, and other information for detecting harmonic signal parameters.

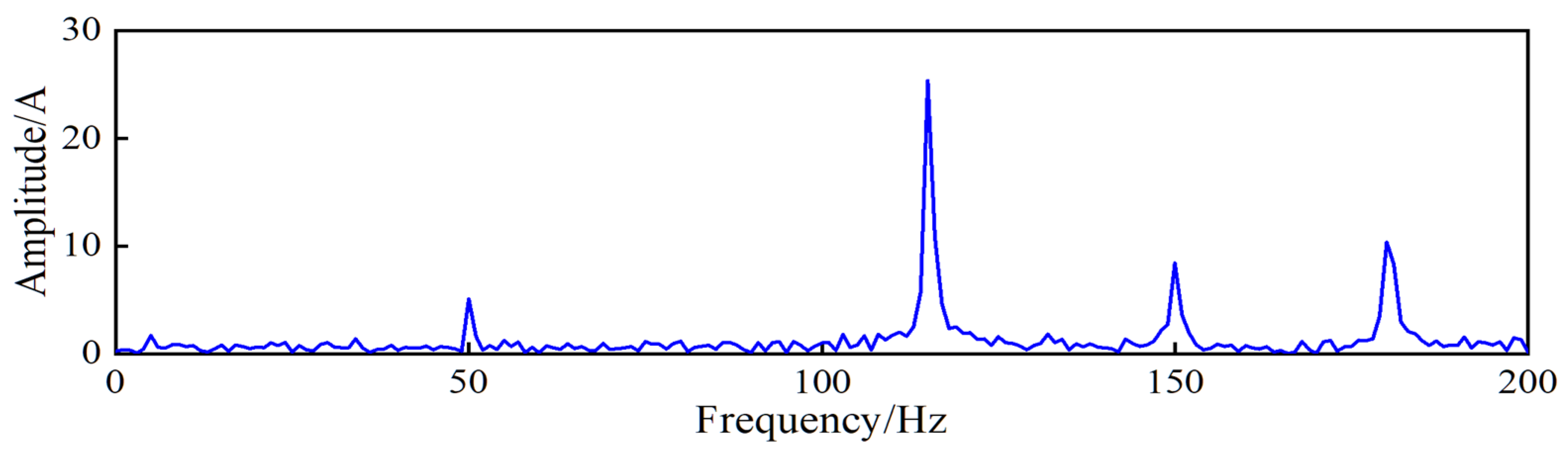

4. Simulation Signal Verification
4.1. Noise Reduction Effect Analysis

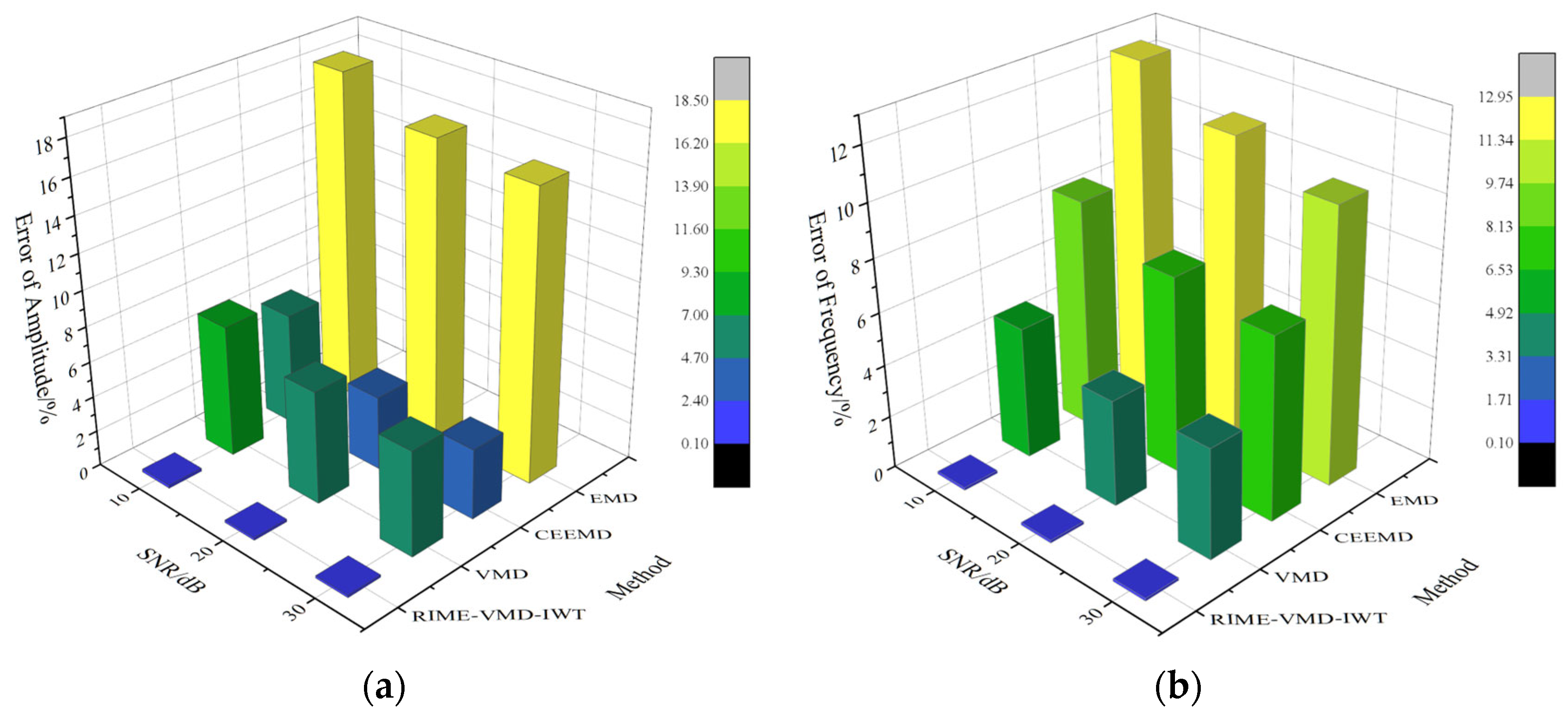

4.2. Detection Accuracy Analysis
5. Test Signal Verification

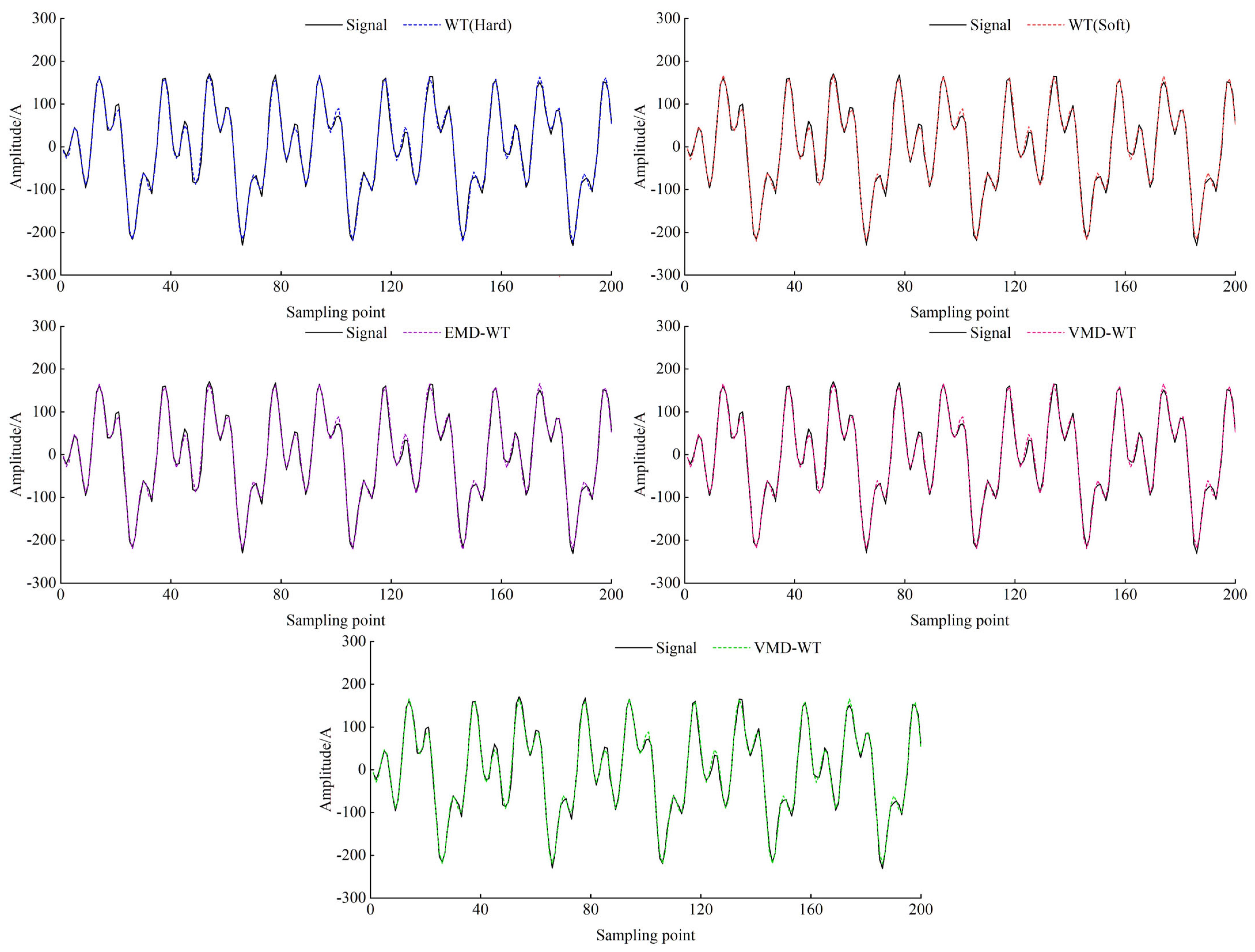

5.1. Noise Reduction Effect Analysis
5.2. Detection Accuracy Analysis
6. Conclusions
- By utilizing the RIME optimization algorithm to optimize the VMD parameters (K,α), the issue of manually setting the K and α values in the traditional VMD algorithm is effectively addressed. This approach achieves optimal signal decomposition, reduces the VMD decomposition error, demonstrates stronger adaptability, and has a faster optimization speed compared to PSO and WOA algorithms.
- By introducing the Pearson correlation coefficient and improving wavelet threshold denoising, the effective signal and noise signal can be effectively separated from the mixed signal, while retaining the original characteristics of the signal. This improves the overall noise robustness of the algorithm, making it suitable for harmonic signal denoising.
- In comparison with EMD, WT, and VMD methods, the proposed approach exhibits a remarkable noise reduction effect and demonstrates accurate detection of harmonic amplitude and frequency even in high-noise environments. Its detection performance surpasses that of traditional methods, showcasing significant advantages in accuracy.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Zhang, Z.; Kang, C. Challenges and Prospects for Constructing the New-type Power System Towards a Carbon Neutrality Future. Proc. CSEE 2022, 42, 2806–2819. [Google Scholar]
- Dawei, R.; Jinyu, X.; Jinming, H.; Ershun, D.; Chen, J.; Yao, L. Construction and Evolution of China’s New Power System Under Dual Carbon Goal. Power Syst. Technol. 2022, 46, 3831–3839. [Google Scholar]
- Xiang, L.; Haichao, W.; Wenxue, W.; Quan, A. Adaptability Assessment of New Energy Connected to the Power Grid Based on the Carrying Capacity. Proc. CSEE 2023, 43, 107–113. [Google Scholar]
- Zhenguo, S.; Haobo, X.; Songyong, X.; Guochang, W.; Yi, Z. Harmonic problems in a new energy power grid. Power Syst. Prot. Control 2021, 49, 178–187. [Google Scholar]
- Jiaming, D.; Ma, H. Harmonic detection method based on complex modulation refinement and adaptive linear network. China Meas. Test 2022, 48, 43–50. [Google Scholar]
- Jiati, S.; Wang, Y. The harmonic detedtion strategy for APE based on the optimized split-radix FFT algorithm. Electron. Meas. Technol. 2023, 46, 23–29. [Google Scholar]
- Jun, Z.; Yongxiang, L.; Jiapeng, R. Harmonic Detection Method Based on Modified Ensemble Empirical Mode Decomposition and Hilbert Transform. Proc. CSU-EPSA 2023, 35, 73–82. [Google Scholar]
- Anping, S.; Lv, Z.; Cheng, W.; Xinyi, L.; Jun, M. GB-RAR bridge monitoring signal denoising based on EMD and wavelet threshold denoising. Bull. Surv. Mapp. 2022, s2, 227–232+240. [Google Scholar]
- Peng, L.; Jiayi, C.; Lijiang, G.; Hang, Y.; Mengyu, L. Study on de-noising of signal of power station based on empirical mode and modified wavelet soft-threshold de-noising method. Mech. Eng. 2023, 45, 736–743. [Google Scholar]
- Zhijun, L.; Hongpeng, Z.; Yanan, W.; Xiao, L. Wavelet threshold denoising harmonic detection method based on permutation entropy-CEEMD decomposition. Electr. Mach. Control 2020, 24, 120–129. [Google Scholar]
- Dragomiretskiy, K.; Zosso, D. Variational mode decomposition. IEEE Trans. Signal Process. 2014, 62, 531–544. [Google Scholar] [CrossRef]
- Xiaojiao, Z.; Bin, W.; Bujuan, L.; Min, Y. Inter-harmonics detection based on parameter optimization variational mode decomposition. Power Syst. Prot. Control 2022, 50, 71–80. [Google Scholar]
- Darong, H.; Lanyan, K.; Mengting, L.; Guoxi, S. A new fault diagnosis approach for bearing based on multi-scale entropy of the optimized VMD. Control Decis. 2020, 35, 1631–1638. [Google Scholar]
- Weiguang, L.; Qinhong, L.; Xianwu, M. A VMD-SVD micro-motor sound signal noise reduction method based on the kurtosis principle. China Meas. Test 2023, 49, 111–118. [Google Scholar]
- Dongfang, R.; Jiaqing, M.; Zhiqin, H.; Qinmu, W. Short-Term Wind Power Prediction Research Based on AVMD-CNN-GRU-Attention. Acta Energiae Solaris Sin. 2023, 1–8. [Google Scholar] [CrossRef]
- Yuzhao, M.; Qingxiao, Z.; Qiming, L.; Meng, L. Noise Reduction Method for Optical Fiber Perimeter Intrusion Signal Based on POA-VMD and MPE. Laser Optoelectron. Prog. 2024, 1–17. Available online: http://kns.cnki.net/kcms/detail/31.1690.TN.20240220.1052.040.html (accessed on 1 June 2024).
- Min, J.; Ming, W.; Jianqiang, Z. Vibration Signal Reconstruction and Fault Diagnosis of Rolling Bearings Based on PSO Optimization VMD Algorithm. Mach. Des. Res. 2022, 38, 138–141+147. [Google Scholar]
- Yi, Z.; Jianhai, Y.; Jing, J.; Xinyuan, G. Fault feature extraction method of rolling bearing based on parameter optimized VMD. J. Vib. Shock 2021, 40, 86–94. [Google Scholar]
- Tingye, Q.; Huiru, W.; Guorui, F.; Xinjun, Z.; Chuantao, Y.; Dekang, Z.; Sunwen, D. Denoising method of transient electromagnetic detection signal based on WOA-VMD algorithm. J. Cent. South Univ. (Sci. Technol.) 2021, 52, 3885–3898. [Google Scholar]
- Yao, S.; Yajing, W.; Yu, M.; Siqi, L. VMD harmonic detection method based on WPT and parameter optimization. Electr. Meas. Instrum. 2022, 59, 166–171. [Google Scholar]
- Zhiyong, J.; Qiu, T.; Yaxin, L.; Zhaosheng, T.; Wei, Q. Power system harmonic analysis under non-stationary situations based on AVMD and improved energy operator. Chin. J. Sci. Instrum. 2022, 43, 209–217. [Google Scholar]
- Yanhao, X.; Hao, Y.; Jia, Z.; Jun, G. Research on the O-VMD thickness measurement data processing method based on particle swarm optimization. Chin. J. Sci. Instrum. 2023, 44, 304–313. [Google Scholar]
- Su, H.; Zhao, D.; Heidari, A.A.; Liu, L.; Zhang, X.; Mafarja, M.; Chen, H. RIME: A physics-based optimization. Neurocomputing 2023, 532, 183–214. [Google Scholar] [CrossRef]
- Zhong, J.; Liu, Z.; Bi, X. Partial Discharge Signal Denoising Algorithm Based on Aquila Optimizer–Variational Mode Decomposition and K-Singular Value Decomposition. Appl. Sci. 2024, 14, 2755. [Google Scholar] [CrossRef]
- Wang, Y.; Feng, H.; Xu, N.; Zhong, J.; Wang, Z.; Yao, W.; Jiang, Y.; Laima, S. A Data-Driven Model for Predictive Modeling of Vortex-Induced Vibrations of a Long-Span Bridge. Appl. Sci. 2024, 14, 2233. [Google Scholar] [CrossRef]
- Tong, Y.; Arimura, H.; Yoshitake, T.; Cui, Y.; Kodama, T.; Shioyama, Y.; Wirestam, R.; Yabuuchi, H. Prediction of Consolidation Tumor Ratio on Planning CT Images of Lung Cancer Patients Treated with Radiotherapy Based on Deep Learning. Appl. Sci. 2024, 14, 3275. [Google Scholar] [CrossRef]
- Lei, C.; Dezhong, Z.; Xingtao, Z.; Wenzhe, L. Harmonic/Interharmonic Detection Based on FFT and Optimized Matching Pursuit Tracking. Adv. Technol. Electr. Eng. Energy 2016, 35, 7–12+37. [Google Scholar]
Correlation Coefficient | Degree of Correlation |
---|---|
0.8 < |ρ| ≤ 1.0 | extremely relevant |
0.6 < |ρ| ≤ 0.8 | highly relevant |
0.4 < |ρ| ≤ 0.6 | moderately relevant |
0.2 < |ρ| ≤ 0.4 | weakly relevant |
0.0 < |ρ| ≤ 0.2 | almost irrelevant |
Denoising Method | SNR/dB | RMSE |
---|---|---|
WT (Hard) | 16.36 | 0.3364 |
WT (Soft) | 17.53 | 0.3182 |
EMD-WT (Soft) | 21.94 | 0.2904 |
VMD-WT (Soft) | 22.59 | 0.2512 |
RIME-VMD-IWT | 27.64 | 0.2137 |
Method | Frequency True Value/Hz | Frequency Detection Value/Hz | Frequency Error | Amplitude True Value/A | Amplitude Detection Value/A | Amplitude Error |
---|---|---|---|---|---|---|
RIME-VMD-IWT | 50 | 50.0026 | 5.1 × 10−4 | 5 | 4.9984 | 3.2 × 10−4 |
150 | 150.4950 | 3.3 × 10−3 | 10 | 9.9975 | 2.5 × 10−4 | |
180 | 180.0504 | 2.8 × 10−4 | 15 | 14.9972 | 1.9 × 10−4 | |
284 | 284.0224 | 7.9 × 10−5 | 30 | 29.9760 | 1.1 × 10−3 | |
EMD | 50 | 57.1034 | 14.2 × 10−2 | 5 | 4.0812 | 18.4 × 10−2 |
150 | 166.5371 | 11.0 × 10−2 | 10 | 8.2933 | 17.1 × 10−2 | |
180 | 198.5419 | 10.3 × 10−2 | 15 | 17.4750 | 16.5 × 10−2 | |
284 | 239.6962 | 15.6 × 10−2 | 30 | 35.0717 | 16.9 × 10−2 | |
CEEMD | 50 | 53.1033 | 6.2 × 10−2 | 5 | 5.2352 | 4.7 × 10−2 |
150 | 136.9581 | 8.7 × 10−2 | 10 | 9.3846 | 6.2 × 10−2 | |
180 | 165.7834 | 7.9 × 10−2 | 15 | 14.3250 | 4.5 × 10−2 | |
284 | 260.1447 | 8.4 × 10−2 | 30 | 31.6207 | 5.4 × 10−2 | |
VMD | 50 | 48.3981 | 3.2 × 10−2 | 5 | 5.3651 | 7.3 × 10−2 |
150 | 156.1574 | 4.1 × 10−2 | 10 | 10.6204 | 6.2 × 10−2 | |
180 | 173.1641 | 3.8 × 10−2 | 15 | 15.8762 | 5.8 × 10−2 | |
284 | 295.9287 | 4.2 × 10−2 | 30 | 28.4790 | 5.1 × 10−2 |
Denoising Method | SNR/dB | RMSE |
---|---|---|
WT (Hard) | 36.14 | 0.0971 |
WT (Soft) | 37.02 | 0.0962 |
EMD-WT (Soft) | 41.47 | 0.0918 |
VMD-WT (Soft) | 43.71 | 0.0875 |
RIME-VMD-IWT | 49.39 | 0.0794 |
Method | Frequency True Value/Hz | Frequency Detection Value/Hz | Frequency Error | Amplitude True Value/A | Amplitude Detection Value/A | Amplitude Error |
---|---|---|---|---|---|---|
RIME-VMD-IWT | 50 | 50.1208 | 2.4 × 10−3 | 100 | 99.9542 | 4.6 × 10−4 |
125 | 125.4715 | 3.8 × 10−3 | 74.813 | 75.2469 | 5.8 × 10−3 | |
25 | 25.0342 | 1.4 × 10−3 | 64.933 | 65.7142 | 1.2 × 10−2 | |
EMD | 50 | 45.7328 | 8.6 × 10−2 | 100 | 89.7300 | 1.0 × 10−1 |
125 | 114.8753 | 8.1 × 10−2 | 74.813 | 66.2843 | 1.1 × 10−1 | |
25 | 26.9254 | 7.7 × 10−2 | 64.933 | 71.8808 | 1.1 × 10−1 | |
CEEMD | 50 | 52.2517 | 4.5 × 10−2 | 100 | 91.1271 | 8.9 × 10−2 |
125 | 117.1252 | 6.3 × 10−2 | 74.813 | 81.6958 | 9.2 × 10−2 | |
25 | 26.8513 | 7.4 × 10−2 | 64.933 | 69.8679 | 7.6 × 10−2 | |
VMD | 50 | 51.9520 | 3.9 × 10−2 | 100 | 94.3417 | 5.7 × 10−2 |
125 | 130.7500 | 4.6 × 10−2 | 74.813 | 79.4506 | 6.2 × 10−2 | |
25 | 26.0542 | 4.2 × 10−2 | 64.933 | 68.2438 | 5.1 × 10−2 |
