Reduction of Phase Shifters in Planar Phased Arrays Using Novel Random Subarray Techniques
by
Juan L. Valle
Juan L. Valle 1,†
,
Marco A. Panduro
Marco A. Panduro 1,*,†
,
Carlos del Río Bocio
Carlos del Río Bocio 2
,
Carlos A. Brizuela
Carlos A. Brizuela 1 and
David H. Covarrubias
David H. Covarrubias 1
1
Center for Scientific Research and Higher Education at Ensenada (CICESE), Carr. Tijuana-Ensenada 3918, Zona Playitas, Ensenada 22860, Mexico
2
Electrical, Electronic and Communication Engineering, Public University of Navarre (UPNA), 31006 Pamplona, Spain
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Appl. Sci. 2024, 14(13), 5917; https://doi.org/10.3390/app14135917 (registering DOI)
Submission received: 4 June 2024
/
Revised: 29 June 2024
/
Accepted: 3 July 2024
/
Published: 6 July 2024
Abstract

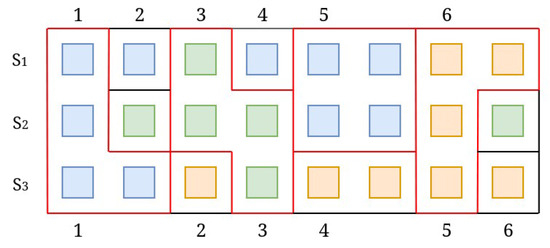

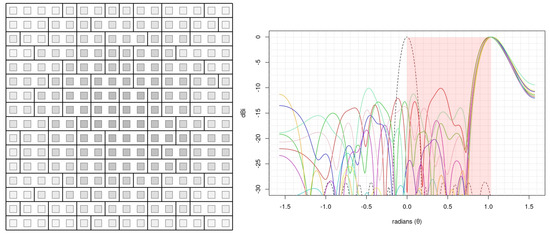

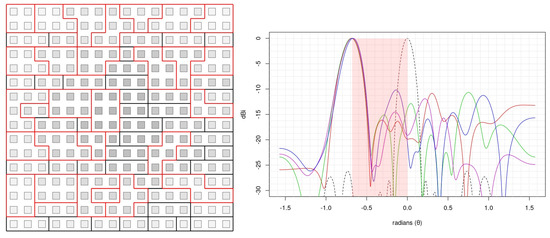

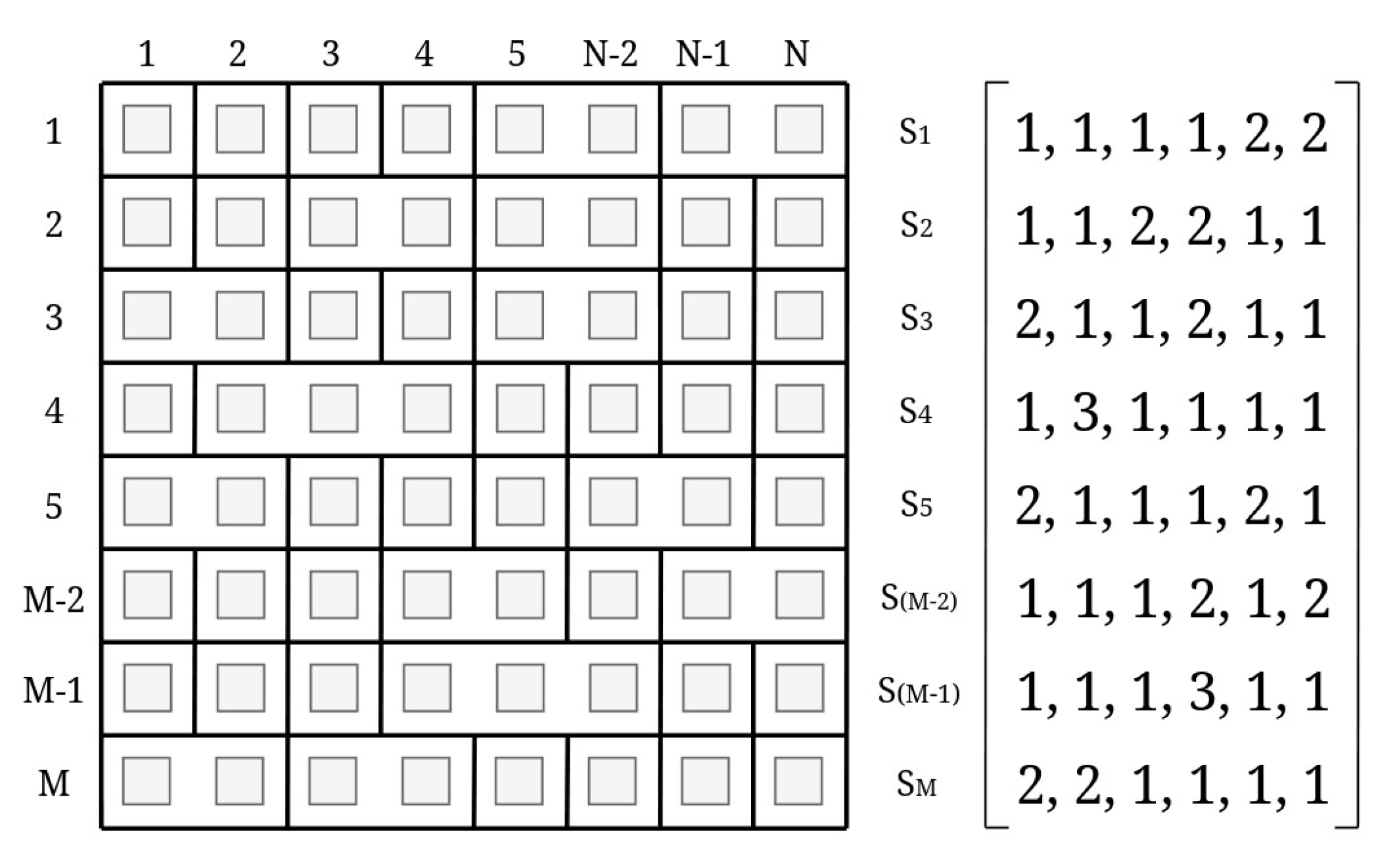

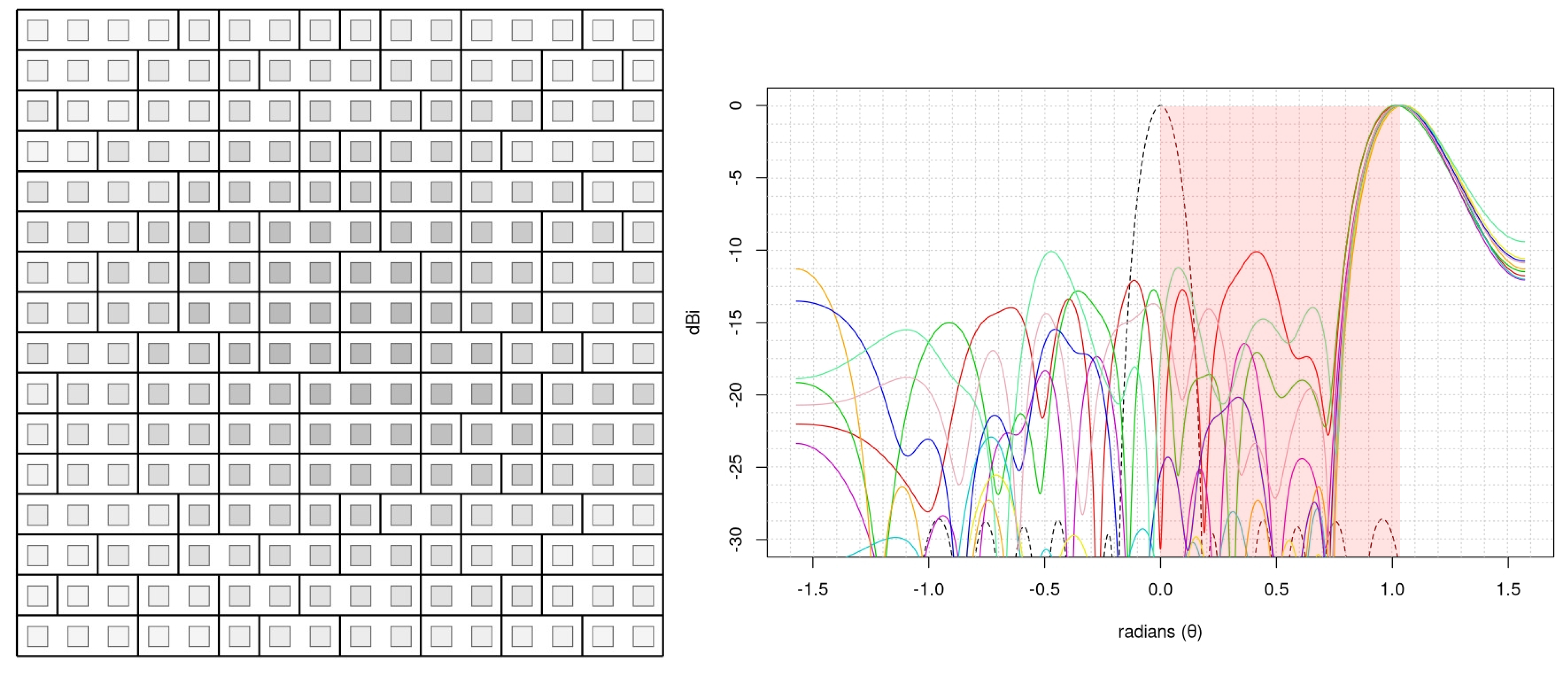

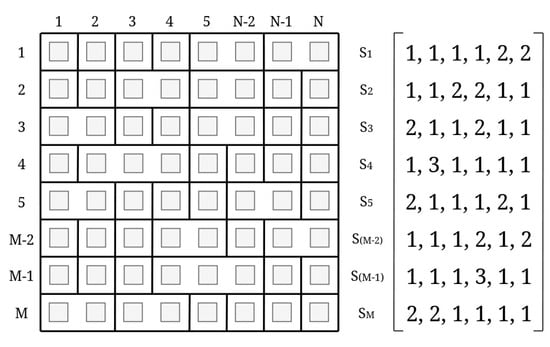

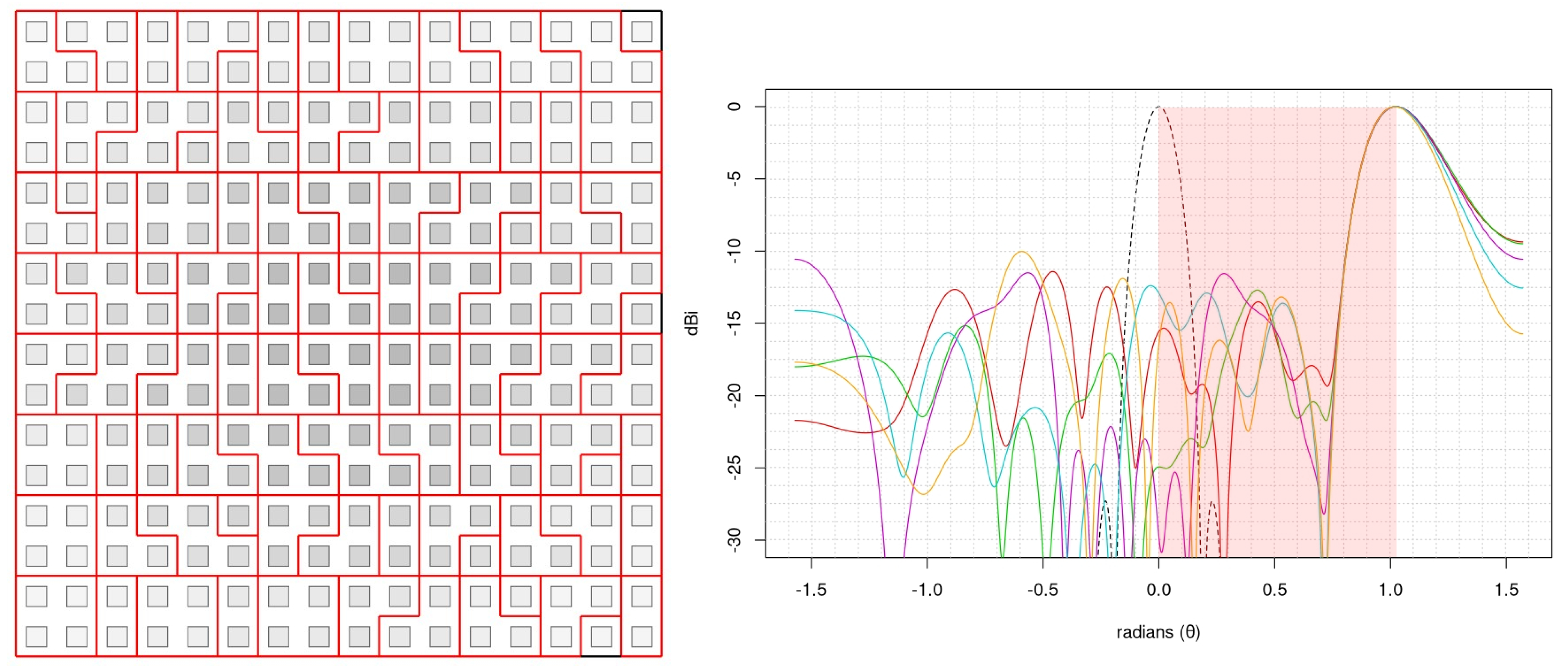

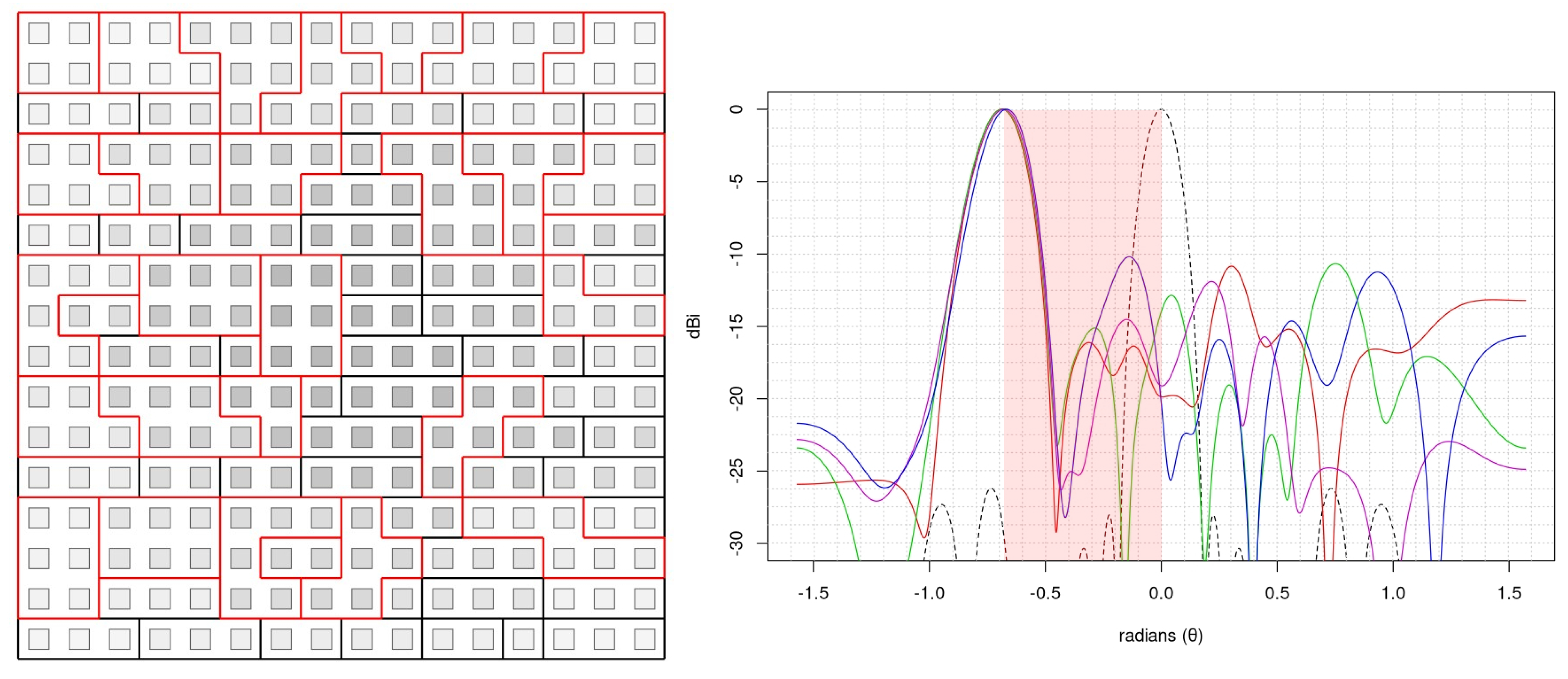

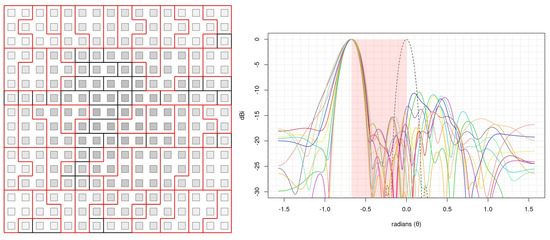

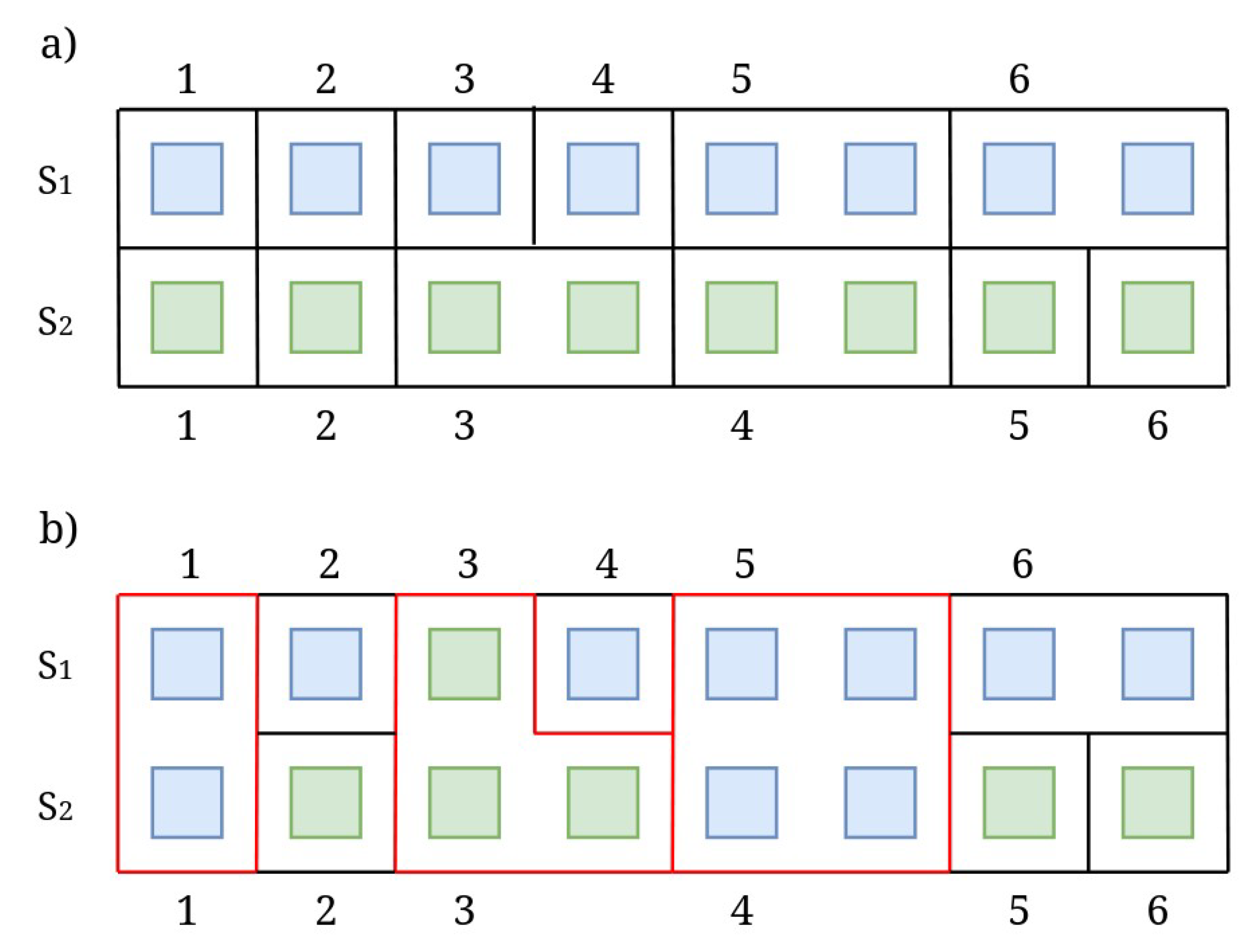

Reducing the number of phase shifters by grouping antenna elements into subarrays has been extensively studied for decades. The number of phase shifters directly affects the cost, complexity, and power consumption of the system. A novel method for the design of phased planar antenna arrays is presented in this work in order to perform a reduction of up to in the number of phase shifters used by the array, while maintaining the desired radiation characteristics. This method consists of creating fusions of subarrays to generate random sequences that form the best feeding network configuration for planar phased arrays. The obtained solution allows scanning the mainlobe at elevation with a range of scanning of in the azimuth plane, while maintaining a side lobe level below dB and achieving a reduction of in the number of phase shifters. It is shown that each solution is created based on search criteria, which influence the morphology of the array in terms of subarray size and orientation. The proposed methodology shows great flexibility for creating new phased antenna array designs that meet the requirements of specific applications in a short period of time.
