On the Analysis of Coverage Feedback in a Fuzzing Proprietary System

Abstract

Coverage feedback is one of the key mechanisms for improving the effectiveness of fuzzers by measuring and comparing the executed code regions while processing input data. In general, such guidance should always improve the performance of fuzzers to better find unexplored code regions. However, proprietary systems with uncommon I/O interfaces (e.g., UAV system, IoT devices, satellite firmware) require extensive engineering/porting efforts to apply coverage feedback support in developing their fuzzing platform. In this paper, we evaluate the detailed efficacy of coverage feedback in fuzzing based on 44 real-world bugs we found using OSS-Fuzz. Our analysis uncovered when and how code coverage information can be helpful, and our experiment demonstrates that although coverage guidance is always helpful to some extent, its effectiveness depends on various external factors. Therefore, such factors should be carefully considered for optimizing the cost and efficiency in designing the fuzzing architecture of proprietary systems.

1. Introduction

Fuzzing automatically generates test data and executes the target application (data parser) repeatedly until an error is detected. Because the idea of fuzzing was first published in 1990 by Miller et al. [1], it quickly became one of the most universal methods for ensuring software reliability and finding bugs in a wide range of software [2]. For example, OSS-Fuzz [3], Google’s open-source fuzzing platform, contributed to the discovery and patching of over 10,000 vulnerabilities and 36,000 bugs in approximately 1000 projects.

As fuzzing has been well proven to be effective in practice, researchers have placed significant efforts into enhancing efficacy/performance with various ideas such as combining symbolic execution or tainting techniques with fuzzing algorithms. In the last decade, numerous works [4,5] have suggested state-of-the-art fuzzing methods to enhance the fuzzer’s capability to find bugs.

One of the standard approaches for evaluating new fuzzers is by using the code coverage as an evaluation metric. Some previous work [6,7] has been solely focused on providing a framework for comparing and evaluating fuzzers. Recently, however, researchers started questioning this evaluation approach [8,9]. The question is: “does achieving better code coverage always guarantee better fuzzing results?”. To quote the paper [9]: “fuzzer best at achieving coverage, may not be best at finding bugs”. These recent works suggest that achieving maximum coverage with feedback is helpful in general, but it should not be the only metric for evaluating the efficacy of finding bugs.

In general, it is certain that expanding code coverage with feedback is beneficial for fuzzing. However, if such a benefit requires extensive engineering cost, we need to analyze and compare the detailed efficacy relative to the cost. Such costs in fuzzing are especially high in proprietary systems. It is noteworthy that researchers recently started to aggressively apply fuzzers to proprietary systems such as IoT devices, drones, cars, satellite firmware, and various embedded systems [10,11,12]. These recent works suggest that the porting costs of applying coverage feedback in fuzzing such unique systems is costly and challenging.

To address such recent fuzzing research issues, we quantify and measure the detailed costs of applying coverage feedback in fuzzing and its efficacy for optimizing system design. Our main hypothesis is that the efficacy of coverage guidance in fuzzing will substantially differ based on various factors such as the initially given sample data, type of application parsers, type of bug, and so on. While it is easy to write simple code snippets that highlight the obvious benefits of coverage feedback, our goal is to investigate the efficacy of coverage guidance for various types of fuzzers that have found real-world bugs and reveal what the important factors are in coverage feedback. The goal of our research is to determine and justify when and why we need to apply (or not apply) the coverage feedback feature when fuzzing proprietary systems based on closed sources.

To address the aforementioned research issue, we used 44 unique real-world bugs that we discovered over a year using the OSS-Fuzz and ClusterFuzz [13] fuzzing infrastructures. With this ground-truth dataset, we iterated finding such previous bugs with various configurations regarding coverage guidance: (i) no coverage feedback, (ii) partial coverage feedback, and (iii) full coverage feedback. With this experiment, we were able to determine the relationship between efficacy of coverage guidance and multiple factors. Note that the motivation for our work stems from assessing the efficiency of coverage feedback in closed-source software. However, we used open-source software for our evaluation as an alternative because acquiring a sufficient amount of closed-source software and finding dozens of bugs for evaluation is very challenging in practice. Although the evaluation target is based on open-source software, we believe that the stochastic tendencies we find and analyze in our evaluation should be equally valuable.

In short, our study revealed that the quality of initial seed (initially given the test case data for mutation) has a strong correlation to coverage feedback efficacy. When adequate initial seeds were provided, the efficiency in bug reproduction showed minimal performance variation regardless of whether coverage feedback is given or not. Such an observation suggests that investing in quality initial seed data might sometimes be more beneficial than solely on enhancing coverage feedback with significant porting/engineering efforts in fuzzer development. For the efficient fuzzing of proprietary systems, we emphasize the importance of balanced resource allocation between developing sophisticated coverage feedback mechanisms and generating comprehensive initial test cases.

2. Background

2.1. Code Coverage and Fuzzing

Code coverage encompasses various metrics, including function coverage, statement coverage, branch coverage, condition coverage, and line coverage [14]. These metrics differ in the choice of the unit for measuring coverage. For example, line coverage treats each line as a unit (based on source code), whereas branch or block coverage examines the number of executed branches or blocks in the assembly or binary level. In software testing, code coverage is measured via crafted test cases including data and code altogether (e.g., unit test) to find errors in the software development phase [15]. In fuzzing, code coverage is measured by feeding the target code a randomly generated (mutated) test input [16]. However, according to recent studies [8,9], achieving 100% code coverage does not always guarantee testing quality nor the finding of bugs. In this paper, we figure out more details to this end, considering the system porting costs for applying coverage feedback fuzzing to closed-source systems.

2.2. Fuzzing Proprietary System

Fuzzing proprietary systems has many challenges compared to open-source-based fuzzing. Open source allows fuzzers to recompile and instrument the target code for measuring various features in their fuzzing process, thus enhancing performance. However, most proprietary applications, such as IoT and UAV firmware, cannot be recompiled and instrumented. One way to apply coverage feedback in such closed-source applications is by using an emulator [17] such as QEMU. Unfortunately, only a few proprietary systems can be emulated in reality. Even worse, some of these firmware are cryptographically signed and encrypted, thus preventing them from being modified, even at the binary or assembly level. Our research can be a reference for designing fuzzers for such systems.

2.3. Coverage Feedback in libFuzzer

libFuzzer is one of the most successful coverage-guided fuzzers that is incorporated into compiler frameworks [18]. While libFuzzer is a powerful fuzzing tool, it requires a complete source code that is compliant with specific versions of Clang/GCC compilers, thus making it only available for open-source software that provides specific build configuration based on generic compilers. Algorithm 1 is the simplified libFuzzer’s internal logic.

Algorithm 1: libFuzzer Core Fuzzing Algorithm

In libFuzzer’s core algorithm, an input unit is selected from the corpus (a set of input data) for random mutation. The mutated test input is then tested against the target code until new coverage has been found or the maximum mutation depth is reached (libFuzzer’s fuzzing also halts upon bug detection). If the mutated input reports new coverage, it is considered interesting and is added to the corpus so that it can be potentially mutated again afterwards. In our paper, we use libFuzzer as the baseline evaluation tool for our investigation. We mainly modify libFuzzer in two ways (ignoring coverage feedback and increasing the granularity of the coverage guidance feature).

2.4. Utilizing OSS-Fuzz Project

OSS-Fuzz is a collection of more than 1000 open-source-based fuzzing projects initiated by Google. In numerous academic studies, OSS-Fuzz serves as an experimental baseline for evaluating the efficacy of coverage feedback-based fuzzing. Researchers can utilize OSS-Fuzz to conduct experiments on a variety of open-source fuzzing against real-world software (mostly libraries). In this paper, we utilize libFuzzer stubs in OSS-Fuzz that have actually found real-world bugs to justify our claims in research experiments.

3. Materials and Methods

For the experiment environment setup, we use the Clang compiler from LLVM-15 (git commit hash bf7f8d6fa6f460bf0a16ffec319cd71592216bf4). To set up the experiment environment, we need to understand the internals of libFuzzer’s code coverage feedback algorithm and modify them properly for comparison. We use Docker for an automated/fast experiment environment controlled with approximately 1000 lines of Python scripts to manage the experiment system. Figure 1 illustrates the overall architecture design of our experiment system.

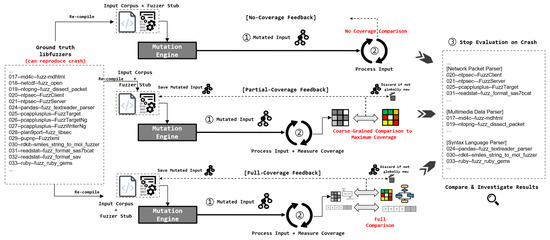

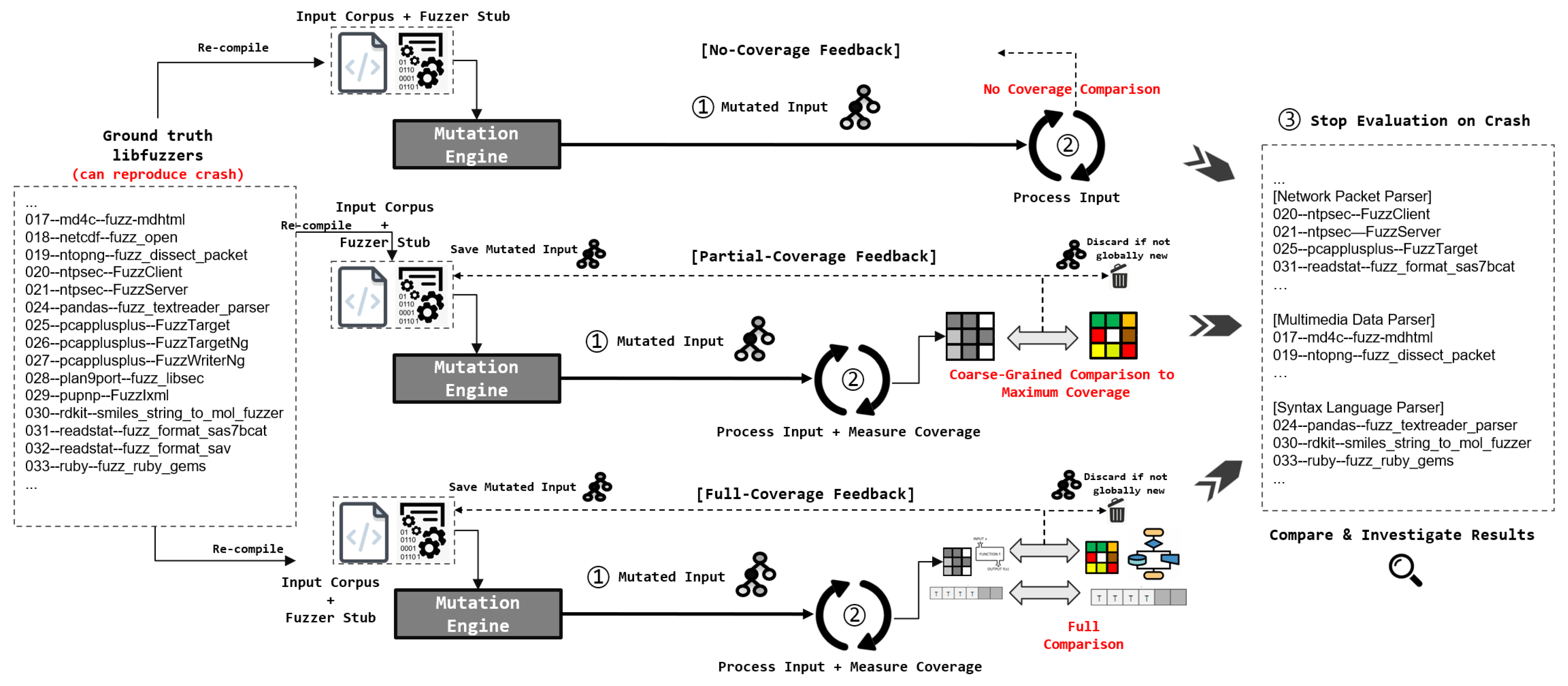

The workflow in our experiment begins with gathering unique real-world bugs based on OSS-Fuzz fuzzers. We have set up our own fuzzing infrastructure/management system based on ClusterFuzz (Although OSS-Fuzz and ClusterFuzz are open-source, crash discovery results found using this infrastructure are undisclosed. Therefore, we used our private infrastructure based on a modified version of ClusterFuzz and gathered unique bugs in OSS-Fuzz for years) and utilized it to find 44 unique memory bugs in OSS-Fuzz projects based on libFuzzer as the fuzzing engine. Following this, a crucial step in our experiment is to recompile the libFuzzer stubs responsible for finding such bugs based on our customized Clang compiler. The Clang compiler customization allows us to change the code coverage feedback mechanism provided by libFuzzer (libFuzzer is implemented as a part of Clang compiler runtime): (i) no coverage feedback, (ii) partial coverage feedback, and (iii) full coverage feedback. If we cross-reference the results based on the three different versions of fuzzers, we can find the tendency and relationship between the effectiveness of coverage guidance in detail.

More specifically, we run each fuzzer until they replicate the previously identified bugs and measure the consumed execution count for this reproduction. Based on this measurement, we analyze the detailed impact and outcomes of fuzzing with different levels of coverage feedback. Through this process, we cross-reference and analyze how the coverage feedback mechanism influences the effectiveness of fuzzing across various factors, including the type of application parser, initial seed data, and so forth. This examination should provide a better understanding and justification of applying coverage feedback for fuzzing proprietary systems that require high porting costs and engineering efforts for integrating such mechanisms.

3.1. Modification to libFuzzer for the Experiment

We modify and prepare three versions of the Clang compiler for the experiment: (i) the no-coverage version, (ii) the partial coverage version, and (iii) the full coverage version (the original one). Modifying to totally exclude code coverage feedback in libFuzzer’s implementation (for the no-coverage version) seems to be a simple task; however, there are a few things to consider. For example, simply ignoring the coverage feedback information for deciding whether to keep or discard the mutated input raises some problems. If we always choose to keep the mutated input by skipping the coverage feedback operations, the corpus set will continuously increase over time, thus quickly exhausting disk/memory space and slowing down the entire fuzzer’s performance until it crashes due to an out-of-memory error. Thus, this decision is improper for our experiment design. Also, we need to be careful of compiler optimization erasing important instructions unrelated to coverage feedback. Our modified libFuzzer performs input mutation but always discards the test case after finishing each execution, which is a simple standard implementation in non-coverage feedback fuzzers. Figure 2 shows the relevant code patch (we mainly modified the RunOne() function of libFuzzer to only exclude the coverage feedback during the source code modification. We checked the recompiled fuzzer binary considering the possibility of compiler optimization erasing important features other than the feedback). And the result of the modified libFuzzer binary was used to ignore the feedback. Additionally, we note that the no-coverage version of our libFuzzer does not eliminate the existing code for measuring code coverage in the fuzzing round. Instead, the modified version ignores the inspected coverage information and processes every input as if it does not increase the overall coverage. Because of this, the execution time of a single fuzzing round for both the original fuzzer and the altered fuzzer would not exhibit a measurable difference in timing performance. However, when a fuzzer discovers new coverage, it stores the in-memory test data to external storage (disk), which involves a significant timing delay. Unfortunately, predicting the pattern and occurrence of such delays is challenging, so we use the execution counts of the fuzzer as a comparison metric in our evaluation.

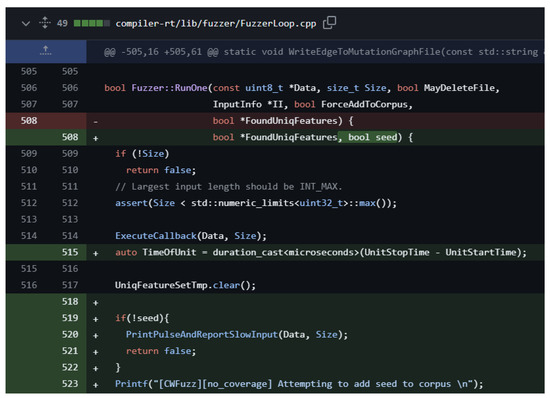

In case of partially excluding coverage feedback, we need to investigate the detailed implementation of the libFuzzer coverage feedback engine. In our customization, we gather partial coverage by changing the granularity of the coverage measurement rather than selectively keeping/discarding the coverage information. To explain this in detail, we first need to discuss details of libFuzzer’s coverage measuring system.

3.2. Details of libFuzzer’s Internal and Customization for Partial Coverage

In libFuzzer, code coverage information is specifically referred to as Feature, which is a libFuzzer-specific terminology for measuring code coverage. libFuzzer converts code coverage information into multiple features, which include edge coverage, edge counters, value profile, indirect caller/callee pairs, etc. [18]. Each feature is represented as an unsigned 32-bit integer value based on an 8-bit counter array representing edges (possible execution branches between code). For partial coverage measurement customization, we change the granularity of the counter size to lower the precision/accuracy of the measured coverage. Specifically, we modify the 8-bit array counter for feature collection to 3 bits using counter buckets. Counters falling into each bucket 1, 2, 3, 4–7, 8–15, 16–31, 32–127, 128+ are mapped into corresponding integers ranging from 0 to 7. Also, we change the way libFuzzer handles input via the ReducedInput option. The ReducedInput option allows for a new input to replace its parent input in case both inputs exhibit the same code coverage. In partial code coverage customization for lowering the precision, we discard the mutated test case with the same code coverage, even if it is shorter than its parent test case. These modifications give us a customized version of libFuzzer with less coverage feedback capability. We use such an intentionally poor-performing version of libFuzzer for comparison in our experiment.

3.3. Experiment Methodology and Metric

In our evaluation, all of the recompiled libFuzzer harnesses should eventually reproduce crashes at some point in theory. However, we cannot estimate how much time the lack of coverage feedback might additionally consume for reproducing the bug. Therefore, we need some baseline timeout policy for running the customized fuzzers. This maximum can be restricted based on (i) time and (ii) execution count. For example, when running the customized fuzzers, we can limit the maximum execution time for 48H, or similarly, we can limit the count of execution to 10 million per se. This is also an experiment design decision we need to examine. If we choose time as the limit, the comparison experiment could be unfair because excluding/reducing the quality of coverage feedback could make the fuzzer run faster, thus increasing the likelihood of reproducing the bug faster than the original fuzzer. Therefore, we choose maximum count of execution for the comparison metric in our evaluation. In a nutshell, we execute original/customized libFuzzer harnesses until they reproduce the crash (or until they reach the limit execution count) and compare their consumed execution counts as the key metric for fuzzing efficiency.

4. Results

In this section, we explain and analyze the detailed results of our experiment. For the experiment, we first gathered 44 unique memory bugs by running OSS-Fuzz fuzzers (libFuzzer harnesses) in our private infrastructure similar to ClusterFuzz. Once we found such bugs, we utilized them as the ground-truth source for our evaluation. To evaluate the efficacy of coverage feedback in reproducing such bugs in 44 libFuzzer stubs, we modified libFuzzer’s behavior by modifying the LLVM-15 source code. For our evaluation platform, we use an Ubuntu 22.04 64-bit server operating system based on an AMD Ryzen-9 5900 CPU architecture, which supports up to 24 cores. Also, we note that we use the -workers=5 option (five parallel evaluation) for all libFuzzer harness testing and iterate the evaluation twice to calculate the average.

Table 1. Evaluation results for using 44 real-world bugs found with libFuzzer. We have reproduced each bug with modified versions of Clang with regard to coverage feedback. Default, Partial, and No Cov columns each indicate running the original/customized version of libFuzzer that measures coverage information with coarse granularity/customized libFuzzer, which does not provide coverage feedback. Each number represents the average execution counts required to reproduce the bug. Seed indicates whether the fuzzer has been provided a proper sample test case at the beginning of fuzzing.

No	Project Name	Default	Partial	No Cov	Seed	Bug Type
1	coturn/FuzzStun	33	43	60	Y	Heap BOF
2	example/do_stuff_fuzzer	497	10 K	33 K	Y	Heap BOF
3	hiredis/format_command_fuzzer	4 K	2 K	5 K	-	Heap BOF
4	librdkafka/fuzz_regex	522 K	2 M	-	-	Heap BOF
5	libredwg/llvmfuzz	256 K	279 K	-	-	Heap BOF
6	libyaml/libyaml_dumper_fuzzer	4 M	10 M	-	Y	Heap BOF
7	llvm/llvm-special-case-list-fuzzer	28 M	-	-	-	Heap BOF
8	lzo/lzo_decompress_target	162 K	134 K	196 K	Y	Heap BOF
9	ntpsec/FuzzServer	2 K	6 K	6 K	Y	Heap BOF
10	open62541/fuzz_mdns_message	33 K	11 K	32 K	Y	Heap BOF
11	openbabel/fuzz_obconversion_smiles	402	1 K	701	-	Heap BOF
12	plan9port/fuzz_libsec	46	72	56	-	Heap BOF
13	pupnp/FuzzIxml	33K	15 K	1 K	Y	Heap BOF
14	readstat/fuzz_format_sas7bcat	285 K	580 K	13 M	Y	Heap BOF
15	readstat/fuzz_format_sav	5 M	6 M	-	Y	Heap BOF
16	ruby/fuzz_ruby_gems	3 M	3 M	-	-	Heap BOF
17	serenity/FuzzILBMLoader	5 M	5 M	-	-	Heap BOF
18	simd/simd_load_fuzzer	29 K	52 K	-	-	Heap BOF
19	vlc/vlc-demux-dec-libFuzzer	262	263	186	-	Heap BOF
20	vulkan-loader/json_load_fuzzer	54 K	84 K	127 K	Y	Heap BOF
21	c-blosc2/decompress_chunk_fuzzer	451 M	67 M	-	Y	Negative Size Param
22	fluent-bit/cmetrics_decode_fuzz	3 K	1 K	4 K	-	Invalid Free
23	vulkan-loader/instance_create_fuzzer	20 K	5 K	4 K	Y	Invalid Free
24	vulkan-loader/instance_enumerate_fuzzer	19 K	3 K	9 K	Y	Invalid Free
25	augeas/augeas_fa_fuzzer	2 K	183	3 K	-	SEGV
26	bloaty/fuzz_target	2 M	2 M	3 M	Y	SEGV
27	fluent-bit/cmetrics_decode_fuzz	731M	9739 M	-	-	SEGV
28	glog/fuzz_demangle	20 K	15 K	-	-	SEGV
29	haproxy/fuzz_cfg_parser	507 K	616 K	-	-	SEGV
30	hiredis/format_command_fuzzer	12 K	2 K	215 K	-	Heap BOF
31	ibmswtpm2/fuzz_tpm_server	9 K	11 K	2 M	-	SEGV
32	libbpf/bpf-object-fuzzer	120 K	94 K	119 K	Y	SEGV
33	libical/libical_extended_fuzzer	623 K	1M	-	-	SEGV
34	libredwg/llvmfuzz	561 K	159 K	-	-	SEGV
35	oatpp/fuzz_mapper	7 M	5 M	-	-	SEGV
36	pcapplusplus/FuzzTargetNg	187	128	145	Y	SEGV
37	php/php-fuzz-execute	924 K	625 K	2M	Y	SEGV
38	php/php-fuzz-function-jit	32 K	42 K	66 K	Y	SEGV
39	wabt/read_binary_interp_fuzzer	353 K	212 K	-	-	SEGV
40	wabt/read_binary_ir_fuzzer	60 M	51 M	-	-	SEGV
41	augeas/augeas_api_fuzzer	67 K	70 K	-	-	UAF
42	augeas/augeas_escape_name_fuzzer	1 M	1 M	-	-	UAF
43	c-blosc2/decompress_frame_fuzzer	168 K	121 K	-	Y	Heap BOF
44	cups/FuzzCUPS	15 K	14 K	21 K	Y	Heap BOF

is the summarized result of our evaluation. The Default column indicates the fuzzer execution count for reproducing the same bug using the original libFuzzer. Partial indicates the fuzzer execution count for reproducing the same bug based on the partially modified (using coarse-grained coverage feedback information) libFuzzer. No Cov indicates the fuzzer execution count for reproducing the same bug with the modified libFuzzer for discarding the coverage feedback information. In the No Cov case, the number of fuzzer execution counts is omitted if bug reproduction fails even after running the fuzzer for a sufficiently long time (48 h) and also executing the fuzzing iteration at least twice the original count for discovery. The Seed column indicates the existence of the initially given test data set for mutation in fuzzing. If no initial seed is given, libFuzzer automatically generates a series of random byte sequences for its test input data.

The evaluation table shows a discernible relationship between the No Cov fuzzer’s result and the Seed. It is noteworthy that the initial seed is manually crafted by the open-source developers and thus contains crucial information regarding data structure and format. The evaluation results based on our test data set suggest that the influence of the initial seed is significantly greater than the detailed mechanism of the coverage feedback feature. A total of 15 out of 20 cases of bug reproduction failures in the no-coverage experiment lacked initial seed data. However, in cases where a proper initial seed was given (e.g., highlighted with red color in the table), the difference in performance for reproducing the bug was relatively insignificant (typically, all cases found the same bug within the range of x2 to x3 fuzzing execution attempts). On the other hand, in cases where no initial seed was given, the performance of the no-coverage fuzzer was significantly degraded (e.g., highlighted with yellow color in the table). The stochastic tendency in our evaluation table indicates that it would be better to investigate the efforts (engineering, manpower) for providing proper initial seeds for test cases rather than enhancing/adopting better coverage feedback features in some extreme cases.

Other factors, such as the type of bug and data parser category, did not affect the evaluation data in a significant way. Nevertheless, we have investigated such issues as well and provide related information in Appendix A. Interestingly, in some cases, coarse granularity coverage feedback fuzzing showed better efficiency (finding the same bug more quickly) compared with the original. The reason for such a phenomenon might be explained with some example cases that we analyze in Section 5.

Overall, it is evident that coverage feedback enhances the performance of fuzzing and thus increases the likelihood of discovering unknown bugs in a more efficient way. However, our study suggests that if the target system (such as a closed-source proprietary application) requires significant efforts and costs for applying the coverage feedback feature, it would be better to invest the limited resources in other perspectives such as providing high-quality initial test cases that include various structures and logical semantics of the application with static analysis.

5. Discussion

In this section, we discuss special cases where feedback information could be extremely beneficial for finding new code coverage and opposite cases where feedback would be useless for expanding the code coverage. We note that the example cases we discussed in this section are special edge cases to help analyze and interpret our evaluation. However, we note that such cases are relatively common as we can quickly find it from real-world open-source repositories.

5.1. Example Case Where Coverage Feedback Is Beneficial

In Listing 1, a parser code snippet in one of the OSS-Fuzz projects (ntpsec-secure network time protocol implementation) demonstrates taking an array of 16-bit array data from the client as a potentially malicious input. In this example, each value in 16 bits of data determines which code to execute next. As 16 bits is a relatively small bit space to explore based on randomness, the fuzzer will quickly test all possible 65,536 cases and find new functions for additional data processing. The new function (e.g., nts_next_protocol()) triggered by specific data in this case subsequently processes the same input orthogonal to previously processed data (e.g., bytes of the buff array from the previous loop iterations). Therefore, in this case, a randomly discovered test case (that happens to trigger a new function) for invoking such a function is valuable to remember (the genetic algorithm in fuzzing applies more mutation attempts in the future to interesting inputs). Therefore, feedbacking and storing this special test case for future input mutation is beneficial for finding additional code coverage.

Listing 1. An example case where feedback information can effectively expand code coverage (ntpsec/FuzzClient).

5.2. Example Case Where Fine-Grained Coverage Feedback Is Ineffective

Listing 2 demonstrates a detailed example case in Apache-APR from the OSS-Fuzz project, where coverage expansion based on fine-grained (counting the execution attempt of the same code location and considering a greater execution count as a new code coverage) feedback is useless. For example, the SKIP_WHITESPACE macro implementation is responsible for counting white space characters from the given input byte stream. In this implementation, libFuzzer will provide feedback as a new coverage for every white-space character appended to the mutated input, as the block execution count will increase proportionate to the number of white-space characters. However, this feedback and coverage expansion do not actually contribute to finding a meaningful code path at all. However, the fuzzer will keep accumulating such mutated test cases because of the coverage feedback result. This could hinder the fuzzer’s efficiency and might explain some of the evaluation results in Table 1 where coarse-grained feedback demonstrated better performance.

Listing 2. Example code snippet from the Apache-APR implementation demonstrating useless coverage finding due to inline-counter feedback.

5.3. Example Case Where Coverage Feedback Is Meaningless

Listing 3 represents an example implementation for checking the integrity of the PNG image header. In this case, checking the code coverage feedback might be totally useless considering that the probability of the fuzzer randomly matching the PNG signature or CRC checksum is practically zero. This is dependent on how the memcmp or integer value comparison is implemented. More specifically, more coverage can be measured if the comparison takes different execution cycles upon different input data although their byte length is the same. If the comparison is atomic (e.g., executed instruction sequence for entire comparison is identical even if two given data for comparison partially matches or not), the probability of the fuzzer discovering a new code coverage is 1 over 2 to the 64th in the case of the PNG signature match and 1 over 2 to the 32nd for the CRC check. To handle special cases such as file signature match, libFuzzer typically maintains dictionary or supplementary data structure such as the Table of Recently Compared data (TORC) to discover such special data, regardless of coverage feedback. Building a good dictionary is more important than coverage feedback in such cases. In the case of a CRC integrity check example, there is no feasible way for the fuzzer to automatically solve the condition solely based on coverage feedback. On the other hand, one may use more detailed and fine-grained program behavior measurement techniques. For example, cmplog of AFL++ [19] and Sanitizer Coverage in libFuzzer provide fine-grained measurements that allow for the detailed assessment of processed data. With such advanced fuzzing support features, it could be possible to automatically solve such conditions in a small amount of time based on implementation details.

Listing 3. Example implementation of PNG header integrity checking. Coverage feedback information does not help the fuzzer find a new code path (integrity check success) in such a case.

6. Limitations and Future Work

In this paper, we have investigated the efficacy of coverage feedback and fuzzing results to provide a guideline for assessing the cost-effectiveness of applying coverage feedback features to closed-source systems such as proprietary firmware in IoT or UAV devices. In industry, many closed-source UAV systems, such as the DJI drone, have their dedicated SoC hardware, which requires an extensive engineering effort to apply fuzzing to [20]. Researchers trying to apply fuzzing to such systems struggle to receive feedback, such as code coverage increments and crash events. Although there are a few ways to measure code coverage without utilizing source code via emulation or debugging features [21], applying such techniques to other proprietary systems remains challenging. Despite the evaluation and analysis conducted in this paper, quantifying the efficacy of fuzzing and the cost of altering a system (e.g., to support coverage-guided fuzzing) cannot be performed in a straightforward manner, as various factors must be considered, including CPU architecture support, operating system support, hardware interfaces, and so forth. Considering all of these factors to determine the cost of applying coverage-guided fuzzing would be a challenging future task. Although we do not provide a straightforward answer regarding the efficacy of fuzzing and the cost of coverage measurement, we hope our analysis and evaluation results can aid future research directions and be utilized as a ground-truth reference for this purpose.

7. Related Works

7.1. Analyzing Coverage Metrics

Wang et al. introduced the concept of sensitivity in coverage-guided fuzzing, which can be utilized to compare different coverage metrics in fuzzing [22]. This previous research systematically examined the impact of various coverage metrics on fuzzing performance. Using a formally defined concept of sensitivity, their research evaluated a wide range of metrics, including basic branch coverage, context-sensitive branch coverage, and memory-access-aware branch coverage, with the AFL tool on extensive datasets. The evaluation results indicate that more sensitive coverage metrics generally lead to quicker and more frequent bug discoveries. Additionally, different metrics tend to find distinct sets of bugs, and the optimal metric may vary at different stages of the fuzzing process. The main difference between such previous works and ours is that we intend to investigate the cost versus gain of utilizing coverage feedback in fuzzing in terms of closed-source systems, which impose significant engineering challenges for developing coverage-guided fuzzers.

7.2. Fuzzing Closed Systems

As fuzzing became a popular and standard way for discovering memory errors in software, researchers started to adopt fuzzing to special systems such as closed-source embedded systems (e.g., UAV firmware, satellite firmware, IoT device firmware, etc.). Applying fuzzing to such systems raises significant challenges in measuring code coverage due to the impossibility of source-code instrumentation. Measuring code coverage for binary-only applications is feasible based on QEMU-AFL [23]; however, applying such fuzzers still requires a compatible operating system and CPU architecture (e.g., standard Linux and Intel/ARM architecture). Special systems such as satellite firmware are usually based on the SPARC Leon-3 [24] CPU architecture with the RTEMS [25] real-time operating system or VxWorks [26] systems. UAV firmwares such as the DJI drone firmware use proprietary systems with multiple SoC environments [20]. Moreover, such firmwares are often signed/encrypted to prevent any modification at the binary level [27]. Applying fuzzing techniques to such systems is feasible; however, supporting coverage feedback as in popular open-source-based fuzzers requires massive system porting and engineering. Jang et al. [10] recently proposed a system for applying coverage feedback-based fuzzers to embedded firmwares and partially recovered code fragments. In the study, the authors defined a concept called fuzzability to test if a fragment of binary could be fuzzed via conventional feedback-based fuzzers. However, their evaluation suggests that applying coverage feedback-based fuzzing to such systems/environments is highly costly (in terms of system engineering) and inefficient. This paper addresses such research problems and conducts an extensive fuzzing evaluation based on 92 real-world bugs found by OSS-Fuzz.

7.3. Previous Fuzzing Works

Recent advancements in fuzzing have significantly improved the efficiency and effectiveness of finding bugs. This section summarizes related works regarding various fuzzing approaches, highlighting key contributions and their methodologies.

Coverage-based fuzzing is a standard approach where the fuzzer aims to maximize the coverage of code paths during execution. The key idea in coverage fuzzing is using genetic algorithms to selectively preserve mutated inputs based on their contribution to expanding code coverage, thus significantly increasing the likelihood of discovering new code paths. To this end, various researchers have suggested novel approaches. Böhme et al. [9] discuss the reliability of coverage-based fuzzer benchmarking, emphasizing the need for consistent and reliable benchmarks in evaluating fuzzers. Similarly, ref. [28] introduced coverage-based greybox fuzzing as a Markov chain, laying the groundwork for other subsequent fuzzing techniques.

Application-aware fuzzing techniques, such as VUzzer [5], adapt fuzzing strategies based on application-specific knowledge, leading to a more effective identification of vulnerabilities. CollAFL [29] and FairFuzz [30] propose path-sensitive and targeted mutation strategies, respectively, to enhance coverage and effectiveness. Hawkeye [31] focuses on specific program paths or vulnerabilities, directing the fuzzer’s efforts toward areas of interest. JITfuzz [32] specifically targets Just-in-Time compilers in JVMs, highlighting the applicability of fuzzing in diverse software environments.

Integrating fuzzing with other analysis techniques has also shown promise. SAFL [33] combines symbolic execution with guided fuzzing to improve testing coverage, while Zeror [34] accelerates fuzzing with coverage-sensitive tracing and scheduling. Hardware-assisted fuzzing, as demonstrated by kAFL [35], leverages hardware features to improve the feedback mechanism and efficiency of fuzzing kernels and operating systems. Similarly, though based on software-only techniques, full-speed fuzzing [21] aims to reduce overhead through coverage-guided tracing, enhancing the speed and efficiency of fuzzing processes based on the debug interrupt feature.

Network protocol-specific fuzzing has also gained attention with tools like AFLNET [36], which adapts greybox fuzzing for network protocols, and Fw-fuzz [37], focusing on firmware network protocols. These tools address the unique challenges of fuzzing network interactions and embedded systems. For IoT devices and firmwares, FIRM-COV [38] introduces a high-coverage greybox fuzzing framework optimized for IoT firmware through process emulation. This paper explores the effectiveness of coverage feedback in fuzzing considering their expensive porting cost in IoT and embedded firmware systems.

8. Conclusions

This paper uncovers the details of how and when code coverage feedback is beneficial or not. Our research revealed that while coverage-guided fuzzing benefits most scenarios to some extent, its effectiveness is substantially influenced by multiple factors such as the existence of an initial seed corpus, type of data parser, and amount of code base (line of code). Such information is especially valuable in situations requiring substantial effort to implement coverage feedback fuzzing, such as with closed-source or embedded system firmwares. By evaluating 44 real-world bugs from OSS-Fuzz, we found detailed correlations between coverage feedback and external factors. We hope researchers can reference our findings in designing fuzzing systems for closed-source applications, such as UAV/IoT firmware.
