Coordinated Control of Constant Output Voltage and Maximum Efficiency in Wireless Power Transfer Systems

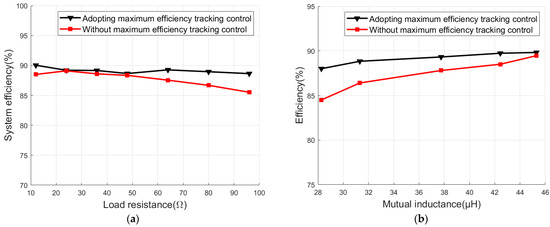

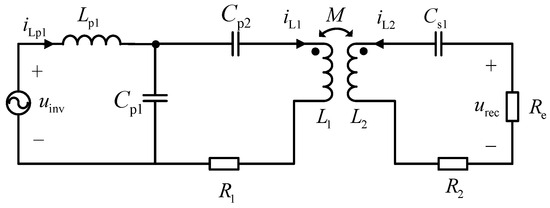

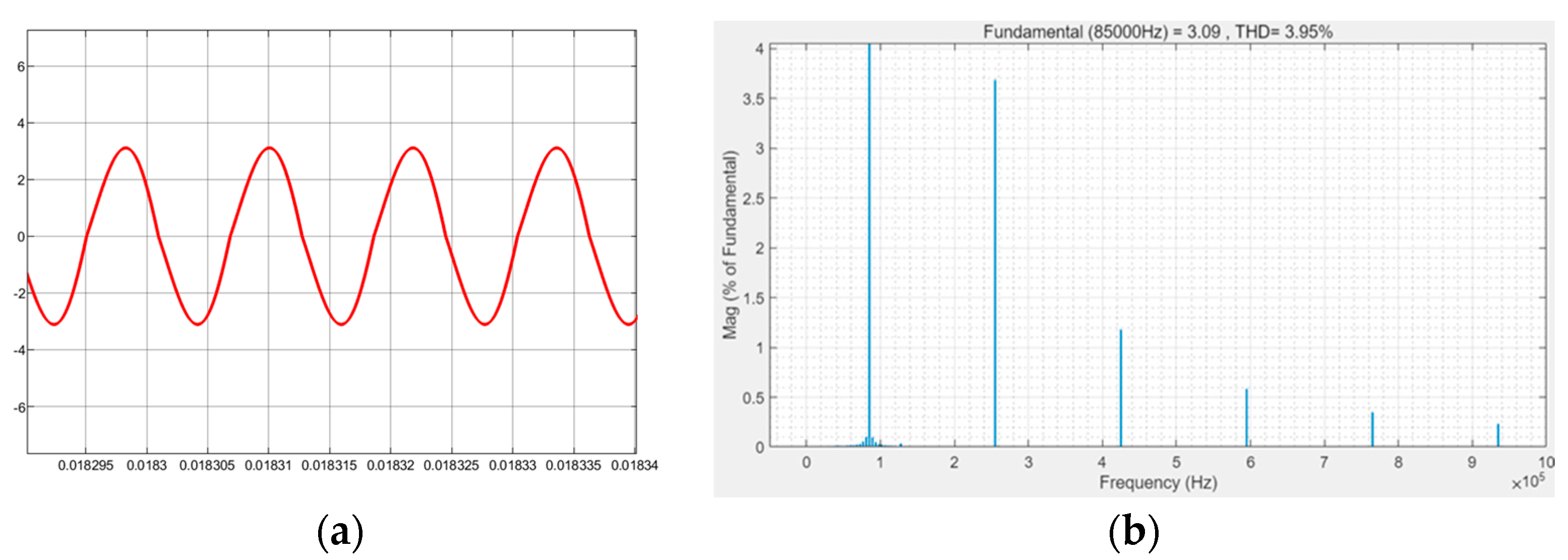

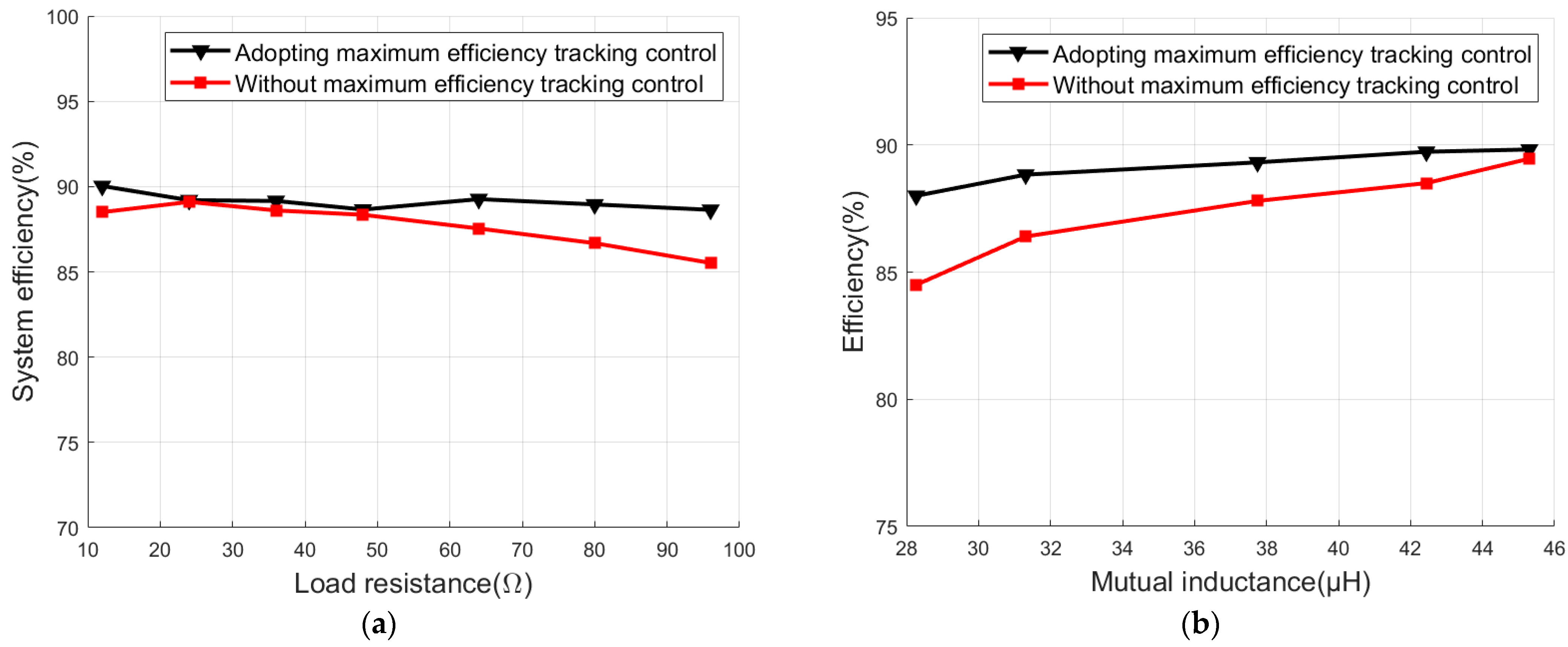

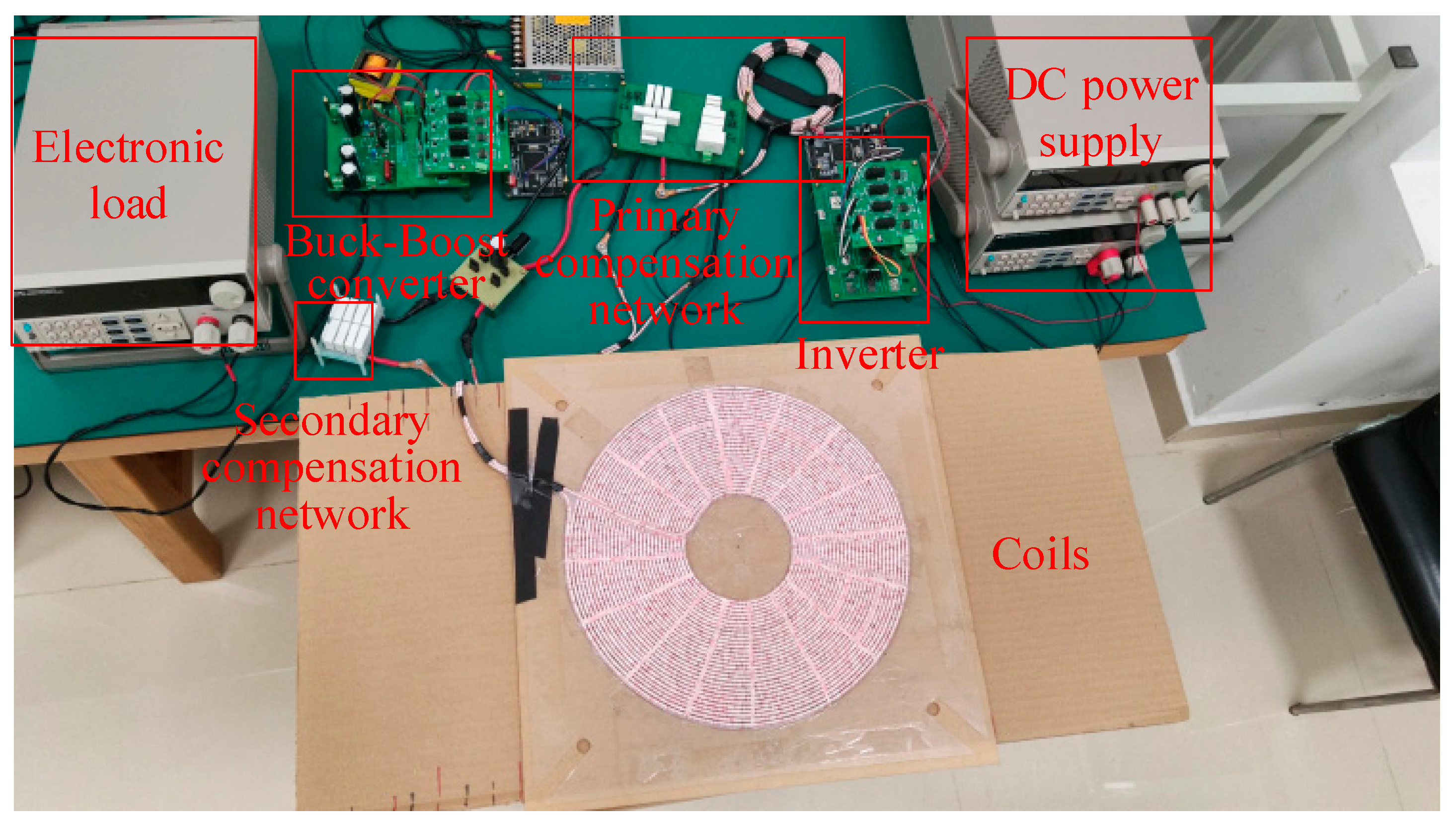

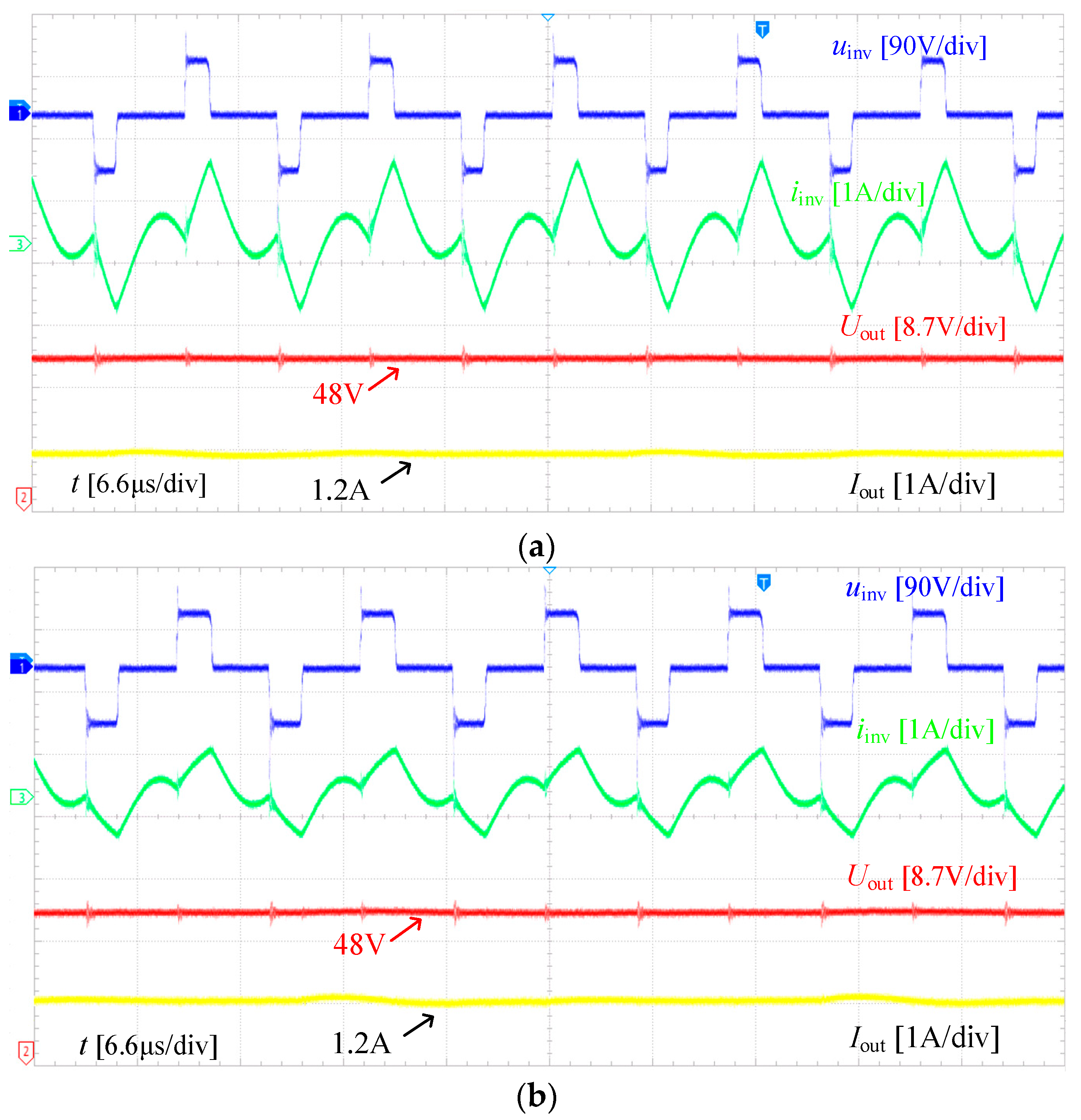

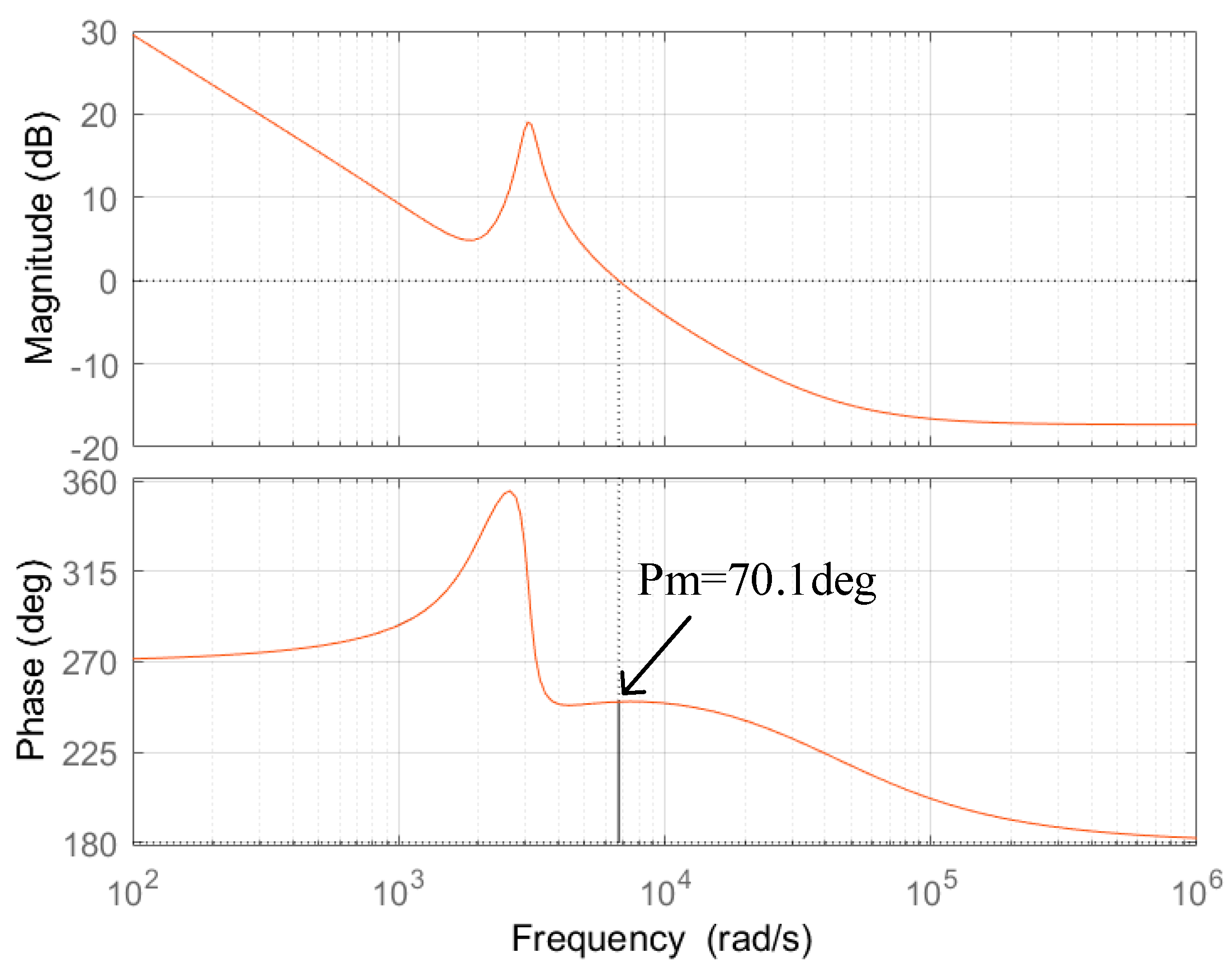

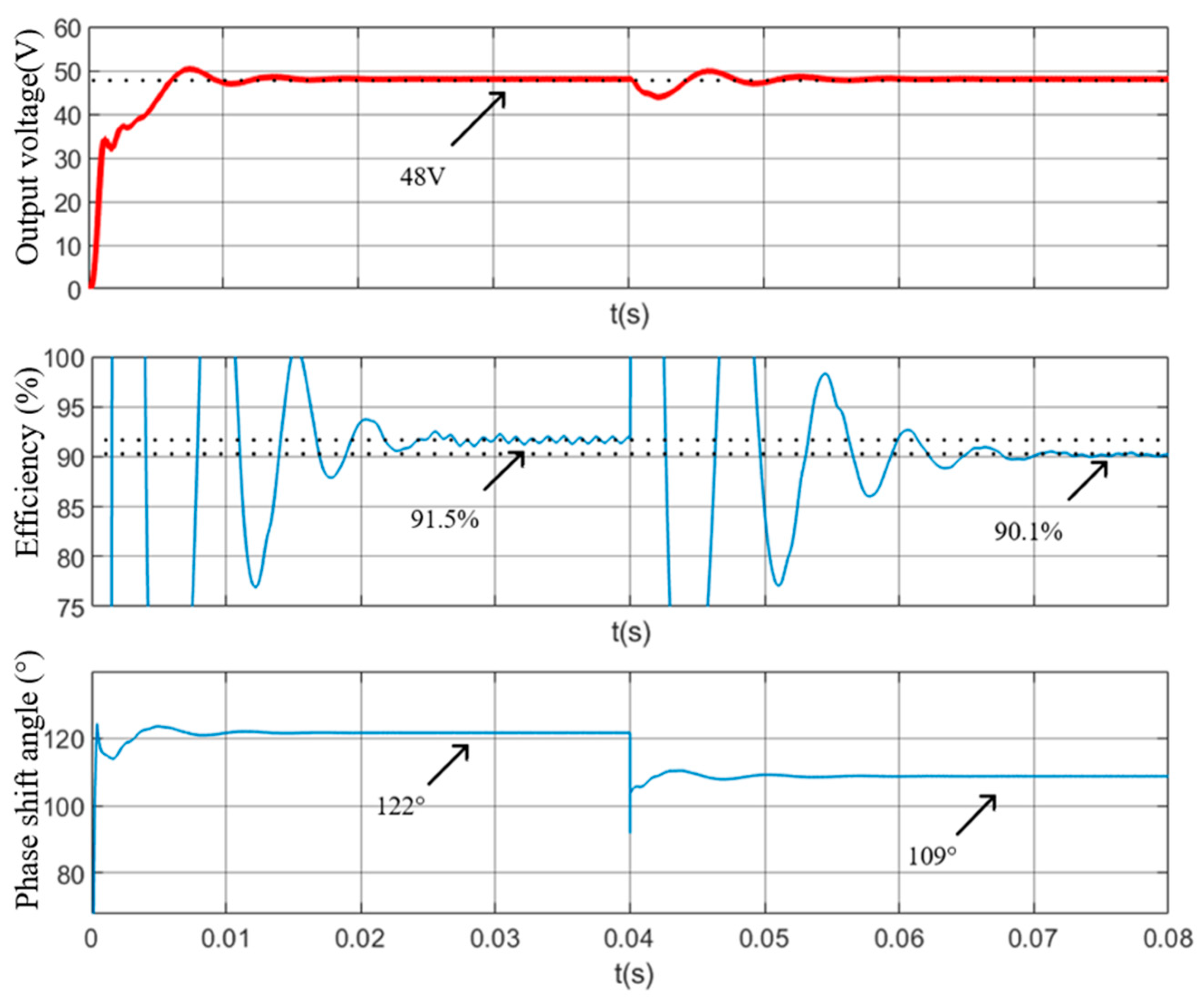

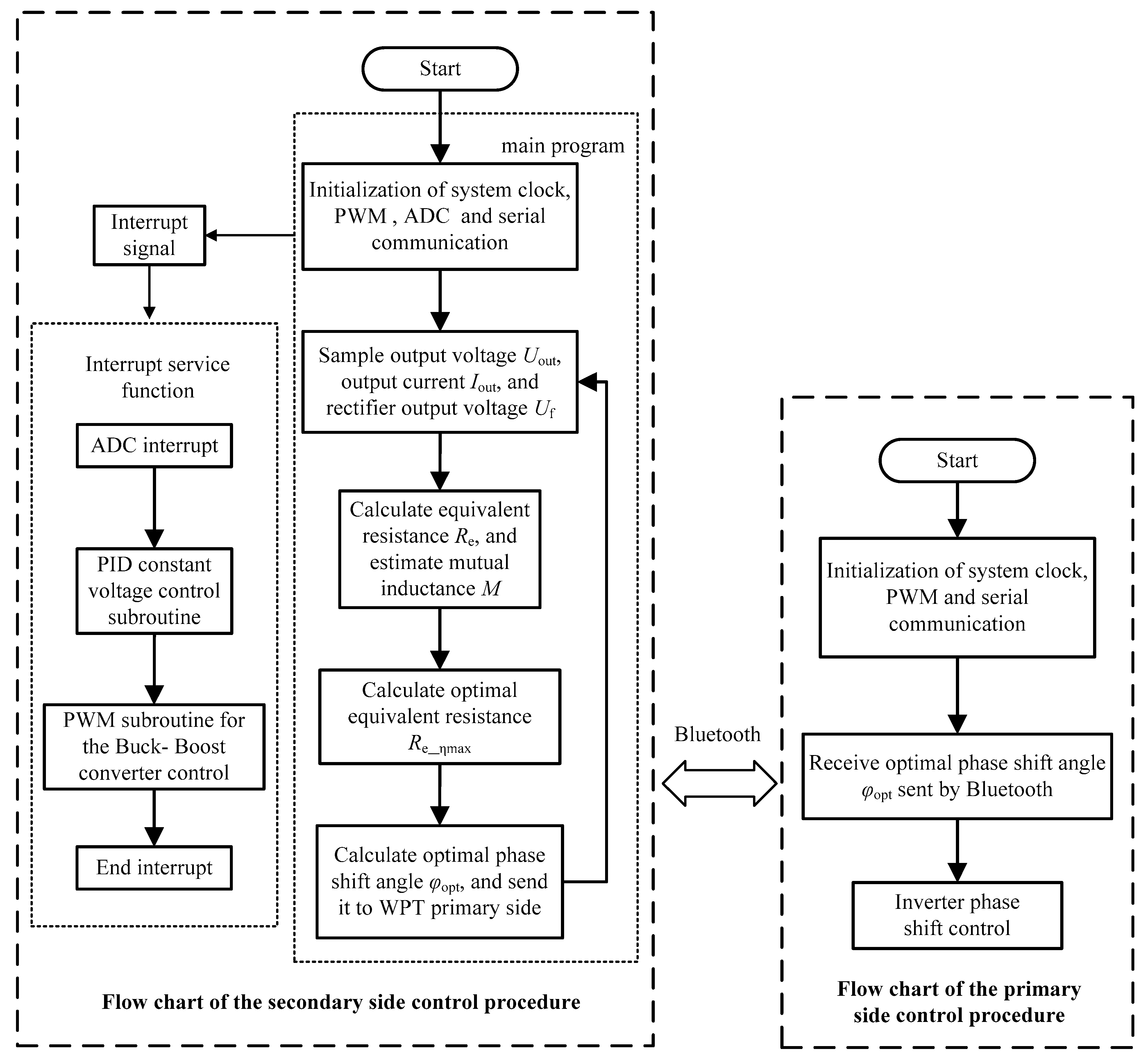

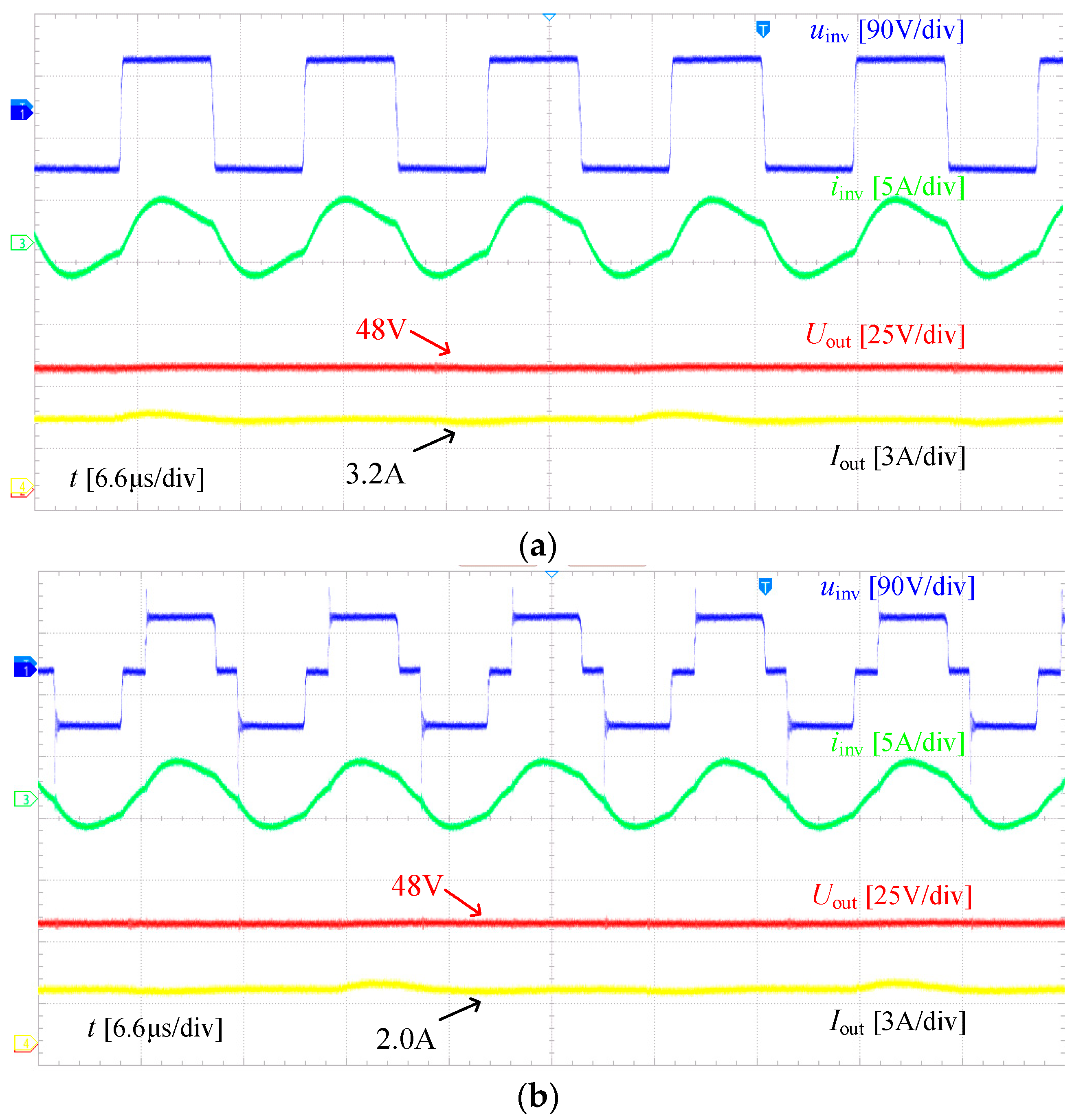

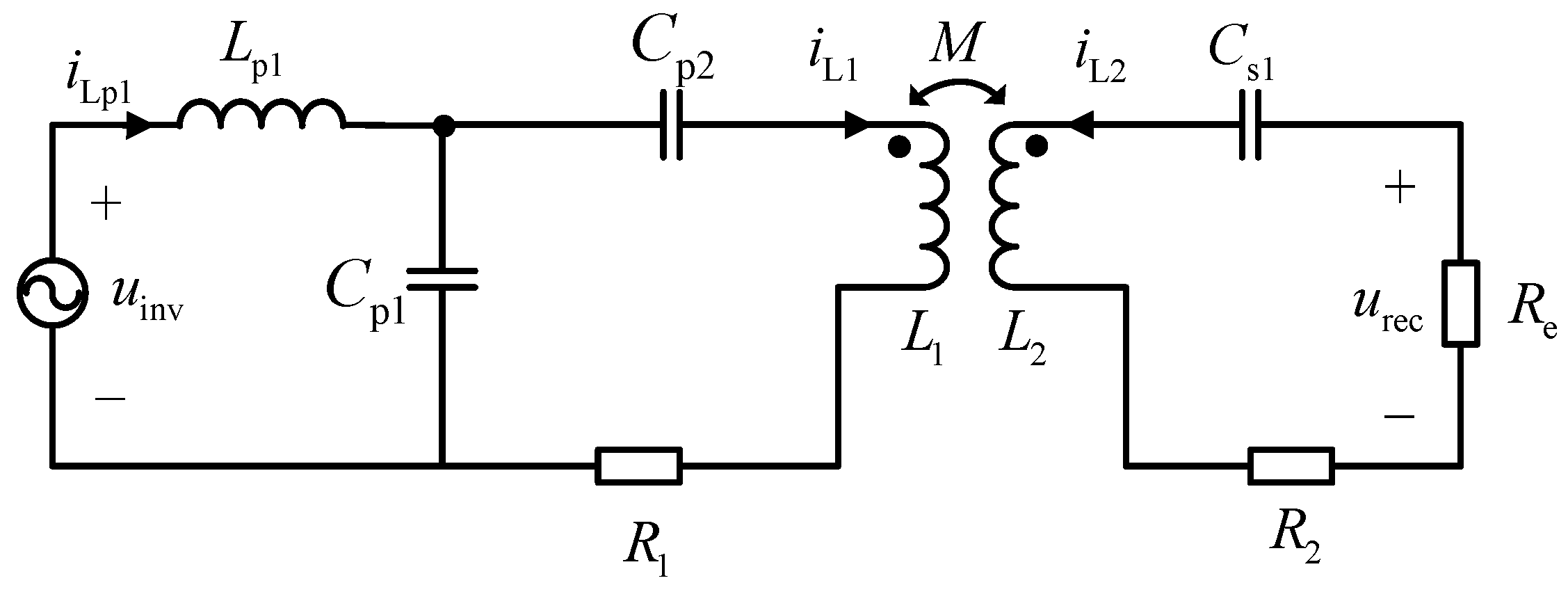

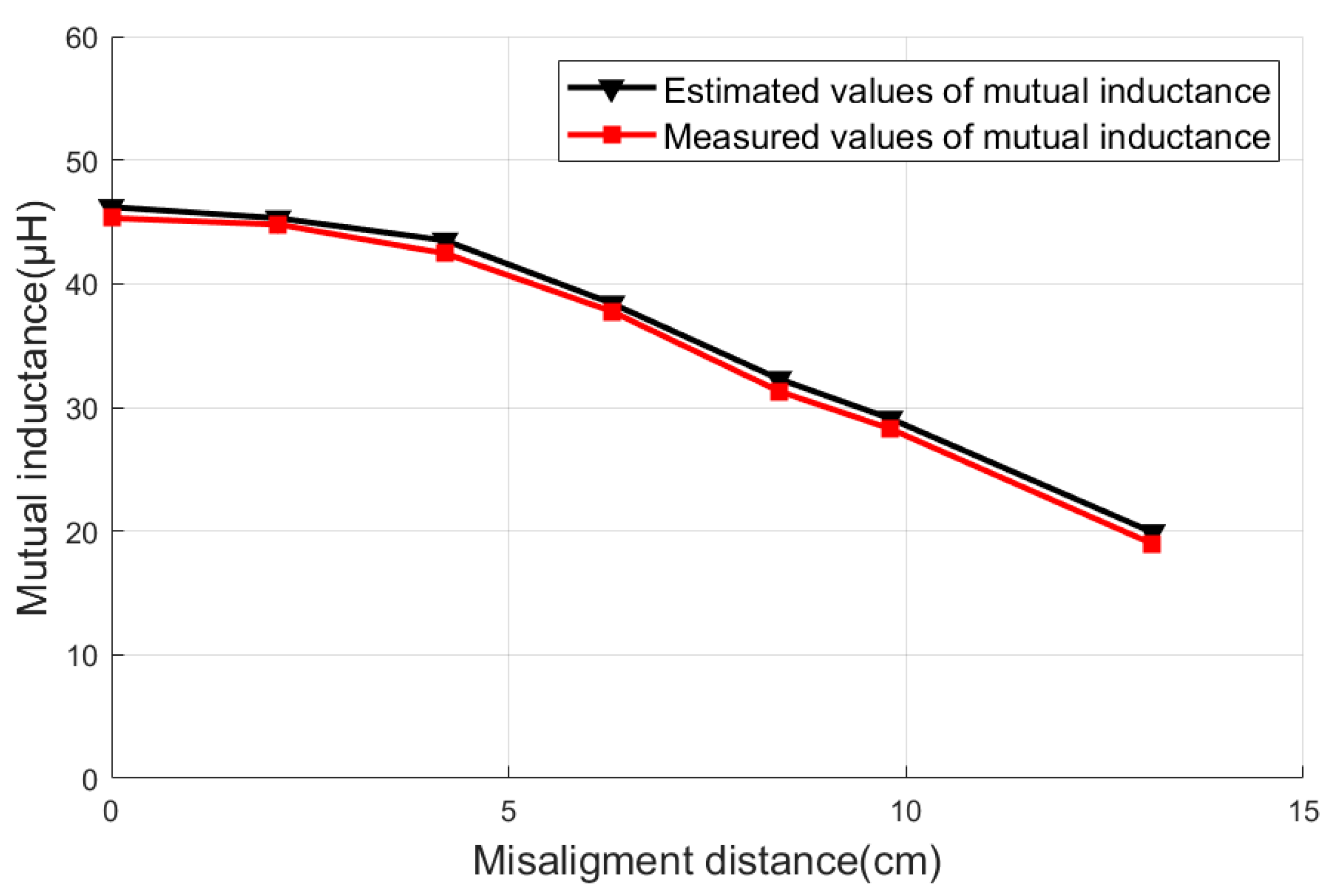

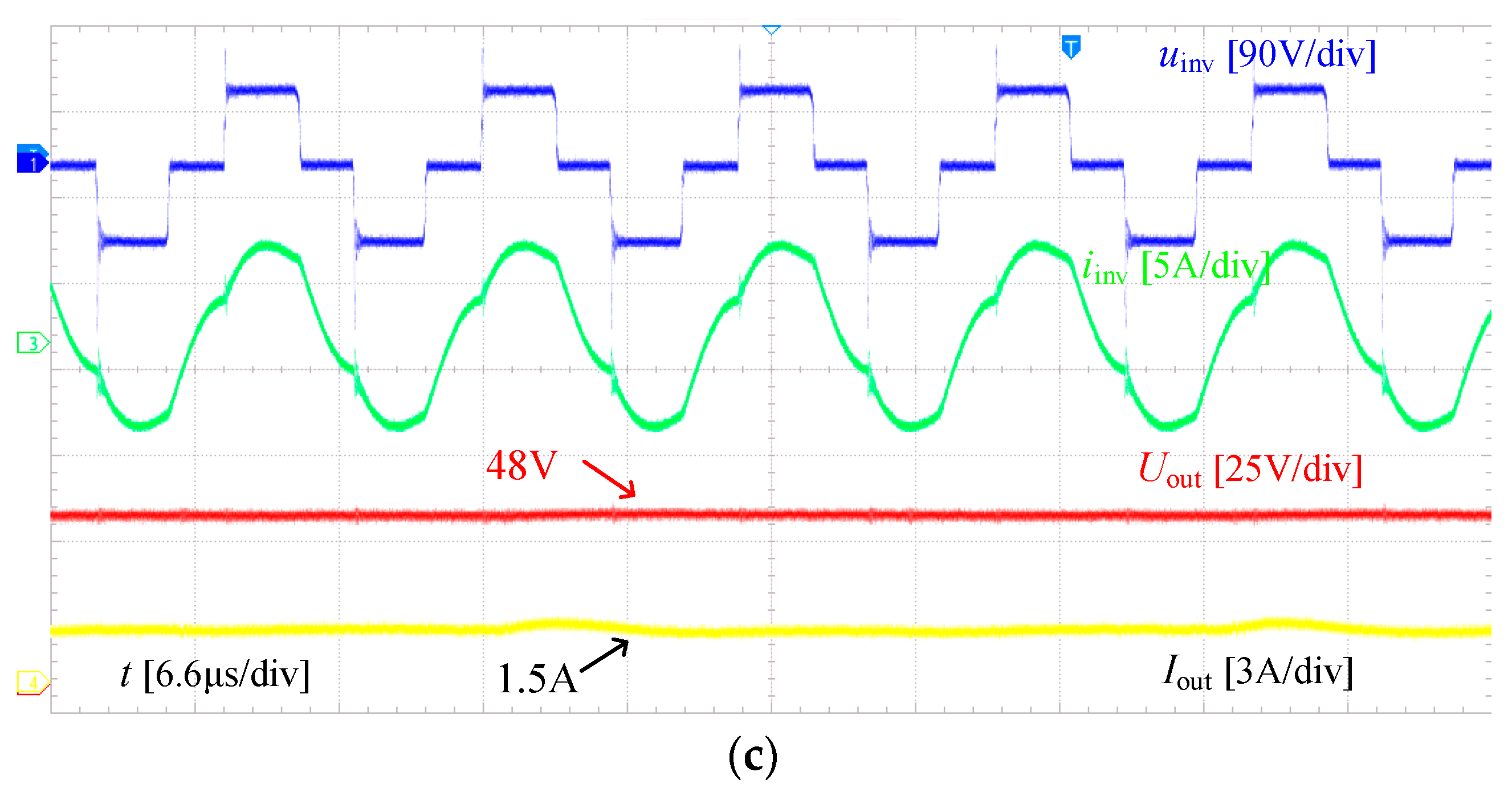

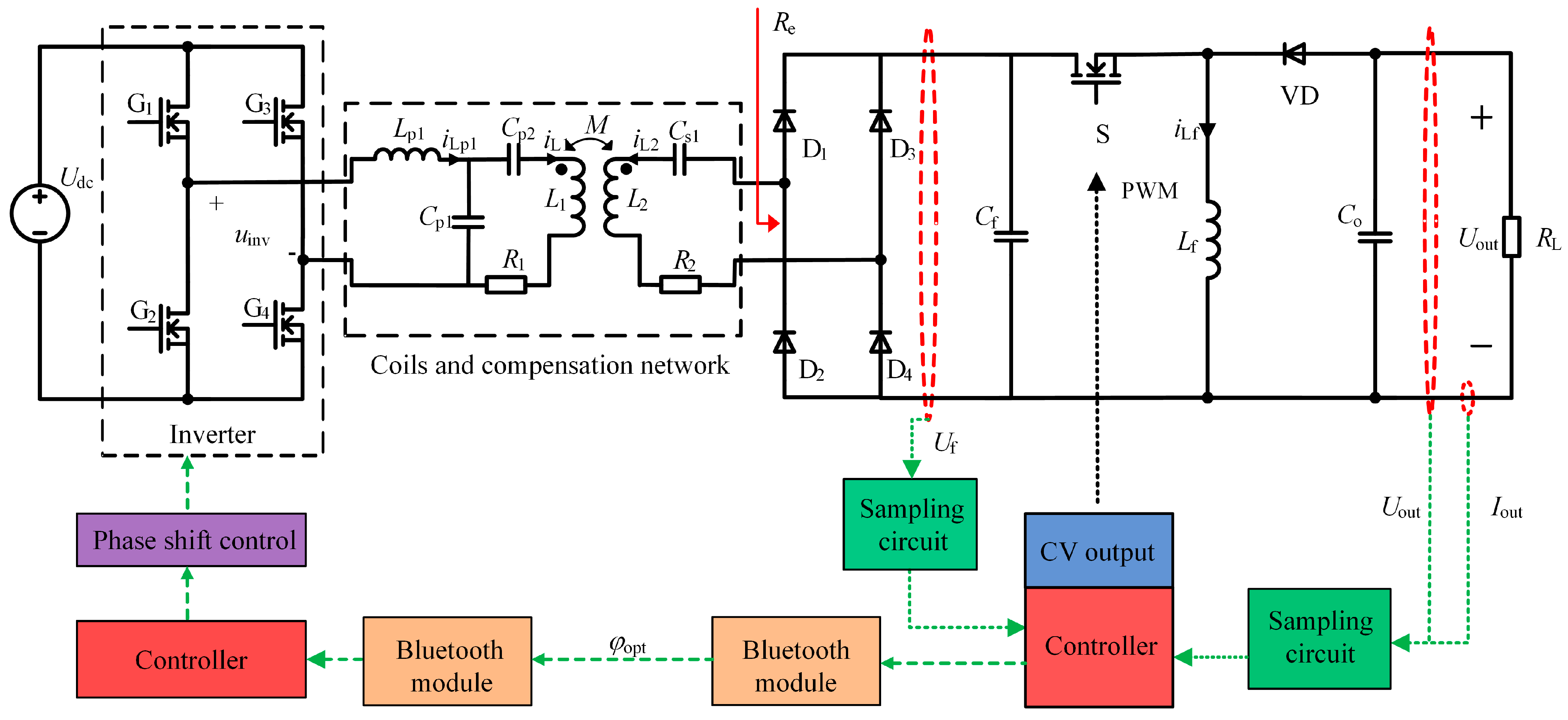

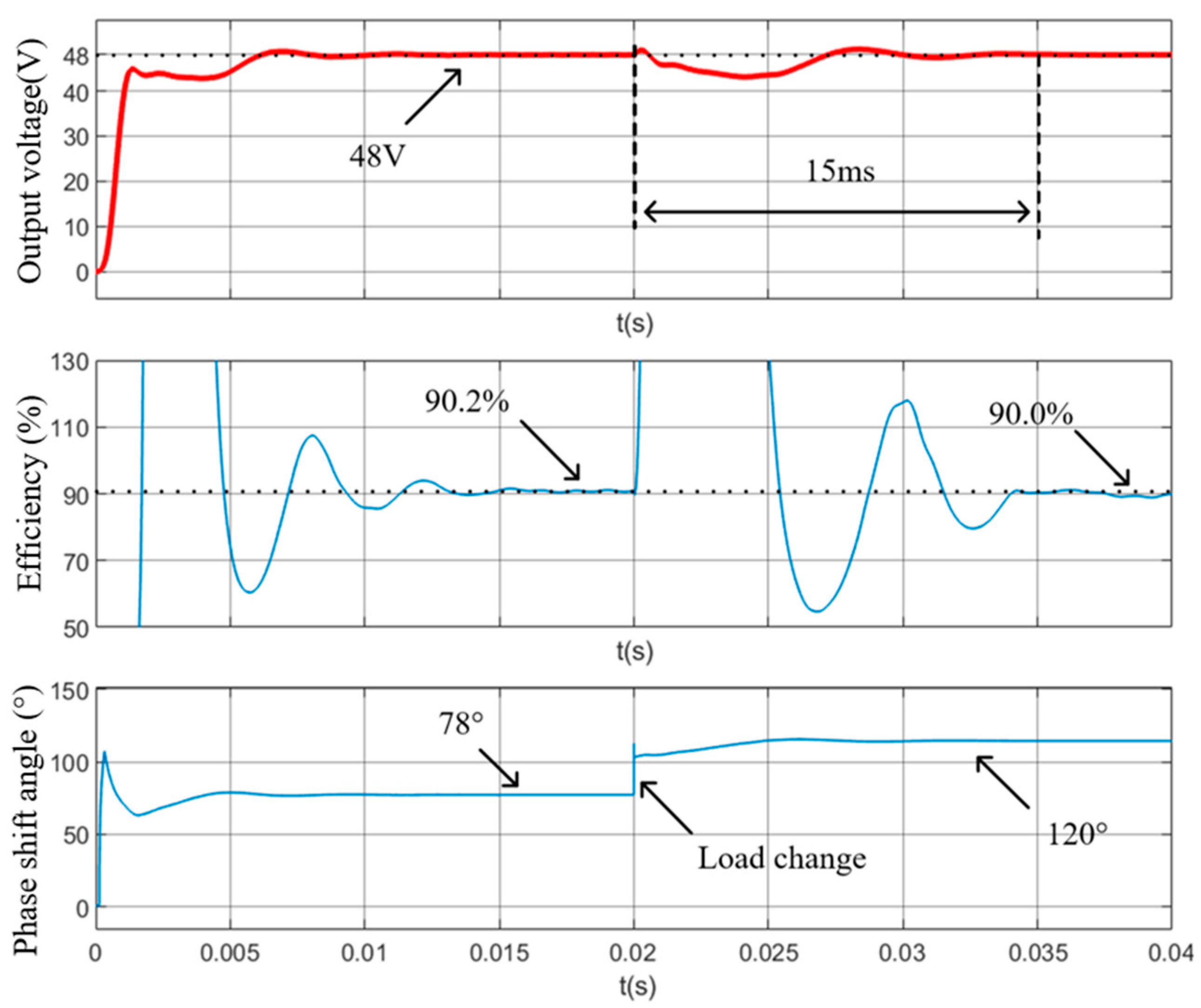

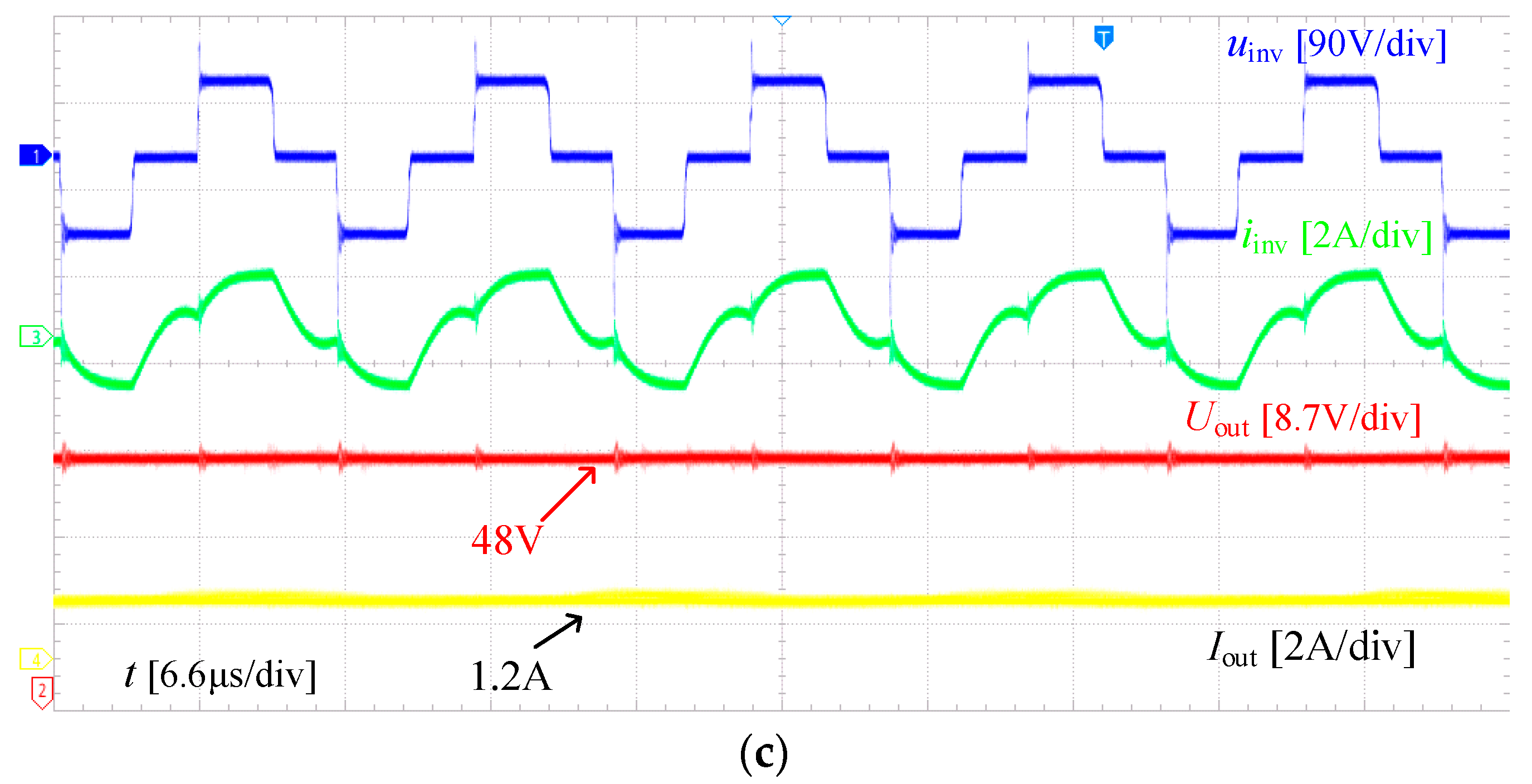

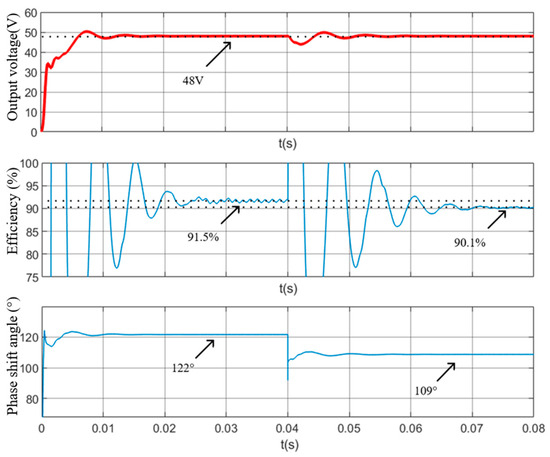

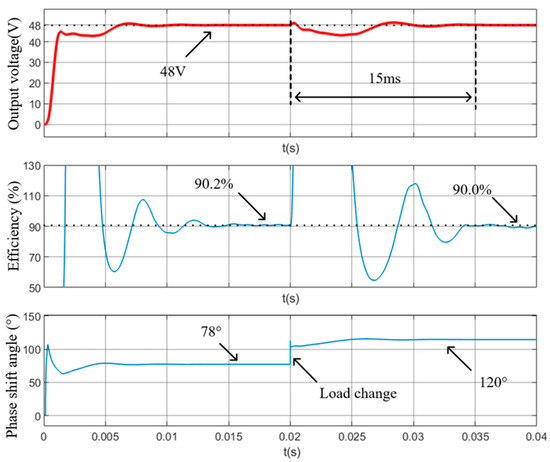

This article presents a coordinated control method used for wireless power transfer (WPT) systems. This method can improve WPT system transmission efficiency while maintaining the constant output voltage. First, the topology of the DC–DC converter is selected and the equivalent circuit model of the WPT system is established. Then, the WPT system characteristics are discussed and the mutual inductance estimation process is presented. Furthermore, the coordinated control method is proposed, where the constant voltage output is achieved by connecting the Buck–Boost converter after the diode rectifier. Meanwhile, the optimal phase shift angle is calculated and sent to the controller to achieve maximum transmission efficiency tracking control, according to the measured load voltage and current. Finally, simulations and experiments are adopted to verify the proposed coordinated control method. The experimental results indicate that the average system transmission efficiency is increased by 1.80% and the efficiency fluctuation is decreased by 2.67% when the system load resistance varies, while the average system transmission efficiency is increased by 1.80%, and the efficiency fluctuation is decreased by 3.14% when the mutual inductance changes. This means the proposed coordinated control method is effective under the conditions of the WPT load and mutual inductance variations.
