Assessing the Impact of Lichens on Saint Simeon Church, Paşabağ Valley (Cappadocia, Turkey): Potential Damaging Effects versus Protection from Rainfall and Winds
Abstract
:1. Introduction
2. Materials and Methods

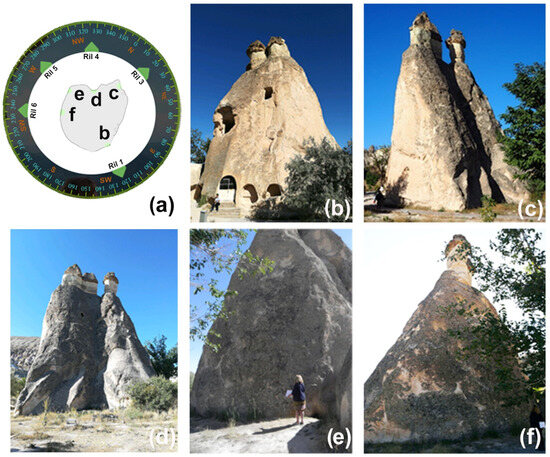

2.1. Site Description: Historical, Geological, and General Climatic Features
2.2. Biological Colonization Assessments and Mapping of Deterioration Patterns: In Situ Observations and Sampling Procedure
- South/East Exposure: 5 samples (Ril1a, Ril1b, Ril1c, Ril1d, Ril1e) (Figure 2a);
- North/East Exposure: 6 samples (Ril3a, Ril3b, Ril3c, Ril3d, Ril3e, Ril3f) (Figure 2b);
- North/West Exposure: 14 samples (Ril4a, Ril4b, Ril4c, Ril4d, Ril4e, Ril4f, Ril4g, Ril4h, Ril4i, Ril4l, Ril4m, Ril4n, Ril4o, Ril4p) (Figure 2c);
- West exposure: 2 samples (Ril5a, Ril5b) (Figure 2d);
- South/West exposure: 1 sample (Ril6a) (Figure 2d).
2.3. Lichen Identification
2.4. Penetration Assessment
2.5. Climatic Elaborations and Wind-Driven Rain (WDR) Calculation
- FL: an empirical constant, typically 0.2 kg s/(m3·mm);
- U: the hourly mean wind speed [m/s];
- rh: the hourly rainfall [mm/h];
- θ: the angle between the wind direction and the normal to the wall surface [°].
- rbvMY: annual mean WDR [kg/(m2·a)];
- Σ: summation over all hours where cosθ is positive;
- U: hourly mean wind speed in m/s;
- θ: the angle between the wind direction and the normal to the wall surface [°];
- rh: hourly rainfall intensity in mm/h;
- N: number of years over which the data are collected.
3. Results

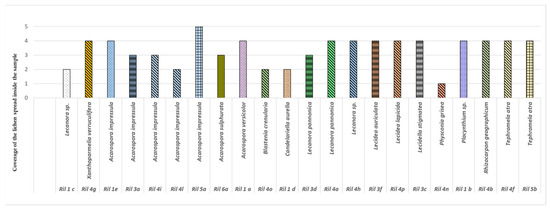

3.1. Lichen Identification and Distribution
3.2. Penetration Assesment
3.2.1. South/East Exposure
3.2.2. North/East Exposure
3.2.3. North/West Exposure
3.2.4. West Exposure
3.2.5. South/West Exposure
3.3. Wind-Driven Rain (WDR) and Other Weather Data

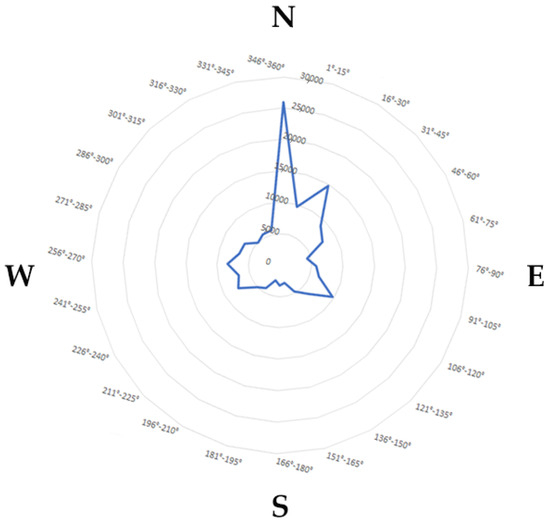

3.3.1. Wind-Driven Rain (WDR) and Dominant Winds
3.3.2. Temperatures
4. Discussion
4.1. Lichen Colonization and Penetration in the Rocks
4.2. Wind-Driven Rain (WDR) and Other Weather Data
4.3. Stone Weathering and Biodeterioration vs. Bioprotection
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Caneva, G.; Nugari, M.P.; Salvadori, O. Plant Biology for Cultural Heritage: Biodeterioration and Conservation; The Getty Conservation Institute: Los Angeles, CA, USA, 2008. [Google Scholar]
- Salvadori, O.; Casanova-Municchia, A. The Role of Fungi and Lichens in the Biodeterioration of Stone Monuments. Open Conf. Proc. J. 2016, 7, 39–54. [Google Scholar] [CrossRef]
- Pinna, D. Microbial growth and its effects on inorganic heritage materials. In Microorganisms in the Deterioration and Preservation of Cultural Heritage; Joseph, E., Ed.; Springer Nature: Cham, Switzerland, 2021; Volume 3, pp. 3–35. [Google Scholar] [CrossRef]
- Carter, N.E.; Viles, H.A. Experimental investigations into the interactions between moisture, rock surface temperatures and an epilithic lichen cover in the bioprotection of limestone. Build. Environ. 2003, 38, 1225–1235. [Google Scholar] [CrossRef]
- Carter, N.E.; Viles, H.A. Bioprotection explored: The story of a little known earth surface process. Geomorphol. J. 2005, 67, 273–281. [Google Scholar] [CrossRef]
- Ariño, X.; Ortega-Calvo, J.J.; Gomez-Bolea, A.; Saiz-Jimenez, C. Lichen colonization of the Roman pavement at Baelo Claudia (Cadiz, Spain): Biodeterioration vs. bioprotection. Sci. Total Environ. 1995, 67, 353–363. [Google Scholar] [CrossRef]
- De La Rosa, J.P.M.; Warke, P.A.; Smith, B.J. Lichen-induced biomodification of calcareous surfaces: Bioprotection versus biodeterioration. Prog Phys Geog. 2013, 37, 325–351. [Google Scholar] [CrossRef]
- Favero-Longo, S.E.; Viles, H.A. A review of the nature, role and control of lithobionts on stone cultural heritage: Weighing-up and managing biodeterioration and bioprotection. World J. Microb. Biot. 2020, 36, 100. [Google Scholar] [CrossRef] [PubMed]
- Deniz, B.E.; Topal, T. A new durability assessment method of the tuffs used in some historical buildings of Cappadocia (Turkey). Environ. Earth Sci. 2021, 80, 266. [Google Scholar] [CrossRef]
- Erguler, Z.A. Field-based experimental determination of the weathering rates of the Cappadocian tuffs. Eng. Geol. 2009, 105, 186–199. [Google Scholar] [CrossRef]
- Topal, T.; Doyuran, V. Engineering geological properties and durability assessment of the Cappadocian tuff. Eng. Geol. 1997, 47, 175–187. [Google Scholar] [CrossRef]
- Topal, T.; Doyuran, V. Analyses of deterioration of the Cappadocian tuff, Turkey. Eng. Geol. 1998, 34, 5–20. [Google Scholar] [CrossRef]
- Dinçer, İ.; Bostancı, M. Capillary water absorption characteristics of some Cappadocian ignimbrites and the role of capillarity on their deterioration. Environ. Earth Sci. 2019, 78, 7. [Google Scholar] [CrossRef]
- Korkanç, M. Deterioration of different stones used in historical buildings within Nigde province, Cappadocia. Constr. Build. Mater. 2013, 48, 789–803. [Google Scholar] [CrossRef]
- Deniz, B.E.; Topal, T. Durability assessment of some Cappadocian tuffs using factor analysis, multiple regression analysis, and analytical hierarchy process. Bull. Eng. Geol. Environ. 2022, 81, 6. [Google Scholar] [CrossRef]
- Garcia-Vallès, M.; Topal, T.; Vendrell-Saz, M. Lichenic growth as a factor in the physical deterioration or protection of Cappadocian monuments. Eng. Geol. 2003, 43, 776–781. [Google Scholar] [CrossRef]
- Casanova-Municchia, A.; Bartoli, F.; Taniguchi, Y.; Giordani, P.; Caneva, G. Evaluation of the biodeterioration activity of lichens in the Cave Church of Üzümlü (Cappadocia, Turkey). Int. Biodeterior. Biodegrad. 2018, 127, 160–169. [Google Scholar] [CrossRef]
- Seaward, M.R.D. Lichens as Agents of Biodeterioration. In Recent Advances in Lichenology; Upreti, D., Divakar, P., Shukla, V., Bajpai, R., Eds.; Springer: New Delhi, India, 2015; Volume 1, pp. 189–211. [Google Scholar] [CrossRef]
- Pinna, D. Coping with Biological Growth on Stone Heritage Objects: Methods, Products, Applications, and Perspectives, 1st ed.; Apple Academic Press: New York, NY, USA, 2017; p. 382. [Google Scholar]
- Piervittori, R.; Salvadori, O.; Isocrono, D. Literature on lichens and biodeterioration of stonework. IV. Lichenologist 2004, 36, 145–157. [Google Scholar] [CrossRef]
- Piervittori, R.; Salvadori, O.; Seaward, M.R.D. Lichens and Monuments. In Biodeterioration of Stone Surfaces; St.Clair, L.L., Seaward, M.R.D., Eds.; Springer: Dordrecht, The Netherlands, 2004; pp. 241–282. [Google Scholar] [CrossRef]
- Adamo, P.; Violante, P. Weathering of rocks and neogenesis of minerals associated with lichen activity. Appl. Clay Sci. 2000, 16, 229–256. [Google Scholar] [CrossRef]
- Piervittori, R.; Favero-Longo, S.E.; Gazzano, C. Lichens and biodeterioration of stonework: A review. Chem. Today 2009, 27, 8–11. [Google Scholar]
- Cozzolino, A.; Adamo, P.; Bonanomi, G.; Motti, R. The role of lichens, mosses, and vascular plants in the biodeterioration of historic buildings: A review. Plants 2022, 11, 3429. [Google Scholar] [CrossRef] [PubMed]
- Straube, J.F.; Burnett, E.F.P. Simplified prediction of driven rain deposition. In Proceedings of the International Building Physics Conference, Eindhoven, The Netherlands, 18–21 September 2000. [Google Scholar]
- Ariño, X.; Llop, E.; Gomez-Bolea, A.; Saiz-Jimenez, C. Effects of climatic change on microorganisms colonizing cultural heritage stone materials. In Proceedings of the Climate Change and Cultural Heritage, Ravello, Italy, 14–16 May 2009. [Google Scholar]
- Caneva, G.; Gori, E.; Danin, A. Incident rainfall in Rome and its relation to biodeterioration of buildings. Atmos. Environ. Part B Urban Atmos. 1992, 26, 255–259. [Google Scholar] [CrossRef]
- Traversetti, L.; Bartoli, F.; Caneva, G. Wind-driven rain as a bioclimatic factor affecting the biological colonization at the archaeological site of Pompeii, Italy. Int. Biodeterior. Biodegrad. 2018, 134, 31–38. [Google Scholar] [CrossRef]
- Viles, H.A.; Cutler, N.A. Global environmental change and the biology of heritage structures. Glob. Change Biol. 2012, 18, 2406–2418. [Google Scholar] [CrossRef]
- Gülyaz, M.E. Deterioration and Conservation of Cappadocian Wall Paintings. In Conservation and Painting Techniques of Wall Paintings on the Ancient Silk Road; Aoki, S., Taniguchi, Y., Rickerby, S., Mori, M., Kijima, T., Bomin, S., Kirino, F., Eds.; Springer: Singapore, 2021; pp. 23–42. [Google Scholar] [CrossRef]
- Higuchi, R.; Suzuki, T.; Shibata, M.; Taniguchi, Y. Methodology of high-resolution photography for mural condition database. ISPRS Ann. Photogramm. Remote Sens. Spat. Inf. Sci. 2015, 2, 105–110. [Google Scholar] [CrossRef]
- Bayer-Altın, T.; Türkeş, M.; Altın, B.N. Evolution of Drought Climatology and Variability in the Central Anatolia Region, Turkey, for the Period 1970–2020. Pure Appl. Geophys. 2023, 180, 3105–3129. [Google Scholar] [CrossRef]
- Iba, C.; Taniguchi, Y.; Koizumi, K.; Watanabe, K.; Sano, K.; Piao, C.; Yoshioka, M. Enviromental monitoring and surface treatment tests for conservation of the rock-hewn church of Üzümlü, Cappadocia. In Scientific Studies on Conservation for Üzümlü Church and Its Wall Paintings in Cappadocia, Turkey; Maeda Printing: Tsukuba, Japan, 2016; p. 89. [Google Scholar]
- Braun-Blanquet, J. Pflanzensociologie; Springer: Wien, Austria; New York, NY, USA, 1964; 865p. [Google Scholar]
- ICOMOS-ISCS Illustrated Glossary on Stone Deterioration Patterns. 2008. Available online: https://www.icomos.org/public/publications/monuments_and_sites/15/pdf/Monuments_and_Sites_15_ISCS_Glossary_Stone.pdf (accessed on 20 September 2023).
- Caneva, G.; Hosseini, Z.; Bartoli, F. Risk, hazard, and vulnerability for stone biodeterioration due to higher plants: The methodological proposal of a multifactorial index (RHV). J. Cult. Heritage 2023, 62, 217–229. [Google Scholar] [CrossRef]
- Cluzade, G.; Roux, C. Likenoj de Okcidenta Europo Ilustrita Determinlibro (Lichens d’Europe. Flore Illustree). Bull. Soc. Bot. Centre Ouest 1985, 7, 893. [Google Scholar]
- Nimis, P.L.; Martellos, S. ITALIC—The Information System on Italian Lichens. Version 7.0. University of Trieste, Dept. of Biology. Available online: http://lichenportal.org/portal/index.php (accessed on 21 June 2024).
- Consortium of North American Lichen Herbaria (CNALH). 2013. Available online: http://lichenportal.org/portal/index.php (accessed on 27 June 2024).
- Ajaz, A.; Berthold, T.A.; Xue, Q.; Jain, S.; Masasi, B.; Saddique, Q. Free weather forecast and open-source crop modeling for scientific irrigation scheduling: Proof of concept. Irrig. Sci. 2024, 42, 179–195. [Google Scholar] [CrossRef]
- Kim, S.; Zirkelbach, D.; Künzel, H.M. Wind-driven rain exposure on building envelopes taking into account frequency distribution and correlation with different wall orientations. Built. Environ. 2022, 209, 108665. [Google Scholar] [CrossRef]
- Blocken, B.J.E.; Carmeliet, J. A simplified approach for quantifying driving rain on buildings. In Proceedings of the 9th International Conference on Performance of Exterior Envelopes of Whole Buildings (Buildings), Sheraton Sand Key Resort, Clearwater, FL, USA, 5–10 December 2004. [Google Scholar]
- Grossi, C.M.; Brimblecombe, P.; Harris, I. Predicting long term freeze–thaw risks on Europe built heritage and archaeological sites in a changing climate. Sci. Total Environ. 2007, 377, 273–281. [Google Scholar] [CrossRef] [PubMed]
- Miller, A.Z.; Sanmartín, P.; Pereira-Pardo, L.; Dionísio, A.; Sáiz-Jiménez, C.; Macedo, M.F.; Prieto, B. Bioreceptivity of building stones: A review. Sci. Total Environ. 2012, 426, 1–12. [Google Scholar] [CrossRef] [PubMed]
- Ortega-Calvo, J.J.; Ariño, X.; Hernandez-Marine, M.; Saiz-Jimenez, C. Factors affecting the weathering and colonization of monuments by phototrophic microorganisms. Sci. Total Environ. 1995, 167, 329–341. [Google Scholar] [CrossRef]
- Warscheid, T.; Leisen, H. Microbiological studies on stone deterioration and development of conservation measures at Angkor Wat. In Biocolonization of Stone: Control and Preventive Methods, Proceedings from the MCI Workshop Series; Charola, A.E., McNamara, C., Koestle, R.J., Eds.; Smithsonian Institution Scholarly Press: Washington, DC, USA, 2011; Volume 2, pp. 1–18. [Google Scholar]
- Caneva, G.; Fidanza, M.R.; Tonon, C.; Favero-Longo, S.E. Biodeterioration patterns and their interpretation for potential applications to stone conservation: A hypothesis from allelopathic inhibitory effects of lichens on the Caestia Pyramid (Rome). Sustainibility 2020, 12, 1132. [Google Scholar] [CrossRef]
- Warscheid, T. The evaluation of biodeterioration processes on cultural objects and approaches for their effective control. In Art, Biology and Conservation: Biodeterioration of Works of Art; Koestler, R.J., Koestler, V.H., Charola, A.E., Nieto-Fernandez, F.E., Eds.; The Metropolitan Museum of Art: New York, NY, USA, 2003; pp. 14–27. [Google Scholar]
- Bartoli, F.; Casanova-Municchia, A.; Futagami, Y.; Kashiwadani, H.; Moon, K.H.; Caneva, G. Biological colonization patterns on the ruins of Angkor temples (Cambodia) in the biodeterioration vs. bioprotection debate. Int. Biodeterior. Biodegrad. 2014, 96, 157–165. [Google Scholar] [CrossRef]
- Concha-Lozano, N.; Gaudon, P.; Pages, J.; de Billerbick, G.; Lafon, D.; Eterradossi, O. Protective effect of endolithic fungal hyphae on oolithic limestone buildings. J. Cult. Herit. 2012, 13, 120–127. [Google Scholar] [CrossRef]
Survey | Ril1 | Ril3 | Ril4 | Ril5 | Ril6 |
---|---|---|---|---|---|
Exposure | 120° SE | 20° NE | 326° NW | 280° W | 229 °SW |
Slope (°) | 80° | 90° | 80° | 70° | 75° |
Species Identified | |||||
Acarospora versicolor | 2 | ||||
Placynthium sp. | 1 | ||||
Lecanora sp. | 4 | ||||
Candelariella aurella | 2 | ||||
Acarospora impressula | 1 | 1 | 3 | 4 | |
Lecidella stigmatea | 2 | ||||
Lecanora pannonica | 1 | 2 | |||
Lecidea gruppo auriculata | 1 | ||||
Rhizocarpon geographicum | + | ||||
Xanthoparmelia verruculifera | 1 | ||||
Tephromela atra | 1 | 2 | |||
Physconia grisea | + | ||||
Blastenia crenularia | + | ||||
Lecidea lapicida | 1 | ||||
Acarospora sulphurata | 2 | ||||
Lichen not identified (a) | 2 | ||||
Lichen not identified (b) | 1 | ||||
Lichen not identified (c) | + | ||||
Lichen not identified (d) | 4 | ||||
Bryophytes | 3 | ||||
Total coverage following the Braun-Blanquet scale | 90% | 50% | 95–100% | 80–90% | 80–90% |

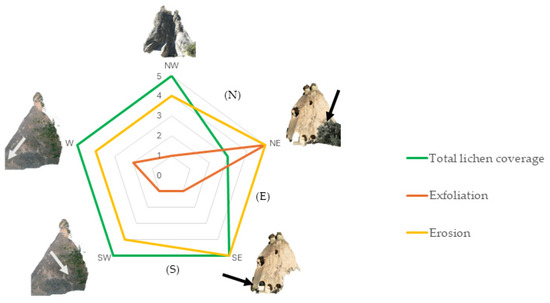

Deterioration pattern | |||||
Exfoliation | Very Low | Very High | Very Low | Low | Very Low |
Erosion | Very High | Very High | High | High | High |

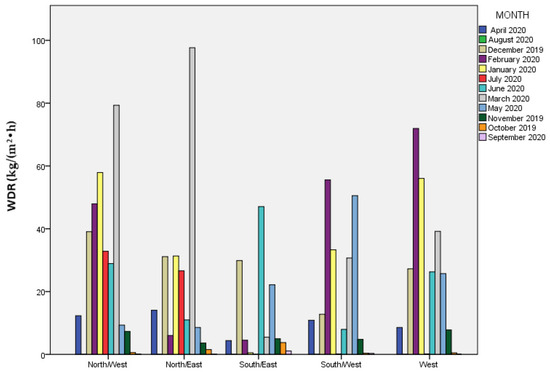

MONTH | South/East | North/East | North/West | West | South/West | Total WDR for Period |
---|---|---|---|---|---|---|
October 2019 | 3.75 | 1.53 | 0.58 | 0.47 | 0.36 | 6.68 |
November 2019 | 4.98 | 3.61 | 7.30 | 7.80 | 4.78 | 28.47 |
December 2019 | 29.89 | 31.12 | 39.08 | 27.23 | 12.77 | 140.09 |
January 2020 | 0.50 | 31.32 | 57.90 | 56.04 | 33.30 | 179.05 |
February 2020 | 4.52 | 6.03 | 47.93 | 71.94 | 55.56 | 185.97 |
March 2020 | 5.47 | 97.64 | 79.33 | 39.19 | 30.70 | 252.33 |
April 2020 | 4.40 | 14.05 | 12.32 | 8.56 | 10.86 | 50.19 |
May 2020 | 22.17 | 8.56 | 9.33 | 25.74 | 50.56 | 116.36 |
June 2020 | 47.08 | 10.97 | 28.93 | 26.27 | 7.97 | 121.23 |
July 2020 | 0.00 | 26.62 | 32.84 | 0.08 | 0.08 | 59.62 |
August 2020 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 | 0.00 |
September 2020 | 1.09 | 0.03 | 0.05 | 0.04 | 0.32 | 1.53 |
Total 2019–2020 | 157.99 | 231.47 | 315.60 | 229.20 | 207.24 | |
Average 2000–2020 | 162.82 | 315.92 | 379.57 | 297.72 | 279.66 | |
SEASON | South/East | North/East | North/West | West | South/West | |
Winter | 34.90 | 68.46 | 144.91 | 155.20 | 35.83 | 439.31 |
Spring | 32.04 | 120.26 | 100.99 | 73.48 | 101.6 | 428.38 |
Summer | 47.08 | 37.59 | 61.78 | 26.35 | 92.1 | 264.91 |
Autumn | 9.83 | 5.17 | 7.93 | 8.31 | 8.1 | 39.28 |
