Structural Damage Detection through Dual-Channel Pseudo-Supervised Learning
Abstract
:1. Introduction
2. Methodology
2.1. The Equation of Motion
2.2. Data Preprocessing

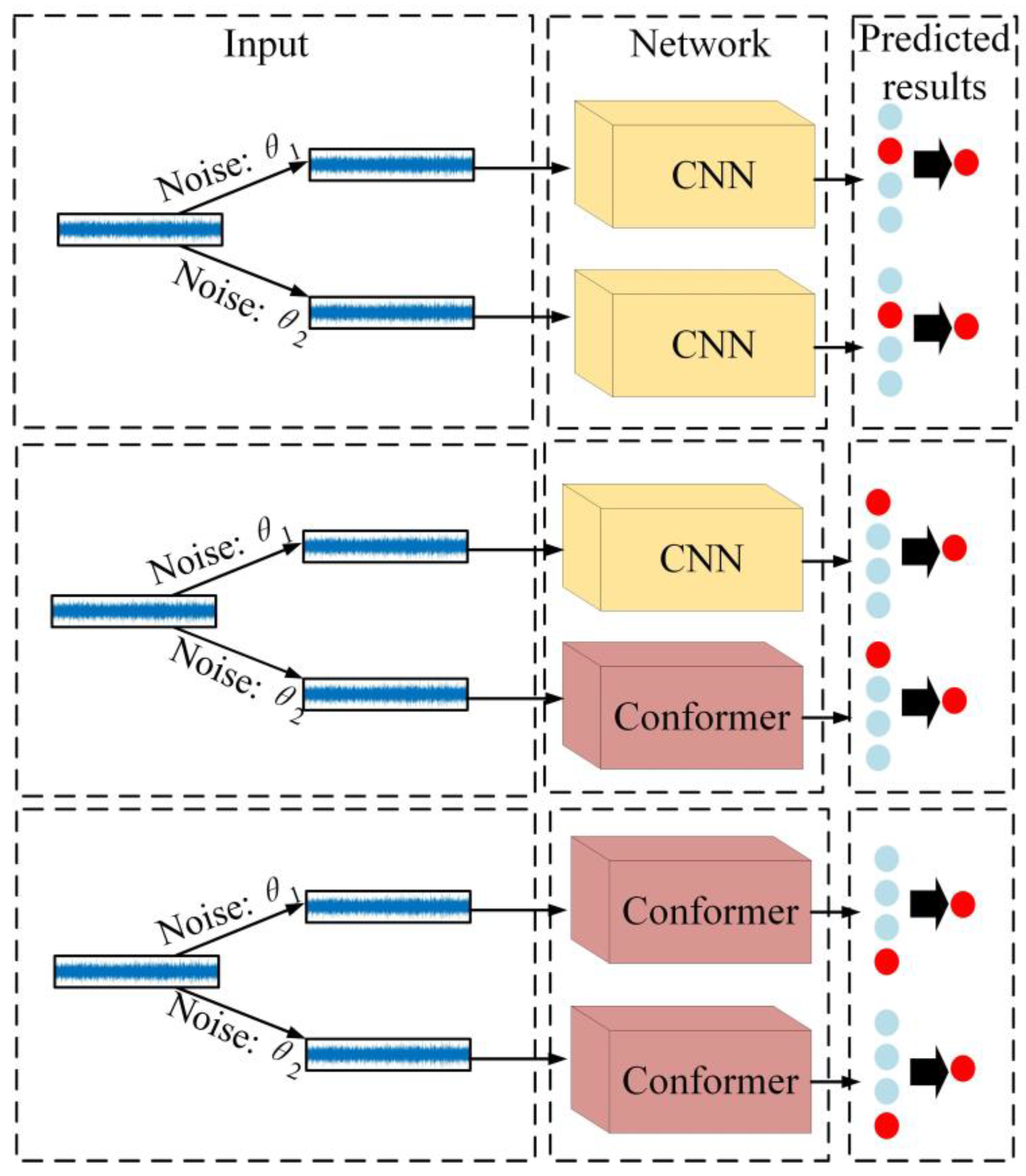

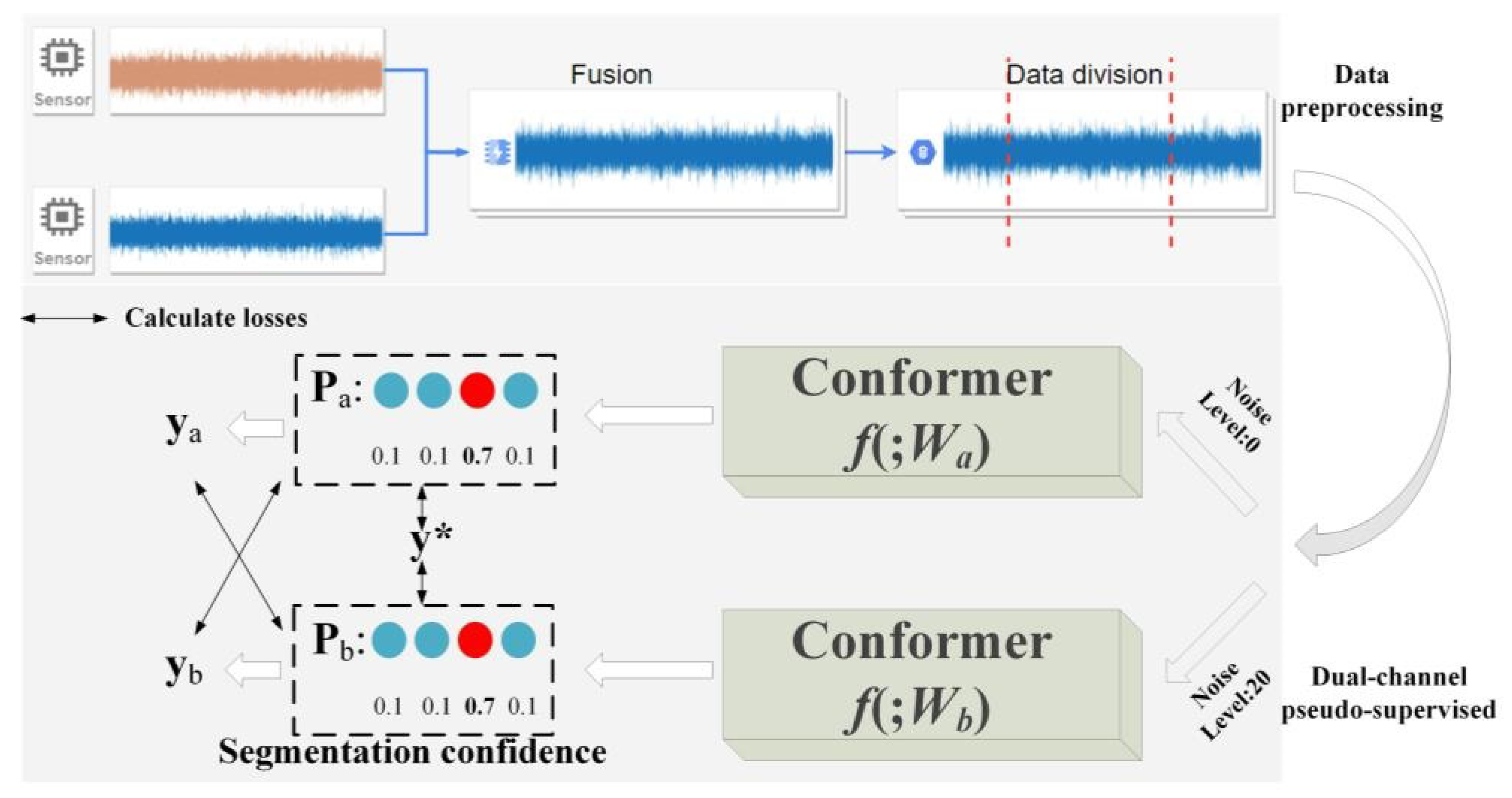

2.3. Dual-Channel Pseudo-Supervised (DCPS) Learning

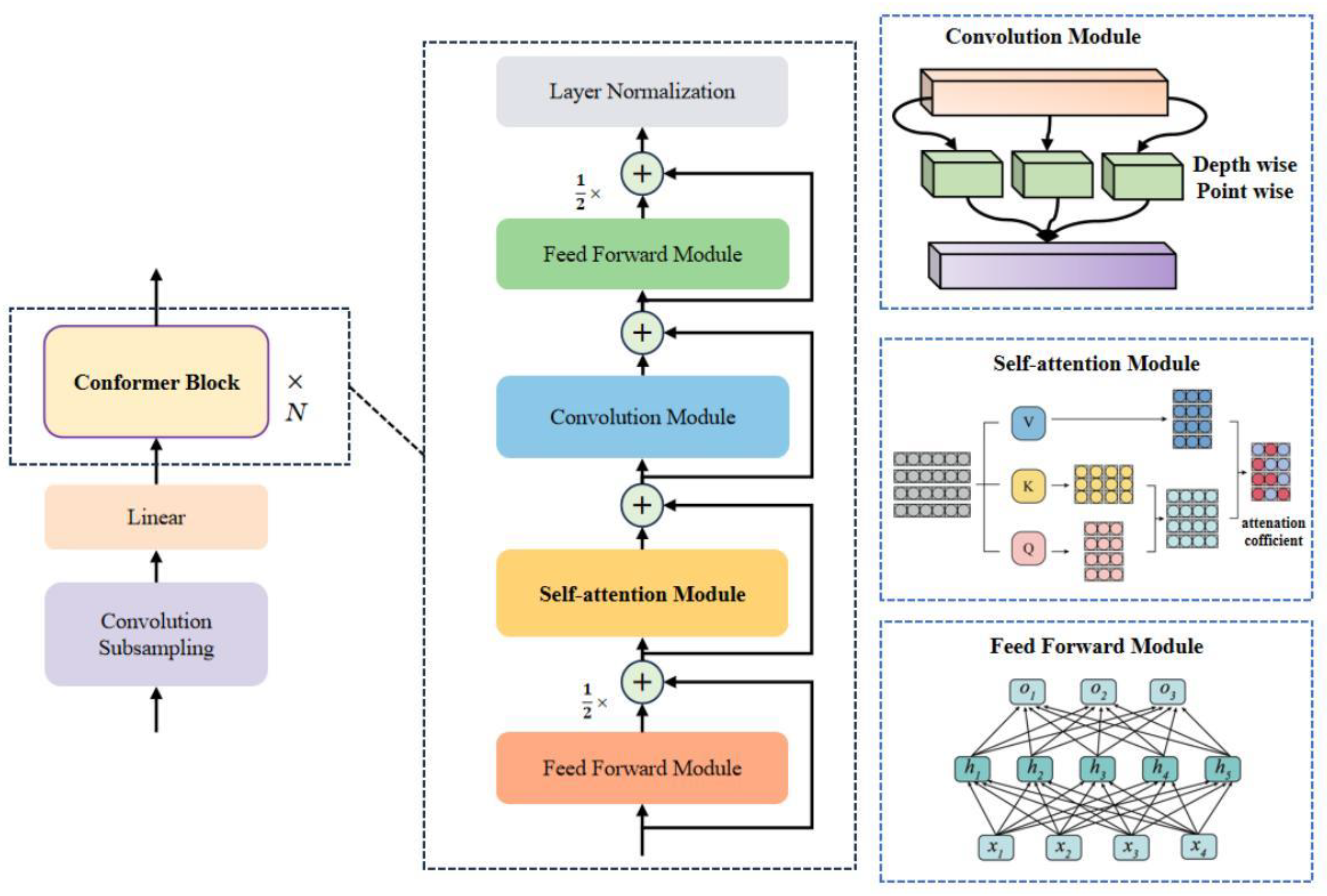

2.4. Conformer Module
2.5. The Process of the Algorithm
3. Validation by a Numerical Model

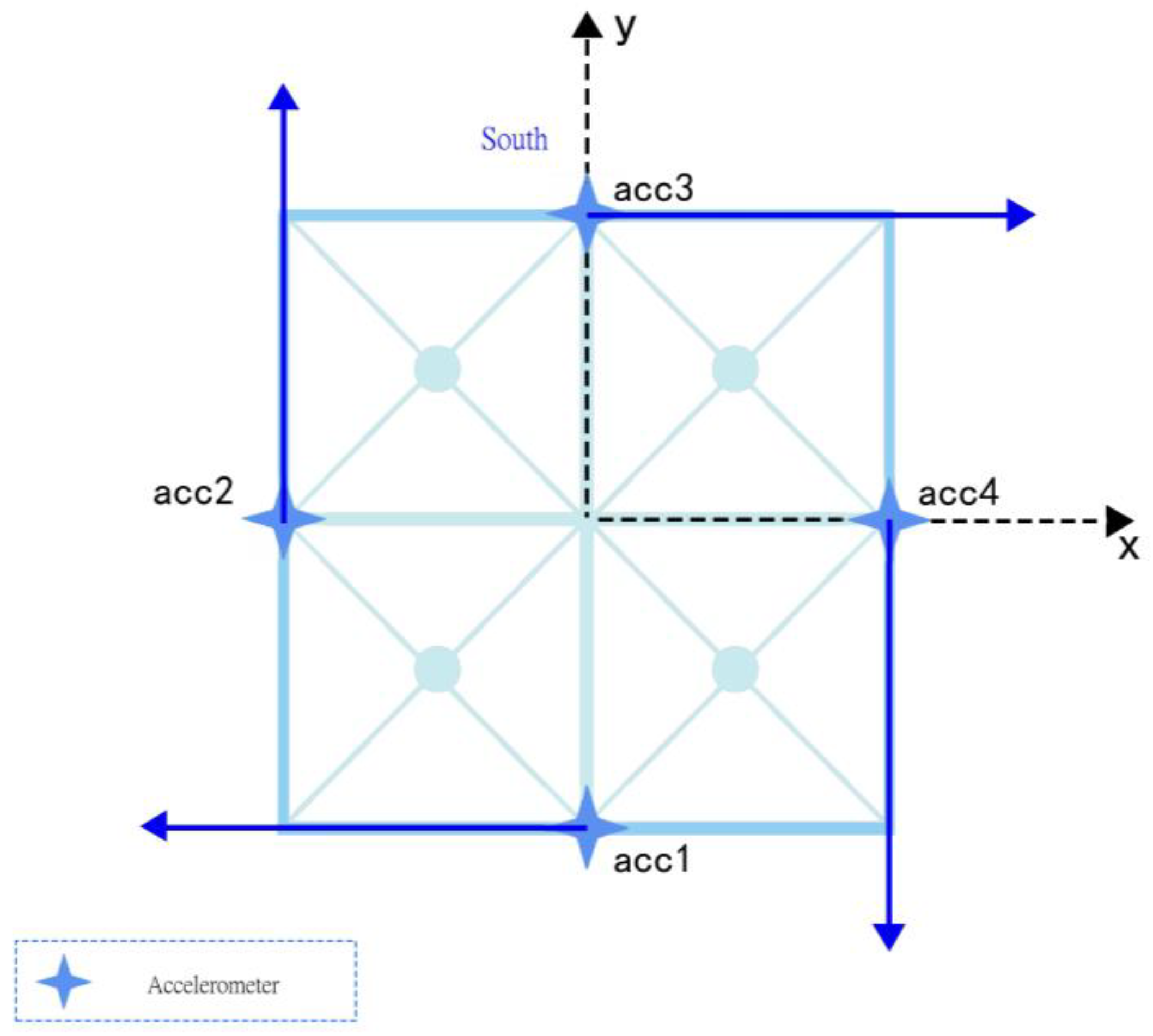

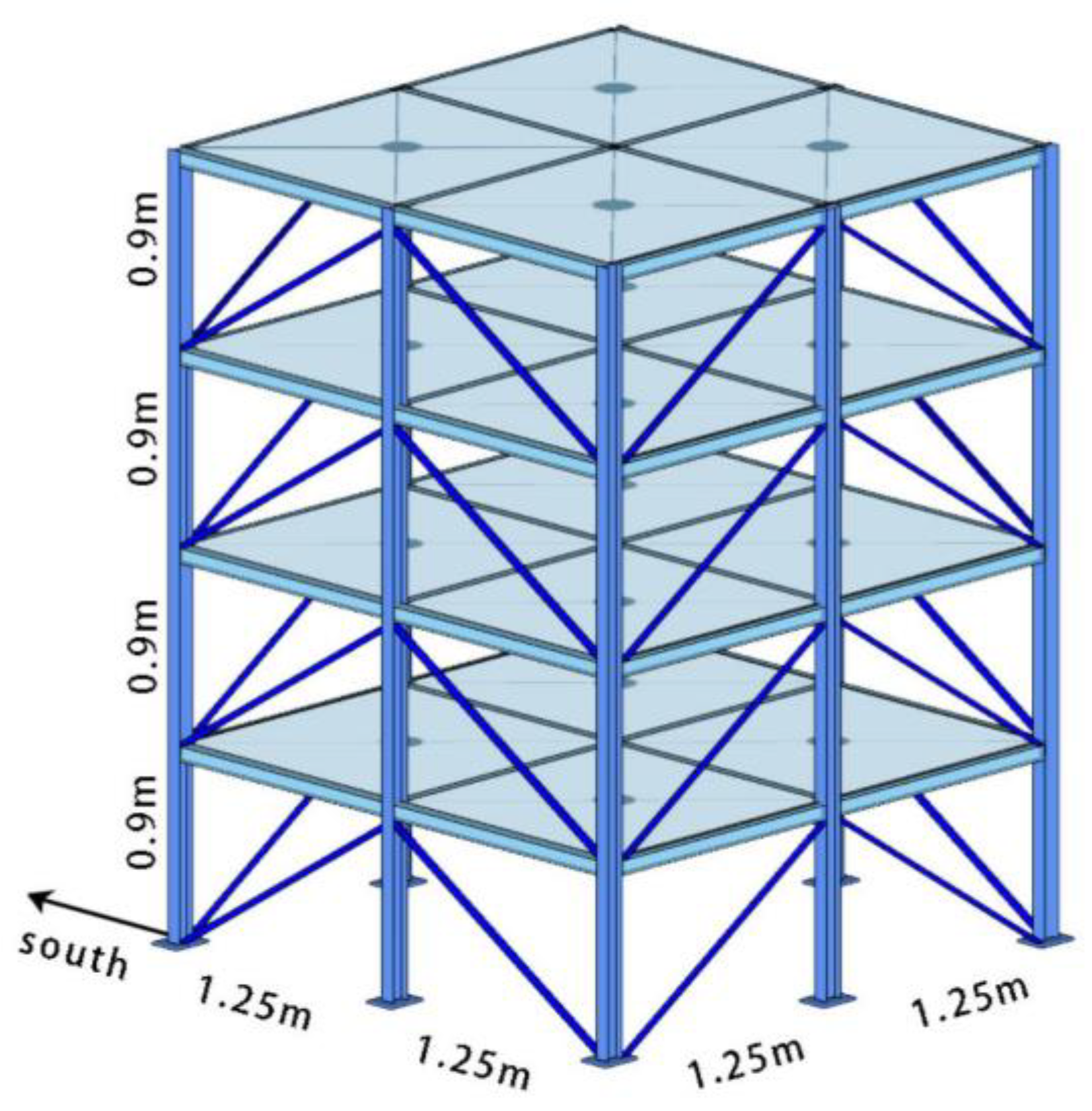

3.1. IASC-ASCE SHM Benchmark Dataset
3.2. Network Models and Settings
- One-dimensional CNN: This model can be used to process acceleration response data, where the convolution layer can capture the local features of the signal. In this paper, two convolutional kernels of size 5 were used for convolution operations.
- LSTM: The LSTM model can capture long-range dependencies in sequence data through the gate-control mechanism, enabling the learning of crucial long-range dependency features. This model was constructed as a two-layer bidirectional LSTM with the dimension of 128 in this paper.
- Multi-head CNN: By introducing multiple parallel convolutional branches (heads), this model can learn features at different scales. Each branch focuses on different time- or frequency-domain information, and the multiple branches are eventually fused to provide a comprehensive description of the structural damage.
- CNN-LSTM: This model, in this paper, first used a 1D CNN with a convolutional kernel of 15 to extract spatial features. Then, a two-layer LSTM model with 256 dimensions was used for long-sequence modeling.
- Transformers: Through the self-attention mechanism, the transformer model can effectively capture global dependencies in sequences. In structural damage detection, it models the acceleration response data collected by sensors to learn features related to identifying damage. In this paper, we constructed a four-layer Transformer block with 8 heads and with a dimension of 512.
3.3. Comparative Experimental Results

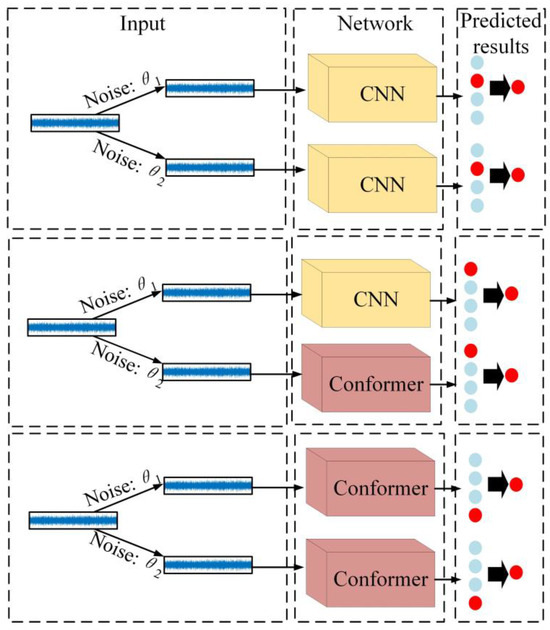

3.4. Ablation Study

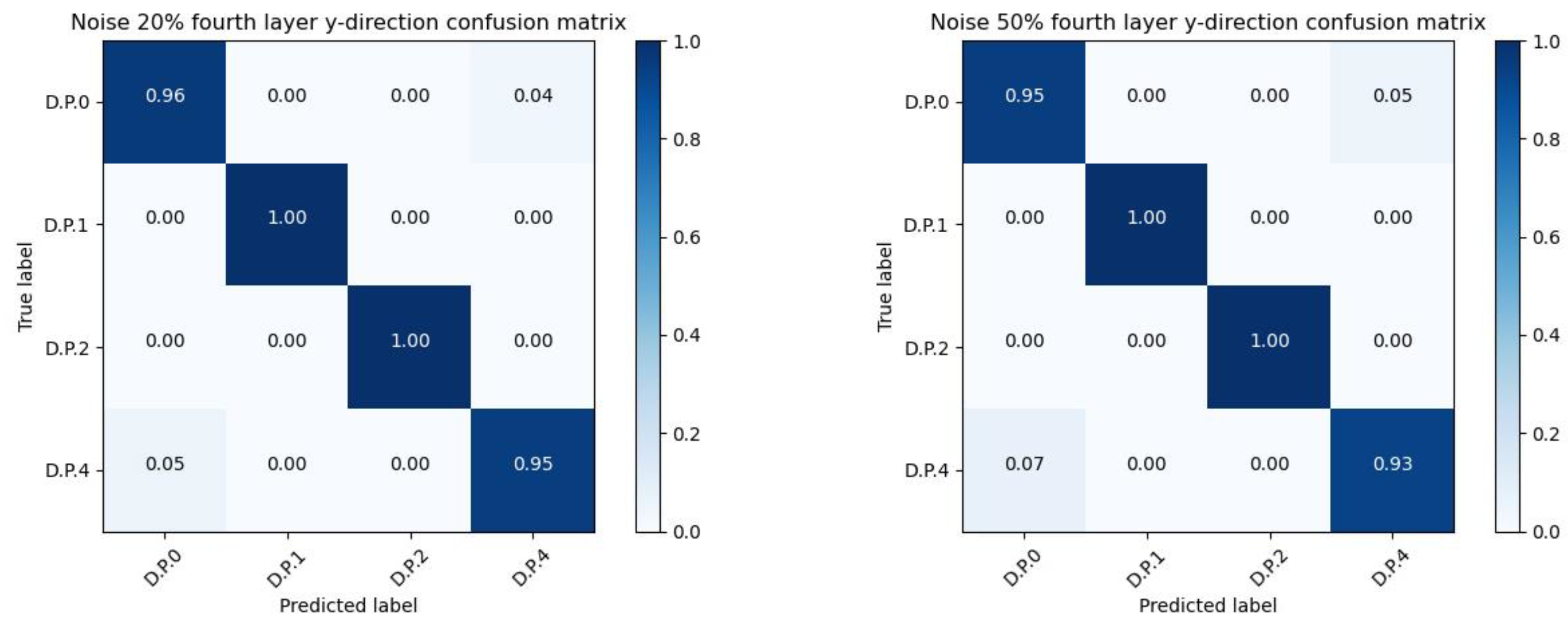

3.5. Comparative Analysis at Different Noise Levels

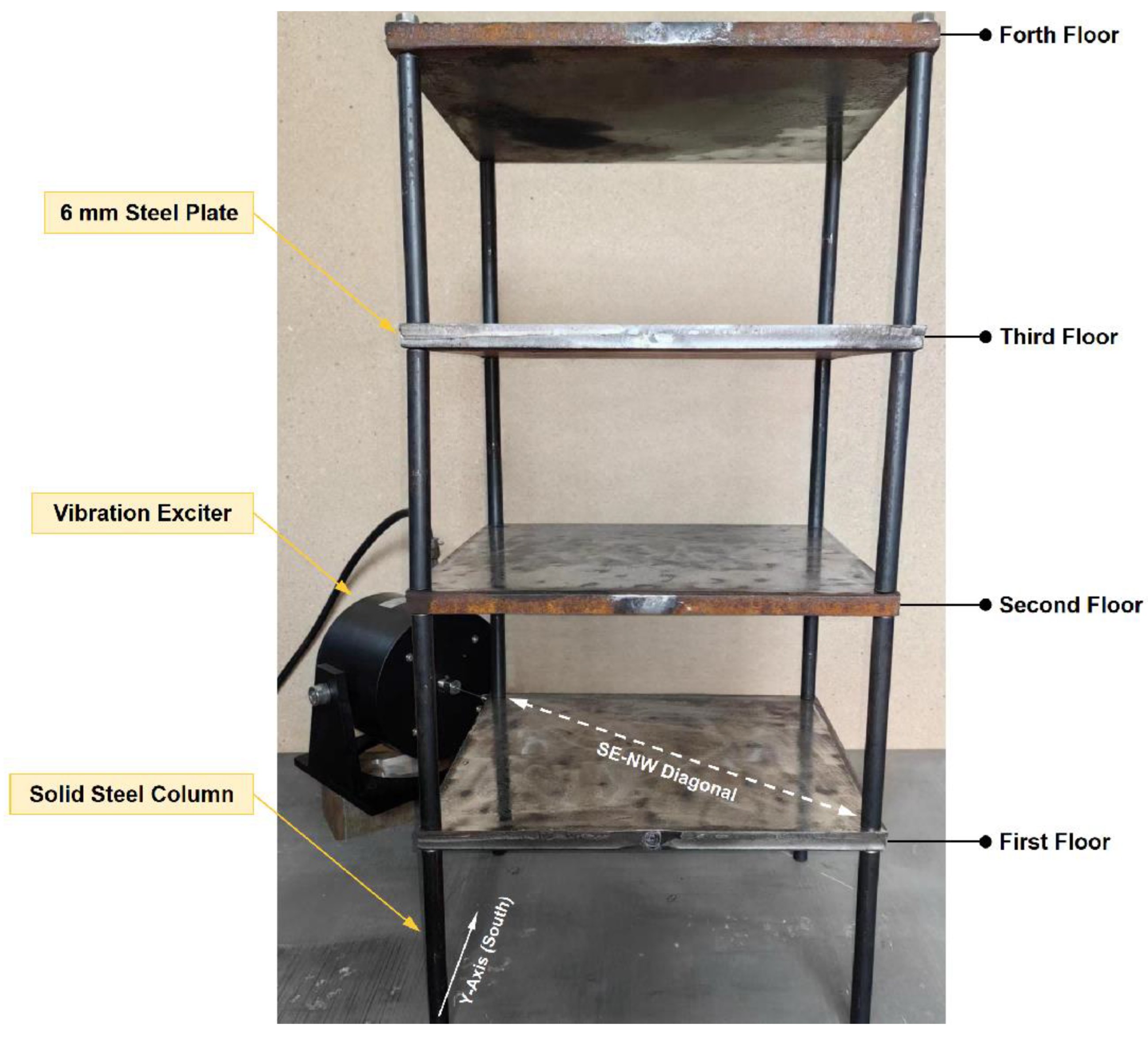

4. Experimental Verification on a Four-Story Steel-Frame Structure
4.1. Experimental Description

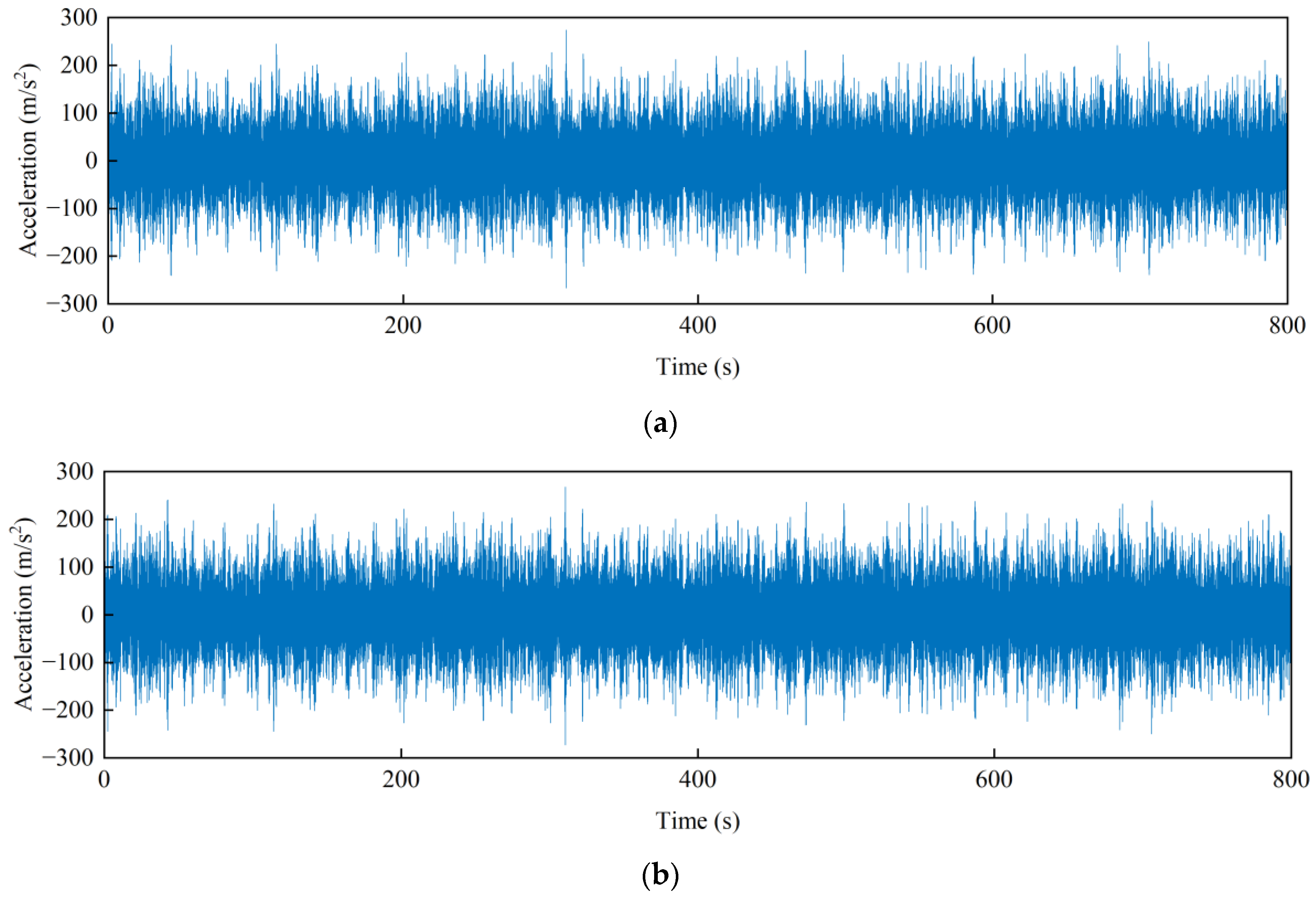

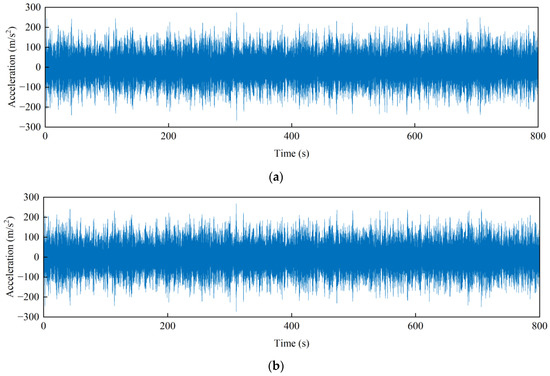

4.2. Experimental Procedure
4.3. Experimental Results
5. Conclusions and Discussion
- Existing methods focus on either local information [19,20,21,22,23] or global information [24,25,26]. Although some works combine the advantages of CNNs and LSTM [27,28,29], the weak performance of LSTM in processing long-term dependencies of signals is still inevitable. The proposed model uses a Conformer as the backbone network, effectively combining the local feature extraction capability of CNNs with the long-term sequence modeling capability of Transformers to fully describe the local and global information of the response signal.
- The proposed models, CNN+Conformer and Conformer+Conformer, achieve average identification accuracies of 95.42% and 96.15% in numerical simulations and 93.05% and 96.64% in laboratory experiments, markedly outperforming baseline models. This high accuracy underscores the potential of the proposed model as an effective solution for structural damage detection and demonstrates its robust to different scenarios.
- The proposed method achieves average accuracies of 96.3% and 93.0% at 20% and 50% noise levels, respectively, significantly outperforming baseline models. These results demonstrate the ability of the proposed model to learn noise-robust features without manual denoising. This method greatly simplifies the application process and improves detection accuracy in noisy environments.
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Kumar, K.; Biswas, P.K.; Dhang, N. Time series-based SHM using PCA with application to ASCE benchmark structure. J. Civ. Struct. Health Monit. 2020, 10, 899–911. [Google Scholar] [CrossRef]
- Ardani, S.; Eftekhar Azam, S.; Linzell, D.G. Bridge health monitoring using proper orthogonal decomposition and transfer learning. Appl. Sci. 2023, 13, 1935. [Google Scholar] [CrossRef]
- Li, X.; Meng, Q.; Wei, M.; Sun, H.; Zhang, T.; Su, R. Identification of Underwater Structural Bridge Damage and BIM-Based Bridge Damage Management. Appl. Sci. 2023, 13, 1348. [Google Scholar] [CrossRef]
- Silik, A.; Noori, M.; Ghiasi, R.; Wang, T.; Kuok, S.-C.; Farhan, N.S.D.; Dang, J.; Wu, Z.; Altabey, W.A. Dynamic wavelet neural network model for damage features extraction and patterns recognition. J. Civ. Struct. Health Monit. 2023, 13, 925–945. [Google Scholar] [CrossRef]
- Gul, M.; Catbas, F.N. Structural health monitoring and damage assessment using a novel time series analysis methodology with sensor clustering. J. Sound Vib. 2011, 330, 1196–1210. [Google Scholar] [CrossRef]
- Stull, C.J.; Hemez, F.M.; Farrar, C.R. On assessing the robustness of structural health monitoring technologies. Struct. Health Monit. 2012, 11, 712–723. [Google Scholar] [CrossRef]
- Zhang, Y.; Wang, H.; Wan, H.; Mao, J.; Xu, Y. Anomaly detection of structural health monitoring data using the maximum likelihood estimation-based Bayesian dynamic linear model. Struct. Health Monit. 2021, 20, 2936–2952. [Google Scholar] [CrossRef]
- Chen, Z.; Zhang, K.; Chan, T.H.T.; Li, X.; Zhao, S. A Novel Hybrid Whale-Chimp Optimization Algorithm for Structural Damage Detection. Appl. Sci. 2022, 12, 9036. [Google Scholar] [CrossRef]
- Salachoris, G.P.; Standoli, G.; Betti, M.; Milani, G.; Clementi, F. Evolutionary numerical model for cultural heritage structures via genetic algorithms: A case study in central Italy. Bull. Earthq. Eng. 2024, 22, 3591–3625. [Google Scholar]
- Das, S.; Saha, P.; Patro, S.K. Vibration-based damage detection techniques used for health monitoring of structures: A review. J. Civ. Struct. Health Monit. 2016, 6, 477–507. [Google Scholar] [CrossRef]
- Neves, A.C.; Gonzalez, I.; Leander, J.; Karoumi, R. Structural health monitoring of bridges: A model-free ANN-based approach to damage detection. J. Civ. Struct. Health Monit. 2017, 7, 689–702. [Google Scholar] [CrossRef]
- Avci, O.; Abdeljaber, O.; Kiranyaz, S.; Hussein, M.; Gabbouj, M.; Inman, D.J. A review of vibration-based damage detection in civil structures: From traditional methods to Machine Learning and Deep Learning applications. Mech. Syst. Signal Process. 2021, 147, 107077. [Google Scholar] [CrossRef]
- Giordano, E.; Mendes, N.; Masciotta, M.G.; Clementi, F.; Sadeghi, N.H.; Silva, R.A.; Oliveira, D.V. Expeditious damage index for arched structures based on dynamic identification testing. Constr. Build. Mater. 2020, 265, 120236. [Google Scholar]
- Mohamed, A.S.; Sassi, S.; Roshun Paurobally, M. Model-Based Analysis of Spur Gears’ Dynamic Behavior in the Presence of Multiple Cracks. Shock Vib. 2018, 2018, 1913289. [Google Scholar]
- Standoli, G.; Salachoris, G.P.; Masciotta, M.G.; Clementi, F. Modal-based FE model updating via genetic algorithms: Exploiting artificial intelligence to build realistic numerical models of historical structures. Constr. Build. Mater. 2021, 303, 124393. [Google Scholar]
- Abbas, N.; Umar, T.; Salih, R.; Akbar, M.; Hussain, Z.; Haibei, X. Structural Health Monitoring of Underground Metro Tunnel by Identifying Damage Using ANN Deep Learning Auto-Encoder. Appl. Sci. 2023, 13, 1332. [Google Scholar] [CrossRef]
- Wu, C.; Peng, Y.; Zhuo, D.; Zhang, J.; Ren, W.; Feng, Z. Energy Ratio Variation-Based Structural Damage Detection Using Convolutional Neural Network. Appl. Sci. 2022, 12, 10220. [Google Scholar] [CrossRef]
- Ye, X.; Cao, Y.; Liu, A.; Wang, X.; Zhao, Y.; Hu, N. Parallel convolutional neural network toward high efficiency and robust structural damage identification. Struct. Health Monit. 2023, 22, 3805–3826. [Google Scholar] [CrossRef]
- Khodabandehlou, H.; Pekcan, G.; Fadali, M.S. Vibration-based structural condition assessment using convolution neural networks. Struct. Control Health Monit. 2019, 26, e2308. [Google Scholar] [CrossRef]
- Yu, Y.; Wang, C.; Gu, X.; Li, J. A novel deep learning-based method for damage identification of smart building structures. Struct. Health Monit. 2019, 18, 143–163. [Google Scholar] [CrossRef]
- Kiranyaz, S.; Ince, T.; Gabbouj, M. Real-Time Patient-Specific ECG Classification by 1-D Convolutional Neural Networks. IEEE Trans. Biomed. Eng. 2016, 63, 664–675. [Google Scholar] [CrossRef]
- Zhang, Y.; Miyamori, Y.; Mikami, S.; Saito, T. Vibration-based structural state identification by a 1-dimensional convolutional neural network. Comput. Aided Civ. Infrastruct. Eng. 2019, 34, 822–839. [Google Scholar] [CrossRef]
- Xue, Z.; Xu, C.; Wen, D. Structural Damage Detection Based on One-Dimensional Convolutional Neural Network. Appl. Sci. 2023, 13, 140. [Google Scholar] [CrossRef]
- Lin, Z.; Liu, Y.; Zhou, L.-R. Damage Detection in a Benchmark Structure Using Long Short-term Memory Networks. In Proceedings of the 2019 Chinese Automation Congress (CAC), Hangzhou, China, 22–24 November 2019; pp. 2300–2305. [Google Scholar]
- Bao, X.; Wang, Z.; Iglesias, G. Damage detection for offshore structures using long and short-term memory networks and random decrement technique. Ocean Eng. 2021, 235, 109388. [Google Scholar] [CrossRef]
- Sony, S.; Gamage, S.; Sadhu, A.; Samarabandu, J. Vibration-based multiclass damage detection and localization using long short-term memory networks. Structures 2022, 35, 436–451. [Google Scholar] [CrossRef]
- Zou, J.; Yang, J.; Wang, G.; Tang, Y.; Yu, C. Bridge structural damage identification based on parallel CNN-GRU. In Proceedings of the 2nd International Conference on Advances in Civil and Ecological Engineering Research, Online, 20–23 October 2020; p. 012017. [Google Scholar]
- Dang, H.V.; Tran-Ngoc, H.; Nguyen, T.V.; Bui-Tien, T.; De Roeck, G.; Nguyen, H.X. Data-driven structural health monitoring using feature fusion and hybrid deep learning. IEEE Trans. Autom. Sci. Eng. 2020, 18, 2087–2103. [Google Scholar]
- Fu, L.; Tang, Q.; Gao, P.; Xin, J.; Zhou, J. Damage Identification of Long-Span Bridges Using the Hybrid of Convolutional Neural Network and Long Short-Term Memory Network. Algorithms 2021, 14, 180. [Google Scholar] [CrossRef]
- Khan, S.; Yairi, T. A review on the application of deep learning in system health management. Mech. Syst. Signal Process. 2018, 107, 241–265. [Google Scholar] [CrossRef]
- Zhou, Y.; Zheng, Y.; Liu, Y.; Pan, T.; Zhou, Y. A hybrid methodology for structural damage detection uniting FEM and 1D-CNNs: Demonstration on typical high-pile wharf. Mech. Syst. Signal Process. 2022, 168, 108738. [Google Scholar] [CrossRef]
- Yang, W.; Peng, Z.; Wei, K.; Shi, P.; Tian, W. Superiorities of variational mode decomposition over empirical mode decomposition particularly in time-frequency feature extraction and wind turbine condition monitoring. IET Renew. Power Gener. 2017, 11, 443–452. [Google Scholar] [CrossRef]
- Das, S.; Saha, P. Performance of hybrid decomposition algorithm under heavy noise condition for health monitoring of structure. J. Civ. Struct. Health Monit. 2020, 10, 679–692. [Google Scholar] [CrossRef]
- Bao, X.; Fan, T.; Shi, C.; Yang, G. Deep learning methods for damage detection of jacket-type offshore platforms. Process Saf. Environ. Prot. 2021, 154, 249–261. [Google Scholar] [CrossRef]
- Wang, X.; Zhang, X.A.; Shahzad, M.M. A novel structural damage identification scheme based on deep learning framework. Structures 2021, 29, 1537–1549. [Google Scholar] [CrossRef]
- Chen, X.; Yuan, Y.; Zeng, G.; Wang, J. Semi-supervised semantic segmentation with cross pseudo supervision. In Proceedings of the IEEE/CVF Conference on Computer Vision and Pattern Recognition, Nashville, TN, USA, 19–25 June 2021; pp. 2613–2622. [Google Scholar]
- Gulati, A.; Qin, J.; Chiu, C.-C.; Parmar, N.; Zhang, Y.; Yu, J.; Han, W.; Wang, S.; Zhang, Z.; Wu, Y.; et al. Conformer: Convolution-augmented transformer for speech recognition. arXiv 2020, arXiv:2005.08100. [Google Scholar]
- Hwang, H.Y.; Kim, C. Damage detection in structures using a few frequency response measurements. J. Sound Vib. 2004, 270, 1–14. [Google Scholar] [CrossRef]
- Yan, W.-J.; Ren, W.-X. Closed-form modal flexibility sensitivity and its application to structural damage detection without modal truncation error. J. Vib. Control 2014, 20, 1816–1830. [Google Scholar] [CrossRef]
- Chen, F. Improvement of Kalman Filter and Kalman Estimator in the Application of Structural Damage Detection. Master’s Thesis, Xiamen University, Xiamen, China, 2014. [Google Scholar]
- Abdeljaber, O.; Avci, O.; Kiranyaz, M.S.; Boashash, B.; Sodano, H.; Inman, D.J. 1-D CNNs for structural damage detection: Verification on a structural health monitoring benchmark data. Neurocomputing 2018, 275, 1308–1317. [Google Scholar]
- Vaswani, A.; Shazeer, N.; Parmar, N.; Uszkoreit, J.; Jones, L.; Gomez, A.N.; Kaiser, Ł.; Polosukhin, I. Attention is all you need. arXiv 2017, arXiv:1706.03762. [Google Scholar]
- Dai, Z.; Yang, Z.; Yang, Y.; Carbonell, J.; Le, Q.V.; Salakhutdinov, R. Transformer-xl: Attentive language models beyond a fixed-length context. arXiv 2019, arXiv:1901.02860. [Google Scholar]
- Lu, Y.; Li, Z.; He, D.; Sun, Z.; Dong, B.; Qin, T.; Wang, L.; Liu, T.-Y. Understanding and improving transformer from a multi-particle dynamic system point of view. arXiv 2019, arXiv:1906.02762. [Google Scholar]
- Johnson, E.A.; Lam, H.F.; Katafygiotis, L.S.; Beck, J.L. Phase I IASC-ASCE structural health monitoring benchmark problem using simulated data. J. Eng. Mech. 2004, 130, 3–15. [Google Scholar] [CrossRef]
- Mousavi, Z.; Varahram, S.; Ettefagh, M.M.; Sadeghi, M.H.; Razavi, S.N. Deep neural networks–based damage detection using vibration signals of finite element model and real intact state: An evaluation via a lab-scale offshore jacket structure. Struct. Health Monit. 2021, 20, 379–405. [Google Scholar]
- Hu, Z.; Zhang, P. Damage identification of structures based on smooth orthogonal decomposition and improved beetle antennae search algorithm. Adv. Civ. Eng. 2021, 2021, 8857356. [Google Scholar]

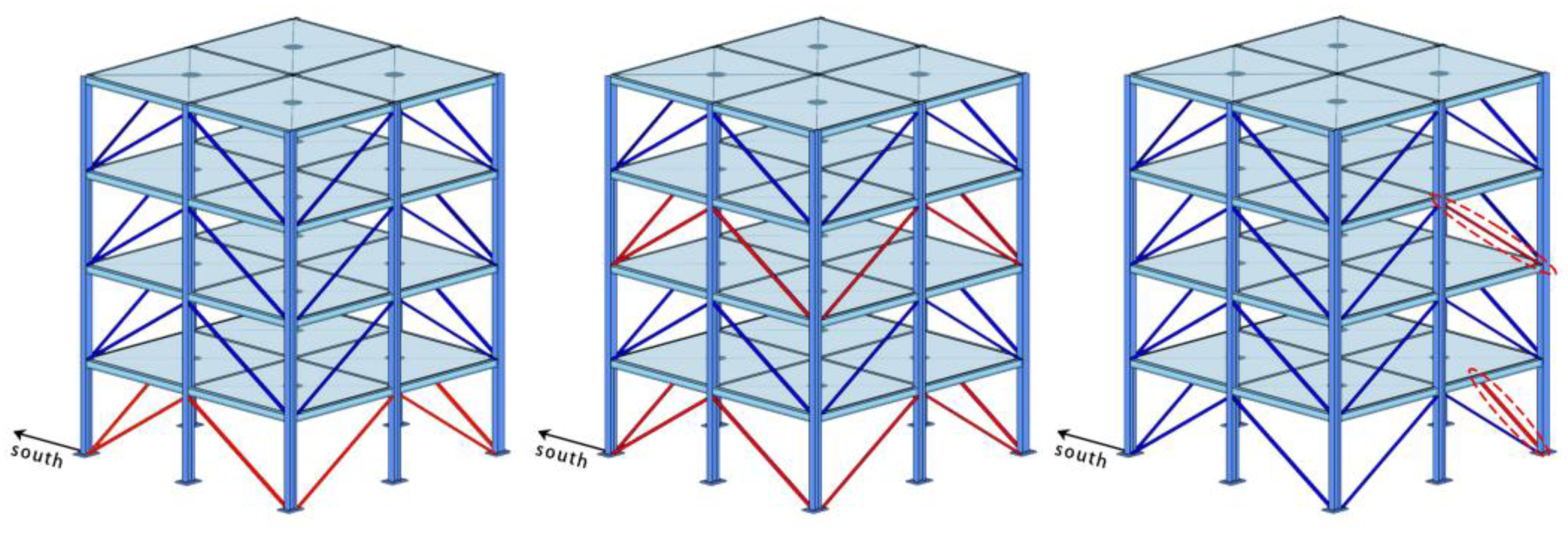

Damage Mode | Mode Description |
---|---|
D.P.0 | No damage |
D.P.1 | No stiffness in the braces of the first story |
D.P.2 | No stiffness in any of the braces of the first and third stories |
D.P.4 | No stiffness in one brace in the first story+No stiffness in one brace in the third story |
Model | 1D CNN | LSTM | Multi-Head CNN | CNN-LSTM | Transformer | Conformer |
---|---|---|---|---|---|---|
ACC | 89.10 | 88.22 | 92.39 | 92.55 | 94.07 | 95.19 |
Time(s) | 0.57 × 10−3 | 3.2 × 10−3 | 1.0 × 10−3 | 2.9 × 10−3 | 1.0 × 10−3 | 1.6 × 10−3 |
Model | 1D CNN | Conformer | CNN+CNN | CNN+Conformer | Conformer+Conformer |
---|---|---|---|---|---|
ACC | 89.10 | 95.19 | 94.23 | 95.99 | 96.96 |
Model | CNN+CNN | CNN+Conformer | Conformer+Conformer | |||
---|---|---|---|---|---|---|
Noise handling of the training set | Noisy | Noiseless | Noisy | Noiseless | Noisy | Noiseless |
ACC | 94.23 | 93.43 | 95.99 | 95.91 | 96.96 | 96.88 |
Noise Level (%) | Direction | Floor | CNN | Multi-Head CNN | Conformer | CNN+Conformer * | Conformer+Conformer * |
---|---|---|---|---|---|---|---|
0 | x | 1 | 89.10 | 92.39 | 95.19 | 95.99 | 96.96 |
0 | x | 2 | 84.62 | 94.15 | 96.79 | 97.04 | 97.68 |
0 | x | 3 | 86.30 | 93.83 | 95.99 | 97.76 | 98.16 |
0 | x | 4 | 68.19 | 92.63 | 96.15 | 96.07 | 97.12 |
0 | y | 1 | 86.70 | 94.47 | 95.99 | 95.99 | 96.39 |
0 | y | 2 | 75.80 | 96.15 | 96.88 | 97.52 | 97.68 |
0 | y | 3 | 75.64 | 94.55 | 95.43 | 96.23 | 97.36 |
0 | y | 4 | 67.87 | 96.31 | 97.04 | 97.44 | 97.60 |
Average ACC at 0% noise level | 79.28 | 94.31 | 96.18 | 96.76 | 97.37 | ||
20 | x | 1 | 85.02 | 90.79 | 92.55 | 94.23 | 95.11 |
20 | x | 2 | 81.89 | 94.15 | 96.39 | 96.63 | 97.44 |
20 | x | 3 | 85.18 | 92.95 | 94.23 | 95.35 | 96.71 |
20 | x | 4 | 71.07 | 91.99 | 95.51 | 96.23 | 97.12 |
20 | y | 1 | 81.89 | 94.63 | 94.47 | 96.07 | 96.47 |
20 | y | 2 | 67.71 | 95.19 | 96.63 | 96.88 | 97.36 |
20 | y | 3 | 68.67 | 93.59 | 95.19 | 95.51 | 96.31 |
20 | y | 4 | 67.63 | 96.31 | 97.04 | 97.52 | 97.84 |
Average ACC at 20% noise level | 76.13 | 93.70 | 95.25 | 96.05 | 96.80 | ||
50 | x | 1 | 75.72 | 85.98 | 86.54 | 88.94 | 90.87 |
50 | x | 2 | 70.51 | 91.19 | 93.27 | 94.87 | 95.27 |
50 | x | 3 | 72.92 | 90.06 | 92.39 | 93.75 | 94.31 |
50 | x | 4 | 64.74 | 90.14 | 94.39 | 94.55 | 95.35 |
50 | y | 1 | 74.28 | 91.51 | 91.59 | 93.35 | 93.75 |
50 | y | 2 | 60.02 | 89.82 | 92.63 | 93.19 | 94.39 |
50 | y | 3 | 60.58 | 89.66 | 92.39 | 92.79 | 93.59 |
50 | y | 4 | 61.30 | 95.03 | 95.35 | 96.15 | 96.79 |
Average ACC at 50% noise level | 67.51 | 90.42 | 92.32 | 93.45 | 94.29 | ||
Average | 74.31 | 92.81 | 94.58 | 95.42 | 96.15 |
Damage Case | Description |
---|---|

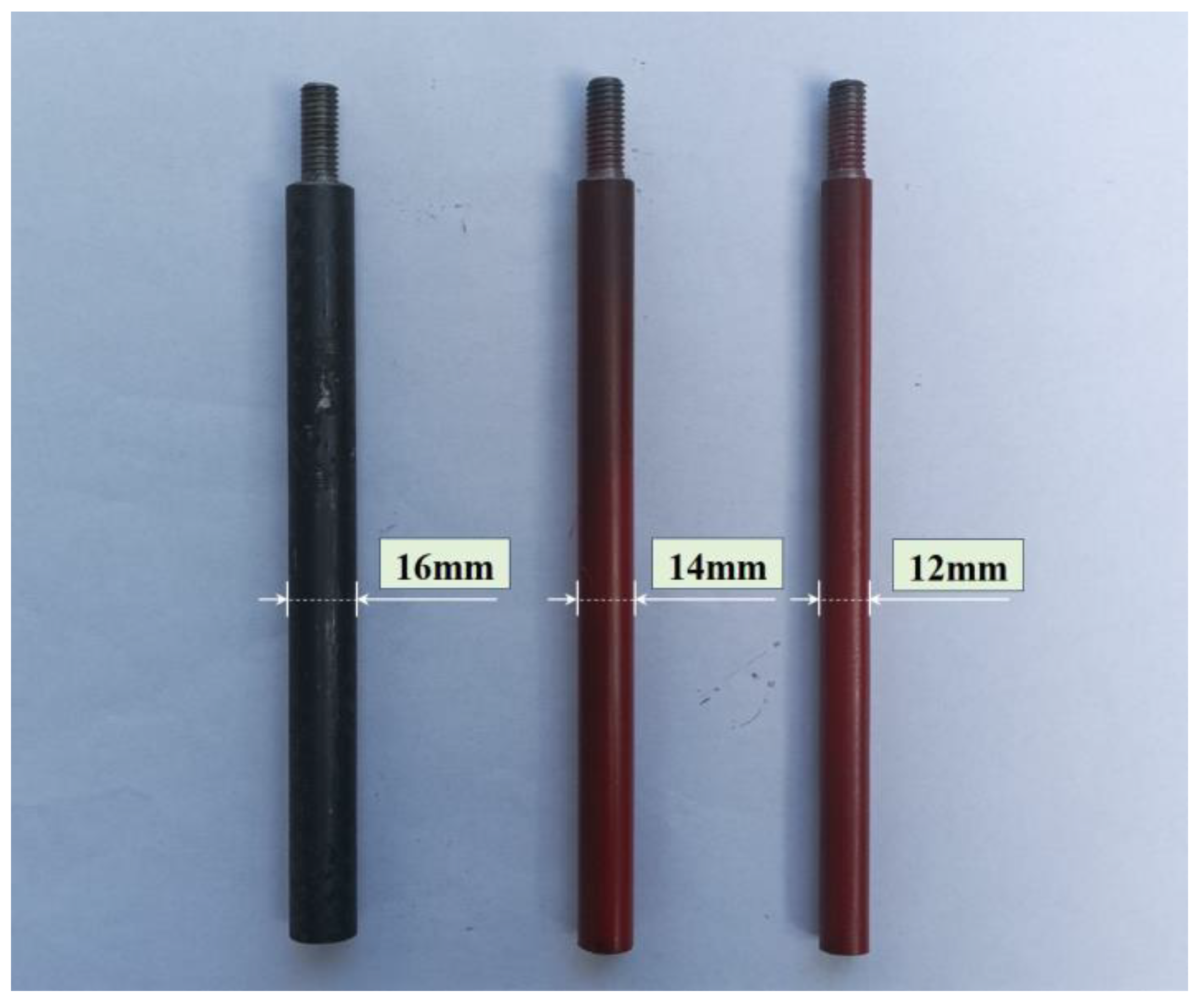

D.P.0 | Without damage (the columns at the southeast corner of floors 1–4 all have a diameter of 16 mm). |
D.P.1 | Replaced the column on the first floor with a 14 mm-diameter column. |
D.P.2 | Replaced the column on the second floor with a 14 mm-diameter column. |
D.P.3 | Replaced the column on the third floor with a 14 mm-diameter column. |
D.P.4 | Replaced the column on the fourth floor with a 14 mm-diameter column. |
D.P.5 | Replaced the columns on the first and second floors with 14 mm- and 12 mm-diameter columns, respectively. |
Floor/ Direction | CNN | LSTM | Multi-Head CNN | CNN-LSTM | Transformer | Conformer | CNN+Conformer | Conformer+Conformer |
---|---|---|---|---|---|---|---|---|
First floor, x direction. | 80.98 | 84.45 | 87.44 | 89.36 | 89.52 | 91.18 | 93.53 | 94.33 |
First floor, y direction. | 77.78 | 82.10 | 85.73 | 83.17 | 87.01 | 93.37 | 94.28 | 98.93 |
Second floor, x direction. | 76.01 | 86.59 | 84.45 | 83.49 | 86.43 | 91.93 | 92.41 | 94.12 |
Second floor, y direction. | 82.05 | 84.93 | 88.46 | 88.35 | 87.23 | 93.48 | 94.92 | 99.57 |
Third floor, x direction. | 81.20 | 83.60 | 84.72 | 84.82 | 84.61 | 88.67 | 89.63 | 92.84 |
Third floor, y direction. | 76.33 | 86.37 | 84.50 | 87.60 | 85.95 | 91.72 | 92.78 | 98.77 |
Fourth floor, x direction. | 74.47 | 79.22 | 82.63 | 86.53 | 88.19 | 91.93 | 94.28 | 95.56 |
Fourth floor, y direction. | 78.63 | 84.13 | 88.40 | 89.74 | 91.82 | 91.40 | 92.57 | 98.98 |
Average | 78.43 | 83.92 | 85.79 | 86.63 | 87.60 | 91.71 | 93.05 | 96.64 |
