Work Route for the Inclusion of Learning Analytics in the Development of Interactive Multimedia Experiences for Elementary Education

Abstract

Interactive multimedia experiences (IME) can be a pedagogical resource that has a strong potential to enhance learning experiences in early childhood. Learning analytics (LA) has become an important tool that allows us to understand more clearly how these multimedia experiences can contribute to the learning processes of these students. This article proposes a work route that defines a set of activities and techniques, as well as a flow for their application, by taking into consideration the importance of including LA guidelines when designing IMEs for elementary education. The work route’s graphical representation is inspired by the foundations of the Essence standard’s graphical notation language. The guidelines are grouped into five categories, namely (i) a data analytics dashboard, (ii) student data, (iii) teacher data, (iv) learning activity data, and (v) student progress data. The guidelines were validated through two approaches. The first involved a case study, where the guidelines were applied to an IME called Coco Shapes, which was aimed at transition students at the Colegio La Fontaine in Cali (Colombia), and the second involved the judgments of experts who examined the usefulness and clarity of the guidelines. The results from these approaches allowed us to obtain precise and effective feedback regarding the hypothesis under study. Our findings provide promising evidence of the value of our guidelines, which were included in the design of an IME and contributed to the greater personalized monitoring available to teachers to evaluate student learning.

1. Introduction

An interactive multimedia experience (IME) is defined as the means through which a multimedia system delivers the creation of value to stakeholders [1]. This concept considers aspects that are associated with the responsible design of multimedia systems, as well as the interests, needs, motivations, and expectations of the interested parties, as a product of a human-centered design process. We can also define learning analytics (LA) as the field of measurement, analysis, and data reporting about learners and their contexts to understand and improve learning where it occurs [2].

A systematic review of the applications of LA in the design of IMEs has shown a trend toward its use in services based on e-learning [3]. It has also been found that most LA guidelines are applied in both higher education and elementary education. However, gamification techniques are one of the most commonly used strategies for mediating the use of LA in an IME for children [4]. Regarding LA guidelines [5], a trend has been observed in their application for designing solutions that offer personalized learning experiences to students. For example, some IMEs aimed at children based on gamification have integrated physical and interactive objects with virtual games to promote collaborative work between students [6].

Some authors, such as Lee [7], suggest that artificial intelligence (AI)-powered LA can potentially transform early childhood education and instruction. Although this work does not provide a solution in the form of an AI-based system for LA, it does address a problem associated with the gap in the use and appropriation of learning experiences mediated by technology in the context of elementary education. In this case, it is a process for the inclusion of LA in the development of an IME based on human-centered design involving the stakeholders of the community to which the school belongs.

This effort is due to the contribution that LA can offer to achieve learning experiences that, through the mediation of technologies such as an IME, allow young children to be offered an education more personalized to their needs and environment [8]. This is an important contribution, since access to technologies for education in low-resource communities in countries with emerging economies is typically achieved through the adoption of technologies developed in other countries, with cultures, conditions, and needs different from their own, with little adaptation to the real needs of the context in most cases [9]. This suggests a limitation regarding the conditions that educational technology should provide, which in this case, are related to the children’s agency [10]. This is interpreted as a “socially situated capacity to act” [11].

Incorporating LA into a development process is challenging because it can be applied to achieve various objectives, each involving selecting precise data and methods to generate the necessary information. From there, this work arises, which presents a work route to include LA in IME, which allows designers and developers to select and implement a series of concrete LA guidelines and then provide useful information to different stakeholders. Through our research, we offer a new approach to incorporate LA guidelines in developing IME for elementary education in public or private institutions, contributing to creating learning experiences in a school context. This approach is presented using an artifact [12], which is expressed through a work route using the Essence graphic notation language [13].

This study was carried out over 2.5 years and initially conceived as a flexible and adaptable process that could be used in different communities and contexts. It was based on a method for the pre-production and validation of multimedia systems by developing an IME focused on gamification techniques. It aimed to allow children, between four and five years old in elementary education, to learn the English language in a school located in a low-income commune in Cali, Colombia [14]. The solution evolved based on experiences with students, teachers, and community members, allowing us to define a set of LA guidelines implemented as an LA dashboard [15]. The guidelines were validated through two approaches. The first involved a case study, where the guidelines were applied to an IME called Coco Shapes that was aimed at transition students at the Colegio La Fontaine in Cali (Colombia). The second involved the judgments of experts who examined the usefulness and clarity of the guidelines.

The work route to incorporate the LA guidelines in IME has been tailored for implementation by companies producing technology solutions and content for educational content. Additionally, these guidelines are intended for use by technology-support units and information and communication technology (ICT) managers within educational institutions. They serve as a valuable resource for educators to integrate technology into their instructional and learning strategies.

The structure of this article is as follows. Section 2 provides an overview of the application of LA within the IME framework. Section 3 outlines the materials and methods utilized in the study. Section 4 details the findings and the discussion of the research, while Section 5 offers conclusions and recommendations for future research.

2. Analytics in Interactive Multimedia Experiences

2.1. The Role of IME in Elementary Education

Multimedia and its interactive possibilities for users are valuable for enriching and improving learning experiences at different levels of schooling [16]. A wide range of multimedia tools is now used in education, and the proliferation of these tools is attributed to the evolution of technologies over the years and the continuous efforts of teachers to improve the delivery of knowledge [17]. This finding is consistent with those observed in emerging economies, such as Colombia, where access to technological resources has expanded in school educational centers, mainly in the public sector, according to the National Administrative Department of Statistics (DANE) [18]. However, strong limitations still need to be addressed by teachers and students attempting to access educational technologies due to the digital gap measured by indicators, such as the Network Readiness Index (NRI) [19].

Emerging economies often adapt solutions based on models and technologies to support education that were developed for the needs of different social, cultural, and economic contexts [9], which restricts the value that can be created in terms of students’ learning experiences in early childhood. This opens up new opportunities for the generation of alternatives that lead to the creation of IMEs designed according to the particular needs of these communities [14]. Using an IME, we present a solution that can enrich the experiences of children from schools in low-income areas with a low-cost solution for learning a second language, such as English.

Throughout this process, we have identified opportunities to improve the learning experiences offered through the IME. We initially recognized the basis of a systemic model that would allow us to identify a set of essential variables to enable better management of data and information that could be used to enrich traceability in the learning process of children in these communities [20]. This effort is consistent with another study to identify the potential of interactive technologies to add value to the learning experiences of basic education students [21].

2.2. Learning Analytics Guidelines

Guided by the results of a systematic review [3], and considering student learning goals, activities, and stakeholders’ needs in the EMI development [5], we formulated 36 guidelines. These guidelines encompass five categories, namely (i) dashboards for academic management, (ii) student profiling, (iii) teaching management, (iv) tracking student–multimedia interactions, and (v) monitoring student performance and progress. The guidelines are aimed at designers, developers, teachers, and other stakeholders in the basic education context to integrate LA into IMEs for elementary learners. These guidelines are detailed for each category in

Table 1. Guidelines for incorporating LA into IME.

ID	Description
Guidelines related to the data analytics dashboard
LAD1	The dashboard must offer mechanisms for configuring the level of detail of the query results, such as, for example, in terms of the student, course, topic, activity, or learning objective. Filters are crucial for segmenting data; they should be easy to use and allow multiple selections to enable a comparative analysis [22].
LAD2	The dashboard should allow teachers to view the data distribution per student or course using various graph types (bar, point, line, heat maps, etc.). Teachers could assess student levels, compare courses, and analyze performance indicators. The X-axis should represent time for temporal data to ensure clarity and consistency. Graph selection should align with user preference and data nature. Effective data visualization simplifies user comprehension, facilitating effortless monitoring of learning objectives or activities [23].
LAD3	The graphics must be clear and differentiated. For example, in a pie chart, distinctive colors should be used for each section, and clear labels should be provided. For a scatter plot, the axes should be well-defined, and each point should be easily identifiable by hovering over it with the cursor [24].
LAD4	Implement interactive features like zooming the charts, clicking details, and dragging and selecting a group of points on the scatter chart to see more details [25].
LAD5	The dashboard should include clear, educationally relevant, performance indicators, such as pass rates, student progress (see guideline LAP3), and comparisons with benchmark averages. Recording data from the user’s interaction with the multimedia experience is important to allow for subsequent interventions and to monitor learning progress by teachers.
LAD6	Options should be provided for the user to export graphs or raw data so that managers or other stakeholders can perform an additional analysis or prepare reports outside the system [26].
LAD7	In a graph that includes a variable that can take different values, we recommend enabling the user to select values of interest to enable comparisons. For example, for a variable called “Level”, which can take four possible values (“Very high”, “High”, “Basic” and “Low”), the user should be able to select the level of interest to view it in greater detail.
Guidelines related to the student
LAS1	The IME must record the student’s name and grade, which are the minimum data needed to track their progress over time and compare it with the course average. The teacher can provide individualized feedback and specific assessments for each student by collecting identifying information.
LAS2	Good information-security practices must be implemented to ensure the user data’s privacy, integrity, and confidentiality. Mechanisms, such as removing addresses, personal identification numbers, dates of birth, or other characteristics that could be used to identify a person, must be applied. This aims to anonymize the data and comply with the relevant privacy regulations [27]. In addition, users should be informed about the collected data, and their consent should be obtained where necessary.
LAS3	It is important to identify student learning problems before, during, or after interaction with the multimedia experience so that the experience can be adjusted to their learning pace through AI. Adaptive learning is based on the effort made by the student to complete subsets of exercises successfully and quickly. It should respect each student’s learning style and pace of work [28].
LAS4	Information about students’ interests, preferences, and culture should be recorded. This will allow the IME to capture their interest and align with their motivations. The digital content of the IME must include examples and situations that are relevant and attractive to students.
LAS5	Tools should gather data on students’ emotions during multimedia interactions, including facial expressions, verbal reactions, movements, or heart rates. Utilizing these data, teachers can employ algorithms or systems to categorize emotions like boredom, frustration, interest, or joy. Subsequently, teachers can tailor feedback, support, or incentives to students’ emotional states, fostering a positive learning environment.
LAS6	An IME should include stories and narratives that relate directly to students’ interests and contexts based on the data collected about their preferences and backgrounds. Story characters and virtual settings should reflect students’ expectations based on the demographic information collected.
LAS7	Data should be used to understand students’ sensory preferences and the multimedia experience should be designed around this information. In the design process, information must be obtained about what types of images, graphics, videos, or digital content interest users.
Guidelines related to the teacher
LAT1	The multimedia experience must include the teacher’s name and email address as the minimum mandatory data. Actions carried out by an administrator, such as creating a teacher account, assigning a course, or registering a new student in a course, will be notified via email.
LAT2	The pedagogical methodologies known to the teacher must be considered in the conception of an IME. Thus, a multimedia experience can encourage students’ active construction of knowledge by allowing them to explore, discover, and solve problems [29].
LAT3	The teacher should use the data recorded from the student’s interactions with the multimedia experience to offer personalized interventions or additional resources to students who may need additional support.
Guidelines related to learning activities
LAA1	Learning activities should log key data reflecting student performance, including (i) activity status (e.g., paused, canceled, or finished); (ii) error count, aiding teachers in diagnosing issues (e.g., lack of knowledge, inattention, or question complexity), (iii) correct answer count; (iv) obtained grade or score; (v) completion time, indicating concentration and interest; and (vi) difficulty level. These data inform and enhance teaching strategies.
LAA2	Based on student grades or scores, successes, and failures, we propose a scoring system (e.g., points, stars, badges, or other gamification methods) to boost motivation and engagement [30]. Aligning scores with institutional performance levels (e.g., very high to low) enables teachers to assess student distribution across IME-defined levels.
LAA3	The most frequently viewed topics, modules, sections, or activities should be recorded, as well as the time spent on a topic/module. Knowledge of the options or sections that students explore through the IME allows the teacher to identify possible topics that interest the students or that are complex, which can be leveraged as part of their teaching strategy.
LAA4	We suggest recording the number of steps or stages of a completed activity so that the teacher can later identify specific points at which problems arise and adjust the teaching strategy accordingly.
LAA5	Data from student interactions with multimedia content, like videos, animations, simulations, and interactive images, should be captured. Metrics include video watch time, interaction frequency with elements, or reviewed content sections. These data allow teachers to monitor digital tools and content usage within the IME and assess their impact on comprehension and retention.
LAA6	We suggest allowing users to record feedback, comments, and evaluations of the learning activities. This information can enable the teacher to make changes to the teaching strategy and consider updating the design of the IME. This guideline is suggested to be applied to students trained to provide useful information.
LAA7	We suggest recording messages or chats between students during collaborative activities. Based on these data, the teacher can observe the frequency and duration of participation in collaborative activities and identify the exchange of ideas.
LAA8	LA should be used to provide relevant feedback and personalized recommendations to users. The collected data can be used to identify strengths, find opportunities for improvement, and adapt the learning experience to the individual needs of each user. In addition, feedback should be given to explain to students why their answer was wrong, and clues, as to how to carry out an activity, should be provided.
LAA9	Obtain data such as (i) the time spent viewing different visual elements and (ii) the frequency and duration of viewing specific elements. The learning activities of an IME should include a variety of digital content (text, audio, images, 2D and 3D animations, and virtual objects, among others) to address different learning styles [31] and motor, visual, cognitive disabilities, etc. and allow students to access information in multiple ways. Digital content must be aligned with the learning objectives, and topics should be relevant and appropriate to the level of the students.
LAA10	Obtain student preferences and identify accessibility needs, as well as cultural traits. The digital content of learning activities should be suited to student preferences. It should be inclusive and accessible [32] to everyone, considering different skill levels, aspects of gender, poverty, forced migration, functional differences, possible limitations, and cultural diversity [33].
LAA11	The learning activities of an IME should actively engage students and should encourage interaction with the content. They may include educational games, interactive questions, simulations, or problem-solving activities.
LAA12	Obtain data such as (i) the time spent listening to different audio or sound effects and (ii) the frequency of volume adjustment or changes to songs/sounds. Learning activities should integrate sound effects and music that complement and reinforce the presented concepts to stimulate positive emotions and maintain student interest.
LAA13	Obtain relevant data for the teacher, such as (i) participation in tactile activities, (ii) usage frequency of touch functions or physical interactions (e.g., drag and drop and clicks), (iii) navigation patterns across sections, indicating sensory and content preferences, and (iv) frequency of switching among presentation modes (e.g., images, videos, and text). Learning activities should include interactive touch elements (e.g., buttons, drag and drop, and touch interactions) to engage students.
LAA14	In learning activities, we suggest using technologies that allow for immersive sensory experiences, such as virtual or augmented reality. These technologies can enable students to explore three-dimensional environments or overlay digital information in the real world, significantly enriching the sensory experience.
LAA15	In learning activities, the possibility of offering multiple interaction styles (gesture, pressure, vibration, tangible interfaces, voice commands, or others) should be considered to adapt the system to students’ individual needs and preferences.
Guidelines related to student progress
LAP1	Progress tracking over time is essential to discern long-term trends or improvements in student performance. Essential data per course include (i) schedule, (ii) duration, (iii) modules, (iv) completed modules (noting student progress or areas of delay), and (v) topics/modules.
LAP2	The time spent using the IME and the frequency at which students access it should be recorded. This information can indicate the student’s level of commitment and participation, since there is a correlation between the frequency of use of the resource and success in learning [34].
LAP3	Student performance and progress visualization are crucial. Teachers should track and compare students’ current and past performances. Detailed reporting and analysis are vital to pinpointing improvement areas and refining teaching methods. A dashboard, for instance, might display success and failure rates, student progress percentages, and course averages during the multimedia experience usage. Graphs, adhering to guideline LAD3, should depict student performance against course averages, aiding teachers in identifying teaching-strategy enhancement opportunities for underperforming students over time [35].
LAP4	Historical data on students’ learning activities, participation, performance, and progress in previous courses must be recorded and stored. These data should be available for analysis by teachers and administrators, allowing for a more complete understanding of student performance and learning patterns over time [36].

.

2.3. Work Route to Include LA Guidelines into IME

The route proposes a workflow comprised of a set of activities and techniques. Through the application of these techniques, the completion of the defined activities is pursued. The sequence observed by the flow of activities suggests an order for their application, but it should not be confused with a waterfall process. On the contrary, its application should be framed within an iterative process. The way both activities and techniques are graphically represented is inspired by the foundations of the Essence standard’s graphical notation language [13]. This is intended for potential future work related to the design of a practice for incorporating learning guidelines in IME. An activity with a yellow border represents the starting point of the route workflows, while an activity with a red border represents the end of a workflow iteration along the route. Figure 1 shows the work route for including LA guidelines in IME in elementary education.

The process flow begins by defining the purpose of applying LA to an IME with several learning objectives. Second, LA guidelines that align with stakeholder needs are identified. Third, the sources and types of data needed to support LA are defined. Up to this point, iterations can occur between these activities to ensure alignment between the selected guidelines and the needs being studied. Then, the IME is developed and tested for continuous improvement. This iterative flow ensures that the IME effectively integrates LA guidelines.

Table 2. Activities and techniques involved in the LA route.

Id	Activity	Description	Techniques
A1	Define the purpose of applying learning analytics in the project.	The value purpose for which you want to apply LA in designing an IME is defined and associated with the project objectives.	- TLA1: Trend analysis. - TLA2: Convergence mapping. - TLA3: Value analysis. - TLA4: Interviews with stakeholders. - TLA5: Database of user observations. - TLA6: Identification of value tensions. - TLA7: Analysis of user responses. - TLA8: Identification of patterns. - TLA9: Identification of policies and regulations. - TLA10: Focus group. - TLA11: Definition of key performance indicators (KPI).
A2	Define the principles and guidelines of LA that meet the needs of the school’s stakeholders.	Define the set of LA guidelines that need to be applied to define the data and the people involved, as well as the mechanisms that guarantee the respect, responsibility, and transparency of the information and the specific questions you want to answer.	- TLA1: Trend analysis. - TLA2: Convergence mapping. - TLA3: Value analysis. - TLA4: Interviews with stakeholders. - TLA12: Surveys and questionnaires. - TLA13: Focus group. - TLA14: Observation and analysis of human beings’ cognitive, social, cultural, emotional, and physical aspects.
A3	Define the sources and types of the required data.	The source and nature of data required to apply the selected analytics guidelines must be defined based on them. These data can be quantitative or qualitative. Please take ethical and privacy considerations into account when collecting data.	- TLA4: Interviews with stakeholders. - TLA1: Trend analysis. - TLA7: Analysis of user responses. - TLA14: Observation and analysis of human beings’ cognitive, social, cultural, emotional, and physical aspects. - TLA5: Database of user observations. - TLA15: Historical data analysis. - TLA16: Educational Data Mining (EDM) - TLA17: Data-Driven Assessment (DDA) - TLA18: Social Network Analysis (SNA) - TLA19: Exploratory Factor Analysis (EFA). - TLA20: Text mining and sentiment analysis. - TLA21: Analysis of navigation and usage patterns.
A4	Produce the design and implementation of the IME.	The contents and interaction mechanics in the interactive multimedia experience must be designed or adapted for subsequent implementation so that the required data can be captured according to the selected guidelines. The data visualization elements required for review and feedback must also be implemented.	- TLA22: Production of metaphors and analogies. - TLA23: Storyboard creation - TLA24: Wireframe creation. - TLA25: Creation of the journey map for the multimedia experience. - TLA26: Prototype production of user behavior against the multimedia experience. - TLA27: Concept prototypes.
A5	Testing of the IME that incorporates LA guidelines.	A set of tests must be carried out related to the content, interaction mechanics, recovered data, and its visualization on the dashboard, as well as validating these elements with the stakeholders.	- TLA4: Interviews with stakeholders. - TLA12: Surveys and questionnaires. - TLA28: A/B Testing. - TLA29: Usability testing. - TLA30: Expert judgment. - TLA31: Unit tests. - TLA32: Component integration tests. - TLA33: Test of performance. - TLA34: Privacy and security evaluation.

outlines the activities associated with the LA route and the techniques utilized to fulfill the scope of the work. These techniques are grounded in methodologies and frameworks linked to tools commonly employed in Design Thinking [37,38] and Value-Sensitive Design [39], practices based on User-Centered Design for LA [23], and Software Engineering [40,41].

3. Methods

In order to validate the proposed guidelines, two approaches were used. For the first, we conducted a case study in which the guidelines were applied to an IME for transition students from the La Fontaine School, in Cali (Colombia). In the second, we collected the opinions of experts who examined the usefulness and clarity of the guidelines. These approaches allowed for precise and effective feedback regarding the aspects under evaluation.

3.1. Case Study

3.1.1. Methodology

Considering that this research originated from an issue related to the need to incorporate LA guidelines into the development of IME aimed at elementary education in Colombia, this led to the conception of a practice for incorporating LA guidelines as a design artifact for school contexts. The proposal suggested a process based on unifying criteria among various stakeholders. Subsequently, evaluations of the work route were conducted in the school context through a case study and expert judgment. Design science was determined to be the most consistent methodological approach for this research [42].

At this point, it is important to highlight that the methodology of design science has been widely embraced by the LA community, primarily for the validation of studies related to the generation of the models [43], methods [44], frameworks [45], and design principles of LA [46], among other studies. In this case, the work route proposed for incorporating LA guidelines in the Colombian school context can be defined as a knowledge artifact associated with information technology (IT) [47]. The results shared by these studies suggest that the selection of design science has shown satisfactory results regarding its utility for validating approaches related to this proposal. Additionally, it facilitates the reproducibility of the presented research for other researchers.

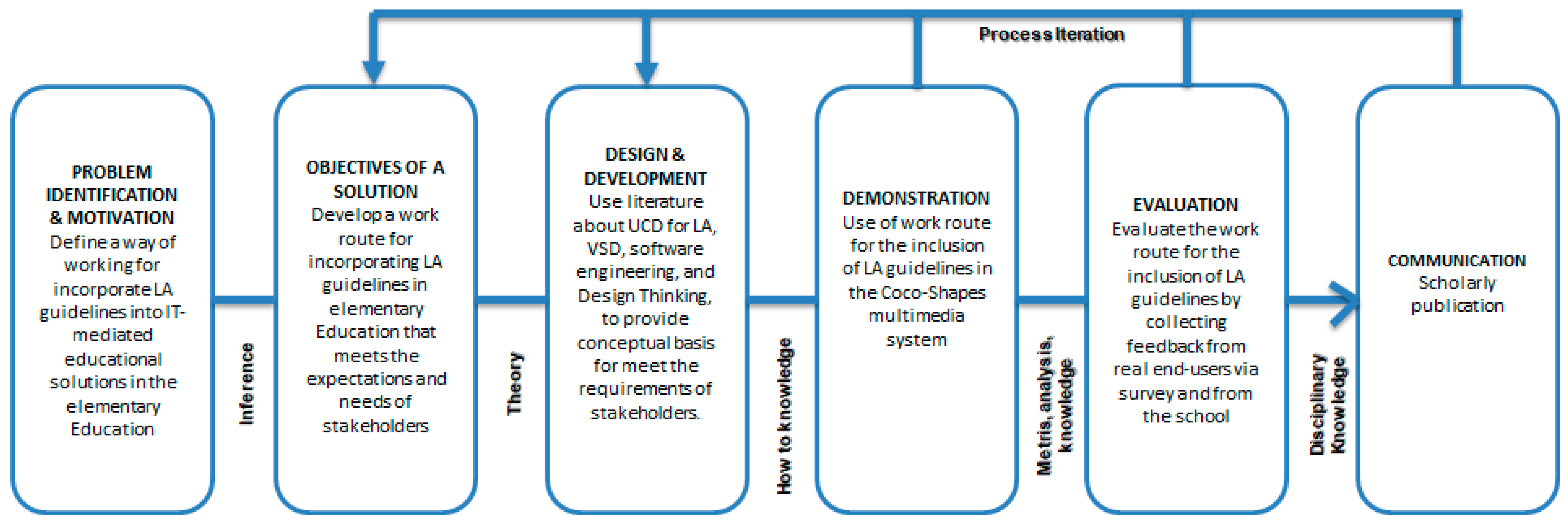

Consistent with the above, this work was conducted through a set of four stages, namely (i) identifying a problem related to the inclusion of LA guidelines in the context of Colombian institutions, (ii) objectives of a solution for incorporating LA in school contexts as an IT artifact, (iii) design and development of the artifact of the solution, (iv) evaluation of the work route for the inclusion of LA guidelines through the Coco Shapes multimedia system, and (v) communication of the analysis of the results and contributions offered by the work route, along with its identified limitations. The research method followed is presented in Figure 2 and is an adaptation of the objective of this research of the method presented by Peffers et al. [48].

For the case study, we developed the following hypothesis. The application of the proposed design guidelines for including LA in the design of an IME allows the teacher to carry out more personalized follow-up in terms of evaluating student learning in elementary education.

3.1.2. Creation of Work Teams

This project was carried out by a core of five researchers, including four with a PhD in engineering and one with a PhD in education. These researchers are members of groups accredited by the Ministry of Science and Technology of Colombia, Minciencias (2023). A second group consisted of five interested parties from the La Fontaine school in Cali (Colombia), consisting of three transition teachers and two directors. These two groups made up the work team that participated in the validation of the proposed guidelines.

This year, 42 transition students were all children between four and five years old. The three teachers, who were experts in English, guided the students throughout the process. The school director, who had a degree in foreign languages, also participated.

3.1.3. Coco Shapes

Using the multimedia system pre-production method [1] in the elementary education context, an experience titled ‘Coco Shapes’ was created for transition students at the La Fontaine School in Cali, Colombia. Coco Shapes focuses on teaching the specific topics of colors, shapes, and counting. The initiative was developed with objectives that align with the Basic Learning Rights and address the needs of the school’s stakeholders.

Considering stakeholder needs, the team designed English language learning activities based on student proficiency. These activities, spanning three difficulty levels, covered colors, shapes, and counting. Coco Shapes, deployed on a tablet (see Figure 3), blended physical (button and shapes) and digital resources for interactive learning. During geometry activities, children inserted shapes into slots; during color activities, they pressed corresponding buttons. And during counting activities, they selected the right screen option.

The course teachers could observe the students’ results, which allowed them to evaluate each student’s progress.

3.1.4. Evolution of Coco Shapes

To include elements of LA in Coco Shapes, the team of researchers interviewed teachers at the La Fontaine School to identify the relevant data that would contribute to evaluating student learning.

After the interviews, the audio files were transcribed, and the qualitative information was analyzed. Using the first version of Coco Shapes and analyzing the interviews identified opportunities for improvement in relation to the usability of the experience, with the aim of providing a more fluid interaction to the user. Opportunities for improvement related to including LA elements were also identified so that the teachers could monitor the student’s learning process.

Considering the stakeholders’ expectations, we developed a web application that included modules related to student management, teacher management, course management, and reports. The reporting section contained a dashboard that could be used to monitor the student’s learning process and included a set of graphs and information-filtering mechanisms at the interested parties’ request.

3.2. Expert Judgments

The statistical methodology used for this phase of the research included the following steps:

Step 1: We conducted an expert-consensus analysis via a questionnaire to validate the LA guidelines, assessing perceptions of clarity and usefulness across categories, including a (i) data analytics dashboard (LAD), (ii) student (LAS), (iii) teacher (LAT), and (iv) learning activities. Expert evaluations were then quantitatively analyzed for usefulness and clarity.

Step 2: Descriptive and inferential analyses were conducted after applying the questionnaire. Each category was characterized by constructing tables and summary graphs and employing the Mann–Whitney test [49,50] to evaluate potentially significant differences in respondents’ perceptions of usefulness and clarity. A percentage perception index was developed to synthesize the collected information and facilitate an overarching evaluation of the different variables and items presented. This index compiled the data to form a quantitative assessment, drawing on the responses provided by each expert participant. The final rating was derived from the operation of the indicator, as given in the following equation [51,52]:

$$D_i={\displaystyle \frac{\left({\sum }_{i=1}^E{x}_i\right)-E}{C-E}}\ast 100={\displaystyle \frac{\left({\sum }_{i=1}^E{x}_i\right)-E}{(E\ast 6)-E}}\ast 100={\displaystyle \frac{\left({\sum }_{i=1}^E{x}_i\right)-E}{6E}}\ast 100$$

$x_i=$ rating of item i.

$E=$ number of effective responses.

$C=$ maximum possible score: E*6 (six response categories, with each measured on a Likert-type scale from zero to five).

This indicator expresses the general level of perception in each of the sectors and cities on a scale ranging from 0 to 100. Descriptive analyses and Mann–Whitney and statistical tests were performed using the freely distributed statistical program R-3.4.2 [53].

4. Results and Discussion

4.1. Case Study Results

4.1.1. Application of Guidelines to Coco Shapes

Using the first version of Coco Shapes, the researchers interviewed school teachers to identify relevant data related to the evaluation of student learning. After analyzing the information collected, opportunities for improvement were identified related to the usability of the IME, so that it provides a more fluid experience to the user, and includes LA elements so that teachers can monitor the student’s learning process. Based on the opportunities for improvement related to the inclusion of LA, a set of 26 guidelines was selected to develop the second version of Coco Shapes. Guidelines for implementing the data analytics dashboard, including LAD1, LAD2, LAD3, LAD5, and LAD7, were considered, as described below.

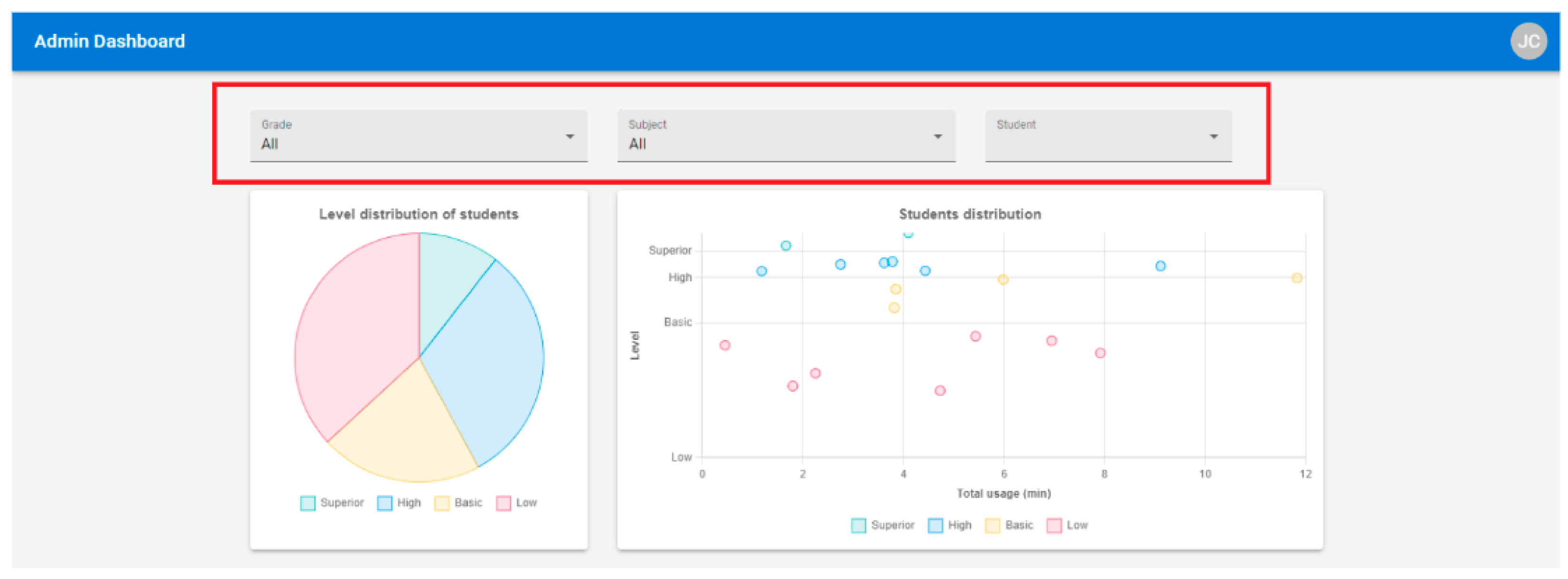

For LAD1, the Coco Shapes web-application dashboard allows filtering by grade, subject, and student, as shown in Figure 4. In this way, teachers can configure the data they want to view according to their needs and focus on the relevant data from large sets of information.

For LAD2, the dashboard offers teachers different types of graphs (such as pie, bar, point, and line graphs) for viewing the distribution of data by student or course and allowing them to see students at a certain level or student performance. In graphs that include time, the X-axis represents this variable to facilitate the interpretation of the information.

For LAD3, the dashboard graphs (see Figure 2) use distinctive colors for each variable so that teachers can quickly identify different sets of data or variables in a graph. Feedback from the teachers confirmed that the graphs were clear and differentiated and that they sped up the interpretation of the information.

For LAD5, the student performance indicators that are based on the number of successes and failures are represented by lines over time (see Figure 5), and a percentage representing the student’s progress and the course average is presented for the period of system use. With this information, teachers can monitor the student’s performance and compare it with the course average, thus identifying opportunities for improvement in their teaching strategy for students with low performance over time.

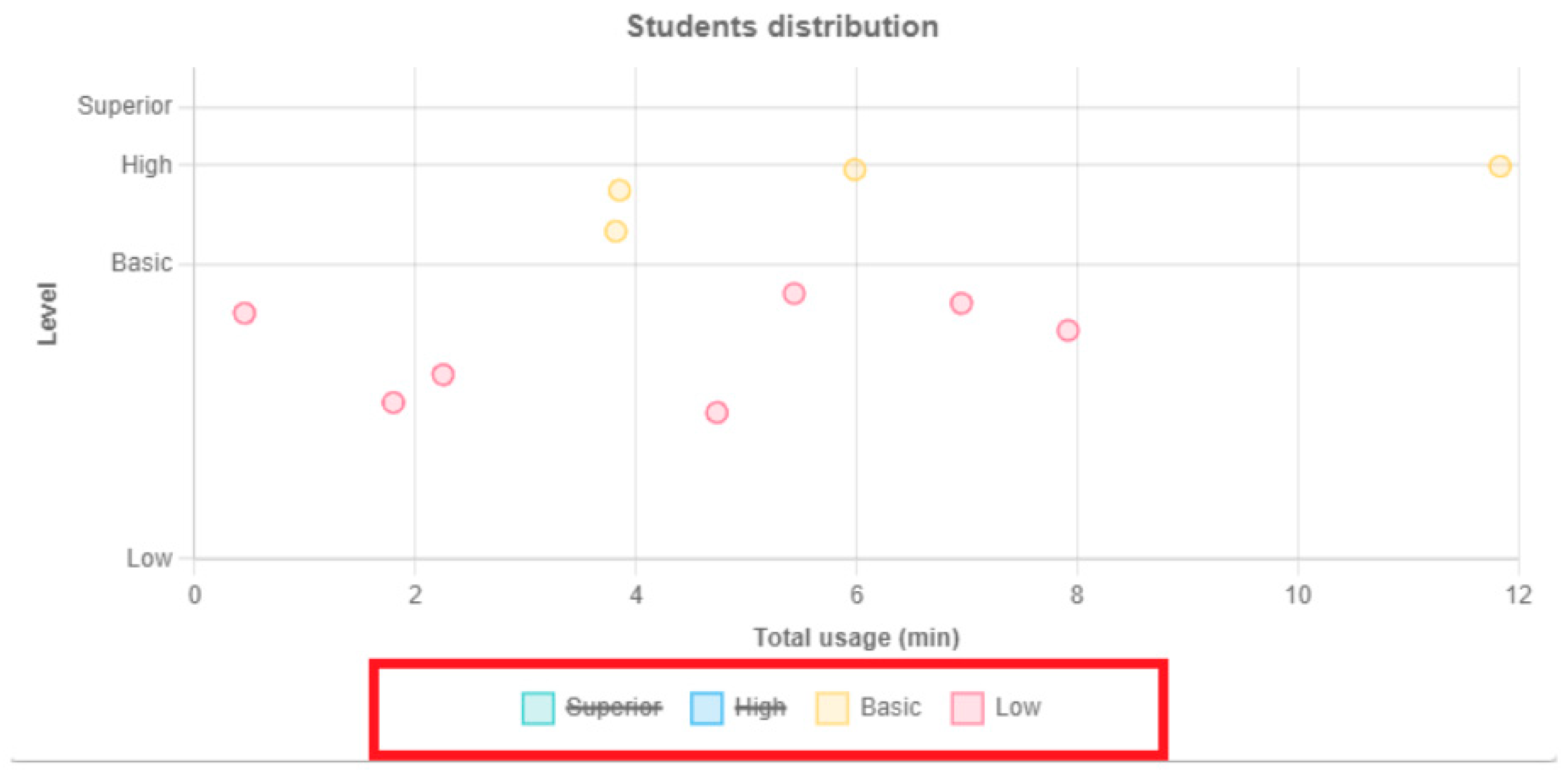

For LAD7, Figure 6 displays the student distribution by level (“Very High”, “High”, “Basic”, “Low”), with selectable user options for data viewing. The institution’s stakeholders define the levels according to its teaching strategy. Aligning with LAD2, time is on the X-axis. Hovering over a point reveals student details, including name, app usage time, and performance percentage for that level.

For guidelines related to the student, we considered LAS1, LAS2, LAS4, and LAS6, as described below.

For LAS1, the multimedia experience records the student’s name and grade. In the web application, the school director can enter the information manually or upload an Excel file that includes the data for all the students in a course.

For LAS2, the web application included effective information-security practices, such as user sessions and profile management, password encryption, data protection with built-in defaults for access, and end-to-end encryption to guarantee the privacy, integrity, and confidentiality of the user data.

For LAS4, Coco Shapes features amusement park scenarios, mirroring the school’s surroundings and student preferences. Developed collaboratively, the digital content includes Coco, a spectacled bear, reflecting the Colombian context where spectacled bears inhabit. Coco navigates the park, playing games like catching geometric shapes, soccer, toppling specific figures, or color-mixing to create secondary hues.

For LAS6, Coco Shapes includes three scenarios that correspond to the student’s interests and context. The first scenario involves a roller coaster for counting activities. The second is a circus for shape activities, and the third consists of fair games for color activities.

Guidelines LAT1, LAT2, and LAT3 were considered regarding the teacher, as described below.

For LAT1, on the web application, the school director can add a teacher by registering a name and email address (minimum required data) and assigning one or more courses to this teacher. Once the information is entered, the professor receives an email notification, and access is granted to the data on the students in this course.

For LAT2, the directors and teachers of the La Fontaine school participated in developing the learning activities for Coco Shapes, considering the educational methodologies and resources (physical and technological) available.

For LAT3, the teacher has a dashboard that includes the distribution of students by level, a comparison of results by grade, the average time for each course using Coco Shapes, and the students’ performance. With this information, teachers can detect students who may need additional support and dedicate additional time and resources to this group of students.

The guidelines LAA1, LAA2, LAA3, LAA8, LAA9, LAA10, LAA11, LAA12, LAA13, and LAA15 were considered when applying to learning activities, as described below.

For LAA1, Figure 7 shows an example of the guideline where items 2, 3, and 5 were considered (see Table 1). Based on the needs of the interested parties, the percentage of correct answers and the date on which the user carried out the activities associated with each theme offered by Coco Shapes were chosen.

For LAA2, Coco Shapes uses a star-based rating system based on the number of hits and misses the user makes. Gamification with stars was chosen in collaboration with teachers to motivate children and turn learning into a playful and fun experience. The stars act as positive reinforcement. Students associate the achievement with a reward by receiving stars for completing activities, reinforcing the desired behavior.

For LAA3, the system records the theme (colors, shapes, or counting), the date, and the time spent on each theme (the last time the student used Coco Shapes), as shown in Figure 7. With this information, teachers can identify topics that are of interest to students or that are complex and use this information as part of their teaching strategy.

For LAA8, the teacher’s dashboard displays student-level distribution, grade-wise results comparison, average course time on Coco Shapes, and student performance (see Figure 5). It also shows topics, dates, and time spent per topic (see Figure 7). Stakeholders deemed this information sufficient for user feedback, identifying strengths and areas for improvement, and evaluating classrooms’ teaching strategies and resources.

For LAA9, the learning activities in Coco Shapes include digital content, such as text, audio, images, and 2D animations. In conjunction with the interested parties, the digital content was aligned with the learning activities, since it contributes to the development of skills such as listening and interpreting the English language for the transition students of the La Fontaine school.

For LAA10, the digital content that supports the learning activities, scenarios, characters, and narrative flow corresponds to the preferences and cultural diversity of the students. Coco Shapes includes eye-catching and intuitive interfaces for students, stimulating interest and curiosity in the multimedia system. It should be noted that it has been left to future work to address the issue of accessibility guidelines for students with visual or hearing limitations.

For LAA11, the teachers decided that, to carry out the figure and color activities, a physical object was required with (i) spaces to insert the geometric figures and (ii) primary and secondary color buttons. In addition, a tablet was used to display the multimedia experience and the counting activities. These elements require the active interaction of students with the contents.

For LAA12, the learning activities included sound effects and music that accompanied the instructions provided to the user. It is important to mention that the school director recorded the instructions played in the learning activities, as she represented a familiar voice for the students due to her excellent pronunciation of English. This was conducted to evoke positive emotions and hold the students’ interest.

For LAA13, Coco Shapes’ figure and color activities include a physical object with geometric figure slots and primary/secondary color buttons, mirroring the transition students’ curriculum. Interacting with these objects stimulates tactile and visual senses, enhancing the learning experience by allowing children to touch, manipulate, and explore, thus boosting topic retention and comprehension.

For LAA15, as part of the learning activities of Coco Shapes, students press buttons, insert shapes into well-defined spaces, and select options on a tablet screen, depending on the challenges defined for each theme. This diversity of interaction styles involves children more actively in the multimedia experience. The student’s commitment and attention to the challenge are encouraged by offering several interaction options.

The guidelines LAP1, LAP2, LAP3, and LAP4 were considered when applying the guidelines related to student progress, as described below.

For LAP1, the number of successes and failures recorded based on the student’s interaction with Coco Shapes is displayed on the dashboard, which displays a line graph of the student’s performance over time (see Figure 6) in comparison to the course average. With this information, teachers can identify long-term trends, patterns, or improvements in student performance.

For LAP2, the web app visualizes each course’s average time spent on Coco Shapes based on student usage (see Figure 8), indicating the exposure duration to the second language. This usage time reflects student engagement, allowing teachers to assess interest and participation levels.

For LAP3, Figure 4 shows an example that includes the number of successes and failures, the student progress as a percentage, and the course average throughout the system’s use. The graph follows the LAD5 guideline and allows the student’s performance to be displayed and compared with the average results for the course. This allows the teacher to identify opportunities for the improvement of the teaching strategy for students who show low performance over time.

For LAP4, the Coco Shapes web app logs student interactions with learning activities, allowing access to historical data by course. This enables stakeholders to refine pedagogical strategies and compare student cohorts for trend analysis and improvement areas. Teachers can also control course visibility within their school’s assigned course list.

4.1.2. Results

Following the methodology chosen for the case study and taking into account the proposed hypothesis, we presented the updated version of Coco Shapes and its web application to the school’s stakeholders to obtain feedback on the support provided by the data in terms of monitoring students. The presentation was carried out at the school facilities, and the responses of those interested were recorded with their respective authorization.

Tokenization of the text was carried out to analyze the feedback. In this phase, the entire text was decomposed into individual words to facilitate a detailed analysis. A data frame was created to house these tokenized words, allowing for more efficient manipulation and analysis [54]. Data cleaning was then performed to eliminate common words or ‘stopwords’ that do not add substantial meaning based on a predefined list of stopwords in Spanish. In addition, specific numbers and markers were eliminated to improve the data-cleaning process. Data cleaning was further enhanced by removing ‘not available’ (NA) [55] values and empty strings, thus ensuring the quality and relevance of the dataset for analysis.

Exploratory data analysis was then performed, focusing on the frequency of the words. The frequency of each word was calculated and represented as a percentage of the total. A filter was set to include only words for which the frequency exceeded a specific threshold, such as more than 1%, to allow us to focus on the most relevant terms. This quantitative analysis was complemented by a graphic visualization using a bar graph, making it possible to identify the most common words in the stakeholder discussion.

An emotion analysis was also carried out [56] to identify and extract emotional connotations in the language of the texts. This approach allowed us to determine whether the tone was positive, negative, or neutral and to capture both explicit expressions of emotions and subtle nuances. This technique allows for an objective and automatic evaluation of the attitudes and feelings of the author of a piece of text, thus offering a deeper and more quantifiable understanding of the perceptions and emotional reactions of the interviews. The analysis used the statistical program R version 4.1.1 [53,57].

Figure 9 shows the distribution of various emotions, highlighting that positive emotions (32.53%) and trust (20.48%) have the highest values. This suggests that participants perceive the studied environment, likely related to the integration of LA into multimedia experiences, favorably and trustingly. This prevalence indicates that users find value and security in implementing the proposed guidelines. Additionally, the considerable representation of anticipation (13.25%) suggests that participants accept the guidelines and have positive expectations for their future implementation, reinforcing the guidelines’ effectiveness in generating interest and anticipation. Although joy (8.43%), surprise (7.23%), and sadness (3.61%) have lower representations, their presence points to areas where the guidelines can be adjusted to increase satisfaction and reduce stress or dissatisfaction. Negative emotions (8.43%) and disgust (2.41%) are low but present, indicating that while the general perception is positive, specific aspects could be improved. Emotion is a crucial component in the learning experience, and the presence of emotions, such as trust and positivity, indicates that the guidelines are aligned with users’ emotional needs, which is essential for engagement and learning effectiveness. Fear (2.41%) and anger (1.2%) are minimal, which is positive since such emotions can harm learning and collaboration. In summary, the distribution of emotions revealed by the figure justifies the relevance of these categories in the study, showing that the proposed guidelines are functional and emotionally resonant with users, which is crucial for their success and adoption.

4.2. Expert Judgments Results

Table 3. Experts’ perceptions of the guidelines.

Guidelines	Perception Indicator (%)
	Usefulness	Clarity
Data Analytics Dashboard Guidelines
LAD1	71.85	70.37
LAD2	70.37	68.15
LAD3	74.07	74.84
LAD4	71.11	69.63
LAD5	72.59	73.33
LAD6	69.63	69.63
LAD7	71.11	67.41
Guidelines related to students
LAS1	74.07	75.56
LAS2	72.59	71.85
LAS3	74.07	74.07
LAS4	72.59	71.85
LAS5	71.11	71.85
LAS6	72.59	73.33
LAS7	69.63	68.89
Guidelines related to the teacher
LAT1	69.63	73.33
LAT2	71.11	70.37
LAT3	71.85	71.11
Guidelines related to learning activities
LAA1	71.11	66.67
LAA2	73.33	71.85
LAA3	74.81	73.33
LAA4	74.07	71.85
LAA5	71.85	74.81
LAA6	73.33	72.59
LAA7	70.37	74.07
LAA8	74.07	73.33
LAA9	67.41	69.63
LAA10	71.85	72.59
LAA11	71.85	71.85
LAA12	70.37	71.85
LAA13	68.89	70.37
LAA14	73.33	70.37
LAA15	71.85	69.63
Guidelines related to student progress
LAP1	72.59	74.07
LAP2	68.15	71.11
LAP3	71.85	72.59
LAP4	73.33	74.07
General average	71.78	71.72

summarizes expert opinions on the usefulness and clarity of various guidelines to integrate learning analytics (LA) into multimedia experiences. Usefulness is defined as how well a guideline helps to achieve its goal, while clarity measures the ease of understanding and implementation. The data analytics dashboard (LAD) guidelines received positive feedback, with scores between 67% and 75%, indicating room for improvement. The student-focused guidelines (LAS) scored higher, particularly regarding clarity, suggesting they align well with student needs. Teacher-related guidelines (LAT) had similar perceptions, with scores between 69.63% and 73.33%. Learning activities guidelines (LAA) showed variability but were generally positive, reflecting trends seen in other groups. Guidelines for student progress tracking (LAP) received favorable feedback, aligning with general averages. Overall, the average scores for all the guidelines were 71.78% for usefulness and 71.72% for clarity, indicating a generally positive reception while highlighting areas for potential enhancement.

Table 4. Comparison of perceptions for each guideline group in regard to usefulness and clarity.

Guidelines	Test Statistic (W)	p-Value
LAD	33.5	0.27
LAS	25	1.00
LAT	3.5	0.83
LAA	120.5	0.75
LAP	4.5	0.38

below compares the results for each group of guidelines (usefulness and clarity) for the perception indicators. The results of a nonparametric Mann–Whitney test for the LAD, LAS, LAT, LAA, and LAP categories, with W statistics of 33.5, 25, 3.5, 120.5, and 4.5, respectively, and corresponding p-values of 0.27, 1.00, 0.83, 0.75, and 0.38, indicate no statistically significant differences in the perceptions of clarity and usefulness between the groups under comparison. The p-values are above the conventional threshold for significance in all categories but provide insufficient evidence to reject the null hypothesis, which posits that the guidelines’ perceptions of clarity and usefulness are equivalent across the various groups tested. This consistent pattern suggests that, irrespective of the guideline category, no statistically discernible difference exists in how they are evaluated concerning their clarity and usefulness, indicating a balanced perception of these attributes across the different educational guidelines analyzed here.

4.3. Discussion

The guidelines’ application has demonstrated a contribution to teachers’ assessment of student learning in the context of basic education, specifically at the La Fontaine school, which was considered a case study. This suggests that the implementation of LA-based strategies in the design of IMEs can provide a more complete and accurate understanding of student progress.

Based on state-of-the-art validation and review activities, it is estimated that continuous evaluation involving LA is essential to improve the quality and effectiveness of IMEs in basic education. This supports the notion that constant feedback is necessary for teachers to adjust and enhance pedagogical practices. This finding is evident from the case study with Coco Shapes since, based on the results presented via the dashboard, the teachers were able to adjust their teaching strategy and consider changes in the activities conducted in the classroom and the didactic resource materials that complemented them for teaching colors, shapes, and counting.

A comprehensive evaluation of the proposed guidelines indicated favorable perceptions among experts regarding usefulness and clarity. Although room for improvement was identified, particularly for guidelines with percentages below the 70% threshold, the timely intervention of the team regarding refining the wording and expanding the information proved to be an effective step toward optimizing these resources. The absence of statistically significant differences in the perceptions of usefulness and clarity between the groups of guidelines indicates consistency in evaluating the guidelines across various categories. This suggests that the guidelines are well-founded and relevant to the needs of their users, representing a solid basis for their implementation and future adaptation in educational contexts.

From an emotional perspective, we observed the predominance of positive emotions and anticipation in the responses of the interested parties, which reflected a general optimism and favorable expectations regarding the use of the IME. A variety of other emotions were also expressed, although to a lesser extent, suggesting that, although positive reactions predominated, there are also nuances in the learning experience that may include challenges and concerns on the part of users.

Together, the quantitative and qualitative data obtained through the validation of the guidelines provided a comprehensive vision that favored a positive interpretation of the impact of their application in the design of IMEs. However, the results also highlight the importance of considering and addressing the full range of user emotions and reactions to improve the effectiveness and reception of digital learning tools. This holistic understanding is vital for developers and educators who seek to create and optimize educational resources that are effective and emotionally resonant with their users.

It is important to note that the validation process using the functional prototype of Coco Shapes was conducted with a small population from the La Fontaine School. However, the project scope presents opportunities to extend validations to other populations in similar contexts.

5. Conclusions

This article presents 36 LA design guidelines for developing IMEs in education, categorized into five groups, including (i) a data analytics dashboard, (ii) student data, (iii) teacher data, (iv) learning activity data, and (v) progress/performance/student monitoring. Validation via a case study and expert evaluations confirms these guidelines as a solid foundation for LA integration in multimedia experiences, facilitating effective analysis of the student learning process.

This work allows us to conclude that integrating LA into IMEs has significant potential to improve learning experiences, since stakeholders (teachers and administrators) could observe various learning situations, such as participation patterns, learning paths, and the time required to complete the activities. Furthermore, this study confirms that the use of IMEs in the context of basic education has a significant impact on student participation and motivation.

Future efforts should focus on expanding the guideline set to cover additional basic education aspects, like governance, value-sensitive design, ethical dilemmas, conflict resolution, and system architectures. Furthermore, developing new metrics or performance indicators will enhance the precision of the learning evaluation in this context.
