Ultrasonic Non-Destructive Testing of Accelerated Carbonation Cured-Eco-Bricks

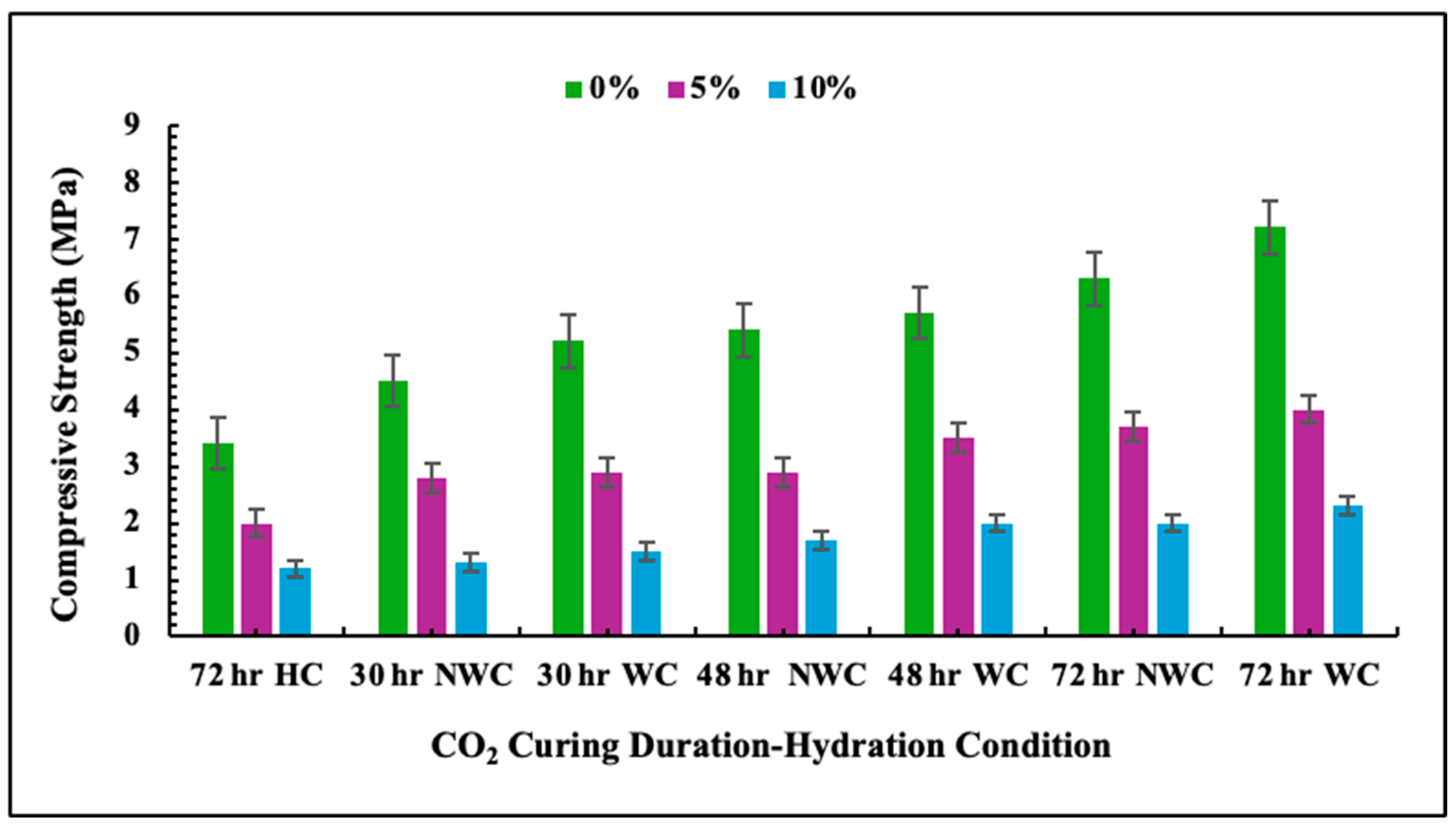

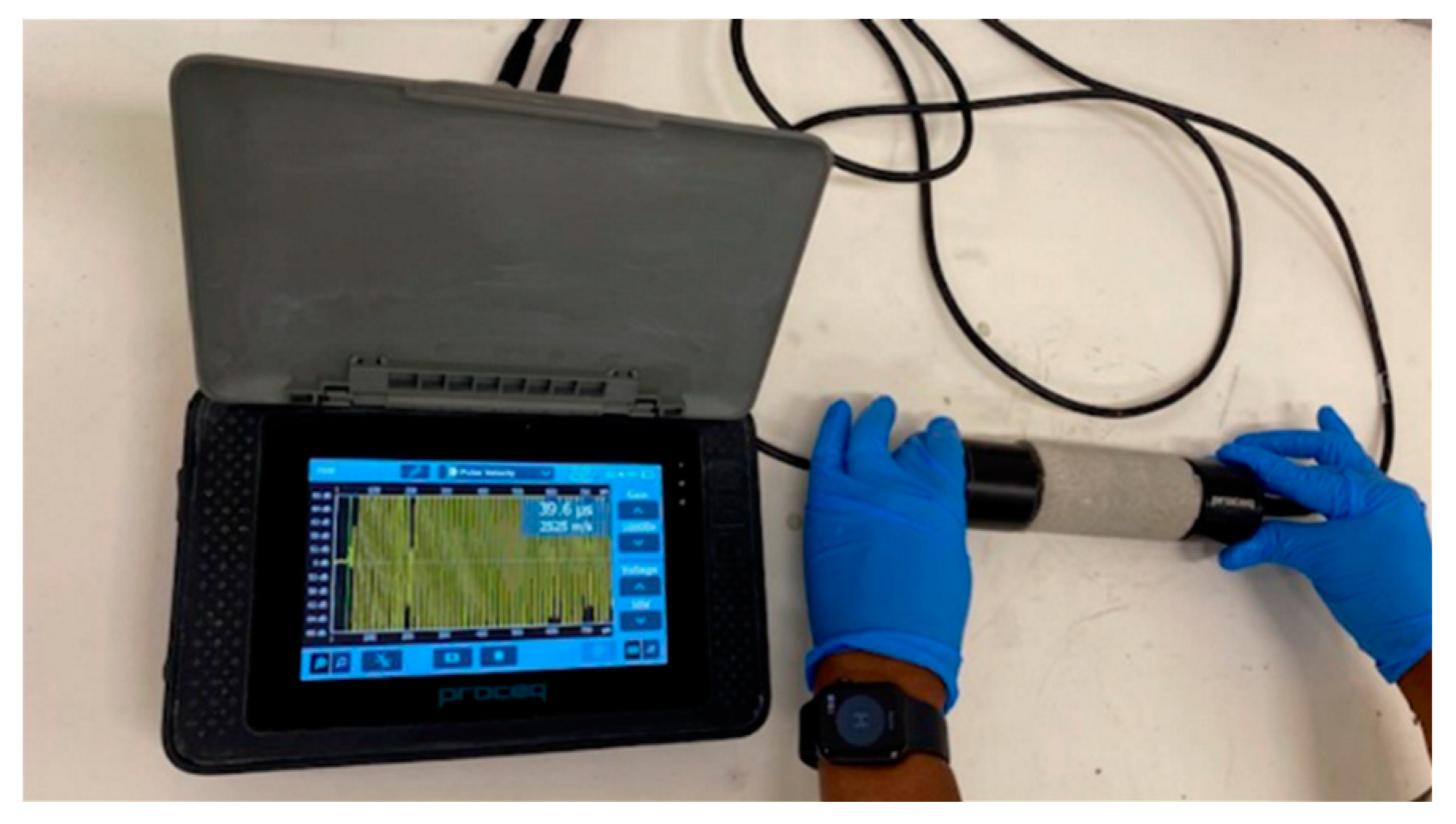

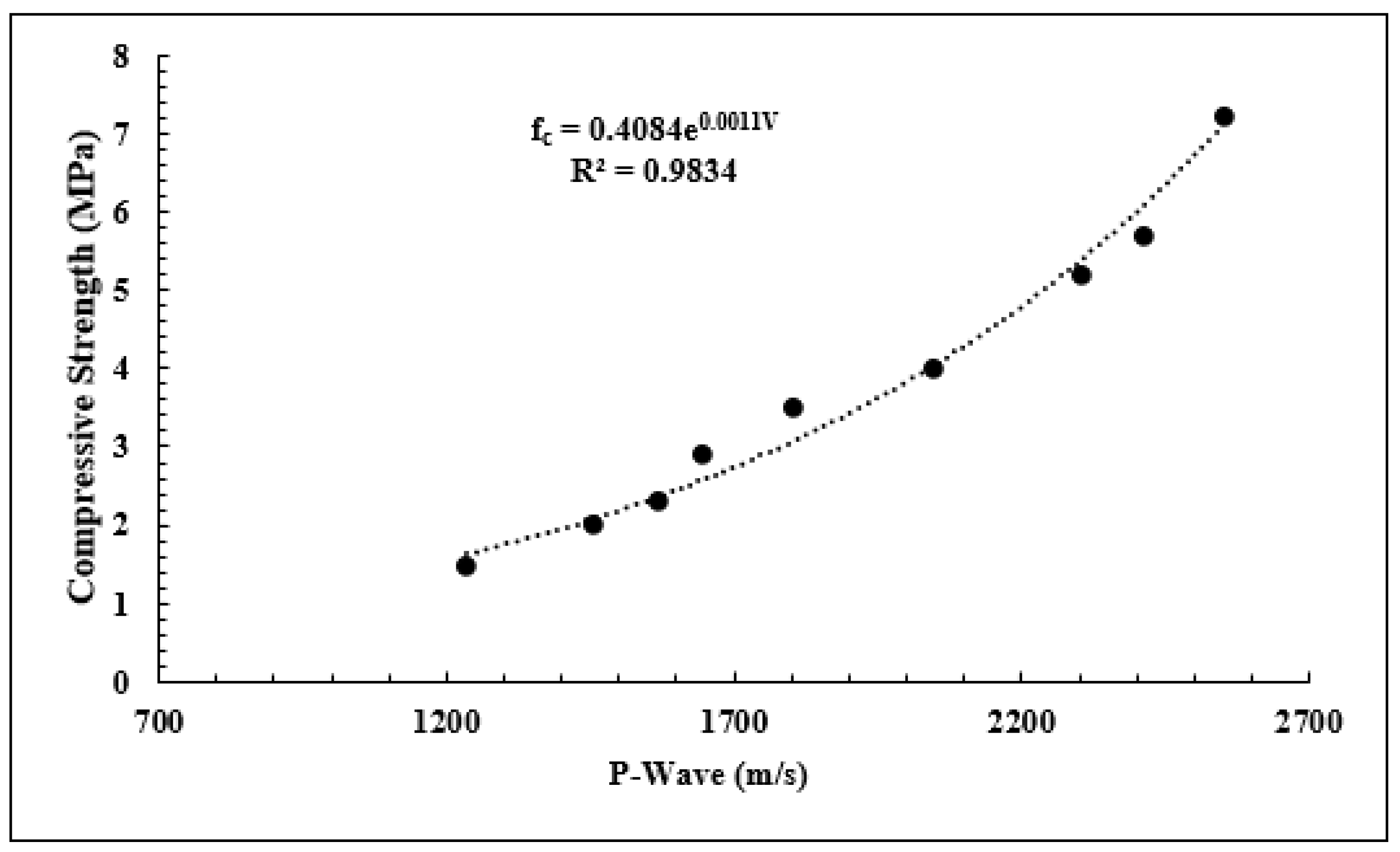

This study aimed to investigate the behavior of accelerated carbonation-cured laboratory specimens using the ultrasonic non-destructive testing (UNDT) method and compare the results with the destructive testing (DT) method. The materials used in the study included a blend of lime kiln dust and ground granulated blast furnace slag (LKD-GBFS) wastes, natural fine aggregate (sand), and alternative fine aggregates from waste tires. The chemical analysis of the LKD and GBFS samples highlighted them as suitable alternatives to OPC, hence their utilization in the study. A 60:40 (LKD-GBFS) blending ratio and a 1:2 mix design (one part LKD-GBFS blend and two part sand) was considered. The natural fine aggregate was partially replaced with fine waste tire rubber crumbs (TRCs) in stepped increments of 0, 5, and 10% by the volume of the sand. The samples produced were cured using three curing regimens: humid curing (HC), accelerated carbonation curing (ACC) with no water curing (NWC) afterwards, and water curing after carbonation (WC). From the results, an exponential model was developed, which showed a direct correlation between the UNDT and DT results. The developed model is a useful tool that can predict the CS of carbonated samples when cast samples are unavailable. Lastly, a total CO₂ uptake of 15,912 g (15.9 kg) was recorded, which underscores ACC as a promising curing technique that can be utilized in the construction industry. This technique will bring about savings in terms of the time required to produce masonry units while promoting a change in the basic assumptions of a safer and cleaner environment.
