An Innovative Tubular Thermoelectric Generator (TTEG) for Enhanced Waste Heat Recovery in Industrial and Automotive Applications

Abstract

In response to the growing need for efficient energy conversion technologies, this paper introduces an innovative Tubular Thermoelectric Generator (TTEG), specifically designed for the high-efficiency conversion of waste heat into electrical energy. Unlike conventional flat-plate thermoelectric generators (FTEGs), the TTEG incorporates full-ring thermoelectric elements within a tubular layout, offering a novel approach to thermal energy recovery from fluid-based systems. This design significantly enhances the heat transfer capabilities, thereby improving the efficiency of energy conversion. Moreover, it is optimally tailored for integration into any cylindrical pipe to recapture and repurpose waste heat. Comprehensive simulations and analyses form the core of this study, where the performance of the TTEG is rigorously compared with traditional FTEGs. Under identical conditions of heat exposure, volume, and properties of thermoelectric materials, the TTEG demonstrates a 62.5% increase in output power compared to the TGM1-127-1.0-0.8 thermoelectric module (FTEG). These comparisons highlight the advantages of the tubular design in terms of energy conversion efficiency and practical applicability in various scenarios. The findings reveal that the TTEG not only outperforms its flat-plate counterparts but also presents a scalable and adaptable solution for waste heat recovery in a wide range of industrial and automotive applications. This research contributes to the field of energy science and technology by presenting a detailed experimental setup, complete with reproducible procedures and results. It opens new pathways for the development of more sustainable and efficient energy conversion systems, aligning with the goal of harnessing renewable and sustainable energy sources. The potential applications of this technology in enhancing energy efficiency and reducing environmental impact are vast, making it a significant step forward in the quest for clean and sustainable energy solutions.

1. Introduction

Internal combustion engines, essential components of automobiles, motorbikes, ships, and industrial generators, transform chemical energy into mechanical energy with an average efficiency of approximately 25%. The efficiency varies between 20% and 45%, depending on the engine’s internal structure and operating condition. This significant energy loss as heat presents a critical challenge and opportunity in energy recovery and sustainability. This indicates that a significant portion, ranging from 55% to 80%, of the chemical energy derived primarily from fossil fuels is lost as heat through engine and cooling system emissions [1]. In the broader context of waste heat recovery, technologies like Organic Rankine Cycle (ORC) systems, heat pumps, and advanced heat exchangers have been developed to capture and utilize this lost energy, representing a pivotal shift towards more efficient energy use.

Hendricks and Choate [2] observed that, in the industrial sector, over one-third of the energy used in U.S. manufacturing is released into the atmosphere or cooling systems as waste heat. Nagaraj Nandihalli and others [3] have suggested that the bulk chemical industry is the largest energy consumer, followed by the refining and mining industries. Although the utilization rate of waste heat has increased significantly in recent years, a large amount of waste heat is still discharged into the atmosphere. This widespread presence of waste heat in industrial processes underscores the pressing need for innovative solutions to harness this otherwise lost energy.

Thermoelectric generators (TEGs) are well-suited for efficient waste heat recovery in limited areas such as aircraft, ships, and vehicles due to their straightforward design, compact size, lightweight, silent operation, longevity, reliability, and minimal maintenance needs [4]. However, the evolution of TEGs has faced challenges such as material optimization, device integration, and durability, necessitating ongoing research and development.

The exploration of thermoelectric materials has been diverse, with bismuth telluride being one of the earliest to be widely studied and utilized. Over time, research has branched out to various materials, including but not limited to skutterudites and half-Heuslers. These materials have been recognized for their unique properties that potentially offer enhanced performance and efficiency in various applications, reflecting thermoelectric material research’s evolving and multifaceted nature. Most commercially available waste heat recovery devices are designed specifically for flat-plate thermoelectric generators (FTEGs) using flat-plate heat exchangers or square-shaped thermoelectric elements (Figure 1) [5,6,7]. From analyzing energy fluxes and heat transfer to system development, research on TEGs is still being actively pursued in various aspects [8,9,10]. Nevertheless, the quest for more efficient TEGs continues, with current research focusing on nanostructured materials and novel geometries to enhance thermoelectric performance.

Recent research has focused on enhancing the thermoelectric performance of materials through nanostructuring and novel geometries. Kanatzidis [11] and Vaqueiro [12] both highlight the role of nanostructuring in reducing lattice thermal conductivity, a key factor in improving thermoelectric performance. This is further supported by Zhao [13], who discusses the use of solution-based chemistry approaches to prepare thermoelectric nanomaterials with reduced thermal conductivity. Nam [14] and Jaldurgam [15] both emphasize the importance of using eco-friendly and low-cost elements in nanostructured thermoelectric materials. Mori [16] and Mohanraman [17] discuss novel nanostructuring methods, such as phonon-selective scattering and the use of nanocomposite materials, to enhance thermoelectric performance.

Tae Young Kim [18,19] and colleagues extensively examined the heat exchangers used in thermoelectric waste heat recovery systems, focusing specifically on hexagonal and compact heat exchangers in typical automotive settings [20]. Their analysis demonstrated the successful conversion of heat into electricity, illustrating the potential of TEGs in automotive applications. This underscores the broader relevance of TEGs in various sectors, including industrial and residential energy recovery, where their adaptability to different heat sources can be leveraged.

Improving thermoelectric materials and device construction is necessary to enhance waste heat recovery devices’ total thermoelectric conversion efficiency [21]. Ugur Erturun et al. [22] found that optimizing the structure of a device is very important. The evolution of thermoelectric materials from traditional bismuth telluride to more advanced compounds has opened up new possibilities in device efficiency and application. They saw that increasing the thermal contact area and decreasing the height of the thermoelectric element led to significant improvements in power production and heat conversion. This highlights the critical role of material science and engineering in optimizing TEGs for higher performance and broader applicability.

Yohann Thimont et al. [23] simulated thermoelectric elements with various shapes. They found that even basic hollow and layered structures could generate more considerable temperature differences and more power compared to conventional cuboid structures. These findings point to the need for continued innovation in TEG design, exploring different geometries and configurations to maximize efficiency. Lingen Chen et al. [24] performed comprehensive numerical investigations on the influence of thermoelectric element configuration and heat transfer surface area in cooling modules, determining the most favorable operating currents to achieve the maximum cooling capacity and performance under different conditions. Such studies are pivotal in guiding the design and optimization of next-generation thermoelectric devices.

Samson Shitt et al. [25] highlighted that annular thermoelectric generators can potentially reduce thermal contact resistance from geometric mismatches with circular sources/sinks. This suggests a significant direction for TEG development, focusing on minimizing energy losses and maximizing compatibility with various heat sources. In a comparison of flat-plate and annular thermoelectric generators (ATEG), Zhang et al. [26] discovered that ATEGs outperformed FTEGs when exposed to cylindrical heat sources with higher inlet temperatures and heat transfer coefficients. The superior performance of ATEGs in such scenarios underlines their potential in specific industrial applications where cylindrical heat sources are prevalent.

Xiao-Xiao Tian et al. [27] utilized ATEGs in air coolers, suggesting ATEGs are more suitable than FTEGs for fluid operations. This adaptability of ATEGs in diverse applications further reinforces the need for targeted research in TEGs to exploit their full potential in waste heat recovery. Akihiro Sakai et al. [28] fabricated tubular thermoelectric components via melt-spinning and spark plasma sintering to validate these discoveries, achieving substantial power generation. Their work signifies a critical step in transitioning TEG technology from laboratory settings to real-world applications.

Andreas Schmitz et al. [29] manufactured ring-shaped components for tubular structures using a current-assisted sintering technique with a custom mold and diffusion barrier. Innovation in manufacturing processes such as these is crucial for the practical deployment of advanced TEGs. Wenlong Yang et al. [30] researched concentric heat exchangers to enhance overall heat transfer and reduce pressure drop in ATEGs, increasing net power production by 65%. This research contributes to the efficiency of TEGs and economic viability by enhancing their power output.

A range of studies have explored the performance of tubular or annular thermoelectric generators (TEGs) in various applications. Kishore [31] and Jang [32] both highlight the importance of environmental factors and thermal contact quality in TEG performance, with Jang [32] specifically focusing on the fabrication of tubular TEGs. Huang [33] and Chen [34] propose design improvements for TEGs, with Huang [33] introducing a novel concentric cylindrical TEG system and Chen [34] using the Taguchi method to optimize TEG performance. Wu [35] and Yang [36] delve into the technical aspects of TEGs, with Wu [35] analyzing the influence of various factors on TEG performance and Yang [36] discussing the potential of high-temperature thermoelectric materials. Hatzikraniotis [37] and Temizer [38] both investigate the long-term performance and stability of TEGs, with Hatzikraniotis (2010) [37] focusing on a commercially available TEG and Temizer [38] examining a TEG system used in diesel engines.

Finally, A. Faddouli et al. [39] focused solar energy 20-fold onto combined FTEG/ATEG systems, achieving a 161.68 W power output, 86.5% thermal efficiency, and 1345 L of heated water per day. Integrating solar energy with TEGs opens new avenues for sustainable energy solutions, combining renewable energy sources with waste heat recovery.

This research significantly contributes to enhancing the efficiency of thermoelectric waste heat exchangers. By incorporating advancements in materials science, design, and application-specific innovations, our study presents a novel module for efficient fluid heat recovery. This module, which integrates full-ring elements within a tubular thermoelectric generator (TTEG), combines the advantages of form and contact area found in annular thermoelectric generators (ATEGs) (Figure 2). The design offers a compact, practical solution for thermal energy recovery from fluids, contributing to the ongoing efforts in sustainable energy technologies.

2. Module Configuration

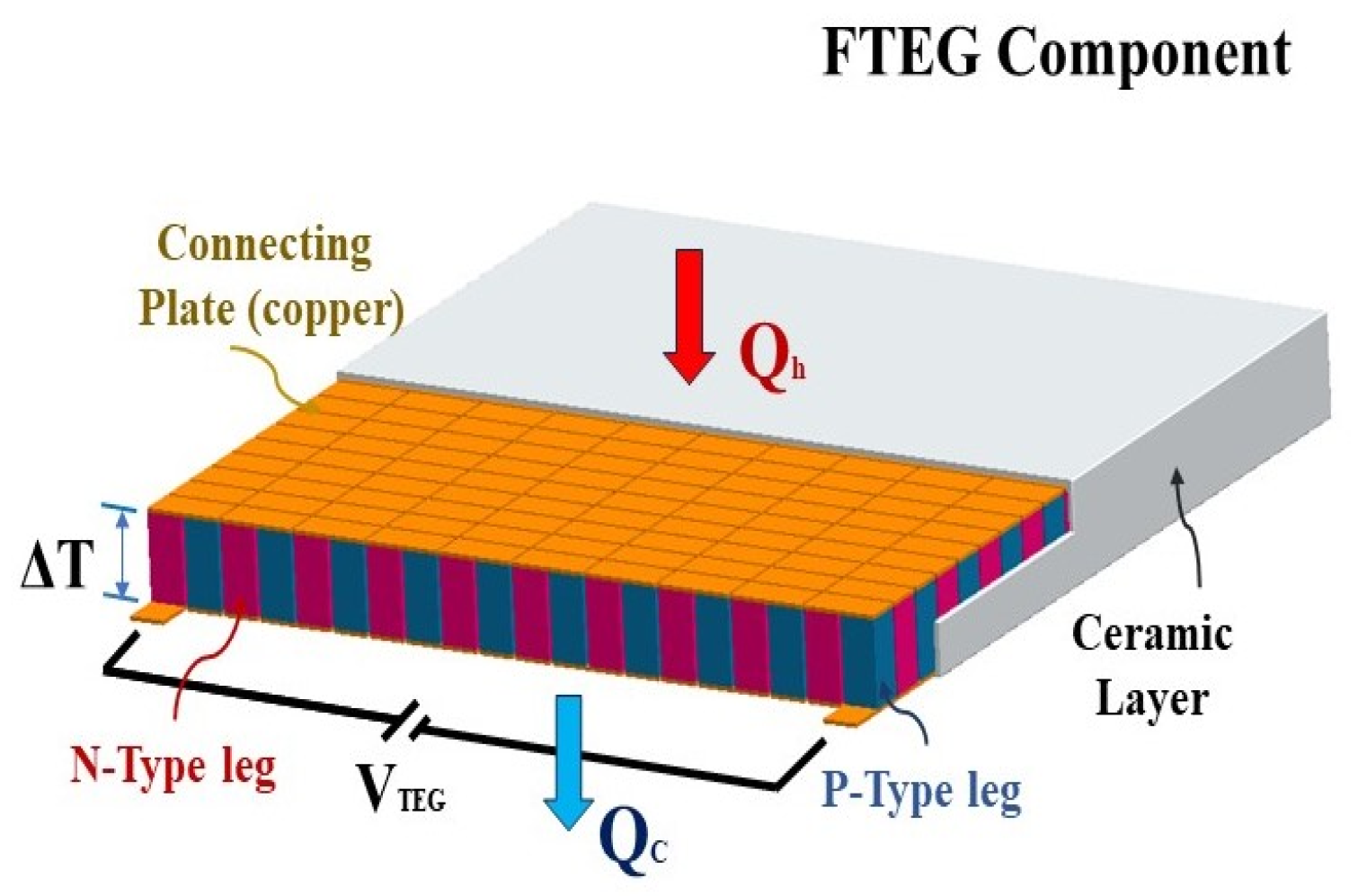

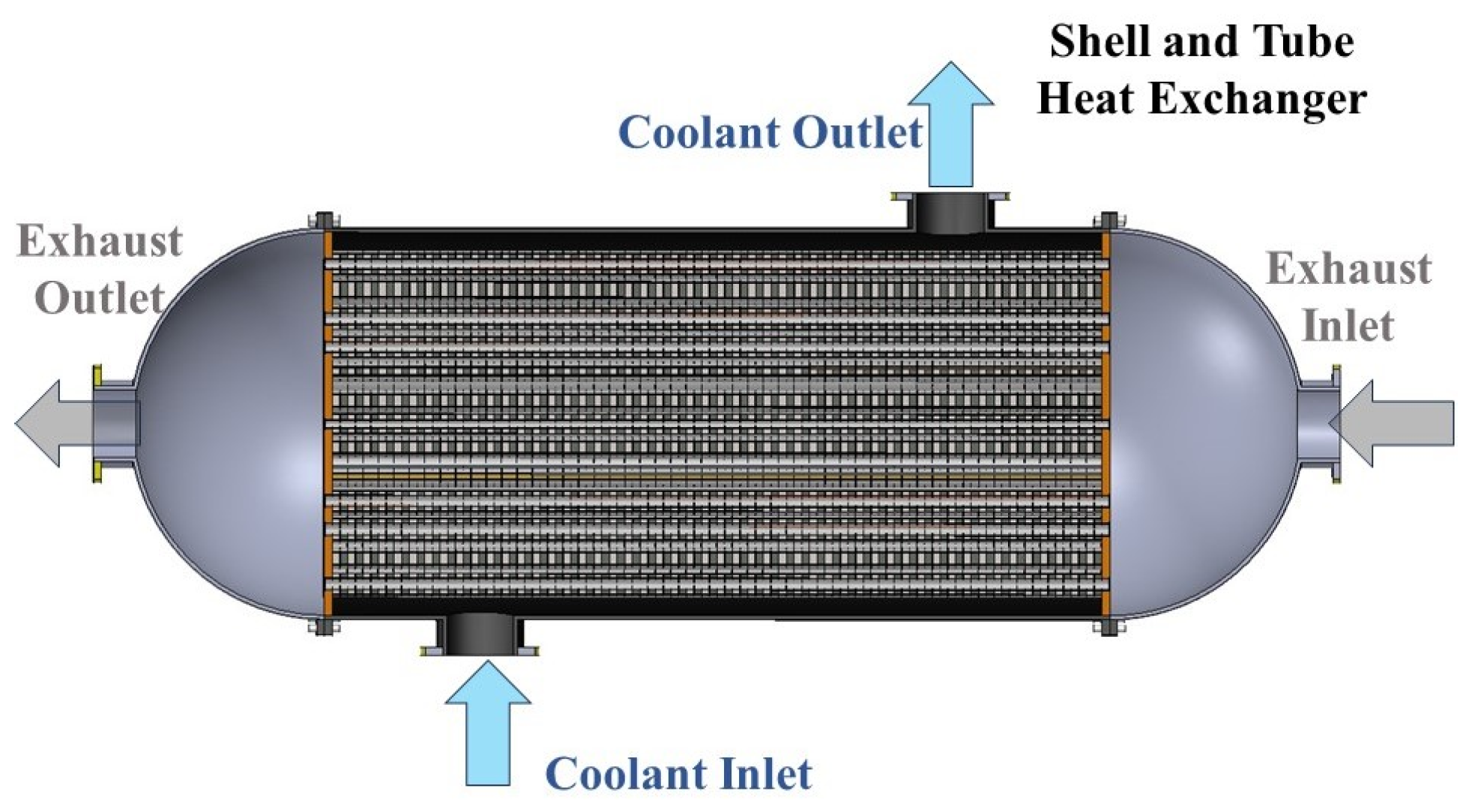

Shell and tube heat exchangers, commonly used in the cooling systems of large internal combustion engines, facilitate heat transfer from engine coolant, lubricating oil, and exhaust gases. Our investigation expands on this by simulating the integration of thermoelectric elements on the tube bundle’s exterior in such an exchanger. Figure 3 and Figure 4 illustrate the exchanger’s interior structure from a cross-sectional and a longitudinal view, respectively. This enhanced TTEG design, depicted in Figure 5, incorporates full-ring thermoelectric elements (Figure 6) for improved heat capture efficiency.

Our study focuses on the TGM1-127-1.0-0.8 thermoelectric chip from KRYOTHERM, Saint Petersburg, Russia. We use its specifications and material properties [40], as listed in

Table 1. The results of effective material properties for (TMG-127-1.0-0.8) at T_h = 200 °C, T_c = 30 °C, n = 127, Ae = 1 mm², and L_e = 1.35 mm.

Effective Material Properties
α* = 314.96 μ‧V/K	k* = 0.03 W/cm‧K	ρ* = 2.23 × 10−3 Ω‧cm	z* = 1.492 × 10−3 1/K

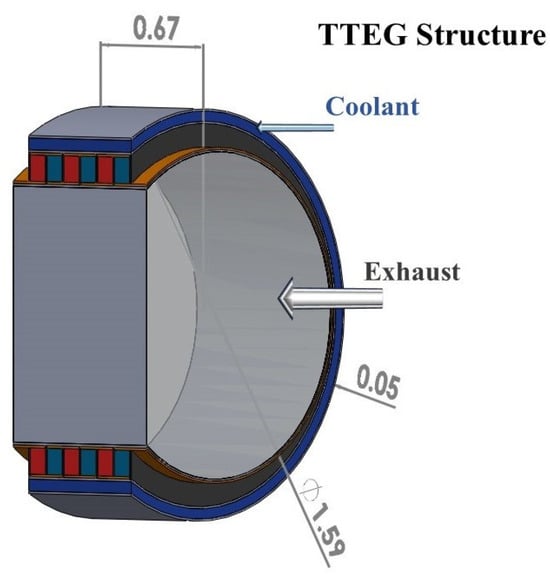

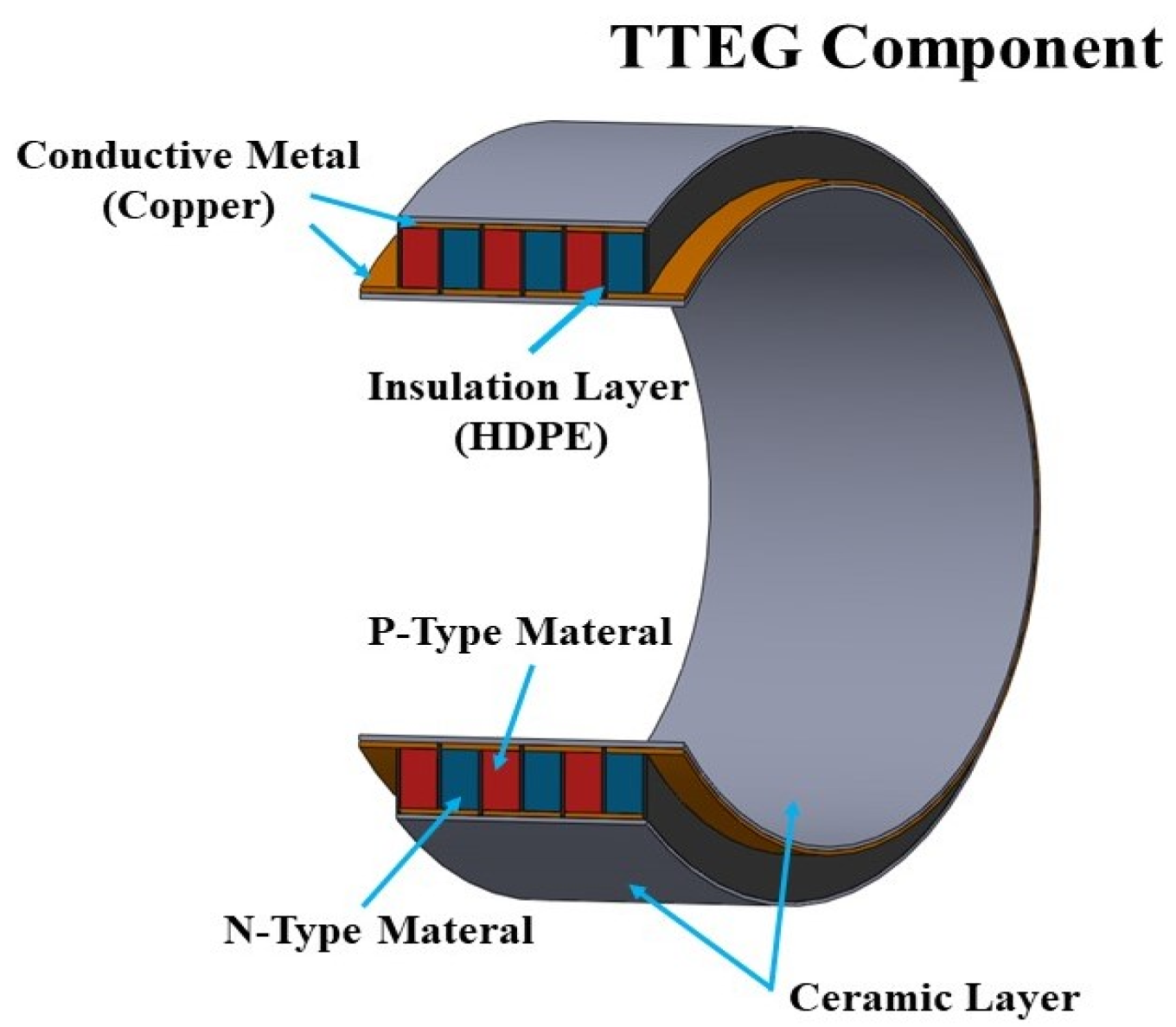

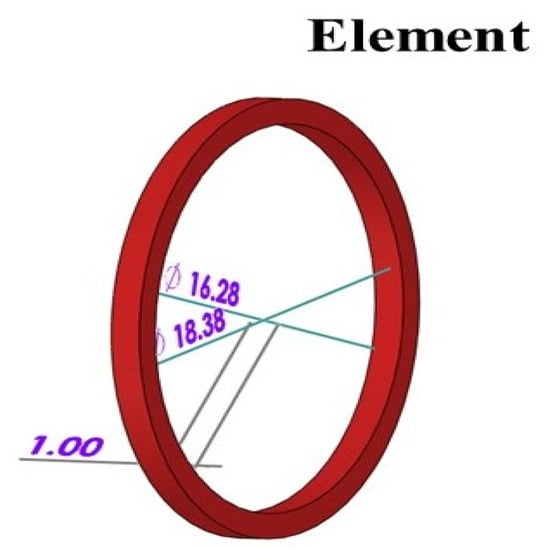

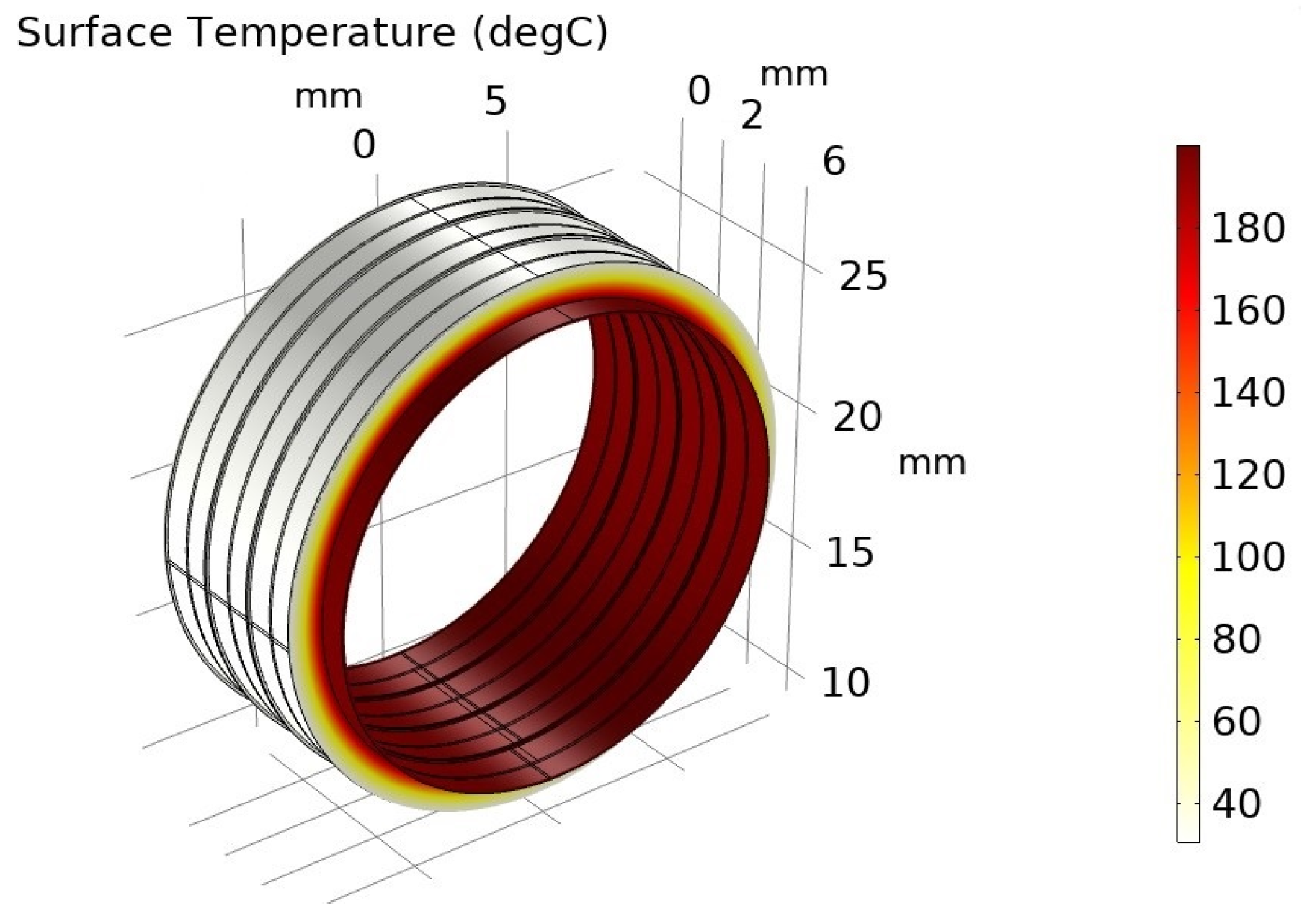

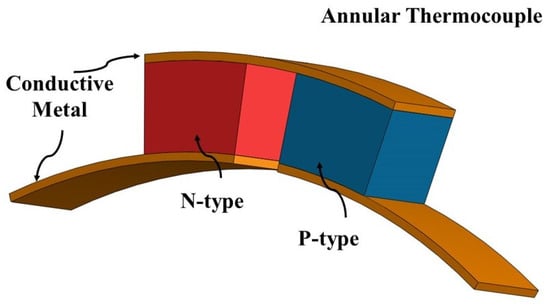

, to model a TTEG with equivalent thermoelectric material. The simulated thermoelectric element mirrors the TGM1-127-1.0-0.8 chip in dimensions, ensuring design compatibility with standard shell and tube exchangers. The outer diameter of the tube bundle (1/2 inch or 15.88 mm) is matched by the complete ring thermoelectric element, which has the following dimensions: an inner diameter of 16.28 mm, an outer diameter of 18.38 mm, and a height of 1.05 mm. A 0.1 mm thick copper conductor, covered by a 0.1 mm thick ceramic layer, connects the thermoelectric element, offering protection and insulation from the fluid streams. High-density polyethylene (HDPE) is placed between the thermoelectric parts to shield them from fluid flow and engine vibration, serving as shock absorbers and insulators. Our design also includes three thermocouples made from material akin to the TGM1-127-1.0-0.8, covering a contact heat source area of 306.87 mm². Due to the absence of gaps between each thermoelectric element, our modeling tests can disregard heat radiation and the Thomson effect.

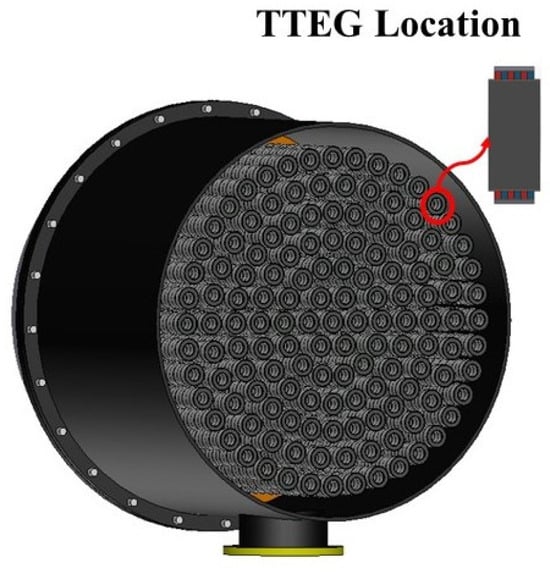

This TTEG design was chosen for its potential to harness waste heat more efficiently than conventional systems. The full-ring structure offers enhanced thermal contact with the heat source, improving energy conversion. This design was favored over other potential configurations for its simplicity and ease of integration with existing heat exchanger systems.

3. Boundary Conditions and Governing Equations

The study involved simulations using COMSOL 5.5, employing the finite element analysis technique. In order to achieve significant outcomes by solving equations, the following criteria were established:

• Simulations were conducted under steady-state conditions.
• All thermoelectric elements were of identical dimensions.
• Heat transfer in the thermoelectric elements was radially maintained, with lateral parts remaining thermally insulated.
• Electrical and thermal contact resistances, including those of the welding layers, were negligible.
• Maximum output power from the thermoelectric module was achieved when the external resistance equaled the internal resistance.
• The thermal and electrical properties of the thermoelectric materials were assumed to be constant and did not vary with temperature changes.

For calculating the internal resistance within the tubular thermoelectric module, the following governing equations were used (as referenced in [41]):

$$R_{pn}=R_p+R_n=N\left(\frac{\left({\rho }_p+{\rho }_n\right)ln\left(\frac{r_2}{r_1}\right)}{∆\theta W}+R_C\right)$$

(1)

$$R_C={\rho }_C\left(\frac{L_C}{A_I}+\frac{L_C}{A_O}\right)$$

(2)

$$R_{TEG}=N\left(R_{pn}+R_C\right)$$

(3)

In the governing equations mentioned above, various parameters and their relationships within the TTEG are defined as follows:

R_pn represents the internal resistance of a single thermocouple pair (consisting of one P-type and one N-type thermoelectric element). R_c is the internal resistance of the connecting copper tube. R_TEG is the total internal resistance of the TTEG. R_p and R_n, respectively, denote the internal resistances of the P-type and N-type thermoelectric elements. ρ_p, ρn, and ρ_c are the electrical conductivities of the P-type and N-type thermoelectric elements and the connecting copper tube, respectively. r₁ and r₂ represent the inner and outer radii of the thermoelectric element. W is the width of the thermoelectric element. Δθ is the angle of the annular thermoelectric element. L_c is the length of the connecting copper tube. A_I and A_O are the contact areas between the inner and outer connecting copper tubes and the thermoelectric element. N is the number of thermocouple pairs in the TTEG.

Using the following control program, we can calculate the output power of the TTEG [26]:

$$V=I\times \left(R_L+R_{TEG}\right)$$

(4)

$$P=I^2\times R_L$$

(5)

In the control equations previously mentioned, the parameters are defined as follows:

V represents the voltage across the thermoelectric module. I is the current flowing through the circuit. R_L denotes the external load resistance. P is the output power of the TTEG.

To determine the efficiency of the TTEG, the following control equations can be used [40]:

$${\dot{Q}}_h={\dot{m}}_h{Cp}_{h.side}\left(T_{h.in}-T_{h.out}\right)$$

(6)

$${\dot{Q}}_h=N\left[\alpha \frac{\alpha \left(T_h-T_c\right)}{\frac{R_L}{N}+R_{TEG}}{T}_h-\frac{1}{2}{\left[\frac{\alpha \left(T_h-T_c\right)}{\frac{R_L}{N}+R_{TEG}}\right]}^2{R}_{TEG}+{\kappa }_{TEG}\left(T_h-T_C\right)\right]$$

(7)

$${\dot{Q}}_c={\dot{m}}_c{Cp}_{c.side}\left(T_{c.out}-T_{c.in}\right)$$

(8)

$${\dot{Q}}_c=N\left[\alpha \frac{\alpha \left(T_h-T_c\right)}{\frac{R_L}{N}+R_{TEG}}{T}_c+\frac{1}{2}{\left[\frac{\alpha \left(T_h-T_c\right)}{\frac{R_L}{N}+R_{TEG}}\right]}^2{R}_{TEG}+{\kappa }_{TEG}\left(T_h-T_C\right)\right]$$

(9)

$${\eta }_{TEG}=\frac{P}{\dot{Q_h}}$$

(10)

In the control equations for the TTEG, the terms are defined as follows:

Q_h is the heat input at the hot side of the TTEG. Q_c is the heat output at the cold side of the TTEG. Q_h and Q_c are measured in watts (W). m_h and m_c represent the mass flow rates of the fluid at the hot and cold sides, respectively. C_ph.side and C_pc.side are the specific heat capacities of the fluid at the hot and cold sides. T_h.in and T_h.out are the inlet and outlet temperatures of the fluid at the hot side. T_c.in and T_c.out are the inlet and outlet temperatures of the fluid at the cold side. η_TEG is the thermal efficiency of the TTEG. N is the number of thermoelectric elements in the TTEG. α is the Seebeck coefficient of the thermoelectric elements, measured in volts per kelvin (V/K). T_h and T_c are the average temperatures at the hot and cold sides of the TTEG, measured in Kelvin (K). κ_TEG is the thermal conductivity of the thermoelectric element, measured in watts per kelvin (W/K). η_TEG is the thermal efficiency of the TTEG.

Most reference studies utilize determined parameters, but the variables listed above (italicized) indeed have uncertain factors (such as manufacturing and measurement) [42]. This study will identify differences between experimental and simulation results before proceeding with model validation and analysis.

4. Model Verification and Analysis

In order to assess the disparity in output power between the TTEG and the FTEG, the study initially examines the test parameters specified by the manufacturer of the TGM1-127-1.0-0.8 thermoelectric chip. At a hot side temperature (Th) of 200 °C and a cold side temperature (Tc) of 30 °C, the FTEG chip generates a maximum power output of 5.1 W [40]. Furthermore, to compare the simulated values of the FTEG with the test values provided by the manufacturer, a replica of the TGM1-127-1.0-0.8 thermoelectric chip module was created and tested under identical temperature conditions. This test yielded an open-circuit voltage of 13.42 V and an output power of 5.81 W. Although there is a 0.12% discrepancy between the actual data and simulation results of the TGM1-127-1.0-0.8 thermoelectric chip, this study will base subsequent validations on the simulation results to highlight the achievements in developing the TTEG model. The simulation experiment for the TTEG reveals that, by altering the shape of the thermoelectric element (leg) within the TTEG, increasing the contact area with the heat source, and reducing the length of the thermoelectric element, the TTEG produces an open-circuit voltage of 0.32 V and an output power of 9.44 W (as depicted in Figure 7). The inner and outer ceramic layers are maintained at constant temperatures of 200 °C and 30 °C, respectively. This signifies a 62.5% surge in output power about the TGM1-127-1.0-0.8 thermoelectric chip module. In order to verify the accuracy of these simulation findings, the temperature on the cold side of the TTEG was maintained at a constant 30 °C.

Qimin Cao and colleagues [43] improved the thermoelectric performance of FTEG modules by using heat pipes for enhanced cooling, resulting in a 15.49% increase in maximum power density. However, ATEGs and TTEGs still outperform FTEGs in efficiency [44]. Our study’s TTEG prototype, the first to apply full-ring thermoelectric elements in fluid waste heat recovery, is still in the experimental phase due to manufacturing limitations. Optimizing the thermoelectric module under the same volume conditions of thermoelectric materials, TTEG showed a 62.5% increase in maximum output power. This suggests that a complete ring structure enhances thermal contact and conversion efficiency, and that improvements in the heat exchanger design can yield greater thermoelectric performance gains than local system enhancements.

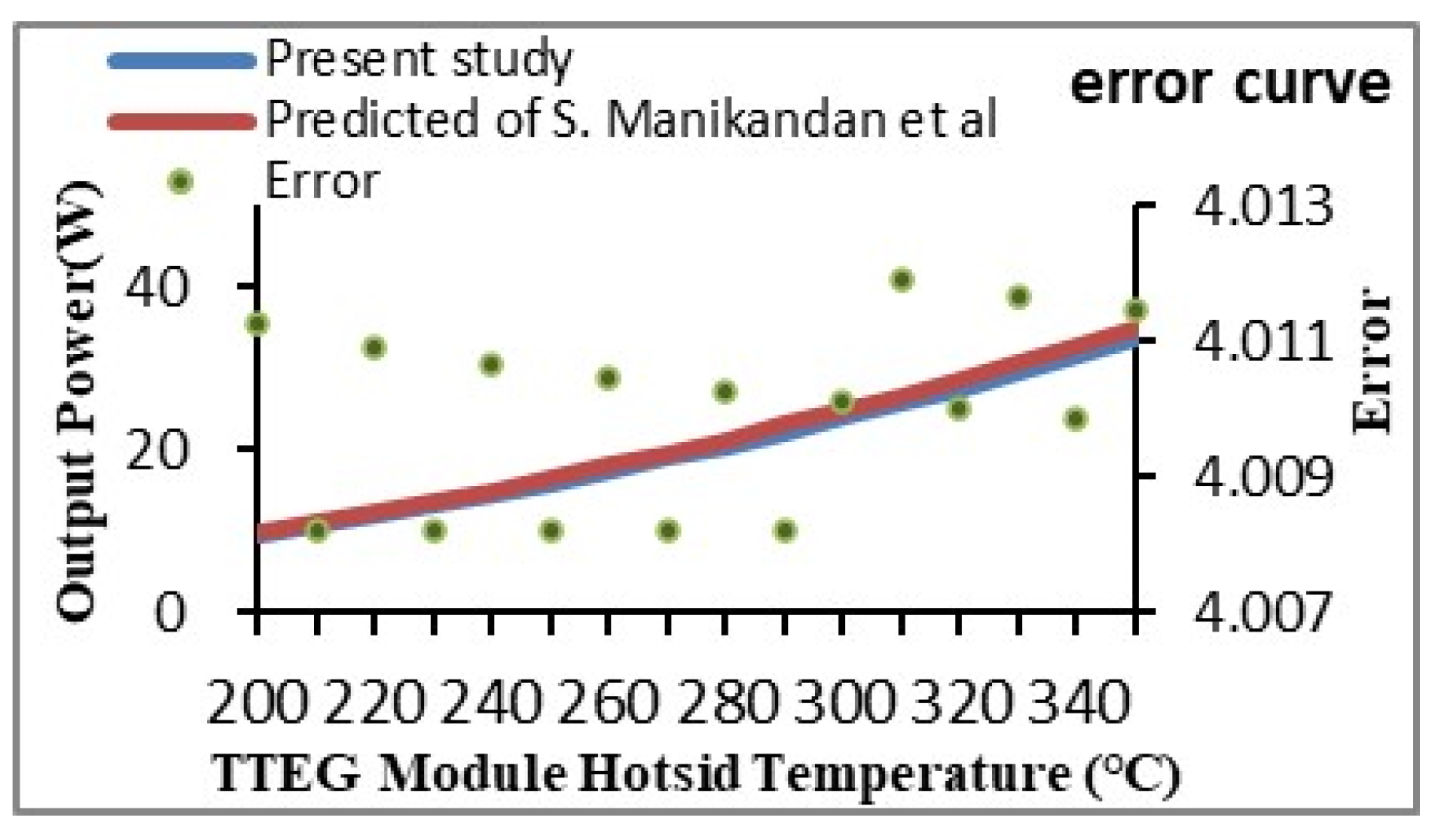

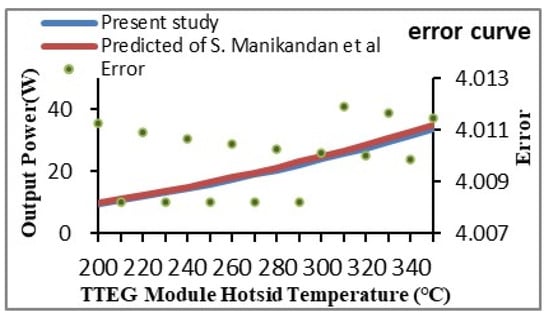

In comparison, the temperature on the hot side was systematically adjusted between 200 °C and 350 °C to monitor the corresponding alterations in the thermoelectric module’s output power. The output power generated by annular thermoelectric elements, as computed by S. Manikandan et al. [41], was compared with the output power values derived from this simulation experiment. According to Figure 8, The estimated maximum power values derived from the thermoelectric material properties in the literature are slightly higher than the calculated values obtained through simulation experiments in this study. This comparison result is consistent with the findings of Xiao-Xiao Tian and others [27]. There was a variance of around 4% between the two, which suggests a substantial similarity and confirms the accuracy of the simulation results. This error margin also aligns with the findings of Faisal Albatati et al. [40], who tested the performance of the TEC1-12706 thermoelectric chip through experiments involving varying load resistances and compared it to the research results of Alaa Attar and others [45].

5. Results and Discussion

We present a comprehensive analysis of our findings, highlighting several vital aspects. These aspects include a detailed comparison with traditional flat-plate thermoelectric generators, outcomes from simulation experiments, and an evaluation of the TTEG’s performance under various conditions. This section aims to elucidate the enhanced capabilities of the TTEG and potential applications in energy recovery. Here are the main findings:

• Comparison of TTEG with FTEG: The study compares the performance of the TTEG with traditional Flat-Plate Thermoelectric Generators (FTEGs), demonstrating a 62.5% increase in output power for the TTEG under similar conditions.
• Simulation Experiment Outcomes: The simulation experiments for the TTEG show significant increases in output power due to altered thermoelectric element shapes and increased contact area with the heat source.
• Temperature Variation Analysis: The study assesses the TTEG’s performance under varying temperatures at the hot and cold sides, identifying the optimal operating conditions.
• Analysis of Thermoelectric Elements: This research investigates the effect of varying the number of thermocouples in the TTEG, leading to insights into the optimal number for maximum power output.
• Real-World Application Potential: The results suggest the TTEG’s high effectiveness in practical applications, particularly in automotive and industrial environments for waste heat recovery.

For analysis, it is assumed that every TTEG within the shell and tube heat exchanger undergoes equal heating. Therefore, the approach explicitly examines a solitary TTEG. This section initially examines the impact of different external loads on the output power of the TTEG. Subsequently, the study investigates the correlation between external load, output power, and thermal efficiency by modifying the inlet temperatures of the hot and cold sides of the TTEG under varying temperature circumstances. In addition, by maintaining consistent fluid temperatures and mass flow rates at both the hot and cold ends, this research expands the number of thermocouples within the TTEG. This is achieved using simulations and statistical analysis to identify the ideal number of thermocouple pairs for achieving the highest possible output power.

5.1. Analysis of TTEG Performance under Varying External Loads

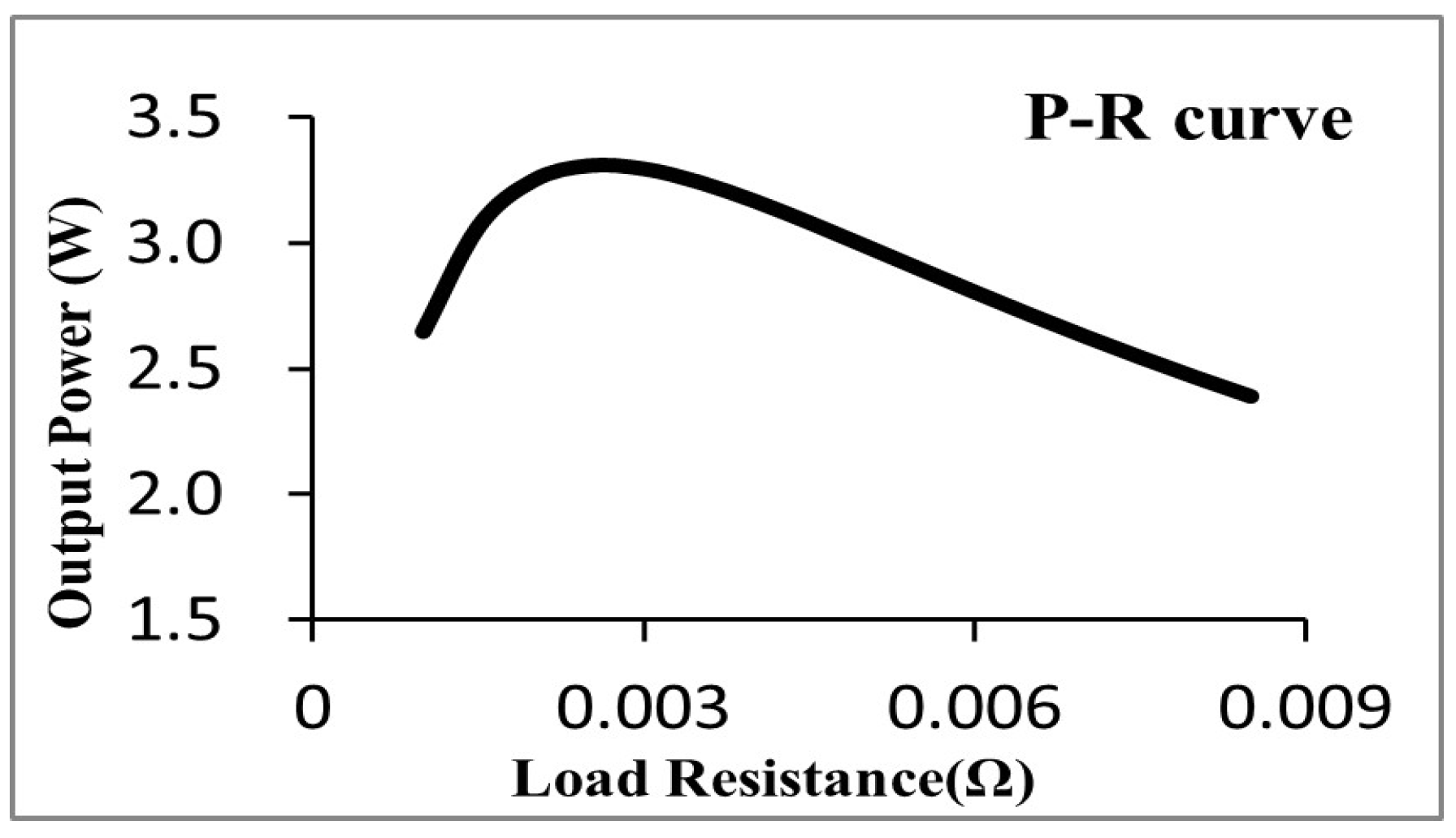

In order to simulate real-life situations more accurately, the study utilizes the identical testing settings employed by Faisal Albatati et al. [40] for the FTEG. The TTEG utilizes the engine exhaust of a semi-truck as its heat source, which has a temperature of 550 °C and a mass flow rate of 0.032 kg/s. The coolant employed is ethylene glycol (C₂H₆O₂) at a temperature of 90 °C, with a mass flow rate of 0.237 kg/s. The cooling water flow path is established by calculating the difference between the height of the TTEG and the spacing between the tube bundles in the shell and tube heat exchanger, as illustrated in Figure 9. Given the specified test conditions, Figure 10 illustrates the correlation between the external load (Load Resistance) and the output power. The data demonstrate that, as the external load is steadily raised, the output power of the TTEG experiences a sharp increase until it reaches its maximum value, gradually decreasing. When the external load is the same as the internal resistance (0.00262 Ω), the TTEG generates an open-circuit voltage of 0.19 V and a maximum output power of 3.31 W. As the external load increases, causing the total resistance to rise, the output current drops, decreasing output power. The pressure differential between the engine exhaust inlet and outflow is 25.45 Pa, far below the recommended back-pressure threshold of 812 Pa proposed by Sumeet Kumar et al. [46]

Significantly, the results suggest that TTEGs can be highly effective in real-world applications when waste heat is recovered from vehicle exhaust systems. The potential to generate significant power outputs with minimal pressure drops encourages the use of TTEGs in automotive and industrial environments.

5.2. Relationship between Load Resistance Values and Heat Source Inlet Temperatures on Output Power and Thermal Efficiency

The study’s methodical and comprehensive approach involves setting a wide range of engine exhaust temperatures (ranging from 100 to 625 °C) and coolant temperatures (between 80 and 100 °C), considering the variability caused by different engine types, output powers, and fuel types. The specified range covers most situations in internal combustion engines, where exhaust temperatures typically range from 150 to 600 degrees Celsius, and coolant temperatures generally vary from 80 to 100 degrees Celsius.

To maintain regulated and consistent circumstances in the investigation, the engine exhaust mass flow rate is constant at 0.032 kg/s, while the coolant (ethylene glycol) mass flow rate is set at 0.237 kg/s. This configuration is advantageous for efficiently monitoring and evaluating the TTEG operation under different temperature circumstances at both the high and low ends. The study may assess the impact of temperature variations on the external load, output power, and thermal efficiency of the TTEG.

The study seeks insights into ideal TTEG operating parameters by modeling diverse situations to maximize efficiency and waste heat recovery application efficacy. This analysis is essential for determining TTEG integration feasibility in various engine systems, which would enhance energy efficiency and minimize the environmental footprint of internal combustion engines.

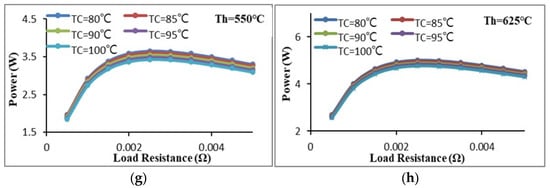

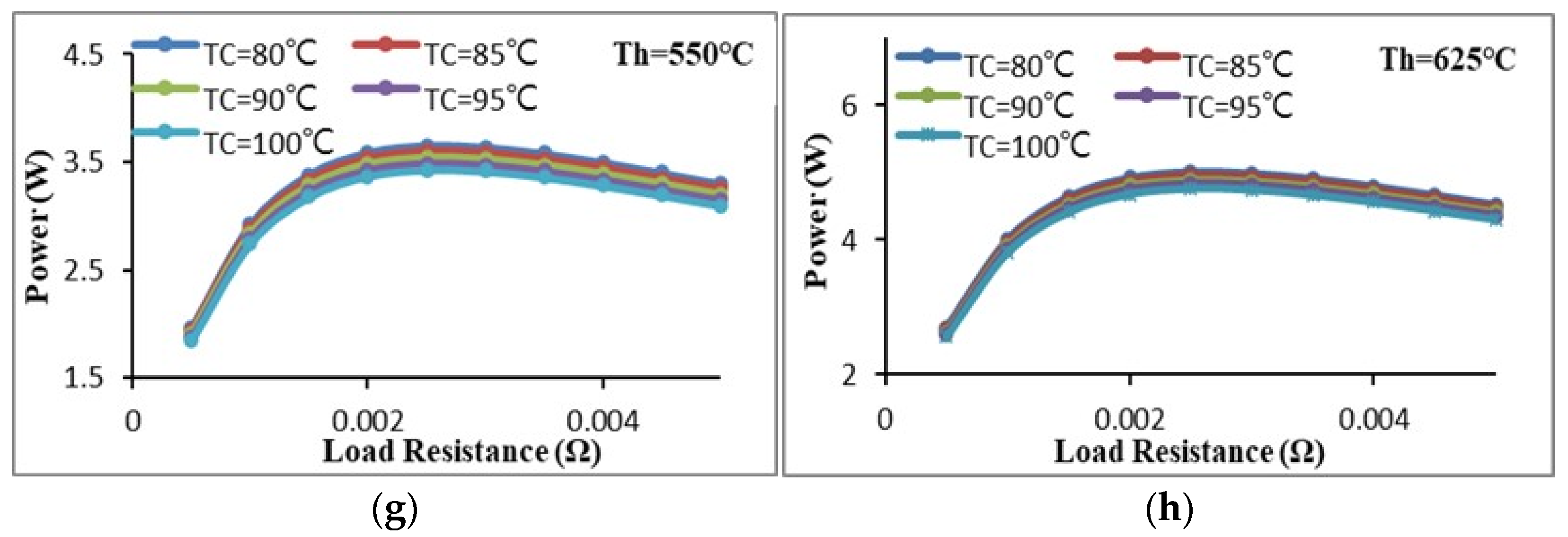

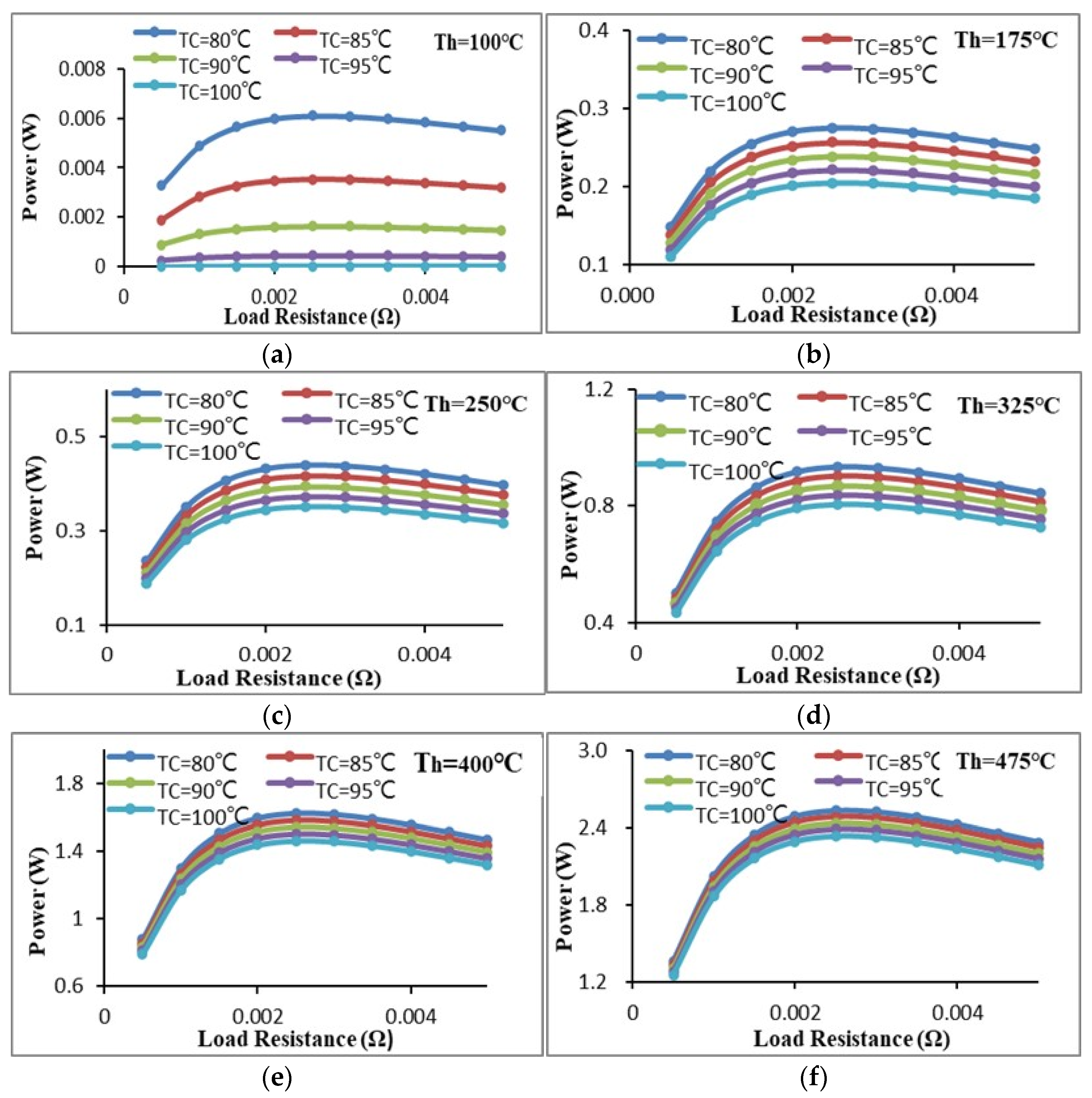

An analysis of Figure 11a–h reveals that the Tubular thermoelectric generators (TTEGs) consistently provide a more significant amount of power when the cooling water input temperature is set at 80 °C, regardless of the exhaust temperature variations. The improved performance of this output is mainly due to the substantial temperature difference between the high and low ends of the TTEGs. Moreover, the TTEGs exhibit a significant rise in power output when the external resistance increases. The power output of the TTEGs reaches its maximum when the external resistance matches the internal resistance. After reaching this point, any further rise in external load leads to a progressive decrease in power production, which follows a linear pattern.

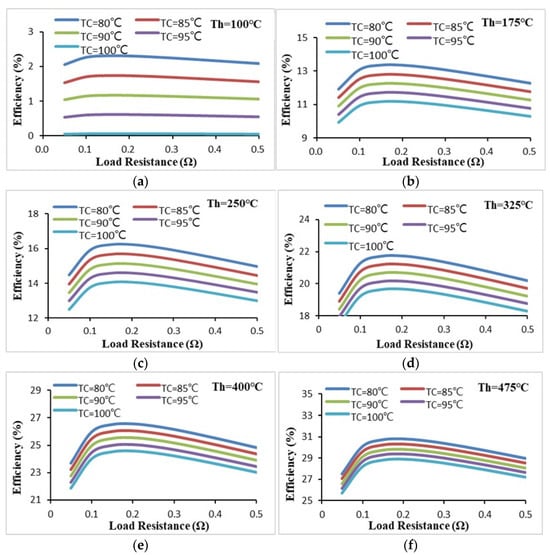

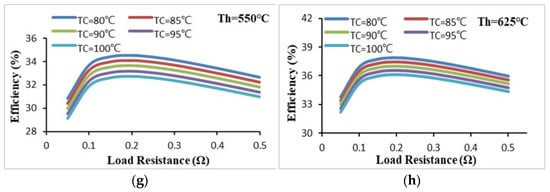

Additionally, an examination of Figure 12a–h reveals a similar linear relationship between the thermal efficiency of the TTEGs and the external load, mirroring the trend observed in the power output versus the external load graph. Furthermore, it is noted that, when the temperature of the engine exhaust rises, both the highest possible efficiency of thermoelectric conversion and the external load at which the TTEGs generate the most power increase. Furthermore, when the cooling water temperature is lower at a consistent exhaust temperature, there is a higher temperature difference across the thermocouple, which leads to an enhanced thermoelectric conversion efficiency in the TTEGs.

5.3. Optimization of Thermocouple Numbers

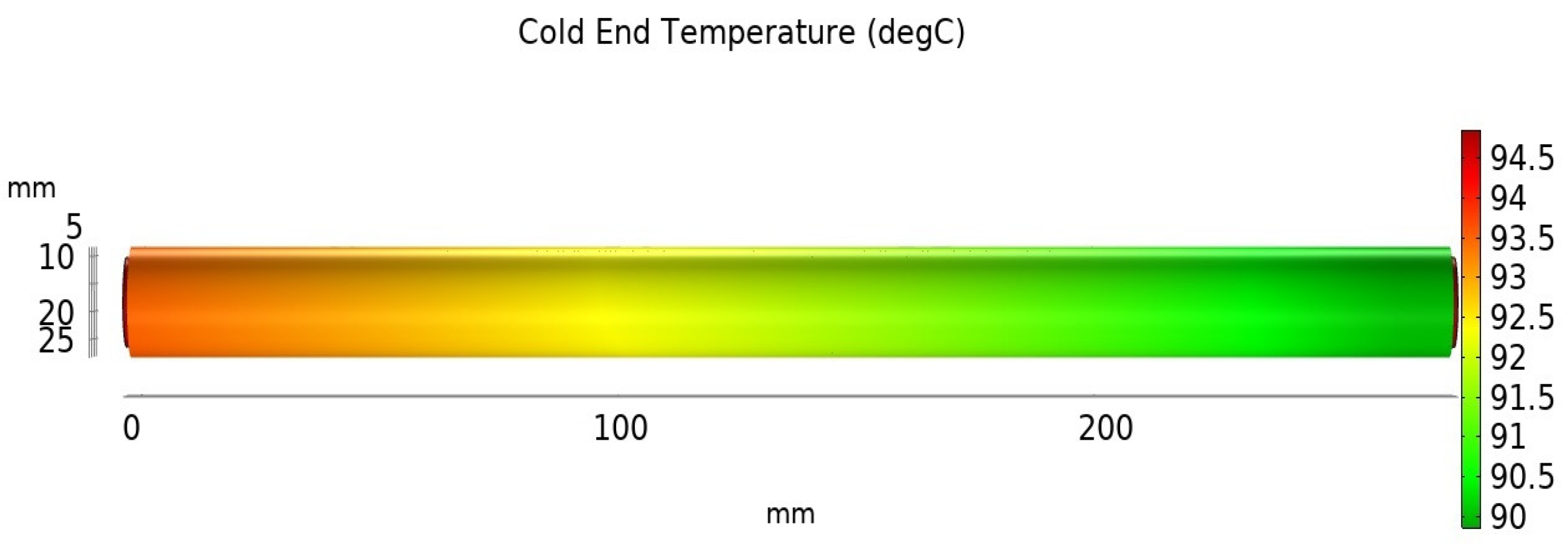

As the length of the TTEG increases, there are corresponding changes in the temperature distribution at both the cold and hot ends, the internal resistance, and the module’s output power. This study brings engine exhaust at a temperature of 550 °C and a rate of 0.032 kg/s into the hot end of the TTEG. Simultaneously, ethylene glycol coolant, at a temperature of 90 °C and a rate of 0.237 kg/s, is introduced at the cold end. This study examines how the output power of the TTEG changes when the number of thermocouples is varied, while keeping the cold and hot end inlet temperatures and mass flow rates constant. The goal is to identify the ideal number of thermocouples resulting in the highest output power. Figure 13 and Figure 14 illustrate the temperature changes at the cold and hot ends of a TTEG with 125 thermocouple pairs. Figure 13 demonstrates that the temperature at the cold end of the TTEG is variable rather than constant. The module’s temperature rises progressively as the number of thermocouples increases due to heat absorption from the hot engine exhaust through the thermocouples, with the coolant arriving from the right.

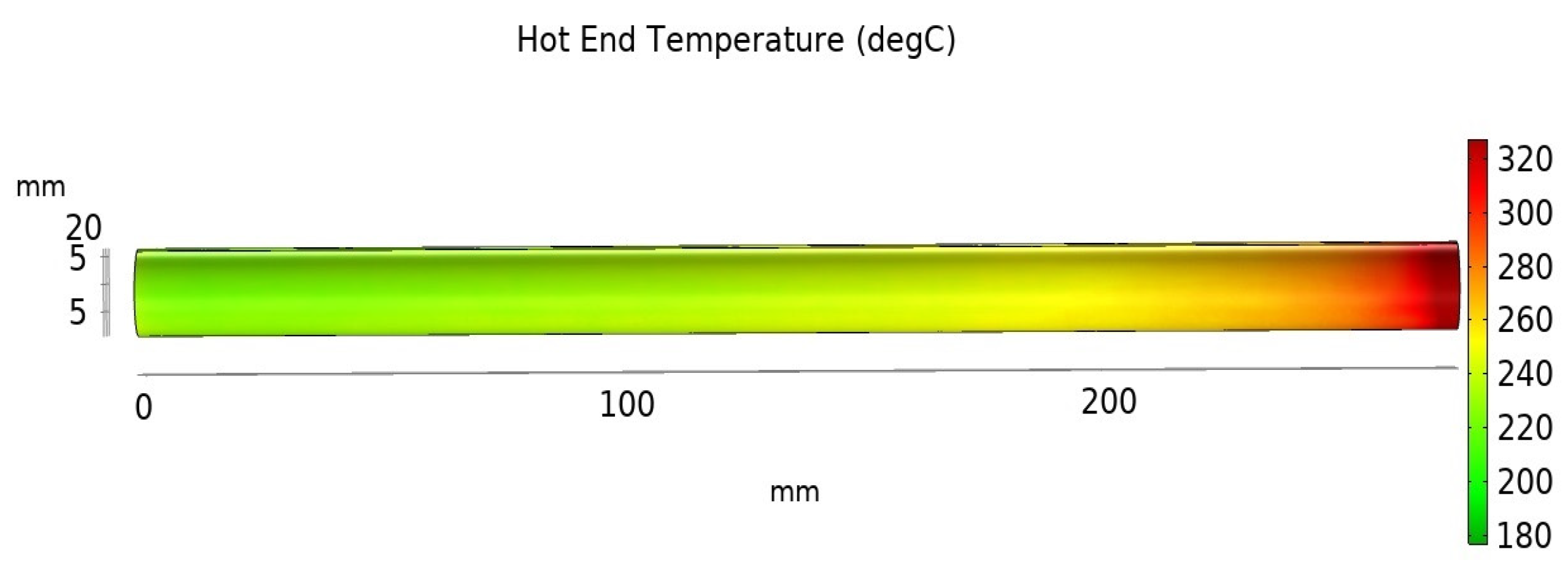

In contrast, Figure 14 illustrates a decline in temperature near the high-temperature end of the TTEG. In this scenario, the engine exhaust enters from the right side and, as the module extends, the thermocouples convert more heat, resulting in a progressive decline in temperature. Increasing the number of thermocouples from 125 to 750 pairs results in a rise in the output temperature of the coolant from 93.71 °C to 103.89 °C. Similarly, the exhaust gas’s temperature at the TTEG’s exit reduces from 477.62 °C for 125 pairs of thermocouples to 293.02 °C for 750 pairs. These data emphasize the intricate relationship between the quantity of thermocouples, temperature distribution, and heat transport in a TTEG. Comprehending these interactions is essential for maximizing the efficiency and functionality of TTEGs, especially in cases where they are used to recover waste heat from high-temperature sources such as engine exhausts. The study offers valuable insights into optimizing the design of TTEGs by altering the number of thermocouples to obtain the appropriate equilibrium between heat absorption and conversion efficiency.

According to Ohm’s Law, V = I × R, where V is voltage, I is current, and R is resistance. Ohm’s Law states that voltage (V) is equal to the product of current (I) and resistance (R), expressed as V = I × R. The internal resistance of a thermoelectric module grows linearly as the number of thermocouples within the module increases. While adding more thermocouples can expand the surface area that absorbs heat and raises the open-circuit voltage [41], it is worth noting that the temperature differential between the cold and hot ends of the TTEG is inconsistent, as evidenced by Figure 13 and Figure 14. Hence, the TTEG’s voltage does not correlate directly with the module’s length. Nevertheless, the current tends to diminish when the internal resistance increases in direct proportion. The power output formula, P = I² × R_L (where R_L = R_I, the load resistance equals the internal resistance), states that, if the increase in internal resistance (caused by an increased number of thermocouples) is smaller than the square of the decrease in current, the maximum output power of the thermoelectric module will decrease. The optimal length for achieving the maximum power output is the point at which the rise in internal resistance matches the square of the reduction in current for the TTEG. Conducting this research is of utmost importance to enhance the design of TTEGs, specifically in establishing the optimal quantity of thermocouples and the length of the module. The objective is to achieve equilibrium between the expanded surface area that absorbs heat (and thus leads to a potential rise in voltage) and the rise in internal resistance, affecting the current and power output. Attaining this equilibrium is crucial for optimizing the effectiveness of the TTEG, particularly in scenarios that involve the transformation of wasted heat into electrical power.

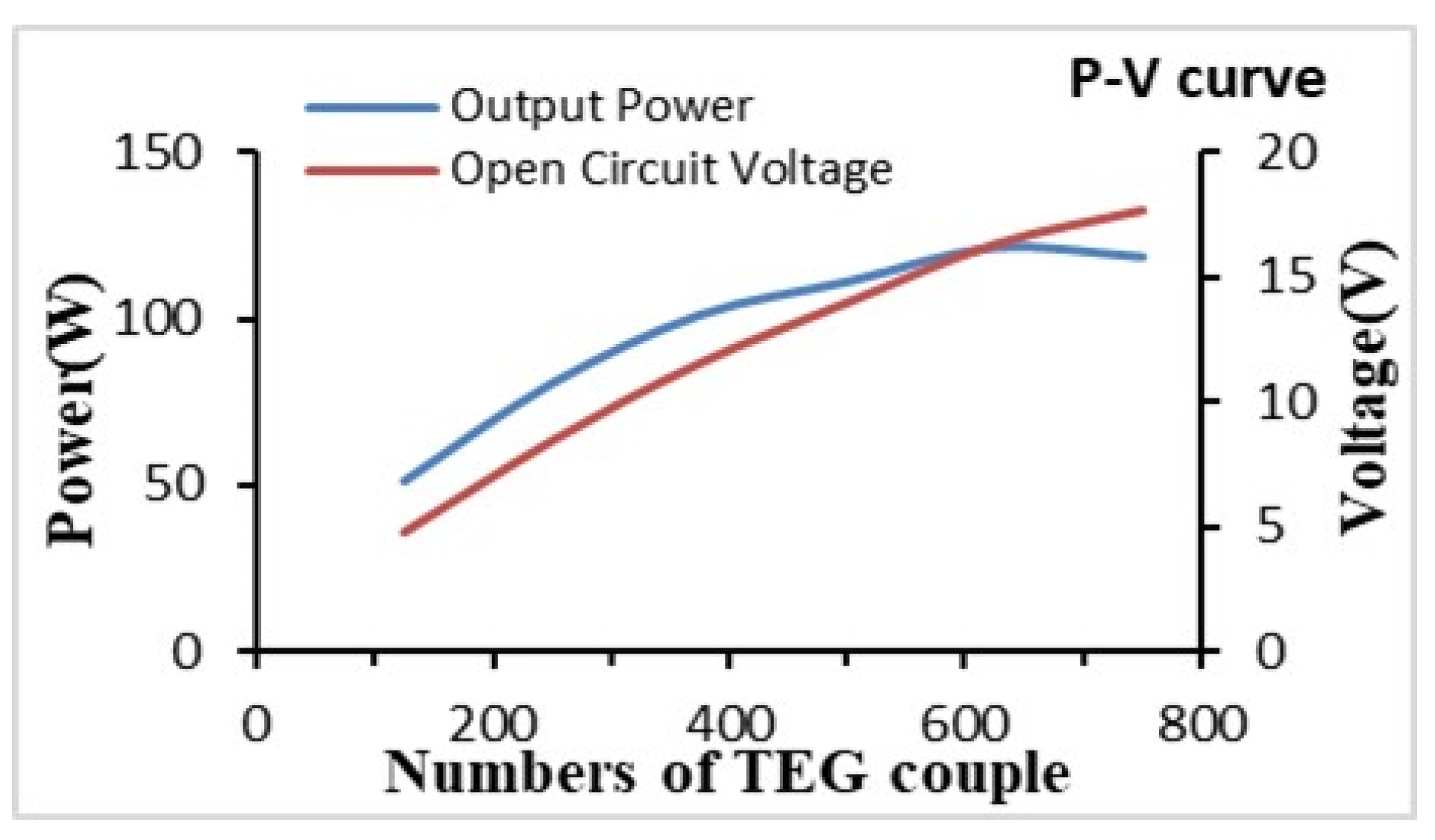

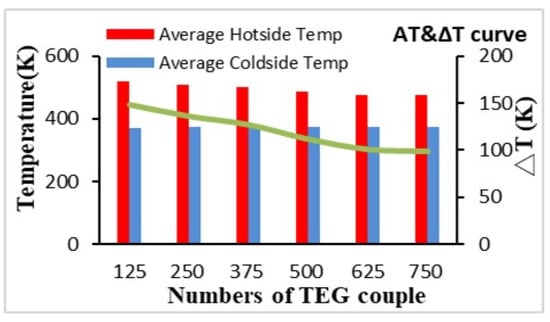

Figure 15 and Figure 16 demonstrate that the open-circuit voltage of the TTEG rises in correlation with the quantity of thermocouples. Simultaneously, there is a rise in the average temperature at the cold end and a decline at the hot end. As the number of thermocouples rises, the temperature difference between the hot and cold ends decreases. The TTEG reaches its maximum output power of 121.63 W with 625 thermocouple pairs. Nevertheless, exceeding this threshold by adding more thermocouples results in a decline in output power. The observed phenomenon, in which the output power of the TTEG reaches its maximum at a specific number of thermocouples and then falls as more pairs are added, is consistent with the results reported by Sakthivadivel Duraisamy and colleagues [47]. The study emphasizes a crucial element of thermoelectric module design: an optimum quantity of thermocouples exists that maximizes the output power. Once the ideal number is exceeded, the overall power production is negatively affected by the diminishing temperature differential and higher internal resistance, despite the possible increase in voltage generation resulting from a bigger heat-absorbing surface. These insights are vital for implementing TTEGs, particularly in systems where optimizing energy recuperation from waste heat is imperative. By adjusting the number of thermocouples, designers may guarantee that TTEGs function at their maximum efficiency, offering a more efficient alternative for turning waste heat into usable electrical energy. Achieving this equilibrium is crucial for improving the efficiency and usefulness of thermoelectric generators in a wide range of industrial and automotive applications.

6. Conclusions

This study introduces a novel method for converting waste heat into electrical energy in fluid-circulating circular channels using a thermoelectric element structure and connection. The TTEG provides a more straightforward, compact, and efficient thermoelectric module design that outperforms equal-volume flat-plate chips, generating higher output power under identical test conditions. The key TTEG characteristics are as follows:

• The TTEG has lower internal resistance and a larger cross-sectional area in its thermoelectric elements, allowing for higher current flow and making it suitable for high-temperature differential waste heat-recovery applications.
• Despite generating a lower open-circuit voltage due to having fewer thermoelectric elements, the TTEG, with its lower internal resistance, can carry a larger current, resulting in a higher output power.
• Compared to FTEGs, the TTEG has a larger heat source contact area and a more efficient thermoelectric element configuration, leading to better thermal efficiency in converting heat to electrical energy.
• The following advantages of the TTEG structure can guide future research directions:
• The TTEG structure is more compact than conventional Annular TEGs (ATEGs), leading to a smaller size and better thermal insulation.
• The TTEG is suitable for any fluid-carrying round pipeline and can efficiently recover thermal energy.
• By retrofitting existing internal combustion engine systems with coolers, the TTEG can recover fluid waste heat and convert it into electrical energy without additional cooling water pumps.
• In summary, the TTEG offers a promising solution for enhancing energy efficiency and sustainability by effectively converting waste heat from various industrial and automotive sources into valuable electrical energy.
• Future advancements for enhancing the thermoelectric performance of TTEGs could involve using segmented thermoelectric elements and improving the properties of thermoelectric materials.
