Development of a Fault Detection and Localization Model for a Water Distribution Network

Abstract

Water distribution networks are complex systems that aid in the delivery of water to residential and non-residential areas. However, the networks can be affected by different types of faults, which could lead to the wastage of treated water. As such, there is a need to develop a reliable leakage detection and localization system that can detect leak occurrences in the network. This study, using a simulated dataset from EPANET, presents the application of supervised machine learning classifiers for leak detection and localization in the water distribution network of the University of Port Harcourt Choba campus. The study compared three machine learning classification tools that are used in pattern recognition analysis: the support vector machine, k-nearest neighbor, and artificial neural network. The robustness and effectiveness of the proposed approach are compared with those of the performance of the classifiers for leakage detection in the network of the case study. The results show that the support vector machine performs the best, with 79% accuracy, while the respective accuracies for the remaining classifiers are 70% for the k-nearest neighbor and 61% for the artificial neural networks. The high accuracy demonstrated by the models shows that they are able to detect and address issues relating to fault detection in a water distribution network. This model could provide a leakage detection system to be applied to buildings for the efficient management of water in their networks.

1. Introduction

One of the problems facing humanity in the twenty-first century is that of the scarcity of water. This problem can be linked to the increased pressure from demographic, socioeconomic, and environmental causes, such as accelerated population growth, rapid urbanization, unsustainable consumption patterns, and the depletion and contamination of aquifers as well as the increasingly dramatic environmental variations due to the climatic effects of global warming that are a result of demand for freshwater supplies [1]. Construction activities have also led to the gradual depletion of water resources in certain countries, whereas certain areas are facing issues of quantity and quality in relation to the accessibility of underground water, which is also affected by the extent of underground water extraction [2].

The literature shows that water utility companies lose an estimated amount of USD 9.6 billion annually as a result of excessive leakage in water distribution networks despite the fact that over USD 184 billion is spent on the provision of clean water worldwide [3]. The literature demonstrates that many fault detection techniques have been explored and developed in the literature, especially in the area of leakage detection. A variety of fault-finding techniques, such as leak noise correlators, the acoustic detection of the water balance, and pressure controls have been presented in [4,5,6,7]. The use of sonic detection techniques has been explored in the literature; the techniques make use of geophones, valves, and hydrants that allow for direct ground-level listening and also make use of a listening device that makes contact with the structure [8]. Yang et al. [9] explored the use of acoustic signals for buried water distribution pipelines based on the correlation technique. Abdulshaheed et al. [10] studied the use of the hydraulic technique for leak detection and localization in a water distribution network. Studies of the techniques have mainly focused on the comparison of data with predictions produced through hydraulic models [3,11,12,13,14].

The use of time series and pattern recognition algorithms to predict leaks and for the localization of zones where leaks are detected has been explored in the literature [15]. Lee and Yoo [16] created a data-driven leak detection model using the deep learning technique; the model was used to simulate a real leaking accident, and its performance was assessed. Guo et al. [17] proposed the use of deep learning for predicting water demand, and the results showed that the method improves the performance of water demand predictions. The application of the support vector machine has increased in comparison with other modeling methods, and this can be attributed to the high efficiency of the method and the effectiveness of the method when working with a low dataset, as reported in [18].

There are examples in the literature that support the use of support vector machine learning in modeling the relationships between the inputs and outputs in classification and regression problems that are encountered across many engineering processing fields [19,20,21,22,23,24]. Kang et al. [25] explored the use of convolution neural networks, the support vector machine, and graph-based models for leakage localization and detection in a water distribution network. The method involved taking features from convocation neural networks (CNNs) and feeding them into multi-layer perceptrons and supporting the vector machines as inputs. The use of multi-level artificial neural networks (ANNs) to detect burst events in a water distribution network was explored in [26]. The technique consist of two levels, where the first level is used for the identification of leak occurrences in the network and the second level is used for the location and magnitude of leaks in the network.

Aksela et al. [27] explored the use of clustering models for leak detection in a water distribution network. The method involved the segmentation of the network into various clusters as this process can be used to locate any potential leak points in the water distribution network. Wu et al. [28] investigated the application of the unsupervised clustering burst detection approach to a district metered area with numerous inlets and outputs. The use of the multiclass support vector machine model for the leakage detection in a large scale network has been explored in [24]. This method involves the subdivision of the water networks into leakage zones, and data were generated using the Monte Carlo method together with the hydraulic model. The result shows that the model could identify the leakage zones using the flow and pressure data. The drawback of this method is that of determining the number of clusters and the impact of the randomization of the first cluster on the clustering process. The use of the Bayesian system identification method for leakage detection in a water distribution network was proposed in [12,29].

Soldevila et al. [30] proposed a mixed model based on a data-driven approach to leak localization in a water distribution network; EPANET software 2.21 version was adopted to model the water networks after the calibration. The data used in training the models were obtained from the EPANET software for each possible fault, as well as different operating and uncertain conditions. The literature shows that much research has been conducted on the deployment of machine learning models for the detection and localization of leak events in a water distribution network. However, much of the literature is still lacking in comparisons between different machine learning classifiers for leak detection and localization in a water distribution network. The present study, however, proposes to fill this gap in the knowledge by comparing the ability and robustness of various supervised machine learning models to detect and localize leak events in a water distribution system that is based on the water network of the University of Port Harcourt, Nigeria.

2. Materials and Methods

2.1. Research Methodology

The study aimed to develop a leak detection and localization machine learning model for a water distribution networks using pressure residuals [31]. EPANET software simulated different leakage scenarios in the water distribution system. The software emitter coefficient was created to simulate fire hydrants and sprinklers but may also be modified to simulate leak occurrence in a water distribution network. The nodal pressures from the two hydraulic areas were used as training and testing datasets. The data generated from the leakage scenarios with various emitter coefficients were then used to train and test the three classifiers. The models’ comparative performance was exhaustively evaluated using the parameter accuracy, receiver operating curve (ROC), confusion matrix table, precision, recall, and F1-score. These machine learning performance evaluation metrics were deployed in assessing the overall performance of each model in leak detection and localization.

2.2. Data Generation

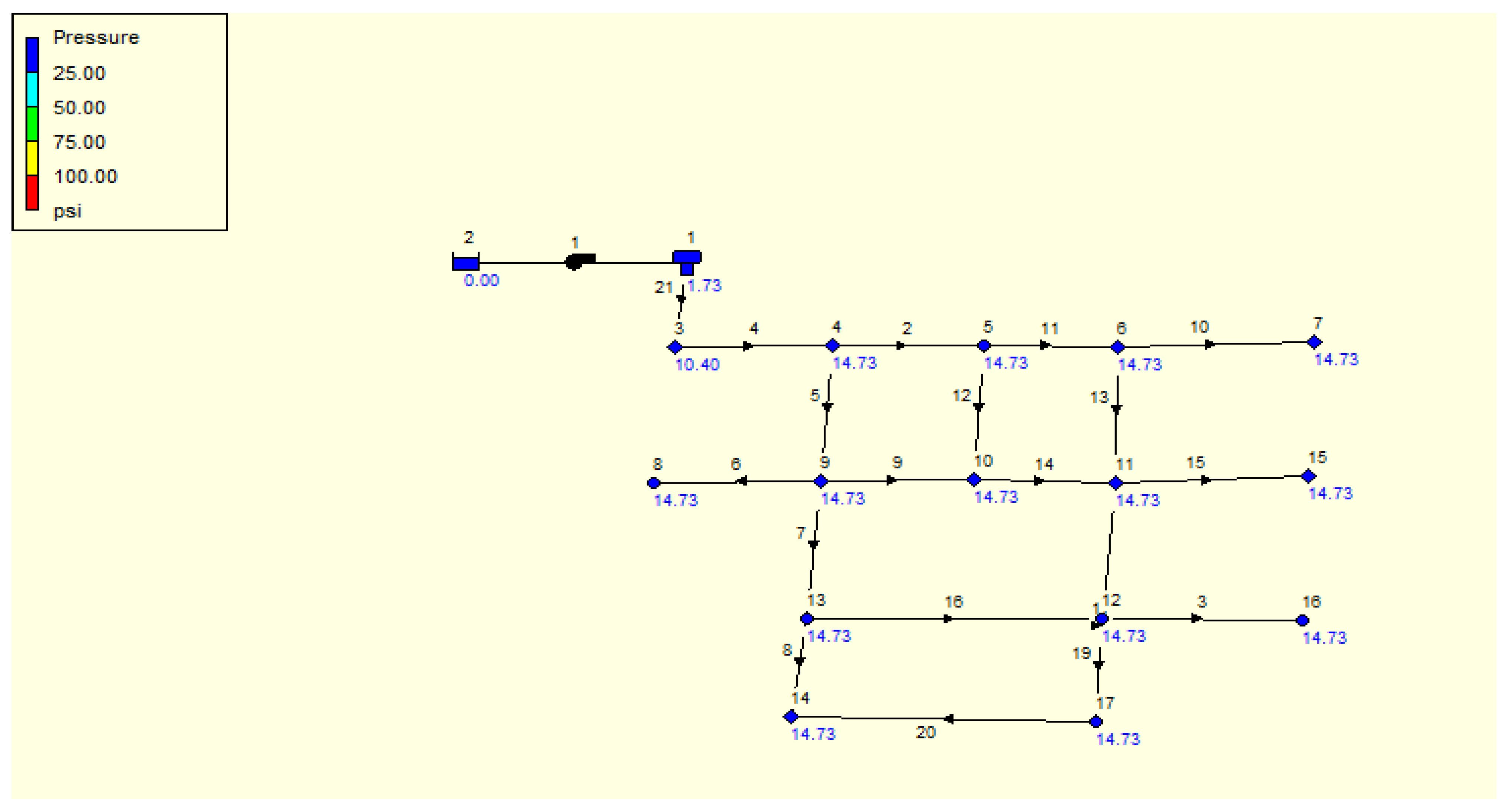

Choba Park at the University of Port Harcourt serves as the study location. The university comprises of three campuses, Choba Park, Abuja Park, and Delta Park, all within 1.2 km of one another, and each has its separate water supply system. Choba Park, on the other hand, has a 2500 m perimeter, 121 acres of land, four huge hostel blocks, engineering, educational, and agricultural scientific institutions, and business centers with banks, canteens, and photocopying facilities. Choba Park is a five-sided polygon because of the five coordinates that define its perimeter. It suffices to enter any one of the five locations, such as 40°53′44″ N, 60°54′24.65″ E, to access the study area’s map on Google. The existing water distribution network of Choba Park can be found in [32]. In contrast, the EPANET hydraulic model of the University of Port Harcourt Choba campus is shown in Figure 1.

The water distribution network was split into two zones: Zone 1 (LZ1), which contains eight candidate nodes, and Zone 2 (LZ2), which contains seven candidate nodes [15]. The emitter coefficient used in the simulation of leak occurrence in the nodes is based on the classical Torricelli equation for flow through an orifice.

$$q=C*A*p^{p^{exp}}$$

(1)

where C represents a coefficient, A represents the orifice aperture area, p is the fluid pressure, and $p^{exp}$ is the pressure exponent. In the Epanet software, the pressure exponent, by default, is set to 0.5. The Epanet software applies a simple definition for the emitter function:

$$eC=q/p^{p^{exp}}$$

(2)

Data were generated by modeling the leak occurrence in the water network according to the number of candidate leak nodes, and 15 leaks are summarized in

Table 1. Candidate leak zones used for the generation of the dataset for model training.

Zone	Candidate Leak Nodes in the Network for Each Zone
Zone 1 (8 candidate leak nodes)	$N{d}_4, N{d}_5$$, N{d}_3, N{d}_7$, $N{d}_9$$, N{d}_8$$, N{d}_{11}$$, N{d}_{13}$
Zone 2 (7 candidate leak nodes)	$N{d}_{14, }N{d}_{17}, N{d}_{12}, N{d}_{15}, N{d}_{16}, N{d}_{10}$$, N{d}_6$

. Zone 1 contains 8 candidate leak nodes, while Zone 2 has 7 candidate leak nodes. The dataset generated comprised 8 features of the network, such as pipe roughness, estimated demand, cinematic viscosity, fluid density, piezometric head, gravity acceleration, and valve coefficient and pipe length. The dataset sample used in the training and testing of the model were 480 samples on hourly average. The uncertainty conditions in the dataset used in training and testing the model were affected by a noise level of an amplitude within the range of [−4, 5%]. The WDN simulation results are directly impacted by the model’s pipe roughness parameter uncertainty. Since pipe deterioration causes the roughness to diminish with time, it is difficult to accurately identify in WDNs, since it cannot be measured directly. It is unnecessary and can be removed. Therefore, the coefficient of Hazen–Williams (CHW) is simulated, such that CHW ∈ [125, 130]. Water demand uncertainty is considered for each node in the water distribution network ˜d ∈ [−10%, 10%].

2.3. Methods

Three supervised machine learning classifiers (support vector machine, artificial neural network, and K-nearest neighbor) were evaluated for the research analysis. Artificial neural networks are used as machine learning classifiers modeled after how the nervous system and brain work. This classifier was chosen because it offers a method of simulating non-linear connections between systems. According to [33], the multi-layered feed-forward neural network is commonly adopted to analyze pattern recognition tasks. The layers are three stages that receive information; the output is where the processing results are given and hidden, and the layers are between input and output. Each layer comprises a central unit called the perceptron unit, modeled by the McCulloch–Pitts [33] equation, given below.

$${\phi }^k\left(r\right)={\varnothing }^k({{\displaystyle \sum }}_{i=1}^p{\omega }_{ik} r_i+b_k)$$

(3)

where r corresponds to the input vector, $b_k$ is a bias, ${\omega }_{ik}$ is a weight coefficient, and ${\varnothing }^k$ is a non-linear activation function.

The hyperparameter settings for this classifier comprise four hidden layers with a corresponding number of 192, 32, 24, and 1 neurons per layer, chosen to increase the model’s performance. The batch size of the neural network, in addition to the layers of the neurons, is 512, with an optimal learning rate of 0.01 and an epoch of 20.

The support vector machine is a supervised learning technique widely used for classification and regression based on structural risk minimization. This technique creates a decision boundary between classes by mapping the training data onto a higher-dimensional space and then obtaining the maximum margin hyperplane within that space [34]. The objective of the techniques is achieved by locating the optimal separating hyper plane that maximizes the margin between the closest sample points in the training dataset, which are called support vectors [33].

${\rm X}\in {[k_i,y_i]}^n$ represents a dataset with two classes, and $k\in R^p$ denotes the measured variables. In order to determine the hyper plane g(r), n is the number of the training samples, while the label vector is $Y\in [1,-1]$ where the classes are separated by g(r) = $W^{t}r+b$. The position of a separating hyperplane is determined by W and b (bias). The geometric separation of the mapped data in the high-dimensional space is defined by the term $\gamma$ in this context.

Discriminant techniques are used to extend two-class classification problems to multi-class classification problems. In the present study, the hyperparameter for the support vector machine model is given Equation (4), which represents the radial basis function kernel that was selected because of its generality and successful results in fault diagnosis applications.

$$K\left(r_i,r_j\right)=exp\left(-\gamma \left|\right|r_i-r_j|{|}^2\right)$$

(4)

The k-NN algorithm is based on the principle that the most similar samples belonging to the same class have a high probability [35]. Using the the K-NN algorithm, the Euclidean distance function is applied to calculate the similarity or difference between classes. The features of the system consist of measurement, which represents the class. Furthermore, if the classification algorithm is trained with a set of points such as,

$$\zeta ={\zeta }_1,{\zeta }_2,{\zeta }_3,\dots \dots {\zeta }_n$$

(5)

and ψ = ${\mathrm{\psi }}_1,{\mathrm{\psi }}_2,{\mathrm{\psi }}_3\dots \dots {\mathrm{\psi }}_n$, then this values represents the new system values and the algorithm defines the class using the distance equation for a two-dimensional space.

$$D\left(\zeta ,\mathrm{\psi }\right)=\sqrt{{{\displaystyle \sum }}_{i=1}^n{\left({\zeta }_i,{\mathrm{\psi }}_i\right)}^2}$$

(6)

The algorithm’s output is usually the class with the highest frequency among the k-nearest neighbors. In the analysis of the work described in this paper, the K-neighbors classifier hyperparameter was used to obtain the best performance of the model, and the Euclidean distance with 5 neighbors was sufficient to obtain the required separability, as this corresponds with the University of Port Harcourt Network.

3. Results and Discussion

The training phase of the machine learning classifiers was conducted with 80% of the data, while 20% were used to test model testing. Different machine learning classifiers’ performance metrics were used to assess the performance of each model in detecting and localizing leakage in the water distribution of the campus, and they are discussed and compared in the following subsections.

3.1. K-Nearest Neighbor

Table 2. Classification report for the K-nearest neighbor model.

Method	Accuracy	Precision	Recall	F1-Score
K-nearest neighbor	0.70	0.70	0.70	0.70

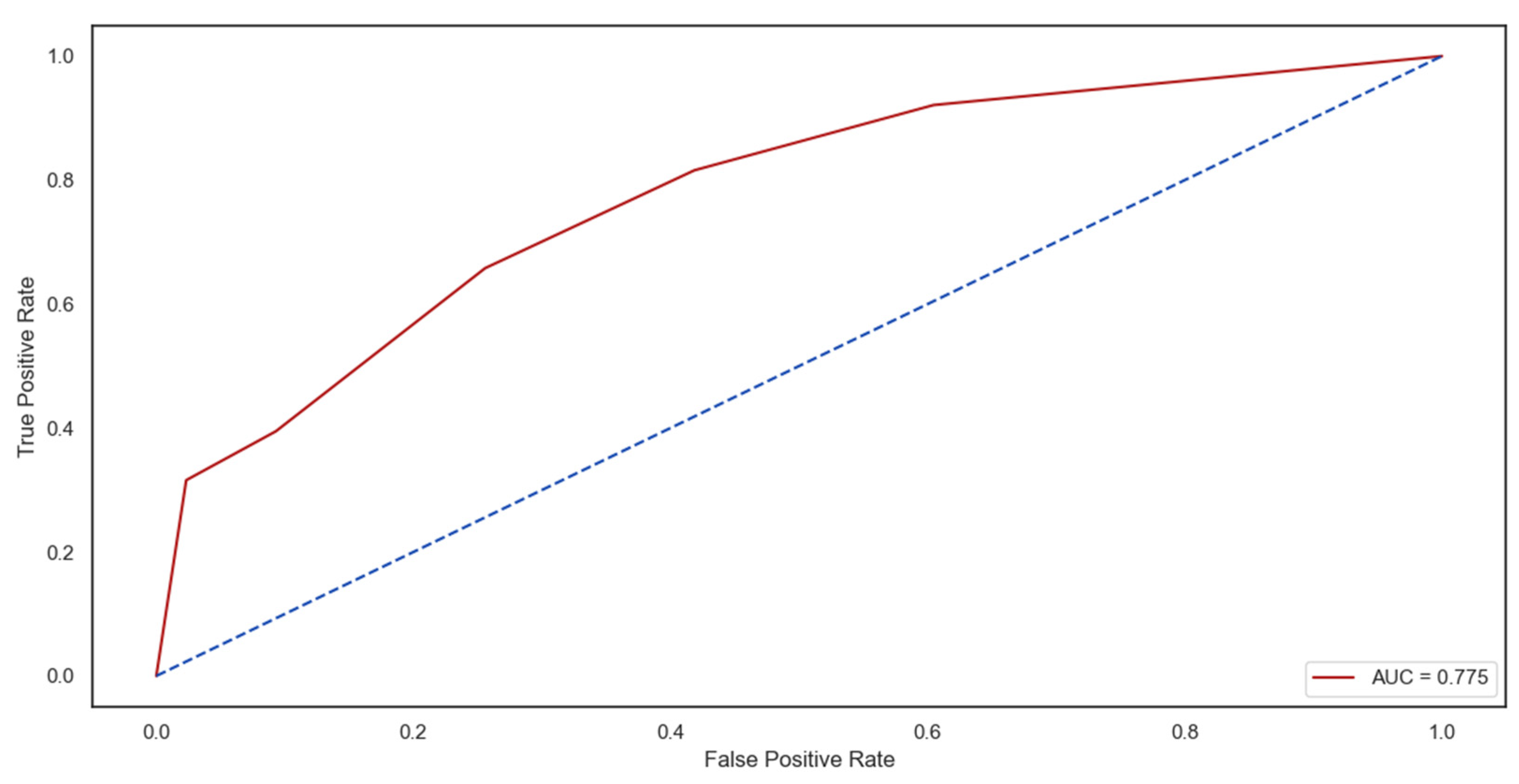

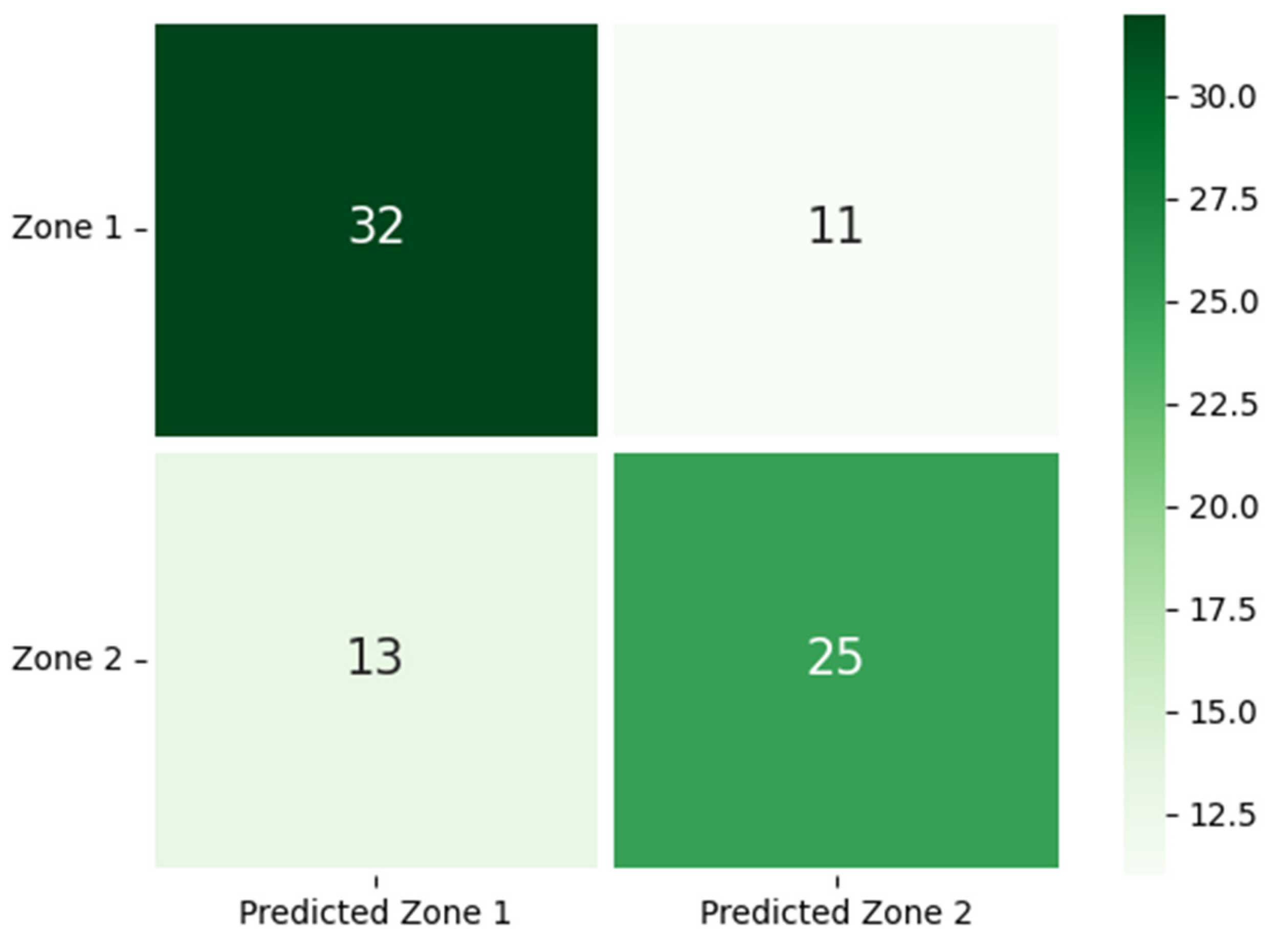

summarizes the results obtained with the pressure residuals of the water distribution network. The model’s performance was assessed by the model’s confusion matrix, accuracy report, receiver operating curve, precision, recall, and F1-score. The table shows that the K-NN classifier performed well with leakage localization and detection accuracy of 0.70%, recall = 0.70, F1-score = 0.70, and precision = 0.70%.

Additionally, Figure 2 shows the model’s performance in leak detection and localization across each zone. The figure indicates the model’s performance in zone 1 and zone 2. The zone, recall, precision, and F1-score results were 0.74, 0.71, and 0.73, respectively. At the same time, zone 2 recall, precision, and F1-score results were 0.66, 0.69, and 0.68. Furthermore, the receiver operating curve ROC (Figure 3) indicates that the model has an area under the curve AUC of 0.775, which indicates the model’s good performance in leak detection and localization using the simulated dataset.

The use of the K-NN classifier in leak localization across the two zones in order to provide the possible locations of leak events within the water distribution network can be identified in several possible locations, and the magnitudes of such leaks are 30, 35, 40, and 45 L/s for each node. Uncertainty conditions, such as noise and demand uncertainty, influenced the overall performance of the model; the uncertainty metrics were factored into the quality of data used in the training and testing of the model.

3.2. Artificial Neural Network

Table 3. Classification report for the artificial neural network model.

Method	Accuracy	Precision	Recall	F1-Score
Artificial neural network	0.61	0.61	0.61	0.61

summarizes the results obtained with the pressure residuals of the water distribution network. The model’s performance was awarded by the model’s confusion matrix, accuracy report, receiver operating curve, precision, recall, and F1-score. The table shows that the ANN classifier performed well, with a leakage localization and detection accuracy of 0.61, recall = 0.61, F1-score = 0.61, and precision = 0.61%.

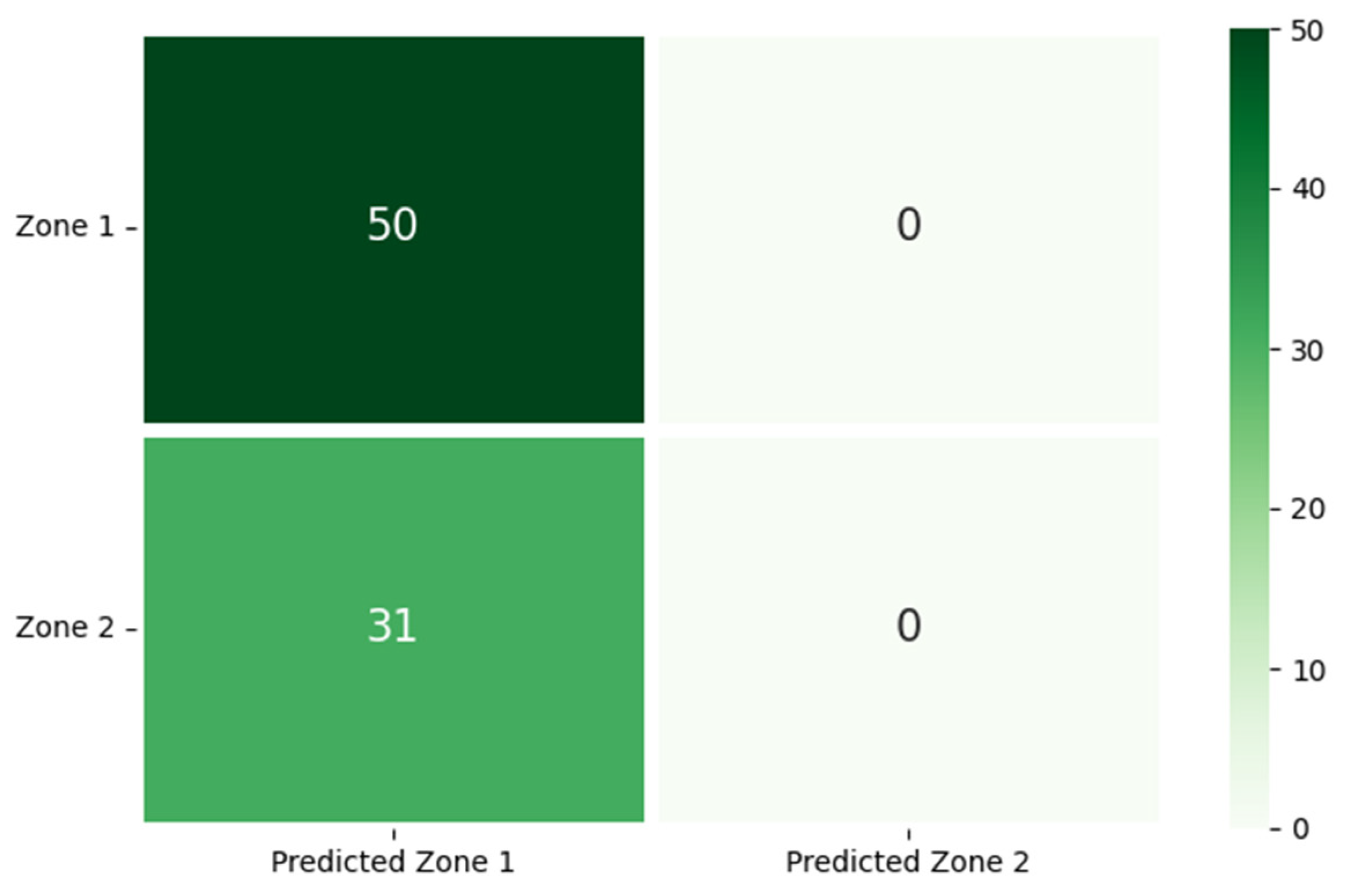

Additionally, Figure 4 shows the model’s performance in leak detection and localization across each zone. The figure indicates the model’s performance in zone 1 and zone 2. For zone 1, the recall, precision, and F1-score results were 1.0, 0.61, and 0.76, respectively, while the zone 2 recall, precision, and F1-score results were 0.0, 0.0, and 0.0. When the artificial neural model is applied in the analysis of the data simulated from EPANET, the effect of uncertainty conditions corresponds to [−4,5] of the network, meaning that the demand uncertainty and noise level uncertainty also contributed in the overall performance of the classifier. The use of this classifier in leak localization across the zones is to provide possible leak locations within the water distribution network, which can be in several possible locations, and the magnitudes of such leaks are 30, 35, 40, 45 L/s for each node. Furthermore, the receiver operating curve (ROC) indicates the model’s performance regarding leak detection and localization. Figure 5 shows the model’s training history for accuracy, validation loss, model loss, validation accuracy, and training loss.

3.3. Support Vector Machine

In

Table 4. Shows the validation loss and accuracy history of the data being analyzed by the neural network.

Epoch Number	Step	Loss	Accuracy	Validation Loss	Validation Accuracy
1	2 s 2 s/step	5.1078	0.6389	1.4409	0.6173
2	0 s 48 ms/step	3.7668	0.5741	3.3202	0.6173
3	0 s 53 ms/step	4.8101	0.5988	5.2638	0.6173
4	0 s 52 ms/step	3.1866	0.5926	5.1319	0.6173
5	0 s 52 ms/step	3.1895	0.5093	5.1157	0.6173
6	0 s 48 ms/step	2.4911	05617	5.1088	0.6173
7	0 s 49 ms/step	2.0902	0.6204	5.1010	0.6173
8	0 s 49 ms/step	2.0902	0.6574	4.8567	0.6173
9	0 s 49 ms/step	2.1385	0.6605	4.8571	0.6173
10	0 s 51 ms/step	1.8521	0.6451	4.8761	0.6173
11	0 s 59 ms/step	1.6877	0.6481	4.8481	0.6173
12	0 s 51 ms/step	1.7486	0.6049	4.8359	0.6173
13	0 s 52 ms/step	1.6839	0.6080	4.3522	0.6173
14	0 s 60 ms/step	1.6497	0.6173	3.3823	0.6173
15	0 s 51 ms/step	1.5407	0.6235	2.7901	0.6173
16	0 s 48 ms/step	1.4871	0.6636	2.3502	0.6i73
17	0 s 43 ms/step	1.4336	0.6698	2.0801	0.6173
18	0 s 47 ms/step	1.3182	0.7006	1.8280	0.6173
19	0 s 45 ms/step	1.2544	0.6914	1.6076	0.6173
20	0 s 49 ms/step	1.1836	0.6728	1.4999	0.6173

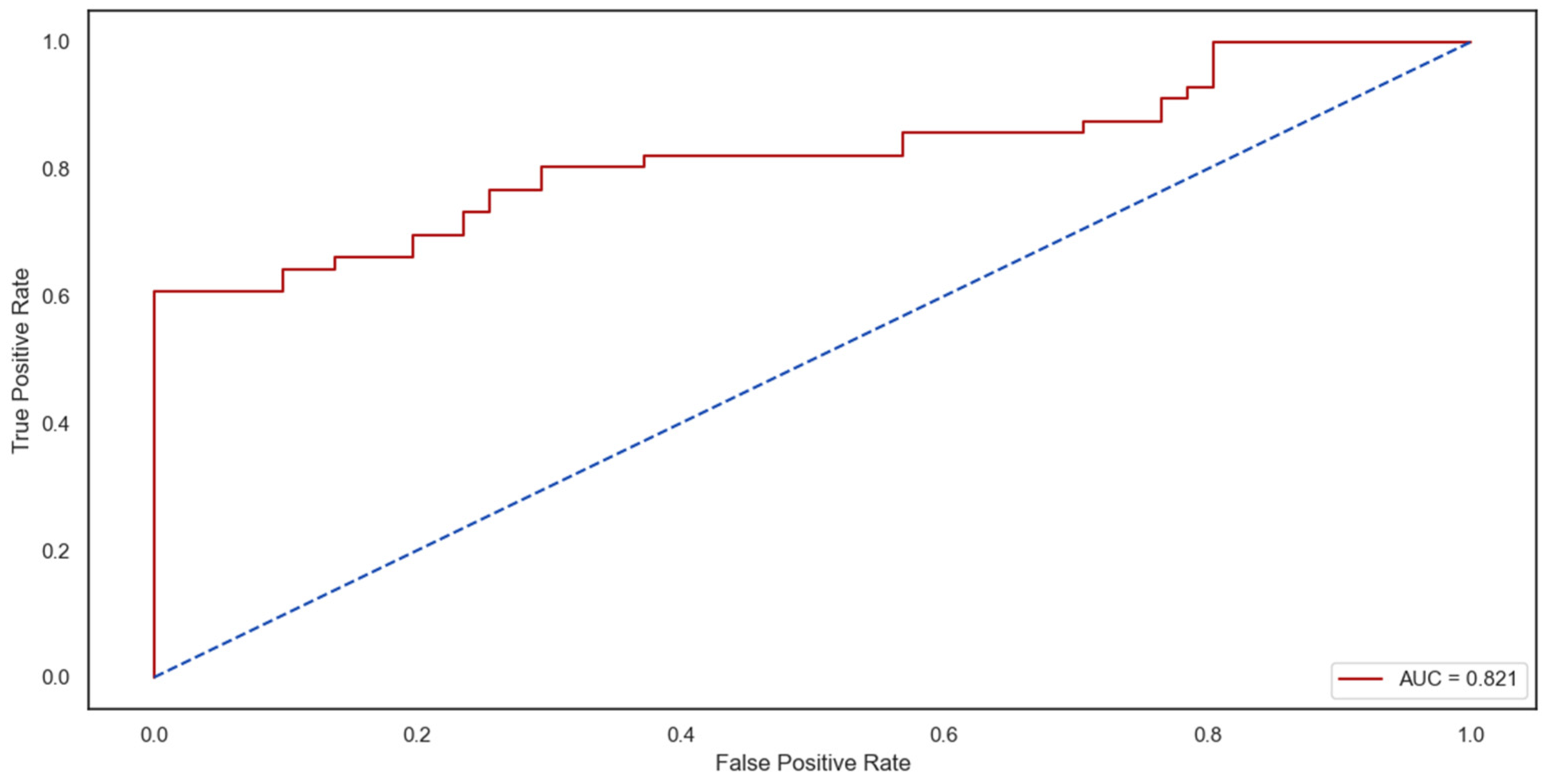

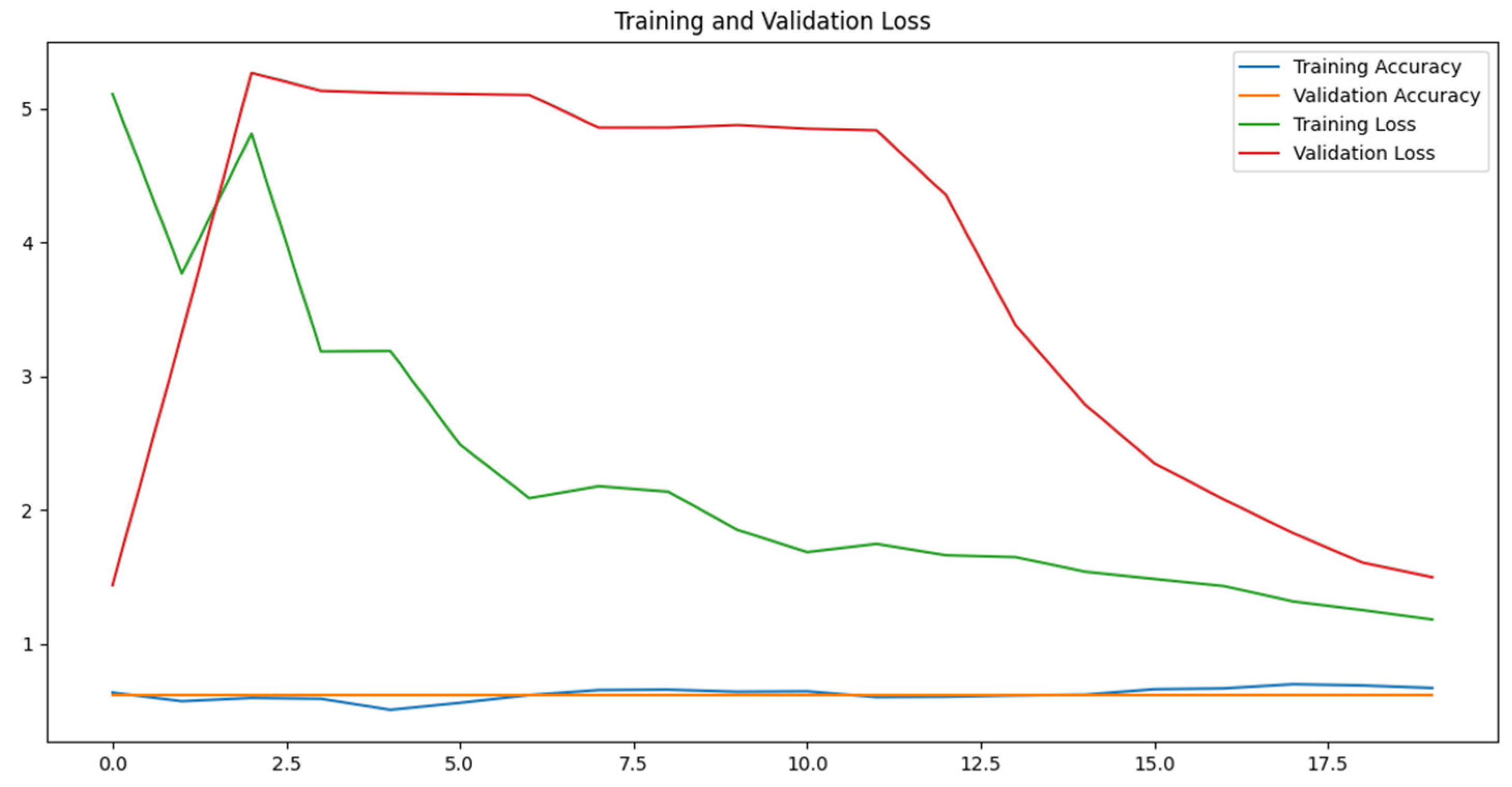

, the results of the validation of the model with the pressure residuals of the water distribution network for 20 epochs have been presented. Furthermore, the model performance was assessed and evaluated using its confusion matrix, accuracy report, receiver operating curve, precision, recall, and F1-score. This result is shown in

Table 5. Classification report of the support vector machine.

Method	Accuracy	Precision	Recall	F1-Score
Support vector machine	0.79	0.79	0.79	0.79

, which reports the results of the SVM classifier, which gave an excellent performance, with a leakage localization and detection accuracy of 0.79, recall = 0.79, F1-score = 0.79, and precision = 0.79%.

Additionally, Figure 6 shows the model’s performance in leak detection and localization across each zone. The figure indicates the model’s performance in zone 1 and zone 2. For zone 1, the recall, precision, and F1-score results were 1.0, 0.70, and 0.82, respectively. In zone 2, the recall, precision, and F1-score results were 1.0, 0.61, and 0.76.

The application of the SVM classifier in the leak location process for the zones was adapted to provide possible leak locations within the water distribution pipeline. This can occur in several locations, and the magnitudes of such leaks are 30, 35, 40, and 45 L/s for each node. The effect of uncertainty conditions when modeling the network on EPANET was also considered; these uncertainty conditions, which correspond to [−4, 5] of the network, such as the demand and noise level uncertainty, also contributed to the overall performance of the classifier. Furthermore, the receiver operating curve (ROC) (Figure 7) indicates that the model has an area under the curve (AUC) of 0.821, which indicates the model’s excellent performance in leak detection and localization using the simulated dataset.

4. Conclusions

This paper presents a comparative study on using supervised machine learning classifiers to detect and localize leaks in a water distribution network; the network was divided into two hydraulic zones with leak scenarios in each zone. The capacity of three supervised machine learning classifier tools has been studied for leak detection and localization in the water distribution network of the University of Port Harcourt Choba campus. For the development of the three machine learning models, as well as for the training and testing of the model, the study employed the sklearn library, which is a machine learning analysis tool written in the Python programming language.

The literature shows that the studies applying machine learning models to water distribution network problems are still in the research stage. The research indicates that the combination of support vector machine, K-nearest neighbor, and artificial neural network machine learning techniques for leak detection have yet to be explored. This study contributed to closing this knowledge gap by advancing the deployment of a machine-learning model for detecting and localizing leaks in the water distribution system.

The data used in the training and testing of the models were generated using EPANET software, where uncertainty conditions for the water distribution network were also factored into simulating the network model on EPANET. The uncertainty conditions in the model development correspond to uncertainty of demand and leak noise [−4, 5]. The study showed the excellent performance of the support vector machine over K-nearest neighbor and the artificial neural network in leakage detection and localization when pressure residuals data were used. The results obtained from each model are based on a dataset generated from the EPANET software across the network nodes. The study did not cover the use of the selected machine learning models to determine the magnitude of the detected and localized leaks in the water distribution network. Future research should focus on adding fault warnings when a leak is discovered in the network, enhancing the study’s applicability. Also, in the future, researchers should consider evaluating the influence of sensor placement in a network, because the topology of the water distribution network was not considered in this analysis.
