Simulation of the VOC Adsorption Mechanism on Activated Carbon Surface by Nitrogen-Containing Functional Groups

1
School of Engineering, Ocean University of China, Qingdao 266100, China
2
Institute of Thermal Science and Technology, Shandong University, Jinan 250061, China
3
School of Materials Science and Engineering, Shandong Jianzhu University, Jinan 250101, China
4
School of Energy and Power, Shenyang Institute of Engineering, Shenyang 110136, China
*
Author to whom correspondence should be addressed.
Appl. Sci. 2024, 14(5), 1793; https://doi.org/10.3390/app14051793
Submission received: 19 October 2023 / Revised: 16 February 2024 / Accepted: 19 February 2024 / Published: 22 February 2024

Abstract

:
In this paper, the physical adsorption of volatile organic compounds (VOCs) such as methyl chloride (CH3Cl), carbon disulfide (CS2), dimethyl sulfide (C2H6S), and benzene (C6H6) by three models of activated carbon (without a functional group, with a pyridine-containing functional group, and with a pyrrole-containing functional group) was simulated. The surface electrostatic potential (ESP), physical adsorption energy, and non-covalent interaction between activated carbon and VOC molecules were analyzed based on the density functional theory (DFT). The effect mechanism of nitrogen-containing functional groups on VOC adsorption by activated carbon was determined. Our simulations showed that nitrogen-containing functional groups can change the surface ESP and polarity of activated carbon. The pyrrole functional group is conducive to CH3Cl and CS2 adsorption on the activated carbon plane, while the pyridine functional group is relatively small or even unfavorable for CH3Cl and CS2 adsorption on the activated carbon plane. The promotional effect of the pyrrole functional group on the adsorption of C2H6S is more significant than that of the pyridine functional group. The adsorption of C6H6 on activated carbon occurs through parallel-displaced π–π stacking interactions, in which functional groups have little influence on it. The adsorption energy of VOCs on the activated carbon plane is higher than that at the edge, so VOCs are more likely to be adsorbed on the activated carbon plane.

1. Introduction

Methyl chloride (CH3Cl), carbon disulfide (CS2), dimethyl sulfide (C2H6S), and benzene (C6H6) are typical volatile organic compounds (VOCs), with CH3Cl being the most abundant long-lived chlorinated organic compound in the atmosphere, accounting for 17% of the stratospheric chlorine load and having an important impact on stratospheric ozone depletion [1]. Chemical production, industrial combustion, biomass combustion, and solvent use serve as crucial sources of CH3Cl [1,2]. The rapid growth of the chemical industry, using CH3Cl as a raw material, has driven the increase in its production and consumption [3]. A range of industrial processes, such as the Klaus process, sticky fiber production, and coal and biomass gasification, release sulfur compounds like CS2. CS2 is extremely unstable under ultraviolet irradiation, and it can be oxidized to form SO2 and other substances, leading to the formation of acid fog and acid rain that pose serious environmental harm [4]. In addition, CS2 has cytotoxic effects on human systems, especially in the nervous system, cardiovascular system, and reproductive system [5,6,7,8]. In addition to the petroleum and chemical industries, notable sources of C2H6S emissions include marine activities, biomass combustion processes, landfill sites, and sewage treatment facilities. This gas has an unpleasant odor and can cause symptoms such as nausea and dizziness when inhaled in small quantities. C6H6 primarily originates from petrochemical industries, transportation sources, and indoor air pollution. It not only exhibits high toxicity but also serves as a potential precursor for the formation of PM2.5 and O3. Therefore, appropriate measures should be implemented to mitigate its emissions and pollution.
In recent years, there has been a growing scholarly focus on the study of functional materials, which have a prominent position in the realm of high-tech. With their distinctive properties and extensive advantages, these functional materials exhibit significant potential in terms of catalysis, photocatalysis, sensor design, and adsorption fields [9]. Altering the chemical compositions of material surfaces through acid-base modification [10], doping metal [11], etc., is a approach commonly used to achieve functionalization. This method substantially enhances the adsorption sites and gas molecule adsorption capabilities on the surfaces of functional materials [12]. Activated carbon materials are evolving from conventional carbon-based porous substances to high-performance and highly functional materials that find widespread application in treating industrial VOCs [13]. The mechanism driving interactions between VOCs and porous carbon materials primarily involves physical adsorption [14]. Apart from factors like the adsorption device, the concentration, pressure, humidity, surface structure, and functional group of activated carbon significantly influence its adsorption capacity. During the process of the preparation of activated carbon, non-C elements such as N, O, and H can bond with C to form surface functional groups. Among these functional groups containing nitrogen atoms are mainly pyridine and pyrrole functional groups [15,16]. Graphene is a monolayer of carbon atoms, bonded in a trigonal sp2 configuration, forming a perfectly flat structure with microscopic ripples [17]. It serves as an ideal model for investigating the adsorption properties of activated carbon. By adjusting its chemical composition and other parameters, one can simulate the adsorption and removal processes of various gas pollutants. Remarkable advancements have been achieved by utilizing graphene as an activated carbon model. Studies have demonstrated that the interaction and adsorption energy between an adsorbate and an activated carbon model can be deeply explored by constructing a monolayer graphene model embedded with functional groups, thereby revealing the molecular adsorption mechanism [18,19].
Density functional theory (DFT) is a computational method based on the principles of quantum mechanics. By describing and solving the electron density, it can predict the structure, energy and various physical and chemical properties of materials. The development of hybrid DFT, such as B3LYP [20], brought to the desktop of experimental chemists a tool that allows the calculation of fairly accurate chemical structures and properties in reasonable timeframes [21]. Due to its excellent balance between computational cost and accuracy, this method has been widely used to investigate the atomic-scale adsorption properties of activated carbon [22,23]. Furthermore, with the introduction of the DFT-D dispersion correction method [24,25], DFT has become a very suitable method for calculating all kinds of non-covalent interactions. The independent gradient model based on the Hirshfeld partition (IGMH) proposed by Lu et al. [26] is a novel method for the visual analysis of noncovalent interactions. In comparison to the more popular independent gradient model (IGM) often used in recent years [27], the IGMH approach exhibits significantly superior graphical effects and a more rigorous physical background, thus being adopted by numerous scholars [28] since its inception. Guo et al. [29] conducted an IGMH study and found that the hydrogen bonding and π–π interactions can synergize to significantly improve the adsorption by increasing the π-electron density and shortening the distance of aromatic rings; thus, dyes with H-donors show significantly better adsorption capacities. Tang et al. [30] assessed the roles of oxygen-containing functional groups in uranium adsorption by aged polystyrene microplastics through IGMH analysis, revealing that the hydrogen bond formed by oxygen-containing functional groups is major driving force in interactions between uranyl and aged polystyrene microplastics.
The primary objective of this study is to investigate the impact of nitrogen-containing functional groups on the adsorption of VOCs by activated carbon using DFT. Specifically, by analyzing electrostatic potential (ESP), adsorption energy, and non-covalent interactions, we have gained a comprehensive understanding of how pyridine and pyrrole functional groups influence the adsorption of VOCs by activated carbon. These findings can provide valuable guidance for designing and synthesizing high-quality activated carbon with enhanced VOC adsorption capabilities.

2. Models and Methods

2.1. Calculation Models

The impacts of pyridine and pyrrole functional groups on the adsorption behavior of VOCs were investigated using activated carbon models, as depicted in Figure 1a–c, where Figure 1a represents a comparison model without any functional groups, referred to as NF. The activated carbon model containing the pyridine functional group is denoted as PD in Figure 1b, while the one with the pyrrole functional group is denoted as PR in Figure 1c. Models for CH3Cl, CS2, C2H6S, and C6H6 are illustrated in Figure 1d–g, respectively. The typical bond length data for the molecular models is provided in Figure S1.

2.2. Calculation Methods

The adsorption of CH3Cl, CS2, C2H6S, and C6H6 on activated carbon was simulated using Gaussian software [31]. The B3LYP method was employed for structural optimization and wavefunction generation at the 6-311+G** [24] basis set level. To address the inadequate description of dispersion interactions using functional methods, DFT-D3 (BJ) [25] dispersion correction was incorporated into the simulation. In order to enhance computational accuracy, DFT-D3 [32] dispersion correction was performed at the M062X/jun-cc-pVTZ [33,34,35] level for single-point energy calculations after geometry optimization. The optimized wavefunctions were analyzed using Multiwfn software [36] for van der Waals (vdW) surface ESP and IGMH analysis, while isosurface plots were generated using VMD software [37]. The physical adsorption energy E A d s was defined as follows:
E A d s = E P r o ( E A C + E V O C )
where E P r o , E A C , and E V O C represent the single-point energies of the physical adsorbate, activated carbon, and small molecule VOCs (CH3Cl, CS2, C2H6S and C6H6), respectively.
In the IGMH analysis, Lu et al. proposed using δginter iso-surfaces to visualize the regions of interaction. Furthermore, they employed a color-scale bar of the sign(λ2) ρ function onto these surfaces to demonstrate both the type and strength of the interactions, as depicted in Figure 2. Here, λ2 represents the second largest eigenvalue of the electron density (ρ) Hessian matrix, and sign(λ2) represents taking a sign of λ2. The δGatom defined by Lu et al. was utilized for quantitatively measuring atomic contributions to the interactions between fragments.

3. Results and Discussion

3.1. ESP Analysis

The distribution of surface ESP in Figure 3a is relatively uniform. The ESP near to the H-atom is positive, while that above the C-atom is negative, reflecting a rich π electron cloud. Comparing Figure 3a–c, it becomes evident that the absolute value of surface ESP on the plane of the activated carbon molecule without functional groups surpasses that with a pyridine functional group and is lower compared to that with a pyrrole functional group. This disparity has implications for the adsorption behavior of VOCs on activated carbon planes. In Figure 3b, incorporating a pyridine functional group alters the ESP distribution of the activated carbon model, with negative ESP being present around the doped N-atom as an electron donor [39,40]. In Figure 3c, adding a pyrrole functional group causes an increase in ESP around the H-atom connected to the N-atom, where the highest ESP functions as an electron acceptor [39,40]. In summary, introducing nitrogen-containing groups can modify both the surface ESP distribution and molecular polarity characteristics of the activated carbons.
Figure 4a–d illustrate the surface ESP distributions of the CH3Cl, CS2, C2H6S, and C6H6 molecular models. For CH3Cl, the ESP surrounding the three H-atoms exhibits a positive charge, rendering it an electron acceptor that can be adsorbed onto activated carbon planes and around pyridine nitrogen sites. Conversely, the ESP around the Cl-atom displays a negative charge, signifying its role as an electron donor. The ESP distribution on the surface of the CS2 molecular model exhibits a relatively homogeneous pattern, characterized by small absolute values. Notably, the ESP maximums are situated at both ends and in the middle region. The presence of negative ESP surrounding the S atom in C2H6S indicates its electron-donating properties and ability to form hydrogen bonds with the H atom at the edge of the activated carbon model. Conversely, the positive ESP near the H atom in C2H6S suggests its electron-accepting characteristics and capacity to engage in hydrogen bonding with the C atom and pyridine N atom of the activated carbon model. These predictions are subsequently validated. The ESP of C6H6 is similar to that of NF in that its π-electron cloud is rich, allowing it to perform π–π stacking interactions with other benzene rings.

3.2. Physical Adsorption of CH3Cl by Activated Carbon

There are two adsorption configurations of CH3Cl on the activated carbon plane, as depicted in Figure 5a–f. The green isosurfaces in Figure 5a–c reveal that the interaction between CH3Cl and activated carbon primarily involves dispersion and hydrogen bonding, predominantly caused by the C- and H-atoms of CH3Cl. The physical adsorption energy of CH3Cl on the activated carbon plane depends on the ESP of the activated carbon plane, resulting in a physical adsorption energy order of PR plane > NF plane > PD plane, as shown in Table 1. Notably, no significant variation is observed in the physical adsorption energy among these three configurations, indicating the minimal influence of functional groups on the physical adsorption behavior of CH3Cl on the activated carbon plane.
Another adsorption configuration of CH3Cl on the activated carbon plane is depicted in Figure 5d–f. The interaction between CH3Cl and activated carbon involves dispersion forces, halogen bonds, and hydrogen bonds, primarily contributed by the C, Cl, and H atoms of CH3Cl. Table 1 shows that the promotion effect of the pyrrole functional group on CH3Cl adsorption by activated carbon is more pronounced compared to that of the pyridine functional group. Figure 5d,f reveal similar adsorption configurations and interactions of CH3Cl on the planes of NF and PR. However, due to the higher absolute value of ESP on the PR plane than that on NF plane, the interaction strength and physical adsorption energy for CH3Cl adsorbed by PR are greater than those by NF. This is supported by the electron density values at the bond critical points shown in Figure S2. Despite having a lower ESP value than NF, PD exhibits slightly higher adsorption energy for CH3Cl because its Cl atom’s adsorption site lies in the middle of the PD plane and has a larger action area.
CH3Cl selectively adsorbs onto the PD edge, primarily through vdW forces and hydrogen bonding, resulting in a relatively weak physical adsorption energy of −0.115 eV. In comparison to edge adsorption, CH3Cl demonstrates a higher affinity for the activated carbon plane.

3.3. Physical Adsorption of CS2 by Activated Carbon

The adsorption configuration of CS2 on the activated carbon plane is illustrated in Figure 6a–c. The green interface between CS2 and activated carbon represents vdW forces, which are influenced by the ESP of the activated carbon plane. Consequently, the physical adsorption energy order of CS2 on the activated carbon plane can be observed as PR plane > NF plane > PD plane, as depicted in Table 2. Compared to the results calculated by Bhattarai et al. [41], our findings indicate a higher adsorption energy of CS2 on the PD plane, i.e., −0.231 eV. This discrepancy can be attributed to our utilization of a larger activated carbon model, which effectively enhances the interaction area with CS2.
Despite numerous geometric optimizations, a physical adsorption model of CS2 on the PR edge remains elusive. Consequently, it can be inferred that the adsorption of CS2 on the PR edge is difficult. Figure 6d shows that the interaction between CS2 and NF involves a hydrogen bond formed by the S- and C-atoms of CS2 with the H-atoms of activated carbon. Similarly, in Figure 6e, interactions between CS2 and PD occur through hydrogen bonds and dipole–dipole interactions involving the S- and C-atoms of CS2 and the H- and N-atoms of activated carbon, respectively. This result validates the findings of Guo et al. that CS2 adsorption mainly stemmed from physical adsorption, and a weak reversible chemical absorption peak was observed between C- and N-atoms in the infrared spectra [42]. Notably, the physical adsorption energy and electron density (as shown in Figure S3) at PD’s edge surpass those at the NF’s edge, indicating that pyridine functional groups facilitate CS2 adsorption at activated carbon edges. Furthermore, comparing the energies of plane-to-edge adsorption reveals that CS2 exhibits a greater affinity for being adsorbed onto activated carbon planes.
The above description implies that the presence of the pyridine functional group enhances the adsorption of CH3Cl and CS2 on the activated carbon edge, whereas the pyrrole functional group contributes to their adsorption on the activated carbon plane. This finding offers a pathway for designing highly efficient activated carbon materials tailored for CH3Cl and CS2 adsorption. Research has demonstrated that melamine [40], urea-formaldehyde resin [43], nitric acid [44], and ammonia [16,45] modifications enrich activated carbon surfaces with pyridine and pyrrole functional groups. Therefore, these modification methods can be used to enhance the adsorption effectiveness of CH3Cl and CS2 on activated carbon.

3.4. Physical Adsorption of C2H6S by Activated Carbon

The adsorption configuration of C2H6S on the activated carbon plane is illustrated in Figure 7a–c. The interaction between C2H6S and the three established activated carbon models exhibits similarity, showcasing a V-shaped green isosurface that encompasses three distinct regions of interaction. Specifically, the isosurface on both sides represents the hydrogen bond and dispersion interaction formed by the H and C atoms of C2H6S with the activated carbon plane, while the isosurface in the middle corresponds to the dispersion interaction formed by the S atoms of C2H6S with the activated carbon plane. It can be easily determined by the atomic color that the S atom makes the greatest contribution to the physical adsorption. Referring to Table 3 for adsorption energy, both pyridine and pyrrole functional groups have a positive effect on the adsorption of C2H6S on the activated carbon plane, augmenting its adsorption energy by 0.024 and 0.031 eV, respectively.
The adsorption of C2H6S on the activated carbon edge exhibits a common characteristic, namely, the formation of a hydrogen bond between the S atom of C2H6S and the H atom of the activated carbon models. This interaction is illustrated as a disc-shaped isosurface in the figure. Among these interactions, the H atom connected to the N atom in PR displays the highest electrostatic potential, resulting in its strongest hydrogen bonding with the S atom. The corresponding bond critical point density reaches 0.01705 a.u., significantly surpassing that of 0.01032 and 0.01093 a.u. in NF and PD, respectively, as illustrated in Figure S4. Consequently, this leads to the PR edge having the highest adsorption energy for C2H6S, reaching −0.283 eV. In Figure 7d, a weak dispersion force is observed between the two H atoms of C2H6S and the H atom of NF, resulting in the formation of an isosurface with a small region. In Figure 7e, a larger region exhibits an isosurface formed between the two H atoms of C2H6S and the N atom of PD, indicating a stronger interaction characterized by hydrogen bonding. This leads to an increase in adsorption energy. Consequently, it can be inferred that the pyridine functional group facilitates the adsorption of C2H6S at the edge of activated carbon.
Based on Table 3 and the above analysis, it becomes evident that, comparatively speaking, the pyrrole functional group is more favorable for C2H6S adsorption than the pyridine functional group. Furthermore, it can be observed that C2H6S is more readily adsorbed onto the activated carbon plane rather than its edge.

3.5. Physical Adsorption of C6H6 by Activated Carbon

No physical adsorption configuration of C6H6 at the edge of activated carbon was observed in this study, despite multiple attempts at geometric optimization. This suggests that the adsorption of C6H6 at the edge of activated carbon is challenging to achieve.
Figure 8 illustrates the adsorption configuration of C6H6 on the activated carbon plane, revealing noticeable parallel-displaced π–π stacking interactions between C6H6 and the activated carbon models. The distances from the center of C6H6 to the marked C atom (as depicted in Figure 8) on NF, PD, and PR are 3.331a.u., 3.329a.u., and 3.371a.u., respectively. Consequently, it can be concluded that pyridine does not exert a significant influence on this distance while pyrrole functional groups lead to its increase. By comparing the electron density of the bond critical points numbered 1, 2, and 3 in Figure 8a–c, it is evident that the bond critical point formed by C6H6 and PR has the lowest electron density, while the bond critical point formed by C6H6 and PD demonstrates the highest electron density (excluding bond critical point 3 in PD). This implies that the presence of the pyridine functional group enhances the π–π stacking interaction between C6H6 and C atoms connected to the marked C atom, whereas the pyrrole functional group diminishes this interaction. Regarding bond critical point 4, the electron density follows the order of PR > NF > PD. In other words, the pyrrole functional group strengthens interactions in proximity to bond critical point 4, while the pyridine functional group weakens them. According to the adsorption energy values given in Table 4, a comprehensive assessment can be made regarding the π–π stacking interaction between C6H6 and activated carbon models. It is evident that C6H6 exhibits similar adsorption energy values on PR and NF, indicating that pyrrole functional groups have minimal impact on the adsorption of C6H6 onto the activated carbon plane. However, it is noteworthy that C6H6 demonstrates a higher adsorption energy (−0.0379 eV) on PD, surpassing its value on NF by 0.01 eV. Hence, it can be inferred that pyridine functional groups weakly enhance the adsorption process of C6H6 onto the activated carbon plane.

4. Conclusions

In this study, we investigated the mechanism for the adsorption of CH3Cl, CS2, C2H6S, and C6H6 onto activated carbon modified with pyridine and pyrrole functional groups by analyzing ESP and non-covalent interactions. The polarity of the activated carbon surface is enhanced through the incorporation of nitrogen-containing functional groups. Upon the introduction of the pyridine functional group, a negative ESP surrounds the pyridine nitrogen, leading to a decrease in the absolute ESP on the activated carbon plane. Conversely, when incorporating the pyrrole functional group, a positive ESP is observed on the hydrogen atom connected to the pyrrole nitrogen, resulting in an increase in absolute ESP on the activated carbon plane.
The physical adsorption of CH3Cl and CS2 on the activated carbon plane is influenced by the ESP of the activated carbon plane. The presence of a pyrrole functional group enhances the adsorption capacity of CH3Cl and CS2 on the activated carbon plane, whereas the pyridine functional group has limited or even unfavorable effects. The S atom in C2H6S plays a crucial role in the adsorption process by forming dispersion interactions with C atoms on the activated carbon plane and hydrogen bonds with H atoms at the edges. Both pyridine and pyrrole functional groups positively impact the adsorption of C2H6S, with pyrrole exhibiting a more significant promotion effect than pyridine. The adsorption of C6H6 onto activated carbon occurs through parallel-displaced π–π stacking interactions, where the influence of the pyrrole functional group is minimal while the pyridine functional group weakly promotes it. Moreover, it should be noted that VOCs exhibit higher adsorption energy on the activated carbon plane compared to that at its edges, indicating a greater propensity for their adsorption onto it.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/app14051793/s1, Figure S1: Molecular models of activated carbon and volatile organic compounds (VOCs): (a) NF, (b) PD, (c) PR, (d) CH3Cl, (e) CS2, (f) C2H6S, and (g) C6H6. Typical bond lengths (Å) have been marked with text; Figure S2: IGMH analysis diagram depicting the adsorption of CH3Cl on different activated carbon surfaces: (a,d) NF plane, (b,e) PD plane, (c,f) PR plane, and (g) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown. Electron density values (a.u.) at the bond critical points are indicated by texts. Figure S3: IGMH analysis diagram depicting the adsorption of CS2 on different activated carbon surfaces: (a) NF plane, (b) PD plane, (c) PR plane, (d) NF edge, and (e) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown. Electron density values (a.u.) at the bond critical points are indicated by texts. Figure S4: IGMH analysis diagram depicting the adsorption of C2H6S on different activated carbon surfaces: (a) NF plane, (b) PD plane, (c) PR plane, (d) NF edge, (e) PD edge, and (f) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown. Electron density values (a.u.) at the bond critical points are indicated by texts.

Author Contributions

Methodology, Y.Z., S.Z. and X.R.; Formal analysis, Q.S.; Investigation, S.X. and L.Y.; Resources, F.C.; Writing—original draft, Y.Z. and S.Z.; Writing—review and editing, X.R., R.W. and N.M.; Supervision, Q.S., R.W. and N.M; Funding acquisition, Y.Z.; Conceptualization, S.Z. and X.R.; Validation, S.X. and L.Y.; Software, F.C.; Project administration, Q.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financed by the Shandong Provincial Natural Science Foundation of China (Grant No. ZR2021QE293).

Data Availability Statement

Data are contained within the article.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Hu, X.; Yao, B.; Fang, X. Anthropogenic emissions of ozone-depleting substance CH3Cl during 2000–2020 in China. Environ. Pollut. 2022, 310, 119903. [Google Scholar] [CrossRef] [PubMed]
  2. Sun, J.; Xin, J.; Hu, B.; Song, T.; Wang, L.; Wu, F.; Wang, Y. The spatial-temporal distribution characteristics of atmospheric chloromethane according to data from the CARE-China network. Atmos. Environ. 2021, 260, 118484. [Google Scholar] [CrossRef]
  3. Chloromethane Market Size, Share & Trends Analysis Report by Product (Chloroform, Methylene Chloride, Methyl Chloride), by Application, by End Use (Pharma, Personal Care Products), and Segment Forecasts, 2020–2027. Grand View Research. Available online: https://www.grandviewresearch.com/industry-analysis/chloromethane-market (accessed on 23 November 2023).
  4. Logan, J.A.; McElroy, M.B.; Wofsy, S.C.; Prather, M.J. Oxidation of CS2 and COS: Sources for atmospheric SO2. Nature 1979, 281, 185–188. [Google Scholar] [CrossRef]
  5. Beauchamp, R.O.; Bus, J.S.; Popp, J.A.; Boreiko, C.J.; Goldberg, L.; McKenna, M.J. A critical review of the literature on carbon disulfide toxicity. CRC Crit. Rev. Toxicol. 1983, 11, 169–278. [Google Scholar] [CrossRef] [PubMed]
  6. Gelbke, H.P.; Göen, T.; Mäurer, M.; Sulsky, S.I. A review of health effects of carbon disulfide in viscose industry and a proposal for an occupational exposure limit. Crit. Rev. Toxicol. 2009, 39, 1–126. [Google Scholar] [CrossRef]
  7. Sieja, K.; Mach-Szczypiński, J.V. Health effect of chronic exposure to carbon disulfide (CS2) on women employed in viscose industry. Med. Pr. 2018, 69, 329–335. [Google Scholar] [CrossRef]
  8. Bortnikova, S.B.; Devyatova, A.Y.; Yurkevich, N.V.; Grakhova, S.P.; Ogudov, A.S.; Zubtsovskaya, N.A.; Edelev, A.V.; Volynkin, S.S. Gas anomalies in the air above the sulfide tailings and adjacent soils in Komsomolsk Settlement (Kemerovo Region, Russia). Water Air Soil Pollut. 2021, 232, 412. [Google Scholar] [CrossRef]
  9. Murrieta-Rico, F.N.; Antúnez-García, J.; Yocupicio-Gaxiola, R.I.; Galván, D.H.; González, J.C.; Petranovskii, V. Zeolites as initial structures for the preparation of functional materials. J. Appl. Res. Technol. 2022, 20, 92–116. [Google Scholar] [CrossRef]
  10. Bhatnagar, A.; Hogland, W.; Marques, M.; Sillanpää, M. An overview of the modification methods of activated carbon for its water treatment applications. Chem. Eng. J. 2013, 219, 499–511. [Google Scholar] [CrossRef]
  11. Lu, Y.; Cai, Y.; Zhang, S.; Zhuang, L.; Hu, B.; Wang, S.; Chen, J.; Wang, X. Application of biochar-based photocatalysts for adsorption-(photo)degradation/reduction of environmental contaminants: Mechanism, challenges and perspective. Biochar 2022, 4, 45. [Google Scholar] [CrossRef]
  12. Goel, N.; Kunal, K.; Kushwaha, A.; Kumar, M. Metal oxide semiconductors for gas sensing. Eng. Rep. 2023, 5, e12604. [Google Scholar] [CrossRef]
  13. Hong, Y.; Jin, H.-J.; Kwak, H.W. Nitrogen-rich magnetic bio-activated carbon from sericin: A fast removable and easily separable superadsorbent for anionic dye removal. Macromol. Res. 2020, 28, 986–996. [Google Scholar] [CrossRef]
  14. Zhu, Z.W.; Zheng, Q.R. Methane adsorption on the graphene sheets, activated carbon and carbon black. Appl. Therm. Eng. 2016, 108, 605–613. [Google Scholar] [CrossRef]
  15. Liu, X. The Effect of Surface Structure of Carbon Materials Surface on SO2 Adsorption and Oxidation: A DFT Calculation Study; Harbin Institute of Technology: Harbin, China, 2017. [Google Scholar]
  16. Wang, L.; Sha, L.; Zhang, S.; Cao, F.; Ren, X.; Levendis, Y.A. Preparation of activated coke by carbonization, activation, ammonization and thermal treatment of sewage sludge and waste biomass for SO2 absorption applications. Fuel Process. Technol. 2022, 231, 107233. [Google Scholar] [CrossRef]
  17. Kiranakumar, H.V.; Thejas, R.; Naveen, C.S.; Khan, M.I.; Prasanna, G.D.; Reddy, S.; Oreijah, M.; Guedri, K.; Bafakeeh, O.T.; Jameel, M. A review on electrical and gas-sensing properties of reduced graphene oxide-metal oxide nanocomposites. Biomass Convers. Bior. 2022. [Google Scholar] [CrossRef]
  18. Zhou, K.; Ma, W.; Zeng, Z.; Ma, X.; Xu, X.; Guo, Y.; Li, H.; Li, L. Experimental and DFT study on the adsorption of VOCs on activated carbon/metal oxides composites. Chem. Eng. J. 2019, 372, 1122–1133. [Google Scholar] [CrossRef]
  19. Wei, M.; Marrakchi, F.; Yuan, C.; Cheng, X.; Jiang, D.; Zafar, F.F.; Fu, Y.; Wang, S. Adsorption modeling, thermodynamics, and DFT simulation of tetracycline onto mesoporous and high-surface-area NaOH-activated macroalgae carbon. J. Hazard. Mater. 2022, 425, 127887. [Google Scholar] [CrossRef]
  20. Stephens, P.J.; Devlin, F.J.; Chabalowski, C.F.; Frisch, M.J. Ab initio calculation of vibrational absorption and circular dichroism spectra using density functional force fields. J. Phys. Chem. 1994, 98, 11623–11627. [Google Scholar] [CrossRef]
  21. Johnson, E.R.; Mackie, I.D.; DiLabio, G.A. Dispersion interactions in density-functional theory. J. Phys. Org. Chem. 2009, 22, 1127–1135. [Google Scholar] [CrossRef]
  22. Gao, H.; Wang, S.; Hao, M.; Shao, W.; Zhang, S.; Zhang, L.; Ren, X. CO2 adsorption performance of activated coke prepared from biomass and coal. Energies 2023, 16, 3872. [Google Scholar] [CrossRef]
  23. Zhang, L.; Zhang, S.; Xu, S.; Ren, X.; Zhang, Y.; Cao, F.; Sun, Q.; Wennersten, R.; Yang, L. The effect of nitrogen- and oxygen-containing functional groups on C2H6/SO2/NO adsorption: A density functional theory study. Energies 2023, 16, 7537. [Google Scholar] [CrossRef]
  24. Krishnan, R.; Binkley, J.S.; Seeger, R.; Pople, J.A. Self-consistent molecular orbital methods. XX. A basis set for correlated wave functions. J. Chem. Phys. 1980, 72, 650–654. [Google Scholar] [CrossRef]
  25. Grimme, S.; Ehrlich, S.; Goerigk, L. Effect of the damping function in dispersion corrected density functional theory. J. Comput. Chem. 2011, 32, 1456–1465. [Google Scholar] [CrossRef]
  26. Lu, T.; Chen, Q. Independent gradient model based on Hirshfeld partition: A new method for visual study of interactions in chemical systems. J. Comput. Chem. 2022, 43, 539–555. [Google Scholar] [CrossRef] [PubMed]
  27. Lefebvre, C.; Rubez, G.; Khartabil, H.; Boisson, J.-C.; Contreras-García, J.; Hénon, E. Accurately extracting the signature of intermolecular interactions present in the NCI plot of the reduced density gradient versus electron density. Phys. Chem. Chem. Phys. 2017, 19, 17928–17936. [Google Scholar] [CrossRef]
  28. Zhang, S.; Chen, Q.; Hao, M.; Zhang, Y.; Ren, X.; Cao, F.; Zhang, L.; Sun, Q.; Wennersten, R. Effect of functional groups on VOCs adsorption by activated carbon: DFT study. Surf. Sci. 2023, 736, 122352. [Google Scholar] [CrossRef]
  29. Guo, S.; Zou, Z.; Chen, Y.; Long, X.; Liu, M.; Li, X.; Tan, J.; Chen, R. Synergistic effect of hydrogen bonding and π-π interaction for enhanced adsorption of rhodamine B from water using corn straw biochar. Environ. Pollut. 2023, 320, 121060. [Google Scholar] [CrossRef] [PubMed]
  30. Tang, Z.; Zhu, F.; Jiang, T.; Wei, F.; Gao, Y.; Xiang, C.; Duan, Y.; Hua, Y.; Zhou, S.; Wang, Y. Oxygen-containing functional groups enhance uranium adsorption by aged polystyrene microplastics: Experimental and theoretical perspectives. Chem. Eng. J. 2023, 465, 142730. [Google Scholar] [CrossRef]
  31. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.; Cheeseman, J.R.; Scalmani, G.; Barone, V.P.G.A.; Petersson, G.A.; Nakatsuji, H.J.R.A.; et al. Gaussian; Gaussian, Inc.: Wallingford, CT, USA, 2016. [Google Scholar]
  32. Grimme, S.; Antony, J.; Ehrlich, S.; Krieg, H. A consistent and accurate ab initio parametrization of density functional dispersion correction (DFT-D) for the 94 elements H-Pu. J. Chem. Phys. 2010, 132, 154104. [Google Scholar] [CrossRef] [PubMed]
  33. Zhao, Y.; Truhlar, D.G. The M06 suite of density functionals for main group thermochemistry, thermochemical kinetics, noncovalent interactions, excited states, and transition elements: Two new functionals and systematic testing of four M06-class functionals and 12 other functionals. Theor. Chem. Account. 2008, 120, 215–241. [Google Scholar] [CrossRef]
  34. Kendall, R.A.; Dunning, T.H., Jr.; Harrison, R.J. Electron affinities of the first-row atoms revisited. Systematic basis sets and wave functions. J. Chem. Phys. 1992, 96, 6796–6806. [Google Scholar] [CrossRef]
  35. Papajak, E.; Zheng, J.; Xu, X.; Leverentz, H.R.; Truhlar, D.G. Perspectives on basis sets beautiful: Seasonal plantings of diffuse basis functions. J. Chem. Theory Comput. 2011, 7, 3027–3034. [Google Scholar] [CrossRef]
  36. Lu, T.; Chen, F. Multiwfn: A multifunctional wavefunction analyzer. J. Comput. Chem. 2012, 33, 580–592. [Google Scholar] [CrossRef]
  37. Humphrey, W.; Dalke, A.; Schulten, K. VMD: Visual molecular dynamics. J. Mol. Graph. 1996, 14, 33–38. [Google Scholar] [CrossRef]
  38. Lu, T. Multiwfn_3.8_dev.pdf. Beijing Kein Research Center for Natural Sciences. Available online: http://sobereva.com/multiwfn/ (accessed on 23 November 2023).
  39. Qu, Z.; Sun, F.; Liu, X.; Gao, J.; Qie, Z.; Zhao, G. The effect of nitrogen-containing functional groups on SO2 adsorption on carbon surface: Enhanced physical adsorption interactions. Surf. Sci. 2018, 677, 78–82. [Google Scholar] [CrossRef]
  40. Zhu, X.; Zhang, L.; Zhang, M.; Ma, C. Effect of N-doping on NO2 adsorption and reduction over activated carbon: An experimental and computational study. Fuel 2019, 258, 116109. [Google Scholar] [CrossRef]
  41. Bhattarai, S.; Sutradhar, D.; Chandra, A.K.; Zeegers-Huyskens, T. A theoretical investigation of the interaction between substituted pyridines and CS2. Versatility of the CS2 molecule. J. Mol. Struct. 2020, 1202, 127309. [Google Scholar] [CrossRef]
  42. Guo, B.; Li, C.; Xie, K. Ftir study on behavior of adsorbing CS2 by activated carbon. Coal Convers. 2004, 27, 54–57. [Google Scholar]
  43. Chen, J.; Zhai, Y.; Chen, H.; Li, C.; Zeng, G.; Pang, D.; Lu, P. Effects of pretreatment on the surface chemistry and pore size properties of nitrogen functionalized and alkylated granular activated carbon. Appl. Surf. Sci. 2012, 263, 247–253. [Google Scholar] [CrossRef]
  44. Chen, Q.; Zheng, J.; Zheng, L.; Dang, Z.; Zhang, L. Classical theory and electron-scale view of exceptional Cd(II) adsorption onto mesoporous cellulose biochar via experimental analysis coupled with DFT calculations. Chem. Eng. J. 2018, 350, 1000–1009. [Google Scholar] [CrossRef]
  45. Zhai, Y.; Pang, D.; Chen, H.; Xiang, B.; Chen, J.; Li, C.; Zeng, G.; Qiu, L. Effects of ammonization on the surface physico-chemical properties of sludge-based activated carbon. Appl. Surf. Sci. 2013, 280, 590–597. [Google Scholar] [CrossRef]

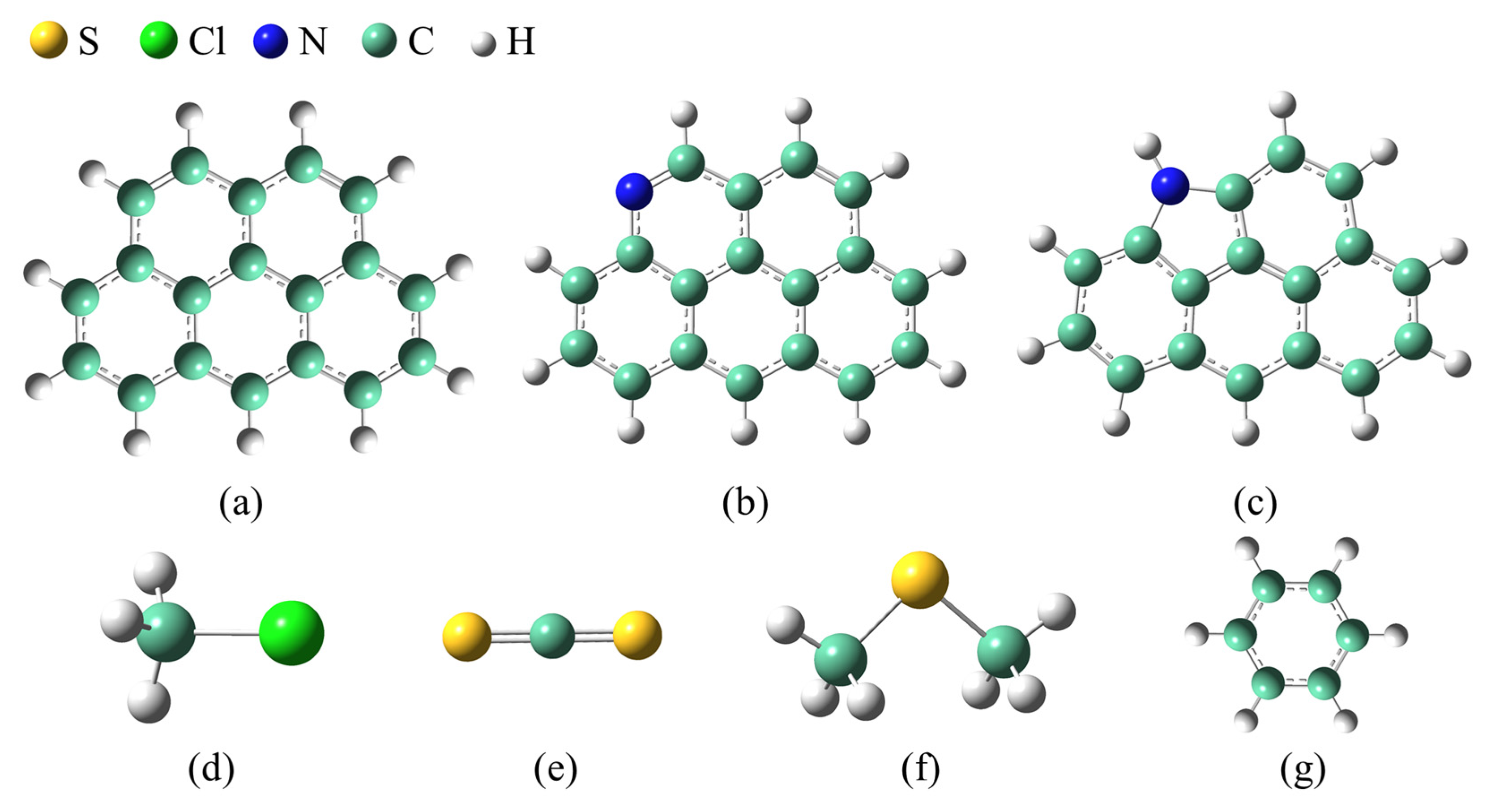

Figure 1. Molecular models of activated carbon and volatile organic compounds (VOCs): (a) NF, (b) PD, (c) PR, (d) methyl chloride (CH3Cl), (e) carbon disulfide (CS2), (f) dimethyl sulfide (C2H6S), and (g) benzene (C6H6). NF is a comparative model devoid of any functional groups, while PD and PR denote activated carbon models featuring the pyridine and pyrrole functional groups, respectively.
Figure 1. Molecular models of activated carbon and volatile organic compounds (VOCs): (a) NF, (b) PD, (c) PR, (d) methyl chloride (CH3Cl), (e) carbon disulfide (CS2), (f) dimethyl sulfide (C2H6S), and (g) benzene (C6H6). NF is a comparative model devoid of any functional groups, while PD and PR denote activated carbon models featuring the pyridine and pyrrole functional groups, respectively.
Applsci 14 01793 g001

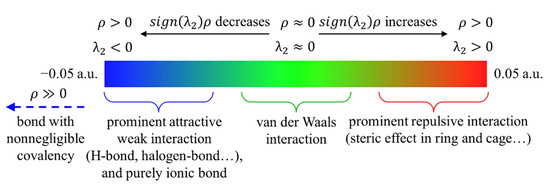

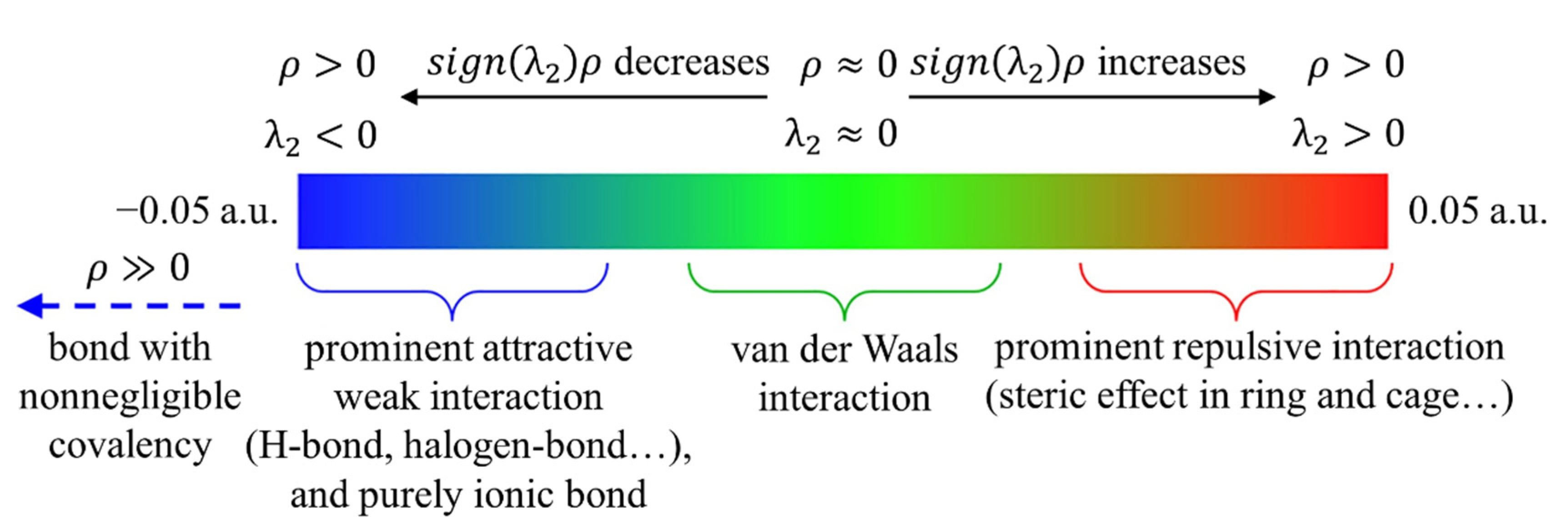

Figure 2. Common interpretation of coloring method of mapped function sign(λ2)ρ in the independent gradient model based on the Hirshfeld partition (IGMH) maps [38].
Figure 2. Common interpretation of coloring method of mapped function sign(λ2)ρ in the independent gradient model based on the Hirshfeld partition (IGMH) maps [38].
Applsci 14 01793 g002

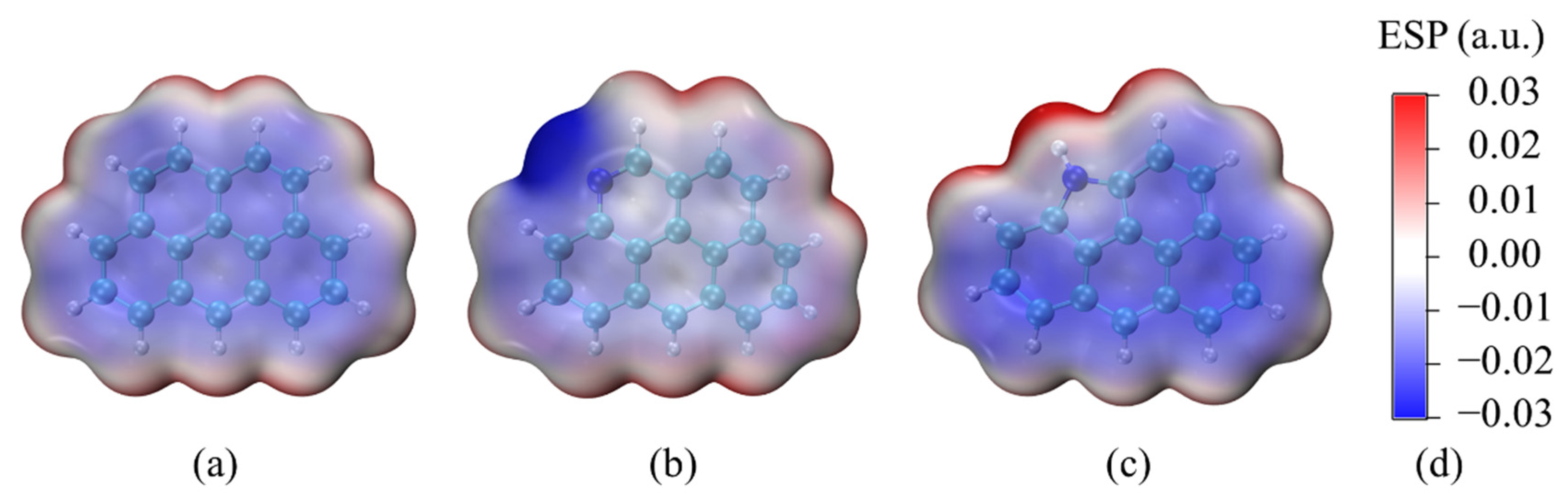

Figure 3. The surface electrostatic potential (ESP) of activated carbon models on the van der Waals (vdW) surface: (a) NF, (b) PD, (c) PR, and (d) a color scale bar.
Figure 3. The surface electrostatic potential (ESP) of activated carbon models on the van der Waals (vdW) surface: (a) NF, (b) PD, (c) PR, and (d) a color scale bar.
Applsci 14 01793 g003

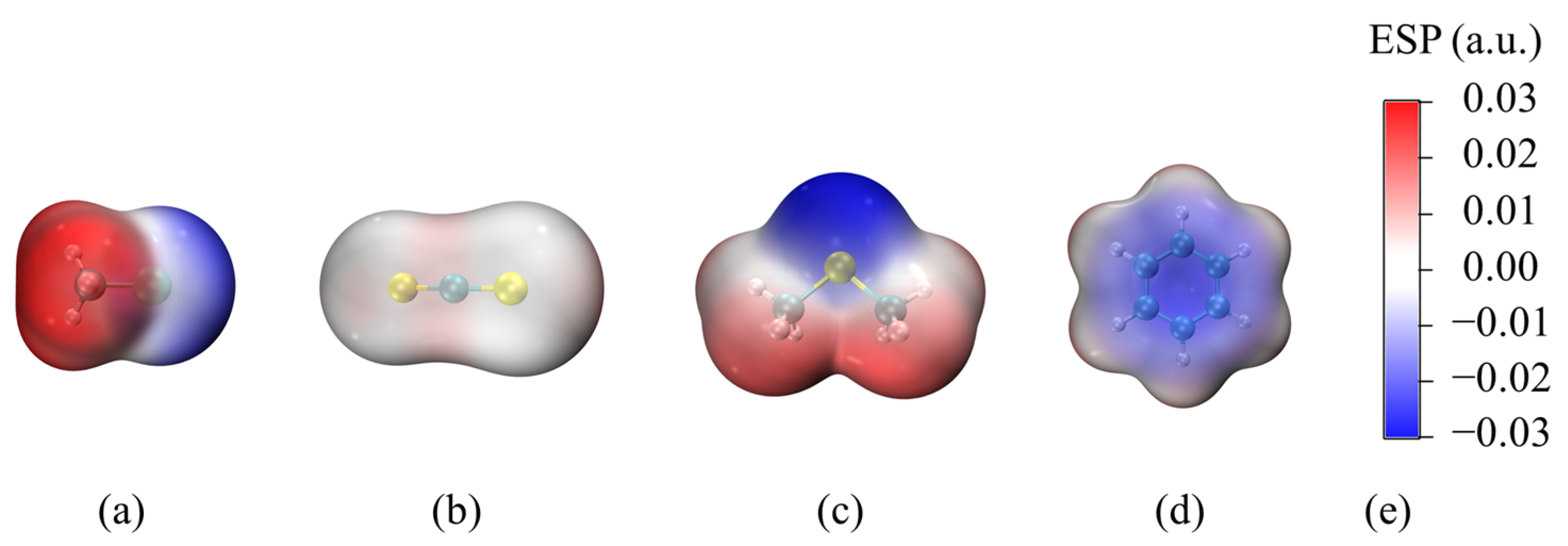

Figure 4. The surface ESP of VOCs on the vdW surface: (a) CH3Cl, (b) CS2, (c) C2H6S, (d) C6H6, and (e) a color scale bar.
Figure 4. The surface ESP of VOCs on the vdW surface: (a) CH3Cl, (b) CS2, (c) C2H6S, (d) C6H6, and (e) a color scale bar.
Applsci 14 01793 g004

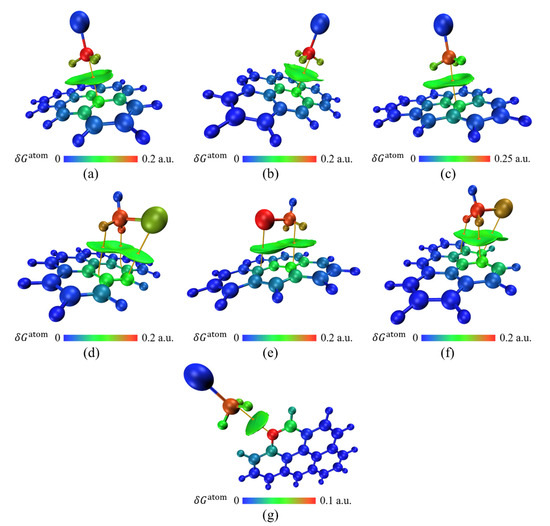

Figure 5. IGMH analysis diagram depicting the adsorption of CH3Cl on different activated carbon surfaces: (a,d) NF plane, (b,e) PD plane, (c,f) PR plane, and (g) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown.
Figure 5. IGMH analysis diagram depicting the adsorption of CH3Cl on different activated carbon surfaces: (a,d) NF plane, (b,e) PD plane, (c,f) PR plane, and (g) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown.
Applsci 14 01793 g005

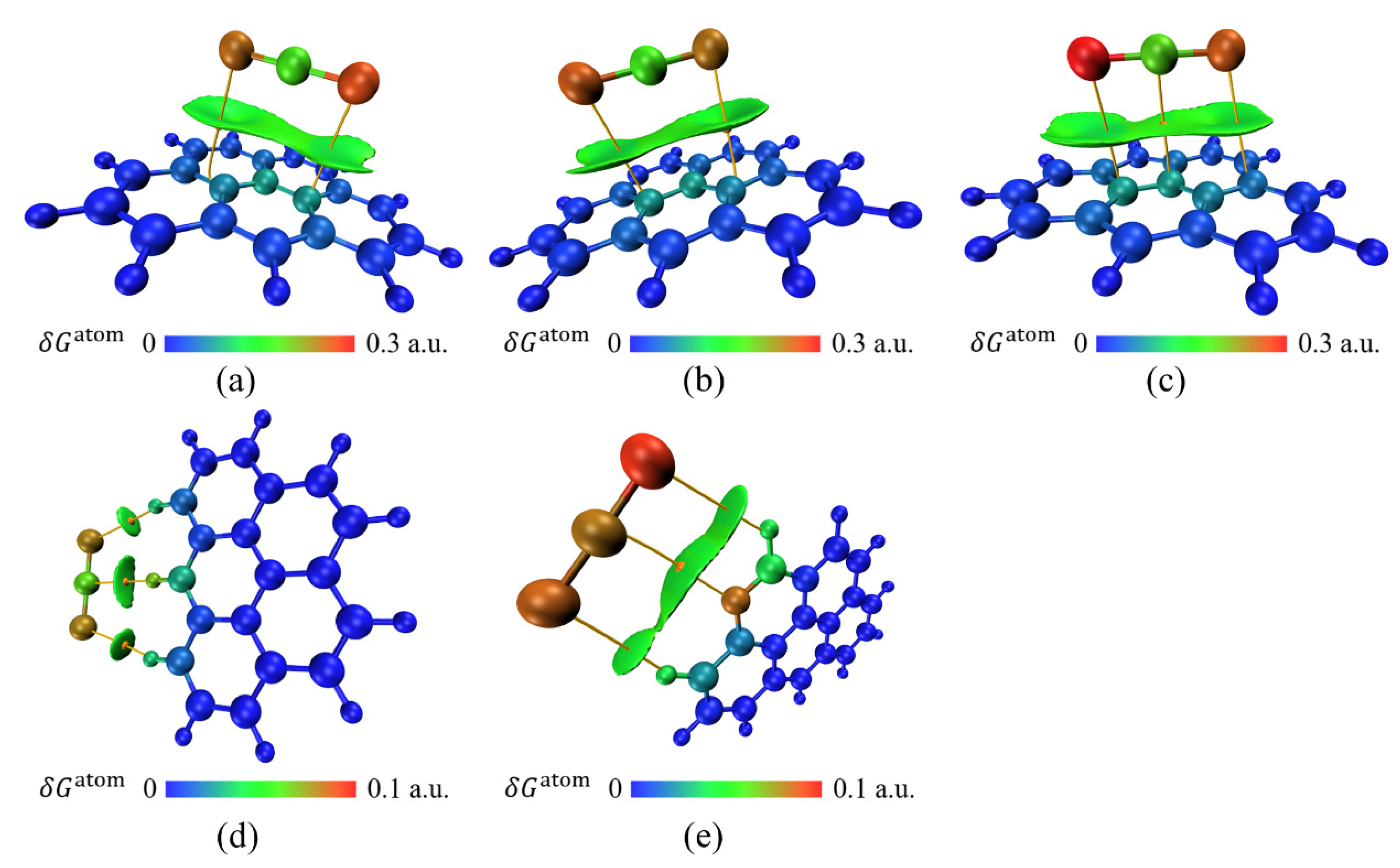

Figure 6. IGMH analysis diagram depicting the adsorption of CS2 on different activated carbon surfaces: (a) NF plane, (b) PD plane, (c) PR plane, (d) NF edge, and (e) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown.
Figure 6. IGMH analysis diagram depicting the adsorption of CS2 on different activated carbon surfaces: (a) NF plane, (b) PD plane, (c) PR plane, (d) NF edge, and (e) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown.
Applsci 14 01793 g006

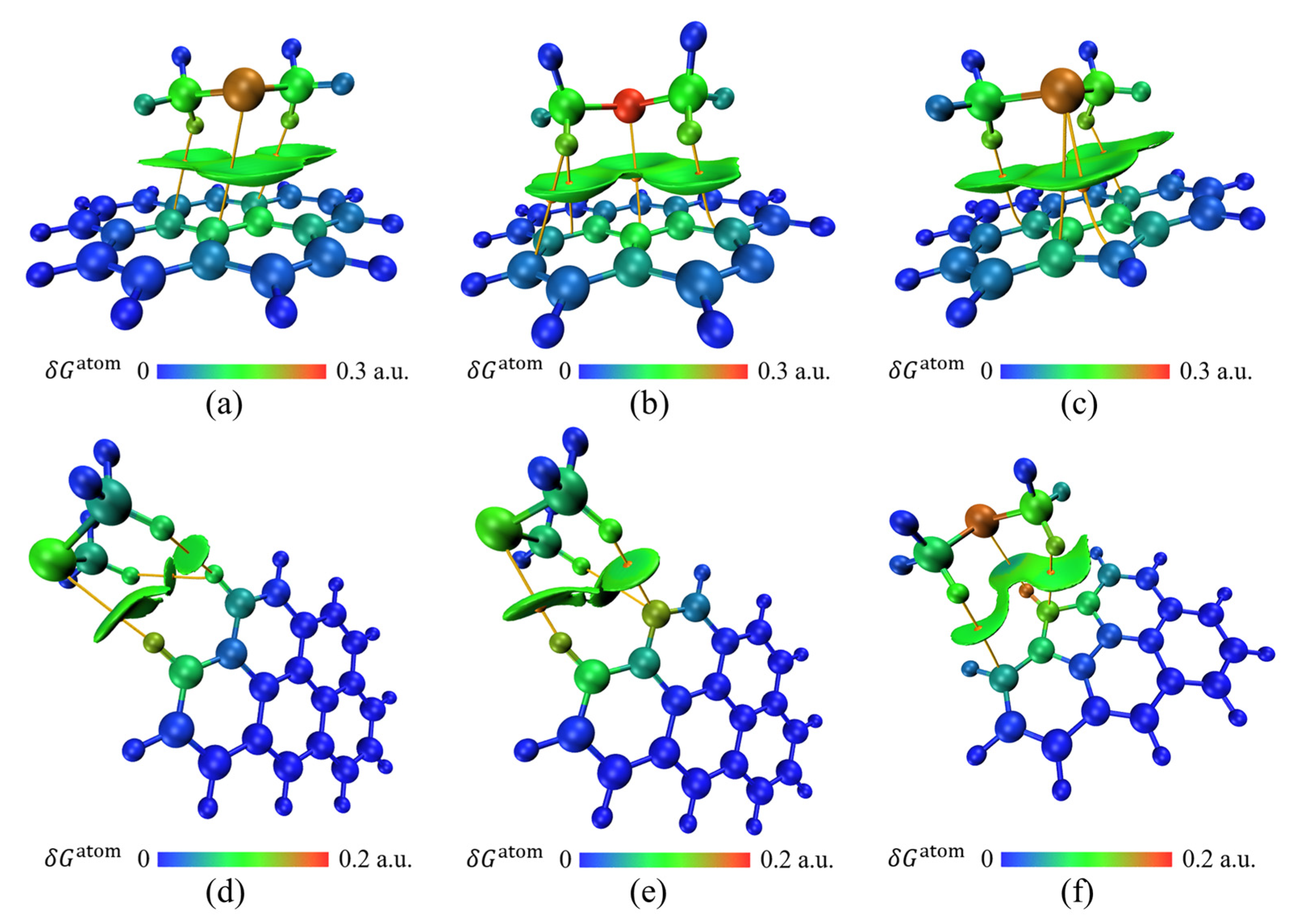

Figure 7. IGMH analysis diagram depicting the adsorption of C2H6S on different activated carbon surfaces: (a) NF plane, (b) PD plane, (c) PR plane, (d) NF edge, (e) PD edge, and (f) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown.
Figure 7. IGMH analysis diagram depicting the adsorption of C2H6S on different activated carbon surfaces: (a) NF plane, (b) PD plane, (c) PR plane, (d) NF edge, (e) PD edge, and (f) PD edge. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown.
Applsci 14 01793 g007

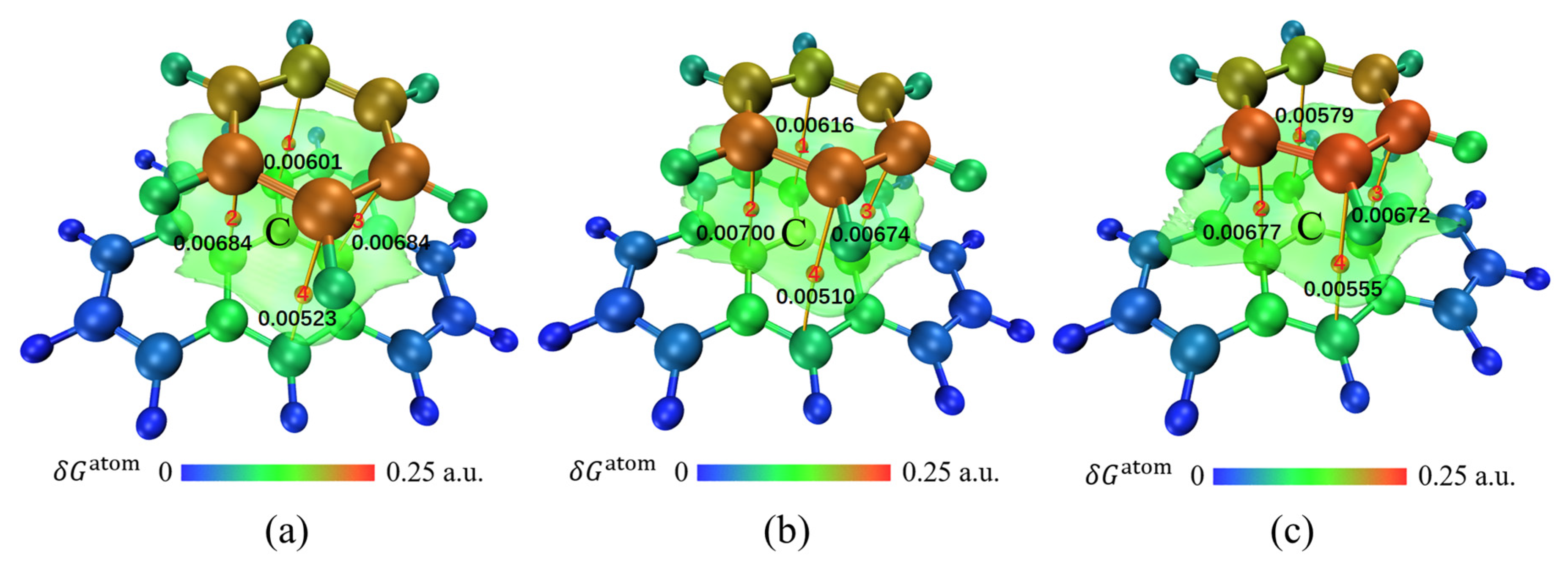

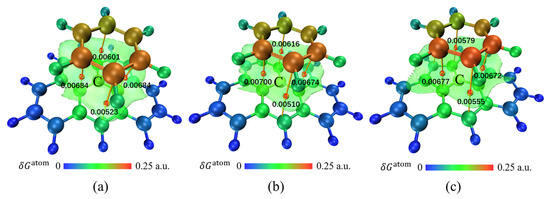

Figure 8. IGMH analysis diagram depicting the adsorption of C6H6 on different activated carbon surfaces: (a) NF plane, (b) PD plane, and (c) PR plane. Atoms are colored by δGatom. Bond critical points (orange spheres) and bond paths (brown lines) are also shown. Parts of bond critical points are labeled in red, while the electron density at these points is depicted in black.
