Numerical and Analytical Determination of the Critical Wind Speed Causing the Overturning of the Top-Slewing Tower Crane

Featured Application

The results of the current study can be applied to make the use of tower cranes safer due to the wind load.

Abstract

The current study is devoted to the problem of the stability of the top-slewing tower cranes concerning the wind. A sufficiently strong wind can cause the overturning of the whole crane. The critical wind speed varies significantly depending on the geometrical configuration of the crane with respect to the wind direction. At the very beginning, the aerodynamic forces are estimated using CFD simulations. Next, the obtained results are compared with the applicable standards. The critical wind speeds and corresponding jib rotation angles are determined for the following two selected crane configuration variants: crane without payload and crane with maximal payload located at the end of the jib. It occurred that the critical wind speed varies between 35 m/s and 53 m/s depending on the assumed variant. Moreover, the trace of the gravity center is also determined to validate the obtained results.

1. Introduction

The current study continues our efforts to estimate the critical wind speed causing the overturning of the tower cranes of a different kind. In the first one [1], the sectional models of the tower and jib lattice were experimentally studied in the aerodynamic tunnel to determine the magnitude of the aerodynamic forces, mainly the drag component, acting on the structure. Next, the CFD simulations were carried out. The detailed description of the assumptions and the simulations performed are further discussed in Section 2.2. As in our previous studies, we have assumed the steady-state airflow around the investigated crane. We do not analyze the dynamic response of the structure subjected to gusts of wind. Our aim is to determine the critical wind speed of a sufficiently long duration wind that will cause the whole structure to overturn. The results obtained reveal good agreement. The obtained results were adopted to evaluate the critical wind speed causing the overturning of the bottom-slewing crane [2] (fast-erecting 63 K crane by Liebherr, Germany) in a different configuration. The results (wind speed) were confronted with the different codes and standards. In the current study, the proposed method is applied in the case of a quite different structure, namely, a top-slewing tower crane. First, this kind of crane is much bigger than the bottom-slewing one, which was previously investigated. Moreover, in the case of the top-slewing crane, the tower does not rotate during the work. Thus, the generated aerodynamic drag forces are slightly different than in the previous case.

One of the most dangerous and devastating catastrophes connected with tower cranes is their overturning. Such a catastrophe can be caused by different reasons, for example, a faulty foundation or exceeding the permissible weight of the payload. However, due to rapid changes in weather conditions, namely, increasing wind speed and, in consequence, its gusts, the problem of the tower cranes overturning becomes critical. Such a catastrophe took place in Cracow (Poland) on 17 February 2022 [3]. According to the weather forecast, the expected wind speed did not exceed 90 km/h that day [4,5]. However, locally, the wind or even a small tornado was much stronger, and its influence was limited. This is another reason why the wind phenomenon in a natural environment should be treated as very complex. The character of the wind is dynamic, accompanied by, for example, a sudden change in direction, turbulence, and strong gusts. The sudden gusts of wind are especially dangerous because they can be over twice as strong as the mean wind speed. It is estimated that the shortest gust measurable in the field by standard cup anemometers would be about 1 s in duration [6]. However, in different codes and standards, the wind load acting on the external surface of the structures is treated as static [7,8,9,10,11,12], because the longer gusts act as if static, shorter gusts are attenuated, and gusts of equal duration are amplified.

The periodically repeated gusts of wind induce the vibrations of the slender lattice structures, like tower cranes of different sizes and shapes. It can lead to the fatigue failure of the high-tension parts of the crane structure, which possess very low damping properties [13]. Moreover, wind excitation has a rather random character (except for vortex shedding); thus, the analysis of such a phenomenon is rather difficult [14]. Jiang and Li [15] applied the finite element method and a linear autoregressive model to simulate the time history of multidimensional fluctuating wind samples. In the case of tower cranes, it is recommended to stop the work when the wind speed is equal to 20 m/s. Next, Chen et al. [16] show that the most dangerous position of the horizontal jib of the tower crane differs from the strictly perpendicular position concerning the wind direction. The so-called galloping vibration of the crane devices, induced by wind, can cause the overturning of the whole structure. Thus, Oliveira and Correia [17], after an appropriate analysis using the finite element method, designed an advanced active vibration-damping system. This system should protect the crane from overturning. Oliveira and Correia [18] studied the dynamic response of two different tower cranes caused by seismic and wind excitation. It is worth stressing here that quite different problems are concerned with the tower cranes, which are externally attached (the tower crane is attached externally on the wall of the building) during the construction process of the tall and super-tall buildings [19,20]. Finally, Ghazwani et al. [21] propose an advanced technique for increasing the stability of the tower crane during cyclones through modal analysis. They use the finite element method. For this, modal analysis of a jib, mast, and tower crane is performed individually to minimize the tuning effect of natural frequency.

A quite different problem caused by the strong wind is the possibility of overturning the crane device. Such an accident is mentioned at the beginning of this section. It is a particularly dangerous situation because of the possibility of fatalities and/or significant material losses. It should be noted here that the papers concerning such problems are rather rare. Here, the following studies can be quoted, namely: overturning of the gantry container crane with payload [22], overturning of the gantry cranes [23,24,25,26], overturning of the scissor lift [27], or tower cranes [28].

To summarize the above brief survey of the literature, it is worth quoting several papers concerning the problem of the interference effect between tower cranes and surrounding buildings. Chen et al. [29] perform CFD analysis of the interference effect between a single building and the QTZ125 tower crane. They studied different locations of the crane relative to the building and different wind directions. The turbulent flow of the air is modeled using the k-ε estimation. Voisin et al. [30] carried out the test of the 1/80 scaled model of the Potain MD238 in a boundary layer aerodynamic tunnel. Two environmental conditions (with and without an upwind surrounding the building) are tested to analyze the wind field’s influence on the tower crane’s behavior. Overturning moments at the base crane level are identified and evaluated. It is observed that inertial and centrifugal moments are much smaller in comparison to gravity and wind moments. Next, Chen et al. [31] carried out a numerical simulation using CFD to study the mean force and moment coefficients of an in-service tower crane at five different locations concerning the building under construction. A single, unattached tower crane was taken as the reference counterpart. Wang et al. [32] perform the buffeting analysis of the tower crane, which is attached to the Ma’anshan Yangtze River bridge in China pylon. The structural buffeting calculation is carried out in the modal space and the frequency domain. This analysis includes aerodynamic damping and stiffness effects due to structural movement or vibration induced by the wind. The aerodynamic characteristic of the tower crane, which is outer-attached to the bridge pylon with variable cross-sections, is usually complex, making it hard for accurate buffeting comfort assessment of cranes. An architecture of buffeting analysis of tower cranes is proposed by modifying Davenport quasi-steady buffeting forces for cranes, considering the variation in aerodynamic sections of pylon-crane systems.

The interference effect is present not only in the case of buildings but also between other structures that are exposed to the wind. Here, studies concerning interference effects between different antennas [33,34,35], scaffoldings [36], or large cooling towers [37,38] can be quoted.

In this study, we examine the influence of the wind on the relatively large top-slewing tower crane. The investigated model of the top-slewing tower crane is based on the 71 EC-B5 crane by Liebherr. We intend to determine the most dangerous crane configuration (with payload and without) and the critical wind speed causing the overturning of the whole structure. To solve the problem, we will apply the previously obtained results. The CFD simulations will be carried out of the studied structure on a real scale for different wind profiles.

2. Materials and Methods

2.1. Object of Analysis

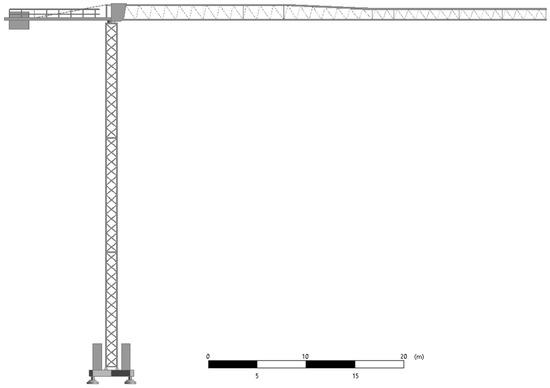

The model of crane geometry is based on the top-slewing 71 EC-B5 crane by Liebherr, Rostock, Germany. The investigated model of the crane is shown in Figure 1.

The total height of the crane is equal to H_crane = 38.805 m, and the operating range of the jib is equal to L_jib = 50 m. The following configuration of the studied crane is assumed. The crane’s base is a 3.8 × 3.8 m crossbeam loaded with a central ballast of 60 tons, while the counterweight ballast is 9.75 tons. The crane jib consists of 7 lattice parts. The structure of the jib is shown in Figure 2. In such a configuration, the total capacity of the crane is equal to 4 tons at a distance of 20 m from the tower and 1 ton at the end of the jib. The investigated tower crane should be treated only as an example of this structure. Moreover, it does not correspond to the crane that had an accident in Cracow [3]. Thus, the current study is not an expert opinion or any expertise.

The following geometrical configuration of the studied tower crane is assumed: 3 parts of the tower (T) of length 11.7 m, the counter jib of length 10.94 m, the slewing platform (S) of length 2.43 m, and the following parts of the jib: one part (1) 9.85 m, two parts (2) of 5 m, one part (3) of 10 m, one part (4) of 2.5 m, one part (5) of 7.5 m, one part (6) of 5 m, one part (7) of 10 m, and finally one part (8) of length 0.58 m. The height of the cruciform base (K) is equal to 1.4 m (Figure 2).

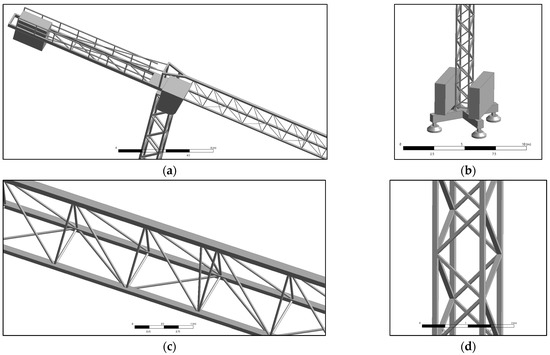

The simplified model of the crane geometry was created with the use of the ANSYS Workbench 2022R2 module New Design Modeler. The geometry is simplified in such a manner so that further generation of the finite element mesh is effective or even possible. The simplifications are as follows. There are omitted ropes, hooks, crane jib rotation mechanisms, and a ladder inside the tower, enabling access to the operator’s cabin. The shapes of the particular parts of the lattices, like beams, rods, and bars, are also simplified. The wider and narrower parts of the crane tower truss are connected directly. These parts do not overlap each other like in the case of a real structure. The dimensions of the transverse sections of some elements of the trusses are slightly changed to avoid problems and errors during automatic mesh generation. The detailed view of details of the simplified geometry of the studied crane is shown in Figure 3a–d.

2.2. Numerical Simulation

All CFD simulations are performed using the commercial package ANSYS Fluent R22. Today, we have two main software packages that allow us to carry out airflow simulations, namely, ANSYS FLUENT R22 and OpenFOAM v12. The first is commercial software that is generally easy to use and allows a wide range of different simulations to be carried out. The ANSYS FLUENT R22 has several different models of turbulent flow, namely, k-ω, k-ε, Reynolds stress tensor, large Eddy simulation, etc. However, considering the problem studied here, the adoption of the k-ε model seems to be the most reasonable. As mentioned in the introduction, we have assumed the mean steady-state airflow. This means that we also assumed the averaged description of the turbulence. This approach has been tested experimentally (for different turbulence magnitudes) in the case of our previous studies on scissor lifts [27], sectional models of gantry cranes [26], and fast-erecting cranes [1]. We obtained a very good agreement between experimental and numerical results using the k-ε model. However, we must bear in mind that it is a simplified model of the real, very complex phenomenon, such as the wind. As mentioned above, the geometry of the crane is created in the Design Modeler module, and the tetrahedral mesh is generated in the Workbench’s module called “mesh”. The numerical simulations are performed for different geometrical configurations and three wind profiles as follows: open, village, and urban terrain.

2.2.1. Domain and Boundary Conditions

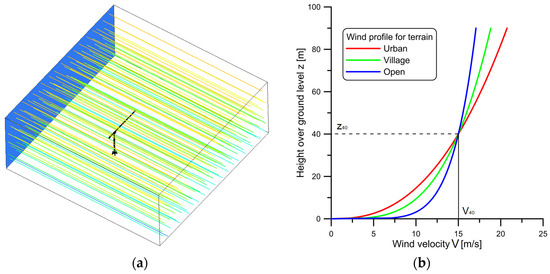

As is shown in Figure 4a, the investigated tower crane is inside the cuboid filled with air. The geometrical dimensions of the cuboid are as follows: 230 m × 230 m and H = 90 m. Such dimensions are sufficiently large to avoid the impact of the boundary conditions on the results, meaning the aerodynamic forces and moments acting on the crane. One of the vertical walls of the cuboid plays the role of the inlet, and the opposite one is considered a pressure outlet. The airstream, which goes through the inlet, and the wind are formed according to the following power laws [7], namely:

$$V\left(z\right)=V_{40}{\left({\displaystyle \frac{z}{z_{40}}}\right)}^{\alpha },$$

(1)

where V₄₀ is wind speed measured at height z₄₀. The value of the V₄₀ = 15 m/s at height z₄₀ = 40 m in all performed simulations is assumed. Exponent α depends on the terrain, namely, 0.16, 0.28, and 0.4 for open, village, and urban terrain, respectively. The applied wind profiles as a function of space coordinate z are depicted in Figure 4b. The wind profiles are prescribed using an appropriate user-defined function (UDF). The intensity of the turbulence is assumed to be equal to 9% with the arbitrarily chosen length scale L_turb = 3.5 m.

The reference values of the wind speed, necessary for aerodynamic force and moment coefficient computations, are determined according to the following expression:

$$V_{ref}={\displaystyle \frac{{\int }_0^{z_g}V\left(z\right)dz}{z_{ref}}},$$

(2)

where V(z) is an appropriate wind profile described by Equation (1). It seems that the reference wind speed, computed according to integral (2), better corresponds with the assumed wind profiles. Reference wind speeds determined using Formula (2) are as follows: V_ref = 12.924 m/s, 11.716 m/s, and 10.713 m/s for open, village, and urban terrain, respectively.

The top surface and both sides of the domain are movable with identical wind profiles as defined for the inlet. Finally, the ground and the tower crane are assumed to be stationary boundary conditions.

2.2.2. Investigated Configurations of the Tower Crane

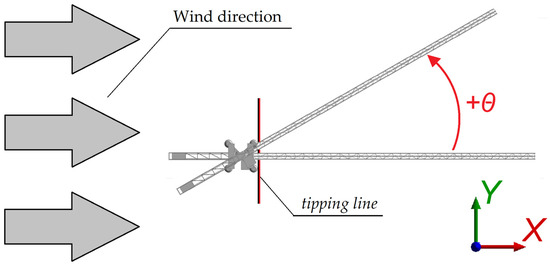

It is assumed that the wind direction is parallel to the X-axis of the global Cartesian coordinate system, as shown in Figure 5. The configuration of the crane, namely, the position of the jib, is determined by the angle θ. For θ = 0°, the jib is positioned along the X-axis of the coordinate system. The simulations are performed for the following values of the angles θ, namely, θ = 0°, 15°, 30°, …, 90° for all wind profiles.

2.2.3. Model of Turbulent Flow and Properties of Air

According to the authors experience [26,27], if the dominant role is played by the aerodynamic drag force and the component of aerodynamic force caused by viscosity is very small, the k-ε model with standard wall function provides a reasonable estimation of the aerodynamic force values because we are dealing with a porous lattice structure. Moreover, it is not obligatory to create the special inflation layer of the cells on the surface of the boundary layer. For such a complicated structure as the studied crane, the creation of the inflation layers on each part of the crane leads to an enormous, unacceptably large number of finite cells. Thus, the choice of the k-ε model seems to be the only possibility. This model is also successfully used by other authors, for example, [16,20].

The standard air properties of the air at sea level (temperature T = 15 °C, ambient pressure p0 = 101,325.25 Pa) are assumed, namely, kinematic viscosity ν = 1.7894 × 10⁻⁵ kg/(m∙s) and density ρ = 1.225 kg/m³.

2.2.4. Finite Cell Mesh

As mentioned above, the mesh is automatically generated using the “mesh” module of the ANSYS Workbench R22 software. It is assumed that the mesh consists of tetrahedral-shaped cells. It is found that the creation of a proper mesh in the case of the investigated crane is possible for an approximate minimal face size of less than l_e = 0.025 m. Therefore, for further simulations, it is assumed that the minimal face size on the crane surfaces equals l_e = 0.02 m. To estimate the sensitivity of the numerical solution to the cell size, for the arbitrarily chosen crane configuration (θ = 90°), the simulations are carried out for the smaller cells, namely, l_e = 0.0175 m and l_e = 0.015 m. The maximal size of the cells, l_eMAX, also varies correspondingly to l_e, and l_eMAX = 5.0 m, 4.5 m, and 4.0 m, respectively. It is worth noting that it is necessary to perform about 100 solver (pressure-based, steady-state analysis) iterations to obtain a convergent solution. The obtained results are collected in

Table 1. Results of the convergence test.

le (m)	leMAX (m)	Nodes	Cells	Fx (N)	Mtip (Nm)	Cx	CM
0.0150	4.0	13,097,189	73,925,163	7740.040	255,158.070	2.319	2.017
0.0175	4.5	9,979,287	56,384,955	7737.990	255,105.940	2.318	2.017
0.0200	5.0	7,959,409	44,895,413	7783.727	256,793.930	2.332	2.030

. This table shows the aerodynamic force and moment coefficients, whose strict definition will be given later. The M_tip is an overturning moment causing the overturning of the studied crane. Figure 5 shows the location of the tipping line. The overturning moment M_tip is determined concerning this line.

As can be observed, the represented results are very similar. The greatest values of the aerodynamic forces are obtained for l_e = 0.02 m. Therefore, it seems that the choice of l_e = 0.02 m and l_eMAX = 5.0 m ensures the appropriate accuracy of the calculations and safety of estimation. Moreover, the time of computations and necessary space on the hard disk are also optimal. In Figure 6, there are depicted details of the mesh on the surface of the studied crane.

3. Results of Numerical Simulations

Figure 7 represents the mean distribution of the static pressure on the surface of the crane structure induced by wind. To estimate this distribution or compute the static pressure, the whole external surface of the lattice structure is considered. This picture is for the urban wind profile (V₄₀ = 15 m/s and z₄₀ = 40 m). The jib is perpendicular to the wind direction (θ = 90°). As can be observed, as the vertical coordinate Z (height) increases, the value of the static pressure also increases. This phenomenon is caused by the applied wind profile, where the value of the wind velocity depends on the height.

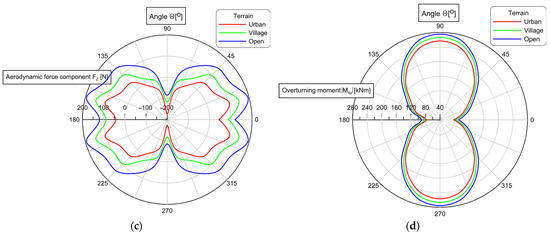

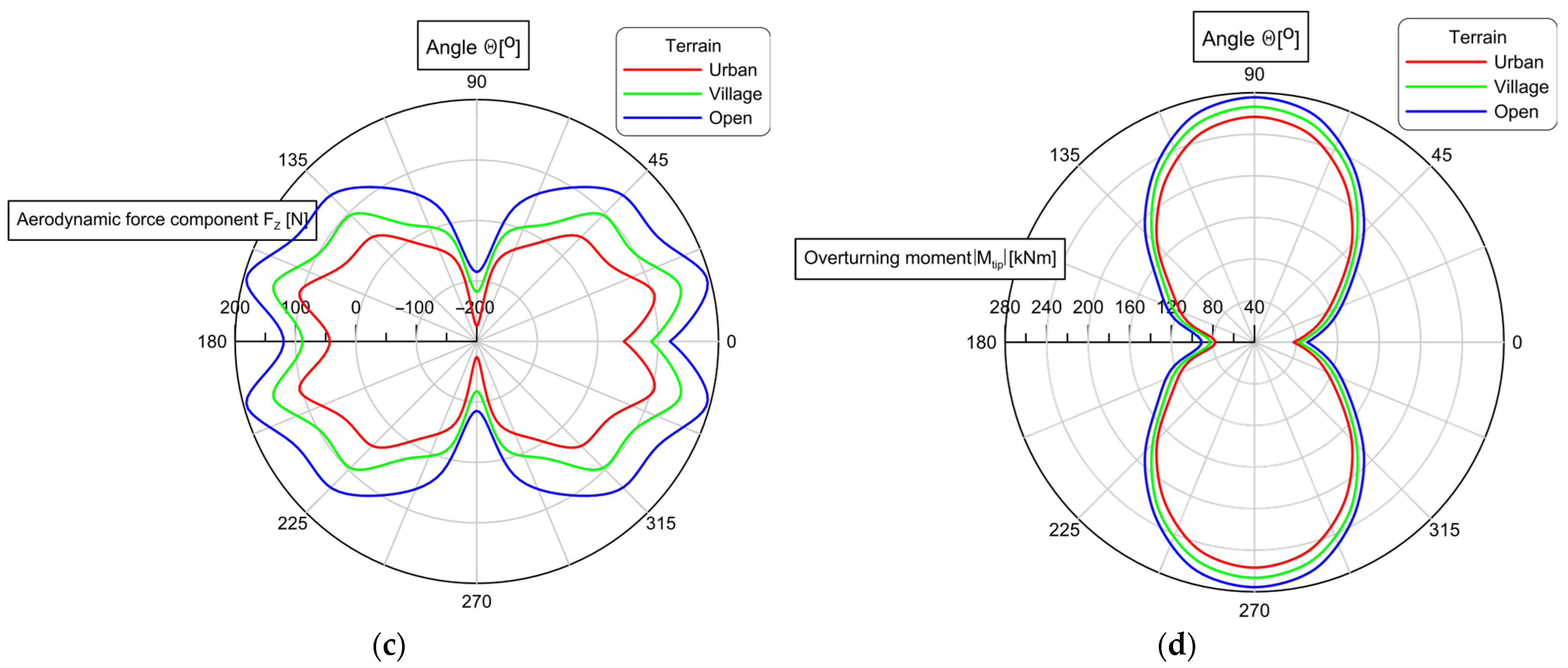

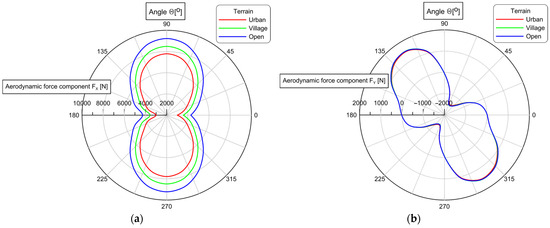

Figure 8a–d shows the components of the aerodynamic forces and overturning moment as a function of the angle θ. The most important component for further analysis is the F_x component because it causes the overturning of the whole structure. The maximal values are obtained for θ = 90°.

They are equal to F_x = 9220.826 N, 8,480,169 N, and 7783.727 N in the case of open, village, and urban terrain. It is worth noting that in our previous study concerning other lattice structures (scissor lift or fast-erecting crane), the extreme values of the aerodynamic forces are obtained for a slightly different position of the structure for the wind direction. However, in the current study, the jib possesses a more openwork structure in comparison with the previously mentioned ones. The minimal values of the F_x components are obtained when the crane jib is parallel to the wind direction. In this case, the aerodynamic drag force is generated only by the tower (4274.746 N, 3571.366 N, and 2998.246 N, respectively). In turn, the component F_y, Figure 8b, takes maximal values for the angle θ close to θ = 60°, and the values are as follows depending on the wind profile, namely, F_y = 1502.037 N, 1510.663 N, and 1478.181 N (absolute value). As can be seen, these values are very similar. It is caused by the fact that this component of the aerodynamic drag force is caused mainly by the rotating crane jib, while the crane tower is stationary. For the angles θ = 0°, 90°, 180°, and 270°, the value of F_y should be treated as equal to 0 N.

The F_z, Figure 8c, is one order of magnitude less in comparison with other components of the aerodynamic drag force. Thus, it can be omitted in further analysis.

Finally, the values of the overturning moments are depicted in Figure 8d. Similarly, as in the case of F_x, the maximal values of this quantity are reached for θ = 90°, and they are as follows: M_tip = 275.572 kNm, 266.554 kNm, and 256.794 kNm for the open, village, and urban terrain, respectively. The minimal values are obtained when the crane jib is parallel to the wind direction (90.862 kNm, 82.514 kNm, and 77.527 kNm).

The aerodynamic force and moment coefficients are presented in

Table 2. Aerodynamic drag force coefficients for open terrain, V_ref = 12.924 m/s.

Angle θ (°)	Cx	Cy	Cz	Ctip
0	0.880	0.003	0.025	0.494
15	1.028	−0.047	0.040	0.636
30	1.192	−0.181	0.030	0.792
45	1.418	−0.289	0.029	1.025
60	1.655	−0.309	0.019	1.260
75	1.836	−0.224	0.005	1.443
90	1.898	−0.010	−0.018	1.497

A_ref = 48.27 m², B_ref = 37.9 m, and ρ = 1.225 kg/m³.

,

Table 3. Aerodynamic drag force coefficients for village terrain, V_ref = 11.716 m/s.

Angle θ (°)	Cx	Cy	Cz	Ctip
0	0.895	0.004	0.022	0.545
15	1.077	−0.057	0.037	0.724
30	1.267	−0.214	0.024	0.913
45	1.545	−0.349	0.024	1.183
60	1.838	−0.378	0.006	1.488
75	2.052	−0.273	−0.004	1.697
90	2.125	−0.014	−0.030	1.762

A_ref = 48.27 m², B_ref = 37.9 m, and ρ = 1.225 kg/m³.

and

Table 4. Aerodynamic drag force coefficients for urban terrain, V_ref = 10.713 m/s.

Angle θ (°)	Cx	Cy	Cz	Ctip
0	0.898	0.005	0.013	0.613
15	1.109	−0.069	0.031	0.810
30	1.325	−0.253	0.016	1.028
45	1.654	−0.406	0.013	1.361
60	1.996	−0.443	−0.004	1.697
75	2.247	−0.319	−0.018	1.951
90	2.332	−0.015	−0.052	2.030

A_ref = 48.27 m², B_ref = 37.9 m, and ρ = 1.225 kg/m³.

. They are computed according to the following formulas, namely:

$$C_i={\displaystyle \frac{{2F}_i}{\rho {V_{ref}}^2{A}_{ref}}}, i=x,y,z, C_{tip}={\displaystyle \frac{2M_{tip}}{\rho {V_{ref}}^2{A}_{ref}{B}_{ref}}},$$

(3)

where ρ is the density of the air, V_ref is a value of the reference wind speed computed according to Formula (2), A_ref is the effective area of one of the supporting structures of the crane, i.e., the area of the shadow normal projected by its members on a plane parallel to the wall (A_ref = 48.27 m²), and B_ref is the reference overturning moment arm (B_ref = 37.9 m). This dimension corresponds more or less to the height measured from the ground to half the vertical dimension of the lattice jib.

4. Discussion

The results obtained from CFD simulations enable, among others, the estimation of the critical wind speed causing the overturning of the crane. In other words, the maximal value of the wind speed below which the studied crane is stable is determined. The crane’s stability is a state when it can work safely. We have not investigated the loss of stability understood as a buckling phenomenon. To validate the CFD results, further computations are performed following applicable codes and standards. First, the sum of the stabilizing and overturning moments with respect to the tipping line is determined. Next, according to the standard [7,8], the wind force acting on the crane is estimated based on the reference area of the lattice of the structure being in the same situation as in the CFD simulation. The analysis is carried out for two variants, namely (1) the jib with the upper counterweight positioned against the wind direction and (2) in the direction of the wind. In the first case, the upper counterweight additionally stabilizes the whole crane. In the second case (rarely met in practice), the upper counterweight decreases the crane’s stability. The computations are performed for urban terrain.

4.1. Variant 1: Determination of the Overturning and Stabilizing Moments

Based on the information contained in the catalog card of the tower crane and the technical and operational documentation regarding the dimensions and weights of the individual elements of the supporting structure, a diagram is made showing the system of forces acting on the crane structure concerning the most unfavorable tipping line (Figure 9). W₁ to W₃ is the wind force at the corresponding height h₁ to h₃. The load resulting from the wind force will be presented later in the article.

According to the adopted system of forces, the overturning moments of the crane are calculated as the algebraic sum of the moments of the jib and load mass concerning the most unfavorable tipping line. The values of forces and moments for variant 1 acting on the structure of the Liebherr 71 EC-B5 crane are presented in

Table 5. The values of masses—overturning moments, variant 1.

Jib									Load
Mass
Q1	Q2	Q2-2	Q3	Q4	Q5	Q6	Q7	Q8	Q9
1820	530	530	740	160	380	200	170	60	1000	(kg)
17,854	5199	5199	7259	1570	3728	1962	1668	589	9810	(N)
Distance from the tipping line.
l1	l2	l2-2	l3	l4	l5	l6	l7	l8	l9
3.41	10.72	15.86	23.51	29.91	34.90	41.07	46.04	48.68	48.00	(m)
Moments
M1	M2	M2-2	M3	M4	M5	M6	M7	M8	M9
60,795	55,724	82,474	170,686	46,947	130,119	80,571	76,775	28,650	470,880	(Nm)

where Q1—mass of the 1th part (1), Q2—mass of the 2nd part (2), Q2-2—mass of the 3rd part (2), Q3—mass of the 4th part (3), Q4—mass of the 5th part (4), Q5—mass of the 6th part (5), Q6—mass of the 7th part (6), Q7—mass of the 8th part (7), Q8—mass of the 9th part (8), and Q9—mass of the payload at the end of the jib.

.

Based on the above data, the sum of overturning moments with a total value of Σ M_O = 1,203,620 Nm = 1203.6 kNm.

The stabilizing moments of the real object are the sum of the moments resulting from the mass of the tower with turntable, counter-jib with counterweight, crosspiece, and central ballast (

Table 6. The values of the masses—stabilizing moments, variant 1.

Counter-Jib, Counterweight, Slewing Platform			Tower			Central Ballast		Cruciform Base
Mass
Q10	Q11	Q12	QT1	QT2	QT3	QB1	QB2	QK1	QK2
9750	2190	3310	2450	2450	3320	30,000	30,000	1950	1730	(kg)
95,648	21,484	32,471	24,035	24,035	32,569	294,300	294,300	19,130	16,971	(N)
Distance from the tipping line
l10	l11	l12	lt1	lt2	lt3	lb1	lb2	lk1	lk2
12.91	9.30	2.57	2.45	2.45	2.45	3.85	1.05	2.45	2.45	(m)
Moments
Ml10	Ml11	Ml12	Mt1	Mt2	Mt3	Mb1	Mb2	Mk1	Mk2
1,234,338	199,850	83,372	58,885	58,885	79,795	1,133,055	309,015	46,867	41,580	(Nm)

where Q10—counterweight mass, Q11—counterweight jib mass, Q12—turntable device mass, QT1—mass of the 1st part of the tower, QT2—mass of the 2nd part of the tower, QT3—mass of the 3rd part of the tower with turntable, QB1—mass of the right lower ballast, QB2—mass of the left lower ballast, QK1—mass of the 1st part of the base cruciform, and QK2—mass of the 2nd part of the base cruciform.

).

Based on the obtained values of moments from component forces, the sum of stabilizing moments has a total value of Σ M_S = 3,245,465 Nm = 3245.5 kNm.

The calculations did not take into consideration the mass of such crane elements as the cabin, ropes, trolley rotation mechanism, etc. The effect of wind is also not taken into account, which will be presented in the next chapter. According to the standard, for the structure to be stable and the crane to maintain stability, the following condition must be met:

$$M_S>M_O,$$

(4)

where M_S is the sum of stabilizing moments and M_O is the sum of overturning moments:

$$M_S=\mathrm{3,245,465} \mathrm{N}\mathrm{m}>M_O=\mathrm{1,203,620} \mathrm{N}\mathrm{m},$$

(5)

Therefore, the stability condition of the top-slewing crane is met.

4.2. Variant 2: Determination of the Overturning and Stabilizing Moments

Generally, when the tower crane is not in service and the slewing platform device is not locked, the crane jib can rotate freely with the wind direction, as shown in Figure 9. The crane operator must unlock the slewing platform mechanism when the wind speed increases above 20 m/s. However, if the wind speed, measured at the jib level using a cup anemometer, is close to this value but does not exceed it, it is possible that the situation when the crane jib is in the position against the wind as depicted in Figure 10. It is also possible that the slewing platform mechanism is locked. This potentially means that the crane is in service, and the additional payload influences the crane’s global balance.

In this case, the values of the overturning and stabilizing moments are shown in the tables below,

Table 7. The values of masses of Variant 2—stabilizing moments (Description as in the case of Table 5).

Jib									Load
Mass
Q1	Q2	Q2-2	Q3	Q4	Q5	Q6	Q7	Q8	Q9
1820	530	530	740	160	380	200	170	60	1000	(kg)
17,854	5199	5199	7259	1570	3728	1962	1668	589	9810	(N)
Distance from the tipping line.
l1	l2	l2-2	l3	l4	l5	l6	l7	l8	l9
8.30	15.61	20.76	28.41	34.80	39.80	45.96	50.93	53.57	52.44	(m)
Moments
M1	M2	M2-2	M3	M4	M5	M6	M7	M8	M9
148,157	81,164	107,914	206,207	54,627	148,359	90,171	84,935	31,530	514,467	(Nm)

and

Table 8. The values of the masses of Variant 2—stabilizing moments and overturning moments (bold values) from counter-jib, counterweight only (Description as in the case of Table 6).

Counter-Jib, Counterweight, Slewing Platform			Tower			Central Ballast		Cruciform Base
Mass
Q10	Q11	Q12	QT1	QT2	QT3	QB1	QB2	QK1	QK2
9750	2190	3310	2450	2450	3320	30,000	30,000	1950	1730	(kg)
95,648	21,484	32,471	24,035	24,035	32,569	294,300	294,300	19,130	16,971	(N)
Distance from the tipping line
l10	l11	l12	lt1	lt2	lt3	lb1	lb2	lk1	lk2
12.91	9.30	2.57	2.45	2.45	2.45	3.85	1.05	2.45	2.45	(m)
Moments
Ml10	Ml11	Ml12	Mt1	Mt2	Mt3	Mb1	Mb2	Mk1	Mk2
1,234,338	199,850	83,372	58,885	58,885	79,795	1,133,055	309,015	46,867	41,580	(Nm)

. In Table 8, the sum of the overturning moments is shown using the bold font.

Based on the schemas of the mass distributions, shown in Figure 9 and Figure 10 for Variants 1 and Variants 2, the sums of the overturning and stabilizing moments are determined and collected in

Table 9. Sums of the stabilizing and overturning moments for variants 1 and 2.

Case	Stabilizing Moments Σ MS	Overturning Moments Σ MO	Σ MS − Σ MO
1	3,245,465	1,203,620	2,041,845
2	3,245,465	732,740	2,512,725
3	3,270,948	861,055	2,409,893
4	2,756,482	861,055	1,895,427

. In the further analysis, Variants 1 with payload (Case 1, Table 9) and Variants 2 without payload (Case 4, Table 9) are considered.

4.3. The Wind Force Estimation According to the Standard

The obtained values of the overturning moments induced by the wind and estimated from the CFD simulations are compared with those that are computed according to the standard [7]. The estimations are based on the reference area A_ref = 48.27 m² of the crane lattice structure.

Utilizing the aerodynamic coefficients obtained from CFD results, the component values F_X and F_Y of the aerodynamic forces are determined as a function of the wind speed V(z), according to Formula (1).

$$F_X={0.5·{V\left(z\right)}^2·A_{ref}·\rho ·C}_X, F_Y={0.5·{V\left(z\right)}^2·A_{ref}·\rho ·C}_Y, F=\sqrt{{\left(F_X\right)}^2+{\left(F_Y\right)}^2}$$

(6)

Next, the overturning moment M_{O CFD 71EC-B} is obtained as a function of the jib rotation angle θ, namely:

$$M_{o CFD 71EC-B}\left(\theta \right)={M_{oF}\left(\theta \right)+M}_o\left(\theta \right),$$

(7)

where $M_{oF}=F\left(\theta \right)·h_1$. It makes possible the estimation of the critical wind speed causing overturning of the whole structure depending on Case 1 or 4.

EuroCODE. To determine the wind force W according to the standard [7], the reference area A_ref of the studied structure and the wind pressure distribution are needed. It is assumed that the wind speed is measured at the jib level, e.g., H = 40 m for the urban terrain. Because the wind speed changes (increases) together with height, the reference area of the whole structure, A_ref = 48.27 m², is divided into three parts, namely crane jib A_{ref_1} = 25.69 m², crane tower A_{ref_2} = 16.58 m², and upper counterweight A_{ref_3} = 6 m². Moreover, different standards assume that the load induced by the wind acting on the external surfaces of the structure is treated as a static normal pressure, with value p = 245 N/m² for wind speed equal to V = 20 m/s. Taking into account an appropriate proportion, in the current case (V₄₀ = 15 m/s at height H = 40 m), the aerodynamic forces take the following values, namely, W₁ = 2159.40 N for A_{ref_1} and h₁ = 38.46 m, W₂ = 836.71 N for A_{ref_2} and h₂ = 20.33 m, and W₃ = 47.37 N for A_{ref_3} and h₃ = 2 m. The value of the force W_i can be estimated using the following formula:

$$W_i=A_{ref\_i}·p_i,$$

(8)

and, in consequence, the moments:

$$M_{o EuroCODE90°}={M_{oWi}+M}_o,$$

(9)

where $M_{oWi}=W_i·h_i, i=\mathrm{1,2},3$. It should be noted that the value of the aerodynamic force W₃ is relatively small in comparison with the others; thus, the component of the overturning moment induced by this force is omitted in further analysis. Additionally, force W₃ acts on the relatively small height, acting close to the extremely large mass of the low ballast.

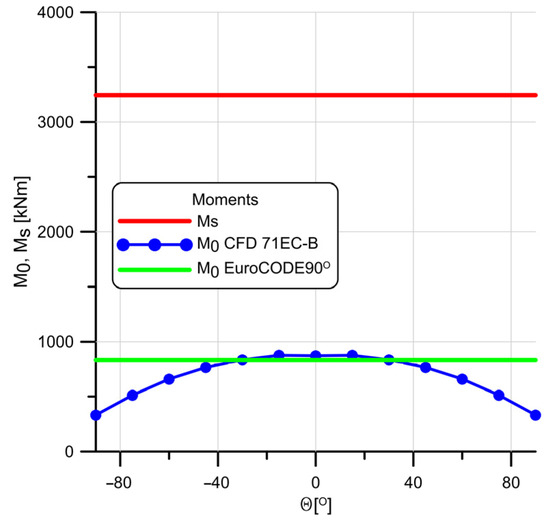

The values of the overturning moment, M_{O CFD 71EC-B}, as a function of the jib rotation angle θ (blue color) and the overturning moments M_{O EuroCODE90°}, taking into account the wind force for urban terrain (green color), are presented in Figure 11. It is a constant value, independent of the jib rotation. Case 2 (without payload) of the crane configuration is used to validate the results obtained from CFD simulations. In this figure, the stabilizing moment Ms (red line) is taken from Table 9.

4.4. The Maximum Wind Force

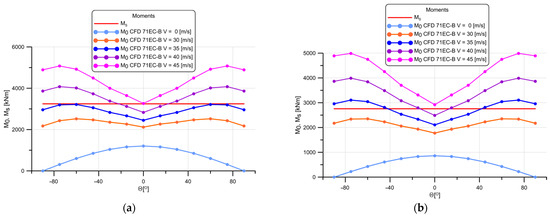

Figure 12a,b show the overturning moments M_O as a function of wind speed and the jib rotation angle θ for Variant 1 with payload (Case 1) and Variant 2 without payload (Case 4). In these figures, the stabilizing moment M_S is also depicted. These figures should be treated as a comparison of the overturning and stabilizing moments, which are obtained from CFD simulations and estimations based on M_{O EuroCODE90°} for various wind speeds acting on the jib height at h₁ = 38.46 m. Moreover, these figures are used to determine the critical wind speed and the jib rotation angle θ to the wind direction, which causes the overturning of the whole crane. In other words, when the crane loses its stability.

Considering the above-presented results, it is possible to estimate the characteristics of the overturning moment as a dependency of the wind speed for the jib rotation angle θ = ±75°, with the maximum payload at the end of the jib as well as for θ = ±75° without payload at all. The obtained relations are depicted in Figure 13.

Using the data shown in Figure 13a,b, we can determine the maximum wind speed at which crane toppling will occur (

Table 10. The maximum wind speed V for which overturning moments cause loss of stability of the 71 EC-B crane.

V (m/s)	Case 1 (kNm)		V (m/s)	Case 4 (kNm)
h1 = 38.46 m	MO EuroCODE90°	MO CFD 71EC-B +/−75°	h1 = 38.46 m	MO EuroCODE90°	MO CFD 71EC-B +/−75°
35.31	-	3247.02	32.81	-	2757.34
52.89	3245.61	-	50.97	2756.78	-

).

4.5. Trace of the Gravity Center in the Example of the Tower Crane Liebherr 71EC-B5

Having prepared the values of the masses (weight of the structures) of the particular parts of the crane and the values of aerodynamic forces induced by wind, the trace of the gravity center can be determined. It helps to visualize the stability of the whole crane concerning the tipping lines. At the beginning, the total sum of the overturning and stabilizing moments with respect to the rotation axis of the jib must be computed. It makes it possible to determine the position of the center of gravity between the tipping lines. The tipping lines create a rectangle whose vertices are the axes of the supports. The crane loses stability when the center of gravity exceeds the tipping line. The example of the top-slewing tower crane (with and without payload) and the wind direction is shown in Figure 14. In this figure, the crane is in the most unfavorable configuration, similar to the case of the crane in Figure 9.

According to the assumed system of forces acting on the studied crane, the algebraic sum of the overturning moments (induced by the weight of the particular parts and payload at the end of the jib) is computed. The values of forces and moments acting on the studied structure are collected in

Table 11. The values of masses for overturning moments.

Jib									Load
Mass
Q1	Q2	Q2-2	Q3	Q4	Q5	Q6	Q7	Q8	Q9
1820	530	530	740	160	380	200	170	60	1000	(kg)
17,854	5199	5199	7259	1570	3728	1962	1668	589	9810	(N)
Distance from the crane axis
l1	l2	l2-2	l3	l4	l5	l6	l7	l8	l9
5.86	13.17	18.31	25.96	32.36	37.35	43.52	48.49	51.13	50.00	(m)
Moments
M1	M2	M2-2	M3	M4	M5	M6	M7	M8	M9

Description as in the case of Table 5.

. From the above data, the sum of overturning moments with a total value of Σ M_Ot = 1,333,545 Nm = 1333.55 kNm is obtained.

The stabilizing moments of the real object are the sum of the moments resulting from the tower mass with the turntable, counter-jib with counterweight, crosspiece, and central ballast (

Table 12. The values of masses for stabilizing moments (Description as in the case of Table 6).

Counter-Jib, Counterweight			Tower, Slewing Platform			Central Ballast		Cruciform Base
Mass
Q10	Q11	Q12	QT1	QT2	QT3	QB1	QB2	QK1	QK2
9750	2190	3310	2450	2450	3320	30,000	30,000	1950	1730	(kg)
95,648	21,484	32,471	24,035	24,035	32,569	294,300	294,300	191,30	16,971	(N)
Distance from the crane axis
l10	l11	l12	lt1	lt2	lt3	lb1	lb2	lk1	lk2
10.46	6.85	0.12	0.001	0.001	0.001	1.40	1.40	0.001	0.001	(m)
Moments
Ml10	Ml11	Ml12	Mt1	Mt2	Mt3	Mb1	Mb2	Mk1	Mk2
1,000,001	147,214	3818	24.0	24.0	32.6	411,346	411,346	19.1	17.0	(Nm)

).

The sum of the stabilizing moments with the total value of the following: Σ M_St = 1,973,842 Nm = 1973.8 kNm was obtained, based on the obtained values of moments from the component forces. In the calculations, similarly to the calculations of the static work of the crane, the mass of such crane elements as the cabin, ropes, the rotation mechanism of the trolley travel, etc. is not taken into account. According to the standards, the condition of stability is defined, namely, as follows:

$$M_{St}>M_{Ot}$$

(10)

where M_St is the sum of stabilizing moments and M_Ot is the sum of overturning moments:

$$M_{St}=\mathrm{1,973,842} \mathrm{N}\mathrm{m}>M_{Ot}=\mathrm{1,333,545} \mathrm{N}\mathrm{m}$$

(11)

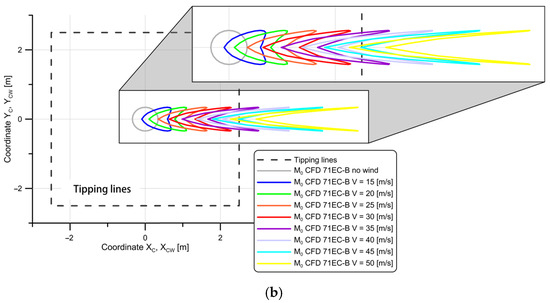

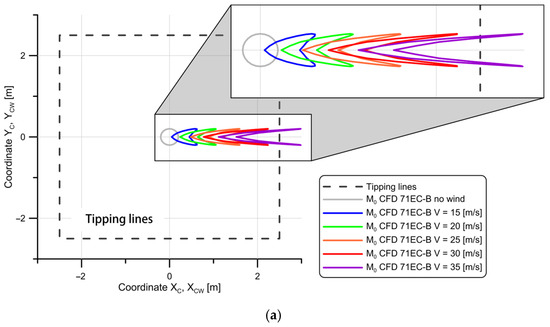

Thus, the condition (10) is satisfied. The trace of the gravity center can be defined as follows: the perpendicular projection of the gravity center on the plane perpendicular to the axis of the jib rotation limited by the four tipping lines. The geometrical dimensions of such a rectangle are determined by the crane support. It is assumed that the crane overturning is possible concerning the edge line, which is opposite to the wind direction, as shown in Figure 15. Moreover, the constant wind direction is assumed. The crane jib can rotate about its axis by the angle θ. The two following cases are investigated, namely, the crane does not carry the payload, and the crane carries the maximal payload Q1 = 1000 kg.

The trace of the gravity center creates a closed contour, where each point relates to the jib rotation angle θ. The curve describing the trace of the gravity center can be defined utilizing the concept of the guiding ray. Below are shown the formulas determining the guiding ray in the case when the wind does not blow (r_c) and in the case when the wind is blowing (r_cw). In both cases, the guiding ray is determined by its coordinates, and the coordinates x_c, y_c, and x_cw, y_cw define the guiding ray as follows:

$$x_c\left(\theta \right)={-r}_c·\cos \theta , y_c\left(\theta \right)={-r}_c·\sin \theta ,$$

(12)

where

$$r_c={\displaystyle \frac{M_{st}-M_{ot}}{\sum Qi}},$$

(13)

and the trace of the center of gravity at the time of the wind r_cw:

$$x_{cw}\left(\theta \right)={-r}_c·\cos \theta {+r}_c{+r}_{cw}\left(\theta \right), y_{cw}\left(\theta \right)=y_c\left(\theta \right),$$

(14)

where

$$\begin{array}{c}{r}_{cw}(\theta )={\displaystyle \frac{M_{st}-M_{ot}-M_{oCFD}\left(\theta \right)}{\sum Qi+F_{rCFD}\left(\theta \right)}}.\\ F_{rCFD}\left(\theta \right)=\sqrt{{F_x\left(\theta \right)}^2+{F_y\left(\theta \right)}^2}\end{array}$$

(15)

where i is the index of a mass shown in Table 11 and Table 12. The obtained contours are presented below in Figure 15a,b. In the first case (Figure 15a), the crane carries the maximal payload at the end of the crane jib (Case 1). In the second case (Figure 15b), the crane carries no payload (Case 4).

5. Conclusions

Based on the CFD analysis results, the aerodynamic force coefficients C_x and C_y are calculated. These coefficients allow for estimating the magnitude of the aerodynamic forces acting on the examined structure of the top-slewing tower crane as a function of the average wind speed. An example of such a structure is the Liebherr 71EC-B crane, which features a flat top. This structure allows a maximum payload of 1000 kg at the end of a 50 m jib length.

The obtained results are compared with the applicable standard [7]. This standard concerns the estimation of the wind load of the cranes, openwork construction, and lattice structures. The determination of the wind force is based on the so-called reference area A_ref and the static pressure distribution induced by the blowing wind. The estimation is performed concerning the most unfavorable crane configuration to the tippling line and the wind direction. In our case, it relates to the crane configuration for θ = 90°.

Next, the total (resultant) stabilizing and overturning moments are determined concerning the selected tipping line for the exemplary top-slewing tower crane 71EC-B. The four cases are possible. In the first case, the jib is parallel to the wind direction without payload, and the upper counterweight is against the wind. The second case is similar, but the jib carries a payload. Both these cases relate to when the crane is out of service and the slewing platform is unlocked. The third case is when the jib is parallel to the wind direction without payload; however, the upper counterweight is on the opposite side than in the previous cases. Consequently, in the fourth case, the jib is in an identical geometrical configuration as the previous one but now carries a payload. The third and fourth cases relate to when the crane is in service and the slewing platform is locked. The second and third cases are chosen for further analysis.

Having prepared the values of the aerodynamic forces induced by the wind obtained from the CFD analysis and computed according to EuroCODE, the characteristics of the overturning moment for both investigated variants are shown. These characteristics are the function of the jib rotation angle θ for the wind speed with increment value 5 m/s. The range of the dangerous jib rotation angle for which the studied crane loses its stability (for both cases) is determined. The specified range of angle θ shows dangerous angles due to loss of crane stability for both variants of the jib setting and θ = ±75° (the least favorable). For these values of the angle θ, when the crane loses its stability and is close to tipping over, the wind speed value equals 35 m/s.

For better-studied problem visualization, the trace of the center of gravity with wind forces taken into account is created using an analytical approach. The results are shown on the appropriate graphs, where the tipping lines are marked.

This study shows that the approach based solely on the Mo < Ms condition according to EuroCODE does not take into account the change in the angle of the jib rotation to the wind direction and, consequently, the change in its reference area A_ref(θ), an example of which is the angle of ±75°, for which the value of the wind force is the greatest. This approach defines one location of the jib for the angle θ = 0° for variant 1 or 90° for variant 2 where θ = 90°, and in both cases, we have A_ref corresponding to the area for the angle θ = 90°.

In summary, the described analytical approach, taking into account the jib rotation angle θ, specifies the values of moments acting on the crane structure with the simultaneous action of the wind force on this system. Having the values of F_x i F_y as a function of jib rotation angle θ, it is possible to specify the approach based on the EuroCODE. Moreover, more accurate results are obtained using the method based on the determination of the trace of the gravity center.

The obtained results are in relatively good agreement with the wind conditions that caused the catastrophe of the tower crane in Cracow, mentioned in the Introduction section.
