Settlement Prediction of Footings Using V_S

Abstract

The shear wave velocity (V_S) is a key parameter for estimating the deformation characteristics of soil. In order to predict the settlement of shallow footings in granular soil, the V_S and the concept of Schmertmann’s framework were adopted. The V_S was utilized to represent soil stiffness instead of cone tip resistance (q_c) because the V_S can be directly related to the small-strain shear modulus. By combining the V_S measured in the field and the modulus reduction curve measured in the laboratory, the deformation characteristics of soil can be reliably estimated. Vertical stress increments were determined using two different profiles of the strain influence factor (I_z) proposed in Schmertmann’s method and that calculated from the theory of elasticity. The corresponding modulus variation was determined by considering the stress level and strain at each depth. This state-dependent stress-strain relationship was utilized to calculate the settlement of footings based on the theory of elasticity. To verify the developed method, geotechnical centrifuge tests were carried out. The V_S profiles were measured before each loading test, and the load-settlement curves were obtained during the tests. Comparisons between the measured and estimated load-settlement curves showed that the developed method adequately predicts the settlement of footings, especially for over-consolidated ground conditions.

1. Introduction

The design paradigm of civil structures is currently shifting to performance-based design (PBD) instead of the traditional safety factor-based design. In PBD, greater emphasis is placed on controlling structural deformation to assure the serviceability and durability of civil structures [1] rather than using safety factors for design. Specifically, the key design factor of shallow foundation is settlement and not the bearing capacity because shallow foundations are generally constructed on good ground conditions having sufficient bearing capacity.

A number of methods have been introduced to predict the settlement of shallow foundations. Most of these methods are based on the theory of elasticity and thus focus on the determination of soil compressibility. In order to determine the compressibility of soil (i.e., stiffness or modulus) the selection of stiffness is commonly made on the basis of penetration resistance. Parameters such as the N value and q_c value, derived from a standard penetration test (SPT) and cone penetration test (CPT), respectively, are generally utilized to determine the stiffness of soil layers. Meyerhof [2], Peck & Bazaraa [3], and Burland & Burbidge [4] suggested methods of settlement estimation for footings based on the SPT-N value while Schmertmann [5], Schmertmann et al. [6] and Berardi et al. [7] suggested methods based on the CPT-q_c value.

Schmertmann’s method has been extensively applied by engineers due to its simplicity and intuitive concept based on elasticity theory. The method utilizes CPT tip resistance, q_c, to evaluate Young’s modulus using soil type-based empirical coefficients. For predicting settlement, the crucial factor is, however, deformation-related stiffness and not strength. Even though modulus determination from SPT-N or CPT-q_c is generally adopted, the penetration resistance is strongly related to the soil strength and requires additional empirical coefficients to convert soil strength to soil modulus. The coefficient utilized for conversion ranges from 2 to 24 depending on the soil condition [8]. Therefore, it is quite probable that the penetration resistance-based methods could estimate the settlement several times greater or smaller due to the wide range of coefficients depending on soil condition. This is the intrinsic limitation of using strength parameters in the settlement prediction. In addition, these in-situ tests are not applicable under certain ground conditions such as intermediate to hard geomaterials (e.g., weathered soil/rock).

As mentioned earlier, most of the penetration resistance-based methods adopt the elasticity theory. These methods, including Schmertmann’s method, assume linear elastic soil deformation using a representative modulus taken from the resistance values. However, observations of settlement on footings and soil behavior show a high degree of nonlinearity, which changes with the stress-strain level. Previous studies have reported that settlement prediction based on nonlinear stress-strain models is reasonably consistent with field observations [9]. Recently, the nonlinearity of soil behavior was considered in settlement predictions according to PBD for enhancing the accuracy of settlement prediction. Lee et al. [10] and O’Loughlin & Lehane [11] proposed a modified Schmertmann’s method using modulus which varied depending on the settlement or strain level rather than using a single representative modulus initially converted from the q_c value. Nevertheless, the penetration resistance based on strength criteria is still commonly utilized in modulus determination using relevant coefficients.

The shear wave velocity (V_S) could be an alternative parameter in the settlement prediction to resolve the aforementioned problems. The V_S is directly related to the deformation characteristics of soil (i.e., the maximum shear modulus, G_max). Complete soil deformation characteristics could be established from the V_S. The maximum shear modulus (G_max) below the elastic threshold strain, which is the fundamental stiffness, is usually inferred from the V_S obtained by seismic wave propagation tests. The variation in shear modulus with strain can be determined at small to intermediate strains by laboratory tests such as the resonant column test, torsional shear test and small-strain triaxial test. Finally, reliable nonlinear stiffness variation could be determined by combining the G_max and G/G_max curve, and hence the V_S, which is related to G_max, can be used as a key soil property for the deformation analysis of soil-foundation systems [12]. Besides, the V_S can be measured non-intrusively in the gravel and cobble layers, which are difficult to characterize using penetration testing methods. Indeed, the V_S has great potential to replace the role of CPT-q_c or SPT-N values in the settlement prediction methods for determining the deformation modulus.

This study aims to develop a new approach for predicting the load-settlement behavior of shallow footings based on the V_S and nonlinearity of soil. The development of a new method was based on the conceptual framework of Schmertmann’s method [6], which is one of the commonly used methods in engineering practice. The procedures for obtaining confinement and strain dependent modulus values from the V_S profile considering pressure distribution under the footing were developed. To verify the developed method, load-settlement curves for footings having a different length to breadth ratio, together with V_S profiles, were obtained by centrifuge modeling, and then compared with the predictions from the developed method.

2. Development of Settlement Prediction Method Based on V_S

2.1. Schmertmann’s Approach

Here, we adopt the conceptual framework of Schmertmann’s method to establish a new settlement prediction method. The settlement of footing as suggested by Schmertmann et al. [6] is expressed as:

$$s_i=C_1·C_2(q_b-{\sigma }_{z,d}^{\prime }){\displaystyle \sum }\frac{I_{zi}\Delta z_i}{E_i}$$

(1)

where C₁ and C₂ are depth and time factors, q_b is the footing load, σ’_z,d is the initial vertical effective stress at the footing base level, I_zi is the vertical strain influence factor, Δz_i is the thickness of each sublayer, and E_i is the elastic modulus of each layer.

Schmertmann’s method utilizes the CPT tip resistance, q_c, to determine Young’s modulus using soil type-based empirical coefficients. The stress transmitted into the soil media, which is caused by the footing load, can be calculated by using a strain influence factor, I_z, which describes the distribution of the applied load in the subsoil layer with respect to depth. Then, the settlement of each sublayer can be evaluated using the converted modulus and transmitted stress based on elasticity theory, and finally the total settlement of footing over the soil profile is obtained.

In this study, the use of q_c in the determination of Young’s modulus was replaced by the V_S incorporating the nonlinearity of soil. Based on the V_S, the modulus was determined considering the confinement stress and strain level caused by pressure distribution under the footing. In addition, the shape of I_z was discussed to provide reliable results using the developed method.

2.2. Modulus Determination of the Soil Layer

Many of the proposed stress-strain equations are limited in terms of the function of shear strain. In contrast, Fahey [13] reported that hyperbolic equations can be rewritten as a function of shear stress rather than shear strain to describe the nonlinear stress-stain relationship. Fahey & Carter [14] proposed two additional model parameters f and g to have flexibility in changing the shape of the stress-strain curve and to adjust the model to approach failure at finite strain. The proposed equation is given as:

$$\raisebox{1ex}{$G$}\!\left/ \!\raisebox{-1ex}{$G_o$}\right.=1-f{\left(\frac{\tau }{{\tau }_{max}}\right)}^g$$

(2)

where G is the secant shear modulus, G_o is the small-strain shear modulus, τ is shear stress and τ_max is the shear strength.

Previous studies show that this modified hyperbolic model can be used in load-settlement predictions, simple hand calculation [15], and finite element studies [9,16]. It is convenient to adopt this modified hyperbolic model for the estimating footing’s settlement because the transmitted stress into the soil media caused by the footing load (or design load) can be derived by load transfer mechanisms, such as the strain influence factor or elastic theory using Boussinesq’s equation. Thus, the modulus reduction can be considered as a function of the mobilized stress level (i.e., G/G_o versus τ/τ_max), and it is more advantageous than using strain.

While the footing is loaded, the confining stress increases in the underlying soil and this effect can be considered as a change in G_o as:

$$G_o\left({\sigma }_2\right)={\left(\frac{{\sigma }_2}{{\sigma }_1}\right)}^n{G}_o\left({\sigma }_1\right)$$

(3)

where σ₁ is the initial effective confining stress, and σ₂ is the effective confining stress with the footing load. The stress state-dependent shear modulus in Equation (3) can be used in the settlement prediction procedure to reflect a reasonable stress increment in the soil; this approach was validated from previous settlement predictions [9,15,16]. The initial G_o can be directly calculated from V_S and mass density (ρ) according to the following equation:

$$G_o=\rho V_s^2$$

(4)

Assuming constant Poisson’s ratio, ν, regardless of strain level, the modified hyperbolic model in Equation (2) can be rewritten as the axial stress-stain formula:

$$\raisebox{1ex}{$E$}\!\left/ \!\raisebox{-1ex}{$E_o$}\right.=1-f{\left(\frac{\Delta {\sigma }_v}{{\sigma }_{max}}\right)}^g$$

(5)

where E is secant Young’s modulus, E_o is small-strain Young’s modulus, and Δσ_v and σ_max are the vertical deviator stress and ultimate bearing capacity, respectively. The secant modulus, E, in Schmertmann’s method can be evaluated by the small-strain shear modulus directly calculated from the V_S and the nonlinear stress-strain equation. Combining the modulus reduction by the stress (or strain) level in Equation (5) with the increasing modulus by effective confining stress increment in Equation (3), the design modulus can be determined as:

$$E=E_o{\left(\frac{{\sigma }_{ov}+\Delta {\sigma }_v}{{\sigma }_{ov}}\right)}^n\left(1-f{\left(\frac{\Delta {\sigma }_v}{{\sigma }_{max}}\right)}^g\right)$$

(6)

where E_o is the initial small strain Young’s modulus, σ_ov is the theoretically calculated vertical effective stress and Δσ_v is the vertical stress increment by footing load. Based on Equation (6), the stiffness of soil layers can be calculated considering both the modulus increment by increasing effective confining stress and modulus reduction by stress or strain level using V_S measurements directly.

2.3. Stress Distribution Beneath Footings

As mentioned earlier, the stress transmitted into the soil media caused by the footing load can be derived from load transfer mechanisms, such as the strain influence factor (I_z) or elasticity theory using Boussinesq’s equation. Figure 1 shows I_z profiles for square footing (length to breadth ratio, L/B = 1.0) and strip footing (L/B ≥ 10.0). Schmertmann et al. [6] proposed a simple triangular I_z with a peak value occurring at 0.5 B depth, and the value converges to zero at 2.0 B depth for square footing, while the peak and zero values appear at 1.0 B and 4.0 B depth, respectively, for strip footing. Further, in Schmertmann’s I_z profile, the peak value increases with increasing applied pressure. This is used when considering the nonlinear characteristics of soil because the fixed modulus calculated from CPT-q_c does not consider the modulus degradation with respect to stress (or strain) level. Without changing the modulus, Schmertmann et al. [6] intended to increase the applied stress within a soil mass to take into account the nonlinear deformation behavior by increasing the peak value of the I_z.

In the developed method, secant Young’s modulus changes based on the nonlinear property of soil, which depends on the initial stress state (i.e., V_S) and design load. On the contrary, in Schmertmann’s method, a fixed modulus converted from CPT-q_c is utilized while the nonlinear soil property is considered by the variation of I_z. Thus, in the newly developed method, the I_z should be invariable regardless of the design load so that the nonlinear property of soil is not considered twice in the modulus determination. In fact, Schmertmann’s triangles were proposed for convenience in the application, and their simple shape was determined to accord with the peak value changing with the design load. Although Schmertmann’s triangle has an advantage in engineering practice due to its simplicity, definite error has been reported because of the simplicity. Mayne & Poulos [17] reported that clipping the I_z arbitrarily below z = 2 B for square footing results in 18% unconservative error.

As mentioned before, Schmertmnann’s method assumes linear elasticity of soil deformation. Similarly, I_z used in Schmertmnann’s method can be determined based on the elasticity theory after substituting the triangular I_z. In Figure 1, the strain influence factors derived from elasticity theory are shown. The unit vertical strains in cylindrical coordinates could be calculated from the constitutive relationship of Hooke’s law:

$${\epsilon }_z=\frac{1}{E}\left[\Delta {\sigma }_z-2\nu \Delta {\sigma }_r\right]$$

(7)

where Δσ_z is the change in vertical stress, and Δσ_r is the change in radial stress. The vertical stress increment on the axis passing through the center of a circular foundation is derived by integrating the Boussinesq’s point loads over a distributed area:

$$\Delta {\sigma }_z=q\left[1-\frac{1}{[1+{(a/z)}^2{]}^{1.5}}\right]$$

(8)

where q is applied stress on the foundation, a is half of the foundation’s diameter (d/2), and z is the depth from the foundation base. Similarly, the expression for the radial stress increment is:

$$\Delta {\sigma }_r=q\left[\frac{1}{2}+\nu -\frac{\left(1+\nu \right)}{[{(a/z)}^2+1{]}^{0.5}}+\frac{1}{2[{(a/z)}^2+1{]}^{1.5}}\right]$$

(9)

The above equations can be applied to a circular foundation resting on an elastic, homogeneous, and an isotropic half-space medium. Thus, Young’s modulus can be replaced with a constant such as 1, and the vertical strain is determined by the difference between vertical and radial stresses in Equation (7). On the other hand, the I_z addressed in Equation (1) can be calculated as the product of Young’s modulus and the vertical strain (i.e., I_z = Eε) assuming a unit stress increment of 1. Hence, the I_z and vertical strain are identical under elasticity theory with E of 1, and I_z equals the net stress increment in the vertical direction for a vertical deflection. In order words, the I_z represents the ratio of the vertical stress distributed to the subsoil along the depth to the vertical stress applied at the surface. Using Equations (7)–(9) under unit stress (q = 1) and equivalent diameter, d = (4LB/π)^0.5, for square or strip foundations, the strain influence factors are calculated and presented in Figure 1 for various Poisson ratios (ν). Compared with Schmertmann’s triangle, the peak values from the elastic approach occur at shallower depths, and the values are much higher than those for Schmertmann’s triangles, especially for low Poisson ratios (ν ≤ 0.3), despite the peak values of triangles increasing with increasing applied pressure. This discrepancy could lead to significant errors in settlement prediction because low stiffness near the surface governs the deformation behavior.

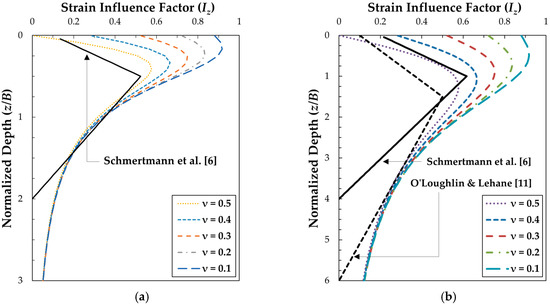

Schmertmann’s triangles were derived by comparing deformation profiles beneath footings obtained from analysis using finite element method (FEM) and experiments. Poisson ratios used in the FEM study ranged from 0.3 to 0.48. However, after recent developments in experimental apparatus and measurement techniques, sophisticated local strain measurement (excluding experimental errors) have become possible, and consequently it was reported that Poisson ratios less than 0.2 are adequate for all the soil types under the working load condition [18,19].

It seems that the abovementioned inaccuracies for Schmertmann’s triangular I_z occur not only for shallow depths (Poisson ratio) but also for deep depths (simplification), and hence the triangular I_z can be improved for more accurate settlement calculation. In this study, feasibility of I_z derived from the elasticity theory was verified and compared to the Schmertmann’s triangular I_z.

2.4. New Settlement Prediction Method

A new settlement prediction method based on Schmertmann’s approach is proposed combining the modulus derived from V_S considering soil nonlinearity and I_z from the elasticity theory as discussed in previous sections. The vertical stress level at each sublayer changes from the initial self-weight stress state, σ_ov,j, to the stress condition upon additional footing load, which is equal to σ_ov,j + q_iI_z,j. The change of stress condition causes increases in the small strain modulus, and this stress-dependent stress-strain relationship is presented in Equation (6). Following Lee & Salgado [20], the deformation modulus, E_ij, considering both the stress-dependent stress-strain relationship and nonlinear stress-strain hyperbolic equation, can be expressed as:

$$E_{ij}=E_{o,j}{\left(\frac{{\sigma }_{ov,j}+q_i{I}_{z,j}}{{\sigma }_{ov,j}}\right)}^n\left(1-f{\left(\frac{q_i{I}_{z,j}}{{\sigma }_{max}}\right)}^g\right)$$

(10)

where σ_ov,j is the initial vertical stress at depth z_j, σ_max is the ultimate bearing capacity, E_o,j is the initial small-strain Young’s modulus equal to E_o = 2G_o(1 + ν). The solution from Meyerhof [21] can be applied to obtain the ultimate bearing capacity with respect to the shape of the footing. By combining Equations (1) and (10) and ignoring depth or time factors, the total settlement of each sublayer corresponding to the applied stress q_i can be calculated using the following nonlinear stress-dependent modulus:

$$s=q_i{\displaystyle \sum }\frac{I_{zi}\Delta z_i}{E_{o,i}{\left(\frac{{\sigma }_{ov,i}+q{I}_{z,i}}{{\sigma }_{ov, i}}\right)}^n\left(1-f{\left(\frac{q{I}_{z,i}}{{\sigma }_{max}}\right)}^g\right)}$$

(11)

Finally, the footing settlements are calculated based on Schmertmann’s framework using V_S. For a foundation supported on granular soil, the elastic settlement is a major concern that needs consideration. In this study, the elastic load-settlement response of vertically loaded footings placed in granular soil was considered, while the plastic deformation of soil caused by the particle movement was not considered.

3. Centrifuge Study

In this study, three-dimensional centrifuge tests were performed to exam the load-settlement behavior of model footings embedded on sand deposits. Three model grounds with identical soil conditions were prepared for testing the model footings. The model footings with L/B ratios of 1.0, 2.5, and 5.0, which represent square footing and rectangular footings, were placed on each of model ground.

3.1. Experimental Description

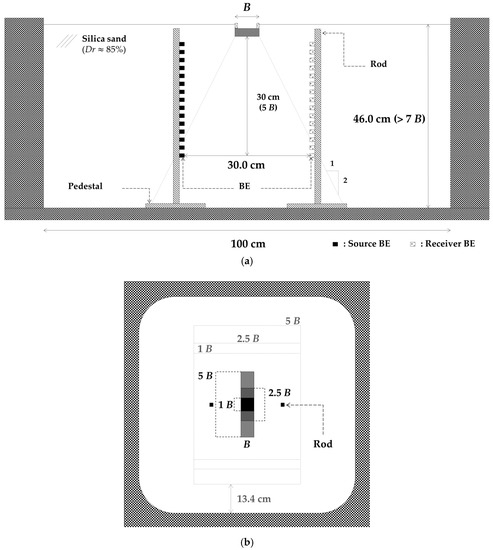

A large rigid box with a length, width, and height of 1000, 1000, and 477 mm, respectively, was utilized as a centrifuge model box. Model footing with breadth equal to 60 mm was considered to avoid the arching effect caused by side wall friction of the model box. Figure 2 shows the model footings placed inside the model box. Stress distribution in the soil mass caused by the footing load was approximated using a simple approximate method (i.e., the 2:1 method), as presented by the dotted lines. The bottom areas estimated by the approximate method were expressed with respect to the L/B ratio of the model footing as shown in Figure 2b. It is expected that when the breadth of the model footing is 60 mm, the deformation behavior would not be affected by the wall friction of the model box, even in the case where the L/B ratio equals 5.0.

Dry silica sand was used for model ground construction and its basic properties are presented in

Table 1. Physical properties of the silica sand.

Properties	Silica Sand
Unified soil classification (USCS)	SP
Median particle size (D50), mm	0.22
Curvature coefficient (CC)	1.11
Uniformity coefficient (CU)	1.96
Specific gravity (GS)	2.65
Plasticity index (PI)	NP
Maximum void ratio (emax)	1.130
Minimum void ratio (emin)	0.611

. Before constructing the model ground, bender elements (BE) were installed in the model box for the measurement of the V_S of model ground while accelerating the model in a centrifuge [22]. A total of 15 pairs of bender elements arrays were installed on aluminum rods and the rods were attached on the bottom of the model box, as presented in Figure 2a. The bender elements were equipped vertically on the rods to generate and measure V_S,HH, for which directions of propagating and particle motion are horizontal. Source bender elements were made in parallel, whereas receiver bender elements were made in series to enhance sending and receiving of the shear wave. The bender element arrays cover depths up to 5 B beneath the model footing, and the tip-to-tip distance between source and receiver bender elements was 300 mm. This distance of 300 mm between the bender pair minimizes the effect of the supporting rods and bender elements on the soil mass beneath footings. The soil mass is not affected by these anomalies up to a depth of 4 B based on the 2 to 1 method, as presented in Figure 2a. After installing the rods, the model ground was constructed by a dry compaction method, and this procedure was repeated 3 times for each test. The final relative density (Dr) of the prepared model ground was 85%, and the height of the prepared soil model was 460 mm, which is 7 times larger than the footing breadth.

The model footings were made of aluminum having same width and height of 60 × 20 mm for the three different models. The length of the model footings was 60 mm, 150 mm, and 300 mm for L/B ratios of 1.0, 2.5, and 5.0, respectively. The model footings were placed at a height of 430 mm from the bottom of the soil deposit, and they were laid in a perpendicular direction to the shear wave ray path, as presented in Figure 2b. In order to minimize the bedding error during vertical loading, model footings were embedded into the soil. An embedding depth of 30 mm was used for considering the equivalent soil weight with model footing to remove the overburden pressure before vertical loading. Acryl resin was attached on the top of model footing’s perimeter to prevent the collapse of soil into the footing, as shown in Figure 2a.

The experiments were conducted in a 5 m platform radius geotechnical centrifuge having a 240 g-ton capacity [23]. A target centrifugal acceleration level of 40 g was adopted, and thus model footings with a prototype length of 2.4 m, 6.0 m, and 12.0 m were simulated according to the centrifuge scaling law. Vertical loading equipment was used to apply a vertical load, and the loading condition was controlled with a constant velocity of 0.075 mm/s. After the 1st loading, the load was completely removed, and the 2nd loading was then applied with a larger load than that of the 1st loading. The vertical load and the settlement of the foundation were measured by load cell and the linear variable differential transformer (LVDT), respectively. Before the 1st and 2nd loadings, V_S was measured using the embedded bender elements. A 100 Hz square signal was utilized as an input signal. The shear wave signals were detected by a receiver in cross-hole type configuration and stacked 32 times to increase the signal to noise ratio.

3.2. Results and Discussion

3.2.1. Shear Wave Velocity (V_S)

The V_S was calculated after determining the first arrival time of received shear wave signals and the tip-to-tip distance between the two corresponding bender elements [24]. Interpolation based on a regression analysis was conducted to produce continuous V_S profiles for precise predictions because the shear wave was detected by point-based measurements. The measured V_S values and theoretical confining stress were used for the regression analysis as shown below [25]:

$$V_s=C_s({\sigma }^{\prime }/P_a{)}^{n/2}$$

(12)

where C_S is material constant, σ′ is effective confining stress, and P_a is atmosphere pressure to normalize the stress term, which was generally assumed to be 100 kPa. In this study, the theoretically calculated vertical effective stress was adopted as the effective confining stress in Equation (12).

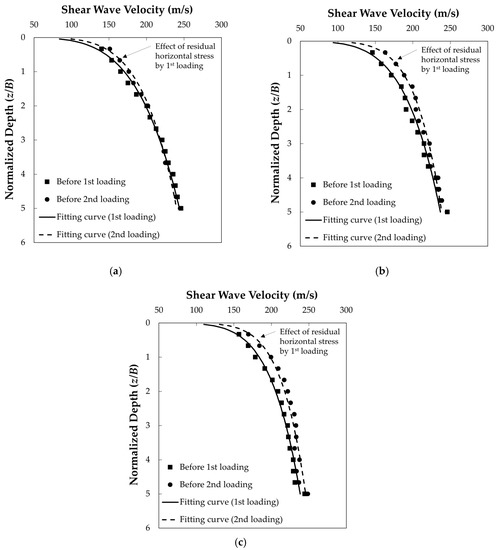

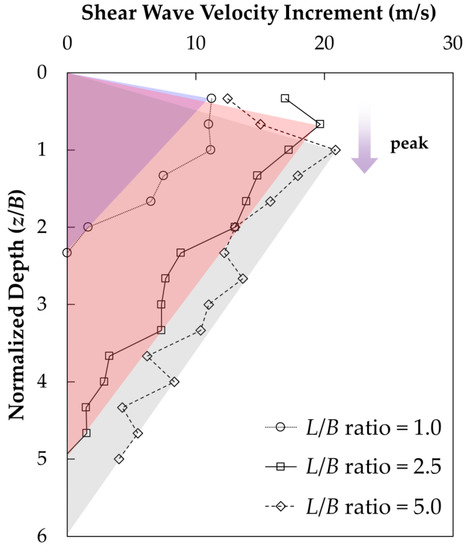

Figure 3 shows the measured and interpolated V_S profiles with respect to depth, which is normalized by footing breadth (B) for the three experiments. As shown in the figure, three V_S profiles before the 1st loading are almost identical, which means the model grounds were constructed homogeneously and uniformly. It is interesting to note that the V_S measured before 2nd loading becomes greater than the 1st loading and the depth at which V_S increased was deeper with increasing L/B ratio. This could be attributed to residual horizontal stress in the subsurface after the 1st loading, and the area influenced by the residual stress deepened with increasing L/B ratio. Given that the residual stress is evidence of load transfer during the 1st loading, the residual stress can be correlated with the I_z. The I_z profiles from Schmertmann et al. [6] and elasticity theory reflect the aforementioned trend that the stress increment transmitted from the surface is deeper with increasing L/B ratio. The influenced depth depending on the L/B ratio converges to zero at 2.0 B depth for square footing and at 4.0 B depth for strip footing as shown in Figure 1. Figure 4 shows the discrepancies between the V_S measured before 2nd loading and that before 1st loading with respect to depth, which is normalized by footing breadth (B). In this figure, it is possible to confirm the phenomena mentioned before more clearly. The influenced depth and depth to peak, which indicates the maximum V_S difference, increase with increasing L/B ratio as presented by shading.

3.2.2. Soil Parameters Used in Predictions

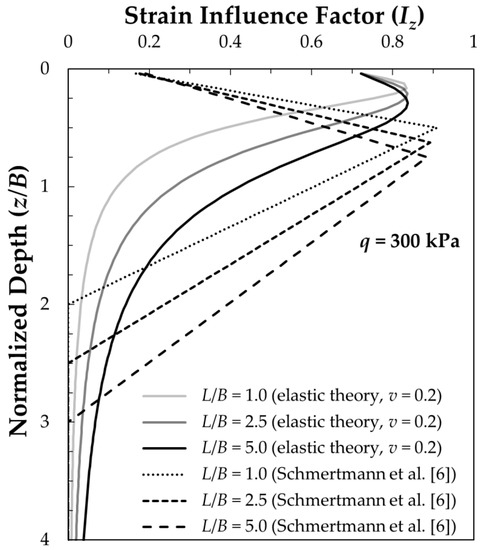

In order to compare the load-settlement curves from centrifuge tests with predictions, two different I_z values from the elasticity theory and Schmertmann’s triangles [6] were utilized simultaneously. In case of the elastic solution, it is necessary to determine the Poisson ratio. As discussed in the previous section, it is evident that the Poisson ratio is less than typically imagined and its range under the working load condition is less than 0.2 [18,19]. A Poisson ratio of 0.2 was, therefore, selected as an equivalent value, and the corresponding shapes with Schmertmann’s triangles are shown in Figure 5. As the peak value of Schmertmann’s triangle increases with increasing surcharge load (q), the shapes shown in Figure 5 are fixed when the surcharge load is 300 kPa for comparison.

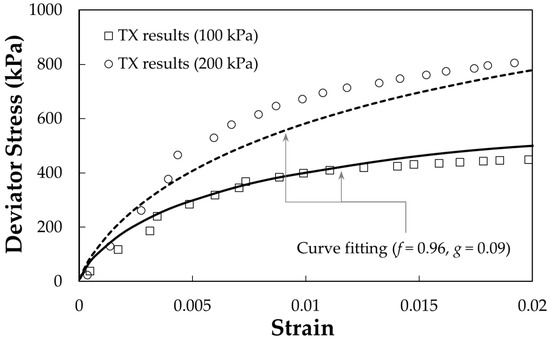

Given that the nonlinear deformation characteristic of soils is determined by certain parameters in Equation (11), the selection of appropriate soil parameters is important. For the stress exponent, n, 0.5 was used since this value is commonly assumed for clean quartz and silica sands [15,20,26]. For the determination of model parameters, f of 0.96 and g of 0.09 were determined through regression analysis using the results of the triaxial test (TX) with the confining pressure of 100 kPa and 200 kPa as shown in Figure 6. More weight was taken into account for the results from the small-strain region. The ultimate bearing capacity, σ_max, depends on the L/B ratio and can be obtained using the Meyerhof method [21] based on the internal friction angle. All soil parameters used in predictions are tabulated in

Table 2. Soil parameters for settlement predictions.

f	g	n	Poisson Ratio, ν	Friction Angle, ø	Bearing Capacity, σmax
0.96	0.09		0.2	43°	L/B = 1.0, 3439 kPa
		0.5			L/B = 2.5, 2729 kPa
					L/B = 5.0, 2506 kPa

. In order to determine the initial stiffness of model ground, the V_S profile measured before each loading was used in each settlement prediction for representing the reasonable stress state of model ground. Finally, a thickness of each sublayer (Δz_i) of 0.1 m was applied in Equation (11).

3.2.3. Comparisons of Load-Settlement Curves with Predictions

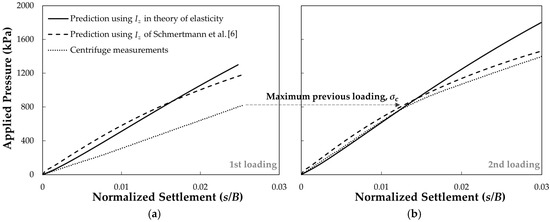

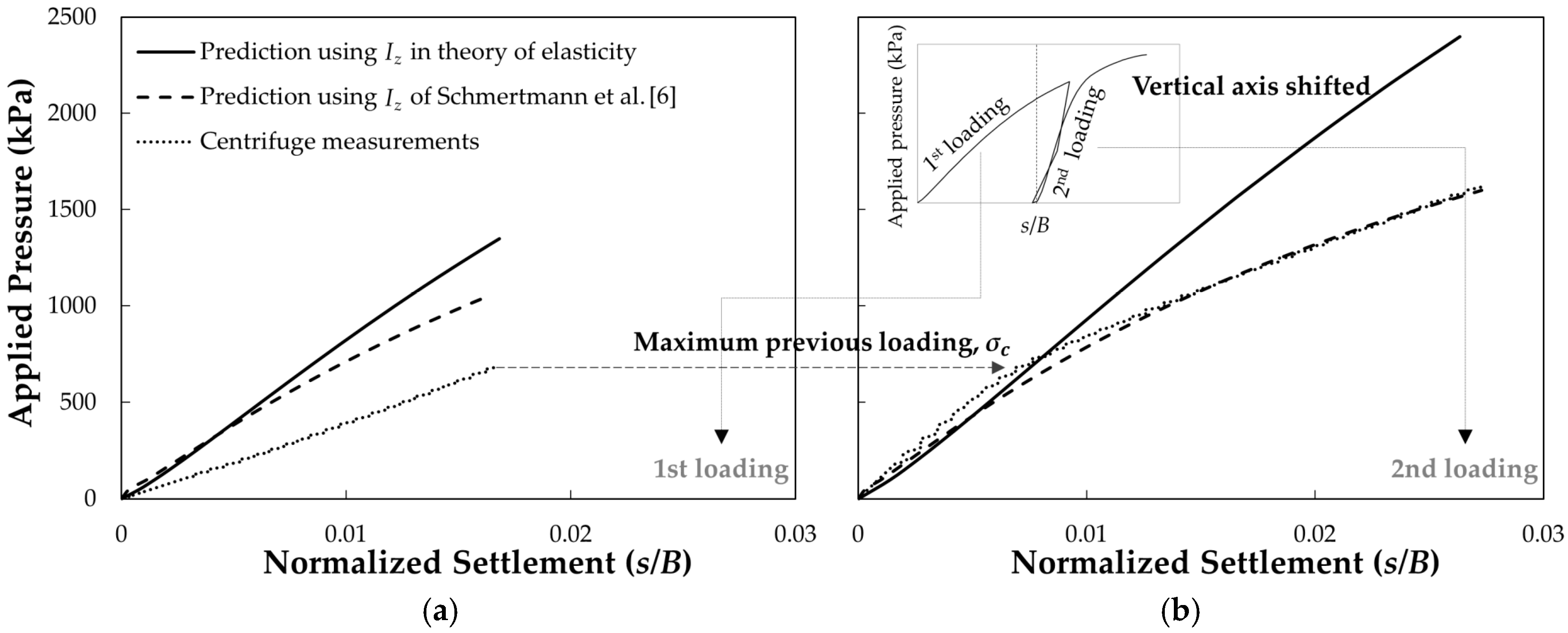

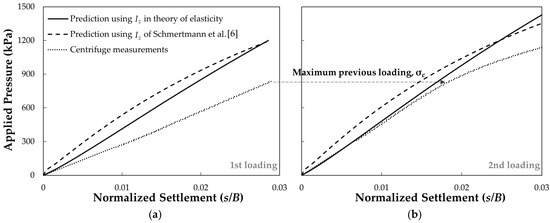

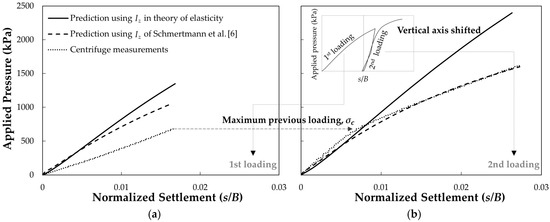

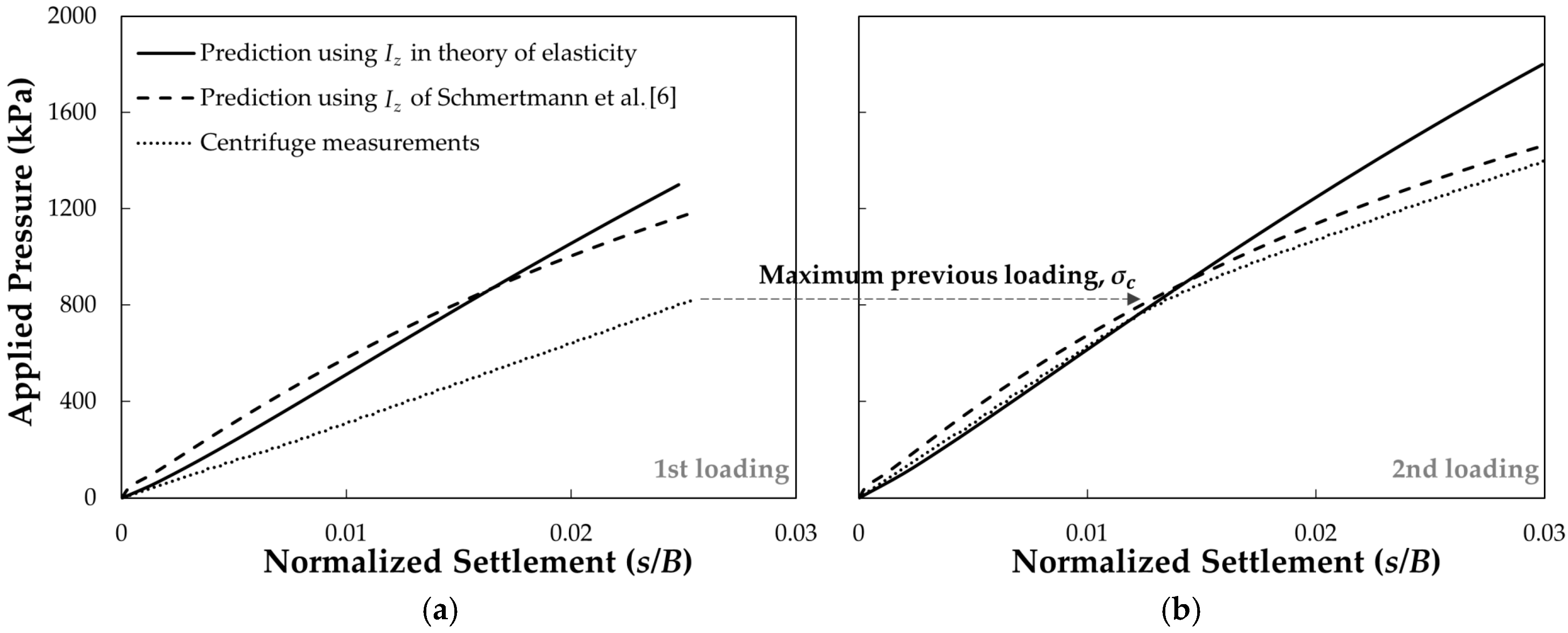

In Figure 7, Figure 8 and Figure 9, measured model settlements were compared with the predictions for L/B ratios of 1.0, 2.5, and 5.0, respectively. Settlement of model footing was normalized using the footing breadth (B), and the load-settlement curves were presented up to the normalized settlement of 3%. To take into account the foundation load eccentricity, load inclination following step-by-step procedures suggested by Briaud [27] was adopted as shown in Figure 7. The straight line part of the 2nd load-settlement curve was extended to zero pressure, thereby shifting the vertical axis to the value of s/B, where that straight line portion intersects the horizontal axis.

The centrifuge test results for 1st loading in Figure 7, Figure 8 and Figure 9 showed very soft deformable behavior compared with the two predictions, regardless of the L/B ratio. It could be reasoned that particle rearrangement, caused by interparticle slip and rotation, governs the deformation behavior rather than the compression of the soil mass related to the modulus for the 1st loading [28]. Irrecoverable plastic behavior caused by the particle rearrangement started at very small strain region and, then, the elastoplastic behavior of soil emerged after a very small elastic limit. Since modeling of soil behavior utilizing the stiffness is valid until the elastic limit, it is not possible that the developed settlement prediction method using the hyperbolic stress-strain model in this study estimates the soil deformation behavior under the normally-consolidated (NC) stress state governed by relative particle movements. The elastoplastic behavior of soil after the elastic limit (i.e., yield point) can be considered by the plasticity theory; however, this kind of complicated modeling technique is not suitable for settlement prediction in engineering practice using a simple tool such as Schmertmann’s method.

On the contrary, the centrifuge test results and two predictions for the 2nd loading show different tendencies. Unlike the results from the 1st loading, the predictions for the three cases using I_z from elasticity theory yielded good agreement with centrifuge test results, especially up to the settlements corresponding to the maximum previous loadings (pre-consolidation pressure). Because the yield points of the three model grounds increased due to the maximum previous loading of the 1st loading cycle, the elastic limit also increased more than that of the original NC stress state ground. Major particle rearrangement occurred and disappeared considerably during the 1st loading cycle, and this particle rearrangement might readily induce more compact configuration of structures. Consequently, elastic soil deformation, which is represented by the modulus, was generated in the recompression stage i.e., 2nd loading. As mentioned before, modeling of soil deformation behavior using a nonlinear hyperbolic stress-strain model based on stiffness is possible up to the elastic limit, and thus the developed settlement prediction method correctly evaluates the load-settlement behavior in the enlarged elastic region.

After the maximum previous loading in 2nd loading stage, predictions using I_z from elasticity theory underestimate the settlements of model footing. As the plastic deformation of soil was not considered in the developed settlement prediction method, the predictions and load-settlement curves from centrifuge tests showed greater discrepancies, like in the case of the 1st loading stage. On the other hand, predictions using I_z from Schmertmann et al. [6] gave similar global load-settlement behavior with the centrifuge test results up to the normalized settlement of 3% even though there were still slight differences before and after the maximum previous loading. Given that the settlement prediction method developed by Schmertmann et al. [6] is a semi-empirical method based on a combination of elasticity theory, laboratory tests and numerical analysis, there is a possibility that Schmertmann’s varying triangular I_z dependent on applied pressure had been developed to consider the nonlinear deformation behavior of soil over the elastic limit empirically for simple use in engineering, rather than using the relatively complicated plasticity theory. Therefore, the use of the I_z from Schmertmann et al. [6] generally results in an approximate solution throughout the entire strain region despite the fact that the modulus was converted from V_S not q_c in this study.

3.2.4. Modulus Profiles

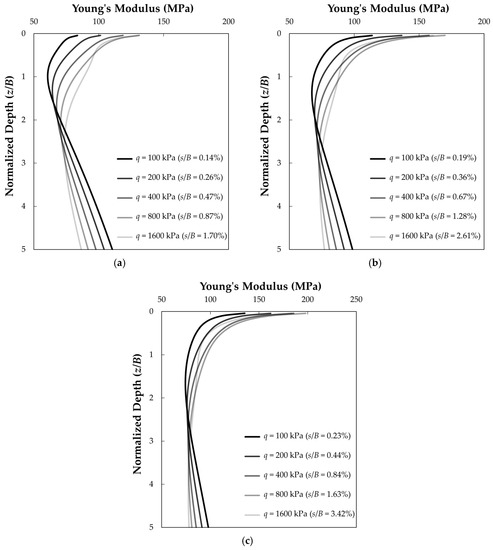

In order to check modulus profiles utilized in settlement predictions, numerically computed modulus profiles mobilized during the settlement predictions are shown with respect to normalized depth (z/B) in Figure 10. Each modulus profile was obtained at each applied pressure (q) from 100 kPa to 1600 kPa, and the normalized settlements (s/B), corresponding to the applied pressure are presented as a percentage. For determination of initial modulus profile, the shear wave velocity profiles measured before the 2nd loading of each L/B ratio were utilized. General trends in the modulus profile transitions were observed such that the modulus increased under low applied pressures and decreased near the surface above 800 kPa. The threshold depth, where the modulus becomes smaller than the previous value, deepened with increasing L/B ratio. This phenomenon could occur due to the shapes of the I_z derived from the elasticity theory. To sum up, the increase in modulus by confining pressure and modulus reduction by strain level are properly modelled in the developed settlement prediction method considering the shape of I_z.

4. Discussion

It is confirmed that the developed settlement prediction method adequately predicts the settlement of footings on over-consolidated (OC) deposits, where particle movement is minimal, based on centrifuge tests. On the other hand, there is a certain limitation of the developed method for normally-consolidated (NC) granular soils even though most sites where the construction of the shallow foundation is suitable have slightly- or heavily-consolidated ground conditions with substantial bearing capacity. To solve this problem, Burland & Burbidge [4] suggested a settlement prediction method and considered the soil compressibility differently from the SPT-N value for NC and OC deposits using empirical coefficients. Leonards & Frost [29] also proposed a settlement prediction method based on Schmertmann’s conceptual framework. In the method, the settlement or the soil stiffness is adjusted by adopting the ratio of the stress increment corresponding to the NC portion and the OC portion in a given layer to the total increment of stress in the layer. Consequently, the empirical coefficient considering the NC and OC stress condition based on pre-consolidation pressure has to be adopted in the developed method in further studies.

5. Conclusions

A new settlement prediction method was developed and discussed in this study. Complete load-settlement behavior of footing could be predicted using V_S-based Schmertmann’s framework considering soil non-linearity. The main findings from this study are summarized as follows:

(i)

For the reliable stiffness estimation of soil layers, the modulus variation by confinement stress and strain level increment was reflected in the developed method based on the V_S. The vertical stress increment with depth can be determined from the I_z calculated from the elasticity theory. The settlements of each sublayer are calculated based on the modulus and stress determined at each depth, and then added to give total settlements.

(ii)

The prediction using the I_z based on elasticity theory showed reasonable agreement with the centrifuge test results for 2nd loading stages due to an enlarged elastic limit. The modulus profile mobilized in the predictions showed that the modulus variation by confining pressure and strain level is properly modeled in the developed settlement prediction method considering the shape of I_z.

(iii)

The centrifuge results for the 1st loading (NC condition) showed very soft deformable behavior compared with the two predictions regardless of the L/B ratio. It could be concluded that the particle rearrangement such as interparticle slip and rotation governs the deformation behavior rather than the compression of the soil mass related to the soil modulus. To take into account the normally-consolidated (NC) stress state governed by relative particle movements, the empirical coefficient needs to be adopted in the developed method.
