Article

Differences among Unique Nanoparticle Protein Corona Constructs: A Case Study Using Data Analytics and Multi-Variant Visualization to Describe Physicochemical Characteristics

by
Madison Stewart
,
Marina R. Mulenos
,
London R. Steele
and
Christie M. Sayes
*
Department of Environmental Science, Baylor University, Waco, TX 76798-7266, USA
*
Author to whom correspondence should be addressed.
Appl. Sci. 2018, 8(12), 2669; https://doi.org/10.3390/app8122669
Submission received: 12 November 2018 / Revised: 3 December 2018 / Accepted: 12 December 2018 / Published: 18 December 2018
(This article belongs to the Special Issue Nanoscale Materials for Drug Delivery and Tissue Engineering)
Browse Figures
Review Reports Versions Notes

Abstract

:
Gold nanoparticles (AuNPs) used in pharmaceutical treatments have been shown to effectively deliver a payload, such as an active pharmaceutical ingredient or image contrast agent, to targeted tissues in need of therapy or diagnostics while minimizing exposure, availability, and accumulation to surrounding biological compartments. Data sets collected in this field of study include some toxico- and pharmacodynamic properties (e.g., distribution and metabolism) but many studies lack information about adsorption of biological molecules or absorption into cells. When nanoparticles are suspended in blood serum, a protein corona cloud forms around its surface. The extent of the applications and implications of this formed cloud are unknown. Some researchers have speculated that the successful use of nanoparticles in pharmaceutical treatments relies on a comprehensive understanding of the protein corona composition. The work presented in this paper uses a suite of data analytics and multi-variant visualization techniques to elucidate particle-to-protein interactions at the molecular level. Through mass spectrometry analyses, corona proteins were identified through large and complex datasets. With such high-output analyses, complex datasets pose a challenge when visualizing and communicating nanoparticle-protein interactions. Thus, the creation of a streamlined visualization method is necessary. A series of user-friendly data informatics techniques were used to demonstrate the data flow of protein corona characteristics. Multi-variant heat maps, pie charts, tables, and three-dimensional regression analyses were used to improve results interpretation, facilitate an iterative data transfer process, and emphasize features of the nanoparticle-protein corona system that might be controllable. Data informatics successfully highlights the differences between protein corona compositions and how they relate to nanoparticle surface charge.

1. Introduction

When nanoparticles (NPs) enter a biological fluid, such as serum, proteins and peptides adsorb onto the particle’s surface, forming a nanoparticle-protein corona (NPPC) complex [1,2,3]. The protein cloud develops a new surface on the nanoparticle, impacting the interactions between the nanoparticle and the surrounding environment. The NPPC complex assumes the characteristics of a core-shell particle system, where the pristine particle is the “core” and the corona is the “shell” [4]. This creates a new interface between the pristine particle and the surrounding biological fluid. The formation of a protein corona has been shown to change the particle’s biological effects [5,6,7,8]. In addition to this change in the particle’s characteristics, the adsorbed proteins have the potential to undergo conformational changes. Changes in either set of properties are especially important for nanomaterial drug products [9,10,11,12,13]. The cloak of proteins around particles in biological fluids has been shown to enhance or diminish a particle’s specificity to a desired location, incite or inhibit its ability to permeate into a cell, and heighten or mitigate a biochemical response. When a protein corona forms, it is more likely to distribute and become available due to the nano-bio interface that forms around the surface of the nanoparticle. This protein cloud can change the biodistribution of the nanoparticle system depending on the biomolecular composition formed around the surface. Consequently, if the drug is reliant on specific proteins binding to the surface of the nanoparticle, then the particle could be translocated into an unintended location if non-targeted proteins form around the particle.
Research efforts in the field of nanotoxicology have strived to relate (or correlate) particle properties to adverse health effects. There now exists a substantial amount of published literature on this topic; however, there is no general consensus on identifying physicochemical characteristics as predictors of toxicological responses. Many different nanoparticles, such as anatase titania, alpha-quartz silica, and gold colloids, have distinct crystal structures as opposed to amorphous materials of similar chemical composition. Notably, crystal structure has been associated with increased cytotoxicity in mammalian cell populations [14,15,16,17]. Nanoparticle size has been implicated as a main driver in systemic distribution [15,18,19,20]. Surface charge is related to cellular uptake mechanisms [21,22,23,24]. However, for every paper published that demonstrates a direct or proportional relationship between particle properties and an induced biological affect, there are others that report a lack of association [25,26,27,28].
Toxicologists who study engineered nanomaterials and nanomedicines have been interested in both complex mixtures in environmentally- and physiologically-relevant conditions in order to decipher the role of physiochemical properties in induced mechanisms of toxic action. These analytical interrogations require multi-level data collected on germane parameters. In the NPPC research space, some of these parameters include particle composition, size, and charge; corona source, composition, and mass; and NPPC activity, toxicity, and ADME properties. New data-gathering methods, such as the inclusion of mass spectrometry techniques and resultant data, produce collections of large sets that are sometimes complicated, multifaceted, and often non-comparable. Scientific data visualization is a powerful methodological tool for enabling the understanding of multi-dimensional data sets. The purpose of this study was to demonstrate the utility of data visualization as a method for identifying trends in NPPC physicochemical properties among six unique samples. Data visualization has been shown to play a crucial role by aiding scientists and practitioners to interpret underlying patterns in their data and applying the new knowledge to pose the next set of research questions [29].
Specific to nanotoxicology research, understanding the composition of the protein corona associated with gold nanoparticles (AuNPs) has the potential to improve nano-enabled drug product development [30,31]. Gold nanoparticles are important because they offer the opportunity to advance pharmaceutical treatments by delivering direct payloads to target tissues. For example, in Ghosh et al., hybrid AuNP polymers were transfected vectors into kidney cells [9,32,33,34,35,36,37]. Quantitative and discovery proteomics of the gold nanoparticle protein corona have enhanced physicochemical characterization [38,39,40,41]. The results presented in this manuscript serve two purposes. First, the data sets expand upon the available data in the protein corona field to assist with its exploitation in pharmaceutical drug development. Second, the data visualization highlights the varying interpretations that can be gained after displaying the same data in different forms. Therefore, the visualization and presentation of results is of relevance to toxicologists and pharmacologists alike.

2. Materials and Methods

The approach to analyze large sets of proteomic data relevant for nanotoxicological studies needs to be streamlined. The approach used in this study includes data collection, storage, and organization, normalization, statistical analyses, pattern identification, visualization, and communication (Figure 1). The following paragraphs summarize each of these steps.

2.1. Protein Corona Sample Preparation

In this study, three different nanoparticle coatings were subjected to two different serum types and incubated for 24 h. Gold nanoparticles of 30 nm were purchased from NanoHybrids (Austin, TX, USA). Particles were placed in aqueous dispersions with one of the following coatings: polyethylene glycol (PEG), carboxylic acid (COOH), or amine (NH3). The primary particle size of each nanoparticle was measured as 30 ± 2 nm using transmission electron microscopy (TEM). The different coatings provided a variety of charges among the coatings, with the PEG producing a neutrally charged surface, COOH producing a negatively charged surface, and NH3 producing a positively charged surface. This variance assisted the determination of the effects of surface charge on the formation of the protein corona. The serum types used included fetal bovine, termed serum-type 1 (ST1), and equine, termed serum-type 2 (ST2; Equitech-Bio Inc., Kerrville, TX, USA). Particles were incubated with serum at a 1:1 ratio at 37 °C for 24 h. Coronas were separated from particles in two steps. First, the particle-corona suspension was centrifuged to remove excess proteins not adhered to particle surfaces. Second, the proteins were removed from the particle surface using a lysis buffer of 8 M urea at 95 °C for 5 min and then centrifuged to separate the proteins from the nanoparticles.

2.2. Characterization of the Nanoparticle System

Figure 2 shows the representative TEM of the gold nanoparticles before serum incubation (Figure 2A) versus the gold nanoparticle after 24-h incubation with serum-type 1 (Figure 2B). Briefly, samples were deposited on 200 mesh carbon coated copper grid (EMS, Hatfield, PA, USA), left to dry at room temperature for 5 min, and washed with PBS twice. TEM images were collected using a JEM-1010 (JEOL Inc., Peabody, MA, USA) microscope at 60 kV with a spot size of 2 [42,43]. To determine the average corona diameter, 100 nanoparticles imaged in TEM micrographs were measured using Cell Sens version 1.13 from Olympus Corp (Center Valley, PA, USA). The hydrodynamic diameter was determined through dynamic light scattering (DLS), along with the polydispersity index (PdI), where NPPC with serum-type 1 (ST1) was determined to be highly monodisperse in the particle population as indicated by a low PdI of 0.144, whereas NPPC with serum-type 2 (ST2) was determined to be moderately monodisperse in particle population as indicated by a PdI of 0.483.

2.3. Mass Spectrometry Data Collection

To identify and quantify the composition within each corona, proteins were removed from the particle surfaces after incubation. Once proteins were isolated, samples underwent tryptic digestion and were analyzed on liquid chromatography tandem mass spectrometry (LC-MS/MS) [44]. Proteins were identified and quantified using Progenesis QI for proteomics v4.1 (Nonlinear Dynamics, Waters Corporation, Milford, MA, USA).

2.4. Data Flow

Using tool sets available in Microsoft Excel (Redmond, WA, USA, 2016), the following method was used to analyze data. Excel was used to compute graphical representation formulas that produced a series of graphs, charts, and tables. Visualized data summarized the results obtained from human-defined clustering. Here, seven different graphical representations were used: conditional formatting, two-dimensional (2D) stacked column charts, 2D pie-of-pie charts, histograms, and combo charts (of scatter and bar). After LC-MS/MS raw data collection, empirical values were stored and organized into clusters based upon characteristics, such as nanoparticle coating, NPPC size, serum-type, or protein abundance, mass, or identification. Subsequent analyses involved the clustering of protein data based on molecular or biological functions, such as transcription activity, actin-binding tendencies, or detoxification initiation.

3. Results

The most commonly used type of figure in proteomic studies is a table that displays high outputs of data in a tabular format. Although this may be the most comprehensive method that lists the most parametric outputs, it is technically not a visualization, nor is it conducive to quick but meaningful interpretation. Interpreting the results of such tables requires time, explanations, and a substantial amount of previous experience in proteomic analyses. Table 1 presents a traditional tabular format of the proteomic data set collected in this study. Information from the table ranges from the number of peptides to the molecular function of for each corona protein found. Any information can be added to the table, which increases the versatility of the data, but it is not a representation of the findings that is easily visualized. Trends and correlations are difficult to quickly obtain from a table, so may not be the best format to report data where multiple parameters are required to identify patterns. Tabular format is also limited by the number of rows and columns in a readable print-out. Overall, this method displays rapid information like sample name, type, and other simple parameters in the experiment.
Bar graphs are an essential figure used for comparisons between different samples or parameters within a sample set. There are a limitless number of parameters that can be compared using a bar graph, but this method is limited to plots using a single x- (independent variable) and a single y-axis (dependent variable). Often, double y-axes add additional variable to the system, as long as the x-axis is constant between differing y-value parameters. Figure 3 shows two different bar charts that compare each protein from the corona against the normalized relative abundance. The chart presents the amount of each identified protein in each of the NPPC samples. With this visualization technique, each protein, serum-type, or nanoparticle surface coating is compared. For instance, the gold nanoparticle with the NH3 coating incubated in serum-type 2 had the most MARCS_RAT (Myristoylated alanine-rich C-kinase substrate) protein. In contrast, ACDA1_METTE (Acetyl-CoA decarbonylase/synthase complex subunit alpha 1) protein was the most abundant component in the corona in the COOH coated gold nanoparticle incubated in the same serum-type 2. This method quantitatively compares protein abundance among multiple parameters.
Figure 4 includes six pie graphs and comprehensively illustrates the total protein composition within each sample. Samples are categorized by nanoparticle coating and serum type. This method distinguishes the most abundant proteins among each of the coating-serum combinations using the average normalized abundance. Simultaneously, the figures depict the variations among each of the coating-serum combinations. This enables the comprehensive comparison of the average normalized abundance of each sample and the contrast of the protein composition between each combination [45,46,47,48,49,50]. Beginning with the three pie graphs representing samples incubated in serum-type 1, the corona from the NH3-coated particle is primarily composed of CALL_DROME (Calmodulin-related protein 97A) and MED22_CHICK (Mediator of RNA polymerase II transcription subunit 22). Similarly, the most abundant proteins in the PEG-ST1 combination are CALL_DROME and MED22_CHICK; however, these proteins are less abundant compared with NH3-ST1. These first two pie graphs implicate a commonality among the protein corona compositions specifically for serum-type 1. However, in the COOH-ST1 sample, whereas MED22_CHICK is the most abundant protein in the sample, CALL_DROME is one of the least. This observation indicates the COOH coating (negative charged surface) may alter the protein composition to a higher degree than that of the NH3 (positively charged surface) and PEG (neutrally charged surface) coatings.
The three pie graphs representing samples incubated in serum-type 2 illustrate a more distributed composition for NH3- and PEG-coated nanoparticles. In both the NH3-ST2 and PEG-ST2 samples, MED22_RAT, CALL_DROME, and MED22_CHICK proteins are equally abundant. This observation indicates that these proteins may play a significant role in particle absorption in serum-type 2. However, in the COOH-ST2 sample, the CALL_DROME protein is by far the most abundant, with MARCS_RAT present in a small amount. As with the ST1-incubated samples, the COOH coating (negative charged surface) forms a different protein corona (in terms of composition) than that of the NH3 (positively charged surface) and PEG (neutrally charged surface) coatings.
The two most common proteins found in all coronas were CALL_DROME, (calmodulin-related protein 97A) and MARCS_CHICK (myristoylated alanine-rich C-kinase substrate). CALL_DROME regulates a range of normal cellular functions such as inflammation, metabolism, apoptosis, and immune response. The protein specifically functions as a calcium-binding messenger that modifies interactions with different target proteins like phosphatases or kinases. When calcium binds to calmodulin, a large structural change occurs. Electrophiles are needed to sequester the readily available electrons that influence the binding affinity for the positively-charged surface functionalization on the nanoparticles. MARCS is a common protein found in the cytoskeleton that performs a series of important functions including binding actin, calmodulin, and synapsin. This protein is in a class that strongly impacts cell motility, secretion, and shape. This class of proteins also participates in cell cycle regulation, neural development, and transmembrane transport. They play a part in sequestering acidic membrane phospholipids like PIP2, which is vital in protein signaling.
Both proteins play important roles in the maintenance of normal cellular functions in eukaryotic cells. However, in the presence of nanoparticles, a large portion of these proteins adsorb onto particles’ surfaces. When these proteins adsorb onto nanoparticles surfaces, the structure changes, and function is lost. It is important to know which proteins bind to the surface and lose structural and functional capabilities, especially when nanoparticles are used in therapeutic applications.
Similar to the bar chart in Figure 3, the pie graphs in Figure 4 visually compare the abundance of each protein for all six nanoparticle-protein corona samples. The difference between the two figures is that the bar chart is used for quantitative analyses whereas the pie graph lends itself to qualitative analyses. The latter method best displays the different constituents of each sample so that trends in protein content with either serum-type or nanoparticle surface coating are noticeable. One trend demonstrated by the pie graphs is the increased abundance of protein MED22_CHICK in the samples incubated in ST1 compared to those incubated with ST2. A benefit of this method is the ability to easily see parts of the whole, i.e., the abundance of each protein in all samples. This method is limited by the sample size: if there are too many different proteins, it may be difficult to differentiate one protein from another. With a smaller sample size, this method works to compare individual samples.
The Pie-of-Pie graph, shown in Figure 5, enables the visualization of proteins identified by their molecular function and subsequent protein composition. This figure supports interpretation as it relates to biological relevance and assist in the design of future toxicological studies by narrowing the scope of pathway analyses. The first pie graph illustrates four primary functions categorized as transcription, actin-binding, toxin activity, and other. Presenting data in this manner does not compromise space by expending excessive detail on smaller groups that may not be relevant to the study (i.e., the use of the ‘other’ category combines lesser functions into a single wedge in the entire pie). Pie-of-Pie is not limited to just two graphs; the data can be extended into many other pie graphs that detail the composition of other functional groups noted in the molecular function graph, i.e., actin-binding and toxin activity. The second pie graph depicts the individual proteins that comprise the most abundant transcription functional group proteins identified in the NH3-ST1 combination. In this sample, the MED22_CAEEL protein is the most abundant among the transcription proteins (73%).
In some datasets, a figure needs to compare multiple parameters that are related in an experiment. In Figure 6, the abundance of protein is compared with the average NPPC complex diameter. Here, the x-axis is the serum-type and the y-axis is the normalized abundance of protein. The color blocks within each column represent the different nanoparticle surface functionalization/charges. When comparing the columns, the gold nanoparticles coated with PEG seem to have absorbed more proteins from serum-type 2 when compared with serum-type 1. Conversely, the gold nanoparticles coated with amine and carboxyl functional grouped absorbed more proteins from serum-type 1 when compared with serum-type 2. In addition to assessing the amount of proteins absorbed onto particle surfaces, this plot indicates the differences in NPPC size relative to serum type (as indicated by white diamonds markers). On average, the particle diameter of NPPC complexes was larger when incubated in serum-type 2 (109 nm) compared to when particles were incubated in serum-type 1 (79 nm). Since the ST1-incubated particles contain more proteins but have a smaller diameter, we concluded that incubation with ST1 creates a more densely packed protein corona shell. TEM images shown in Figure S1 provide visual evidence of this phenomenon.
In bottom-up proteomics methodology, the use of high-performance liquid chromatography (HPLC) is essential to separate peptides before analyzing with mass spectrometry. The most common separation method is reverse phase chromatography, where the HPLC separation column is packed with C18 (a separation column packed with particles composed of 18 carbon atoms), or another non-polar stationary phase. The mobile phase is a gradient from polar to non-polar solvents. In Figure S2, the peptides analyzed in all samples were plotted against retention time to show the polarity distribution of the peptides. Most of the peptides eluted earlier on in the gradient, i.e., ~36–56 min, indicating that most of the peptides that compose this protein corona are relatively polar. Data can be used to compare the polarity of peptides in each corona when plotted. Sample number or peptide abundance are not limitations with this figure, but a discrepancy can be made with the bins for the histogram. When analyzing multiple samples, the bins would need to be consistent to be comparable. The data from this study show that most peptides that comprise all protein coronas in all six samples are in the polar region.
The last data visualization method used in this study is a heat map (Table 2). The table ranks the abundance from lowest (red) to highest (green) of all six samples. Given the comprehensive nature of the heat map, this figure enables the inclusion of multiple parameters, including protein abundance, nanoparticle coating, and serum-type. The color gradient creates a visual focus on the most abundant proteins in each sample type, while also comparing each protein against the other coating-serum combinations. Table 2 shows that CALL_DROME, MED22_CAEEL, and MED22_HUMAN can be quickly identified as the most abundant proteins among all the samples. Together, these three proteins may play a large role in the formation of the protein corona.

4. Discussion

The use of graphical methods for categorical data has permeated the peer-reviewed literature in many Science, Technology, Engineering, and Mathematics (STEM) related fields [51,52,53,54]. Some fields, such as those in the ‘omics arena, require advanced computational methods in order to organize complex quantitative data sets [51]. Other analytical fields, such as statistical sciences, have contributed to the development of a data visualization industry; major players can be described as solution providers of either visual analytics or reporting tools [55,56]. Designing effective graphics is generally regarded as art informed by large sets of empirical data [57,58,59].
When relating (or correlating) particle properties to adverse health effects, it is important to define the parametric space in which the experimental data set belongs. In toxicological data, the entire space can be defined as the biological (or biochemical) effects of an exogenous toxicant (or endogenous toxin) on an in vivo or in vitro test system. However, an investigator can also define a specific space, such as the composition of the NPPC construct. In the former, the mass spectrometry data used in this paper reveals only a small number of critical attributes needed to define the possible health effects of gold nanoparticle exposure on human health. In the latter, the mass spectrometry data visualized herein defines the composition of the NPPC construct completely and lends itself to interpretation that promotes the next set of pathway-specific toxicity studies.
Specific to ‘omics data, modern nanotoxicology experimental designs incorporate genomics, proteomics, and metabolomics into the already tedious process of nanomaterial physicochemical characterization, dose-response relationships, exposure dosimetry, and mechanistic analyses [60,61,62,63]. For example, genomic data provide detailed information about specific cellular pathways triggered after exposure. Such data include peptide sequence, length, and density. Metabolomics data aid in assembling biotransformation reaction schemes of degraded xenobiotics and include not only metabolites, but also information about the parent molecules [64,65]. Similarly, proteomics data contribute to the characterization of normal cell and tissue physiological processes [66,67]. This paper focused on the different ways in which data collected from proteomic mass spectrometry analyses can be presented, visualized, and communicated. The proteins analyzed are those that form a protein corona shell around a gold nanoparticle core. Our results show that the composition, density, and size of the protein corona varies when the nanoparticle zeta potential changes, as well as when the serum-type changes. Therefore, it is reasonable to expect that the protein corona formed on the surface of nanomaterial drug products (i.e., nano-drugs, nano-additives, or nano-carriers) may differ between drug products and between individual patients.
A suite of visualization techniques was used to communicate the results. Data visualization refers to the techniques used to organize large data sets and communicate results [51,59]. Some of these massive data sets are measured in gigabytes (109 bytes) and terabytes (1012 bytes) [65,68]. Until recently, most toxicological data sets have been held to a manageable sample size (with one variable measured over five or more doses, time points, and replicates) due to limitations in metrology, computational power, and resources [69]. Advanced data analytics and multi-variant visualization have not pervaded the toxicology literature. Today, proteomic data are becoming a routine endpoint in toxicological assessments [60,61,62,63,66,67,70]. Therefore, the inclusion of this type of data has created the opportunity for more comprehensive analysis, and thus the critical need to visualize the variability of multiple parameters and endpoints in a single graphical representation [71].
Adding multiple independent variables (such as dose, time, and sample-type) to toxicological experimental designs presents challenges when reporting and communicating data. This is not unique to input variables; increasing the number of output variables or endpoints also complicates the reporting process. The advent of ‘omics techniques, such as multiplexing, microarray analyses, and RNAseq, facilitate the collection of multiple endpoints within a single biological test system. The plethora of data collected at the completion of these types of studies present challenges with data storage, cleaning, normalization, organization, processing, statistical analyses, pattern recognition, modeling, and communication [72,73].

5. Conclusions

Relating descriptive to functional analyses, the health effects of the protein corona can be determined using mass spectrometry tools only if meaningful interpretation can be visualized. A successful flow of information that bridges data collection, visualization, and results communication is needed to enable a higher degree of user interaction. Further developments in this work flow will include extension to more sophisticated software and the use of novel statistical analysis tools.

Supplementary Materials

The following are available online at https://www.mdpi.com/2076-3417/8/12/2669/s1.

Author Contributions

M.S. analyzed data and drafted manuscript text; M.R.M. collected data sets, analyzed data, and drafted manuscript text; L.S. analyzed data sets; C.M.S. collected data, analyzed data sets, drafted and finalized manuscript text.

Funding

This research received no external funding.

Acknowledgments

The authors thank Baylor University for resources made available to perform these experiments.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cedervall, T.; Lynch, I.; Lindman, S.; Berggård, T.; Thulin, E.; Nilsson, H.; Dawson, K.A.; Linse, S. Understanding the nanoparticle–protein corona using methods to quantify exchange rates and affinities of proteins for nanoparticles. Proc. Natl. Acad. Sci. USA 2007, 104, 2050–2055. [Google Scholar] [CrossRef] [PubMed]
  2. Lundqvist, M.; Stigler, J.; Elia, G.; Lynch, I.; Cedervall, T.; Dawson, K.A. Nanoparticle size and surface properties determine the protein corona with possible implications for biological impacts. Proc. Natl. Acad. Sci. USA 2008, 105, 14265–14270. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Monopoli, M.P.; Walczyk, D.; Campbell, A.; Elia, G.; Lynch, I.; Baldelli Bombelli, F.; Dawson, K.A. Physical–chemical aspects of protein corona: Relevance to in vitro and in vivo biological impacts of nanoparticles. J. Am. Chem. Soc. 2011, 133, 2525–2534. [Google Scholar] [CrossRef] [PubMed]
  4. Liu, W.; Rose, J.; Plantevin, S.; Auffan, M.; Bottero, J.Y.; Vidaud, C. Protein corona formation for nanomaterials and proteins of a similar size: Hard or soft corona? Nanoscale 2013, 5, 1658–1668. [Google Scholar] [CrossRef] [PubMed]
  5. Durán, N.; Silveira, C.P.; Durán, M.; Martinez, D.S.T. Silver nanoparticle protein corona and toxicity: A mini-review. J. Nanobiotechnol. 2015, 13, 55. [Google Scholar] [CrossRef] [PubMed]
  6. Lesniak, A.; Fenaroli, F.; Monopoli, M.P.; Åberg, C.; Dawson, K.A.; Salvati, A. Effects of the presence or absence of a protein corona on silica nanoparticle uptake and impact on cells. ACS Nano 2012, 6, 5845–5857. [Google Scholar] [CrossRef] [PubMed]
  7. Mortensen, N.P.; Hurst, G.B.; Wang, W.; Foster, C.M.; Nallathamby, P.D.; Retterer, S.T. Dynamic development of the protein corona on silica nanoparticles: Composition and role in toxicity. Nanoscale 2013, 5, 6372–6380. [Google Scholar] [CrossRef] [PubMed]
  8. Shannahan, J.H.; Podila, R.; Aldossari, A.A.; Emerson, H.; Powell, B.A.; Ke, P.C.; Rao, A.M.; Brown, J.M. Formation of a protein corona on silver nanoparticles mediates cellular toxicity via scavenger receptors. Toxicol. Sci. 2014, 143, 136–146. [Google Scholar] [CrossRef] [PubMed]
  9. Barrán-Berdón, A.L.; Pozzi, D.; Caracciolo, G.; Capriotti, A.L.; Caruso, G.; Cavaliere, C.; Riccioli, A.; Palchetti, S.; Laganà, A. Time evolution of nanoparticle–protein corona in human plasma: Relevance for targeted drug delivery. Langmuir 2013, 29, 6485–6494. [Google Scholar] [CrossRef] [PubMed]
  10. Corbo, C.; Molinaro, R.; Parodi, A.; Toledano Furman, N.E.; Salvatore, F.; Tasciotti, E. The impact of nanoparticle protein corona on cytotoxicity, immunotoxicity and target drug delivery. Nanomedicine 2016, 11, 81–100. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  11. Han, G.; Ghosh, P.; Rotello, V.M. Functionalized gold nanoparticles for drug delivery. Nanomedicine 2007, 2, 113–123. [Google Scholar] [CrossRef] [PubMed]
  12. Peng, Q.; Zhang, S.; Yang, Q.; Zhang, T.; Wei, X.Q.; Jiang, L.; Zhang, C.L.; Chen, Q.M.; Zhang, Z.R.; Lin, Y.F. Preformed albumin corona: A protective coating for nanoparticles based drug delivery system. Biomaterials 2013, 34, 8521–8530. [Google Scholar] [CrossRef] [PubMed]
  13. Salvati, A.; Pitek, A.S.; Monopoli, M.P.; Prapainop, K.; Bombelli, F.B.; Hristov, D.R.; Kelly, P.M.; Åberg, C.; Mahon, E.; Dawson, K.A. Transferrin-functionalized nanoparticles lose their targeting capabilities when a biomolecule corona adsorbs on the surface. Nat. Nanotechnol. 2013, 8, 137–143. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Braydich-Stolle, L.K.; Schaeublin, N.M.; Murdock, R.C.; Jiang, J.; Biswas, P.; Schlager, J.J.; Hussain, S.M. Crystal structure mediates mode of cell death in TiO2 nanotoxicity. J. Nanopart. Res. 2009, 11, 1361–1374. [Google Scholar] [CrossRef]
  15. Kobayashi, N.; Naya, M.; Endoh, S.; Maru, J.; Yamamoto, K.; Nakanishi, J. Comparative pulmonary toxicity study of nano-TiO2 particles of different sizes and agglomerations in rats: Different short-and long-term post-instillation results. Toxicology 2009, 264, 110–118. [Google Scholar] [CrossRef] [PubMed]
  16. Warheit, D.B.; Webb, T.R.; Reed, K.L.; Frerichs, S.; Sayes, C.M. Pulmonary toxicity study in rats with three forms of ultrafine-TiO2 particles: Differential responses related to surface properties. Toxicology 2007, 230, 90–104. [Google Scholar] [CrossRef] [PubMed]
  17. Sayes, C.M.; Wahi, R.; Kurian, P.A.; Liu, Y.; West, J.L.; Ausman, K.D.; Warheit, D.B.; Colvin, V.L. Correlating nanoscale titania structure with toxicity: A cytotoxicity and inflammatory response study with human dermal fibroblasts and human lung epithelial cells. Toxicol. Sci. 2006, 92, 174–185. [Google Scholar] [CrossRef] [PubMed]
  18. Powers, K.W.; Palazuelos, M.; Moudgil, B.M.; Roberts, S.M. Characterization of the size, shape, and state of dispersion of nanoparticles for toxicological studies. Nanotoxicology 2007, 1, 42–51. [Google Scholar] [CrossRef]
  19. Fujiwara, K.; Suematsu, H.; Kiyomiya, E.; Aoki, M.; Sato, M.; Moritoki, N. Size-dependent toxicity of silica nano-particles to Chlorella kessleri. J. Environ. Sci. Healthpart A 2008, 43, 1167–1173. [Google Scholar] [CrossRef] [PubMed]
  20. Warheit, D.B.; Webb, T.R.; Sayes, C.M.; Colvin, V.L.; Reed, K.L. Pulmonary instillation studies with nanoscale TiO2 rods and dots in rats: Toxicity is not dependent upon particle size and surface area. Toxicol. Sci. 2006, 91, 227–236. [Google Scholar] [CrossRef] [PubMed]
  21. Chithrani, B.D.; Ghazani, A.A.; Chan, W.C.W. Determining the size and shape dependence of gold nanoparticle uptake into mammalian cells. Nano Lett. 2006, 6, 662–668. [Google Scholar] [CrossRef] [PubMed]
  22. Berg, J.M.; Romoser, A.; Banerjee, N.; Zebda, R.; Sayes, C.M. The relationship between pH and zeta potential of ∼30 nm metal oxide nanoparticle suspensions relevant to in vitro toxicological evaluations. Nanotoxicology 2009, 3, 276–283. [Google Scholar] [CrossRef]
  23. He, C.; Hu, Y.; Yin, L.; Tang, C.; Yin, C. Effects of particle size and surface charge on cellular uptake and biodistribution of polymeric nanoparticles. Biomaterials 2010, 31, 3657–3666. [Google Scholar] [CrossRef] [PubMed]
  24. Fröhlich, E. The role of surface charge in cellular uptake and cytotoxicity of medical nanoparticles. Int. J. Nanomed. 2012, 7, 5577–5591. [Google Scholar] [CrossRef] [PubMed]
  25. Warheit, D.B.; Webb, T.R.; Colvin, V.L.; Reed, K.L.; Sayes, C.M. Pulmonary bioassay studies with nanoscale and fine-quartz particles in rats: Toxicity is not dependent upon particle size but on surface characteristics. Toxicol. Sci. 2006, 95, 270–280. [Google Scholar] [CrossRef] [PubMed]
  26. Huk, A.; Izak-Nau, E.; Reidy, B.; Boyles, M.; Duschl, A.; Lynch, I.; Dušinska, M. Is the toxic potential of nanosilver dependent on its size? Part. Fibre Toxicol. 2014, 11, 65. [Google Scholar] [CrossRef] [PubMed]
  27. Christensen, F.M.; Johnston, H.J.; Stone, V.; Aitken, R.J.; Hankin, S.; Peters, S.; Aschberger, K. Nano-silver: Feasibility and challenges for human health risk assessment based on open literature. Nanotoxicology 2010, 4, 284–295. [Google Scholar] [CrossRef] [PubMed]
  28. Fischer, H.C.; Chan, A.W. Nanotoxicity: The growing need for in vivo study. Curr. Opin. Biotechnol. 2007, 18, 565–571. [Google Scholar] [CrossRef] [PubMed]
  29. Docherty, S.L.; Vorderstrasse, A.; Brandon, D.; Johnson, C. Visualization of multidimensional data in nursing science. West. J. Nurs. Res. 2017, 39, 112–126. [Google Scholar] [CrossRef] [PubMed]
  30. Grossman, J.H.; McNeil, A.S.E. Nanotechnology in cancer medicine. Phys. Today 2012, 65, 38. [Google Scholar] [CrossRef]
  31. Tyner, K.M.; Zou, P.; Yang, X.; Zhang, H.; Cruz, C.N.; Lee, S.L. Product quality for nanomaterials: Current US experience and perspective. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2015, 7, 640–654. [Google Scholar] [CrossRef] [PubMed]
  32. Pissuwan, D.; Valenzuela, S.M.; Cortie, M.B. Therapeutic possibilities of plasmonically heated gold nanoparticles. Trends Biotechnol. 2006, 24, 62–67. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  33. Davis, M.E.; Chen, Z.; Shin, D.M. Nanoparticle therapeutics: An emerging treatment modality for cancer. Nat. Rev. Drug Discov. 2008, 7, 771–782. [Google Scholar] [CrossRef] [PubMed]
  34. Ghosh, P.; Han, G.; De, M.; Kim, C.K.; Rotello, V.M. Gold nanoparticles in delivery applications. Adv. Drug Deliv. Rev. 2008, 60, 1307–1315. [Google Scholar] [CrossRef] [PubMed]
  35. Fan, Z.; Ray, A.P. Multifunctional plasmonic shell-magnetic core nanoparticles for targeted diagnostics, isolations and photothermal treatment of tumor cells. Abstr. Pap. Am. Chem. Soc. 2012, 6, 1065–1073. [Google Scholar]
  36. Song, J.B.; Zhou, J.J.; Duan, H.W. Self-assembled plasmonic vesicles of SERS-encoded amphiphilic gold nanoparticles for cancer cell targeting and traceable intracellular drug delivery. J. Am. Chem. Soc. 2012, 134, 13458–13469. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, F.; Wang, Y.C.; Dou, S.; Xiong, M.H.; Sun, T.M.; Wang, J. Doxorubicin-tethered responsive gold nanoparticles facilitate intracellular drug delivery for overcoming multidrug resistance in cancer cells. ACS Nano 2011, 5, 3679–3692. [Google Scholar] [CrossRef] [PubMed]
  38. Aebersold, R.; Mann, M. Mass spectrometry-based proteomics. Nature 2003, 422, 198. [Google Scholar] [CrossRef] [PubMed]
  39. Diamandis, E.P. Mass spectrometry as a diagnostic and a cancer biomarker discovery tool opportunities and potential limitations. Mol. Cell. Proteom. 2004, 3, 367–378. [Google Scholar] [CrossRef] [PubMed]
  40. Wilhelm, M.; Schlegl, J.; Hahne, H.; Gholami, A.M.; Lieberenz, M.; Savitski, M.M.; Ziegler, E.; Butzmann, L.; Gessulat, S.; Marx, H.; et al. Mass-spectrometry-based draft of the human proteome. Nature 2014, 509, 582. [Google Scholar] [CrossRef] [PubMed]
  41. Ong, S.E.; Mann, M. Mass spectrometry–based proteomics turns quantitative. Nat. Chem. Biol. 2005, 1, 252. [Google Scholar] [CrossRef] [PubMed]
  42. Sayes, C.M.; Warheit, D.B. Characterization of nanomaterials for toxicity assessment. Wiley Interdiscip. Rev. Nanomed. Nanobiotechnol. 2009, 1, 660–670. [Google Scholar] [CrossRef] [PubMed]
  43. Sharma, V.K.; Yngard, R.A.; Lin, Y. Silver nanoparticles: Green synthesis and their antimicrobial activities. Adv. Colloid Interf. Sci. 2009, 145, 83–96. [Google Scholar] [CrossRef] [PubMed]
  44. Docter, D.; Distler, U.; Storck, W.; Kuharev, J.; Wünsch, D.; Hahlbrock, A.; Knauer, S.K.; Tenzer, S.; Stauber, R.H. Quantitative profiling of the protein coronas that form around nanoparticles. Nat. Protoc. 2014, 9, 2030. [Google Scholar] [CrossRef] [PubMed]
  45. Kim, D.H.; Murovic, J.A.; Tiel, R.L.; Kline, D.G. Management and outcomes in 318 operative common peroneal nerve lesions at the Louisiana State University Health Sciences Center. Neurosurgery 2004, 54, 1421–1428; discussion 1428–1429. [Google Scholar] [CrossRef] [PubMed]
  46. Whyte, A.M.; McNamara, D.; Rosenberg, I.; Whyte, A.W. Magnetic resonance imaging in the evaluation of temporomandibular joint disc displacement: A review of 144 cases. Int. J. Oral Maxillofac. Surg. 2006, 35, 696–703. [Google Scholar] [CrossRef] [PubMed]
  47. Steinberg, L.A.; Knilans, T.K. Syncope in children: Diagnostic tests have a high cost and low yield. J. Pediatrics 2005, 146, 355–358. [Google Scholar] [CrossRef] [PubMed]
  48. Patwardhan, R.V.; Nanda, A. Implanted ventricular shunts in the United States: The billion-dollar-a-year cost of hydrocephalus treatment. Neurosurgery 2005, 56, 139–144; discussion 144–145. [Google Scholar] [CrossRef] [PubMed]
  49. Welthagen, W.; Schnelle-Kreis, J.; Zimmermann, R. Search criteria and rules for comprehensive two-dimensional gas chromatography-time-of-flight mass spectrometry analysis of airborne particulate matter. J. Chromatogr. A 2003, 1019, 233–249. [Google Scholar] [CrossRef]
  50. Ewing, R.M.; Chu, P.; Elisma, F.; Li, H.; Taylor, P.; Climie, S.; McBroom-Cerajewski, L.; Robinson, M.D.; O’Connor, L.; Li, M.; et al. Large-scale mapping of human protein-protein interactions by mass spectrometry. Mol. Syst. Biol. 2007, 3, 89. [Google Scholar] [CrossRef] [PubMed]
  51. Friendly, M. Visualizing Categorical Data; SAS Institute: Cary, NC, USA, 2000. [Google Scholar]
  52. Howell, D.C. Statistical Methods for Psychology; Cengage Learning: Independence, KY, USA, 2009. [Google Scholar]
  53. Cox, D.R. Analysis of Binary Data; Taylor & Francis Group, Routledge: New York, NY, USA, 2018. [Google Scholar]
  54. Larose, D.T.; Larose, C.D. Discovering Knowledge in Data: An Introduction to Data Mining; John Wiley & Sons: Hoboken, NJ, USA, 2014. [Google Scholar]
  55. Keim, D.A.; Mansmann, F.; Thomas, J. Visual analytics: How much visualization and how much analytics? ACM Sigkdd Explor. Newsl. 2010, 11, 5–8. [Google Scholar] [CrossRef]
  56. Russom, P. Big data analytics. Tdwi Best Pract. Rep. 2011, 19, 1–34. [Google Scholar]
  57. Hegarty, M. The cognitive science of visual-spatial displays: Implications for design. Top. Cogn. Sci. 2011, 3, 446–474. [Google Scholar] [CrossRef] [PubMed]
  58. Moere, A.V.; Purchase, H. On the role of design in information visualization. Inf. Vis. 2011, 10, 356–371. [Google Scholar] [CrossRef]
  59. Aparicio, M.; Costa, C.J. Data visualization. Commun. Des. Q. Rev. 2015, 3, 7–11. [Google Scholar] [CrossRef]
  60. Ankley, G.T.; Daston, G.P.; Degitz, S.J.; Denslow, N.D.; Hoke, R.A.; Kennedy, S.W.; Miracle, A.L.; Perkins, E.J.; Snape, J.; Tillitt, D.E.; et al. Toxicogenomics in regulatory ecotoxicology. Environ. Sci. Technol. 2006, 40, 4055–4065. [Google Scholar] [CrossRef] [PubMed]
  61. Boverhof, D.R.; Zacharewski, T.R. Toxicogenomics in risk assessment: Applications and needs. Toxicol. Sci. 2005, 89, 352–360. [Google Scholar] [CrossRef] [PubMed]
  62. Dowling, V.A.; Sheehan, D. Proteomics as a route to identification of toxicity targets in environmental toxicology. Proteomics 2006, 6, 5597–5604. [Google Scholar] [CrossRef] [PubMed]
  63. Schmitz-Spanke, S.; Rettenmeier, A.W. Protein expression profiling in chemical carcinogenesis: A proteomic-based approach. Proteomics 2011, 11, 644–656. [Google Scholar] [CrossRef] [PubMed]
  64. DeHaven, C.D.; Evans, A.M.; Dai, H.; Lawton, K.A. Organization of GC/MS and LC/MS metabolomics data into chemical libraries. J. Cheminform. 2010, 2, 9. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  65. Goodacre, R.; Vaidyanathan, S.; Dunn, W.B.; Harrigan, G.G.; Kell, D.B. Metabolomics by numbers: Acquiring and understanding global metabolite data. Trends Biotechnol. 2004, 22, 245–252. [Google Scholar] [CrossRef] [PubMed]
  66. Merrick, B.A.; Witzmann, F.A. The role of toxicoproteomics in assessing organ specific toxicity. Exp. Suppl. 2009, 99, 367–400. [Google Scholar] [Green Version]
  67. Rabilloud, T.; Lescuyer, P. Proteomics in mechanistic toxicology: History, concepts, achievements, caveats, and potential. Proteomics 2015, 15, 1051–1074. [Google Scholar] [CrossRef] [PubMed]
  68. Berg, M.; Vanaerschot, M.; Jankevics, A.; Cuypers, B.; Breitling, R.; Dujardin, J.C. LC-MS metabolomics from study design to data-analysis: Using a versatile pathogen as a test case. Comput. Struct. Biotechnol. J. 2013, 4, e201301002. [Google Scholar] [CrossRef] [PubMed]
  69. Mansfield, E.; Kaiser, D.L.; Fujita, D.; Van de Voorde, M. Metrology and Standardization for Nanotechnology: Protocols and Industrial Innovations; John Wiley & Sons: Hoboken, NJ, USA, 2017. [Google Scholar]
  70. Waters, M.D.; Fostel, J.M. Toxicogenomics and systems toxicology: Aims and prospects. Nat. Rev. Genet. 2004, 5, 936. [Google Scholar] [CrossRef] [PubMed]
  71. Hey, T.; Tansley, S.; Tolle, K.M. The Fourth Paradigm: Data-Intensive Scientific Discovery; Microsoft Research: Redmond, WA, USA, 2009; Volume 1. [Google Scholar]
  72. Oveland, E.; Muth, T.; Rapp, E.; Martens, L.; Berven, F.S.; Barsnes, H. Viewing the proteome: How to visualize proteomics data? Proteomics 2015, 15, 1341–1355. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  73. Jeanquartier, F.; Jean-Quartier, C.; Holzinger, A. Integrated web visualizations for protein-protein interaction databases. BMC Bioinform. 2015, 16, 195. [Google Scholar] [CrossRef] [PubMed]
Applsci 08 02669 g001 550

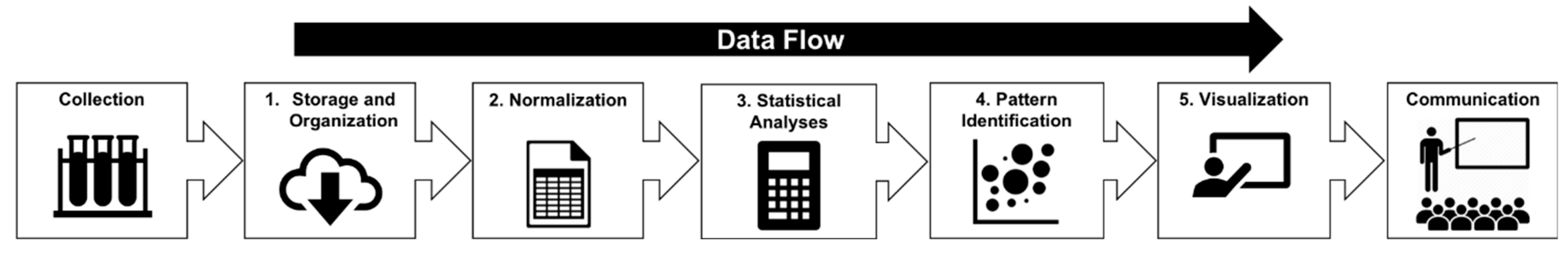

Figure 1. The flow of data from collection to interpretation. After the conclusion of an experiment, data are collected. Within the first stage, sets of data are stored and organized locally or on the cloud in spreadsheets. Second, data are normalized relative to controls. Third, descriptive statistics are used to demonstrate mean and standard deviation of data. Fourth, utilizing statistical analysis, patterns are identified and categorized. Fifth, data management software is used to represent patterns gathered from statistical analysis in the form of figures and charts. Lastly, data are communicated to scientists and non-scientists through publications.
Figure 1. The flow of data from collection to interpretation. After the conclusion of an experiment, data are collected. Within the first stage, sets of data are stored and organized locally or on the cloud in spreadsheets. Second, data are normalized relative to controls. Third, descriptive statistics are used to demonstrate mean and standard deviation of data. Fourth, utilizing statistical analysis, patterns are identified and categorized. Fifth, data management software is used to represent patterns gathered from statistical analysis in the form of figures and charts. Lastly, data are communicated to scientists and non-scientists through publications.
Applsci 08 02669 g001
Applsci 08 02669 g002 550
Figure 2. (A) Transmission electron microscopy (TEM) image of carboxylated gold nanoparticles (Au-COOH) with no protein corona. (B) TEM image of Au-COOH incubated with serum-type 1 for 48 h. Black arrow points to the gold nanoparticles (AuNPs), while the white arrow points to the protein corona. Scale bar is 25 nm.
Figure 2. (A) Transmission electron microscopy (TEM) image of carboxylated gold nanoparticles (Au-COOH) with no protein corona. (B) TEM image of Au-COOH incubated with serum-type 1 for 48 h. Black arrow points to the gold nanoparticles (AuNPs), while the white arrow points to the protein corona. Scale bar is 25 nm.
Applsci 08 02669 g002
Applsci 08 02669 g003 550

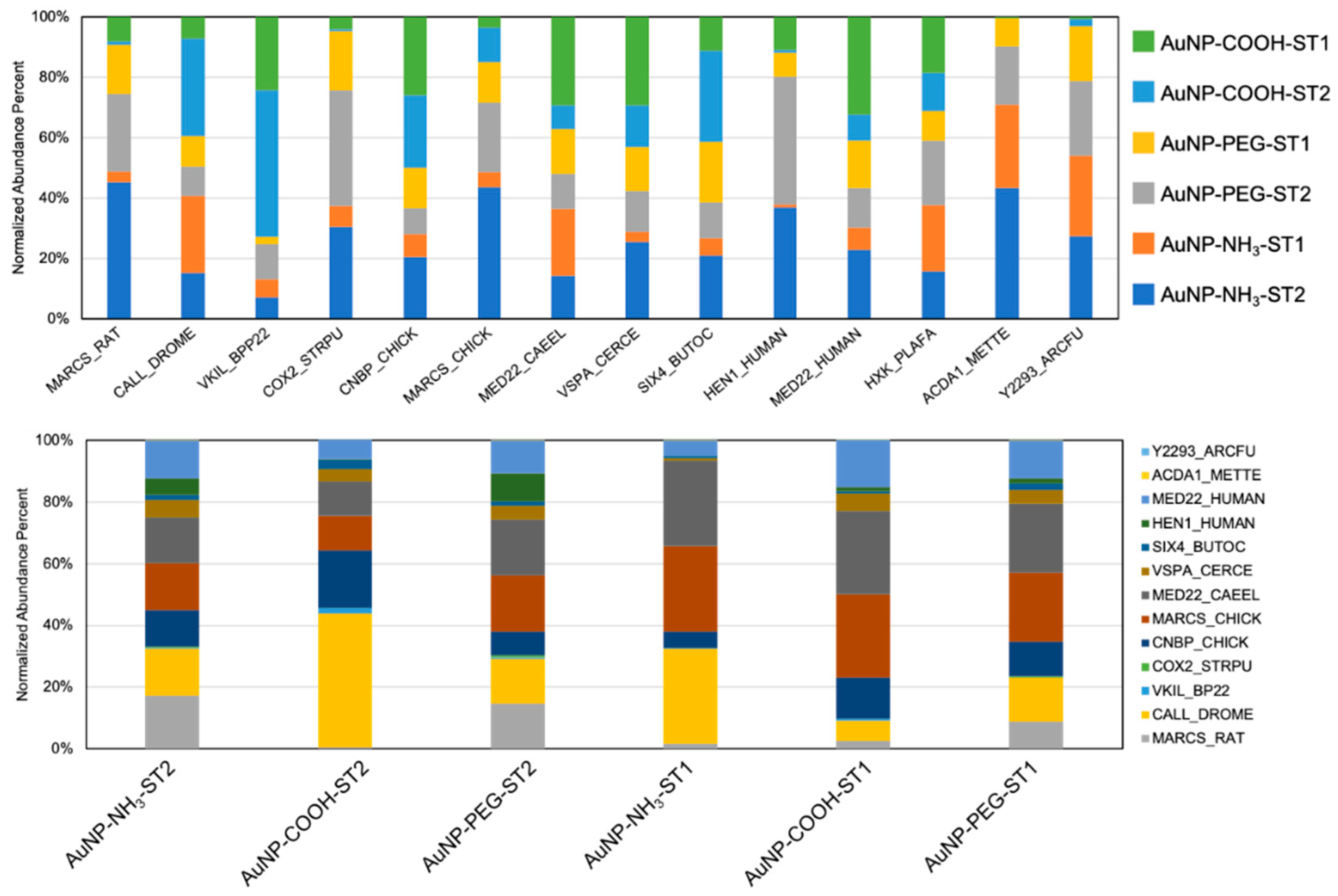

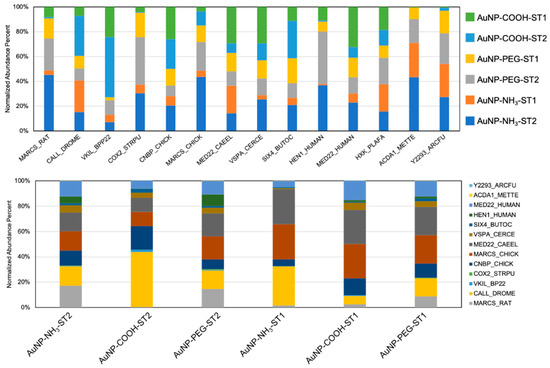

Figure 3. Protein abundance percent in sample. (Top) Each protein is represented by its own normalized abundance percentages. For example, MARCS_RAT appears in all NPPC samples, but seems to be the most abundant protein in the amine-coated AuNP with serum-type 2 shell. (Bottom) Each NPPC is represented with its own normalized abundance percentages. For example, all NPPC samples contain multiple proteins, but amine-coated AuNP with serum-type 2 shell seems to be the most diverse.
Figure 3. Protein abundance percent in sample. (Top) Each protein is represented by its own normalized abundance percentages. For example, MARCS_RAT appears in all NPPC samples, but seems to be the most abundant protein in the amine-coated AuNP with serum-type 2 shell. (Bottom) Each NPPC is represented with its own normalized abundance percentages. For example, all NPPC samples contain multiple proteins, but amine-coated AuNP with serum-type 2 shell seems to be the most diverse.
Applsci 08 02669 g003
Applsci 08 02669 g004 550

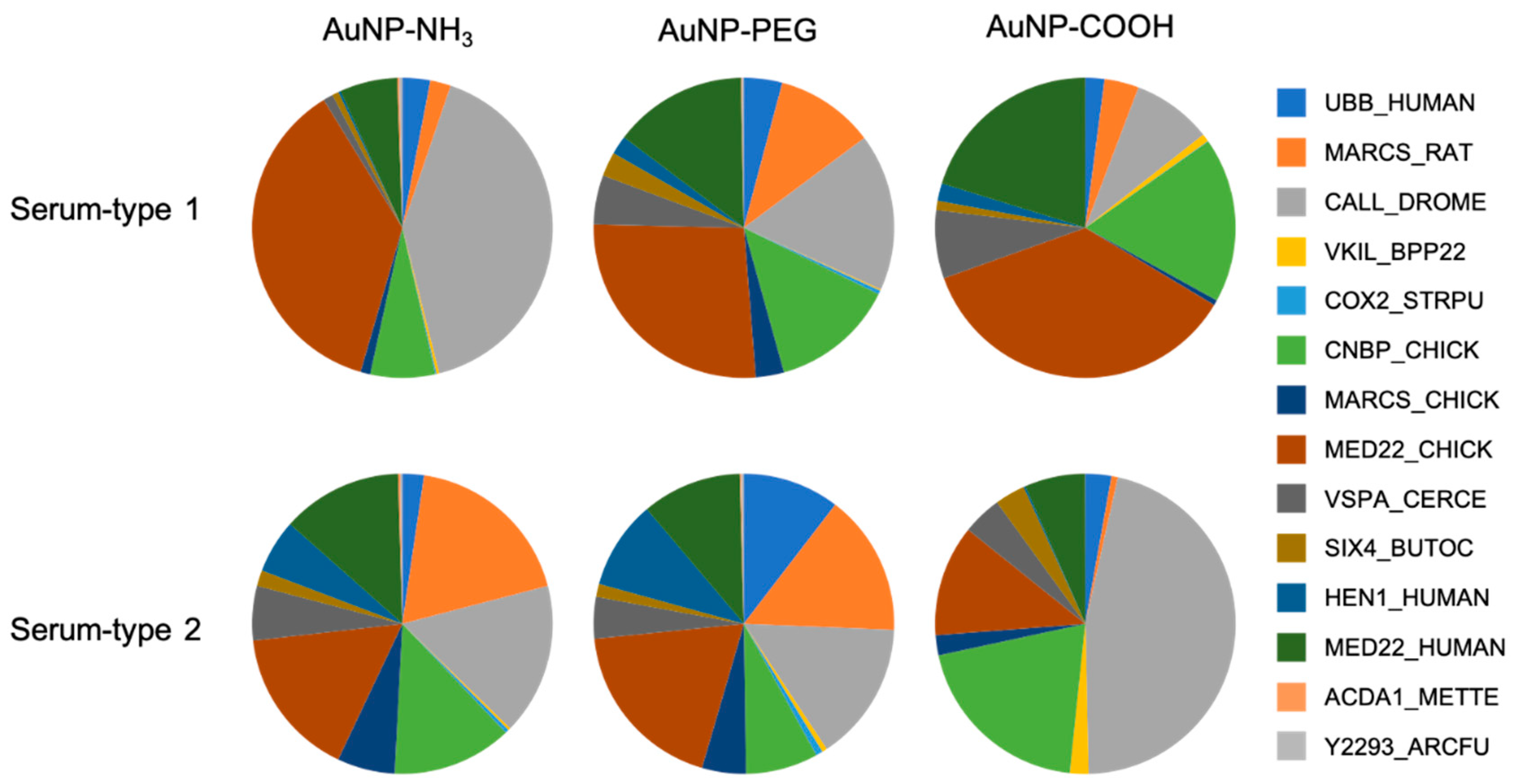

Figure 4. Six pie graphs depicting the protein composition of each sample, varying by coating (top axis) and serum type (left axis).
Figure 4. Six pie graphs depicting the protein composition of each sample, varying by coating (top axis) and serum type (left axis).
Applsci 08 02669 g004
Applsci 08 02669 g005 550

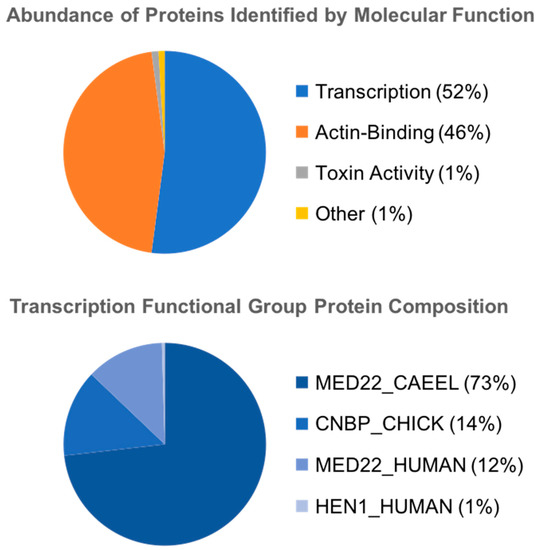

Figure 5. Pie-of-Pie graph illustrating the protein functional groups (top) among identified proteins (bottom) within most prevalent functional group in the AuNP-NH3-ST1 sample.
Figure 5. Pie-of-Pie graph illustrating the protein functional groups (top) among identified proteins (bottom) within most prevalent functional group in the AuNP-NH3-ST1 sample.
Applsci 08 02669 g005
Applsci 08 02669 g006 550

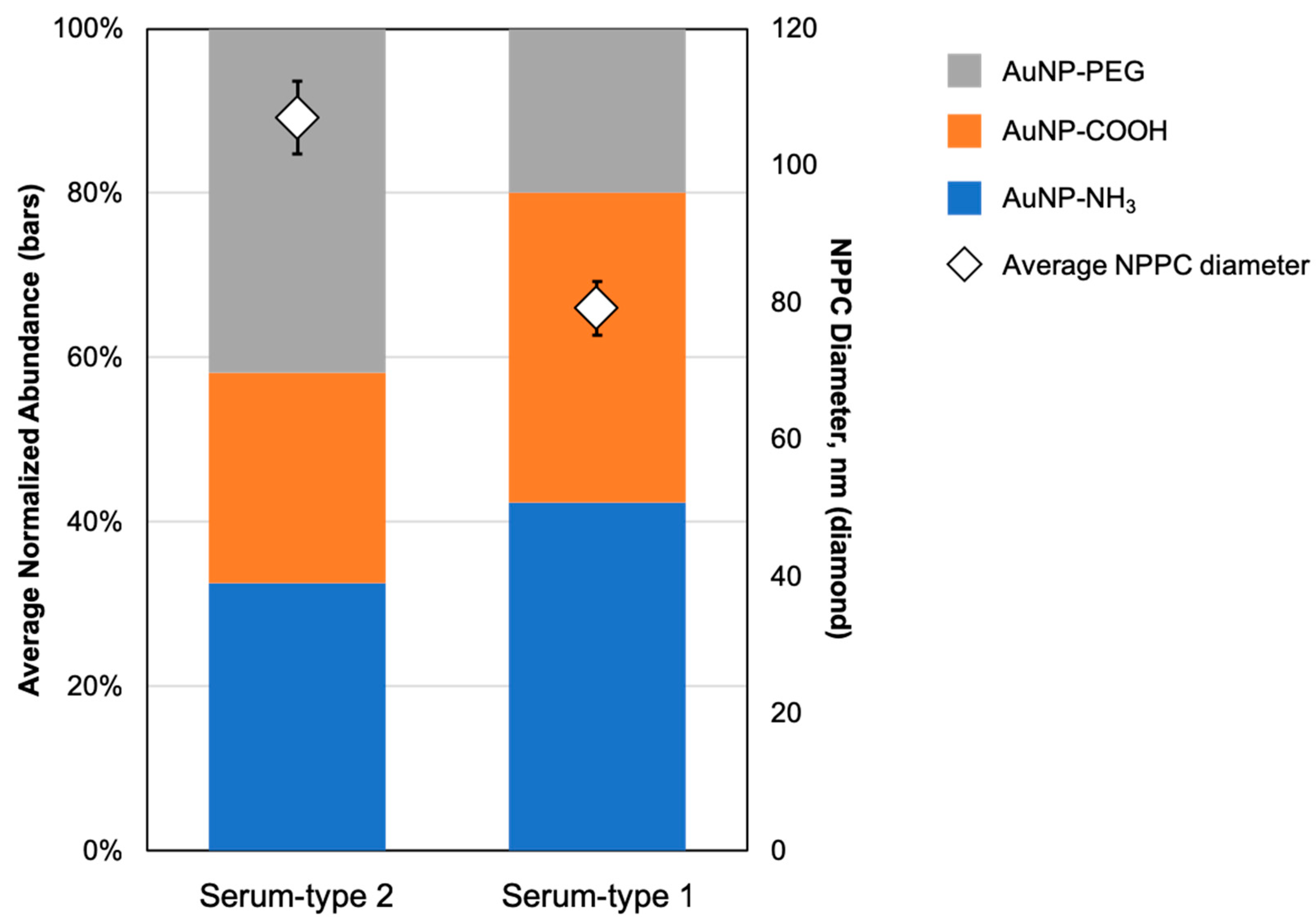

Figure 6. The hybridized abundancy figure demonstrates multiple parameter results, including coating composition, serum type, abundance of proteins for each sample, average corona size for that serum, and protein coating abundancy distribution in each serum type. This method is the most comprehensive by displaying multiple variables in one figure. This method is recommended to be used for summaries of bigger picture data to compare multiple parameters.
Figure 6. The hybridized abundancy figure demonstrates multiple parameter results, including coating composition, serum type, abundance of proteins for each sample, average corona size for that serum, and protein coating abundancy distribution in each serum type. This method is the most comprehensive by displaying multiple variables in one figure. This method is recommended to be used for summaries of bigger picture data to compare multiple parameters.
Applsci 08 02669 g006
Table
Table 1. Proteins found in the corona of the AuNP-Amine-ST1 sample. The most common method to display high outputs of data into a figure is a traditional table. Although this may be the most comprehensive method, it is not a visualization, nor is it simple for non-scientists to interpret. For the functional data, only the most common function is noted.
Table 1. Proteins found in the corona of the AuNP-Amine-ST1 sample. The most common method to display high outputs of data into a figure is a traditional table. Although this may be the most comprehensive method, it is not a visualization, nor is it simple for non-scientists to interpret. For the functional data, only the most common function is noted.
Instrument/SoftwareOnline Database
Accession NumberDescriptionAverage Charge (z)Number of Peptides Mass (Da)Protein AbbreviationMolecular FunctionBiological Function
P30009Myristoylated alanine-rich C-kinase substrate5.71229,795MARCS_RATBinds calmodulin, actin, and synapsin; filamentous (F) actin cross-linking proteinActin filament organization; activation of phospholipase D activity
Q08368Acetyl-CoA decarbonylase/synthase complex subunit alpha 13.00188,538ACDA1_METTECatalyzes acetyl-CoA cleavage; functions as carbon monoxide dehydrogenaseInvolved in methanogenisis
Q02575Helix-loop-helix protein 15.33114,618HEN1_HUMANDNA-binding protein; determines cell-typeInvolved in cell differentiation/transcription
Q23679Mediator of RNA polymerase II transcription subunit 221.33118,163MED22_CAEELInvolved in regulated transcription of polymerase-dependent genesInvolved in transcription and transcription regulation
P55903Beta-insect depressant toxin BotIT42.0026845SIX4_BUTOCAffects sodium channel activation; active only in insectsDefense response
P81038Thrombin-like enzyme cerastotin1.20311,168VSPA_CERCECleaves fibrinogen; induces platelet aggregationActivates detoxification
Q15528Mediator of RNA polymerase II transcription subunit 2210222,221MED22_HUMANInvolved in regulated transcription of polymerase-dependent genesInvolved in transcription and transcription regulation
P0CG47Polyubiquitin-B1.75425,762UBB_HUMANActivates protein kinasesInvolved in DNA repair and cell-cycle regulation
P14111Kil protein5.8016950VKIL_BPP22Essential for lytic growthExpression causes filamentation and cell death
Q02155Hexokinase1.50155,346HXK_PLAFAMetabolizes carbohydrateParticipates in glycolysis
O42395Cellular nucleic acid-binding protein3.40219,043CNBP_CHICKDNA-binding protein; Represses sterolInvolved in transcription and transcription regulation
P49258Calmodulin-related protein 97A2.40217,015CALL_DROMECalcium-mediated signal transductionParticipates in actin filament-based movement
P15545Cytochrome c oxidase subunit 24.50226,111COX2_STRPUCatalyzes reduction of oxygen to waterInvolved in electron transport and respiratory chain
P16527Myristoylated alanine-rich C-kinase substrate2.33427,728MARCS_CHICKBinds calmodulin, actin, and synapsinFilamentous (F) actin cross-linking protein
Table
Table 2. Heat map of the average normalized abundance of each serum/coating combination, illustrated through color scale with red as the least abundant, and green as the most. The map conveys the abundancy of protein-type or functional group in a sample for multiple coating or serum. However, this method does not consider the variations in incubation time. ST1 refers to serum-type 1 and ST2 refers to serum-type 2.
Table 2. Heat map of the average normalized abundance of each serum/coating combination, illustrated through color scale with red as the least abundant, and green as the most. The map conveys the abundancy of protein-type or functional group in a sample for multiple coating or serum. However, this method does not consider the variations in incubation time. ST1 refers to serum-type 1 and ST2 refers to serum-type 2.
AbbreviationNH3-ST2NH3-ST1PEG-ST2PEG-ST1COOH-ST2COOH-ST1 Applsci 08 02669 i001
UBB_HUMAN4124357512,800454337293349
MARCS_RAT32,900262218,70011,7008965976
CALL_DROME28,90048,50018,50018,60061,30013,900
VKIL_BPP2239131162913525961315
COX2_STRPU7371679304692298
CNBP_CHICK22,8008270956514,70026,50028,800
MARCS_CHICK11,0001266582033512889914
MED22_CAEEL28,60043,60023,20029,20015,90058,100
VSPA_CERCE10,400127355285847561811,900
SIX4_BUTOC29798101697285343001602
HEN1_HUMAN10,20027811,70021972683025
MED22_HUMAN23,000740413,20015,800865632,700
ACDA1_METTE3762381687905

Share and Cite

MDPI and ACS Style

Stewart, M.; Mulenos, M.R.; Steele, L.R.; Sayes, C.M. Differences among Unique Nanoparticle Protein Corona Constructs: A Case Study Using Data Analytics and Multi-Variant Visualization to Describe Physicochemical Characteristics. Appl. Sci. 2018, 8, 2669. https://doi.org/10.3390/app8122669

AMA Style

Stewart M, Mulenos MR, Steele LR, Sayes CM. Differences among Unique Nanoparticle Protein Corona Constructs: A Case Study Using Data Analytics and Multi-Variant Visualization to Describe Physicochemical Characteristics. Applied Sciences. 2018; 8(12):2669. https://doi.org/10.3390/app8122669

Chicago/Turabian Style

Stewart, Madison, Marina R. Mulenos, London R. Steele, and Christie M. Sayes. 2018. "Differences among Unique Nanoparticle Protein Corona Constructs: A Case Study Using Data Analytics and Multi-Variant Visualization to Describe Physicochemical Characteristics" Applied Sciences 8, no. 12: 2669. https://doi.org/10.3390/app8122669

APA Style

Stewart, M., Mulenos, M. R., Steele, L. R., & Sayes, C. M. (2018). Differences among Unique Nanoparticle Protein Corona Constructs: A Case Study Using Data Analytics and Multi-Variant Visualization to Describe Physicochemical Characteristics. Applied Sciences, 8(12), 2669. https://doi.org/10.3390/app8122669

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
