Thermal Evaluation of a Hybrid Dryer with Solar and Geothermal Energy for Agroindustry Application

Abstract

The process of drying at the agroindustry level is considered the most important stage for the storage and conservation of food, but an inadequate sizing of the systems can generate an excessive consumption of fuel and energy. In the case of the agricultural sector, especially in small and medium producers in Ecuador, they tend to dry cereals outdoors, spreading the product over black plastics, asphalt floors, or cements called “tendal”. This process depends on the weather conditions of the area and can take between one or four days of drying, tending to damage the product by fungi. On the other hand, certain producers build dryers empirically, using as the main fuel gas for domestic use, diesel, or firewood. Among the problems presented for these types of dryers are heat losses in the drying chamber as it is not thermally insolated, a lack of temperature control (above 60 °C) and drying speed, excessive fuel use, and 10% burned product, which are essential to control to obtain a quality product and savings in the energy consumption of the dryer. With regard to the problem raised above, the design and construction of a hybrid dryer that worked with 80% of thermal solar and low enthalpy aerogeothermal energy and 20% with electric power was conducted to optimize the drying process and ensure a quality dry product. The work proposes the dimensioning of each component of the dryer. As a result, it was found that the efficiency of the equipment was around 60%, reaching a maximum operating temperature of 52 °C, with a stabilization time of the system in the first hour within 40 min. It should be noted that the design of the prototype is easy to adapt and replicate.

1. Introduction

Dehydration of a food consists of the extraction of water from the product with the aim to preserve it for much longer [1]. To achieve this process, drying equipment that requires a constant source of heat such as electrical resistors, biomass boilers, gas burners, and diesel burners, among other options, are used within the context of the industrialized framework. In the same vein, the small producers harvesting between 90 and 909 kg of cereals use wood, LPG (liquefied petroleum gas), coal, solar energy, among others, as an energy source for drying.

It should be noted that the use of the selected energy source depends on the temperature, speed, and drying time of the product as well as the type of product to be dehydrated to avoid damaging its molecular structure and therefore its nutritional quality.

It is estimated that the energy required to dry grains, depending on the drying temperature, ranges from 3000 to 8000 kJ/kg of water removed [2]. Likewise, the type of drying system as well as the quality and humidity of the grain can considerably affect the energy demand of the process. In relation to the evaluation of the energy efficiency of the process, several authors have reported in general terms that the consumption heat to dry grains varies between 2330 to 2790 kJ/kg of water eliminated when natural air is used, while on the other hand, when an artificial source of air is used (turbulent flow), this rate varies between 2790 to 3490 kJ/kg of evaporated water. Finally, for Batch-type dryers, the evaporation rate is usually 3490 to 4650 kJ/kg of evaporated water, and for high-temperature dryers without recirculation, the rate is 4650 to 6980 kJ/kg of evaporated water [3]. These values can present important fluctuations in the drying equipment, depending on the technological parameters and operation including energy vectors, which causes a significant increase in the final energy consumption [2,3].

In 1996, the Food and Agriculture Organization (FAO published in the booklet9 “Post-harvest Technology” in the document entitled “drying of grains and dryers”, the basic procedures for the evaluation of drying behavior at the industrial level. This document highlights that there are two procedures. The first procedure consists of the realization of technical tests under norms or regulations previously recognized by accredited institutions with a high cost of execution. The second procedure, of lower cost, is based on gathering information from the data provided by the manufacturers themselves in their manuals or brochures or those that are acquired through direct contact with the owners of the dryers.

In the case of Ecuador, the existing information in relation to the energy evaluation of the drying technology associated with the design and construction of prototypes based on the use of renewable energy sources for cereal drying is minimal. Likewise, it is necessary to indicate that many dryers in the agroindustry sector in Ecuador are of the artisanal or semi-artisanal type. These dryers have problems due to not controlling the temperature and drying speed by the hot gas in the chamber. This causes inhomogeneous drying, and the extra consumption of fuel unnecessary for its operation.

Another important point of the current problems of drying in Ecuador is the need to build dryers with national materials to avoid the importation of Brazilian, German, Indian, Colombian and Chinese dryers, which have an approximate cost $7700 dollars (the reference value includes the import cost) for a capacity of 909 kg of product. In any case, local construction will reduce the cost of the dryer by about 50%. It could even regulate different drying temperatures (40 °C, 50 °C, and 60 °C) with the purpose that it can be used to dry any type of product (rice, wheat, corn, cocoa) [4]. Finally, during the research phase, it was determined that a handcrafted dryer built with materials such as cement and brick would cost $500 dollars for a capacity between 227 to 454 kg/day of product.

At the Ecuadorian agro-industrial level, the drying of product is usually done in square or rectangular chambers, made with masonry materials in its structural part (bricks and cements). They are used as trays, jute bags, or plates of perforated stainless steel. The ducts and pipes for the entry of air are built with stainless steel plates. On the other hand, there are circular camera dryers, which work with a LPG burner and an extractor, where the dimensions of the equipment depend on the drying capacity. Additionally, rotary dryers and electric dryers (operating temperature between 100 to 120 °C) are also used.

It is necessary to indicate the reality of the agricultural sector that for small products, drying of the product is carried out by spreading out the product on a concrete or plastic floor and exposing it to the sun (tendals) for several days. The use of technology is not cost effective for this sector given the cost of fuel and electricity that is needed to dry the product for 6 or 12 h. The added problem of the use of tendal is the contamination of the agricultural product by dust, emissions of vehicle gases, animals, and people stepping on the product.

During the study presented by Delgado 2018, it indicated that the problem of drying technology is caused by the inadequate distribution of hot air throughout the chamber (0.3 m/s to 4 m/s) and lack of control of flame temperature (use of LPG, 280 °C to 600 °C), which generates an over-sizing of an air extractor (air speed between 8 to 13 m/s), so that the drying temperature of the product reaches between 50 to 60 °C. In economic terms, it is estimated that drying 450 kg of product with about 40% initial moisture content to 10% moisture content after 8 h consumes 250 kWh electric ($25 dollars) and between 45 kg and 90 kg of gas ($12 dollars).

An estimate of the electricity and gas consumption is presented below in

Table 1. Estimate of electricity and industrial LPG consumption.

Drying Capacity (kg)	Electricity Consumption (kW)	Electricity Consumption (dollars)	Industrial LPG Consumption (dollars)
909–1363.6	437.5	$50	$150
1363–1818	500	$75	$250
1363.6–1818	640	$190	$500

of the different drying capacities [5].

Finally, the above values vary from the drying time and the initial and final moisture of the product.

Inappropriate energy management in the drying process can influence the product’s marketing chain, causing fluctuations in the final price. As a result, industries where food products are processed will need to establish energy efficiency actions for their processes in the future in order to improve their operations and thus ensure the competitiveness of their products. For this reason, the objective of this work was to assess the function of a hybrid dryer with solar and geothermal energy for agroindustry application as a technological alternative to allow for energy savings and ensure that a final quality product is obtained, based on the control of the temperature and air speed of the equipment [4,5].

1.1. Hybrid Dryer Sizing

1.1.1. Drying Chamber (Solar Energy as Main Source)

Prior to the design of the experimental prototype, it is necessary to consider the following significant parameters that will influence the operation of the dryer to reach an acceptable efficiency of 40 to 50% of energy saving and obtain a uniformly dehydrated product [6,7,8].

• Product: thickness, drying temperature, wet weight, drying speed diagram, dry weight, thermal conductivity, dry-Bulb humidity, and drying time;
• Solar energy resources in the area;
• Dryer: dryer type, length, total area, construction material, material conductivity, wall thickness, heat transfer coefficient by convection, radiation, and conduction;
• Heat transfer mechanism: temperature, hot air humidity, speed, saturated air humidity, flow conditions (laminar or turbulent), latent vaporization heat, tray area, and conduction heat transfer coefficient in the trays;
• Variables associated with thermal operation: energy consumption, drying efficiency, and dryer efficiency;
• Handling and easy construction; and
• Cost of investment and operation.

The design of the tray dryer will have a drying capacity of 7 kg. Metallic materials for the construction of the side walls and floor are intended, and the front wall and ceiling will be made of transparent polycarbonate plates (0.6 cm thickness of the plate). The transparent material will allow us to take advantage of the solar irradiation of the day, bringing heat to the system.

To calculate the total energy needed to evaporate 45% of the product’s water content, the methodology of the analysis of heat loss and gain in the chamber was used as well as the analysis of mass and heat transfer to the product [6,7].

The total energy used, Q_T is determined by the summation of all losses and energy consumption in the form of heat needed by the chamber from its pre-heating, the evaporation of the product water, and loss of heat by the walls (structure) until the renewal of the air inside the drying chamber [8,9].

$$Q_T=\sum Q_{1-6}$$

(1)

Initial heating of the equipment $Q_1$ (kcal)

$$Q_1=V_{prod}{d}_{prod}{X}_i{C}_{p,prod}\left(T_{a,c}-T_a\right)$$

(2)

where V_prod is the product volume; d_prod is the product density; T_prod is the product temperature; the material specific heat C_p,prod = 0.265 + 0.001Tproduct (kcal/kg °C); X_i is the initial air humidity; T_ac is the heating temperature (°C); and T_a is the initial air temperature (°C).

Heat required to raise the air temperature inside.$Q_2$ (kcal)

$$Q_2= V_{a, c }{d}_{a, c} C_{p a, c}\left(T_{a, c}-T_a\right)$$

(3)

where V_a,c is the camera volume (m₃); d_a,c is the air density (kg/m³); and C_{p a,c} is the specific heat of the air (kcal/kg C).

Heat needed for water evaporation.$Q_3$ (kcal) [10].

$$Q_3=V_{prod.}{d}_{prod.}(X_i-X_f){\lambda }_w+5\left(kcal/kg\right)\ast V_{prod.}{d}_{prod.}$$

(4)

where V_prod is the product volume; d_prod is the product density; X_i is the initial air moisture content; $X_f$ is the final air moisture content (kg water/kg dried air); and λ_w is the latent heat of evaporation (kcal/kg).

Heat lost by structure $Q_4$ (kcal)

$$Q_4= U A\left(T_{a, c}-T_a\right)$$

(5)

where U is the overall heat loss ratios determined by the convection coefficients hi and he (W/m² K); conduction k (W/m K) and radiation hr (W/m² K); U = 1/(1/hi + e/k + 1/(he + hr)). A is the chamber area. T_a,c is the chamber operating temperature and T_a is the outdoor ambient air temperature.

To determine the combined convection and radiation coefficient on the outside of the chamber, we applied the equation of McAdam, where (he + hr) = hexc, r = 5.7 + 3.8 va, and va is the ambient air velocity.

Heat needed for chamber heating $Q_5$ (kcal)

$$Q_5= \left[{\left(V\ast d\ast C_p\right)}_{polycarbonate}+{\left(V\ast d\ast C_p\right)}_{metal}+{\left(V\ast d\ast C_p\right)}_{insulation}\right]\Delta T$$

(6)

where V (m³) is the volume; d (kg/m³) is the density; C_p (kcal/kg °C) is the calorific power; and $\Delta T$ is the difference between the ambient temperature and hot air temperature.

Heat needed for air renewal $Q_6$ (kcal).

$$Q_6=V_{prod}{d}_{prod}(X_i-X_{final})C_{pa,c}\left(T_{a,c}-T_a\right)$$

(7)

The saturated air is constantly renewed by a fan that will pass through an electrical resistance, allowing the air temperature to be raised to the optimal drying conditions. It should be noted that the complementary electrical resistance system should only be activated in case the climatic affectation has days of low irradiation where the dryer does not reach the operating temperature.

Drying velocity

Once the total heat required to dry 7 kg of wet product is obtained, the air speed required to reach the operating temperature and pass hot air evenly through the trays is determined [10].

$$v_{entrada}=\frac{Q_T}{C_p\ast \left(T_{a,c}-T_s\right)x\left(d_{a,c}\ast A\right)}$$

(8)

where Q_T is the total heat; C_p is the air-specific heat; T_a,c is the hot air temperature in the chamber; T_s is the temperature on the surface of the product; d_a,c is the air density; and A is the hot air inlet area.

Dryer thermal efficiency

The energy efficiency of the drying process is determined from the energy consumption supplied with respect to the evaporated water. The equation commonly used to obtain the efficiency of the dryer is indicated below [11].

$$\epsilon =\frac{Total energy supplied }{energy used + energy lost in the hot air outlet}$$

(9)

1.1.2. Solar Collector

The area of the solar collector is determined through the analysis of the useful heat Qu, limiting 50% of the total energy required to dry 7 kg of wet product.

Therefore, the equation will be related through the collector area A_c; the F_R gain factor; the transmittance factor-effective absorptance ($\tau \alpha )$; $G_T,$ is the global radiation; U_L is the global loss coefficient and the difference of input temperatures T_fe and ambient temperature T_a can be defined as [12].

$$Q_u=A_c·F_R·\left[\left(\tau \alpha \right)G_T-U_L·\left(T_{fe}-T_a\right)\right]$$

(10)

The factor of gain F_R < 1, as the efficiency comparison of a conventional exchanger, is defined as the coefficient between the actual transfer and the maximum possible transfer.

The coefficient of global heat loss U_L is the sum of all coefficients of the roof, base, and sides of the solar collector.

On the other hand, the transmittance factor-effective absorptance ($\tau \alpha )$ depends on the absorptance (absorbent plate 0.9) and transmittance (for solar radiation, the transmittance is 0.95, while for the reflected radiation it is 0.1) [8]. In the case of reflectance, ${\rho }_d$ is about a constant 0.1.

$$\left(\tau \alpha \right)=\frac{\tau \alpha }{1-\left(1-\alpha \right){\rho }_d}$$

(11)

1.1.3. Photovoltaic Systems

The solar irradiation and relative humidity data of the area where the study was conducted were obtained from the METEONORM platform. The average annual solar radiation between 2014 and 2018 was approximately 4.14 Kw h/m² d. Regarding the winds, these are of low intensity, and the long- and short-term records indicate that the predominant direction of the winds is from the southwest, with a speed between 1 to 3.6 m/s maximum.

The sizing of the photovoltaic system is part of obtaining the direct radiation, diffuse, monthly albedo during the year, in order to determine the ability to determine the overall radiation inclined in the selected area [6].

$$G_T=G_b·R_b+G_d\left(\frac{1+cos\beta }{2}\right)+\left(G_b+G_d\right)·{\rho }_g·\left(\frac{1-cos\beta }{2}\right)$$

(12)

where G_d is the diffuse radiation; ρ_g is the reflexibility or soil albedo; β is the angle of the slope on the surface of the plate; $G_b$ is the direct radiation; and R_b is the correction factor.

The optimum angle of inclination of the photovoltaic will be the one that optimizes the least solar radiation on the sloping surface throughout the year. In the case of Guayaquil, β, the inclinations were between 10 to 15 degrees. It should be noted that the worst month of the year is July, with 5.26 kWh/m² d. Subsequently, the energy consumed throughout the system was estimated as being approximately 90 W of consumption.

1.1.4. Aerothermal Exchangers

The operation of the aerothermal system is based on the circulation of an airflow through the heat exchanger buried 70 cm from the surface of the soil, which results in an increase in the temperature of the working fluid, taking advantage of the heat capacity or the soil’s ability to store heat. Subsequently, the working fluid enters the solar collector by raising the air temperature, before finally, the hot air enters the drying chamber.

For the design of the exchanger, it is necessary to determine the air outlet temperature as well as the maximum air flow flowing through the exchanger. This parameter will depend on the magnitude and characteristics of the diameter exchange surface, length, and number of tubes [13,14]. In Figure 1, the hybrid dryer components are shown.

2. Materials and Methods

After the design and construction of the experimental prototype, the dryer was tested for operation. The first experimental tests were carried out under controlled conditions in a laboratory at constant ambient temperature with artificial irradiation produced by halogen lamps placed at different distances from the drying chamber. The objective of this test was to study each of the variables that will influence the operation of the prototype separately such as the chamber temperature, hot air flow, stability time, system homogeneity, and energy consumption, among other. It should be added that the above-mentioned procedure was replicated under environmental conditions, where irradiation conditions, humidity, and environmental temperatures are variable

Initially, a measurement protocol was performed as a standardized procedure, developed for the continuous recording of information throughout the different experimental tests. The main parameters measured in the system were:

• Hot air temperature.
• Ambient air temperature.
• Air velocity.
• Flow of hot or drying air circulating through the tray assembly.
• Air flow the solar collector.
• Humidity at the inlet and outlet of hot air
• Ambient air humidity.
• Time.
• Solar irradiation.
• Energy consumption.

(a) Measuring instruments

• K-type thermocouples, connected to a data acquisition system datalogger brand “Pico Technology”, model TC-08.
• The internal humidity of the chamber and external environment was measured with a RH/temperature datalogger and dew point “Lascar EL-USB-2”.
• Air velocity was measured with the digital equipment “Testo 404-V1”, Thermo hot wire anemometer.
• Global pyranometer connected to a digital multiple (mV).
• Automatic control system connected to the dual channel thermostat (T2S+2C DIGIT), 6-channel temperature and humidity control inside the chamber, electrical fan control, and photovoltaic system protections.

(b) Drying chamber and solar collector

The drying chamber had an area of 150 × 100 × 100 cm. Constructed of 304 stainless steel of 4 mm thickness. Internally, the camera was insulated with 10 cm thick glass wool. The front wall and ceiling were formed of 6 mm polycarbonate plates.

The solar collector was built of 430N4 stainless steel of 0.040 cm and internally insulated with 10 cm thick glass wool. On the surface of the collector, we placed a commercial steel plate of 0.03 cm, covered with black anticorrosive paint (black body). The cover of the collector was 3 mm thick transparent glass with a low iron content. The manifold was attached to the dryer chamber via a 3-inch tube.

(c) Photovoltaic systems

The photovoltaic system will supply a 65 W fan, dual channel thermostat (T2S+2C DIGIT) with a consumption of 5 W, and an information acquisition system of 20 W. It is estimated that 90 W of energy is needed. Therefore, a photovoltaic panel of 110 W peak power, voltage of 12 V, short-circuit current Isc of 6.78 A, and Voc open circuit voltage of 22.41 V was selected with a 12/24 regulator, 250 W inverter, and 100 Ah battery.

(d) Aerothermia or buried horizontal catcher

This consists of a heat exchange probe with the subsurface constructed with 55 m of PVC tube with a diameter of 11 cm. The exchanger was buried homogeneously in the subsoil at an approximate depth of 70 cm, occupying an area of 21 m². The installation will act as an auxiliary system for pre-heating the ambient air before it enters the drying chamber. The distance between the air inlet and outlet pipe was 3.5 m. The air entering the exchanger is a forced flow that is generated through a blower with the size of 2”, a voltage of 110 V, 4 A, and 3000/3600 rpm.

(e) Controlled conditions in the laboratory

The first test was to determine the stabilization time and uniformity of the temperature of the drying chamber and the collector, passing an airflow (forced convection) by using a ventilation system. For this test, 500 W halogen lamps were used, making configurations at a certain distance from the walls to generate irradiation of 300 W/m², 400 W/m², 500 W/m², 600 W/m², 700 W/m², 800 W/m², 900 W/m², and 1000 W/m². The irradiation that reached the surface of the transparent plates was measured, to do so, it was necessary to make a square mesh 50 cm away for each point. During the test, the variables were recorded every 10 min during 2 h of chamber operation and then at the cooling stage (the luminaires are turned off) of one hour.

(f) Environmental conditions

Ecuador has two seasons: the rainy and humid season from December to May and the dry season from June to November where the annual total rainfall is approximately 1506.5 mm (INAMHI). Along the coast of the province, during the dry season (June–November) there are average temperatures from 21.65 °C to 30.8 °C with a humidity of 45 to 60%, while in the rainy season (December–May), the average temperature is 30.65 °C with a humidity of 70 to 99%. From the above, it is necessary to mention that the experimental tests were carried out from March to June.

The first test was to analyze the operation of the dryer in active mode (forced convection). The main variables recorded were the chamber temperature, temperature at the collector outlet, ambient temperature, and global irradiation that reached the transparent plates for a 10 h operating time.

For the second test, the operation of the aerothermal system during the day and night was evaluated in order to determine the temperature of the exchanger’s stabilization and the temperature input of the soil. For this purpose, we placed type K thermocouples to record the temperatures of the soil at depths of 0.25 cm, 50 cm, 75 cm, and 100 cm.

Third test: During the experimental testing, the following parameters were measured: inlet and outlet temperature of the buried exchanger T_{e,aerothermal}; T_{s,aerothermal} (°C); relative humidity (%) and ambient temperature (°C); the inlet and outlet temperature of the solar collector T_e,col, T_s,col (°C); hot fluid velocity (m/s) at the exchanger outlet and in the drying chamber; chamber heating time(s); and global radiation on the ground surface, collector, and drying chamber (W/m²). Additional energy input generated through an electrical resistance of 1000 W was also measured.

On the other hand, parameters such as the energy consumption, voltage, and current supplied by the photovoltaic system were also recorded. It should be noted that the fan and the source of the control system was powered by photovoltaic energy. Finally, a test was performed on the hybrid dryer by coupling an electrical resistance as a complementary source for air heating.

3. Results

3.1. Controlled Conditions in the Laboratory: Solar Dryer

Experimental tests set the parameters that would allow us to understand the thermal response of the drying chamber with forced flow (turbulent flow) at an air rate of 1.5 m/s and the variation of direct radiation. It should be noted that the speed set in the tests was the same as determined in the theoretical calculations. In addition, it should be noted that no direct irradiation tests were performed below 200 W/m², so that the operation of the dryer was low (heated up 5 °C more in relation to the ambient temperature). Finally, by performing the tests by triplicate, calibration errors of the instruments and measurement by the operator could be detected.

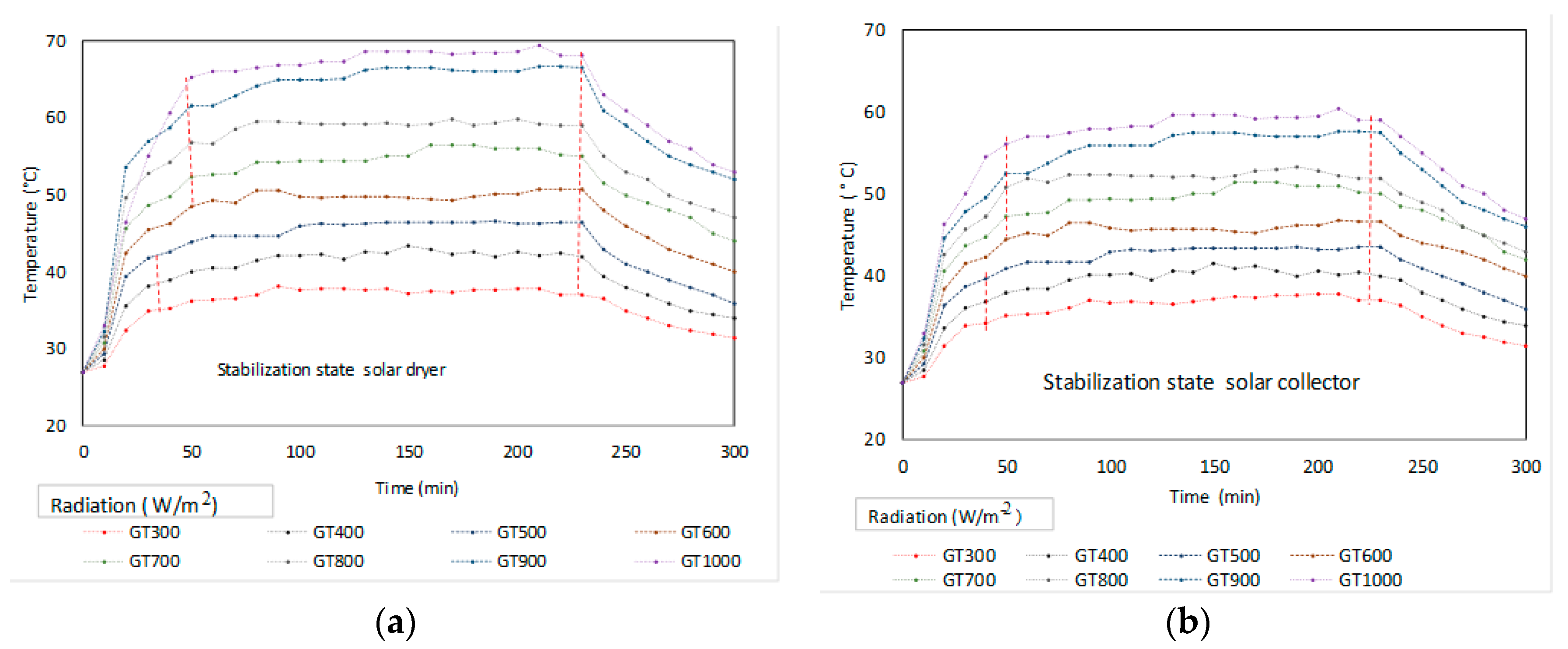

Figure 2 shows the operating results of the dryer for the different irradiations and thermal stability time of the chamber obtained from the multiple tests performed for an operating speed of 1.5 m/s. By adapting the drying chamber with the solar collector (Figure 2a), it was observed that the maximum temperatures reached at 300 W/m² were 37.5 °C, 42.2 °C to 400 W/m², 46 °C to 500 W/m², 49.9 °C to 600 W/m², 55 °C to 700 W/m², 59.1 °C to 800 W/m², 65.5 °C to 900 W/m², and 67.8 °C to 1000 W/m², from the laboratory’s ambient temperature of 27 °C. It can also be seen that the camera stabilized from 40 min from 300 to 500 W/m²; from 600 W/m², the temperature stabilization time was one hour. On the other hand, during the cooling period, the chamber was estimated to have a decrease in the interior temperature between 1 to 2 °C every 10 min in the first hour. Subsequently, the internal temperature slowly decreased by an average value of 0.25 °C every 10 min until the temperature loss curve slowly decreased. In Figure 2b, it can be observed that the maximum temperatures reached in the solar collector was 37 °C to 300 W/m², 40 °C to 400 W/m², 43 °C to 500 W/m², 46 °C to 600 W/m², 50 °C to 700 W/m², 52 °C to 800 W/m², 57 °C to 900 W/m², and 59 °C to 1000 W/m².

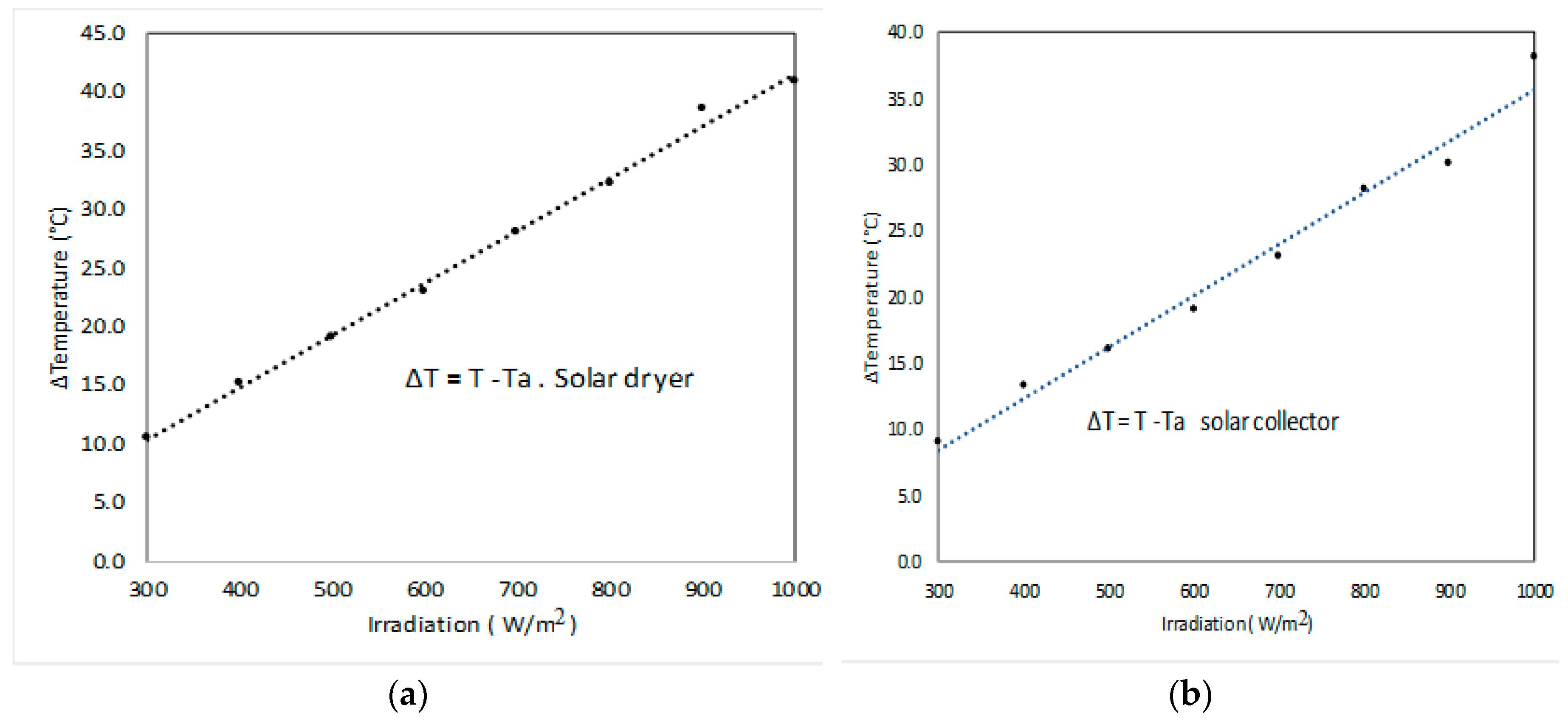

Figure 3 presents the results of the temperature increase of the dryer in tests carried out under controlled conditions at an ambient temperature of 27 °C. A temperature increase in the drying chamber was achieved (Figure 3a) between 10 to 15 °C for irradiations between 300 W/m² and 400 W/m² (conditions of a cloudy sky). On the other hand, the linear trend presented by the data estimated a temperature increase of more than 18 to 23 °C under conditions of a semi-cloudy sky (500 W/m² and 600 W/m²); from 800 W/m², it can be considered as clear sky, which is a temperature increase of more than 28 °C. In relation to Figure 3b, it can be observed that the solar collector at low irradiations generated a temperature increase of 8 to 12 °C more in relation to the ambient temperature. In general, the energy input of the solar collector allows for the temperature of the drying chamber to be raised, in addition to keeping the system stable for longer once the lamps are turned off.

3.2. Evaluation of the Dryer and Solar Collector in Outdoor Conditions

The first tests were performed only in the drying chamber, with a continuous flow of air inlet. The analysis evaluated the incident solar radiation and its influence on the warming of the internal air, heat supply, ambient temperature, air speed, and humidity, among other climatic conditions of interest, reaching an increase in temperature of 35 °C on sunny days and an increase of 10 °C on low irradiation days. The chamber response to the variation in solar radiation occurred with a delay of 10 min, with the temperature loss and gain of less than 1 °C.

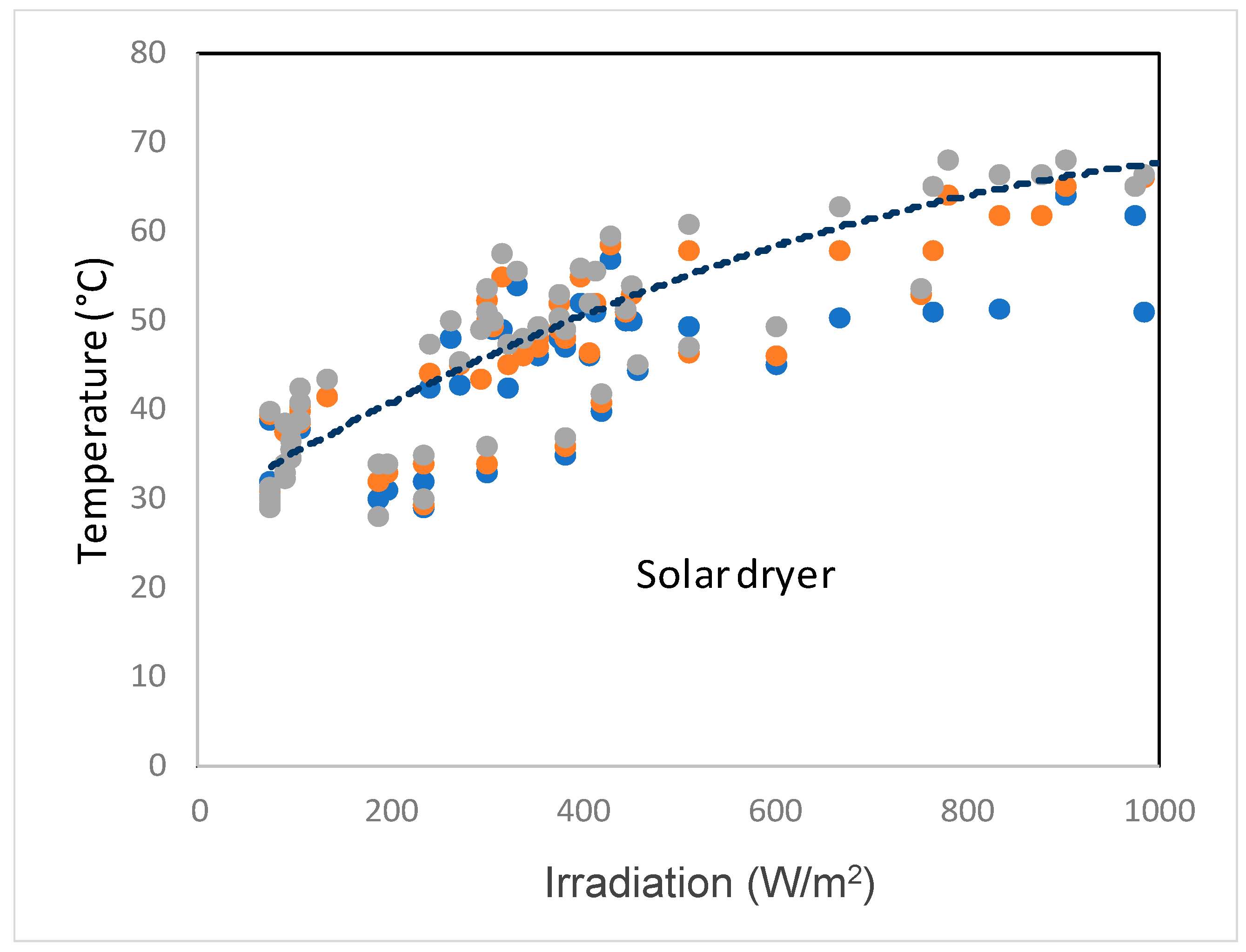

Figure 4 shows the results obtained with the dryer chamber at different days under environmental conditions. The colors in the graph represent different measurement days. We can see that the solar dryer started at an ambient temperature between 25 °C to 30 °C and reached the design temperature of 50 °C with 450 W/m².

It is necessary to indicate that the experimental tests were carried out for four months (March to June) where the maximum ambient temperature of the locality ranges between 29 °C and 36 °C on the day.

Figure 5 analyses the influence of the solar collector on the drying chamber in real outdoor conditions. The stabilization intervals of the solar dryer were analyzed, especially at the global solar irradiation intervals of 300 to 800 W/m², where the air intake temperature in the solar collector (Te) was ambient temperature in a range of 27 °C and an air velocity of 1.5 m/s. The temperature of the collector reached 50 °C from 500 W/m².

3.3. Experimental Testing of the Aerothermia SYSTEM

Once the exchanger was installed at a depth of 70 cm from the surface of the ground, probes or thermocouples were placed at different depths. Temperatures were automatically recorded by the data acquisition system. Solar irradiation measurements were obtained from the ESPOL weather station database. Experimental data were measured over a week in ten-minute intervals.

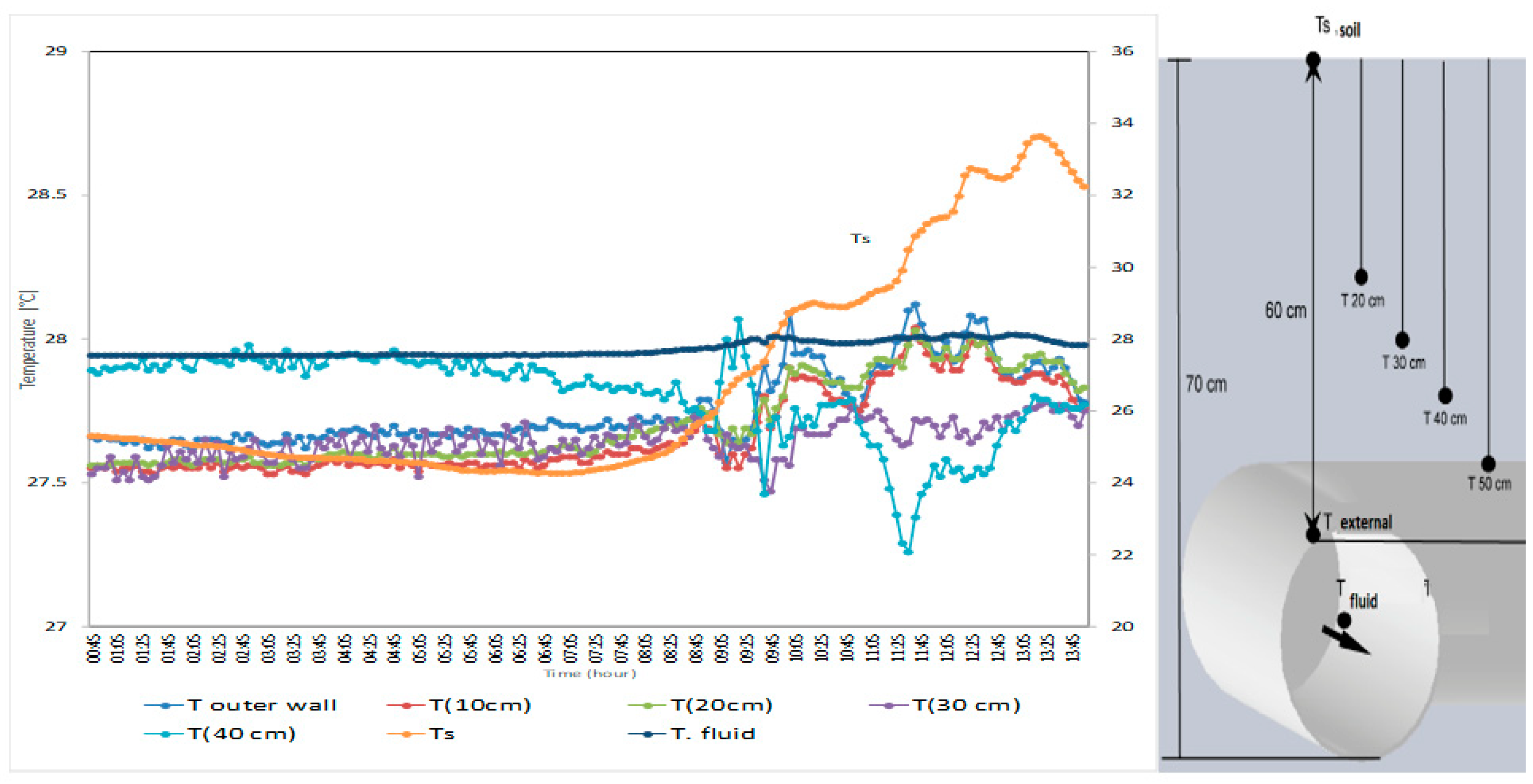

Figure 6 shows an example of the daytime variation and thermal response of the soil measured at different depths to the wall of the heat exchanger over a day with an ambient temperature between 24 and 25 °C. It was observed that in the first surface centimeters (less than 20 cm), there was a noticeable variation in temperature. However, as we went deeper, it was observed that the fluctuations in soil temperature were gradually reduced. In addition, the soil temperature had a sinusoidal tendency or behavior and its amplitude decreased depending on the depth, except for the surface temperature. In addition, temperatures below 20 cm deep remained relatively stable with values above the surface temperature at night.

3.4. Experimental Testing of the Hybrid Dryer under Environmental Conditions

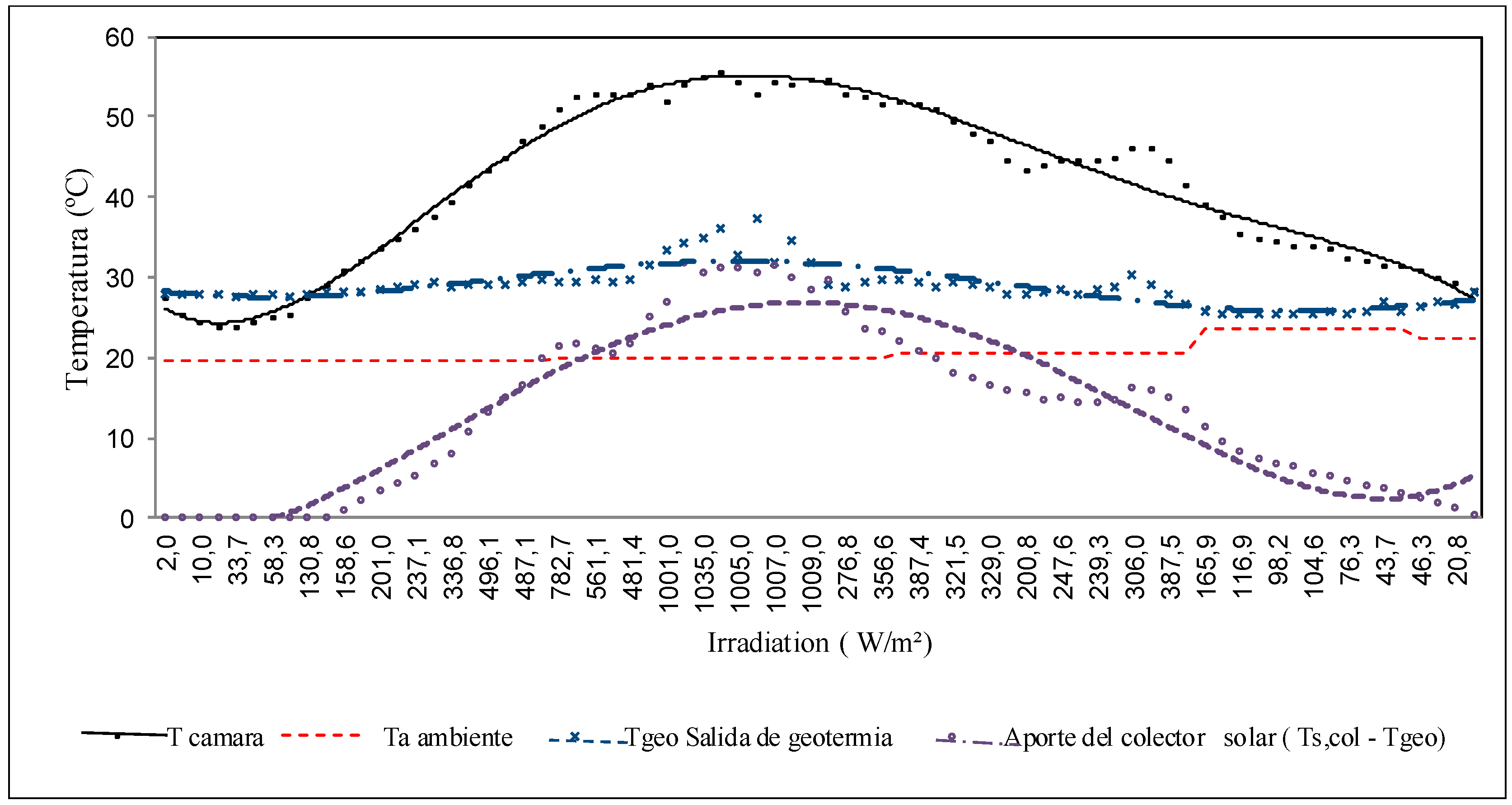

Experimental tests of the operation of the dryer were carried out in a 12 h operation period, from 6:30 a.m. to 6:30 p.m., and we recorded the air velocity at the 1.7 m/s exchanger outlet and the air velocity in the chamber was 1.3 m/s. Figure 7 shows the temperature of the drying chamber and the thermal gain of the collector depending on the irradiation. Moreover, it can be observed that the output temperature of the aerothermal was kept stable and does not depend on irradiation. It should be mentioned that it defines thermal gain as the difference between the output temperature of the collector and the temperature of the collector (output temperature of the aerothermal system). The main result noted was that in the hours of low irradiation, the energy input will depend mainly on the aerothermal system.

However, in the hours of increased irradiation, the dominant factor will be the solar collector. The system stabilization time at the operating temperature (50 °C) was 50 min from 10 a.m.

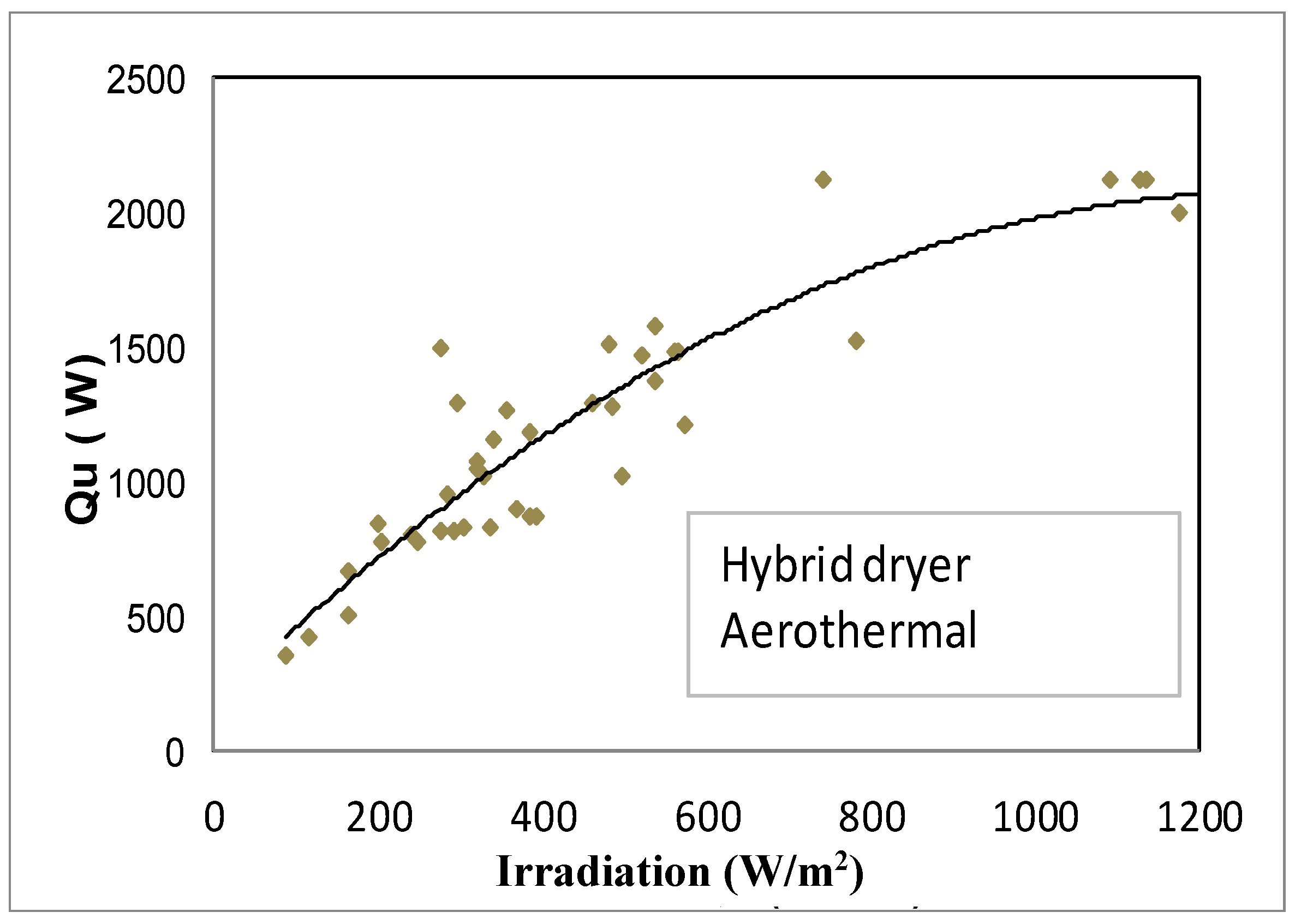

The energy balance of the system determined that the experimental thermal energy of the hybrid solar dryer varied between 1300 W and 2000 W when working in a solar radiation range of 400 W/m² to 1000 W/m², respectively. Figure 8 presents the results of the useful heat gained in the sustainable dryer.

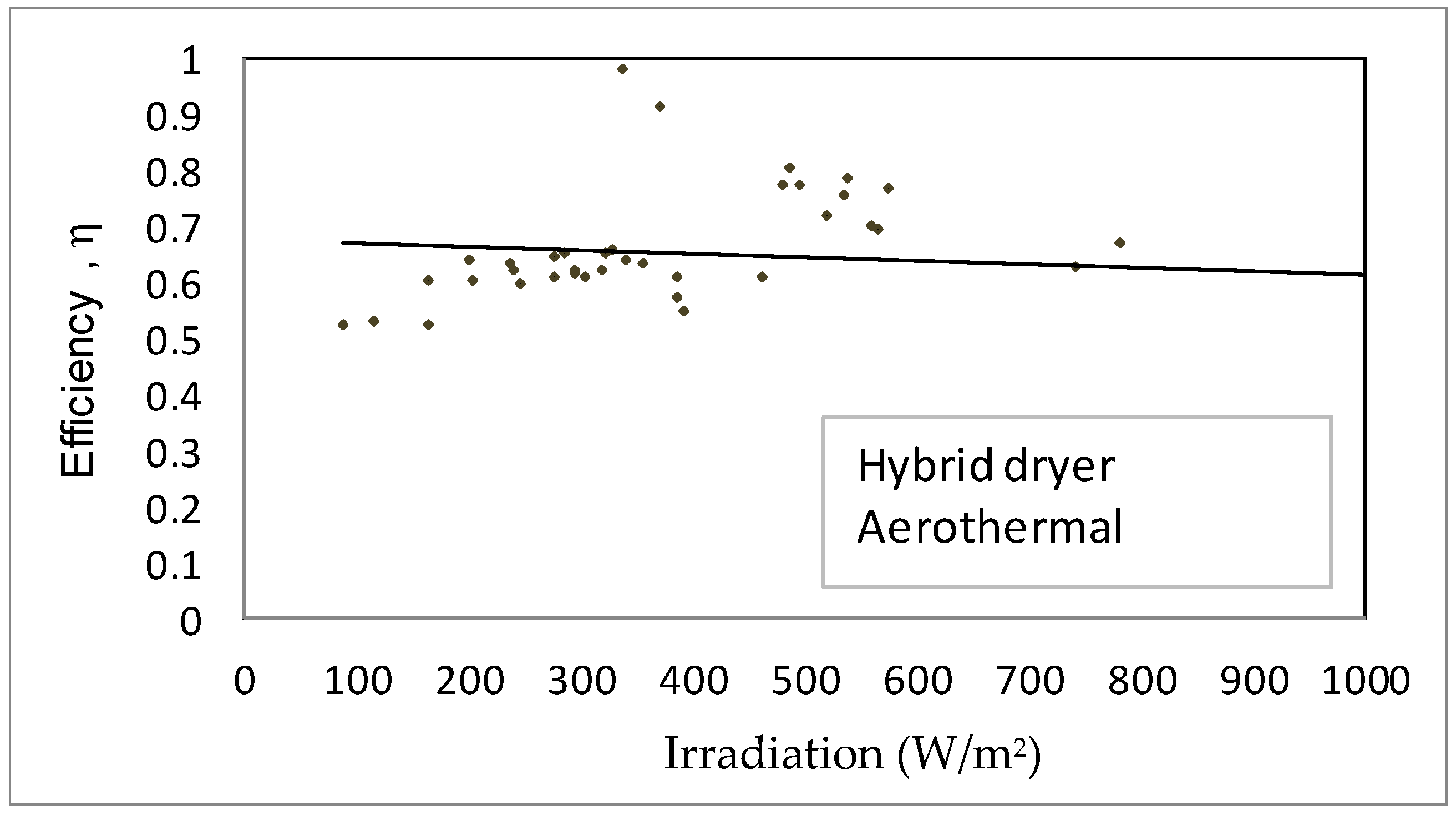

The efficiency of the hybrid dryer is determined by the useful heat ratio of the drying chamber divided by the sum of energy resulting from the incident radiation in the chamber, solar collector, and exchanger. The influence of solar radiation related to the efficiency of the dryer is presented, and as can be seen in the results, the prototype showed an efficiency of around 60% (Figure 9).

3.5. Hybrid Dryer with Electrical Resistance

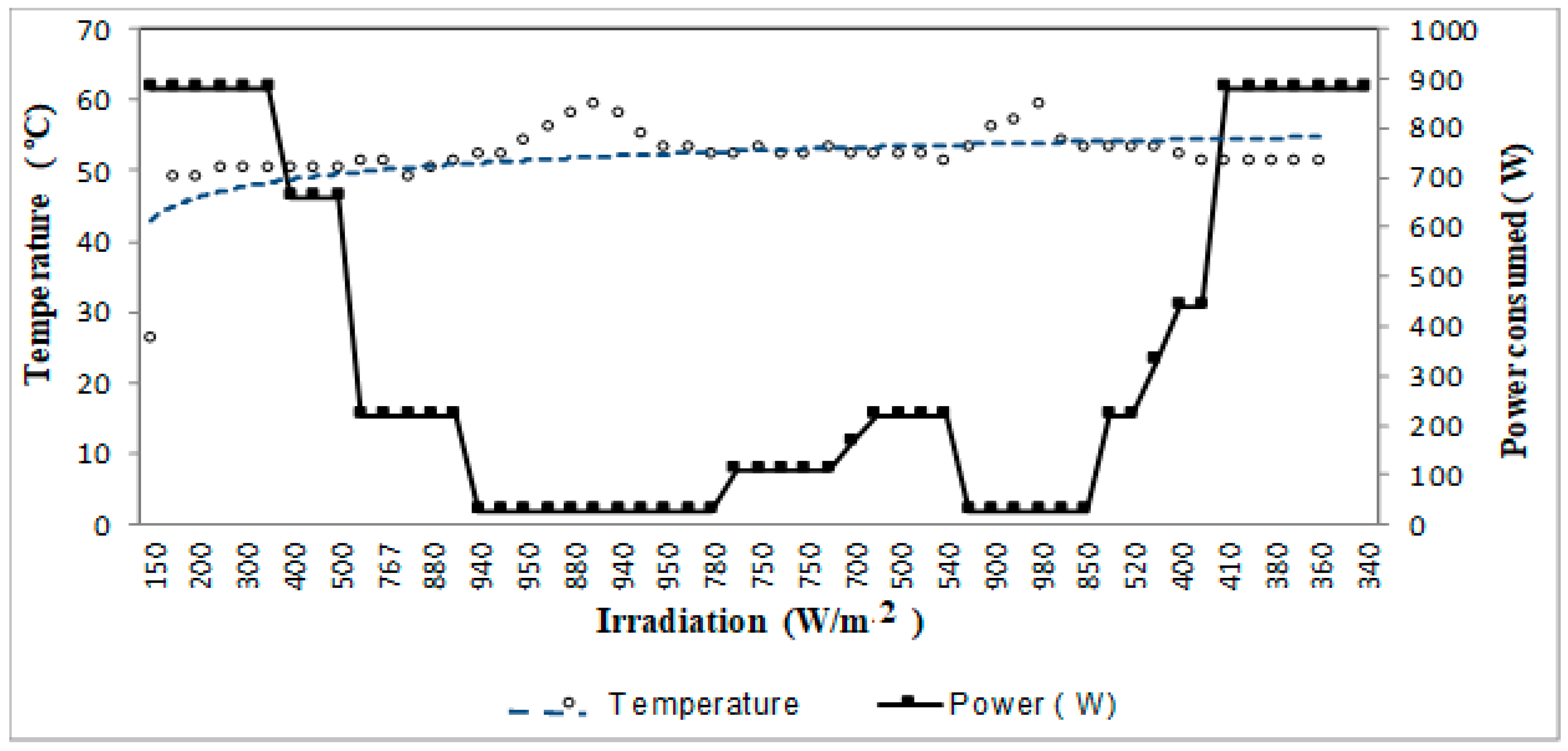

As indicated above, the hybrid dryer with aerothermal reached its design temperature at 500 W/m², therefore it is essential to add another heat source, for example; an electrical resistance controlled by the control system of the dryer. It should be remembered that the photovoltaic system sized for the dryer supplies the fan and consumption of the control system for 10 h of operating the dryer. In Figure 10, an example of the operation of hybrid drying on a clear day with an average ambient temperature of 65%, wind velocity less than 0.9 m/s, and solar radiation between 100 to 950 W/m² is presented. It was observed that the auxiliary system (electrical resistance) operated in the first hour of operation of the equipment until it reached the design temperature (50 °C); from 3 h of operation, the resistance operated in short periods of time to maintain the chamber temperature. Additionally, when the solar radiation was between 500 to 950 W/m², the dryer will be powered by the solar collector. As the radiation drops, the auxiliary system will go into operation to keep the internal temperature constant. Electricity consumption from the operation of the electrical resistance was 5 kW/day (in continuous operation, the resistors will consume a total of 10 kW/day).

4. Discussion and Conclusions

Ambient temperature and irradiation is one of the factors that can drastically affect the operation of a solar dryer. When analyzing the drying chamber without a heat dissipation medium, it was observed that on very bad days, the maximum internal temperature increase of the reached chamber was 10 °C. Therefore, adapting another energy source that compensated for the design temperature was justified to maintain the kinetics of the constant drying of the product.

The stability time of the experimental prototype was 40 min for the solar dryer and hybrid solar-system. As expected in a solar dryer, running only as a greenhouse effect means that the stability time of the chamber is longer. Furthermore, we checked the good thermal resistance of the materials used in the structure of the drying chamber.

In the case of adapting a low enthalpy horizontal geothermal system in the prototype, it was determined that in the hours of low irradiation, the energy input will depend mainly on the aerothermal system. However, in the hours of increased irradiation, the dominant factor will be the solar collector.

Testing on the models determined that the best results were obtained in hybrid mode with an aerothermal system where an efficiency of 60% to 70% was observed. Moreover, it was determined that the efficiency of the solar dryer with the collector was 30 to 60%.

The proposed photovoltaic installation allowed us to meet the energy demand of the 95 Wp electrical system in total by keeping a fan and the control system on.

The energy consumption of the auxiliary system on days with clear sky will be minimal, therefore operating the dryer most of the time only with the contribution of solar radiation. However, it is evident that the constant use of the power source on very bad days, on the other hand, where energy savings in electricity consumption between 3 to 5 kW/day were achieved.

Regarding the soil profile (geothermal energy), our results indicate that the temperature remained stable at a depth of 70 cm, with an increase of 5 °C more in reference to the ambient temperature at night, while during the day, the temperature increase of the air was 10 to 14 °C. The soil temperature had a sinusoidal tendency or behavior, and its amplitude decreased depending on the depth, with the exception of the surface temperature.

The change in the energy matrix of Ecuador promotes the implementation of renewable energy in the framework of distributed energy systems as a mechanism to achieve sustainable development and an important alternative with impacts in the social and economic development of the Ecuadorian population. The dryer built in this study meets these requirements, and could be considered as an alternative solution for local development to be used by small and medium industries that need to dry their products
