Experimental Study on Dynamics of Wooden House Wall Panels with Different Thermal Isolation
Abstract
:1. Introduction

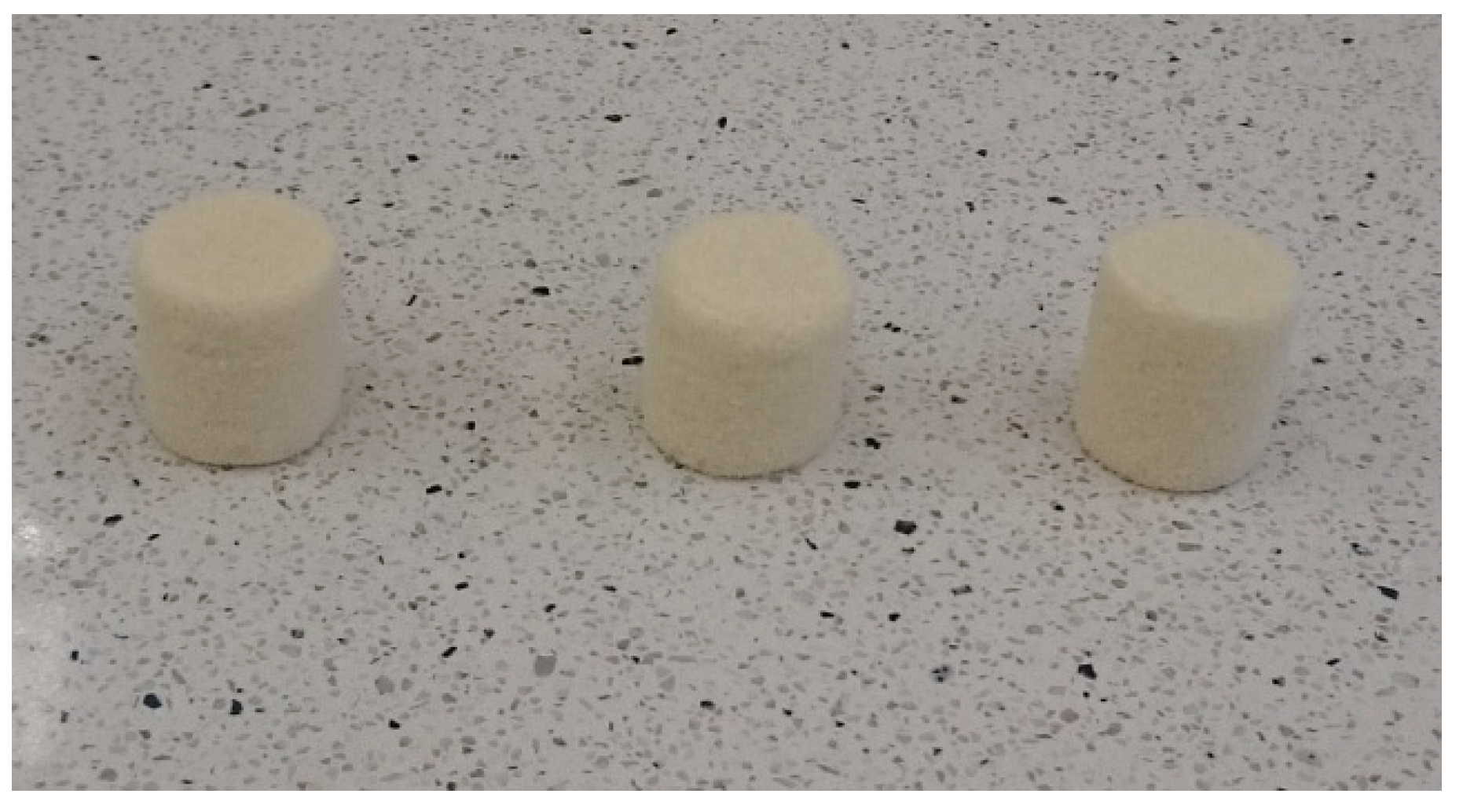

2. Static Material Tests

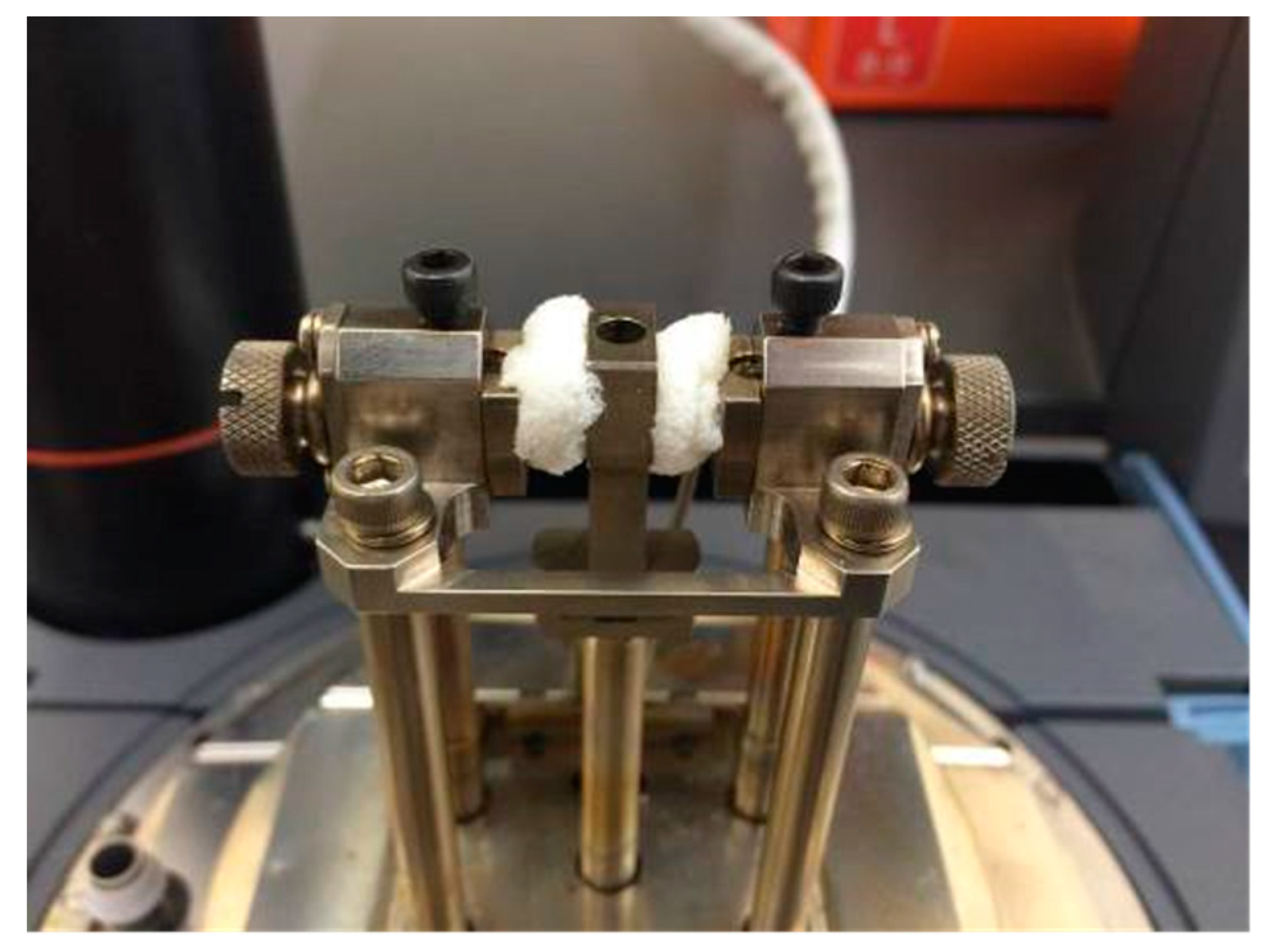

3. DMA Material Tests
4. Dynamic Tests on Wall Panels

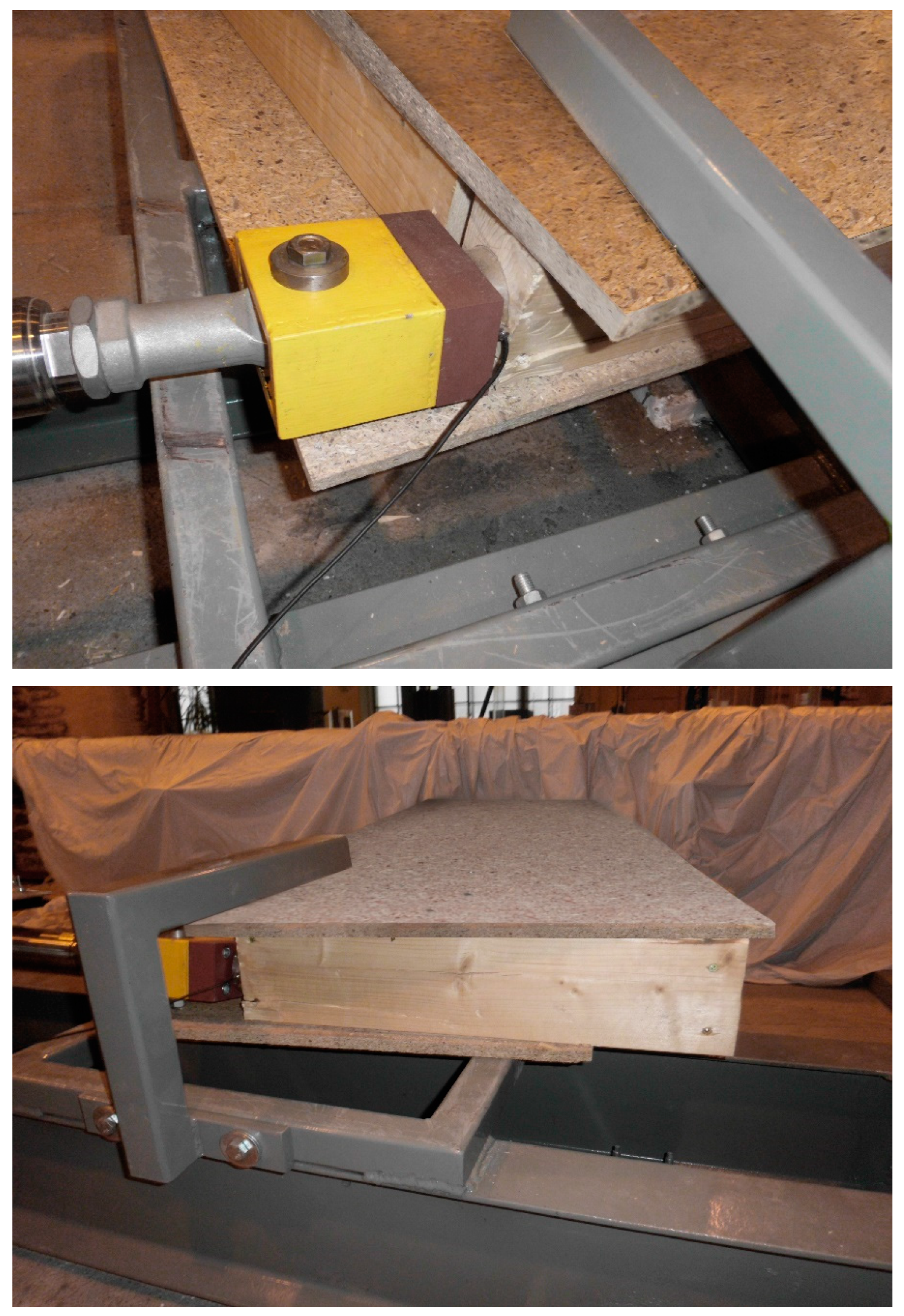

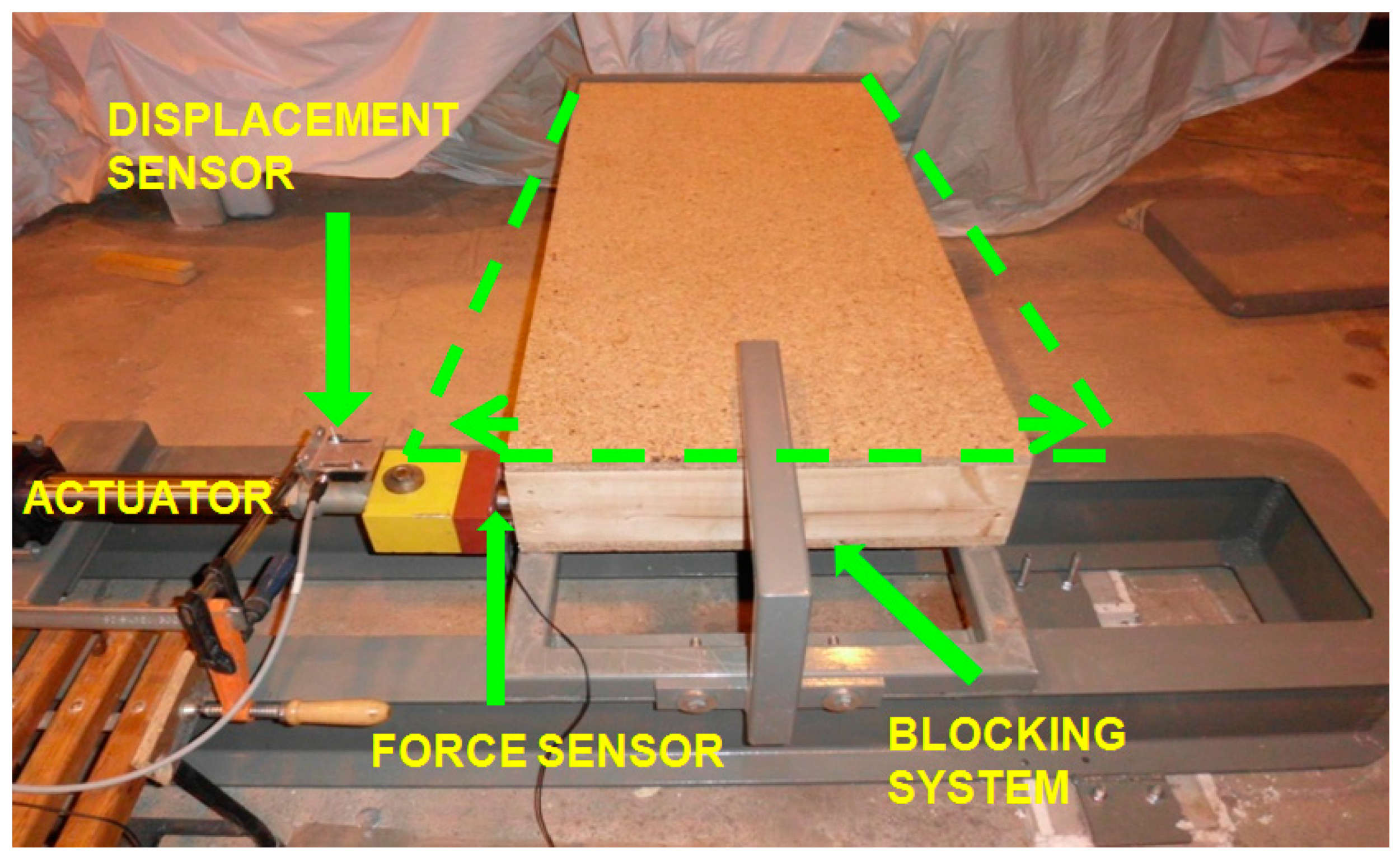

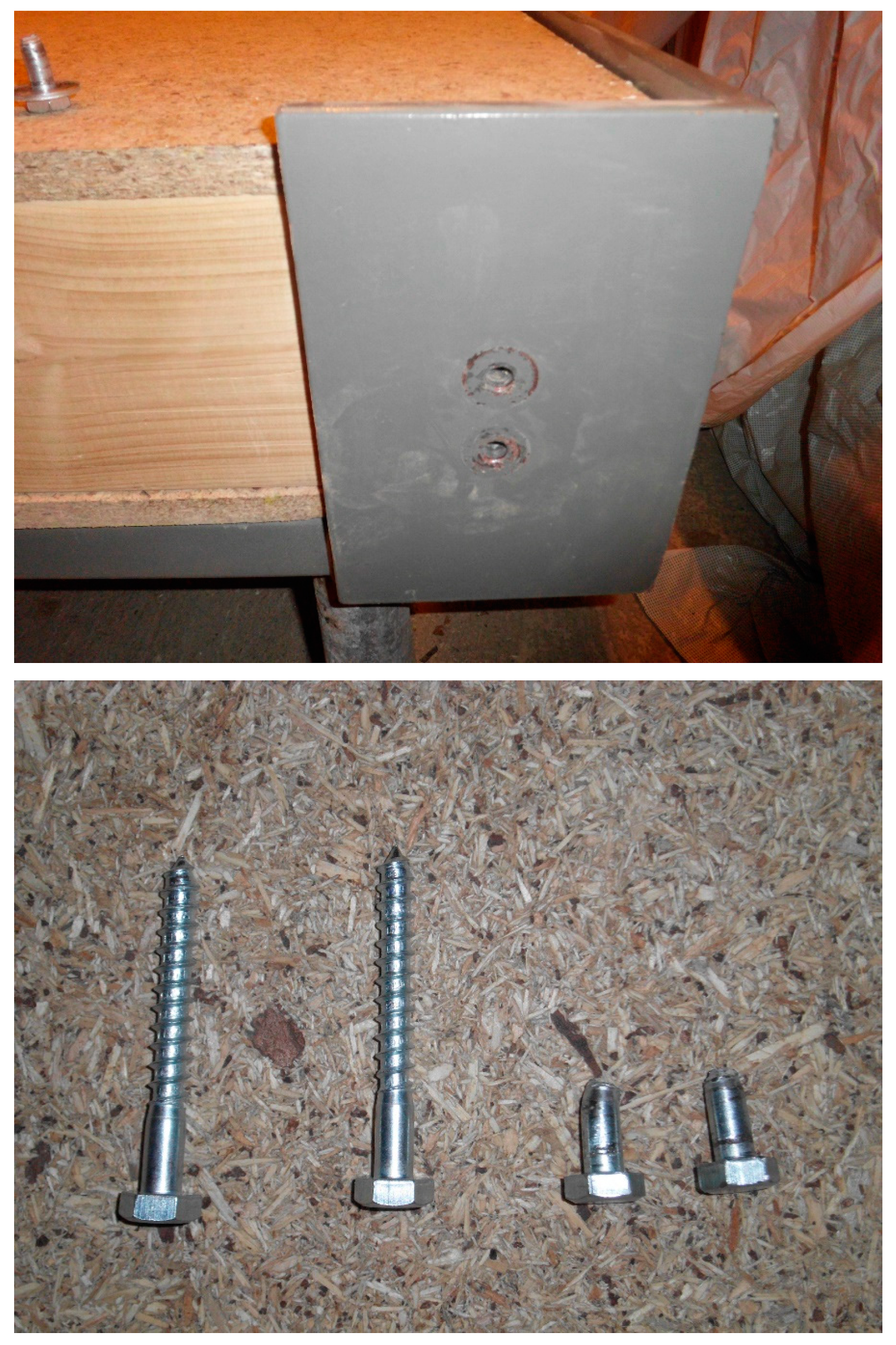

4.1. Experimental Setup

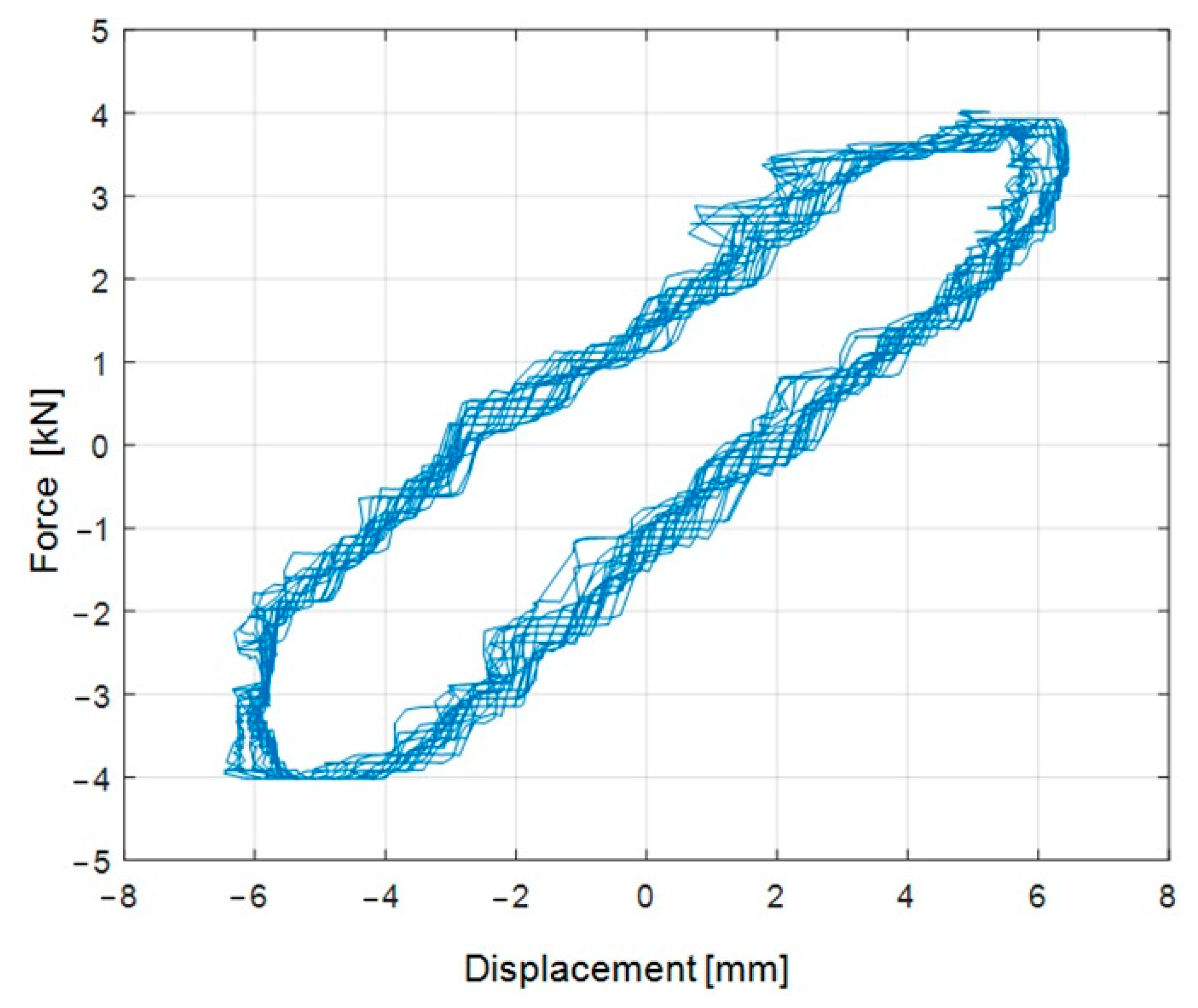

4.2. Results
5. Conclusions
- Polyurethane foam behaves in a highly nonlinear way both during static compression and tension.
- Storage modulus of the polyurethane foam is significantly larger in relation to the value obtained for the mineral wool.
- Loss modulus of the polyurethane foam is much larger compared to the modulus of the mineral wool.
- Polyurethane foam, as a material, is able to absorb a greater amount of energy. Comparing it to the mineral wool, it is a material with much better energy absorption capabilities.
- The use of polyurethane foam as thermal isolation leads to a substantial increase in stiffness and damping properties of wall panels, compared to the mineral wood.
- The panel filled with the polyurethane foam passed all the tests without any damages, whereas the tests for the panel with the mineral wood were destructive.
- The use of polyurethane foam caused the integration of individual elements of the panel allowing it to behave as one element, increasing its strength and spatial rigidity.
- Damping properties of the polyurethane foam contributed to an increase in the dynamic resistance of the panel, since larger amount energy could be dissipated.
Author Contributions
Funding
Acknowledgments
Conflicts of Interest
References
- Migda, W.; Jankowski, R. An approach for the response of buildings subjected to impact load after soft-story failure due to earthquake excitation. Shock Vib. 2013, 20, 681–692. [Google Scholar] [CrossRef]
- Jankowski, R. Pounding between superstructure segments in multi-supported elevated bridge with three-span continuous deck under 3D non-uniform earthquake excitation. J. Earthq. Tsunami 2015, 9, 1550012. [Google Scholar] [CrossRef]
- Jankowski, R.; Mahmoud, S. Linking of adjacent three-storey buildings for mitigation of structural pounding during earthquakes. Bull. Earthq. Eng. 2016, 14, 3075–3097. [Google Scholar] [CrossRef] [Green Version]
- Li, X.; Wang, J.; Bao, Y.; Chen, G. Cyclic behavior of damaged reinforced concrete columns repaired with high-performance fiber-reinforced cementitious composite. Eng. Struct. 2017, 136, 26–35. [Google Scholar] [CrossRef]
- ECS. Eurocode 8: Design Provisions for Earthquake Resistance of Structures; European Committee for Standardization: Brussels, Belgium, 1998. [Google Scholar]
- Teng, J.G.; Yu, T.; Fernando, D. Strengthening of steel structures with fiber-reinforced polymer composites. J. Constr. Steel Res. 2012, 78, 131–143. [Google Scholar] [CrossRef]
- Linghoff, D.; Haghani, R.; Al-Emrani, M. Carbon-fibre composites for strengthening steel structures. Thin Walled Struct. 2009, 47, 1048–1058. [Google Scholar] [CrossRef]
- Kim, D.H.; Moon, D.Y.; Kim, M.K.; Zi, G.; Roh, H. Experimental test and seismic performance of partial precast concrete segmental bridge column with cast-in-place base. Eng. Struct. 2015, 100, 178–188. [Google Scholar] [CrossRef]
- Shrive, N.G. The use of fibre reinforced polymers to improve seismic resistance of masonry. Constr. Build. Mater. 2006, 20, 269–277. [Google Scholar] [CrossRef]
- Kwiecień, A. Strengthening of masonry using natural fibers bonding with highly deformable adhesives. J. Eng. Technol. 2015, 3, 103–114. [Google Scholar]
- Falborski, T.; Jankowski, R.; Kwiecień, A. Experimental study on polymer mass used to repair damaged structures. Key Eng. Mater. 2012, 488–489, 347–350. [Google Scholar] [CrossRef]
- Kasal, B.; Polocoser, T.; Guindos, P.; Urushadze, S.; Pospisil, S.; Heiduschke, A.; Ruther, N.; Zembaty, Z. High performance composite-reinforced earthquake resistant buildings with self-aligning capabilities. Geotechnical. Geol. Earthq. Eng. 2015, 235, 359–372. [Google Scholar]
- Meng, W.; Khayat, K.H.; Bao, Y. Flexural behaviors of fiber-reinforced polymer fabric reinforced ultra-high-performance concrete panels. Cem. Concr. Compos. 2018, 93, 43–53. [Google Scholar] [CrossRef]
- Meng, W.; Khayat, K.H. Development of stay-in-place formwork using GFRP reinforced UHPC elements. In Proceedings of the First International Interactive Symposium on UHPC, Des Moines, IA, USA, 18–20 July 2016; pp. 1–9. [Google Scholar]
- Bedon, C.; Amadio, C. Enhancement of the seismic performance of multi-storey buildings by means of dissipative glazing curtain walls. Eng. Struct. 2017, 152, 320–334. [Google Scholar] [CrossRef] [Green Version]
- Toratti, T. Design guidance on Eurocode 8 for practicing engineers for timber structures. In International Workshop on Earthquake Engineering on Timber Structures; University of Coimbra: Coimbra, Portugal, 2006; pp. 55–70. [Google Scholar]
- Toratti, T. Seismic Design of Timber Structures; FEMA: Espoo, Finland, 1994.
- Liang, H.; Wen, Y.-K.; Foliente, G.C. Damage modeling and damage limit state criterion for wood-frame buildings subjected to seismic loads. J. Struct. Eng. 2011, 137, 41–48. [Google Scholar] [CrossRef]
- Heiduschke, A.; Kasal, B.; Haller, P. Shake table tests of small-and full-scale laminated timber frames with moment connections. Bull. Earthq. Eng. 2009, 7, 323–339. [Google Scholar] [CrossRef]
- Filiatrault, A.; Christovasilis, I.P.; Wanitkorkul, A.; Wan de Lindt, J.W. Experimental seismic response of a full-scale light-frame wood building. J. Struct. Eng. 2010, 136, 246–254. [Google Scholar] [CrossRef]
- Dujic, B.; Zarnic, R. Study of lateral resistance of massive X-lam wooden wall system subjected to horizontal loads. In International Workshop on Earthquake Engineering on Timber Structures; University of Coimbra: Coimbra, Portugal, 2006; pp. 97–104. [Google Scholar]
- Fournely, E.; Lamadon, T. Design detailing for earthquake engineering application for timber structures. In International Workshop on Earthquake Engineering on Timber Structures; University of Coimbra: Coimbra, Portugal, 2006; pp. 71–80. [Google Scholar]
- Vessby, J. Analysis of Shear Walls for Multi-Storey Timber Buildings; Linnaeus University Dissertations: Växjö, Sweden, 2011. [Google Scholar]
- González Fueyo, J.L.; Dominguez, M.; Cabezas, J.A.; Rubio, M.P. Design of connections with metal dowel-type fasteners in double shear. Mater. Struct. 2009, 42, 385–397. [Google Scholar] [CrossRef]
- Echavarría, C.; Salenikovich, A. Analytical model for predicting brittle failures of bolted timber joints. Mater. Struct. 2009, 42, 867–875. [Google Scholar] [CrossRef]
- Miller, J.F.; Schmidt, R.J.; Bulleit, W.M. New yield model for wood dowel connections. J. Struct. Eng. 2010, 136, 1255–1261. [Google Scholar] [CrossRef]
- Germano, F.; Metelli, G.; Giuriani, E. Experimental results on the role of sheathing-to-frame and base connections of a European timber framed shear wall. Constr. Build. Mater. 2015, 80, 315–328. [Google Scholar] [CrossRef]
- Gattesco, N.; Boem, I. Seismic performances and behavior factor of post-and-beam timber buildings braced with nailed shear walls. Eng. Struct. 2015, 100, 674–685. [Google Scholar] [CrossRef]
- Nitka, W. My Wooden House; National Forest Information Centre: Warsaw, Poland, 2010. [Google Scholar]
- Donovan, T.; Memari, M. Feasibility study of determination of seismic performance factors for structural insulated panels. J. Archit. Eng. 2015, 21, 1–9. [Google Scholar] [CrossRef]
- Kasal, B.; Heiduschke, A.; Haller, P. Analysis of wood-composite laminated frames under dynamic loads—Analytical models and model validation. Part I: Connection Model. Prog. Struct. Eng. Mater. 2006, 8, 103–110. [Google Scholar]
- Szczepański, M.; Migda, W.; Jankowski, R. Modal analysis of real timber frame houses with different insulation materials. Adv. Sci. Technol. Res. J. 2016, 10, 215–221. [Google Scholar] [CrossRef]
- Szczepański, M.; Migda, W.; Jankowski, R. Increasing the seismic resistance of wood-frame buildings by applying PU foam as thermal insulation. Period. Polytech. Civ. Eng. 2019, 63, 480–488. [Google Scholar]
- Kumar, A.; Gupta, R.K. Fundamentals of Polymer Engineering; Marcel Dekker: New York, NY, USA, 2003. [Google Scholar]
- Falborski, T.; Jankowski, R. Advanced hysteretic model of a prototype seismic isolation system made of polymeric bearings. Appl. Sci. 2018, 8, 400. [Google Scholar] [CrossRef]
Parameter | Specification |
---|---|
Dimensions of the test sample | Cylinder with a height of 10 mm and a diameter of 12 mm |
Frequency range | From 1 Hz to 20 Hz |
Heating speed | 4 °C/min |
Temperature range | From −30 °C to +50 °C |

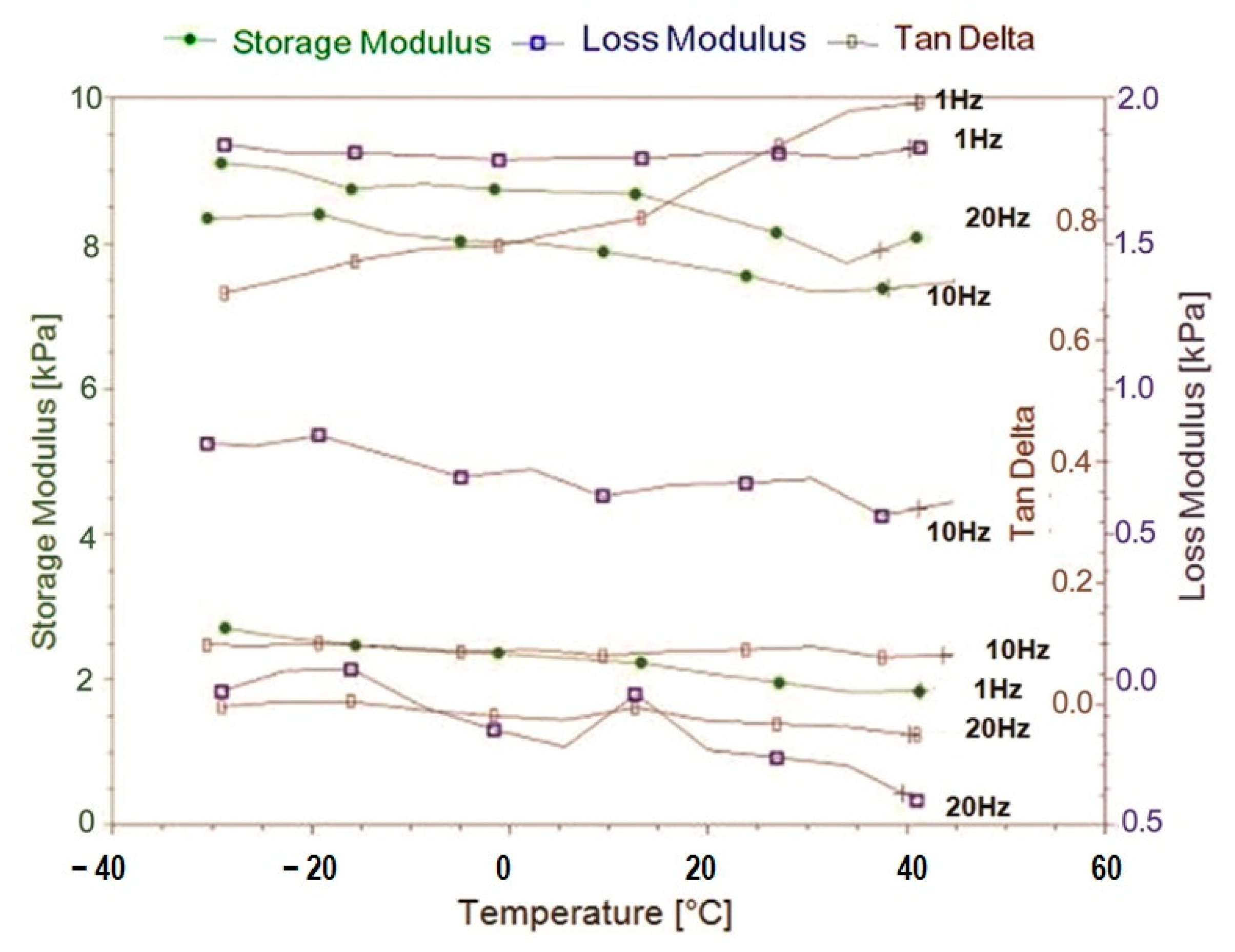

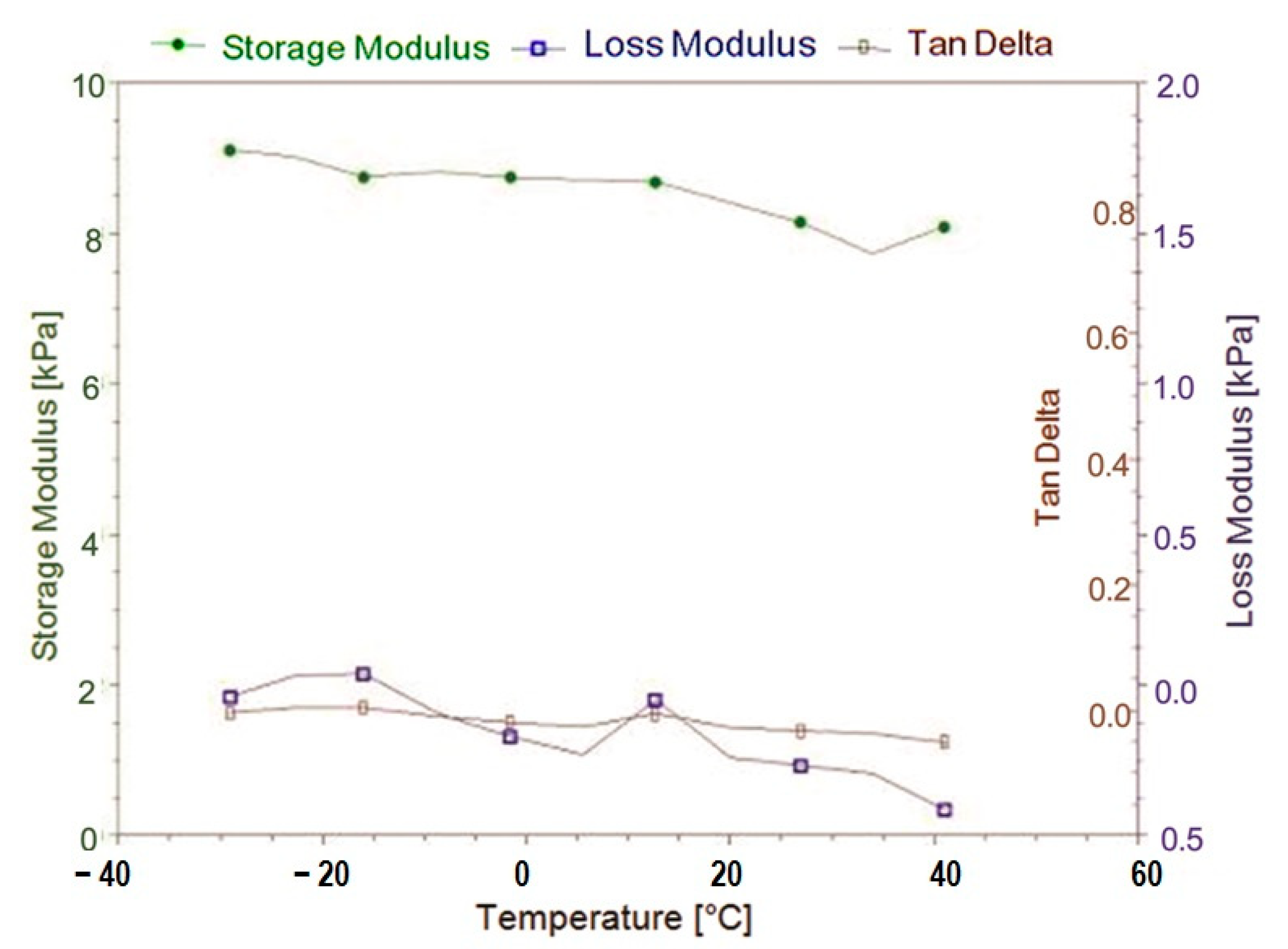

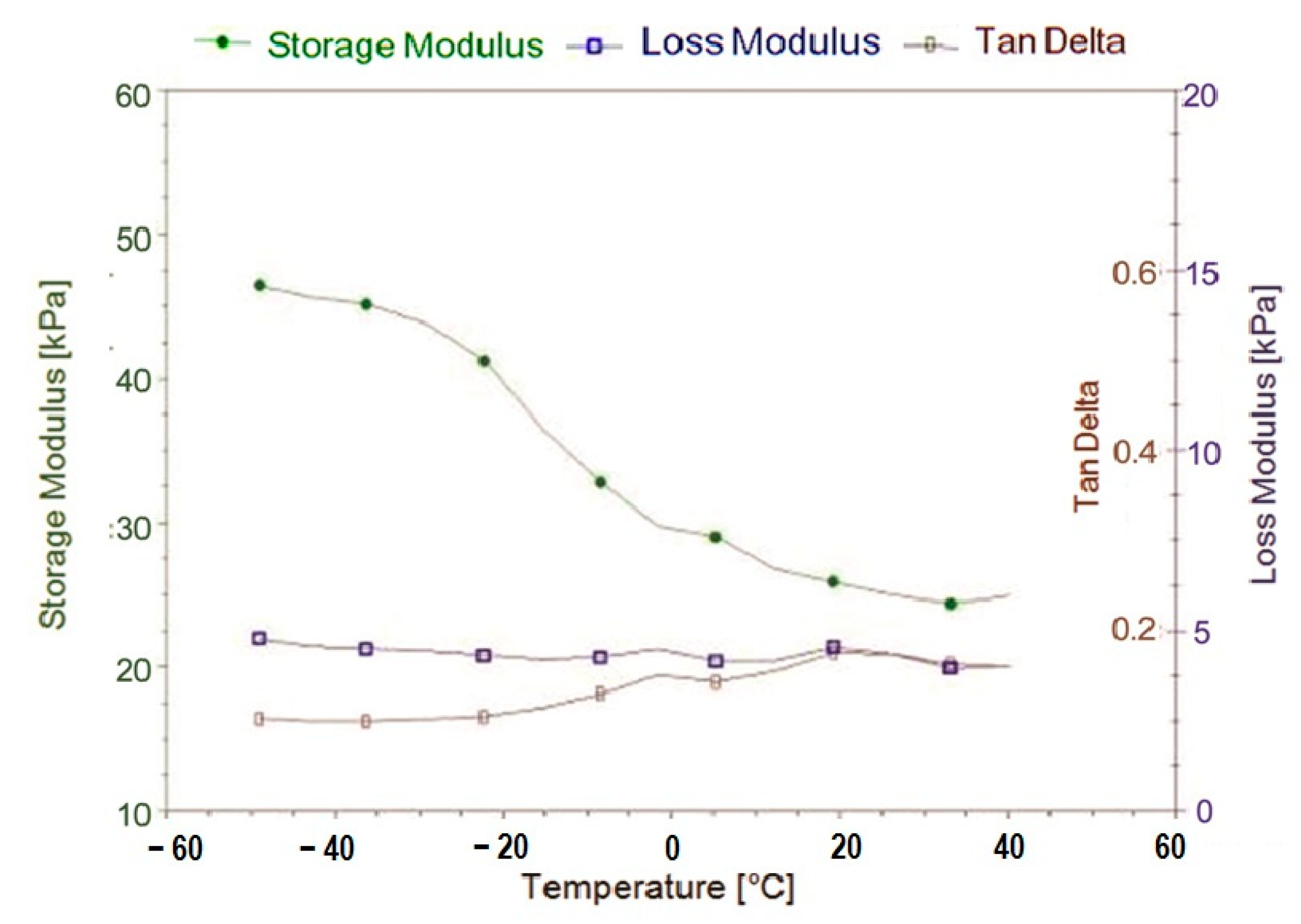

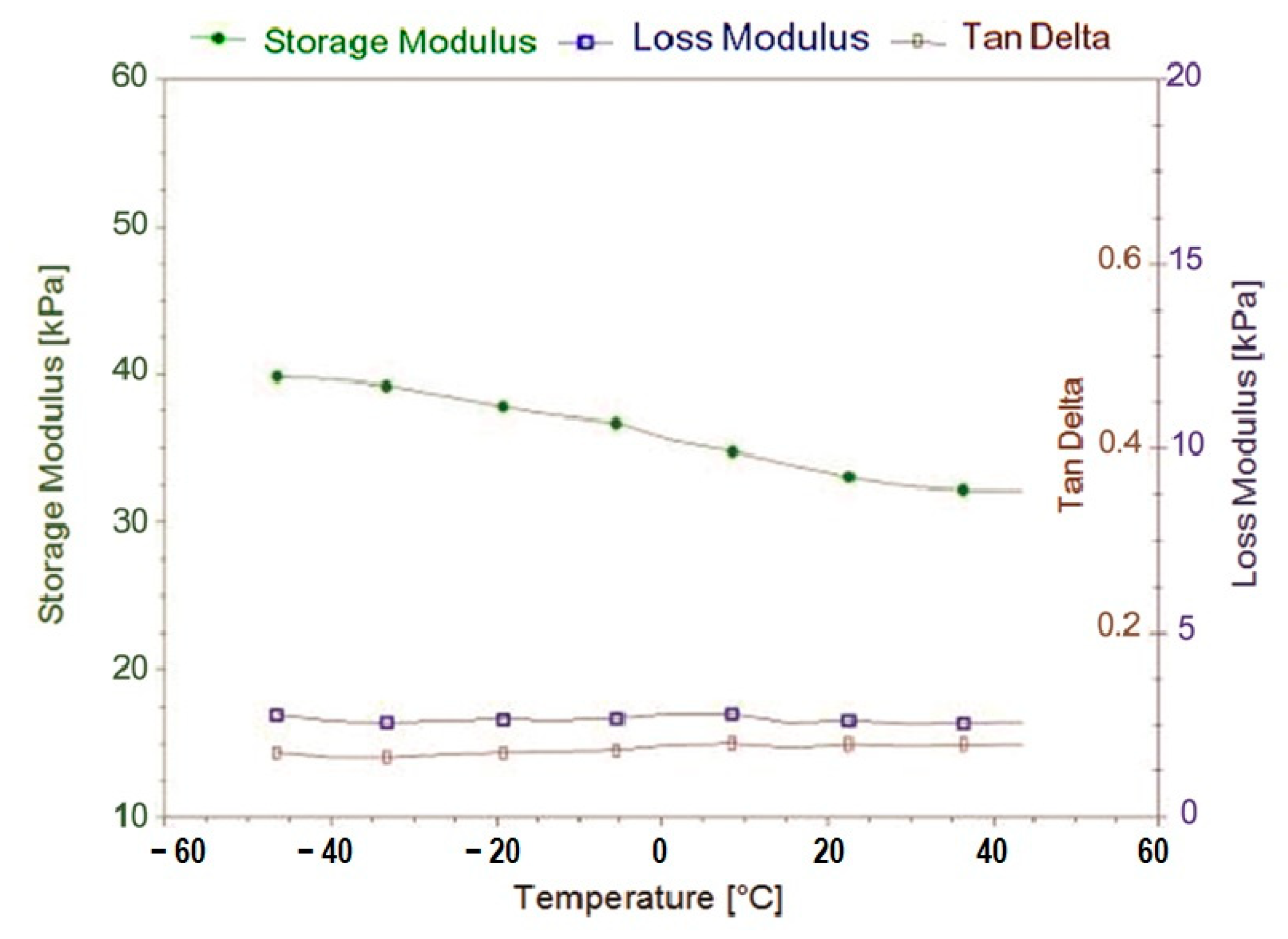

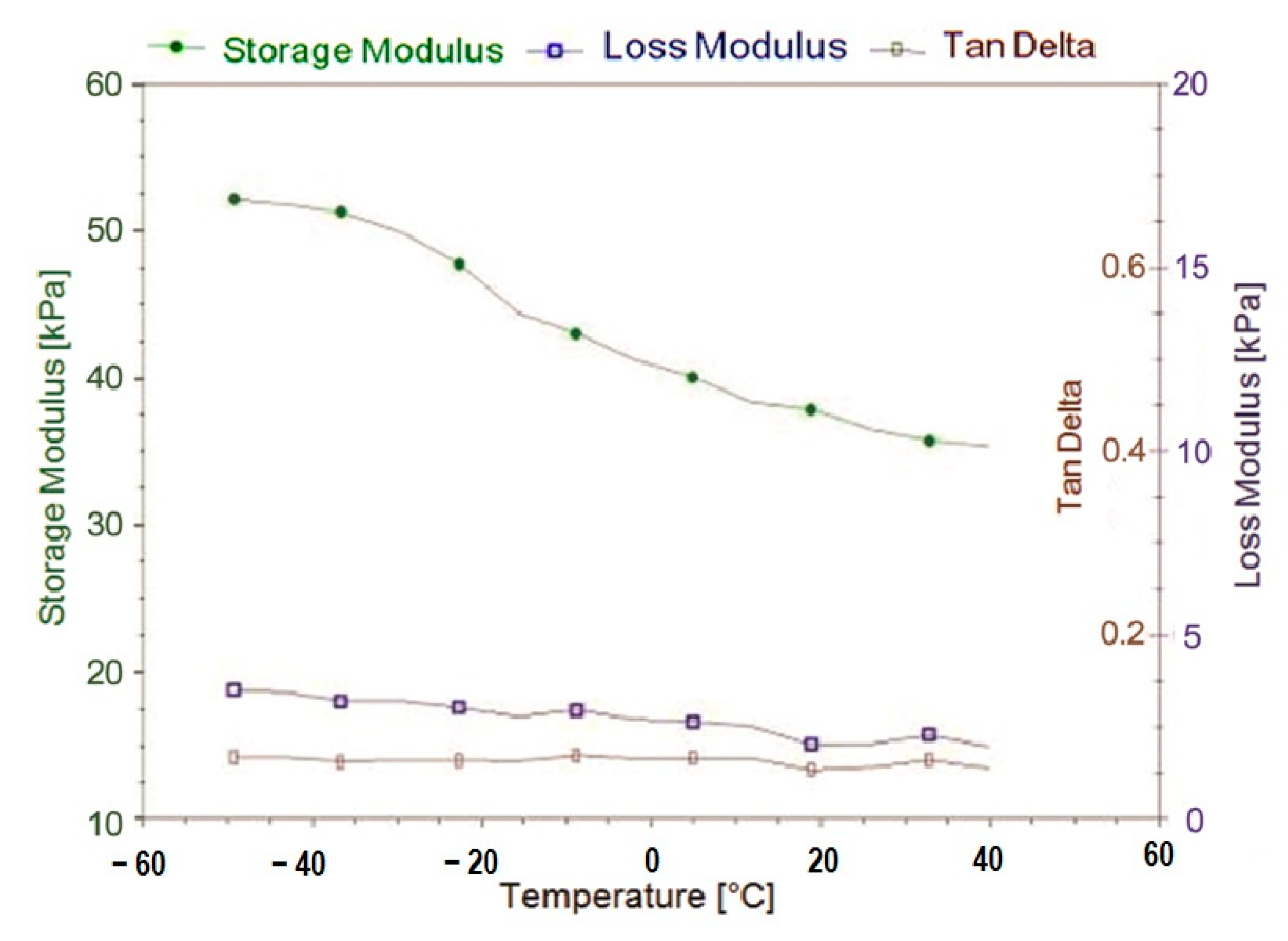

Frequency [Hz] | Storage Modulus [kPa] | Loss Modulus [kPa] | Tan Delta |
---|---|---|---|
1 | 2.10 | 1.81 | 0.86 |
10 | 7.65 | 0.65 | 0.10 |
20 | 8.45 | 0.25 | 0.025 |
Frequency [Hz] | Storage Modulus [kPa] | Loss Modulus [kPa] | Tan Delta |
---|---|---|---|
1 | 25.55 | 4.70 | 0.175 |
10 | 33.00 | 2.55 | 0.07 |
20 | 37.50 | 2.15 | 0.055 |
Element | Material | Density [kg/m3] | Elasticity Modulus [GPa] |
---|---|---|---|
Frame | Wood of class C24 | 509.8 | 11—along fibres 0.37—across fibres |
Sheathing | OSB3 | 713.8 | 1.98—along fibres 4.93—across fibres |
Filling 1 | Mineral wool | 39 | 0.0005 |
Filling 2 | Polyurethane foam | 26 | 0.01 |
Frequency [Hz] | Stiffness [kN/m] | Damping Ratio [%] |
---|---|---|
2.0 | 416.66 | 17.09 |
Frequency [Hz] | Stiffness [kN/m] | Damping Ratio [%] |
---|---|---|
2.0 | 549.58 | 22.25 |
