1. Introduction
Hypoeutectoid C-Mn steels are typically employed in many structural applications and, being commonly exposed to near-neutral aerated environment, undergo general corrosion in the form of rust. Cathodic protection and/or coating, together with the use of adequate corrosion allowance, enables the phenomenon to be controlled, thus reducing the risk of failure [
1]. The use of C-Mn steel in a broader context, where the steel comes in contact with more aggressive solutions (for example, during pickling or oil well acidizing treatments as well as acid-releasing processes [
2,
3], might need diverse technologies, such as addition of inhibitor products.
In this work, we propose to investigate a method to control and minimize the steel corrosion in the presence of HCl by adding a corrosion inhibitor of bio-polymeric nature. The test solutions are meant to mimic the aggressiveness of the environment due to in-situ generation of harsh byproducts (i.e., during plastic or biomass combustion) or due to an environment that is aggressive itself in the exercise conditions (i.e., pickling or acidizing treatments).
The corrosion inhibition strategy is well-known to help in reducing the economic input of corrosion damage [
4,
5]. Moreover, through a proper selection of the nature of the used inhibitor compounds, the related toxicological aspects can be controlled. Efficient inhibitors are compounds whose activity is related to the presence in their structure of hetero atoms like nitrogen, oxygen, or sulfur [
6]. It was observed that adsorption depends mainly on the presence of lone pair electrons, electron-donating groups and π-orbital character of the molecule [
7]. However, even if many synthetic organic compounds are effective inhibitors, regarding their cost and toxic nature, researches were compelled [
8,
9]. The concern is not only related to the environmental poisoning, needing effective procedures of inhibitor removal before flowing the used solution out of the industrial plant, but also to the contact of the protected metal, for example, with food, beverages, and medicals, during its lifecycle. In the last decade, many research works were focused on the use of “green” corrosion inhibitors, lacking in the adverse health issues connected to the organic compounds used in the past [
8,
9]. The use of biomaterials as corrosion inhibitors takes considerable attention due to their inherent stability, availability, cost effectiveness, and environmentally-friendly nature [
10,
11].
The protection of a steel structure against corrosion has already been studied by means of biopolymers as corrosion inhibitors [
12,
13]. Bio-copolymers derived from starch, already used in the literature as a corrosion inhibitor, motivated our research [
14,
15].
The present work reports on the establishment of different possibilities of grafting glycerin on starch. We looked at the different grafting sites on amylopectin that can receive glycerin molecules. By the conditions, this was possible by eliminating amylose chains. The obtained product was used as corrosion inhibitor of C-Mn steel in 1 M HCl solution in the temperature range 25–50 °C. The corrosion inhibition was investigated by weight loss measurements, potentiodynamic polarization, and electrochemical impedance spectroscopy (EIS). Appropriate corrosion parameters such as corrosion current density (icorr), polarization resistance (Rp), and parameters derived from EIS were derived to characterize the corrosion process. The kinetic and thermodynamic parameters were determined and discussed.
2. Materials and Methods
2.1. Reagents
The used reagents were maize starch (St), glycerin (Gly), hydrochloric acid 37%, and sodium hydroxide. They were supplied by the Aldrich Company. The only solvent used was bi-distilled water.
2.2. C-Mn Steel
Tests were conducted on C-Mn steel samples obtained and treated according to the procedure described in our previous work [
4].
Atomic composition was compared to the one quoted in the material test certificates [
16]. Elemental composition of the cutting samples (
Table 1) was determined by emission spectroscopy analysis type “Spectro RP 212”. Composition and microstructure can vary significantly, resulting in substantial differences in corrosion performances in a corrosion regime. Chemical composition of steel, displayed in
Table 1, was in compliance with the API norm (American Petroleum Institute).
We observed a low carbon composition (0.129%), providing high chemical resistance, high concentration of manganese (1.590%), and low sulfur and phosphorus content. This composition can lead to the formation of manganese sulfide (MnS) inclusions, which are not desirable in the microstructure, being able to start corrosion pitting [
7,
17].
The surfaces of steel samples were observed under an optical microscope and SEM (
Figure 1). The metallographic images revealed a fine microstructure of ferrito-perlitictype, with ferritic prevalencein the presence of clusters of pearlite in the grain boundaries withsome inclusion fields.
The refinement of ferritic size was obtained by different hardening and precipitation mechanisms based on a dislocation movement that increases elasticity limit and steel resistance. The SEM image (
Figure 1b) confirms the fine microstructure of steel.
2.3. Test Solution
The chosen solution for corrosion tests was 1 M HCl solution prepared from analytical grade 37% (Aldrich) by dilution with bi-distilled water.
2.4. Synthesis of Bio-Copolymer (St63Gly37)
Anew glycerin-starch bio-copolymer (abbreviated from now on by (St63Gly37) was synthesized by modification of maize starch and used as corrosion inhibitor. Glycerin grafting on the starch takes place in three stages. The first and second steps consisted of the preparation of aqueous solutions of 50% glycerin (A) and 50% starch (B), respectively. In the third step, the glycerin (A) and starch (B) solutions were poured into a 200 mL Erlenmeyer flask, to which 3 mL of 1 M HCl were added under stirring and heating to evaporate all the water. Heating and stirring were continued for the sole purpose of evaporating all the water contained in the solution. The obtained mixture was neutralized by adding 3 mL of 1 M NaOH. The molecular structures of the involved species are displayed in
Figure 2.
2.5. 1H NMR Characterization of St63Gly37
The
1H NMR spectrum of the starch grafted with glycerin St63Gly37 was recorded on a Brucker spectrometer of 400 MHz and dissolved in DMSO-
d6 as solvent. The interpretation of the
1H NMR results of the product St63Gly37 was carried out by comparison with the peaks of the native starch found in the literature [
18,
19].
2.6. FT-IR Characterization of St63Gly37 Bio-Copolymer
FT-IR spectra were recorded on a Fourier transform infrared (FT-IR) spectrometer Agilent Technologies Cary 600 Series with a resolution of 4 cm−1 in the LAEPO laboratory, University of Tlemcen. They were employed to observe the characteristic transmittance bands in St63Gly37. The FT-IR spectra were recorded over the frequency range between 500 and 4000 cm−1.
2.7. Corrosion Inhibitor Tests
The weight loss (2 cm
2 apparent surface area) and electrochemical tests (1 cm
2 exposed surface to the corrosive solution) were carried out according to procedures described in previous works [
4,
13]. St63Gly37 testing was carried out in 1 M HCl solution, varying the concentration of the inhibitor between 5 and 300 mg L
−1. The temperature range was 25–50 °C.
The inhibition efficiency (
Ew %) was calculated using the following Equation (1):
where
Wcorr and
W°
corr are the corrosion rates of steel samples in the absence and presence of St63Gly37, respectively.
A potentiostat (Amel 549) and linear sweep generator (Amel 567) were used to record the current–voltage curves. The scan rate was 1 V min−1. The reference electrode was a saturated calomel electrode (SCE); the counter electrode was the platinum electrode. The working electrode was polarized at 800 mV for 10 min before recording the cathodic curves. For the anodic curves, the potential of the electrode was swept from its open circuit value after 30 min. A Voltalab PGZ-100 electrochemical system was used for the determination of the electrochemical impedance spectroscopy (EIS) at Ecorr after immersion in solution. After determination of the steady-state current at a given potential, sine wave voltage (10 mV) peak to peak, at frequencies between 100 kHz and 10 mHz, was superimposed on the rest potential. The measurements performed at rest potentials after 30 min of exposure were automatically controlled by computer programs. EIS diagrams are detailed in the Nyquist representations.
3. Results
3.1. St63Gly37 Characterization
The grafting of the glycerin may take place preferentially on the 7-position of the starch. It could also occur on positions 8 or 9 of the starch (

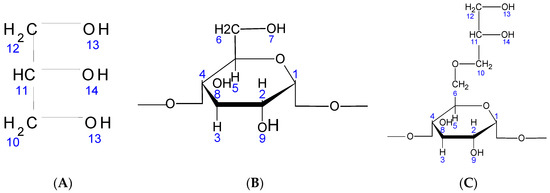

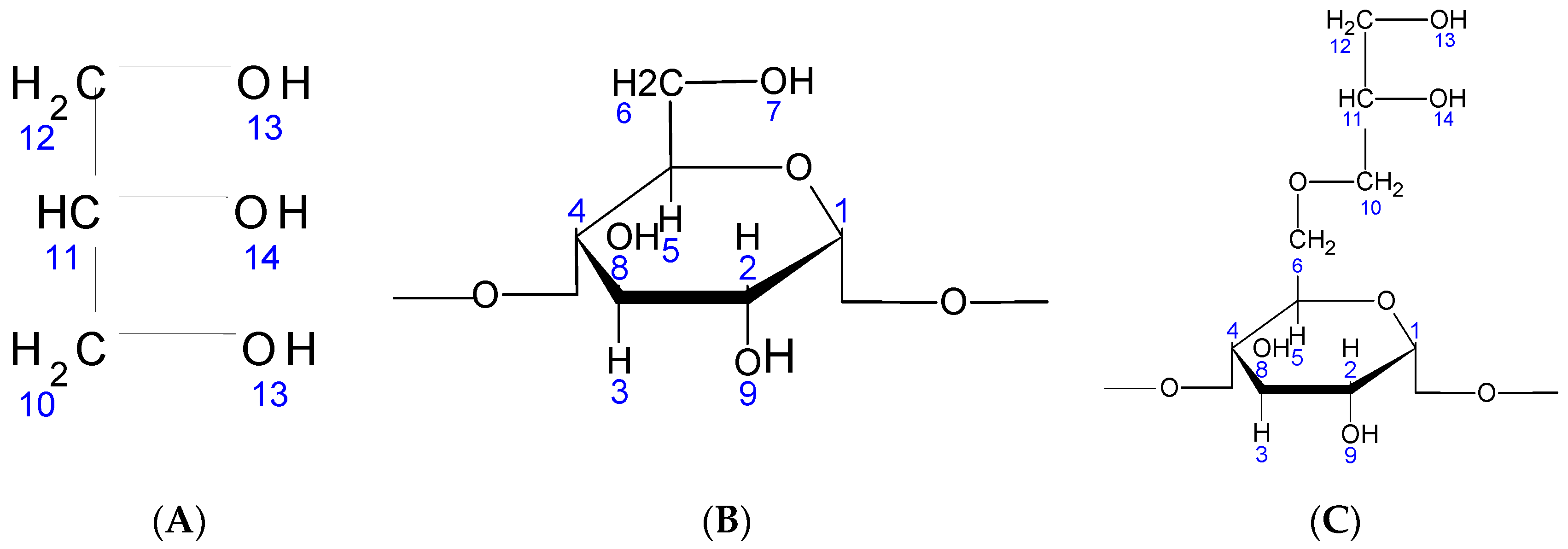

Figure 2). On the other hand, glycerin can be grafted via its OH-13 or OH-14 functions. For the characterization of our products, we used
1H NMR and Fourier transform infrared (FT-IR) spectroscopy techniques.
3.1.1. 1H NMR Characterization
The

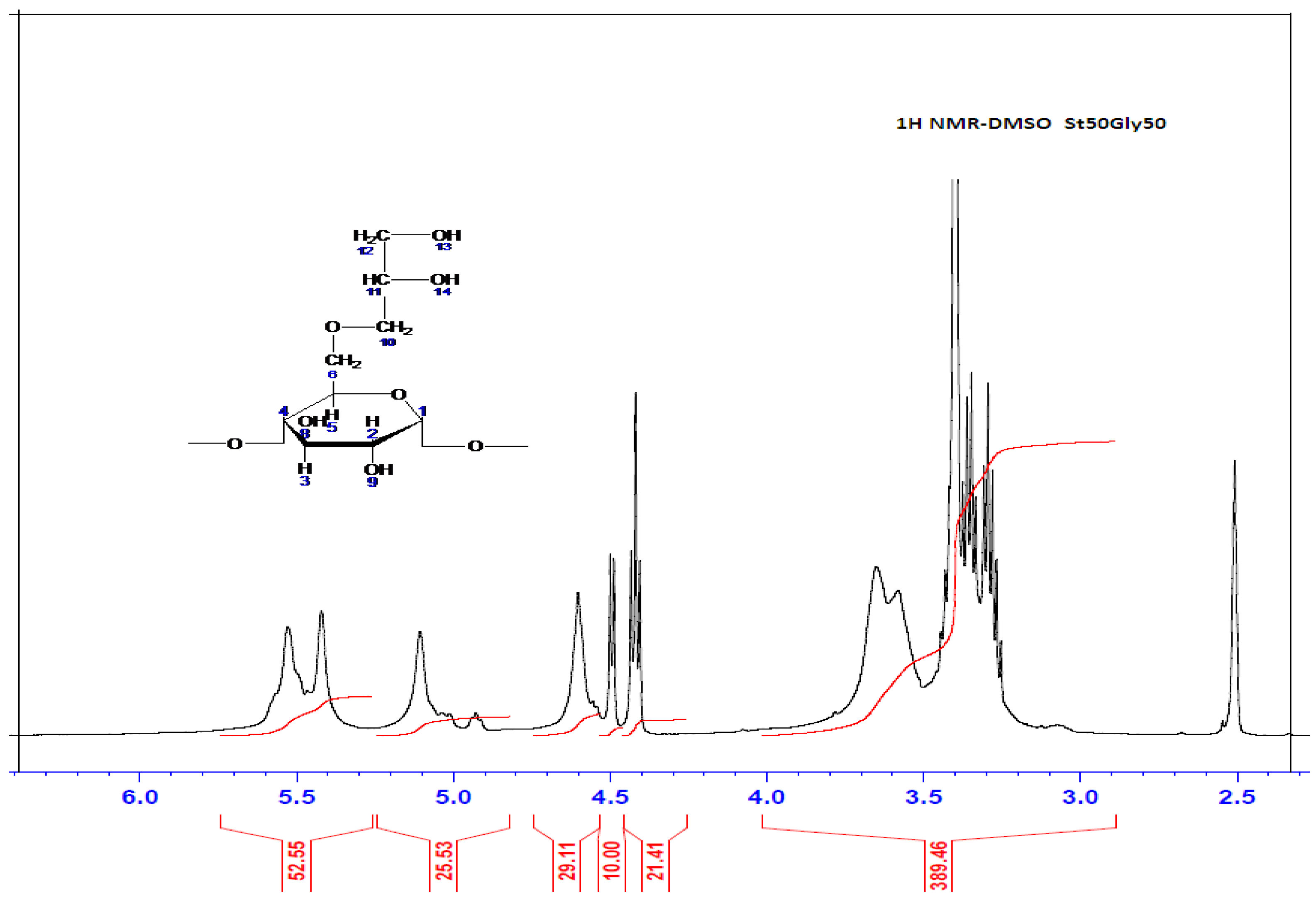

1H NMR spectrum of the starch grafted with glycerin St63Gly37 was recorded on a Brucker spectrometer of 400 MHz and dissolved in DMSO as solvent. Results are displayed in

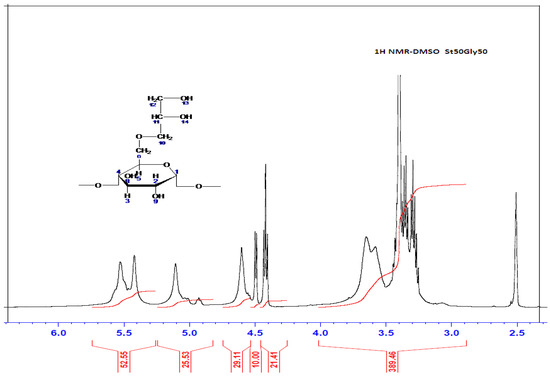

Figure 3.
3.1.2. FT-IR Characterization
The FT-IR technique is largely used for the characterization of starch as a natural polymer [
20]. Examination of the FT-IR spectrum confirms the grafting of glycerin on the starch, by the CH
2 bands and the characteristic OH bands of glycerin.

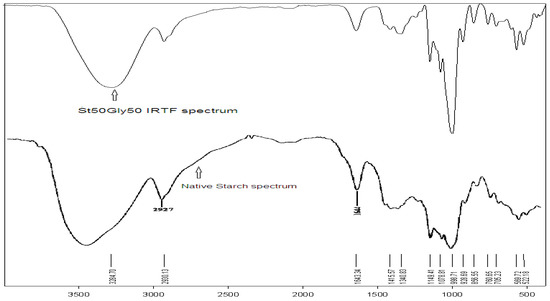

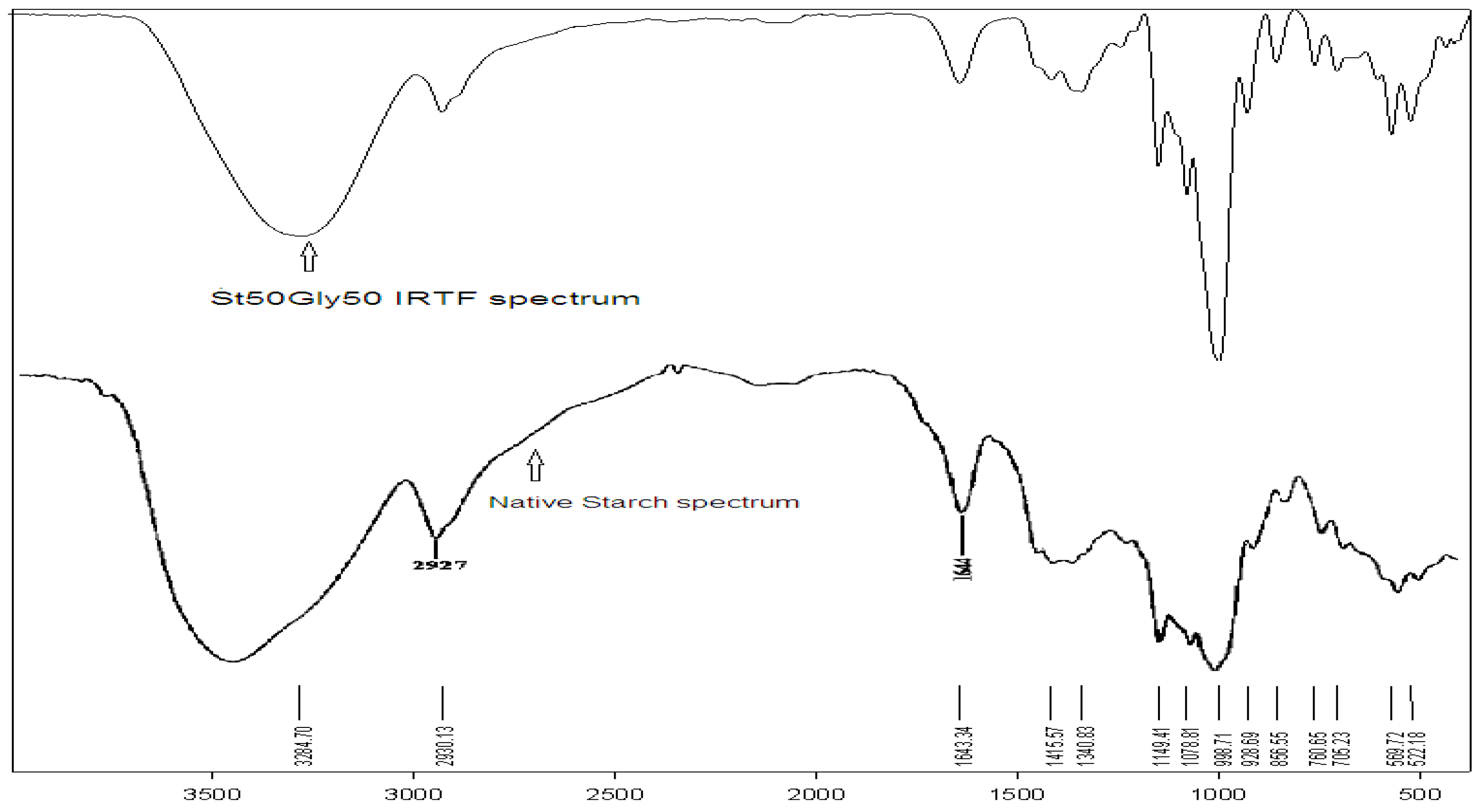

Figure 4 shows the FT-IR spectra of the native starch in comparison with the St63Gly37 copolymer.
3.2. Weight Loss Measurements
3.2.1. Effect of Inhibitor Concentration
The results of C-Mn steel in HCl solution with different concentrations of St63Gly37 at 25 °C, using weight loss measurements, are reported in
Table 2.
3.2.2. Effect of Temperature
In order to study the effect of temperature on corrosion inhibition of C-Mn steel in HCl solution after two hours at different bio-copolymer concentrations, weight loss studies were carried out in a temperature range from 25 to 50 °C.
The variation of corrosion rate (
Wcorr) and inhibition efficiency
Ew (%) with the temperature for different concentrations of St63Gly37 bio-copolymer are displayed in

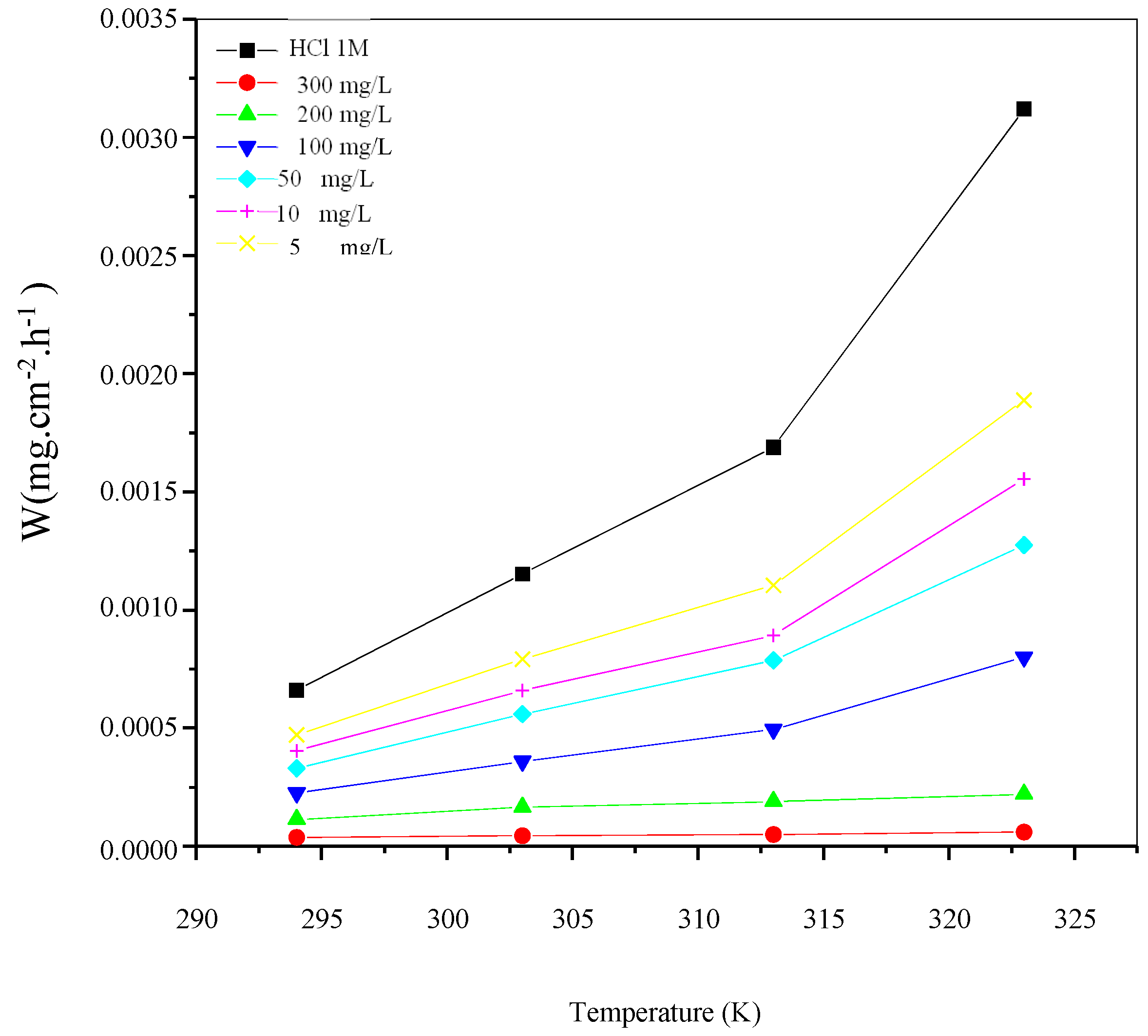

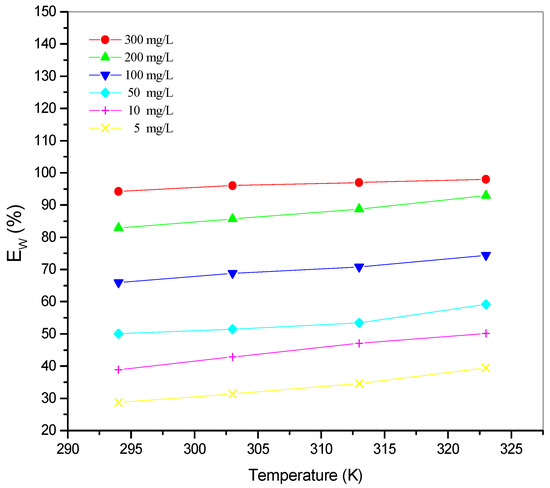

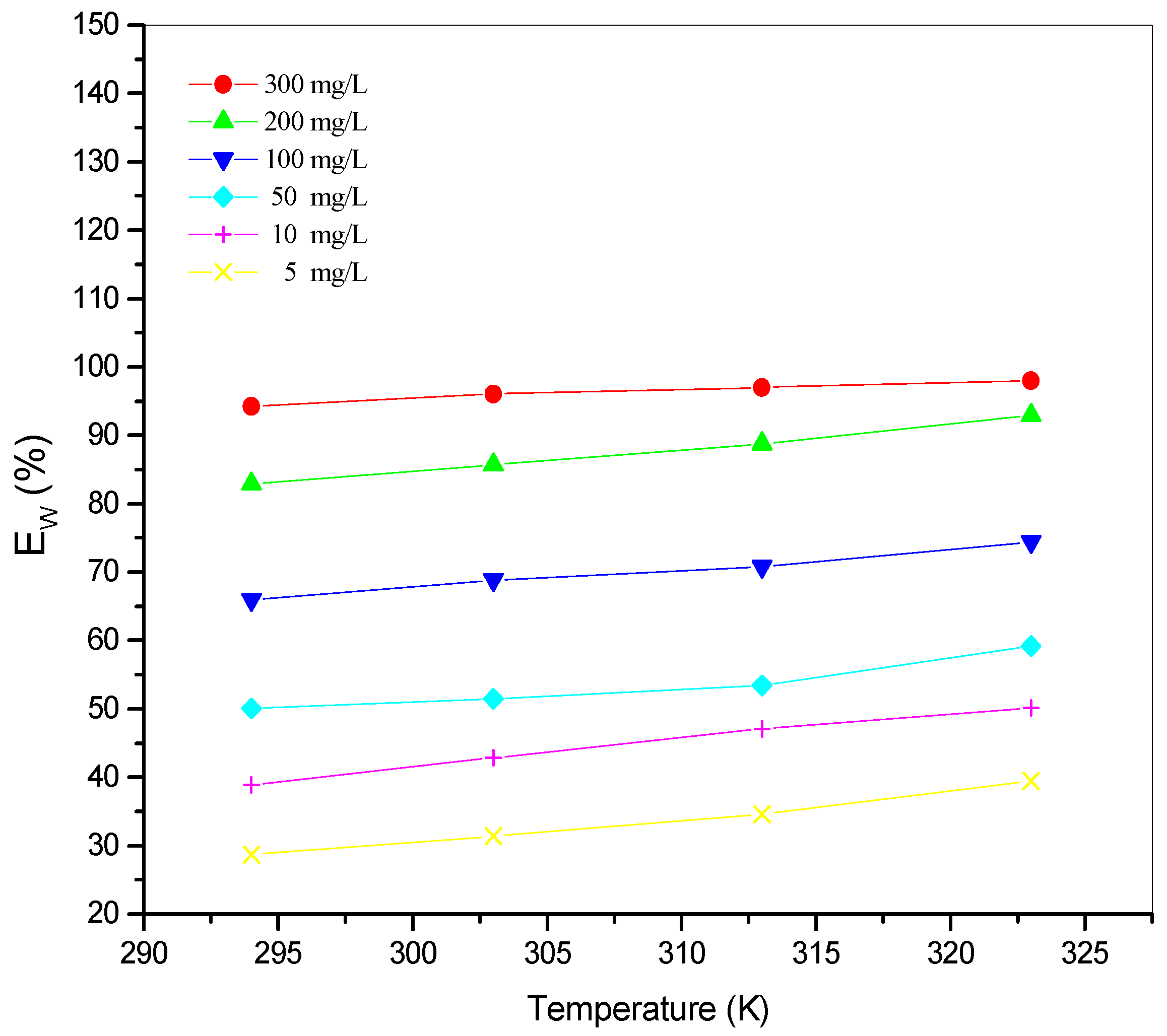

Figure 5 and
Figure 6, respectively.
3.3. Thermodynamic and Kinetic Parameters
Thermodynamic and kinetic parameters, such as activation energy
Ea, enthalpy, and entropy of adsorption of St63Gly37 on steel, were calculated building the Arrhenius plot.

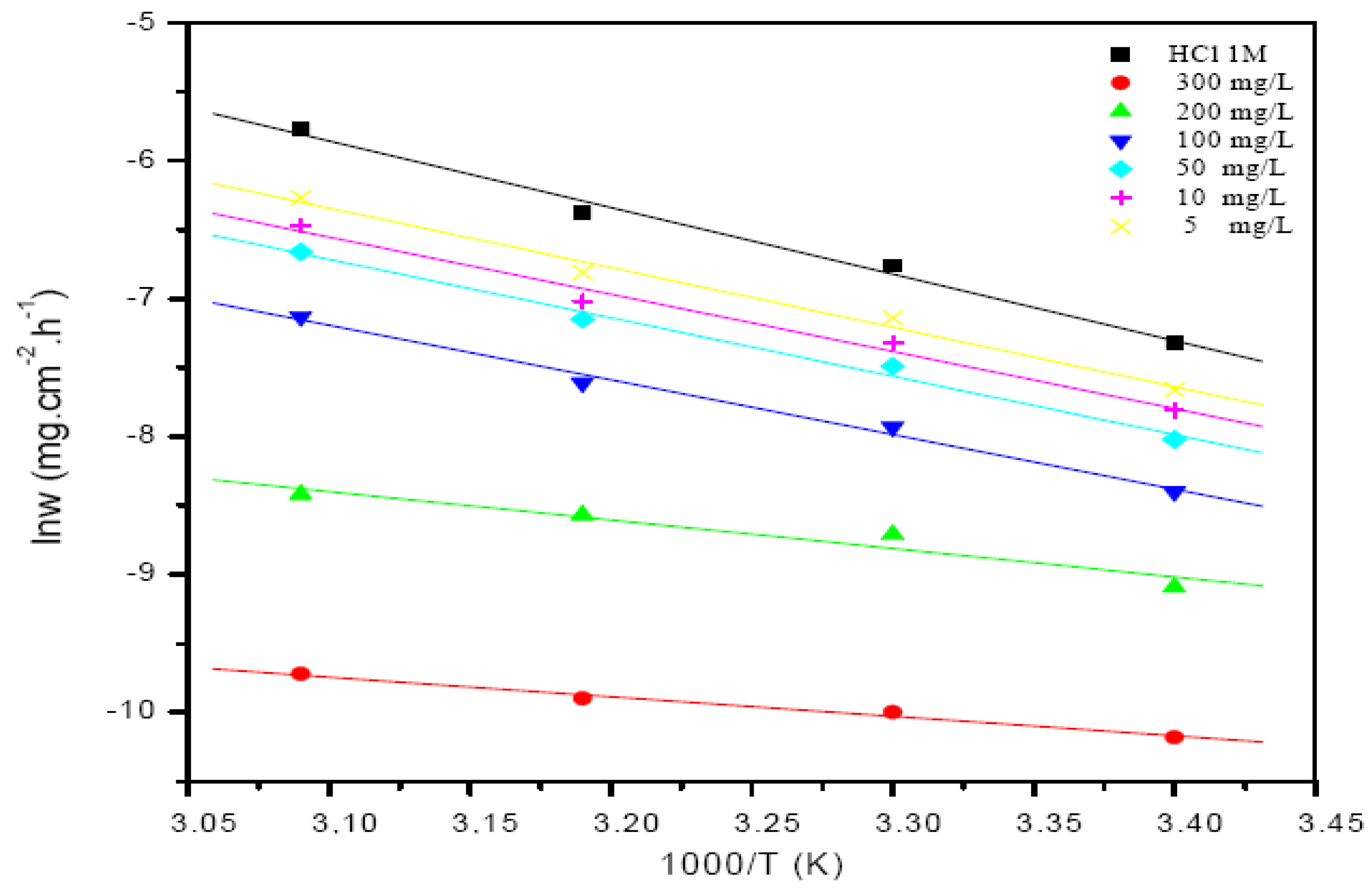

Figure 7 presents the Arrhenius plots of corrosion rate logarithm vs. 1000/T related to blank solution and bio-copolymer solution.
The activation parameters for the corrosion process can be regarded as an Arrhenius-type process according to the following Equations (2) and (3):
Ea and E’a are the apparent activation energies with and without the bio-copolymer, respectively. T is the absolute temperature, A is a constant, and R is the universal gas constant. Wcorr and W’corr are the steel corrosion rates in the absence and presence of the bio copolymer inhibitor, respectively.
3.4. Adsorption Isotherms

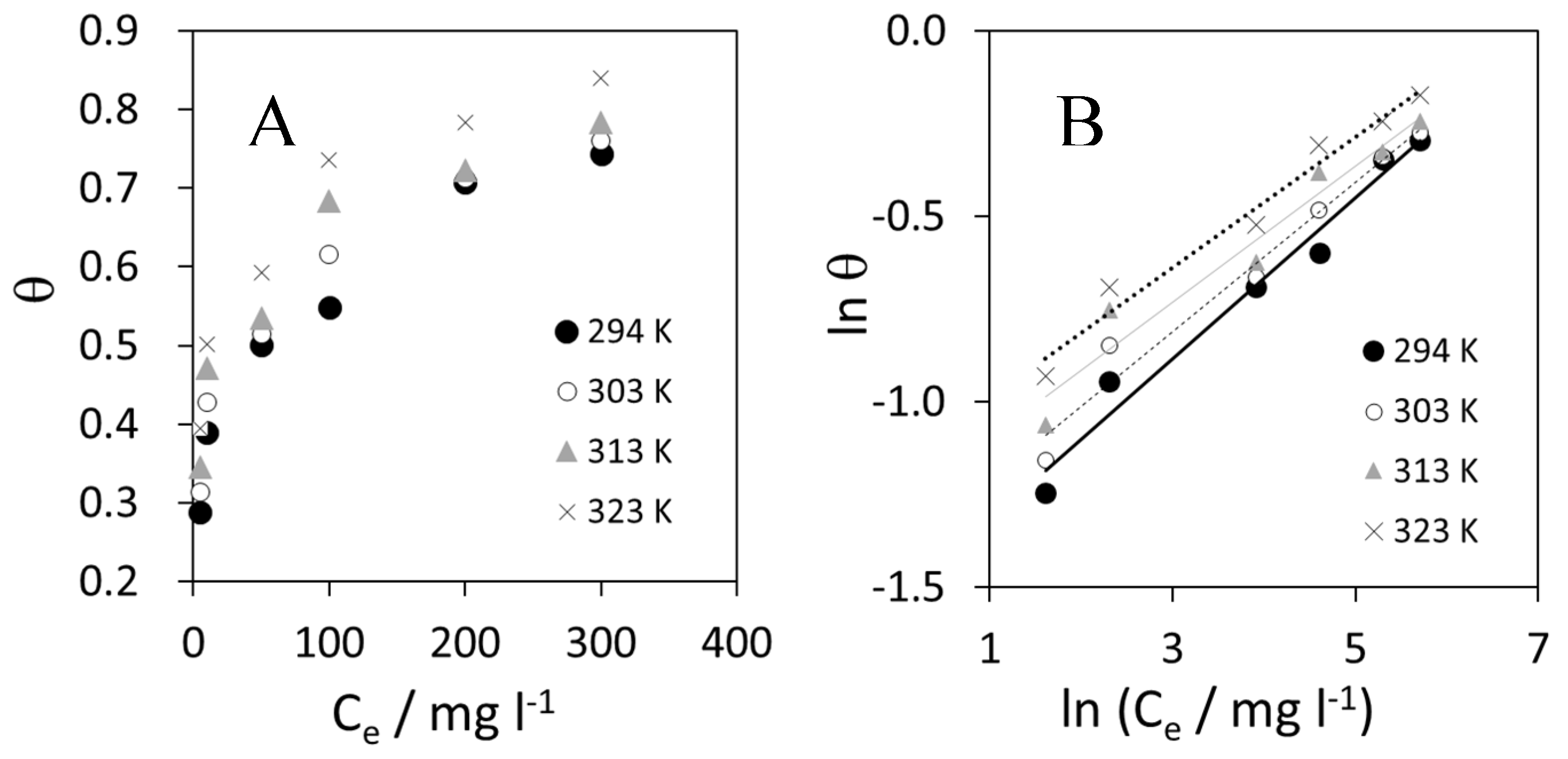

Figure 8 shows the results of adsorption isotherms. Linear plots were obtained in the studied temperature range.
The equilibrium constant of adsorption K is related to the standard free energy ∆
Gads [
21]. Δ
Gads values at different temperatures can be calculated by Equation (4):
where 55.5 represents the concentration of water in solution expressed in mol L
−1.
3.5. Electrochemical Tests
3.5.1. Polarizations

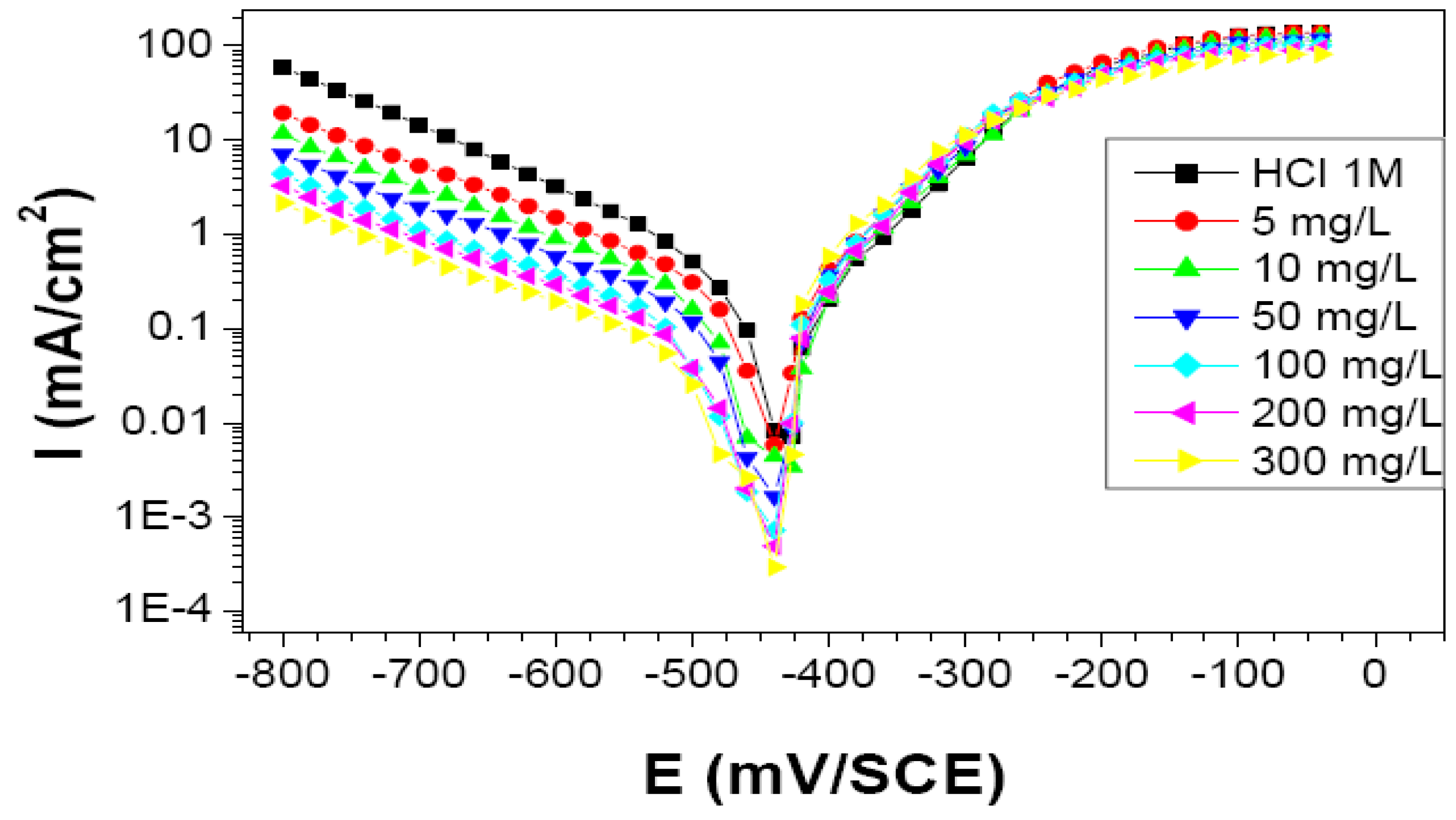

Current–potential plots resulting from cathodic and anodic polarization curves of steel in 1 M HCl in the presence of the studied bio-copolymer at various concentrations were recorded. The Tafel plots, recorded with a cathodic-to-anodic polarization of the system are shown in
Figure 9.
The electrochemical parameters and the inhibition efficiencies (
EI), determined by the following Equation (5), are presented in
Table 3:
where
icorr and
i°corr are the corrosion current density values with and without St63Gly37 bio-copolymer inhibitor, respectively, determined by extrapolation of the cathodicbranch of the Tafel plot.
3.5.2. Electrochemical Impedance Spectroscopy
A study of C-Mn steel corrosion behavior in 1 M HCl solution with and without St63Gly37 at 298 K was studied by EIS after an immersion time of 30 min. The purpose was to compare and complete the results obtained by the previous weight loss and polarization methods [

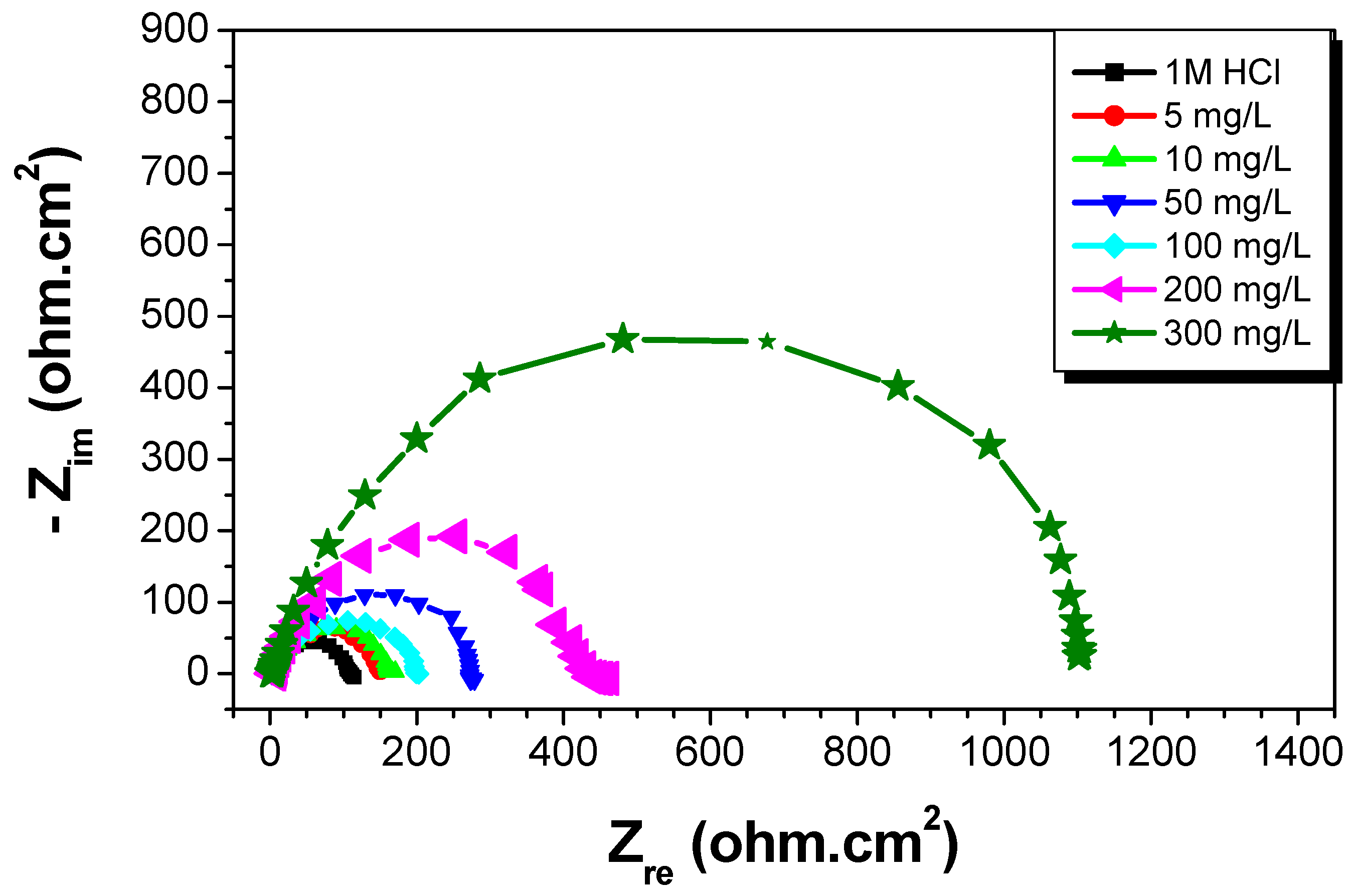

22]. Nyquist diagrams obtained in the presence of various concentrations of bio-copolymer are shown in
Figure 10. The deduced impedance parameters, as charge transfer resistance
Rt (Ω cm
2), double-layer capacitance
Cdl (μFcm
−2), and inhibition efficiency (
ERt%), are shown in
Table 4.
The charge transfer resistance values were qualitatively estimated from the difference in impedance at lower and higher frequencies [
23]. The double-layer capacitance was obtained at the frequency
fm, at which the imaginary component of the impedance is maximal (−
Zi,max) according the following Equation (6):
The inhibition efficiency from the charge transfer resistance was calculated by the following Equation (7):
where
R’t and
Rt are the charge transfer resistances with and without the St63Gly37 bio-copolymer as a corrosion inhibitor, respectively.
4. Discussions
4.1. St63Gly37 Synthetisis
The
1H NMR spectrum interpretation of the product St63Gly37 is carried out by comparison with the peaks of the native starch found in the literature [
20]. The spectrum of native starch is shown in
Table 5. The glycerin has two chemical shifts at 4.3 ppm corresponding to the proton of the CH, and at 4.4 ppm corresponding to the protons of CH
2.
Chemical shifts of native starch and St63Gly37 bio-copolymer are comparable. The starch and glycerin signals are also found together, thus proving the success of the grafting reaction. The glycerin OH signals can be confused with those of the starch OHs (H8, H9).
After concluding that glycerin is well grafted on starch, the question that still remains is how this grafting takes place. Glycerin grafting may occur preferentially on the 7-position of the starch. It could also occur on positions 8 or 9 of the starch (see
Figure 2). On the other hand, glycerin can be grafted via its OH-13 or OH-14 functions. Indeed, the possible reacting OH hydrogens are: H
7, H
8 and H
9. For the positions H
8 and H
9, they are still visible on the
1H NMR spectrum displayed in
Figure 3 and
Table 3. We can; therefore, conclude that H
7 reacted to give modified patterns according to the structure shown in
Figure 2. The presence of the peaks at chemical shifts of 4.4 ppm (triplet) and 4.5 ppm (doublet) correspond, respectively, to the CH and CH
2 of the structure.
The
1H NMR spectrum also enables the calculation of relative amounts of starch and glycerin in St63Gly37. The copolymer contains 63% starch and 37% glycerin. The chemical shifts are represented in the following
Table 6.
The FT-IR technique is largely used for the characterization of starch as a natural polymer [
20]. Examination of the FT-IR spectrum confirms the grafting of glycerin on the starch, by the CH
2 bands and the characteristic OH bands of glycerin, as reported in
Table 7.
Figure 4 shows the FT-IR spectra of the native starch in comparison with the St63Gly37 copolymer. It is visible that the C–O–C bond bands change frequency because of the effect of the proportion of glycerin in the copolymer. The two spectra are almost of the same nature. The assignment of the different vibration bands of the native starch have been previously reported [
20]. The comparison of the two FT-IR spectra shows a slight displacement of the elongation bands.
4.2. EffectOfinhibitor Concentration
The results of C-Mn steel in HCl solution with different concentrations of St63Gly37 at 25 °C, using weight loss measurements, are reported in
Table 8.
Results showed that the inhibition efficiency calculated according to Equation (1) increases with increasing inhibitor concentrations. The highest concentration of inhibitor, equal to 300 mg L
−1, corres ponded to a maximum efficiency of 94%. For comparison, in
Table 8, some data from the literature are reported. The cited papers deal with corrosion inhibition in a HCl environment by some investigated bio-based or synthetic compounds. A comparison of reported data demonstrates how the inhibition efficiency varies depending on the species involved in the inhibition mechanism. Moreover, it is also noticeable that the quantity needed to achieve a satisfying corrosion rate control strongly depends on the selected compounds. In a few cases, reported in
Table 8, the used quantities are even excessive, losing the reasonable meaning of “corrosion inhibitors” as “compounds added in low amount to the aggressive environment”. The concentration of 300 ppm used in this work was not increased more for the purpose of keeping the inhibitor amount in a logical range.
4.3. Effect of Temperature
The variation of corrosion rate (
Wcorr) and inhibition efficiency
Ew (%) in the temperature range 25–50 °C for different concentrations of St63Gly37 bio-copolymer, obtained by weight loss studies, are displayed in
Figure 5 and
Figure 6.
Results showed that the inhibition efficiency increases with increasing temperature. As expected, corrosion process and inhibition efficiency are significantly dependent on the temperature [
31,
32,
33]. Optimum temperature was found equal to 323 K, with a maximum efficiency of 98.07% with inhibitor concentration of 300 mg L
−1.
In the absence of corrosion inhibitor (blank solution), corrosion rate increases with increasing temperature, but when St63Gly37 bio-copolymeris added, the dissolution of C-Mn steel is widely retarded. These results indicate that the corrosion inhibition mechanism might be more complex than a simple physisorption process on the steel surface. The values of inhibition efficiency, obtained using the weight loss method in the experimented temperature range, show that higher temperatures might favor the inhibitor sorption onto the steel surface. This might be explained in terms of chemisorption of polymer on the steel surface. In fact, in case of chemisorption, the extent of adsorption increases with rise in temperature, as reported in a previous work [
34].
4.4. Thermodynamic and Kinetic Parameters
Results showed that the corrosion process for C-Mn steel increases more rapidly according to the temperature in the absence of inhibitor, rather than in its presence. This result confirms that the inhibitor acts as an efficient corrosion inhibitor in the range of temperatures studied.
Enthalpy and entropy of the corrosion process may be evaluated from the effect of temperature by an alternative formulation of transition state, as displayed in the following Equation (8) [
35].
where
h is Plank’s constant,
N is Avogadro number, and Δ
S°
a and Δ
H°
a are the entropy and enthalpy of activation, respectively.
Table 9 presents the calculated values of
Ea, Δ
S°
a, and Δ
H°
a in inhibited and uninhibited corrosive solutions. It is observed that the activation energy value is higher in the presence of the bio-copolymer inhibitor than in the uninhibited solution. The obtained activation energy value of the corrosion process in the inhibitor’s presence, compared to its absence, can be attributed to its sorption. It is the result of electrostatic attraction between charged metal surface and charged species in solution and/or chemical interaction between polymer and metal.
The values of Δ
H°
a are reported in
Table 9. The positive sign of the reflects the endothermic nature of the steel dissolution process and values vary in the same way with inhibitor concentration and acid solutions [
36].
On the other hand, values of are more positive in the uninhibited solutions and decrease by increasing the inhibitor concentration. Large and negative values of entropies imply that the activated complex in the rate-determining step represents an association rather than a dissociation step, meaning that a decrease in disordering takes place on going from reactants to the activated complex. A similar observation has been reported in the literature [
37].
One can notice that
Ea and ∆
H°

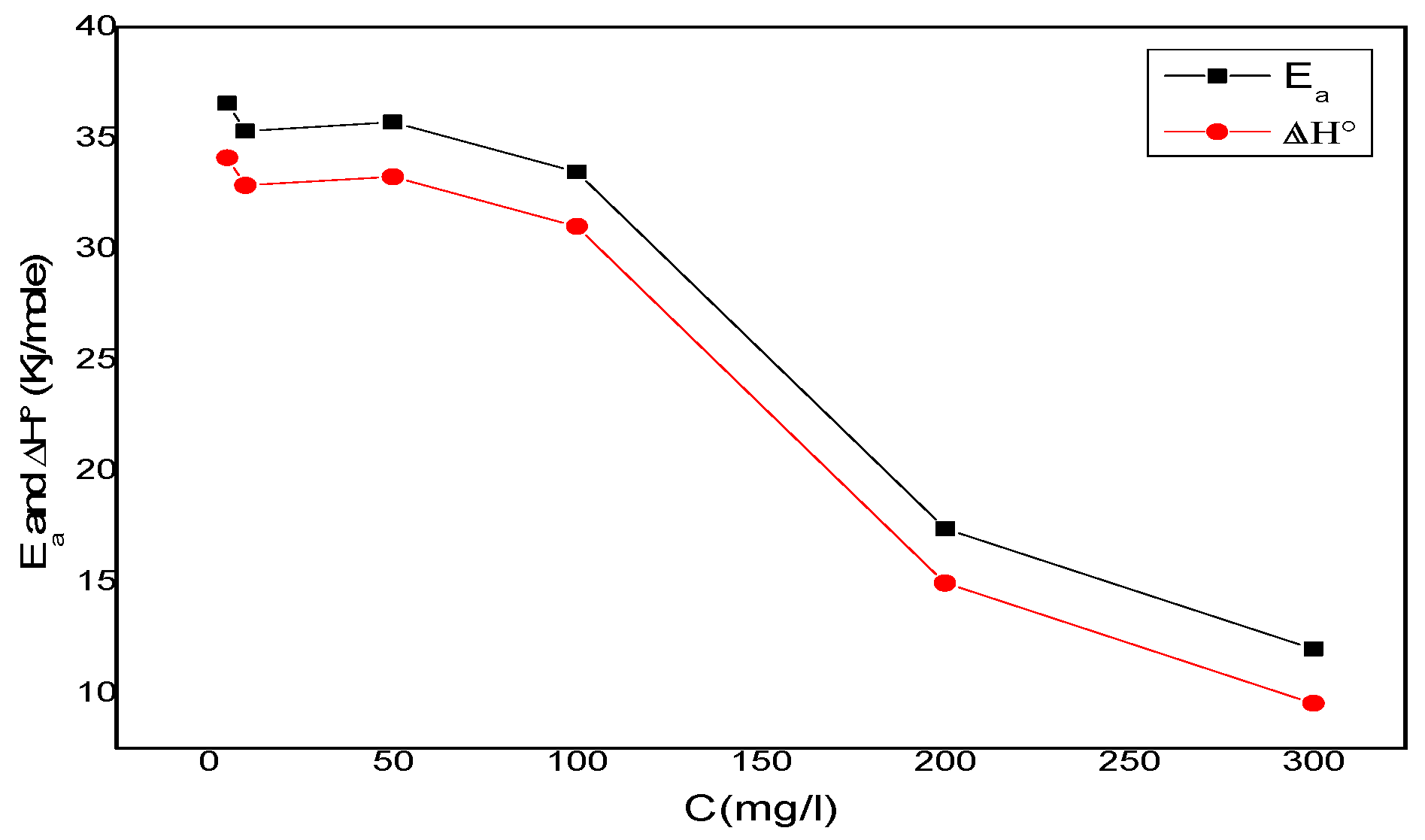

a values vary in the same way (

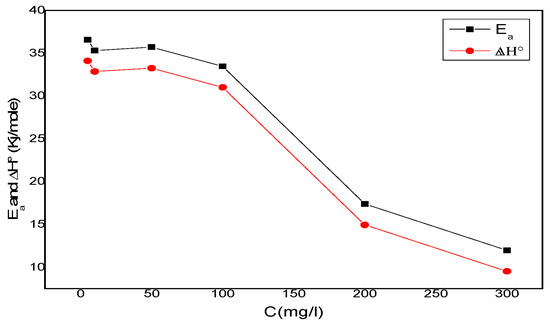

Figure 11). This result allows for the verification of the known thermodynamic relationship between the
Ea and ∆
H°
a, as shown in Equation (9).
4.5. Adsorption Isotherm
As reported above, data indicate that a complex interaction mechanism takes place between the steel and the inhibitor, and a chemisorption might occur. Given this awareness, the analysis, reported in this paragraph, follows anyway the literature approach of applying isotherm adsorption models to verify the most experimental and realistic data. Adsorption isotherms are in fact used to understand the mechanism of metal–inhibitor interaction. The most frequently used isotherms are Langmuir, Frumkin, Temkin, and Parson [
38,
39]. The type of adsorption isotherm provides information about the interaction among both the adsorbed molecules themselves and their interactions with the metal surface. The most widely used isotherm employs the Langmuir model, whose primary assumptions are: (i) Adsorbate molecules attach to the active sites of the adsorbent surface, (ii) the Langmuir equation assumes that adsorption is monolayer, and (iii) all the sites on the solid surface are equal in size and shape and have equal affinity for adsorbate molecules [
40]. However, the last two conditions are hard to fulfill in the corrosion studies, and this is the main weak point in terms of using the Langmuir model, as already evidenced by the literature [
8]. Many practical cases, in fact, cannot be described the Langmuir model. The more complex adsorption models take into consideration factors such as the surface heterogeneity and the presence of areas having different adsorption energy or interactions between the adsorbed molecules.
The Freundlich isotherm is empirical and very widely used to describe the adsorption characteristics when the energy of adsorption on a homogeneous surface is independent of surface coverage. Its linearized form is described by the following Equation (10):
where
θ is the surface coverage (calculated as
Ew/100),
Ce is the adsorbate concentration in solution at equilibrium (in mg L
−1), Kis the equilibrium constant, and 1/
n is a measure of intensity of adsorption. If the plotln
θ vs. ln
Ce displays a linear trend, it means that the adsorption process can be described by the Freundlich model [
41].
If ∆Gads is lessthan −10.40 kJmol−1, it can be inferred that the inhibitor interacts on the C-Mn steel surface by electrostatic effect.
The negative values of Δ
G°
ads, displayed in
Table 8, confirmed the spontaneity of the process and stability of the adsorbed layer on the steel surface [
42,
43]. The obtained values of Δ
G°
ads show the dependence of Δ
G°
ads on temperature (
Table 10), indicating a strong interaction between the bio-polymer molecules and the metal surface.
Thermodynamically, Δ
G°
ads is related to the standard enthalpy and entropy of the adsorption process, ∆
H°
ads and ∆
S°
ads, respectively, via the Equation (11):
The positive value of Δ
H° suggests an endothermic nature of the metal dissolution process in the presence of the inhibitor. The positive value of Δ
S° indicates that the adsorption process is accompanied by an increase in entropy, which is the driving force for the adsorption of the inhibitor onto the metal surface [
31].
4.6. ElectrochemicalResults
4.6.1. Polarizations
The values reported in
Table 3 showed results in agreement with what was obtained by the weight loss method: Corrosion current densities decrease when the concentration of the inhibitor increases. Maximum value of inhibition efficiency of 91% was obtained for inhibitor concentration of 300 mg L
−1.
The obtained polarization curves indicate that the addition of the bio-copolymer influences the kinetics (decrease in reaction rate) but does not modify the mechanism of the cathodic process [
22].
From a thermodynamic point of view, at the acidic pH (1 MHCl) and E
corr (ca. −450 mV vs. SCE) of the investigated system, both the oxygen reduction reaction and hydrogen evolution reaction could potentially take place as the iron Pourbaix diagram states [
23].
As for the kinetic aspects related to the cathodic Tafel slope calculation, it is apparent that slope values are markedly different from the theoretical ones expected in the case of pure hydrogen evolution reaction. Tafel slope is in fact known to be 118, 39, or 29.5 mV/decade when the discharge reaction, electrochemical desorption reaction, or recombination reaction is rate-determining, respectively [
44]. This might mean that more than one reaction is taking place in the considered potential range.
However, it is shown in
Table 3 that Tafel slopes do not remarkably change with addition of different concentrations of inhibitor, thus confirming the hypothesis that the inhibitor does not significantly change the cathodic reaction mechanisms. Therefore, the use of the polarization curves as a tool for deriving quantitative parameters, such as inhibition efficiency, can be justified since it is based on relative calculations (using current densities values in the presence and absence of inhibitor) and does not imply an absolute evaluation.
Considering the anodic reaction, C-Mn steel corrodes in acid medium according to an electrochemical process by anodic dissolution of iron. This phenomenon might be accentuated if other parameters intervene, such as microbiological activity or mechanical stresses. The almost constant value of Ecorr at a first sight might give an indication that the inhibitor is of mixed type acting by adsorption mechanism. However, the cathodic branches trend, due to inhibitor concentration increase, and the overlap of all the anodic branches points to the inhibitor being a cathodic one. This is also in agreement with results obtained at different temperatures. In fact, data showed that the corrosion inhibition mechanism might be more complex than a simple physisorption process on the steel surface.
4.6.2. Electrochemical Impedance Spectroscopy
According to results reported in
Figure 10 and
Table 4, the impedance diagrams show a semi-circle, indicating that the charge transfer process mainly controls the steel corrosion. By increasing the concentration of St63Gly37, the charge transfer resistance increases and double-layer capacitance (
Cdl) decreases. A minimum value of
Cdl b of 31.64 µFcm
−2 was obtained for inhibitor concentration of 300 mg L
−1. The decrease in
Cdl can be explained by the sorption of inhibitor compound on steel surface leading to the protection from the aggressiveness of HCl. The kinetics of the cathodic hydrogen evolution reaction is decreased and the chlorides are prevented from crossing the protective barrier [
26,
27]. The resulting inhibition efficiency (
ERt) increases progressively when the concentration of the inhibitor increases. A maximum value of 90% was obtained for inhibitor concentration of 300 mg L
−1. These obtained values are in agreement with results obtained by weight loss and polarization method.
5. Conclusions
C-Mn steel in 1 M HCl solution was investigated to study the corrosion behavior in the temperature range 25–50 °C with and without a glycerin-grafted starch as a bio-copolymer working as a corrosion inhibitor.
Results obtained by the weight loss method showed that the inhibition efficiency increases by increasing the inhibitor concentration. Optimum concentrations of inhibitor equal to 300 mg L−1 enabled a maximum efficiency of 94.25%.
The corrosion process and the inhibition efficiency were found to be significantly dependent on the temperature and concentration of inhibitor. The values of inhibition efficiency, obtained using the weight loss method in the experimented temperature range, show that higher temperatures might favor the inhibitor sorption onto the steel surface. Results indicated that the corrosion inhibition mechanism might be more complex than a simple physisorption process on the steel surface. This might be explained in terms of chemisorption of polymer on steel surface.
The obtained values of corrosion potential and corrosion current density, Ecorr and icorr, obtained by potentiodynamic polarization, are in agreement with the weight loss method: The corrosion current densities decrease when the concentration of the inhibitor increases. An analysis of data indicates that the inhibitor might be of the cathodic type.
The decrease in double-layer capacitance values, obtained by EIS method, follows a decrease similar to that obtained for icorr by the polarization method. The decrease in Cdl can be explained by the sorption of inhibitor compound on steel surface leading to the protection from the aggressiveness of HCl.
Results obtained in this study might be developed to supplement corrosion protection in real field applications, injecting the optimum quantities of corrosion inhibitor without any harmful effect on the natural environment and human health.
Author Contributions
Investigation, B.B.; Methodology, A.M.; Supervision, A.B.; Writing–original draft, S.L.; Writing–review & editing, L.T. and S.M.
Funding
This research was funded by Direction Générale de la recherché scientifiqueet du développement technologique, Algerian Ministry of Scientific Research.
Acknowledgments
The authors are very grateful to the Algerian Gas Transport TRC for their great help to make a part of this work by providing us with some steel samples. They also thank all researchers at the LAEPO Research Laboratory from Tlemcen University for their experimental contribution during the corrosion test, and the equipment support from the Algerian University and Society. They also appreciate the contribution of the Department of Environmental Science and Policy from Università degli Studi di Milano.
Conflicts of Interest
The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.
References
- Nazarov, A.P.; Thierry, D. Probing of Atmospheric Corrosion of Metals: Carbon Steel. Prot. Met. 2004, 40, 377–388. [Google Scholar] [CrossRef]
- Jones, T. Steel Industry and the Environment: Technical and Management Issues, The Institute. 1997. Available online: https://books.google.it/books/about/Steel_Industry_and_the_Environment.html?id=9DkL7pfXu30C&redir_esc=y (accessed on 29 July 2019).
- Choi, H.J.; Warnken, D.; Al Beheiri, F.I.; Al-Bannai, N.S. Field Corrosion Assessment of L80 Carbon Steel Downhole Production Tubing at Khuff Gas Wells. 2006. Available online: https://www.onepetro.org/conference-paper/NACE-06653 (accessed on 29 July 2019).
- Belahcene, B.; Benmoussat, A.; Mansri, A.; Doghmane, M.Z. Analyze and modeling of damage behavior of a C0.12%Mn1.02%Si0.29% HLE steel solicited in selected physicochemical medium. J. Mater. Environ. Sci. 2015, 6, 1765–1770. [Google Scholar]
- Bianchi, G.; Mazza, F. Corrosione e Protezione dei Metalli, Associazione Italiana di Metallurgia. 2000. Available online: https://www.libreriacortinamilano.it/scheda-libro/francesco-mazza-giuseppe-bianchi/corrosione-e-protezione-dei-metalli-9788885298354-317855.html (accessed on 19 October 2018).
- Fiori-Bimbi, M.V.; Alvarez, P.E.; Vaca, H.; Gervasi, C.A. Corrosion inhibition of mild steel in HCL solution by pectin. Corros. Sci. 2015, 92, 192–199. [Google Scholar] [CrossRef]
- Li, Y.; Zhao, P.; Liang, Q.; Hou, B. Berberine as a natural source inhibitor for mild steel in 1 M H2SO4. Appl. Surf. Sci. 2005, 252, 1245–1253. [Google Scholar] [CrossRef]
- Marzorati, S.; Verotta, L.; Trasatti, S.P. Green Corrosion Inhibitors from Natural Sources and Biomass Wastes. Molecules 2018, 24, 48. [Google Scholar] [CrossRef] [PubMed]
- Vermeirssen, E.L.; Dietschweiler, C.; Werner, I.; Burkhardt, M. Corrosion protection products as a source of bisphenol A and toxicity to the aquatic environment. Water Res. 2017, 123, 586–593. [Google Scholar] [CrossRef]
- Obot, I.; Onyeachu, I.B.; Kumar, A. Sodium alginate: A promising biopolymer for corrosion protection of API X60 high strength carbon steel in saline medium. Carbohydr. Polym. 2017, 178, 200–208. [Google Scholar] [CrossRef]
- Christopher, G.; Kulandainathan, M.A.; Harichandran, G. Biopolymers nanocomposite for material protection: Enhancement of corrosion protection using waterborne polyurethane nanocomposite coatings. Prog. Org. Coat. 2016, 99, 91–102. [Google Scholar] [CrossRef]
- Chetouani, A.; Medjahed, K.; Sid-Lakhdar, K.; Hammouti, B.; Benkaddour, M.; Mansri, A. Poly(4-vinylpyridine-poly(3-oxide-ethylene) tosyle) as an inhibitor for iron in sulphuric acid at 80 °C. Corros. Sci. 2004, 46, 2421–2430. [Google Scholar] [CrossRef]
- Mansri, A.; Bouras, B. Synergistic effect of AM-4VP-9 copolymer and iodide ion on corrosion inhibition of mild steel in 1 M H2SO4. Res. Chem. Intermed. 2014, 2, 252–271. [Google Scholar] [CrossRef]
- Mobin, M.; Khan, M.A.; Parveen, M. Inhibition of mild steel corrosion in acidic medium using starch and surfactants additives. J. Appl. Polym. Sci. 2011, 121, 1558–1565. [Google Scholar] [CrossRef]
- Bello, M.; Ochoa, N.; Balsamo, V.; López-Carrasquero, F.; Coll, S.; Monsalve, A.; González, G. Modified cassava starches as corrosion inhibitors of carbon steel: An electrochemical and morphological approach. Carbohydr. Polym. 2010, 82, 561–568. [Google Scholar] [CrossRef]
- Petroleum Institute. API 5L: Specification for Line Pipe, n.d. Available online: https://law.resource.org/pub/us/cfr/ibr/002/api.5l.2004.pdf (accessed on 19 October 2004).
- Amara Zenati, A.; Benmoussat, A.; Bourdim, A. Localized corrosion study of X60 pipeline steel in soil solution and inhibitive effect by disodic hydrogeno-phosphate. J. Mater. Environ. Sci. 2015, 6, 1896–1901. [Google Scholar]
- Thygesen, L.G.; Løkke, M.M.; Micklander, E.; Engelsen, S.B. Vibrational microspectroscopy of food. Raman vs. FT-IR. Trends Food Sci. Technol. 2003, 14, 50–57. [Google Scholar] [CrossRef]
- Fringant, C.; Desbrières, J.; Rinaudo, M. Physical properties of acetylated starch-based materials: Relation with their molecular characteristics. Polymer 1996, 37, 2663–2673. [Google Scholar] [CrossRef]
- Tizzotti, M.J.; Sweedman, M.C.; Tang, D.; Schaefer, C.; Gilbert, R.G. New 1H NMR Procedure for the Characterization of Native and Modified Food-Grade Starches. J. Agric. Food Chem. 2011, 59, 6913–6919. [Google Scholar] [CrossRef]
- Umoren, S.; Obot, I.B.; Akpabio, L.; Etuk, S.; Umoren, S. Adsorption and corrosive inhibitive properties of Vigna unguiculata in alkaline and acidic media. Pigment Resin Technol. 2008, 37, 98–105. [Google Scholar] [CrossRef]
- Kartsonakis, I.A.; Stanciu, S.G.; Matei, A.A.; Hristu, R.; Karantonis, A.; Charitidis, C.A. A comparative study of corrosion inhibitors on hot-dip galvanized steel. Corros. Sci. 2016, 112, 289–307. [Google Scholar] [CrossRef]
- Zeng, M.; Li, Y. Recent advances in heterogeneous electrocatalysts for the hydrogen evolution reaction. J. Mater. Chem. A 2015, 3, 14942–14962. [Google Scholar] [CrossRef]
- Raja, P.B.; Fadaeinasab, M.; Qureshi, A.K.; Rahim, A.A.; Osman, H.; Litaudon, M.; Awang, K. Evaluation of Green Corrosion Inhibition by Alkaloid Extracts of Ochrosia oppositifolia and Isoreserpiline against Mild Steel in 1 M HCl Medium. Ind. Eng. Chem. Res. 2013, 52, 10582–10593. [Google Scholar] [CrossRef]
- El-Etre, A. Inhibition of acid corrosion of carbon steel using aqueous extract of olive leaves. J. Colloid Interface Sci. 2007, 314, 578–583. [Google Scholar] [CrossRef] [PubMed]
- Loto, R.T. Corrosion inhibition effect of non-toxic α-amino acid compound on high carbon steel in low molar concentration of hydrochloric acid. J. Mater. Res. Technol. 2017, 1–10. [Google Scholar] [CrossRef]
- Fu, J.-J.; Li, S.-N.; Cao, L.-H.; Wang, Y.; Yan, L.-H.; Lu, L.-D. l-Tryptophan as green corrosion inhibitor for low carbon steel in hydrochloric acid solution. J. Mater. Sci. 2010, 45, 979–986. [Google Scholar] [CrossRef]
- Keny, S.; Kumbhar, A.; Thinaharan, C.; Venkateswaran, G. Gallic acid as a corrosion inhibitor of carbon steel in chemical decontamination formulation. Corros. Sci. 2008, 50, 411–419. [Google Scholar] [CrossRef]
- Bentiss, F.; Lagrenee, M.; Traisnel, M.; Mernari, B.; Elattari, H. 3,5-bis(n-Hydroxyphenyl)-4-amino-1,2,4-triazoles and 3,5-bis(n-aminophenyl)-4-amino-1,2,4-triazoles: A new class of corrosion inhibitors for mild steel in 1m HCl medium. J. Appl. Electrochem. 1999, 29, 1073–1078. [Google Scholar] [CrossRef]
- Emregül, K.; Hayvalı, M. Studies on the effect of vanillin and protocatechualdehyde on the corrosion of steel in hydrochloric acid. Mater. Chem. Phys. 2004, 83, 209–216. [Google Scholar] [CrossRef]
- Gapsari, F.; Soenoko, R.; Suprapto, A. Bee Wax Propolis Extract as Eco-Friendly Corrosion Inhibitors for 304SS in Sulfuric Acid. Int. J. Corros. 2015, 2015, 1–10. [Google Scholar] [CrossRef] [Green Version]
- Jokar, M.; Farahani, T.S.; Ramezanzadeh, B. Electrochemical and surface characterizations of morus alba pendula leaves extract (MAPLE) as a green corrosion inhibitor for steel in 1 M HCl. J. Taiwan Inst. Chem. Eng. 2016, 63, 436–452. [Google Scholar] [CrossRef]
- Larif, M.; Elmidaoui, A.; Zarrouk, A.; Zarrok, H.; Salghi, R.; Hammouti, B.; Oudda, H.; Bentiss, F. An investigation of carbon steel corrosion inhibition in hydrochloric acid medium by an environmentally friendly green inhibitor. Res. Chem. Intermed. 2013, 39, 2663–2677. [Google Scholar] [CrossRef]
- Chevalier, M.; Roos, C.; Tomi, F.; Sutour, S.; Lebrini, M. Corrosion Inhibition of C38 Steel in 1 M HCl Media by Alkaloidic Extract from Xylopia Frutescens Amazonian Tree. ECS Trans. 2015, 64, 1–28. [Google Scholar] [CrossRef]
- Bouanis, F.; Jama, C.; Traisnel, M.; Bentiss, F. Study of corrosion resistance properties of nitrided carbon steel using radiofrequency N2/H2 cold plasma process. Corros. Sci. 2010, 52, 3180–3190. [Google Scholar] [CrossRef]
- Fares, M.M.; Maayta, A.; Al-Qudah, M.M. Pectin as promising green corrosion inhibitor of aluminum in hydrochloric acid solution. Corros. Sci. 2012, 60, 112–117. [Google Scholar] [CrossRef]
- Ating, E.; Umoren, S.; Udousoro, I.; Ebenso, E.; Udoh, A.; Umoren, S. Leaves extract of Ananas sativum as green corrosion inhibitor for aluminium in hydrochloric acid solutions. Green Chem. Lett. Rev. 2010, 3, 61–68. [Google Scholar] [CrossRef]
- Bentiss, F.; Traisnel, M.; Lagrenee, M. The substituted 1,3,4-oxadiazoles: A new class of corrosion inhibitors of mildsteel in acidic media. Corros. Sci. 2000, 42, 127–146. [Google Scholar] [CrossRef]
- Belkaid, S.; Tebbji, K.; Mansri, A.; Chetouani, A.; Hammouti, B. Poly(4-vinylpyridine-hexadecyl bromide) as corrosion inhibitor for mild steel in acid chloride solution. Res. Chem. Intermed. 2012, 38, 2309–2325. [Google Scholar] [CrossRef]
- Czepirski, L.; Balys, M.R.; Komorowska-Czepirska, E. Some generalization of Langmuir adsorption isotherm. Internet J. Chem. 2000, 3, 14–1099. [Google Scholar]
- Dada, A.O.; Olalekan, A.P.; Olatunya, A.M.; Dada, O.J.I.J.C. Langmuir, Freundlich, Temkin and Dubinin—Radushkevich Isotherms Studies of Equilibrium Sorption of Zn2+ Unto Phosphoric Acid Modified Rice Husk. IOSR J. Appl. Chem. 2012, 3, 38–45. [Google Scholar]
- Bouklah, M.; Attayibat, A.; Kertit, S.; Ramdani, A.; Hammouti, B. A pyrazine derivative as corrosion inhibitor for steel in sulphuric acid solution. Appl. Surf. Sci. 2005, 242, 399–406. [Google Scholar] [CrossRef]
- Mansri, A.; Bendraoua, A.; Bouras, B. Polyacrylamide-clay microcomposite as corrosion inhibitor for mild steel in 1m hydrochloric acid solution. J. Mater. Environ. Sci. 2016, 7, 808–819. [Google Scholar]
- Mansfeld, F. Recording and Analysis of AC Impedance Data for Corrosion Studies. Corrosion 1981, 37, 301–307. [Google Scholar] [CrossRef]
Figure 1.
Micrographs of ×60 steel. (a) Optical microscope observation; (b) SEM imaging (scale bar = 5 μm).
Figure 1.
Micrographs of ×60 steel. (a) Optical microscope observation; (b) SEM imaging (scale bar = 5 μm).
Figure 2.
(A)Chemical structure of glycerin; (B) chemical structure of native starch; (C) chemical structure of St63Gly37.
Figure 2.
(A)Chemical structure of glycerin; (B) chemical structure of native starch; (C) chemical structure of St63Gly37.
Figure 3.
1H NMR Spectrum of St63Gly37.
Figure 3.
1H NMR Spectrum of St63Gly37.
Figure 4.
FT-IR spectra of the St63Gly37 copolymer (top) and native starch (bottom).
Figure 4.
FT-IR spectra of the St63Gly37 copolymer (top) and native starch (bottom).
Figure 5.
Variation of corrosion rate (Wcorr) as a function of temperature for different concentrations of St63Gly37 bio-copolymer.
Figure 5.
Variation of corrosion rate (Wcorr) as a function of temperature for different concentrations of St63Gly37 bio-copolymer.
Figure 6.
Variation of inhibition efficiency Ew (%) as a function of temperature for different concentrations of St63Gly37 bio-copolymer.
Figure 6.
Variation of inhibition efficiency Ew (%) as a function of temperature for different concentrations of St63Gly37 bio-copolymer.
Figure 7.
Arrhenius plots of the corrosion rate for both the blank solution and the solution of bio-copolymer.
Figure 7.
Arrhenius plots of the corrosion rate for both the blank solution and the solution of bio-copolymer.
Figure 8.
(A) Freundlich adsorption plot at different temperatures in the studied range; and (B) linearization of Freundlich isotherm.
Figure 8.
(A) Freundlich adsorption plot at different temperatures in the studied range; and (B) linearization of Freundlich isotherm.
Figure 9.
Cathodic and anodic polarization curves of C-Mn steel in 1 M HCl at different concentrations of St63Gly37. Scan rate 1 V min−1.
Figure 9.
Cathodic and anodic polarization curves of C-Mn steel in 1 M HCl at different concentrations of St63Gly37. Scan rate 1 V min−1.
Figure 10.
Nyquist plots for C-Mn steel in 1 M HCl at different concentrations of St63Gly37 bio-copolymer (298 K).
Figure 10.
Nyquist plots for C-Mn steel in 1 M HCl at different concentrations of St63Gly37 bio-copolymer (298 K).
Figure 11.
Ea and ∆H° variation depending on the corrosion inhibitor concentration.
Figure 11.
Ea and ∆H° variation depending on the corrosion inhibitor concentration.
Table 1.
Chemical composition of C-Mn steel.
Table 1.
Chemical composition of C-Mn steel.
Element | C | Si | P | Mn | S | Al | Mo |
Mass % | 0.129 | 0.290 | 0.016 | 1.590 | 0.018 | 0.024 | 0.008 |
Element | Cr | Cu | Pb | Zn | Ni | V | Fe |
Mass % | 0.015 | 0.024 | 0.0016 | 0.003 | 0.007 | 0.004 | 98.06 |
Table 2.
Inhibition efficiency (Ew%) of C-Mn steel in 1 M HCl solution at different concentrations of St63Gly37, measured by weight loss at 25 °C.
Table 2.
Inhibition efficiency (Ew%) of C-Mn steel in 1 M HCl solution at different concentrations of St63Gly37, measured by weight loss at 25 °C.
Inhibitor Concentration (mg L−1) | Wcorr (mgcm−2h−1) | Ew (%) |
---|
0 | 0.661 | - |
5 | 0.471 | 29 |
10 | 0.404 | 39 |
50 | 0.330 | 50 |
100 | 0.225 | 66 |
200 | 0.113 | 83 |
300 | 0.038 | 94 |
Table 3.
Polarization parameters (Ecorr and Icorr) values and inhibition efficiencies of C-Mn steel corrosion in 1 M HCl at different concentrations of St63Gly37 bio-copolymer at 298 K.
Table 3.
Polarization parameters (Ecorr and Icorr) values and inhibition efficiencies of C-Mn steel corrosion in 1 M HCl at different concentrations of St63Gly37 bio-copolymer at 298 K.
Inhibitor Concentration (mg L−1) | Ecorr (mV vs. SCE) | βc (Vdec−1) | icorr (μAcm−2) | EI (%) |
---|
0 | −439 | 0.155 | 304 | - |
5 | −440 | 0.180 | 223 | 27 |
10 | −444 | 0.185 | 192 | 37 |
50 | −455 | 0.190 | 157 | 48 |
100 | −458 | 0.191 | 113 | 63 |
200 | −459 | 0.187 | 56 | 82 |
300 | −460 | 0.190 | 27 | 91 |
Table 4.
Impedance parameters for corrosion of C-Mn steel in 1 M HCl at different concentrations of St63Gly37 at 298 K.
Table 4.
Impedance parameters for corrosion of C-Mn steel in 1 M HCl at different concentrations of St63Gly37 at 298 K.
St63Gly37 (mg L−1) | Rt (Ωcm2) | fmax (Hz) | Cdl (µFcm−2) | ERt (%) |
---|
0 | 110 | 16.32 | 88.7 | - |
5 | 146 | 12.88 | 84.6 | 24 |
10 | 167 | 12.81 | 74.4 | 34 |
50 | 200 | 11.39 | 69.9 | 45 |
100 | 275 | 9.08 | 63.8 | 60 |
200 | 458 | 6.52 | 53.3 | 76 |
300 | 1100 | 4.57 | 31.6 | 90 |
Table 5.
Chemical shifts of native starch [
20].
Table 5.
Chemical shifts of native starch [
20].
Chemical Shifts δ (ppm) | Attributions |
---|
3.6 | H 2,3,4,5,6 |
4.6 | H7 |
5.1 | H1 |
5.6 | H8, H9 |
Table 6.
Chemical shifts δ (ppm) of St63Gly37.
Table 6.
Chemical shifts δ (ppm) of St63Gly37.
Chemical Shifts δ (ppm) | Attributions |
---|
3.2–3.7 | H 2,3,4,5,6 |
4.4 | H 11 |
4.5 | H 10 |
4.6 | H 13, 12 |
5.1 | H 1 |
5.4–5.6 | H 8,9,14 |
Table 7.
Attribution of the different vibration bands of St63Gly37.
Table 7.
Attribution of the different vibration bands of St63Gly37.
Wavenumber: υ (cm−1) | Attribution | Nature |
---|
below 600 | Vibration of the polysaccharide backbone | |
998.71–1000.10 | Antisymmetric C–O–C bond | Elongation |
1078.59 | Antisymmetric C–O–C bond | Elongation |
1149.84 | Antisymmetric C–O–C bond | Elongation |
1362.59–1359.95 | –OH in the plan | Deformation |
1416.76–1415.06 | C–H bond | Deformation |
1641.98–1644.62 | H–O–H vibration of adsorbed water | Deformation |
2929.18–2931.80 | C–H and CH2 of a polysaccharide | Elongation |
3274.32–3284.70 | OH associated | Elongation |
Table 8.
Data from the literature correlated to the type, concentration, and maximum inhibition efficiency (Ew,max) obtained at 25 °C in HCl for Carbon-steel.
Table 8.
Data from the literature correlated to the type, concentration, and maximum inhibition efficiency (Ew,max) obtained at 25 °C in HCl for Carbon-steel.
Type of Inhibitor | Inhibitor Concentration (mg L−1) | Ew,max (%) | Ref. |
---|
Glycerin-grafted starch | 300 | 94 | This work |
Ochrosiaoppositifolia extract | 25 | 94 | [24] |
Olive leavesextract | 900 | 91 | [25] |
2-amino-4-methylpentanoicacid | 7200 | 87.46 | [26] |
L-tryptophan | 2000 | 90.8 | [27] |
Gallicacid | 1000 | 59.64 | [28] |
3,5-bis(n-aminophenyl)-4-amino-1,2,4-triazole | 300 | 99 | [29] |
Vanillin | 1520 | 86.1 | [30] |
Table 9.
Calculated parameters at different concentrations of the bio-copolymer.
Table 9.
Calculated parameters at different concentrations of the bio-copolymer.
Inhibitor Concentration (mg L−1) | Ea (kJmol−1) | ΔHa (kJmol−1) | ΔSa (Jmol−1) |
---|
0 | 40.9 | 38.5 | −36.7 |
5 | 36.6 | 34.1 | −37.1 |
10 | 35.7 | 33.3 | −37.2 |
50 | 35.3 | 32.9 | −37.4 |
100 | 26.5 | 24.0 | −37.5 |
200 | 27.5 | 25.0 | −38.0 |
300 | 28.8 | 26.3 | −38.1 |
Table 10.
Variation of the thermodynamic parameters according to the Langmuir isotherm at the studied temperatures.
Table 10.
Variation of the thermodynamic parameters according to the Langmuir isotherm at the studied temperatures.
T (K) | Kads | ΔG°ads (kJmol−1) | ΔH°ads (kJ mol−1) | ΔS°ads (Jmol−1K−1) |
---|
294 | 0.223 | −6.15 | 9.22 | 52.2 |
303 | 0.244 | −6.56 |
313 | 0.278 | −7.12 |
323 | 0.312 | −7.65 |
© 2019 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (http://creativecommons.org/licenses/by/4.0/).
