Study on the Thermal Properties and Enzymatic Degradability of Chiral Polyamide-Imides Films Based on Amino Acids

Abstract

Six kinds of chiral polyamide-imides (PAI3a–3f) have successfully been synthesized via direct polycondensation. The thermal properties of the materials were evaluated by the gravimetric analysis (TGA) and differential scanning calorimetry (DSC). A thermal test was conducted and showed that the polymers have good thermal stability. The Tg values were affected by the volume effect of the side groups, the internal plasticizing effect and the isolation effect. Polyamide-imides (PAIs) with L configuration showed higher Tg values than PAIs with D configuration. In the enzymatic degradation experiments of PAI films, the results showed that the structure of amino acids have the greatest influence on the degradation performance of PAIs relative to chirality. The PAI films with simple side groups and L configurations were easier to degrade. The degradation rate of natural chiral PAIs were higher than those of non-natural chiral PAIs. This makes it possible to develop polymer materials with specific degradation rates.

1. Introduction

Over the past few decades, polymer-based materials have rapidly developed and are used wildly in all areas. Especially biodegradable polymers, have been used extensively in fields such as food packaging, tissue engineering and biomedical application. They promote societal development and have greatly changed our lives [1,2,3]. Alongside the performance requirements of materials becoming increasingly strict and the rise of environmental consciousness, biodegradability is already not only a functional need, but also an important environmental requirement [4]. Therefore, more and more biodegradable polymers are starting to become a concern for people, especially a polymer that could control the rate of degradation [5,6]. Amino acid-based polyamide-imides (PAIs) are a type of high-performance (HP) materials that combine the thermal resistance and mechanical properties of polyimides, and the easy machinability of PA [7,8], as well as having improved degradation properties [9] and cell compatibility [10]. This is due to the introduction of natural chiral sections, which is obviously of great significance for the development of HP, high-processability, and biodegradable polymer materials.

The strong chiral preference for amino acids and other essential biomolecules is one of the characteristics of a biological system. Many biological events are greatly influenced by the chirality of molecules [11,12], such as the specific rotational directions of some flowers, and the different tastes or smells of a pair of enantiomers [13]. This inspired the research of introducing chiral effects into biomaterial [14]. Gan et al. modified the chiral surface with NIBC enantiomers and found that on the L surface, the extent of absorption is higher than on the D surface [15]. Reeve et al. proved that proteinase K preferentially degrades (L)-PLA as opposed to (D)-PLA [16]. Mastering chiral signals and translating them into macroscopic properties or functions of materials, will bring great advantages to many applications, particularly for degradable materials [17]. In addition, it was also necessary to elucidate the relations between the chemical structure and degradation properties in order to design and develop a new biodegradable polymeric material.

In this paper, PAIs derived from six amino acids with different configuration were prepared. The PAIs were characterized and subjected to biodegradation experiments in buffer solution (containing proteinase-K). The effects of stereochemical composition on the biodegradation performance are discussed.

2. Materials and Methods

2.1. Materials

l-alanine, d-alanine, glycine, L-valine, L-leucine, L-norvaline, 4,4′-diaminodiphenyl ether (ODA), triphenyl phosphite (TPP), pyromellitic dianhydride (PMDA), N-methyl-2-pyrrolidone (NMP), pyridine (Py), CaCl₂, N,N-dimethylformamide (DMF) and anhydrous ethanol were analytical grade reagents. All chemicals were used directly without further purification.

2.2. General Characterization

Proton nuclear magnetic resonance ¹H NMR was carried out on a Bruker AVANCE II 400 MHz spectrometer (Swiss) in deuterated dimethyl sulfoxide (DMSO-d6) as the solvent. Powders were mixed with KBr powders, and the mixture was pressed into a tablet. The Fourier transform infrared (FTIR) spectra of samples was recorded using a Nicolet iS10 (New Castle, DE, USA) spectrophotometer. Specific rotations were determined with a concentration of 0.2020 g/100 mL in DMF at 25 °C by a MCP-200 polarimeter (Anton Par, Graz, Austria). Elemental analyses were recorded using Elementar Vario EL model element analysis equipment (Hamburg, Germany). Thermogravimetric analysis (TGA) on polymers was conducted on a TGA/SDTA851 System (Setaram, Caluire-et-Cuire, France) under a nitrogen (N₂) atmosphere at a flow rate of 10 °C/min. The glass transition temperatures (Tg) of the polymers were studied on a differential scanning calorimetry (DSC; Q-100, TA instruments, New Castle, DE, USA) instrument. The molecular weights of polymers were analyzed with gel permeation chromatography (GPC) and multi-angle laser light scattering (MALLS, Dawn Heleos), using a linear MZGel SD Plus GPC column set (two columns, 5 µm particles, 300 × 8 mm) with DMF as eluent at room temperature with a flow rate of 1 mL/min and a concentration of the polymer of ca. 1 mg/mL. The calibration was based on polystyrene standard. A UV-Vis detector at λ = 254 nm and a IR detector were used for the signal recording. The water contact angles of polymers were characterized in SL200B type contact angle tester (Boston, MA, USA)

2.3. Synthesis of Diacid Monomers

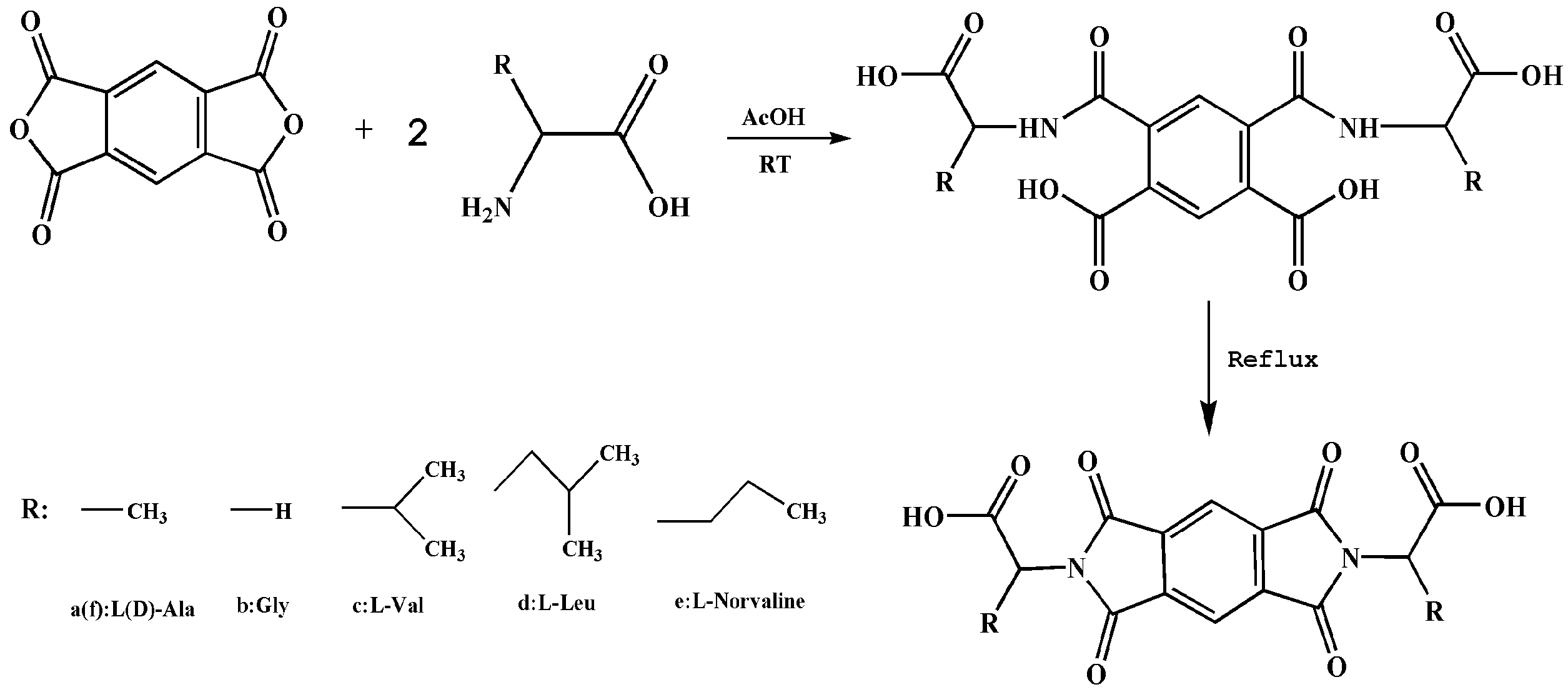

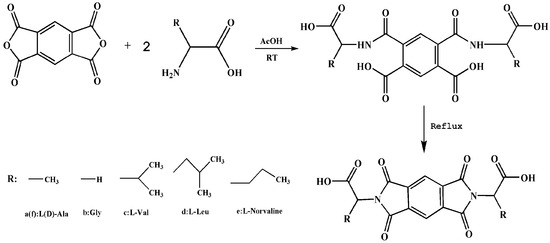

Diacid monomers (2a–2f) were obtained by following the method reported in the literature [18] as shown in Scheme 1. Yields and physical properties of the diacid monomers are described in Table S1.

2.4. Synthesis of Polyamide-Imides

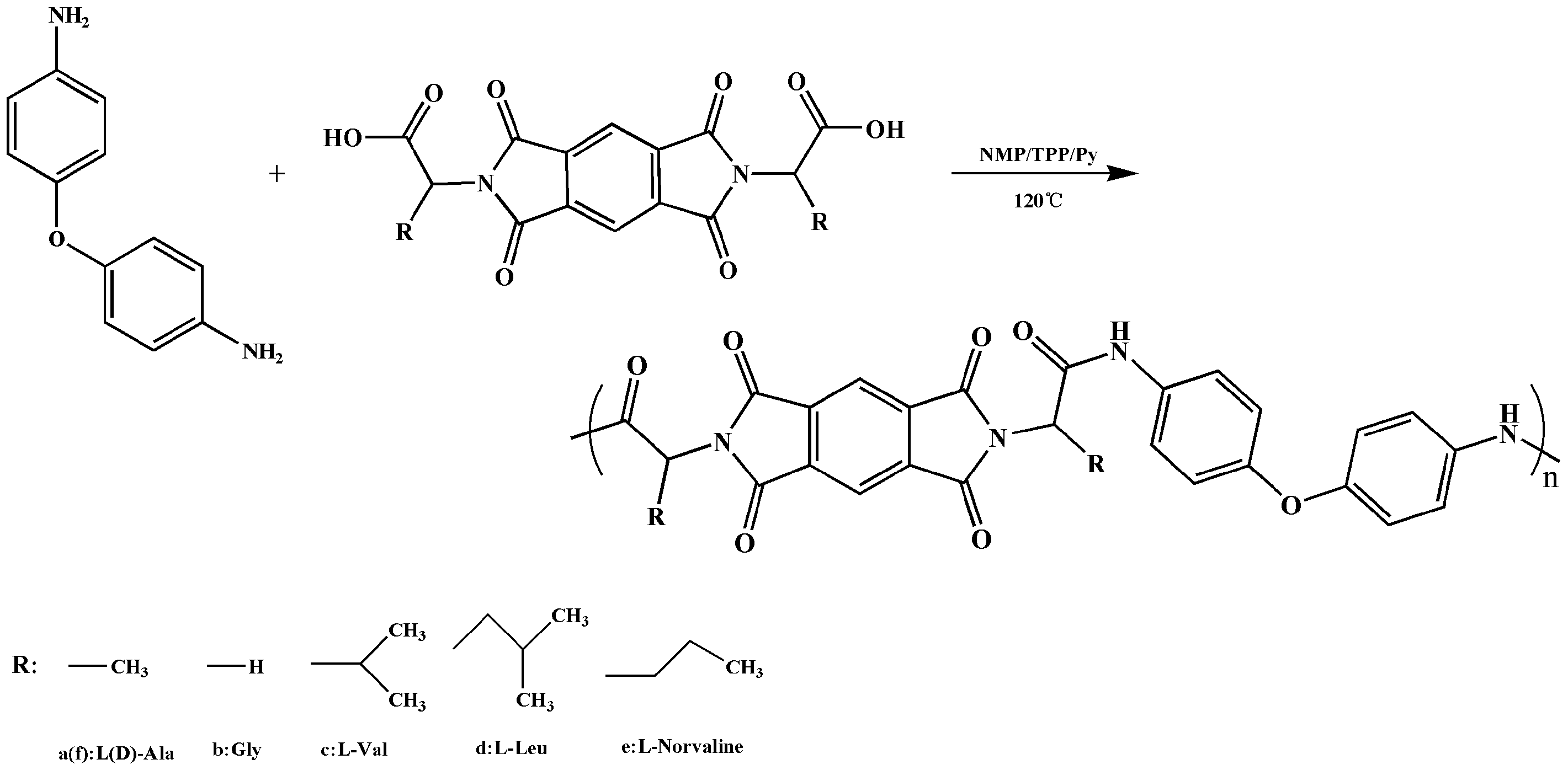

Polyamide-imides (PAI3a–PAI3f) were synthesized by direct polycondensation of diacid monomers with 4,4′-diaminodiphenyl ether under the reported procedure [19] as shown in Scheme 2. Yields and physical properties of polymers are shown in Table S2.

2.5. Preparation of PAI Films

Firstly, 0.25 g of the prepared PAIs (PAI3a–PAI3f) was dissolved in 5 mL of DMF under sufficient stirring. After that, the solution was put into a Teflon mold with a diameter of 5 cm. Finally, the pieces of clear flexible PAI films were obtained by vacuum drying at 50 °C.

2.6. Enzymatic Degradation

PAI3a–PAI3f films were placed with 10 mL of Tris–HCl buffer (pH = 7.4) in the presence of proteinase K and 0.02% of sodium azide. Then each sample was placed in a constant temperature incubator shaker at 37 ± 0.5 °C in order to restore the original level of enzymatic activity. The films were removed from the enzymatic solution every 24 h, and washed with large quantities of ethanol and distilled water. Afterwards, they were dried under vacuum at 40 °C to a constant weight.

3. Results and Discussion

The structure of monomers2a–2f and PAI3a–PAI3f films were confirmed by IR and ¹H NMR spectra. The elemental analysis values of the polymers agreed well with the calculated values for the expected structures. (Figures S1–S4).

The thermal stability of PAI films was investigated through TGA and DSC. The TGA and DSC measurements of PAI3a–3f were explored, as shown in Figures S5 and S6, respectively. The glass transition temperature (Tg) obtained from DSC and the temperatures corresponding to a weight loss of 5% (T5) and 10% (T10) of PAIs acquired from TGA are summarized in

Table 1. Thermal properties of PAI3a–3f.

Polymer	Tg (°C)	T5 (°C) a	T10 (°C) b	Char Yield (%) c
PAI3a	241	313	354	58.67
PAI3b	196	323	390	48.90
PAI3c	147	278	323	46.15
PAI3d	189	297	340	47.25
PAI3e	206	296	329	47.86
PAI3f	238	310	357	56.15

^a Temperature at which 5% weight loss fully was recorded by TGA in a N₂ atm. ^b Temperature at which 10% weight loss fully was recorded by TGA in a N₂ atm. ^c Weight percent of the material left undecomposed after TGA at 800 °C in a N₂ atm.

. The temperatures of initial decomposition (T5 and T10) which ranged from 296 °C to 323 °C and from 323 °C to 390 °C, respectively, and the high char yields (46.15–58.67%) at 800 °C of PAI3a–3f showed good thermal stabilities of these polymers.

Compared to PAI3f, PAI3a show a higher Tg value, which indicates that the PAIs with the L configuration have better thermal properties than those with the D configuration. In fact, we also investigated PAIs containing the other differential configurations of amino acids such as phenylalanine, leucine, etc. The PAIs with L configuration also have a higher Tg value. This may be the cause of natural selection. All these PAIs, except for the PAI3f, have the same polymer backbone, but have differential side groups based on differential amino acids. PAI3a and PAI3e have Tg values greater than PAI3b. The volume effect of the side group played a leading role, resulting in a higher Tg values for PAI3a and PAI3e. Among them, the side groups of PAI3a and PAI3e are all normal paraffin chains. The side groups of PAI3e have greater length and flexibility, resulting in internal plasticization. This makes the Tg value of PAI3e smaller than PAI3a. Through the comparison of PAI3b and PAI3c, a lower Tg value is attached to PAI3c. This may be due to the fact that the isolation effect dominated at the time, because the volume of the isopropyl group was much bigger than that of the methyl group. This increased the distance between the main chains and made it less likely to form hydrogen bonds, and also weakened the intermolecular forces. Therefore, PAI3c has the lowest Tg value. However, due to the combined effect of volume effect and isolation effect, PAI3d has a Tg value slightly lower than PAI3b and significantly higher than PAI3c. On one hand, in the polymer we synthesized, the L configuration and the D configuration of the amino acid affected the Tg values. On the other hand, when the main chain is the same, the volume effect of the side groups, the internal plasticizing effect and the isolation effect also had an effect on the Tg values.

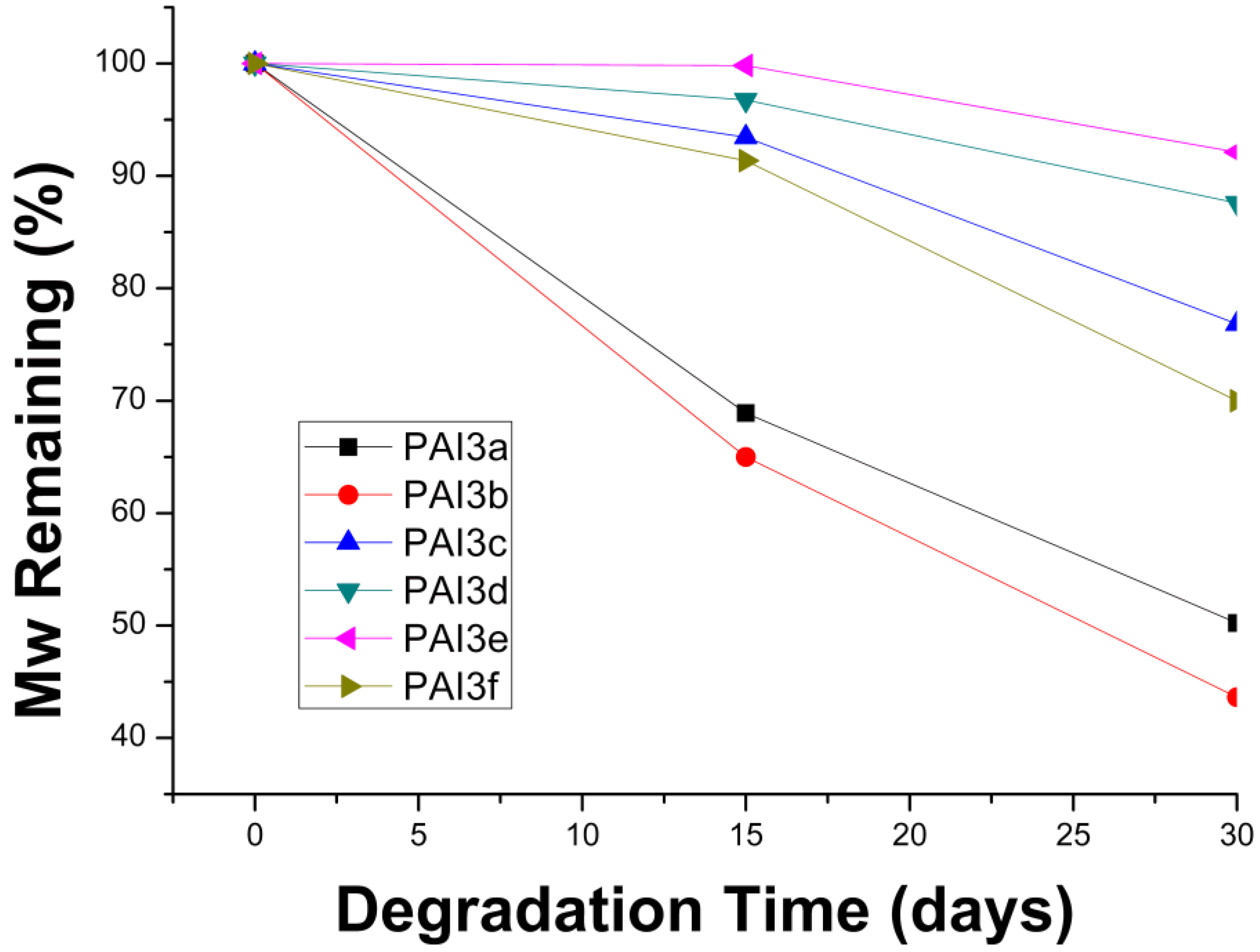

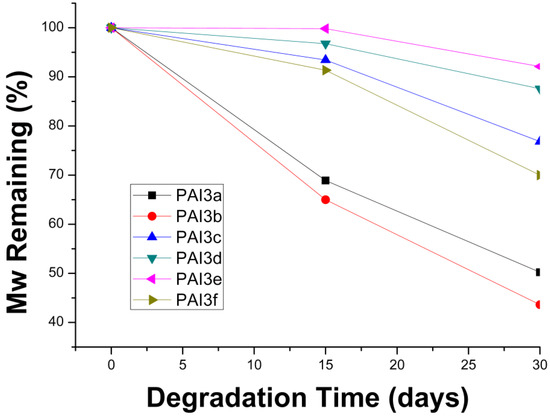

Figure 1 shows the change in molecular weight at different stages of enzymatic degradation. As the degradation time prolongs, the molecular weight gradually decreases. This illustrates the loss of small molecules during the degradation process. As can be seen in Figure 1, the fastest degradation rate of PAI3b is up to 50%, PAI3e is the slowest degradation, and molecular weight loss is less than 10%. Although glycine has no chirality, PAI3b degrades faster than PAI3a. This indicates that the structure of amino acids has the greatest influence on the degradation performance of PAI relative to chirality.

From PAI3a to PAI3c to PAI3d, the degradation rate gradually slows down. This indicates that for natural chiral amino acids, the rate of degradation decreases as the carbon chain grows. This may be because the hydrophilicity of polymers decreases with the increase of side-group carbon chains. The microorganisms in nature are all hydrophilic, so the longer the carbon chain of the side group, the more difficult it is to be degraded. PAI3e is an unnatural amino acid. Although its side-group carbon chains are shorter than the PAI3d, its degradation rate is the lowest.

As can be seen in Figure 1, PAI3a has the fastest degradation rate, higher than PAI3f, indicating that the microorganism preferentially degrades the PAIs of the L–configuration. This enantioselectivity stems from spin polarized interaction. This mechanism for the intermolecular interaction of chiral molecules results in a higher degradation rate of the PAI in the L–configuration [20,21]. When the structure of the amino acid introduced into PAIs is different, the effect of the structure on the degradation effect is more obvious. The degradation of natural chiral PAIs is better than that of non-natural chiral PAIs.

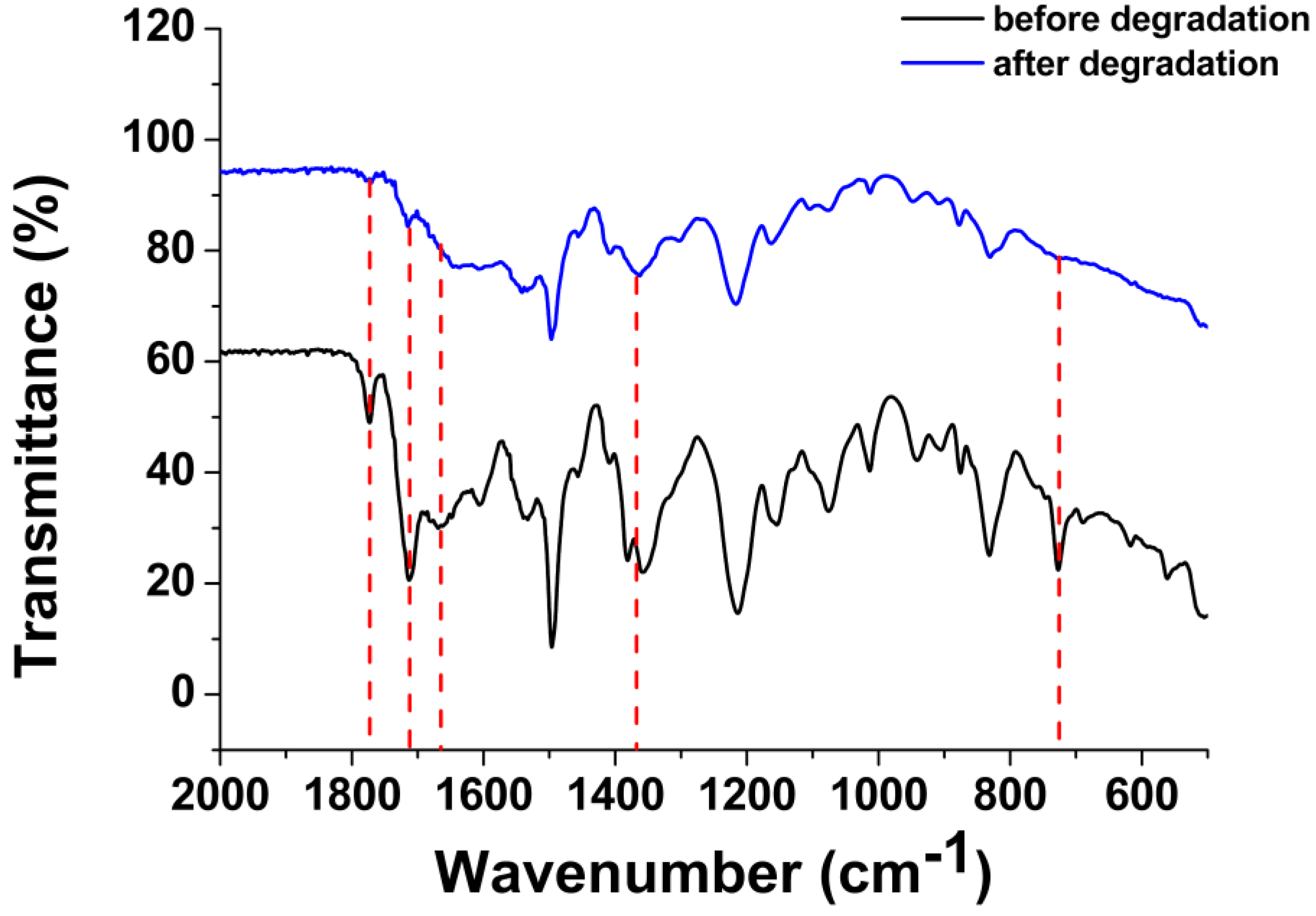

Figure 2 shows the infrared changes of PAI3a before and after degradation. It can be seen from Figure 2 that after 30 days of degradation, the symmetrical and asymmetric stretching vibration absorption bands of the carbonyl group at 1654 cm⁻¹ and 1658 cm⁻¹ are significantly weakened, and the bending vibration absorption band of CN at 1383 cm⁻¹ is also significantly weakened. In addition, the bending vibration absorption band of C=O at the 721 cm⁻¹ of the imide five-membered ring almost disappeared, indicating that the carbonyl and imide bonds from the amino acid are easily destroyed during the degradation process. It can be found that the fragmentation of polymer chains occurs mainly on the two ends of amino acid molecules. It is to say that the amide and imide bonds sourced from carboxyl and amino groups in amino acids are easily broken. Figure 3 is a nuclear magnetic diagram of the degradation product of PAI3a. As can be seen from Figure 3, the main ¹H NMR peak of the degradation product is very similar to that of the polymer, containing benzene ring, methyl group, carboxyl group, amino group and other functional groups. This further indicates that the degradation of the PAI films begins with the broken of amide bonds, and later extends to the damages of imide rings. The break of polymer chain and the formation of small molecules leads to the change of molecular weight.

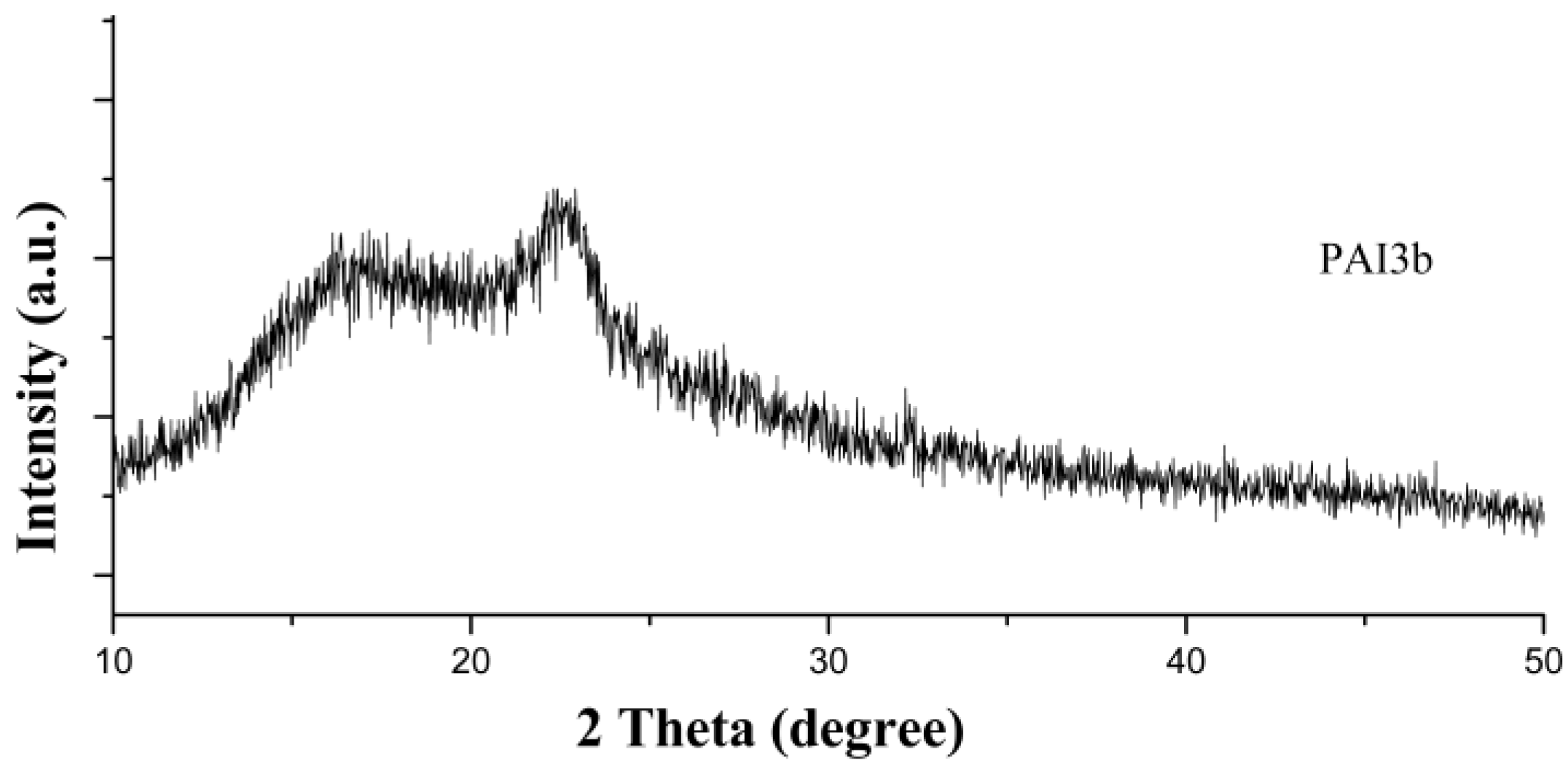

X-ray diffractograms of PAI3b are shown in Figure 4. The other PAIs have similar X-ray diffractograms. PAI3b exhibited two broad halos in the range 2θ = 20–25° and 15–20°. The broad halos in XRD patterns indicates their amorphous nature [22]. Thus, the PAIs is completely amorphous.

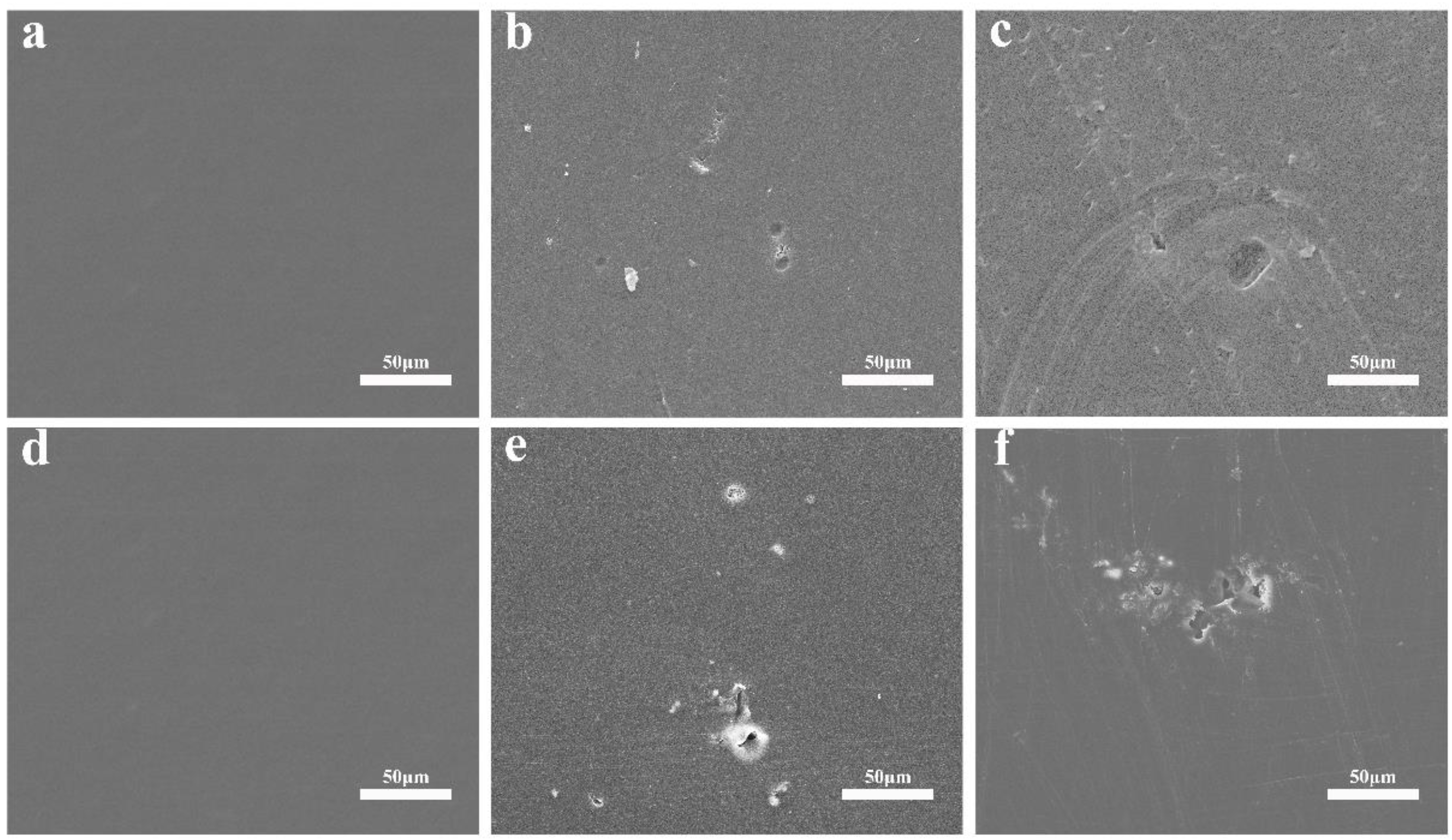

Figure 5 shows the SEM images of different periods of PAI3a and PAI3b degradation, and that the other PAIs have the similar change rules. It can clearly be seen from Figure 5 that after 15 days of degradation, there is a significant change in the surface of the membrane. The formation of pores has occurred. After 30 days of degradation, the damage of the membrane surface is more obvious, and there are more holes. This may be because the enzyme damages the PAIs membrane from the outside to the inside, first destroying the surface layer of the membrane, then gradually deepening, and finally forming holes.

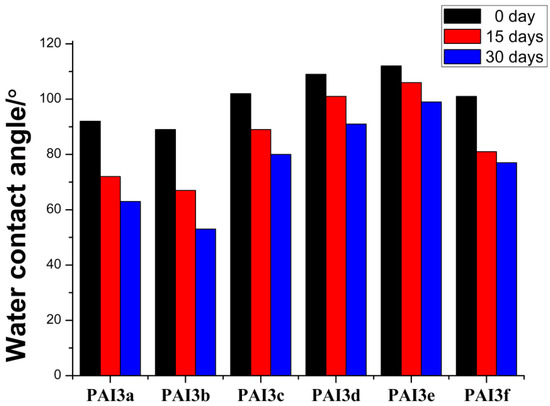

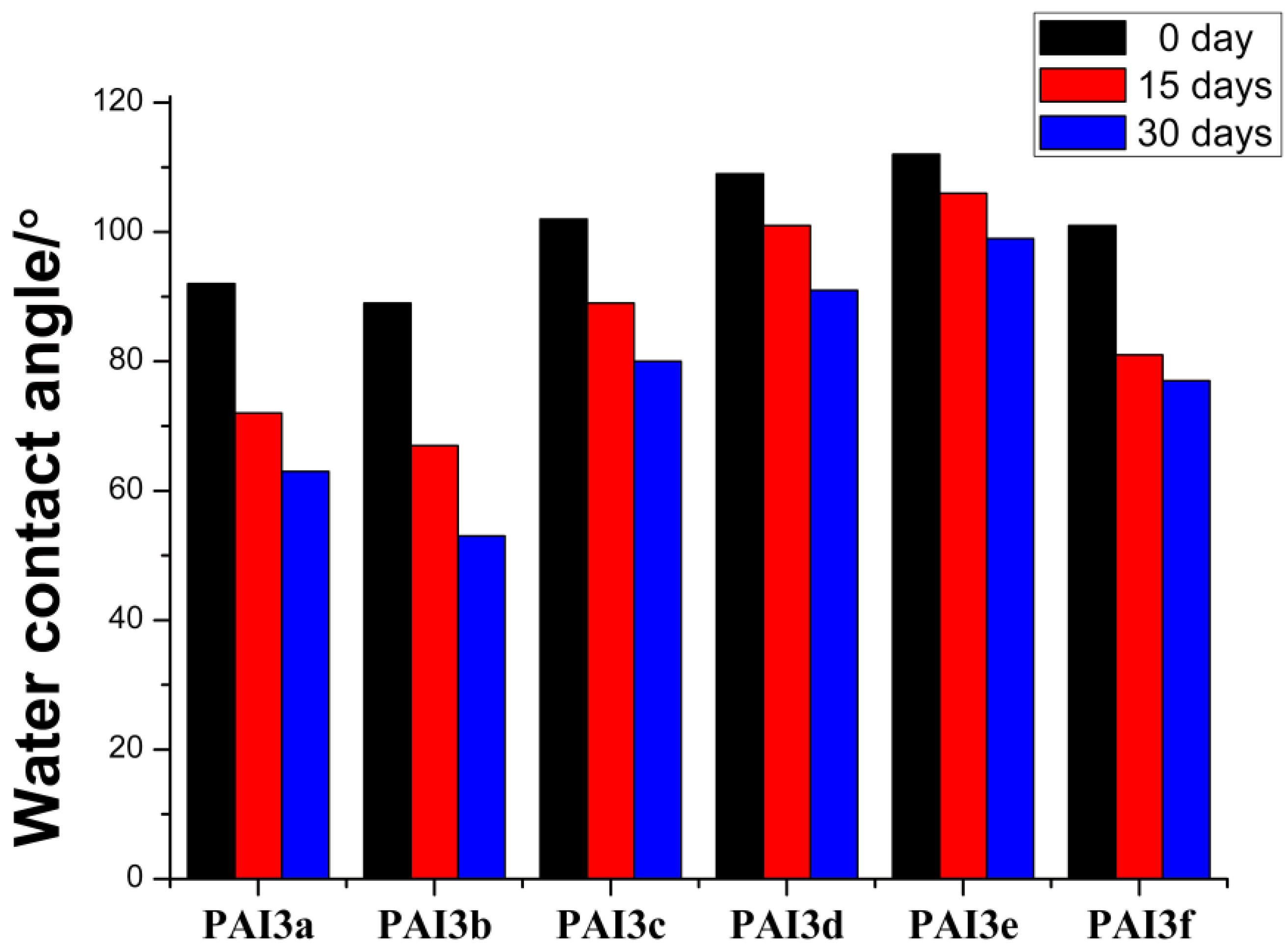

The water contact angle of the membrane surface at different degradation stages is shown in Figure 6. As can be seen from Figure 6, with the increase of degradation time, the water contact angle on the membrane surface becomes smaller and smaller, and also becomes more and more hydrophilic. This is because of the degradation of polymers, where polymer chains are broken and some hydrophilic functional groups are exposed to the surface of the membrane, which leads to the increase of hydrophilicity of the membrane. Polymers with simple pendant groups are more susceptible to degradation. The change in the water contact angle of PAI3b is more pronounced. Figure 5 shows that proteases can cause more damage to the backbone of the L–amino acid polymer than D–amino acids. More carboxyl and amino groups are exposed on the surface of the PAI film. Give PAI3a a higher surface hydrophilicity. The degradation of natural chiral PAIs is better than that of non-natural chiral PAIs. Thus, the PAI3d has a higher water contact angle.

4. Conclusions

Thermal test shows the polymers (PAI3a–3f) have good thermal stability. PAIs with L configuration have higher Tg values than PAIs with D configuration. At the same time, the Tg values are also affected by the volume effect of the side groups, the internal plasticizing effect and the isolation effect. Water contact angle measurement that the polymer chains are broken and more carboxyl and amino groups are exposed on the surface of the PAI film, which leads to the increase of hydrophilicity of the membrane. The enzymatic degradation test suggests that the structure of amino acids have the greatest influence on the degradation performance of PAIs relative to chirality. For natural chiral amino acids, the rate of degradation decreases as the carbon chain grows. The degradation rate of natural chiral PAIs are higher than that of non-natural chiral PAIs. Degradation tends to be PAIs with simple side groups and L configurations. This makes it possible to develop polymer materials with specific degradationrates.
