Optimizing Multi-Quay Combined Berth and Quay Crane Allocation Using Computational Intelligence

by
Sheraz Aslam
,
Michalis P. Michaelides
and
Herodotos Herodotou
*
Department of Electrical Engineering, Computer Engineering and Informatics, Cyprus University of Technology, Limassol 3036, Cyprus
*
Author to whom correspondence should be addressed.
J. Mar. Sci. Eng. 2024, 12(9), 1567; https://doi.org/10.3390/jmse12091567
Submission received: 30 July 2024 / Revised: 26 August 2024 / Accepted: 31 August 2024 / Published: 6 September 2024
(This article belongs to the Special Issue 10th International Conference on Maritime Transport (MT’24))

Abstract

:
The significant increase in international seaborne trade volumes over the last several years is pushing port operators to improve the efficiency of terminal processes and reduce vessel turnaround time. Toward this direction, this study investigates and solves the combined berth allocation problem (BAP) and quay crane allocation problem (QCAP) in a multi-quay (MQ) setting using computational intelligence (CI) approaches. First, the study develops a mathematical model representing a real port environment and then adapts the cuckoo search algorithm (CSA) for the first time in this setup. The CSA is inspired by nature by following the basic rules of breeding parasitism of some cuckoo species that lay eggs in other birds’ nests. For comparison purposes, we implement two baseline approaches, first come first serve and exact MILP, and two CI approaches, particle swarm optimization (PSO) and genetic algorithm (GA), that are typically used to solve such complex or NP-hard problems. Performance assessment is carried out via a comprehensive series of experiments using real-world data. Experimental findings show that the MILP method can address the problems only when a small dataset is employed. In contrast, the newly adapted CSA can solve larger instances of MQ BAP and QCAP within significantly reduced computation times.

1. Introduction

Seaports play an essential role in the world economy as more than 80% of world trade is carried by sea [1]. With increased demand, congested ports are facing significant challenges related to resource scarcity and several scheduling activities, including the berth allocation problem (BAP) and the quay crane allocation problem (QCAP) [2]. In 2021, the global average container schedule delays doubled, while the median turnaround time for container ships increased by 13.7% [1]. In [3], the authors investigate several factors causing waiting times from both quantitative and qualitative perspectives. Similar problems have attracted considerable attention from academia and industry, highlighting the need to optimize maritime operations in ports [4].
Berths and quay cranes (QCs) are considered two of the primary resources of marine ports, and their efficient use can help reduce the total turnaround time of vessels [5]. The primary operations in ports are divided into three main areas: seaside, marshaling yard, and landside operations. The first involves loading and unloading containers onto/from vessels using quay cranes and other terminal resources. Inbound containers are stored in the marshaling yard. Finally, landside operations include activities related to dispatching containers to their destinations using trucks or trains [6]. A single or multiple berth lines are used to berth arriving vessels, and quay cranes (QCs) are used to perform loading and unloading operations. However, berths and QCs are bottleneck resources in ports due to the limited coastal environment and complexity of port activities [7]. Therefore, good planning and proper coordination between them can improve terminal productivity.
The BAP identifies berthing positions and berthing times for arriving vessels based on various factors, such as expected time of arrival (ETA), handling time or total load, requested time of departure (RTD), etc. In contrast, QCAP deals with the appropriate allocation of cranes based on the BAP solution and availability of cranes, since BAP and QCAP are interdependent problems [8]. In the current literature, there are many studies dealing with the stand-alone BAP [9,10,11]. Nowadays, however, there is an increasing trend to solve BAP and QCAP simultaneously, since the number of cranes (and which cranes in case of different handling productivity) assigned to a ship determines the berthing time of the vessels [12,13]. There are very few studies dealing with terminals with multi-quays (MQs), especially terminals with multi-purpose quays, e.g., container and passenger terminals [14,15,16]. MQs introduce an additional layer of complexity to BAP, involving the allocation of ships to quays in addition to assigning berth positions and berthing times to ships for each individual quay. In MQ terminal environments, the big challenges include sharing resources, placing vessels at the correct position of the desired quay, and coordinating among multiple quays. Considering MQs, especially multi-purpose quays, while solving the combined BAP and QCAP further increases the problem’s complexity. For example, in a study presented in [14], a solution for MQs is proposed for BAP; however, in that study, the total length of the quay is divided equally between two quays, and random data are used for experiments. In addition, practical constraints are not considered. A recent study [15] also solves MQ BAP and concludes that the proposed method does not always provide an optimal solution and is sometimes 40% away from the optimal solution. In another work, ref. [16] proposes a fuzzy-based solution, but as the authors acknowledge, the proposed method provides an optimal solution when only up to 10 vessels are considered.
We have found only one study that addresses combined BAP and QCAP considering MQs, which employs fuzzy logic to solve the problem [17]. However, its authors conclude that their approach is feasible only for small instances and suggest the use of metaheuristics for solving larger problem instances. Furthermore, none of the existing studies consider terminal cooperation, i.e., the same-purpose terminals/quays (e.g., container terminals) can cooperate with each other by re-scheduling vessels from busy quays to idle quays to avoid congestion problems.
The aforementioned limitations of previous studies and the practical importance of the problem (i.e., multi-quay environment) motivate us to develop an efficient computational intelligence (CI) approach for solving the combined BAP and QCAP problem for a real port setting while considering multiple heterogeneous quays (e.g., container, general cargo, and passenger quays). This study focuses on finding the optimal berthing quay, position, and time along with the best assignment of cranes for each arriving vessel at the port. To the best of our knowledge, this is the first study that deals with MQ BAP and QCAP for multi-purpose terminals. The primary contributions are outlined below:
  • Develop an MILP-based mathematical model for the MQ BAP and QCAP for minimizing the total service cost while considering multiple heterogeneous quays with real-world settings and constraints;
  • Develop a cooperation model between quays, for the first time in an MQ BAP and QCAP setting, to share berthing positions with the fundamental objective of reducing congestion and total service costs at MCTs.
  • Adapt and implement the cuckoo search algorithm, for the first time for this setup, as well as two other state-of-the-art CI methods, i.e., genetic algorithm and particle swarm optimization, for comparison purposes.
  • Evaluate the effectiveness of the proposed approach against state-of-the-art CI methods and two baseline approaches on real data from the Port of Limassol, Cyprus.
An initial version of the mathematical model and preliminary results were presented in [18]. Compared to our prior study, this work presents (i) the complete mathematical model, including the quay crane encoding and spatiotemporal overlapping constraints; (ii) the adaptation of the GA, PSO, and FCFS algorithms for the MQ BAP and QCAP; and (iii) new experimental analysis considering up to one month of real data as well as new synthetic data.
The remaining of the study is organized as follows: Section 2 presents the literature review. The problem description and mathematical formulation are discussed in Section 3. Section 4 discloses the developed computational intelligence methods. Section 5 shows the experimental setting and the results of the developed methods. Section 6 provides an in-depth discussion of the results along with managerial insights. Finally, Section 7 concludes the study.

2. Literature Review

This section reviews the most relevant recent studies that use CI approaches to solve the stand-alone BAP, the combined BAP and QCAP, as well as the MQ problems. A more in-depth literature review can be found in [6].
Study [19] solved the BAP with the objective of reducing the number of late departures at the port of Shahid Rajaee Shallow, Iran. To solve the problem, a GA-based solution was developed. The authors of [20,21] also addressed BAP with the goal of optimal berth allocation, taking into account the uncertainty of ship arrivals, and proposed heuristic-based solutions to solve the problem. Numerous studies have focused on the stand-alone BAP and suggested genetic algorithm (GA)-based solutions for optimizing berth allocation decisions, such as [11,19,20]. The authors of [11] proposed an exact method to solve stand-alone BAP with a continuous berthing layout. However, their model cannot solve the problem with large data instances due to its large time complexity. Then, a GA-based solution was developed to deal with large data instances. The work in [22] also solved the BAP with the objective of reducing the late departure of vessels by employing a hybrid of GA and the branch-and-cut (B&C) method, which assigned the best berthing location based on vessel arrival and departure times and other constraints. The authors of [23] developed a differential evolution (DE)-based solution to minimize the service costs of arriving ships at the terminal. A study [24] also solved the BAP, reducing the service time of docked ships using a greedy randomized adaptive search method (GRASP). The authors of [25,26] addressed the BAP to avoid delays in the departure of ships. The authors also considered tidal restrictions when assigning berths and developed datasets based on real-time port characteristics that can be used as benchmark instances in the future. Xu et al. developed a hybrid simulated annealing (SA)-based heuristic method while considering traffic constraints in a navigation channel [27] for improving the performance of maritime container terminals. The problem was solved using the hybrid SA (HSA) method, which combined SA and reheat treatment methods. To validate the proposed method, real-time instances of two container terminals in Tianjin, China, were used, and CPLEX and greedy methods were employed for a comparative study. More recently, [9] proposed a solution for the BAP using the cuckoo search algorithm (CSA) with the goal of reducing the total service cost, which includes handling costs, waiting costs, and various penalties, such as for late departure and non-optimal berth assignment.
For the combined (single-quay) BAP with QCAP, Li et al. proposed an exact solution to minimize the total turnaround time [28] while considering the maintenance activities at the quay. Another study also proposed an exact method for reducing the total turnaround time of arriving ships at Khalifa Port, Abu Dhabi [29]. The study [30] provided a GA-based solution for the same problem. The authors proposed three variants of GA and performed several experiments to compare those variants. The authors in [31] considered carbon emission policies to reduce total carbon emissions at the port along with the primary objectives of the study, i.e., reducing penalty costs and operating costs. To address this joint problem, a branch-and-bound algorithm was developed and tested on multiple real-time instances taken from [32]. Zheng et al. study the same problem while considering QC maintenance [2]. The problem was formulated as an integer linear programming model and then solved using the exact approach; however, the developed method could solve the problem considering up to only 18 vessels. Next, the study developed an improved GA and a new heuristic named left and right vessel move (LRVM) algorithm.
The aforementioned studies assume that the MCT consists of only one continuous quay, but it is unrealistic around the globe, where berthing is distributed across multiple distinct quays [14]. For instance, the Port of Limassol, Cyprus, features seven quays, as shown in Figure 1. The authors of [14] proposed a solution for an MQ stand-alone BAP, consisting of an MILP-based mathematical model and a GA-based solution. In another work, ref. [16] proposed a fuzzy-based solution but, as the authors acknowledge, the proposed method only provides an optimal solution when only up to 10 vessels are considered. A recent study [15] solved MQ-BAP using heuristics based on a general variable neighborhood search and concluded that the proposed method does not always provide an optimal solution and is sometimes 40% away from the optimal solution. Furthermore, in [33], the authors of the current study addressed the MQ-BAP for total cost reduction using CSA.
As for the combined BAP with QCAP when considering MQs, the authors of [17] proposed a fuzzy-based solution. Based on experiments, they concluded that the proposed method can only solve small-scale problems (considering only two quays) and suggested that the medium and large-scale problems can only be solved using metaheuristic approaches. Therefore, motivated by the above discussion, we propose a solution for combined BAP and QCAP that considers multi-purpose MQs and solves a realistic scenario using CI-based methods.

3. Problem Description and Formulations

This section first describes the problem that is considered in this study, and then it discloses its mathematical formulation. The mathematical notation is listed on Table 1.

3.1. Problem Explanation

The combined BAP and QCAP is an optimization problem in which the objective is to allocate available quays, berths, and quay cranes (QCs) across time to incoming ships to perform unloading/loading operations with the goal of minimizing the total service cost. In this study, we consider a realistic setup of a port with multiple heterogeneous quays and several cranes (with different productivity) available at each quay, which cannot move once they are assigned to a particular vessel. Notably, cranes cannot move from one quay to another because of different quay types and settings. However, cranes can move along the same quay, but each crane has specific, designated positions where it operates. For example, Crane 1 at a container quay can work within the range from 0 to 450 m. The assignment of cranes to a vessel also depends on the vessel’s length and load. Moreover, all quays follow a continuous berthing layout, and arriving vessels can be moored anywhere on the quay. Vessels are arriving in a dynamic fashion; however, their expected arrival times are known in advance. The installed QCs perform loading and unloading operations with some average productivity, which can be different for each QC. For the total service cost calculation of each vessel, this study considers waiting cost, handling cost, late departure cost, and non-optimal berthing cost.

3.2. MQ BAP and QCAP Formulation

The primary objective of the MQ BAP and QCAP is to allocate a berthing position at the preferred quay, a berthing time, and QCs to each arriving vessel in order to minimize the total service cost, which includes handling cost, waiting cost, and late departure penalty, as presented in the following cost function:
Cost ( v , B Q v , B P v , k v , B T v ) = H T v · [ C v h + f ( v , B Q v , B P v ) ] + W T v · C v w + L D T v · C v l d .
The first term in the above equation calculates the total handling cost, which depends on handling time H T v , handling cost C v h , and a penalty f due to non-optimal quay and/or non-optimal berth assignment. This study, unlike our previous work in [33], does not consider handling time H T v as an input, but it is calculated based on the total load on the vessel L o a d v and the handling productivity (per time interval) of each of the cranes (encoded in k v ) that are assigned to vessel v. Furthermore, if any vessel is moored to a location other than the preferred position or quay, a deviation time for vessel v is added to the total handling time [34], as described below:
H T v = L o a d v c k v H P q c + D v , v V , q = B Q v
There is a set of cranes C ( q ) = { c 1 , c 2 , c 3 , c n q } that are installed at each quay q. Regarding crane allocation to arriving vessels, there are several combinations of cranes possible, depending on the vessels’ length and total load. For instance, a large vessel with a heavy load can use multiple cranes, whereas a small vessel may use only one crane. All possible combinations of crane assignments to a particular vessel are present in the power set of  C ( q ) :
K ( q ) = { { } , { c 1 } , { c 2 } , , { c n q } , { c 1 , c 2 } , { c 1 , c 3 } , , { c n 1 , c n q } , { c 1 , c 2 , c 3 } , , { c 1 , c 2 , , c n q } }
The set of cranes allocated to a vessel v is one element of the power set K ( q ) . To simplify the formulation, we encode each element of K ( q ) as a number by using a binary representation. In particular, each QC corresponds to a binary digit in the number (from right to left); if the digit is 1, the QC is allocated; if it is 0, the QC is not allocated. For example, assuming 4 cranes, the element { c 1 } is encoded as 0001, { c 2 } as 0010, { c 1 , c 2 } as 0011, and so on. The number of digits used in the encoding equals the number n q of available QCs on quay q. The empty set (with encoding 0000) is also included when a vessel is berthed to a terminal that does not have quay cranes, such as a passenger or general cargo quay. In summary, k v is a number whose binary representation shows the set of cranes assigned to v and can take numbers between 0 and 2 n q −1.
The handling cost (per time interval) C v h charged to a vessel depends on the service cost per time interval of each crane assigned to vessel v (per the set of cranes k v ), and it can be calculated as
C v h = c k v S C q c , v V , q = B Q v
The last part of the first term, namely f ( v , B Q v , B P v ) in Equation (1), calculates penalty cost because of a possible non-optimal berthing (NOB) position and/or non-optimal quay (NOQ) assignment:
f ( v , B Q v , B P v ) = | P B P v B P v | · C v n o b , if B Q v = P B Q v C v n o q , if B Q v A B Q v , otherwise .
In particular, if a ship v is berthed to its preferred berthing quay P B Q v , the penalty cost is proportional to the distance between its preferred berthing position P B P v and its planned berthing position B P v on the quay. Otherwise, if v is berthed to one of its alternative berthing quays A B Q v , then the penalty cost is set to equal the penalty for non-optimal berthing quay assignment C v n o q . In all other cases, the penalty cost is set to infinity to prohibit the assignment of v to any quay other than P B Q v or A B Q v . Moreover, this penalty is multiplied by the handling time H T v of vessel v. Hence, if a vessel needs four hours to perform its operations and it is moored at a non-optimal position, the penalty is charged for all (four) hours.
The second term in Equation (1) ( W T v · C v w ) calculates the total waiting cost and it depends on the total waiting time W T v of vessel v and the waiting cost (per time interval) C v w . The waiting time W T v of any vessel v is the difference between berthing time B T v and arrival time A T v , as calculated below.
W T v = B T v A T v , v V
The last expression in Equation (1) ( L D T v · C v l d ) calculates the penalty cost due to late departures, which is based on the late departure time L D T v and the penalty (per time interval) for late departure C v l d . The late departure time L D T v is calculated as
L D T v = m a x ( 0 , F T v R D T v ) , v V
where R D T v is the requested departure time for vessel v and F T v is the finishing time of v’s operations (i.e., loading and unloading), as calculated below.
F T v = B T v + H T v , v V
The fundamental objective is to solve the combined BAP and QCAP in an MQ setting while reducing the total service cost as defined above. The objective function is given by
minimize v V q Q b B ( q ) k K ( q ) t T Cost ( v , q , b , k , t ) · x v q b k t
subject to the following constraints (Equations (10)–(17)).
x v q b k t { 0 , 1 } , v V , q Q , b B ( q ) , k K ( q ) , t T
q Q b B ( q ) k K ( q ) t T x v q b k t = 1 , v V
B T v A T v , v V
B T v B T u S E v u V
B P v + L v L q , v V , q = B Q v
v u V b = B P v L u S D B P v + L v + S D k K ( q ) t = B T v H T u S T + 1 B T v + H T v + S T 1 x u q b k t = 0 , v u V , q = B Q v = B Q u
v u V b B ( q ) k K ( q ) k & k v 0 t = B T v H T u S T + 1 B T v + H T v + S T 1 x u q b k t = 0 , v u V , q = B Q v = B Q u
c m i n < B P v + L v & B P v < c m a x , v V , c k v
The variable x v q b k t shown in constraint (10) is 1 when the vessel v is assigned at position b of quay q at time t to be served by cranes encoded in k, and it is 0 otherwise. Constraint (11) guarantees that each arriving vessel is scheduled for berthing only once in time t at position b belonging to quay q. Constraint (12) stipulates that the planned berthing time B T v for a particular vessel v must be later or equal to its estimated arrival time A T v . Constraint (13) ensures a safety entrance time difference between any two vessels. Constraint (14) ensures the length of vessel v plus its berthing position must not cross the length of quay q, where it is moored. Constraint (15) restricts two vessels from overlapping during mooring both in terms of berthing positions as well as berthing times. It also ensures the safety berthing distance S D and safety berthing time S T during the berthing of any two ships. A graphical presentation of constraint (15) is presented in Figure 2. Constraint (16) restricts the set of cranes k that is assigned to vessel u not to contain any of the cranes k v allocated to another vessel v during the same time period. Whether two sets of cranes have common cranes can be easily checked using the ‘bitwise AND’ (&) operation due to our binary representation of crane sets. A pictorial representation of constraint (16) is illustrated in Figure 3. Finally, constraint (17) ensures that any crane c assigned to vessel v can reach the vessel by checking that there is an overlap between the minimum and maximum berthing positions served by c and the quay positions occupied by v.
The unique aspects of our problem formulation compared to previous BAP and/or QCAP formulations are (i) the encoding and consideration of any possible set of heterogeneous (in terms of productivity and service cost) quay cranes to arriving vessels; (ii) the incorporation of multi-purpose heterogeneous quays in the model and the consideration of alternative preferred quays per arriving vessel; and (iii) the incorporation of practical time constraints (e.g., safety berthing distance and time) into the overlap constraints (Equations (15) and (16)) to ensure the correct assignment of berths and cranes to arriving vessels.

4. Proposed CI Methods

This section discloses the various methods implemented for MQ BAP and QCAP.

4.1. Cuckoo Search Algorithm

The cuckoo search algorithm (CSA) is a nature-inspired optimization method proposed by [35] that has proven efficient in solving several global optimization problems. The CSA is based on the basic rules of breeding parasitism of some cuckoo species and then extended by the so-called Levy flights instead of simple isotropic random walks [36]. Some cuckoo birds follow an aggressive production strategy of laying eggs in communal nests and possibly removing eggs from other (host) birds to maximize the hatching probability of their own eggs. When host birds discover the cuckoo eggs, hosts either discard or abandon the eggs and build new nests. Overall, the CSA is inspired by the reproductive behavior of cuckoo birds and follows three idealized principles [35]:
  • Each cuckoo bird deposits a single egg in a random nest;
  • The nests with the highest-quality eggs are preserved and utilized for the next generation;
  • The quantity of host nests is constant and the cuckoo egg is detected by a host bird with probability p α ( 0 , 1 ) .
  • CSA mapping to MQ BAP and QCAP: Each nest represents a set of possible solutions with berthing times, quays, positions, and a possible set of assigned cranes for all arriving vessels. Each egg in a nest represents either a berthing time or a berthing quay or a berthing position in that quay or a possible set of cranes (expressed as a single number as explained in Section 3.2). A cuckoo egg represents a new (perhaps better) solution (i.e., a berthing time or quay or position or set of cranes). Thus, each nest contains 4 N eggs, where N is the number of vessels scheduled to arrive at a given time window. The problem’s search space at each iteration is determined by a fixed number of host nests, which in this study is set at 100 host nests. The primary aim of the algorithm, outlined in Algorithm 1, is to employ cuckoo eggs (superior solutions) to replace the suboptimal eggs within different nests while ensuring that the various constraints are met. The CSA starts with an initial population of m host nests (line #1). These initial host nests will be attracted by the cuckoos with eggs using random Levy flights to lay the eggs, generating new solutions (lines #3–4). The new nest quality is evaluated and will replace the old host nests if it has a lower fitness score (lines #5–8). If the host bird discovers the egg with some probability p α ( 0 , 1 ) , the host abandons the nest and builds a new one (lines #9–11). The above process repeats until a termination criterion is met, such as reaching a maximum number of iterations.
Algorithm 1 CSA for MQ BAP and QCAP
  1:
P [ 1 . . m ] = Initialize random population of m = 100 host nests
           (each nest contains 4 N eggs, where N = number of vessels)
  2:
for  t = 1 to max. iterations do                                             ▹ Termination criterion
  3:
    for  i = 1 to m do
  4:
         X n e w = P [ i ] + α L e v y ( λ )                                          ▹ Generate new solution
  5:
         C o s t p r e v = Calculate fitness cost of P [ i ] using Equation (1)
  6:
         C o s t n e w = Calculate fitness cost of X n e w using Equation (1)
  7:
        if  C o s t n e w < C o s t p r e v  then
  8:
            P [ i ] = X n e w                                                                  ▹ Found better solution
  9:
    for  i = 1 to m do
10:
        if ( r a n d ( 0 , 1 ) < p a ) then
11:
            P [ i ] = New host nest is generated (old nest is abandoned)
12:
X b e s t = Find best host nest with minimum cost in P

4.2. Genetic Algorithm

The genetic algorithm (GA) is an evolution-based algorithm developed from the law of evolution in the ecological world. It is also known as a population-based method that explores the concept of survival of the fittest [37]. After the first population is generated, it evolves better and better approximate solutions from generation to generation. In each generation, the individual is selected based on the fitness of different individuals in a particular problem domain. Then, the individuals are combined and crossed by the genetic operators in natural genetics, and then a new population is generated, which is a new solution set. Chromosome representation, selection, crossover, mutation, and fitness function calculation are the key elements of GA.
  • GA mapping to MQ BAP and QCAP: Algorithm 2 shows the working procedure of GA when adopted to the MQ BAP and QCAP. A random population P of m chromosomes is generated, and each chromosome represents a possible solution set for arriving vessels (line #1). The number of chromosomes equals the population size, which is set to 100. A chromosome consists of genes, each representing a single solution, i.e., berthing time or berthing quay or berthing position at the assigned quay or set of assigned cranes. Hence, the number of chromosome genes equals 4 N , where N is the number of vessels arriving in a planning horizon. The fitness value of each chromosome is computed using the objective function (Equation (9)), and the best chromosome with minimum objective value is selected as the local best chromosome (line #2). A proportion of the fittest population from P is selected to start a new generation P (line #4). Two chromosomes (parents), C 1 and C 2 , are randomly selected from the population (line #6), and a crossover with probability P c is applied to C 1 and C 2 to generate offspring (line #7). During crossover, some of the two parents’ single solutions (genes) are exchanged among themselves to generate the offspring. Next, a mutation with probability P m is performed on the offspring O to generate a new offspring O , where some of the single solutions (genes) of O are replaced (line #8). The new offspring are placed into the new population to avoid local optima (line #9). The above steps are repeated after replacing the old population with the new population until the maximum number of iterations is reached.
Algorithm 2 GA for MQ BAP and QCAP
  1:
P [ 1 . . m ] = Initialize random population of m = 100 chromosomes
           (each chromosome contains 4 N genes, where N = number of vessels)
  2:
Evaluate initial population P using fitness cost function (Equation (1))
  3:
for  t = 1 to max. iterations do                                           ▹ Termination criterion
  4:
     P [ 1 . . k ] = Get the k fittest chromosomes from P
  5:
    for  i = k + 1 to m do
  6:
         [ C 1 , C 2 ] = Select a pair of parents from P using roulette wheel selection
  7:
         O = Perform multi-point crossover using [ C 1 , C 2 ] (crossover rate is 0.90)
  8:
         O = Perform mutation on O (mutation rate is 0.10)
  9:
         P [ i ] = O
10:
    Evaluate new population P using fitness cost function (Equation (1))
11:
     P = P
12:
X b e s t = Find best chromosome with minimum cost in P

4.3. Particle Swarm Optimization

The particle swarm optimization (PSO) algorithm is a swarm-based metaheuristic global optimization method that has attracted much attention in the last two decades. The PSO is capable of solving large and complex problems that traditional methods cannot address. The PSO follows the behavior and social cooperation of flocks of birds and borrows heavily from the evolutionary behavior of these organisms. In PSO, all possible solutions are represented by particles (birds) in a search space, and each particle has its fitness value based on the objective function that is to be optimized. Each particle also has a velocity that controls how the particles fly. The particles fly in the search space and follow/consider the current optima to find a local optimum. At each iteration, the local optimum is updated by the global optimum based on the objective function.
  • PSO mapping to MQ BAP and QCAP: The working procedure of PSO is described in Algorithm 3. First, m random particles are generated in the search space ( m = 100 in our study), where each particle represents a solution set with 4 N dimensions, where N is the number of vessels (line #1). Each dimension represents either berthing time or berthing quay or berthing position on the assigned quay or set of assigned cranes. The fitness of all particles (solution sets) is evaluated using Equation (1) to identify the best position (dimensions) for each particle and for the entire swarm (line #2). Next, the velocities and positions (dimensions) of the particles are updated by taking into consideration the local and global best positions in order to generate new positions that move toward the globally best solution and avoid local optima (lines #5–11). The above process is repeated until the maximum number of iterations is reached.
Algorithm 3 PSO for MQ BAP and QCAP
  1:
P [ 1 . . m ] = Initialize random population of m = 100 particles
           (each particle position/velocity contains 4 N dimensions, N = num vessels)
  2:
Evaluate initial population P using fitness cost function (Equation (1))
  3:
for  t = 1 to max. iterations do                                                                 ▹ Termination criterion
  4:
    for  i = 1 to m do
  5:
        Compute new velocity of particle P [ i ]
  6:
        Compute new position of particle P [ i ] using its new velocity
  7:
         C o s t n e w = calculate fitness cost of P [ i ] using Equation (1)
  8:
        if  C o s t n e w < P [ i ] ’s best local cost then
  9:
           Update P [ i ] ’s best local solution
10:
        if  C o s t n e w < swarm’s best global cost then
11:
           Update swarm’s best global solution
12:
X b e s t = swarm’s best global solution

4.4. First Come First Serve (FCFS)

This study also implements a first come first serve (FCFS) strategy to address the MQ-BAP and QCAP, as adopted in [38] for the BAP. The FCFS method proposes the solution of MQ BAP and QCAP solely based on the sequence of vessel arrivals. In this approach, the first vessel to arrive is given priority for its preferred position on its preferred berthing quay, and it is allocated the maximum available cranes that can serve the given vessel. If upon arrival there are no berthing slots available, the vessel must wait until one becomes vacant. It is important to note that vessels can also be moored at a non-preferred berth position or ABQ in case of high waiting times, for example, when the waiting time is expected to be higher than the vessel’s handling time.

5. Experimental Setting and Results

In this section, we first present a case study from the Port of Limassol, Cyprus, and then show experimental results. A real-world case study (with real data, real port settings, real constraints, and real arriving ships) is used to test the performance of the proposed approach. We perform experiments with different data instances, i.e., with one, two, and four weeks of data. All approaches (i.e., PSO, GA, MILP, FCFS, and the newly adopted CSA) are implemented in MATLAB to conduct a comparative study. For MILP, we employed the solver-based optimization approach and utilized the intlinprog solver provided by MATLAB. For the CSA, host nests are 100 with a discovery rate of 0.45, and total iterations are set to 1000. For the GA, population size is set to 100, crossover rate to 0.10%, mutation rate to 90%, and total iterations to 1000 (similar to [22]). For PSO, the inertia weight is set to 1, local learning coefficient to 1.5, global learning coefficient to 2.0, and total iterations to 1000 (similar to [39]). All experiments are performed using a Windows 10 computer system with 3.4 GHz Core i7 and 16 GB RAM.

5.1. A Case Study at the Port of Limassol

This study deals with the case of a real port, located in the city of Limassol, which is the largest port of the island (Cyprus). In the Port of Limassol, there are five commercial berthing quays, all of which are continuous (and hence, arriving ships can berth anywhere on the quay). All quays are of different lengths: Container Quay: 800 m, Ro-Ro Quay: 450 m, West Quay: 770 m, North Quay: 430 m, and East Quay: 480 m. The Container Quay serves only container ships, the Ro-Ro Quay serves both container and roll-on/roll-off ships, the West and North Quays serve general cargo traffic, and the East Quay serves only passenger vessels.
The Container Quay is divided into two parts, as shown in Figure 1. On one side, there are two cranes, and on the other side, there are three cranes for loading and unloading. There is also a dead space between the two parts of the quay that cannot be used for berthing for safety reasons (see the black-colored part of the quay in Figure 1). The five cranes installed at the Container Quay have different productivity: two cranes have a maximum productivity of 40 containers per hour (red-colored cranes), two cranes have a maximum productivity of 35 containers per hour (blue-colored), and the last crane has a productivity of 22 containers per hour (white-colored), as depicted in Figure 1. It should be noted that the cranes rarely reach maximum productivity due to manpower issues, traffic problems, and other technical challenges. Hence, the average productivity is utilized, which for the first four cranes is 25 containers per hour, while the last crane achieves an average productivity of 20 containers per hour. There are also two cranes installed at the Ro-Ro Quay with an average productivity of 20 containers per hour. In addition, all installed cranes at both (Container and Ro-Ro) quays are moveable but within a certain range and cannot cross each other. Further details about all cranes, including working locations, are presented in Table 2.
In our experiments, we use data from one week, two weeks, and four weeks, which contain 28, 68, and 168 ships, respectively, arriving in March 2018. Table 3 shows example data. The real data do not include ABQs and PBPs for incoming ships. Thus, we generated random PBPs, as listed in Table 3. We also allocate up to one ABQ (listed in Table 3) for each vessel based on vessel type (e.g., passenger or container vessel) and/or characteristics (e.g., presence of cranes or passenger boarding bridges).

5.2. Results and Discussion

This section shows results obtained by applying the three CI algorithms and the exact MILP method over the real dataset obtained from the Port of Limassol, Cyprus (example data are given in Table 3). Figure 4 shows the solutions proposed by our CSA and other two heuristics along with MILP approaches for the allocation of berths and quay cranes to the 28 arriving ships for the one-week planning horizon. The rectangles in this figure show each vessel, the x-axis indicates the berthing time, and the y-axis indicates the berthing quay and position of each vessel. The number in front of the rectangle shows the ship index and the text in green color shows the assigned set of cranes to each vessel. In addition, ships with blue rectangles indicate that they are moored at their PBQ, while ships moored in ABQ are colored red. Vessels are moored in ABQ when there is a long waiting time before the optimal berth assignment, which may result in delayed departures. From Figure 4, it can be seen that vessel 23 is berthed at North Quay instead of West Quay when MILP, GA, and PSO are used. On the other hand, CSA places vessel 23 at its PBQ but at the expense of placing it far from its preferred berthing position (PBP), increasing the total service cost compared to the other methods; however, moving any vessel to ABQ will incur penalty due to mooring at the non-preferred quay. Here, it is important to note that there are only two quays where QCs are installed and assigned by all algorithms, i.e., Container and Ro-Ro. All other quays are passenger/general cargo quays, and no cranes are installed on these quays. In the case of the container quays, the total operating time of the vessels is calculated based on the number of cranes used and their productivity. However, in the case of the other three quays, the total handling time of the vessels is considered as input. In a week, four ships arrive at the Container Quay, and all of them are assigned the optimal number of cranes using all the implemented algorithms.
The results presented in Figure 5 show the mean difference and standard error between the optimal berthing times and the times proposed by the different methods. It can be seen that there is no mean difference and standard error when MILP is used for a planning horizon of one week. However, MILP was only able to solve the one-week planning horizon and became stuck at the two-week and four-week planning horizons and ran out of memory. On the other hand, the CSA shows superiority over the other three approaches (i.e., the GA, PSO, and FCFS) in all three scenarios. Moreover, there is a high mean difference and standard error using the FCFS method due to the frequent long waiting times induced by this approach. Moreover, the GA performs well in the case of one-week and four-week scenarios compared to PSO, while PSO shows a smaller mean difference and error in the case of the two-week scenario.

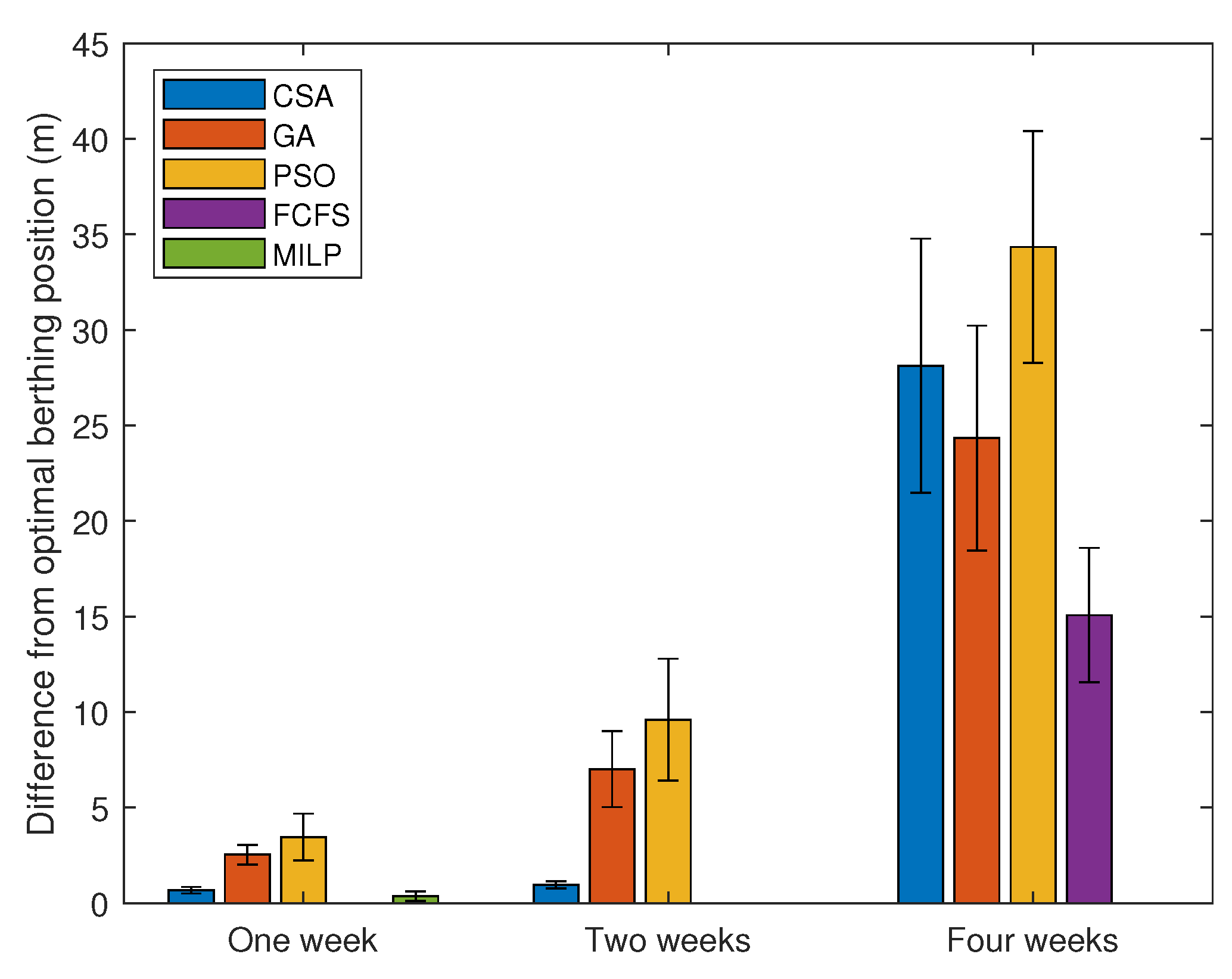

Figure 6 shows the mean difference between optimal and non-optimal berthing positions. It can also be seen that the MILP and FCFS have the smallest difference in the case of one week; however, MILP cannot solve the other two cases. On the contrary, the CSA again performs well in the one-week and two-week scenarios compared to the GA and PSO. However, FCFS has a lower mean difference in the two and four-week scenarios compared to other methods. Furthermore, in all cases, the GA performs well and outperforms PSO.

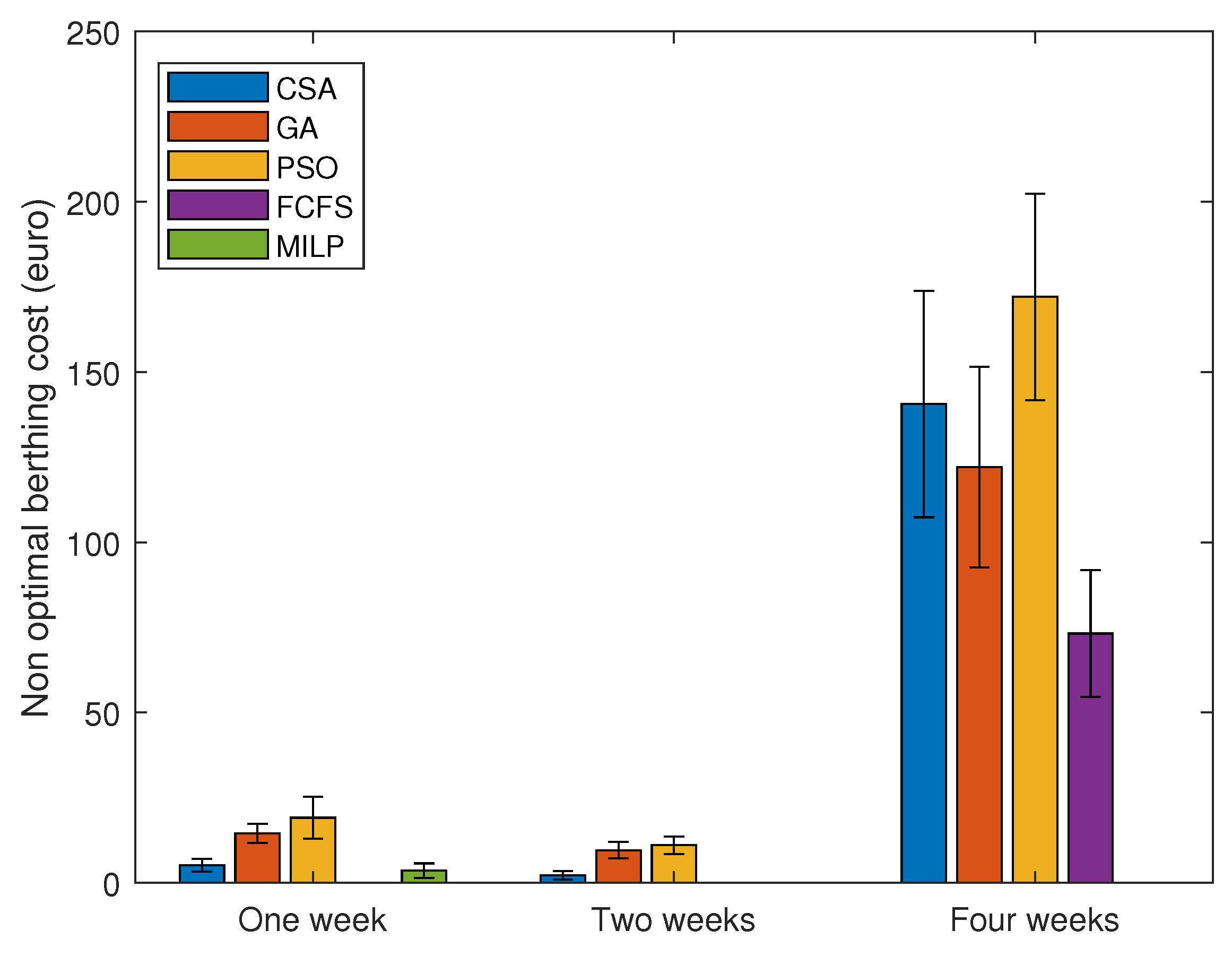

The results presented in Figure 7 show the mean difference between optimal and non-optimal berthing costs that occurred due to the allocation of vessels to locations other than the PBPs. Again, we can clearly see that the CSA has the smallest mean difference after MILP and FCFS in the case of one- and two-week scenarios; FCFS, on the other hand, has the smallest difference in the case of the four-week scenario. We can conclude from the above discussions that the CSA performs well overall compared to the GA, FCFS and PSO; however, MILP shows better results but only in the case of a week case study.
To show a more in-depth comparison of the compared methods, Table 4 presents the different costs associated with the total service costs and computation times of the different algorithms in different scenarios, i.e., one week, two weeks, and four weeks. Waiting costs are incurred when a vessel v has to wait before the optimal berth allocation, while non-optimal berthing (NOB) costs are included in the total service cost when a vessel v is berthed at a position other than its PBP or at an ABQ instead of PBQ. NOB is added based on the absolute difference between the optimal berth position and the assigned position (by any algorithm), as described in Equation (5). However, a fixed penalty is added in case of berth allocation at ABQ. From this table, it can be seen that MILP has a minimum total cost (10,090) with 0 waiting cost. Nonetheless, it provides an optimal solution at the expense of computation time, which is 912.55 s (more than 15 min) for the one-week scenario. In the experiments for the two-week and four-week planning periods, MILP cannot solve the problem and runs out of memory. On the other hand, the total service cost of CSA (10,320) is close to the cost of MILP and lower compared to other CI methods (i.e., GA and PSO) in the case of the one-week scenario. The CSA cost performance is followed by the GA and then PSO for the same scenario.
Moreover, when we run experiments for two weeks, the CSA again shows supremacy over the GA, PSO, and FCFS in terms of total service cost. Furthermore, FCFS shows 0 or minimum NOB cost compared to other methods, however, at the expense of high waiting cost. Eventually, when we run experiments for four weeks, we noticed that the NOB cost of all algorithms is increased; in this case, the CSA again achieves minimum cost, after FCFS, compared to PSO and the GA. The total service cost by the CSA is 63,875 and is minimal compared to other methods in case of four weeks. However, the GA follows the CSA and achieves a slightly higher cost of 64,975, which is much better compared to PSO (72,290) and FCFS (73,950). Finally, regarding computation time, FCFS has the minimum computation time in all cases; however, the total service cost is very high and 15.77–52.27% higher than our proposed CSA method. However, after FCFS, the CSA solves all the scenarios in minimum computation times that are 84.73, 336.16, and 388.20 s for one week, two weeks, and four weeks, respectively. In contrast, the GA and PSO take 94.67 and 316.23 s for one week, 226.57 and 534.80 s for two weeks, and 2663.13 and 2777.40 s for four weeks, respectively. Based on the aforementioned comparative analysis, it can be concluded that the proposed CSA-based approach for MQ BAP and QCAP delivers a near-optimal solution while maintaining good computational efficiency.
To further evaluate the proposed method, we conduct additional experiments using randomly generated (uniform) data instances, following the previous literature [14,22,25,40]. The data instances are generated considering various scenarios, including 1 to 7 days for the planning horizon, one to several quays of different lengths, and 10 to 60 arriving vessels. The results from these random data instances, shown in Table 5, further confirm the effectiveness of the proposed method in solving the MQ BAP and QCAP. For example, in cases with 10, 20, and 30 vessels, the CSA is only 2.68%, 0.98%, and 0.41% away from the optimal solution provided by MILP. However, when the number of vessels exceeds 30, the exact method is unable to solve the problem due to memory limitations, whereas the CSA continues to provide (near) optimal solutions within a reasonable computation time. Additionally, when comparing the proposed CSA with other heuristics, the results clearly show that the CSA consistently outperforms PSO, while GA performs better in terms of computation time albeit at the cost of higher total service costs—ranging from a minimum of 2.04% higher for 10 vessels to a maximum of 27.02% higher for 15 vessels.

6. Managerial Insights

While this study primarily presents a solution to the operational-level challenges posed by MQ BAP and QCAP, aiming to minimize the total service cost and reduce computation time, it is also able to offer valuable insights to terminal managers and policymakers. Based on the model formulation and the experimental results, the following observations are obtained.
First, the penalties are less when all algorithms are tested for one-week and two-week scenarios (especially for penalty due to non-optimal berthing position), as can be seen from Table 4. The mean difference and standard error are also low when we implement for up to the two-week case, as depicted in Figure 5, Figure 6 and Figure 7. Therefore, to achieve better results at the Port of Limassol, this study suggests scheduling berth and quay crane assignments one or two weeks in advance using our proposed methodology. In case of changes in the ship arrival schedule, the methodology is able to adjust new or missing vessels, as computation time is low (as shown in Table 4).
Second, in case of any conflict among vessels’ arrival/ departure times and positions, the CI-based methodology can help berth planners to assign a berth quay and position near the assigned storage area in the marshaling yard (as determined by the vessel’s PBQ, ABQ, and PBP). With this approach, it becomes possible to minimize both the cost and time associated with container/cargo transfers. Ultimately, with the proposed approach, container terminals can maximize their productivity to its fullest potential.
Third, investing in additional QCs may be worthwhile for ports, as ships will be handled faster and at a lower cost if the proposed model is implemented. Our proposed methodology can quantify the gains by re-executing the berth and QC assignment using hypothetical QCs (before investment). In addition, the latest technologies can further help in reducing waiting times, total stay time of vessels, and different penalties during regular processes.

7. Conclusions

This study investigates the MQ BAP and QCAP in a real-world scenario with the objective of minimizing the total service cost for arriving vessels. To solve this problem, an MILP model is developed and solved using both exact and computational intelligence (CI) methods. We implement the cuckoo search algorithm (CSA), genetic algorithm (GA), particle swarm optimization (PSO), and first come first serve (FCFS) for MQ BAP and QCAP. To validate the methods, we test them on real data collected at the port Port of Limassol, Cyprus. We use three different scenarios, i.e., one week, two weeks, and four weeks, to verify the scalability of the developed approaches. Simulation results confirm the effectiveness of our proposed CSA over the compared methods. Furthermore, the MILP can only solve a one-week scenario and requires a lot of computation time (912 s). In contrast, the CSA method solves the one-week scenario in only 84.73 s, and the achieved objective value (10320 Euro) is only 1% away from the optimal solution (10090 Euro). Moreover, the CSA-based solution also performs better than the other two methods, i.e., GA and PSO, in terms of objective value and computation time.
Based on extensive experiments, we can conclude that the exact method for MQ BAP and QCAP tends to require too much computational effort to be of practical use and cannot solve the problem in large instances. On the contrary, CI-based approaches, especially the CSA, are able to offer solutions close to the optimal ones in a short computation time. Moreover, even for large data instances, the computation time of the CSA solution remains below 400 s (about 6 min). This presents the opportunity to evaluate the berthing and crane allocation plans more quickly in the dynamic environment of large container terminals, allowing the berth planner to more efficiently handle adjustments due to sudden schedule changes or disruptions and make management decisions.

Author Contributions

Conceptualization, M.P.M. and H.H.; Data curation, S.A. and H.H.; Formal analysis, S.A.; Funding acquisition, M.P.M. and H.H.; Methodology, M.P.M., S.A. and H.H.; Software, S.A.; Supervision, M.P.M. and H.H.; Validation, M.P.M. and S.A.; Visualization, S.A. and H.H.; Writing—original draft, S.A., M.P.M. and H.H.; Writing—review and editing, S.A., M.P.M. and H.H. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the European Union’s Horizon Europe program for Research and Innovation through the aerOS project under Grant No. 101069732 as well as by the European Regional Development Fund and the Republic of Cyprus through the Cyprus Research and Innovation Foundation (MDigi-I: STRATEGIC INFRASTRUCTURES/1222/0113).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data can be provided on request to corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

Abbreviations

The following abbreviations are used in this manuscript:
ABQalternative berthing quay
BAPberth allocation problem
B&Cbranch and cut
CIcomputational intelligence
CSAcuckoo search algorithm
DEdifferential evolution
ETAestimated time of arrival
FCFSfirst come first serve
GAgenetic algorithm
MCTmaritime container terminal
MILPmixed integer linear programming
MQmulti-quay
NOBnon-optimal berthing position
NOQnon-optimal berthing quay
QCquay crane
QCAPquay crane allocation problem
RTDrequested time of departure
SAsimulated annealing
PBQpreferred berthing quay
PBPpreferred berthing position
PSOparticle swarm optimization

References

  1. Review of Maritime Transport 2022. United Nations Conference on Trade and Development, New York. 2022. Available online: https://unctad.org/system/files/official-document/rmt2022_en.pdf (accessed on 17 July 2024).
  2. Zheng, F.; Li, Y.; Chu, F.; Liu, M.; Xu, Y. Integrated berth allocation and quay crane assignment with maintenance activities. Int. J. Prod. Res. 2019, 57, 3478–3503. [Google Scholar] [CrossRef]
  3. Michaelides, M.P.; Herodotou, H.; Lind, M.; Watson, R.T. Port-2-port communication enhancing short sea shipping performance: The case study of Cyprus and the Eastern Mediterranean. Sustainability 2019, 11, 1912. [Google Scholar] [CrossRef]
  4. Lind, M.; Michaelides, M.P.; Robert, W.; Richard, W.T. Maritime Informatics; Springer: Berlin/Heidelberg, Germany, 2020. [Google Scholar]
  5. Wang, Z.; Hu, H.; Zhen, L. Berth and quay cranes allocation problem with on-shore power supply assignment in container terminals. Comput. Ind. Eng. 2024, 188, 109910. [Google Scholar] [CrossRef]
  6. Aslam, S.; Michaelides, M.P.; Herodotou, H. A survey on computational intelligence approaches for intelligent marine terminal operations. IET Intell. Transp. Syst. 2024. [Google Scholar] [CrossRef]
  7. Li, Y.; Chu, F.; Zheng, F.; Liu, M. A Bi-Objective Optimization for Integrated Berth Allocation and Quay Crane Assignment With Preventive Maintenance Activities. IEEE Trans. Intell. Transp. Syst. 2020. [Google Scholar] [CrossRef]
  8. Yu, T.; Qiang, Z.; Benfei, Z. A genetic algorithm based on spatiotemporal conflict between continuous berth-allocation and time-varying specific crane assignment. Eng. Optim. 2019, 51, 390–411. [Google Scholar] [CrossRef]
  9. Aslam, S.; Michaelides, M.P.; Herodotou, H. Enhanced Berth Allocation Using the Cuckoo Search Algorithm. SN Comput. Sci. 2022, 3, 1–15. [Google Scholar] [CrossRef]
  10. Bierwirth, C.; Meisel, F. A follow-up survey of berth allocation and quay crane scheduling problems in container terminals. Eur. J. Oper. Res. 2015, 244, 675–689. [Google Scholar] [CrossRef]
  11. Chang, S.C.; Lin, M.H.; Tsai, J.F. An Optimization Approach to Berth Allocation Problems. Mathematics 2024, 12, 753. [Google Scholar] [CrossRef]
  12. Xiang, X.; Liu, C. An almost robust optimization model for integrated berth allocation and quay crane assignment problem. Omega 2021, 104, 102455. [Google Scholar] [CrossRef]
  13. Rodrigues, F.; Agra, A. Berth allocation and quay crane assignment/scheduling problem under uncertainty: A survey. Eur. J. Oper. Res. 2022, 303, 501–524. [Google Scholar] [CrossRef]
  14. Frojan, P.; Correcher, J.F.; Alvarez-Valdes, R.; Koulouris, G.; Tamarit, J.M. The continuous Berth Allocation Problem in a container terminal with multiple quays. Expert Syst. Appl. 2015, 42, 7356–7366. [Google Scholar] [CrossRef]
  15. Krimi, I.; Todosijević, R.; Benmansour, R.; Ratli, M.; El Cadi, A.A.; Aloullal, A. Modelling and solving the multi-quays berth allocation and crane assignment problem with availability constraints. J. Glob. Optim. 2020, 78, 349–373. [Google Scholar] [CrossRef]
  16. Gutierrez, F.; Lujan, E.; Asmat, R.; Vergara, E. Fully fuzzy linear programming model for the berth allocation problem with two quays. In Uncertainty Management with Fuzzy and Rough Sets: Recent Advances and Applications; Springer: Berlin/Heidelberg, Germany, 2019; pp. 87–113. [Google Scholar]
  17. Lujan, E.; Vergara, E.; Rodriguez-Melquiades, J.; Jiménez-Carrión, M.; Sabino-Escobar, C.; Gutierrez, F. A Fuzzy Optimization Model for the Berth Allocation Problem and Quay Crane Allocation Problem (BAP+ QCAP) with n Quays. J. Mar. Sci. Eng. 2021, 9, 152. [Google Scholar] [CrossRef]
  18. Aslam, S.; Michaelides, M.P.; Herodotou, H. Muli-Quay Combined Berth and Quay Crane Allocation Using the Cuckoo Search Algorithm. In Proceedings of the 8th International Conference on Vehicle Technology and Intelligent Transport Systems (VEHITS), Angers, France, 2–4 May 2024; pp. 220–227. [Google Scholar]
  19. Theofanis, S.; Boile, M.; Golias, M. An optimization based genetic algorithm heuristic for the berth allocation problem. In Proceedings of the 2007 IEEE Congress on Evolutionary Computation, Singapore, 25–28 September 2007; IEEE: Piscataway, NJ, USA, 2007; pp. 4439–4445. [Google Scholar]
  20. Golias, M.M.; Boile, M.; Theofanis, S. Berth scheduling by customer service differentiation: A multi-objective approach. Transp. Res. Part Logist. Transp. Rev. 2009, 45, 878–892. [Google Scholar] [CrossRef]
  21. Golias, M.M.; Saharidis, G.K.; Boile, M.; Theofanis, S.; Ierapetritou, M.G. The berth allocation problem: Optimizing vessel arrival time. Marit. Econ. Logist. 2009, 11, 358–377. [Google Scholar] [CrossRef]
  22. Alsoufi, G.; Yang, X.; Salhi, A. Robust berth allocation using a hybrid approach combining branch-and-cut and the genetic algorithm. In Proceedings of the International Workshop on Hybrid Metaheuristics, Plymouth, UK, 8–10 June 2016; Springer: Berlin/Heidelberg, Germany, 2016; pp. 187–201. [Google Scholar]
  23. Şahin, C.; Kuvvetli, Y. Differential evolution based meta-heuristic algorithm for dynamic continuous berth allocation problem. Appl. Math. Model. 2016, 40, 10679–10688. [Google Scholar] [CrossRef]
  24. Lee, D.H.; Chen, J.H.; Cao, J.X. The continuous berth allocation problem: A greedy randomized adaptive search solution. Transp. Res. Part E Logist. Transp. Rev. 2010, 46, 1017–1029. [Google Scholar] [CrossRef]
  25. Ernst, A.T.; Oğuz, C.; Singh, G.; Taherkhani, G. Mathematical models for the berth allocation problem in dry bulk terminals. J. Sched. 2017, 20, 459–473. [Google Scholar] [CrossRef]
  26. Korekane, S.; Nishi, T.; Tierney, K.; Liu, Z. Neural network assisted branch and bound algorithm for dynamic berth allocation problems. Eur. J. Oper. Res. 2024, 319, 531–542. [Google Scholar] [CrossRef]
  27. Xu, Y.; Xue, K.; Du, Y. Berth scheduling problem considering traffic limitations in the navigation channel. Sustainability 2018, 10, 4795. [Google Scholar] [CrossRef]
  28. Li, Y.; Chu, F.; Zheng, F.; Kacem, I. Integrated Berth Allocation and Quay Crane Assignment With Uncertain Maintenance Activities. In Proceedings of the 2019 International Conference on Industrial Engineering and Systems Management (IESM), Shanghai, China, 25–27 September 2019; IEEE: Piscataway, NJ, USA, 2019; pp. 1–6. [Google Scholar]
  29. Abou Kasm, O.; Diabat, A.; Cheng, T. The integrated berth allocation, quay crane assignment and scheduling problem: Mathematical formulations and a case study. Ann. Oper. Res. 2020, 291, 435–461. [Google Scholar] [CrossRef]
  30. Hsu, H.P.; Chiang, T.L.; Wang, C.N.; Fu, H.P.; Chou, C.C. A Hybrid GA with Variable Quay Crane Assignment for Solving Berth Allocation Problem and Quay Crane Assignment Problem Simultaneously. Sustainability 2019, 11, 2018. [Google Scholar] [CrossRef]
  31. Wang, T.; Wang, X.; Meng, Q. Joint berth allocation and quay crane assignment under different carbon taxation policies. Transp. Res. Part B Methodol. 2018, 117, 18–36. [Google Scholar] [CrossRef]
  32. Chang, D.; Jiang, Z.; Yan, W.; He, J. Integrating berth allocation and quay crane assignments. Transp. Res. Part Logist. Transp. Rev. 2010, 46, 975–990. [Google Scholar] [CrossRef]
  33. Aslam, S.; Michaelides, M.P.; Herodotou, H. Berth allocation considering multiple quays: A practical approach using cuckoo search optimization. J. Mar. Sci. Eng. 2023, 11, 1280. [Google Scholar] [CrossRef]
  34. Iris, Ç.; Pacino, D.; Ropke, S.; Larsen, A. Integrated berth allocation and quay crane assignment problem: Set partitioning models and computational results. Transp. Res. Part E Logist. Transp. Rev. 2015, 81, 75–97. [Google Scholar] [CrossRef]
  35. Yang, X.S.; Deb, S. Cuckoo Search via Lévy Flights. In Proceedings of the World Congress on Nature & Biologically Inspired Computing (NaBIC), Coimbatore, India, 9–11 December 2009; IEEE: Piscataway, NJ, USA, 2009; pp. 210–214. [Google Scholar]
  36. Yang, X.S.; Deb, S. Cuckoo search: Recent advances and applications. Neural Comput. Appl. 2014, 24, 169–174. [Google Scholar] [CrossRef]
  37. Katoch, S.; Chauhan, S.S.; Kumar, V. A review on genetic algorithm: Past, present, and future. Multimed. Tools Appl. 2021, 80, 8091–8126. [Google Scholar] [CrossRef]
  38. Hsu, H.P.; Chiang, T.L. An improved shuffled frog-leaping algorithm for solving the dynamic and continuous berth allocation problem (DCBAP). Appl. Sci. 2019, 9, 4682. [Google Scholar] [CrossRef]
  39. Ting, C.J.; Wu, K.C.; Chou, H. Particle swarm optimization algorithm for the berth allocation problem. Expert Syst. Appl. 2014, 41, 1543–1550. [Google Scholar] [CrossRef]
  40. Xiang, X.; Liu, C.; Miao, L. A bi-objective robust model for berth allocation scheduling under uncertainty. Transp. Res. Part E Logist. Transp. Rev. 2017, 106, 294–319. [Google Scholar] [CrossRef]
Figure 1. Port of Limassol structure showing its seven berthing quays. The Container and Ro-Ro Quay have 5 and 2 installed cranes, respectively. Note: quays with ∗ indicate that these are not used for commercial purposes.
Figure 1. Port of Limassol structure showing its seven berthing quays. The Container and Ro-Ro Quay have 5 and 2 installed cranes, respectively. Note: quays with ∗ indicate that these are not used for commercial purposes.
Jmse 12 01567 g001
Figure 2. An illustration of the spatiotemporal constraint (15) featuring two arriving vessels (v and u) with different berthing times, berthing positions, and lengths. The red dotted box indicates the restricted area for vessel u to avoid overlap with an already scheduled vessel v.
Figure 2. An illustration of the spatiotemporal constraint (15) featuring two arriving vessels (v and u) with different berthing times, berthing positions, and lengths. The red dotted box indicates the restricted area for vessel u to avoid overlap with an already scheduled vessel v.
Jmse 12 01567 g002
Figure 3. An illustration of constraint (16). The cranes c 4 and c 5 assigned to ship v cannot be assigned to ship u if ship u is scheduled to be berthed in the restricted area marked with the red dotted box.
Figure 3. An illustration of constraint (16). The cranes c 4 and c 5 assigned to ship v cannot be assigned to ship u if ship u is scheduled to be berthed in the restricted area marked with the red dotted box.
Jmse 12 01567 g003
Figure 4. Berth and quay crane scheduling solutions by our proposed CSA and compared approaches.
Figure 4. Berth and quay crane scheduling solutions by our proposed CSA and compared approaches.
Jmse 12 01567 g004
Figure 5. Mean difference and standard error between berthing time by five implemented methods and optimal berthing time for three different scenarios (1, 2, and 4 weeks).
Figure 5. Mean difference and standard error between berthing time by five implemented methods and optimal berthing time for three different scenarios (1, 2, and 4 weeks).
Jmse 12 01567 g005
Figure 6. Mean difference and standard error between planned and preferred berthing position by five implemented methods for three different scenarios (1, 2, and 4 weeks).
Figure 6. Mean difference and standard error between planned and preferred berthing position by five implemented methods for three different scenarios (1, 2, and 4 weeks).
Jmse 12 01567 g006
Figure 7. Mean difference and standard error between optimal and non-optimal berthing cost by five implemented methods for three different scenarios (1, 2, and 4 weeks).
Figure 7. Mean difference and standard error between optimal and non-optimal berthing cost by five implemented methods for three different scenarios (1, 2, and 4 weeks).
Jmse 12 01567 g007
Table 1. Mathematical notations. Note that time is discretized into small intervals and categorical variables (e.g., vessels, quays) are mapped into unique integer values.
Table 1. Mathematical notations. Note that time is discretized into small intervals and categorical variables (e.g., vessels, quays) are mapped into unique integer values.
NameTypeExplanation
Parameters
A B Q v Set of IntegersAlternative (preferred) berthing quays of vessel v
A T v IntegerExpected arrival time of vessel v
C v h ContinuousHandling cost per time interval for vessel v
C v w ContinuousWaiting cost per time interval for vessel v
C v l d ContinuousLate departure cost per time interval for vessel v
C v n o b ContinuousPenalty cost for non-optimal berthing position for vessel v
C v n o q ContinuousPenalty cost for non-optimal berthing quay for vessel v
c m i n IntegerMinimum berthing position served by crane c
c m a x IntegerMaximum berthing position served by crane c
H P q c ContinuousHandling productivity of crane c located on quay q
L q IntegerLength of quay q
L v IntegerLength of vessel v
L o a d v IntegerTotal load of vessel v
S C q c ContinuousService cost per time interval of crane c located on quay q
S D IntegerSafety berthing distance between vessels
S E IntegerSafety entrance time between vessels
S T IntegerSafety berthing time between vessels
P B P v IntegerPreferred berthing position at the preferred berthing quay of vessel v
P B Q v IntegerPreferred berthing quay of vessel v
R D T v IntegerRequested departure time of vessel v
Decision Variables
B P v IntegerPlanned berthing position at the planned berthing quay of vessel v
B Q v IntegerPlanned berthing quay of vessel v
B T v IntegerPlanned berthing time of vessel v
k v IntegerSet of cranes assigned to vessel v (encoded in binary form)
x v q b k t Binary1, if the vessel v is assigned at position b of quay q at time t to be served by cranes encoded in k, and 0 otherwise
Auxiliary Variables
D v IntegerDeviation time for vessel v if it is berthed to a position other than P B P v
F T v IntegerFinishing time of loading/unloading operations of vessel v
H T v IntegerHandling time of vessel v
L D T v IntegerLate departure time of vessel v
W T v IntegerWaiting time of vessel v
Sets and Indices
VSet of IntegersSet of arriving vessels; v V a vessel
QSet of IntegersSet of berthing quays; q Q a quay
B ( q ) Set of IntegersSet of berth positions on q Q ; b B ( q ) a berth position
C ( q ) Set of IntegersSet of quay cranes on quay q Q ; c C ( q ) a crane
K ( q ) Set of IntegersPower set of cranes set C ( q ) ; k K ( q ) represents a subset of cranes from C ( q ) encoded as an integer in a binary form
TSet of IntegersSet of time intervals (planning horizon); t T a time interval
Table 2. Working locations, maximum productivity, and average productivity of cranes at Container Quay and Ro-Ro Quay.
Table 2. Working locations, maximum productivity, and average productivity of cranes at Container Quay and Ro-Ro Quay.
QuayCrane #Locations (m)Productivity max / avg (cont/hour)
ContainerCrane 1 (white)1–10022 / 20
ContainerCrane 2 (blue)50–27535 / 25
ContainerCrane 3 (blue)225–45035 / 25
ContainerCrane 4 (red)470–70040 / 25
ContainerCrane 5 (red)550–80040 / 25
Ro-RoCrane 11–30025 / 20
Ro-RoCrane 2200–45025 / 20
Table 3. Example data for 10 ships that arrived during the first week of March 2018 at the Port of Limassol, Cyprus.
Table 3. Example data for 10 ships that arrived during the first week of March 2018 at the Port of Limassol, Cyprus.
ShipETAHTETDPBQABQPBPLoS
# (d\t) (min) (d\t) (m)
11\04:009191\22:30Ro-RoContainer240194
21\05:3014902\06:50East276139
31\14:0012852\12:50WestNorth8484
41\15:0057005\14:03East5189
51\17:0059705\21:00WestNorth314190
62\04:304702\13:50Ro-RoContainer138159
72\05:001682\09:30ContainerRo-Ro571196
82\08:004402\15:55NorthWest53155
93\04:009053\20:50Ro-RoContainer31175
103\03:3013314\06:15ContainerRo-Ro389277
Table 4. Comparative analysis with data spanning a period of 1–4 weeks (March 2018) for all methods. All costs are in Euros. % Deviation is calculated with reference to the total service cost of the CSA approach.
Table 4. Comparative analysis with data spanning a period of 1–4 weeks (March 2018) for all methods. All costs are in Euros. % Deviation is calculated with reference to the total service cost of the CSA approach.
Scenarios:One Week (28 Ships)Two Weeks (68 Ships)Four Weeks (168 Ships)
Algorithms: CSA GA PSO FCFS MILP CSA GA PSO FCFS MILP CSA GA PSO FCFS MILP
Waiting cost504575118501956555901615430125526256840
NOB cost2504055350100150650750019,40516,84523,74510,310
Late departure cost1401201204660120240680900644016202720350014,380
Normal handling cost9870987098709870987017,22017,22017,22017,22042,42042,42042,42042,420
Total service cost10,32010,44010,70015,71510,09017,80519,20519,46025,27563,87564,97572,29073,950
% Deviation from CSA1.163.6852.27−2.227.869.2941.951.7213.1715.77
Computation time (sec)84.7394.67316.230.20912.55336.16226.57534.803.40388.202663.132777.4012.70
Table 5. Sensitivity analysis for all approaches with uniform random data (10–60 vessels, 1–7 days, and 1–5 quays).
Table 5. Sensitivity analysis for all approaches with uniform random data (10–60 vessels, 1–7 days, and 1–5 quays).
No. of
Ships
DaysNo. of
Quays
Service Cost (Euro)Computation Time (Sec.)
CSA GA PSO MILP CSA GA PSO MILP
1011491254124961489838.1530.9230.8665.54
2295629963606285032.479.0130.8639.44
3921591919165892044.326.7427.5026.48
4377238103960376430.157.2728.2327.11
5877388258837840023.985.8524.6823.52
Avg deviation from CSA (%)2.043.04−2.68−64.63−15.757.70
15117893105518067782052.1125.1251.36190.67
2608683277350597047.8614.4641.6582.07
35580615511,815554048.0813.7941.8466.02
4481355474984480042.5811.3637.5376.75
5593679206960588035.579.4538.4282.74
Avg deviation from CSA (%)27.0229.25−0.9867.176.73120.44
2021850310,60010,355820067.0541.2078.48420.86
28270964310,020801061.1824.0654.32207.45
3835393928990831054.4917.5755.54196.60
47518988210296748053.9416.8655.20147.11
56600878812,616642044.5312.7748.84148.01
Avg deviation from CSA (%)25.2035.50−0.41−59.944.14298.95
3021178101454023,832112.2778.15135.55
219,47824,86228,21992.9333.2790.50
311,92217,00014,83881.1528.4285.23
4910312,556927874.3725.9475.51
5970213,63412,33066.5628.2275.23
Avg deviation from CSA (%)21.4330.11−54.598.13
607138,71240,42040,095221.58292.86402.24
229,58439,35330,976207.59101.89203.08
324,78620,91933,542188.2387.80199.86
416,14221,99524,246155.3389.93202.66
523,75027,14927,973151.2586.38202.97
Avg deviation from CSA (%)12.6817.94−28.6931.04
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Aslam, S.; Michaelides, M.P.; Herodotou, H. Optimizing Multi-Quay Combined Berth and Quay Crane Allocation Using Computational Intelligence. J. Mar. Sci. Eng. 2024, 12, 1567. https://doi.org/10.3390/jmse12091567

AMA Style

Aslam S, Michaelides MP, Herodotou H. Optimizing Multi-Quay Combined Berth and Quay Crane Allocation Using Computational Intelligence. Journal of Marine Science and Engineering. 2024; 12(9):1567. https://doi.org/10.3390/jmse12091567

Chicago/Turabian Style

Aslam, Sheraz, Michalis P. Michaelides, and Herodotos Herodotou. 2024. "Optimizing Multi-Quay Combined Berth and Quay Crane Allocation Using Computational Intelligence" Journal of Marine Science and Engineering 12, no. 9: 1567. https://doi.org/10.3390/jmse12091567

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Article metric data becomes available approximately 24 hours after publication online.
Back to TopTop
