Synthesis and Characterization of Ce³⁺-Doped Ni_0.5Cd_0.5Fe₂O₄ Nanoparticles by Sol–Gel Auto-Combustion Method

Abstract

Cerium (Ce)-doped Ni_0.5Cd_0.5Ce_xFe_2−xO₄ (0.0 ≤ x ≤ 0.20) was synthesized using the sol–gel auto-combustion method. X-ray diffraction (XRD) analysis revealed that all the samples retained spinel cubic crystal structure with space group Fd3m at 800 °C. Crystal structure parameters, such as lattice constant, average crystallite size, and X-ray density were estimated from the major XRD (311) peak. Bulk density and porosity were also calculated. The average crystallite size was estimated to be in the range of 20–24 nm. SEM images displayed agglomerated particles with a porous morphology. The dielectric constant (${\epsilon }^{\prime }$) increased and the dielectric loss tangent (tan$\mathsf{\delta }$) decreased with rising Ce concentration. The hysteresis loop (M–H loop) was measured at room temperature using a vibrating-sample magnetometer (VSM), which showed a nonlinear decrease in magnetization and coercivity with increasing Ce concentration.

1. Introduction

Nanocrystalline ferrites have gained popularity in the field of electronic technology due to their outstanding feature of “ferrimagnetism” [1]. A cubic structure having the standard formula AB₂O₄ is commonly known as a “spinel” (where A signifies divalent cation and B stands for trivalent cation) [2]. As a result, spinel ferrites can be characterized as tightly packed cubic structures containing iron (Fe³⁺) as a trivalent cation, yielding the structural formula AFe₂O₄. Most of the transition elements, such as Fe, Co, Ni, Zn, and Cd, as well as their composites, are examples of divalent cations (A). The structure of these ferrites is comparable to that of the naturally occurring mineral MgAl₂O₄ known as spinel. These ferrites are semiconducting in nature and are also known as ferrospinels or cubic ferrites [3,4]. Spinel ferrites have drawn much attention among researchers owing to their incredibly remarkable magnetic and electrical properties, such as high saturation magnetization, large magnetocrystalline anisotropy, high squareness ratio, low coercivity [5], high electric resistivity [6], high permeability [7], low eddy current losses [8], high Curie temperature, and mechanical hardness [9]. Spinel ferrites are extensively used in the fabrication of microwave absorbers owing to their high magnetic losses and huge resistivities [10]. These ferrites are also used in the frequency range of 3–30 GHz [2]. These materials are useful in metallurgical and other high-temperature sectors because they have excellent thermodynamic stability, good electrical conductivity, and high corrosion resistance [11,12]. Spinel ferrites, with the general formula MFe₂O₄ (M = Ni, Zn, Mn, Co, Mg, etc.), are the most substantial, magnetic materials [13]. Ferrites have a spinel structure that belongs to the Fd3m space group. A cubic close-packed structure has 56 atoms, with 32 oxygen anions and 24 cations occupying 8 of the 64 tetrahedral sites (A sites) and 16 of the 32 octahedral sites (B sites), respectively [14]. There are two types of spinel ferrites that can be generally categorized [2].

(a) Normal Spinels: The general formula of normal spinels is Me²⁺[Fe₂³⁺]O₄. In normal spinels, tetrahedral or A-sites are involved with divalent ions (Me²⁺ cations) while trivalent ions are available at octahedral or B sites (Fe³⁺ cations).

(b) Inverse Spinels: The general formula of inverse spinels is (Fe³⁺) [Me²⁺Fe³⁺]O₄. In inverse spinels, divalent metal ions are present at the B-site, while trivalent metal ions are available either at the B site or at the A site [15].

Nickel spinel ferrites are spinel ferrites with a divalent cation of nickel. Nickel ferrite has a resistivity of more than 109 $\Omega$m and is a high-resistance material [16]. Nickel ferrite has an inverted spinel structure. Fe³⁺ ions occupy 8 tetrahedral voids (A-sites), while Fe³⁺ and Ni²⁺ ions occupy 16 octahedral voids (B-sites) in equal proportion. Pristine nickel ferrites (NiFe₂O₄) have a degree of inversion of one. Because of their strong electric resistivity, reduced coercive field, slight saturation magnetization, and minimal hysteresis losses, nickel ferrites are characterized as soft ferrites [17,18]. Other advantageous qualities of such soft magnetic materials include excellent permeability at high frequencies, mechanical hardness, electrical properties, affordability, and minimal dielectric and eddy current losses [3,19].

These nanoparticles’ magnetic conduct is primarily determined by their shape, purity, and magnetic stability, and they should maintain a single domain, appropriate coercivity, pure phase, mild magnetization, and the stable blocking properties that are most acceptable for their applications [20]. It is well known that smaller particles have higher remanent magnetization. As a result, smaller particles tend to have a single magnetic domain, whereas larger particles have several domains [21,22]. Ionic radii, particle size, and the existence and type of the substituent in the crystal lattice are all elements that influence the electrical and magnetic properties of ferrites [23].

Rare earth ion substitution into the spinel structure has become rare and interesting due to its dominance in many applications when compared with certain other substituted ferrite systems [24]. Rare earth ion replacement was reported to cause structural distortion as well as significant changes in electrical and magnetic characteristics [25,26]. This is because rare earth (RE) ions have unpaired 4f electrons and significant spin–orbit angular momentum coupling. The Fe–Fe interactions alter the electrical and magnetic characteristics of ferrites (spin coupling of the 3d electrons). When rare earth (RE) ions are incorporated into the spinel lattice, an RE–Fe interaction (3d–4f coupling) occurs, which improves the electrical and magnetic properties of the ferrites. Magnetocrystalline anisotropy in spinel ferrites is also determined by this feature. RE ions are increasingly used to improve the electromagnetic characteristics of spinel ferrites [27,28,29,30,31]. As a result, many researchers have been interested in studying the exceptional magnetic, optical, and electrical capabilities of RE-doped spinel ferrites. Rare earth lanthanides have high resistance and are good electrical insulators. They are commonly utilized to alter ferrites’ structural, magnetic, and electrical properties. Their substitution was shown to produce high DC resistivity, low electrical permittivity, and low dielectric loss [32]. Many studies have looked at the effects of Fe³⁺ ion replacement with RE ions, such as La, Sm, Gd, Dy, Yb, Er, Tb, Ce, and Y [33]. As a result, the Ce ion was utilized as a dopant to better understand the processes of RE-doped ferrite. The Ce ion is known to offer substantial hybridization of the 4f states with 3d bands due to the existence of a larger 4f band. The improvement of electromagnetic characteristics of Li ferrite after Ce doping [34] and the enhancement of saturation magnetization with a decrease in coercivity in Ce doping Mn–Zn ferrite [35] are both interesting topics. Many methodologies are used for the synthesis of nanoparticles, either by an electrochemical method, an electrodeposition method [36], or a cathodic electrodeposition method (CED), etc. [37].

The purpose of this study was to investigate the effects of the substitution of Ce³⁺ with Fe³⁺ in the amounts of 0, 4, 8, 12, 16, and 20 mol.%, according to the stoichiometry of Ni_0.5Cd_0.5Ce_xFe_2−xO₄ nano ferrites. The syntheses were carried out using the auto-combustion method. The samples were characterized in terms of structure, crystallite morphology, dielectric, and magnetic properties.

2. Material Synthesis and Characterizations

Samples with the chemical composition Ni_0.5Cd_0.5Ce_xFe_2−xO₄ (0.0 ≤ x ≤ 0.20) nano ferrites were prepared via the sol–gel auto-combustion method. Analytical grades Ni(NO₃)₂·6H₂O, Cd(NO₃)₂·4H₂O, Ce(NO₃)₃·6H₂O, and Fe(NO₃)₃·9H₂O were used as precursors. According to stoichiometric calculation, 0.5 M solution of each Ni(NO₃)₂·6H₂O, Cd(NO₃)₂·4H₂O, and 2 M solution of Ce(NO₃)₃·6H₂O, Fe(NO₃)₃·9H₂O were separately prepared in 100 mL of deionized water, and then all the solutions were mixed using citric acid as a chelating agent to acquire a homogenous solution with continuous stirring for 30 min. At that point, the solution was placed on a hot plate at 80 °C, maintaining the pH value at 7–8 by adding an ammonia solution, followed by constant stirring. After 5–6 h, the solution changed into a viscous brown gel, and afterward, a self-combustion occurred and the gel turned into ash. After completely crushing and grinding the ash, the fine powder was obtained and sintered at 800 °C in a furnace for 4 h.

The synthesized Ni_0.5Cd_0.5Ce_xFe_2−xO₄ (here, X = 0, 0.04, 0.08, 0.12, 0.16, 0.20) nano ferrites were characterized by an X-ray diffractometer (JDX-3532, JEOL, Tokyo, Japan), a scanning electron microscope (SEM), and an energy-dispersive X-ray spectroscopy (EDX) (JSM-5910, JEOL, Tokyo, Japan). All the samples were pressed into pellets of 12 mm diameter and 2.5–3 mm thickness by means of hydraulic press under the pressure of 30 MPa to study the dielectric behavior. Sodium silicate was utilized as a binder to obtain pellets and then sintered at 720 °C for 2 h. The dielectric constant (ε′) and dielectric loss tangent (tan δ) were measured by using an LCR meter (Wayne Kerr version 6500B, Wayne Kerr Electronics, Bognor Regis, UK) at room temperature in the frequency range of a 100 Hz to 5 MHz BH-loop by a vibrating-sample magnetometer (VSM, Micro Sense, Hamm, Germany).

3. Results and Discussion

3.1. Structural Analysis

The X-ray diffraction (XRD) profile of the powdered ${\mathrm{Ni}}_{0.5}{\mathrm{Cd}}_{0.5}{\mathrm{Ce}}_{\mathrm{x}}{\mathrm{Fe}}_{2-\mathrm{x}}{\mathrm{O}}_4$ (0.0 ≤ x ≤ 0.20) samples sintered at 800 °C for 4 h is shown in Figure 1. XRD analysis identified the formation of the single-phase nanostructure, with no secondary phase revealed [38]. Thus, a series with complete incorporation of Ce into Ni-Cd ferrite samples was formed. The reflection peaks (2 2 0), (3 1 1), (2 2 2), (4 0 0), (4 2 2), (5 1 1), and (4 4 0) were identified according to JCPDS (Card No. 96-900-9926) and using Match! Software, having a spinel structure with an Fd3m space group. XRD evaluation proved that the substitution of rare earth Ce³⁺ ion up to 0.2 in nanoparticles did not alter the crystal structure and no second phase appeared.

Lattice parameter (a) was calculated for cubic structure by using formula (1) and average crystallite size (D) by the Debye–Scherrer formula [39];

$$a=d\sqrt{h^2+k^2+l^2}$$

(1)

$$D=\frac{k\lambda }{\beta \cos ϴ}$$

(2)

In Equations (1) and (2), h, k, and l are Miller indices and d is the interplanar distance (determined by Bragg’s equation) and the full width half maxima (FWHM) of the major XRD peak.

X-ray density and mass density. X-ray density is calculated by Equation (3).

$$d_X=\frac{8M}{N_{a}V}$$

(3)

where M is the molecular mass of the sample, V is the volume of the unit cell, and N_a is Avogadro’s number (6.02 × 10²³). Molecular mass is multiplied by 8 because each primitive cell of spinel is made up of eight molecules.

The mass density of each sample was found by compacting the powders under 5000 psi pressure into pellets of a specific radius and thickness in a hydraulic press.

$$d_m=\frac{m}{\pi r^{2}t}$$

(4)

here, m stands for mass (grams), t for thickness, and r = 6 mm for the radius of the pallet.

The formula for calculating porosity (P) is

$$P=\frac{d_x-d_m}{d_x}\times 100$$

(5)

where $d_x$ is X-ray density and $d_m$ is mass density [40].

The lattice parameters, average crystallite sizes, X-ray density, mass density, and porosity are given in

Table 1. XRD parameters of prepared samples.

Samples	Lattice Parameter(a) (Å)3	Crystallite Size(D) (nm)	Volume (Å)3	X-ray Density (g/cm3)	Mass Density (g/cm3)	Porosity (P) (%)
Ni0.5Cd0.5Fe2O4	8.372	21.76	586.86	5.916	3.304	31
Ni0.5Cd0.5Ce0.04Fe1.96O4	8.385	23.99	589.74	5.962	3.381	43
Ni0.5Cd0.5Ce0.08Fe1.92O4	8.385	21.76	589.74	6.038	3.134	47
Ni0.5Cd0.5Ce0.12Fe1.88O4	8.372	20.33	586.85	6.144	3.647	41
Ni0.5Cd0.5Ce0.16Fe1.84O4	8.381	22.92	588.77	6.201	3.051	49
Ni0.5Cd0.5Ce0.20Fe1.80O4	8.385	21.84	589.74	6.266	3.279	47

.

It can be seen in Figure 1 that the reflection planes shifted toward lower angles, unlike those investigated on doping Pr, Nd, Eu, and Gd in manganese zinc ferrite [41]. The inclusion of bigger ionic radii of Ce³⁺ (1.143 Å) in the lattice site of smaller ionic radii of Fe³⁺ (0.645 Å) may lead to lattice distortion, hence stresses shift the XRD peaks toward lower angles. The lattice parameters are not significantly affected by doping the Ce³⁺ ion in ${\mathrm{Ni}}_{0.5}{\mathrm{Cd}}_{0.5}{\mathrm{Ce}}_{\mathrm{x}}{\mathrm{Fe}}_{2-\mathrm{x}}{\mathrm{O}}_4$ (0.0 ≤ x ≤ 0.20). The average crystallite size is estimated in the range of 20–24 nm and shows nonlinear behavior with increasing dopant concentration. X-ray density was found to increase linearly. However, the bulk density shows nonlinear behavior with increasing Ce³⁺ concentration. The increase in X-ray density is due to the replacement of a larger molar mass of Ce ions. Bulk density depends on voids and pores created during sintering, and porosity depends on the agglomeration and size of the particles. The porosity was increased by replacing Fe³⁺ ions with Ce³⁺ ions.

3.2. Morphological Studies and Elemental Composition

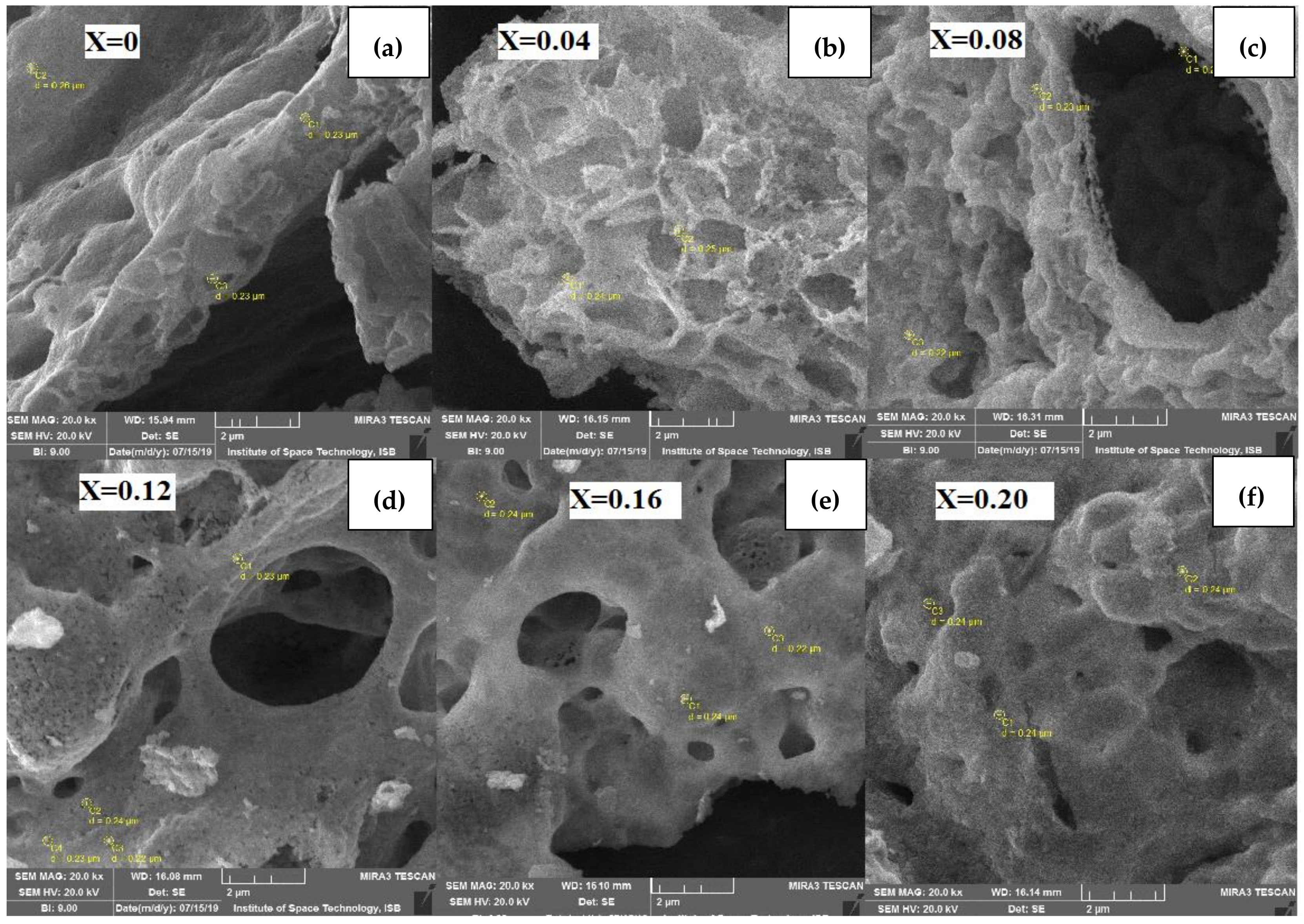

The images of the surface morphology of Ni_0.5Cd_0.5Fe₂O₄ and Ce-doped Ni_0.5Cd_0.5Fe₂O₄ annealed at 800 °C are shown in Figure 2. The scan part of the samples shows the agglomeration of particles with sponge morphology. However, above x = 0.04, the morphology was little changed, and the particles appeared to be pores of about 2–4 μm in size (

Table 2. Particle sizes obtained from SEM analysis for cerium doped in Ni_0.5Cd_0.5Fe₂O₄ nanoparticles.

Sample Name	Particles Size (µm)	Deviation in Particle Size (nm)
Ni0.5Cd0.5Fe2O4	0.24	1.489
Ni0.5Cd0.5Ce0.04Fe1.96O4	0.25	5.962
Ni0.5Cd0.5Ce0.08Fe1.92O4	0.23	2.983
Ni0.5Cd0.5Ce0.12Fe1.88O4	0.23	2.983
Ni0.5Cd0.5Ce0.16Fe1.84O4	0.23	2.983
Ni0.5Cd0.5Ce0.20Fe1.80O4	0.24	1.489

). From SEM micrographs, it appears that the average grain size of nanoparticles in the range from 23 to 25 µm was calculated by using ImageJ software.

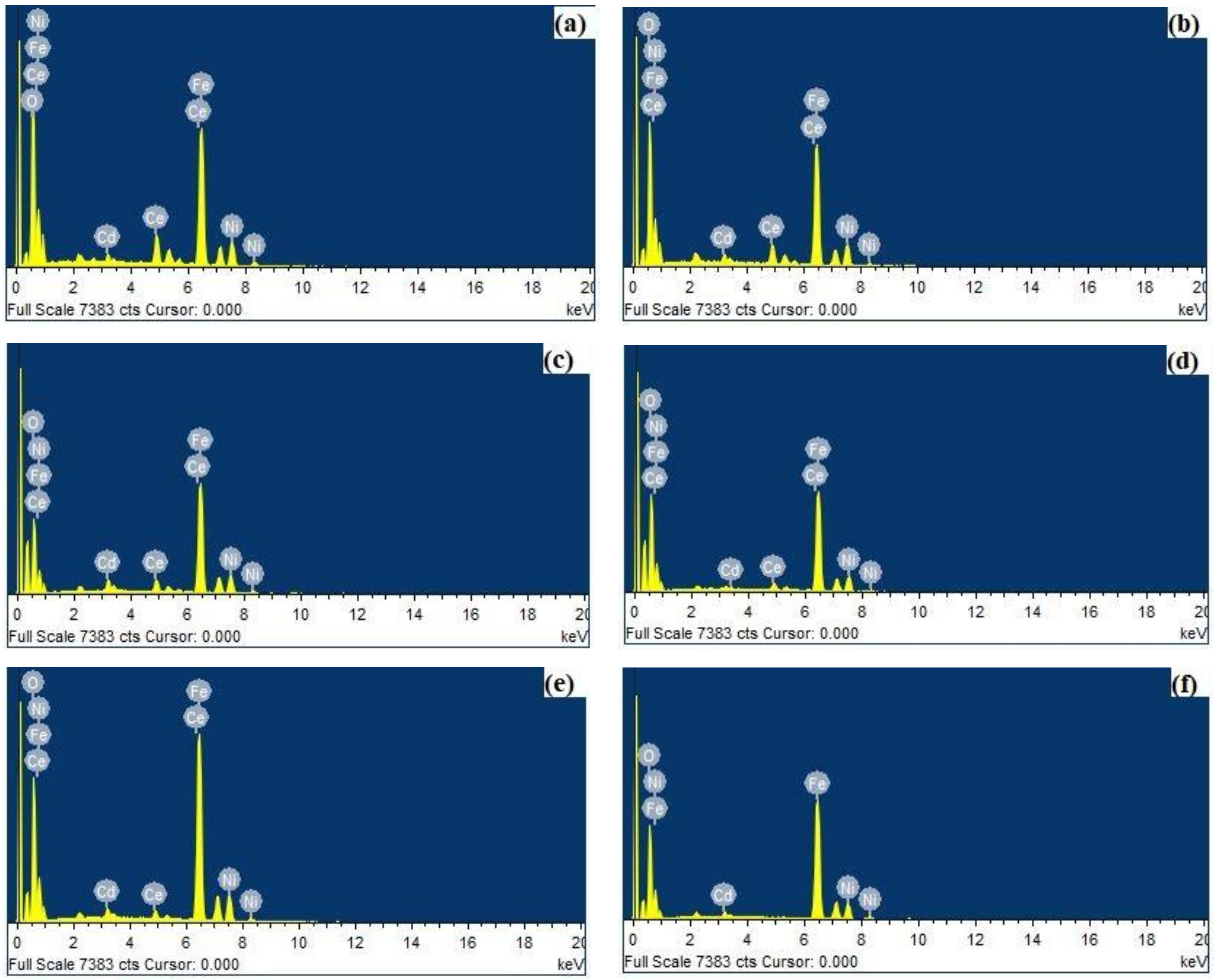

The EDX pattern shown in Figure 3 confirms the presence of constituent elements in all samples with no impurity peaks.

Table 3. Atomic percentage composition from EDX in Ni_0.5Cd_0.5Ce_xFe_2−xO₄ (0.0 ≤ x ≤ 0.20) nanoparticles.

Elements (At %)		Ni0.5Cd0.5CexFe2−xO4
	X = 0	X = 0.04	X = 0.08	X = 0.12	X = 0.16	X = 0.20
O	24.89	23.69	27.12	21.71	28.52	28.42
Fe	60.84	57.66	53.59	52.71	45.13	44.01
Ni	12.34	12.61	12.71	12.77	12.61	11.47
Cd	1.93	2.30	1.48	4.69	2.67	1.95
Ce	-	3.74	5.10	8.13	11.08	14.14

shows that the estimated composition of Ce³⁺-doped Ni_0.5Cd_0.5Fe₂O₄ nanoparticles is almost stoichiometric. The EDX pattern confirms the homogeneous mixing of Ce³⁺ among Ni, Cd, Fe, and O in pure and doped samples. No impurity peaks were found in the EDX spectra for characterization of the purity of organized samples, as shown in Figure 3.

3.3. Dielectric Properties

Frequency dependent dielectric properties were measured by using an LCR meter. By measuring parallel equivalent capacitance (C_p), different parameters, such as dielectric constant (ε′) and dielectric loss (tan δ), were calculated by the following expressions [42].

$${\epsilon }^{\prime }=\frac{C_{p}d}{{\epsilon }_{o}A}$$

$$\text{tan} \mathsf{\delta }=\frac{{\epsilon }^{″}}{{\epsilon }^{\prime }}$$

where d is the thickness of a pellet, A is the surface area of the sample, and ε_o is the permittivity of free space.

Figure 4 shows the dielectric constant (ε′) versus log of frequency (f) of all the samples measured at room temperature. As seen in Figure 4, Ce-doped Ni_0.5Cd_0.5Fe₂O₄ ferrite nanoparticles show a high dielectric constant at low frequency (100 Hz), the value of which then sharply decreases and becomes independent at high frequency. This is the common trend in ferrites’ nanoparticles. However, at medium frequency (400 Hz to 8 KHz), the dielectric constant decreases with a weak slope. The frequency-dependent dielectric behavior can be explained based on Koops’ [43] theory by considering two layers of the Maxwell–Wagner model [44]. According to this phenomenological theory, inhomogeneous ferrite nanoparticles consist of highly conducting grains with respect to the grain boundaries that separate them. When the electric field is applied, the charges localize at the grain boundaries due to poor conducting grain boundaries having different relaxation times $\raisebox{1ex}{${\epsilon }^{\prime }$}\!\left/ \!\raisebox{-1ex}{$\sigma $}\right.$, which causes interfacial polarization. The high dielectric constant at low frequency is due to the polarization and hopping conduction processes in nanoparticles following the changing electric field, as a result of which the dipole moments are well aligned. As the frequency of the electric field increases, the dielectric constant decreases and becomes constant at higher frequency regions. Due to the rapid oscillating field, the alignment of the dipole moments is distorted and, therefore, the dipoles lag behind the applied field [45,46].

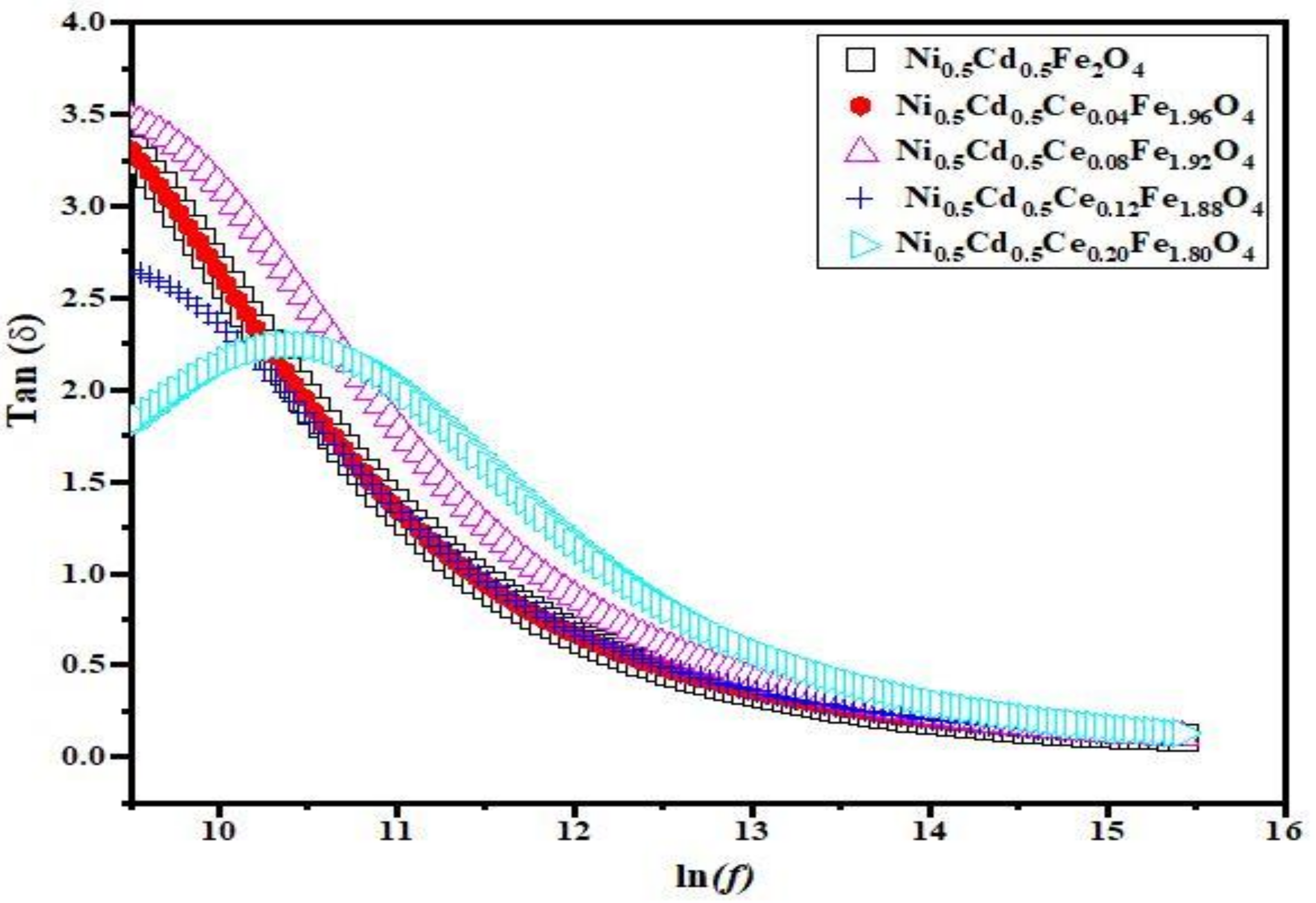

Figure 5 shows that at low frequency, the tangent loss is minimum and the dielectric constant is maximum, meaning that the nanoparticles are polarized. At medium frequency, the polarization decreases, so the tangent loss increases and becomes maximum. With further increase in frequency, the tangent loss decreases sharply and becomes independent of frequency.

3.4. Magnetic Properties

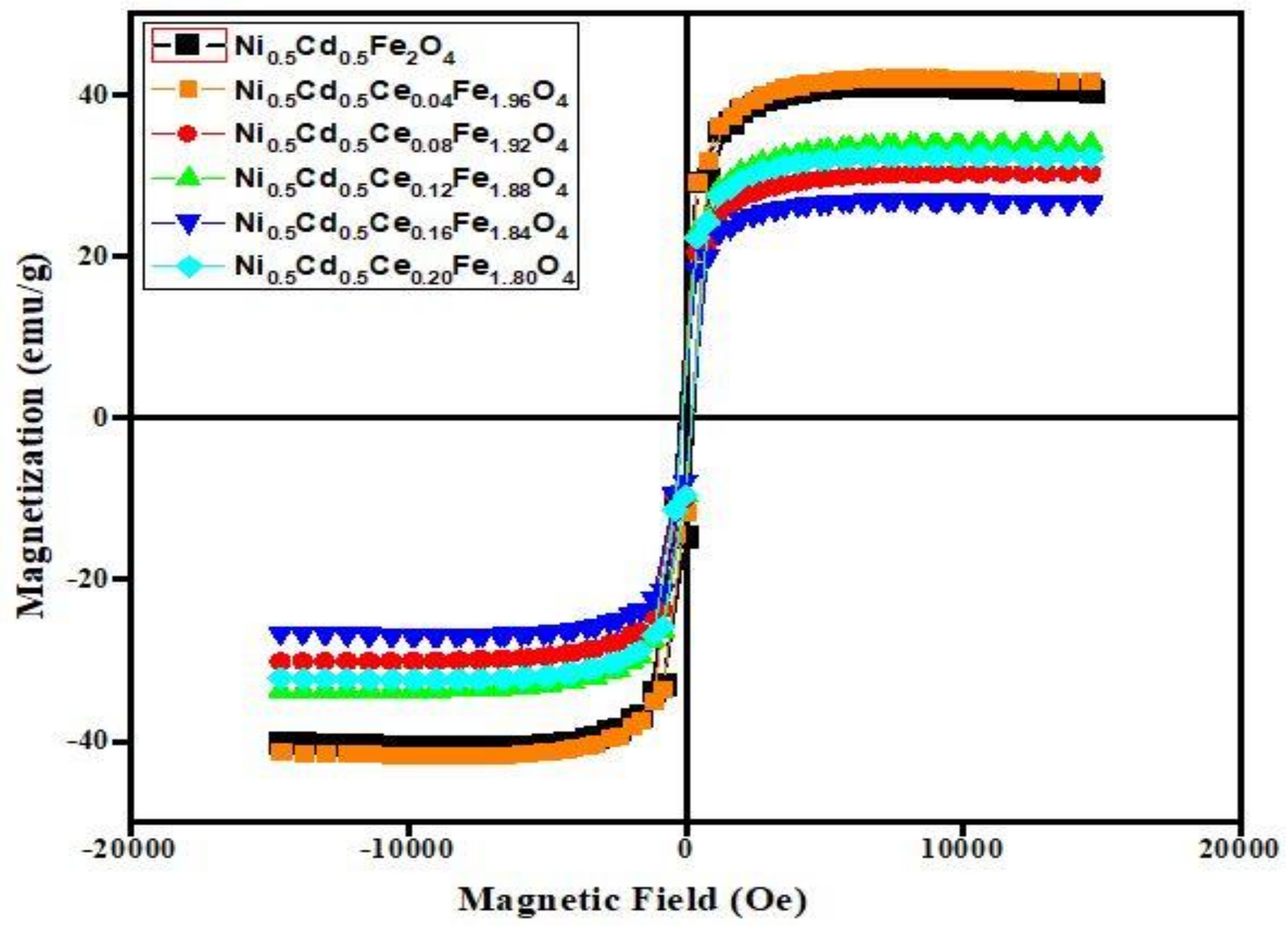

The magnetic properties of Ce³⁺-doped nanoparticles of Ni_0.5Cd_0.5Ce_xFe_2−xO₄ powdered samples were investigated by a vibrating-sample magnetometer (VSM). The measured hysteresis loops at room temperature are shown in Figure 6. Saturation magnetization (Ms), coercivity (H_c), remanent magnetization (Mr), and remanence ratio were extracted from M–H curves and shown in

Table 4. Different values of H_c, M_r, M_s and ratios of M_r/M_s for Ni_0.5Cd_0.5Ce_xFe_2−xO₄ (0.0 ≤ x ≤ 0.20) nanoparticles.

Composition	Saturation Magnetization Ms (emu/g)	Remanent Magnetization Mr (emu/g)	Coercivity Hc (Oe)	Remanence Ratio Mr/Ms
Ni0.5Cd0.5Fe2O4	40.7	11.8	227	0.29
Ni0.5Cd0.5Ce0.04Fe1.96O4	41.3	9.3	174	0.23
Ni0.5Cd0.5Ce0.08Fe1.92O4	30.5	7.3	185	0.24
Ni0.5Cd0.5Ce0.12Fe1.88O4	33.7	7.6	178	0.23
Ni0.5Cd0.5Ce0.16Fe1.84O4	26.5	5.8	170	0.22
Ni0.5Cd0.5Ce0.20Fe1.80O4	32.2	6.8	164	0.21

. The grain size, magnetic nature of cation substitution, A–B exchange interaction, and magnetocrystalline anisotropy all affect the magnetic characteristics of ferrites.

It can be seen from Figure 6 and the values in Table 4 that the saturation magnetization (M_s), coercivity (Hc), and remanence (M_r) nonlinearly decreased with the increase of Ce³⁺ concentration in Ni_0.5Cd_0.5Ce_xFe_2−xO₄. The decreasing M_s is due to the replacement of Fe³⁺ ions at the B-site with paramagnetic Ce³⁺ ions possessing a smaller magnetic moment. In addition, Ce³⁺ at the B-site reduces A–B exchange interactions [47]. The nonlinearity in M_s can be related to grain size, magnetocrystalline anisotropy, and A–B super exchange interaction. Coercivity in the multidomain regime is shown to be inversely proportional to particle size [47].

Ce ions clearly replace Fe ions in the octahedral position, based on cation distribution. The magnetic moment (µB) of paramagnetic Ce³⁺ is 2.2 BM, and the magnetic moment (µB) of the Fe³⁺ ion is 5 BM in the current ferrite system under examination. Doping nickel ferrites with Ce should raise the saturation magnetization value, according to their magnetic moments, but the obtained values show that the saturation magnetization value has decreased with increasing dopant concentration [48].

4. Conclusions

Cerium-doped nickel ferrite nanoparticles with the general formula Ni_0.5Cd_0.5Ce_xFe_2−xO₄ (0.0 ≤ x ≤ 0.20) have been successfully synthesized by the sol–gel auto-combustion method. Samples were characterized by XRD, SEM, EDX, an LCR meter, and VSM. XRD confirmed the spinel cubic crystal structure, and the crystallite size of all six prepared nanoparticles was calculated through Scherrer’s equation, which showed the crystallite size changes randomly with an increase in cerium concentration. SEM analysis determined that the shape of nanoparticles was irregular, and the range of particle size was from 23 µm to 25 µm. EDX evaluation showed the purity of the samples. The dielectric constant and tangent loss were studied in a frequency range of 100 Hz to 6 MHz. The dielectric parameters of all the samples were explained on the basis of charge polarization. The dielectric constant was highly increased and the loss tangent decreased with doped concentration. The saturation magnetization and coercivity decreased with the substitution of cerium Ce³⁺ ions, which demonstrates that it is a soft magnetic material with low saturation.
