Article

Mo Contact via High-Power Impulse Magnetron Sputtering on Polyimide Substrate

by
Yung-Lin Chen
1,
Yi-Cheng Lin
1,* and
Wan-Yu Wu
2
1
Department of Mechatronics Engineering, National Changhua University of Education, Changhua 50074, Taiwan
2
Department of Materials Science and Engineering, Da-Yeh University, Dacun, Changhua 515006, Taiwan
*
Author to whom correspondence should be addressed.
Coatings 2022, 12(1), 96; https://doi.org/10.3390/coatings12010096
Submission received: 9 December 2021 / Revised: 7 January 2022 / Accepted: 10 January 2022 / Published: 14 January 2022
(This article belongs to the Special Issue Thin Films and Coatings for Energy Application)
Browse Figures
Review Reports Versions Notes

Abstract

:
It has always been a huge challenge to prepare the Mo back contact of inorganic compound thin film solar cells (e.g., CIGS, CZTS, Sb2Se3) with good conductivity and adhesion at the same time. High-power impulse magnetron sputtering (HiPIMS) has been proposed as one solution to improve the properties of the thin film. In this study, the HiPIMS technology replaced the traditional DC power sputtering technology to deposit Mo back contact on polyimide (PI) substrates by adjusting the experimental parameters of HiPIMS, including working pressure and pulse DC bias. When the Mo back contact is prepared under a working pressure of 5 mTorr and bias voltage of −20 V, the conductivity of the Mo back contact is 9.9 × 10−6 Ω·cm, the residual stress of 720 MPa, and the film still has good adhesion. Under the minimum radius of curvature of 10 mm, the resistivity change rate of Mo back contact does not increase by more than 15% regardless of the 1680 h or 1500 bending cycle tests, and the Mo film still has good adhesion in appearance. Experimental results show that, compared with traditional DC sputtering, HiPIMS coating technology has better conductivity and adhesion at the same time, and is especially suitable for PI substrates.

1. Introduction

The advantages of flexible thin film solar cells are their light weight and flexibility [1,2,3]. Li [4] examined the characteristics of different flexible substrates, among which the glass transition temperature (Tg), high thermal stability, light weight, and transparency of PI substrates make them the most suitable substrate for flexible inorganic compound thin film solar cells (e.g., CIGS, CZTS, Sb2Se3) [5,6]. As is well known in CIGS or Sb2Se3 solar cell, Mo film is used for the back contact, because it has low resistivity, CTE compatibility, high stability during the selenization process, and good ohmic contact with CIGS absorber [7,8]. DC sputtering is used to deposit the Mo back contacts of conventional CIGS, CZTS, and Sb2Se3 solar cells; however, Mo back contacts deposited using DC sputtering adhere to plastic substrates poorly and have more defects, often resulting in overly high residual stress that causes peeling in the absorber layer during high-temperature thermal annealing. Thus, reducing residual stress in Mo films is crucial [9,10]. Vink [7] mentioned that tuning the working pressure for the coating can produce different patterns and magnitudes of stress and alter the microstructures of Mo films. To lower the residual stress in Mo film and enhance film adhesion, Lin [11] adopted a double-layered Mo film structure in which higher working pressure was applied to deposit the bottom layer to improve adhesion and lower working pressure was used to deposit the top layer to reduce the resistivity. The resistivity of the resulting Mo film was 34 × 10−6 Ω·cm, and the residual stress was 430 MPa. Although the residual stress of the Mo film was controlled and its adhesion increased, this fabrication method was more complex and produced poorer resistivity.
Recently, a method of HiPIMS was proposed as a solution to improve the properties of thin films [12,13,14,15]. Lundin [16] pointed out that high-power impulse magnetron sputtering (HiPIMS) can substantially enhance the ionization rate of the plasma and is a better option for depositing high-quality thin films than DC sputtering. Studies [17,18] have also mentioned that the structure of the thin film can vary with the sputtering technique and coating conditions. Furthermore, applying pulse DC bias to sputtering processes [19,20,21,22] can effectively reduce film roughness and produce thin films with better crystallization. Bobzin [19] explained that increases in the bias voltage increase the kinetic energy of the incident particles and effectively enhance the crystallization of the thin film but that an overly high bias voltage can lead to re-sputtering.
Most studies [23,24] indicated that the mechanical properties of flexible solar cells are very important; Lee et al. [25] bent the solar cells 1000 times to demonstrate good stability of the electrode. This study used two bending tests to verify the mechanical reliability of the Mo film on a flexible PI substrate: (1) retention testing and (2) cycle testing. Overall, this study employed the new HiPIMS coating technique to deposit a Mo film on a PI substrate for the back contacts of CIGS and Sb2Se3 solar cells. We experimented with different coating conditions, including working pressure and pulse DC bias, in hopes of improving the properties of Mo back contacts deposited using DC sputtering, achieving lower resistivity and good reliability by controlling the residual stress in the Mo film. We realize a single layer structure of the Mo film to simplify the complex fabrication process of the Mo film with the double-layer structure.

2. Materials and Methods

A molybdenum (99.99% and six-inch) sputtering target was employed, and Mo back contacts were deposited on 2 × 2 cm2 PI plastic substrates using HiPIMS (Huettinger Highpulse 4001 G2, Ditzingen, Germany) in current control mode with sputtering power of 1.5 kW, Ar flow rate of 30 sccm, frequency of 250 Hz, pulse width of 80 µs, and duty cycle of 2% as in Figure 1. We also created a control group with a molybdenum (99.99%) sputtering target and conventional DC sputtering (Advanced Converter PMP-1, Denver, CO, USA) at sputtering power of 200 W and working pressure of 5 mTorr [11,26]. The thickness of the two types of Mo back contacts was fixed at 780 ± 50 nm. We first experimented with the following working pressures for HiPIMS coating: 3, 5, and 7 mTorr. This allowed us to identify the working pressure with the best results in terms of resistivity, structural properties, and residual stress of the Mo back contact film. In the second phase, we applied the following pulse synchronized substrate bias (Huettinger Bias 4010 G2, Ditzingen, Germany): floating, −20, −40, and −60 V. The aim was to synchronize the pulse-on time of the Mo ions generated by HiPIMS with the Ton time of the pulse bias applied to the substrate and minimize the excessive bombardment of the Ar and Mo particles on the thin film. This further improved the resistivity and structural properties of the Mo back contact film. We also confirmed the influence of the morphology and residual stress of the thin film. Finally, we employed two bending tests, as in Figure 2, to verify the reliability of using HiPIMS to deposit Mo back contacts on Pi substrates for flexible CIGS solar cells. In the cycle testing, we manually bend the sample, and stop bending every 500 cycles. We measure resistivity every period, and continue the bending test until 1500 cycles.
The morphology and grain growth of the Mo film were observed using a field-emission scanning electron microscope (FE-SEM, JEOL JSM-7800F Prime, Tokyo, Japan) operating at 3 kV with a 50,000 magnification rate. To observe the surface roughness of the Mo film, we used a scanning probe microscope (Solver P47-PRO, Moscow, Russia) in semi-contact mode. We took measures at five sites (5 μm× 5 μm), removed the best and worst values, calculated the average of the three other values, and expressed the result using the root mean square (RMS). We then used an X-ray diffractometer (Bruker D8 discover, Billerica, MA, USA) and the symmetric Bragg diffraction approach to analyze the crystal structures of the Mo film (CuKα radiation with wavelength of λ = 1.54052 Å, measured in the θ-2θ scan mode at a speed of 2°/min). We can measure the residual stress in the film resulting from different incident angles, tilt angles, Poisson’s ratios, and Young’s modulus. Finally, we used a Hall measurement system (ECOPIA HMS-2000 manual, Anyang, South Korea) to measure the resistivity and carrier mobility of the film.

3. Results and Discussion

3.1. Influence of HiPIMS Parameters on Mo Structure Properties

To understand the differences in Mo film morphology resulting from HiPIMS with different working pressures and conventional DC sputtering, we observed the SEM images in Figure 3. The film surface resulting from DC sputtering in Figure 3a presents fine crystallite scales, whereas the Mo films resulting from HiPIMS with working pressures 3 mTorr and 5 mTorr show visible fish-like grains on the surface. The grains are dense and have distinct boundaries. However, as the working pressure increases to 7 mTorr, the fish-like grains gradually disappear and lose their distinct boundaries. According to microstructure zone theory regarding the physical vapor deposition of thin films [27], the forms of crystal grains vary with substrate temperature and the kinetic energy of deposited atoms. Due to the process characteristics of HiPIMS, incident particles may have high kinetic energy, thereby producing high-density thin films. The Mo film was thus denser and had nanocrystalline grains. In contrast, high working pressure greatly reduces the kinetic energy of deposition, creating long strip-shaped crystalline surface microstructures that are not as dense. These results are similar to those of the aforementioned structure zone model [27].
Figure 4 displays surface roughness of the Mo films resulting from different working pressures, observed using AFM. As the working pressure was gradually increased from 3 mTorr to 7 mTorr, the RMS of surface roughness increased from 3.8 nm to 6.1 nm. These films deposited using low working pressure presented denser fibrous structures, creating relatively flat surface morphology. However, the RMS values showed no significant differences and remained below 10 nm, which is relatively flat and conducive to the subsequent stacking of the absorber layer, as mentioned by Vink [7].
To understand the influence of conventional DC sputtering and HiPIMS with different working pressures on the crystal structures and residual stress of Mo film, we conducted XRD analysis for confirmation, the results of which are exhibited in Figure 5 and Figure 6. In Figure 5, the main peaks identified at around 2θ = 40.5° and 73.7° from (110) and (211) planes, respectively. After confirming JCPDS (Joint Committee on Powder Diffraction Standards), it is the BCC (body-centered cubic) structure. At the lower working pressure of 3 mTorr, the crystallographic planes in the Mo film were along the (110) orientation. Under low working pressure, the mean free path of sputtered ions increases, which means that they are less likely to collide with gas molecules and dissociate. As a result, the energy of ions reaching the substrate increases and leads to a better crystallinity of the Mo film. This also leads to better resistivity and clear fish-like structure, which we explain in the results of the electrical property analysis and SEM analysis, respectively. This result is consistent with the observations made by Jubault [28]. In addition, changing working pressure also leads to the shifts of diffraction peaks. With DC sputtering and HiPIMS under low working pressure, the diffraction angles shift more significantly toward smaller angles.
As shown in Figure 6, the displacement of XRD diffraction peaks is used to analyze the residual stress generated by different working pressures. It is clear that greater residual stress was produced in the films fabricated using conventional DC sputtering and HiPIMS at 3 mTorr, which were 5178 MPa and 4004 MPa respectively. A much lower residual stress was obtained as the working pressures are at 5 and 7 mTorr. This is due to a higher working pressure leading to a shorter mean free path and significantly reducing the adatom energy and the residual stress of the resulting films. The residual stress was also observed in the XRD peak shift. The 2θ diffraction angle of (110) at 40.5° shifted towards a smaller angle, especially for DC sputtering and 3 mTorr HiPIMS, indicating a changed lattice distance and distorted crystal structures. The structural stability and reliability of flexible components are crucial, and overly high residual stress may alter the lattice constant and affect the mechanical properties. This, in turn, decreases the stability and reliability of the Mo film. It can also promote blister-induced peeling during the thermal processing of CIGS films. The working pressure should therefore be optimally set at 5 mTorr to prevent overly high residual stress from affecting the stability and reliability of component structures.
According to the analysis of working pressure, fixing HiPIMS working pressure at 5 mTorr is optimal. We employed SEM to observe the surface morphology and cross-section of Mo films fabricated using HiPIMS with different bias voltage, as shown in Figure 7. Figure 7a displays the Mo film surface with floating bias applied. This resulted in denser fish-like grains and a smaller and more uniform grain size. When the bias voltage was increased to −20 V, the fish-like grains on the surface became less dense, the porous structures gradually disappeared, and larger grains began to appear, as shown in Figure 7b. This was due to the connecting and merging of smaller grains, which was a result of higher particle deposition kinetic energy from the bias voltage. At the same time, it promoted the diffusion and movement of surface particles. Messier [29] mentioned that as the bias voltage increases, film structures become denser and crystallization improves. This inference corresponds with results of the subsequent electrical property analysis. In Figure 7c, the bias voltage was increased to −40 V, and thin elongated column-shaped crystals began to appear. When the bias voltage was increased to −60 V, distinct column-shaped crystals appeared, and they were larger and irregular. The fish-like structures were also gone by this time. Therefore, moderately increasing the kinetic energy of incident particles can effectively promote film growth and enhance density and crystallization. However, overly high kinetic energy in the incident particles can alter the orientation of the crystals and enable the particles to bombard the film surface, which will create defects. As for the cross-sections, there are dense amorphous structures on the Mo film surfaces when floating bias was applied. When the bias voltage was increased to −20V, larger crystals could be observed. When the bias voltage was increased to −40 V, column-shaped crystals began to appear. When the bias voltage reached −60 V, the Mo film exhibited column-shaped crystalline structures, but in irregular directions, as shown in Figure 7d, which is not conducive to carrier transmission.
Figure 8 displays the AFM-measured surface roughness of the Mo films fabricated under different bias voltage. Regarding the deposition of ITO films, Lee et al. [30] indicated that the surface roughness of ITO films increases with the substrate bias. Our results are consistent with this trend. As the bias voltage was increased from floating to −20 V, the RMS of the Mo film surface roughness rose from 5.2 nm to 12.9 nm. Next, when the bias voltage was increased to −40 V to −60 V, the roughness increased significantly to 34.3 nm and 39.8 nm, respectively. In the subsequent solar cell component stacking, Mo film surfaces that are uneven and overly rough have an adverse impact on the adhesion of the absorber layer and cause leakage currents, which reduce the efficiency of components and affect component stacking.
Since an overly high bias voltage may lead to re-sputtering during the deposition and damage the film structure [19], a pulsed DC bias was applied at a fixed working pressure of 5 mTorr in this study. Figure 9 shows the XRD results of Mo films obtained at various pulsed DC bias. As can be seen, when floating bias was applied, the intensity of the main diffraction peak of the Mo film mainly had a (110) peak, seconded by the (211) peak of higher diffraction angles. When the bias voltage was −20 V, the intensity of the diffraction peak with the (110) peak increased significantly, thereby representing better crystal quality and clear fish-like structure in the Mo film. When the bias voltage continued to increase from −40 V to −60 V, the intensity of the (110) peak declined, whereas the (211) diffraction intensity of the higher diffraction angles increased. This is because the overly high kinetic energy of the incident particles made it easier for the particles to form crystals, but the direction was mainly (211): there tended to be more defects, and because the direction of the crystals was irregular, the surface roughness of the film increased.
To prevent overly high incident carrier energy from accumulating residual stress in the Mo film, we used XRD analysis to measure the residual stress resulting from different pulse biases, as shown in Figure 10. The results show that the residual stress in the Mo films resulting from different pulse DC biases increases with the negative bias. When the bias voltage was −20 V, the residual stress in the film was 720 MPa and did not increase significantly. When the bias voltage continued to increase to −40 V and −60 V, the residual stress rose to 1950 MPa and 1700 MPa, respectively. This result is consistent with what was previously described. Residual stress affects the structural stability and reliability of components.

3.2. Influence of HiPIMS Parameters on Mo Electrical Properties

Figure 11 compares the electrical properties, measured using a Hall measurement system, of the Mo films fabricated using HiPIMS with different working pressures and conventional DC sputtering. As can be seen, the resistivity of the Mo film resulting from DC sputtering was 45.5 × 10−6 Ω·cm, and the carrier mobility was 13.6 cm2/Vs. Using the lower HiPIMS working pressures of 3 mTorr and 5 mTorr, excellent resistivity of 12.6 × 10−6 Ω·cm and 18.3 × 10−6 Ω·cm could be respectively obtained. Due to the increased carrier mobility, these results are significantly better than those derived using the DC sputtering conditions [31]. This is because the high coating power density and dissociation rate of HiPIMS make the structural characteristics and surface defects of the Mo films better than those resulting from DC sputtering and facilitate carrier movement. Furthermore, the mean free paths of the molecules are longer, thereby enabling them to have greater deposition kinetic energy and produce film structures with better nucleation and crystallization, which is consistent with the contents of the XRD analysis. In contrast, the mean free paths of the molecules during Mo film deposition using the higher working pressure of 7 mTorr were shorter, entailing a higher chance of molecule collision, poorer film crystal quality, and increased structural defects—such as poor density, dislocation, and grain boundaries. These characteristics greatly reduce carrier mobility and significantly increase resistivity. These results are similar to those derived in a previous study [32].
Figure 12 presents the influence of HiPIMS at a fixed working pressure of 5 mTorr and different bias voltages on the electrical properties. The figure shows that when the bias voltage was increased to −20 V, carrier mobility increased to 39.5 cm2/Vs. The resistivity improved significantly, decreasing to 9.95 × 10−6 Ω·cm. The increase in carrier mobility can be attributed to the improved crystallization of the Mo film. This is because the application of a suitable pulse bias can further enhance the kinetic energy of incident particles, giving the Mo film greater density and better crystallization during deposition, reducing the losses caused by free electrons at the grain boundaries or defects in the crystal structures, and effectively increasing carrier mobility. Increasing the bias voltage to −60 V produced the best carrier mobility at 54.8 cm2/Vs, but the resistivity only improved slightly, decreasing to 9.01 × 10−6 Ω·cm. Overly high bias voltage causes ions to bombard the substrate at high speed and also promotes re-sputtering, which is not conducive to film growth [19,33].

3.3. Reliability Tests of the HiPIMS Deposited Mo

To understand the stability of the Mo film on PI substrates, we bent different Mo film samples fabricated using the same coating conditions (working pressure of 5 mTorr and bias voltage of −20 V) to the following curvature radii: R10, R40, R70, and R120 mm. The results of resistivity change rate (R.C.R) are displayed in Figure 13a. As can be seen, the resistivity change rate of the sample bent to the smallest curvature radius (i.e., R10 mm) showed a slight increase from 0% to 12.5% after 1680 h (70 days), changing around 12.5%. We speculate that, under prolonged stress, minute cracks formed in the Mo film, causing the resistivity to increase slightly. In contrast, the resistivity of the Mo films bent to the other curvature radii displayed no significant changes. These results demonstrate that Mo films fabricated with working pressure of 5 mTorr and bias voltage of −20 V in HiPIMS have enhanced reliability and durability in applications with different curvature radii. The analysis results in Figure 13b show the resistivity change rate of the Mo films, following subjection to different numbers of bending cycles. This analysis helped us understand the durability of the Mo film on a PI substrate. We found that after the samples were bent 1000 times, the resistivity change rate rose slightly. After 1500 times, the resistivity change rate of the Mo film increased from 0% to 12.7%, the changes remaining around 10% to 15%, which confirms the trends found in previous studies.

4. Conclusions

This study employed HiPIMS to deposit Mo films on flexible PI plastic substrates for the back contacts of inorganic compound thin film solar cells (e.g., CIGS, CZTS, and Sb2Se3). We examined the influence of HiPIMS parameters on the structural and electrical properties of the Mo film and identified the optimal parameters and reliability. The results indicated that Mo film deposited under working pressure of 5 mTorr produces lower resistivity at 18.3 × 10−6 Ω·cm and lower residual stress at 520 MPa, both of which are better than those resulting from conventional DC sputtering. Under these conditions, applying suitable bias voltage of −20 V can increase the intensity of the Mo(110) orientation, promote better crystallization, effectively reduce the resistivity to 9.95 × 10−6 Ω·cm, result in a flat surface with an RMS roughness of 12.9 nm, and produce lower residual stress in the film at 720 MPa. Finally, bending and reliability tests (both retention and cycle tests) presented only slight changes in the resistivity change rate (10% to 15%), thereby demonstrating that HiPIMS can reduce the residual stress in the Mo film, enhance its adhesion, and reduce resistivity. This enables the replacement of complex double-layered Mo film structure with a single Mo film layer.

Author Contributions

Y.-L.C. is the main author; methodology, Y.-L.C.; validation, Y.-C.L. and W.-Y.W.; formal analysis, Y.-C.L.; writing—original draft preparation, Y.-L.C.; writing—review and editing, Y.-C.L. and W.-Y.W.; supervision, Y.-C.L.; project administration, Y.-L.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Siddharth, G.; Garg, V.; Sengar, B.S.; Mukherjee, S. Progress in Thin Film Solar Cell and Advanced Technologies for Performance Improvement. In Encyclopedia of Smart Materials; Schwartz, M., Ed.; John Wiley & Sons: Hoboken, NJ, USA, 2022; Volume 2, pp. 661–680. [Google Scholar]
  2. Dixon, A.E. Photovoltaic energy conversion: Theory, present and future solar cells. In Solar Energy Conversion II; Janzen, A.F., Swartman, R.K., Eds.; Pergamon Press: Oxford, UK, 1981; pp. 243–259. [Google Scholar]
  3. Kessler, F.; Rudmann, D. Technological aspects of flexible CIGS solar cells and modules. Sol. Energy 2004, 77, 685–695. [Google Scholar] [CrossRef]
  4. Li, X.; Li, P.; Wu, Z.; Luo, D.; Yu, H.; Lu, Z. Review and perspective of materials for flexible solar cells. Mater. Rep. Energy 2021, 1, 100001. [Google Scholar] [CrossRef]
  5. Ramanujam, J.; Bishop, D.M.; Todorov, T.K.; Gunawan, O.; Rath, J.; Nekovei, R.; Artegiani, E.; Romeo, A. Flexible CIGS, CdTe and a-Si:H based thin film solar cells: A review. Prog. Mater. Sci. 2020, 110, 10069. [Google Scholar] [CrossRef]
  6. Shi, S.; Yao, L.; Ma, P.; Jiao, Y.; Zheng, X.; Ning, D.; Chen, M.; Sui, F.; Liu, H.; Yang, C.; et al. Recent progress in the high-temperature-resistant PI substrate with low CTE for CIGS thin film solar cells. Mater. Today Energy 2021, 20, 100640. [Google Scholar] [CrossRef]
  7. Vink, T.J.; Somers, M.A.; Daams, J.L.C.; Dirks, A.G. Stress, Strain, and microstructure of sputter-deposited Mo thin films. J. Appl. Phys. 1991, 70, 4301. [Google Scholar] [CrossRef]
  8. Lepetit, T.; Mangin, D.; Gautron, E.; Tomassini, M.; Harel, S.; Arzel, L.; Barreau, N. Impact of DC-power during Mo back contact sputtering on the alkali distribution in Cu(In,Ga)Se2-based thin film solar cells. Thin Solid Films 2015, 582, 304–307. [Google Scholar] [CrossRef]
  9. Pethe, S.A.; Takahashi, E.; Kaul, A.; Dhere, N. Effect of sputtering process parameters on film properties of molybdenum back contact. Sol. Energy Mater. Sol. Cells 2012, 100, 1–5. [Google Scholar] [CrossRef]
  10. Kohara, N.; Nishiwaki, S.; Hashimoto, Y.; Negami, T.; Wada, T. Electrical properties of the Cu(In,Ga)Se2/MoSe2/Mo structure. Sol. Energy Mater. Sol. Cells 2001, 67, 209–215. [Google Scholar] [CrossRef]
  11. Lin, Y.C.; Lin, Z.Q.; Shen, C.H.; Wang, L.Q.; Ha, C.T.; Peng, C. Cu(In,Ga)Se2 films prepared by sputtering with a chalcopyrite Cu(In,Ga)Se2 quaternary alloy and In targets. J. Mater. Sci. Mater. Electron. 2012, 23, 493–500. [Google Scholar] [CrossRef]
  12. Alami, J.; Bolz, S.; Sarakions, K. High power pulsed magnetron sputtering: Fundamentals and applications. J. Alloys Compd. 2009, 483, 530–534. [Google Scholar] [CrossRef]
  13. Sittinger, V.; Lenck, O.; Vergöhl, M.; Szyszka, B.; Bräuer, G. Applications of HIPIMS metal oxides. Thin Solid Films 2013, 548, 18–26. [Google Scholar] [CrossRef]
  14. Ghailane, A.; Larhlimi, H.; Tamraoui, Y.; Makha, M.; Busch, H.; Fischer, C.B.; Alami, J. The effect of magnetic field configuration on structural and mechanical properties of TiN coatings deposited by HiPIMS and dcMS. Surf. Coat. Technol. 2020, 404, 126572. [Google Scholar] [CrossRef]
  15. Sarakuons, K.; Alami, J.; Konstantinidis, S. High power pulsed magnetron sputtering: A review on scientific and engineering state of the art. Surf. Coat. Technol. 2010, 204, 1661–1684. [Google Scholar] [CrossRef]
  16. Lundin, D.; Sarakinos, K. An introduction to thin film processing using high-power impulse magnetron sputtering. J. Mater. Res. 2012, 27, 780–792. [Google Scholar] [CrossRef] [Green Version]
  17. De Monteynard, A.; Schuster, F.; Billard, A.; Sanchette, F. Properties of chromium thin films deposited in a hollow cathode magnetron powered by pulsed DC or HiPIMS. Surf. Coat. Technol. 2017, 330, 241–248. [Google Scholar] [CrossRef]
  18. Tillmann, W.; Dias, N.F.L.; Stangier, D.; Tolan, M.; Paulus, M. Structure and mechanical properties of hafnium nitride films deposited by direct current, mid-frequency, and high-power impulse magnetron sputtering. Thin Solid Films 2019, 669, 65–71. [Google Scholar] [CrossRef]
  19. Bobzin, K.; Brögelmann, T.; Kruppe, N.C.; Engels, M.; Schulze, C. Pulse synchronized substrate bias for the High Power Pulsed Magnetron Sputtering deposition of CrAlN. Thin Solid Films 2021, 732, 138792. [Google Scholar] [CrossRef]
  20. Olbrich, W.; Fessmann, J.; Kampschulte, G.; Ebberink, J. Improved control of TiN coating properties using cathodic arc evaporation with a pulsed bias. Surf. Coat. Technol. 1991, 49, 258–262. [Google Scholar] [CrossRef]
  21. Greczynski, G.; Lu, J.; Jensen, J.; Petrov, I.; Greene, J.E.; Bolz, S.; Kölker, W.; Schiffers, C.; Lemmer, O.; Hultman, L. Metal versus rare-gas ion irradiation during Ti1–xAlxN film growth by hybrid high power pulsed magnetron/dc magnetron co-sputtering using synchronized pulsed substrate bias. J. Vac. Sci. Technol. A Vac. Surf. Films 2012, 30, 61504. [Google Scholar] [CrossRef] [Green Version]
  22. Villamayor, M.M.S.; Keraudy, J.; Shimizu, T.; Viloan, R.P.B.; Boyd, R.; Lundin, D.; Greene, J.E.; Petrov, I.; Helmersson, U. Low temperature (Ts /Tm < 0.1) epitaxial growth of HfN/MgO(001) via reactive HiPIMS with metal-ion synchronized substrate bias. J. Vac. Sci. Technol. A Vac. Surf. Films 2018, 36, 61511. [Google Scholar]
  23. Cao, W.; Zheng, Y.; Li, Z.; Wrzesniewski, E. Flexible organic solar cells using an oxide/metal/oxide trilayer as transparent electrode. Org. Electron. 2012, 13, 221–2228. [Google Scholar] [CrossRef]
  24. Wang, X.; Li, Z.; Xu, W.; Kulkarni, S.A.; Batabyal, S.K.; Zhang, S.; Cao, A.; Wong, L.H. TiO2 nanotube arrays based flexible perovskite solar cells with transparent carbon nanotube electrode. Nano Energy 2015, 11, 728–735. [Google Scholar] [CrossRef]
  25. Lee, J.; Kang, H.; Hwang, J.Y.; Kim, S.W.; Bai, S. Flexible photoanodes of TiO2 particles and metallic single-walled carbon nanotubes for flexible dye-sensitized solar cells. Carbon 2014, 79, 337–345. [Google Scholar] [CrossRef]
  26. Yoon, J.H.; Seong, T.Y.; Jeong, J. Effect of a Mo back contact on Na diffusion in CIGS thin film solar cells. Prog. Photovolta. 2013, 21, 58–63. [Google Scholar] [CrossRef]
  27. Anders, A. A structure zone diagram including plasma-based deposition and ion etching. Thin Solid Films 2010, 518, 4087–4090. [Google Scholar] [CrossRef] [Green Version]
  28. Jubault, M.; Ribeaucourt, L.; Chassaing, E.; Renou, G.; Lincot, D.; Donsanti, F. Optimization of molybdenum thin films for electrodeposited CIGS solar cells. Sol. Energy Mater. Sol. Cells 2011, 95, 26–31. [Google Scholar] [CrossRef]
  29. Messier, R.; Giri, A.P.; Roy, R.A. Revised structure zone model for thin film physical structure. J. Vac. Sci. Technol. A 1984, 2, 500. [Google Scholar] [CrossRef]
  30. Lee, J.; Jung, H.; Lim, D.; Yang, K.; Song, W.; Yi, J. Effects of bias voltage on the properties of ITO films prepared on polymer substrates. Thin Solid Films 2005, 480, 157–161. [Google Scholar] [CrossRef]
  31. Jingxue, F.; Zhao, W.; Wei, W.; Ye, Y.; Lin, Z.; Xin, W.; Ruijiang, H.; Hui, S.; Chen, M. Preparation and optimization of a molybdenum electrode for CIGS solar cells. AIP Adv. 2016, 6, 115210. [Google Scholar] [CrossRef] [Green Version]
  32. Yoon, K.H.; Kim, S.K.; Chalapathy, R.B.V.; Yun, J.H. Characterization of a molybdenum electrode deposited by sputtering and its effect on Cu(In,Ga)Se2 solar cells. J. Korean Phys. Soc. 2004, 45, 1114–1118. [Google Scholar]
  33. Roth, J.R. Industrial Plasma Engineering: Volume 1: Principles; Institute of Physics Publishing: London, UK, 1995. [Google Scholar]
Coatings 12 00096 g001 550
Figure 1. Schematic diagram of HiPIMS sputtering system.
Figure 1. Schematic diagram of HiPIMS sputtering system.
Coatings 12 00096 g001
Coatings 12 00096 g002 550
Figure 2. Schematic of Mo films bent to different curvature radii.
Figure 2. Schematic of Mo films bent to different curvature radii.
Coatings 12 00096 g002
Coatings 12 00096 g003 550
Figure 3. The SEM morphology of Mo film resulting from HiPIMS with different working pressures and conventional DC sputtering: (a) DC sputtering; (b) 3 mTorr; (c) 5 mTorr; (d) 7 mTorr.
Figure 3. The SEM morphology of Mo film resulting from HiPIMS with different working pressures and conventional DC sputtering: (a) DC sputtering; (b) 3 mTorr; (c) 5 mTorr; (d) 7 mTorr.
Coatings 12 00096 g003
Coatings 12 00096 g004 550
Figure 4. Surface roughness of the Mo films resulting from different working pressures: (a) 3 mTorr; (b) 5 mTorr; (c) 7 mTorr.
Figure 4. Surface roughness of the Mo films resulting from different working pressures: (a) 3 mTorr; (b) 5 mTorr; (c) 7 mTorr.
Coatings 12 00096 g004
Coatings 12 00096 g005 550
Figure 5. XRD analysis of conventional DC sputtering and HiPIMS with different working pressures of Mo film.
Figure 5. XRD analysis of conventional DC sputtering and HiPIMS with different working pressures of Mo film.
Coatings 12 00096 g005
Coatings 12 00096 g006 550

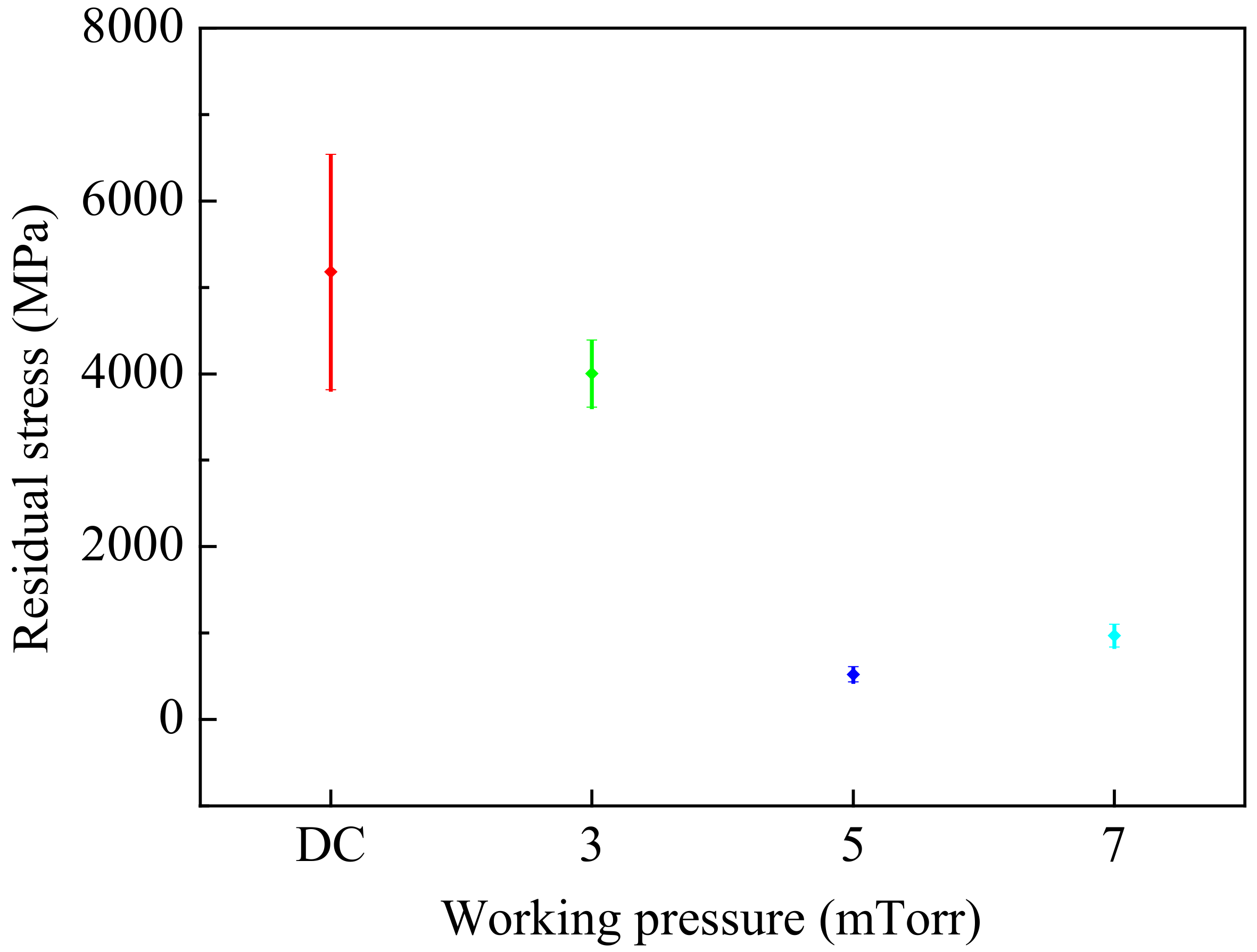

Figure 6. Applied XRD to analyze the residual stress resulting from different working pressures.
Figure 6. Applied XRD to analyze the residual stress resulting from different working pressures.
Coatings 12 00096 g006
Coatings 12 00096 g007 550
Figure 7. SEM to observe the surface morphology and cross-section of Mo films fabricated using HiPIMS with different bias voltage: (a) floating; (b) −20 V; (c) −40 V; (d) −60 V.
Figure 7. SEM to observe the surface morphology and cross-section of Mo films fabricated using HiPIMS with different bias voltage: (a) floating; (b) −20 V; (c) −40 V; (d) −60 V.
Coatings 12 00096 g007
Coatings 12 00096 g008 550
Figure 8. Surface roughness of the Mo films fabricated under different HiPIMS bias voltage (a) floating; (b) −20 V; (c) −40 V; (d) −60 V.
Figure 8. Surface roughness of the Mo films fabricated under different HiPIMS bias voltage (a) floating; (b) −20 V; (c) −40 V; (d) −60 V.
Coatings 12 00096 g008
Coatings 12 00096 g009 550
Figure 9. XRD analysis of HiPIMS with different bias voltage of Mo film: (a) floating; (b) −20 V; (c) −40 V; (d) −60 V.
Figure 9. XRD analysis of HiPIMS with different bias voltage of Mo film: (a) floating; (b) −20 V; (c) −40 V; (d) −60 V.
Coatings 12 00096 g009
Coatings 12 00096 g010 550
Figure 10. XRD analysis to measure the residual stress resulting from different bias voltage.
Figure 10. XRD analysis to measure the residual stress resulting from different bias voltage.
Coatings 12 00096 g010
Coatings 12 00096 g011 550

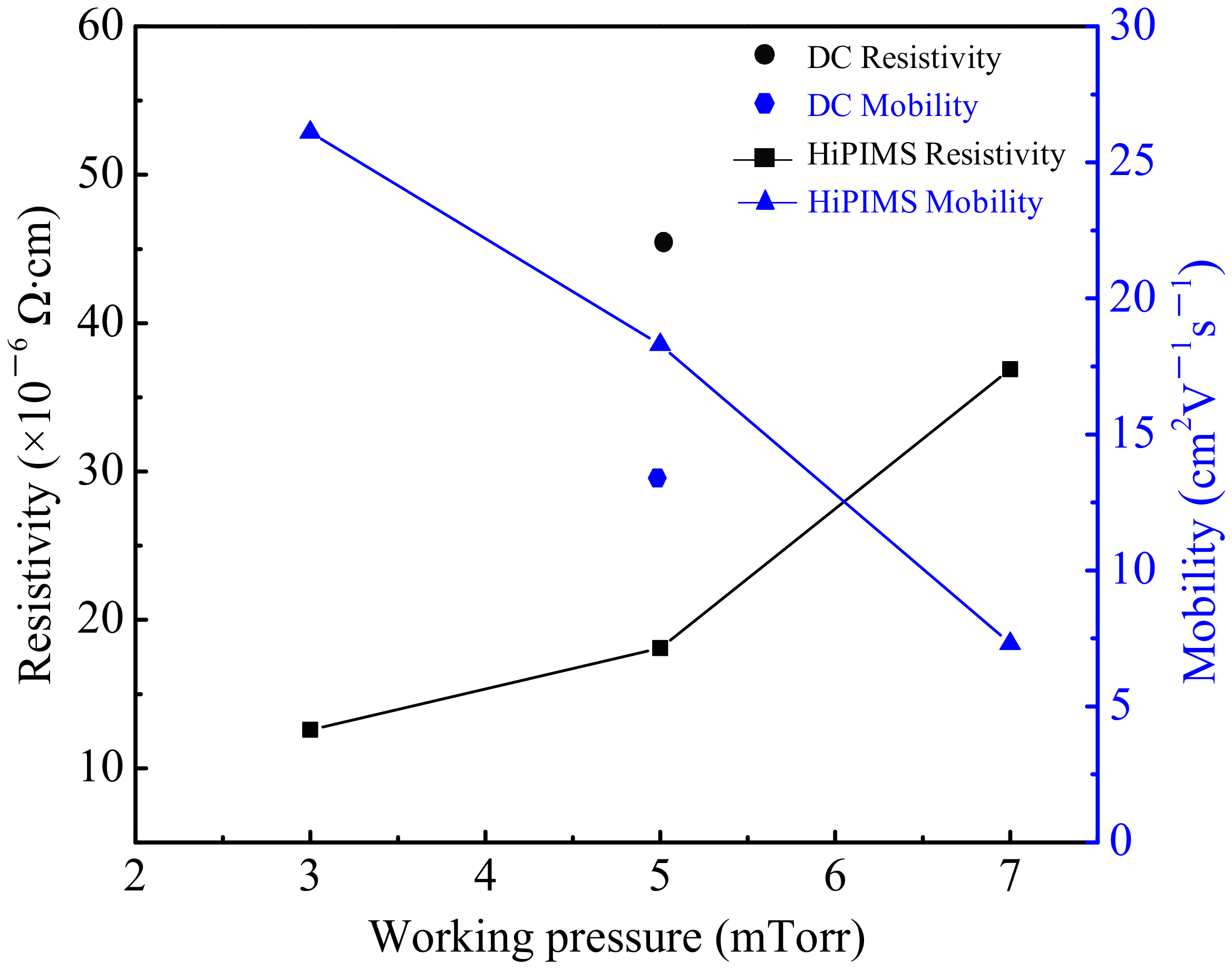

Figure 11. Electrical properties of the Mo films fabricated using HiPIMS with different working pressures and conventional DC sputtering.
Figure 11. Electrical properties of the Mo films fabricated using HiPIMS with different working pressures and conventional DC sputtering.
Coatings 12 00096 g011
Coatings 12 00096 g012 550

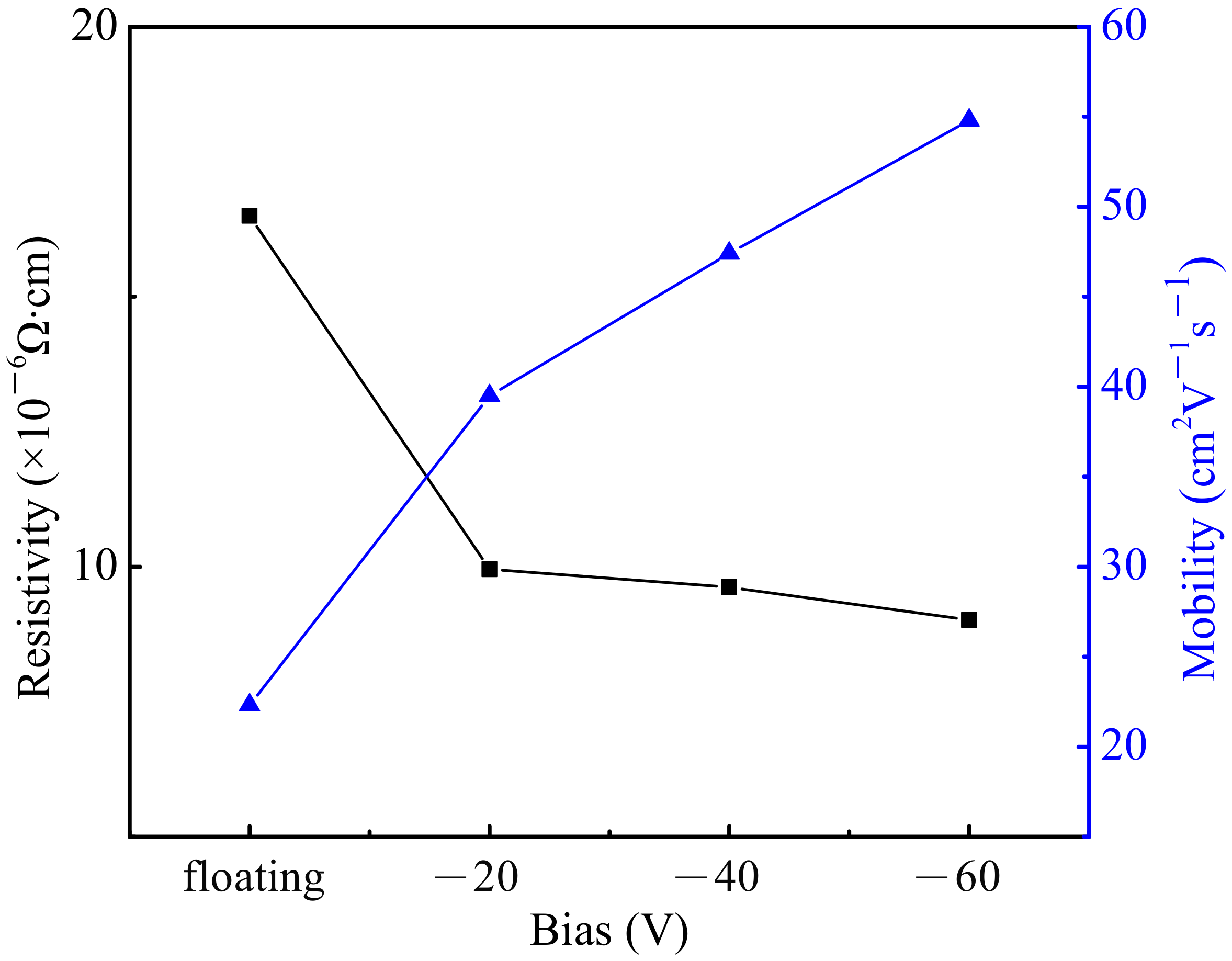

Figure 12. Influence of HiPIMS at different bias voltages on the electrical properties.
Figure 12. Influence of HiPIMS at different bias voltages on the electrical properties.
Coatings 12 00096 g012
Coatings 12 00096 g013 550
Figure 13. Resistivity change rate of the mechanical reliability test: (a) retention testing and (b) cycle testing.
Figure 13. Resistivity change rate of the mechanical reliability test: (a) retention testing and (b) cycle testing.
Coatings 12 00096 g013
