The Effect of Cr Cathode Arc Current on the Wear Resistance of Cr/(Zr,Cr)N/(Zr,Cr,Al)N Coatings on 7050 Aluminum Alloy
Abstract
1. Introduction
2. Materials and Methods
2.1. Coating Deposition
- •
- Filtered Cathodic Vacuum Arc Deposition (FCVAD) for Al (purity: 99.5%), aimed at reducing macroparticles and refining grain structure.
- •
- Controlled Accelerated Arc PVD (CAA-PVD) for Zr (99.98%) and Cr (99.99%) targets, enabling precise control of plasma energy and coating structure.
2.2. Applied Testing
3. Results

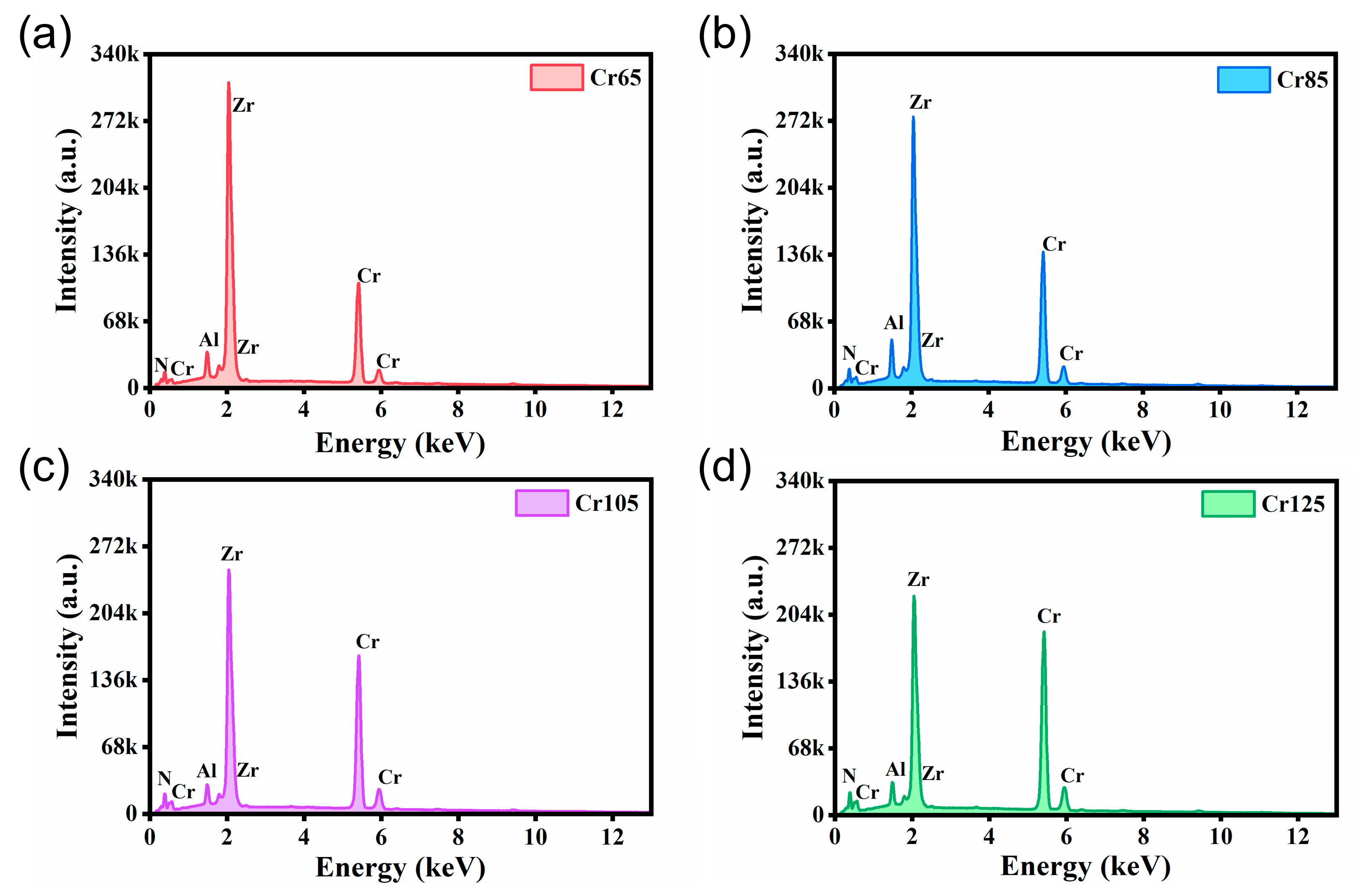

3.1. Microstructure
3.2. Micro-Mechanical Properties of the Coatings

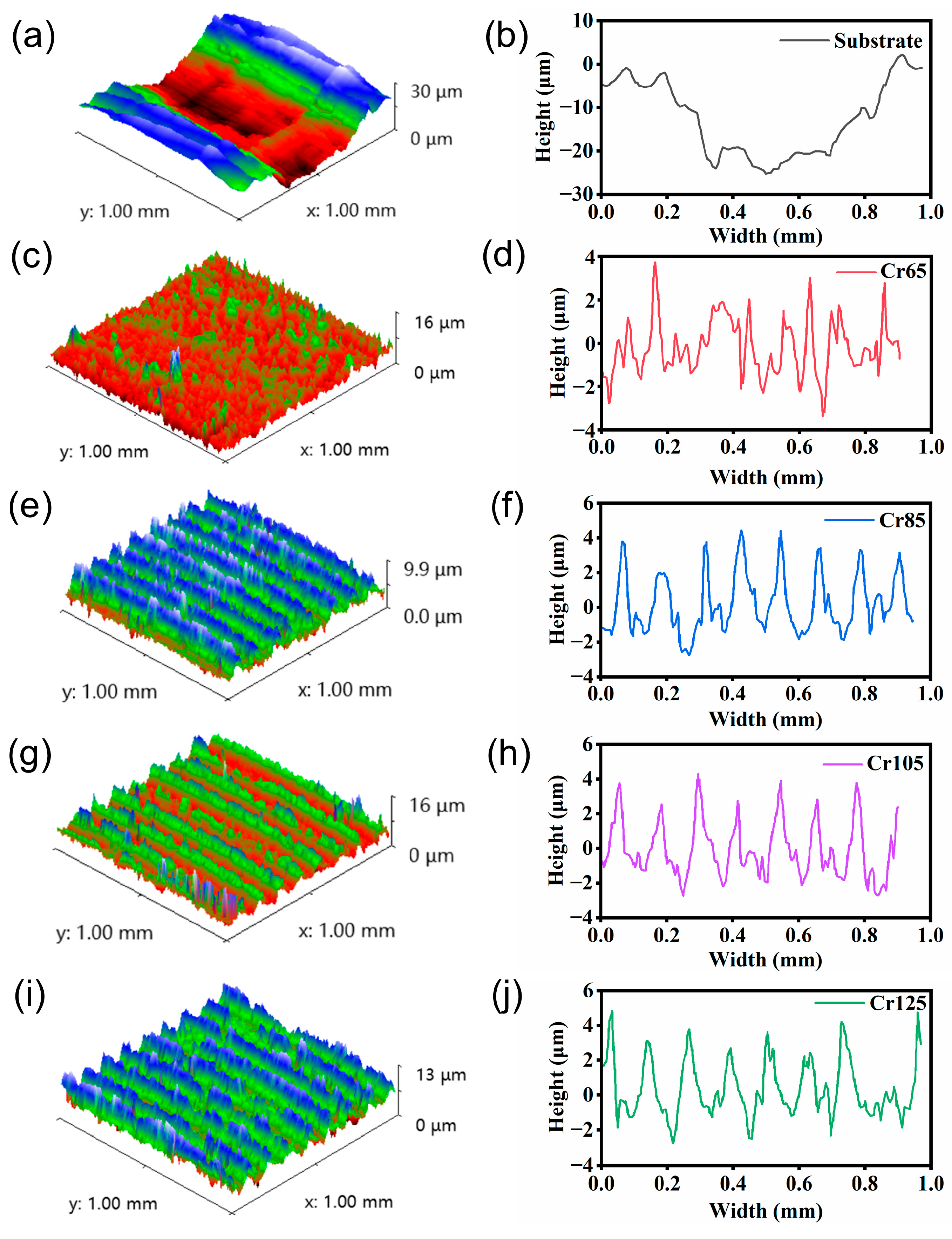

3.3. The Wear Resistance of Coatings
4. Discussion
5. Conclusions
- (1)

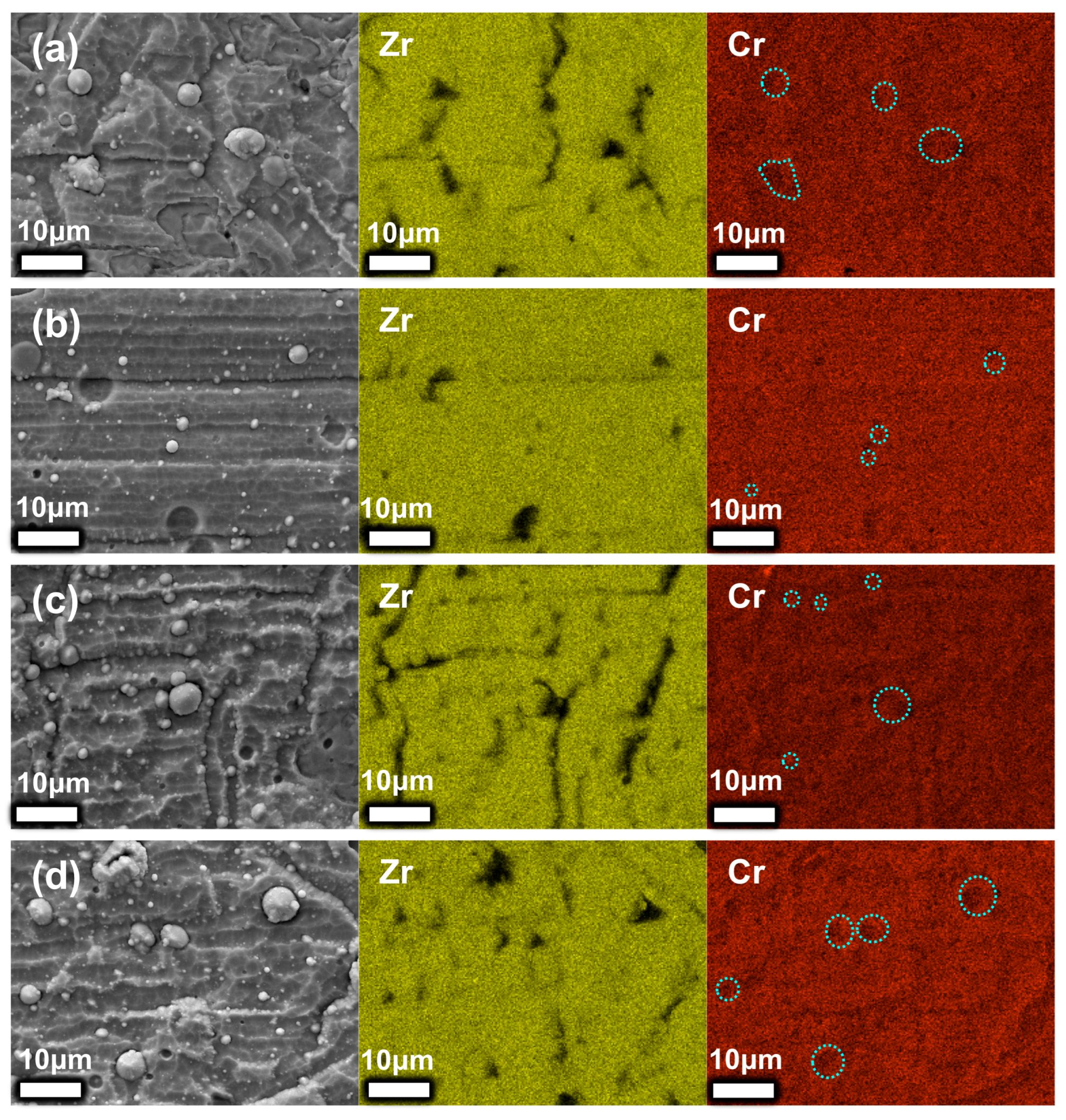

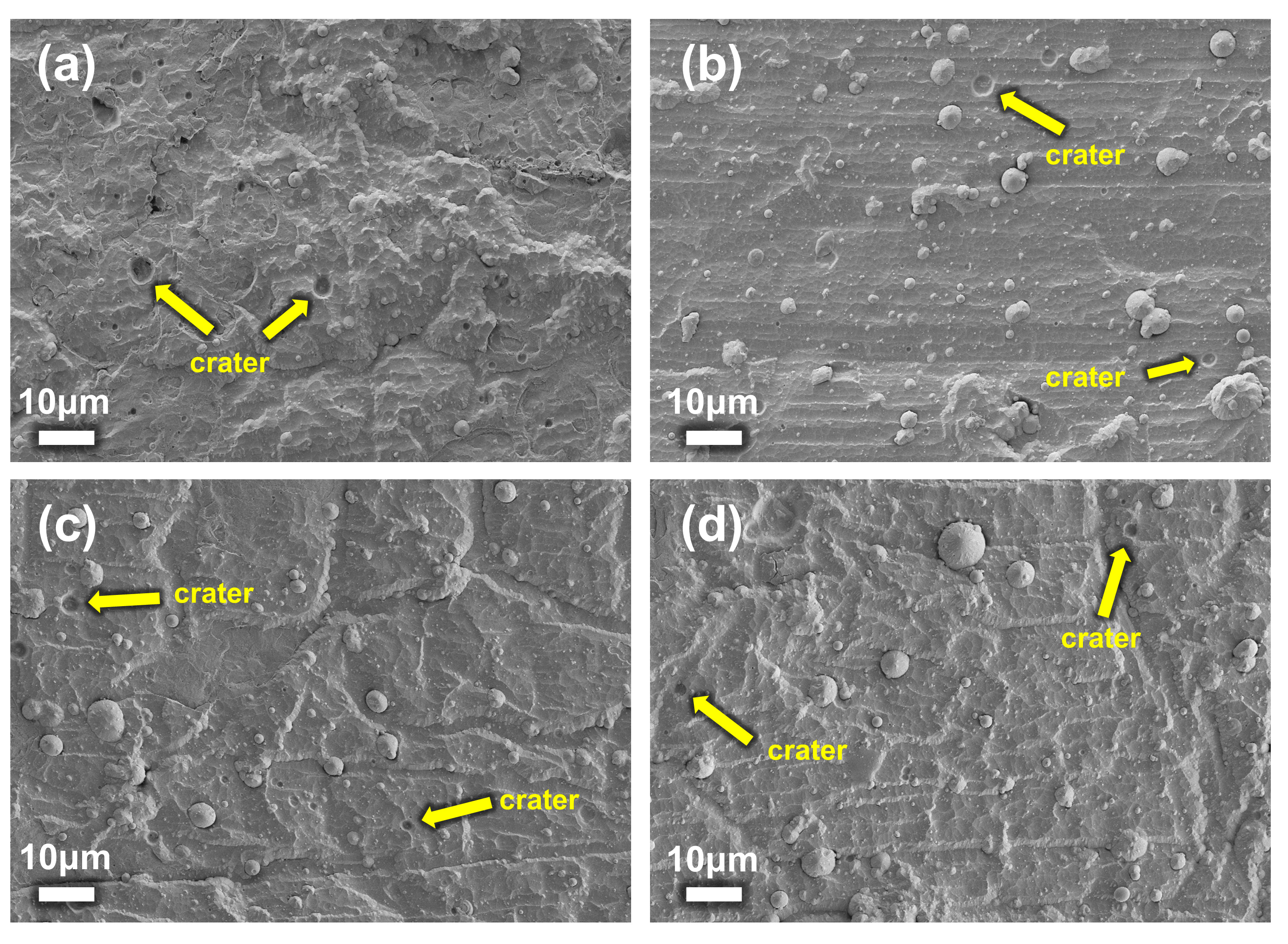

- As the chromium cathode arc current increases, the number and size of micro-particles on the coating surface gradually increase, accompanied by increased surface unevenness and a higher density of crater defects. At 65 A, the coating surface is primarily composed of small spherical particles with diameters less than 3 μm. When the current increases to 85 A, the particle size increases to 3–5 μm, and the coating becomes denser and uniform. However, at higher currents (105 A and 125 A), the micro-particles further coarsen, surface irregularities become more pronounced, elemental distribution becomes more uneven, and the number of craters increases.
- (2)

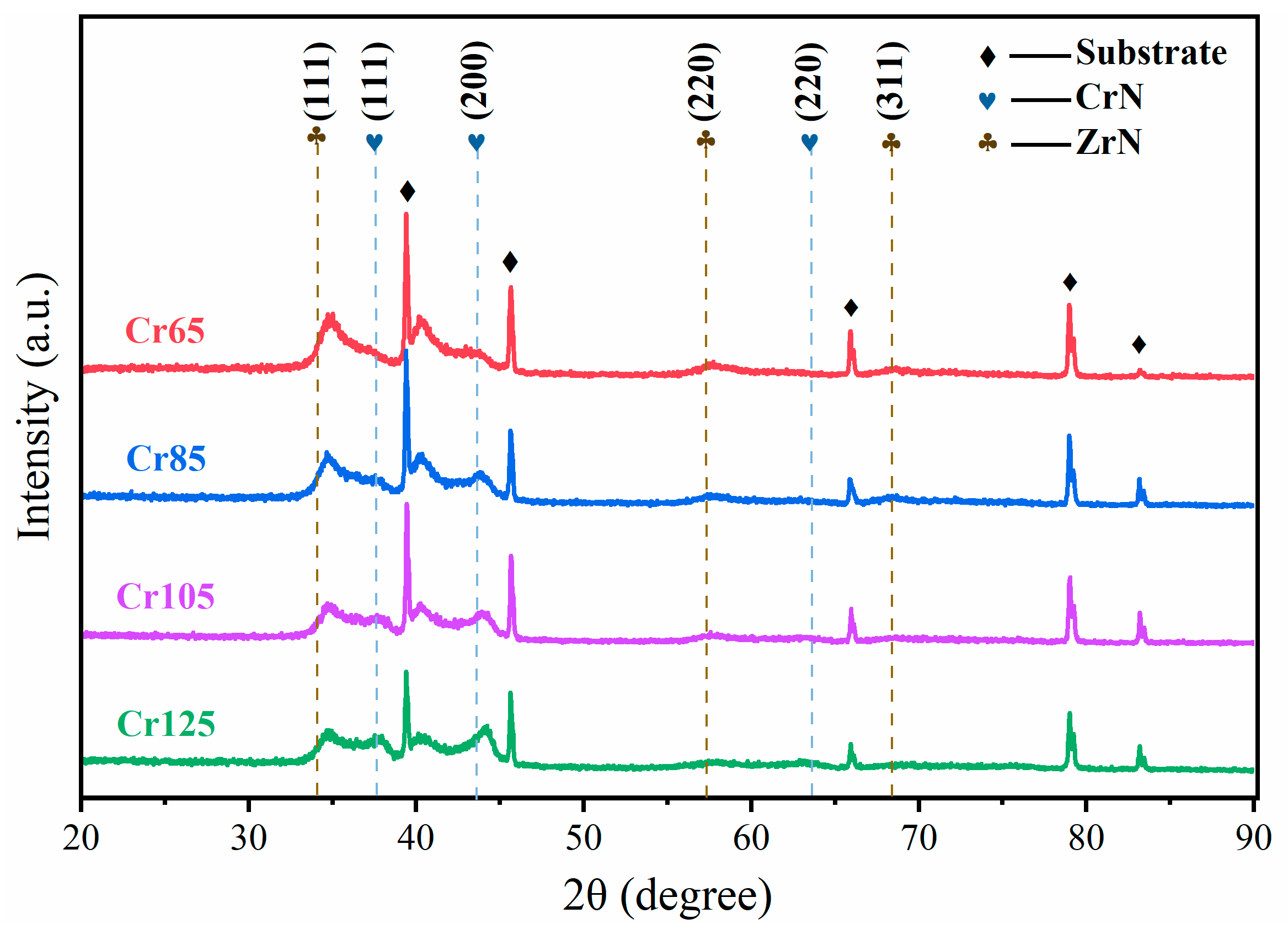

- All coatings exhibit an NaCl-type B1 structure with the main crystal plane being (111). Changes in Cr doping concentration cause lattice constant variations, leading to low-angle shifts in XRD diffraction peaks, indicating the formation of solid solutions and lattice distortion between Zr and Cr.
- (3)

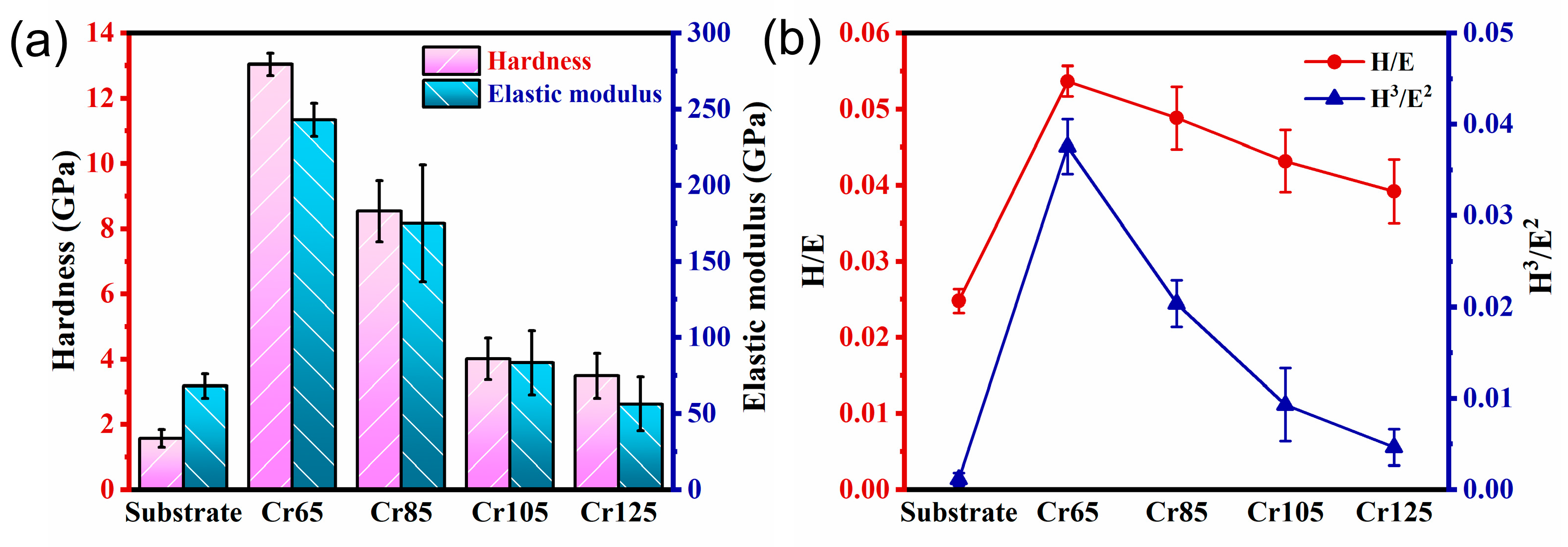

- Nanoindentation test results show that the hardness of all coatings is significantly higher than that of the uncoated aluminum substrate. The Cr65 sample has the highest hardness (13.03 GPa) and elastic modulus (242.87 GPa), with the optimal H/E and H3/E2 ratios. Coatings deposited under low arc current exhibit high resistance to plastic deformation, while those deposited under high arc current have insufficient hardness and strength.
- (4)

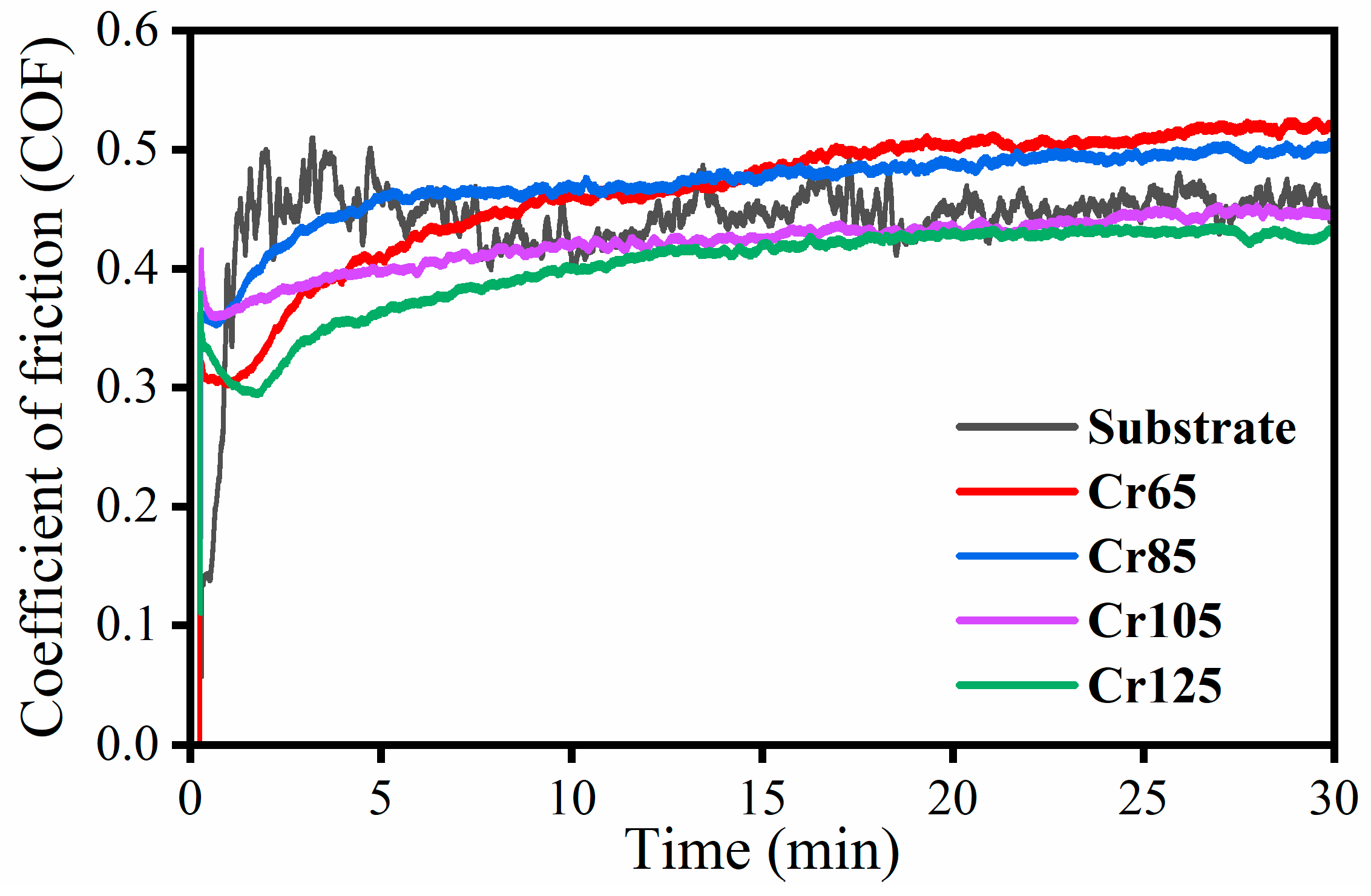

- The Cr125 sample has the lowest COF (approximately 0.42), but its wear volume is relatively large (7.33 × 10−3 mm3). In contrast, the Cr85 sample maintains a low COF (approximately 0.48) while exhibiting the lowest wear volume (9.55 × 10−4 mm3) and a lower wear rate (5.31 × 10−5 mm3/N·m), demonstrating excellent wear resistance. Considering factors such as coating hardness, COF, wear volume, and wear rate, the coating prepared under 85 A conditions exhibits the best wear resistance performance.
