Al2O3 Coatings on Zinc for Anti-Corrosion in Alkaline Solution by Electrospinning

by
Ying Yu
1,
Yuxin Zuo
2,*,
Zhonghao Zhang
1,
Lei Wu
1,
Chuanlong Ning
1 and
Chuncheng Zuo
1,3,*
1
College of Mechanical and Electrical Engineering, Jiaxing University, Jiaxing 314000, China
2
College of Design, Jiaxing University, Jiaxing 314000, China
3
School of Mechanical and Aerospace Engineering, Jilin University, Changchun 130025, China
*
Authors to whom correspondence should be addressed.
Coatings 2019, 9(11), 692; https://doi.org/10.3390/coatings9110692
Submission received: 23 September 2019 / Revised: 16 October 2019 / Accepted: 21 October 2019 / Published: 23 October 2019
Browse Figures
Versions Notes

Abstract

:
The severe corrosion accompanied with hydrogen evolution reaction has become the main obstacle restricting the utilization of zinc as an electrode in alkaline batteries. Al2O3 coating helps control the corrosion of zinc in alkaline solution. Herein, a stable Al2O3 coating is fabricated through facile electrospinning from Al(NO3)3 as an efficient anti-corrosion film on zinc. The electrospinning technique facilitates uniform dispersion of Al2O3 particles, therefore the corrosion inhibition efficiency could be up to 88.5% in this work. The Al2O3 coating prevents direct contact between zinc and the alkaline solution and minimize hydrogen evolution. Further, the effects of the thickness of Al2O3 coating on corrosion behavior of zinc are investigated through hydrogen evolution reaction, Tafel polarization, and impedance test. The results show that the thicker Al2O3 coating possessed better corrosion inhibition efficiency due to the higher corrosion resistance and lower porosity. The 18 μm Al2O3 coating on zinc provides corrosion current density of 60.6 mA/cm2, while the bare zinc substrate delivers as much as 526.3 mA/cm2.This study presents a promising approach for fabricating Al2O3 coating for corrosion-resistant applications.

Graphical Abstract

1. Introduction

Recently, metal–air batteries are considered as the renewable energy for many devices [1,2,3,4]. Zinc is one of the most widely used electrodes because of its abundance, low cost, and environmental compatibility [5,6,7]. Aqueous alkaline electrolyte (KOH, NaOH) is generally applied in Zn-air batteries, and the electrolyte concentration is commonly fixed at 4–6 M [8,9,10]. However, the parasitic hydrogen evolution reaction (HER) during discharge is a major defect that leads to the degradation in the electrochemical performance of batteries [11,12,13].
Many efforts were conducted to overcome this defect. One method is adding some inhibitors into the alkaline electrolyte [14,15]. Zinc oxide, indium hydroxide, sodium stannate, and citrate are found to be effective in inhibiting the self-corrosion in alkaline solutions [16,17]. Another way is alloying elements such as Mg, Ga, Mn, In, Sn, Zr, and Ti in zinc due to their low melting temperatures and high hydrogen evolution overpotential [18,19]. The third approach to suppress corrosion is to modify the surface of zinc with coatings [20,21,22]. Surface coating materials have been found an increasingly wide utilization in the field of anti-corrosion, such as CuO, MgO, Al2O3, Bi2O3, and In2O3, which can prevent the HER and effectively decrease the side reaction [23,24]. Among them, Al2O3 coating has been investigated widely for its possible use as an excellent protective film against HER corrosion due to the excellent corrosion resistance, high mechanical properties, and stable chemical properties [25]. The study by Huai et al. [26] has indicated that the anti-corrosion properties of Al2O3 coating is better in alkaline solution than in acid solution. Lee et al. [27] reported that Al2O3 coating effectively suppressed the HER of zinc anode during storage in alkaline electrolyte. In addition, they proved that the Al2O3 coating could be more effective to control HER than just adding Al2O3 powder into alkaline electrolyte [27].
Various strategies of Al2O3 coating fabrications have been developed to protect the metal from corrosion. Atomic layer deposition (ALD) of Al2O3 on LiCoO2 was studied by Jung et al. to reduce the surface electrolyte reactions for lithium-ion batteries [28]. Díaz et al. coated Al2O3 film on steel by ALD for anti-corrosion [29]. Wongrujipairoj et al. [30] synthesized Al2O3 coating on zinc substrate by sol-gel method to suppress the HER of Zn-air battery. Nevertheless, the ALD and sol-gel coating layers are complex and costly. It would be required multi-step treatment or the special design of equipment. Furthermore, there may be uneven distribution of Al2O3 concerns during the preparation, which would affect the corrosion inhibition efficiency [31]. Electrospinning has been used as an efficient method for preparing thin films [32,33]. The coating film fabricated through electrospinning possesses smooth surface and uniform distributions of particles [34]. Since past few years, various composite materials have been successfully electrospun into ultrathin coatings from their solutions. However, to the best of our knowledge, there has been little research regarding the fabrication of Al2O3 coating through electrospinning technique.
In this study, Al2O3 coating has been electrospun from Al(NO3)3 to inhibit the corrosion of zinc in alkaline solutions. The surface structure and morphology of the Al2O3 coating were characterized by X-ray diffraction and scanning electron microscope (SEM). The corrosion behavior has been investigated through hydrogen evolution test, Tafel polarization, and impedance (EIS). The effect of the coating thickness on anti-corrosion properties is also discussed in this work.

2. Materials and Methods

2.1. Materials

All materials in this study were of analytical grade and used as received without further treatment. Polyacrylonitrile (PAN, Mw = 150,000 g·mol−1) was obtained from Shanghai Macklin Biochemical Co., Ltd. (Shanghai, China). Aluminum nitrate (Al(NO3)3·9H2O) and N,N-dimethylformamide solution (DMF) were purchased from Shanghai Lingfeng Chemical Reagent (Shanghai, China). KOH flakes (AR, 99%) and zinc sheet (99.99%) were purchased from Shenyang Kejing (Shenyang, China).

2.2. Preparation of Al2O3 Coatings

The precursor solution for electrospinning was prepared by dissolving 3 g of Al(NO3)3·9H2O and 1.5 g of PAN in 10 g of DMF solution. Magnetic stirring was applied for 3 h at 60 °C to obtain a homogeneous precursor solution. Subsequently, the solution was electrospun via a single-capillary electrospinning apparatus. The tip-collector distance, applied voltage, and the flow rate were fixed at 12 cm, 17 kV and 0.15 mL/h, respectively. The electrospun coatings were collected on a rotating drum covered with zinc substrate. The coatings were dried in an oven at 60 °C for 3 h to remove the residual solvent. Then sintered the coatings at 350 °C for 1 h with a heating rate of 5 °C/min in an atmospheric environment to obtain Al2O3 coatings. Finally, the coatings were naturally cooled down to ambient temperature. The preparation procedure of the Al2O3 coatings is shown in Figure 1. Different thicknesses of Al2O3 coatings were tested in this work. The coating thickness was measured with a step profiler (DektakXT, Bruker, Billerica, MA, USA).

2.3. Characterization

The morphological structure of the electrospun coatings was investigated through SEM (Su-8010, Hitachi, Tokyo, Japan). The crystalline structures of the samples were characterized using an X-ray diffraction (XRD) instrument (Bruker D8 Advance, Bruker Corp., Billerica, MA, USA) with a Cu-Kα radiation of 0.1541 nm as an X-ray source. The pH of solution was measured using a Mettler-Toledo pH meter (SevenMulti, Mettler-Toledo Instruments, Columbus, OH, USA).

2.4. Hydrogen Evolution Tests and Electrochemical Measurementsc

The HER corrosion was investigated by hydrogen evolution tests using a set of hydrogen collection equipment as described in Ref. [35]; 4 M KOH served as corrosive solution due to its common use in Zn-air batteries as alkaline electrolyte. Zinc specimens (3 cm × 3 cm) with Al2O3 coating on both faces were placed in 4 M KOH solution at pH 13.52 for 1.5 h. The temperature was controlled at 298 K using a thermostat water bath. The hydrogen evolution rate was calculated as:
Hydrogen evolution rate (mL/cm2/min) = Hydrogen volume/Surface area/Time of immersion
The electrochemical tests were carried out with three electrodes system by RST5000 electrochemical workstation (Suzhou, China). The alkaline solution used in this study was 4 M KOH solution. An Hg/HgO and a platinum wire were used as reference and counter electrodes. Potentiodynamic polarization was measured at a scan rate of 1 mV·s−1. Furthermore, electrochemical impedance spectroscopy (EIS) measurements were also performed using the same electrochemical workstation. The frequency ranged from 100 kHz to 0.01 Hz and the sinusoidal excitation voltage applied to the cells was 10 mV·rms. The samples were immersed in KOH solution for 30 min in order to obtain stable surface state. All the electrochemical tests for every material were repeated at least three times to ensure reproducibility.

3. Results and Discussion

3.1. Morphology Characterization of Coatings

In order to confirm the uniformity of Al2O3 coating on the surface of zinc substrate, we conducted SEM analyses of Al2O3 coating. The images of the coatings before and after heat treatment are shown in Figure 2a,b, respectively. Figure 2a shows the surface morphology of (Al(NO3)3 + PAN) coated on zinc substrate; the nanofibers display a smooth surface and an average diameter of ~400 nm. After heat treatment at 350 °C in air, the diameter was reduced to ~220 nm (Figure 2d) and the nanofibers became a little rougher and thinner, due to the removal of the bound water and the decomposition of Al(NO3)3·9H2O. In addition, the organic components of PAN would be decomposed and burned at 250 °C [5,36]. A possible formation mechanism of Al2O3 nanofibers is proposed in Figure 2c.
XRD was used to monitor the components of the prepared coatings (Figure 3). Characteristic diffraction peaks at around 2θ = 37.4°, 45.8°, 61.55°, and 67.2° were observed in the pattern of the nanofibers, representing the (311), (400), (511), and (440) reflections of cubic γ-Al2O3 [30]. This observation is consistent with reported data (JCPDS Card 10-425). A peak of 2θ = 17° contributed to the orthorhombic PAN (110) [37] reflection could also be found because small amount of PAN did not decompose completely. No other peaks were observed for the coatings, suggesting that unique advantages of better control over the chemistry of the Al2O3 coatings offered by electrospinning.

3.2. Hydrogen Gas Evolution Tests

The need to suppress hydrogen evolution is critical for zinc in alkaline solution. In order to study the coating effect on HER, the hydrogen volume evolved from the zinc substrate coated with Al2O3 coating were measured in a volumetric method. Figure 4 shows the volumetric amount of hydrogen spontaneously evolved from zinc substrate modified with Al2O3 coating in 4 M KOH during 1.5 h at elevated temperature of 298 K. The bare zinc has the highest H2 evolution rate, compared with zinc substrate coated with Al2O3. It is obvious that Al2O3 coating plays an important role in retarding the spontaneous corrosion reaction of bare zinc immersed in alkaline solution. As can be seen in Figure 4, the volume of H2 gas decreased with the increase of coating thickness. It shows that zinc modified with 18 μm Al2O3 coating has the best hydrogen evolution rate.

3.3. Electrochemical Measurements

To clarify the effect of coating thicknesses on H2 evolution behavior, the polarization behavior of different thickness coatings were measured with a three-electrode system. Polarization curves obtained for zinc substrate coated with Al2O3 in 4 M KOH solution are plotted in Figure 5a. The curves show similar behaviors but different corrosion parameters, including Tafel slopes ba and bc, corrosion potential (Ecorr), corrosion current density (Icorr), and corrosion inhibition efficiency (η%). The parameters by Tafel extrapolation method are listed in Table 1. It is evident that the Tafel slope of the anode decreased obviously. The polarization curves indicate the Al2O3 coatings have obvious passivation behavior, and the stable passivation widens with increasing the coating thickness. For the case of 18 μm Al2O3 coating, it can be seen that the anodic current decreases at higher potential. This is mainly due to the formation of Al(OH)3 adsorbed on the coating surface and attainment of a passive region. When the potential increases to a certain degree, the passive coating begins to be destroyed. The corrosion current densities decrease with the increase of coating thicknesses. The corrosion current density of bare zinc, 526.3 mA/cm2, is much higher than of the zinc substrate modified with 18 μm Al2O3 coating, 60.6 mA/cm2. It is worthwhile to notice that the corrosion current density is reduced by almost one order after the surface is modified on zinc substrate. The corrosion inhibition efficiency is calculated using the following formula:
η % = ( I c o r r − I c o r r ( i n h ) ) / I c o r r × 100 %
where Icorr and Icorr(inh) are the corrosion current densities without and with the Al2O3 coating, respectively. As shown in Table 1, compared with bare zinc, the corrosion inhibition efficiency of zinc coated with 18 μm Al2O3 film reached 88.5%, which is higher than previous studies by Lee (82%) [27], who modified zinc with Al2O3 coating by sol-gel process. The polarization resistance can be obtained from the potentiodynamic polarization curves [38]:
R p = B i c o r r   and   B = b a b c 2.303 ( b a + b c )
It can be seen in Table 1 that the thicker coatings get lower current density and higher corrosion resistance. It is established that a lower corrosion current density denotes lower corrosion rate and better corrosion resistance [39].
The coating quality is an important factor that influences the anti-corrosion effect. Defects, pores, or pinholes present in the coating may reduce the corrosion inhibition efficiency. This is hereafter defined as the total coating porosity, which can be calculated from the polarization resistance [40,41]:
P R = R P 0 R p × 100 %
where PR, R p 0 and Rp correspond to the total coating porosity, polarization resistance of the uncoated and coated zinc substrate, respectively. Table 1 shows the resulting coating porosity values obtained from Equation (4). We also measured the surface porosity of the coatings from SEM by using Image software (Java version) image processing as shown in Figure 5b. The surface porosity calculated from SEM is a little smaller than the total coating porosity calculated from Equation (4). Apparently, the coating porosity decreases with increasing thickness. The observed decrease of porosity with increasing thickness of Al2O3 coating is consistent with the view that fewer defects are existed in the thicker coating. Defects are assumed to connect the bulk alkaline solution to the surface of zinc substrate where the electrochemical reactions proceed. Therefore, polarization resistance would be higher for the substrate modified by thicker coatings.
Figure 6 shows the Nyquist plots for zinc substrate with different thickness Al2O3 coatings in 4 M KOH solutions. The equivalent circuits of the EIS plots are shown in the insert, and the fitting values of the impedance parameters are listed in Table 1. The equivalent circuit includes the electrolyte resistance, Re, measured at high frequency, and the charge transfer resistance, Rct, found at the low-frequency intercept. It can be seen that Rct increases in the following order: Bare zinc < zinc with 6 μm Al2O3 coating < zinc with 12 μm Al2O3 coating < zinc with 18 μm Al2O3 coating, indicating that Al2O3 coating can effectively increase the resistance value of Rct in KOH solution. As depicted in Table 1, the resistance of bare zinc is only 620 Ω·cm2, while the resistance of zinc with 18 μm Al2O3 coating reaches up to 5167 Ω·cm2 (almost one order of magnitude higher than bare zinc). With the increase of the coating thickness, more micro fibers coatedthe surface of zinc substrate. Thus, it is more difficult for the ions to pass through the coating and touch the zinc substrate. The charger transfer resistance Rct obtained at the low frequency corresponds well to the polarization resistance calculated from the Tafel tests as shown in Table 1. As shown in Figure 6, the EIS plots consist of a capacitive loop for all the cases. The decrease of the capacitance (C) with increasing the thickness of the coating is also consistent with the decrease of porosity. This is due to the fact that the double layer capacitance is directly related to the exposed surface area. “n” represents the roughness of the surface. There is no obvious change in the surface roughness of zinc substrate after modified with thicker Al2O3 coatings. This indicates that the electrospun fibers are distributed uniformity. As the coating thickens on the zinc substrate, the resistance increased and the porosity reduced. KOH solution penetrated into the coating more difficultly, making the anti-corrosion effect of the coating improve further. The findings indicated that the barrier of coating to corrosive medium became stronger. All these results illustrated that the thicker Al2O3 coatings had better anti-corrosion property.

4. Conclusions

The Al2O3 coating was fabricated by electrospinning from Al(NO3)3 and coated onto zinc substrate to inhibit the corrosion. The XRD confirmed that Al2O3 coating film was well formed. The anticorrosion properties of Al2O3 coatings with different thicknesses were evaluated by H2 evolution, Tafel, and EIS in KOH solution. The coating thickness had a significant influence on the anti-corrosion behavior. The thicker Al2O3 coating possessed better corrosion resistance, lower porosity, and better corrosion inhibition efficiency. The corrosion inhibition efficiency reached 88.5%. The corrosion current density was 60.6 A/cm2, which was one order of magnitude smaller than the bare zinc. The results indicate that Al2O3 coatings show promise as a good candidate for the corrosion protection of reactive metals.

Author Contributions

Conceptualization, C.Z.; methodology, Y.Y.; validation and formal analysis, Y.Z.; investigation, L.W., Z.Z. and C.N.; writing—original draft preparation, Y.Z.; writing—review and editing, Y.Y.; supervision, C.Z.

Funding

This work was supported by the National Natural Science Foundation of China (Project Nos. 11802102 and 51775242).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Sun, Y.; Liu, X.; Jiang, Y.; Li, J.; Ding, J.; Hu, W.; Zhong, C. Recent advances and challenges in divalent and multivalent metal electrodes for metal-air batteries. J. Mater. Chem. A 2019, 7, 18183–18208. [Google Scholar] [CrossRef]
  2. Li, H.; Ma, L.; Han, C.; Wang, Z.; Liu, Z.; Tang, Z.; Zhi, C. Advanced rechargeable zinc-based batteries: Recent progress and future perspectives. Nano Energy 2019, 62, 550–587. [Google Scholar] [CrossRef]
  3. Ryu, J.; Park, M.; Cho, J. Advanced technologies for high-energy aluminum-air batteries. Adv. Mater. 2019, 31, 1–8. [Google Scholar] [CrossRef] [PubMed]
  4. Wu, H.; Sun, W.; Shen, J.; Lu, C.; Wang, Y.; Wang, Z.; Sun, K. Improved structural design of single- and double-wall MnCo2O4 nanotube cathodes for long-life Li-O2 batteries. Nanoscale 2018, 10, 13149–13158. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, Y.; Xu, X.; Chen, J.; Wang, Q. Polyoxometalate on rice paper derived 3D mesoporous carbon paper: An electrocatalyst as cathode for asymmetric Zn-air battery. J. Power Sources 2019, 430, 201–209. [Google Scholar] [CrossRef]
  6. Li, Z.; Zhao, W.; Yin, C.; Wei, L.; Wu, W.; Hu, Z.; Wu, M. Synergistic effects between doped nitrogen and phosphorus in metal-free cathode for zinc-air battery from covalent organic frameworks coated CNT. ACS Appl. Mater. Interfaces 2017, 9, 44519–44528. [Google Scholar] [CrossRef] [PubMed]
  7. Cai, P.; Hong, Y.; Ci, S.; Wen, Z. In situ integration of CoFe alloy nanoparticles with nitrogen-doped carbon nanotubes as advanced bifunctional cathode catalysts for Zn-air batteries. Nanoscale 2016, 8, 20048–20055. [Google Scholar] [CrossRef]
  8. Meng, F.L.; Liu, K.H.; Zhang, Y.; Shi, M.M.; Zhang, X.B.; Yan, J.M.; Jiang, Q. Recent advances toward the rational design of efficient bifunctional air electrodes for rechargeable Zn-Air batteries. Small 2018, 14, 1–20. [Google Scholar] [CrossRef]
  9. Han, S.; Hu, X.; Wang, J.; Fang, X.; Zhu, Y. Novel Route to Fe-based cathode as an efficient bifunctional catalysts for rechargeable Zn-air battery. Adv. Energy Mater. 2018, 8, 1–9. [Google Scholar] [CrossRef]
  10. Lee, J.S.; Nam, G.; Sun, J.; Higashi, S.; Lee, H.W.; Lee, S.; Chen, W.; Cui, Y.; Cho, J. Composites of a prussian blue analogue and gelatin-derived nitrogen-doped carbon-supported porous spinel oxides as electrocatalysts for a Zn-air battery. Adv. Energy Mater. 2016, 6, 1601052. [Google Scholar] [CrossRef]
  11. Amiinu, I.S.; Pu, Z.; Liu, X.; Owusu, K.A.; Monestel, H.G.R.; Boakye, F.O.; Zhang, H.; Mu, S. Multifunctional Mo-N/C@MoS2 electrocatalysts for HER, OER, ORR, and Zn–air batteries. Adv. Funct. Mater. 2017, 27, 1–11. [Google Scholar] [CrossRef]
  12. Liu, K.; Zhong, H.; Meng, F.; Zhang, X.; Yan, J.; Jiang, Q. Recent advances in metal-nitrogen-carbon catalysts for electrochemical water splitting. Mater. Chem. Front. 2017, 1, 2155–2173. [Google Scholar] [CrossRef]
  13. Zhao, Z.; Fan, X.; Ding, J.; Hu, W.; Zhong, C.; Lu, J. The challenges in zinc electrodes for rechargeable alkaline zinc-air batteries: Obstacles to commercialization. ACS Energy Lett. 2019, 4, 2259–2270. [Google Scholar] [CrossRef]
  14. Verma, C.; Ebenso, E.E.; Quraishi, M.A. Ionic liquids as green and sustainable corrosion inhibitors for metals and alloys: An overview. J. Mol. Liq. 2017, 233, 403–414. [Google Scholar] [CrossRef]
  15. Zuo, Y.; Yu, Y.; Zuo, C.; Ning, C.; Liu, H.; Gu, Z.; Cao, Q.; Shen, C. Low-temperature performance of Al-air batteries. Energies 2019, 12, 612. [Google Scholar] [CrossRef]
  16. Mainar, A.R.; Colmenares, L.C.; Blázquez, J.A.; Urdampilleta, I. A brief overview of secondary zinc anode development: The key of improving zinc-based energy storage systems. Int. J. Energy Res. 2018, 42, 903–918. [Google Scholar] [CrossRef]
  17. Thomas, S.; Birbilis, N.; Venkatraman, M.S.; Cole, I.S. Self-repairing oxides to protect zinc: Review, discussion and prospects. Corros. Sci. 2013, 69, 11–22. [Google Scholar] [CrossRef]
  18. Zeng, R.C.; Hu, Y.; Zhang, F.; Huang, Y.D.; Wang, Z.L.; Li, S.Q.; Han, E.H. Corrosion resistance of cerium-doped zinc calcium phosphate chemical conversion coatings on AZ31 magnesium alloy. Trans. Nonferr. Met. Soc. China 2016, 26, 472–483. [Google Scholar] [CrossRef] [Green Version]
  19. Bahmani, A.; Arthanari, S.; Shin, K.S. Corrosion behavior of Mg-Mn-Ca alloy: Influences of Al, Sn and Zn. J. Magnes. Alloy 2019, 7, 38–46. [Google Scholar] [CrossRef]
  20. Nam Jo, Y.; Santhoshkumar, P.; Prasanna, K.; Vediappan, K.; Woo Lee, C. Improving self-discharge and anti-corrosion performance of Zn-air batteries using conductive polymer-coated Zn active materials. J. Ind. Eng. Chem. 2019, 76, 396–402. [Google Scholar] [CrossRef]
  21. Lu, X.; Wang, S.; Xiong, T.; Wen, D.; Wang, G.; Du, H. Anticorrosion properties of Zn-Al composite coating prepared by cold spraying. Coatings 2019, 9, 210. [Google Scholar] [CrossRef]
  22. Boshkova, N.; Tabakova, N.; Atanassova, G.; Boshkov, N. Electrochemical obtaining and corrosion behavior of zinc-polyaniline (Zn-PANI) hybrid coatings. Coatings 2019, 9, 487. [Google Scholar] [CrossRef]
  23. Shivkumar, R.; Kalaignan, G.P.; Vasudevan, T. Studies with porous zinc electrodes with additives for secondary alkaline batteries. J. Power Sources 1998, 75, 90–100. [Google Scholar] [CrossRef]
  24. Chakarova, V.; Boiadjieva-Scherzer, T.; Kovacheva, D.; Kronberger, H.; Monev, M. Corrosion behaviour of electrodeposited Zn-Cr alloy coatings. Corros. Sci. 2018, 140, 73–78. [Google Scholar] [CrossRef]
  25. Ehsani, A.; Mahjani, M.G.; Nasseri, M.; Jafarian, M. Influence of electrosynthesis conditions and Al2O3 nanoparticles on corrosion protection effect of polypyrrole films. Anti-Corros. Methods Mater. 2014, 61, 146–152. [Google Scholar] [CrossRef]
  26. Huai, X.; Zhao, S.; Li, W. Corrosion resistance of Al2O3 coating on a steel substrate. J. Ceram. Process. Res. 2009, 10, 618–620. [Google Scholar]
  27. Lee, S.M.; Kim, Y.J.; Eom, S.W.; Choi, N.S.; Kim, K.W.; Cho, S.B. Improvement in self-discharge of Zn anode by applying surface modification for Zn-air batteries with high energy density. J. Power Sources 2013, 227, 177–184. [Google Scholar] [CrossRef]
  28. Jung, Y.S.; Cavanagh, A.S.; Dillon, A.C.; Groner, M.D.; George, S.M.; Lee, S.H. Enhanced stability of LiCoO2 cathodes in lithium-ion batteries using surface modification by atomic layer deposition. J. Korean Ceram. Soc. 2010, 47, 61–65. [Google Scholar] [CrossRef]
  29. Díaz, B.; Härkönen, E.; Światowska, J.; Maurice, V.; Seyeux, A.; Marcus, P.; Ritala, M. Low-temperature atomic layer deposition of Al2O3 thin coatings for corrosion protection of steel: Surface and electrochemical analysis. Corros. Sci. 2011, 53, 2168–2175. [Google Scholar] [CrossRef]
  30. Wongrujipairoj, K.; Poolnapol, L.; Arpornwichanop, A.; Suren, S.; Kheawhom, S. Suppression of zinc anode corrosion for printed flexible zinc-air battery. Phys. Status Solidi B 2017, 254, 1600442. [Google Scholar] [CrossRef]
  31. Park, J.H.; Fathipour, S.; Kwak, I.; Sardashti, K.; Ahles, C.F.; Wolf, S.F.; Edmonds, M.; Vishwanath, S.; Xing, H.G.; Fullerton-Shirey, S.K.; et al. Atomic layer deposition of Al2O3 on WSe2 functionalized by titanyl phthalocyanine. ACS Nano 2016, 10, 6888–6896. [Google Scholar] [CrossRef] [PubMed]
  32. Parvinzadeh Gashti, M.; Pakdel, E.; Alimohammadi, F. Nanotechnology-Based Coating Techniques for Smart Textiles; Elsevier Ltd.: Amsterdam, The Netherlands, 2016; ISBN 9780081002650. [Google Scholar]
  33. Castro-Mayorga, J.L.; Fabra, M.J.; Cabedo, L.; Lagaron, J.M. On the use of the electrospinning coating technique to produce antimicrobial polyhydroxyalkanoate materials containing in situ-stabilized silver nanoparticles. Nanomaterials 2017, 7, 4. [Google Scholar] [CrossRef] [PubMed]
  34. Bessaire, B.; Mathieu, M.; Salles, V.; Yeghoyan, T.; Celle, C.; Simonato, J.P.; Brioude, A. Synthesis of continuous conductive PEDOT: PSS nanofibers by electrospinning: A conformal coating for optoelectronics. ACS Appl. Mater. Interfaces 2017, 9, 950–957. [Google Scholar] [CrossRef] [PubMed]
  35. Deyab, M.A. Hydrogen generation by tin corrosion in lactic acid solution promoted by sodium perchlorate. J. Power Sources 2014, 268, 765–770. [Google Scholar] [CrossRef]
  36. Horrocks, A.R.; Zhang, J.; Hall, M.E. Flammability of polyacrylonitrile and its copolymers II. Thermal behaviour and mechanism of degradation. Polym. Int. 1994, 33, 303–314. [Google Scholar] [CrossRef]
  37. Zhang, Z.; Zhang, L.; Wang, S.; Chen, W.; Lei, Y. A convenient route to polyacrylonitrile/silver nanoparticle composite by simultaneous polymerization-reduction approach. Polymer 2001, 42, 8315–8318. [Google Scholar] [CrossRef]
  38. Stern, M.; Geary, A. Electrochemical polarization I. A theoretical analysis of the shape of polarization curves. J. Electrochem. Soc. 1957, 104, 56–63. [Google Scholar] [CrossRef]
  39. Wang, P.; Liang, C.; Wu, B.; Huang, N.; Li, J. Protection of copper corrosion by modification of dodecanethiol self-assembled monolayers prepared in aqueous micellar solution. Electrochim. Acta 2010, 55, 878–883. [Google Scholar] [CrossRef]
  40. Tato, W.; Landolt, D. Electrochemical determination of the porosity of single and duplex PVD coatings of titanium and titanium nitride on brass. J. Electrochem. Soc. 1998, 145, 4173–4181. [Google Scholar] [CrossRef]
  41. Ahn, S.H.; Choi, Y.S.; Kim, J.G.; Han, J.G. A study on corrosion resistance characteristics of PVD Cr-N coated steels by electrochemical method. Surf. Coat. Technol. 2002, 150, 319–326. [Google Scholar] [CrossRef]
Coatings 09 00692 g001 550

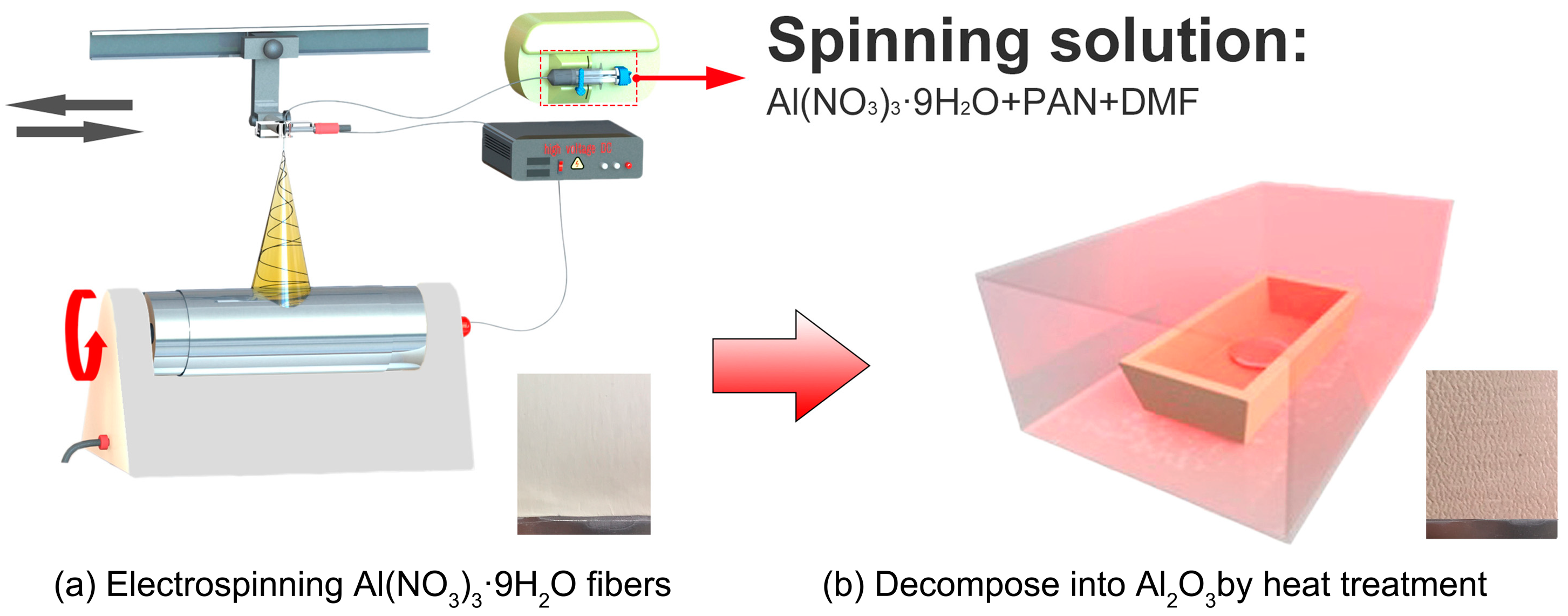

Figure 1. Schematic illustration of the preparation of Al2O3 coatings. Electrospun Al(NO3)3·9H2O, polyacrylonitrile (PAN) and N,N-dimethylformamide (DMF) mixed solution on zinc substrate (a). Heat treated the electrospun films in muffle furnace in an atmospheric environment to obtain Al2O3 coatings (b).
Figure 1. Schematic illustration of the preparation of Al2O3 coatings. Electrospun Al(NO3)3·9H2O, polyacrylonitrile (PAN) and N,N-dimethylformamide (DMF) mixed solution on zinc substrate (a). Heat treated the electrospun films in muffle furnace in an atmospheric environment to obtain Al2O3 coatings (b).
Coatings 09 00692 g001
Coatings 09 00692 g002 550

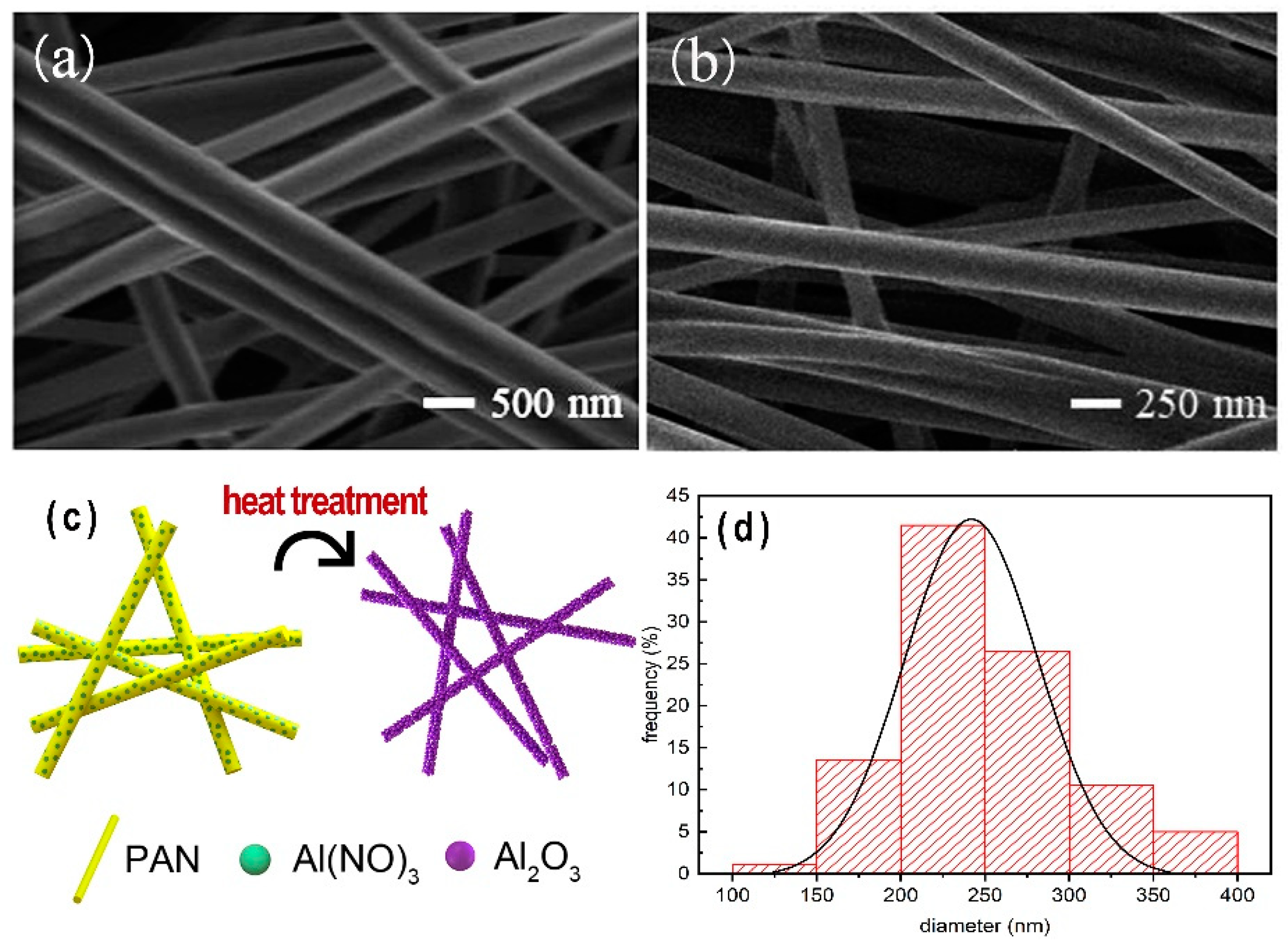

Figure 2. SEM images of the Al2O3 coatings made by electrospinning technique before (a) and after heat treatment (b). Sketch illustrating the formation mechanism of the Al2O3 nanofiber coatings (c). The diameter distribution of Al2O3 nanofibers (d).
Figure 2. SEM images of the Al2O3 coatings made by electrospinning technique before (a) and after heat treatment (b). Sketch illustrating the formation mechanism of the Al2O3 nanofiber coatings (c). The diameter distribution of Al2O3 nanofibers (d).
Coatings 09 00692 g002
Coatings 09 00692 g003 550
Figure 3. XRD patterns of the Al2O3 coatings on zinc substrate.
Figure 3. XRD patterns of the Al2O3 coatings on zinc substrate.
Coatings 09 00692 g003
Coatings 09 00692 g004 550
Figure 4. Hydrogen evolution rates of the bare and different thicknesses of Al2O3-coated zinc substrates in 4 M KOH solutions.
Figure 4. Hydrogen evolution rates of the bare and different thicknesses of Al2O3-coated zinc substrates in 4 M KOH solutions.
Coatings 09 00692 g004
Coatings 09 00692 g005 550

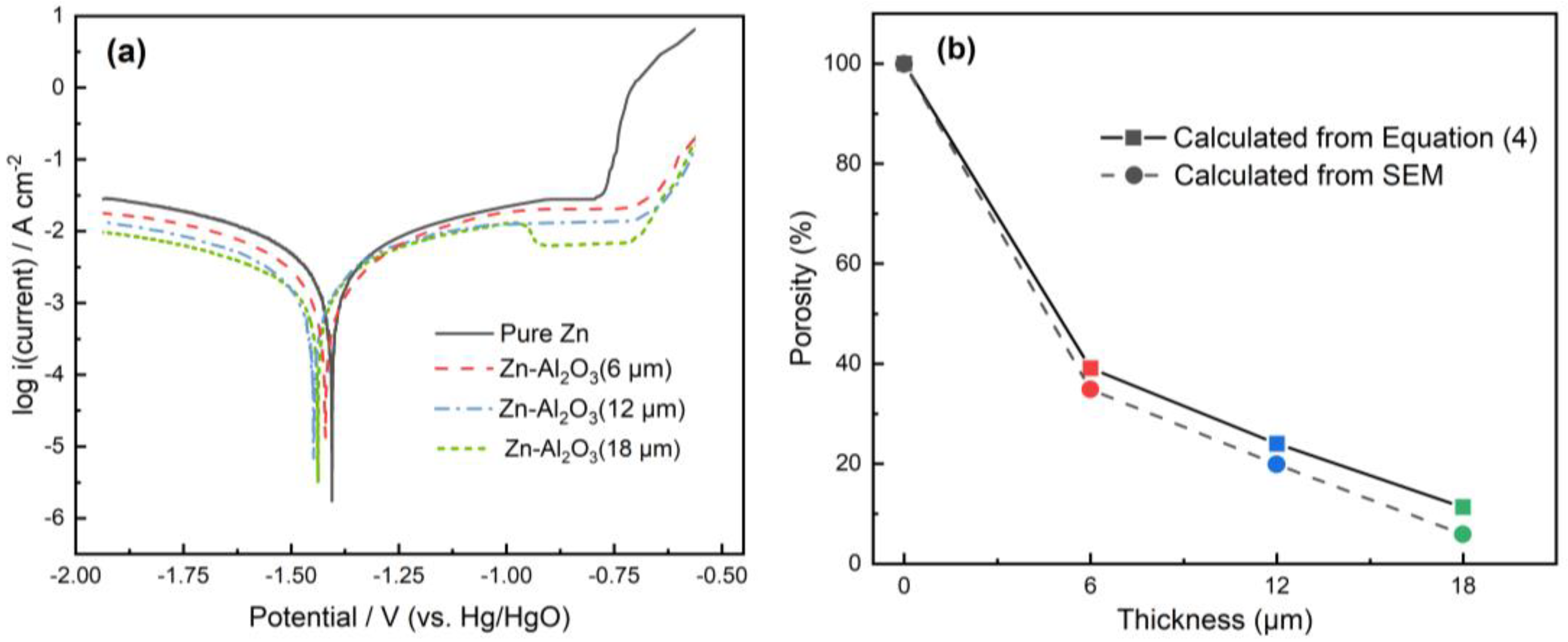

Figure 5. The polarization curves obtained for the bare and different thicknesses of Al2O3-coated zinc substrates in 4 M KOH solutions (a). Plots of the porosity as a function of the coating thicknesses calculated from Equation (4) (■) and SEM (●) (b).
Figure 5. The polarization curves obtained for the bare and different thicknesses of Al2O3-coated zinc substrates in 4 M KOH solutions (a). Plots of the porosity as a function of the coating thicknesses calculated from Equation (4) (■) and SEM (●) (b).
Coatings 09 00692 g005
Coatings 09 00692 g006 550
Figure 6. Nyquist plots obtained by EIS for the bare and different thicknesses of Al2O3-coated zinc substrates in 4 M KOH solution. Inset: The equivalent circuit model for fitting the impedance data.
Figure 6. Nyquist plots obtained by EIS for the bare and different thicknesses of Al2O3-coated zinc substrates in 4 M KOH solution. Inset: The equivalent circuit model for fitting the impedance data.
Coatings 09 00692 g006
Table
Table 1. Corrosion parameters from polarization curves and electrochemical impedance spectroscopy (EIS) fitting parameters form Nyquist plots.
Table 1. Corrosion parameters from polarization curves and electrochemical impedance spectroscopy (EIS) fitting parameters form Nyquist plots.
SamplesPolarizationImpedance
−EcorrIcorrba−bcη%RpPR%ReRctnC
mVmA/cm2mV/decmV/dec–Ω·cm2–Ω·cm2Ω·cm2–×10−5 F·cm2
Bare zinc1399526.31160840–57710025.76200.831.69
Al2O3
6 μm		1416209.4100479360.2147639.126.515980.851.53
Al2O3
12 μm		1421124.792778576.3247523.326.925690.861.31
Al2O3
18 μm		143660.687177088.5510611.329.351670.850.83
