Hydrophobic and Icephobic Behaviour of Polyurethane-Based Nanocomposite Coatings

Abstract

In this paper, hydrophobic nanocomposite coatings based on polyurethane (PUR) modified by nano-silica and silane-based compounds were manufactured by spraying. The main challenge was to assess and improve the hydrophobic as well as anti-icing properties of initially hydrophilic polymer coatings. The prepared nanocomposite coatings were characterized by means of scanning electron microscopy (SEM), optical profilometry and X-ray photoelectron spectroscopy (XPS). The results obtained showed that in order to achieve hydrophobicity, appropriate amounts of nano-silica must be incorporated in the coating, and complete coverage by nano-silica particles is necessary for achieving hydrophobicity. Coating adhesion and the durability of the hydrophobic behaviour were also studied by scratch test and frosting/defrosting cycles, respectively. The results show that use of both nano-silica and silane-based compounds improve the hydrophobic and anti-icing properties of the coating as compared to a non-modified PUR topcoat. A synergistic effect of both additives was observed. It was also found that the anti-icing behaviour does not necessarily correlate with surface roughness and the materials’ wetting properties.

1. Introduction

Flying into adverse weather conditions is a critical operational issue for all types of aircraft (airplanes, helicopters, drones or unmanned aerial vehicles, etc.). Icing clouds lead to potentially dangerous ice accretion on key elements such as fan and helicopter blades, winglets or slats, etc. by causing changes in the aerodynamic profiles as well as performance degradation due to a decrease in lift and increased drag, torques or vibrations [1,2,3,4,5].

Based on the European Union Aviation Safety Agency (EASA) [6] annual reports, icing in flight remains one of the three largest issues for aviation safety based on the past performance of the system by counting high-risk occurrences or the number of fatalities or through the aggregated risk score. The authors of the report indicated that between the 2012 and 2016, 277 in-flight icing incidents were reported. Six of them were classified as serious incidents and one as fatal. Moreover, in the same period, 116 additional on-ground incidents leading to flights delays were reported. These numbers show that icing is dangerous for aviation safety and still common.

The ice protection systems currently used are based on electro-thermal systems that operate once the ice has been formed (de-icing): they melt the ice layer in contact with the solid surface and allow ice removal by aerodynamic forces. However, these methods present several drawbacks: for instance, such systems usually cover only the leading edge of the blade where ice accretes, leading to the potential formation of the so-called “runback ice”, caused by liquid water flowing in the aft direction [7]. In addition, these systems operate cyclically (to avoid huge power consumption) allowing ice to accrete up to a thickness of several millimetres prior to removal. Finally, they require heavy devices, as well as high power inputs and generate large quantities of heat which is inappropriate for currently used polymer-based topcoat materials [8].

The aforementioned drawbacks have forced manufacturers and scientists to develop new systems to prevent or mitigate ice formation on aircraft. An alternative is provided by surface coatings—a passive, reliable approach which results in low energy consumption, low costs, does not require expensive equipment, and can confer permanent protection against ice [9,10]. The state-of-the-art describes two main coating design strategies to prevent ice accretion. The first is based on superhydrophobic surfaces with very low water adhesion forces and surface-free energies [11,12], whilst the second one is based on low ice adhesion [13]. There are coatings which exhibit both superhydrophobicity and low adhesion which can be synergic [14]. This can usually be achieved by controlling the surface roughening and by employing low surface-energy materials.

Preparation of dual-scale, hierarchical structures inspired by nature (e.g., lotus leaf) has been already widely described in the literature [15,16,17]. Most of them only concern hydrophobic/superhydrophobic properties of polyurethane (PUR) achieved by the addition of nanoparticles. However, there are no reports on achieving hydrophobic and icephobic properties of PUR using both nanoparticles and silane-based modifiers. This paper presents investigation of such hybrid modification of polyurethane coatings.

Polymer nanocomposites are currently one of the most interesting areas for research and development (R&D), especially in demanding sectors such as the automotive industry or aviation [18]. Nanoparticles are now widely used for surface roughness modification because of their unique properties, easier processing and commercial availability. Their proper modification and distribution in polymers makes it possible to influence the wettability of the coating [19,20].

Polyurethane is one of the most commonly utilized polymer in different industrial applications, including coatings. Due to very good ultraviolet (UV) resistance and adhesion to aluminium, the PUR topcoats are attractive in aviation, automotive and many others sectors [21,22]. However, PUR macromolecules contain polar groups, which gradually migrate onto the top of the coating and thus interact with the water droplets causing a decrease of hydrophobicity [23]. Because of the fact that polyurethane is a rather hydrophilic material, it is still challenging to manufacture hydrophobic PUR-based coatings with high durability, especially under low temperatures (below freezing). Hence, appropriate modifications of PUR are needed to obtain stable, anti-icing coatings. In this paper, simple volumetric modification techniques have been utilized to modify the chemical composition and microstructure of PUR coatings by adding Si rich compounds and nano-silica particles. The additional objective was to determine nano-silica concentration resulting in improved anti-icing behaviour of investigated material without deterioration of adhesion to the substrate. A synergic effect of both modifications was evaluated.

2. Materials and Methods

2.1. Materials

A 3 component PUR topcoat (Aviox^® finish 77702) was obtained from Akzo Nobel, Netherlands. It was used in combination with the Aerodur^® HS 37092 2 (Akzo Nobel, Sassenheim, Netherlands) component amine cured epoxy primer. To modify the topcoat, DC88, a silane/siloxane blend (Dow Corning^®, Midland, MI, USA) was utilized. The hydrophobic nano-silica Aerosil^® R8200 (Evonik, Hanau, Germany) used in this study has a specific surface area of 135–185 m²/g and a nominal particle size of 16 nm. It was produced by treating nano-silica with bis(trimethylsilyl)amine (C₆H₁₉NSi₂). All these materials were used as received. The modified PUR coatings were deposited on 2024 aluminium alloy (WMH Group, Essen, Germany).

2.2. Preparation and Deposition of Silica/Polyurethane (PUR) Nanocomposite Coatings

The 2024 aluminium alloy coupons were first cleaned in an ultrasonic acetone bath for 15 min. Initially, both primer components were mixed according to the manufacturer’s indications, then sprayed on Al coupons by means of a Walther^® Pilot XIII air spray gun (Wuppertal-Vohwinkel, Germany) and left to dry for 3 h. Meanwhile, PUR topcoats with different content of nano-silica (1 wt % and 5 wt %) and DC88 (5 wt %) were prepared by mixing the liquid additive with PUR using a magnetic stirrer. Before spraying, nano-silica suspensions on the modified PUR coating were prepared by means of an ultrasonic gun (VCX 750, Sonics and Materials Inc., Newtown, CT, USA) for 30 min. The suspensions were then sprayed on top of the already applied primer and left to dry for 24 h. The different compositions prepared are shown in

Table 1. List of manufactured polyurethane (PUR) nanocomposite coatings.

Sample	SiO2 Content [wt %]	DC88 Content [wt %]
ref	-	-
1	1	-
2	5	-
3	-	5
4	5	5

.

2.3. Characterization

The coating thickness was measured by an Extech^® (Nashua, NH, USA) coating thickness tester, at least six times across the sample using the eddy current measurement mode.

Roughness (Ra and Rz) was measured by means of an optical profilometer (Wyko NT9300, provided by Veeco, Plainview, NY, USA). All the measurements were acquired on a 450 µm × 350 µm area. 6 different, randomly selected areas were measured on each sample. Within one location, 10 measurements of 400 µm were carried out.

The microstructure of the coating surfaces was observed with a scanning electron microscope (SEM, Hitachi S5500, Tokyo, Japan) operated at 5 kV. All samples were sputtered with a gold-palladium coating.

The chemical composition of the surface layer on the investigated materials was analysed using X-ray photoelectron spectroscopy (XPS). Samples were characterized in a DLSEGD-Phoibos-Hsa3500 from SPECS (Berlin, Germany) with non-monochromatic Al K-alpha radiation (hυ = 1486.6 eV) as the excitation source and working in the pass energy constant mode. Pass energy for general spectra was settled at 50 eV and for high-resolution peaks at 35 eV. Binding energy scale of the spectra was calibrated to the C1s signal taken at 284.5 eV.

Wettability properties (static contact angle (SCA), advancing contact angle (ACA), receding contact angle (RCA), sliding angle (SA)) were measured by a contact angle measurement system (Data Physics GmbH OCA 15, Filderstadt, Germany). All angles of each sample were measured at least three times across the sample surface using the sessile drop method, by dispensing 3 µL (SCA), 5 µL (ACA, RCA) and 10 µL (SA) of deionized water on the sample’s surface. The contact angle hysteresis (CAH) was calculated as the difference between ACA and RCA.

Frosting/defrosting cycles were performed to assess the durability of the investigated coatings. The samples were cooled to −20 °C by placing them in a freezing chamber for 24 h. The samples were then extracted until a temperature of 25 °C was reached. Water droplets resulting from thawing of frost formed on the samples’ surface were removed manually by water-absorbing paper followed by air drying at room temperature for 24 h. This procedure was repeated 10 times. After each frosting/defrosting cycle, the wetting properties of the coating (SCA) were measured.

The coating system adhesion to the Al alloy substrate was measured by the Revetest scratch tester (CSM Instruments, Peseux, Switzerland) with a displacement speed of 10 mm/min and a maximum force of 20 N. The scratch length was 10 mm. A steel ball indenter (R = 0.2 mm) was used.

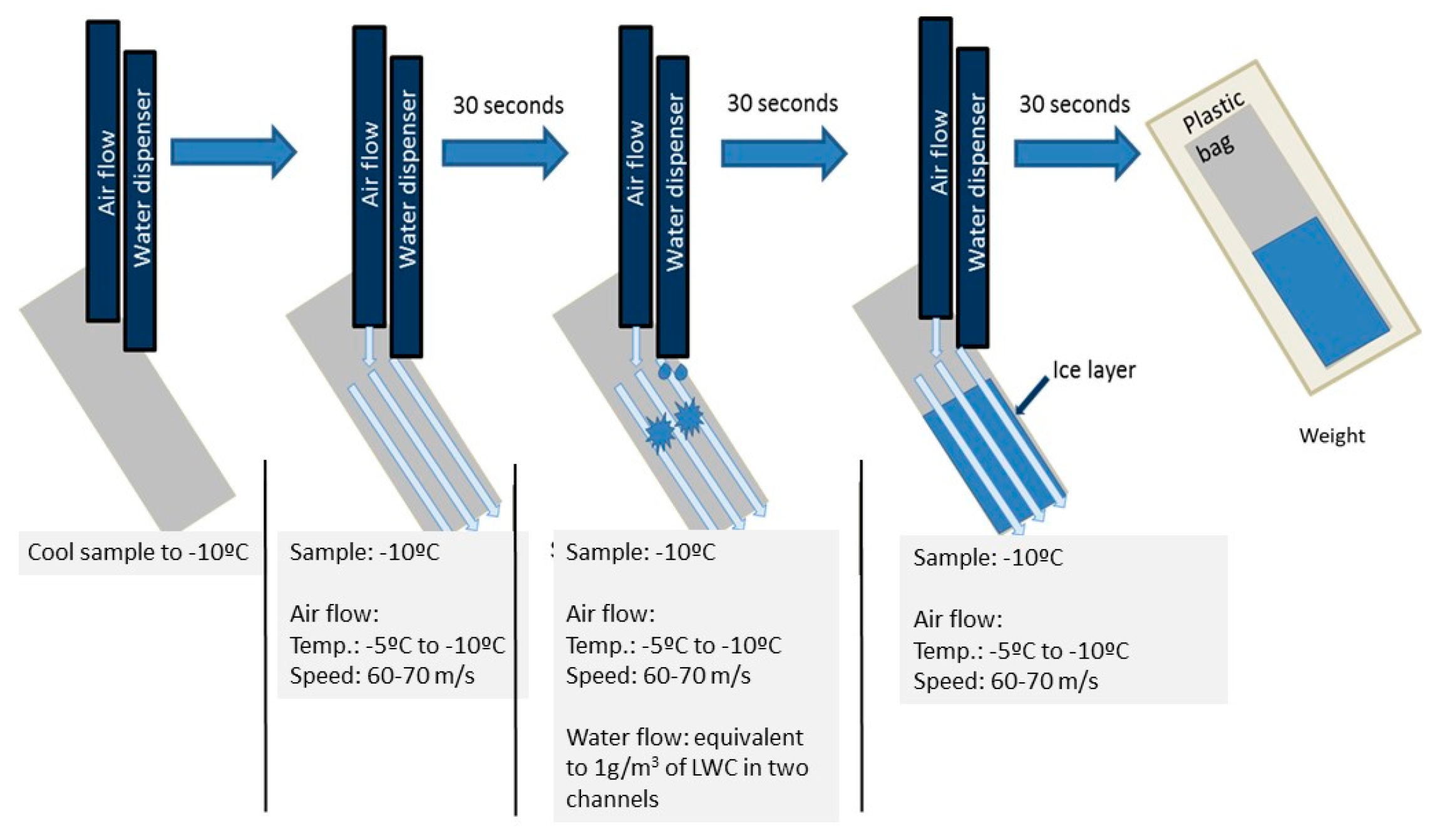

To evaluate the ice accretion, a simple screening test was used. It allows for measurement of the mass of accreted ice, and for comparing the icing behaviour of different coatings. The test procedure is as follows: (1). the cleaned and dried sample is weighed before the test, inside a zip lock plastic bag, (2). a thermocouple is attached to the upper side of the sample (far of the testing zone), (3). the sample is placed inside a freezing chamber (Climas, mod. CH/300/AF/30) and cooled to −10 °C, (4). when the sample reaches −10 °C, air is flown at 60 m/s through a nozzle located at 45° from the sample’s surface at a distance of 3 cm (see Figure 1).

The air speed was measured by means of a Pitot probe PCE-PFM 2 (PCE Instruments, Southampton, UK) prior to carrying out the tests, (5). after 30 s under air flow, supercooled water droplets begin to fall from two droppers (internal diameter - 1 mm) located at a distance of 3 cm at 45° from the sample’s surface (Figure 1). The water is fed by means of a peristaltic pump (Gilson Minipuls 3) at 2.5 mL/min for 30 s. The water droplets’ diameter is 2 mm but the air flow breaks them so they become significantly smaller, (6). After 30 s, the water flow is stopped and the sample is left with the cooled air flow for another 30 s, (7). The sample is then immediately placed in the same plastic bag to be weighed. The water flow was controlled to have a liquid water content (LWC) of 1 g/m³ which is typical of glace ice formation. The following calculation was performed:

$$LWC \left(\frac{g}{m^3}\right)= \frac{Peristaltic water flow \left(\frac{g}{s}\right)}{Exposed sample area \left(m^2\right)\times Air velocity \left(\frac{m}{s}\right) }$$

(1)

Each sample was tested at least three times to obtain a mean value with its respective deviation. The ice accretion was evaluated by direct weight measurement (difference before and after the test). The mean value of all weight measurements (at least 3 samples per coating) was employed in the following formula to obtain comparative results: 100× sample weight increase/uncoated Al 2024 weight increase. This indicated the % reduction obtained by each coating relative to the ice accreted on bare Al 2024 coupons which is considered to be 100%.

3. Results

3.1. Thickness and Roughness

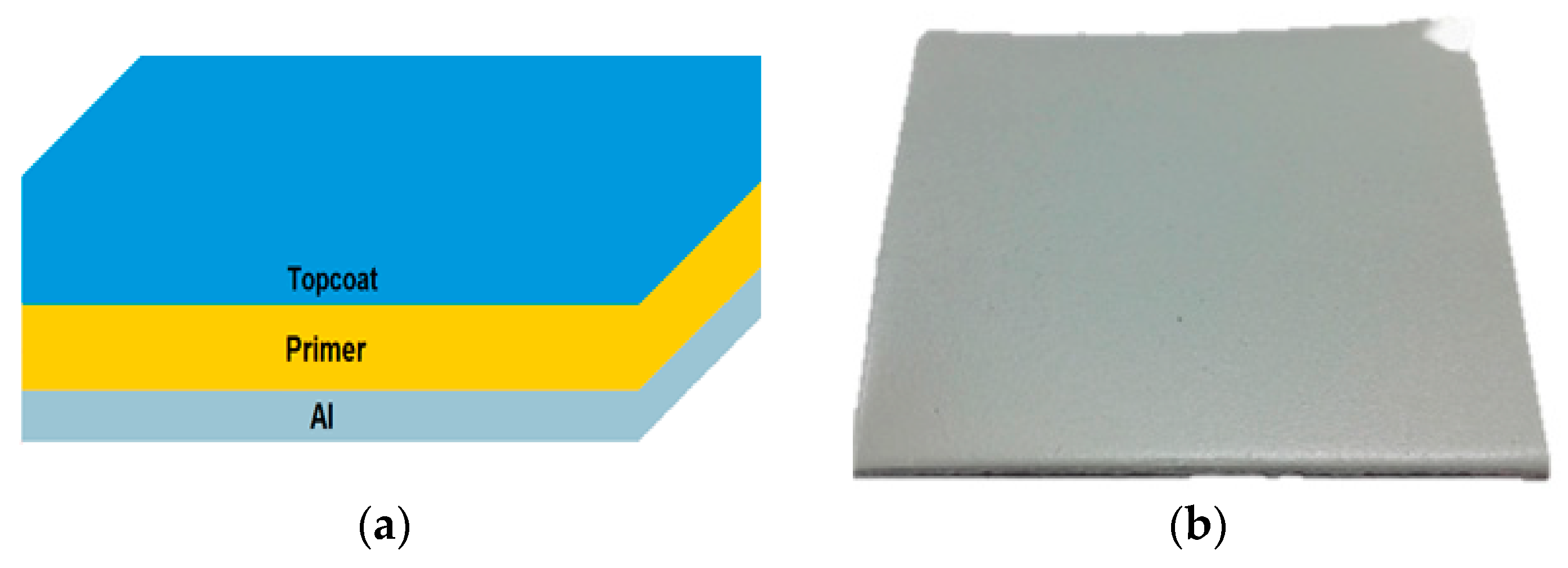

Figure 2 shows a scheme of the coating cross section and a top view of a coated specimen (Al coupon dimensions: 50 mm × 50 mm).

The thickness of all the produced samples was measured twice, initially after deposition of the primer layer and then after the modified PUR coating was sprayed. The measured primer layer thickness was 25 ± 3 µm whereas that of the total coating system was 55 ± 5 µm for each of the produced samples. Only slight differences in coating thickness result from manual coating spraying.

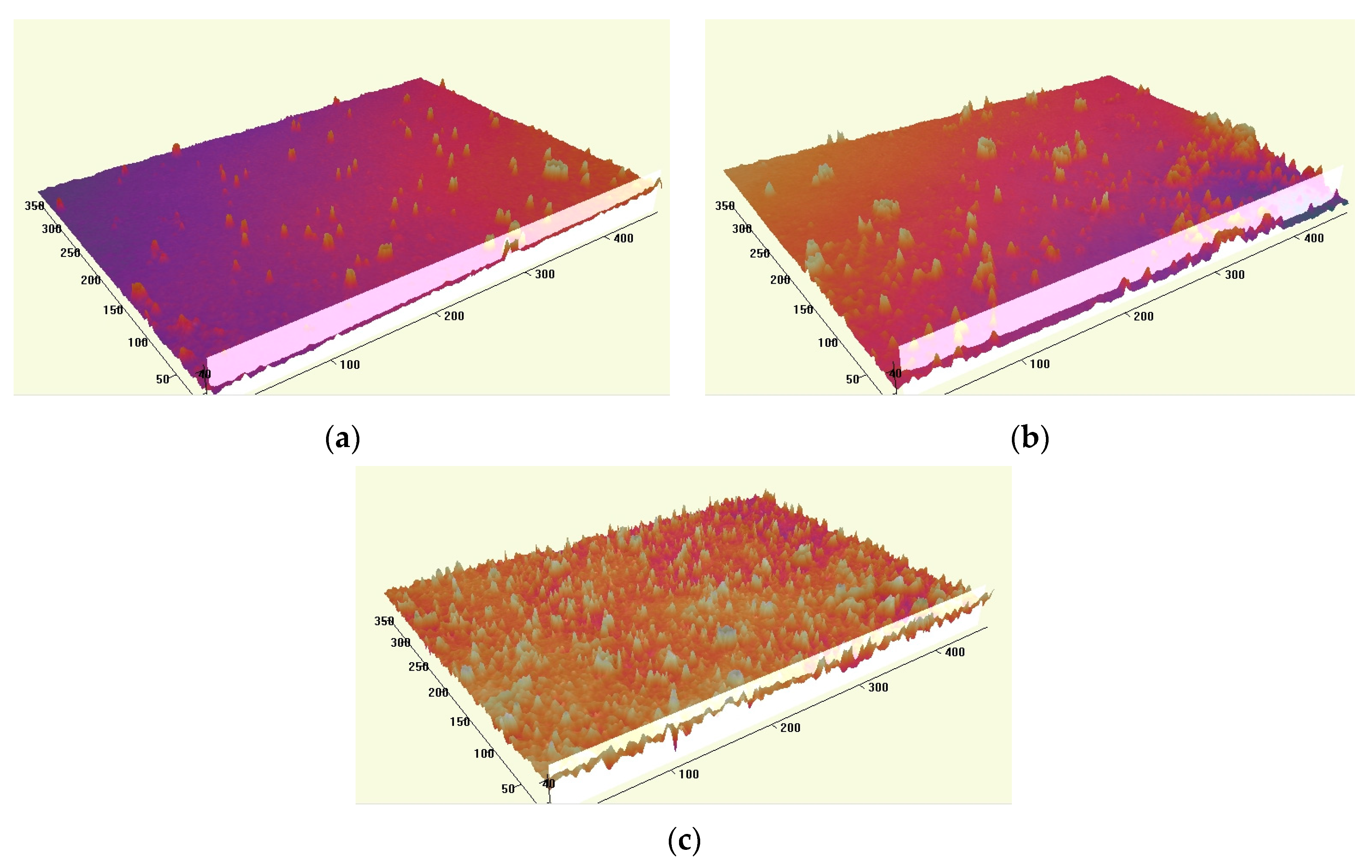

The surface roughness was measured both qualitatively and quantitatively by means of an optical profilometer. Figure 3 presents 3D roughness profile images for non-modified coatings as well as coatings with 1 wt % and 5 wt % of nano-silica.

The scanned area was 450 µm × 350 µm. As can be observed in Figure 3a, the roughness profile is uniform with only some irregularities in the case of the reference sample since the coating does not contain nano-silica. On the other hand, upon increasing the nano-silica content, the profiles become rougher. Figure 3b illustrates the roughness profile for a sample with 1 wt % of nano-silica particles showing more irregularities but not a total coverage due to too low a nanoparticle content. In addition, a non-homogeneous distribution of nanoparticle agglomerates can be observed. Upon increasing the nano-silica content to 5 wt % in the case of Sample 2, a more uniform, rough surface can be observed. Such a structure should result in a high level of air trapping within the formed voids, thereby achieving higher hydrophobic properties [24,25,26].

Quantitative results were calculated for all investigated samples. Surface roughness can be described by various parameters but the most commonly used among them are average roughness (Ra) and maximum peak-to-peak roughness (Rz). Calculated parameters are presented in

Table 2. Average (Ra) and maximum (Rz) roughness parameters of PUR coatings.

Sample	Ra [µm]	Std. Dev.	Rz [µm]	Std. Dev.
ref	0.087	0.0064	0.489	0.0362
1	1.49	0.1941	8.48	0.5923
2	3.20	0.2175	17.06	1.3392
3	0.091	0.0073	0.461	0.0427
4	3.36	0.2966	17.38	1.5284

.

Ra and Rz for the reference sample were 0.087 and 0.489 µm, respectively. These results indicate a low level of surface roughness due to no nano-silica in the coating composition. Upon increasing the nanoparticles content, the roughness increases. In the case of Sample 2, Ra and Rz were 3.2 and 17.06 µm, respectively.

As shown in Table 2, the use of silane modifier DC88 did not influence the surface roughness. Ra and Rz parameters of Samples 3 and 4 are almost identical to samples without the chemical modifier.

3.2. Surface Morphology

The SEM was employed to observe the detailed microstructures for the samples with different nano-silica contents.

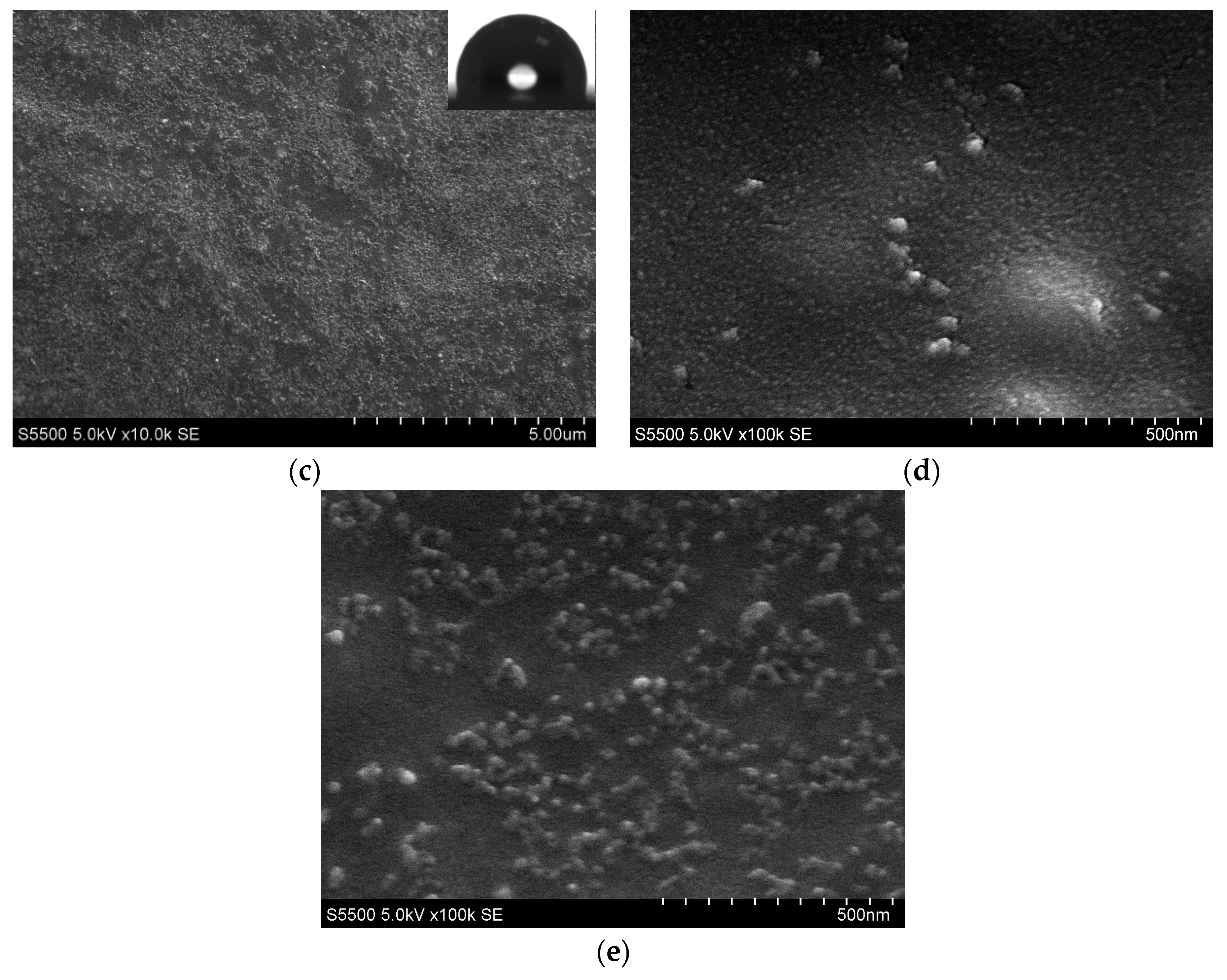

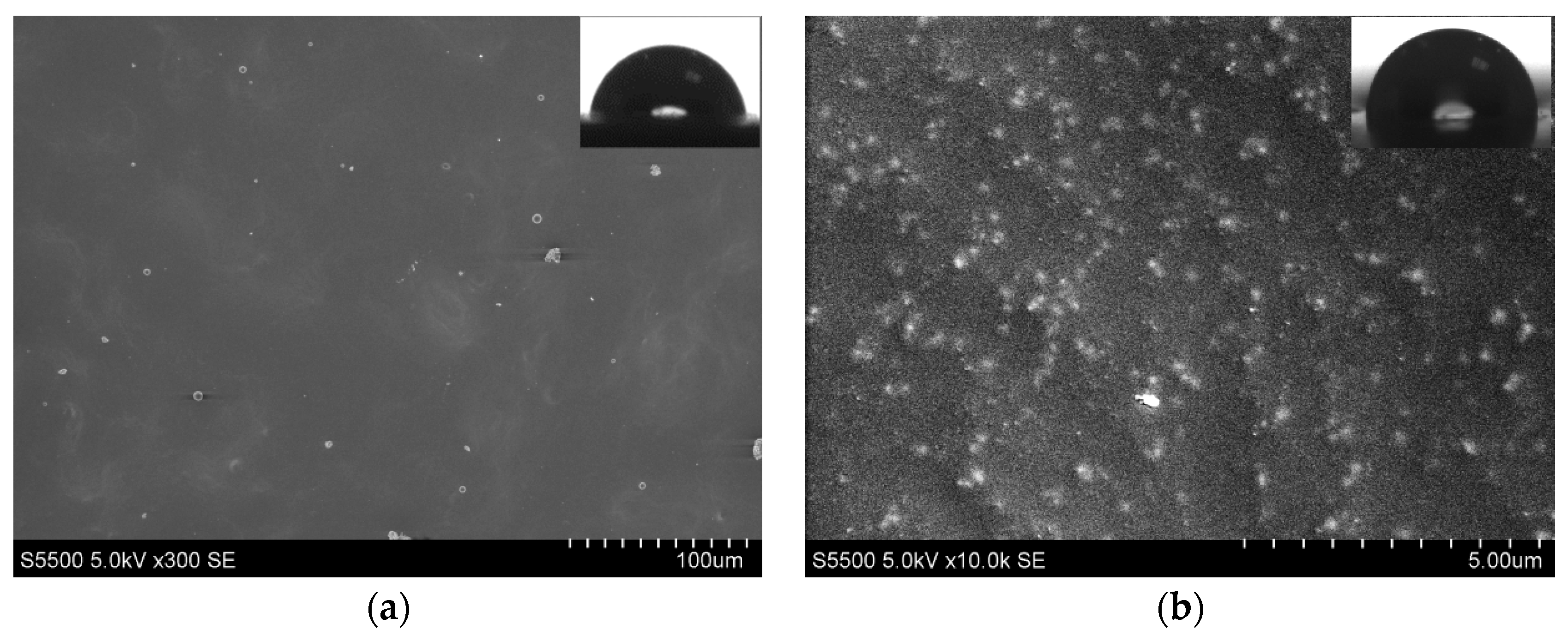

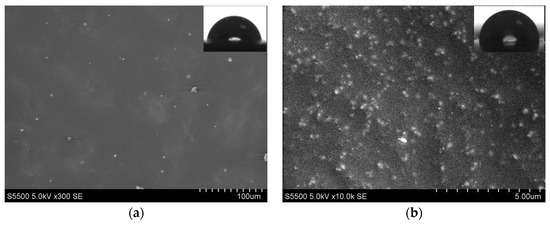

Figure 4a shows the smooth morphology of the non-modified PUR coating. Figure 4b presents the morphology of sample with 1 wt % of nanoparticles, which exhibits a distribution of particles/agglomerates with large areas without them. Indeed, the SiO₂ particle content is too low to cover whole surface, leading to partial exposure of pure PUR coating. Figure 4c shows the morphology of coating with 5 wt % of nano-silica, which is rough and more uniform. Increasing the nano-silica particle content led to complete coverage throughout the coating surface. In both samples with nano-silica, formation of agglomerates was detected (Figure 4d,e).

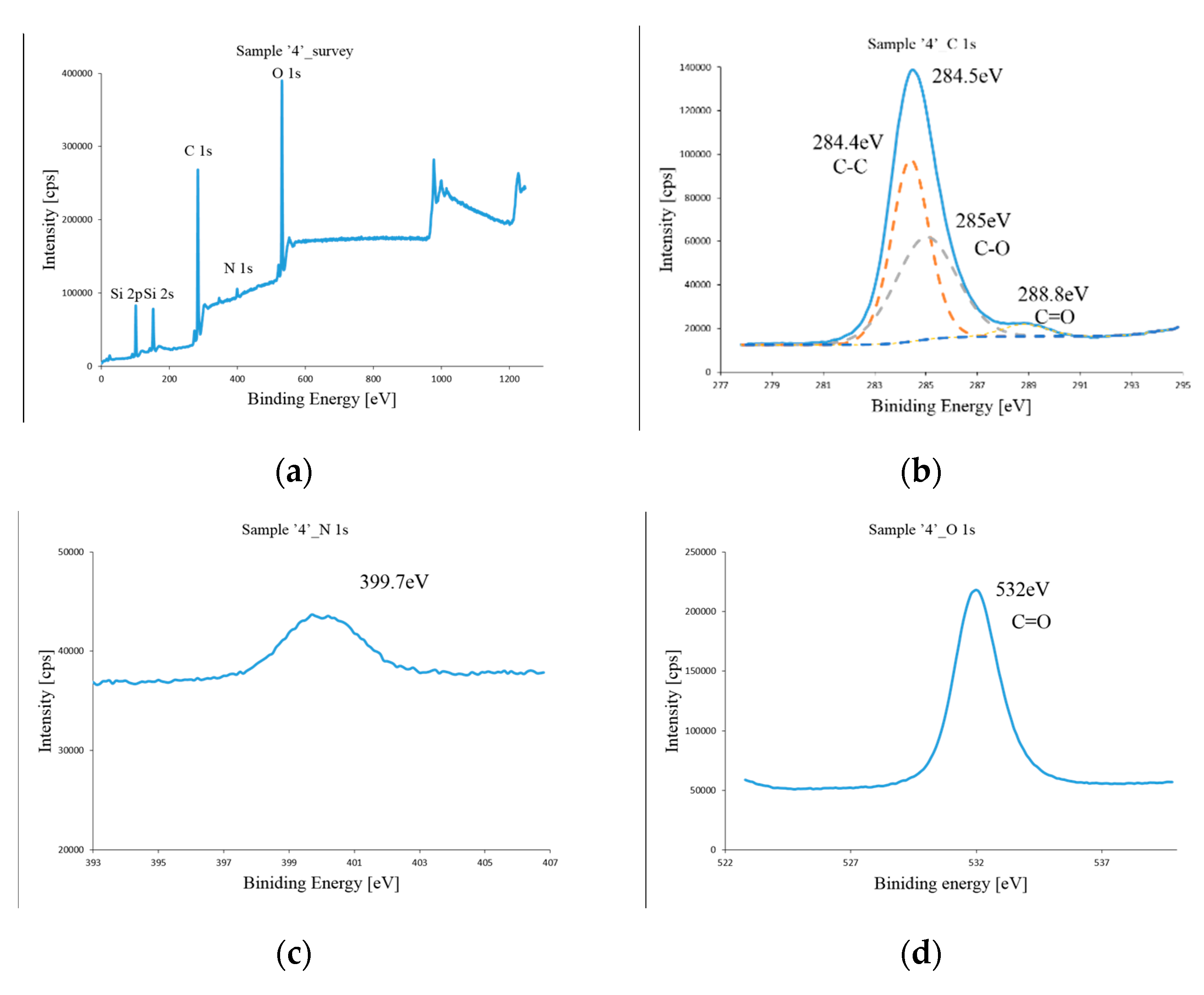

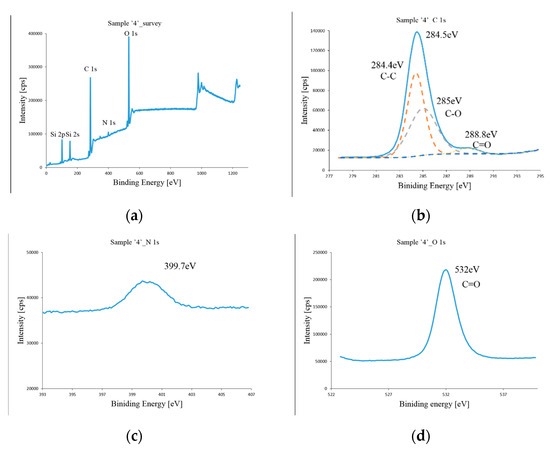

The XPS survey spectrum (Figure 5a) of Sample 4 reveals the characteristic signals of carbon (C 1s, Figure 5b), nitrogen (N 1s, Figure 5c) and oxygen (O 1s, Figure 5d) at about 284.5, 399.7 and 532 eV, respectively.

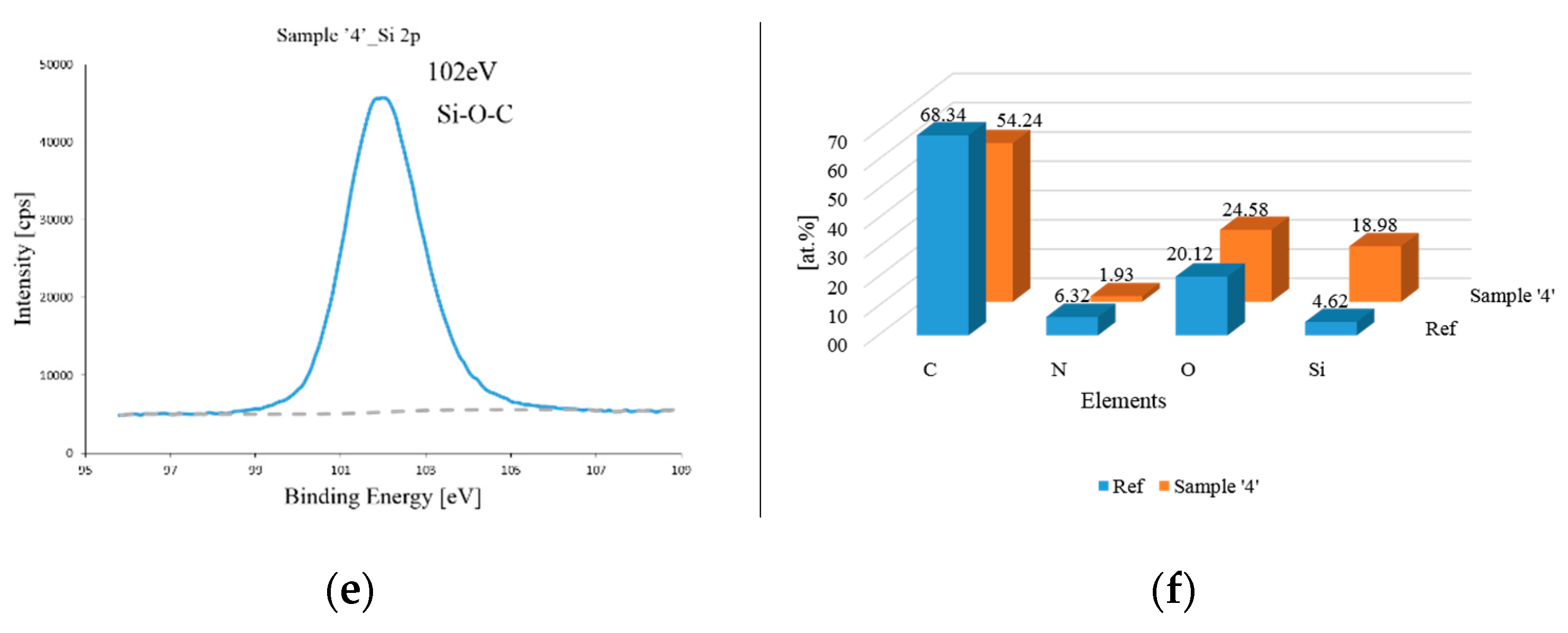

The existence of additional signals of silicon (Si 2p at about 102 eV and Si 2s at about 153 eV) indicates the incorporation of silicone. Figure 5e shows the XPS spectra of Si 2p on the surface of Sample 4. The peak at 102.004 eV is the binding energy of Si–O–C. The Si–O–C bond corresponds to trimethoxysilane groups which have survived during the coating formation [27]. Additionally, by employing the elemental analyser (Figure 5f), the atom ratios of C, N, O and Si in Samples Ref and 4 are defined as 68.3; 6.32; 20.12 and 4.62 at % and 54.24; 1.93; 24.58 and 18.98 at %, respectively. The analysis indicates that the level of Si in Sample 4 is four time higher than in the reference which confirms presence of silicone groups on the sample surface.

3.3. Wettability Behaviour

Surface wettability of the as-prepared coatings was investigated by water contact angle measurements. SCA, ACA, RCA, CAH and SA values for all manufactured samples are shown in

Table 3. Wetting properties for the reference and nanocomposite coatings.

Sample	SCA [°]	Std. Dev.	ACA [°]	Std. Dev.	RCA [°]	Std. Dev.	CAH [°]	SA [°]	Std. Dev.
ref	84	1.48	86	0.75	47	0.83	39	87	1.21
1	94	0.67	98	0.93	63	1.21	35	67	1.35
2	104	1.34	107	0.61	76	0.43	31	62	0.98
3	105	0.71	108	1.03	79	1.09	29	39	1.52
4	114	1.23	118	0.77	93	0.84	25	35	0.87

.

As already mentioned, polyurethanes are hydrophilic polymers due to polar groups present in their chain structure [28]. In fact, SCA and SA of the reference coating were 84° and 87°, respectively, confirming the hydrophilic behaviour of this coating. The use of nano-silica only caused a slight improvement of hydrophobic properties despite the differences in roughness. This could be due to a higher specific area caused by the presence of the particles. A superhydrophobic behaviour was still not achieved (SCA > 150°).

The wetting behaviour is influenced not only by the surface roughness but also by the surface chemical composition [29,30]. Indeed, the presence of the silane modifier DC88, which was added to reduce the surface energy also improved the reference coating’s wetting properties reaching a SCA very similar to that of the coating containing 5 wt % of nano-silica (105° and 104°, respectively). The presence of silane groups impacts the hydrophobic behaviour by shielding the polar groups of PUR from interaction with water [31,32]. Indeed, coating with both the DC88 modifier and 5 wt.% nano-silica caused further improvement of the hydrophobic behaviour of the coating. This observation confirms that both factors, surface roughness and chemical composition, play a significant role on the final hydrophobic properties of the coating, as expected.

3.4. Frosting/Defrosting Cycles

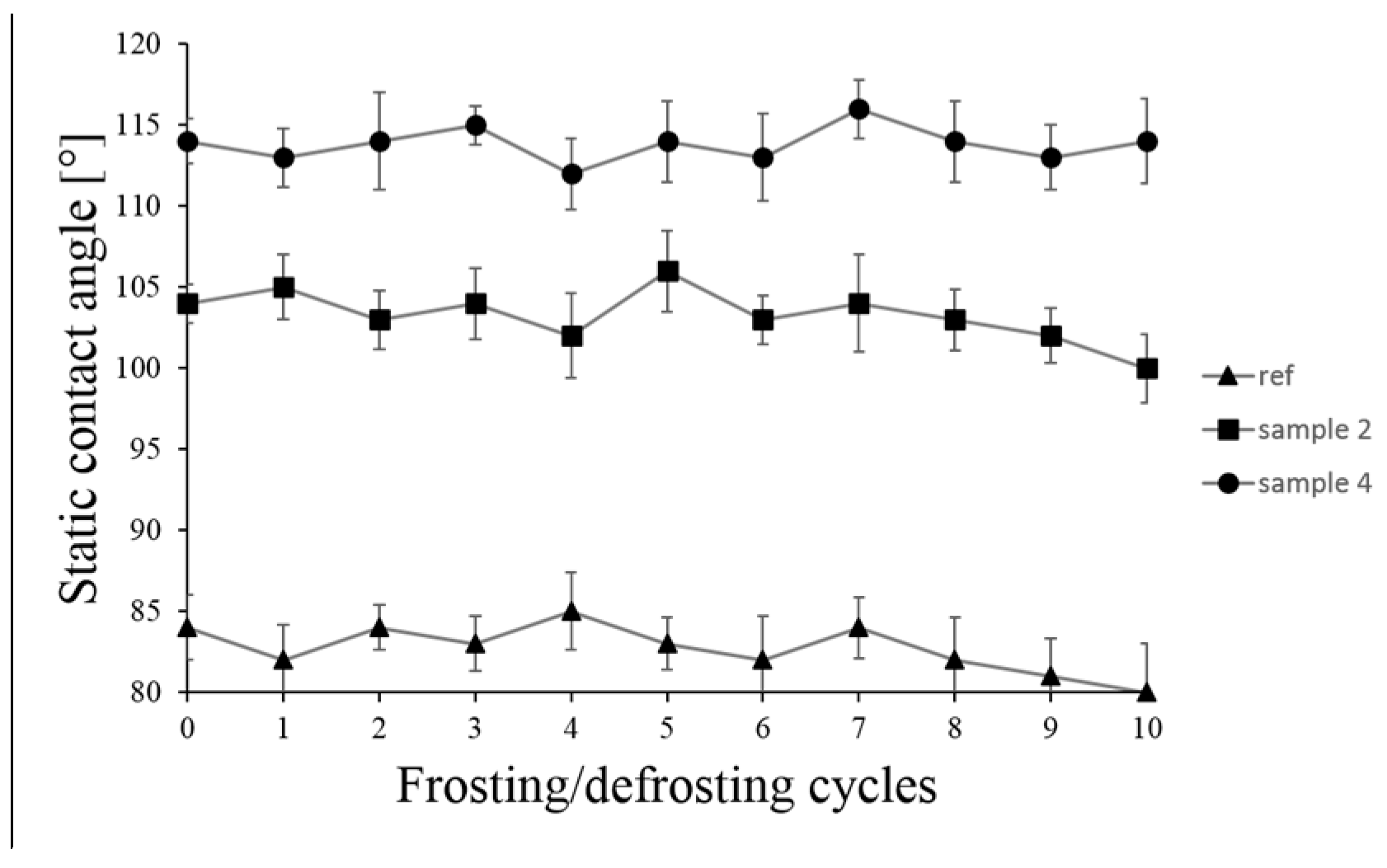

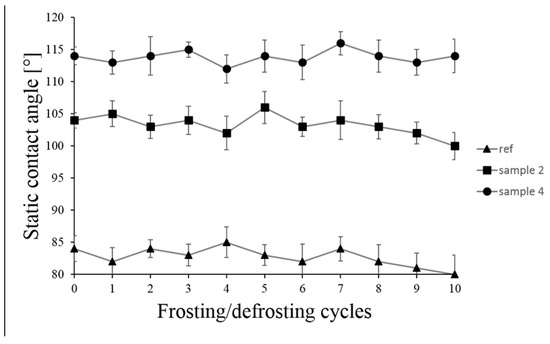

SCAs were measured between frosting/defrosting cycles in order to achieve a better understanding of the durability of the wetting behaviour after exposure to icing conditions. Figure 6 shows the variation of the SCAs of the reference as well as Samples 2 and 4 as they were repeatedly subjected to frosting/defrosting.

Noteworthy in Figure 6 is the fact that the wetting properties of Sample 4 with both nano-silica and the DC88 modifier were maintained after the 10 cycles. On the other hand, the SCA values of the reference and Sample 2 (with only nano-silica) started to decrease after seven cycles. This slight deterioration can be attributed to a gradual damage of the rough structures of the sample surface [33]. In the case of Sample 4, such deterioration was not observed, indicating that the silane modifier induces a more stable improvement of both hydrophobic and anti-icing properties of the coating.

3.5. Coating Adhesion

Most of the scientific papers dealing with hydrophobic/icephobic coatings focus on modification of specific functional properties, without taking into account the fact that such modifications can deteriorate other parameters like durability, thermal stability, adhesion to substrate, etc. In this work, the effect of coating modification by adding nano-silica and the silane DC88 additive on the adhesion to the Al 2024 substrate was investigated by using a scratch tester. The test was performed by applying a linearly increasing load, from 1 to up to 20 N until coating failure occurred. Five scratches were performed on each sample to provide a measurement the coating-substrate adhesion (defined as the lowest load at which the coating detached from the substrate). Each scratch was examined with an optical microscope. For all samples it was noted that the PUR coating never once separated from the primer layer indicating very good adhesion between both layers. The critical loads determined are shown in Figure 7.

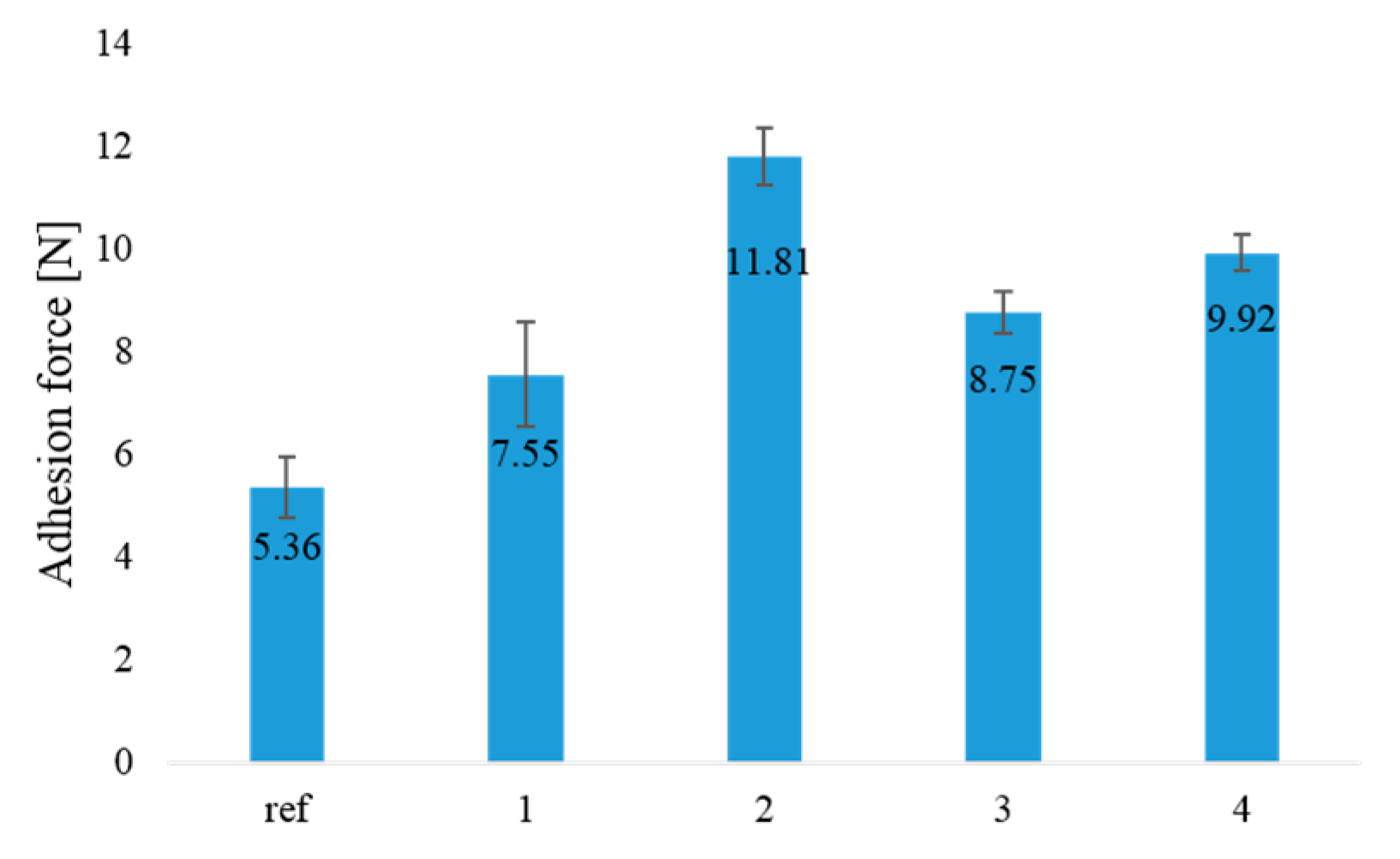

The reference sample exhibited the lowest adhesion, indicating that none of the coating modifications deteriorated the adhesion on Al 2024. Addition of 5 wt % of nano-silica, on the other hand, increased the adhesion 2 fold in comparison to the reference coating.

3.6. Ice Accretion Test

The samples were exposed to glaze ice, which is typically formed in clouds. The test conditions to obtain it were described in Section 2.3. Glaze ice is transparent or translucent and is formed by drops of supercooled water that, when hitting the surface, do not fully freeze immediately. It is a denser and harder ice, more difficult to break and usually more transparent than rime ice and, therefore, more difficult to detect, implying higher danger. It is also more adherent (and therefore harder to detach) and modifies the profile of the components on which it forms to a greater extent, affecting the corresponding aerodynamics [34]. The accreted ice % relative to the uncoated reference is presented in

Table 4. Ice accretion test results.

Sample	Accreted Ice [%]	Std. Dev.
Bare Al	100	-
ref	85	1.34
1	88	0.68
2	92	1.21
3	83	1.55
4	77	1.62

.

The lower the percentage, the less ice was accreted. Although the differences are very small, the results show a correlation between ice accretion and the roughness as well as the SCA for the samples without the silane DC88 modifier; the higher the roughness and the SCA, the higher the ice accretion. Moreover, the silane additive (Sample 3) on its own did not significantly affect the behaviour of the reference PUR coating. However, the combined effect of the nanoparticles (Sample 4) and the additive caused a marked decrease in ice accretion and resulted in the best coating behaviour, in particular when comparing it with Sample 2, modified with 5 wt % of nano-silica but without the additive. This demonstrates that the chemical composition of the surface (therefore the surface energy) plays a very important role in icing mitigation.

Despite not exhibiting superhydrophobic performance, the anti-icing behaviour of Sample 4 was significantly better than that of the reference coating, confirming the lack of direct correlation between the hydrophobic properties and the anti-icing behaviour. In addition, the best-performing materials (Sample 3: 83%; Sample 4: 77%) had totally different surface roughness parameters (Ra: 0.091 and 3.36 µm, respectively) which indicates that in this case the composition and surface energy properties seem to have a higher effect than microstructural aspects.

4. Conclusions

Hydrophobic nanocomposite coatings were manufactured based on a polyurethane topcoat and modified by adding nano-silica particles and a silane modifier. The main goal was to decrease the wetting behaviour of hydrophilic polyurethane coating through addition of nano-silica and modification of the chemical composition by silane-based compounds. Using scanning electron microscopy and optical profilometry, it was found that addition of 1 wt % of nano-silica did not result in total coverage of the surface by nano-silica particles and only slightly improved the hydrophobic behaviour. Results of the scratch tests performed demonstrated that the modifications do not worsen coating adhesion to the aluminium 2024 substrate. It was also confirmed that the surface chemical composition influences the anti-icing properties of the coating and, to some degree, also the wetting behaviour. The results also showed that the anti-icing behaviour does not necessarily correlate with surface roughness and the materials’ wetting properties. However, a synergistic effect was observed on the coating combining the silane additive with 5 wt.% of nano-silica, which exhibited high roughness and showed ice accretion reduction relative to the polyurethane reference.
