Fully Metallic Reflectarray for the Ku-Band Based on a 3D Architecture

Abstract

This document presents the design and manufacture of a reflectarray (RA) antenna for the Ku-band that is based on a fully-metallic 3D architecture. The reflectarray unit cell is formed by a square-shaped waveguide section ending in a short circuit, which is the reflectarray back ground plane. Each cell has the ability of configuring the phase of its own reflected field by means of resonators perforated on the walls of the cell waveguide section. The resonator-based waveguide cell introduces the 3D character to the design. The geometry of the resonators and the size variation introduces the phase behavior of each cell, thus, conforming the radiation pattern of the reflectarray. This design explores the potential of phase value truncation (six states and two states) and demonstrates that proper pattern results can be obtained with this phase truncation.

1. Introduction

The increasing requirements in antennas for broadcast and telecommunications are becoming challenging due to the emergence of novel technologies and the fast development of new fabrication techniques—in particular, the arrival of the 5G communications standard and the establishment of operating bands at millimeter frequencies [1]. Microwave devices operating at these frequencies find several restrictions associated with size, weight, fabrication constraints or a relevant increase of losses [2].

An essential element in current satellite infrastructures is beamforming networks [3]. Parabolic antennas widely cover this task—in particular, beam-redirection and focusing. However, they have intrinsic drawbacks as very large dimensions, bulkiness and heavy weight [4], and their use is not suitable in several scenarios. The common alternative to parabolic reflectors are phased array antennas [5,6,7,8]. Phased array antennas are, in contrast to the parabolic ones, planar devices. They are formed by distributions of individual emitters whose field amplitudes and phases are externally controlled. The global radiation pattern of a phased array antenna is obtained by superposing the contribution of the individual fields radiated from each emitter [9].

Phased arrays exploit the ability to steer a radiation beam into a desired direction. They may include the feeding network in the device architecture, which is generally supported on complex circuitry. For instance, they require the use of power dividers [10], phase-shifters [11] or active elements [12]. Reflectarray (RA) antennas are a less complex solution of phasing systems, being lightweight, low-profile and showing adaptability [4,13]. To the author’s knowledge, the first RA design was reported in the sixties by D. Berry et al. [14]. At first, RA prototypes were typically based on metallo-dielectric structures [15,16,17,18], fabricated via standard PCB techniques.

However, due to the growth of novel 3D-printing fabrication techniques, RAs based on fully-dielectric [19] and fully-metallic designs [20] have emerged. In particular, fully metallic RAs are being demanded beyond the K- and Ka-bands, where dielectric losses stop being negligible. Examples of fully metallic RAs have already been proposed and published in the literature, such as those reported in [21,22,23].

The fast and recent development of 3D-printing techniques introduces the possibility of innovating in the shape of the cells [24]. For instance, 3D architectures arise as elegant solutions due to the additional degrees of freedom they introduce [25]. The 3D character of a given cell is forced by including resonant elements along the axial (or propagation) direction [26,27]. 3D cells have the ability to independently control different field components. Paradigmatic examples were reported in [28,29], where fully-metallic cells with 3D architectures were employed to design dual-band/dual-pol devices, combining both 3D architecture and full-metal cavities. These type of cells are promising since they are mechanically self-consistent, and no help of support is needed.

The use of fully-metallic structures is justified due to the need for the avoidance of dielectric materials. Higher frequencies increase the dielectric-losses importance, which is directly responsible of the performance degradation in gain or insertion losses [30,31]. Space applications do not recommend the employment of dielectric materials owing to the extreme conditions they must support in spacial environments [32,33].

In this work, we present a fully-metallic RA based on the ideas reported in [29]. Though our final goal is the conception of a RA operating at millimeter frequencies, in this document, we focus on a Ku-band prototype with the aim of obtaining a first proof of concept. The RA is supported on a metallic metasurface consists of distributions of square waveguides. The structure is illuminated by a normally-oriented plane wave. The waveguide walls are perforated with resonators, whose role is to modify/control the individual phase of the reflected wave associated with each of the waveguide cells.

Under these circumstances, two kinds of RAs are presented. First, a RA formed by a discrete distribution combining six possible phase states; and a second case considering binary cells, highly used currently due to their easy implementation [34]. The aim of the present paper is to show the functioning of the structure in the passive configuration. A future goal is to attain reconfigurability as was proposed in [35]. Reconfigurability is conceived to be via graphene oxide, which is a promising switcher.

This document is organized as follows: Section 2 describes the principle of operation in terms of the unit cell. Section 3 shows the performance of the cell for different geometries. Section 4 includes a numerical validation of the concept, for both prototypes with two and six possible states. In Section 5, we explain the fabrication process and the experimental results obtained in the laboratory. Finally, our conclusions for this work are drawn in Section 6.

2. Brief Description of the Unit-Cell Type

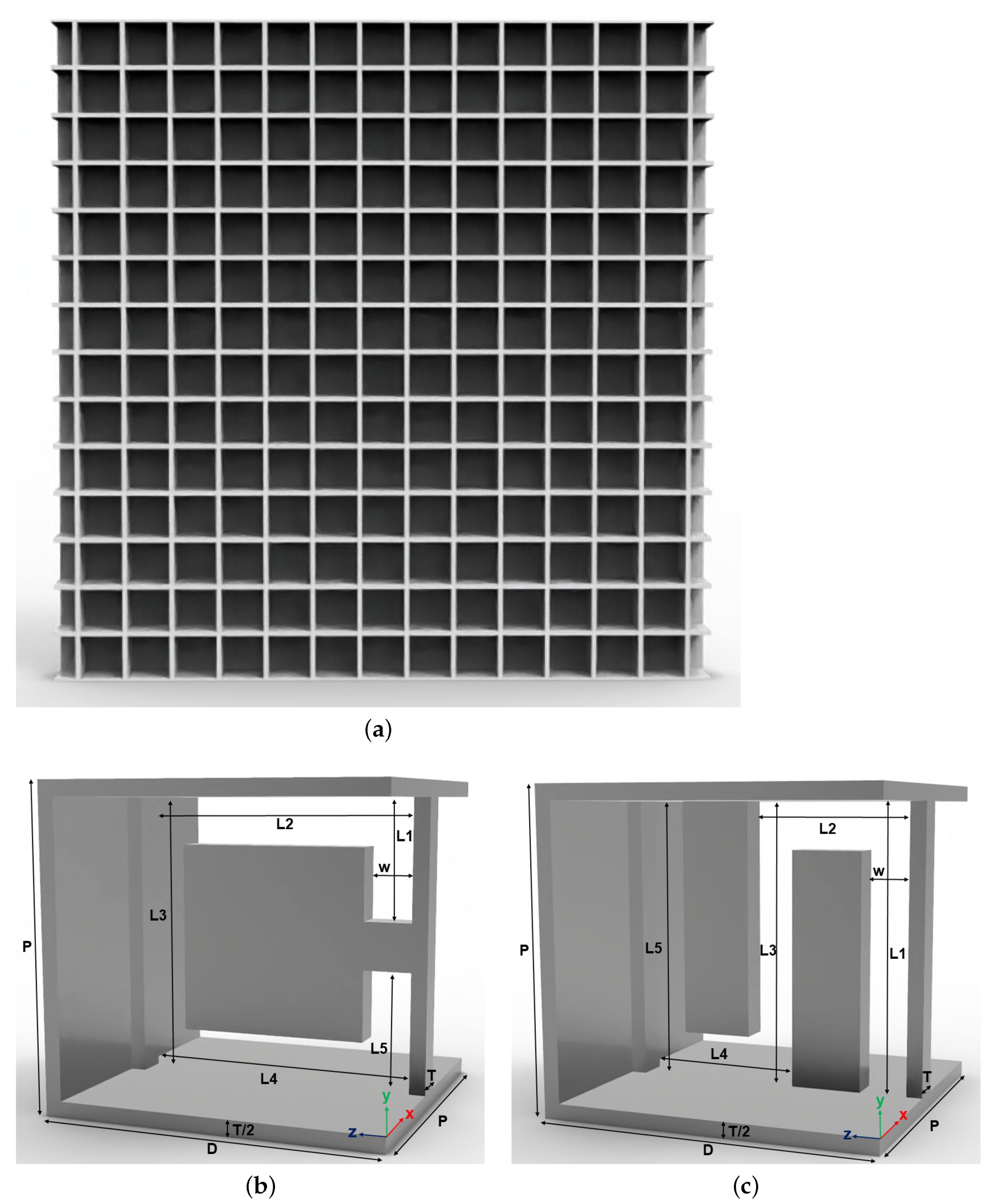

The structure under consideration in the present manuscript is a Frequency Selective Surface (FSS) based on a full-metal design. As shown in Figure 1a, it consists of a two-dimensional arrangement of classical square waveguides (cells). This type of architecture was previously reported in [29,36], functioning as polarizers and pass-band prototypes. The dimensions of the cells are such that no propagating modes are excited at the operation frequency ($P\le {\lambda }_0/2$ with ${\lambda }_0$ being the wavelength in vacuum). Instead, only evanescent modes will be present inside the cell. A ground plane is placed at the bottom of the cell, in order to force full-reflection response.

Perforations with special shape are done on the waveguide walls with the purpose of controlling the field behavior inside the cell. These perforations actually play the role of slot resonators, which drastically modify the electromagnetic response of the cell at frequencies close to their own resonance frequency. Two main resonator-shapes are proposed, illustrated in Figure 1b,c. Figure 1b shows a C-shaped perforation. Similarly, a S-shaped resonator was perforated on the wall of the cell in Figure 1c. Their effective length L is assumed to be long in comparison with the waveguide dimensions.

The resonators are extended along the propagation (axial) direction z, giving a 3D character to the structure. 3D architectures enhance certain typical properties of 2D FSSs designs. The inclusion of resonant elements along the propagation direction introduces an additional degree of freedom, which is useful for design and optimization processes. Moreover, the control of the vertical and horizontal field-polarizations (V- and H-pol, respectively) can be rigorously decoupled. In this sense, the resonators on the walls inside the YZ-plane manipulate V-pol and are completely opaque for H-pol. The structure here proposed is optimal for V-pol incidence. More information about this issue is reported in [29].

3. Performance of the Unit Cell. Choice of the Resonant Element

The phase of the reflection coefficient associated with a particular cell is manipulated in terms of the resonant frequency of the resonator. In the RA-design context, the role of each cell is to provide the correct phase shift to redirect the incident beam to a desired (different) direction.

In order to study and analyze the phase behavior of each cell as a function of frequency, we must carry out a detailed study of the configuration of the resonator employed. The process involves modifying the geometry of the resonator so that it becomes smaller but while maintaining the same width value w between its edges. To do this, we first define the effective length $L=L_1+L_2+L_3+L_4+L_5$ of the resonant element. In each iteration, we reduce this parameter so that, consequently, a phase curve is obtained, which shifts in frequency as we shorten the resonator.

The study of the phase is realized by computing the $S_{11}$-parameter of the cell when it is illuminated by a V-polarized plane wave. This study is focused on the Ku-band, specifically at frequencies close to 12.5 GHz. Though no propagating modes are excited inside the cells, the dominant (evanescent) mode is the ${\mathrm{TE}}_{10}$, whose electric field is oriented on the $\widehat{y}$-axis and is responsible for excitation of the resonances. By modifying the dimensions of the resonator, the phase of the reflection coefficient can be controlled. A specific resonator geometry is characterized by a specific phase curve.

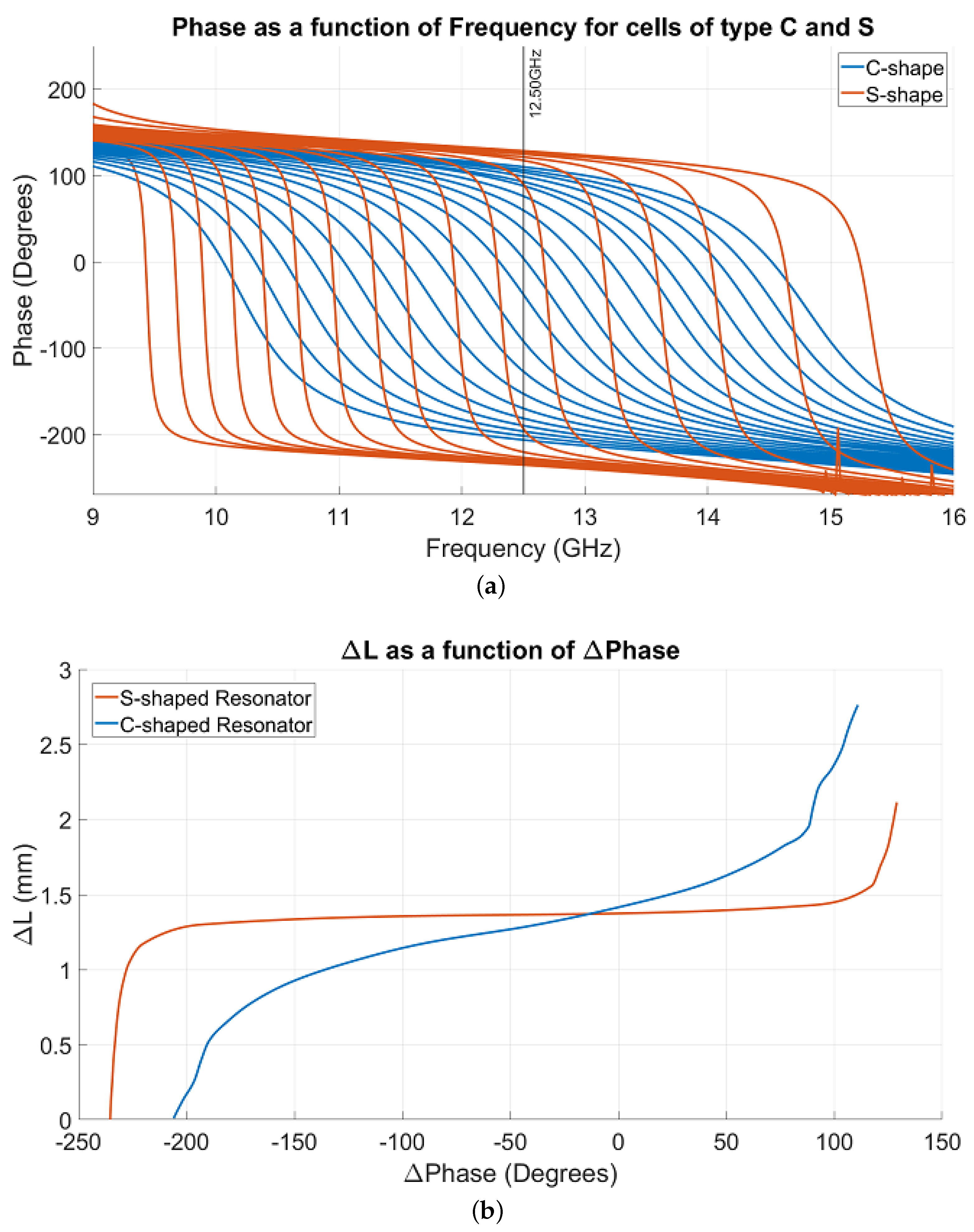

Figure 2a illustrates the phase variation as a function of frequency for C- and S-shaped resonators. The curves were obtained using the electromagnetic solver CST. Different curves, each associated with a particular geometry of the resonators, are appreciated. The first graphical difference that we observe corresponds to the slope of the curves of both resonators, being much greater for the S-shaped resonator, which implies a greater phase change in a smaller range of frequencies.

Additionally, taking the central frequency of the configuration as a reference (12.5 GHz), small variations can be appreciated on the C-shaped resonator geometry, corresponding to small phase shifts at the reference frequency. S-shaped resonators are more sensitive, providing a stronger shifting even for small geometry variations. Therefore, considering the reference frequency at $12.5$ GHz, greater phase variations are given with S-shaped slots, while smaller variations are associated with the C-shaped ones, corresponding to smaller phase shifting.

The dependence between the geometry variation and the phase shift is clearer plotted in Figure 2b. The geometry variation is denoted by $\Delta L$, whereas the phase shift is identified as $\Delta \mathrm{Phase}$. The method to obtain these curves is straightforward due to Figure 2a. This is done by separately taking all the cut-off points of the phase curves, both of the C- and S-shaped resonators, with a vertical line marking the frequency of 12.5 GHz, which corresponds to the center frequency of the reflector. A soft interpolation was applied to the curves in order to achieve greater smoothing.

This graph gives us useful information about the phase variation obtained when we modify the effective length L. Analyzing, in detail, the behavior of these curves, we observe a very similar trend although with a different slope. For the final design of our reflective structure, we consider two different areas: the blue curve (corresponding to the C-shaped resonator) for the central cells and the orange curve (corresponding to the S-shaped resonator) for the outermost cells.

Since the blue curve (C shape) has a lower slope, greater phase jumps are obtained as we reduce the geometry of the resonator. This is not the case of the S-shaped resonator because a very small change in L (specially from $\Delta L=2.5$mm to $\Delta L=1.35$mm) causes a large phase jump. It can also be inferred that both kind of resonators are necessary in order to cover an almost ${360}^{\circ }$-range. C-shaped resonators cover the central area, from $-{200}^{\circ }$ to ${100}^{\circ }$ approximately (${300}^{\circ }$ phase span), whereas the external area is covered by the S-shaped ones. This allows us to obtain a greater phase variation and to be able to reach the full range very close to 360º.

4. Reflectarray Design: Numerical Validation

The design plots in the previous section illustrate that the combination between C- and S-shaped perforations practically covers the ${360}^{\circ }$-phase range necessary to design a RA. At this point, and for fabrication purposes, we will restrict the phase gradient of our RA to a set of discrete values. This limitation is imposed by the tolerances of the 3D printer of our laboratory, which is a Form 3 from Formlabs. The information containing the features of the machine can be found in [37]. On the one hand, a gradient formed just by six possible states, whose corresponding phase values are defined by the following relation:

$$\frac{n\pi }{3},n\in [0,5]$$

(1)

On the other hand, a simple design based in just two phase-states: 0 and $\pi$, which will be encoded as 0 and 1, respectively. This is the so-called binary cell.

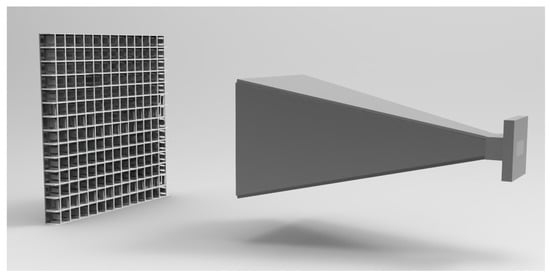

The design and optimization of the RA is realized according to the scenario shown in Figure 3. A standard WR-75 horn antenna feeds the RA and is placed at $15$cm from it. This distance is optimal to reduce the spillover. The RA is a 14 × 14-cells panel with periodicity $P=10.53$mm. Ray-tracing approximation is employed to estimate the phase arriving to each of the cells.

The total phase in each cell is equal to the phase of the incident field (due to the propagation from the feed) plus the phase-shift introduced by the own cell. In this sense, the phase shift required at each element to re-direct the incident field is given by the following expression [4]:

$$\begin{array}{c}\hfill \begin{array}{cc}\hfill {\phi }_{nm}=k_0(d_{nm}-& [x_{n}cos\left({\phi }_b\right)+y_{n}sin\left({\phi }_b\right)]cos\left({\theta }_{\mathrm{b}}\right))\hfill \\ & n,m=1,\dots ,14\hfill \end{array}\end{array}$$

(2)

where $(x_n,y_m)$ are the coordinates of the position of the $nm$th RA-cell, $k_0$ is the wavenumber in vacuum, and $d_{nm}$ is the distance from the phase center of the feed to the $nm$th RA-cell. The parameters ${\theta }_b$ and ${\phi }_b$ denote the outgoing polar and azimuthal angles respectively, namely, the pointing direction of the steered beam.

For the sake of simplicity, and as proof of concept, two arbitrary different pointing angles were chosen: ${\theta }_b={20}^{\circ }$ and ${\theta }_b={35}^{\circ }$ with ${\phi }_b=0^{\circ }$, being the latter a check of the performance Assuming first a 6-states phase distribution, the phase-shift value satisfying (2) is approximated to the nearest phase-value in (1). The 14 × 14-panels for ${\theta }_b={20}^{\circ },{35}^{\circ }$ are plotted in Figure 4a and Figure 5a, respectively. The corresponding radiation diagrams associated with these panels are plotted in orange lines in Figure 4c and Figure 5c, respectively. The main lobes are exactly at the desired angles, with a gain of 22.5 and 22.6 dB and a side-lodes level (SLL) of 12.5 and 11.8 dB, respectively.

The RA based on binary cells was optimized using a Genetic Algorithm since an ad-hoc truncation can result in large phase errors. Specifically, NSGA-II was employed to reach our goal. The Non-dominated Sorting Genetic Algorithm, NSGA-II [38], was used, which is a multi-objective algorithm that has been applied in some of our previous jobs [35]. The optimization process is initialized with a random set of solutions, each one with ${14}^2$ binary variables (0/1). The selection operator utilized is Binary Tournament, while the recombination (also known as crossover) consists in the exchange of random subzones of the phase configuration.

In this way, we provide diversity among the solutions, which is key for the algorithm to not stall. Finally, the mutation operator flips the value of a single bit, from 0 to 1 or vice versa. Previously, we attempted to flip a group of bits, but this prevented the algorithm from converging completely. The crucial component of a GA is the fitness function to optimize. Although this algorithm is multi-objective, in this functionality that we call beam steering, only one objective can be established. Thus, we will maximize the gain of the structure at the desired pointing direction.

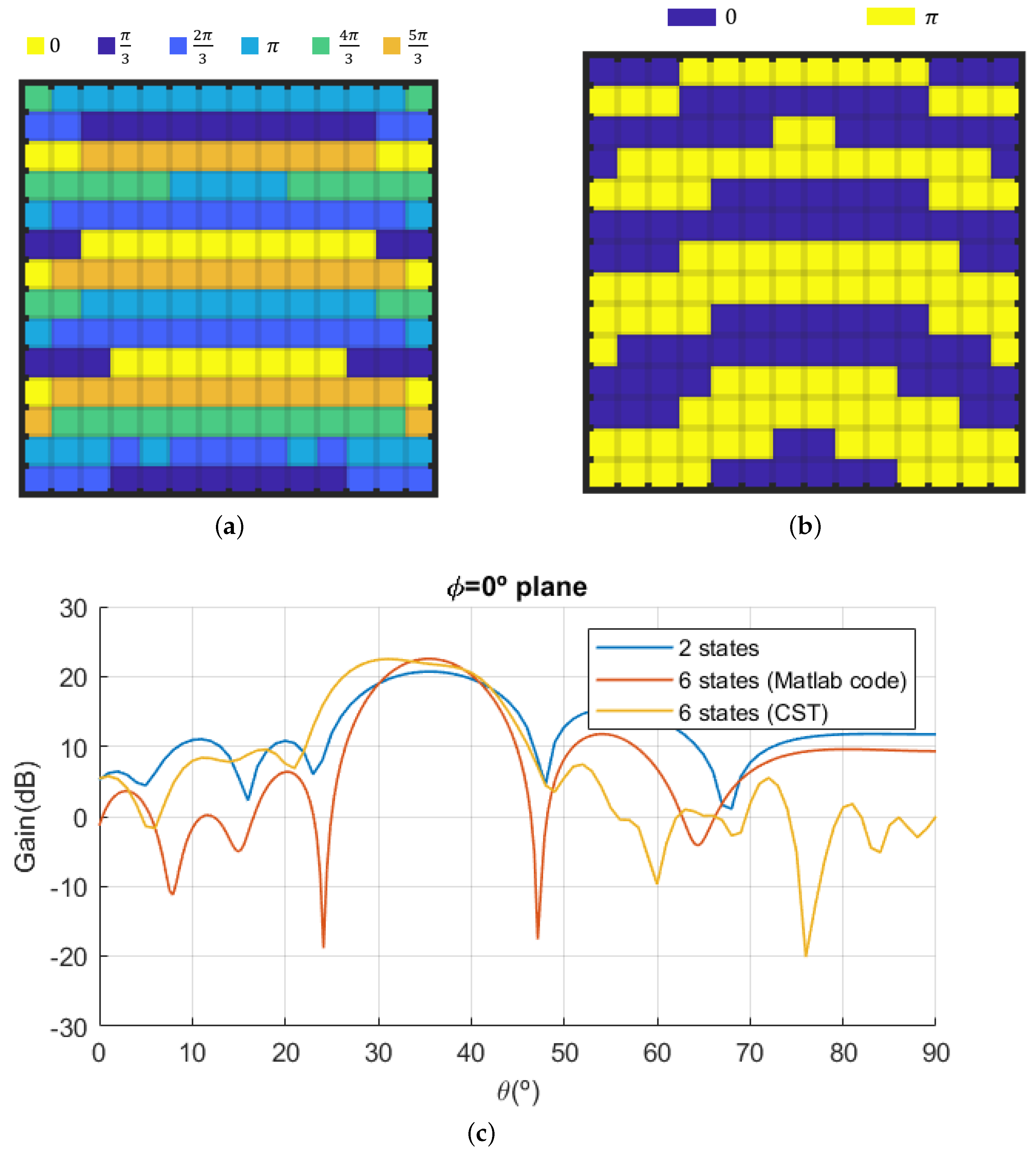

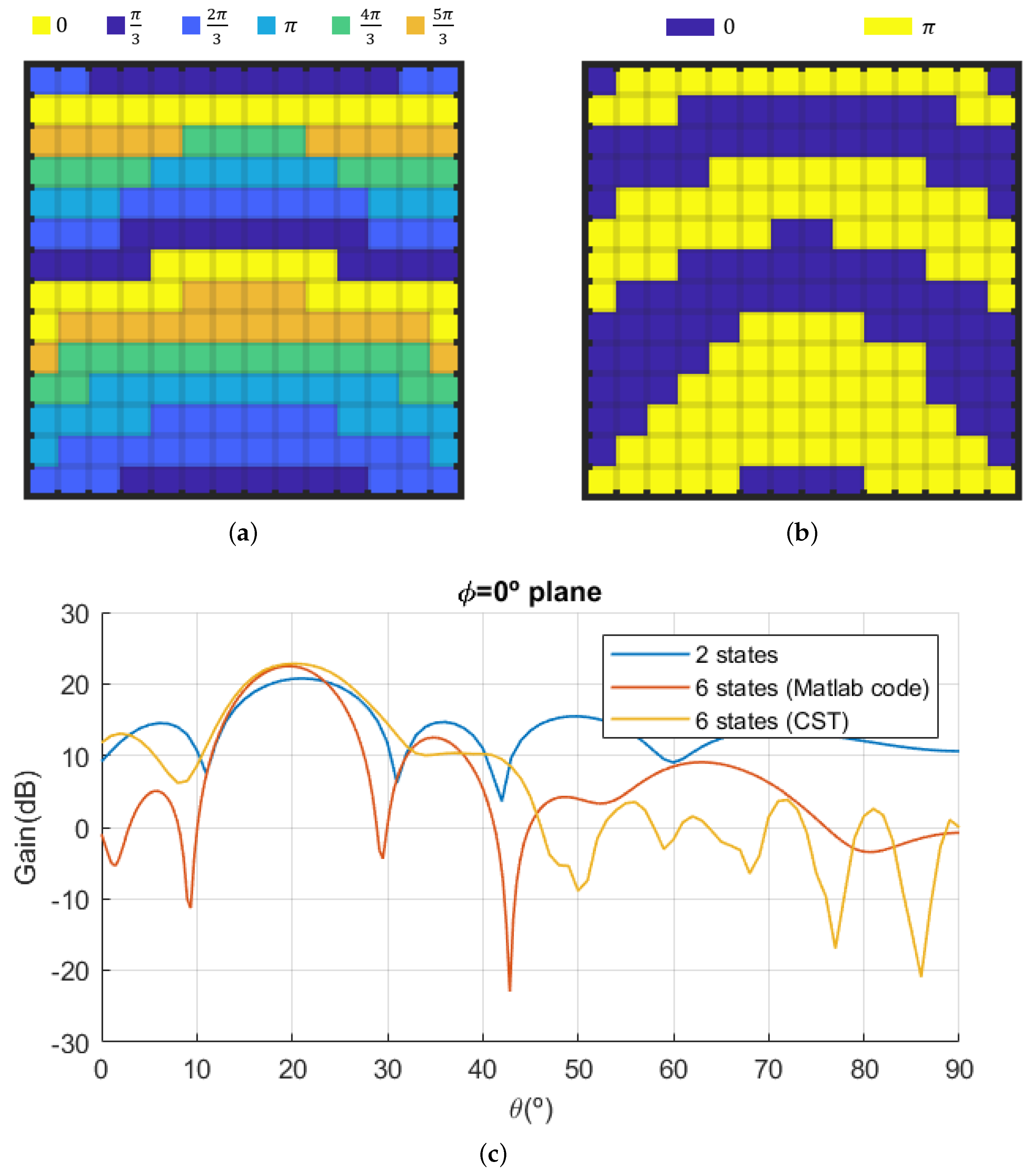

We can observe, in Figure 4b and Figure 5b, the 14 × 14 phase-panel obtained for this case. As expected, the RA gained in simplicity. It is worth remarking that the phase evolution follows a similar tendency in both cases, simulating a sort of partial rings. The phase diversity is, as expected, richer in the six-state case. The simplicity of the one-bit RA is manifested in the results plotted in a blue curve in Figure 4c and Figure 5c. However, the gain decreases down to 20.8 and 20.7 dB, whereas the SLL increases up to 15.5 and 15.4 dB, respectively.

Finally, the scenario in Figure 3 was simulated by the commercial software CST. The RA choice is the one with six phase-states. The phase distribution in Figure 4a and Figure 5b are implemented in the RA with the help of the design plots in Figure 2a,b. The results of the simulation are also plotted in Figure 4c and Figure 5c (yellow curves). Minor differences are appreciated due to the avoidance of possible mutual coupling among cells at the designing process.

The MATLAB code follows an equation, and that is why it appears as a smooth curve, while the simulation in CST, which is a full-wave electromagnetic simulator, takes into account possible mutual coupling among cells that are not considered at the designing process. The SLL is otherwise still acceptable, with differences of more than 10 dB with respect the main lobe maximum. We cannot say which configuration is better, due to this trade-off between the gain obtained, which is better with six states, and the time spent to find the best configuration, which is less with binary states.

5. Manufacturing and Experimental Validation

Once the design is optimized and completely adjusted to fulfill the requirements, the structure is manufactured. A 14 × 14 array prototype was fabricated. As a proof of concept, we decided to focus on the six-state RA operating for $\theta =20$º. The manufacturing process was carried out due to the manufacturing facilities of the SWAT group of the University of Granada. The process implies accurate 3D stereolithography, consisting on the construction of the structure layer by layer by a photochemical process. The material is a resin characterized by ${\epsilon }_{\mathrm{r}}=2.55-\mathrm{j}0.0612$.

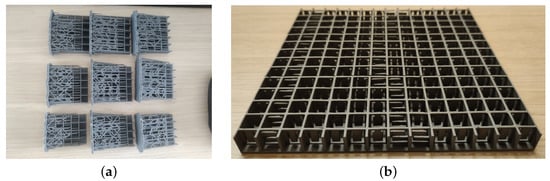

Since the dimensions of the entire RA are larger than recommended by the 3D printer, it was split and printed in nine individual pieces. Each of these individual pieces consisted of arrangements of 3 × 3 or 4 × 4 cells. Additional supports were needed in order to guarantee the self-robustness of the pieces during the fabrication process. Figure 6a shows the nine pieces including the supports, which are essentially very narrow dielectric bars. When the piece is completed, it is centrifuged and sunk in isopropyl alcohol in order to avoid resin remnants. It is also cured with ultraviolet light to completely fix the resin.

Then, the supports are carefully removed using special scissors. After that, all the pieces are glued together, giving rise to the entire RA. Finally, the metallization is realized by using a commercial conductive ink. In particular, this commercial ink is super-shield nickel coating aerosol (841AR from MG Chemicals), which was successfully employed in [39]. As previously mentioned, metallization (in this case via ink) is necessary since the RA is originally dielectric. Figure 6b shows a detailed view of the final prototype. The presence of the ink can be inferred from the darker color of the structure.

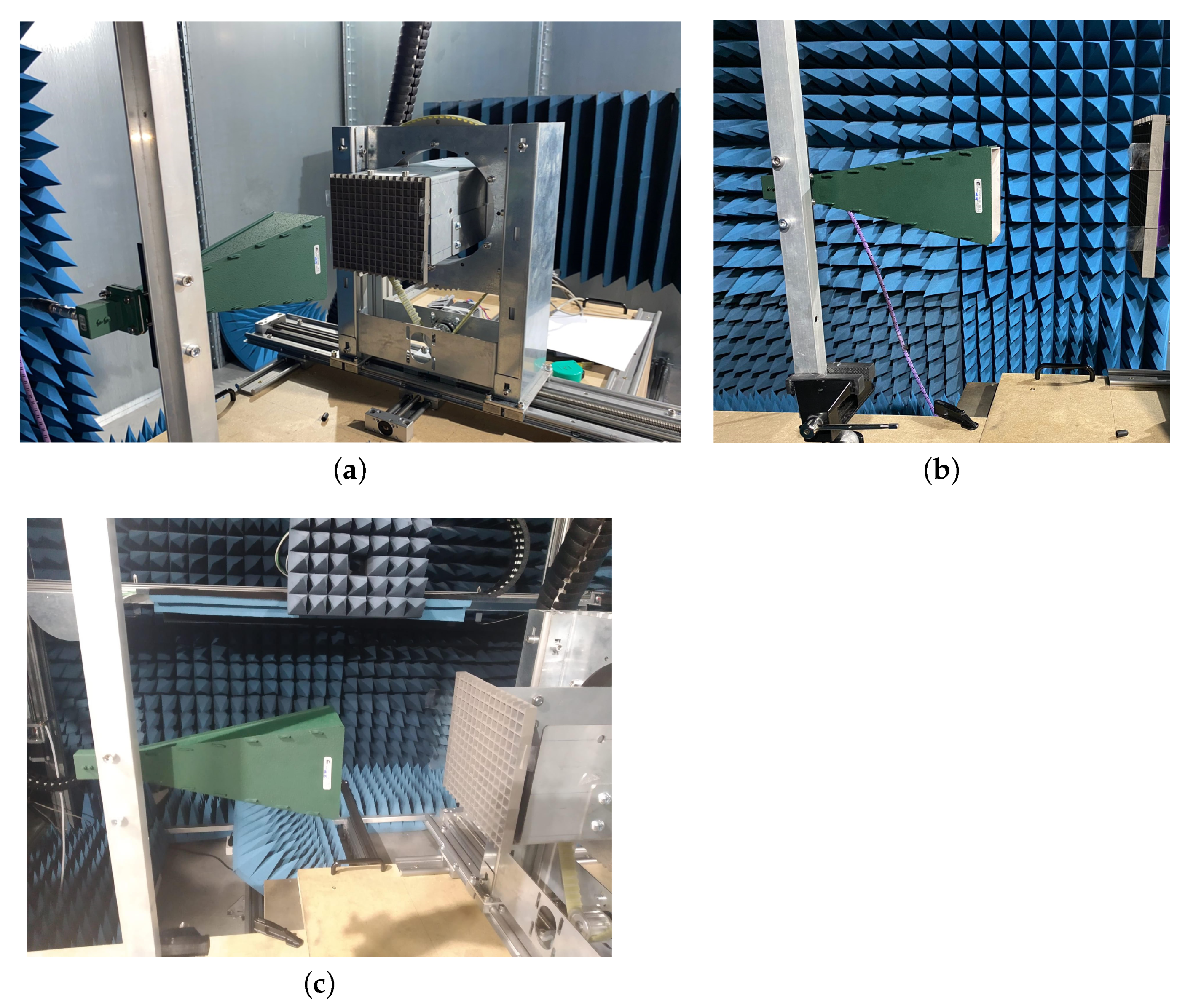

The structure was mounted in its setup with the feeder located at the defined distance of $15$cm and measured at the mmWave antenna measuring facility of the SWAT Group at the University of Granada. The RA setup can be seen in Figure 7a,b, while the measuring setup in the measuring system is depicted in Figure 7c. The prototype is finally characterized in terms of its radiation pattern in the vertical plane. The pattern measurement is shown in Figure 8, having the center working frequency at 12.7 GHz. This yields a frequency shift of 0.2 GHz with respect to the theoretical results.

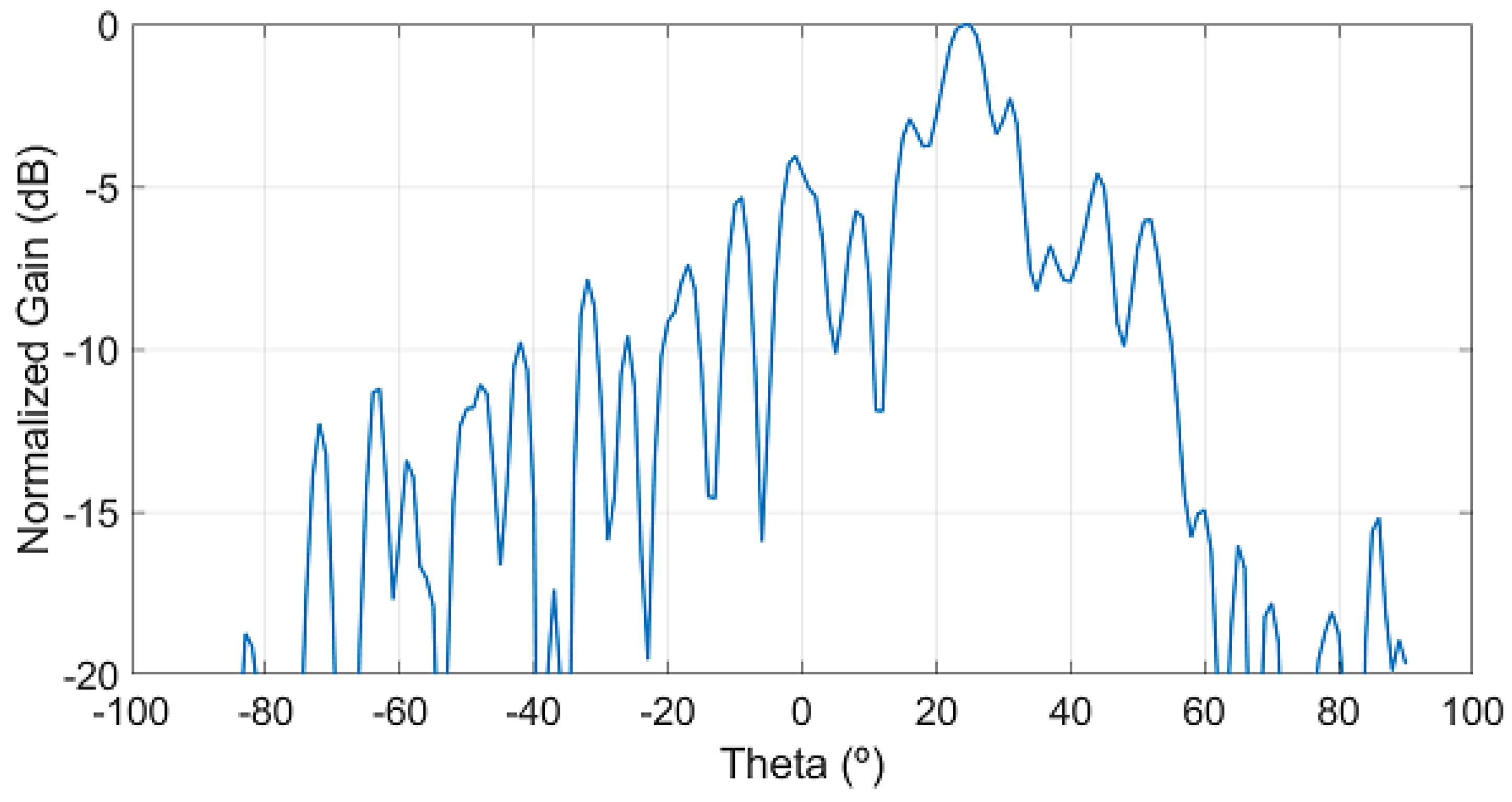

The position of the main lobe is approximately situated at the expected angle. There exist a small angular shift towards higher angles. Additionally, the secondary-lobes level is larger than expected from the simulations. It oscillates between −4 and −10 dB in the region close to the main lobe position. This disagreement is important since it considerably reduces the efficiency of the RA. The source of inaccuracy is clearly the fabrication process. The structure is actually challenging from the printing process point of view. As we explained above, it was split into nine sections.

When the pieces are put together, small misalignments appear among all of them. Furthermore, the metallization via ink must be carefully taken into account. It is very important to metallize all of the structure. In the resonator regions, the conductive ink may not reach all the corners, reducing the efficiency of the resonator (longer or shorter than expected). Finally, the process of removing the additional supports is very cumbersome. This task is done manually.

Some portions of the supports may rest in the structure, affecting the phase shifting and the final far-field pattern. This RA is the first structure manufactured in our group. Currently, we are refining the technique and we expect to have better prototypes in the near future. We are also exploring how to metallize with copper. The results reported in this paper encourage us to continue.

6. Conclusions

This work presents the design and manufacture of a reflectarray (RA) antenna for the Ku-band, based on a fully-metallic 3D architecture. The structure used for the array structure is a FSS based on a fully-metallic design, which consists of a two-dimensional arrangement of classical square waveguides, with each of these waveguides being the unit cell of the whole structure. The cell is shorted by placing a ground plane at the bottom, in order to force a full-reflection response. Each cell has the ability of configuring the phase of its own reflected field by means of resonators perforated on the walls of the cell waveguide section. These perforations actually play the role of slots resonators, which drastically modify the electromagnetic response of the cell at frequencies close to their own resonance frequency.

In this manuscript, two main resonator-shapes are proposed (C-shaped and S-shaped slot resonators). The inclusion of resonant elements along the propagation direction permits the separate control of the vertical and horizontal field-polarizations. The designed structure proposed in this paper as a proof of concept is focused on the control of the V-pol incidence. This design explores the potential of phase value truncation (six states and two states) and demonstrates that proper pattern results can be obtained with this phase truncation. There is good agreement between the design outcomes and the measurement results of the design.
