Reconfigurable Computing for Reactive Robotics Using Open-Source FPGAs

Abstract

Reconfigurable computing provides a paradigm to create intelligent systems different from the classic software computing approach. Instead of using a processor with an instruction set, a full stack of middleware, and an application program running on top, the field-programmable gate arrays (FPGAs) integrate a cell set that can be configured in different ways. A few vendors have dominated this market with their proprietary tools, hardware devices, and boards, resulting in fragmented ecosystems with few standards and little interoperation. However, a new and complete toolchain for FPGAs with its associated open tools has recently emerged from the open-source community. Robotics is an expanding application field that may definitely benefit from this revolution, as fast speed and low power consumption are usual requirements. This paper hypothesizes that basic reactive robot behaviors may be easily designed following the reconfigurable computing approach and the state-of-the-art open FPGA toolchain. They provide new abstractions such as circuit blocks and wires for building intelligent robots. Visual programming and block libraries make such development painless and reliable. As experimental validation, two reactive behaviors have been created in a real robot involving common sensors, actuators, and in-between logic. They have been also implemented using classic software programming for comparison purposes. Results are discussed and show that the development of reactive robot behaviors using reconfigurable computing and open tools is feasible, also achieving a high degree of simplicity and reusability, and benefiting from FPGAs’ low power consumption and time-critical responsiveness.

1. Introduction

Robotics is an exciting engineering field with recent massive applications beyond the classic automotive and integrated circuit factories. Logistics (such as Amazon robots at warehouses), food packaging, autonomous vehicles, drones for inspection, and home vacuum cleaners are just a few examples. Robots have emerged from research labs and are increasingly entering into people’s actual daily life. Real-world robot applications typically require reliability and fast processing, as robot behaviors have to be robust and agile. Frequently, low power consumption is also a requirement.

Generally, robots are composed of hardware and software. Sensors, actuators, and processors are the main hardware components. Sensors provide information about the surroundings, such as laser scanners, laser imaging detection and ranging (LIDAR), cameras, or the robot itself (battery sensors, inertial measurement units, encoders, etc.). Actuators allow the robot to perform actions, including the robot’s physical movement. Electrical motors are the most ubiquitous ones.

The first and most widely used method to create robot intelligence is the development of specific software. That software runs on the robot’s embedded computers and microcontrollers; it determines the machine’s behavior on its environment, goals, and reactions. It commands the onboard computer(s) to extract relevant information from sensor data, make control decisions, and send commands to the robot’s actuators.

A second novel method is the use of reconfigurable computing, currently employing FPGAs. In reconfigurable computing, the basic integration unit is not the library function or subroutine but the electronic block with its inputs and outputs. Blocks and libraries of existing reusable blocks make the development of data-driven applications straightforward.

FPGAs have been used in many application fields [1], such as digital control, communication interfaces, networking, computer security, cryptography techniques, machine learning, digital signal processing, image and video processing, big data, and computer algorithms. In particular, their low price, time-critical processing, and power efficiency are also beneficial in robotics.

Two leading vendors dominate the FPGA market: Xilinx and Intel-Altera, with more or 85% of the share. They provide FPGA circuits and proprietary development tools (as Vivado from Xilinx or Quartus Prime from Intel-Altera). This closed market has resulted in a fragmented ecosystem and low interoperation. In the last years, a set of open tools for development with FPGAs have appeared [2,3], some of them based on reverse engineering of the devices from the most extended providers [4,5].

This paper focuses on the intersection of two fields: robotics and reconfigurable computing. It shows the usefulness of recent open-source tools and FPGA computing when developing robot applications, thus expanding the scope of open FPGAs beyond digital electronics. They provide an easy and reliable way of creating reactive robot behaviors, with some advantages over the classic programming approach. For experimental validation, a commercial robot endowed with ultrasound (US) sensors, infrared (IR) sensors, and motors has been employed. The intelligence of this robot for two reactive autonomous behaviors (line following and obstacle avoidance) has been developed using the reconfigurable computing approach, where a visual editor tool is used for circuit generation and synthesis into an open FPGA board attached to the robot.

For the sake of comparison, the software approach, where Python programs run on the robot’s microprocessor, has also been developed. In the software implementation, the application is a program (a sequence of instructions); the behavior source code requires an application programming interface (API) including functions to get sensor readings and send actuator commands; variables are used; and the instructions are run sequentially, iterating inside an infinite loop. In the hardware implementation, the application is a circuit; the behaviors require a set of driver blocks that provide sensor and actuator access; the blocks are interconnected through wires; and all the driver and specific logic blocks run genuinely in parallel.

The rest of this article is organized as follows. In Section 2, we review related works in the literature. In Section 3, we provide detailed background on the two different approaches compared. In Section 4, we present the experimental validation, describing two basic distinct reactive robot behaviors and their corresponding implementations employing the reconfigurable computing and software methods. Discussion about results and analysis of both paradigms’ strong and weak points are presented in Section 5. Finally, in Section 6, we draw the main conclusions of this work.

2. Related Work

FPGAs have been widely used in robotics and computer vision. In robot control, Alkhafaji et al. [6] review several relevant works, and the main arguments for the usage of FPGAs instead of application-specific integrated circuits (ASICs) in robotics controllers are exposed. For control in industrial robots, [7] is an illustrative example. The authors developed an FPGA-based motion control system employing an open architecture and vendor-independent control system. It was tested on a Fanuc S420F using Xilinx FPGAs. Another example with industrial robots is described in [8] for Mitsubishi PA10, incorporating a Xilinx board. A camera served as the primary sensor for servo-ing control.

Sharma et al. [9] compared several flight control approaches in small unmanned aerial vehicles. FPGA/DSP(digital signal processing)-based solutions are the best in this domain, as they run with low power, fast response, and less volume and weight. An appealing example is PynqCopter [10], an open-source control system implemented on an FPGA-based board (Xilinx PYNQ-Z1) for a hexacopter. They used high-level synthesis tools. In another illustrative work, Eizad et al. [11] presented a custom hardware FPGA control system capable of stabilizing the roll, pitch, and yaw of a small scale quadrotor unmanned aircraft using a PD controller for each rotation axis. The practical control loop rate for this FPGA (hardware approach) was 4.3 MHz, overcoming the 0.71 MHz for an ARM7 microcontroller (software approach).

Inside the aerial robotics field, Bouhali et al. [12] provide a complete review of the diverse uses of FPGAs in unmanned aerial vehicles (UAVs). They organize them around three areas: high-level control, low-level control, and mission-critical tasks. High-level control includes stereo vision, SLAM (simultaneous localization and mapping), and path planning. Low-level control includes stability control, state estimation, interfacing with sensors, and motor control. Mission-critical tasks include obstacle avoidance, object recognition, and tracking and communications.

FPGAs have also been used for speeding up image processing inside robot applications. For instance, Alabdo et al. [13] describe a complete visual pipeline on FPGA, including thresholding, erosion, blob detection, and centers calculation. FPGAs have also been used for more elaborate image processing, such as Harris corner detector [14], and extraction and matching of scale-invariant feature transform (SIFT) keypoints [15].

Image processing in FPGAs has been related to the self-localization capability, which is useful for robots. For instance, Rodríguez-Araujo et al. [16] present a distributed FPGA-based embedded image processing system for accurate and fast simultaneous estimation of the position and orientation of remotely controlled vehicles in indoor spaces. Boikos et al. [17] describe an FPGA accelerator architecture for depth estimation in SLAM algorithms achieving a rate of more than 60 mapped frames/s, similar performance to that of a high-end desktop CPU with power consumption improved by an order of magnitude.

In robot navigation and path planning algorithms, performance has also been improved with FPGAs. For instance, Murray et al. [18] construct robot-specific circuitry for motion planning, capable of generating motion plans approximately three orders of magnitude faster than traditional methods. Building a probabilistic roadmap is a common approach for motion planning problems, as in configuration space for industrial robots. Their proposal makes collision detection circuits for the roadmap edges, which entirely run in parallel to perform the path search. A second relevant example [19] implements a customized genetic algorithm for a mobile robot’s path planning. A Xilinx FPGA device and a Pioneer 3DX platform were used in this work.

In real systems, the required computing inside a robot is not exclusively executed in FPGAs. They are typically combined with general-purpose CPUs or even graphics processing units (GPUs) in a heterogeneous hardware–software co-design. A relevant work showing this is [20], where FPGA accelerators are used for SLAM, motion planning, and convolutional neural network inference. The OpenCL framework was used for programming and executing programs across heterogeneous platforms. With FPGA acceleration, the SLAM and motion planning tasks are performed 2–4 times faster than the fine-tuned software implementation.

Reconfigurable computing has also been used in bioinspired robots, implementing nonconventional computation. Quintal et al. [21] implemented a decentralized inverse optimal neural controller on a shrimp robot using an FPGA in an Intel-Altera board. Linares et al. [22] mimic inside a Xilinx FPGA the neural processing on some retinal cells and compare it with a software approach. The visual input for these cells comes from an asynchronous event-driven dynamic vision sensor. The hardware approach to this robot perception task provides faster latency in the detection of visual stimuli.

Open FPGAs in Robotics

The Project IceStorm [23], led by Clifford Wolf, is a relevant example and aims to document the bitstream format of Lattice iCE40 FPGAs and provide simple tools for analyzing and creating bitstream files. The Icestudio tool [24], which provides a combination of Verilog and a visual language for FPGA programming, is based on IceStorm. The Symbiflow toolchain (https://symbiflow.github.io (accessed on 19 December 2021)) is another powerful and illustrative example. Among other tools, it includes Yosys synthesis [25,26,27], Project IceStorm, Project X-Ray for documenting the Xilinx 7-series bitstream format, and Project Trellis for Lattice ECP5 bitstream.

The open toolchain for FPGAs is relatively recent; therefore, there is a lack of literature showing its potential in the robotics field. Nevertheless, some recent works already use open FPGAs in robotics. For instance, Caro et al. [28] present a new approach inspired in the animal nervous system for controlling a hexapod robot. It implements the binomial brain–peripheral nervous system (CNS-PNS), combining microprocessors for the high-level control and FPGAs for the low-level control. Central pattern generator signals coordinate the motion of all of the legs for robot walking; they are translated into Verilog, synthesized, uploaded, and run into a Lattice iCE40 FPGA, all on-demand in real time. To create the required FPGA digital control circuits, the open-source tools Icestudio [24] and Apio [29] were used.

A self-balancing robot that solves the inverted pendulum control problem has been successfully programmed using FPGAs’ open toolchain. Ordoñez et al. [30] developed a perception module for an inertial sensor, a proportional–derivative controller, and a driver module for two DC motors. The system includes an Arduino microcontroller for the sensor driver and an IceZum Alhambra board (which integrates an iCE40 FPGA from Lattice) as the primary computing unit. All of the FPGA modules were developed using Icestudio.

The present work constitutes a step forward from this self-balancing robot’s previous work solving the inverted pendulum problem with open FPGAs, demonstrating that reconfigurable computing with recent open FPGA tools is an easy, cost-effective, and reliable approach to develop complete reactive robot behaviors involving sensors and actuators.

3. Implementation of Intelligent Robot Behaviors

It is widely accepted that intelligent robots should show reactivity to the environment and unexpected situations, orientation toward their goals, and some planning capability. They are composed of sensors, actuators, and some logic in between. Many proposals and paradigms have emerged in the last 60 years to make intelligent machines [31] and develop that internal logic. There is no universal way of facing this complex task.

Classical symbolic AI reasoning was prevalent until the 1980s in robotics; its sense–plan–act (SPA) paradigm included the perception, modeling, planning, task execution, and motor control steps, with plenty of symbolic deliberation and plans. In contrast, pure reactive architectures followed the faster sensing–action loop, but they did not scale to complex problems. Behavior-based robotics proposed a combination of several processing units with some arbitration mechanisms.

The subsumption architecture from Rodney Brooks [32], implemented as a distributed and connected collection of hardware-specific processing units, was influential. Hybrid approaches are also successful in real robots—for instance, three-layer architectures, typically including a deliberative layer, an intermediate executive layer, and a reactive layer, with a collection of many basic behaviors that may be disabled at will. Each school of thought has its advantages and weaknesses.

Most of these architectures are software-based and, despite their differences, they share some points in common, such as running on von Neumann computers. The main features of the development process of building robot intelligence from the software and the hardware approaches will be examined in this section.

3.1. Software Approach: Robot Programming

Developing robotics software is the traditional way of creating intelligent robots. It is flexible, as detected bugs or errors may be solved by changing the source code and rerunning it on the robot.

Embedded software developed to be run in robots has several requirements that make it unique. Usually, it has to meet real-time operation and be robust because it is connected to real devices. For instance, it may be driving an autonomous car at 120 km/h.

Robots may be programmed using many languages, including low-level languages such as assembly code and high-level languages such as C/C++ or Python. C or C++ source code requires a compilation to translate it into machine code and linkage with libraries to build the executable program. Software development toolchains help in that. Python source code needs an interpreter or runtime environment to be executed.

Many concepts from software engineering have been introduced in the last decade into robotics software development. Currently, object-oriented programming and standard interfaces are commonplace.

Robotic systems are usually complex, and software is customarily organized into different layers. At the bottom level, there are drivers for the sensors and actuators. Above those, there are controllers, reactive behaviors, and finite state machines (FSMs). More sophisticated robot applications may also include a planning and task decomposition layer. As previously mentioned, many cognitive architectures have been proposed over the years to organize robot intelligence, perception capabilities, and decision-making. In the end, they are finally implemented using some software architecture.

Several middlewares and frameworks have appeared to simplify and speed up the development of robot applications. They favor the portability of these applications between different robots, facilitating code reusability and integration. They provide: (i) a particular software architecture for robot applications, such as an object collection or a set of modules talking through the network or an iterative process calling to functions, or an event loop with callbacks; (ii) a hardware abstraction layer that hides the complexity of accessing heterogeneous hardware (sensors and actuators) under standard interfaces; (iii) many tools, libraries, nodes, or common functionality stacks that can be reused in new developments instead of building each new application from scratch.

Robot Operating System (ROS) [33,34] is one of the most popular frameworks currently. It has a growing user and developer community, and its site hosts an extensive collection of hardware drivers, algorithms, and other tools. ROS-based applications have several communicating components (nodes) that exchange messages mainly in publish–subscribe fashion (topics).

Several abstractions are available for robot software programmers, such as libraries with reusable functions, threads, processes, object orientation, events, and messages. In the lowest level, robot programs run on general purpose processors (GPUs) based on the von Neumann architecture: a CPU, memory, buses, etc. The central processor supports a machine instruction set and includes fetching and decoding instructions and fetching data stored in RAM. Ultimately, the robot program can be seen as an instruction stream. The robot’s microprocessor executes it mainly sequentially, except for some branches, loops, and jumps.

In order to increase performance, other computer architectures such as multicore computers with several CPUs or even massive parallel computers with GPUs have been used. For instance, GPUs speed up computer vision operations. Most widely used neural networks frameworks, such as TensorFlow or PyTorch, include the possibility of running their neural models on GPUs, resulting in a performance boost.

3.2. Hardware Approach: Reconfigurable Computing

Another approach to building intelligent machines is to design an electronic circuit that performs the required sensors readings, data processing, computing, decision making, and actuators commanding. ASICs are circuits customized for a particular use. They are widely used in environments where machine tasks are repetitive and for high-volume productions. Their execution is high-speed, and they have low energy consumption, being also power-efficient. However, they provide no flexibility; once the circuit has been built, it may not be changed. Their redesign has high nonrecurring engineering costs.

In contrast to ASICs, general-purpose programmable logic devices as FPGAs are integrated circuits designed to be configured by a customer or a designer after manufacturing. They are an example of reconfigurable computing and combine some of the flexibility of software computing with the high performance of the hardware approach.

FPGAs contain an array of programmable logic blocks, a hierarchy of reconfigurable interconnects, and several discrete components such as block RAMs, DSP slices, processor cores, and various communication cores [35]. The interconnections allow configuring gate sets to perform complex combinational functions or simple logic gates (like AND and XOR). The particular configuration determines the circuit behavior.

The development process in reconfigurable computing includes several steps [36,37,38,39] and tools. The hardware may be designed at varying abstraction levels, usually gate level, register–transfer level (RTL), and algorithmic level.

First, an FPGA structure and behavior is formally described in a hardware description language such as Verilog, VHDL, or recent ones such as SpinalHDL. They are text languages that also allow the automated analysis, verification, and simulation of the electronic circuit. This text file can be seen as the source code of a particular application in reconfigurable computing.

Second, with a logic synthesis tool, the HDL file is synthesized into a netlist. The netlist is a specification of electronic components and their interconnections, considering the particular target FPGA’s physical and timing constraints.

Third, in the place and route step, all the electronic components, circuitry, and logic elements involved in the proposed “program” are placed in the limited amount of space of the target FPGA. Routing decides the exact design of all the wires needed to connect the placed components.

Fourth and last, a bitstream is generated, describing the configuration data to be loaded into the physical FPGA device. When loaded, the FPGA is ready to execute. Its detailed format for a particular FPGA is typically proprietary to the vendor.

4. Experimental Validation

In this section, several experiments are presented using a low-cost robotic platform endowed with US sensors, IR sensors, and motors. We have implemented two reactive autonomous robot behaviors under the reconfigurable computing approach, using a visual editor tool for graphic circuit generation and synthesis to configure an open FPGA board attached on top of the robot. Both reactive behaviors have also been developed under the software approach, using Python programs running on the robot’s microprocessor to establish a qualitative analogy and quantitative comparison between the two methods.

4.1. Robot Body: Hardware Platform

An Arduino-based robot, the MakeBlock mBot (https://makeblock.es (accessed on 19 December 2021), Figure 1 left), has been selected as the reference hardware platform. The mBot, with its Arduino Uno microcontroller board, can be connected to common US/IR sensors and motors used in educational robotics. It is affordable, mechanically compact, and extensible.

The robot hardware in its original form from the factory includes the following elements:

• an ATmega328P, 8-bit, low power AVR microcontroller. Its clock frequency is 20 MHz. It integrates internal SRAM (2 KB).
• a Me IR Receiver, which has four pins: (1) DAT, (2) RX, (3) VCC, and (4) GND. Its receiving frequency is 38 kHz, and the baud rate is 9600.
• a Me Ultrasonic Sensor has three pins: (1) GND, (2) 5 V, and (3) SIG. Its ultrasonic frequency is 42 kHz, and it supports a 30-degree measurement angle.
• two TT Geared Motors, which work on DC 6V/200RPM. These motors support both positive and negative transfer and no-load speed.

In the software approach, the mBot has not been modified at all. Its microcontroller is in charge of executing the programs developed for each desired behavior. On the other hand, we have disconnected the Arduino board and replaced it with the IceZum Alhambra FPGA board for the reconfigurable computing approach (Figure 1 right).

The IceZum Alhambra FPGA board (https://alhambrabits.com/alhambra/ (accessed on 19 December 2021), Figure 2) incorporates a low-cost, low-power open FPGA (Lattice iCE40HX1K), with a base clock frequency of 12 MHz. This FPGA includes the following hardware resources:

• 1280 logic cells (Look-Up Tables (LUTs) + Flip-Flops (FFs))
• 96 programmable I/O pins (PIOs)
• 16 RAM4K memory blocks (BRAMs)
• 160 programmable logic blocks (PLBs)

The IceZum Alhambra has been designed using open-source tools, and it is compatible with the open-source Icestorm FPGA toolchain.

4.2. Reconfigurable Computing Brain: IceZum Alhambra FPGA and Icestudio

Icestudio is an open-source and multiplatform graphic editor for open FPGA boards. It is built on top of the Icestorm project that implements the toolchain for reconfigurable computing on open FPGAs. It supports several boards, including the IceZum Alhambra.

With Icestudio, circuits are designed graphically, connecting individual blocks of hardware through wires. A block is an entity with input and output ports, parameters, and some content (functionality). An example is shown in Figure 3.

Icestudio provides many basic blocks, including combinational gates (AND, OR, NOT, etc.), combinational circuits (multiplexers), and sequential elements (flip-flops, prescalers, debouncer). Verilog language fragments can be incorporated into the design as new blocks to implement more elaborate components (such as comparators, decoders, counters, memories, buffers, shift registers). Icestudio supplies several blocks useful for debugging purposes, such as elementary input devices (switches, constant-value ports) and output devices (LEDs).

Additional Icestudio blocks have been developed to read measurements from the sensors and generate proper pulse width modulation (PWM) signals to operate the motors of the mBot.

4.3. Software Brain: Arduino Processor and Python Programming

Arduino is commonly programmed using the Arduino IDE or the block-based Scratch programming language, or some variants such as mBlock (https://www.mblock.cc/en-us/ (accessed on 19 December 2021)). Python was chosen here as the programming language because of its simplicity and expressive power. It is a text-based, object-oriented, and interpreted language. Python has a shallow learning curve, as opposed to the Arduino language (similar to C/C++), and at the same time, it integrates many powerful features and libraries.

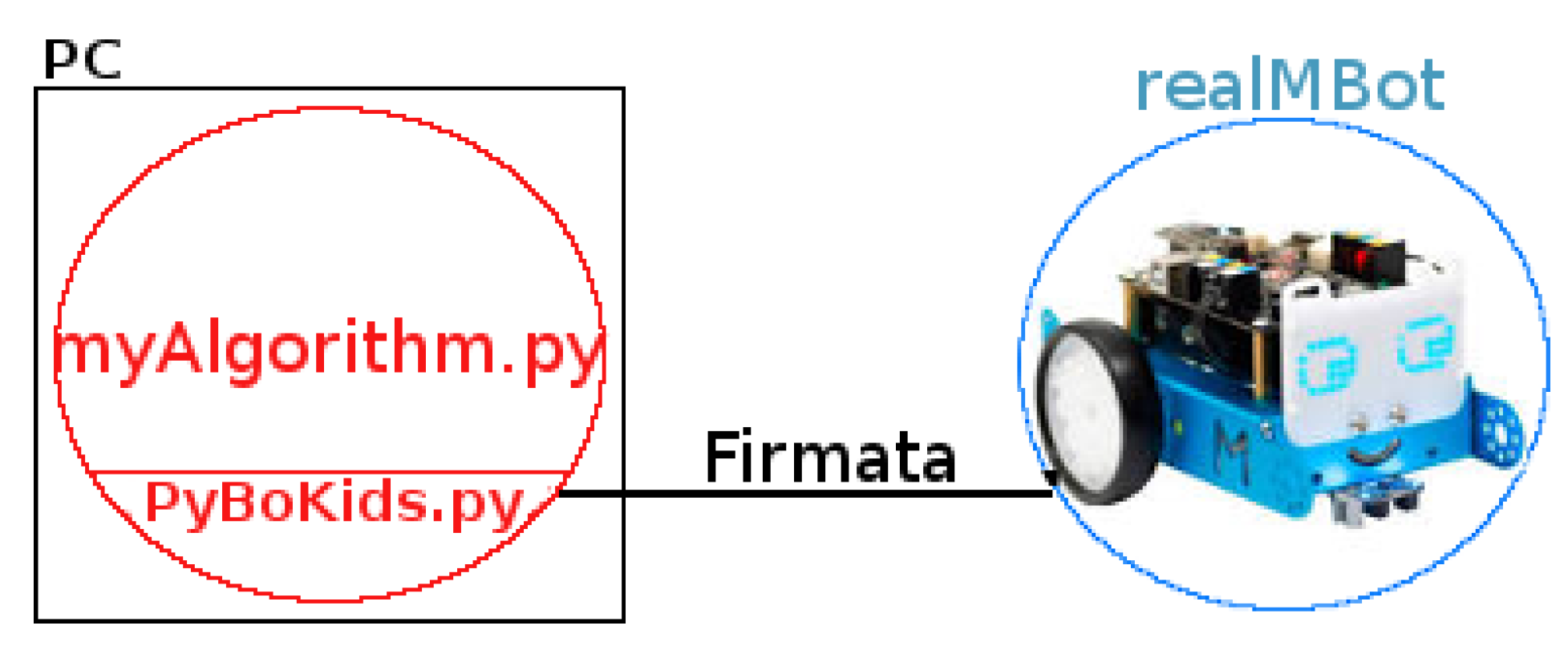

As the Python language is not supported by the manufacturer of the mBot, an entire infrastructure was created around the PyBoKids library ([40]). The Arduino Uno microprocessor is excessively limited to run an onboard Python interpreter. Therefore, a module for the real robot, called realMBot was implemented and programmed as a Python library that runs on the computer and communicates continuously (via USB or Bluetooth 2.4 G) with the physical mBot robot using the Firmata protocol (https://github.com/firmata/protocol (accessed on 19 December 2021)). An intermediary program is executed on the native Arduino firmware (Figure 4) to support that communication.

The PyBoKids library was developed to provide the application programming interface (API), PyBoKids.py (https://gitlab.etsit.urjc.es/jmvega/PyBoKids/blob/master/PyBoKids.py (accessed on 19 December 2021)) for robot applications. Its clear and natural interface includes methods to read the measurements from the sensors and to command the actuators of the mBot (

Table 1. PyBoKids.py application programming interface.

Actuators	Sensors
move (V, W)	readLightLevel
forward (V)	readUltrasound
backward (V)	readSoundLevel
left (W)	readPotentiometer
right (W)	readRemoteIR
stop
moveServo ($\theta$)
ledOn
ledOff
writeText (T)
playTone (Fs)

).

Figure 5 shows an example program developed in Python language using the PyBoKids library’s API.

4.4. Reactive Robot Behaviors

In the associated literature, several recurring basic reactive behaviors can be found in different robotics environments. The most popular is the line follower robot ([41,42,43,44]). A line follower robot has to follow a dark-colored line on a white-colored ground (or vice versa). Normally, the robot incorporates two IR sensors pointing to the ground, which will detect a white surface (high voltage) or a dark surface (low voltage).

Another standard behavior is obstacle avoidance ([42,43]). The robot has an ultrasonic sensor that allows it to measure the distance to objects that may interfere with the robot’s forward movement. Upon obstacle detection, the robot shall command its motors to stop, go backward, and then turn left/right, in order to avoid the obstacle.

4.4.1. Line Following Robot Behavior

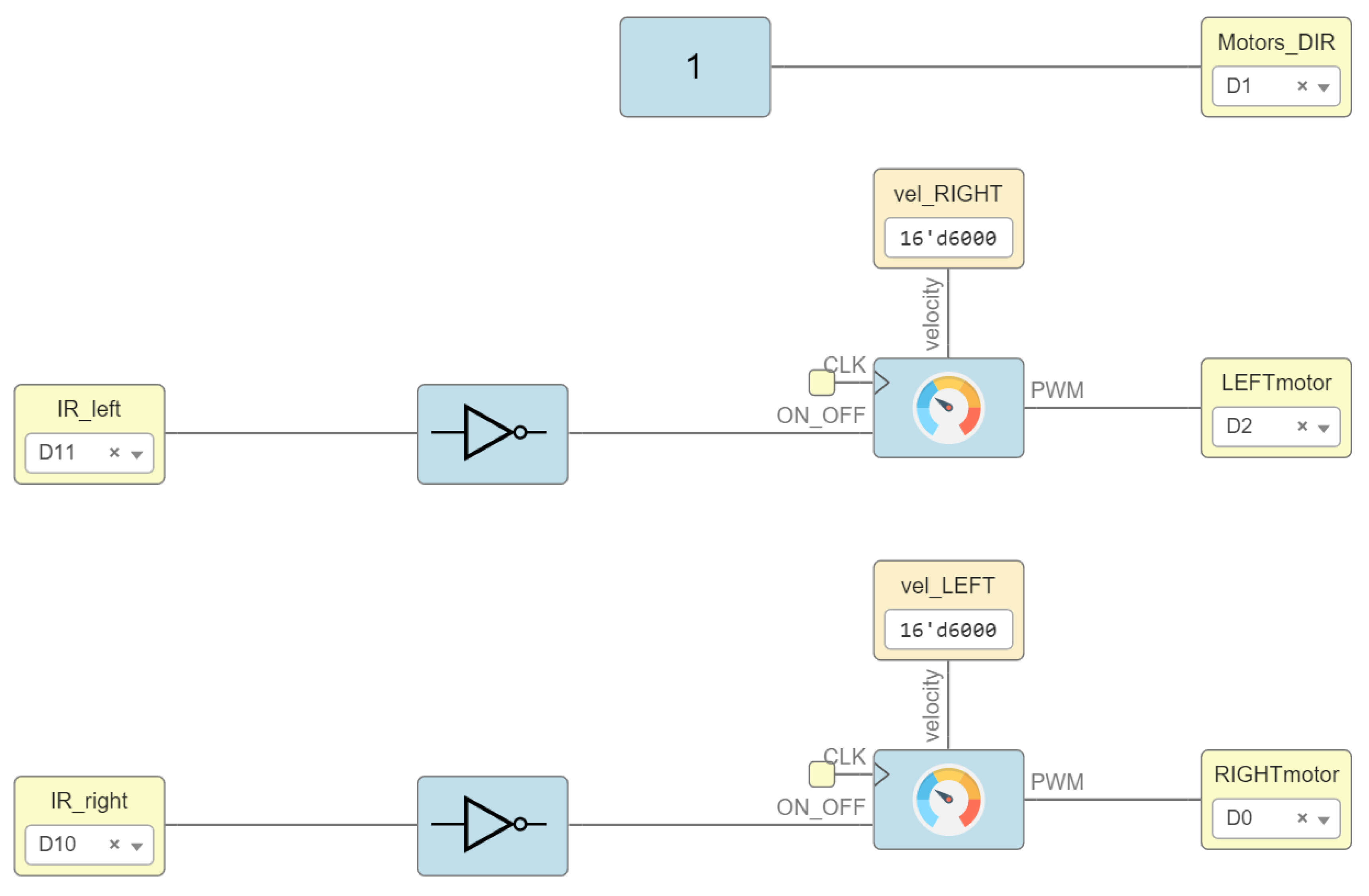

In the reconfigurable computing approach, the circuit shown in Figure 6 has been designed, connecting the output of each IR sensor to its corresponding motor in order to activate it according to the IR sensor reading. Icestudio blocks to generate PWM signals that set the speed of motors have been included.

The FPGA hardware resources utilized in this design are the following: FFs: 24/1280 (1.9%), LUTs: 124/1280 (9.7%), PIOs: 15/96 (15.6%), PLBs: 33/160 (20.6%), BRAMs: 0/16 (0%).

The hardware-based line follower mBot in action is shown in this publicly available video https://www.youtube.com/watch?v=GJkRy0zWMI4 (accessed on 19 December 2021).

In the software approach, the code developed to implement this behavior is short, thanks to the utilization of the PyBoKids library, as shown in

Listing 1. Source code of line following behavior software implementation.

from lib.mBot import *     if __name__ == ’__main__’:         robot = mBot()         vel = 0.2  # meters per sec         vel_turn = 0.5  # radians per sec         while True:             IRval = robot.readRemoteIR()             if IRval == 0:  # left black/ right black                 robot.forward(vel)             elif IRval == 1:  # left black/ right white                 robot.left(vel_turn)             elif IRval == 2:  # left white/ right black                 robot.right(vel_turn)             elif IRval == 3:  # left white/ right white                            robot.stop()             time.sleep(0.2)

.

The software-based line follower mBot in action is shown in this publicly available video: https://www.youtube.com/watch?v=_81_cAOjJkI (accessed on 19 December 2021).

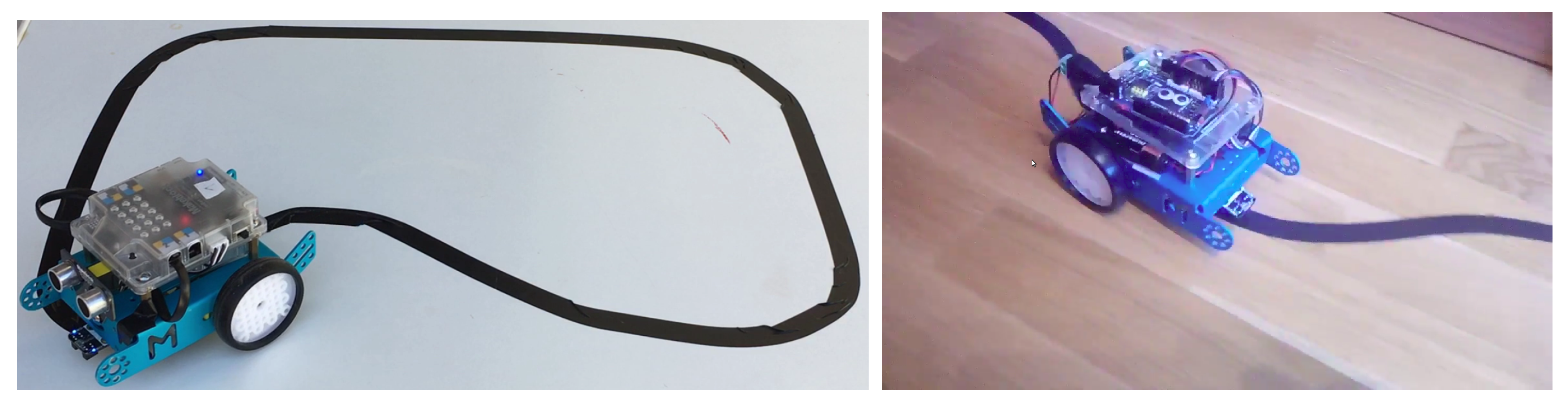

Pictures of the line following mBot robot behavior using the reconfigurable computing approach and the software approach can be seen in Figure 7.

4.4.2. Obstacle Avoidance Robot Behavior

The reconfigurable computing approach corresponds to the circuit shown in Figure 8. A US sensor driver block has been designed, providing a 16-bit number as an output representing the elapsed time between the ultrasonic signal sent and the echo received. This number is compared to a threshold (1000 microseconds, equivalent to an object distance of 17 cms) using a comparator block, setting its output to a high value when the elapsed time is less than 1000 microseconds.

This signal is connected to the input of a Moore FSM, implemented employing a Verilog-based block. This FSM can be represented as shown in Figure 9:

The three FSM outputs will control the motors (activation of left/right motor and motors’ direction). Values for output signals from FSM are given in

Table 2. Values for FSM output signals in each state.

	MOTORS DIR	LEFT MOTOR	RIGHT MOTOR
WAIT OBSTACLE	1	1	1
STOP	1	0	0
MOVE BACK	0	1	1
TURN LEFT	1	0	1

. Timeouts for STOP_COUNT_REACHED, MOVE_BACK_COUNT_REACHED, and TURN_LEFT_COUNT _REACHED signals have been all set to 1 s.

The FPGA hardware resources utilized in this design are the following: FFs: 57/1280 (4.5%), LUTs: 218/1280 (17%), PIOs: 17/96 (17.7%), PLBs: 48/160 (30%), BRAMs: 0/16 (0%).

The hardware-based obstacle avoidance mBot in action is shown in this publicly available video: https://www.youtube.com/watch?v=y2m9RiUH6tU (accessed on 19 December 2021).

The source code developed to achieve this behavior in the software approach is shown in

Listing 2. Source code of obstacle avoidance behavior software implementation.

import random     from lib.mBot import *     if __name__ == ’__main__’:         robot = mBot()         vel = 0.5  # meters per sec         vel_turn = 0.2  # radians per sec         while True:             USval = robot.readUltrasound()             if (USval < 20):                 robot.stop()                 time.sleep(0.5)                 robot.backward(vel)                 time.sleep(1)                 robot.right(vel_turn)                 time.sleep(random.uniform(0.5,3))                          else:                 robot.forward(vel)             time.sleep(0.2)

. When an obstacle is detected at a distance less than 20 cm, the mBot is commanded to stop, go backward for one second, turn to the right for a random amount of time (between 0.5 and 3 s), and then continue moving forward.

The software-based obstacle avoidance mBot in action is shown in this publicly available video: https://www.youtube.com/watch?v=k-U7OTFT6Rs (accessed on 19 December 2021).

4.5. Quantitative Analysis

In order to evaluate quantitatively the performance of both reconfigurable computing and software approaches, we have used the following two metrics:

• total power consumption of the system
• response time, interpreted as the minimum time needed to react to external changes

For the quantification of the total power consumed, current was measured using a digital power supply. The voltage was always set to 3.7 volts. Results are summarized in

Table 3. Power consumption for reconfigurable computing and software approaches.

Robot Behavior	Board	Idle	Motors Running
Line following	Arduino	250 mW	850 mW
Line following	Alhambra	35 mW	635 mW
Obstacle avoidance	Arduino	250 mW	850 mW
Obstacle avoidance	Alhambra	38 mW	638 mW

.

With respect to the response time analysis, results are detailed in

Table 4. Time response for reconfigurable computing and software approaches.

Robot Behavior	Board	Response Time
Line following	Arduino	10 ms
Line following	Alhambra	0.033 ms
Obstacle avoidance	Arduino	20 ms
Obstacle avoidance	Alhambra	0.1 ms

. In the case of the Alhambra board, results have been obtained by circuit analysis, taking into account hardware design constraints and maximum operating frequency of sensors (38 KHz for the IR sensor and 42 KHz for the US sensor). For the Arduino board, we decreased sleep time in the software programs (nominal value is 200 milliseconds, see Listing 1 and Listing 2) until the robot behavior was erratic.

5. Discussion

The experimental validation just presented addresses the implementation of two basic reactive behaviors in an autonomous robot using two different perspectives: first, the reconfigurable computing approach, where an FPGA is configured with a circuit designed using an open toolchain visual editor for FPGAs, and second, the classic and widely used software computing approach, where the sensors are read and actuators are commanded by a Python software program running on a general-purpose microprocessor. They both have proved to be satisfactory solutions for simple reactive behaviors.

A qualitative comparison of both approaches’ features and concepts is shown in

Table 5. Qualitative comparison between software computing and reconfigurable hardware computing.

Software Computing	Reconfigurable HW Computing
Instruction stream	Parallelism
Abstractions	Physical mapping
Functions, with input parameters and result	Hardware blocks, with inputs and outputs
Variables	Signals
Reusable libraries	Reusable blocks
Iterations (ms.)	Continuous (ns.)
Temporal reasoning	Spatial reasoning
Parallelism achievable with threads or processes, time multiplexing	Natively parallel
Natively sequential	Sequences achievable with states

. Their various strong and weak points make them less or more suitable for developing more sophisticated robot behaviors.

Software computing means developing an application using a programming language and executing it in a generic microprocessor. There are many IDEs, languages, and software libraries already available for developers. Even frameworks and ecosystems such as ROS [33,34].

Reconfigurable computing means designing a hardware circuit (which can be accomplished using a visual editor, an HDL, or high-level synthesis (HLS), among others) and configuring an FPGA with it. Until now, the proprietary FPGA toolchains have dominated the market in the last decades, but recently, a completely open-source toolchain was developed. The open-hardware community is significantly improving it, expanding the set of supported FPGA boards and circuits. It started with low-end FPGA boards, and support for middle-end ones is almost ready. There are not many ready-for-use basic block libraries yet, but they are growing exponentially due to the increasing number of users and the open philosophy dynamics.

In the software approach, the reusable functionalities are provided through functions as a sequence of instructions, and they may have input arguments and provide a result. These functions are usually time-blocking, as the execution is natively sequential. There are other software approaches such as event-based programming and exceptions, but they are not the general approach. For instance, the robot.readRemoteIR() in Listing 1 is invoked to get IR sensor measurements. If that function took 2 s to run, the following instructions would not be executed until then. The robot.forward(vel), robot.left(vel_turn), and robot.right(vel_turn) are called to command speed of the robot motors. For combined functionality, functions may call to other functions to implement their own functionality.

In the hardware approach, the reusable functionalities are provided through blocks, which are implemented in a hardware description language, with input and output signals. These blocks run continuously, updating their outputs from the data in their inputs at hardware speed, and their execution is natively parallel (they are non-time-blocking). For instance, in Figure 6, the IR_right and IR_left blocks provide sensor measurements and the LEFTmotor and RIGHTmotor blocks continuously send commands to the robot motors. A block may be implemented with a new circuit containing other blocks and internal wires for combined functionality. Reusing blocks speeds up the development process and increases reliability, as those library blocks usually have been previously debugged and tested.

Variables are the natural place to hold information in the software approach. For instance, vel_turn or vel in Listing 2. They can be read or written with new content. In the hardware approach, signals are used, such as those on Figure 8. Constant values may also be used in circuits, such as vel RIGHT and vel LEFT in Figure 8.

The line-following and obstacle avoidance robot behaviors with software brain work with a single thread that runs iterations inside an infinite loop (the while True loop in Listing 1 and Listing 2). If more activity sources are required, the software approach may use several threads, processes, or nodes inside the robot application, in the same computer (or in others if available). In the same computer, (pseudo)parallelism is easily obtained from the operating system with time multiplexing or multicore capabilities. Complex robot applications usually involve several interacting nodes that continuously exchange messages through a communication layer. That is the paradigm for typical ROS applications, for instance.

There is no thread at all in the hardware brains for the same behaviors, neither any idea of iteration: all the blocks work continuously inside the FPGA, always running in parallel. This fact speeds up the reaction time to changes or events, improving the behavior performance as the feedback loop becomes faster. In case some sequence is required, it may be implemented as an FSM in the hardware approach, such as the FSM block in Figure 8 and Figure 9. Changing that FSM to integrate a new step in the sequence can be more complicated than in the software approach, where this can be achieved by adding some more lines to the instructions sequence.

Regarding the data obtained in the quantitative analysis, the FPGA-based solution clearly outperforms the CPU-based solution, both in terms of power consumption and also in terms of response time.

The reasons for the low consumption can be found mainly in that the FPGA uses the hardware resources strictly necessary to achieve the desired behavior. Concerning the response time, the parallelism inherent in the hardware solution makes the system react much faster to changes in the environment in these particular robot applications.

6. Conclusions

This paper’s main conclusion is that reconfigurable computing with recent open FPGA tools is an easy, cost-effective, and reliable approach to develop complete reactive robot behaviors involving sensors and actuators. As experimental validation, the line-following and the obstacle avoidance reactive behaviors have been successfully implemented in a commercial mBot robot using the open FPGA IceZum Alhambra board and Icestudio visual editor.

So far, the available FPGA development tools were proprietary and required advanced knowledge to use this technology. The situation is changing; the availability of open reconfigurable hardware boards at an affordable cost and the appearance of open tools that allow their use in a simple fashion provide new possibilities. The open development framework used includes: (a) reconfigurable open hardware board, (b) open tools supporting the design and synthesis of circuits for these boards using a simple visual language, and (c) driver blocks that simplify the reading of robot sensors (US and IR) and the control of robot actuators (motors). Within this framework, the robot application is a circuit synthesized in the FPGA, including the driver and custom blocks implementing the behavior’s logic (interconnected together through signals). In this way, the design of robot applications as circuits is granted, following the hardware-thinking principles instead of programs that follow the software-thinking ones.

Both software and hardware approaches have proved to be valid for basic reactive robot behaviors. Their general underlying principles and potentials have been summarized and compared. They have distinct features, weak and strong points for developing reactive robot applications, which have been analyzed. We envision the development of hybrid tools that allow hardware and software co-design to materialize robotics intelligence. They shall combine software programs (running on a computer) and hardware circuits (synthesized in an FPGA), interacting and cooperating among them to implement smart robots’ capabilities.

In addition, we measured the power consumption and response time of both the CPU and the FPGA-based brains. The power efficiency advantage of reconfigurable computing can undoubtedly be helpful in resource-limited robots such as drones. Its inherent parallelism will help to increase reactiveness in complex robot applications involving several tasks in parallel.

As a future extension of this work, we intend to face more complex robot behaviors with the reconfigurable computing toolchain. These include computer vision tasks and behavior-based systems involving several reactive behaviors that can be dynamically disabled at run time on purpose in some situations. The mBot robot could be replaced with a Raspberry Pi board-based robot (such as the GoPiGo), which may easily incorporate a USB camera.
