An Analog Integrated Multiloop LDO: From Analysis to Design

Koniavitis, Konstantinos; Alimisis, Vassilis; Uzunoglu, Nikolaos; Sotiriadis, Paul P.

doi:10.3390/electronics13183602

Open AccessArticle

An Analog Integrated Multiloop LDO: From Analysis to Design

by

Konstantinos Koniavitis

,

Vassilis Alimisis

^*,

Nikolaos Uzunoglu

and

Paul P. Sotiriadis

Department of Electrical and Computer Engineering, National Technical University of Athens, 15780 Athens, Greece

^*

Author to whom correspondence should be addressed.

Electronics 2024, 13(18), 3602; https://doi.org/10.3390/electronics13183602

Submission received: 14 July 2024 / Revised: 3 September 2024 / Accepted: 7 September 2024 / Published: 11 September 2024

(This article belongs to the Special Issue Recent Advances in CMOS Integrated Circuits)

Download

Browse Figures

Versions Notes

Abstract

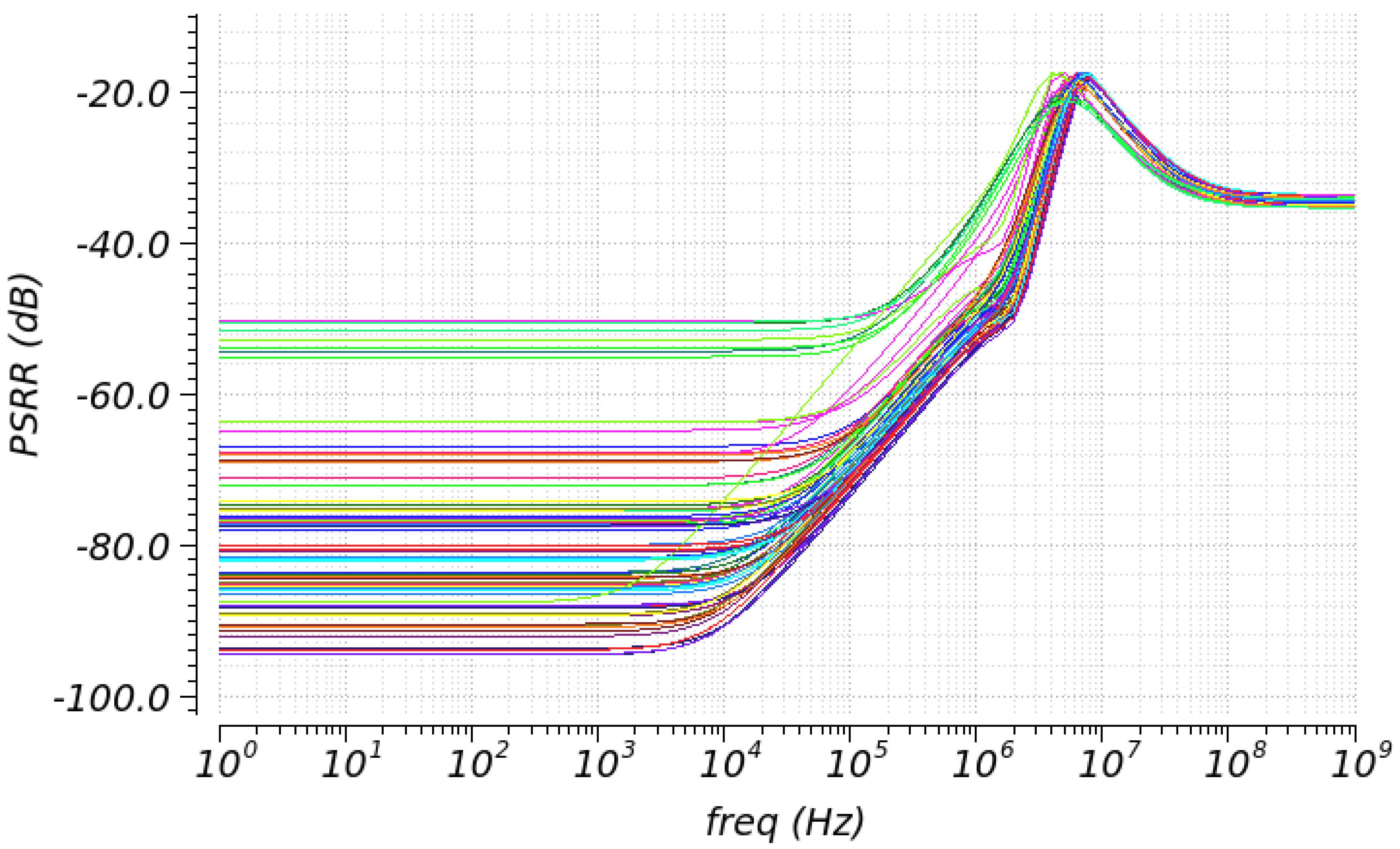

This paper introduces a multiloop stabilized low-dropout regulator with a DC power supply rejection ratio of 85 dB and a phase margin of 80°. It is suitable for low-power, low-voltage and area-efficient applications since it consumes less than 100 μA. The dropout voltage is only 400 mV and the power supply rails are 1 V. Furthermore, a full mathematical analysis is conducted for stability and noise before the circuit verification. To confirm the proper operation of the implementation process, voltage and temperature corner variation simulations are extracted. The proposed regulator is designed and verified utilizing the Cadence IC Suite in a TSMC 90 nm CMOS process.

Keywords: low-dropout regulator; analog integrated; low-power design; multiloop stage
