Edge Artificial Intelligence for Electrical Anomaly Detection Based on Process-In-Memory Chip

Abstract

Neural-networks (NNs) for the current feature analysis bring novel electrical safety functions in smart circuit breakers (CBs), especially for preventing the fire hazard from electric vehicle/bike battery charging. In this work, the edge artificial intelligence (AI) solutions for the electrical anomaly detection were designed and demonstrated based on the process-in-memory (PIM) AI chip. The ultra-low power and high-performance character of PIM AI chips enable the edge solution to embed in the limited space inside the circuit breaker and to detect improper battery charging at millisecond latency.

1. Introduction

A CB is an essential electrical switch designed to protect power systems by interrupting current faults which are typically caused by overloads or short-circuits [1]. Nowadays, thanks to AI, more functions are being introduced to traditional CBs, making them intelligent CBs. These functions include continuous monitoring of electrical parameters, remote control, and most importantly, the detection of complicated electrical abnormalities, such as, improper battery charging, arc-firing, and CB mechanical failures, which could not be captured by traditional CBs.

One typical practice in CB industry is to analyze currents by neural-networks (NNs) [2,3,4,5,6], especially for detecting improper electric vehicle or electric bike battery charging [7,8,9]. Over 30% of electric vehicle/bike related fires occur during improper charging [10,11] in China alone causing over 1600 home fires annually [12]. Such fires have yielded severe repercussions, leading to high death toll and substantial property damage. Thus, it is very important for an intelligent CB to detect electrical vehicle/bike charging and to take the proper measures.

State-of-the-art recognition results were demonstrated in several previous works for various kinds of hazard events. Yang et al. [13] and Liu et al. [14] investigated the NN detection of electric bike (E-bike) charging in households. Other similar types of electric hazard event detection were also performed by H. Park et al. [15] and Jiang et al. [16].

Table 1. The algorithm, accuracy, and hardware platforms used in the related work.

Features	Yang et al. [13]	Liu et al. [14]	H. Park et al. [15]	Jiang et al. [16]
Algorithms	The Random Forest	Convolutional NN	Convolutional NN	1-D Convolutional NN
Hazard Event	E-bike Charging	E-bike Charging	Series Arc Fault	Arc Fault
Computing Platform	N.A.	Laptop	Laptop	Laptop
Accuracy	89%	97%	100%	99.33%

. shows the algorithms, accuracy, and hardware platforms used to deploy those detection functions.

Regardless of having decent accuracy, it is notable that none of the above detection functions were deployed on an edge device. It is understandable that the heavy computing cost of large scale NNs and low response latency require a powerful AI solution at the edge end [17,18,19,20], making it difficult to be embedded into an intelligent CB with limited space and without proper heat dissipation.

PIM technology is one of the emerging semiconductor approaches that combines a memory device and processing unit (PU) into a chip so that the chip can directly store and calculate data internally [21]. This architecture helps to overcome the limitations of traditional AI chips in terms of data processing speed and energy efficiency [21,22]. PIM chips can be appropriately embedded into edge AI devices with limited space and no heat dissipation, due to the high efficiency and low power consumption.

In this work, we designed an edge AI system with low power PIM AI chips to perform current analysis. It was integrated into the CBs and demonstrated high accuracy for battery charging detection with a latency of milliseconds. Section 2 Methods details the system from both hardware and software aspects. The hardware part is described in a bottom-up way from the PIM core in the AI chip to the entire system schematic. The software part contains both the sampling signal data and NN design. Then, in Section 3 Results, the feature extraction method, NN structure, and the algorithm deployment in hardware are discussed and optimized separately. Finally, a conclusion is drawn on the PIM AI chip based smart CB application in comparison with other edge chips.

2. Methods

The hardware platform we used integrated a 32-bit low-power central processing unit (CPU) with our own instruction set and PIM based neural processing unit (NPU), which implements computing processes and data storage in the same physical devices. This architecture combines computing and memory units. Hence, no data transfer is needed between the processor and RAM.

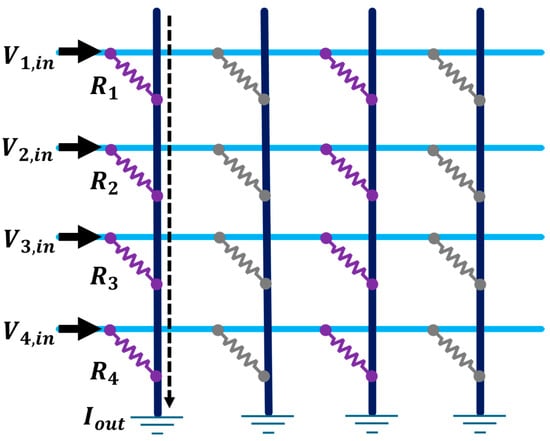

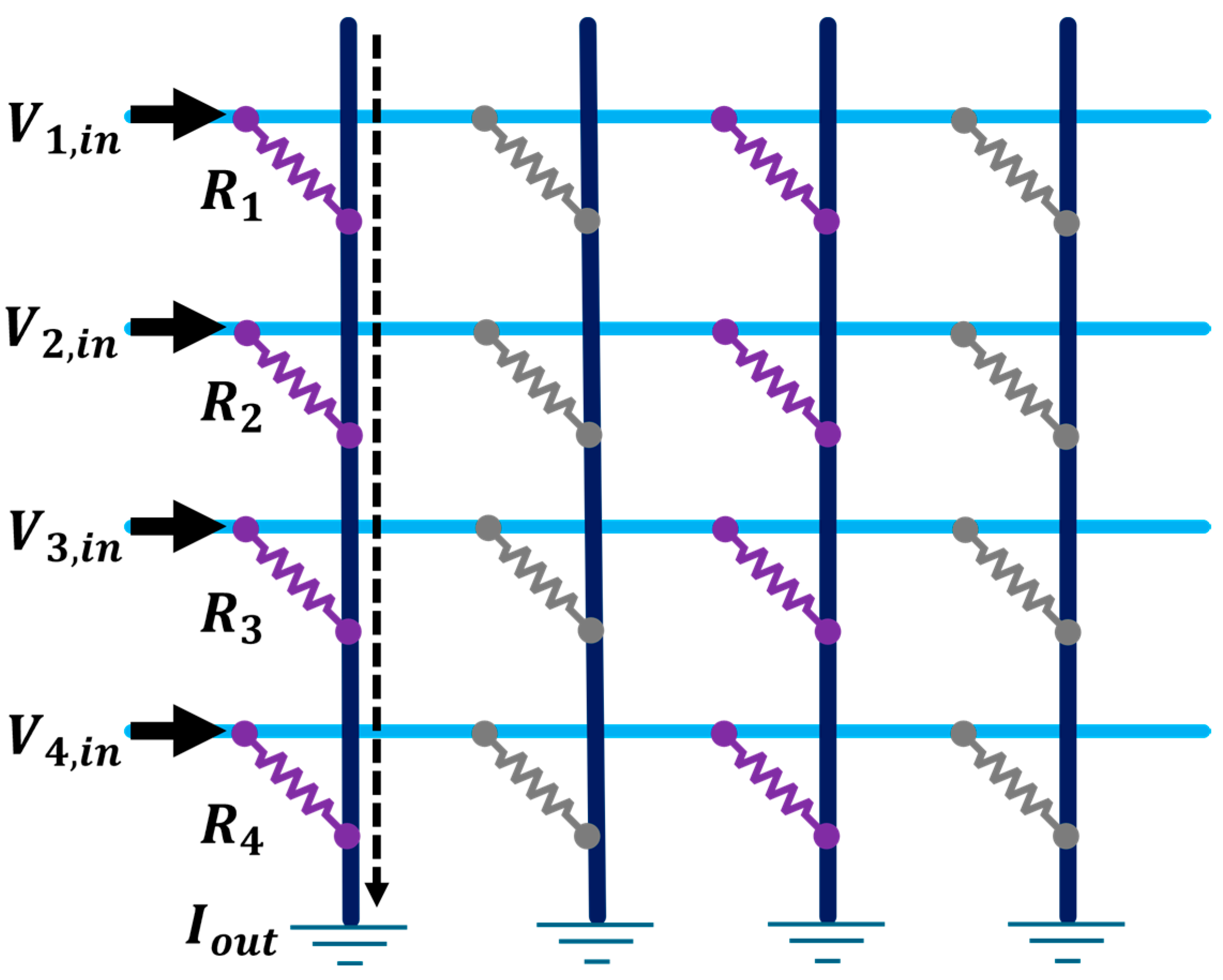

The PIM core used in this study is equipped with a crossbar circuit as shown in Figure 1. The memory cell is based on programmable linear random-access memory (PLRAM) [23], an optimized NOR-FLASH device providing an excellent program/erase scheme [24,25]. Input signals are converted into a vector of voltages and mapped to the rows of the memristor-based crossbar array.

The current traversing each memristor can be modulated by altering the voltages across the rows or columns because memristor terminals have array rows and columns. Within the crossbar array, Ohm’s Law is utilized to determine the current flowing through each memristor. The conductance ($G={\displaystyle \frac{1}{R}}$) of these memristors is carefully adjusted to emulate synaptic weights within the neural network. When the input signal is applied to the cross array, the conductance of each memristor is proportional to the current passing through it. By measuring the current in each column, the result of the input vector and weight matrix can be obtained. The sum of these currents, that is, the current at each output node (according to Kirchhoff Law, which is expressed in Equation (1)) represents the output of the network [26].

$$I_{out}=V_{1,in}{G}_1+ V_{2,in}{G}_2+V_{3,in}{G}_3+V_{4,in}{G}_4,$$

(1)

As shown in Figure 2, the edge AI platform is deployed on an intelligent CB main board. First, the current of the devices are collected by the current transformers (CT). A CT measures the current in a circuit based on the principle of electromagnetic induction [27]. Subsequently, the embedded PIM chip samples the signals at a sampling rate of 16 KHz, continuously. The data are then fed to the pre-trained NN-based model for each alternating current (AC) cycle to obtain the final output. The PIM AI chip provides output back to the CB main board, which finally gives corresponding warnings according to the output results. If the CB detects an abnormal situation, it immediately takes action, such as tripping the breaker to prevent potential hazards or triggering an alert via Bluetooth to notify the relevant parties.

2.1. Sampling Signal

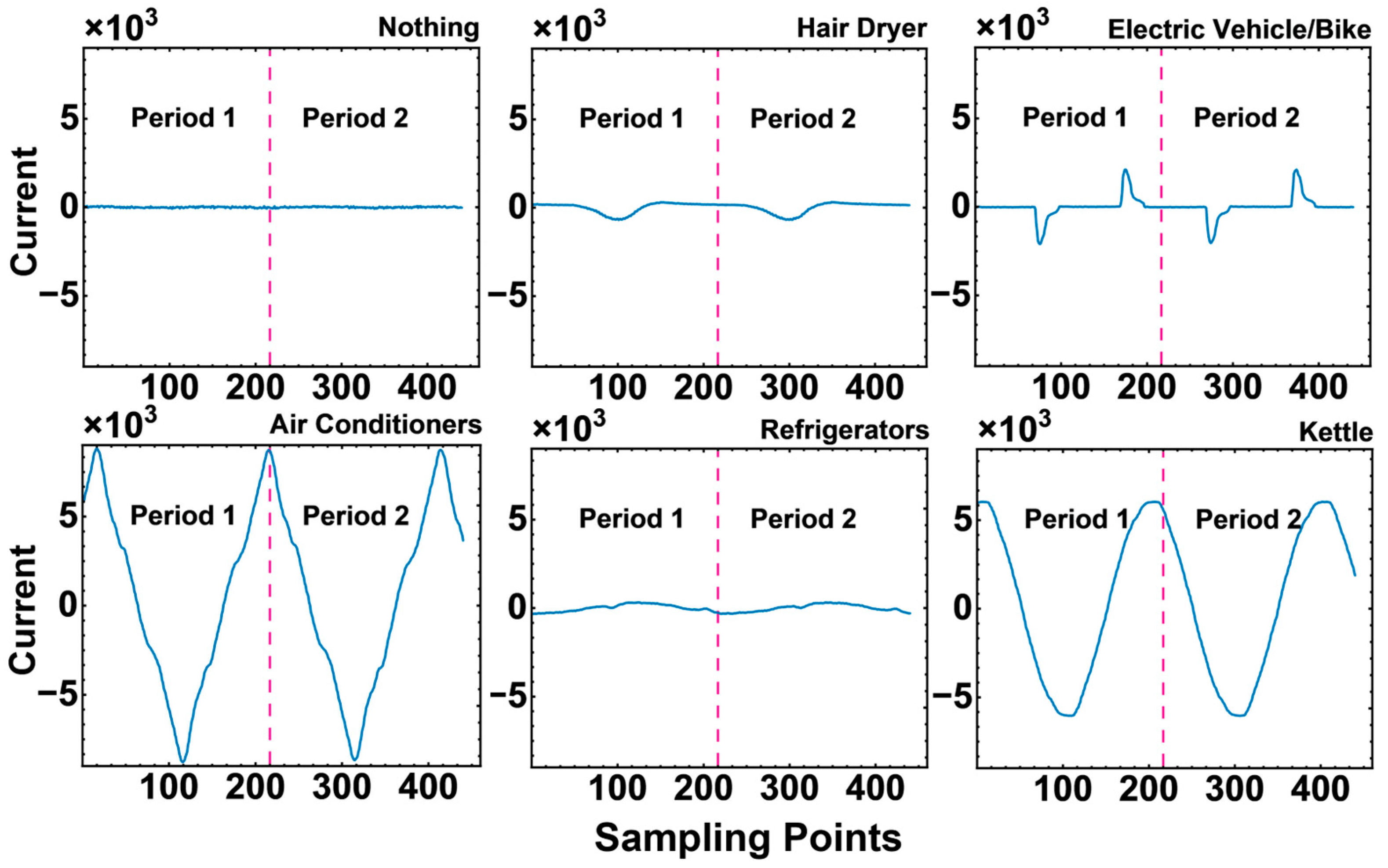

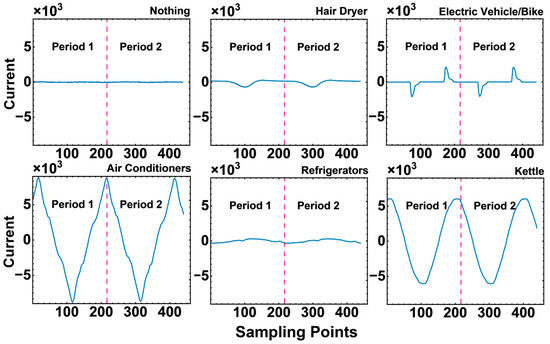

The currents of various household appliances, including air conditioners, refrigerators, hair dryers, kettles, and electric vehicle/bikes were collected. Due to the hazardous nature of electric vehicle/bike charging inside the household, we regard all electric vehicle/bike charging as an abnormal condition in·this·paper. Figure 3 shows the currents of different electrical equipment passing through the CB in two cycles. It is notable that the unique features could be observed within one cycle (220 sampling points). In the paper, current signals were selected for the experiments because they exhibit more pronounced characteristics across different devices. There are in total 11,497 signal data in our dataset (the training data: 9198; the testing data: 2299). Finally, 250 data were used to test in the hardware.

2.2. NN Design

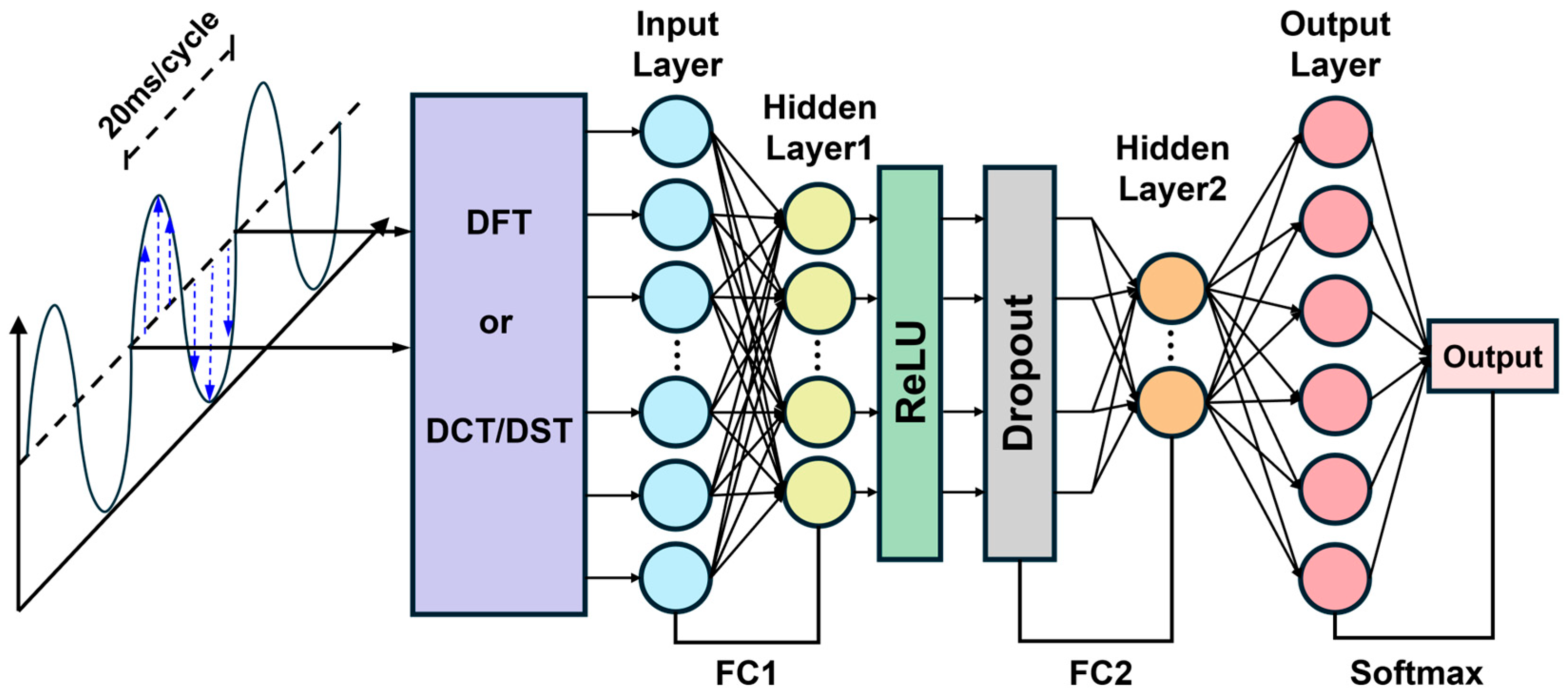

NN models have been applied to tasks such as data processing, classification, and prediction since they can learn data features [28,29,30,31,32]. As shown in Figure 4, a 2-fully-connected-layer NN-based model was trained using the PyTorch (Version: 2.1.2) framework in the Python 3.9.18 environment [33]. After the first fully connected (FC) layer, the model uses the rectified linear units (ReLU) activation function to improve the generalization ability and the dropout layer to avoid overfitting. We used adaptive configuration (start from 1 × 10⁻⁴) for learning rate, adaptive moment estimation (Adam) for the optimizer to update model parameters, negative log likelihood loss (NLLLoss) for the loss function, and 150 epochs of training [34,35]. The size of the input depends on the conversion method used. The final current classification is the maximum output value calculated by the SoftMax function [36,37]. Through NN training, we obtained the weights and biases of FC1 and FC2, which need to be deployed on PIM AI chips.

3. Results

3.1. Feature Extraction

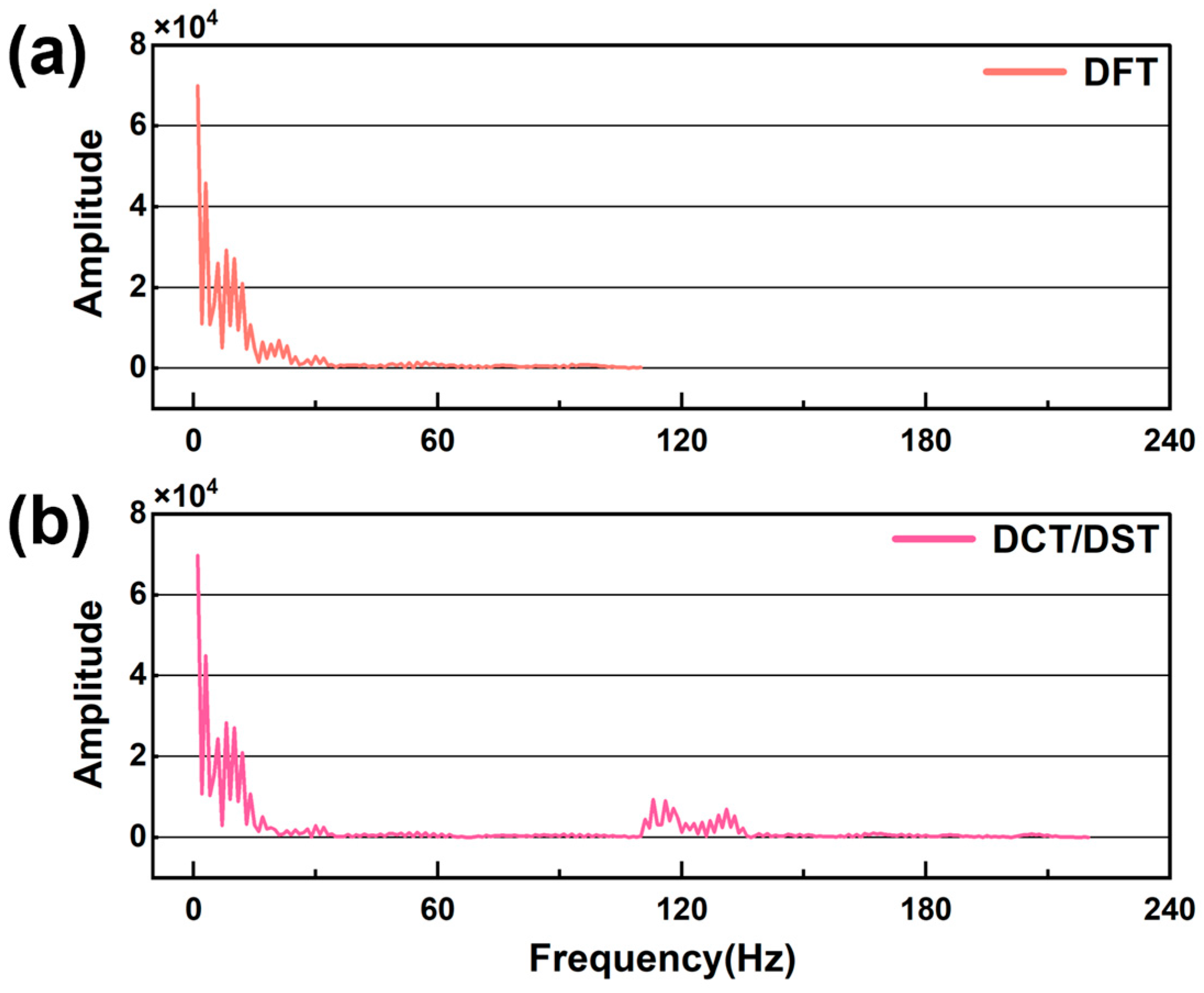

Empirically, changing time-domain signals to frequency domain would benefit the NN training. We investigated two time-to-frequency conversion methods, namely, DFT and DCT/DST [38,39,40,41,42]. Figure 5 shows the difference of the two conversion methods (taking the signal of the electric vehicle/bike battery charging as example).

Figure 5a,b shows the results of DFT and DCT/DST, respectively. Equations (2)–(4) show the corresponding formula. The result from DCT/DST has more data-points than the DFT magnitude because DCT/DST combines magnitude and phase information:

$$DFT: A\left(k\right)=\left|\sum _{n=0}^{N-1}\sqrt{{\mathit{cos}\left({\displaystyle \frac{2\pi }{N}}kn\right)}^2+{\mathit{sin}\left({\displaystyle \frac{2\pi }{N}}kn\right)}^2}\right|\left(k,N=\mathrm{0,1}\cdots N-1\right),$$

(2)

$${DCT: A}_{cos}\left(k\right)=\left|\sum _{n=0}^{N-1}\mathit{cos}\left({\displaystyle \frac{2\pi }{N}}kn\right)\right| \left(k,N=\mathrm{0,1}\cdots N-1\right),$$

(3)

$$DST: A_{sin}\left(k\right)=\left|\sum _{n=0}^{N-1}\mathit{sin}\left({\displaystyle \frac{2\pi }{N}}kn\right)\right|\left(k,N=\mathrm{0,1}\cdots N-1\right),$$

(4)

3.2. NN Training

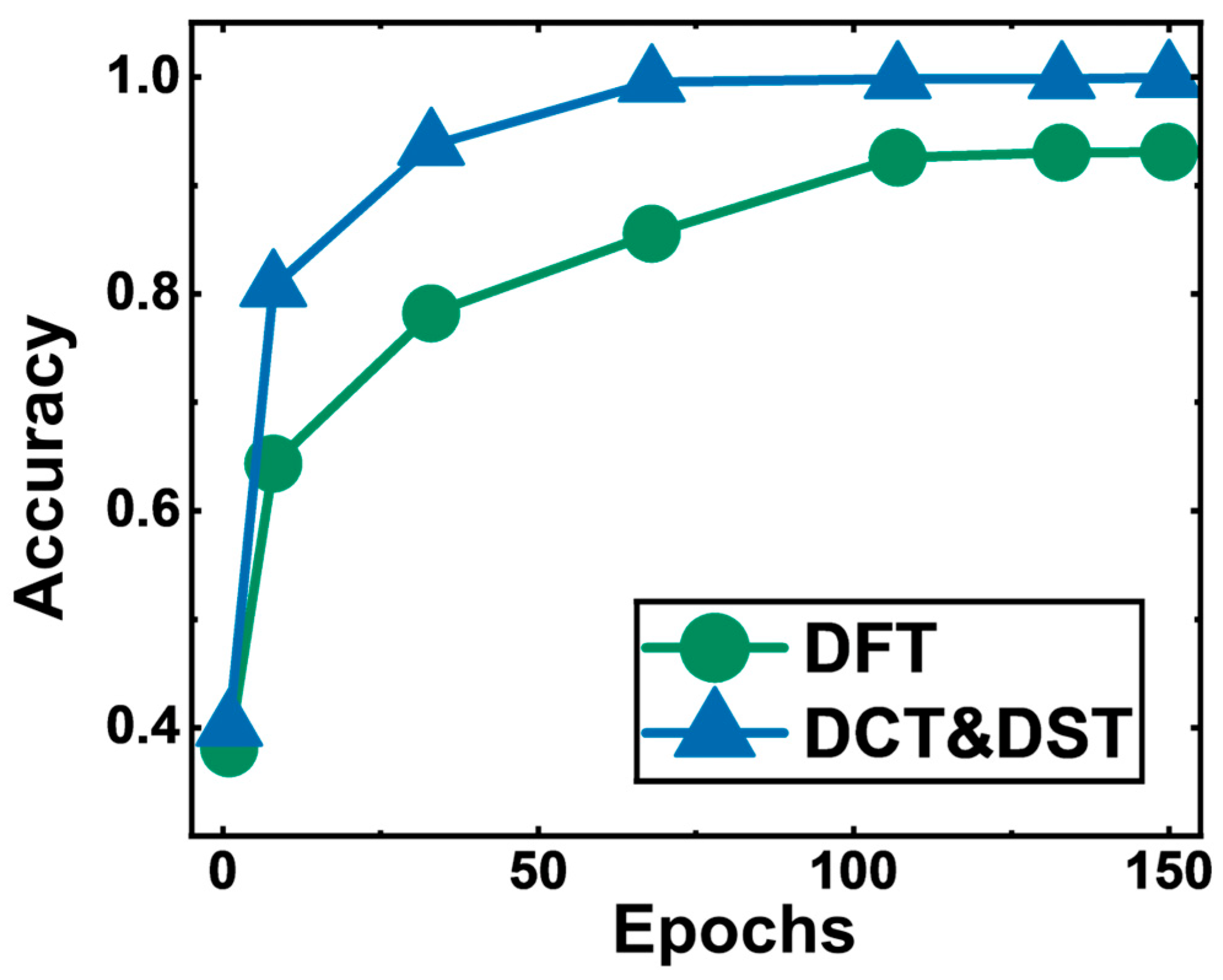

As shown in Figure 6, the curves represent the accuracy rate on the training set during NN training. This accuracy refers to the whole classifications’ average accuracy. Obviously, the accuracy of DCT/DST (99.3%) is superior to that of DFT (93.1%). The model accuracy on the test set is the same as that on the training set.

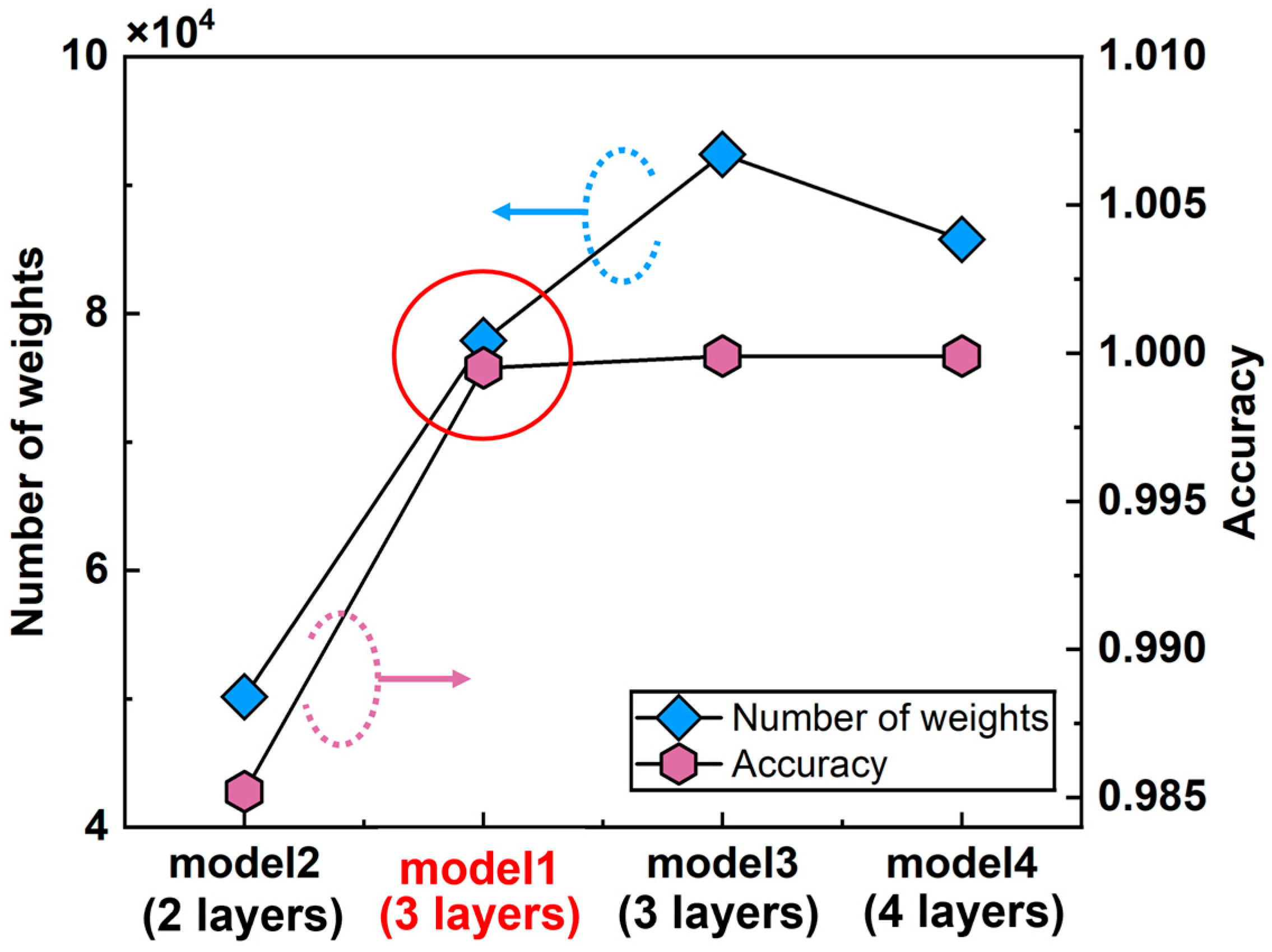

The smaller and larger NN were also tried as shown in Figure 7. The smaller model (model-2, with one layer less than model-1) shows obviously lower accuracy. However, the benefits of the larger hidden-layer model (model-3, with 1.5 times the number of the hidden layer neuron of model-1) and the deeper model (model-4, with one layer more than model-1) on the accuracy is almost negligible. The above discussd model-1 is a good compromise of accuracy and computing consumption for the current dataset. It should be noted that, in more complicated tasks with more types of devices to be classified, a larger scale NN might be needed.

3.3. Hardware Deployment

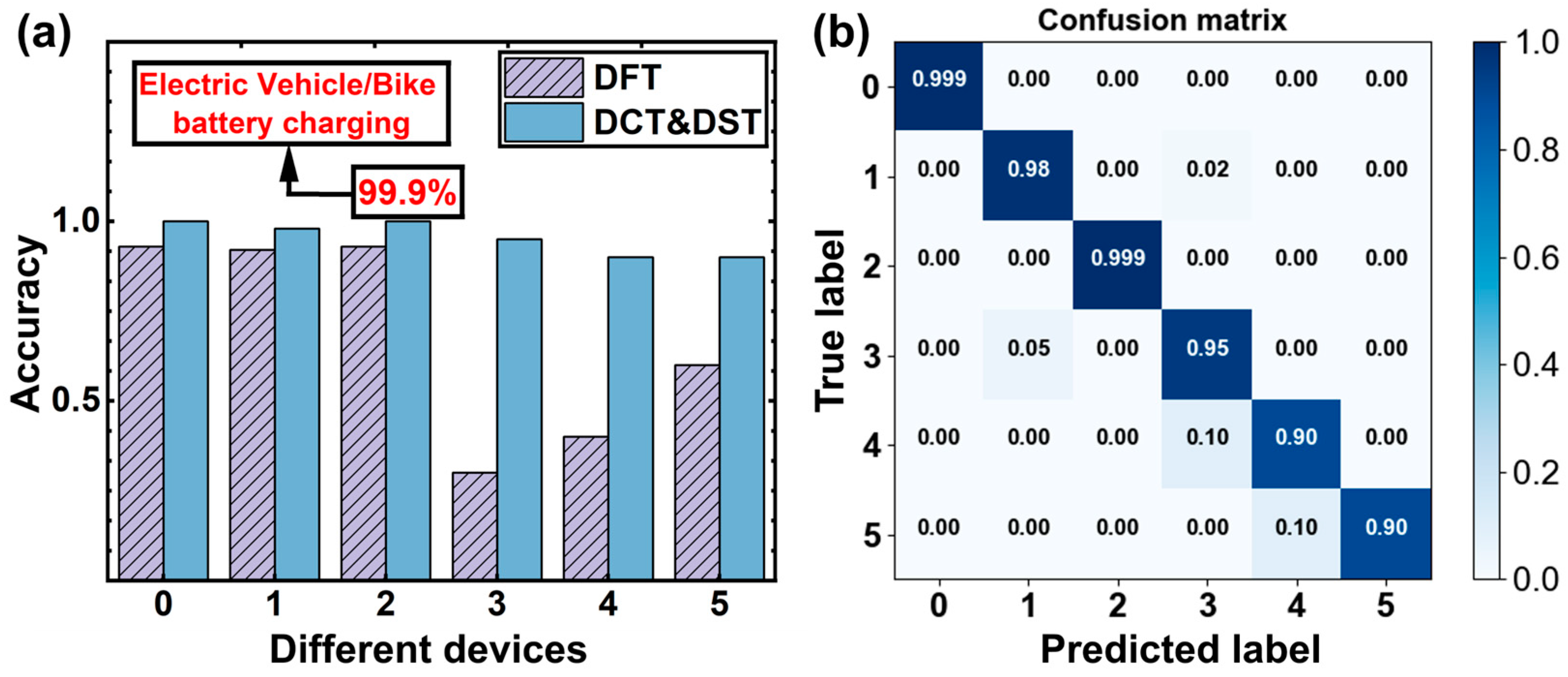

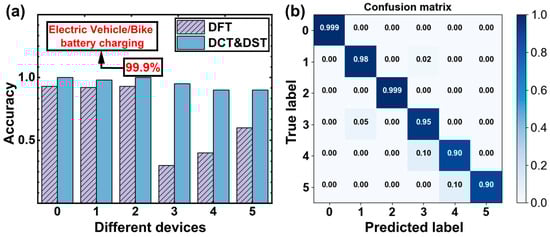

The accuracy of the two feature extraction methods for the 6-class classification is shown in Figure 8a (0: Nothing; 1: hair dryers; 2: Electric Vehicle/Bike battery charging; 3: Kettles; 4: Air-conditioner; 5: Refrigerator). For each category, the result of DFT is also inferior to DCT/DST on the hardware deployment, which has the same trend as in the Python platform. For the best method, the average recognition accuracy reaches 98%. The conversion of floating-point numbers from software to fixed-point numbers on the PIM AI chip resulted in a 1 percent decrease, indicating that the chip’s operation can be properly performed. Especially, the accuracy of electric vehicle/bike battery charging can reach 99%. Figure 8b shows the confusion matrix of the DCT/DST method. It is notable that misrecognition occurs with a probability of only 0.1 between class 4 (the Air-conditioner) and class 5 (the Refrigerator), which has no impact on the identification of anomalies (detection of electric vehicle/bike charging). The recall, precision, and F1-score performance are listed in

Table 2. The recall, precision and F1-score of NN-based model of DCT/DST method. 0, 1, 2, 3, 4, 5 represent the different devices.

Performance	0	1	2	3	4	5
Recall	0.999	0.980	0.999	0.950	0.900	0.900
Precision	0.999	0.980	0.999	0.905	0.818	0.999
F1-Score	0.999	0.980	0.999	0.927	0.857	0.947

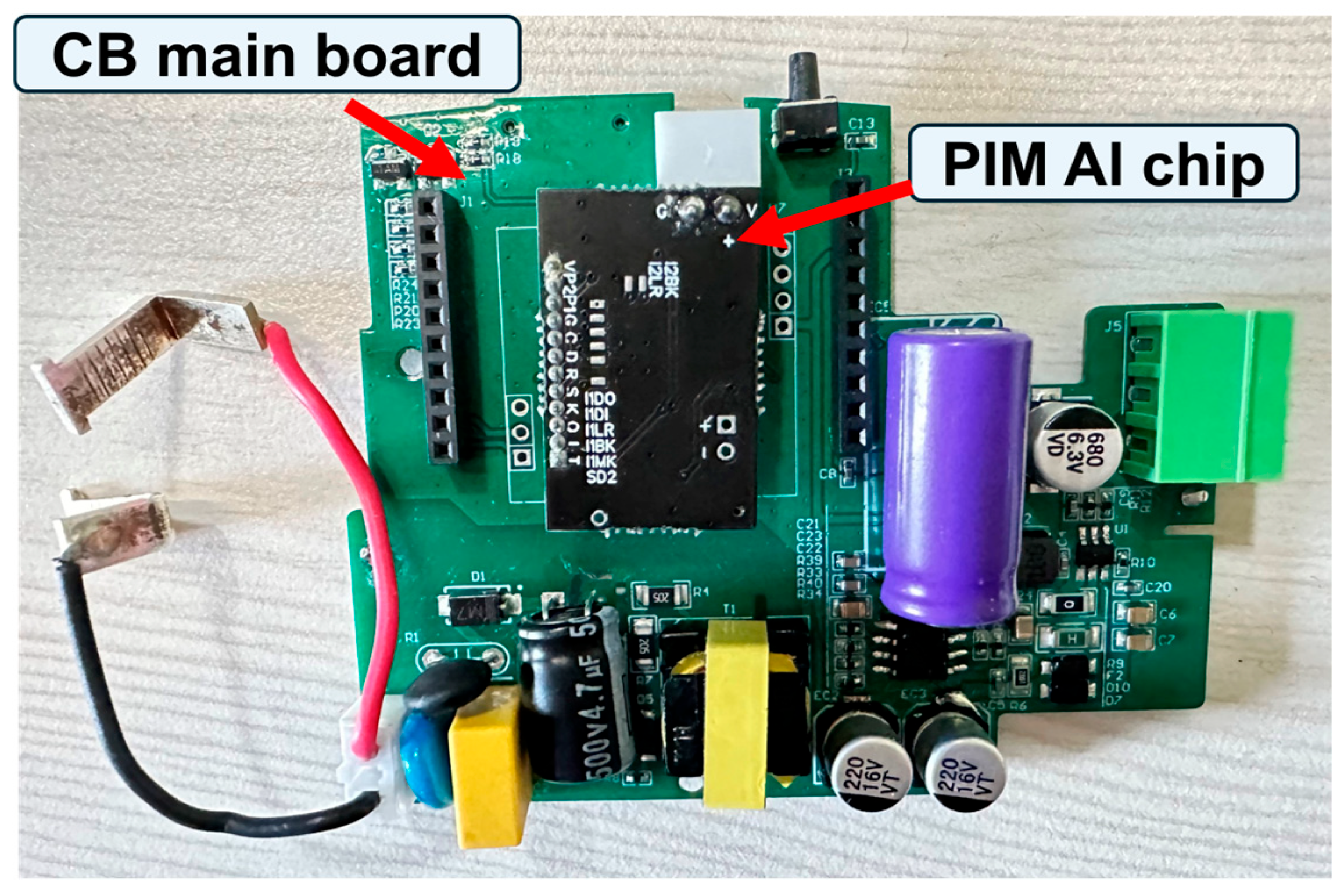

. The edge AI solution is shown in Figure 9.

We compared the performance between PIM AI chips, two mainstream microcontroller units (MCUs), and another type of edge AI solution. We deployed NN on the hardware and obtained information of time and power consumption. As shown in

Table 3. Comparison of performance between mainstream MCUs and PIM AI chips: 16 MHz/64 MHz/72 MHz are the main frequency of these types of MCU.

Mainstream MCUs	Time (ms)	Power (mW)
STM32G0x1 (64 MHz) [43]	24.31	18.81
STM32F103xx (72 MHz) [44]	17.29	108.24
Another edge AI chip [45]	3	864
PIM AI chip	4	8.66

, the PIM AI chip has a low latency (4 ms) with the lowest power (8.66 mW), compared with the two MCUs and another type of edge AI chip.

The 4 ms latency ensures the CBs detect electrical abnormalities and shut down the current within one quarter period of an AC-cycle, which greatly reduces the time for a possible electric fire to be ignited. The low power consumption enables hardware implementation without thermal dissipation inside the limited space of a CB. These are the advantages of using PIM AI chips over the traditional MCU based AI. It is notable that the 4 ms computing latency is still shorter than one AC cycle (typically 16.7 ms to 20 ms), which indicates that our PIM chip still has resources to handle even more complicated tasks.

4. Conclusions

In the limited space inside a CB, a low power PIM AI chip can be well embedded without extra heat dissipation effort. The proposed NN-based model can achieve high classification accuracy of current load and electrical abnormality detection. When a single load is working in the power system, the recognition accuracy reaches 98%. Especially, the accuracy rate for electric vehicle/bike battery charging is 99.9%, which means the accuracy of electrical abnormality detection reaches 99.9%. The latency is about 1 ms, far less than the commonly used MCU implementation.
