A Low-Cost, Energy-Aware Exploration Framework for Autonomous Ground Vehicles in Hazardous Environments

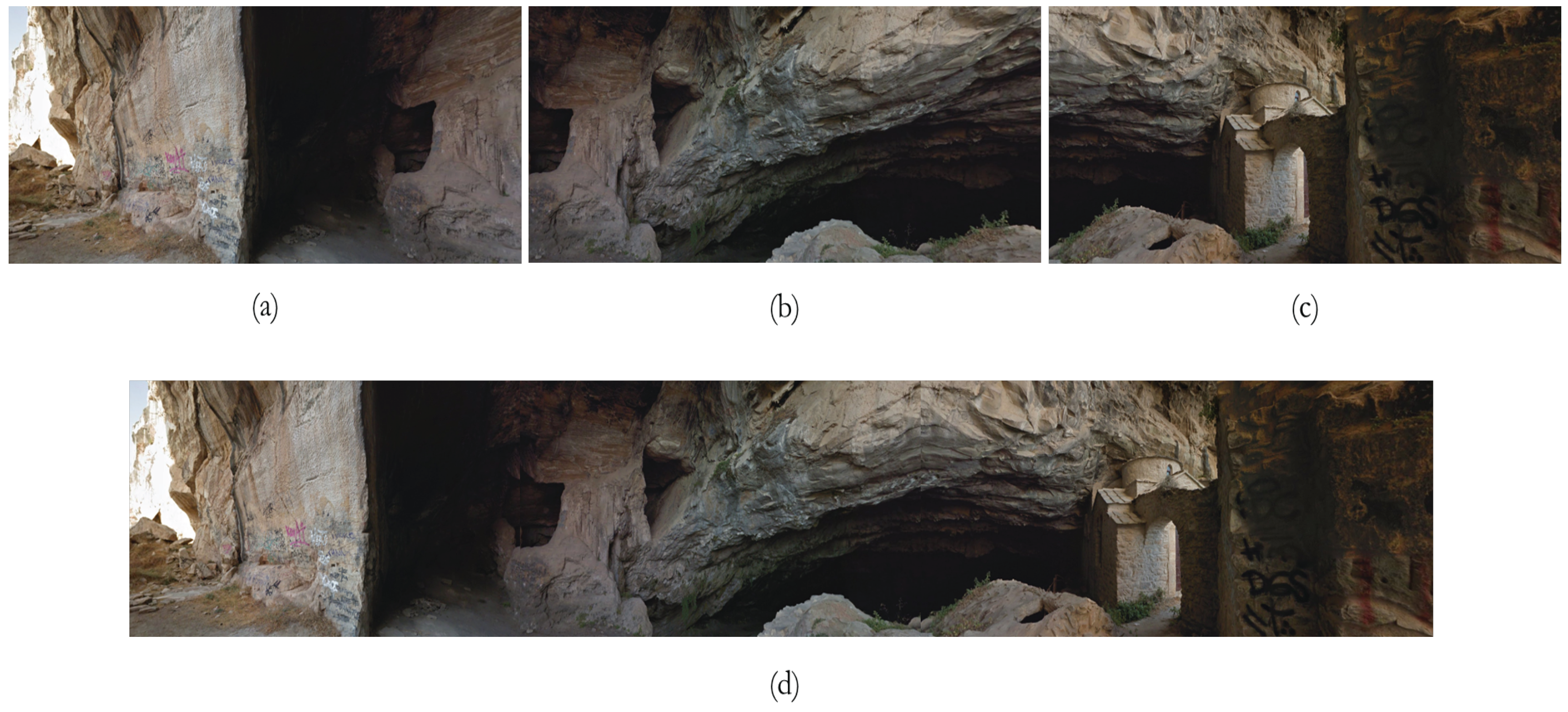

Autonomous ground vehicles (AGVs) are of major importance in exploration missions since they perform difficult tasks in changing or harmful environments. Mapping and exploration is crucial in hazardous areas, or areas inaccessible to humans, demanding autonomous navigation. This paper proposes a lightweight, low-cost AGV platform, which will be used in resource-constrained situations and aimed at scenarios like exploration missions (e.g., cave interiors, biohazard environments, or fire-stricken buildings) where there are serious security threats to humans. The proposed system relies on simple ultrasonic sensors when navigating and applied traversal algorithms (e.g., BFS, DFS, or $A^{*}$) during path planning. Since on-board microcomputers have limited memory, the traversal data and direction decisions are stored in a file located on an SD card, which supports long-term, energy-saving navigation and risk-free backtracking. A fish-eye camera set on a servo motor captures three photos ordered from left to right and stores them on the SD card for further off-line processing, integrating each frame into a low-frame-rate video. Moreover, when the battery level falls below 50%, the exploration path does not extend further and the AGV returns to the base station, thus combining a secure backtracking procedure with energy-efficient decisions. The resultant platform is low-cost, modular, and efficient at augmenting; thus it is suitable for exploring missions with applications in search and rescue, educational robotics, and real-time applications in low-infrastructure environments.
