Content Determination and Chemical Clustering Analysis of Tanshinone and Salvianolic Acid in Salvia spp.

by
Feiyan Wang
1,
Yufeng Bao
1,
Furui Yang
1,
Lu Yuan
1,
Xinchun Han
1,
Yanbo Huang
2,
Yukun Wei
3,
Lei Zhang
1,*,
Zongqi Yang
1,* and
Dongfeng Yang
1,4,*
1
Key Laboratory of Plant Secondary Metabolism and Regulation in Zhejiang Province, College of Life Sciences and Medicine, Zhejiang Sci-Tech University, Hangzhou 310018, China
2
Eastern China Conservation Centre for Wild Endangered Plant Resources, Shanghai Chenshan Botanical Garden, Shanghai 200120, China
3
Shanghai Botanical Garden/Shanghai Engineering Research Centre of Sustainable Plant Innovation, Shanghai 201600, China
4
Zhejiang Engineering Research Centre for the Development Technology of Medicinal and Edible Homologous Health Food, Shaoxing Biomedical Research Institute of Zhejiang Sci-Tech University Co., Ltd., Shaoxing 312075, China
*
Authors to whom correspondence should be addressed.
Metabolites 2024, 14(8), 441; https://doi.org/10.3390/metabo14080441
Submission received: 2 July 2024 / Revised: 26 July 2024 / Accepted: 29 July 2024 / Published: 8 August 2024
Browse Figures
Review Reports Versions Notes

Abstract

:
Salvia miltiorrhiza is one of the famous traditional Chinese medicines for treating cardiovascular and cerebrovascular diseases. Tanshinone and phenolic acids are the main active compounds of Salvia miltiorrhiza, whereas the distribution patterns of the two kinds of components are still unclear among Salvia spp. In this work, high-performance liquid chromatography was applied to analyze the distribution patterns of major components in the roots and leaves of 58 Salvia spp. The results showed that the distribution patterns of tanshinone and phenolic acids in Salvia spp. varied significantly. Phenolic acid components such as rosmarinus acid, caffeic acid, and danshensu are widely distributed in the roots and leaves, and phenolic acids in the leaves of Salvia spp. are generally higher than that in roots. Tanshinones are mainly detected in the roots of Salvia przewalskii, Salvia trijuga, Salvia castanea, and Salvia yunnanensis. The content of major components of the different species varied significantly. The content of phenolic acids in most Salvia spp. generally followed the pattern of salvianolic acid B > rosmarinic acid > danshensu > caffeic acid both in the roots and leaves. Tanshinone IIA and cryptotanshinone were the main lipophilic components of Salvia spp. distributed in southwest China. A correlation between the distribution pattern of tanshinone and the genetic relationship of species was indicated in the work. This research systematically reveals the distribution patterns of tanshinone and phenolic acids in Salvia spp., providing a theoretical basis for the development and utilization of medicinal resources of Salvia.

1. Introduction

Salvia spp. is an important medicinal plant group, with about 1000 species widely distributed around the world [1,2], containing abundant natural products. Currently, about 300 components have been isolated from Salvia spp. and are distributed in China [3]. The components mainly include diterpenoids and phenolic acids [1,4] and contain ingredients with medicinal values such as antithrombotic [5], antioxidant [6,7,8], anti-tumor [1,7,8], and antiviral [1,9]. The famous traditional Chinese medicine Salvia miltiorrhiza is a plant of the Salvia spp. in the Lamiaceae family, with the effects of promoting blood circulation, removing blood stasis [4], and reducing swelling and pain [7], which is widely applied to treat cardiovascular diseases in clinical practice [1,8,10]. And it is reported that tanshinones and phenolic acids are the main active compounds of Salvia miltiorrhiza [7,11]. With the depletion of S. miltiorrhiza, cultivated variety quality, and the content of active compounds, the healthy development of the modern traditional Chinese medicine industry using S. miltiorrhiza as raw material is severely constrained [12,13,14,15]. Molecular breeding to create new high-yield varieties with active components and reconstructing the synthesis pathway of secondary metabolites in microbial chassis cells to achieve efficient synthesis and stable utilization of active components is the main method to solve the contradiction between the supply and demand contradiction of Chinese herbal medicine [8,16,17,18]. Currently, about 30 species of Salvia spp. are reported to be used in folklore as S. miltiorrhiza substitutes [4,8,11,19]. Therefore, it is of great significance to systematically study the distribution of tanshinone and phenolic acids for the development and utilization of medicinal resources of Salvia spp.
The secondary metabolites derived from plants are the main source of natural products, which are regulated by the environment and genetic background [20]. Salvia castanea is a unique species that grows in Xizang (Tibet) and other high-altitude areas [21,22]. The content of tanshinone II A in the roots of S. castanea is reported as much as nine times higher than that of S. miltiorrhiza [21]. Salvia bowleyana is a perennial herbaceous plant, with an efficacy similar to that of S. miltiorrhiza. It reported that the content of phenolic acids in S. bowleyana was significantly higher than that of S. miltiorrhiza, while the content of tanshinone was significantly lower [23]. Ecological factors affect the quality of medicinal herbals including climate, soil, and microorganisms that regulate the expression of key genes and influence the accumulation of secondary metabolites. For example, the expression level of phenylalanine ammonia-lyase, cinnamate 4-hydroxylase, and 4-coumarate genes was significantly up-regulated under stressful conditions, promoting the biosynthesis of lignin, flavonoids, and phenolic acids to enhance the tolerance of metal stress [24,25,26]. Salvia spp. has a wide geographical distribution, mainly distributed in tropical and temperate regions [27] in Europe, Africa, East Asia, and North and South America [28,29]. Currently, the study mainly focuses on the morphology, distribution, and chemical composition of East Asia Salvia spp. There are no systematic studies available on the chemical composition of plants distributed abroad [4,19,30,31,32,33,34]. Moreover, the distribution pattern of major components within the genus was relatively less [35,36].
In this work, the contents of 14 major components (tanshinone and phenolic acids) in 58 species were determined by (high-performance liquid chromatography) HPLC. The distribution patterns of major components in different species were analyzed. It was of great significance to provide the theoretical basis for the development and utilization of Salvia spp.

2. Materials and Methods

2.1. Experimental Materials

The 58 species of Salvia spp. involved in this research were identified by Professor Wei Yukun from Shanghai Botanical Garden as plants of the Lamiaceae family. After they had been planted in Shanghai Botanical Garden for three months, plants were sampled in July 2019. And plant samples were preserved in the Shanghai Chenshan Botanical Garden Museum. Detailed information on samples is listed in Table 1. The tanshinone standards including 1,2-dihydrotanshinquinone, cryptotanshinone, tanshinone I, tanshinone IIA, and miltirone, and phenolic acids standards including danshensu, protocatechuic acid, protocatechualdehyde, caffeic acid, ferulic acid, salvianolic acids A, rosmarinic acid, lithospermic acid, and salvianolic acids B were purchased from the China Academy of Food and Drug Inspection and Research.

2.2. Experimental Methods

2.2.1. Preparation of Standard Solutions

The appropriate amount of standard reference (tanshinone) was weighed and placed in a 10 mL centrifuge tube. Equal volumes of 100% chromatographic acetonitrile were added and ultrasound for 45 min. The appropriate amount of standard reference (salvianolic) was weighed and placed acid in a 10 mL centrifuge tube. Added equal volumes of 50% chromatographic methanol and sonicate for 45 min and placed in a 4 °C refrigerator for later use.

2.2.2. Preparation of Sample Solutions

The samples were divided into leaf and root parts and heated in the drying oven to a constant weight (60 °C), and then the samples were crushed into homogeneous powders, respectively. The powder was filtered using a 40-mesh filter screen. The prepared powder (0.02 g) was dissolved with ultrasonic (53 kHz, 350 W) for 60 min at greenhouse temperature in 1.5 mL of 70% methanol (v/v). The sample was centrifugally separated (15 min, 12,000 rpm) at room temperature, then the supernatants were collected for sample loading.

2.2.3. Standard Injections

The 200 µL of each tanshinone standard reference was taken and mixed. The 20, 15, 10, and 2 µL of mixed solution was accurately injected. The mixed solution was diluted 10 times to be injected for 10, 2, and 1 µL. In view of the similar structures of salvianolic acid B and salvianolic acid A, salvianolic acid B was separately injected for 20, 10, 5, and 2 µL of 1 mg/mL standard solution of salvianolic acid B, respectively. Then, diluted 10 times and injected 5, 2, and 1 µL, respectively. Then, 100 µL of each phenolic acid standard reference was taken, except for salvianolic acid B, and mixed together to be injected as 20, 15, 10, and 2 µL. Then, 100 μL of mixed phenolic acid solution was diluted 10 times and was injected 10 μL and 2 μL, respectively. The peak area of the standard substance was taken as the vertical axis (Y/µv) and the content of the standard substance as the horizontal axis (X/µg), for drawing the standard curve.

2.2.4. Determination of Major Component Content

The Waters e2695 binary high-performance liquid chromatography was equipped with a water 2998 ultraviolet detector and was applied for data acquisition. The Waters SunFire C18 reverse-phase chromatography column was used to separate the components. The chromatographic conditions were as follows: flow rate was 1 mL/min, column temperature was 30 °C, and injection volume was 20 µL. Water containing 0.02% phosphoric acid (A) and acetonitrile (B) performed as the mobile phase. The gradient elution was 5–20% B over 0–10 min, 20–25% B over 10–15 min, 25–30% B over 15–28 min, 30–40% B over 28–40 min, 40–45% B over 40–45 min, 45–58% B over 45–58 min, 58–60% B over 58–70 min, 60–65% B over 70–80 min, 65–90% B over 80–85 min, 90–90% B over 85–90 min, 90–5% B over 90–95 min, 5–5% over B 95–100 min.

2.2.5. Statistical Analysis of Data

Two software named GraphPad Prism 8 (GraphPad Software, San Diego, CA, USA) and JMP Pro 13 (SAS, Cary, NC, USA) were mainly used for statistical analysis in this work. The GraphPad Prism 8 was mainly used for the calculation of the content of main medicinal substances in 58 species among the Salvia spp. The chemical clustering based on the distribution pattern of medicinal substances was performed using JMP Pro 13. The Principal Component Analysis (PCA) and Partial least squares discriminant analysis (PLS-DA) models were established using SMICA 14.0.

3. Results

3.1. Standard Curve Preparation

The peak area normalization method was used to draw the standard linear equation, and the standard equation is shown in Table 2.

3.2. Quantitative Analysis of Phenolic Acids in the Roots of Salvia spp.

The results showed significant differences in the content of different phenolic acids in 58 species. Danshensu, caffeic acid, rosmarinic acid, and salvianolic acid B were widely distributed in Salvia spp. While species from China had a higher content of phenolic acid components (except protocatechuic aldehyde and protocatechuic acid). In addition, the contents of rosmarinic acid and salvianolic acid B were significantly higher than other phenolic acid, indicating that rosmarinic acid and salvianolic acid B were the main phenolic acids that achieve efficacy in medicinal plants of the Salvia spp. Interestingly, as an upstream substrate, the content of caffeic acid was significantly lower than that of rosmarinic acid and salvianolic acid B (Figure 1). The content of rosmarinic acid in S. daiguii was as high as 5.334%, and salvianolic acid B in S. paramiltiorrhiza was as high as 11.808%. The content of danshensu in S. sinica was as high as 0.172% (Figure 1). The content of salvianolic acid A and protocatechuic acid was relatively low in the genus Salvia and can only be detected in a few species. It was indicated in the work that S. nanchuanensis was found with the highest content of protocatechuic acid, which was 0.061%, indicating that S. nanchuanensis can be used as the monomeric source (Figure S1). Caffeic acid is a heteropantameric substrate that is involved in the synthesis of multiple classes of components [37]. Phenolic acids with a furan structure, such as salvianolic acid B and lithospermic acid, were widely detected in species that are distributed in China but can hardly be detected in species distributed in foreign areas. The results indicated that heterocyclization reactions mainly occur in the roots of Salvia spp. Phenolic acids and tanshinones with a furan structure may be the key factors for the unique pharmacological effects of S. miltiorrhiza. The specific genetic genes contribute to the uniqueness of the chemical component distribution pattern and lead to the species distribution in China forming an independent branch [38]. The specific metabolites with a furan structure can serve as chemical markers, providing a basis for the phylogenetic relationship of Salvia spp.

3.3. Quantitative Analysis of Tanshinones in the Roots of Salvia spp.

The contents of major tanshinones in different Salvia spp. varied significantly (Figure 2). Salvia spp. distributed in the southwest were shown to be a high-yield resource for tanshinone. Tanshinone IIA was highest in the roots of S. trijuga (0.685%), which was 4.42 times higher than that in S. miltiorrhiza. The content of cryptotanshinone in S. przewalskii was significantly higher (0.203%), which was 5.485 times higher than that in S. miltiorrhiza. The content of dihydrotanshinone in the roots of S. miltiorrhiza was significantly higher, and reached 0.065%, compared with species distributed in the southwest of China. S. prionitis has the highest content of miltirone, and it can be used as a high-quality raw material in the large-scale production of miltirone. The species distributed in southwest China were found enriched with tanshinones, whereas the content of phenolic acid was generally lower.
The distribution pattern of effective components in Salvia spp. was regulated by external environment and genetic factors [20]. Two synthetic pathways were responsible for the biosynthesis of terpenoids, one was mevalonic acid (MVA) and another was mevalonic (MEP) [39]. The expression level of key enzymes directly determines the content of tanshinone components [40]. The external environment influences the accumulation of effective components of medicinal resources in Salvia spp. by influencing the expression of key genes. A low-temperature environment can significantly promote the expression of key genes in the biosynthetic pathway and then upgrade the synthesis of tanshinone II A [41]. According to the pharmacopoeia, tanshinone II A and salvianolic acid B are important majors for evaluating the quality of S. miltiorrhiza [42]. The content of tanshinone components in S. honania, S. trijuga, and S. przewalskii was close to the standard in the Chinese Pharmacopoeia; however, the content of salvianolic acid B was significantly lower than that in the pharmacopoeia. The tanshinone components of Salvia spp. in southwest China were highly like those in S. miltiorrhiza, which provided a basis for further exploration and utilization of Salvia spp.

3.4. Cluster Analysis of Phenolic Acids in Salvia spp. Roots

The species were mainly divided into three branches based on the distribution pattern of major phenolic acids (Figure 3). The content of salvianolic acid B, rosmarinic acid, and lithospermic acid in the species distributed in central China was relatively high, such as in S. adiantifolia, S. grandifolia, S. honania, S. meiliensis, and S. yunnanensis, and other southwestern-distributed plants of the Salvia spp. S. deserta, S. splendens, and S. prionitis, due to their lower content of salvianolic acid B and rosmarinic acid were grouped together. The low content of danshensu contributed to the clustering of S. trijuga, S. substolonifera, S. officinalis, and some species distributed in foreign areas (Figure 3A). To better demonstrate the distribution of the major active compounds in Salvia spp., we conducted a multivariate statistical analysis by constructing PCA and PLS-DA, as shown in Figure 3B. Salvia spp. exhibited a clear separation trend to a certain extent. Due to the significant content of rosmarinic acid and salvianolic acid B, S. miltiorrhiza and S. miltiorrhiza Bunge f. alba, along with other 15 species, were grouped into one branch. The results of PCA showed significant consistency with chemical clustering.

3.5. Cluster Analysis of Tanshinones in Roots of Salvia spp.

The Salvia spp. was divided into two groups according to the distribution pattern of tanshinone, one group can detect tanshinone, while the other group cannot detect tanshinone (Figure 4). S. Przewalskii and other species distributed in the southwest of China were gathered into a group along with S. honania, S. meiliensis, S. miltiorrhiza, S. miltiorrhiza, and S. grandifolia. Tanshinone was obviously detected in these species. The contents of tanshinones were significantly high in S. miltiorrhiza, S. honania, S. przewalskii, and S. trijuga. The second group mainly consisted of Salvia spp. distributed abroad and some Salvia spp. distributed in China, due to the low content of tanshinones components. Those group species generally had high ornamental value. The PLS-DA model suggested that there were significant differences in the distribution of five tanshinone components in Salvia spp. The content of tanshinone IIA in S. przewalskii and S. trijuga was found significantly higher than that in S. miltiorrhiza (Figure 4B); however, phenolic acid components were far fewer than those in S. miltiorrhiza, especially rosmarinic acid and salvianolic acid B, as shown in Figure 1, indicating that salvianolic acid B and rosmarinic acid are important active natural products that play an important role in the medicinal value of the bulk traditional Chinese medicine S. miltiorrhiza.

3.6. Cluster Analysis of Major Components in the Roots of Salvia spp.

The chemical cluster analysis was carried out to reveal the distribution of 13 components in the tested Salvia spp. The results indicated that the samples can be classified based on geographical distribution (Figure 5A,B). Specifically, the 58 species could be divided into 3 branches. The first branch was about 11 species distributed abroad, with some species distributed in China, such as S. deserta, S. bowleyana, and S. coccinea. The commonality of Salvia species in this branch was the low content of salvianolic acid, and the content of some tanshinones was significantly higher. S. honania, S. miltiorrhiza, S. trijuga, and S. przewalskii had a significant accumulation of tanshinones and were classified into the second branch. S. adiantifolia, S. grandifolia, S. meiliensis, and S. cinica were clustered into the third branch. The species of salvianolic acid in these species were more diverse, and the content was significant. In addition, we found that the distribution of 13 major components in S. honania and S. miltiorrhiza were obviously consistent, indicating that S. honania was a medicinal plant with high application value. Compared to the components of tanshinone, phenolic acid contributed more to the classification of Salvia spp., mainly because the content of phenolic acid was relatively high, especially rosmarinic acid and salvianolic acid B (Figure 5B).
The results of chemical clustering showed the classification of Salvia spp. based on different major components, which were significantly different. The plants were mainly divided into three branches based on the distribution pattern of major phenolic acids. Rosmarinic acid was higher and widely distributed in Salvia spp., the content of trace phenolic acids played an important role in the chemical clustering of the species. Danshensu was widely distributed in the species distributed in central China. Therefore, it was distinguished from other species. Because of the low content of protocatechualdehyde, the plants in the second branch were distinguished from the southwest-distributed Salvia. The 58 species can be divided into two main groups according to the distribution of tanshinones, namely, the species that accumulate major tanshinone components, and the species that do not. The distribution pattern of tanshinone components divided the tested species into a group of species distributed in southwest China, and the other group that was distributed abroad and in central China. According to the distribution pattern of 14 major active components, the tested species can basically be classified according to geographical distribution, which was like the clustering results of nine major phenolic acids. The accumulation pattern of the active components of tanshinone in S. honania was like that of S. miltiorrhiza, with both having a high content of five major components of tanshinone and salvianolic acid B. Plants such as S. honania and S. cinica were close to S. miltiorrhiza in classical taxonomy that belongs to Subg. Sclarea (Moench) Benth, which was consistent with our results [43]. S. adiantifolia, S. filicifolia, S. baimaensis, S. cavaleriei, and other Salvia were classified into one group, which was consistent with the research results [44].

3.7. Quantitative Analysis of Phenolic Acids in Salvia spp. Leaves

The 13 major components in leaf tissues were also analyzed. The results showed that the eight phenolic acids, including tanshensu, protocatechualdehyde, protocatechuic acid, caffeic acid, ferulic acid, isoferulic acid, rosmarinic acid, and salvianolic acid B were detected in the leaves, whereas tanshinones were not detected in leaves of Salvia spp. (Figure 6 and Figure S2).
The contents of phenolic acids in the leaves of different species were significantly different. The content of rosmarinic acid in S. scapiformis was the highest with up to 13.451%. The content of caffeic acid in S. substolonifera was about 0.351%. However, the contents of caffeic acid were relatively lower, such as in S. splendens (0.009%), S. aerea (0.014%), S. mekongensis (0.0195%), and S. castanea (0.008%). No caffeic acid was detected in the leaves of S. plectranthoides, S. cavaleriei (S0994), and Salvius cyclostegia. Caffeic acid was mainly used in the synthesis of downstream phenolic acids with complex structures as a precursor compound. Ferulic acid was only detected in the leaves of some Salvia spp., among S. hylocharis, which had a significant accumulation of ferulic acid, with the content as high as 0.89%, followed by S. digitaloides, with the content as high as 0.74%. Salvianolic acid B had a higher content in the leaves of S. cavaleriei (S0994) and S. nanchuanensis, which are native to China, but it was rarely detected in the leaves of Salvia plants abroad. The content of rosmarinic acid and salvianolic acid B in the leaves of the same plant was generally higher than that of the other six major phenolic acid compounds, maybe because salvianolic acid B and rosmarinic acid are the main phenolic acid efficacy substances. The content of phenolic acid in the leaves was generally higher than that in the roots, which indicated that the leaves of Salvia spp. may be an ideal material for extracting phenolic acids.

3.8. Cluster Analysis of Phenolic Acids in Leaves of Salvia spp.

The distribution pattern of phenolic acids in Salvia leaves showed significant differences and divided the species into four branches (Figure 7A,B). S. scapiformis, S. nanchuanensis, S. liguliloba, and S. bowleyana were gathered into one group. The leaves are related to the high content of rosmarinic acid, salvianolic acid B, and tanshensu. S. hylocharis, S. digitaloides, and S. flava were close relatives. S. trijuga, S. substolonifera, S. daiguii, and S. nanchuanensis were grouped into a new group. Rosmarinic acid and ferulic acid significantly accumulated in the leaves, but salvianolic acid B could not be detected. S. nanchuanensis, S. miltiorrhiza, S. miltiorrhiza, and S. nipponica were divided into one group. In line with previous studies, we found that S. trijuga was closely related to S. substolonifera, while other species that were distributed in China and foreign areas were gathered into one group. This was quite different from the results of previous studies on the evolution of the species, indicating that in the long-term evolution process, the leaves of Salvia spp. were greatly affected by the environment. The classification of Salvia in the southwest distribution indicated that the genetic factors of Salvia in the southwest distribution have differentiated to adapt to the special climatic conditions at high altitude.

4. Conclusions

Salvia spp. is rich in medicinal resources and has great medicinal value. Due to the wide geographical distribution, the valuable plants in the genera have not yet been fully excavated. In this study, the distribution of salvianolic acids and tanshinones in the 58 species of Salvia spp. was systematically analyzed. The significant differences in the contents of major components were found in different species. Phenolic acids were widely distributed in the roots and leaves of Salvia spp. Tanshinones were mainly distributed in roots of the southwestern Salvia spp., but not detected in leaves. In addition, tanshinones were not detected in the roots and leaves of Salvia spp. distributed abroad. The contents of the active compounds were of great significance for the resource development and clinical application of pharmacodynamic substances to Salvia spp. Follow-up research can be focused on improving the accumulation of pharmacodynamic components, increasing the quality of S. miltiorrhiza and its related species, and solving the demand for S. miltiorrhiza by means of molecular design breeding and synthetic biology.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/metabo14080441/s1, Figure S1: The content of phenolic acids in the roots of Salvia spp.; Figure S2: The content of phenolic acids of leaves in Salvia spp.

Author Contributions

F.W., F.Y. and Y.B. were responsible for the experimental study, data analysis, and manuscript writing; L.Y. and X.H. for the sample collection; Y.W., Y.H. and F.W. for the composition testing; corresponding authors L.Z., Z.Y. and D.Y. were responsible for the overall design, planning of the project and revision of the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by [the Key Scientific and Technological Grant of Zhejiang for Breeding New Agricultural Varieties] grant number [2021C02074] and [the Key project of the Central Government: Capacity Building of Sustainable Utilization of Traditional Chinese Medicine Resources] grant number [2060302].

Data Availability Statement

The original contributions presented in the study are included in the article/supplementary material, further inquiries can be directed to the corresponding author.

Conflicts of Interest

There are no conflicts of interest recorded for this work. Y. H. and Y. W. are employees of Shanghai Chenshan Botanical Garden. The paper reflects the views of the scientists, and not the company.

References

  1. Wu, Y.B.; Ni, Z.Y.; Shi, Q.W.; Dong, M.; Kiyota, H.; Gu, Y.C.; Cong, B. Constituents from Salvia species and their biological activities. Chem. Rev. 2012, 112, 5967–6026. [Google Scholar] [CrossRef]
  2. Hafez, G.S.; Taktaz, F.; Mozafari, A.A.; Tuncturk, M.; Sekeroglu, N.; Kijjoa, A. Uncommon Terpenoids from Salvia Species: Chemistry, Biosynthesis and Biological Activities. Molecules 2022, 27, 1128. [Google Scholar] [CrossRef]
  3. Li, M.H.; Chen, J.M.; Peng, Y.; Xiao, P.G. Distribution of Phenolic Acids in Chinese Salvia Plants. World Sci. Technol. 2008, 10, 46–52. [Google Scholar]
  4. Wei, B.Y.; Sun, C.T.; Wan, H.T.; Shou, Q.Y.; Han, B.; Sheng, M.M.; Li, L.Q.; Kai, G.Y. Bioactive components and molecular mechanisms of Salvia miltiorrhiza in promoting blood circulation to remove blood stasis. J. Ethnopharmacol. 2023, 317, 116697. [Google Scholar] [CrossRef]
  5. Kasimu, R.; Wang, X.L.; Wang, X.M.; Hu, J.P.; Wang, X.Q.; Mu, Y.M. Antithrombotic effects and related mechanisms of Salvia deserta Schang root EtOAc extracts. Sci. Rep. 2018, 8, 17753. [Google Scholar] [CrossRef]
  6. Nhoek, P.; Chae, H.S.; Kim, Y.M.; Pel, P.; Huh, J.; Kim, H.W.; Choi, Y.H.; Lee, K.; Chin, Y.W. Sesquiterpenoids from the Aerial Parts of Salvia plebeia with Inhibitory Activities on Proprotein Convertase Subtilisin/Kexin Type 9 Expression. J. Nat. Prod. 2021, 84, 220–229. [Google Scholar] [CrossRef]
  7. Meim, X.D.; Cao, Y.F.; Che, Y.Y.; Li, J.; Shang, Z.P.; Zhao, W.J.; Qiao, Y.J.; Zhang, J.Y. Danshen: A phytochemical and pharmacological overview. Chin. J. Nat. Med. 2019, 17, 59–80. [Google Scholar] [CrossRef] [PubMed]
  8. Jiang, Z.Q.; Gao, W.; Huang, L.Q. Tanshinones, Critical Pharmacological Components in Salvia miltiorrhiza. Front. Pharmacol. 2019, 10, 202. [Google Scholar] [CrossRef]
  9. Liang, Y.Y.; Wan, X.H.; Niu, F.J.; Xie, S.M.; Guo, H.; Yang, Y.Y.; Guo, L.Y.; Zhou, C.Z. Salvia plebeia R. Br.: An overview about its traditional uses, chemical constituents, pharmacology and modern applications. Biomed. Pharmacother. 2020, 121, 109589. [Google Scholar] [CrossRef] [PubMed]
  10. Zou, L.F.; Liu, D.F.; Yang, H.; Zhou, C.H.; Deng, S.B.; Xu, N.S.; He, X.M.; Liu, Y.Q.; Shao, M.; Yu, L.Z.; et al. Salvianolic acids from Salvia miltiorrhiza Bunge and their anti-inflammatory effects through the activation of α7nAchR signaling. J. Ethnopharmacol. 2023, 317, 116743. [Google Scholar] [CrossRef]
  11. Shi, M.; Huang, F.F.; Deng, C.P.; Wang, Y.; Kai, G.Y. Bioactivities, biosynthesis and biotechnological production of phenolic acids in Salvia miltiorrhiza. Crit. Rev. Food Sci. 2019, 59, 953–964. [Google Scholar] [CrossRef] [PubMed]
  12. Yao, H.; Huang, X.M.; Li, S.G.; Wu, Y.J.; Lin, X.H.; Shi, P.Y. Simultaneous Determination of Eight Phenolic Acids, Five Saponins and Four Tanshinones for Quality Control of Compound Preparations Containing Danshen-Sanqi Herb-pair by HPLC-DAD. Pharmacogn. Mag. 2017, 13, 64–75. [Google Scholar] [PubMed]
  13. Hu, G.L.; Lei, L.; Wang, X.R.; Lee, F.S.C.; Zhang, J.K. Determination of Tanshinones in Salvia Miltiorrhiza Bunge by High Performance Liquid Chromatography. Anal. Sci. Suppl. 2001, 17, a471–a473. [Google Scholar]
  14. Hu, W.C.; Wang, M.H. Comparsion the Content of Tanshinone IIA and Salvianolic Acid in Salvia miltiorrhiz Bunge with Different Extraction Way. Spring Gen. Meet. Conf. 2009, 2009, 250. [Google Scholar]
  15. Tavan, M.; Azizi, A.; Sarikhani, H.; Mirjalili, M.H.; Rigano, M.M. Phenolics diversity among wild populations of Salvia multicaulis: As a precious source for antimicrobial and antioxidant applications. Nat. Prod. Res. 2020, 36, 1332–1336. [Google Scholar] [CrossRef] [PubMed]
  16. Xing, B.C.; Liang, L.J.; Liu, L.; Hou, Z.N.; Yang, D.F.; Yan, K.J.; Zhang, X.M.; Liang, Z.S. Overexpression of SmbHLH148 induced biosynthesis of tanshinones as well as phenolic acids in Salvia miltiorrhiza hairy roots. Plant Cell Rep. 2018, 37, 1681–1692. [Google Scholar] [CrossRef] [PubMed]
  17. Li, Q.; Fang, X.; Zhao, Y.; Cao, R.Z.; Dong, J.N.; Ma, P.D. The SmMYB36-SmERF6/SmERF115 module regulates the biosynthesis of tanshinones and phenolic acids in Salvia miltiorrhiza hairy roots. Hortic. Res. 2023, 10, uhac238. [Google Scholar] [CrossRef] [PubMed]
  18. Ma, X.H.; Ma, Y.; Tang, J.F.; He, Y.L.; Liu, Y.C.; Ma, X.J.; Shen, Y.; Cui, G.H.; Lin, H.X.; Rong, Q.X.; et al. The Biosynthetic Pathways of Tanshinones and Phenolic Acids in Salvia miltiorrhiza. Molecules 2015, 20, 16235–16254. [Google Scholar] [CrossRef] [PubMed]
  19. Huang, J.Y.; Zhang, J.J.; Sun, C.T.; Yang, R.W.; Sheng, M.M.; Hu, J.N.; Kai, G.Y.; Han, B. Adjuvant role of Salvia miltiorrhiza Bunge in cancer chemotherapy: A review of its bioactive components, health-promotion effect and mechanisms. J. Ethnopharmacol. 2023, 318, 117022. [Google Scholar] [CrossRef]
  20. Karolak, I.G.; Krzemińska, M.; Grąbkowska, R.; Gomulski, J.; Żekanowski, C.; Walerych, K.G. Accumulation of Polyphenols and Associated Gene Expression in Hairy Roots of Salvia viridis Exposed to Methyl Jasmonate. Int. J. Mol. Sci. 2024, 25, 764. [Google Scholar] [CrossRef]
  21. Yang, D.F.; Yang, S.S.; Zhang, Y.J.; Liu, Y.H.; Meng, X.H.; Liang, Z.S. Metabolic profiles of three related Salvia species. Fitoterapia 2009, 80, 274–278. [Google Scholar] [CrossRef] [PubMed]
  22. Fang, Y.M.; Hou, Z.N.; Zhang, X.D.; Yang, D.F.; Liang, Z.S. Diverse specialized metabolism and their responses to lactalbumin hydrolysate in hairy root cultures of Salvia miltiorrhiza Bunge and Salvia castanea Diels f. tomentosa Stib. Biochem. Eng. J. 2018, 131, 58–69. [Google Scholar] [CrossRef]
  23. Zheng, X.H.; Chen, D.; Chen, B.H.; Liang, L.M.; Huang, Z.; Fan, W.F.; Chen, J.N.; He, W.J.; Chen, H.B.; Huang, L.Q.; et al. Insights into salvianolic acid B biosynthesis from chromosome-scale assembly of the Salvia bowleyana genome. J. Integr. Plant Biol. 2021, 63, 1309–1323. [Google Scholar] [CrossRef] [PubMed]
  24. Cui, B.M.; Liang, Z.S.; Liu, Y.; Liu, F.H.; Zhu, J.G. [Effects of ABA and its biosynthetic inhibitor fluridone on accumulation of penolic acids and activity of PAL and TAT in hairy root of Salvia miltiorrhiza]. Zhongguo Zhong Yao Za Zhi = Zhongguo Zhongyao Zazhi = China J. Chin. Mater. Medica 2012, 37, 754–759. [Google Scholar]
  25. Xiao, Y.; Zhang, L.; Gao, S.H.; Saechao, S.K.; Peng, D.; Chen, J.F.; Chen, W.S. The c4h, tat, hppr and hppd genes prompted engineering of rosmarinic acid biosynthetic pathway in Salvia miltiorrhiza hairy root cultures. PLoS ONE 2011, 6, e29713. [Google Scholar] [CrossRef] [PubMed]
  26. Zhao, S.J.; Hu, Z.B.; Liu, D.; Leung, F.C.C. Two Divergent Members of 4-Coumarate: Coenzyme A Ligase from Salvia miltiorrhiza Bunge: cDNA Cloning and Functional Study. J. Integr. Plant Biol. 2006, 48, 1355–1364. [Google Scholar] [CrossRef]
  27. Zhang, C.L.; Yang, D.F.; Liang, Z.S.; Liu, J.L.; Yan, K.J.; Zhu, Y.H.; Yang, S.S. Climatic factors control the geospatial distribution of active ingredients in Salvia miltiorrhiza Bunge in China. Sci. Rep. 2019, 9, 904. [Google Scholar] [CrossRef] [PubMed]
  28. Mocan, A.; Babotă, M.; Pop, A.; Fizeșan, I.; Diuzheva, A.; Locatelli, M.; Carradori, S.; Campestre, C.; Menghini, L.; Sisea, C.R.; et al. Chemical Constituents and Biologic Activities of Sage Species: A Comparison between Salvia officinalis L., S. glutinosa L. and S. transsylvanica (Schur ex Griseb. & Schenk) Schur. Antioxidants 2020, 9, 480. [Google Scholar] [CrossRef] [PubMed]
  29. Yu, D.D.; Pei, Y.F.; Cui, N.; Zhao, G.P.; Hou, M.M.; Chen, Y.Y.; Chen, J.L.; Li, X.W. Comparative and phylogenetic analysis of complete chloroplast genome sequences of Salvia regarding its worldwide distribution. Sci. Rep. 2023, 13, 14268. [Google Scholar] [CrossRef]
  30. Baldomero, E.; Celia, B.B.; Mariano, S.C.; Antonio, N.C.; Teresa, R.A.; Pedro, J.N.; Leovigildo, Q. Structure, Absolute Configuration, and Antiproliferative Activity of Abietane and Icetexane Diterpenoids from Salvia ballotiflora. Molecules 2017, 22, 1690. [Google Scholar] [CrossRef]
  31. Hegazy, M.F.; Hamed, A.R.; El-Halawany, A.M.; Hussien, T.A.; Abdelfatah, S.; Ohta, S.; Paré, P.W.; Abdel-Sattar, E.; Efferth, T. Cytotoxicity of abietane diterpenoids from Salvia multicaulis towards multidrug-resistant cancer cells. Fitoterapia 2018, 130, 54–60. [Google Scholar] [CrossRef] [PubMed]
  32. Wang, Q.; Hu, Z.Q.; Li, X.X.; Wang, A.L.; Wu, H.; Liu, J.; Cao, S.G.; Liu, Q.S. Salviachinensines A-F, Antiproliferative Phenolic Derivatives from the Chinese Medicinal Plant Salvia chinensis. J. Nat. Prod. 2018, 81, 2531–2538. [Google Scholar] [CrossRef] [PubMed]
  33. Li, L.N.; Zhou, M.M.; Xue, G.M.; Wang, W.L.; Zhou, X.W.; Wang, X.B.; Kong, L.Y.; Luo, J.G. Bioactive seco -Abietane Rearranged Diterpenoids from the aerial parts of Salvia prionitis. Bioorg. Chem. 2018, 81, 454–460. [Google Scholar] [CrossRef] [PubMed]
  34. Xu, G.; Yang, J.; Wang, Y.Y.; Peng, L.Y.; Yang, X.W.; Pan, Z.H.; Liu, E.D.; Li, Y.; Zhao, Q.S. Diterpenoid constituents of the roots of Salvia digitaloides. J. Agric. Food Chem. 2010, 58, 12157–12161. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, M.; Shao, Y.; Li, J.; Zhu, N.; Rangarajan, M.; Lavoie, E.J.; Ho, C.T. Antioxidative phenolic glycosides from sage (Salvia officinalis). J. Nat. Prod. 1999, 62, 454–456. [Google Scholar] [CrossRef] [PubMed]
  36. Zhou, W.; Huang, Q.; Wu, X.; Zhou, Z.W.; Ding, M.Q.; Shi, M.; Huang, F.F.; Li, S.; Wang, Y.; Kai, G.Y. Comprehensive transcriptome profiling of Salvia miltiorrhiza for discovery of genes associated with the biosynthesis of tanshinones and phenolic acids. Sci. Rep. 2017, 7, 10554. [Google Scholar] [CrossRef] [PubMed]
  37. Wang, L.; Li, N.; Yu, S.Q.; Zhou, J.W. Enhancing caffeic acid production in Escherichia coli by engineering the biosynthesis pathway and transporter. Bioresour. Technol. 2022, 368, 128320. [Google Scholar] [CrossRef] [PubMed]
  38. Walker, J.B.; Sytsma, K.J.; Treutlein, J.; Wink, M. Salvia (Lamiaceae) is not monophyletic: Implications for the systematics, radiation, and ecological specializations of Salvia and tribe Mentheae. Am. J. Bot. 2004, 91, 1115–1125. [Google Scholar] [CrossRef] [PubMed]
  39. Agata, L.; Cezary, P.; Laura, P.; David, F.P.; Magdalena, K.; Marta, H.; Witold, D.; Michel, R.; Jarosław, P.; Ewa, S. Divergent contribution of the MVA and MEP pathways to the formation of polyprenols and dolichols in Arabidopsis. Biochem. J. 2023, 480, 495–520. [Google Scholar]
  40. Liu, L.; Yang, D.F.; Liang, T.Y.; Zhang, H.H.; He, Z.G.; Liang, Z.S. Phosphate starvation promoted the accumulation of phenolic acids by inducing the key enzyme genes in Salvia miltiorrhiza hairy roots. Plant Cell Rep. 2016, 35, 1933–1942. [Google Scholar] [CrossRef]
  41. Mei, X.G.; Wang, S.Q.; Zhang, L.; Gu, S.B.; Wei, L.; Li, J.; Wang, J.H. Widely targeted metabolomics analysis revealed components change regularity of Salvia miltiorrhiza Bunge after post-harvest drying under different temperature. Ind. Crops Prod. 2022, 188, 495–520. [Google Scholar] [CrossRef]
  42. Pharmacy Committee, Ministry of Health China. Chinese Pharmacopoeia; The Medicine Science and Technology Press of China: Beijing, China, 2020; p. 77. [Google Scholar]
  43. Editorial Committee of Flora of China, Chinese Academy of Sciences. Flora of China; Science Press: Beijing, China, 2004; p. 141. [Google Scholar]
  44. Hu, G.X.; Liu, E.D.; Zhang, T.; Jie, C.; Xiang, C.L. Salvia luteistriata (lamiaceae), a new species from northeastern Sichuan, China. Phytotaxa 2017, 314, 123–128. [Google Scholar] [CrossRef]
Metabolites 14 00441 g001

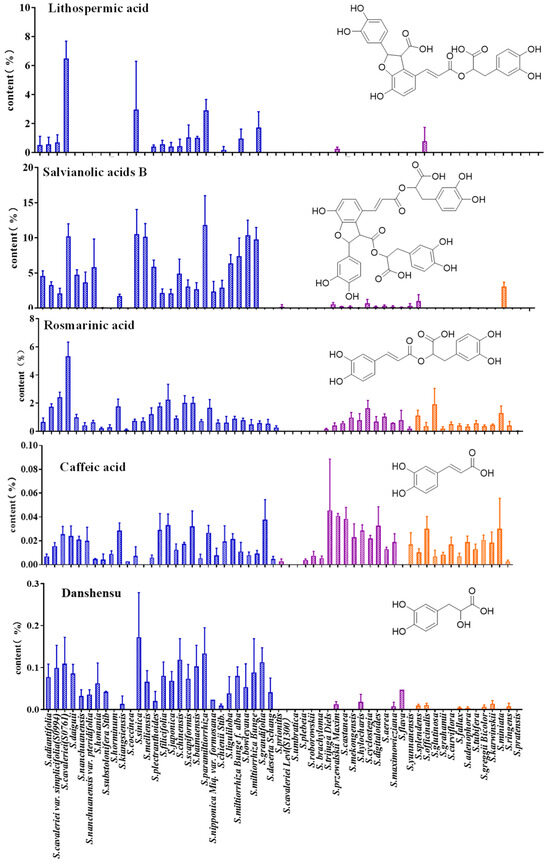

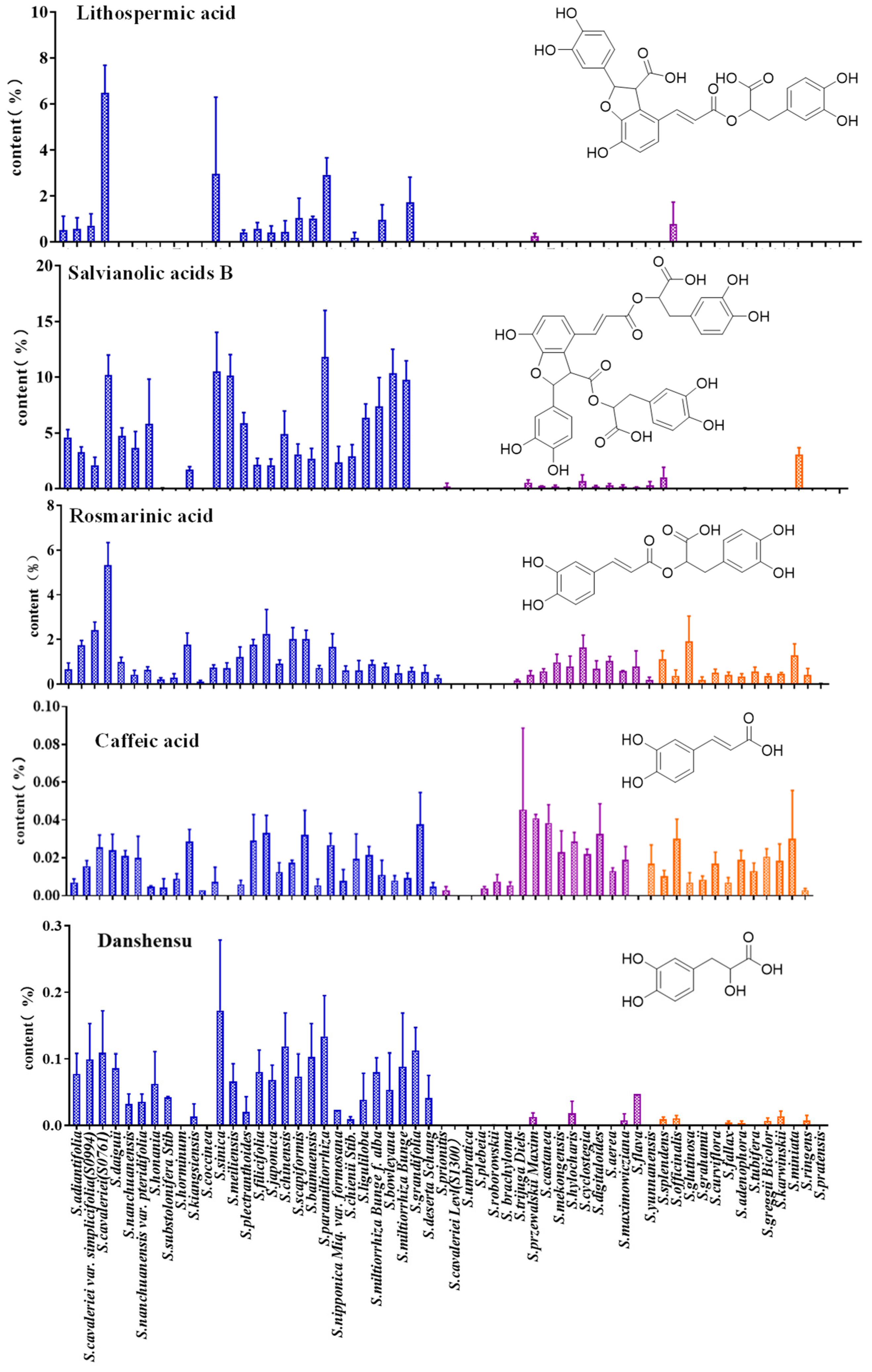

Figure 1. The content of phenolic acids in the roots of Salvia spp. Note: The different colors represent species from different sources, Blue represents the regions of China except for Southwest China, Purple represents the southwestern region of China, Orange represents species collected from abroad.
Figure 1. The content of phenolic acids in the roots of Salvia spp. Note: The different colors represent species from different sources, Blue represents the regions of China except for Southwest China, Purple represents the southwestern region of China, Orange represents species collected from abroad.
Metabolites 14 00441 g001
Metabolites 14 00441 g002

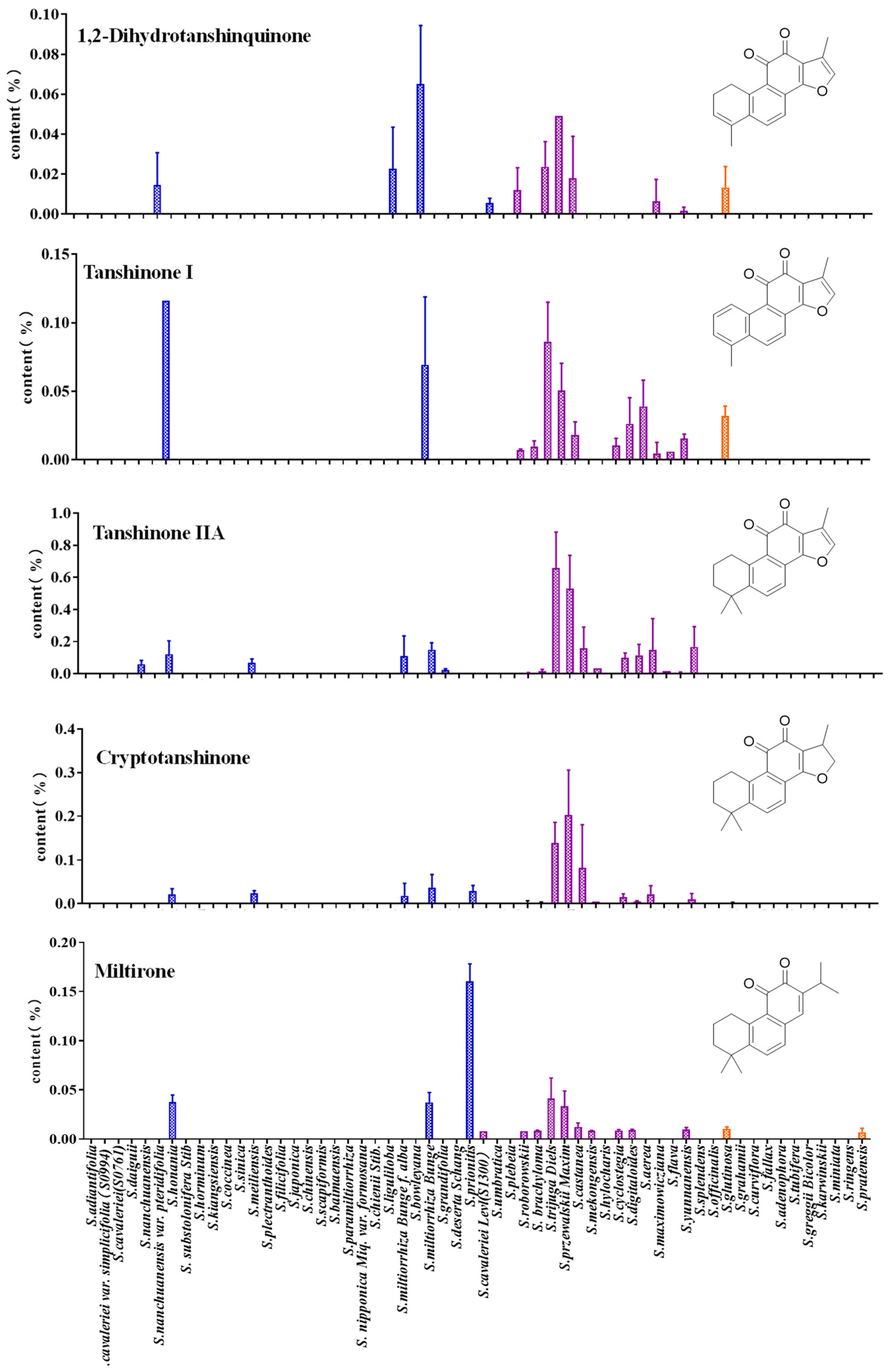

Figure 2. The content of tanshinones in the leaves of Salvia spp. Note: The different colors represent species from different sources, Blue represents the regions of China except for Southwest China, Purple represents the southwestern region of China, Orange represents species collected from abroad.
Figure 2. The content of tanshinones in the leaves of Salvia spp. Note: The different colors represent species from different sources, Blue represents the regions of China except for Southwest China, Purple represents the southwestern region of China, Orange represents species collected from abroad.
Metabolites 14 00441 g002
Metabolites 14 00441 g003

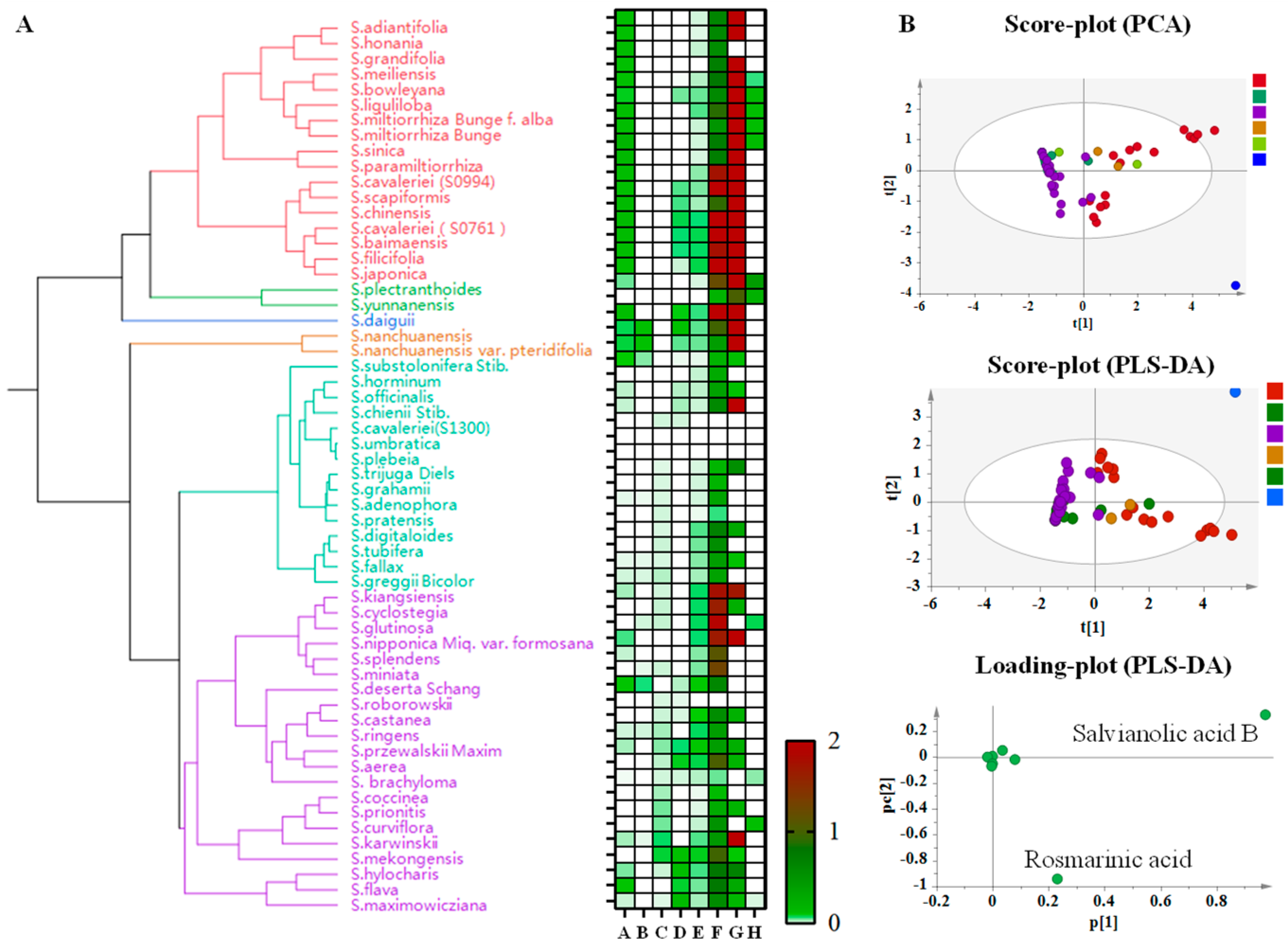

Figure 3. Cluster analysis of phenolic acids in the roots of Salvia spp. Note: A: Danshensu, B: Protocatechuic acid, C: Protocatechualdehyde, D: Ferulic acid, E: Caffeic acid, F: Rosmarinic acid, G: Salvianolic acid B, H: Salvianolic acid A. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Figure 3. Cluster analysis of phenolic acids in the roots of Salvia spp. Note: A: Danshensu, B: Protocatechuic acid, C: Protocatechualdehyde, D: Ferulic acid, E: Caffeic acid, F: Rosmarinic acid, G: Salvianolic acid B, H: Salvianolic acid A. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Metabolites 14 00441 g003
Metabolites 14 00441 g004

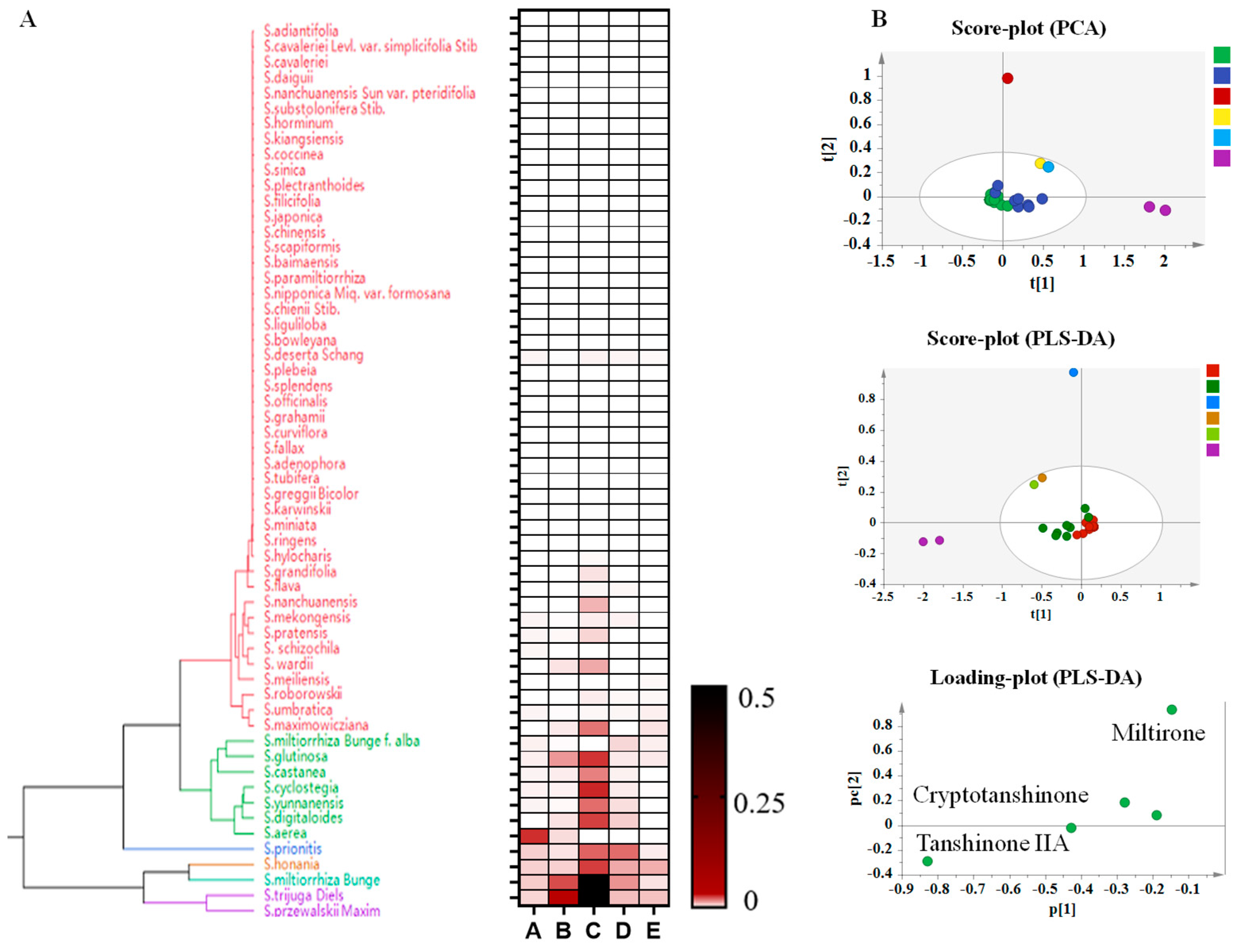

Figure 4. Cluster analysis of tanshinones in roots of Salvia spp.: A: Miltirone, B: Cryptotanshinone, C: Tanshinone IIA, D: Tanshinone I, E: Dihydrotanshinone. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Figure 4. Cluster analysis of tanshinones in roots of Salvia spp.: A: Miltirone, B: Cryptotanshinone, C: Tanshinone IIA, D: Tanshinone I, E: Dihydrotanshinone. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Metabolites 14 00441 g004
Metabolites 14 00441 g005

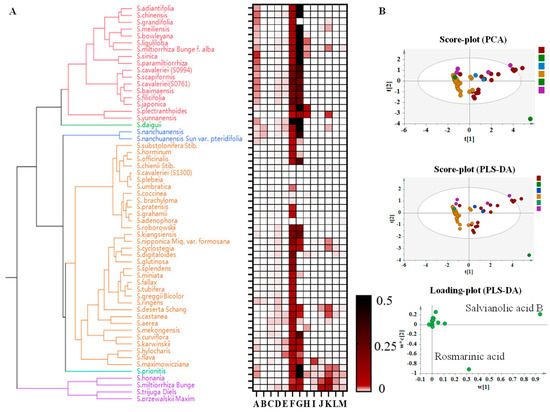

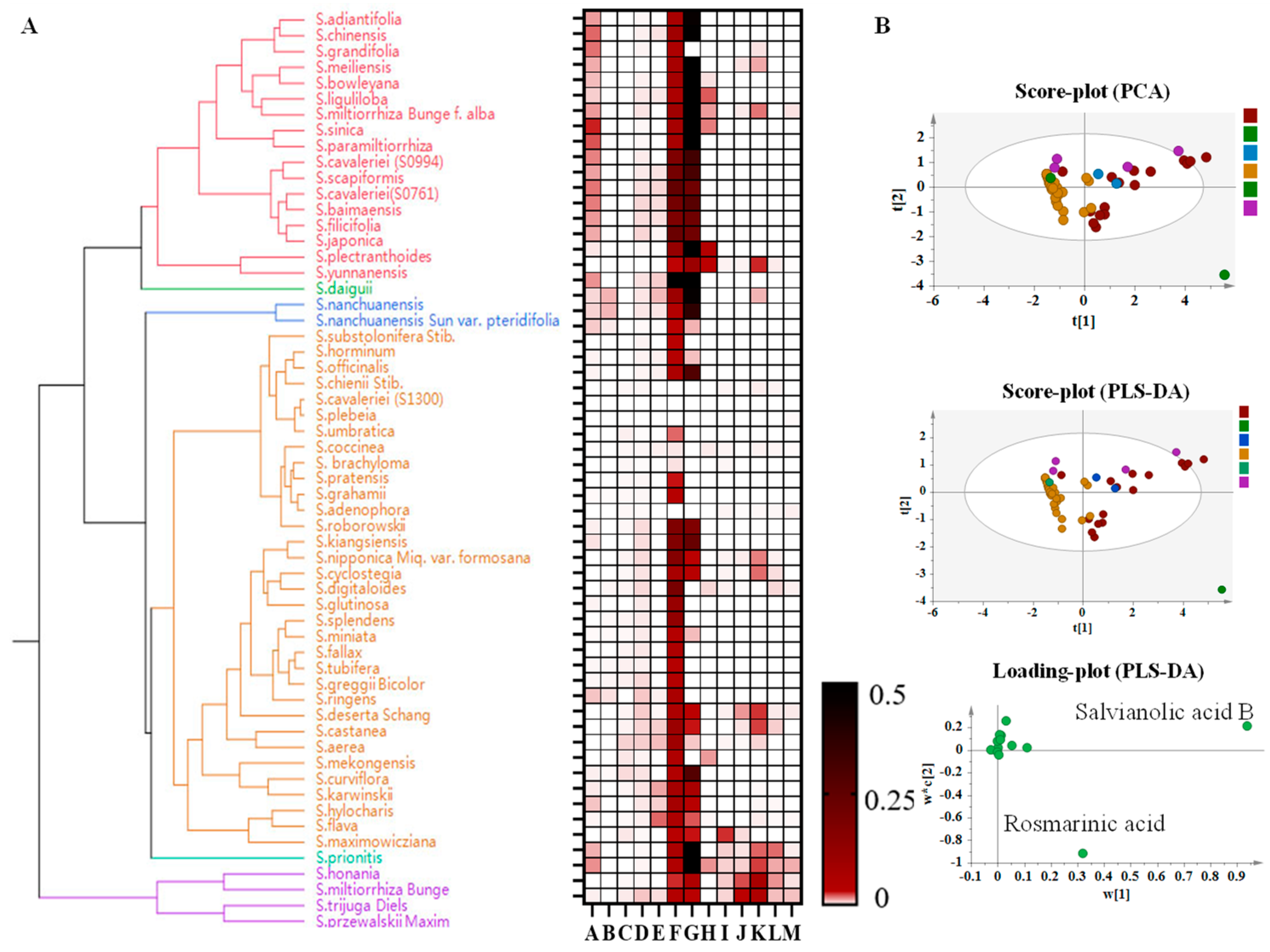

Figure 5. Clustering analysis of major components in the roots of Salvia spp.: A: Danshensu, B: Protocatechuic acid, C: Protocatechualdehyde, D: Ferulic acid, E: Caffeic acid, F: Rosmarinic acid, G: Salvianolic acid B, H: Salvianolic acid A, I: Miltirone, J: Cryptotanshinone, K: Tanshinone IIA, L: Tanshinone I, M: Dihydrotanshinone. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Figure 5. Clustering analysis of major components in the roots of Salvia spp.: A: Danshensu, B: Protocatechuic acid, C: Protocatechualdehyde, D: Ferulic acid, E: Caffeic acid, F: Rosmarinic acid, G: Salvianolic acid B, H: Salvianolic acid A, I: Miltirone, J: Cryptotanshinone, K: Tanshinone IIA, L: Tanshinone I, M: Dihydrotanshinone. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Metabolites 14 00441 g005
Metabolites 14 00441 g006

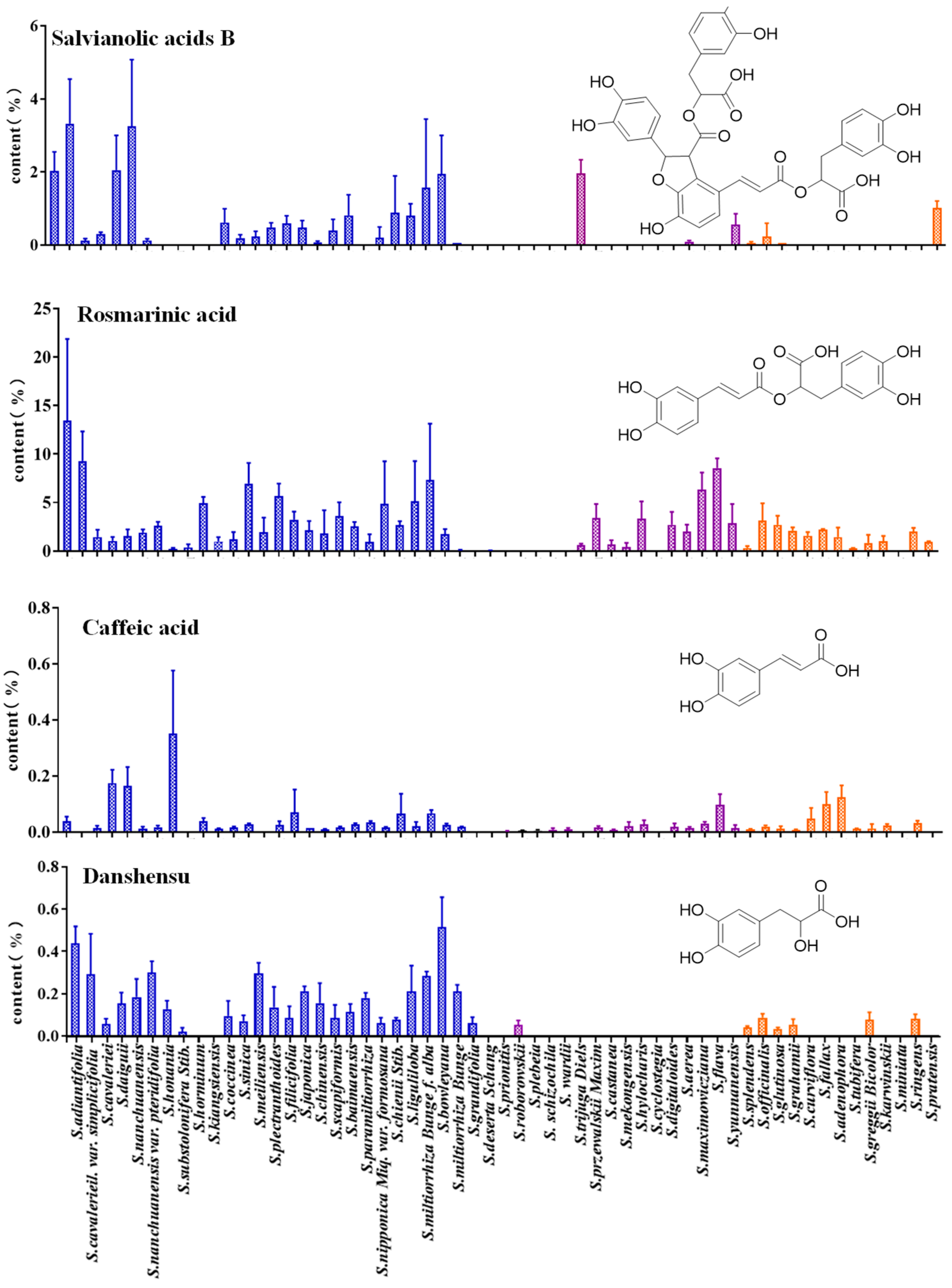

Figure 6. The content of phenolic acids of leaves in Salvia spp. Note: The different colors represent species from different sources, Blue represents the regions of China except for Southwest China, Purple represents the southwestern region of China, Orange represents species collected from abroad.
Figure 6. The content of phenolic acids of leaves in Salvia spp. Note: The different colors represent species from different sources, Blue represents the regions of China except for Southwest China, Purple represents the southwestern region of China, Orange represents species collected from abroad.
Metabolites 14 00441 g006
Metabolites 14 00441 g007

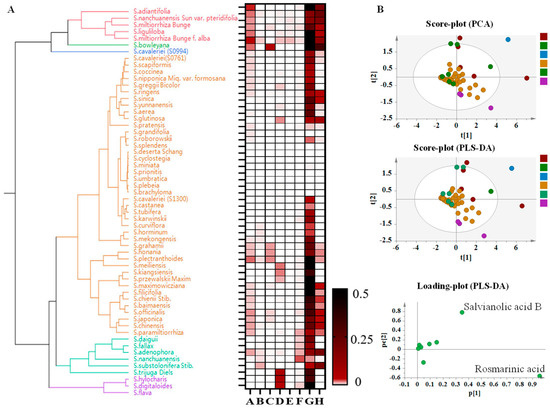

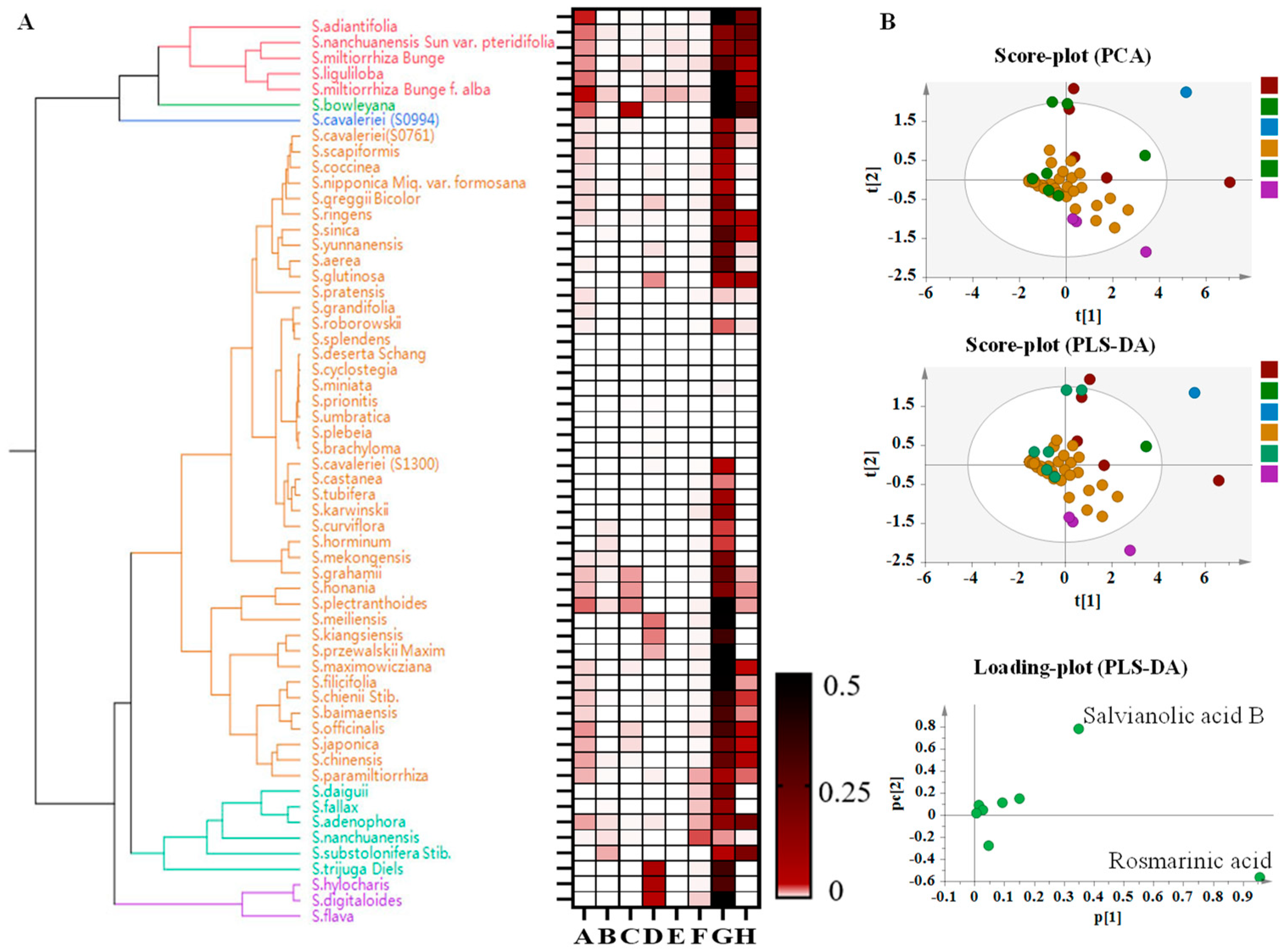

Figure 7. Cluster analysis of phenolic acids in leaves of Salvia spp.: A: Danshensu, B: Protocatechuic acid, C: Protocatechualdehyde, D: Ferulic acid, E: Isoferulic acid, F: Caffeic acid, G: Rosmarinic acid, H: Salvianolic acid B. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Figure 7. Cluster analysis of phenolic acids in leaves of Salvia spp.: A: Danshensu, B: Protocatechuic acid, C: Protocatechualdehyde, D: Ferulic acid, E: Isoferulic acid, F: Caffeic acid, G: Rosmarinic acid, H: Salvianolic acid B. (A): Species Evolutionary Tree Analysis Based on Target Component Content. (B): Represent multivariate statistical analysis based on target component content. Note: The different colors mean the different species, the red one mean the species same as the species in the evolutionary tree.
Metabolites 14 00441 g007
Table 1. The samples used in this experiment.
Table 1. The samples used in this experiment.
Serial NumberNumberSpecies (Scientific Name)
1S0123Salvia scapiformis
2S0146Salvia miltiorrhiza
3S0171Salvia chinensis
4S0175Salvia sinica
5S0271Salvia meiliensis
6S0297Salvia daiguii.
7S0304Salvia japonica
8S0348Salvia baimaensis
9S0356Salvia honania
10S0362Salvia miltiorrhiza
11S0460Salvia plectranthoides
12S0484Salvia nanchuanensis
13S0491Salvia paramiltiorrhiza
14S0517Salvia nanchuanensis
15S0603Salvia bowleyana
16S0671Salvia adiantifolia
17S0761Salvia cavaleriei
18S0804Salvia grandifolia
19S0940Salvia filicifolia
20S0994Salvia cavaleriei
21S0477Salvia substolonifera
22S0742Salvia nipponica
23S0747Salvia liguliloba
24S0837Salvia deserta
25S1094Salvia chienii
26S1127Salvia kiangsiensis
27S0318Salvia coccinea
28S1097Salvia prionitis
29S1044Salvia horminum
30S1002Salvia officinalis
31S1062Salvia splendens
32S1031Salvia glutinosa
33S1073Salvia grahamii
34S1071Salvia curviflora
35S1072Salvia fallax (Salvia roscida)
36S1068Salvia adenophora
37S1082Salvia tubifera
38S1074Salvia greggii
39S1089Salvia karwinskii
40S1078Salvia miniata
41S1030Salvia ringens
42S1032Salvia pratensis (meadow clary)
43S1174Salvia maximowicziana
44S1153Salvia flava
45S1151Salvia yunnanensis
46S1164Salvia trijuga
47S1170Salvia aerea
48S1161Salvia przewalskii
49S1169Salvia castanea
50S1167Salvia mekongensis
51S1155Salvia hylocharis
52S1171Salvia cyclostegia
53S1173Salvia digitaloides
54S0421Salvia umbratica
55S1329Salvia plebeia
56S1233Salvia roborowskii
57S1162Salvia brachyloma
58S1300Salvia cavaleriei
Table 2. Standard curve of Standard references.
Table 2. Standard curve of Standard references.
StandardsStandard EquationsR2Linear Range (µg)
DanshensuY = 456,192.9651X + 8898.39840.9990.02~2
ProtocatechualdehydeY = 3,417,750.4961X − 51,858.75410.9980.04~4
Protocatechuic AcidY = 2,124,173.3198X + 14,233.876410.02~2
caffeic acidY = 5,472,992.9477X − 3794.422310.02~2
Ferulic AcidY = 3,813,787.9790X − 4677.00690.9990.02~2
Isoferulic AcidY = 3,145,231.4942X + 9488.324210.02~2
Rosmarinic acidY = 1,939,973.1010X + 239.44230.9990.02~2
Salvianolic Acids AY = 2,115,905.1152X + 7393.82670.9990.02~2
Salvianolic Acids BY = 960,469X − 63,9570.9990.10~20
lithospermic acidY = 111,687X − 8406.90.9980.04~4
MiltironeY = 6,351,910.6757X − 181,582.15240.9940.03~3
CryptotanshinoneY = 55,262,695.8020X + 85,722.74200.9990.04~4
Tanshinone II AY = 5,128,785.8760X − 58,317.47390.9990.04~4
Tanshinone IY = 3,724,065.1501X − 86,580.85970.9990.04~4
Dihydrotanshinone IY = 2,660,639.5600X + 23,027.75270.9990.04~4
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Wang, F.; Bao, Y.; Yang, F.; Yuan, L.; Han, X.; Huang, Y.; Wei, Y.; Zhang, L.; Yang, Z.; Yang, D. Content Determination and Chemical Clustering Analysis of Tanshinone and Salvianolic Acid in Salvia spp. Metabolites 2024, 14, 441. https://doi.org/10.3390/metabo14080441

AMA Style

Wang F, Bao Y, Yang F, Yuan L, Han X, Huang Y, Wei Y, Zhang L, Yang Z, Yang D. Content Determination and Chemical Clustering Analysis of Tanshinone and Salvianolic Acid in Salvia spp. Metabolites. 2024; 14(8):441. https://doi.org/10.3390/metabo14080441

Chicago/Turabian Style

Wang, Feiyan, Yufeng Bao, Furui Yang, Lu Yuan, Xinchun Han, Yanbo Huang, Yukun Wei, Lei Zhang, Zongqi Yang, and Dongfeng Yang. 2024. "Content Determination and Chemical Clustering Analysis of Tanshinone and Salvianolic Acid in Salvia spp." Metabolites 14, no. 8: 441. https://doi.org/10.3390/metabo14080441

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
