Magnetized Black Holes: Interplay between Charge and Rotation

Abstract

Already in the cornerstone works on astrophysical black holes published as early as in the 1970s, Ruffini and collaborators have revealed the potential importance of an intricate interaction between the effects of strong gravitational and electromagnetic fields. Close to the event horizon of the black hole, magnetic and electric lines of force become distorted and dragged even in a purely electro-vacuum system. Moreover, as the plasma effects inevitably arise in any astrophysically realistic environment, particles of different electric charges can separate from each other, become accelerated away from the black hole or accreted onto it, and contribute to the net electric charge of the black hole. From the point of principle, the case of super-strong magnetic fields is of particular interest, as the electromagnetic field can act as a source of gravity and influence spacetime geometry. In a brief celebratory note, we revisit aspects of rotation and charge within the framework of exact (asymptotically non-flat) solutions of mutually coupled Einstein–Maxwell equations that describe magnetized, rotating black holes.

1. Introduction

Classical black holes are described by a small number of parameters; in particular, the mass, electric and magnetic charges, and the angular momentum (spin) [1,2]. As a model of cosmic black holes, these objects are spatially localized and they lack any surface; the resulting spacetime has, by assumption, no material content in the form of fluids that could contribute as a source of the gravitational field. These objects do not support their own magnetic field: just the gravito-magnetical component is induced by rotation [3]. The interacting magnetic field to which astrophysical black holes are embedded is of external origin (Ruffini and Wilson [4]), although it may naturally interact with the Kerr–Newman intrinsic charge [5].

This approach was employed by a number of authors to address the problem of electromagnetic effects near a rotating (Kerr) black hole. On the other hand, self-consistent solutions of coupled Einstein–Maxwell equations for black holes immersed in electromagnetic fields have been studied only within stationary, axially symmetric electro-vacuum models. It soon appeared that the test electromagnetic field approximation was fully adequate for modeling astrophysical sources; however, the long-term evolution of magnetospheres of rotating black holes and the consequences of strong gravity remained still open to further work [6,7]. To explore the latter, the intriguing effects of ultra-strong magnetic fields, we employ an axially symmetric solution that was derived originally in the 1970s in terms of magnetization techniques [7,8].

Although the main aim and the motivation of our present contribution is to briefly summarize some of the aspects of magnetized black holes that have been explored over six decades of intensive research, and where the honoree and his collaborators published a number of widely cited discoveries, we will mention also some interesting features of the induced electric charge that occur in this regime and are explored to date. In fact, the generation of magnetic fields goes hand in hand with the creation of corresponding electric fields which always arise in moving media and, for that matter, they appear once a rotating body is involved.

2. Magnetized Kerr–Newman Black Hole in Charge Equilibrium

We can write the system of mutually coupled Einstein–Maxwell equations (Chandrasekhar 1983 [1]),

$$R_{\mu \nu }-\frac{1}{2}R{g}_{\mu \nu }=8\pi T_{\mu \nu },$$

(1)

where the source term $T_{\mu \nu }$ is of purely electromagnetic origin,

$$T^{\alpha \beta }\equiv T_{\mathrm{EMG}}^{\alpha \beta }=\frac{1}{4\pi }\left(F^{\alpha \mu }{F}_{\mu }^{\beta }-\frac{1}{4}{F}^{\mu \nu }{F}_{\mu \nu }{g}^{\alpha \beta }\right),$$

(2)

and ${}^{★}{F}_{\mu \nu }\equiv \frac{1}{2}{{\epsilon }_{\mu \nu }}^{\rho \sigma }{F}_{\rho \sigma }$. Let us first consider a strongly magnetized Kerr–Newman (MKN) black hole. This is an electro-vacuum spacetime solution with a regular event horizon that satisfies the conditions of axial symmetry and stationarity. Hence, it adopts a general form [9,10]

$$\mathrm{d}{s}^2=f^{-1}\left[e^{2\gamma }\left(\mathrm{d}{z}^2+\mathrm{d}{\rho }^2\right)+{\rho }^2\mathrm{d}{\varphi }^2\right]-f{\left(\mathrm{d}t-\omega \mathrm{d}\varphi \right)}^2,$$

(3)

with f, $\omega$, and $\gamma$ being the functions of cylindrical coordinates $\rho$ and z only because of the assumed symmetries. Although in the weak electromagnetic field approximation the Kerr metric gives the line element [11], the case of a strong magnetic field is different, especially at large values of the cylindrical radius. This is because of the magnetic field curving the spacetime and changing its asymptotical characteristics into a non-flat (cosmological) solution (see, e.g., Gal’tsov 1986 [12]).

Christodoulou and Ruffini [13] introduced the magnetic and electric lines of force that are defined, respectively, by the direction of Lorentz force that acts on electric/magnetic charges,

$$\frac{\mathrm{d}{u}^{\mu }}{\mathrm{d}\tau }\propto {}^{★}{F}_{\nu }^{\mu }{u}^{\nu },\frac{\mathrm{d}{u}^{\mu }}{\mathrm{d}\tau }\propto F_{\nu }^{\mu }{u}^{\nu }.$$

(4)

In an axially symmetric system, the equation for magnetic lines of force adopts a form that is fully expected on the basis of classical electromagnetism,

$$\frac{\mathrm{d}r}{\mathrm{d}\theta }=-\frac{F_{\theta \varphi }}{F_{r\varphi }},\frac{\mathrm{d}r}{\mathrm{d}\varphi }=\frac{F_{\theta \varphi }}{F_{r\theta }}.$$

(5)

By employing the solution generating technique [14], García Díaz 1985 [15] gave a very general and explicit form of the exact spacetime metric of a strongly magnetized black hole:

$$d{s}^2={|\Lambda |}^2\Sigma \left({\Delta }^{-1}\mathrm{d}{r}^2+\mathrm{d}{\theta }^2-\Delta A^{-1}\mathrm{d}{t}^2\right)+{|\Lambda |}^{-2}{\Sigma }^{-1}A{sin}^2\theta {\left(\mathrm{d}\varphi -\omega \mathrm{d}t\right)}^2,$$

(6)

where $\Sigma (r,\theta )=r^2+a^2{cos}^2\theta$, $\Delta \left(r\right)=r^2-2Mr+a^2+e^2$, $A(r,\theta )={(r^2+a^2)}^2-\Delta a^2{sin}^2\theta$ are the well-known metric functions from the Kerr–Newman solution. The event horizon exists for $a^2+e^2\le 1$. In the magnetized case, because of the asymptotically non-flat nature of the spacetime, the parameters a and e are not identical with the black hole total spin and electric charge [16]. Moreover, because of the asymptotically non-flat nature of the spacetime, the Komar-type angular momentum and electric charge (as well as the black hole mass) have to be defined by integration over the horizon sphere rather than at radial infinity [17]. The magnetization function $\Lambda =1+\beta \Phi -\frac{1}{4}{\beta }^2\mathcal{E}$ is given in terms of the Ernst potentials $\Phi (r,\theta )$ and $\mathcal{E}(r,\theta )$,

$$\begin{array}{ccc}\hfill \Sigma \Phi & =& ear{sin}^2\theta -\Im e\left(r^2+a^2\right)cos\theta ,\hfill \end{array}$$

(7)

$$\begin{array}{ccc}\hfill \Sigma \mathcal{E}& =& -A{sin}^2\theta -e^2\left(a^2+r^2{cos}^2\theta \right)\hfill \\ & & +2\Im a\left[\Sigma \left(3-{cos}^2\theta \right)+a^2{sin}^4\theta -r{e}^2{sin}^2\theta \right]cos\theta .\hfill \end{array}$$

(8)

The components of the electromagnetic field with respect to orthonormal LNRF components are

$$\begin{array}{ccc}\hfill H_{\left(r\right)}+\mathrm{i}{E}_{\left(r\right)}& =& A^{-1/2}{sin}^{-1}\theta {\Phi }_{,\theta }^{\prime },\hfill \end{array}$$

(9)

$$\begin{array}{ccc}\hfill H_{\left(\theta \right)}+\mathrm{i}{E}_{\left(\theta \right)}& =& -{\left(\Delta /A\right)}^{1/2}{sin}^{-1}\theta {\Phi }_{,r}^{\prime },\hfill \end{array}$$

(10)

where ${\Phi }^{\prime }(r,\theta )={\Lambda }^{-1}\left(\Phi -\frac{1}{2}\beta \mathcal{E}\right)$, and the total electric charge $Q_{\mathrm{H}}$ is

$$Q_{\mathrm{H}}=-{\left|{\Lambda }_0\right|}^2\Im \mathrm{m}{\Phi }^{\prime }\left(r_{+},0\right).$$

(11)

The magnetic flux ${\Phi }_{\mathrm{m}}\left(\theta \right)$ across a cap placed in an axisymmetric position on the horizon is then [18]

$${\Phi }_{\mathrm{m}}=2\pi {\left|{\Lambda }_0\right|}^2\Re \mathrm{e}{\Phi }^{\prime }\left(r_{+},\overline{\theta }\right)|{\phantom{(}}_{\overline{\theta }=0}^{\theta },$$

(12)

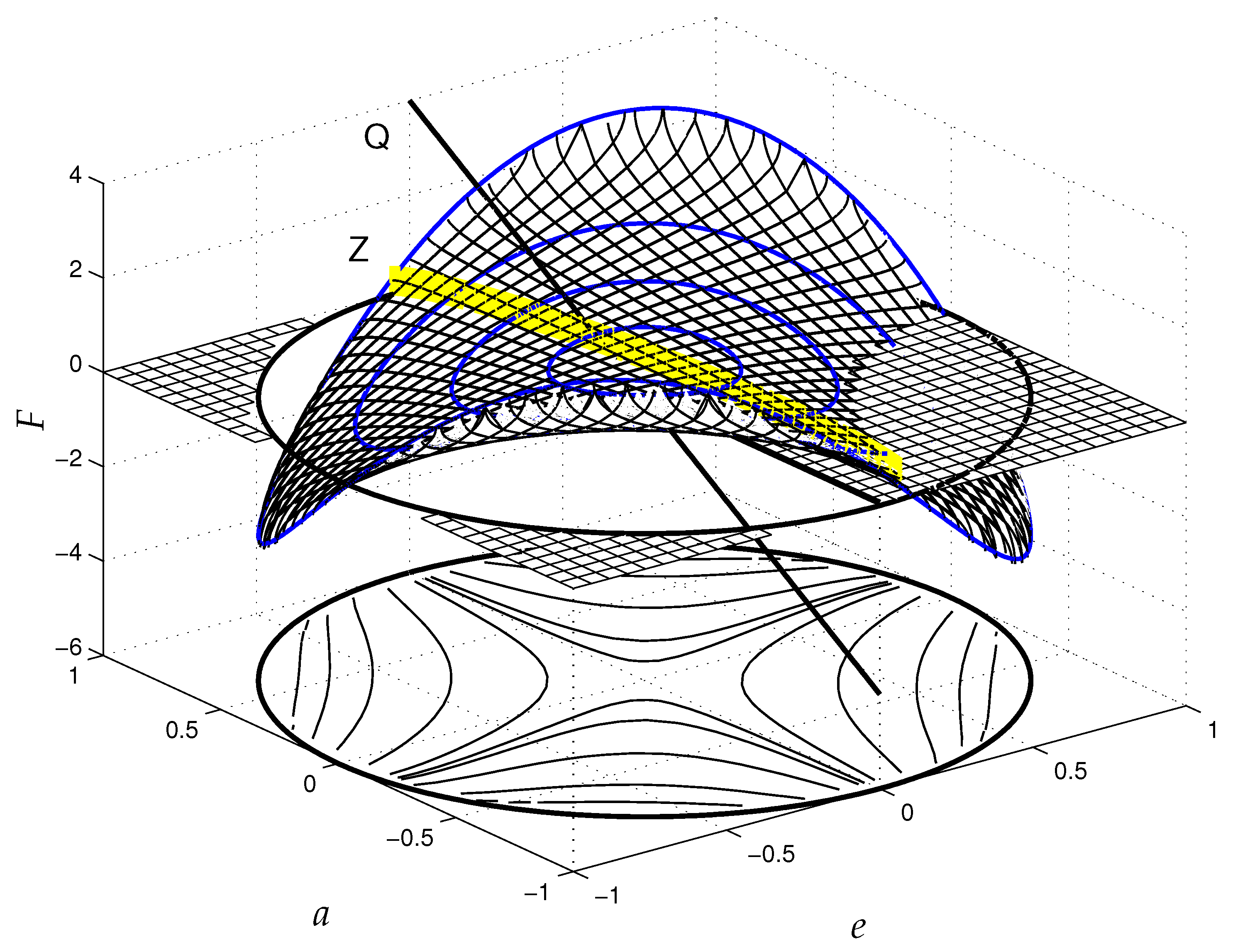

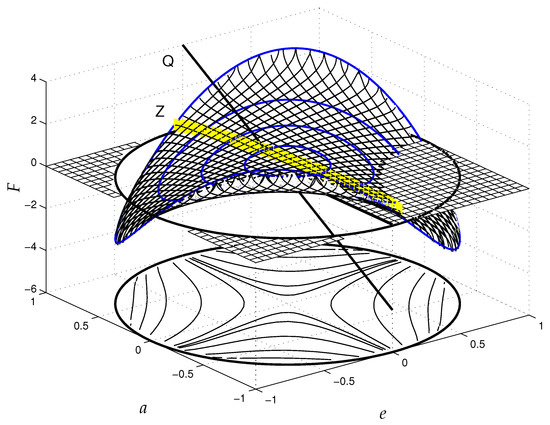

where ${\Lambda }_0=\Lambda (\theta =0)$. In Figure 1, the surface plot of the magnetic flux F across the hemisphere $\theta =\pi /2$ is shown as a function of spin parameter a and the electric charge parameter e. The surface on the horizon is defined on the circle $a^2+e^2\le 1$.

The definition interval of the azimuthal coordinate in the magnetized solution needs to be rescaled by a factor ${\Lambda }_0$ (not to be confused with the cosmological term) in order to avoid a conical singularity on the symmetry axis [16], which effectively leads to the increase in the horizon surface area, and thereby also the total magnetic flux threading the event horizon [19]. Let us note that cosmic magnetic fields are limited in strength only by quantum theory effects. In highly magnetized rotators the energy of the magnetic field can be converted into high-energy gamma rays, but such mechanisms require over ${10}^{12}$ tesla; we shall not consider this ultra-strong magnetic field in the rest of the paper.

The above-discussed electro-vacum solutions need to be extended by including an electrically conducting plasma. Once this is introduced into the MKN system, one needs to clarify to what extent the newly emerging role of the $\Lambda$ term affects the characteristics of the flow of material. This can be investigated in terms of plasma horizon and the guiding centre approximation, which was originally introduced in the context of accreting black holes by Ruffini [20], Damour et al. [21], and Hanni and Valdarnini [22]. Surfaces of magnetic support were further extended to the case of a black hole that is moving at constant velocity [23,24]. Although these authors considered the case of weak (test) magnetic field in Kerr metric, in a subsequent analysis by Karas and Vokrouhlický [25] we verified that, for astrophysically realistic values of magnetic intensity, the approximate flow lines coincide almost precisely with those constructed for the exact MKN system; they are indistinguishable for practical purposes.

The energy density contained in astrophysically realistic electromagnetic fields turns out to be far too low to influence spacetime noticeably. Test-field solutions are thus adequate for describing weak electromagnetic fields, even those around magnetized neutron stars and cosmic black holes that are currently known.

3. Weak Magnetic Field and Particle Acceleration

For the strong influence of the external magnetic field on the spacetime structure of the black hole, its intensity has to be enormously high, comparable with

$$B_{\mathrm{GR}}={10}^{18}\frac{10M_{\odot }}{M}\left[\mathrm{G}\right].$$

(13)

Realistic magnetic fields in astrophysical situations are strongly under this limit, even in the case of fields near magnetars, reaching $B\sim {10}^{15}$ gauss. Therefore, for the astrophysical processes, we can usually put the magnetic spacetime factor $\Lambda =1$ and the electric charge $e=0$, using the canonical, asymptotically flat Kerr metric. As for the electromagnetic term, an asymptotically uniform magnetic field, orthogonal to the spacetime equatorial plane, can then be determined by the electromagnetic 4-vector potential taking the form

$$A_t=\frac{B}{2}(g_{t\varphi }+2a{g}_{tt})-\frac{Q}{2}{g}_{tt}-\frac{Q}{2},A_{\varphi }=\frac{B}{2}(g_{\varphi \varphi }+2a{g}_{t\varphi })-\frac{Q}{2}{g}_{t\varphi },$$

(14)

where the induced electric charge of the black hole Q is also introduced. For non-charged black holes there is $Q=0$, and the maximal induced black hole charge generated by the black hole rotation takes the Wald value $Q_W=2aB$ (or $Q_W=2aBM$ if we keep the mass term)—see [10]; the influence of the induced so-called Wald charge on the spacetime structure could be also abandoned [26,27]. For black holes with the maximal Wald charge we arrive at the electromagnetic potential

$$A_t=\frac{B}{2}{g}_{t\varphi }-\frac{Q_W}{2},A_{\varphi }=\frac{B}{2}{g}_{\varphi \varphi }.$$

(15)

It is crucial that even in this case the $A_t$ component remains non-zero and can lead to a very strong acceleration mechanism for sufficiently massive black holes and strong magnetic fields [28]. The significant role of the electromagnetic fields in processes near a black hole horizon was for the first time presented in a series of works of Ruffini and his collaborators in [29]. It could be well demonstrated for the charged test particle motion in the case of ionized Keplerian disks [28].

The motion of an electrically charged test particle with charge q and mass m is determined by the Lorentz equation

$$m\frac{D{u}^{\mu }}{D\tau }=q{F}_{\nu }^{\mu }{u}^{\nu },$$

(16)

where $\tau$ is the particle proper time, and $F_{\nu }^{\mu }$ is the Faraday tensor of the electromagnetic field. For the Kerr–Newman black holes, the Lorentz equations can be separated and given in terms of first integrals, governing thus fully regular test particle motion [1,30,31], whereas for magnetized Kerr black holes, the separability is impossible implying a generally chaotic character of the motion [28,32,33,34].

Nevertheless, due to the symmetries of the magnetized Kerr black holes with the uniform magnetic field lines orthogonal to the equatorial plane of spacetime, we can introduce Hamiltonian in the form

$$H=\frac{1}{2}{g}^{\alpha \beta }({\pi }_{\alpha }-q{A}_{\alpha })({\pi }_{\beta }-q{A}_{\beta })+\frac{1}{2}{m}^2,$$

(17)

where the canonical four-momentum ${\pi }^{\mu }=p^{\mu }+q{A}^{\mu }$ is related to the kinematic four-momentum $p^{\mu }=m{u}^{\mu }$ and the influence of the electromagnetic field reflected by $q{A}^{\mu }$. The motion is then governed by the Hamilton equations

$$\frac{\mathrm{d}{x}^{\mu }}{\mathrm{d}\zeta }\equiv p^{\mu }=\frac{\partial H}{\partial {\pi }_{\mu }},\frac{\mathrm{d}{\pi }_{\mu }}{\mathrm{d}\zeta }=-\frac{\partial H}{\partial x^{\mu }};$$

(18)

the affine parameter is related to the particle proper time as $\zeta =\tau /m$.

Due to the background symmetries, we can introduce two constants of the motion: energy E and angular momentum L as conserved components of the canonical momentum read

$$-E={\pi }_t=g_{tt}{p}^t+g_{t\varphi }{p}^{\varphi }+q{A}_t,$$

(19)

$$L={\pi }_{\varphi }=g_{\varphi \varphi }{p}^{\varphi }+g_{\varphi t}{p}^t+q{A}_{\varphi }.$$

(20)

Introducing the specific energy $\mathcal{E}=E/m$, the specific axial angular momentum $\mathcal{L}=L/m$, and the magnetic interaction parameter $\mathcal{B}=qB/2m$, we obtain Hamiltonian with two degrees of freedom, and the four-dimensional phase space $\{r,\theta ;p_r,p_{\theta }\}$ in the form

$$H=\frac{1}{2}{g}^{rr}{p}_r^2+\frac{1}{2}{g}^{\theta \theta }{p}_{\theta }^2+\widetilde{H_{\mathrm{P}}}(r,\theta ),$$

(21)

enabling the introduction of the effective potential of the radial and latitudinal motion. The energy condition relates the specific energy to the effective potential as

$$\mathcal{E}=V_{\mathrm{eff}}(r,\theta )$$

(22)

where

$$V_{\mathrm{eff}}(r,\theta )=\frac{-\beta +\sqrt{{\beta }^2-4\alpha \gamma }}{2\alpha },$$

(23)

with

$$\beta =2[g^{t\varphi }(\mathcal{L}-\tilde{q}{A}_{\varphi })-g^{tt}\tilde{q}{A}_t],\alpha =-g^{tt},$$

(24)

and

$$\gamma =-g^{\varphi \varphi }{(\mathcal{L}-\tilde{q}{A}_{\varphi })}^2-g^{tt}{\tilde{q}}^2{A}_t^2+2g^{t\varphi }\tilde{q}{A}_t(\mathcal{L}-\tilde{q}{A}_{\varphi })-1.$$

(25)

The effective potential defined here is properly chosen for the region above the outer horizon of the black hole, governing the regions allowed for the motion of a charged particle with a fixed value of the axial angular momentum.

Study of the motion of charged particles applied to the case of ionized Keplerian disks (see [28] for a review) demonstrates that the fate of the ionized disks depends on the magnetic interaction parameter. In the so-called gravitational regime when gravity is suppressing the role of the electromagnetic field ($\mathcal{B}\ll 1$), the motion of the particles of the ionized Keplerian disks can be considered as being in quasi-circular harmonic epicyclic motion of regular character, enabling explanation of high-frequency quasi-periodic oscillations of X-rays observed in microquasars and some active galactic nuclei [35]. In the so-called gravity-magnetic regime when the role of both fields is comparable ($\mathcal{B}\sim 1$), the motion is fully chaotic, leading generally to toroidal configurations. In the so-called magnetic regime ($\mathcal{B}\gg 1$), the role of the magnetic field is decisive, and the motion could have finally a regular character governed by the Larmor precession frequency.

In the case of $\mathcal{B}>1$ a special effect of chaotic scattering can be relevant [36,37] when the ionized particle can be accelerated along the magnetic field lines after a period of chaotic motion that decreases with increasing magnetic parameter [38]. In such situations, the magnetic Penrose process could be realized with extremely high efficiency. The tentative magnetic Penrose process (MPP; see [39]) is a local decay process; its energy balance is governed by the local value of the electromagnetic field (potential)—for this reason, the simple approximation of asymptotically uniform magnetic field aligned with the rotations axis can be well applied [28].

Let us consider the splitting of the 1st particle with energy $E_1$ (electrically neutral or positively charged with charge $q_1$) onto two charged particles, the 2nd one having a positive charge $q_2$ and the 3rd one having a negative charge $q_3$. If one of the particles (say the 3rd one) has a negative canonical energy $E_3<0$, then the second one should have the canonical energy $E_2>E_1$ due to an extraction of the black hole energy because of the capture of the 3rd particle. The process of the split of the 1st particle into the 2nd and 3rd ones is governed by the conservation laws [39].

The efficiency of the MPP is defined by relating the gained and input energies

$$\eta =\frac{E_2-E_1}{E_1}=\frac{-E_3}{E_1},$$

(26)

implying the relation [40]

$${\eta }_{\mathrm{MPP}}=\chi -1+\frac{\chi q_1{A}_t-q_2{A}_t}{E_1}.$$

(27)

The MPP demonstrates three substantially different efficiency regimes. The low-efficiency regime corresponds to the original Penrose process involving only electrically neutral particles (or vanishing electromagnetic field) with efficiency [41]

$${\eta }_{\mathrm{PP}\left(\max \right)}=\frac{\sqrt{2}-1}{2}\sim 0.207.$$

(28)

The moderate regime of the MPP corresponds to the situation when the electromagnetic forces are dominant, and the particles are charged, i.e., the condition $|\frac{q}{m}{A}_t|\gg |u_t|=|p_t|/m$ is satisfied, with efficiency approximately determined as

$${\eta }_{MPP}^{mod}\sim \frac{q_2}{q1}-1,$$

(29)

operating while $q_2>q_1$. In this case, the gravitationally induced electric field of the black hole is neutralized and the moderate regime of the MPP is close to the Blandford–Znajek process [42]; both processes are driven by the quadrupole electric field generated due to twisting the magnetic field lines because of the spacetime frame dragging, and restricted by global neutrality of the plasma surrounding the black hole [3,43]. The extremely efficient regime corresponds to the ionization of neutral matter and its efficiency is dominated by the term

$${\eta }_{\mathrm{MPP}}^{\mathrm{extr}}\sim \frac{q_2}{m_1}{A}_t.$$

(30)

In the extreme regime of the MPP, an enormous increase in the efficiency is possible, giving enormous energy to escaping particles. The efficiency can be as large as ${\eta }_{\mathrm{MPP}}^{\mathrm{extr}}\sim {10}^{10}$ if the magnetic field is sufficiently large and the rotating black hole is supermassive [40] charging.

Let us note that the mechanism of charging of a boosted black hole in translatory motion has been revisited very recently, [44,45]; it has attracted renewed widespread attention because of its tentative relevance for late stages of black hole—neutron star inspirals and their subsequent mergers. In this context, there is an interesting parallel between the effects of rotation vs. boost. Along a different line of research, Okamoto and Song [46] argue that the electromagnetic self-extraction of energy will be possible only via the frame-dragged rotating magnetosphere. It will be interesting to see if the above-discussed ideas of magnetic Penrose process, where the energy extraction is explored from another view angle, will be confirmed with a more accurate and complete description in the future. It seems to be very exciting that the present-day understanding is still incomplete and even controversial as the adopted approximations are tentative and await further verification or disproval [47].

4. Conclusions

The MPP enables acceleration of protons and light ions up to the energy $E\sim {10}^{22} \mathrm{eV}$, corresponding to the highest-energy ultra-high energy cosmic rays (UHECR) observed on the Earth, that can occur around supermassive black holes in the active galactic nuclei similar to those in the M87 large elliptical galaxy [40]. For accelerated electrons, the energy could be even higher, but contrary to the case of protons and ions, where the back-reaction related to the synchrotron radiation of the accelerated particles is negligible, for electrons the back-reaction is extremely strong, decelerating substantially this kind of light particles—they thus cannot be observed as UHECR [39].

Our scenario is complementary to highly dynamical situations discussed in a series of articles by Ruffini et al. [48], who explore the early, prompt phase of gamma-ray burst sources within a scenario of a baryonic shell interacting with an inhomogeneous medium (see also further references in [49,50,51,52,53]). Although we do not consider temporal effects on the black hole’s gravitational field, we do take into account the role of the magnetic field in shaping the stationary background. It turns out that for astrophysically realistic models, time dependence may be crucial. On the other hand, the impact that super-strong magnetic fields may have on the spacetime curvature is relevant with respect to our understanding of exact solutions of Einstein–Maxwell fields; this can be best revealed by employing simplified equilibrium models such as the one discussed in our research note.

As a final remark, let us note that the similarity between the problem of a rotating magnetized body treated in the framework of classical electrodynamics and the corresponding black-hole electrodynamics has been widely explored in the literature (e.g., [54,55], and numerous subsequent papers). The black hole problem seems to be more complex because we have to consider the effects of general relativity; however, the adopted spacetime represents an electro-vacuum solution and it is thus idealized with a small number of free parameters. Intricate relations and numerical analysis are needed in order to determine material properties if plasma is present.
