Laser-Plasma and Self-Absorption Measurements with Applications to Analysis of Atomic and Molecular Stellar Astrophysics Spectra

Abstract

This work discusses laboratory measurements of atomic and diatomic molecular species in laser-plasma generated in gases. Noticeable self-absorption of the Balmer series hydrogen alpha line occurs for electron densities of the order of one tenth of standard ambient temperature and pressure density. Emission spectra of selected diatomic molecules in air or specific gaseous mixtures at or near atmospheric pressure reveal minimal plasma re-absorption. Abel inversion of the plasma in selected gases and gas mixtures confirm expansion dynamics that unravel regions of atomic and molecular species of different electron temperature and density. Time resolved spectroscopy diagnoses self-absorption of hydrogen alpha and hydrogen beta lines in ultra-high pure hydrogen gas. Radiation from a Nd:YAG laser device induces micro-plasma for pulse widths in the range of 6–14 ns, energies in the range of 100–800 mJ, and peak irradiances of the order 1–10 TW/cm${}^2$. Atomic line profiles yield electron density and temperature from fitting of line profiles to wavelength and sensitivity corrected spectral radiance data. Analysis of measured diatomic emission data yields excitation temperature of primarily molecular recombination spectra. Applications of the laboratory experiments extend to investigations of stellar astrophysics white dwarf spectra.

1. Introduction

Measurements of optical spectra from stellar astrophysical objects usually provide essential data for the determination of star-atmospheres and astrophysical phenomena [1]. White dwarf stars Sirius B and Procyon B, companions to Sirius and Procyon, reveal radiation temperatures of 26 kK and 8 kK, respectively [2]. The optical spectra of Sirius B show exclusively atomic, hydrogen Balmer series absorption spectra in the range of 400–700 nm. In turn, Procyon B reveals molecular, carbon Swan absorption spectra. This work also presents analysis of astrophysical absorption spectra from the Montreal data-base [2] and selected hydrogen absorption spectra from the Keck observatory archives (KOA) [3]. Application of well-established plasma spectroscopy [4] is instrumental for laboratory laser micro-plasma experiments for simulation of astrophysical conditions, in particular, those of white dwarfs.

This work presents characterization of gaseous hydrogen micro-plasma from the first four Balmer series members, H${}_{\mathsf{\alpha }}$, H${}_{\mathsf{\beta }}$, H${}_{\mathsf{\gamma }}$, and H${}_{\mathsf{\delta }}$ lines. Previously communicated work primarily were results from H${}_{\mathsf{\alpha }}$ and H${}_{\mathsf{\beta }}$ lines [5,6]. New analysis details communicated here include H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ emission spectra. Spectra from young or A type white dwarfs are hydrogen dominated and are measured in absorption, but direct comparison with laboratory emission spectra requires correction for bound-free absorption [7]. The laboratory emission spectra analysis here emphasizes the determination of temperature from H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ line-to-continuum ratios and from Boltzmann plots constructed from the first four Balmer series lines. In addition, re-analysis of H${}_{\mathsf{\beta }}$ spectra explores variations as different orders from high-resolution echelle-type spectrometers are combined, but at this time without correction for the bound-free variation across H${}_{\mathsf{\beta }}$. Future work should combine H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ emission spectra analysis with H${}_{\mathsf{\beta }}$ results including bound-free corrections. The discussed hydrogen results are expected to be particularly useful for analysis of WDs that show temperatures of the order of 25–50 kK, and the diatomic results are expected to augment analysis of WD’s at temperatures of the order of 5–10 kK. A selection of other relevant research on spectroscopy of various white dwarfs [2] is cited in References [6,7].

The electron density, ${\mathrm{N}}_{\mathrm{e}}$, of interest ranges from ${10}^{16}{\mathrm{cm}}^{-3}$ to ${10}^{19}{\mathrm{cm}}^{-3}$ for laser-plasma emission experiments. The laboratory measurements utilize time-resolved spectroscopy [8], but additional analysis of these data is necessary for interpretation of recorded white dwarf spectral line shapes. Discussion is included of the spectral appearance of the first four Balmer series as these merge with the free-electron background radiation, i.e., near the Inglis–Teller limit [9].

Self-absorption phenomena in H${}_{\mathsf{\alpha }}$ laser-plasma experiments become important for electron densities, N${}_{\mathrm{e}}$, of the order of $\mathsf{\eta }={\mathrm{N}}_{\mathrm{e}}/n_0=0.1$ [10], where ${\mathrm{n}}_0=1\mathrm{amg}=268.68\times {10}^{17}{\mathrm{cm}}^{-3}$ at standard ambient temperature and pressure (SATP). Selected white dwarf spectral data display absorption profiles from atmospheres with electron densities of ∼1–$5\times {10}^{17}{\mathrm{cm}}^{-3}$, or $\mathsf{\eta }=0.004$–$0.02$, consequently, the H${}_{\mathsf{\beta }}$ line appears most suited for diagnosis of such electron density. The H${}_{\mathsf{\beta }}$ line allows one to determine electron density from full-width at half-maximum, peak-separation, and central dip-shifts [5,6] for N${}_{\mathrm{e}}$ in the range 2–$20\times {10}^{17}{\mathrm{cm}}^{-3}$.

Comparisons of spectra from laboratory plasma and astrophysical white dwarf stars have been the content of research and documented communications for about 50 years. Noteworthy are the discussions from the 1970s regarding the Stark-effect caused redshifts [11,12,13] that may be larger than the gravitational- or Einstein-redshifts [14,15], casting doubt in the determination of the white dwarf ratio of mass over radius. The gravitational redshift can be understood with the Schwarzschild metric [16]. Radiative-transfer and error margin considerations [17] conclude that the pressure shifts are well within error margins of the determined gravitational shifts. A recent re-discussion in 2015 [18] indicates that line profiles from white dwarf stars are composed of contributions from different atmosphere layers, and the recorded integrated spectra mask the Stark-effect or pressure shifts.

2. Experimental Details

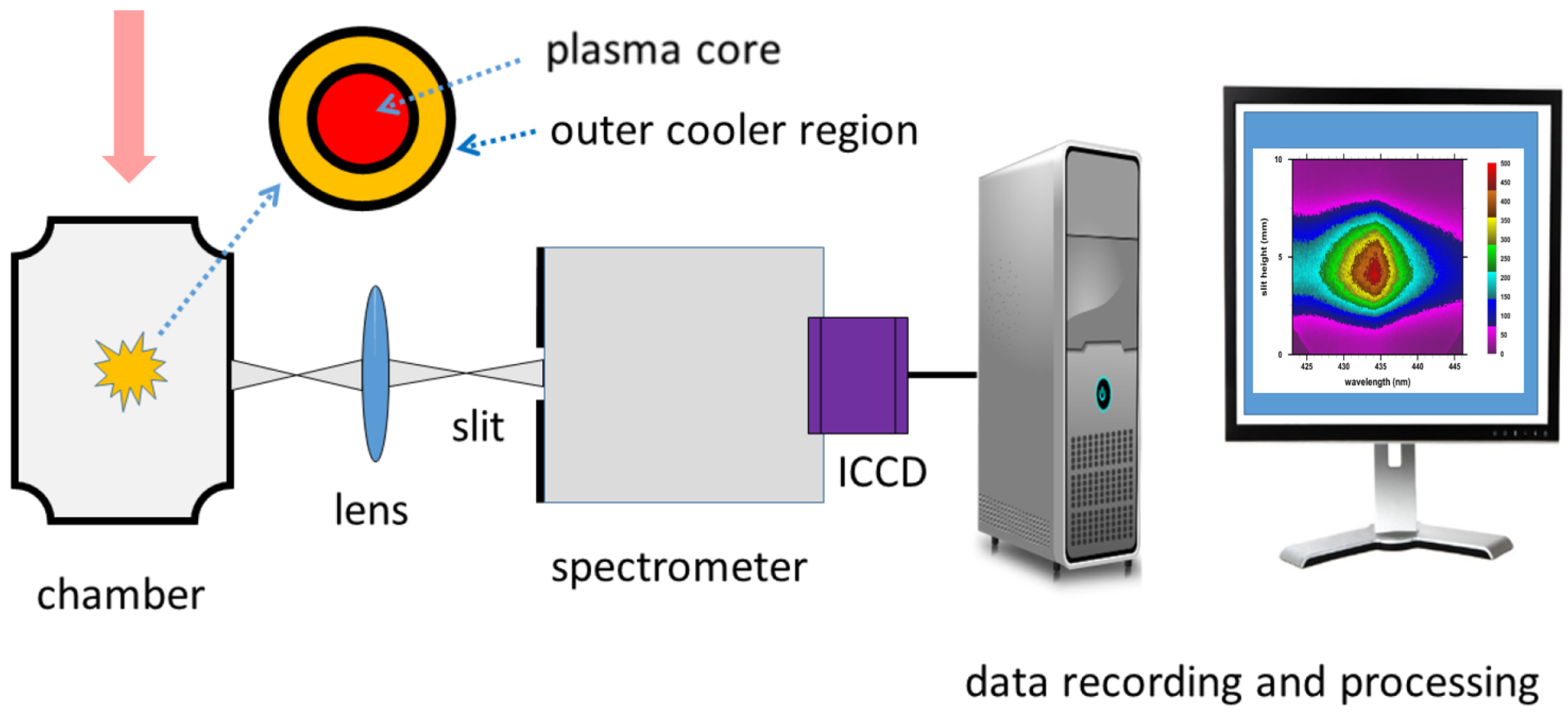

The experimental arrangement for laboratory measurements of laser-induced plasma [6] includes a Q-switched Nd:YAG laser device typically generating 6 ns laser pulses with an energy of $150\mathrm{mJ}$ per pulse at the fundamental wavelength of 1064 nm. Radiation is tightly focused to a spot size of the order of 10 $\mathsf{\mu }$m to achieve a peak irradiance above 1 TW/cm${}^2$, or well above optical breakdown of SATP laboratory air and gaseous hydrogen of the order of one atmosphere. The emanating light from the micro-plasma is recorded with a Czerny–Turner type spectrometer that shows a resolution of 0.02 nm when using a 3600 groves/mm holographic grating and an intensified diode array or two-dimensional detector for time-resolved spectroscopy. Figure 1 illustrates the experimental schematic.

The astrophysical datasets are preferably recorded with a high resolution spectrometer, for instance the so-called HIRES instrument at the Keck observatory that utilizes an echelle grating. The spectral resolving power, R = $\mathsf{\lambda }/\Delta \mathsf{\lambda }$, i.e., the ratio of wavelength, $\mathsf{\lambda }$, and of the spectral resolution, $\Delta \mathsf{\lambda }$, typically is of the order of 40,000.

At H${}_{\mathsf{\beta }}$, the spectral resolution equals $\Delta \mathsf{\lambda }=0.012\mathrm{nm}$. In terms of the average gravitational redshift, ${\displaystyle {\mathrm{v}}_{\mathrm{g}}=\mathrm{c}\Delta \mathsf{\lambda }/\mathsf{\lambda }}$, with $\mathrm{c}$ the speed of light, the velocity resolution amounts to 7.5 km/s. For comparison, the Sirius B gravitational redshift [14,15] is 89 ± 16 km/s. In other words, the Sirius B redshift equals $\Delta {\mathsf{\lambda }}_{\mathrm{Sirius}\mathrm{B}}=0.14\mathrm{nm}$.

From the gravitational shift [19], ${\mathrm{v}}_{\mathrm{g}}=0.64\mathrm{M}/\mathrm{R}$, with M and R denoting the white dwarf (WD) mass and radius in solar units, respectively, and using thermodynamic cooling models, the WD parameters are inferred, namely WD gravitational constant, g, temperature, T, mass, M, and radius, R. Typical values for WDs with a hydrogen atmosphere of g, T, M, and R amount to 10${}^6$ m/s${}^2$, 30 kK, mass of the sun, and size of the Earth, respectively.

3. Laboratory Emission Spectroscopy Results

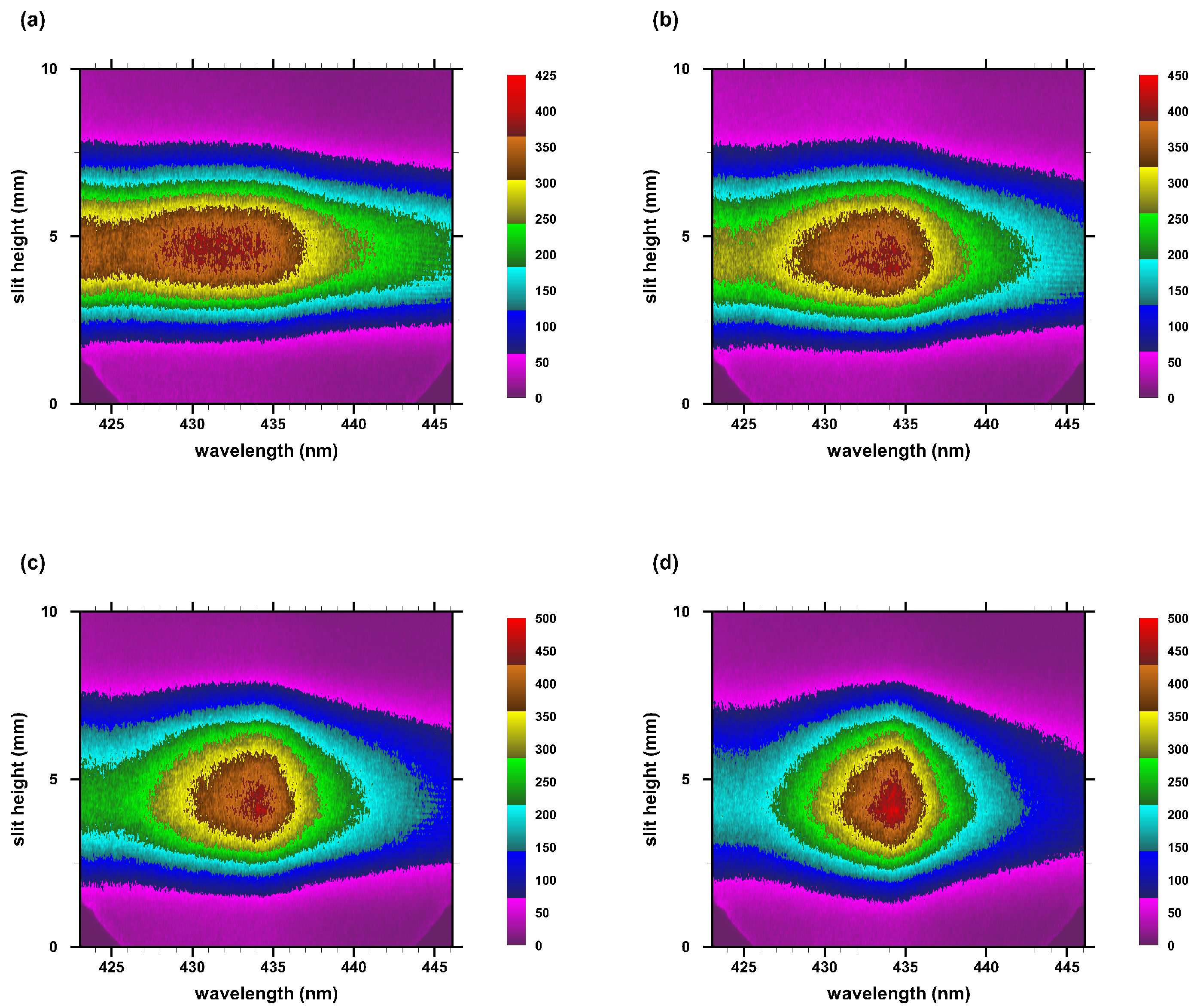

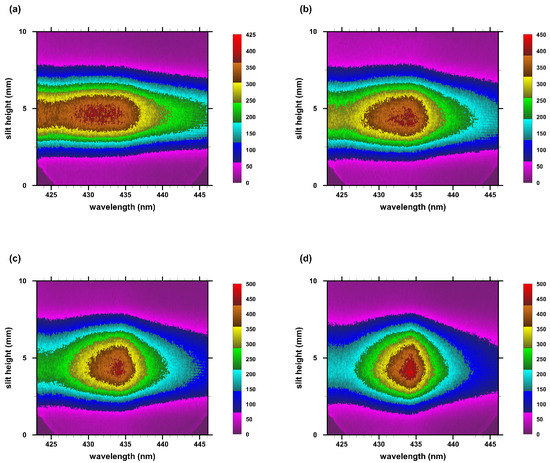

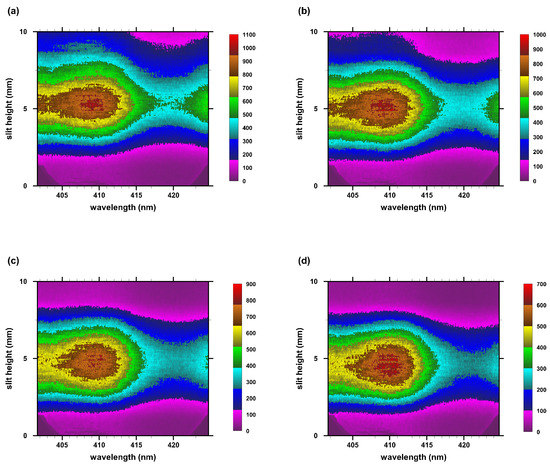

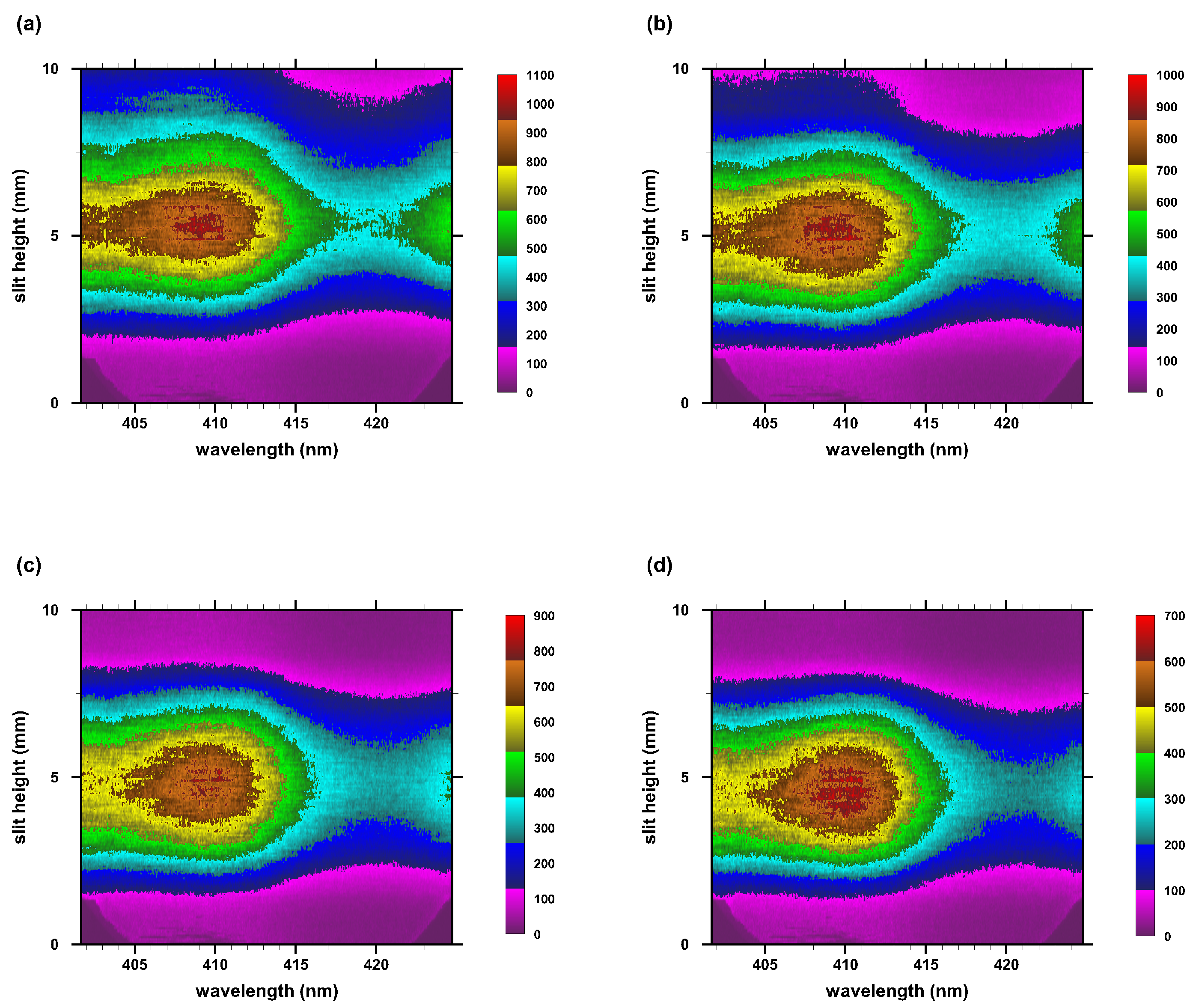

Figure 2 and Figure 3 illustrate recent measurements of H${}_{\mathsf{\delta }}$ and H${}_{\mathsf{\gamma }}$ lines of laser plasmas in hydrogen gas. The figures display the average of 100 individually accumulated ICCD images. In these experiments, the laser beam propagates parallel to the slit, from top to bottom as indicated in the experimental schematic (see Figure 1). The recorded data are corrected for detector background and wavelength sensitivity. Wavelength calibration is accomplished with standard pen-ray light sources. The displayed image values represent spectral radiance in arbitrary units.

Figure 2a displays H${}_{\mathsf{\gamma }}$ (at 434.07 nm) at the low-wavelength side of the image, background contributions from H${}_{\mathsf{\delta }}$ (at 410.17 nm) and contributions from free-electron radiation. Figure 2d indicates diminished background contributions due to H${}_{\mathsf{\delta }}$. Analogously, Figure 3a shows H${}_{\mathsf{\delta }}$ with contributions from H${}_{\mathsf{\gamma }}$ at the high wavelength side of the image. On the low wavelength side but outside the recorded spectral window, the indicated contributions are likely from H${}_{\mathsf{ϵ}}$ (at 397.01 nm) and are noticeable for all time delays in Figure 3. The full-width at half-maxima (FWHM) are extracted from the data for determination of electron densities as a function of time delay.

Results for the H${}_{\mathsf{\beta }}$ and H${}_{\mathsf{\alpha }}$ and analysis were presented previously [5,6]. Electron densities from H${}_{\mathsf{\beta }}$ agree with those from H${}_{\mathsf{\alpha }}$ [5,6]. Averages of the spatially resolved data along the slit yield spectra that appear similar to those recorded with a linear diode array [8]. Previously recorded H${}_{\mathsf{\alpha }}$ and H${}_{\mathsf{\beta }}$ experiments using a photomultiplier while scanning the spectrometer [8] debate comparisons of the advanced Stark-broadening theory [20] with the standard theory [21].

The recorded H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ maps reveal expected variations along the slit dimension. This work reports analysis of the spectra displayed in Figure 2 and Figure 3. Published line shapes [21] are utilized for determination of electron density. The H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ tables [21] are only available up to electron densities of ${10}^{17}{\mathrm{cm}}^{-3}$ with temperatures up to 20 kK, but the tables usually show a weak temperature dependence. Both H${}_{\mathsf{\beta }}$ and H${}_{\mathsf{\delta }}$ show the typical dip at the center wavelength due to absence of the Stark component there.

Analysis of the recorded spectra encompasses determination of temperature from the integrated line-to-continuum ratios. Electron density measurements utilize full-width at half-maximum and for H${}_{\mathsf{\beta }}$ and $H_{\mathsf{\gamma }}$ peak-separation. However, the H${}_{\mathsf{\gamma }}$ peak separation method is applied in analysis of experiments in 0.136-atm:0.136-atm H${}_2$:N${}_2$ gas mixtures [22] that show electron densities in the range of 0.1–$1\times {10}^{17}{\mathrm{cm}}^{-3}$ for time delays longer than those for the 0.75-atm H${}_2$ experiments addressed in this work.

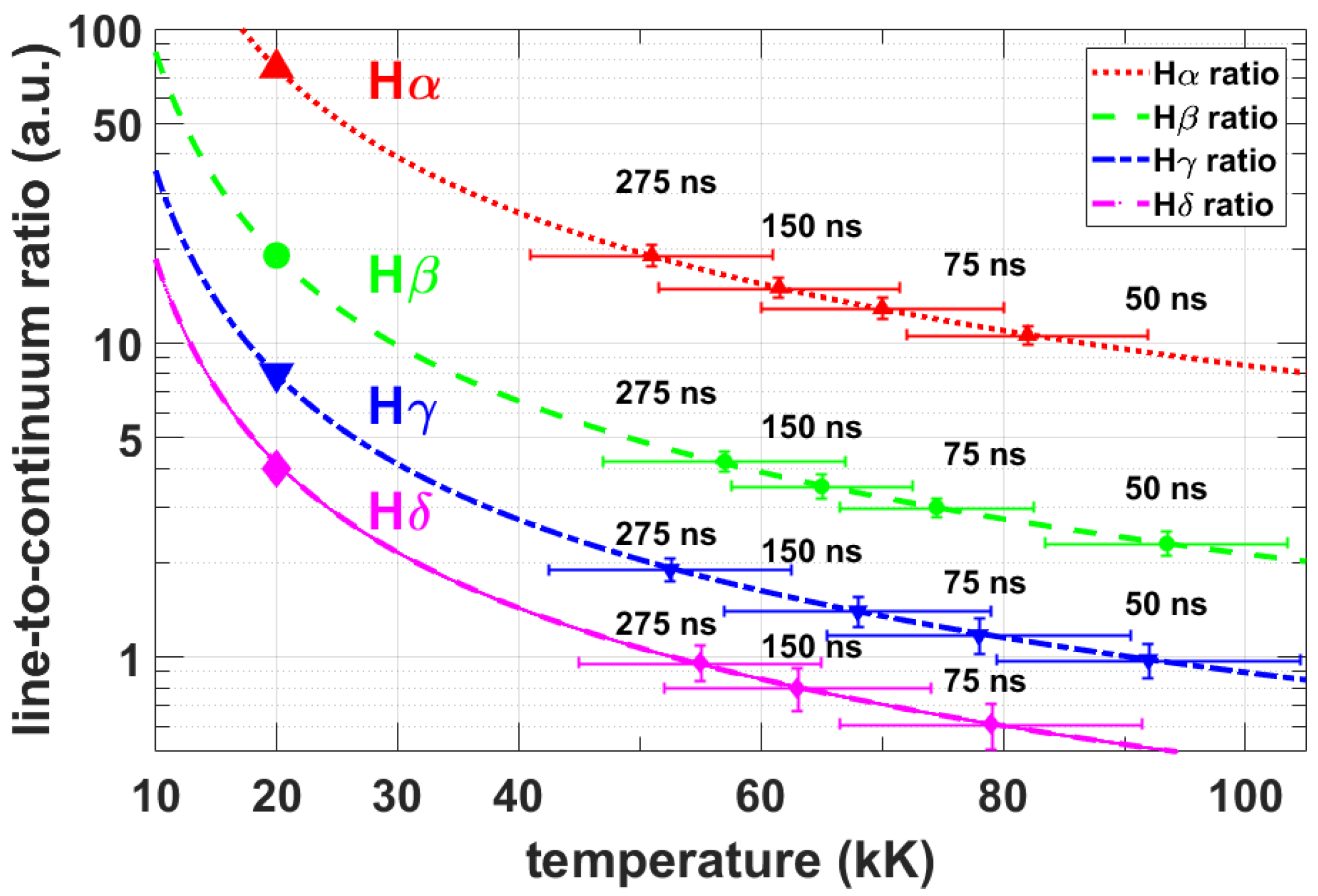

Figure 4 illustrates the line-to-continuum ratios and corresponding temperatures. The theoretical ratios of integrated line to 10-nm continuum ratios are recalculated [23], and the experimental data are added with error bars. The results for H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ agree with previously communicated H${}_{\mathsf{\alpha }}$ and H${}_{\mathsf{\beta }}$ results [5]. Figure 5a,b shows Boltzmann plots [24,25] and inferred temperature for time delays of 275 ns and 150 ns, respectively. The error bars reflect uncertainties in determination of the baseline. Temperatures from line-to-continuum ratios and Boltzmann plots agree.

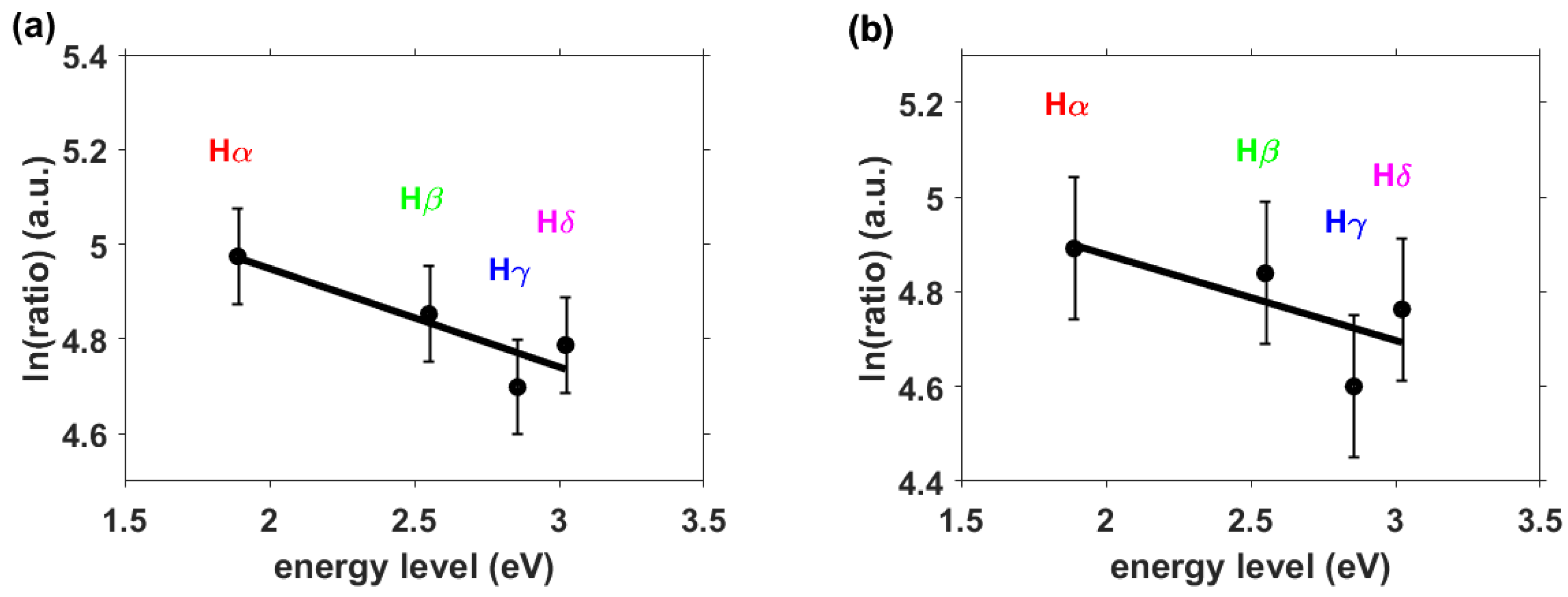

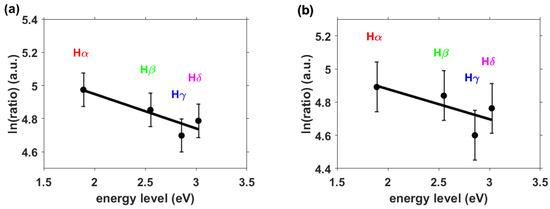

The Boltzmann plot utilizes the natural logarithm of the Boltzmann distribution for determination of the temperature,

$$ln\left\{\frac{{\mathrm{I}}_{\mathrm{ul}}{\mathsf{\lambda }}_{\mathrm{ul}}}{{\mathrm{g}}_{\mathrm{u}}{\mathrm{A}}_{\mathrm{ul}}}\right\}=-\left\{\frac{{\mathrm{E}}_{\mathrm{u}}\left[\mathrm{eV}\right]}{\mathrm{T}\left[\mathrm{eV}\right]}\right\}+ln\mathrm{C},$$

(1)

where the integrated line intensities, ${\mathrm{I}}_{\mathrm{ul}}$, are determined in the experiment. The wavelengths, ${\mathsf{\lambda }}_{\mathrm{ul}}$, are 656.28 nm, 486.14 nm, 434.05 nm, and 410.17 nm, with degeneracies, ${\mathrm{g}}_{\mathrm{u}}$, 18, 32, 50, and 72. Transition probabilities, ${\mathrm{A}}_{\mathrm{ul}}$ are 4.410 $\times {10}^7{\mathrm{s}}^{-1}$, 0.8419 $\times {10}^7{\mathrm{s}}^{-1}$, 0.2530 $\times {10}^7{\mathrm{s}}^{-1}$, and 0.09732 $\times {10}^7{\mathrm{s}}^{-1}$. The excitation energies, ${\mathrm{E}}_{\mathrm{u}}$, are 1.89 eV, 2.55 eV, 2.856 eV, and 3.022 eV for H${}_{\mathsf{\alpha }}$, H${}_{\mathsf{\beta }}$, H${}_{\mathsf{\gamma }}$, H${}_{\mathsf{\delta }}$, respectively. The constant, $ln\mathrm{C}$, is not used—only the slope determines the temperature. Figure 5 displays ${\displaystyle ln\left\{\mathrm{ratio}\right\}=ln\left\{\frac{{\mathrm{I}}_{\mathrm{ul}}{\mathsf{\lambda }}_{\mathrm{ul}}}{{\mathrm{g}}_{\mathrm{u}}{\mathrm{A}}_{\mathrm{ul}}}\right\}}$ versus ${\mathrm{E}}_{\mathrm{u}}$.

There are expected density variations across the slit height, but the analysis evaluates averages of the displayed spectra. For practical reasons, Lorentzian fitting is applied to find the full-width at half-maximum (FWHM) of the experimental spectra. From log-log fitting of H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ tables in the range of 0.1–$1\times {10}^{17}{\mathrm{cm}}^{-3}$, one obtains for H${}_{\mathsf{\gamma }}$ FWHM, $\Delta {\lambda }_{\mathsf{\gamma }}$,

$$\Delta {\lambda }_{\mathsf{\gamma }}\left[\mathrm{nm}\right]=6.0{\left(\frac{{\mathrm{N}}_{\mathrm{e}}\left[{\mathrm{cm}}^{-3}\right]}{{10}^{17}}\right)}^{0.72},$$

(2)

and for H${}_{\mathsf{\delta }}$ FWHM, $\Delta {\lambda }_{\mathsf{\delta }}$,

$$\Delta {\lambda }_{\mathsf{\delta }}\left[\mathrm{nm}\right]=10{\left(\frac{{\mathrm{N}}_{\mathrm{e}}\left[{\mathrm{cm}}^{-3}\right]}{{10}^{17}}\right)}^{0.67}.$$

(3)

Similar to H${}_{\mathsf{\beta }}$, the H${}_{\mathsf{\delta }}$ peak-separation, $\Delta {\lambda }_{\mathsf{\delta }-\mathrm{ps}}$, in the range of 0.1 $\times {10}^{17}{\mathrm{cm}}^{-3}$ to 1 $\times {10}^{17}{\mathrm{cm}}^{-3}$ amounts to

$$\Delta {\lambda }_{\mathsf{\delta }-\mathrm{ps}}\left[\mathrm{nm}\right]=2.0{\left(\frac{{\mathrm{N}}_{\mathrm{e}}\left[{\mathrm{cm}}^{-3}\right]}{{10}^{17}}\right)}^{0.62}.$$

(4)

In this work, density determinations are exclusively from FWHM of the first four Balmer series lines. Future work will address density determination from H${}_{\mathsf{\delta }}$ peak separations that become distinguishable for electron densities in the range of 0.1–$1\times {10}^{17}{\mathrm{cm}}^{-3}$, but for longer time delays than 275 ns.

For time delay of 275 ns, the FWHM for H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ are 9.1 ± 2 nm and 14.8 ± 2 nm, respectively. From Equations (2) and (3), one finds electron densities of 1.78 ± 0.4 $\times {10}^{17}{\mathrm{cm}}^{-3}$ from H${}_{\mathsf{\gamma }}$ and 1.8 ± 0.3 $\times {10}^{17}{\mathrm{cm}}^{-3}$ from H${}_{\mathsf{\delta }}$. The estimated error bars are primarily due to errors in determining the baseline for the measured line profiles in the 24-nm spectral window selected for each Balmer series line. However, the H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ values would extrapolate the formulas that are listed to be valid up to 1 $\times {10}^{17}{\mathrm{cm}}^{-3}$. However, the results would be consistent with electron densities obtained from H${}_{\mathsf{\alpha }}$ and H${}_{\mathsf{\beta }}$ lines [5,6], namely, 1.9 $\times {10}^{17}{\mathrm{cm}}^{-3}$.

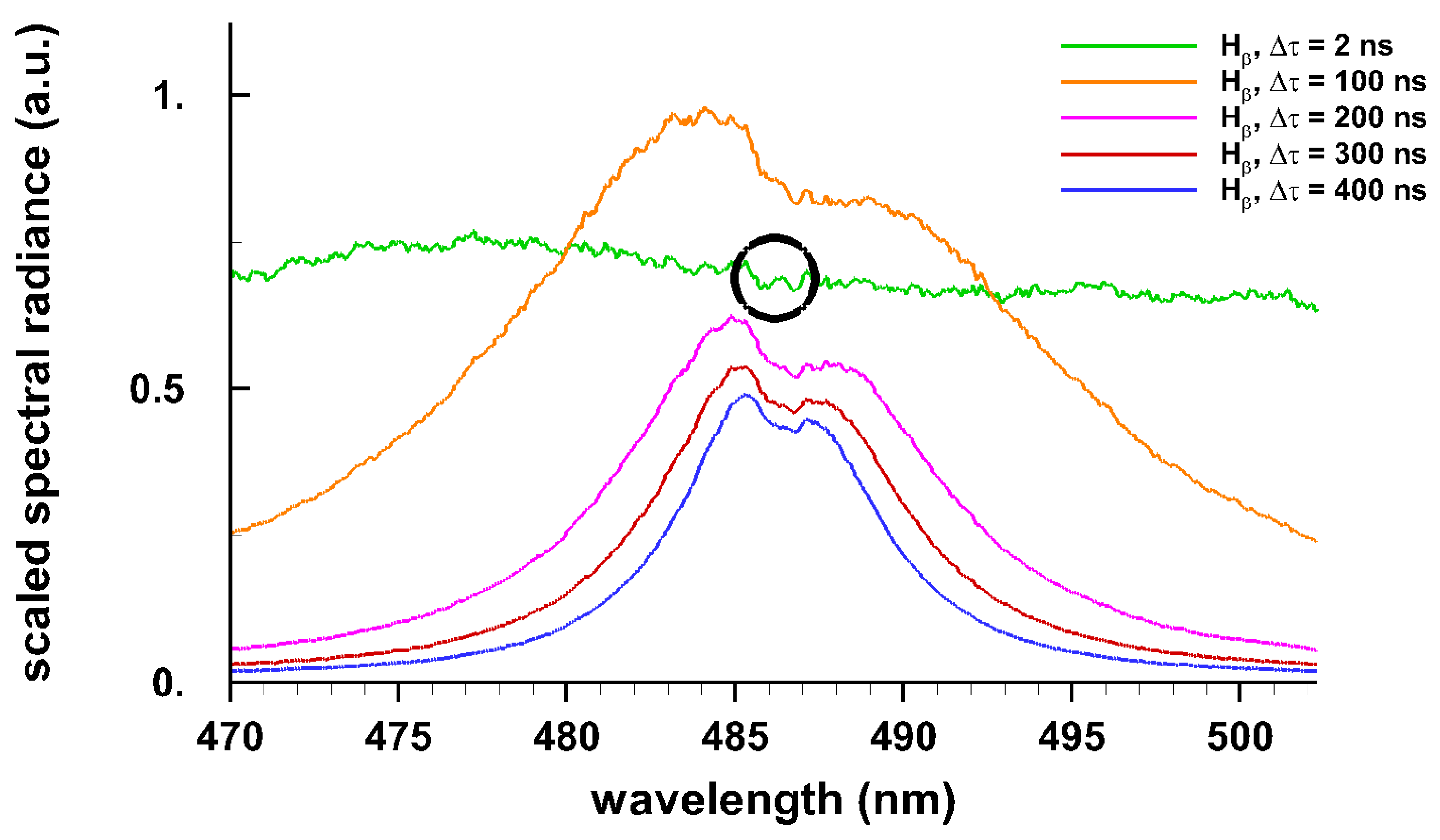

In the time-resolved laboratory data, there are pressure shifts that are larger than the gravitational- or Einstein-shift. Figure 6 exhibits the hydrogen beta line with the expected two peaks, one blue-shifted and one red-shifted due to pressure broadening [26]. The displayed data represent a re-examination of previously recorded spectra [8] in view of self-absorption and comparison with WD spectra.

The appearance of the H${}_{\mathsf{\beta }}$ line shape is illustrated for electron densities of the order of up to $60\times {10}^{17}{\mathrm{cm}}^{-3}$, i.e., $\mathsf{\eta }\simeq 0.24$, or for electron density inferences from H${}_{\mathsf{\beta }}$ near the estimated Inglis–Teller limit [9]. For $\mathsf{\tau }=2\mathrm{ns}$, it is difficult to speak of a traditional line shape because only the central portion can be demarcated. The 2-ns line-of-sight data are recorded near the tail of the laser pulse; consequently, experimental variations are expected for the accumulated averages. Figure 6 shows the H${}_{\mathsf{\beta }}$ line close to the Inglis–Teller limit [9] for $\mathsf{\tau }=2\mathrm{ns}$.

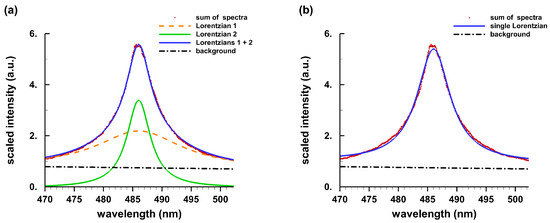

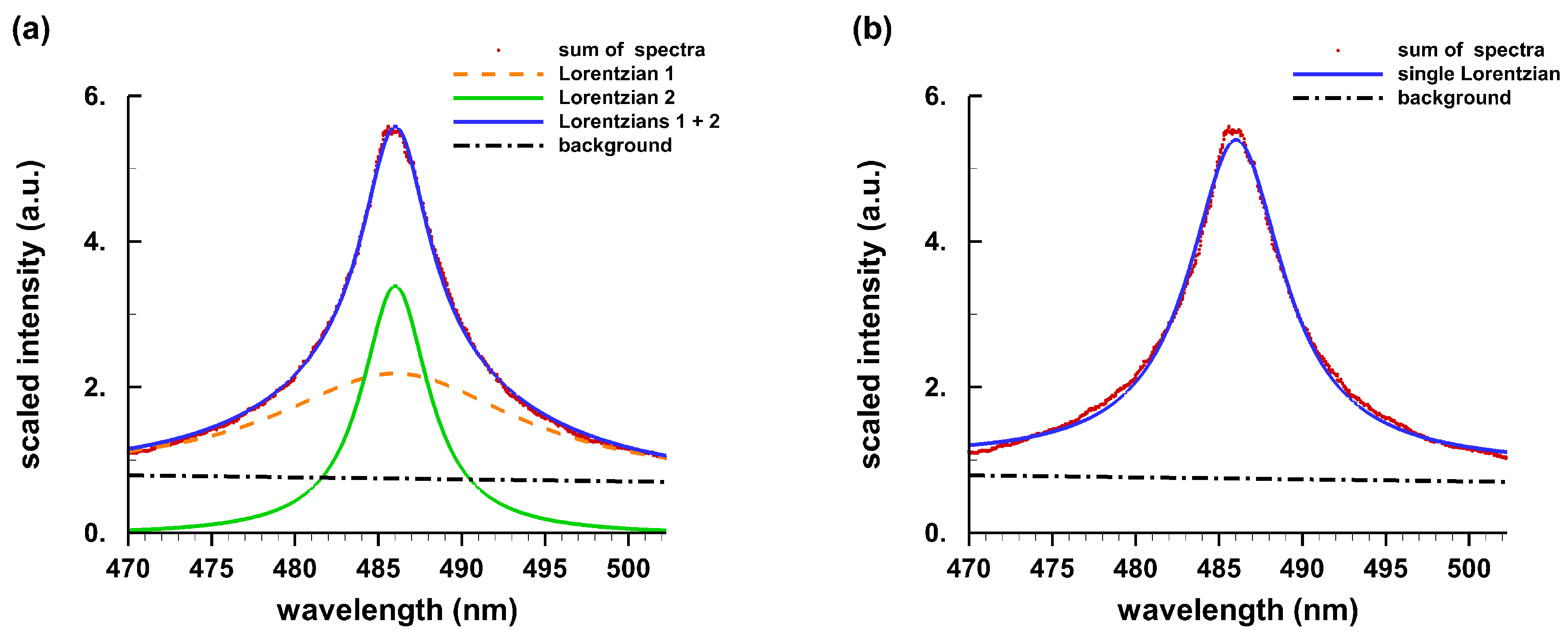

Figure 7 illustrates results from fitting the summed profile using one or two Lorentzians. Figure 7 also illustrates that the peak-separation is significantly modified or masked by contributions from lower density lines; moreover, a single Lorentzian fit (Figure 7b) is not adequate due to the discrepancies near the peak. With impact broadening [27], the dominant process in the wings, it appears reasonable to consider Lorentzians for fitting of the spectra. Strictly speaking, hydrogen Stark profiles show asymmetries [28] that adversely affect the spectral line wings. The variations in the wings due to asymmetries are not explicitly considered in this work but are expected to be covered with the estimated error margins included in the Boltzmann plots.

The double Lorentzian fit, Figure 7a, simulates the summed profile as a superposition from two regions that show different electron density. As the plasma expands spatially and temporally, and if one were to record continuously, one would expect several regions of different density contributing to the recorded signal.

Adding the original spectra [8], recorded in the first 2.5 $\mathsf{\mu }$s temporal window with 6-ns gate-widths, yields a result similar to using a longer gate-width in the measurement. Strictly speaking, use of gate-widths and gate-delays that entirely cover the first 2.5 $\mathsf{\mu }$s, and then adding the results would be equivalent to using a 2.5 $\mathsf{\mu }$s gate. Nevertheless, Figure 7b is an acceptable representation of continuous recording as was the case for the collection of WD spectra.

Expanding laser-induced plasma is usually accompanied by a hypersonic shock wave, including rarefaction waves and associated temperature and density gradient regions that contribute in line-of-sight experiments. One can utilize integral inversion techniques to explore the spatial plasma distribution, or one can investigate line shape details in the data reduction of the spectra. In analogy with laser-ablation, occurrence of density variations can be attributed to formation of particle clusters [29,30] that can be studied with flowing gas leading to percolation effects that may cause line shapes that require double-Lorentzian line shape analysis.

Self-absorption of the H${}_{\mathsf{\alpha }}$ line [31] and the H${}_{\mathsf{\beta }}$ line [32,33] is investigated with the so-called doubling-mirror method [34] for further evaluation of the H${}_{\mathsf{\beta }}$ line electron-density diagnosis [35]. Time-resolved spectra of H${}_{\mathsf{\alpha }}$ are systematically collected with 10-ns gate widths in 100-ns time-delay steps [10,36]. Laser-plasma spectra are collected in standard ambient pressure and temperature (SATP) air. Figure 8 and Figure 9 display measured spectra versus slit height for time delays of 300 ns, 400 ns, 700 ns, and 800-ns after initiation of optical breakdown in air.

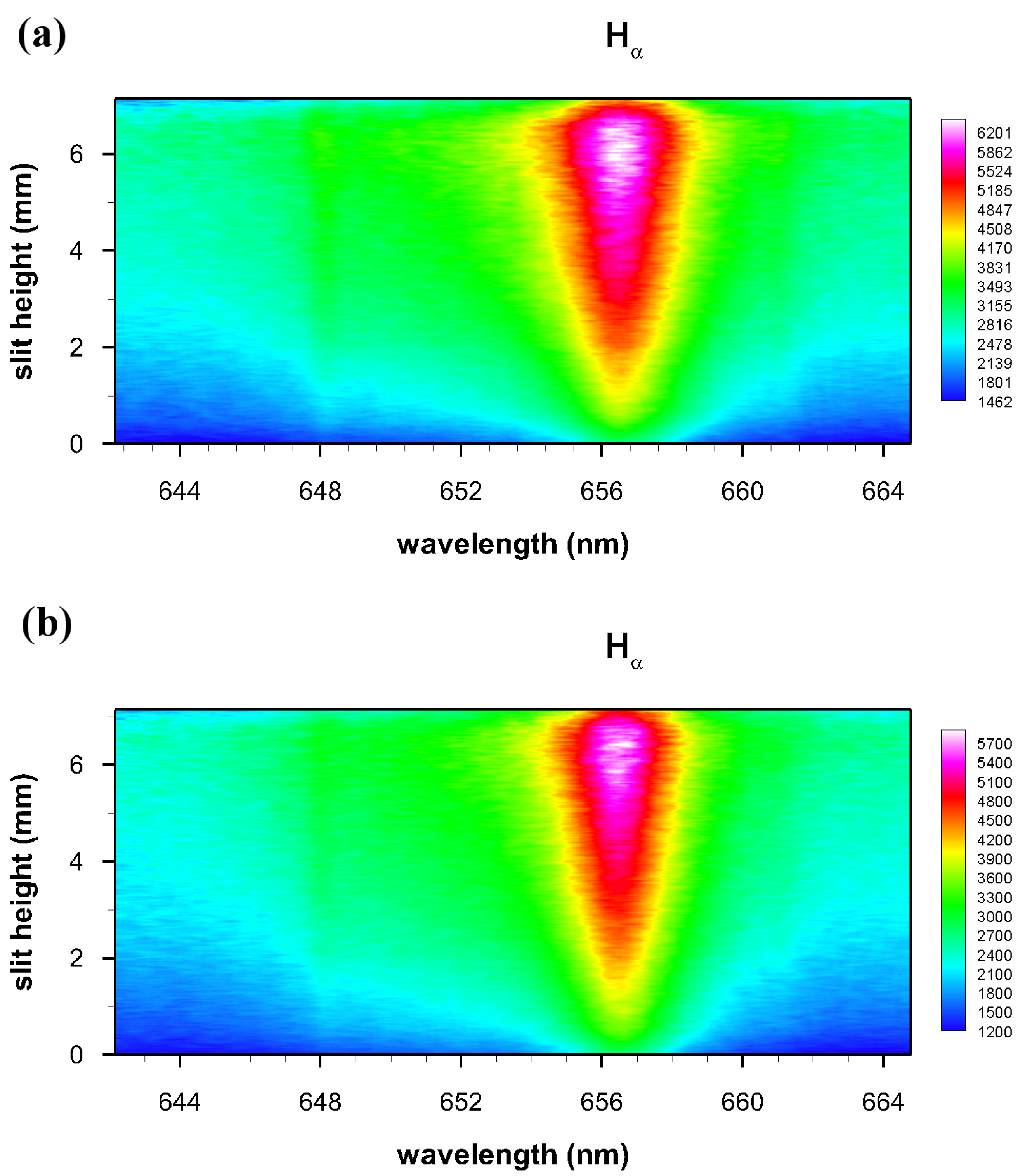

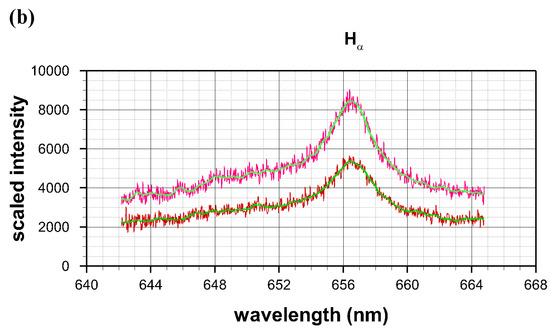

Comparisons of data recorded with and without the doubling mirror elucidate the level of self-absorption. With respect to the indicated slit height in Figure 8 and Figure 9, Figure 10 illustrates Savitzky–Golay filtered spectra for 300 ns and 800 ns time delays.

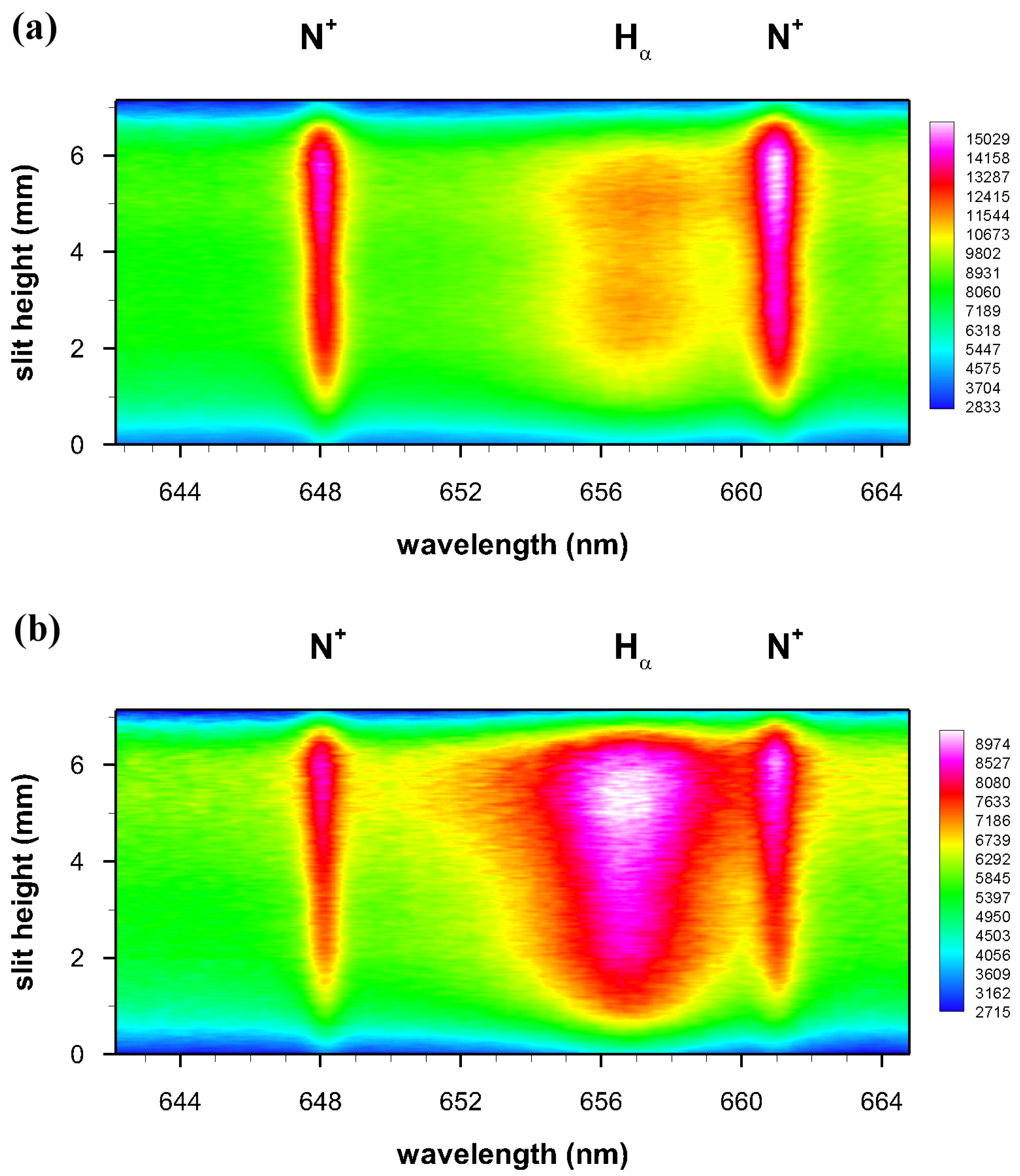

The electron density can be determined from H${}_{\mathsf{\alpha }}$ Stark broadening and shift, but it can equally be determined from ionized nitrogen N${}^{+}$ lines for early time delays. The H${}_{\mathsf{\alpha }}$ line is red-shifted from 656.28 nm (see Figure 10a) but the N${}^{+}$ lines are only slightly shifted from 648.21 nm and 661.06 nm. The electron density of 14 to 20 $\times {10}^{17}{\mathrm{cm}}^{-3}$ determined from the H${}_{\mathsf{\alpha }}$ line is higher than 12 to 13 $\times {10}^{17}{\mathrm{cm}}^{-3}$ obtained from N${}^{+}$ for the 300 ns time delays. Therefore, H${}_{\mathsf{\alpha }}$ shows self-absorption for delays of 300 ns. Obviously, inferences from the FWHM of self-absorbed lines will lead to larger than true values for the electron density. However, the level of self-absorption is insignificant for determination of electron density for time delays of 800 ns after optical breakdown, Figure 10b.

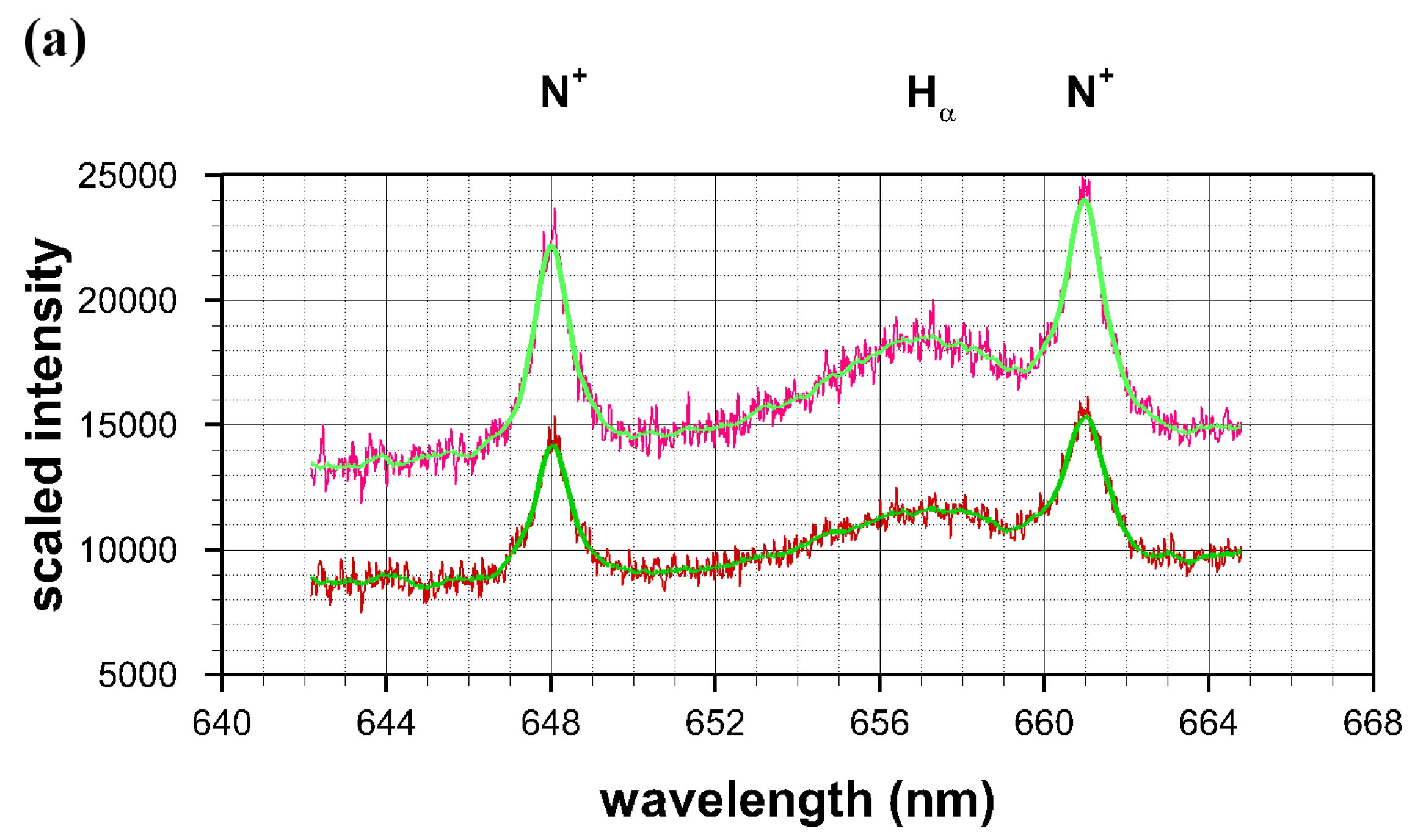

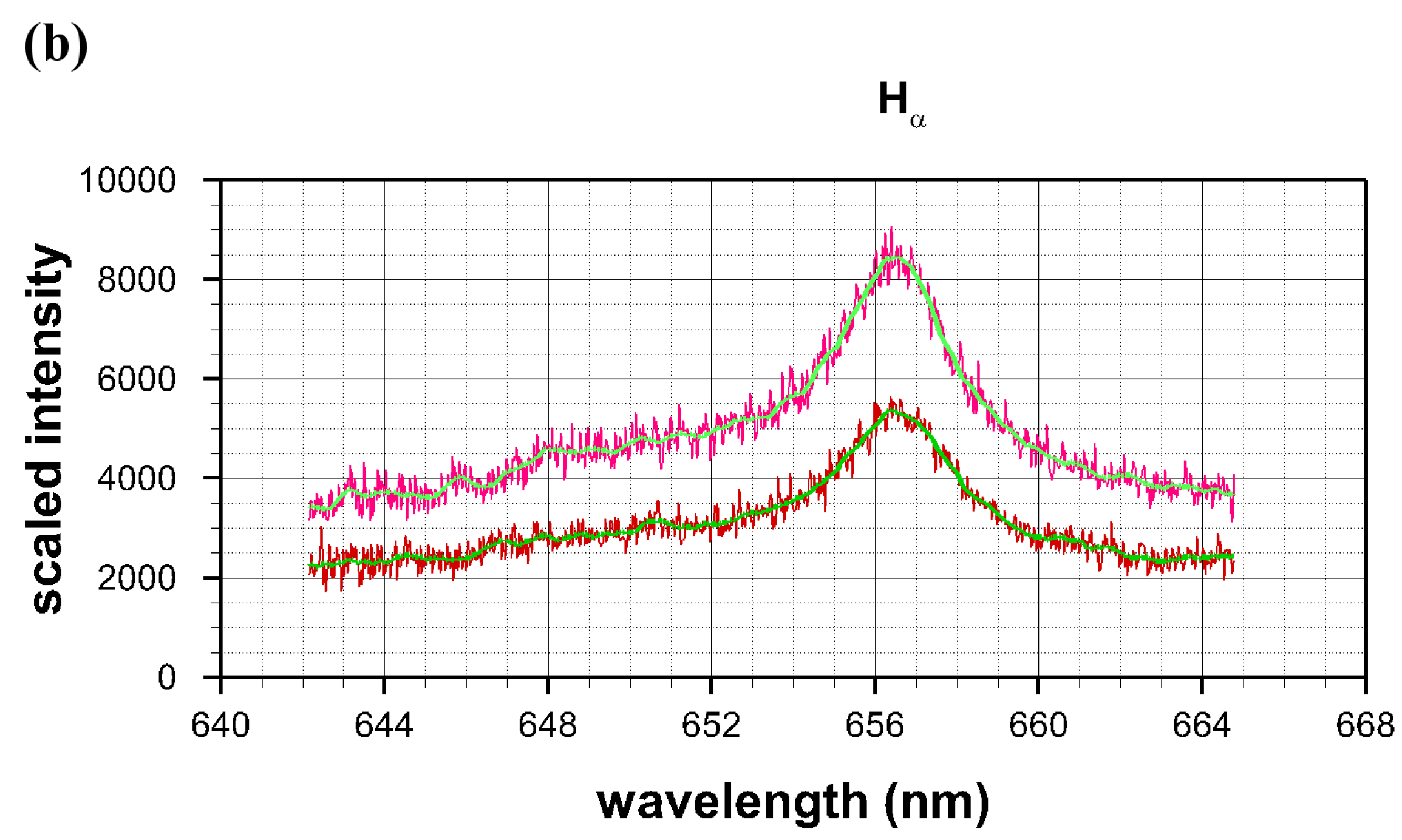

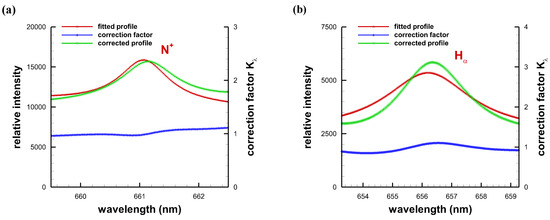

Details of the 661.06-nm N${}^{+}$ and 656.28-nm H${}_{\mathsf{\alpha }}$ lines reveal asymmetries that can be corrected using the doubling mirror approach [34]. The correction factor, K${}_{\mathsf{\lambda }}$ or K${}_{\mathrm{corr}}$,

$${\mathrm{K}}_{\mathsf{\lambda }}={\mathrm{K}}_{\mathrm{corr}}=\frac{ln\left({\mathrm{y}}_{\mathsf{\lambda }}\right)}{{\mathrm{y}}_{\mathsf{\lambda }}-1},{\mathrm{y}}_{\mathsf{\lambda }}=\frac{{\mathrm{R}}_{\mathsf{\lambda }}-1}{{\mathrm{R}}_{\mathrm{C}}-1}.$$

(5)

Analysis of the experimental data yields the ratio of the continuum radiation, R${}_{\mathrm{C}}$, and the signal ratio, R${}_{\mathsf{\lambda }}$, as function of wavelength, $\mathsf{\lambda }$. Figure 11 illustrates the results.

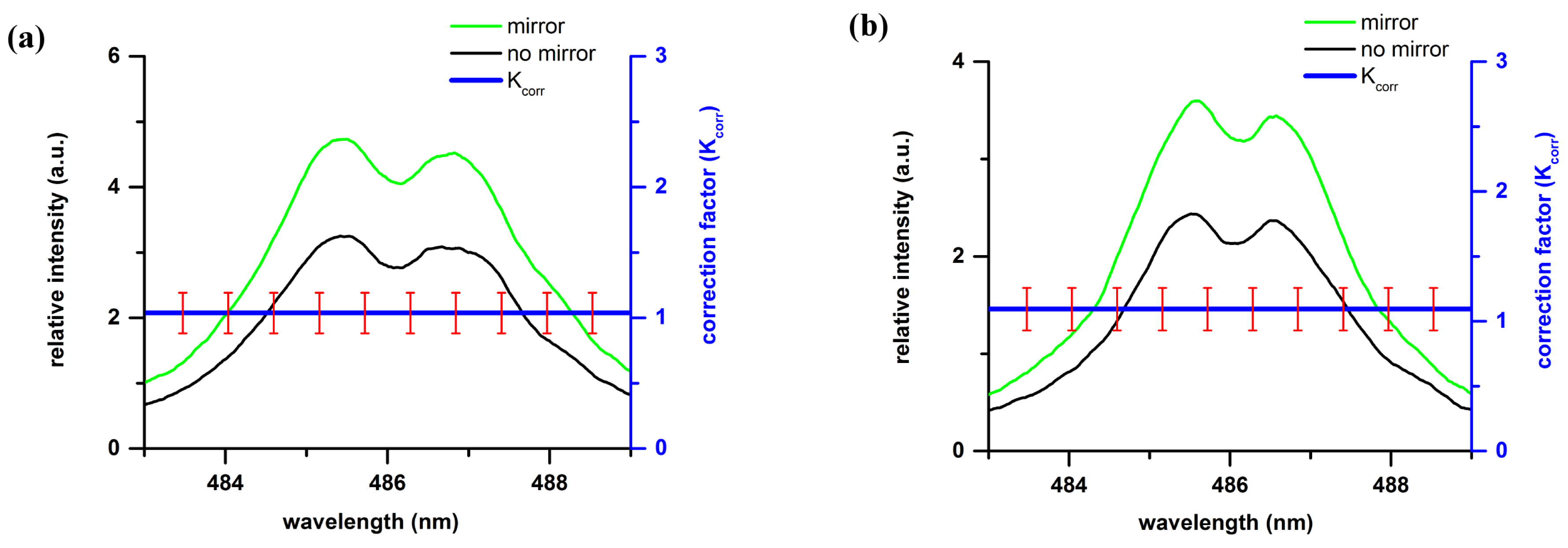

Additional experiments [32,33] focus on the H${}_{\mathsf{\beta }}$ line and for electron densities of the order of ${10}^{17}{\mathrm{cm}}^{-3}$ using a gate width of 0.5 $\mathsf{\mu }$s and steps of 1 $\mathsf{\mu }$s. Figure 12 a,b shows data recorded at time delay of 5 $\mathsf{\mu }$s and 7 $\mathsf{\mu }$s, respectively, from initiation of optical breakdown plasma. A plane mirror of 90 percent reflectance and a lens of 94 percent transmittance are employed to image the plasma onto itself, doubling in an ideal case the measured signal for optically thin laser-plasma.

From fitting data to the H${}_{\mathsf{\beta }}$ line [32], electron densities of 0.73 $\times {10}^{17}{\mathrm{cm}}^{-3}$ and 0.69 $\times {10}^{17}{\mathrm{cm}}^{-3}$ are determined without and with the doubling mirror, respectively. For comparison, the N II 491.92-nm nitrogen line (measured simultaneously with H${}_{\mathsf{\beta }}$) indicates electron densities of 0.72 $\times {10}^{17}{\mathrm{cm}}^{-3}$ and 0. 77 $\times {10}^{17}{\mathrm{cm}}^{-3}$ without and with the doubling mirror, respectively. In addition, electron densities are determined from the H${}_{\mathsf{\beta }}$ peak separation. The electron density result suggests hardly any or an insignificant amount of self-absorption.

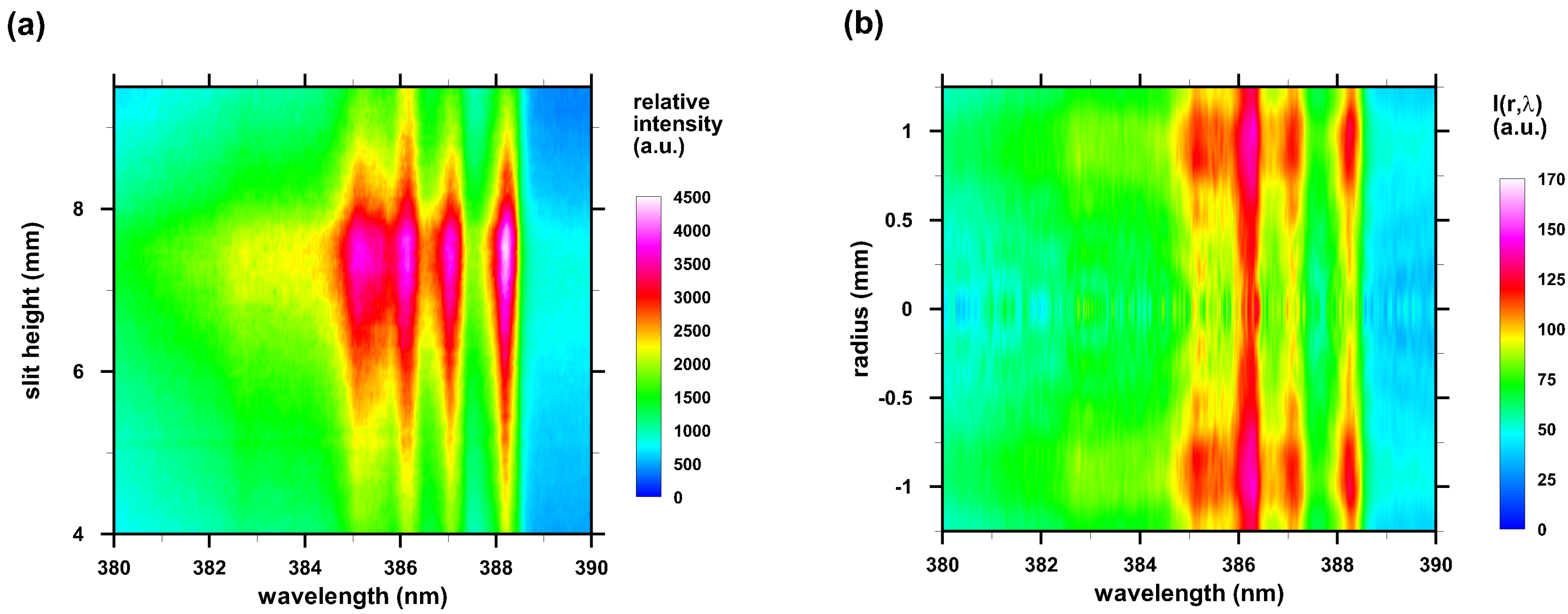

Recent work focuses on atomic and diatomic molecular emission spectroscopy [31]. Figure 13a,b illustrates line-of-sight and Abel-inverted spatial distribution of CN and the atomic carbon CI 193.09-nm line measured in second order. In principle, local electron density and temperature distribution can be evaluated without resorting to Abel inversion [37]. For laser-plasma, the outgoing shockwave exhibits electron density and temperature maxima near the edges of the slit-dimension in Figure 13a that can be directly evaluated from recorded CI line-of-sight spectra in these regions—plasma core contributions are negligible near the edges. Consequently, the sensitivity of an analysis without Abel inversion is expected to be close to that of line-of-sight diagnosis. For electron density and temperature distributions that show maxima near the center and monotonically decrease outwards, usually realized in laser-induced plasma for delays of several microseconds, the suggested method [37] for determination of plasma parameters should work well. However, adaptations of the method would be required due to occurrence of electron density and temperature maxima associated with the expanding laser-plasma shockwave.

Plasma expansion dynamics following laser-induced optical breakdown in gases show formation of cyanide, CN, within the first few 100 ns after optical breakdown. Time-resolved, integral-inverted, line-of-sight measurements within the first microsecond reveal spatial distributions [38]. Expansion dynamics clearly affect the distribution of electrons and molecules for time delays of 700 ns (see Figure 13b). Abel inverted CN spectra appear nearly uniform for a time delay of 1950 ns [38,39].

4. Application to Analysis of White Dwarf Spectra

Collection of spectra from white dwarf stars preferably occurs with a resolving power sufficient for determination of the gravitational shift. Recent data for the white dwarf star GD 394 B, recorded with an echelle spectrometer on 15 November 2015, with KOA-ID: HI.20151115.19364 [3], show a resolving power of R = 38,000, or a resolution of $\Delta \mathsf{\lambda }=0.013$ nm.

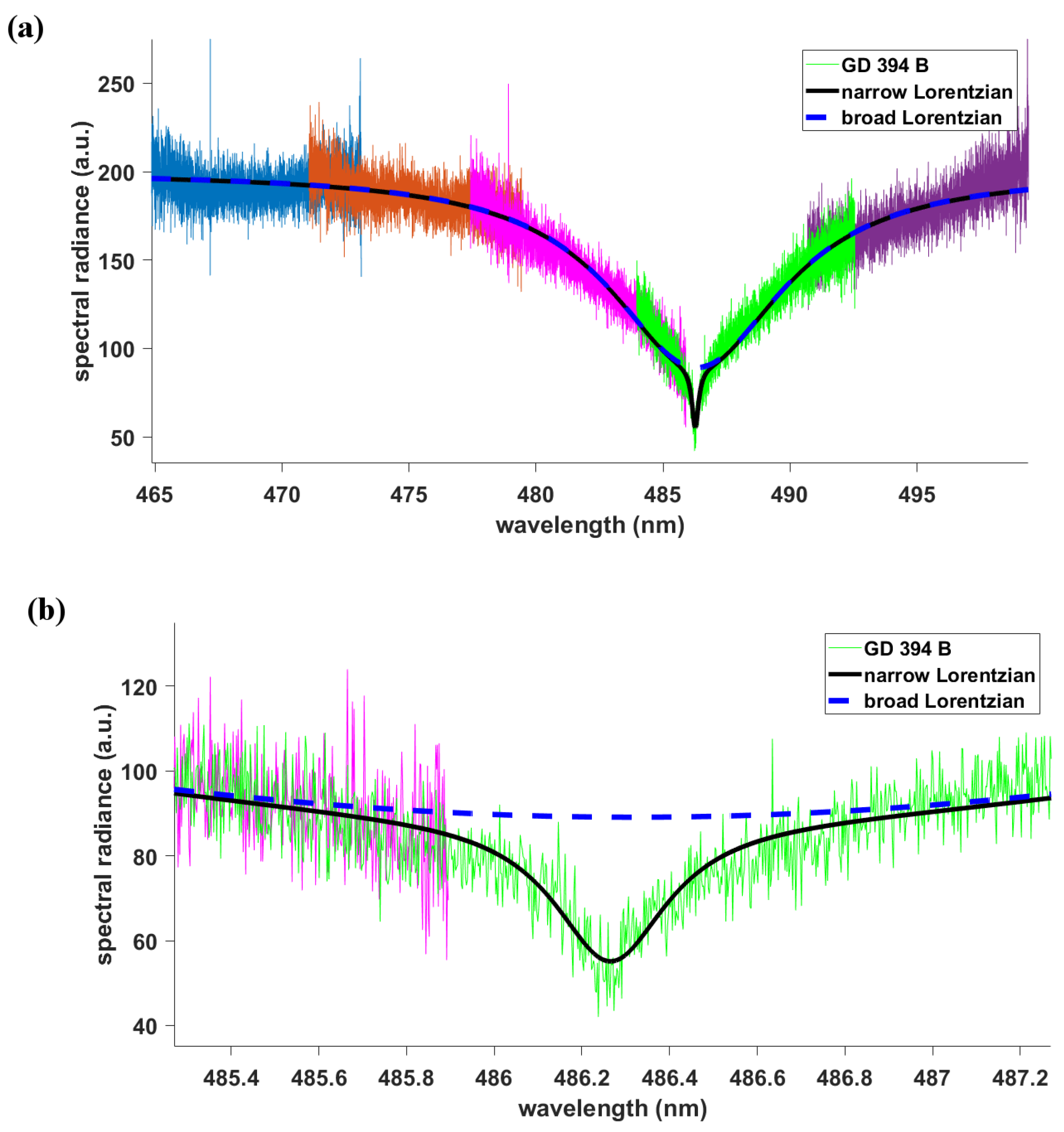

Figure 14a illustrates five overlapped regions of the recorded echelle spectra together with broad and narrow Lorentzian fits. Figure 14b shows the expanded region of the central absorption. Both broad and narrow features of a white dwarf (WD), astrophysical plasma are usually understood as absorptions from an outer region of the WD photosphere. However, it can also be labelled “self-absorption” of the emitted WD radiation.

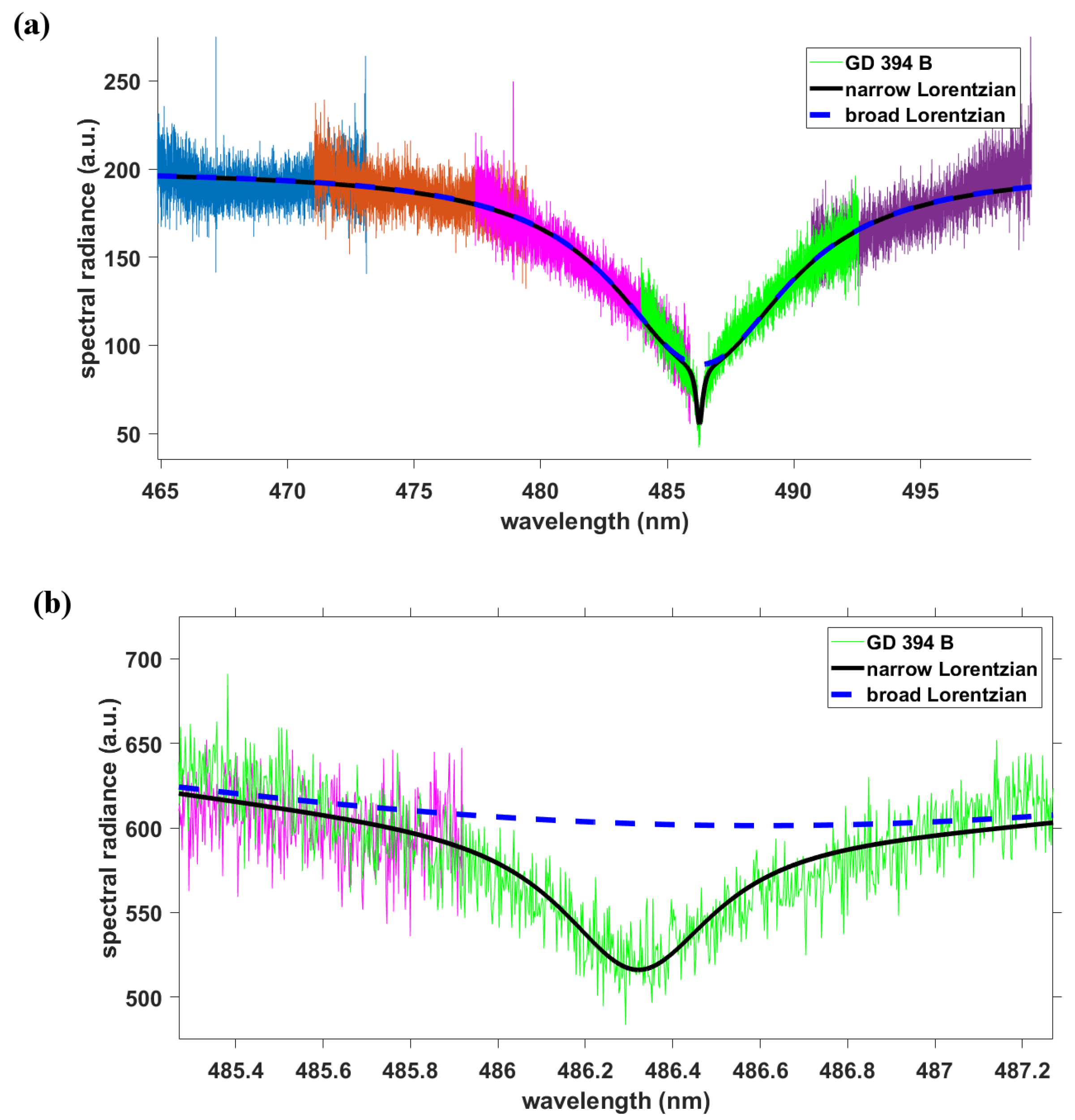

Previously communicated analysis of the GD 394 B, H${}_{\mathsf{\beta }}$ spectra [40] shows narrow and broad photosphere absorption-widths of 0.39 nm and 7.3 nm that would indicate electron densities of 0.032 and 2.0 $\times {10}^{17}{\mathrm{cm}}^{-3}$, respectively. Re-analysis of the GD 394 B white dwarf data with two Lorentzian fits [41] and using all data points from overlapped regions of echelle orders leads to widths of 0.32 nm and 8.4 nm with corresponding electron densities of 0.022 and 2.2 $\times {10}^{17}{\mathrm{cm}}^{-3}$, respectively. Considering the error margins for the electron density measurements from the H${}_{\mathsf{\beta }}$ line [6], both results agree. Moreover, the analysis with two symmetric Lorentzians reveals 0.12-nm (average overlapped data) and 0.13-nm (use all echelle data) redshifts. Data from the same day with KOA-ID: HI.20151115.16693 and HI.20151115.17054 show fitted redshifts (average overlapped data) of 0.19 nm and 0.15 nm, respectively. Figure 15 displays the spectra for the HI.20151115.17054 data, indicating a 0.18-nm redshift of the central, narrow absorption when fitting all overlapped, available data.

The gravitational redshift of 0.043 nm (26.77 km/s) and the photospheric component of $0.047\mathrm{nm}$ (29.3 km/s) [42] account for a 0.09-nm redshift. Further improvements in fitting with possibly asymmetric line-shapes or adjustments to the background slope could very well confirm an overall redshift of 0.09 nm within error bars. Analysis of the white dwarf HG 7-85 from the Hyades cluster yields consistent results [6,43] for broad Lorentzian center wavelength and gravitational shifts of $0.072\mathrm{nm}$ and 0.08 nm, respectively.

The comparison of laboratory and astrophysical spectra implies that different electron density regions in the atmosphere of the investigated hot (∼25 kK) white dwarf stars cause absorption contributions that mask H${}_{\mathsf{\beta }}$ peak separation and central dip-shifts. Molecular spectra display variations across vibrational bands, possibly indicating varying C${}_2$ concentrations of cool (∼7 kK) white dwarf atmospheres. Fitting of hydrogen spectra reveals broad and narrow profiles that may be caused by local thermodynamic non-equilibrium as WD stars cool [7,44]. The laser-induced plasma is well-reproduced in consecutive optical breakdown events allowing accumulations of several tens of laser-plasma events for each time delay. Recent laboratory measurements [45] explore white dwarf photospheric spectral lines to elucidate details in WD atmosphere modeling.

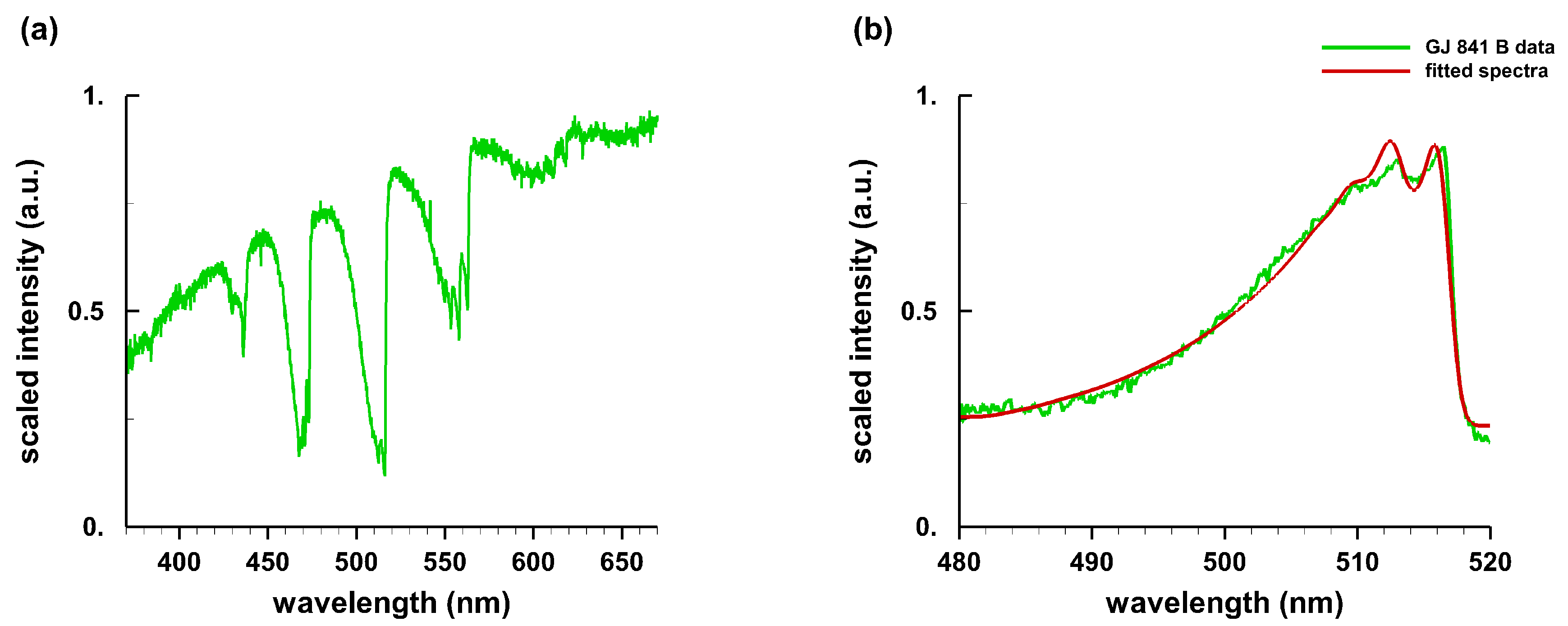

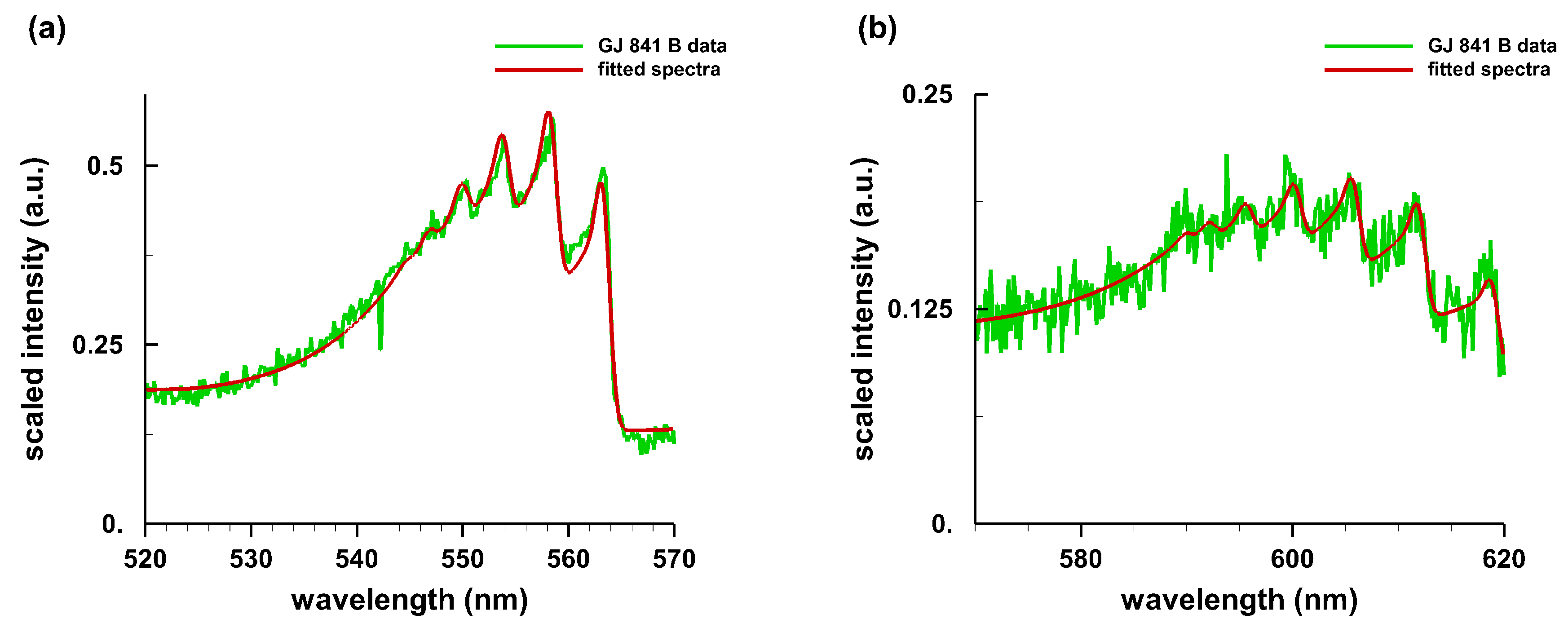

Figure 16a displays a WD molecular C${}_2$ Swan band absorption spectrum from GJ 841 B [46]. Analogous to analysis of C${}_2$ emission spectra in laser-induced plasma, the absorption spectrum in Figure 16a is inverted and subsequently analyzed with the well-established diatomic molecular fitting program [47]. Figure 16b illustrates fitting results for the strongest band $\Delta \mathrm{v}=0$ of the C${}_2$ Swan spectra.

Initial analysis indicates a temperature of 5.9 kK and a spectral resolution, $\mathsf{\delta }\mathsf{\lambda }$, of 2.5 nm for the entire range. The recorded data are shifted by an overall 0.5 nm to correct for wavelength accuracy. The $\mathrm{GJ}841\mathrm{B}$ spectra are captured with a resolving power of 833, so the $0.5\mathrm{nm}$ adjustment is of the order of the spectral resolution. The fitting of $\Delta \mathrm{v}=+2\mathrm{and}+1$ indicate best-fit spectral resolutions of $1.5\mathrm{nm}$ that are about a factor of 2 larger than those for $\Delta \mathrm{v}=-1\mathrm{and}-2$ fitting. The effective temperature of the GJ 841 B white dwarf is documented [2] to be ∼7.2 kK.

The analysis of the C${}_2$ absorption spectra suggests deviation from equilibrium due to the significant differences in computed and recorded spectra for the investigated bands. Figure 17 displays further results for the $\Delta \mathrm{v}=-1\mathrm{and}-2$ bands. The extracted temperature from fitting these selected bands is lower than that from fitting all bands $\Delta \mathrm{v}=+2,+1,0,-1,-2$. The temperature inferred from $\Delta \mathrm{v}=0$ bands is higher than that from the other bands.

5. Conclusions

Atomic and molecular emission spectra of the type encountered in laser-induced breakdown spectroscopy occur in astrophysical spectra from white dwarf stars. Gas-dynamic expansion affects distribution of the laser plasma, including distributions in the plasma core and just inside the expanding shock wave. Measured hydrogen electron densities and temperatures are in the range of 1–$100\times {10}^{17}{\mathrm{cm}}^{-3}$ and 10 kK to 120 kK (1–10 eV), respectively. Self-absorption does not affect electron density determinations in the range of 1–$10\times {10}^{17}{\mathrm{cm}}^{-3}$ from H${}_{\mathsf{\alpha }}$, but for electron densities in the range of 1–3 $\times {10}^{17}{\mathrm{cm}}^{-3}$ the H${}_{\mathsf{\beta }}$ line is preferred. H${}_{\mathsf{\gamma }}$ and H${}_{\mathsf{\delta }}$ appear well-suited for electron densities in the range of 0.1–1 $\times {10}^{17}{\mathrm{cm}}^{-3}$. However, laser ablation of solids reveals electron densities that are significantly higher close to the target than those encountered in gaseous breakdown plasma. Abel-inverted hydrogen and cyanide spectra indicate expansion dynamics, e.g., outgoing electron density and temperature waves. Plasma diagnosis is best accomplished with spatial and temporal resolution.
