Structural Insight into the Mechanism of σ32-Mediated Transcription Initiation of Bacterial RNA Polymerase

Abstract

Bacterial RNA polymerases (RNAP) form distinct holoenzymes with different σ factors to initiate diverse gene expression programs. In this study, we report a cryo-EM structure at 2.49 Å of RNA polymerase transcription complex containing a temperature-sensitive bacterial σ factor, σ³² (σ³²-RPo). The structure of σ³²-RPo reveals key interactions essential for the assembly of E. coli σ³²-RNAP holoenzyme and for promoter recognition and unwinding by σ³². Specifically, a weak interaction between σ³² and −35/−10 spacer is mediated by T128 and K130 in σ³². A histidine in σ³², rather than a tryptophan in σ⁷⁰, acts as a wedge to separate the base pair at the upstream junction of the transcription bubble, highlighting the differential promoter-melting capability of different residue combinations. Structure superimposition revealed relatively different orientations between βFTH and σ₄ from other σ-engaged RNAPs and biochemical data suggest that a biased σ₄–βFTH configuration may be adopted to modulate binding affinity to promoter so as to orchestrate the recognition and regulation of different promoters. Collectively, these unique structural features advance our understanding of the mechanism of transcription initiation mediated by different σ factors.

1. Introduction

Initiation of DNA transcription is one of the main regulatory steps in the control of gene expression. During bacterial transcription initiation, σ factors associate with the RNAP core enzyme, guide the transcription machinery to promoter regions of genes, and engage double-strand promoter DNA [1,2]. The resulting transition from closed RNAP–promoter complex (RPc) to open RNAP–promoter complex (RPo) with melted base pairs (bp) leads to de novo RNA synthesis. Different elements in the promoter DNA, including the −35, extended −10, −10, and discriminator elements, engage intensive interaction with σ factors. Primary σ factor (group 1) is responsible for transcription of housekeeping genes, while alternative σ factors (group 2, group 3, and group 4) control transcription of genes during adaptation to certain intracellular and environmental signals [3,4]. One group of σ factors belonging to the σ⁵⁴ family is involved in nitrogen metabolism and certain stress responses [5,6].

The group 1 factors, represented by σ⁷⁰, are the most studied and well-known factors. E. coli σ⁷⁰ is composed of multiple domains, including σ_1.1, σ_1.2, σ_NCR, σ₂, σ_3.1, σ_3.2 and σ₄. σ_1.1 serves as a gatekeeper, admitting the promoter in and affecting the switching of RNAP properties [7,8,9]. Σ_1.2 is responsible for discriminator motif recognition [10]. Σ_NCR participates in DNA interaction around the transcription start site [11]. Σ_3.1 plays a role in “extended −10 motif” recognition and promoter binding [12,13]. Σ_3.2 threads the RNAP and makes extensive interactions in the active center cleft, thereby affecting primer binding and promoter escape [14,15,16]. σ₂ contacts the clamp helices of the β’ subunit and mediates sequence-specific interactions with the promoter −10 element, while σ₄ contacts the β-flap tip helix (βFTH) and mediates sequence-specific interaction with the promoter −35 element [17]. In contrast, group 2 σ factors (such as E. coli σ³⁸) lack the σ_NCR domain, group 3 σ factors (such as E. coli σ²⁸ and σ³²) lack σ_1.1, σ_NCR, and σ_1.2 domains, and group 4 σ factors (such as E. coli σ²⁴ and σ¹⁹) contain only two essential domains: σ₂ and σ₄.

The group 3 σ factor, σ³², plays a pivotal role in the heat shock response (HSR) required by E. coli to sustain protein homeostasis and cope with heat and other stresses [18]. σ³² synthesis is modulated by the secondary structure of the 5′ region of σ³² mRNA, which serves as a “thermometer”, responding to temperature changes [19,20]. When the temperature for growing E. coli cells suddenly increases, σ³² is rapidly synthesized (induction phase) and then directs RNA polymerase to promote transcription of a set of HSR genes to respond to environmental temperature changes [21]. The overproduced σ³² is gradually decreased by a set of conserved chaperones (such as DnaK/DnaJ) and proteases that accumulate during the induction phase [22,23].

In E. coli, the transcription initiation complex structures of σ⁷⁰ [11,24], σ³⁸ [25], σ²⁸ [26], σ²⁴ [15], and σ⁵⁴ [27,28,29] have greatly advanced our understanding of how σ factors recognize corresponding promoter elements and initiate transcription. However, the structure of the RNAP holoenzyme or transcription initiation complex that interacts with group 3 σ³² or group 4 σ¹⁹ remains unknown. In this study, we assembled the functional E. coli transcribing complex with σ³² and determined the structure at 2.49 Å resolution. The structure shows that σ³² intensively interacts with promoter −10 and −35 element. Furthermore, several unique structural features were observed and the roles of key amino acids involved were validated through mutagenesis studies.

2. Materials and Methods

2.1. E. coli σ³² or σ³² Derivatives

E. coli strain BL21(DE3) (Novagen, Beijing, China) was transformed with plasmid pET28a-rpoH. Single colonies of the resulting transformants were used to inoculate 50 mL LB broth containing 50 μg/mL Kanamycin and cultures were incubated, with shaking, for 16 h at 37 °C. Aliquots (10 mL) were used to inoculate 1 L LB broth containing 50 μg/mL Kanamycin and cultures were incubated, with shaking, at 37 °C until OD₆₀₀ = 0.6. The cultures were induced by adding IPTG to 1 mM and incubated for 3 h at 37 °C. Then, the cells were harvested by centrifugation (5000 rpm for 10 min at 4 °C), resuspended in 20 mL buffer A (20 mM Tris–HCl, pH 8.0; 0.1 M NaCl; 1.5% glycerol) and lysed using a JN-02C cell disrupter (JNBIO, Guangzhou, China). The lysate was centrifuged (12,000 rpm for 45 min at 4 °C) and the supernatant loaded onto a 2 mL column of Ni-NTA agarose (Qiagen, Wuhan, China) equilibrated with buffer A. The column was washed with 10 mL buffer A containing 0.16 M imidazole and eluted with 10 mL buffer A containing 0.5 M imidazole. The sample was further purified using a 5 mL column of HiTrap Heparin HP (GE Healthcare, Boston, MA, USA) equilibrated in buffer A and eluted using a 100 mL linear gradient of 0.2–1 M NaCl in buffer A. Fractions containing E. coli σ³² or σ³² derivatives were pooled and stored at −80 °C.

2.2. E. coli RNAP Core Enzyme

E. coli RNAP core enzyme was prepared from E. coli strain BL21(DE3) (Invitrogen, Inc., Carlsbad, CA, USA) transformed with plasmid pET28a-rpoA-rpoB-rpoC-rpoZ similar to pIA900 [30]. Single colonies of the resulting transformants were used to inoculate 50 mL LB broth containing 50 μg/mL Kanamycin, and cultures were incubated, with shaking, for 16 h at 37 °C. Aliquots (10 mL) were used to inoculate 1 L LB broth containing 50 μg/mL Kanamycin, cultures were incubated at 37 °C, with shaking, until OD₆₀₀ = 0.6 and then induced by adding IPTG to 1 mM. The cultures were incubated for 3 h at 37 °C. The cells were subsequently harvested by centrifugation (5000× g for 10 min at 4 °C), resuspended in 20 mL lysis buffer (50 mM Tris-HCl, pH 7.9; 0.2 M NaCl; 2 mM EDTA; 5% glycerol; and 5 mM DTT), and then lysed using a JN-02C cell disrupter. After poly-ethyleneimine precipitation and ammonium sulfate precipitation, the pellet was resuspended in buffer B (10 mM Tris-HCl, pH 7.9; 0.5 M NaCl; and 5% glycerol) and loaded onto a 5 mL column of Ni-NTA agarose equilibrated with buffer B. The column was washed with 25 mL buffer B containing 20 mM imidazole and eluted with 25 mL buffer B containing 0.15 M imidazole. The eluate was diluted in buffer C (10 mM Tris-HCl, pH 7.9; 0.2 M NaCl; and 5% glycerol) and loaded onto a Mono Q 5/10 GL column (GE Healthcare, Boston, MA, USA) equilibrated in buffer C and eluted using a 30 mL linear gradient of 0.3–0.5 M NaCl in buffer C. Fractions containing E. coli RNAP core enzyme were pooled and stored at −80 °C.

2.3. Nucleic Acid Scaffolds and E. coli σ³²-RPo Assembly

Nucleic acid scaffolds of the σ³² consensus promoter dnaKp1 for cryo-EM study of E. coli σ³²-RPo and for fluorescence polarization study were prepared from synthetic oligos (F: 5′-CCCCCTTGAAGACGTGGTTTACGACCCCATTTAGTAGTCAACCGCAGTGAGTGA-3′; R: 5′-TCACTCACTGCGGTTGACTACTAAATGGGGTCGTAAACCACGTCTTCAAGGGGG-3′) [31] using an annealing procedure (95 °C for 5 min followed by 2 °C step cooling to 25 °C) in annealing buffer (5 mM Tris-HCl, pH 8.0; 200 mM NaCl; and 10 mM MgCl₂).

E. coli σ³²-RPo, the E. coli RNAP core enzyme, E. coli σ³², and nucleic acid scaffolds were mixed at 1:4:1.2 molar ratios and incubated at 4 °C overnight. The RPo complexes were purified using a Hiload 16/60 Superdex 200 column (GE Healthcare, Boston, MA, USA) and stored in 20 mM Tris–HCl pH 8.0, 0.1 M NaCl, 1% glycerol, and 1 mM DTT with a concentration of 5 mg/mL.

2.4. In Vitro Transcription Assay

In vitro Mango-based transcription assays [32] were carried out by incubating the E. coli RNAP core enzyme, E. coli σ³² or σ³² derivatives, and dnaKp1-mango scaffold. Transcription assays were performed using a 96-well microplate format. Reaction mixtures (40 µL) contained 0.1 μM E. coli RNAP holoenzyme, 0.1 μM E. coli σ³² or σ³² derivatives, 50 nM dnaKp1-mango scaffold, 1 μM TO1-Biotin, 0.1 mM NTP mix (ATP, UTP, GTP and CTP), 40 mM Tris–HCl, pH 8.0, 50 mM NaCl, and 10 mM MgCl₂. First, the E. coli RNAP core enzyme, E. coli σ³² or σ³² derivatives, and dnaKp1-mango scaffold were incubated for 10 min at 37 °C. Following incubation with NTP mix and TO1-biotin for another 10 min at 37 °C, fluorescence emission intensities were measured using a multimode plate reader (EnVision, PerkinElmer Inc., Waltham, MA, USA; excitation wavelength = 510 nm; emission wavelength = 535 nm). Relative transcription activities of σ³² derivatives were calculated as described in a previous report [32].

2.5. Fluorescence Polarization Assay

We measured the affinity of two FAM-labeled holoenzyme DNA molecules. The shorter DNA (containing the −35 element) was used to validate the role of DNA-contacted amino acids in σ₄ (Figure 1E and Figure 2B), while the longer DNA (containing the sequence from the −35 element to the −10 bubble) was used to validate the effect of σ₄–βFTH configuration changes on affinity (Figure 3F). The sequence of the shorter 6-FAM-labeled DNA template strand was 5′-CCTTGAAGACGTGG-3′ and the nontemplate strand was 5′-CCACGTCTTCAAGG-3′; the sequence of the longer 6-FAM-labeled DNA template strand was 5′-CCTTGAAGACGTGGTTTACGACCCCATTTAGTAG-3′ and the nontemplate strand was 5′-GGGGTCGTAAACCACGTCTTCAAGG-3′. The labeled template strand and the nontemplate strand were annealed in a 1:1 ratio in 10 mM Tris-HCl, pH 7.9 and 0.2 M NaCl and stored at −80 °C. The annealed DNA (5 nM) was incubated with E. coli σ³² or σ³² derivatives holoenzyme (10, 20, 40, 80, 160, and 320 nM) in 100 μL FP-A buffer (10 mM Tris-HCl, pH 7.7; 100 mM NaCl; 1 mM DTT; 1% glycerol; and 0.025% Tween-20) in a 96-well plate (Corning, NYC, USA) for 5 min at room temperature. The fluorescence polarization (FP) signals were measured using a plate reader (SPARK, TECAN, Switzerland) at excitation wavelength = 494 nm and emission wavelength = 518 nm. The calculated Kd is an apparent Kd obtained from the best-fit curve by fitting our plots to a nonlinear regression equation [33,34].

Fluorescence polarization was calculated using the formula:

P = (I_VV − I_VH)/(I_VV + I_VH)

where I_VV and I_VH are fluorescence intensities with the excitation polarizer at the vertical position and the emission polarizer at the vertical position and the horizontal position, respectively. The equilibrium dissociation constant, Kd, was calculated using the equation:

P = P_f + {(P_b − P_f) × [T]/(Kd + [T])}

where P is the fluorescence polarization at a given concentration of holoenzyme, P_f is the fluorescence polarization of free 6-FAM-labeled promoter DNA, P_b is the fluorescence polarization of bound 6-FAM-labeled promoter DNA, and [T] is the concentration of holoenzyme harboring WT or mutant σ³².

2.6. Stopped-Flow Assay

The promoter for the stop flow assay was prepared as previously reported [15]. The Cy3-amido-dT-modified nontemplate-strand primer (dnaKp1-Cy3-nontemplate: 5′-GCATCTCCCCCTTGAAGACGTGGTTTACGACCCCATTTAGTAGTC/iCy3dT/ACCGCAGT-3′; 10 µM, Sangon Biotech) and the template-strand primer (dnaKp1-template: 5′-GGCACGTACGAATATACCACATACCAATCCTTCCTTCGTACGTGCACTCACTCACTGCGGTTGACTACTAAAT-3′; 10 µM, Sangon Biotech) were processed as previously reported [15]. To monitor the efficiency of RPo formation of E. coli RNAP holoenzymes comprising wild-type or derivatives of E. coli σ³², 60 µL σ³²-RNAP holoenzyme (200 nM) and 60 µL Cy3- PdnaKp1 (4 nM) in 10 mM Tris–HCl (pH 7.7), 20 mM NaCl, 10 mM MgCl₂, and 1 mM DTT were rapidly mixed and the change in Cy3 fluorescence was monitored in real time using a stopped-flow instrument (SX20, Applied Photophysics Ltd., UK) equipped with an excitation filter (515/9.3 nm) and a long-pass emission filter (570 nm). The data were plotted in SigmaPlot (Systat software, San Jose, CA, USA) and fitted to eqn: F = F₀ + a₁ × (1 − exp × (−k_obs,1 × t)) + a₂× (1 − exp × (−k_obs,2 × t)). The amplitudes (a₁ and a₂) and observed rates (k_obs,1 and k_obs,2) were estimated as previously reported [15,35].

2.7. Cryo-EM Grid Preparation

Grids (Quantifoil 1.2/1.3 Au 300 mesh) were glow-discharged for 25 s at 15 mA prior to application of 4 μL complex at a concentration of 1.2 mg/mL, then plunge-frozen in liquid ethane using a Vitrobot (FEI, Valley, SD, USA.) with 100% chamber humidity at 4 °C.

2.8. Cryo-EM Data Acquisition and Processing

Grids were transferred to a 300 kV Titan Krios electron microscope equipped with a Gatan K3 summit direct electron detector and a GIF energy filter with a slit width of 20 eV. All the images were auto-collected via EPU [36] with a magnification of 105 k and exposure time of 2.5 s using a 0.851 Å pixel size and a defocus ranging from −1.0 to−1.5 μm. The total dose was about 54 e/Ų. A total of 8555 movies were imported and processed using Relion. All 40 frames were aligned using MotionCor2 [37] before contrast transfer function (CTF) estimations. The contrast transfer function was estimated for each summed image using CTFFIND4 [38]. From the summed images, ~4,000,000 particles were auto-picked and subjected to 2D classification in RELION [39]. 2D averages of the best classes were used as templates for auto-picking in RELION. Auto-picked particles were manually inspected and then subjected to 2D classification in RELION. Poorly populated classes were removed, resulting in a dataset of 641,734 particles. These particles were re-extracted without binning and processed further using 3D refinement and CTF refinement. The final density map was post-processed in RELION with a resolution of 2.49 Å. Focus refinement with mask and signal subtract improved local resolution of the DNA-σ³² interaction area to 3.40 Å.

2.9. Cryo-EM Model Building and Refinement

The coordinates of core RNAP and promoter DNA from the structure of E. coli core RNAP (PDB: 7MKP) [40] were fitted into the cryo-EM density map using chimera [41] and manually modified in COOT [42]. The coordinates of σ³² were manually built in COOT [42]. The coordinates were real-space refined with secondary structure restraints in Phenix [43]. Due to the weak map signal, the region between the −10 bubble and downstream double-stranded DNA was not modeled. The portions of chains C (residues 233–332 and 974–1025) and F (residues 960–1126), which are in low-resolution maps and not the main focus of our work, were also not modeled.

3. Results

3.1. The Cryo-EM Structure of E. coli σ³²-RPo

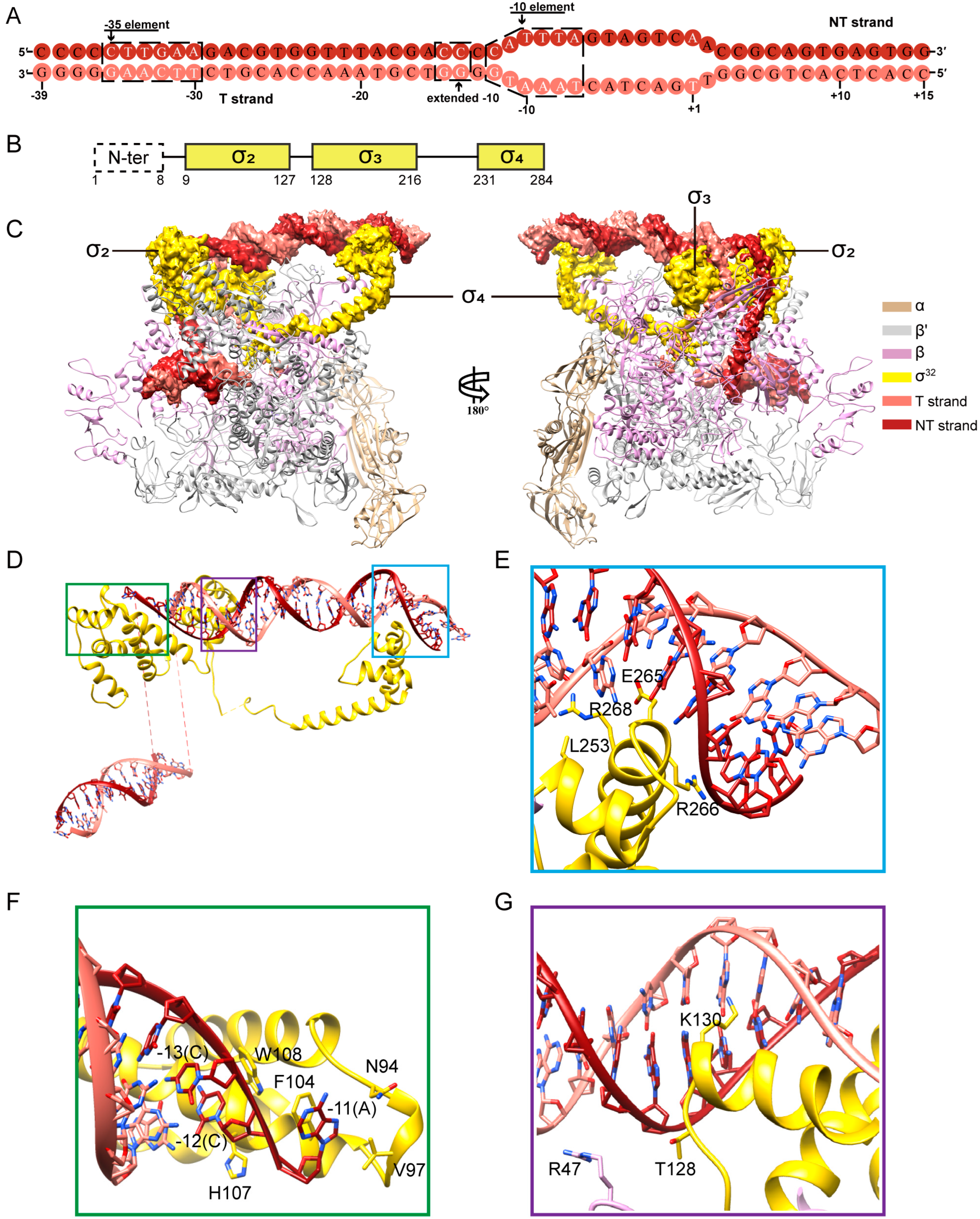

To determine the structure of E. coli σ³²-RPo, we reconstituted the complex with the E. coli RNAP core enzyme, σ³², and a nucleic acid scaffold (Figure 1). The nucleic acid scaffold (−39 to +15; +1 as transcription start site) is composed of a 28-bp upstream double-stranded DNA (dsDNA) with consensus sequences of the −35 element, a 13-bp transcription bubble (complementary sequences on both strands), and a 13-bp downstream dsDNA (Figure 1A).

We obtained a cryo-EM map at 3.0 Å for the E. coli σ³²-RPo complex with local resolution at the active-center cleft of RNAP around 2.49 Å (Figure 1C and Figure S1 and

Table 1. Statistics of cryo-EM data and structure refinement.

Data Collection and Processing	RPo
Magnification	105,000
Voltage (kV)	300
Electron exposure (e−/Å2)	54
Defocus range (μm)	−1.0~−1.5
Pixel size (Å)	0.851
Symmetry Imposed	C1
Number of micrographs	8557
Initial particle projections (no.)	3,854,813
Final particle projections (no.)	641,734
Map resolution (Å)	2.49
FSC threshold	0.143
Map resolution range	2.3–7.0
Refinement
Initial model used	PDB 7MKP
Model resolution (Å)	2.64
FSC threshold	0.143
Map sharpening B factor (Å2)	−10
Model composition
Nonhydrogen atoms	28,255
Protein residues	3386
Nucleotides	83
B factors (Å2)
Protein	8.12/205.39/64.84
Nucleic acids	94.01/275.47/208.74
Validation
MolProbity score	1.54
Clashscore	6.05
Poor rotamers (%)	0.03
Ramachandran plot	0.00
Favored (%)	96.67
Allowed (%)	3.33
Model to Map
Map CC	0.8358

). The map shows clear densities for residues of σ₂ (residues 47–127) and σ₄ (residues 231–279) (Figure 1B,C). The map also shows clear densities for the upstream part of the transcription bubble and the downstream dsDNA (Figure 1C,D). Similar to studies on other σ factors [11,44], the overall structure of RNAP shows minimal structural change upon σ³² engagement. Structural superimposition between RNAP core (PDB 7MKP) and σ³²-RNAP results in an RMSD of 1.633 Å across 3268 residues [45]. Similar to other σ factors, the RNAP clamp in the structure of σ³²-RPo remains in a closed conformation (Figure 1C). The omega subunit is absent from the solved structure, probably due to low binding affinity.

In the structure of σ³²-RPo, the σ₂ and σ₄ domains bind to the surface of RNAP (Figure 1C). The σ₂ domain attaches to the clamp helices of the β′ subunit of RNAP via a polar surface. The interface residues include D77, E81, I84, and M87 of σ³², and R275, R278, R281, L282, L285, I291, E295, and M298 of clamp helix of the β′ subunit (Figure S3A). The σ₄ domain of σ³² uses a distinct hydrophobic surface to bind the βFTH of RNAP. The interface residues include A221, L225, W244, L245, L278 and E283 of the σ₄ domain and E898, K900, L901, I905 and F906 of the βFTH (Figure S3B). Furthermore, σ³² strongly interacts with different DNA elements in the promoter DNA (Figure 1D–G). The N-terminus of σ³² was not modeled in the structure, possibly due to the flexibility caused by the presence of intrinsically disordered regions.

3.2. The Interactions between σ₄ Domain and the −35 Element

σ³²-regulated promoters have a distinct consensus sequence at their −35 elements (5′-CTTGAA-3′; from −35 to −30). In the structure, σ₄ adopts a helix-turn-helix fold (Figure 1D), inserts into the major groove of dsDNA around the −35 element, and potentially makes base-specific polar interactions with nucleotides (Figure 1E). The interactions are important, as substituting E265, R266, or R268 with alanine resulted in substantial loss of transcription activity (Figure 2A). The effect of L253A is modest compared with that of other residues. Furthermore, the fluorescence polarization assay shows that the substitution of these residues with alanine profoundly decreases binding affinity between σ³² and −35 element. The calculated K_D values of L253A, E265A, R266A, and R268A mutants are 38.75 nM, 45.88 nM, 54.87 nM, and 46.72 nM, respectively, while the K_D value of the wild-type σ factor is 28.41 nM, justifying the functional importance of these interactions (Figure 2B). It is worth noting that while σ³²-RNAP holoenzyme readily interacts with promoter −35 element DNA, the sole σ³² fails to bind DNA (Figure 2B), which is consistent with previous reports that sole σ subunits adopt a closed conformation and are incapable of binding DNA [46,47].

3.3. The Interactions between σ³² and −35/−10 Spacer

The interactions between σ factors and −35/−10 spacer were established to stabilize the conformation of the upstream DNA duplex, promoting the engagement of the upstream duplex with σ₄ and σ₂ for subsequent promoter unwinding. The σ³²-RPo complex contacts the phosphate backbones of the spacer region between the −35 and the −10 elements at three positions (Figure 1D). Beside the reported interaction between R47 of the RNAP-β′ zipper domain and phosphate backbones of nucleotides between G₋₁₇ and C₋₁₈ on the nontemplate DNA strand, σ³² was also found to interact with −35/−10 spacer. Specifically, T128 contacts the same phosphate backbones of nucleotides between G₋₁₇ and C₋₁₈. K130 of σ³² makes a H-bond with N7 atoms of G₋₁₅ on the template DNA strand, which together with G₋₁₄ were identified to be the “extend −10” element [48] (Figure 1G). Substituting T128 and K130 with alanine causes a substantial loss of transcription activity (Figure 2A), highlighting the importance of these interactions [48].

3.4. The Promoter-DNA-Unwinding Function of σ³²

σ⁷⁰, σ³⁸, and σ²⁸ of E. coli unwind promoter DNA at the −11/−12 junction [26,44,49], while σ²⁴ unwinds promoter DNA at a position 1 bp upstream of the transcription bubble [15]. Our structure shows that the C:G bases at position −12 are paired, while the A:T bases at position −11 are unwound (Figure 1F). This observation strongly suggests that σ₂ unwinds promoter DNA at the −11/−12 junction, which is consistent with that of σ⁷⁰ [49,50]. Specifically, H107 blocks the path upstream dsDNA and serves as a wedge to disrupt base stacking between positions A₋₁₁ and C₋₁₂ (Figure 1F). The unwound nucleotide A₋₁₁ on the nontemplate DNA strand is stabilized by a pocket created by N94, V97, F104, and W108 on the “specificity loop” of σ₂ domain [51] (Figure 1F). A similar pocket is reported where different bases are recognized [11,15]. The functional importance of these residues in transcription was validated by our experiment, which showed that substitution with alanine resulted in significant loss of transcription activity (Figure 2A).

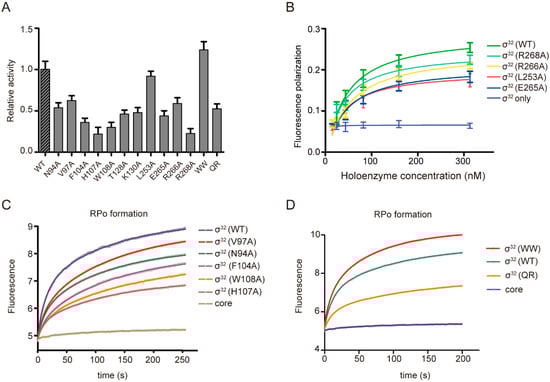

To explore the contributions of these residues in promoter unwinding, we modified a stopped-flow assay to monitor RPo formation by E. coli σ³²-RNAP, in which the fluorescence of a Cy3 fluorophore at +1 position on the nontemplate DNA strand increases upon RPo formation. As shown in Figure 2C and Table S1, the kinetics of RPo equilibration of σ³² (H107A)-RNAP holoenzyme is significantly slower than that of wild-type σ³²-RNAP. Mutations in the protein pockets of A₋₁₁ (N94A, V97A, W108A and F104A) also exhibited slowed RPo equilibration. It is worth noting that the curves could well fit to a double exponential where the amplitudes and observed rates for the fast (a₁, k_obs,1) and slow (a₂, k_obs,2) phases were fixed [35] (Table S1), suggesting the existence of a significant intermediate (RPi) on the path to RPo formation. The amplitudes (a₁, a₂) describe that phase’s contribution to the total fluorescent enhancement signal. As show in Table S1, the amplitude of the curve is dominated by the amplitude of the slow rate, which implies that the slow phase contributes more to final RPo formation. As fluorescence enhancement serves as a reporter of the open complex, we conclude that substituting these residues with alanine significantly destabilizes the open E. coli RNAP complex. Specifically, our results show that substituting W108, H107, and F104 with alanine greatly destabilizes the RPo, while substituting V97 and N94 with alanine only slightly destabilizes the RPo (Table S1).

Sequence alignment and structural analysis of other E. coli σ factors indicate that diverse residues lie in the same position in different σ factors and play the same role as H107–W108 of σ³² (Figures S2 and S4I–L). To compare the efficiency of these residues at promoter unwinding, we substituted the HW residues with WW (σ⁷⁰ and σ³⁸) and QR (σ²⁸), and tested the corresponding transcription activity using a Mango-dependent in vitro transcription assay. As shown in Figure 2A, the rankings in transcription activity differ as follows: σ^WW > σ^HW (WT) > σ^QR. Similarly, the RPo formation activity was ranked as σ^WW > σ^HW (WT) > σ^QR (Figure 2D, Table S2), indicating that distinct wedge residues were employed by different σ factors to orchestrate the recognition and unwinding of different promoters. We speculate that the HW motif in σ³² evolved from the WW motif in σ⁷⁰ with the purpose of facilitating selective expression of different genes to adapt to changes in internal and external environments. One possibility is that the WH motif, beside its role in helping promoter DNA melting, and together with adjacent residues, may provide a unique structural feature that allows σ³² to interact with specific promoters and regulate the expression of heat shock genes.

Notably, the curves and parameters (k_obs,1~0.1^s−1, k_obs,2~0.01^s−1) in Figure 2C,D are similar and resemble those in E. coli σ²⁴-RNAP [15] rather than those in M. tuberculosis CarD-RNAP [52], which means that the observed fast rates (k_obs,1~1^s−1) report on protein–DNA interaction is not related to opening (i.e., binding) and the observed slow rate (k_obs,2~0.1^s−1) is related to RPo equilibration. These results indicated the importance of RPo formation for transcription, and also highlighted the multiplicity of RPo equilibration in different bacteria.

3.5. βFTH Adopts a Distinct Conformation to Orchestrate σ³²-Promoter Recognition

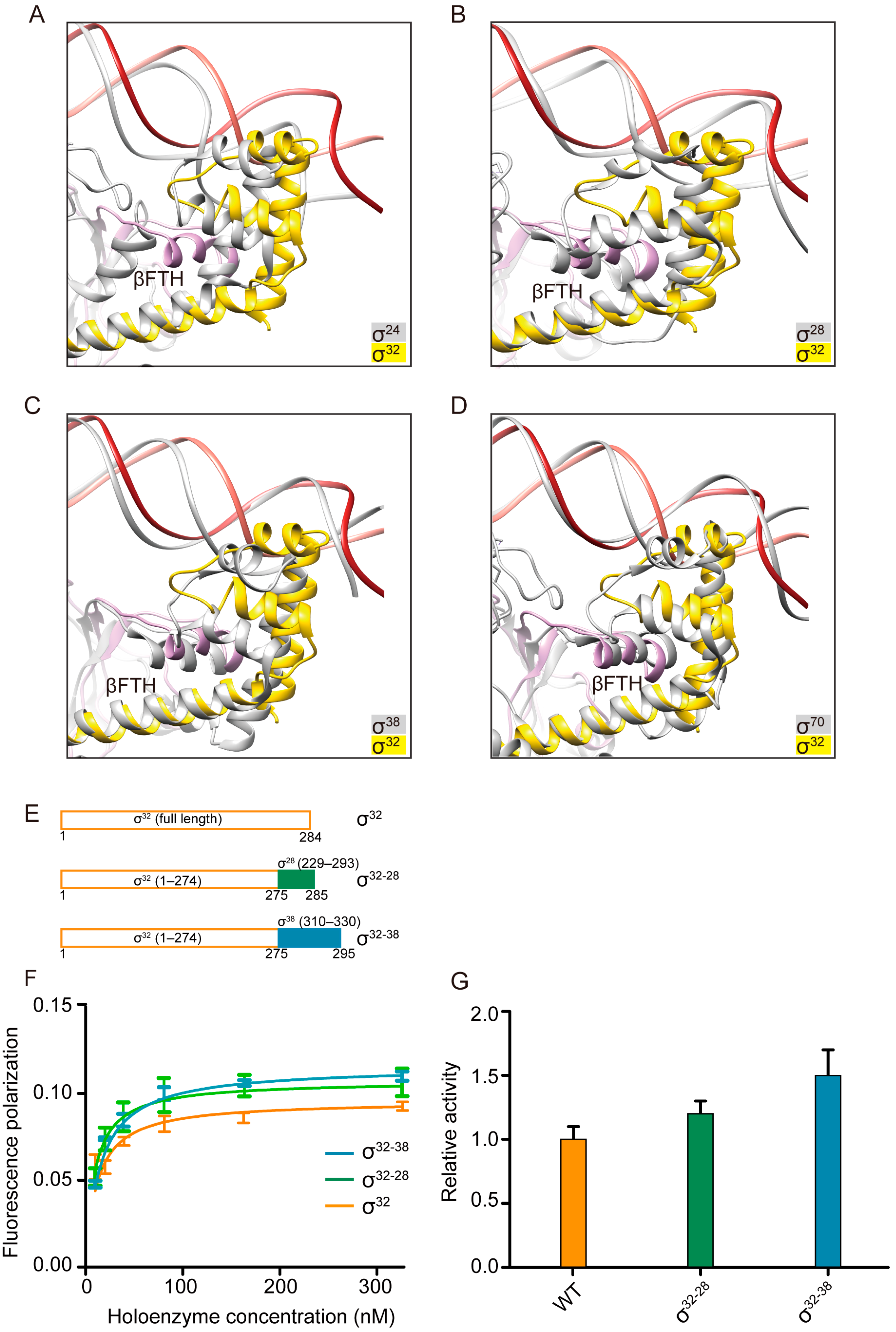

To date, structures of four σ factors that belong to the σ⁷⁰ family have been resolved, including σ⁷⁰ [11,50], σ³⁸ [25,44], σ²⁸ [26], and σ²⁴ [15]. We compared these published structures to dissect more details about the mechanism of promoter recognition. Structure superimposition revealed that the relative orientation between βFTH and σ₄ in σ³²-engaged RNAP differ between these σ-engaged RNAPs (Figure 3A–D). To further explore the role of βFTH in σ-mediated DNA engagement, we designed two chimeric σ factors to validate DNA binding affinity to the corresponding holoenzymes. Considering that (1) σ³⁸ recognizes promoters overlap with σ⁷⁰ but σ⁷⁰ is larger than the other σ factors; (2) σ²⁸ and σ³⁸ belong to the same group 3 category; and (3) the tail of σ²⁴ did not observably interact with βFTH, we chose σ²⁸ and σ³⁸ as our research targets. The chimera of σ³² and σ²⁸, designated as σ^32–28, was designed by replacing the βFTH-interacting σ₄ segment of σ³² with the βFTH-interacting σ₄ segment of σ²⁸. The chimera of σ³² and σ³⁸, designated as σ^32–38, was designed by replacing the βFTH-interacting σ₄ region of σ³² with the βFTH-interacting σ₄ region of σ³⁸ (Figure 3E). The calculated K_D values of WT, chimera σ^32–28, and chimera σ^32–38 are 14.95 nM, 9.22 nM, 8.34 nM, respectively. Owing to the larger binding area, the binding affinity in this experiment is higher than that in Figure 2B, and σ^32–28 and σ^32–38 both enhanced the affinity of promoter DNA binding to the holoenzyme as shown by the result of the fluorescence polarization assay (Figure 3F). Similarly, both chimeras enhanced transcription activities (Figure 3G). These results indicate the importance of σ₄–βFTH interaction in σ³²-promoter recognition, and also highlighted the important role of βFTH in orchestrating the recognition of other σ promoters. Collectively, our structural and biochemical results suggest that biased σ₄–βFTH configurations in different σs may be adopted to modulate binding affinity to promoters so as to orchestrate the recognition and regulation of different promoters.

4. Discussion

Bacterial cells sense and respond to different environmental conditions by regulating different expression regulons via activation of distinct σ-RNAP holoenzymes [53]. Certain RNAPs harboring group 1 and group 2 σ factors can transcribe the same promoter sets [54]. E. coli σ⁷⁰ shares a high degree of protein sequence similarity with σ³⁸ and prefers binding to similar DNA sequences at the −10 and −35 promoter elements [55]. In contrast, the protein sequences and target DNA sequence of other σ factors are less similar.

Our structure revealed that the recognition between σ³²-RPo and −35 element closely resembles that of σ²⁴-RPo [15] rather than that of σ²⁸-RPo [26], despite the fact that both σ³² and σ²⁸ belong to group 3 (Figure 1E and Figure S4). By comparison, σ⁷⁰-RPo and σ³⁸-RPo strongly interact with −35 element and the spacer region, with both having six to eight residues participating in the interactions (Figure S4C,D,G,H), while σ²⁴-RPo interacts modestly with the −35 element and the spacer region, with four residues participating in the interactions (Figure S4A,E). It is worth noting that the interaction between σ²⁸ and −35 element is the weakest (Figure S4B), consistent with the finding that β’ZBD is relocated to help strength the interaction with the −35 element [26]. Furthermore, our study revealed a relatively weak interaction between σ³² and −35/−10 spacer region mediated by T128 and K130 of σ³² (Figure 1G), which is in congruence with a previous study [48]. Collectively, these structural features are consistent with the fact that group 2 σs are more similar to housekeeping group 1 σs, and group 1 and group 2 σs account for the transcription of a majority of genes in bacteria [2].

Our structure may also help solve or explain some previous questions. Based on our structure, we speculate that phosphorylation of Y260 may inhibit σ³² activity [56] by attenuating the interaction between adjacent residues and the −35 element or by triggering an unpopular σ₄–βFTH configurations. Our structure also connects a series of disordered regions in σ³² previously reported in research on HSR: residues 47–55, termed feedback control region [57,58,59], are located in σ_2.1 and are partially protected by residues 57–66 of the clamp helix of β‘, which is the binding site for DnaKJ chaperones [60,61]. Sandwiched between σ_1.2 and σ_3.0, residues 122–144 (Region C) [62] and residues 263–284 (The C-terminal region) [63] are mainly responsible for binding with RNAP. In addition, as σ³² I54 (which was shown to play a crucial role in membrane-targeted instability of σ³² during HSR) [57] was fixed and protected by the helix of σ_2.2 and the clamp helix of the β’ subunit, we speculate that cytoplasmic σ³² faces two mutually exclusive fates: either bind to RNAP to exert their active function or be inactivated through membrane localization.

From first engaging with promoter DNA to finally producing RNA, RNAP holoenzymes harboring promoters undergo several sequential conformational states, including promoter recognition (RPc), promoter melting (RPi), and bubble formation (RPo) [64]. Promoter melting is nucleated by the wedge residue, as shown in our study and in previous reports [15,65]. The hallmark of RPo maturation is the formation of an approximately 12-nt “bubble” around the promoter −10 element, which allows initial RNA synthesis and NTPs incorporation. W-dyad was found to wedge the transcription bubble in σ⁷⁰. While the presence of W-dyad is common in group 1 σ factors [66,67], residues harboring bulky hydrophobic sidechains are favored at corresponding sites in other σ factors [67]. Given the robust DNA-melting capacity of group 1 σ factors, it was believed that the W-dyad would be optimal for supporting the upstream transcription bubble. Our structure shows that H107 in σ³² replaces W433 in the W-dyad in σ⁷⁰ to wedge the upstream transcription bubble, while W108 in σ³² resembles W434 in the W-dyad of σ⁷⁰. Our data also show that different σ factors employ distinct wedge residues in initiating transcription with the following activity ranking: WW > HW > QR. This result is consistent with the result of the stopped-flow assay. Our result is in congruence with previous hypothesis that the W-dyad is the optimal choice for wedging the upstream ds/ss junction of the transcription bubble [65], giving its powerful DNA-melting capacity. Other residues such as H, N, and Q (Figure 1F and Figure S4I–J) with inferior promoter melting abilities may allow alternative σ factors to form RPo at a slower rate (Figure 2C,D), fine-tuning their specificity [15]. Variations in the residues at this very position may lead to differences in DNA-melting capabilities of different σ factors, leading to differential transcription activity and gene regulation [68].

During transcription initiation, conserved σ₄ contacts the βFTH and mediates recognition of the promoter −35 element [69]. Previous reports established that variations in spacer lengths greatly affects transcription activity and leads to the concurrent rotation of the σ₄–βFTH module, which plays a significant role in promoter recognition [70,71,72]. However, whether the σ₄–βFTH modules of different σs can allosterically affect promoter recognition has not been explored. Here, two chimeric σ factors (σ^32–28 and σ^32–38) with partial σ₄ domain replaced were designed to test the impact on DNA binding affinity and transcription activity, and it was surprising to find variation in DNA binding affinity and enhanced transcription activity with the chimeric proteins (Figure 3F,G). These results indicated the importance of σ₄–βFTH interaction in σ³²-promoter recognition and also highlighted the important role of βFTH in orchestrating the recognition of other σ promoters. Although our study shows that the σ₄–βFTH interaction affects transcription activity by influencing the binding affinity of σ₄ to the promoter, it seems that other steps such as promoter escape and transcription pausing may also play a role [16,49]. Nevertheless, our study indicates that the σ₄–βFTH interaction is tuned to balance the distinct transcription efficiencies of different σ factors.

In summary, our structure and supporting biochemical data identified a different promoter recognition and promoter melting mode for transcription initiation, including (1) a relatively weak interaction between σ³² and −35/−10 spacer that may account for less efficient promoter recognition [2]; (2) a histidine with inferior promoter melting ability that may allow σ³² to form RPo at a slower rate, fine-tuning its specificity; (3) a biased σ₄–βFTH configuration to modulate the affinity of binding to the promoter so as to orchestrate the recognition and regulation of different promoters. Our work will deepen our understanding of transcription initiation mechanisms of different σ³² factors as well as the biological function of σ³².
