Article

Molecular Hydrogen Increases Quantitative and Qualitative Traits of Rice Grain in Field Trials

1
Laboratory Center of Life Sciences, College of Life Sciences, Nanjing Agricultural University, Nanjing 210095, China
2
Zhenjiang Institute of Agricultural Science of the Ning-Zhen Hilly District, Jurong 212400, China
3
College of Sciences, Nanjing Agricultural University, Nanjing 210095, China
4
Center of Hydrogen Science, Shanghai Jiao Tong University, Shanghai 200240, China
*
Author to whom correspondence should be addressed.
Plants 2021, 10(11), 2331; https://doi.org/10.3390/plants10112331
Submission received: 10 October 2021 / Revised: 24 October 2021 / Accepted: 26 October 2021 / Published: 28 October 2021
(This article belongs to the Special Issue Production and Role of Molecular Hydrogen in Plants)

Abstract

:
How to use environmentally friendly technology to enhance rice field and grain quality is a challenge for the scientific community. Here, we showed that the application of molecular hydrogen in the form of hydrogen nanobubble water could increase the length, width, and thickness of brown/rough rice and white rice, as well as 1000-grain weight, compared to the irrigation with ditch water. The above results were well matched with the transcriptional profiles of representative genes related to high yield, including up-regulation of heterotrimeric G protein β-subunit gene (RGB1) for cellular proliferation, Grain size 5 (GS5) for grain width, Small grain 1 (SMG1) for grain length and width, Grain weight 8 (GW8) for grain width and weight, and down-regulation of negatively correlated gene Grain size 3 (GS3) for grain length. Meanwhile, although total starch content in white rice is not altered by HNW, the content of amylose was decreased by 31.6%, which was parallel to the changes in the transcripts of the amylose metabolism genes. In particular, cadmium accumulation in white rice was significantly reduced, reaching 52% of the control group. This phenomenon was correlated well with the differential expression of transporter genes responsible for Cd entering plants, including down-regulated Natural resistance-associated macrophage protein (Nramp5), Heavy metal transporting ATPase (HMA2 and HMA3), and Iron-regulated transporters (IRT1), and for decreasing Cd accumulation in grain, including down-regulated Low cadmium (LCD). This study clearly showed that the application of molecular hydrogen might be used as an effective approach to increase field and grain quality of rice.

Graphical Abstract

1. Introduction

Rice is typically milled from brown rice to white rice, the most-often consumed form of rice, and more than 3 billion people use rice as their main food, particularly in Asian, South-American, and African countries [1]. Since it is rich in proteins, carbohydrates, vitamins, biologically active compounds, and organic acids, rice is generally good for human health [2]. However, rice normally appears to have more absorption of cadmium (Cd), a very toxic heavy metal caused by soil contamination and acidification, compared to other major cereal crops. This could result in the accumulation of Cd in rice grains exceeding the maximum permissible limit [3]. Meanwhile, amylose content is a key determinant of eating quality of rice [4]. Therefore, avoiding excessive Cd accumulation in white rice and improving field and grain quality, especially breeding or producing low-amylose content rice, are not only important for consideration during rice production, but also a challenge for scientific community.
The improvement of rice yield and quality normally utilizes molecular genetic selection combined with hybridization, which is mainly dependent on various rice germplasm resources [5]. The improved germplasm is normally integrated with the application of chemical fertilizers and pesticides [6]. During the last 25 years, the usage of recombinant genetic methods has been academically confirmed to be more efficient and reliable [7,8,9], but this technology requires relatively difficult approval protocols and has faced reluctance from consumers. The use of excessive pesticides and fertilizers in fields is another problem, since these can easily cause serious environmental pollution [6].
Molecular hydrogen is generally applied in clean energy. Although hydrogen gas (H2) is normally considered as a biologically inert gas, previous studies discovered that this gas could act as a therapeutic antioxidant in medicine [10]. Scientists have gradually realized that molecular hydrogen has anti-inflammatory, antioxidant, and anti-apoptotic effects in animal models and basic clinical research [11]. During the recent decade, the physiological functions of H2 in plants have been discovered, including enhancing plant tolerance against abiotic stress [12,13,14], and promoting plant growth and development [15]. For above cases, H2 might be integrated with other downstream gasotransmitters, including nitric oxide and hydrogen sulfide, as well as regulating some phytohormones [11,16]. In terms of postharvest storage period, previous results also revealed that H2 could prolong the shelf life of some vegetables, fruits, and flowers, including kiwifruit [17] and daylily bud [18], as well as lisianthus [19], carnation [20], and Chinese chive [21] when hydrogen-rich water, H2 fumigation, or magnesium hydride (a H2-releasing material) were separately applied. Since there were numerous functions of H2 observed in the vegetative growth stage and postharvest period, it is reasonable to deduce that molecular hydrogen might have significant influence in reproductive growth and seed developmental stages, both of which are very important for crop production, especially for rice.
Hydrogen-rich water (HRW) or saline is a typical form of molecular hydrogen used in plants and medicine, due to its feasibility and safety in laboratory [14]. While the low solubility and short residence time of H2 limit its wide application in practice, especially in paddy field, previous results have revealed that nano-bubble technology could be applied in aquaculture [22] and environment [23], since this approach could increase the content of targeted gas in water, prolong the time of the gas remaining in liquid, and improve the utilization efficiency of targeted gas. A recent study further discovered that the hydrogen nanobubble water (HNW) could alleviate copper toxicity in Daphnia magna since it could increase the solubility and the residence time of H2 in water, therefore efficiently enhancing antioxidant capacity [24]. For above reasons, HNW was used in our field experimental condition.
The objective of this work was to investigate whether and how HNW could influence field and grain quality traits of rice, compared to the ditch water treated control group. Related results further supported the idea that the field trait, the qualitative characters, and quality of polished white rice were ubiquitously improved by HNW. Importantly, amylose content and Cd accumulation in white rice were significantly reduced. The related molecular mechanisms were preliminarily evaluated in terms of the transcript profiles of molecular marker genes.

2. Results

2.1. Seed Morphology of Rice Crops Irrigated with HNW

The seed size of crops is an important trait of yield. The size of the grain influences many aspects of plant growth and development. In the trail experiment, we observed that the difference of length and width (in particularly) of rice grains (Figure 1A–D) harvested from plots either irrigated with HNW or ditch water (control) was clearly distinct. For example, the average length and width of the grains in HNW-treated group was about 11.4% and 15.1% greater than those from the control sample. Compared to grains harvested from the control, grain length-width ratio after irrigation with HNW was decreased by 4.3% (Figure 1E). Particularly, grain thickness showed pronounced improvement by 37.5% after HNW treatment (Figure 1F). The obvious increase in seed setting ratio was observed as well (Figure 1G). These results could be used to explain the significant increase in thousand-grain weight (about 23.8%; Figure 1H).
Molecular evidence revealed that the above changes achieved by HNW were well matched with the transcriptional profiles of representative molecular markers responsible for high yield in rice young panicles (Figure 2). These included up-regulated heterotrimeric G protein β-subunit gene (RGB1) for cellular proliferation [25], Small grain 1 (SMG1) for grain length and width [26], Grain size 5 (GS5) for grain width [27,28], and Grain weight 8 (GW8) for grain weight [29], after being irrigated with HNW. Meanwhile, the down-regulation of Grain size 3 (GS3), negatively correlated with grain length [29], was observed after irrigation with HNW. Further results illustrated that the transcripts of representative genes related to the absorption of nitrogen (N), phosphorus (P), and potassium (K) in rice plants [30], including controlling N assimilation and transport, as well as P and K absorption, especially Nitrate transporters 2.3 (NRT2.3), Nitrite reductase (NiR), ABC1 repressor 1 (ARE1), Nin-like protein 4 (NLP4), and Potassium transporter 1 (AKT1), were obviously increased in HNW-irrigated rice roots (Figure 3).
Since some of these genes, including SMG1, GS5, NR1, and AMT1, could be modulated by brassinolide (BRs) [26,27,31,32,33], so expression of specific genes related to BRs metabolism and signaling was further analyzed. As expected, the similar inducting profiles in DWARF4 (DWF4), Brassinosteroid signaling positive regulator (BZR1), Constitutive photomorphogenic dwarf (CPD), DWARF1 (DWF1), and Cytochrome P450 90D2 (CYP90D2) mRNAs were observed in the HNW-treated rice young panicles (Figure 3). These changes might be used to explain the improvement of field and grain quantity in the HNW-irrigated group.

2.2. The Morphology of White Rice

After processes, the rice grains are polished to edible white rice. Similar to the changes in grains (Figure 1), the length and width (especially) of white rice were obviously increased after HNW irrigation, compared to those of the ditch water-irrigated control group (Figure 4A–C). Although the changes in length-width ratio of white rice was negatively influenced by HNW (Figure 4D), both the thickness (Figure 4E) and thousand-seed weight (Figure 4F) displayed distinct improvements in comparison with the control group. Together, we found that molecular hydrogen could increase quantitative and qualitative traits of rice grain in field trials.

2.3. Qualitative Characters of White Rice Irrigated with HNW

Ample evidence found that the qualitative characters of white rice were closely related to gel consistency, chalkiness rice rate, contents of protein, total starch, and amylose contents [4]. Subsequent results discovered that compare to the control group (83.1 ± 2.4 mm), HNW could increase the gel consistency to 91.4 ± 3.4 mm (Figure 5A), a relatively perfect support for higher quality of eaten rice [34]. Strikingly, the chalkiness rate of rice was obviously decreased by HNW (Figure 5B).
Subsequent results revealed that HNW irrigation could significantly reduce the total protein level (decreased by 19.8%; Figure 5C) and amylose content (decreased by 31.6%; Figure 5D) without altering the total starch content (Figure 5E). These are interesting findings. To probe the mechanism, some related genes controlling low amylose content in white rice, including granule-bound starch synthase1 (GBSS1), starch isomerase1 (ISA1), and starch branching enzyme1/2 (SBE1/2), were analyzed (Figure 6). As anticipated, the changes in transcriptional expression of target genes related to amylose were well matched with the reduction in amylose content. These results clearly illustrated that HNW could decrease amylose synthesis.
Although our results discovered that HNW could reduce total protein content in white rice (Figure 5C), the content of glutelin, an important and major storage protein in the endosperm of rice, was not significantly altered in response to HNW, with respect to the control sample (Figure 7A). Contents of other grain storage proteins, including prolamin (especially), globulin, and albumin (Figure 7B–D), were obviously impaired by HNW irrigation. Moreover, no significant differences were observed in the contents of the vitamin B1 and B5 in white rice after being irrigated with HNW or in the control group (data are not shown).

2.4. HNW Influences Contents of the Metal Ions in White Rice

Further experiment was carried out to assess the possible link between element content of white rice and HNW irrigation. In our experimental conditions, the contents of Cd and tin (Sn) were reduced significantly by HNW, compared to those in control group (Figure 8A,B). The reduction in Cd accumulation by about 52% in white rice was very interesting since no significant difference in Cd content was discovered in soils sampled from the control and HNW-irrigated fields (data are not shown). Comparatively, we also noticed that HNW could increase the contents of some nutrient elements that are beneficial for both plants and humans, including phosphorus (P; Figure 8C), potassium (K; Figure 8D), magnesium (Mg; Figure 8E), and iron (Fe; Figure 8F) in white rice.

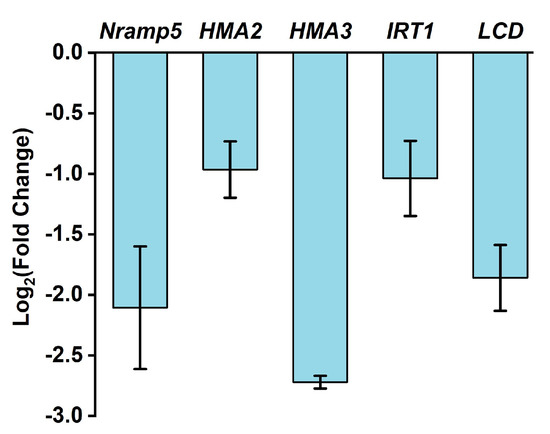

To gain insight into the molecular mechanism, the transcriptional abundance of genes responsible for reducing Cd content was analyzed in root tissues during the filling stage (Figure 9), and the change in gene expression could at least partly explain the variation of Cd content. For instance, Natural resistance-associated macrophage protein (Nramp5) [35], Heavy metal transporting ATPase (HMA2 and HMA3) [3,35], Iron-regulated transporters (IRT1) [3], and Low cadmium (LCD) [36], all of which were responsible for governing the entry and accumulation of Cd in plants, were remarkably down-regulated by HNW irrigation. Consistent with the changes in Cd content of white rice with or without HNW irrigation (Figure 8A), these molecular evidences clearly supported the idea that HNW irrigation was closely associated with the reduction of Cd accumulation via modulating transcriptional regulation.

3. Discussion

The presence of molecular hydrogen in plants has long been discovered [37,38,39]. In 2003, Dong and his colleagues discovered that exposing soils to hydrogen gas not only enhanced soil fertility, but also promoted plant growth of legumes and non-leguminous crops in both greenhouse and field trials. Afterwards, H2, at first glance a simple molecule consisting of only two hydrogen atoms, was progressively suggested to be “a global player” in plant physiology [12,13,40], especially in laboratory levels [11,16].
For rice, previous greenhouse experiments illustrated that the application of metallic magnesium-produced HRW could influence the reproductive fitness of rice in greenhouse experiments, and in particular, significantly inhibited the thousand seed weight of conventional rice and Bt-transgenic rice [41]. Pot-based experiments further showed that conventional electrolytically produced HRW could enhance rice tolerance against salinity [42] and heavy metal stress (Cd and lead) [43]. However, the direct evidence of H2 functioning in rice field trials, especially the influence in the field and grain traits, is still lacking. In this report, combined with nano-bubble technology, we provided physiological and molecular evidence for a previously uncharacterized role for H2 positive control of rice field and grain quality traits in a trial experiment. Our results are significant for both fundamental and applied plant biology. The above conclusion was based on the following evidence.
First, the seed size of rice was an important issue in developmental biology, and was also an important part of seed yield [44,45]. A field study discovered the significant promotion of crop yield in spring wheat and barley when they were grown in H2-treated soil [46]. Consistently, our results clearly showed that unlike the changes in length-width ratio (Figure 1E and Figure 4D), the length, width, thickness, and thousand-seed weight of rice grain (Figure 1) and white rice (Figure 4) were remarkably improved by irrigating with HNW. The above results also suggested that compared to the length, the changes in the width of grain and the white rice are more sensitive to H2.
These findings are inconsistent with those reported by Liu et al., in which they discovered the remarkable reduction in rice seed size in response to metallic magnesium-produced HRW [41]. The discrepancies may be attributed to different preparation methods for the hydrogen-based solution. Importantly, the possible negative influence achieved by other magnesium metabolites and/or possible pH alteration in the metallic magnesium-produced HRW could not be easily ruled out. A similar disadvantage was recently reported when magnesium hydride (MgH2) was used as a preservative for prolonging the vase life of cut flowers [22].
The results of qPCR analysis (Figure 2) further indicated that the abovementioned HNW governing seed size might be achieved by regulating the expression level of specific genes in young panicles during the filling stage that controls rice seed size [47]. It is well documented that the final size of rice grains is coordinately controlled by cell proliferation and cell expansion in the spikelet hull [48,49]. Interestingly, the transcript levels of several typical genes controlling seed size was remarkably modulated by H2. These include up-regulation of RGB1 responsible for cellular proliferation [25], SMG1 for grain length and width [26], GS5 for grain width [27], and GW8 for grain width and weight [29]. Previous results revealed that SMG1, which encodes mitogen-activated protein kinase kinase 4 (OsMKK4), could influence the seed size via influencing BR responses and the expression of BR-related genes [26]. GS5 could keep BZR1/BRI1-associated receptor kinase1-7 (OsBAK1-7) on the cell surface, where it could interact with BZR1/BRI1 and enhance BR signaling, thereby affecting the grain size [27]. Meanwhile, the down-regulation of negatively correlated genes GS3 for grain length and weight [29] were also consistent with the increased rice size in HNW-irrigated group.
Ample evidence shows that genes controlling hormone levels (BRs, etc.) could be used to increase grain yields in rice [49]. For instance, seeds of the BRs receptor and metabolism mutant were smaller than wild-type [27]. By contrast, seeds of transgenic Arabidopsis lines overexpressing BRs synthetic genes were larger than wild-type seeds [50]. Previous studies showed that H2 might affect the synthesis and signaling of phytohormones, including auxin, abscisic acid, gibberellin, and ethylene [11,16]. Here, we observed that the transcripts of genes responsible for BRs synthesis/signaling (especially CYP90D2, BZR1, and CPD; Figure 3) and BRs-dependent seed size (SMG1 [26]; GS5 [31]; NR1 [36]; and AMT1 [33]) could be modulated by HNW (Figure 2 and Figure 3), all of which were consistent with the increased seed size of rice observed after harvesting and processing (Figure 1 and Figure 4). Thus, a cause-effect relationship between H2 and BRs governing rice grain size should be carefully investigated in the near future.
It is well known that N, P, and K are principal nutrients that control crop productivity [51,52]. Therefore, the absorption and utilization efficiency of these nutrient elements are very important for rice yield [49,52]. To better understand the effects of HNW on crop production, the levels in P and K contents were evaluated. As expected, the irrigation with HNW could remarkably increase the accumulation of two elements in white rice (Figure 8C,D). Similar results were found in the positive changes in Mg and Fe ions (Figure 8E,F), both of which might be beneficial for human health in poor families, especially where rice is a staple food [53]. The reported results were also parallel to the transcriptional profiles of N, P, and K assimilation or the transport related gene (Figure 3), especially changes in NRT2.3, NiR, ARE1, NLP4, and AKT1 transcripts, indicating that HNW control seed growth might be mediated by enhancing the assimilation of nutrient elements.
With the development of agriculture and food science and technology, the production for food crops also requires that agricultural products could improve qualitative characters and nutrient values [54]. Ample evidence confirmed that the increased gel consistency as well as decreasing protein and amylose contents in rice contributed greatly to the eating quality [4,54]. Our subsequent results shown in Figure 5 hinted that the white rice after irrigating with HNW had a better qualitative character, in terms of the changes in the above parameters, especially decreased amylose content. The latter change was supported by the transcriptional profiles of genes control of low amylose content (Figure 6).
Human health is inseparable from delicious, nutrient-rich, and, especially, safe foods [55]. Rice is a plant that might accumulate Cd in the grain. The production of rice around the world is challenged by Cd pollution and the subsequent elevation of grain Cd levels [56]. Previous hydroponic experiments revealed that HRW could reduce the absorption and accumulation of Cd in alfalfa seedlings [28,57]. Here, the results of our field trials showed that the application with HNW could remarkably decrease Cd accumulation by 52% in white rice (Figure 8A). This is a new finding, although recent results confirmed that HRW could respectively decease Cd and lead (Pb) contents in shoot or root tissues of rice (Xiangyaxiangzhan cultivar; [43]). These findings also suggest that HNW irrigation might not only help rice against Cd stress, but also reduce the accumulation of Cd in white rice and its processed products. The reduction in Cd content in white rice might be related to the changes in transcription levels of genes in roots at the filling stage related to metal transport (Figure 9). These include genes governing the entry of Cd in plants, such as Nramp5 responsible for regulating the transport of Cd into the vascular bundle [35], HMA2 and HMA3 responsible for loading of Cd in the xylem as well as transporting Cd from the cytoplasm to the vacuole [3,35], IRT1 for Cd entry to plants [3], and LCD responsible for regulating the phloem Cd transport [36]. We also noticed that although gene expression of Nramp5 and IRT1 (Figure 9) favors competition between Fe and Cd uptake [58], higher content of Fe and reduction in Cd accumulation in white rice were observed after HNW irrigation (Figure 8F). These results reflect the complexity of molecular hydrogen functions in plants growth and tolerance against heavy metals.

4. Materials and Methods

4.1. Plant Materials and Field Experiments

The rice (Oryza sativa L., Huruan1212 [59], a soft rice cultivar sensitive to sheath blight and rice blast; China Rice Data Center, https://www.ricedata.com, accessed on 9 October 2021) seeds were obtained from Zhenjiang Agricultural Research Institute, China. For further analysis, thirty-day-old rice seedlings were transplanted into paddy fields in Jurong, Jiangsu province, China (longitude 119.26° E and latitude 31.95° N), in early June 2020, and allowed to grow in natural conditions. There were two paddies used for HNW and ditch water (Con) treatment groups, and every paddy was about 150 m2 in this trial experiment. Additionally, the rice plants were grown without any chemical fertilizers and pesticides in the whole growth season. The daily highest and lowest temperature during the planting was recorded (Figure 10).

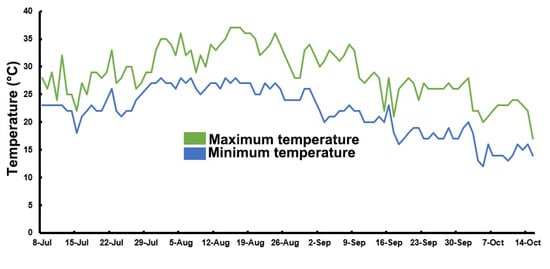

Rice plants were grown under the normal growing conditions until booting stage, and then HNW irrigation was imposed between 14 August 2020 and 15 October 2020, with one time per week, until the harvest stages. Each paddy field was irrigated with about 3 tons of water (HNW or ditch water) per time.
The HNW was produced by a hydrogen nanobubble water generator (HIM-22, Guangdong Cavolo Health Technology, China). Generally, when preparing HNW by electrolysis system, the voltage used for electrolysis was higher than 4.5 volts, and the current was higher than 35 amperes. H2 produced from water electrolysis was infused into nanobubbles by a nanobubble aerator, and then dissolved into the ditch water. Before irrigating, the concentrations of dissolved H2 were determined by a portable dissolved hydrogen meter (ENH-2000, TRUSTLEX, Japan; calibrated by gas chromatography). In our experimental conditions, H2 content in the HNW was about 0.5 mM (1000 ppb). The half-time of dissolved H2 in the above HNW was at least 3 h. Additionally, the diameter of the nanobubbles of hydrogen gas in the HNW was about 60–550 nm (determined by the NS300, Malvern Panalytical, Britain).
The rice was harvested on 1 November 2020, and the grains were then photographed and recorded. Afterwards, the grains were processed into white rice for further analysis. At least 1000 grains/white rice were randomly selected to record the sizes. Seed setting ratio and thousand seed weight were measured in triplicate. Each replicate included 1000 grains/white rice, and the total grains/white rice was 3000 (1000 × 3). Finally, about 15 g white rice was randomly selected and ground into powder for the further analysis.

4.2. Determination of Qualitative Characters

The content of total protein was measured by an automatic kieldahl apparatus (KDN-08A; Hongji, Shanghai, China) according to the previous study [60].
The amylose contents were determined using a dual-wavelength iodine-binding method [61].
The determination of gel consistency, chalky rice rate, and starch content were carried out according to the previous method [4].

4.3. Determination of Ion Content

According to previous reports [62], ion contents in white rice and soil were detected by using a Digital Block Sample Digestion System (LabTech ED54 DigiBlock). The metal ions contents were determined by an Inductively Coupled Plasma-Optical Emission Spectrometer (ICP-OES, iCAP 7000, Thermo Fisher).

4.4. Determination of Albumin, Globulin, Prolamin, and Glutelin Content

After extraction [63], the composition of white rice protein, including albumin, globulin, prolamin, and glutelin, was determined by using BCA Protein Assay Kit (TaKaRa, Beijing, China).

4.5. Real-Time Quantitative Reverse Transcription-PCR (qPCR)

The leaves, young panicles, and roots were randomly collected from rice plants in the filling stage (20 September 2020), and further frozen in liquid nitrogen immediately. After the extraction of total RNA and the synthesis of cDNA, the quantitative real-time PCR (qPCR) was carried out. The primers’ sequences are shown in Supplementary Table S1. The relative expression levels of corresponding genes are presented as values relative to those of corresponding control samples, after normalization with two reference genes OsActin1 and OsUbi. The results of relative genes expression levels were analyzed by the 2−ΔΔCT method [64]. All determinations were carried out using three separate RNA samples, and each run in triplicate.

4.6. Statistical Analysis

All results are shown as the mean values ± SD of three independent experiments with three biological replicates for each. By using Origin 2021, the data were analyzed by Student’s t-test or one-way analysis of variance (ANOVA). p < 0.05 was considered statistically significant.

5. Conclusions

In conclusion, this study demonstrated that the application of HNW during the growth and development stage of rice could not only significantly increase the field and grain quantity of rice grains and white rice, but could also improve qualitative characters, maintain nutrition ingredients, and alleviate accumulation of Cd of the white rice. As we know, this is the first time using HNW in field trails, which might act as an important strategy for enhancing sustainable crop production. Importantly, results on the transcriptional profiling seem to give some answers on the question of how HNW increased field and grain quality traits. Since a multitude of different signaling pathways could be closely associated with molecular hydrogen functions in plants [16], the existence of a simple cause-and-effect chain seems very unlikely.
Compared to the direct usage of hydrogen gas in field soil [46], irrigation with HNW is a relatively convenient and cheaper approach; thus, this method might be used in large-scale agriculture. We also admitted that hydrogen-based agriculture is just at the beginning stage, and many field trials and deeper molecular mechanisms should be further carried out and elucidated.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/plants10112331/s1, Table S1: The sequences of primers for qPCR, References [65,66,67,68,69,70,71,72,73,74,75] are cited in the Supplementary Materials.

Author Contributions

P.C. and W.S. designed and refined the research; P.C., L.K., D.J., J.Y. and Z.S. performed research; P.C., J.W., W.L., T.Z., L.H., W.Z. and Q.Y. analyzed data; P.C. and W.S. wrote the article. P.C., Z.Z. and W.S. revised the article. All authors discussed the results and comments on the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was financially supported by the funding from Center of Hydrogen Science, 412 Shanghai Jiao Tong University (China), Foshan Agriculture Science and Technology Project (Fo-413 shan City Budget No. 140, 2019.), and Air Liquide (China) R&D Co., Ltd.

Data Availability Statement

This statement if the study did not report any data.

Acknowledgments

This work was financially supported by the Funding from Center of Hydrogen Science, Shanghai Jiao Tong University (China), Foshan Agriculture Science and Technology Project (Foshan City Budget No. 140, 2019.), and Air Liquide (China) R&D Co., Ltd.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Law, J.W.-F.; Ser, H.-L.; Khan, T.M.; Chuah, L.-H.; Pusparajah, P.; Chan, K.-G.; Goh, B.-H.; Lee, L.-H. The Potential of Streptomyces as Biocontrol Agents against the Rice Blast Fungus, Magnaporthe oryzae (Pyricularia oryzae). Front. Microbiol. 2017, 8, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  2. Chen, H.; Siebenmorgen, T.J.; Griffin, K. Quality Characteristics of Long-Grain Rice Milled in Two Commercial Systems. Cereal Chem. J. 1998, 75, 560–565. [Google Scholar] [CrossRef]
  3. Ueno, D.; Yamaji, N.; Kono, I.; Huang, C.F.; Ando, T.; Yano, M.; Ma, J.F. Gene limiting cadmium accumulation in rice. Proc. Natl. Acad. Sci. USA 2010, 107, 16500–16505. [Google Scholar] [CrossRef] [Green Version]
  4. Zhang, C.; Chen, S.; Ren, X.; Lu, Y.; Liu, D.; Cai, X.; Li, Q.; Gao, J.; Liu, Q. Molecular Structure and Physicochemical Properties of Starches from Rice with Different Amylose Contents Resulting from Modification of OsGBSSI Activity. J. Agric. Food Chem. 2017, 65, 2222–2232. [Google Scholar] [CrossRef] [PubMed]
  5. Soltis, P.S.; Soltis, D.E. The Role of Hybridization in Plant Speciation. Annu. Rev. Plant Biol. 2009, 60, 561–588. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Qian, L.; Zhang, C.; Zuo, F.; Zheng, L.; Li, D.; Zhang, A.; Zhang, D. Effects of fertilizers and pesticides on the mineral elements used for the geographical origin traceability of rice. J. Food Compos. Anal. 2019, 83, 103276. [Google Scholar] [CrossRef]
  7. Moose, S.P.; Mumm, R.H. Molecular Plant Breeding as the Foundation for 21st Century Crop Improvement. Plant Physiol. 2008, 147, 969–977. [Google Scholar] [CrossRef] [Green Version]
  8. Yu, Q.; Liu, S.; Yu, L.; Xiao, Y.; Zhang, S.; Wang, X.; Xu, Y.; Yu, H.; Li, Y.; Yang, J.; et al. RNA demethylation increases the yield and biomass of rice and potato plants in field trials. Nat. Biotechnol. 2021. [Google Scholar] [CrossRef]
  9. Jiang, L. Commercialization of the gene-edited crop and morality: Challenges from the liberal patent law and the strict GMO law in the EU. New Genet. Soc. 2019, 39, 191–218. [Google Scholar] [CrossRef]
  10. Ohsawa, I.; Ishikawa, M.; Takahashi, K.; Watanabe, M.; Nishimaki, K.; Yamagata, K.; Katsura, K.-I.; Katayama, Y.; Asoh, S.; Ohta, S. Hydrogen acts as a therapeutic antioxidant by selectively reducing cytotoxic oxygen radicals. Nat. Med. 2007, 13, 688–694. [Google Scholar] [CrossRef] [PubMed]
  11. Shen, W.; Sun, X. Hydrogen biology: It is just beginning. Chin. J. Biochem. Mol. Bio. 2019, 35, 1037–1050. [Google Scholar]
  12. Jin, Q.; Zhu, K.; Cui, W.; Xie, Y.; Han, B.; Shen, W. Hydrogen gas acts as a novel bioactive molecule in enhancing plant tolerance to paraquat-induced oxidative stress via the modulation of heme oxygenase-1 signalling system. Plant Cell Environ. 2012, 36, 956–969. [Google Scholar] [CrossRef] [PubMed]
  13. Xie, Y.; Mao, Y.; Lai, D.; Zhang, W.; Shen, W. H2 enhances Arabidopsis salt tolerance by manipulating ZAT10/12-mediated anti-oxidant defence and controlling sodium exclusion. PLoS ONE 2012, 7, e49800. [Google Scholar] [CrossRef] [Green Version]
  14. Xie, Y.; Mao, Y.; Zhang, W.; Lai, D.; Wang, Q.; Shen, W. Reactive Oxygen Species-Dependent Nitric Oxide Production Contributes to Hydrogen-Promoted Stomatal Closure in Arabidopsis. Plant Physiol. 2014, 165, 759–773. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Cao, Z.; Duan, X.; Yao, P.; Cui, W.; Cheng, D.; Zhang, J.; Jin, Q.; Chen, J.; Dai, T.; Shen, W. Hydrogen Gas Is Involved in Auxin-Induced Lateral Root Formation by Modulating Nitric Oxide Synthesis. Int. J. Mol. Sci. 2017, 18, 2084. [Google Scholar] [CrossRef] [PubMed]
  16. Li, L.; Lou, W.; Kong, L.; Shen, W. Hydrogen Commonly Applicable from Medicine to Agriculture: From Molecular Mechanisms to the Field. Curr. Pharm. Des. 2021, 27, 747–759. [Google Scholar] [CrossRef]
  17. Hu, H.; Zhao, S.; Li, P.; Shen, W. Hydrogen gas prolongs the shelf life of kiwifruit by decreasing ethylene biosynthesis. Postharvest Biol. Technol. 2018, 135, 123–130. [Google Scholar] [CrossRef]
  18. Hu, H.; Li, P.; Shen, W. Preharvest application of hydrogen-rich water not only affects daylily bud yield but also contributes to the alleviation of bud browning. Sci. Hortic. 2021, 287, 110267. [Google Scholar] [CrossRef]
  19. Su, J.; Nie, Y.; Zhao, G.; Cheng, D.; Wang, R.; Chen, J.; Zhang, S.; Shen, W. Endogenous hydrogen gas delays petal senescence and extends the vase life of lisianthus cut flowers. Postharvest Biol. Technol. 2019, 147, 148–155. [Google Scholar] [CrossRef]
  20. Li, L.; Liu, Y.; Wang, S.; Zou, J.; Ding, W.; Shen, W. Magnesium Hydride-Mediated Sustainable Hydrogen Supply Prolongs the Vase Life of Cut Carnation Flowers via Hydrogen Sulfide. Front. Plant Sci. 2020, 11, 595376. [Google Scholar] [CrossRef]
  21. Jiang, K.; Kuang, Y.; Feng, L.; Liu, Y.; Wang, S.; Du, H.; Shen, W. Molecular Hydrogen Maintains the Storage Quality of Chinese Chive through Improving Antioxidant Capacity. Plants 2021, 10, 1095. [Google Scholar] [CrossRef] [PubMed]
  22. Nghia, N.H.; van Giang, P.T.; Hanh, N.T.; St-Hilaire, S.; Domingos, A.J. Control of Vibrioparahaemolyticus (AHPND strain) and improvement of water quality using nanobubble technology. Aquac. Res. 2021, 52, 2727–2739. [Google Scholar] [CrossRef]
  23. Agarwal, A.; Ng, W.J.; Liu, Y. Principle and applications of microbubble and nanobubble technology for water treatment. Chemosphere 2011, 84, 1175–1180. [Google Scholar] [CrossRef]
  24. Fan, W.; Zhang, Y.; Liu, S.; Li, X.; Li, J. Alleviation of copper toxicity in Daphnia magna by hydrogen nanobubble water. J. Hazard. Mater. 2020, 389, 122155. [Google Scholar] [CrossRef] [PubMed]
  25. Utsunomiya, Y.; Samejima, C.; Takayanagi, Y.; Izawa, Y.; Yoshida, T.; Sawada, Y.; Fujisawa, Y.; Kato, H.; Iwasaki, Y. Suppression of the rice heterotrimeric G protein β-subunit gene, RGB1, causes dwarfism and browning of internodes and lamina joint regions. Plant J. 2011, 67, 907–916. [Google Scholar] [CrossRef] [PubMed]
  26. Duan, P.; Rao, Y.; Zeng, D.; Yang, Y.; Xu, R.; Zhang, B.; Dong, G.; Qian, Q.; Li, Y. SMALL GRAIN 1, which encodes a mitogen-activated protein kinase kinase 4, influences grain size in rice. Plant J. 2014, 77, 547–557. [Google Scholar] [CrossRef] [PubMed]
  27. Li, Y.; Fan, C.; Xing, Y.; Jiang, Y.; Luo, L.; Sun, L.; Shao, D.; Xu, C.; Li, X.; Xiao, J.; et al. Natural variation in GS5 plays an important role in regulating grain size and yield in rice. Nat. Genet. 2011, 43, 1266–1269. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, X.; Wang, J.; Huang, J.; Lan, H.; Wang, C.; Yin, C.; Wu, Y.; Tang, H.; Qian, Q.; Li, J.; et al. Rare allele of OsPPKL1 associated with grain length causes extra-large grain and a significant yield increase in rice. Proc. Natl. Acad. Sci. 2012, 109, 21534–21539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Xia, D.; Zhou, H.; Liu, R.; Dan, W.; Li, P.; Wu, B.; Chen, J.; Wang, L.; Gao, G.; Zhang, Q.; et al. GL3.3, a Novel QTL Encoding a GSK3/SHAGGY-like Kinase, Epistatically Interacts with GS3 to Produce Extra-long Grains in Rice. Mol. Plant 2018, 11, 754–756. [Google Scholar] [CrossRef] [Green Version]
  30. Han, X.; Wu, K.; Fu, X.; Liu, Q. Improving coordination of plant growth and nitrogen metabolism for sustainable agriculture. aBIOTECH 2020, 1, 255–275. [Google Scholar] [CrossRef]
  31. Mora-García, S.; Vert, G.; Yin, Y.; Caño-Delgado, A.; Cheong, H.; Chory, J. Nuclear protein phosphatases with Kelch-repeat domains modulate the response to brassinosteroids in Arabidopsis. Genes Dev. 2004, 18, 448–460. [Google Scholar] [CrossRef] [Green Version]
  32. Das, T.; Shukla, Y.M.; Poonia, T.C.; Meena, M.; Meena, M.D. Effects of brassinolide on physiological characteristics of rice (Oryza sativa L.) with different salinity levels. Ann. Biol. 2013, 29, 228–231. [Google Scholar]
  33. Yang, S.; Yuan, D.; Zhang, Y.; Sun, Q.; Xuan, Y.H. BZR1 Regulates Brassinosteroid-Mediated Activation of AMT1;2 in Rice. Front. Plant Sci. 2021, 12, 665883. [Google Scholar] [CrossRef] [PubMed]
  34. Rayee, R.; Xuan, T.; Khanh, T.; Tran, H.-D.; Kifayatullah, K. Efficacy of Irrigation Interval after Anthesis on Grain Quality, Alkali Digestion, and Gel Consistency of Rice. Agriculture 2021, 11, 325. [Google Scholar] [CrossRef]
  35. Sasaki, A.; Yamaji, N.; Yokosho, K.; Ma, J.F. Nramp5 Is a Major Transporter Responsible for Manganese and Cadmium Uptake in Rice. Plant Cell 2012, 24, 2155–2167. [Google Scholar] [CrossRef] [Green Version]
  36. Shimo, H.; Ishimaru, Y.; An, G.; Yamakawa, T.; Nakanishi, H.; Nishizawa, N.K. Low cadmium (LCD), a novel gene related to cadmium tolerance and accumulation in rice. J. Exp. Bot. 2011, 62, 5727–5734. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  37. Gaffron, H. Reduction of Carbon Dioxide with Molecular Hydrogen in Green Algæ. Nat. Cell Biol. 1939, 143, 204–205. [Google Scholar] [CrossRef]
  38. Gest, H.; Kamen, M.D. Photoproduction of Molecular Hydrogen by Rhodospirillum rubrum. Science 1949, 109, 558–559. [Google Scholar] [CrossRef]
  39. Renwick, G.M.; Giumarro, C.; Siegel, S.M. Hydrogen Metabolism in Higher Plants. Plant Physiol. 1964, 39, 303–306. [Google Scholar] [CrossRef]
  40. Zeng, J.; Zhang, M.; Sun, X. Molecular Hydrogen Is Involved in Phytohormone Signaling and Stress Responses in Plants. PLOS ONE 2013, 8, e71038. [Google Scholar] [CrossRef] [PubMed]
  41. Liu, F.; Jiang, W.; Han, W.; Li, J.; Liu, Y. Effects of Hydrogen-Rich Water on Fitness Parameters of Rice Plants. Agron. J. 2017, 109, 2033–2039. [Google Scholar] [CrossRef] [Green Version]
  42. Fu, X.; Ma, L.; Gui, R.; Ashraf, U.; Li, Y.; Yang, X.; Zhang, J.; Imran, M.; Tang, X.; Tian, H.; et al. Differential response of fragrant rice cultivars to salinity and hydrogen rich water in relation to growth and antioxidative defense mechanisms. Int. J. Phytoremediation 2021, 23, 1203–1211. [Google Scholar] [CrossRef] [PubMed]
  43. Ma, L.; Kong, L.; Gui, R.; Yang, X.; Zhang, J.; Gong, Q.; Qin, D.; Zhuang, M.; Ashraf, U.; Mo, Z. Application of hydrogen-rich water modulates physio-biochemical functions and early growth of fragrant rice under Cd and Pb stress. Environ. Sci. Pollut. Res. 2021, 28, 58558–58569. [Google Scholar] [CrossRef] [PubMed]
  44. Moles, A.T.; Ackerly, D.D.; Webb, C.O.; Tweddle, J.C.; Dickie, J.B.; Pitman, A.J.; Westoby, M. Factors that shape seed mass evolution. Proc. Natl. Acad. Sci. 2005, 102, 10540–10544. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  45. Radny, J.; van der Putten, W.H.; Tielbörger, K.; Meyer, K.M. Influence of seed size on performance of non-native annual plant species in a novel community at two planting densities. Acta Oecologica 2018, 92, 131–137. [Google Scholar] [CrossRef]
  46. Dong, Z.; Wu, L.; Kettlewell, B.; Caldwell, C.D.; Layzell, D.B. Hydrogen fertilization of soils—Is this a benefit of legumes in rotation? Plant Cell Environ. 2003, 26, 1875–1879. [Google Scholar] [CrossRef]
  47. Zuo, J.; Li, J. Molecular Genetic Dissection of Quantitative Trait Loci Regulating Rice Grain Size. Annu. Rev. Genet. 2014, 48, 99–118. [Google Scholar] [CrossRef] [PubMed]
  48. Li, N.; Xu, R.; Duan, P.; Li, Y. Control of grain size in rice. Plant Reprod. 2018, 31, 237–251. [Google Scholar] [CrossRef] [PubMed]
  49. Li, N.; Xu, R.; Li, Y. Molecular Networks of Seed Size Control in Plants. Annu. Rev. Plant Biol. 2019, 70, 435–463. [Google Scholar] [CrossRef]
  50. Xu, C.; Liu, Y.; Li, Y.; Xu, X.; Xu, C.; Li, X.; Xiao, J.; Zhang, Q. Differential expression of GS5 regulates grain size in rice. J. Exp. Bot. 2015, 66, 2611–2623. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Oldroyd, G.E.D.; Leyser, O. A plant’s diet, surviving in a variable nutrient environment. Science 2020, 368, 0196. [Google Scholar] [CrossRef]
  52. Wang, Y.; Chen, Y.; Wu, W. Potassium and phosphorus transport and signaling in plants. J. Integr. Plant Biol. 2021, 63, 34–52. [Google Scholar] [CrossRef]
  53. Balakrishna, A.K.; Auckaili, A.; Farid, M. Effect of high pressure impregnation on micronutrient transfer in rice. Food Chem. 2021, 362, 130244. [Google Scholar] [CrossRef]
  54. Van Dongen, M.V.; van den Berg, M.C.; Vink, N.; Kok, F.J.; de Graaf, C. Taste-nutrient relationships in commonly consumed foods. Br. J. Nutr. 2012, 108, 140–147. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Pogoson, E.; Carey, M.; Meharg, C.; Meharg, A. Reducing the cadmium, inorganic arsenic and dimethylarsinic acid content of rice through food-safe chemical cooking pre-treatment. Food Chem. 2021, 338, 127842. [Google Scholar] [CrossRef] [PubMed]
  56. Sebastian, A.; Prasad, M.N.V. Cadmium minimization in rice. A review. Agron. Sustain. Dev. 2014, 34, 155–173. [Google Scholar] [CrossRef]
  57. Dai, C.; Cui, W.; Pan, J.; Xie, Y.; Wang, J.; Shen, W. Proteomic analysis provides insights into the molecular bases of hydrogen gas-induced cadmium resistance in Medicago sativa. J. Proteom. 2017, 152, 109–120. [Google Scholar] [CrossRef]
  58. He, X.L.; Fan, S.K.; Zhu, J.; Guan, M.Y.; Liu, X.X.; Zhang, Y.S.; Jin, C.W. Iron supply prevents Cd uptake in Arabidopsis by inhibiting IRT1 expression and favoring competition between Fe and Cd uptake. Plant Soil 2017, 416, 453–462. [Google Scholar] [CrossRef]
  59. Chen, Y.; Wang, M.; Ouwerkerk, P.B.F. Molecular and environmental factors determining grain quality in rice. Food Energy Secur. 2012, 1, 111–132. [Google Scholar] [CrossRef]
  60. Suo, B.; Li, H.; Wang, Y.; Li, Z.; Pan, Z.; Ai, Z. Effects of ZnO nanoparticle-coated packagingfilm on pork meat quality during cold storage. J. Sci. Food Agric. 2017, 97, 2023–2029. [Google Scholar] [CrossRef]
  61. Zhu, T.; Jackson, D.S.; Wehling, R.L.; Geera, B. Comparison of Amylose Determination Methods and the Development of a Dual Wavelength Iodine Binding Technique. Cereal Chem. J. 2008, 85, 51–58. [Google Scholar] [CrossRef]
  62. Cui, W.; Gao, C.; Fang, P.; Lin, G.; Shen, W. Alleviation of cadmium toxicity in Medicago sativa by hydrogen-rich water. J. Hazard. Mater. 2013, 260, 715–724. [Google Scholar] [CrossRef] [PubMed]
  63. Chen, P.; Shen, Z.; Ming, L.; Li, Y.; Dan, W.; Lou, G.; Peng, B.; Wu, B.; Li, Y.; Zhao, D.; et al. Genetic Basis of Variation in Rice Seed Storage Protein (Albumin, Globulin, Prolamin, and Glutelin) Content Revealed by Genome-Wide Association Analysis. Front. Plant Sci. 2018, 9, 612. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  64. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2−ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef]
  65. Yang, B.; Wang, X.M.; Ma, H.Y.; Li, Y.J.; Dai, C.C. Effects of the fungal endophyte Phomopsis liquidambari on nitrogen uptake and me-tabolism in rice. Plant Growth Regul. 2014, 73, 165–179. [Google Scholar]
  66. Yan, M.; Fan, X.; Feng, H.; Miller, A.J.; Shen, Q.; Xu, G. Rice OsNAR2.1 interacts with OsNRT2.1, OsNRT2.2 and OsNRT2.3a nitrate transporters to provide uptake over high and low concentration ranges. Plant Cell Environ. 2011, 34, 1360–1372. [Google Scholar] [CrossRef]
  67. Wang, Q.; Su, Q.; Nian, J.; Zhang, J.; Guo, M.; Dong, G.; Hu, J.; Wang, R.; Wei, C.; Li, G.; et al. The Ghd7 transcription factor represses ARE1 expression to enhance nitrogen utilization and grain yield in rice. Mol. Plant 2021, 14, 1012–1023. [Google Scholar] [CrossRef]
  68. Ye, Y.; Li, P.; Xu, T.; Zeng, L.; Cheng, D.; Yang, M.; Luo, J.; Lian, X. OsPT4 Contributes to Arsenate Uptake and Transport in Rice. Front. Plant Sci. 2017, 8, 2197. [Google Scholar] [CrossRef] [Green Version]
  69. Okada, T.; Nakayama, H.; Shinmyo, A.; Yoshida, K. Expression of OsHAK genes encoding potassium ion transporters in rice. Plant Biotechnol. 2008, 25, 241–245. [Google Scholar] [CrossRef] [Green Version]
  70. Sakamoto, T.; Matsuoka, M. Characterization of CONSTITUTIVE PHOTOMORPHOGENESIS AND DWARFISM Homologs in Rice (Oryza sativa L.). J. Plant Growth Regul. 2006, 25, 245–251. [Google Scholar] [CrossRef]
  71. Tsukagoshi, Y.; Suzuki, H.; Seki, H.; Muranaka, T.; Ohyama, K.; Fujimoto, Y. Ajuga Δ24-Sterol Reductase Catalyzes the Direct Reductive Conversion of 24-Methylenecholesterol to Campesterol. J. Biol. Chem. 2016, 291, 8189–8198. [Google Scholar] [CrossRef] [Green Version]
  72. Crofts, N.; Satoh, Y.; Miura, S.; Hosaka, Y.; Abe, M.; Fujita, N. Active-type starch synthase (SS) IIa from indica rice partially com-plements the sugary-1 phenotype in japonica rice endosperm. Plant Mol. Biol. 2021. [Google Scholar] [CrossRef]
  73. Utsumi, Y.; Nakamura, Y. Structural and enzymatic characterization of the isoamylase1 homo-oligomer and the isoamylase1–isoamylase2 hetero-oligomer from rice endosperm. Planta 2006, 225, 75–87. [Google Scholar] [CrossRef]
  74. Satoh, H.; Nishi, A.; Yamashita, K.; Takemoto, Y.; Tanaka, Y.; Hosaka, Y.; Sakurai, A.; Fujita, N.; Nakamura, Y. Starch-branching enzyme I-deficient mutation spe-cifically affects the structure and properties of starch in rice endosperm. Plant Physiol. 2003, 133, 1111–1121. [Google Scholar]
  75. Nakamura, Y.; Utsumi, Y.; Sawada, T.; Aihara, S.; Utsumi, C.; Yoshida, M.; Kitamura, S. Characterization of the reactions of starch branching enzymes from rice endosperm. Plant Cell Physiol. 2010, 51, 776–794. [Google Scholar] [CrossRef] [Green Version]

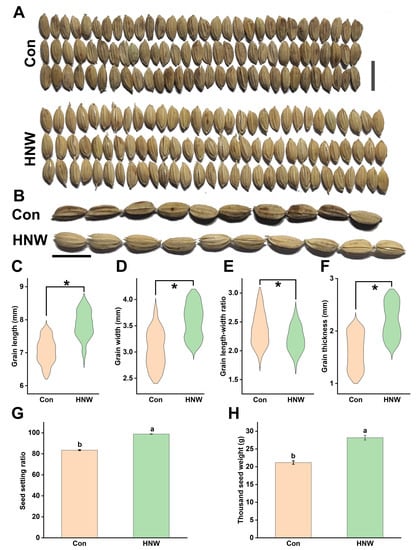

Figure 1. HNW positively influences the size and weight of grains. The photographs of representative 30 grains (A) and 10 grains (B) were taken (bar = 1 cm). Parameters of rice size, including grain length (C), width (D), length-width ratio (E), thickness (F), seed setting ratio (G), and thousand seed weight (H), were also provided. Asterisk indicates a significant difference between Con and HNW (n ≥ 1000, p < 0.001, two-way Student’s t-test). Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Figure 1. HNW positively influences the size and weight of grains. The photographs of representative 30 grains (A) and 10 grains (B) were taken (bar = 1 cm). Parameters of rice size, including grain length (C), width (D), length-width ratio (E), thickness (F), seed setting ratio (G), and thousand seed weight (H), were also provided. Asterisk indicates a significant difference between Con and HNW (n ≥ 1000, p < 0.001, two-way Student’s t-test). Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Plants 10 02331 g001

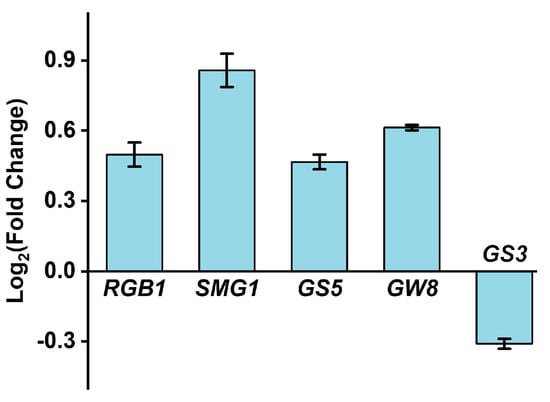

Figure 2. The results of gene expression in (young panicles) at the filling stage (5 September 2020) show that HNW may increase rice seed size. Then, transcripts of RGB1, SMG1, GS5, GW8, and GS3 were analyzed by qPCR. Data are mean ± SD (n = 3).
Figure 2. The results of gene expression in (young panicles) at the filling stage (5 September 2020) show that HNW may increase rice seed size. Then, transcripts of RGB1, SMG1, GS5, GW8, and GS3 were analyzed by qPCR. Data are mean ± SD (n = 3).
Plants 10 02331 g002

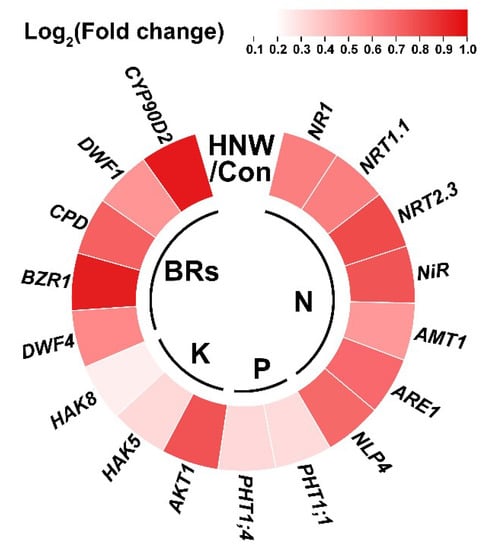

Figure 3. Molecular evidence showing that the results of rice seed size might be causally related to absorption of N, P, and K, as well as BRs signaling. Transcripts of genes related to absorption of N, P, and K in root tissues, and BRs signaling in young panicles were analyzed by qPCR. The samples were obtained on 5 September 2020. The different color means different log2(fold change) of HNW contrast Con.
Figure 3. Molecular evidence showing that the results of rice seed size might be causally related to absorption of N, P, and K, as well as BRs signaling. Transcripts of genes related to absorption of N, P, and K in root tissues, and BRs signaling in young panicles were analyzed by qPCR. The samples were obtained on 5 September 2020. The different color means different log2(fold change) of HNW contrast Con.
Plants 10 02331 g003

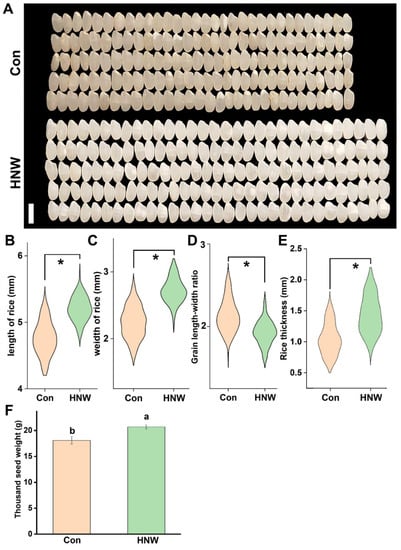

Figure 4. HNW positively influences the size and weight of white rice. The photographs of 30 white rice (A) were taken (bar = 0.5 cm). Parameters of white rice size, including length (B), width (C), length-width ratio (D), thickness (E), and thousand grain weight (F), were analyzed. Asterisk indicates a significant difference between Con and HNW (n ≥ 1000, p < 0.001, two-way Student’s t-test). Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Figure 4. HNW positively influences the size and weight of white rice. The photographs of 30 white rice (A) were taken (bar = 0.5 cm). Parameters of white rice size, including length (B), width (C), length-width ratio (D), thickness (E), and thousand grain weight (F), were analyzed. Asterisk indicates a significant difference between Con and HNW (n ≥ 1000, p < 0.001, two-way Student’s t-test). Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Plants 10 02331 g004

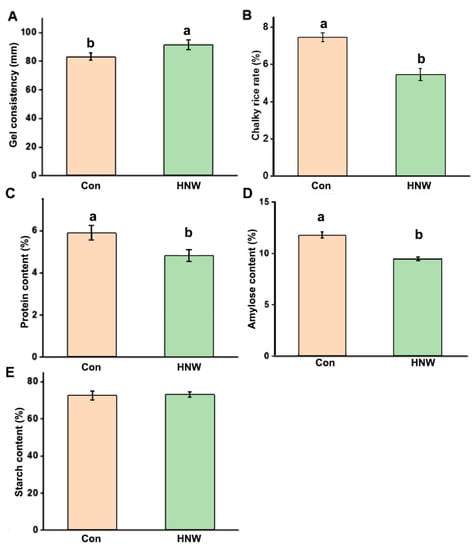

Figure 5. HNW positively influences qualitative characters of white rice. The gel consistency (A), chalky rice rate (B), contents of total protein (C), amylose (D), and starch (E) were analyzed. Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Figure 5. HNW positively influences qualitative characters of white rice. The gel consistency (A), chalky rice rate (B), contents of total protein (C), amylose (D), and starch (E) were analyzed. Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Plants 10 02331 g005

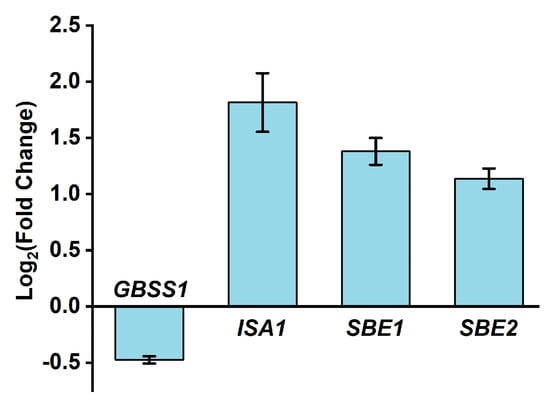

Figure 6. Changes of gene expression in leaves at the filling stage (5 September 2020) showing that HNW might decrease amylose accumulation. Transcripts of GBSS1, ISA1, SBE1, and SBE2 were analyzed by qPCR. Data are mean ± SD (n = 3).
Figure 6. Changes of gene expression in leaves at the filling stage (5 September 2020) showing that HNW might decrease amylose accumulation. Transcripts of GBSS1, ISA1, SBE1, and SBE2 were analyzed by qPCR. Data are mean ± SD (n = 3).
Plants 10 02331 g006

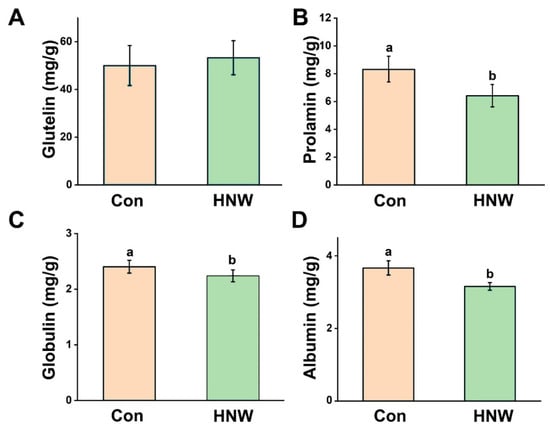

Figure 7. Composition of the crude protein in white rice. The contents of glutelin (A), prolamin (B), globulin (C), and albumin (D) were measured, respectively. Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Figure 7. Composition of the crude protein in white rice. The contents of glutelin (A), prolamin (B), globulin (C), and albumin (D) were measured, respectively. Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Plants 10 02331 g007

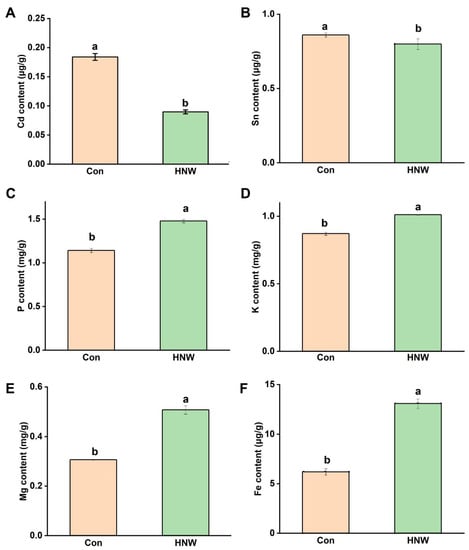

Figure 8. HNW affects the absorption of heavy metal and some nutrient element in white rice. The heavy metal content was analyzed, including Cd (A) and Sn (B). Meanwhile some nutrient elements, including phosphorus (C), potassium (D), magnesium (E), and iron (F), in white rice were further determined. Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Figure 8. HNW affects the absorption of heavy metal and some nutrient element in white rice. The heavy metal content was analyzed, including Cd (A) and Sn (B). Meanwhile some nutrient elements, including phosphorus (C), potassium (D), magnesium (E), and iron (F), in white rice were further determined. Data are mean ± SD (n = 3). Bars with different letters were significantly different in comparison with Con at p < 0.05.
Plants 10 02331 g008
Figure 9. The results of gene expression in roots at the filling stage (5 September 2020) showing that HNW could decrease cadmium accumulation. Transcripts of Nramp5, HMA2, HMA3, IRT, and LCD were analyzed by qPCR. Data are mean ± SD (n = 3).
Figure 9. The results of gene expression in roots at the filling stage (5 September 2020) showing that HNW could decrease cadmium accumulation. Transcripts of Nramp5, HMA2, HMA3, IRT, and LCD were analyzed by qPCR. Data are mean ± SD (n = 3).
Plants 10 02331 g009
Figure 10. During rice planting, the field daily maximum and minimum temperature.
Figure 10. During rice planting, the field daily maximum and minimum temperature.
Plants 10 02331 g010
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cheng, P.; Wang, J.; Zhao, Z.; Kong, L.; Lou, W.; Zhang, T.; Jing, D.; Yu, J.; Shu, Z.; Huang, L.; et al. Molecular Hydrogen Increases Quantitative and Qualitative Traits of Rice Grain in Field Trials. Plants 2021, 10, 2331. https://doi.org/10.3390/plants10112331

AMA Style

Cheng P, Wang J, Zhao Z, Kong L, Lou W, Zhang T, Jing D, Yu J, Shu Z, Huang L, et al. Molecular Hydrogen Increases Quantitative and Qualitative Traits of Rice Grain in Field Trials. Plants. 2021; 10(11):2331. https://doi.org/10.3390/plants10112331

Chicago/Turabian Style

Cheng, Pengfei, Jun Wang, Zhushan Zhao, Lingshuai Kong, Wang Lou, Tong Zhang, Dedao Jing, Julong Yu, Zhaolin Shu, Liqin Huang, and et al. 2021. "Molecular Hydrogen Increases Quantitative and Qualitative Traits of Rice Grain in Field Trials" Plants 10, no. 11: 2331. https://doi.org/10.3390/plants10112331

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
