Development of SNP Markers for White Immature Fruit Skin Color in Cucumber (Cucumis sativus L.) Using QTL-seq and Marker Analyses

by
D. S. Kishor
1,
Hemasundar Alavilli
1,
Sang-Choon Lee
2,
Jeong-Gu Kim
3 and
Kihwan Song
1,*
1
Department of Bioresources Engineering, Sejong University, Seoul 05006, Korea
2
PHYZEN, Seongnam-si 13558, Gyeonggi-do, Korea
3
National Academy of Agricultural Science, Rural Development Administration, Jeonju 54874, Korea
*
Author to whom correspondence should be addressed.
Plants 2021, 10(11), 2341; https://doi.org/10.3390/plants10112341
Submission received: 7 October 2021 / Revised: 26 October 2021 / Accepted: 28 October 2021 / Published: 29 October 2021
(This article belongs to the Special Issue 10th Anniversary of Plants—Recent Advances and Perspectives)
Browse Figures
Review Reports Versions Notes

Abstract

:
Despite various efforts in identifying the genes governing the white immature fruit skin color in cucumber, the genetic basis of the white immature fruit skin color is not well known. In the present study, genetic analysis showed that a recessive gene confers the white immature fruit skin-color phenotype over the light-green color of a Korean slicer cucumber. High-throughput QTL-seq combined with bulked segregation analysis of two pools with the extreme phenotypes (white and light-green fruit skin color) in an F2 population identified two significant genomic regions harboring QTLs for white fruit skin color within the genomic region between 34.1 and 41.67 Mb on chromosome 3, and the genomic region between 12.2 and 12.7 Mb on chromosome 5. Further, nonsynonymous SNPs were identified with a significance of p < 0.05 within the QTL regions, resulting in eight homozygous variants within the QTL region on chromosome 3. SNP marker analysis uncovered the novel missense mutations in Chr3CG52930 and Chr3CG53640 genes and showed consistent results with the phenotype of light-green and white fruit skin-colored F2 plants. These two genes were located 0.5 Mb apart on chromosome 3, which are considered strong candidate genes. Altogether, this study laid a solid foundation for understanding the genetic basis and marker-assisted breeding of immature fruit skin color in cucumber.

1. Introduction

Cucumber (Cucumis sativus L.; 2n = 2x = 14) is a major economically important vegetable crop in the Cucurbitaceae family. Its total annual global production is 87,805,086 tons in an area of 2231,402 ha, and 80 % of global production comes from China with a yearly output of 70,338,971 tons (FAO, 2019). Cucumber fruits are usually consumed fresh or as processed pickles after 8–18 days of anthesis [1].
Cucumber fruits display wide phenotypic variation in immature fruit skin color from dark green to white appearance [2]. The green skin color of the cucumber fruit is directly associated with the accumulation of chlorophyll [1,3,4,5]. The external skin color of immature fruit is considered as an essential quality trait that decides consumer preference. In order to develop cucumber varieties with various skin colors, it is necessary to understand the inheritance and genes governing the fruit skin color.
Upon the availability of the genomic information of cucumber [6,7,8], several genes were identified, which led to the development of molecular markers for marker-assisted selection (MAS) of fruit skin color in cucumber. A single dominant gene B (R2R3-MYB) was identified for the orange mature fruit skin color on chromosome 4, and an Insertion-deletion (InDel) marker was developed based on the 1-bp deletion in the third exon of this gene, was co-segregated with fruit skin color [9]. High-resolution mapping for the dull fruit skin trait in cucumber revealed a single dominant gene D on chromosome 5 between markers SSR37 and SSR112, at a physical distance of 244.9 kb [10]. The D gene was reported to be closely linked to the genes governing fruit wart (Tu), uniform immature fruit color (u), and small spines (ss) [11,12].
Studies on green fruit skin trait have shown that SNPs in ARC5 and Ycf54 genes cause light-green immature fruit skin color in cucumber [3,13]. Yang et al. [14] studied the inheritance of the uniform immature fruit color in cucumber and identified a single recessive gene that confers uniform immature fruit color (u) phenotype. u gene was mapped to a 313.2 kb on chromosome 5 between co-dominant SSR markers SSR10 and SSR27 at a genetic distance of 0.8 and 0.5 cM, respectively [14], which further laid a strong foundation for marker-assisted breeding of uniform immature fruit color trait in cucumber.
Recent studies have shown that a single gene controls the external fruit color trait and white skin color is recessive over dark green skin color in cucumber [2,15,16]. A frameshift mutation, which leads to a premature stop codon in the w gene (aprr2) on chromosome 3, was reported to be a sole candidate gene responsible for white immature fruit color phenotype in cucumber and associated with chlorophyll biosynthesis [15]. Tang et al. [16] studied the genetics of white immature fruit color in cucumber and mapped a single recessive gene (w0) for white immature fruit color on chromosome 3 to approximately 100.3 kb between two flanking markers, Q138 and Q193 [16]. In spite of several studies, Tang et al. [16] proposed that further study is necessary to understand the genetic basis of white immature fruit skin color in cucumber.
This study determined a novel genetic architecture for the white immature fruit skin color of cucumber by using QTL-seq and SNP marker analyses, which revealed that white fruit skin color trait is recessive over light-green fruit skin color of Korean slicer cucumber. Furthermore, this study identified a novel allelic variant of the Chr3CG52930 gene and a new candidate gene, ‘Chr3CG53640’, for white fruit skin color trait in cucumber. This finding would facilitate understanding of the genes involved in cucumber skin color and contribute to the development of cucumbers using marker-assisted breeding.

2. Materials and Methods

2.1. Genomic DNA Extraction and Pooling

Genomic DNAs were extracted from leaves of the two parental lines (Inbred line of Korean slicer cucumber ‘MEJ’ with light-green skin color and ‘PI525075′ with white skin color) and their F2 plants using a cetyltrimethylammonium bromide (CTAB) method [17]. The integrity of the extracted genomic DNA was checked by an agarose gel electrophoresis. Genomic DNA (gDNA) was quantified using Quant-iT™ PicoGreen™ dsDNA Assay Kit (Invitrogen, Waltham, MA, USA) and Qubit fluorometer (Thermo Fisher Scientific, Waltham, MA, USA). Genomic DNAs of 16 F2 plants with white immature skin color were mixed with equal amounts and used as white skin-pool, and genomic DNAs of 20 F2 plants with light-green skin color were mixed with an equal quantity and used as light-green skin-pool for downstream analysis.

2.2. Whole-Genome Resequencing

Quality and quantity of gDNAs of two parental lines and pooled DNA samples were examined again using an agarose gel electrophoresis and Qubit fluorometer (Thermo Fisher Scientific, USA). The sequencing libraries were prepared according to the TruSeq DNA PCR-free Sample Preparation Kit (Illumina, San Diego, CA, USA). Briefly, fragmentation of 1µg of genomic DNA was performed using adaptive focused acoustic technology (AFA; Covaris, Woburn, MA, USA), and the fragmented DNA was end-repaired to create 5′-phosphorylated, blunt-ended dsDNA molecules. Following end-repair, DNA was size-selected with the bead-based method. These DNA fragments go through the addition of a single ‘A’ base and ligation of the Truseq indexing adapters. The purified libraries were quantified using quantitative PCR (qPCR) according to the qPCR Quantification Protocol Guide (KAPA Library Quantification kits for Illumina Sequencing platforms) and qualified using the high-sensitivity DNA chip (Agilent Technologies, Santa Clara, CA, USA). The paired-end (2 × 150 bp) sequencing was performed using the HiSeq-X platform (Illumina, San Diego, CA, USA) by the Macrogen Co. (Seoul, Korea).

2.3. QTL-seq Analysis

QTL-seq analysis was performed using the QTL-seq program (version 2.1.3, https://github.com/YuSugihara/QTL-seq) (access on 7 October 2021) with default parameters as described previously [18]. Briefly, high-quality sequencing data were obtained by trimming the raw sequencing data using the Trimmomatic program [19] in the QTL-seq program. The high-quality sequencing data of the PI525075 parent with white skin color were aligned to the Korean cucumber genome (Cucumis sativus var. JEF, BioProject no: PRJNA732224, https://www.ncbi.nlm.nih.gov/bioproject/732224) (access on 7 October 2021) using BWA [20]. Then variants from PI525075 parent were used to generate the PI525075 reference genome by substituting the variant bases in the Korean cucumber genome. The high-quality sequencing data of two pooled DNA samples (white skin-pool and light-green skin-pool) were mapped to the PI525075 reference genome and variants (SNPs and InDels) were detected. The SNP index at each SNP position was calculated and then Δ (SNP index) was calculated using the formula: [SNP index (white skin-pool)—SNP index (light-green skin-pool)]. The average SNP index and Δ (SNP index) distribution were estimated in a given genomic interval using a sliding window approach with 2 Mb window size and 100 kb increment and plotted to generate SNP index plots for all chromosomes. The candidate genomic regions for the phenotype were determined based on the sliding window plots. The regions in which the average Δ (SNP index) was significantly greater than the surrounding region and exhibited an average p < 0.05 were considered as candidate QTLs.
Variants’ information in the candidate QTLs was extracted from the variant calling file (VCF) generated by the QTL-seq program. Then, variants with p < 0.05 were further selected and used for further downstream analysis.

2.4. Annotation of Variants and Identification of Variants Causing Protein Sequence Change

The annotation of variants was performed using SnpEff software (version 5.0e, [21]). The variants present in gene regions (from 5’ UTR to 3’ UTR, including intron and exon) was annotated as genic, while other genomic regions were intergenic. Variants in coding sequences (CDSs) were further divided into synonymous and non-synonymous.
Variants that caused the change of amino acid in deduced protein sequence of the genes were identified among the selected variants with p < 0.05 in the QTL regions under the following criteria: (1) variants that were different between bulk1 (white skin) and bulk2 (light-green skin) were selected; (2) among the selected variants, only homozygous variants were selected; (3) homozygous variants that caused the amino acid change in protein sequences encoded by genes were finally selected based on variant annotation information as candidate variants associated with the phenotype.

2.5. Development of Molecular Markers

The flanking sequences of variants were extracted from the JEF Korean cucumber genome sequences and then used to design cleaved amplified polymorphic sequence (CAPS) and derived cleaved amplified polymorphic sequence (dCAPS) primers. CAPS and dCAPS primers were designed using in-house scripts modified from CAPS-finder.pl (https://github.com/mfcovington/CAPS-finder/blob/master/CAPS-finder.pl) (access on 7 October 2021) and dCAPS Finder (http://helix.wustl.edu/dcaps/dcaps.html) (access on 7 October 2021), respectively. Parameters of primer design were a primer size of 17– 25 mer, GC% of 50%, Tm of 50–60 °C, and amplicon size of 200–700 bp. BLASTN searches against reference genome sequences confirmed the specificity of designed primers. Designed molecular markers were validated by agarose gel electrophoresis after genomic DNA PCR and restriction enzyme treatment with genomic DNAs of the parents and F2 plants.

3. Results

3.1. Inheritance of Immature Fruit Skin Color

The phenotype of the two parental lines, MEJ and PI525075, along with their F1 (MEJ/ PI525075), were shown in Figure 1a. The skin color of MEJ and PI525075 were evaluated for two skin color indices (one for white and two for light-green) at the immature fruit stage. The fruits of F1 derived from a cross between MEJ and PI525075 were demonstrated to have a light-green immature fruit skin. In the F2 population, there were 106 and 30 plants with light-green skin and white skin, respectively, which was fit to a segregation ratio of 3:1. This implies the recessive nature of the gene for white immature fruit skin color (Table 1 and Figure 1b).

3.2. Whole-Genome Re-Sequencing and QTL-seq Analysis

For whole-genome re-sequencing, 16 plants with white immature fruit skin and 20 plants with light-green immature fruit skin were selected among the 136 F2 plants (Figure 1b) and their gDNAs were then pooled respectively to prepare the white fruit skin-pool and light-green fruit skin-pool along with their two parental lines, MEJ and PI525075. Whole-genome re-sequencing results showed that a total of 192,314,600 and 191,719,994 raw reads were generated for PI525075 and MEJ, respectively, while a total of 204,951,660 and 228,647,910 raw reads were obtained for white fruit skin-pool and light-green fruit skin-pool, respectively. Upon trimming, a total of 157,678,304 reads were generated from PI525075; 187,218,180 reads from MEJ; 175,957,140 reads from white fruit skin-pool, and 197,713,150 reads from light-green fruit skin-pool, each corresponding to more than 20 Gb read length, and more than 75% of the reads were clean reads (Table 2). Clean reads from the parents and bulks were compared to the estimated cucumber genome size of 350 Mb, which indicated that all genomes were sequenced at a depth ranging from 64.32X to 80.44X. In comparison with the PI525075 reference genome using QTL-seq program, we have identified a total of 160,392 SNPs for white fruit skin-pool and 120,899 SNPs for light-green fruit skin-pool across the chromosomes (Table 3).
To identify the genomic region governing immature fruit skin color trait between the white fruit skin-pool and light-green fruit skin-pool, the SNP index of individual SNPs were calculated using the parental PI525075 line as a reference genome and compared these with the bulks’ sequences. An SNP index of zero represents entire short reads of the white fruit skin genome, whereas an SNP index of one indicates that the reads are from the light-green fruit skin genome. The average SNP index was estimated in a given genomic interval with 2 Mb window size and 100 kb increment and plotted to generate SNP index plots for white fruit skin and light-green fruit skin pools against all chromosomes (Figures S1 and S2). To identify the differences in the SNP-indices of the two pools, Δ (SNP index) was estimated by combining the SNP index information of white fruit skin and light-green fruit skin pools and a statistical confidence interval was plotted against the reference genome of cucumber (Figure S3). Furthermore, significant genomic regions were detected at a statistical significance of p < 0.05 according to the principle of SNP index estimation showed in QTL-seq analysis (Figure S3), resulting in two significant genomic regions harboring candidate QTLs for white fruit skin trait within the genomic region between 34.1 and 41.67 Mb on chromosome 3, and the genomic region between 12.2 and 12.7 Mb on chromosome 5 (Figure 2 and Table 4). The significant genomic region on chromosome 3 had an average SNP index value of 0.18 and 0.72 for white fruit skin-pool and light-green fruit skin-pool, respectively. Similarly, the second significant genomic region on chromosome 5 displayed an average SNP index value of 0.26 and 0.71 for white fruit skin-pool and light-green fruit skin-pool, respectively. The significant genomic region on chromosome 3 had an average Δ (SNP index) value of 0.53. In contrast, significant genomic region chromosome 5 had an average Δ (SNP index) value of 0.44 at the 95% confidence interval. These results indicated the presence of significant genomic regions conferring white immature skin color in cucumber.

3.3. Identification of SNPs and Candidate Genes via in Silico Analysis

To identify the SNPs and potential candidate genes associated with immature fruit skin, homozygous variants that caused the change in amino acid in deduced protein sequence of genes in the QTL regions were mined with p < 0.05. As a result, a total of eight homozygous variants (six SNPs and two InDels) and seven potential candidate genes were identified within the QTL region between 34.1 and 41.67 Mb on chromosome 3 (Table 5). Among the eight homozygous variants, we detected a single base pair deletion in a gene encoding LSi6 (Cucumis sativus) aquaporin nodulin-26-like intrinsic protein (NIP), a single base insertion within a gene encoding hypothetical protein Csa_013022 (Cucumis sativus) PHT [solute carrier family 15 (peptide/histidine transporter) protein], and six missense mutations (non-synonymous SNPs) in five putative genes which are known to be involved in thioredoxin-related transmembrane protein 2 isoform X1 (Cucumis sativus) (1 SNP); inactive poly [ADP-ribose] polymerase RCD1 (Cucumis sativus) (1 SNP); β-amyrin 11-oxidase (Cucumis sativus), AIT72036.1 cytochrome P450 (Cucumis sativus) (2 SNPs); Pyruvate kinase isozyme G, chloroplastic isoform X1 (Benincasa hispida), pyruvate kinase [EC:2.7.1.40] (1 SNP), and QWRF motif-containing protein 7 (Cucumis sativus) (1 SNP). By contrast, none of the homozygous variants caused the amino acid changes in the protein-coding genes between 12.2 and 12.7 Mb on chromosome 5.

3.4. Validation of Candidate Genes for Immature Fruit Skin Phenotype

To validate involvement of the candidate genes for immature fruit skin phenotype, a total of two CAPS and six dCAPS markers were developed based on the SNPs information available in the five putative genes (Table 6). These eight markers (M1 to M8) were firstly examined with two parental lines (MEJ and PI525075) and pooled gDNAs of F2 plants with light-green and white fruit skin colors, identifying that all eight markers could discriminate two skin colors in tested samples (Figure 3). Since, M1, M2, and M5 markers were based on the same SNPs information’s as M3, M4, and M6 markers, respectively. Therefore, M1, M2, M5, M7, and M8 markers were selected to be validated in 36 F2 plants. Marker validation assay revealed that M7 and M8 markers designed for the SNPs located at Chr3CG52930 and Chr3CG53640 genes were co-segregated with the light-green and white fruit skin color phenotype in 36 F2 plants (Figure 4). In contrast, none of the other markers (M1, M2 and M5) showed strong co-segregation among F2 plants (Figure S4).
These results provided strong evidence showing that the Chr3CG52930 gene-encoding pyruvate kinase isozyme G chloroplastic isoform X1 (Benincasa hispida) and Chr3CG53640 gene-encoding QWRF motif-containing protein 7 (Cucumis sativus) are involved in the white immature fruit skin color phenotype in PI525075. Further, BLAST search showed that Chr3CG52930 and Chr3CG53640 genes from JEF Korean cucumber genome have 99 and 100 % sequence homology with the Csa3G904080 and Csa3G915140 genes of ’Chinese Long v2’ cucumber genome, respectively.

4. Discussion

The immature fruit skin color is a major quality trait in cucumber, which is an important factor in determining consumer preference according to region. Likewise, chlorophyll is a primary natural pigment in the green peel of cucumber, resulting from chlorophyll biosynthesis [3,13]. A recent study suggests that white immature fruit skin color in cucumbers results from the lack of chlorophyll synthesis during fruit development [2], although several genes involved in chlorophyll biosynthesis are well known in flowering plants [22] but remain unclear in cucumber. Likewise, earlier studies have shown that white immature fruit skin color was a recessive trait and controlled mainly by a single recessive gene in cucumber [2,16]. In the present study, we have investigated the inheritance of white immature fruit skin color using an F2 population derived from a cross between MEJ and PI525075, indicating that a single recessive gene controls the white immature fruit skin color of cucumber. Therefore, the present study’s results are in accordance with the previous reports showing the single recessive gene inheritance for white immature fruit skin trait in cucumber [2,16].
With the growing popularity of next-generation sequencing (NGS), sequencing of the crop plants enables the detection of variants across the genome [23,24,25,26]. QTL-seq analysis allows rapid detection of the homozygous variants of a given phenotype by whole-genome resequencing of two bulked populations [18,27]. QTL-seq makes use of combined benefits of bulk-segregating analysis (BSA) and whole-genome resequencing, which can be used to identify the genomic regions responsible for the mutant phenotype in a single step [18,28,29,30]. The QTL-seq technique was recently applied to the cucumber population to identify the putative variants closely linked to causal genes responsible for subgynoecy, powdery mildew resistance, and light-green immature fruit skin traits in cucumber [13,31,32]. Although QTL-seq is a powerful tool, cucumber breeding has been largely dependent on conventional molecular mapping of putative genes, which is time consuming and requires large-scale DNA markers and many generations of advanced segregating populations [2,16,33]. Here we applied QTL-seq to detect the putative genes for the white immature fruit skin color trait in cucumber using an F2 population derived from a cross between the MEJ (Korean type light-green skin color) and PI525075 (white skin color).
In the past, several genes controlling the immature fruit skin color have been reported in cucumber [2,3,13,14,16]. Liu et al. mapped and identified a single base pair insertion in the APRR2 gene, resulting in a premature stop codon, which further disrupts the accumulation of chlorophyll and chloroplast development, leading to white immature fruit skin color in cucumber [2,15]. Furthermore, two markers based on InDel (LH392580) and SNP (ASPCR39250) were developed and validated within the 8.2 kb physical interval of the APRR2 gene [15]. Similarly, the latest study in cucumber identified the w0 gene for white immature fruit color on chromosome 3 to a 100.3 kb region containing 13 candidate genes between two flanking markers, Q138 and Q193 [16]. However, this study proposed that the Csa3G904140 gene (w0) is responsible for the white immature fruit skin color in cucumber. This study further highlighted that further study is required to validate whether the w0 gene was the same as the APRR2 gene reported in the previous study [15].
In contrast, our study identified the 1080 genes in the target genomic region based on QTL-seq analysis (Table S1); as a result, seven candidate genes were predicted for the immature fruit skin color within the QTL region on chromosome 3. Further, homozygous variants within these seven candidates were validated via SNP marker analysis, resulting in two SNP markers (M7 and M8) developed for the missense mutations showing co-segregation with the light-green and white fruit skin-colored F2 plants. M7 marker designed at the nucleotide position of 6253 (P338L) of Chr3CG52930 gene, whereas M8 marker designed at a nucleotide position of 511 (A171T) at Chr3CG53640 gene on chromosome 3. Thus, it was likely that two genes located 0.5 Mb apart on chromosome 3 were solid putative genes for immature fruit skin color of cucumber, which laid a solid foundation for understanding the genetic basis of immature fruit skin color in cucumber.
Further, the Chr3CG52930 gene-encoding pyruvate kinase isozyme G chloroplastic isoform X1 has been found to share 99% sequence homology with the Csa3G904080 gene of the ‘Chinese Long v2’ cucumber genome. In the latest study, validation of three mutations in the Csa3G904080 gene showed inconsistent results with the green and white cucumbers phenotype, which further concluded that the Csa3G904080 gene was not a putative gene responsible for white pigmentation in cucumber [16]. Although Tang et al. [16] showed that expression of the Csa3G904080 gene was higher in root and leaf than in fruit skin, the present study identified a novel missense mutation in the Csa3G904080 gene and revealed a consistent result with the phenotype of green- and white-skinned cucumbers via SNP marker analysis. Therefore, these results indicated that the possible involvement of the Csa3G904080 gene with white pigmentation requires further study due to their role in chloroplast biogenesis. Similarly, the Chr3CG53640 gene encoding QWRF motif-containing protein 7 (Cucumis sativus) shows 100% sequence homology with the Csa3G915140 gene of the ‘Chinese Long v2’ cucumber genome. A recent study has shown that a mutation in the gene-encoding QWRF motif-containing protein alters chlorophyll synthesis and reduces chlorophyll accumulation in Arabidopsis [34]. Therefore, we speculate that mutation in a Chr3CG53640 gene could be responsible for the white pigmentation, resulting in reduced chlorophyll accumulation in immature fruit skin of the PI525075 cucumber line. Taken together, our study identified a novel allelic variant of the Csa3G904080 gene and a new candidate gene, Chr3CG53640, for white immature skin color in cucumber via QTL-seq and SNP marker analyses. Hence, this study proposes a novel genetic resource controlling white immature skin color that has not been reported or validated in the previous studies. However, studying the gene function in vivo is necessary to confirm the association of Csa3G904080 and Chr3CG53640 genes with the white immature skin color in cucumber. Overall, this study provided a new genetic basis of immature fruit skin color trait in cucumber and is not limited to APRR2 and w0 genes, thus contributing to the development of cucumber cultivars by introgression of useful genes between the two variety groups with different skin colors.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/plants10112341/s1, Figure S1: SNP index graph of white-bulk. The green dots and the red line represent the SNP index and sliding window average of the SNP index, respectively. The SNP index was calculated based on a 2 Mb interval with a 100 kb sliding window. Figure S2: SNP index graph of light-green-bulk. The orange dots and the red line represent the SNP index and sliding window average of the SNP index, respectively. SNP index was calculated based on 2 Mb interval with a 100 kb sliding window. Figure S3: Plots of Δ (SNP index) of two bulks. Δ (SNP index) graph with statistical confidence intervals under the null hypothesis of no QTLs (Green line, p < 0.05; Orange line, p < 0.01) from QTL-seq analysis. Blue dots show Δ (SNP index). Red line indicates sliding window average of Δ (SNP index). Δ (SNP index) was calculated based on 2 Mb interval with a 100 kb sliding window. Figure S4: dCAPS analysis of M1, M2, and M5 markers in the F2 plants derived from a cross between MEJ and PI525075. P1, ‘PI525075′ (White); P2, ‘MEJ’ (Green); W, White; G, Green. (a) Genotyping result of M1 marker for a novel allele of Chr3CG51850 gene. (b) Genotyping result of M2 marker for a novel of allele of Chr3CG52290 gene. (c) Genotyping result of M5 marker for a novel allele of Chr3CG52880 gene. Red arrow indicates no co-segregation with the phenotype. Table S1: Total number of genes found within the QTL region on chromosome 3.

Author Contributions

K.S. designed the study and conducted phenotyping. S.-C.L. performed genomic and marker analysis. J.-G.K. and K.S. supervised the study. D.S.K. performed markers validation and wrote the first draft of the manuscript, and edited; D.S.K., S.-C.L. and H.A. revised the manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This work was carried out with the support of “Cooperative Research Program for National Agricultural Genome Program (Project No. PJ01343201)” Rural Development Administration, Korea and (Project No. 20190455) Sejong University.

Data Availability Statement

All relevant raw sequence data generated in this study are available in the Sequence Read Archive (SRA) of the NCBI database with the following accession number: MEJ (SRX10261885) and PI525075 (SRR16093564).

Acknowledgments

We thank Hye Sik Kim, Hyo-Won Kim, and Junki Lee in Phyzen for providing bioinformatics analyses and Ho Bang Kim in Biomedic for providing experimental supports.

Conflicts of Interest

The authors hereby declare that they have no conflict of interest.

References

  1. Che, G.; Zhang, X. Molecular basis of cucumber fruit domestication. Curr. Opin. Plant Biol. 2019, 47, 38–46. [Google Scholar] [CrossRef]
  2. Liu, H.; Meng, H.; Pan, Y.; Liang, X.; Jiao, J.; Li, Y.; Chen, S.; Cheng, Z. Fine genetic mapping of the white immature fruit color gene w to a 33.0-kb region in cucumber (Cucumis sativus L.). Theor. Appl. Genet. 2015, 128, 2375–2385. [Google Scholar] [CrossRef] [PubMed]
  3. Zhou, Q.; Wang, S.; Hu, B.; Chen, H.; Zhang, Z.; Huang, S. An ACCUMULATION AND REPLICATION OF CHLOROPLASTS 5 gene mutation confers light green peel in cucumber. J. Integr. Plant Biol. 2015, 57, 936–942. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Sui, X.; Shan, N.; Hu, L.; Zhang, C.; Yu, C.; Ren, H.; Turgeon, R.; Zhang, Z. The complex character of photosynthesis in cucumber fruit. J. Exp. Bot. 2017, 68, 1625–1637. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Wang, M.; Chen, L.; Liang, Z.; He, X.; Liu, W.; Jiang, B.; Yan, J.; Sun, P.; Cao, Z.; Peng, Q.; et al. Metabolome and transcriptome analyses reveal chlorophyll and anthocyanin metabolism pathway associated with cucumber fruit skin color. BMC Plant Biol. 2020, 20, 386. [Google Scholar] [CrossRef]
  6. Yang, L.; Koo, D.-H.; Li, Y.; Zhang, X.; Luan, F.; Havey, M.J.; Jiang, J.; Weng, Y. Chromosome rearrangements during domestication of cucumber as revealed by high-density genetic mapping and draft genome assembly. Plant J. 2012, 71, 895–906. [Google Scholar] [CrossRef]
  7. Huang, S.; Li, R.; Zhang, Z.; Li, L.; Gu, X.; Fan, W.; Lucas, W.J.; Wang, X.; Xie, B.; Ni, P.; et al. The genome of the cucumber, Cucumis sativus L. Nat. Genet. 2009, 41, 1275–1281. [Google Scholar] [CrossRef] [Green Version]
  8. Li, Q.; Li, H.; Huang, W.; Xu, Y.; Zhou, Q.; Wang, S.; Ruan, J.; Huang, S.; Zhang, Z. A chromosome-scale genome assembly of cucumber (Cucumis sativus L.). GigaScience 2019, 8, guz072. [Google Scholar] [CrossRef] [Green Version]
  9. Li, Y.; Wen, C.; Weng, Y. Fine mapping of the pleiotropic locus B for black spine and orange mature fruit color in cucumber identifies a 50 kb region containing a R2R3-MYB transcription factor. Theor. Appl. Genet. 2013, 126, 2187–2196. [Google Scholar] [CrossRef]
  10. Yang, X.; Zhang, W.; Li, Y.; He, H.; Bie, B.; Ren, G.; Zhao, J.; Wang, Y.; Nie, J.; Pan, J.; et al. High-resolution mapping of the dull fruit skin gene D in cucumber (Cucumis sativus L.). Mol. Breed. 2014, 33, 15–22. [Google Scholar] [CrossRef]
  11. Fanourakis, N.; Simon, P. Analysis of genetic linkage in the cucumber. J. Hered. 1987, 78, 238–242. [Google Scholar] [CrossRef]
  12. Zhang, W.; He, H.; Guan, Y.; Du, H.; Yuan, L.; Li, Z.; Yao, D.; Pan, J.; Cai, R. Identification and mapping of molecular markers linked to the tuberculate fruit gene in the cucumber (Cucumis sativus L.). TAG. Theor. Appl. Genetics. Theor. Und. Angew. Genet. 2009, 120, 645–654. [Google Scholar] [CrossRef] [PubMed]
  13. Lun, Y.; Wang, X.; Zhang, C.; Yang, L.; Gao, D.; Chen, H.; Huang, S. A CsYcf54 variant conferring light green coloration in cucumber. Euphytica 2016, 208, 509–517. [Google Scholar] [CrossRef]
  14. Yang, X.; Li, Y.; Zhang, W.; He, H.; Pan, J.; Cai, R. Fine mapping of the uniform immature fruit color gene u in cucumber (Cucumis sativus L.). Euphytica 2014, 196, 341–348. [Google Scholar] [CrossRef]
  15. Liu, H.; Jiao, J.; Liang, X.; Liu, J.; Meng, H.; Chen, S.; Li, Y.; Cheng, Z. Map-based cloning, identification and characterization of the w gene controlling white immature fruit color in cucumber (Cucumis sativus L.). Theor. Appl. Genet. 2016, 129, 1247–1256. [Google Scholar] [CrossRef]
  16. Tang, H.-Y.; Dong, X.; Wang, J.-K.; Xia, J.-H.; Xie, F.; Zhang, Y.; Yao, X.; Xu, Y.-J.; Wang, Z.-J. Fine Mapping and Candidate Gene Prediction for White Immature Fruit Skin in Cucumber (Cucumis sativus L.). Int. J. Mol. Sci. 2018, 19, 1493. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  17. Doyle, J.J. Isolation of plant DNA from fresh tissue. Focus 1990, 12, 13–15. [Google Scholar]
  18. Takagi, H.; Abe, A.; Yoshida, K.; Kosugi, S.; Natsume, S.; Mitsuoka, C.; Uemura, A.; Utsushi, H.; Tamiru, M.; Takuno, S.; et al. QTL-seq: Rapid mapping of quantitative trait loci in rice by whole genome resequencing of DNA from two bulked populations. Plant J. 2013, 74, 174–183. [Google Scholar] [CrossRef]
  19. Bolger, A.M.; Lohse, M.; Usadel, B. Trimmomatic: A flexible trimmer for Illumina sequence data. Bioinformatics 2014, 30, 2114–2120. [Google Scholar] [CrossRef] [Green Version]
  20. Li, H.; Durbin, R. Fast and accurate short read alignment with Burrows-Wheeler transform. Bioinformatics 2009, 25, 1754–1760. [Google Scholar] [CrossRef] [Green Version]
  21. Cingolani, P.; Platts, A.; Wang, L.L.; Coon, M.; Nguyen, T.; Wang, L.; Land, S.J.; Lu, X.; Ruden, D.M. A program for annotating and predicting the effects of single nucleotide polymorphisms, SnpEff: SNPs in the genome of Drosophila melanogaster strain w1118; iso-2; iso-3. Fly 2012, 6, 80–92. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  22. Beale, S.I. Green genes gleaned. Trends Plant Sci. 2005, 10, 309–312. [Google Scholar] [CrossRef] [PubMed]
  23. Kishor, D.S.; Seo, J.; Chin, J.H.; Koh, H.-J. Evaluation of Whole-Genome Sequence, Genetic Diversity, and Agronomic Traits of Basmati Rice (Oryza sativa L.). Front. Genet. 2020, 11, 86. [Google Scholar] [CrossRef] [Green Version]
  24. Kishor, D.S.; Noh, Y.; Song, W.-H.; Lee, G.P.; Park, Y.; Jung, J.-K.; Shim, E.-J.; Sim, S.-C.; Chung, S.-M. SNP marker assay and candidate gene identification for sex expression via genotyping-by-sequencing-based genome-wide associations (GWAS) analyses in Oriental melon (Cucumis melo L.var.makuwa). Sci. Hortic. 2021, 276, 109711. [Google Scholar] [CrossRef]
  25. Kishor, D.S.; Chung, S.-M. Development of SNP markers and validation assays in commercial Korean melon cultivars, using Genotyping-by-sequencing and Fluidigm analyses. Sci. Hortic. 2019, 263, 109113. [Google Scholar] [CrossRef]
  26. Varshney, R.K.; Nayak, S.N.; May, G.D.; Jackson, S.A. Next-generation sequencing technologies and their implications for crop genetics and breeding. Trends Biotechnol. 2009, 27, 522–530. [Google Scholar] [CrossRef] [Green Version]
  27. Abe, A.; Kosugi, S.; Yoshida, K.; Natsume, S.; Takagi, H.; Kanzaki, H.; Matsumura, H.; Yoshida, K.; Mitsuoka, C.; Tamiru, M.; et al. Genome sequencing reveals agronomically important loci in rice using MutMap. Nat. Biotechnol. 2012, 30, 174–178. [Google Scholar] [CrossRef] [Green Version]
  28. Arikit, S.; Wanchana, S.; Khanthong, S.; Saensuk, C.; Thianthavon, T.; Vanavichit, A.; Toojinda, T. QTL-seq identifies cooked grain elongation QTLs near soluble starch synthase and starch branching enzymes in rice (Oryza sativa L.). Sci. Rep. 2019, 9, 8328. [Google Scholar] [CrossRef] [Green Version]
  29. Yang, L.; Lei, L.; Li, P.; Wang, J.; Wang, C.; Yang, F.; Chen, J.; Liu, H.; Zheng, H.; Xin, W.; et al. Identification of Candidate Genes Conferring Cold Tolerance to Rice (Oryza sativa L.) at the Bud-Bursting Stage Using Bulk Segregant Analysis Sequencing and Linkage Mapping. Front. Plant Sci. 2021, 12, 402. [Google Scholar] [CrossRef]
  30. Ramos, A.; Fu, Y.; Michael, V.; Meru, G. QTL-seq for identification of loci associated with resistance to Phytophthora crown rot in squash. Sci. Rep. 2020, 10, 5326. [Google Scholar] [CrossRef]
  31. Zhang, C.; Badri Anarjan, M.; Win, K.T.; Begum, S.; Lee, S. QTL-seq analysis of powdery mildew resistance in a Korean cucumber inbred line. Theor. Appl. Genet. 2021, 134, 435–451. [Google Scholar] [CrossRef] [PubMed]
  32. Win, K.T.; Zhang, C.; Silva, R.R.; Lee, J.H.; Kim, Y.-C.; Lee, S. Identification of quantitative trait loci governing subgynoecy in cucumber. Theor. Appl. Genet. 2019, 132, 1505–1521. [Google Scholar] [CrossRef] [PubMed]
  33. Wang, Y.; Bo, K.; Gu, X.; Pan, J.; Li, Y.; Chen, J.; Wen, C.; Ren, Z.; Ren, H.; Chen, X.; et al. Molecularly tagged genes and quantitative trait loci in cucumber with recommendations for QTL nomenclature. Hortic. Res. 2020, 7, 3. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  34. Albrecht, V.; Šimková, K.; Carrie, C.; Delannoy, E.; Giraud, E.; Whelan, J.; Small, I.D.; Apel, K.; Badger, M.R.; Pogson, B.J. The Cytoskeleton and the Peroxisomal-Targeted SNOWY COTYLEDON3 Protein Are Required for Chloroplast Development in Arabidopsis. Plant Cell 2010, 22, 3423–3438. [Google Scholar] [CrossRef] [Green Version]
Plants 10 02341 g001 550
Figure 1. Phenotypic analysis of immature fruit skin color of immature cucumber fruits. (a) Fruit phenotype of PI525075 (P1), MEJ/PI525075 (F1) and MEJ (P2); (b) fruit phenotype of F2 derived from a cross between MEJ and PI525075.
Figure 1. Phenotypic analysis of immature fruit skin color of immature cucumber fruits. (a) Fruit phenotype of PI525075 (P1), MEJ/PI525075 (F1) and MEJ (P2); (b) fruit phenotype of F2 derived from a cross between MEJ and PI525075.
Plants 10 02341 g001
Plants 10 02341 g002 550

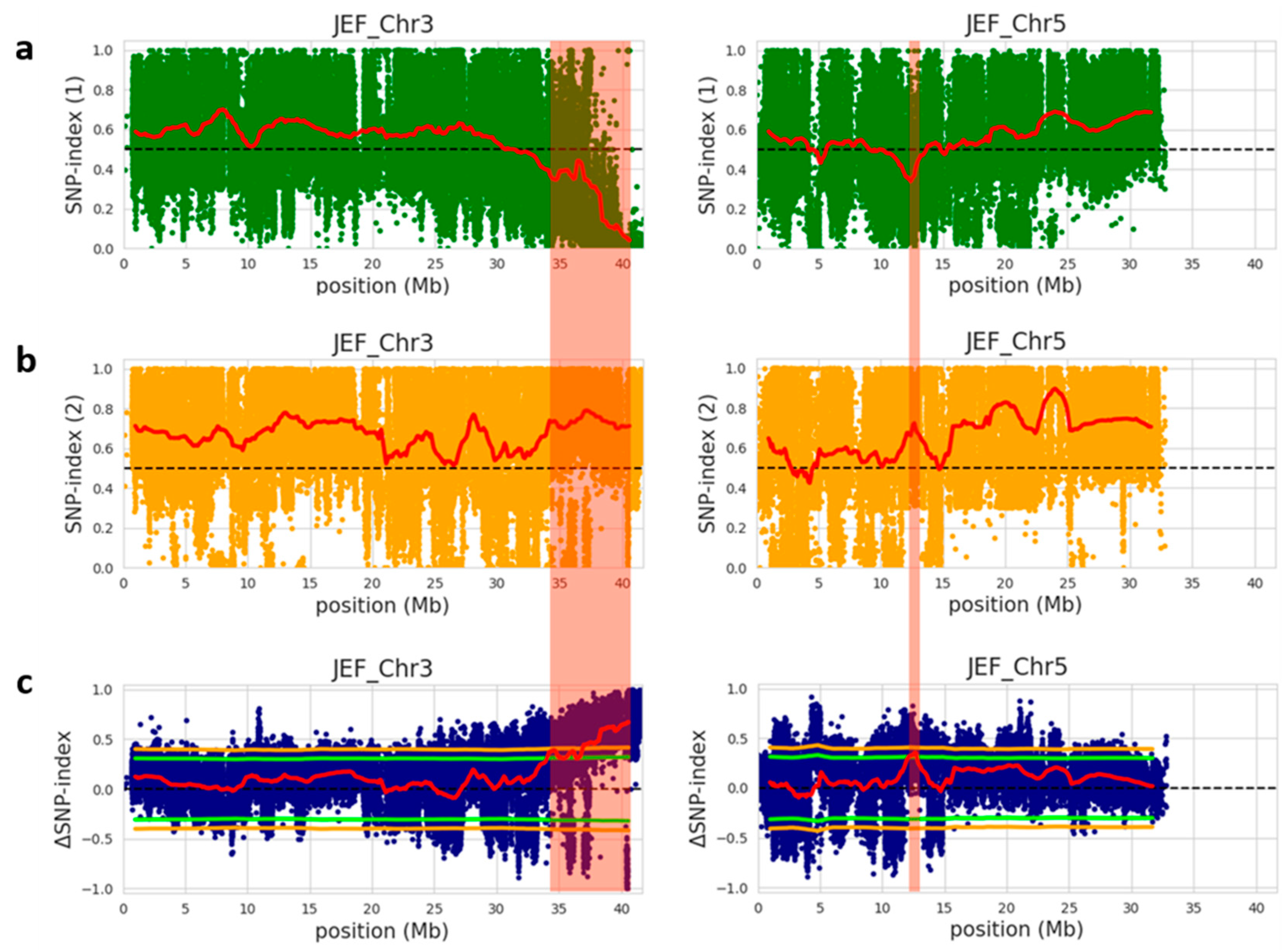

Figure 2. Identification of QTLs on chromosome 3 and 5 for immature fruit skin color based on QTL-seq analysis of F2 population. (a) SNP index graph of white-bulk (green dots and red line represents SNP index and sliding window average of SNP index, respectively); (b) SNP-index graph of light-green-bulk (orange dots and red line indicates SNP index and sliding window average of SNP index, respectively); (c) Δ (SNP index) graph with statistical confidence intervals under the null hypothesis of no QTLs (green line, p < 0.05; orange line, p < 0.01) from QTL-seq analysis. The significant genomic regions with p < 0.01 are highlighted by red shaded bar. Blue dots and red line show Δ (SNP index) and sliding window average of Δ (SNP index), respectively. SNP and Δ (SNP indexes) were calculated based on 2 Mb interval with a 100 kb sliding window.
Figure 2. Identification of QTLs on chromosome 3 and 5 for immature fruit skin color based on QTL-seq analysis of F2 population. (a) SNP index graph of white-bulk (green dots and red line represents SNP index and sliding window average of SNP index, respectively); (b) SNP-index graph of light-green-bulk (orange dots and red line indicates SNP index and sliding window average of SNP index, respectively); (c) Δ (SNP index) graph with statistical confidence intervals under the null hypothesis of no QTLs (green line, p < 0.05; orange line, p < 0.01) from QTL-seq analysis. The significant genomic regions with p < 0.01 are highlighted by red shaded bar. Blue dots and red line show Δ (SNP index) and sliding window average of Δ (SNP index), respectively. SNP and Δ (SNP indexes) were calculated based on 2 Mb interval with a 100 kb sliding window.
Plants 10 02341 g002
Plants 10 02341 g003 550
Figure 3. Marker validation with parental lines and bulked F2 plants. P1, ‘PI525075’ (white); P2, ‘MEJ’ (light-green); W1, white pool, G1, light-green pool; W, white; G, light-green.
Figure 3. Marker validation with parental lines and bulked F2 plants. P1, ‘PI525075’ (white); P2, ‘MEJ’ (light-green); W1, white pool, G1, light-green pool; W, white; G, light-green.
Plants 10 02341 g003
Plants 10 02341 g004 550
Figure 4. dCAPS analysis of novel alleles in the F2 plants derived from a cross between MEJ and PI525075. P1, ‘PI525075’ (white); P2, ‘MEJ’ (light-green); W, white; G, light-green. (a) M7 marker for a novel allele of Chr3CG52930; (b) M8 marker for a novel of allele of Chr3CG53640.
Figure 4. dCAPS analysis of novel alleles in the F2 plants derived from a cross between MEJ and PI525075. P1, ‘PI525075’ (white); P2, ‘MEJ’ (light-green); W, white; G, light-green. (a) M7 marker for a novel allele of Chr3CG52930; (b) M8 marker for a novel of allele of Chr3CG53640.
Plants 10 02341 g004
Table
Table 1. Segregation analysis of immature fruit skin color phenotype in cucumber.
Table 1. Segregation analysis of immature fruit skin color phenotype in cucumber.
NamePopulationPlant NumberImmature Fruit Skin Color Phenotype
WhiteLight-GreenExpectedχ2p Value †
PI525075P110100---
MEJP210010---
MEJ/PI525075F110010---
MEJ/PI525075F2136301063:10.620.42
† Not significant (p Value > 0.05).
Table
Table 2. Summary of whole genome re-sequencing data used for QTL-seq analysis.
Table 2. Summary of whole genome re-sequencing data used for QTL-seq analysis.
SamplesRaw DataTrimmed DataCoverage (X)
ReadsRead Length (bp)ReadsRead Length (bp)%
PI525075192,314,60029,039,504,600157,678,30422,512,072,53577.5264.32
MEJ191,719,99428,949,719,094187,218,18027,266,475,87694.1977.90
White-pool204,951,66030,947,700,660175,957,14025,010,424,99380.8271.46
Light-green-pool228,647,91034,525,834,410197,713,15028,154,853,13181.5580.44
Table
Table 3. Polymorphisms identified in QTL-seq analysis.
Table 3. Polymorphisms identified in QTL-seq analysis.
Chromosome NumberNo. of SNPs
White-PoolLight-Green-Pool
111,8968263
221,04720,044
346,48016,303
417,84325,400
527,53515,122
618,78221,018
716,80914,749
Total160,392120,899
Table
Table 4. Candidate QTLs associated with immature fruit skin color of cucumber based on QTL-seq analysis.
Table 4. Candidate QTLs associated with immature fruit skin color of cucumber based on QTL-seq analysis.
Chr.Physical Position (Mb)Size (bp)SNPsGenes
334.1–41.677,579,49211,435556
512.2–12.7500,00074333
Table
Table 5. Identification of sequence variations and candidate genes in the QTL region on chromosome 3.
Table 5. Identification of sequence variations and candidate genes in the QTL region on chromosome 3.
PositionRefAltEffectAATypeGene IDDescription
34626707TAAAAAAAAAAATAAAAAAAAAADeletionATGInDelChr3CG43770LSi6 [Cucumis sativus var. sativus], aquaporin NIP
40443941TCNon_synonymousI3VSNPChr3CG51850Thioredoxin-related transmembrane protein 2 isoform X1 [Cucumis sativus]
40660199TGNon_synonymousL457RSNPChr3CG52290Inactive poly [ADP-ribose] polymerase RCD1 [Cucumis sativus]
41075124GTNon_synonymousV250LSNPChr3CG52880β-amyrin 11-oxidase [Cucumis sativus], AIT72036.1 cytochrome P450 [Cucumis sativus]
41075140TGNon_synonymousI255RSNPChr3CG52880β-amyrin 11-oxidase [Cucumis sativus], AIT72036.1 cytochrome P450 [Cucumis sativus]
41102542CTTTTTTTTTTTTTCTTTTTTTTTTTTTTInsertionS123FInDelChr3CG52910Hypothetical protein Csa_013022 [Cucumis sativus], PHT; solute carrier family 15 (peptide/histidine transporter)
41106529GANon_synonymousP338LSNPChr3CG52930Pyruvate kinase isozyme G, chloroplastic isoform X1 [Benincasa hispida], pyk; pyruvate kinase [EC:2.7.1.40]
41641571GANon_synonymousA171TSNPChr3CG53640QWRF motif-containing protein 7 [Cucumis sativus]
Table
Table 6. Primers used for genotyping the parents and F2 plants.
Table 6. Primers used for genotyping the parents and F2 plants.
Marker
Name		ChrPositionGene IDMarker TypeForward/Reverse Sequence (5′–3′) Restriction SiteRestriction EnzymeAmplicon Size (Light-Green vs. White)
M1340443941Chr3CG51850CAPSTTCTCTAATGACGATGACGTTG/ATCCGGAATTTCTTTCTTCTTCACGTHpyCH4IV691 vs. (264, 427)
M2340660199Chr3CG52290CAPSTCTGTGAACTTTGACAGTGGAG/TAGATCTCCACAAGTCTCCCATACGTHpyCH4IV360 vs. (226, 134)
M3340443941Chr3CG51850dCAPSTTTCCGGGATGAATTCCCGGATCGA/ATCCGGAATTTCTTTCTTCTTCATCGATClaI238 vs. 263
M4340660199Chr3CG52290dCAPSAAGATACCATCAAGTCCTCTTAAGC/GCAATTTATCTGCAACTGGTCTAAGCTTHindIII272 vs. 297
M5341075124Chr3CG52880dCAPSGAAGATAGAGAATACAATTCAAGCT/TATGTAGAAGAGCCCAACAAGCAAGCTTHindIII197 vs. 172
M6341075140Chr3CG52880dCAPSTGTTTTATCATTTTCAAATCTACGT/GCCTATTAAATTGGTGGATGAATACGTASnaBI338 vs. 363
M7341106529Chr3CG52930dCAPSAACCTTGTGGACACTCGATGGACTT/ATGCGTGTTCCTCTAGTTTGTTCTNAGDdeI327 vs. 302
M8341641571Chr3CG53640dCAPSATGGAAGTCTCTGCTCTAACCTAAG/AAACTAGGCAGTCAACGAGGTCCTNAGCBpu10I113 vs. 138
