Article

Genetic Diversity of Genes Controlling Unilateral Incompatibility in Japanese Cultivars of Chinese Cabbage

by
Yoshinobu Takada
1,*,
Atsuki Mihara
2,
Yuhui He
2,
Haolin Xie
2,
Yusuke Ozaki
2,
Hikari Nishida
2,
Seongmin Hong
3,
Yong-Pyo Lim
3,
Seiji Takayama
4,
Go Suzuki
2,* and
Masao Watanabe
1,*
1
Graduate School of Life Sciences, Tohoku University, Sendai 980-8577, Japan
2
Division of Natural Science, Osaka Kyoiku University, Kashiwara 582-8582, Japan
3
Department of Horticulture, College of Agriculture and Life Science, Chungnam National University, Daejeon 34134, Korea
4
Department of Applied Biological Chemistry, Graduate School of Agricultural and Life Sciences, The University of Tokyo, Tokyo 113-8657, Japan
*
Authors to whom correspondence should be addressed.
Plants 2021, 10(11), 2467; https://doi.org/10.3390/plants10112467
Submission received: 30 September 2021 / Revised: 1 November 2021 / Accepted: 12 November 2021 / Published: 15 November 2021
(This article belongs to the Special Issue Genetics and Genomics of the Brassicaceae)
Browse Figures
Review Reports Versions Notes

Abstract

:
In recent years, unilateral incompatibility (UI), which is an incompatibility system for recognizing and rejecting foreign pollen that operates in one direction, has been shown to be closely related to self-incompatibility (SI) in Brassica rapa. The stigma- and pollen-side recognition factors (SUI1 and PUI1, respectively) of this UI are similar to those of SI (stigma-side SRK and pollen-side SP11), indicating that SUI1 and PUI1 interact with each other and cause pollen-pistil incompatibility only when a specific genotype is pollinated. To clarify the genetic diversity of SUI1 and PUI1 in Japanese B. rapa, here we investigated the UI phenotype and the SUI1/PUI1 sequences in Japanese commercial varieties of Chinese cabbage. The present study showed that multiple copies of nonfunctional PUI1 were located within and in the vicinity of the UI locus region, and that the functional SUI1 was highly conserved in Chinese cabbage. In addition, we found a novel nonfunctional SUI1 allele with a dominant negative effect on the functional SUI1 allele in the heterozygote.

1. Introduction

Most Japanese cultivars of Chinese cabbage (Brassica rapa L.) are F1 hybrids. Traditionally, their seeds have been produced using the Brassica self-incompatibility (SI) system. The SI system in Brassica is sporophytically controlled by a single S-locus with highly variable, multiple alleles [1]. The S-locus region contains two genes, SRK and SP11/SCR, which correspond to female and male S determinants, respectively [2]. SRK encodes a transmembrane receptor kinase, which is expressed specifically in stigma, and SP11/SCR encodes a small cysteine-rich ligand for SRK, which is localized on the pollen coat [3,4,5]. The S-haplotype-specific interaction of SP11 and the extracellular domain of SRK induces the SI reaction, in which the self-pollen fails to germinate or penetrate into the stigma [6]. The number of S-haplotypes has been estimated to be more than 100 in B. rapa [7,8,9]. Advanced understanding of the S-haplotype diversity, including dominance relationships between the haplotypes [10], is important for the efficient production of high-quality F1-hybrid seed in Brassica crops.
In addition to SI, we reported an interesting incompatibility relationship between Turkish and Japanese populations of B. rapa [11,12]. Pollen of the Turkish line was rejected on the stigma of the Japanese line, although crossing in the reverse direction showed compatibility. This cross-incompatibility operating in one direction, unilateral incompatibility (UI) occurred within species, in contrast to the UI that is known to occur in interspecies crossing [13,14]. Our molecular genetic studies of intraspecies UI in B. rapa revealed that it was controlled by the stigma-expressed gene, stigmatic unilateral incompatibility 1, SUI1, encoding an SRK-like receptor kinase and the pollen-expressed gene, pollen unilateral incompatibility 1, PUI1, encoding an SP11-like small cysteine-rich ligand. SUI1 and PUI1 are tightly linked and are considered to originate from a duplication event of the SRK-SP11 region in Brassica [12]. The S locus is located on chromosome A07, while the UI locus (containing SUI1 and PUI1) is on chromosome A04 of B. rapa [12]. From our further analysis of genetic diversity and distribution of the PUI1 and SUI1 genes in B. rapa, a functional PUI1-1 allele was found only in the Turkish lines and not in the Japanese lines, while the three functional SUI1 alleles (SUI1-1, -2, and -3) were found in Japanese wild populations and some cultivated varieties. Thus, loss of function of SUI1 in Turkish lines and PUI1 in Japanese lines might have resulted in the unidirectional pollen-stigma incompatibility in B. rapa [12].
The physiological pollen-rejection phenotype of the intraspecies UI is similar to that of SI and is consistent with the involvement of M-locus protein kinase (MLPK) in UI, which may function in SRK-mediated SI signal transduction [15,16]. It is noteworthy that the incompatibility response of UI is almost as strong as in the rigid SI phenotype in B. rapa. Thus, UI may have an effect on the SI-dependent breeding process in B. rapa. In this study, we extensively analyzed SUI1 and PUI1 alleles in Japanese cultivated lines of Chinese cabbage (Brassica rapa var. pekinensis). The results presented here give new insight into the historical relationship between UI and the breeding system of Chinese cabbage in Japan.

2. Results

2.1. Cultivars of Chinese Cabbage Produced by Japanese Seed Companies

The UI phenotype observed on the stigma (stigma-side UI phenotype) was originally identified in the Japanese commercial hybrid variety ‘Osome’ of Japanese mustard spinach, Komatsuna (B. rapa var. perviridis), from the Takii seed company [11]. To understand the role of SUI1 in Japanese B. rapa cultivars, here we examined 52 commercial cultivars of Chinese cabbage (B. rapa var. pekinensis) from 16 Japanese seed companies (listed in Table 1) to determine their SUI1 and PUI1 alleles in addition to their stigma-side UI phenotype. All the cultivars used in this study, except ‘Kashinhakusai’ (#8), are F1 hybrids. Because functional SUI1 alleles behave as dominant over nonfunctional alleles [11], they can be analyzed to predict the UI phenotype on the stigma side of hybrid varieties.

2.2. Stigma-Side UI Phenotype Determined by Pollination Test

To verify the stigma-side UI phenotype of the Japanese cultivars of Chinese cabbage, stigmas of 47 cultivars were crossed with the pollen from the Turkish line (S24t, S40t, or S21t) possessing PUI1-1/PUI1-1 with crossing combinations of different S-haplotypes for discriminating the UI phenotype from the SI phenotype (S21t was produced for this study) [16]. Among the 47 cultivars, 85% (40 cultivars) had the incompatibility (UI) phenotype to the Turkish pollen (Table 1). Only seven cultivars, ‘Chihiri 70′ (#5), ‘Eiki’ (#14), ‘Kasumihakusai’ (#17), ‘Gokui’ (#45), ‘Hakuei hakusai’ (#50), ‘Taibyou apolo 60′ (#83), and ‘Super CR Shinrisou’ (#88), had the compatibility (UC) phenotype to the Turkish pollen (Table 1). Thus, the majority of the Chinese cabbage cultivars we tested have the ability to reject the PUI1-1/PUI1-1 pollen, indicating that they possess functional SUI1 allele(s).

2.3. The SUI1 Allele and Its Distribution

We isolated the full-length SUI1 gene by polymerase chain reaction (PCR) amplification from the genomic DNA of each cultivar and determined its allele(s) by sequencing, as listed in Table 1. From 22 cultivars in which SUI1 was sequenced, six alleles, including functional alleles (SUI1-1 and -2), were identified. One cultivar, ‘Kashinhakusai’ (#8), with stigmatic UI phenotype, had the SUI1-1 allele, which was originally isolated from Komatsuna variety ‘Osome’ [11,12]. This may be because, among the cultivars used in the present study, only ‘Kashinhakusai’ (#8) is not an F1 hybrid, as described above. The 16 cultivars with stigmatic UI phenotype possessed the SUI1-2 allele (Table 1), which has been found in wild B. rapa populations [11,12]. Three alleles encoding putative intact SUI1 proteins, SUI1-10 (accession, LC641787), SUI1-11 (accession, LC641786), and SUI1-12 (accession, LC641785), and one allele encoding truncated protein, sui1-t10 (accession, LC641784) were newly identified alleles in this study (Figure 1). Phylogenetic analysis with amino acid sequences revealed that SUI1-11 and SUI1-12 belonged to the same clade, and this was different from the clade with the functional SUI1s (SUI1-1, -2, and -3) and SUI1-10 (Figure 2), suggesting that SUI1-11 and SUI1-12 are nonfunctional alleles. Four out of seven stigmatic UC cultivars possessed SUI1-10, -12, or sui1-t10.
In the case of the SUI1-10 allele, found in cultivars ‘Hakuei hakusai’ (#50) and ‘Taibyou apolo 60′ (#83), a single base substitution at codon 413 (changing the residue from cysteine to tyrosine) was present at the C-terminus of the extracellular domain (Figure 1). Both cultivars possessing the SUI1-10 allele showed stigmatic UC phenotype, despite being heterozygous for the functional SUI1-2 allele (Table 1), indicating that there was a dominant negative effect of SUI1-10 toward SUI1-2 (as described below in detail).
On the other hand, the SUI1-11 allele had 17 amino acid changes in the extracellular domain, and cultivars ‘Mainoumi’ (#1) and ‘Menkoi’ (#9) with SUI1-2/SUI1-11 heterozygote showed the stigmatic UI phenotype (Figure 1, Table 1). Even if SUI1-11 is nonfunctional, as expected, the stigmatic UI phenotype is consistent with the dominance of SUI1-2 over SUI1-11.
The SUI1-12 allele had six amino acid changes in the extracellular domain. The cultivar ‘Kasumihakusai’ (#17) had SUI1-2 and SUI1-12 alleles as a heterozygote, and it showed the stigmatic UC phenotype (Figure 1, Table 1). It is also possible that SUI1-12 might show a dominant negative effect to SUI1-2 in ‘Kasumihakusai’ (#17), as in the case of SUI1-10 in ‘Hakuei hakusai’ (#50) and ‘Taibyou apolo 60′ (#83).
‘Chihiri 70′ (#5) possessed the truncated sui1-t10 allele (Figure 1). All the 15 SUI1 clones of ‘Chihiri 70′ (#5) isolated from two independent PCR amplifications were sui1-t10, suggesting that ‘Chihiri 70′ (#5) is homozygous for sui1-t10, which is consistent with its stigmatic UC phenotype. The sequence of the extracellular domain of sui1-t10 was perfectly matched with SUI1-1 and SUI1-2 functional alleles, but there was a 10-bp deletion in the sixth exon, as in sui1-t4, sui1-t5, and sui1-t6, which results in a frameshift and creates a premature termination codon [12].

2.4. The PUI1 Allele and Its Distribution

To examine the PUI1 alleles of 48 cultivars of Chinese cabbage, we cloned the PCR fragments of the full-length PUI1 and determined their sequences (Table 1, see Materials and Methods section). In these Japanese cultivars, we found three nonfunctional alleles (pui1-3, -4, and -6), which have been reported previously [12]. Out of the 48 cultivars, 34 possessed both pui1-3 and pui1-4, and 14 possessed all three alleles (Table 1). The existence of three alleles in an individual plant indicates the possibility of duplication of PUI1. To verify this duplication, we first propagated the self-pollinated progeny of ‘Super CR Shinrisou’ (#88; pui1-3/pui1-4) and determined the PUI1 genotype of the 22 segregants using a direct sequencing method. It was found that all the segregants exhibited both pui1-3 and pui1-4, suggesting that the pui1-3 and pui1-4 genes were linked and homozygous in this progeny (Table 2). Next, we propagated the self-pollinated progeny of ‘Gokui’ (#45; pui1-3/pui1-4/pui1-6) and determined the PUI1 genotype of the 32 segregants using a PCR-restriction fragment length polymorphism (RFLP) method. It was found that all individuals possessed pui1-3, pui1-4, and pui1-6, suggesting that the three PUI1 genes (pui1-3/pui1-4/pui1-6) were linked and homozygous in this progeny (Table 2). Furthermore, a similar PCR-RFLP experiment was performed using ‘Nanzan’ (#101; pui1-3/pui1-4/pui1-6) selfed progeny (Table 2, Table S1). Interestingly, the self-pollinated population (78 plants) of ‘Nanzan’ segregated to pui1-3/pui1-4 and pui1-3/pui1-4/pui1-6 plants. Their segregation ratio was 17:61 (1:3; chi-square test, χ2 = 0.43, p > 0.05) fit for a simple Mendelian inheritance. The result indicates that ‘Nanzan’ (#101) is a heterozygote of duplicated (pui1-3/pui1-4) and triplicated (pui1-3/pui1-4/pui1-6) PUI1 genes in the B. rapa genome. Thus, duplication and/or triplication of nonfunctional PUI1 genes had occurred at the UI locus region in Japanese B. rapa cultivars.

2.5. Genetic Segregation Analysis of the Dominant Negative Effect of SUI1-10

As described above, ‘Hakuei hakusai’ (#50) and ‘Taibyou apolo 60′ (#83), possessing the SUI1-2/SUI1-10 genotype, exhibited stigma-side UC phenotype (i.e., accepting the Turkish PUI1-1/PUI1-1 pollen), even though they have a functional SUI1-2 allele. To confirm this dominant negative effect of SUI1-10, we performed a genetic analysis of ‘Taibyou apolo 60′ (#83).
We produced self-pollinated progeny of ‘Taibyou apolo 60′ (#83-S1 progeny) and determined their stigma-side UI phenotype and SUI1 genotype (Table 3). Stigma-side UI phenotypes of this progeny were determined by test cross-pollination using PUI1-1/PUI1-1 homozygous plants (S24t) as the pollen donor. The SUI1-2 and SUI1-10 alleles were discriminated by direct-sequencing detection of a single nucleotide polymorphism at codon 413 and were segregated in the #83-S1 progeny; three of eleven plants showed stigma-side UI, and the others were stigma-side UC. Stigma of thee SUI1-2/SUI1-2 homozygous plants were incompatible to the S24t pollen (UI), and five SUI1-2/SUI1-10 heterozygous, and three SUI1-10/SUI1-10 homozygous individuals showed compatible pollen tube penetration with the S24t pollen (UC), indicating that SUI1-10 is nonfunctional and has a dominant negative effect to the functional SUI1-2.
For further confirmation of this effect, the #83-S2 population with a higher number of plants was produced by self-bud pollination of the #83-S1 SUI1-2/SUI1-10 heterozygous plants. In the #83-S2 population, SUI1 genotypes segregated as expected; for genotypes SUI1-2/SUI1-2: SUI1-2/SUI1-10: SUI1-10/SUI1-10 the observed ratio was 23:41:16 (1:2:1; chi-square test, χ2 = 1.27, p > 0.05, df = 2, Table 3, Table S2). The stigma-side UC phenotype and SUI1-10 genotype of the #83-S2 population showed perfect linkage in the 80 plants (Table 3). Thus, it was concluded that the nonfunctional SUI1-10 does show a dominant negative effect on the functional SUI1-2.
To verify if this effect is observed with the other functional allele, we produced SUI1-3/SUI1-10 heterozygous plants by a cross between SUI1-3/SUI1-3 [11,12] and SUI1-10/SUI1-10 plants selected from the #83-S2 population. Stigmas of SUI1-3/SUI1-10 heterozygous plants were compatible (UC) with PUI1-1/PUI1-1 pollen from the S24t and also S40t lines, indicating that SUI1-10 also shows a dominant negative effect on the functional SUI1-3.

3. Discussion

Highly controlled pollen-stigma incompatibility is important for F1 hybrid seed production of Brassica cultivars. The molecular mechanism of SI in Brassica has been studied for many years and is used in F1 breeding. The recently discovered UI system, regulated by SUI1 and PUI1, can potentially provide another mechanism to control pollination in B. rapa. Therefore, determination of the UI genotype is considered as important as the SI genotype in the breeding of this major Japanese vegetable, Chinese cabbage. In this study, we determined the SUI1 and PUI1 allelic diversity of 22 and 48 cultivars, respectively, of Chinese cabbage in Japan. In addition, we confirmed the stigma-side UI phenotype of 47 cultivars. This revealed that most of the cultivars showed a stigma-side UI phenotype with a functional SUI1 allele (SUI1-2), whereas no functional PUI1 allele (PUI1-1) was found. We also searched the re-sequence data of B. rapa lines that are stocked at Chungnam National University and found a functional SUI1-2 allele in a South Korean population (data not shown). The fact that functional SUI1 alleles are present in Japanese and South Korean cultivars should be taken into consideration in breeding programs for B. rapa. UI may be beneficial as the additional incompatibility, which could be used in breeding programs by the introduction of PUI1-1 to the pollen donor.
To the best of our knowledge, there is no report that traits important for Chinese cabbage are mapped to flanking regions of the UI locus in chromosome A04. Thus, for an unknown reason, the functional SUI1-2 has been selected, and its sequence has been conserved during the breeding of Chinese cabbage cultivars in Japan. It would be interesting to investigate whether SUI1 itself strengthens SI and thus increases the efficiency of F1 seed production.
In our previous study, we isolated nine intact alleles of SUI1 and showed that SUI1-1, SUI1-2, and SUI1-3 are incompatible with PUI1-1/PUI1-1 pollen [12]. SUI1-1 was originally isolated from a Japanese commercial hybrid variety of Komatsuna (B. rapa var. perviridis), and SUI1-2 and SUI1-3 were found in Japanese wild populations of B. rapa [12]. In the current study, we isolated three novel intact SUI1 alleles; one (SUI1-10) belongs to the functional clade (with SUI1-1, SUI1-2, and SUI1-3) and the other two alleles (SUI1-11 and SUI1-12) belong to the nonfunctional clade (Figure 2). The fact that SUI1-10/SUI1-10 homozygote is stigmatic UC indicates that SUI1-10 is a nonfunctional allele (Table 3). The Cys-413 residue of SUI1-2 is the last of the 12 highly conserved cysteine residues in the SUI1 extracellular domain and is located within the PAN_APPLE domain, which is the C terminal region of the extracellular receptor region. It has been clarified that homodimerization of SRK in Brassicaceae is essential for ligand interaction [17]. The PAN_APPLE domain of SRK has been shown to be important for ligand-independent dimer formation of SRKs and is responsible for correct intracellular trafficking [18,19,20,21]. It has been reported that the last Cys residue of SRK is predicted to form an intramolecular disulfide bond [20,21]. Thus, although the SUI1-10 sequence is similar to the functional SUI1-2, the C413Y mutation of SUI1-10 might cause structural disruption of SUI1 and breakdown of incompatibility through unusual dimer formation.
A feature of the sporophytic regulation of SI is the dominance relationship between S-haplotypes [10,22,23]. The molecular mechanism of the pollen-side dominance relationship has been well studied and revealed that mono-allelic gene expression of the dominant SP11 haplotype is controlled by small RNA-based epigenetic regulation [24,25,26]. On the stigma side, there is a complex allelic interaction that is as yet unexplained [10]. It was presumed that the SRK protein itself determines the dominance relationship rather than differences in SRK gene expression [23], and Naithani et al. [18] noted that the stigma-side dominance relationship may result from an increased tendency for heterodimer formation in some SRK pairs [18]. On the other hand, the existence of dominant negative alleles of receptor kinases that function as receptor complexes in many situations during plant development is widely known [27,28,29]. In most of these, the formation of a receptor complex with abnormal receptor proteins or receptor-related proteins encoded by dominant negative alleles causes disruption of signaling pathways. Thus, one possible explanation for the dominant negative effect of SUI1-10 may be an increase of SUI1-2/SUI1-10 heterodimer on the stigma surface and competitive inhibition of the interaction with the PUI1 ligand. We also found a dominant negative effect of SUI1-10 to SUI1-3, which has four aa substitutions (R322H, I326L, R363H, and V364D) compared to the extracellular domain of SUI1-2, suggesting that these four residues are not important for the effect.
In this study, it was found that the PUI1 gene of Japanese cultivars of Chinese cabbage showed very low diversity. Among six PUI1 alleles, of which only PUI1-1 from a Turkish strain can induce UI [12], only two patterns of genotype (pui1-3/pui1-4 or pui1-3/pui1-4/pui1-6) were observed, and no cultivars with a functional PUI1-1 allele could be found. Interestingly, the pui1-3/pui1-4 genotype might consist of two linked pui1-3 and pui1-4 genes (Figure S1). Similarly, the pui1-3/pui1-4/pui1-6 genotype might consist of three linked pui1-3, pui1-4, and pui1-6 genes (Figure S1). Such duplication and triplication of nonfunctional PUI1 have complicated the UI locus region. Although such PUI1 duplication or triplication cannot be found in the reference genome information of B. rapa inbred line Chiifu (B. rapa reference genome version 3.0, https://brassicadb.cn, accessed on 1 April 2021), de novo genomic sequence assembly of these Chinese cabbage cultivars using next-generation sequencing technology, including long-read sequencing, would provide new insights into the genomic structure of the UI locus [30]. In fact, we can find the two duplicated PUI1 genes on the UI locus of the genome sequence of B. rapa Z1(version 1.0, https://brassicadb.cn, accessed on 19 October 2021, Figure S2) [31].
Further analysis of the genetic diversity of the UI locus in B. rapa other than Chinese cabbage (subsp. pekinensis), such as turnips (subsp. rapa), leafy Brassica crops (subsp. chinensis, periridis), and field mustard (subsp. oleifera) will not only contribute to the discovery of novel alleles but also provide new insights into the genomic structure of the pollen-side factor and the dominant recessive interaction of the stigma-side factor. It will also be interesting to determine whether the UI locus has a multi-allelic structure like the S locus.

4. Materials and Methods

4.1. Plant Material

The plant material consisted of 52 commercial cultivars of Chinese cabbage, B. rapa ssp. pekinensis (Table 1). All except one, ‘Kashinhakusai,’ were F1 hybrid cultivars. To produce self-pollinated progeny, bud pollination was performed. Petals and stamens were removed from a young flower bud (2–4 d before flowering), and the immature pistil was pollinated. The pollinated pistil was then covered with a paper bag until the seed was harvested. Plant materials were vernalized at 4 oC for 4 weeks in a refrigerator and then grown in a greenhouse.

4.2. Test Pollination

Flower buds were cut at the peduncle and pollinated. After pollination, they were stood on 1% solid agar for about 24 h under room conditions. Then, pistils of the pollinated flowers were softened in 1N NaOH for 1 h at 60 °C and stained with basic aniline blue (0.1 M K3PO4, 0.1% aniline blue). Samples were mounted in 50% glycerol on slides and observed by UV fluorescence microscopy (Figure S3) [32]. At least three flowers were used from each cross combination, and observations were generally replicated at least three times on different dates for each cross combination. For the determination of the stigma-side UI phenotype, PUI1-1/PUI1-1 homozygous plants (S24t, S40t, and S21t) were used as the pollen donor in test pollinations (S21t was produced for this study) [16].

4.3. Cloning, Sequencing, and Genotyping of SUI1and PUI1 Alleles

Total DNA was extracted from young leaf tissue of B. rapa by the procedure of Murray and Thompson (1980) or using a DNeasy plant mini kit (Qiagen) [33]. For molecular cloning of full-length SUI1 and PUI1 genes, genomic PCR was performed using KOD-Plus-Neo DNA polymerase (TOYOBO) according to the manufacturer’s instructions. PCR primers SUI1cDNA_F3 and SUI1_gR2 for SUI1 and PCP-like1-F1 and PCP-like1-R1 for PUI1 were used (Table S3). All amplified fragments were detected as a single band in the gel electrophoresis. PCR products were modified by adding 3′-A overhangs using A-attachment mix (TOYOBO) and cloned into a vector, pTAC-2, using DynaExpress TA PCR Cloning kit (Biodynamics). The nucleotide sequence was determined with a 3500 or 310 Genetic Analyzer using Big Dye Terminator version 3.1 or 1.1 Cycle Sequencing Kit (Applied Biosystems); in the case of SUI1, the SUI1-specific sequencing primers, SUIcDNA_F3, SUI_gR2, SUIinter_cF1, SUIinter_cF2, SUIinter_cF3, SUIinter_GF1, SUI1inter_cF4, and SUIinter_cF5 (Figure 1 and Table S3), were used. GENETYX version 13 software package (GENETYX Corp.) was used for the sequence comparison and alignment. For the segregation analysis, we determined the genotype of SUI1 and PUI1 alleles by direct sequencing of PCR products. SUI1-1 and SUI1-10 alleles were amplified using primers SUI1_2-10typeSDF and SUI1_2-10typeSDR (Table S3). Each PUI1 allele was amplified using the primer pair for the PUI1 second exon region, PUI1-3.4.6-F, and PUI1-3.4.6-R (Table S3, Figure S4). For discrimination of PUI1 alleles by PCR-RFLP, amplified DNA fragments were cut by restriction enzyme (BamHI, SalI, or BsrI), followed by checking on an electrophoresed agarose gel (Figure S4). For the direct sequencing marker, amplified fragments were purified from the electrophoresed agarose gel and sequenced as described above.

4.4. Phylogenetic Analysis

Phylogenetic analysis was performed on the Phylogeny.fr platform (http://www.phylogeny.fr/, accessed on 21 October 2021) [34]. Full-length amino acid sequences were aligned with MUSCLE (version 3.7) configured for the highest accuracy. Accession numbers of SRKs and SUI1s are listed in Table S4. After alignment, ambiguous regions were removed with Gblocks (version 0.91b). The phylogenetic tree was reconstructed using the PhyML program (version 3.0 aLRT). The default substitution model was selected assuming an estimated proportion of invariant sites and 4 gamma-distributed rate categories to account for rate heterogeneity across sites. The reliability of internal branches was assessed using the bootstrapping method (100 bootstrap replicates). The tree was represented with TreeDyn (version 198.3).

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/plants10112467/s1, Figure S1: Schematic model of duplicated and triplicated PUI1 allele; Figure S2: Genomic organization of the SUI1 and PUI1 region of B. rapa Z1 (yellow sarson) identified from published genome sequence available at https://brassicadb.cn accessed on 29 September 2021 [31]; Figure S3: Representative results of test-pollination under UV fluorescence microscopy; Figure S4: Nucleotide sequence alignment of PUI1 alleles. Table S1: PUI1 genotype in the selfed progeny of #101, ‘Nanzan’; Table S2: SUI1 genotype and stigma-side UI phenotype of selfed progeny of #83; Table S3: Primers used in this study; Table S4: Accession number of SUI1 and SRK sequences used in phylogenetic analysis.

Author Contributions

Y.T., Y.-P.L., S.T., G.S., and M.W. conceived and designed the experiments. Y.T., A.M., Y.H., H.X., Y.O., H.N., and S.H. performed the research and analyzed the data. Y.T., S.T., G.S., and M.W. wrote the paper, which was edited by all other authors. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported in part by MEXT KAKENHI (Grant Numbers 16H06470, 16H06464, and 16K21727 to MW), JSPS KAKENHI (Grant Numbers 19K05963 to YT; 16H06380, 21H05030 to ST; 20K05982 to GS; 16H04854, 16K15085, 17H00821, 18KT0048, 21H02162 to MW). Korea Institute of Planning and Evaluation for Technology in Food, Agriculture, and Forestry (IPET) through Golden Seed Project (project number: 213006-05-5-SB110 to YPL and SH), Ministry of Agriculture, Food and Rural Affairs (MAFRA), Ministry of Oceans and Fisheries (MOF), Rural Development Administration (RDA) and Korea Forest Services (KFS) to YPL and SH. This research was also supported by the Japan Advanced Plant Science Network to MW.

Data Availability Statement

The available data are presented in the manuscript.

Acknowledgments

The authors thank Masuko-Suzuki Hiromi, Kana Ito, Nono Sugawara, Megumi Ito, Keita Yamaki, Tai Takemoto and Misono Sasaki (Tohoku University) for technical assistance.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bateman, A.J. Self-incompatibility systems in angiosperms. III. Cruciferae. Heredity 1955, 9, 53–68. [Google Scholar] [CrossRef] [Green Version]
  2. Suzuki, G.; Kai, N.; Hirose, T.; Fukui, K.; Nishio, T.; Takayama, S.; Isogai, A.; Watanabe, M.; Hinata, K. Genomic organization of the S locus: Identification and characterization of genes in SLG/SRK region of S9 haplotype of Brassica campestris (syn. rapa). Genetics 1999, 153, 391–400. [Google Scholar] [CrossRef] [PubMed]
  3. Takasaki, T.; Hatakeyama, K.; Suzuki, G.; Watanabe, M.; Isogai, A.; Hinata, K. The S receptor kinase determines self-incompatibility in Brassica stigma. Nature 2000, 403, 913–916. [Google Scholar] [CrossRef] [PubMed]
  4. Schopfer, C.R.; Nasrallah, M.E.; Nasrallah, J.B. The male determinant of self-incompatibility in Brassica. Science 1999, 286, 1697–1700. [Google Scholar] [CrossRef]
  5. Takayama, S.; Shiba, H.; Iwano, M.; Shimosato, H.; Che, F.-S.; Kai, N.; Watanabe, M.; Suzuki, G.; Hinata, K.; Isogai, A. The pollen determinant of self-incompatibility in Brassica campestris. Proc. Natl. Acad. Sci. USA 2000, 97, 1920–1925. [Google Scholar] [CrossRef] [Green Version]
  6. Takayama, S.; Shimosato, H.; Shiba, H.; Funato, M.; Che, F.-S.; Watanabe, M.; Iwano, M.; Isogai, A. Direct ligand-receptor complex interaction controls Brassica self-incompatibility. Nature 2001, 413, 534–538. [Google Scholar] [CrossRef]
  7. Nou, I.S.; Watanabe, M.; Isogai, A.; Shiozawa, H.; Suzuki, A.; Hinata, K. Variation of S-alleles and S-glycoproteins in a naturalized population of self-incompatible Brassica campestris L. Jpn. J. Genet. 1991, 66, 227–239. [Google Scholar] [CrossRef] [Green Version]
  8. Nou, I.S.; Watanabe, M.; Isuzugawa, K.; Isogai, A.; Hinata, K. Isolation of S-alleles from a wild population of Brassica campestris L. at Balcesme, Turkey and their characterization by S-glycoproteins. Sex. Plant Reprod. 1993, 6, 71–78. [Google Scholar] [CrossRef]
  9. Nou, I.S.; Watanabe, M.; Isogai, A.; Hinata, K. Comparison of S-alleles and S-glycoproteins between two wild populations of Brassica campestris in Turkey and Japan. Sex. Plant Reprod. 1993, 6, 79–86. [Google Scholar] [CrossRef]
  10. Hatakeyama, K.; Watanabe, M.; Takasaki, T.; Ojima, K.; Hinata, K. Dominance relationships between S-alleles in self-incompatible Brassica campestris L. Heredity 1998, 80, 241–247. [Google Scholar] [CrossRef]
  11. Takada, Y.; Nakanowatari, T.; Sato, J.; Hatakeyama, K.; Kakizaki, T.; Ito, A.; Suzuki, G.; Shiba, H.; Takayama, S.; Isogai, A.; et al. Genetic analysis of novel intra-species unilateral incompatibility in Brassica rapa (syn. campestris) L. Sex. Plant Reprod. 2005, 17, 211–217. [Google Scholar] [CrossRef]
  12. Takada, Y.; Murase, K.; Shimosato-Asano, H.; Sato, T.; Nakanishi, H.; Suwabe, K.; Shimizu, K.K.; Lim, Y.P.; Takayama, S.; Suzuki, G.; et al. Duplicated pollen-pistil recognition loci control intraspecific unilateral incompatibility in Brassica rapa. Nat. Plants 2017, 3, 17096. [Google Scholar] [CrossRef]
  13. Lewis, D.; Crowe, L.K. Unilateral incompatibility in flowering plants. Heredity 1958, 12, 233–256. [Google Scholar] [CrossRef] [Green Version]
  14. Hiscock, S.J.; Dickinson, H.G. Unilateral incompatibility within the Brassicaceae: Further evidence for the involvement of the self-incompatibility (S)-locus. Theor. Appl. Genet. 1993, 86, 744–753. [Google Scholar] [CrossRef]
  15. Murase, K.; Shiba, H.; Iwano, M.; Che, F.S.; Watanabe, M.; Isogai, A.; Takayama, S. A membrane-anchored protein kinase involved in Brassica self-incompatibility signaling. Science 2004, 303, 1516–1519. [Google Scholar] [CrossRef]
  16. Takada, Y.; Sato, T.; Suzuki, G.; Shiba, H.; Takayama, S.; Watanabe, M. Involvement of MLPK pathway in intraspecies unilateral incompatibility regulated by a single locus with stigma and pollen factors. G3 Genes Genomes Genet. 2013, 3, 719–726. [Google Scholar] [CrossRef] [Green Version]
  17. Shimosato, H.; Yokota, N.; Shiba, H.; Iwano, M.; Entani, T.; Che, F.S.; Watanabe, M.; Isogai, A.; Takayama, S. Characterization of the SP11/SCR high-affinity binding site involved in self/nonself recognition in Brassica self-incompatibility. Plant Cell 2007, 19, 107–117. [Google Scholar] [CrossRef] [Green Version]
  18. Naithani, S.; Chookajorn, T.; Ripoll, D.R.; Nasrallah, J.B. Structural modules for receptor dimerization in the S-locus receptor kinase extracellular domain. Proc. Natl. Acad. Sci. USA 2007, 104, 12211–12216. [Google Scholar] [CrossRef] [Green Version]
  19. Yamamoto, M.; Tantikanjana, T.; Nishio, T.; Nasrallah, M.E.; Nasrallah, J.B. Site-specific N-glycosylation of the S-locus receptor kinase and its role in the self-incompatibility response of the Brassicaceae. Plant Cell 2014, 26, 4749–4762. [Google Scholar] [CrossRef] [Green Version]
  20. Ma, R.; Han, Z.; Hu, Z.; Lin, G.; Gong, X.; Zhang, H.; Nasrallah, J.B.; Chai, J. Structural basis for specific self-incompatibility response in Brassica. Cell Res. 2016, 26, 1320–1329. [Google Scholar] [CrossRef] [Green Version]
  21. Murase, K.; Moriwaki, Y.; Mori, T.; Liu, X.; Masaka, C.; Takada, Y.; Maesaki, R.; Mishima, M.; Fujii, S.; Hirano, Y.; et al. Mechanism of self/nonself-discrimination in Brassica self-incompatibility. Nat. Commun. 2020, 11, 4916. [Google Scholar] [CrossRef]
  22. Fujii, S.; Takayama, S. Multilayered dominance hierarchy in plant self-incompatibility. Plant Reprod. 2018, 31, 15–19. [Google Scholar] [CrossRef]
  23. Hatakeyama, K.; Takasaki, T.; Suzuki, G.; Nishio, T.; Watanabe, M.; Isogai, A.; Hinata, K. The S receptor kinase gene determines dominance relationships in stigma expression of self-incompatibility in Brassica. Plant J. 2001, 26, 69–76. [Google Scholar] [CrossRef] [Green Version]
  24. Shiba, H.; Iwano, M.; Entani, T.; Ishimoto, K.; Shimosato, H.; Che, F.S.; Satta, Y.; Ito, A.; Takada, Y.; Watanabe, M.; et al. The dominance of alleles controlling self-incompatibility in Brassica pollen is regulated at the RNA level. Plant Cell 2002, 14, 491–504. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Tarutani, Y.; Shiba, H.; Iwano, M.; Kakizaki, T.; Suzuki, G.; Watanabe, M.; Isogai, A.; Takayama, S. Trans-acting small RNA determines dominance relationships in Brassica self-incompatibility. Nature 2010, 466, 983–986. [Google Scholar] [CrossRef]
  26. Yasuda, S.; Wada, Y.; Kakizaki, T.; Tarutani, Y.; Miura-Uno, E.; Murase, K.; Fujii, S.; Hioki, T.; Shimoda, T.; Takada, Y.; et al. A complex dominance hierarchy is controlled by polymorphism of small RNAs and their targets. Nat. Plants 2016, 3, 16206. [Google Scholar] [CrossRef] [PubMed]
  27. Shpak, E.D.; Lakeman, M.B.; Torii, K.U. Dominant-negative receptor uncovers redundancy in the Arabidopsis ERECTA leucine-rich repeat receptor-like kinase signaling pathway that regulates organ shape. Plant Cell 2003, 15, 1095–1110. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Diévart, A.; Dalal, M.; Tax, F.E.; Lacey, A.D.; Huttly, A.; Li, J.; Clark, S.E. CLAVATA1 dominant-negative alleles reveal functional overlap between multiple receptor kinases that regulate meristem and organ development. Plant Cell 2003, 15, 1198–1211. [Google Scholar] [CrossRef] [Green Version]
  29. Wang, X.; Li, X.; Meisenhelder, J.; Hunter, T.; Yoshida, S.; Asami, T.; Chory, J. Autoregulation and homodimerization are involved in the activation of the plant steroid receptor BRI1. Dev. Cell 2005, 8, 855–865. [Google Scholar] [CrossRef] [Green Version]
  30. Zhang, L.; Cai, X.; Wu, J.; Liu, M.; Grob, S.; Cheng, F.; Liang, J.; Cai, C.; Liu, Z.; Liu, B.; et al. Improved Brassica rapa reference genome by single-molecule sequencing and chromosome conformation capture technologies. Hortic. Res. 2018, 5, 50. [Google Scholar] [CrossRef] [Green Version]
  31. Belser, C.; Istace, B.; Denis, E.; Dubarry, M.; Baurens, F.C.; Falentin, C.; Genete, M.; Berrabah, W.; Chèvre, A.M.; Deloume, R.; et al. Chromosome-scale assemblies of plant genomes using nanopore long reads and optical maps. Nat. Plants 2018, 4, 879–887. [Google Scholar] [CrossRef]
  32. Kho, Y.O.; Bear, J. Observing pollen tubes by means of fluorescence. Euphytica 1968, 17, 298–302. [Google Scholar] [CrossRef]
  33. Murray, M.G.; Thompson, W.F. Rapid isolation of high molecular weight plant DNA. Nucl. Acids Res. 1980, 8, 4321–4325. [Google Scholar] [CrossRef] [Green Version]
  34. Dereeper, A.; Guignon, V.; Blanc, G.; Audic, S.; Buffet, S.; Chevenet, F.; Dufayard, J.F.; Guindon, S.; Lefort, V.; Lescot, M.; et al. Phylogeny.fr: Robust phylogenetic analysis for the non-specialist. Nucl. Acids Res. 2008, 36, W465–W469. [Google Scholar] [CrossRef]
Plants 10 02467 g001 550

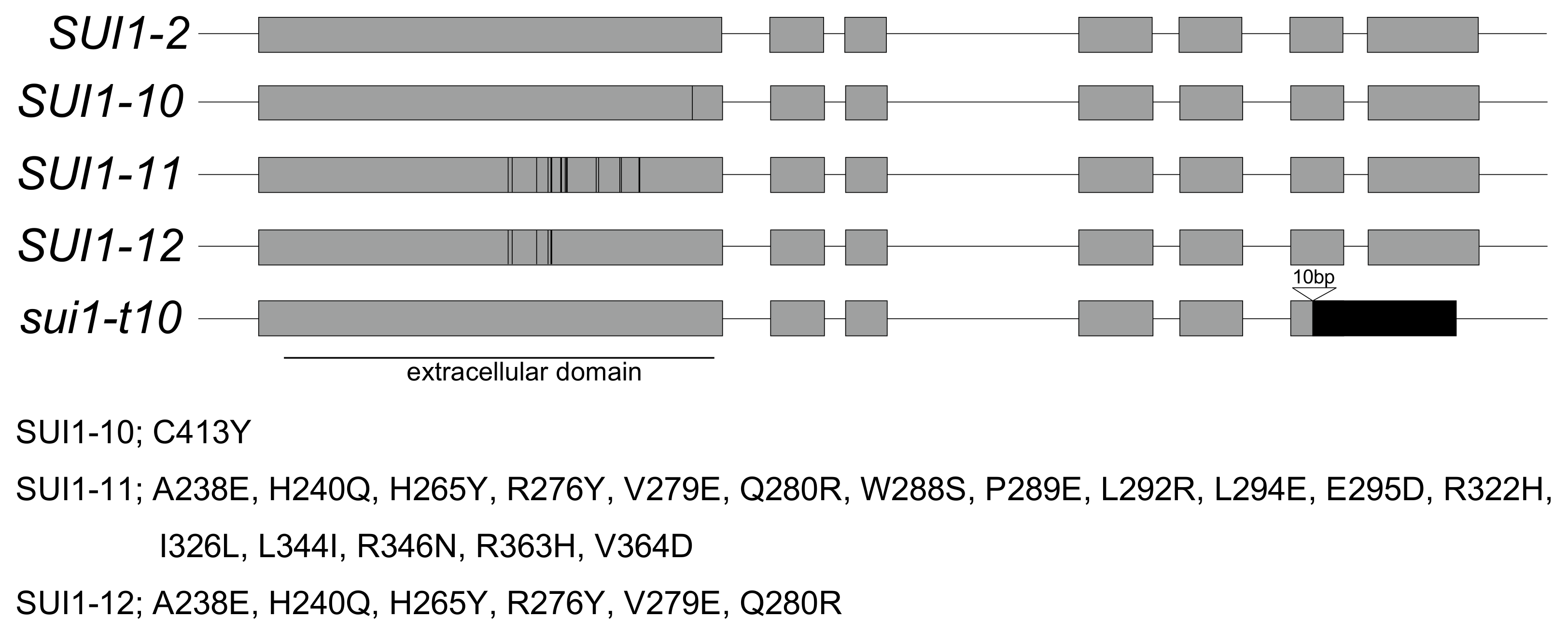

Figure 1. Schematic representation of the SUI1 genomic sequences in this study. The shaded boxes represent the protein coding regions. Positions of amino acid substitutions compared to SUI1-2 are shown by bars and listed below. The extracellular domain (consisting of most of the 1st exon) is indicated. The position of the 10-bp deletion of sui1-t10 is shown in the sixth exon.
Figure 1. Schematic representation of the SUI1 genomic sequences in this study. The shaded boxes represent the protein coding regions. Positions of amino acid substitutions compared to SUI1-2 are shown by bars and listed below. The extracellular domain (consisting of most of the 1st exon) is indicated. The position of the 10-bp deletion of sui1-t10 is shown in the sixth exon.
Plants 10 02467 g001
Plants 10 02467 g002 550

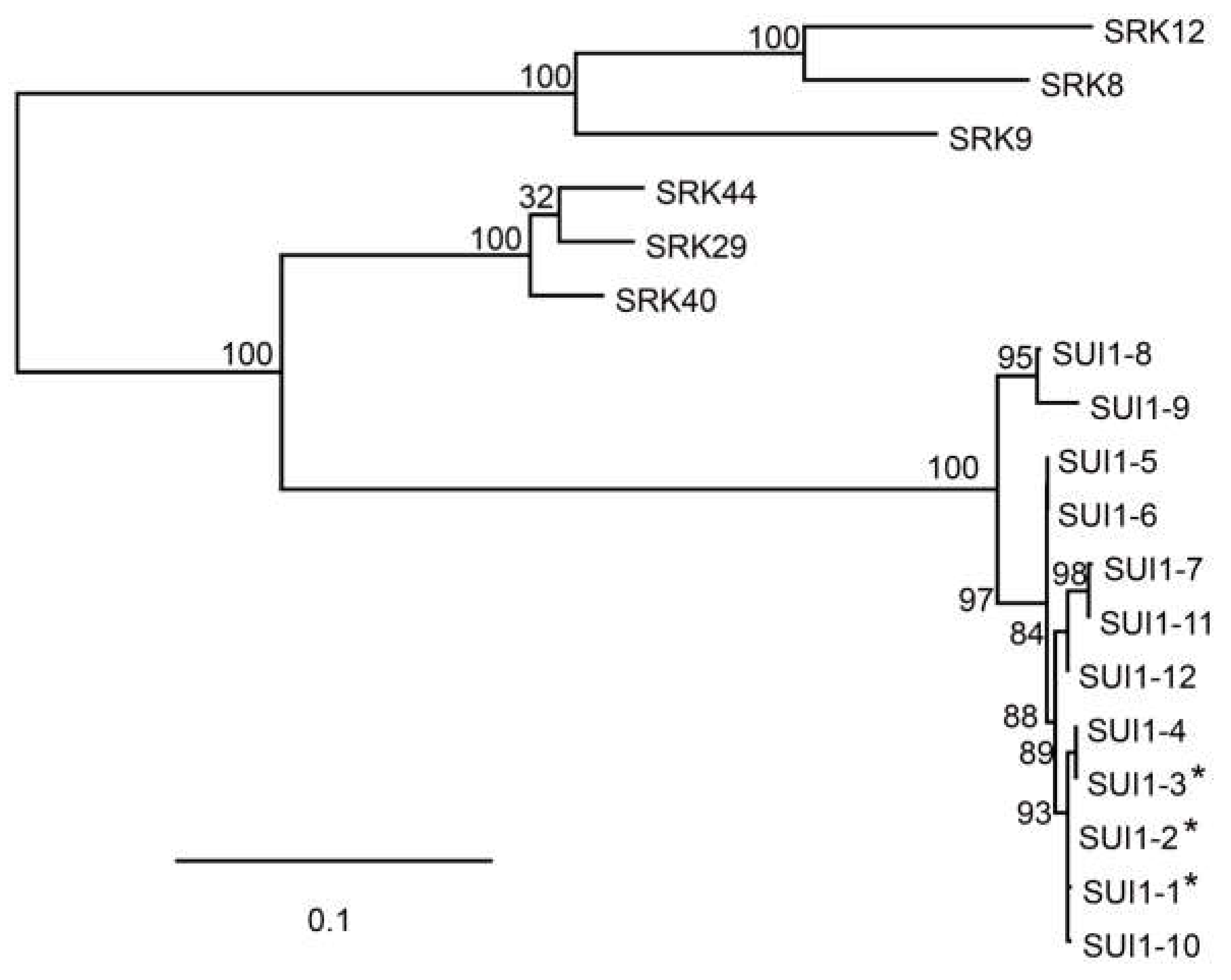

Figure 2. A maximum likelihood phylogenetic tree of SUI1s and SRKs in B. rapa. Branch support values from 100 bootstraps are indicated. Functional SUI1s that genetically interact with PUI1-1 are indicated by asterisks (*).
Figure 2. A maximum likelihood phylogenetic tree of SUI1s and SRKs in B. rapa. Branch support values from 100 bootstraps are indicated. Functional SUI1s that genetically interact with PUI1-1 are indicated by asterisks (*).
Plants 10 02467 g002
Table
Table 1. UI phenotype and genotype of Japanese cultivars of Chinese cabbage.
Table 1. UI phenotype and genotype of Japanese cultivars of Chinese cabbage.
Sample NumberSeed CompanyCultivarStigma-Side UI PhenotypeGenotype
SUI1PUI1
#1Tokita Seed Co., Ltd.MainoumiUISUI1-2/SUI1-11pui1-3/pui1-4/pui1-6
#2Takii & Co., Ltd.PuchihiriUISUI1-2pui1-3/pui1-4
#3Takii & Co., Ltd.Kigokoro 75UISUI1-2pui1-3/pui1-4
#4Sakata Seed Corp.KimikomachiUISUI1-2pui1-3/pui1-4
#5Takii & Co., Ltd.Chihiri 70UCsui1-t10pui1-3/pui1-4
#6Takii & Co., Ltd.BankiUISUI1-2nd
#7Watanabe Seed Co., Ltd.Matsushima shin2gouUIndpui1-3/pui1-4
#8Noguchi Seed Co.KashinhakusaiUISUI1-1pui1-3/pui1-4
#9Watanabe Seed Co., Ltd.MenkoiUISUI1-2/SUI1-11pui1-3/pui1-4/pui1-6
#10Ishii Seed Growers Co., Ltd.Kinami 90UIndnd
#11Kaneko Seed Co., Ltd.Kougetsu 77UISUI1-2pui1-3/pui1-4
#14Kaneko Seed Co., Ltd.EikiUCndpui1-3/pui1-4/pui1-6
#16Kaneko Seed Co., Ltd.MoekiUIndpui1-3/pui1-4
#17Kaneko Seed Co., Ltd.KasumihakusaiUCSUI1-2/SUI1-12pui1-3/pui1-4/pui1-6
#18Kaneko Seed Co., Ltd.ShoukiUIndpui1-3/pui1-4
#19Watanabe Seed Co., Ltd.Strong CRUISUI1-2pui1-3/pui1-4
#20Watanabe Seed Co., Ltd.AikiUIndpui1-3/pui1-4/pui1-6
#23Nozaki Saishujo Ltd.Maikondndpui1-3/pui1-4
#24Nozaki Saishujo Ltd.Chi ChinaUIndnd
#25Nozaki Saishujo Ltd.Eisyunndndpui1-3/pui1-4/pui1-6
#27Nozaki Saishujo Ltd.RetasaiUIndpui1-3/pui1-4/pui1-6
#33Marutane Seed Co., Ltd.ChikaraUISUI1-2pui1-3/pui1-4
#35Yamato Noen Co., Ltd.KiyorokobiUISUI1-2pui1-3/pui1-4
#41Watanabe Seed Co., Ltd.Kiai 65UIndpui1-3/pui1-4
#45Kaneko Seed Co., Ltd.GokuiUCndpui1-3/pui1-4/pui1-6
#47Kaneko Seed Co., Ltd.Taibyou nozomi 60UIndpui1-3/pui1-4
#49Mikado Kyowa Seed Co., Ltd.CR OukenUISUI1-2pui1-3/pui1-4
#50Mikado Kyowa Co., Ltd.Hakuei hakusaiUCSUI1-2/SUI1-10pui1-3/pui1-4
#51Mikado Kyowa Co., Ltd.Senkindndpui1-3/pui1-4/pui1-6
#53Sakata Seed Corp.Saikindndpui1-3/pui1-4/pui1-6
#55Sakata Seed Corp.YumebukiUIndpui1-3/pui1-4/pui1-6
#57Takayama Seed Co., Ltd.GokigenUIndpui1-3/pui1-4
#58Ishii Seed Growers Co., Ltd.CR Seiga 65UISUI1-2pui1-3/pui1-4
#62Takii & Co., Ltd.OushouUIndnd
#63Takii & Co., Ltd.MusouUISUI1-2pui1-3/pui1-4
#64Takii & Co., Ltd.SenshouUIndpui1-3/pui1-4
#65Takii & Co., Ltd.KinshouUIndpui1-3/pui1-4
#74Tohoku Seed Co., Ltd.DaifukuUISUI1-2pui1-3/pui1-4
#75Tohoku Seed Co., Ltd.Daifuku75UIndpui1-3/pui1-4
#77Tohoku Seed Co., Ltd.ShinseikiUIndpui1-3/pui1-4
#80Nanto Seed Co., Ltd.CR Kinshachi 75UISUI1-2pui1-3/pui1-4
#83Nanto Seed Co., Ltd.Taibyou apolo 60UCSUI1-2/SUI1-10pui1-3/pui1-4
#84Nippon Norin Seed Co.Kikumusume 65UISUI1-2pui1-3/pui1-4
#85Nippon Norin Seed Co.Kien75UIndpui1-3/pui1-4
#88Nippon Norin Seed Co.Super CR ShinrisouUCSUI1-2pui1-3/pui1-4
#91Takayama Seed Co., Ltd.Kinkaku 65UIndpui1-3/pui1-4/pui1-6
#96Tokita Seed Co., Ltd.HaruhiUIndpui1-3/pui1-4/pui1-6
#97Nanto Seed Co., Ltd.Taiki 60UIndpui1-3/pui1-4
#101Musashino Seed Co., Ltd.NanzanUIndpui1-3/pui1-4/pui1-6
#102Watanabe Seed Co., Ltd.Seitokundndpui1-3/pui1-4
#103Watanabe Seed Co., Ltd.ShunjuuUIndpui1-3/pui1-4
#104Watanabe Seed Co., Ltd.KanameUIndpui1-3/pui1-4
nd, not determined.
Table
Table 2. Segregation analysis of PUI1 allele in the selfed progeny of #45, #88, and #101.
Table 2. Segregation analysis of PUI1 allele in the selfed progeny of #45, #88, and #101.
Sample NumberCultivarnPUI1 Genotype Detected
pui1-3/pui1-4pui1-3/pui1-4/pui1-6
#45Gokui32032
#88Super CR Shinrisou2222-*
#101Nanzan781761
*, ‘Super CR Shinrisou’ (#88) does not have pui1-6 allele.
Table
Table 3. Segregation analysis of SUI1 allele in the selfed progeny of #83.
Table 3. Segregation analysis of SUI1 allele in the selfed progeny of #83.
PopulationSUI1 GenotypenStigma-Side UI Phenotype
UIUC
#83-S1SUI1-2/SUI1-2330
SUI1-2/SUI1-10505
SUI1-10/SUI1-10303
#83-S2SUI1-2/SUI1-223230
SUI1-2/SUI1-1041041
SUI1-10/SUI1-1016016
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Takada, Y.; Mihara, A.; He, Y.; Xie, H.; Ozaki, Y.; Nishida, H.; Hong, S.; Lim, Y.-P.; Takayama, S.; Suzuki, G.; et al. Genetic Diversity of Genes Controlling Unilateral Incompatibility in Japanese Cultivars of Chinese Cabbage. Plants 2021, 10, 2467. https://doi.org/10.3390/plants10112467

AMA Style

Takada Y, Mihara A, He Y, Xie H, Ozaki Y, Nishida H, Hong S, Lim Y-P, Takayama S, Suzuki G, et al. Genetic Diversity of Genes Controlling Unilateral Incompatibility in Japanese Cultivars of Chinese Cabbage. Plants. 2021; 10(11):2467. https://doi.org/10.3390/plants10112467

Chicago/Turabian Style

Takada, Yoshinobu, Atsuki Mihara, Yuhui He, Haolin Xie, Yusuke Ozaki, Hikari Nishida, Seongmin Hong, Yong-Pyo Lim, Seiji Takayama, Go Suzuki, and et al. 2021. "Genetic Diversity of Genes Controlling Unilateral Incompatibility in Japanese Cultivars of Chinese Cabbage" Plants 10, no. 11: 2467. https://doi.org/10.3390/plants10112467

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
