Response of Chlorophyll Fluorescence Characteristics and Dissolved Organic Matter for Marine Diatom Skeletonema dohrnii under Stress from Penicillin and Zn2+

by
Yang Liu
1,2,
Xiaofang Liu
2 and
Jun Sun
2,*
1
Institute of Marine Science and Technology, Shandong University, Qingdao 266237, China
2
College of Marine Science and Technology, China University of Geosciences (Wuhan), Wuhan 430074, China
*
Author to whom correspondence should be addressed.
Plants 2021, 10(12), 2684; https://doi.org/10.3390/plants10122684
Submission received: 21 October 2021 / Revised: 10 November 2021 / Accepted: 10 November 2021 / Published: 7 December 2021
Browse Figures
Versions Notes

Abstract

:
Skeletonema dohrnii is a good model diatom for studying environmental stress and has promising applications and prospects in various fields. Antibiotics and heavy metals are commonly exceeded in the nearshore marine habitats. In this work, we investigated the effects of an antibiotic (penicillin, 2 µg/L) and a heavy metal ion (Zn2+, 10 µmol/L) stress on marine diatom S. dohrnii, mainly using excitation-emission matrices (EEMs) fluorescence methods and OJIP test. Results indicated that algal cells grown with the antibiotic showed higher biomass, specific growth rate, doubling time, chlorophyll a, and chlorophyll fluorescence variables. Moreover, excess zinc had negative effects on S. dohrnii. We found that zinc not only inhibited the relative photosynthetic electron transfer efficiency but also reduced the Chl a content, which ultimately affected algal growth and organic matter production. In addition, the combined effect of penicillin and Zn2+ further affected the physiological state of S. dohrnii. The dissolved organic matter (DOM) characteristics of the four cultures were also different, including fluorescence indices (fluorescence index, biological index, β/α, and humification index) and fluorescence peaks (peaks A, C, M and T). In brief, characterization of chlorophyll fluorescence characteristics and DOM-related variables are important for understanding the effects of environmental stress on microalgae.

1. Introduction

Phytoplankton (including eukaryotic and prokaryotic cells) play an important role in the ecosystem as the main primary producers in the ocean [1]. They play an irreplaceable role in the balance and stability of marine ecology. DOM is a complex mixture of organic substances in aquatic environments (such as water, soil, and sediment), including protein-like substances, humic-like substances and other aliphatic/aromatic organic compounds [2]. Additionally, DOM plays a vital role in natural aquatic systems and geochemical/biochemical processes [3,4,5]. Antibiotics and metal ions pollution are a serious environmental problem. They can enter organisms through a variety of ways (e.g., water, soil, and food chain, etc.) in the ecosystem and exacerbate the harm to the environment. Moreover, antibiotics can combine with metal ions and affect the chemical behavior of microalgae in the oceanic environment [6]. Recently, excitation–emission matrices (EEMs) fluorescence spectroscopy has been used as a powerful tool to quantify DOM in a wide range of environmental detection because of its sensitivity, fast response and high selectivity [7,8]. Equally important, OJIP-test-derived variables obtained automatically via PAM fluorometer have been widely used in algae monitoring [9]. More recently, there has been growing recognition of the vital links between environmental pollutants (antibiotics or metal ions) and the physical or chemical properties of the algae.
The diatom Skeletonema spp. are widely distributed throughout the ocean in habitats spanning a full range of observed area. Meanwhile, it is easily cultured in the laboratory, and each species within the same genus has its own characteristic behavior curve [10], reflecting physical and chemical characteristics changes in adaptation to its environmental circumstances [11]. Most investigations evaluate various environmental factors influence directly or indirectly under different conditions, including illumination, temperature, salinity, CO2, nutrients, and pH [12]. Photosynthesis is one of the most sensitive physiological processes in microalgae, and stress by environmental factors mainly destroys photosystem II (PS II). The destruction of PS II by stress can be reflected by the changes in chlorophyll fluorescence variables. Results from earlier studies demonstrate that the addition of antibiotics can have biological effects on microalgae, and that heavy metal stress can also affect the growth and chlorophyll fluorescence properties of microalgae. Evidence from a number of experimental studies has established that Skeletonema dohrnii is highly resistant and has been used extensively in the study of environmental stresses [13]. The fate of diatoms in a changing water environment is uncertain due to the potentially different responses of each species. To date, there is a relative paucity of empirical research focusing specifically on effects of pollution (antibiotics and metal ions) on algal photosynthetic activity and dissolved organic matter (DOM).
In this study, S. dohrnii was cultured in batch mode. Subsequently, we established different treatments to investigate: (1) how the addition of antibiotics and heavy metals affects the photosynthetic activity of diatoms; and (2) also to understand S. dohrnii changes in DOM under stress conditions (2 µg/L penicillin and 10 µmol/L Zn2+). Characterization of chlorophyll fluorescence and DOM associated variables were important for our increased understanding of the effects of penicillin and Zn2+ in marine diatoms.

2. Material and Methods

2.1. Microalgae Culture Conditions, Growth, and Experimental Set-Up

The marine diatom S. dohrnii was originally isolated from the central Yellow Sea, China [14], and subsequently identified and preserved in our laboratory. The cells of S. dohrnii were cultured in transparent conical flasks with artificial seawater (ASW) medium [15] at 25 °C under a 14 h:10 h light:dark cycle with a light intensity of 100 μmolphotons μmol m−2 s−1 and shaking at 160 rpm on a shaker (HY-8, Changzhou Guohua Electric Appliance Co., Ltd., Changzhou, China). Cultures were maintained under these conditions for approximately 30 days before the initiation of the experiment.
S. dohrnii cells were collected via centrifugation (5000 rpm, 5 min) after cultivation in ASW medium. The cells were washed with Milli-Q water and centrifuged a second time at 5000 rpm for 5 min. Then, algal cells were inoculated in 2 L flasks containing 1.5 L ASW medium. The initial biomass concentration of the S. dohrnii was about (2.03 ± 0.02) × 108 cells/L. We chose penicillin (2 µg/L), Zn2+ (10 µmol/L) and penicillin (2 µg/L) + Zn2+ (10 µmol/L) to represent the single and combination experiments, respectively. For simplicity, we named blank (S. dohrnii-only, Blank) and different treatments (S. dohrnii with penicillin, SA; with Zn2+, SZ; with penicillin and Zn2+, SAZ). All experiments were carried out in triplicate.

2.2. Determination of Microalgal Growth and Chl a Content

Algal cells were cultivated at a constant temperature of 25 °C in a shaker at a shaking rate of 160 rpm min−1. To regularly monitor the algal growth, 100 μL of microalgae solution was collected onto the blood cell counting chamber and microalgal cells were counted immediately using an inverted microscope (Olympus BX51). Specific growth rate and doubling time of S. dohrnii cultured in the laboratory were calculated based on the following equations:
Specific growth rate (μ,/d) = (ln Na − ln Nb)/(ta − tb)
Doubling time (Td, t) = ln 2/μ
where Na and Nb denote the algal abundance (cells/L) at times ta and tb, respectively.
The content of Chl a was determined by referring to Mera et al. [16] with a few adjustments. The absorbance of the algal solution (supernatant) at 649 nm and 665 nm was measured via UV-spectrophotometer (T2600, China) with 95% alcohol (v/v) as blank control. The following formula was used to calculate the concentration of Chl a:
Chl a = 13.95 (A665) − 6.88 (A649).

2.3. Determination of Chlorophyll Fluorescence

The algal solution had 20 min of dark acclimation at 26 °C. The fluorescence parameter (Fix area, quantum yield, QY; potential photochemical efficiency of photosystem II, Fv/Fm; potential activity of photosystem II, Fv/Fo; and total light energy flux, Pi_Abs) of the chlorophyll was determined concurring to Markou et al. [17], utilizing the AquaPen AP110/C (Drassov, Czech Republic).

2.4. EEMs Fluorescence Spectroscopy

Artificial seawater samples for DOM analyzed from 10 mL samples filtered through 0.7 µm combusted GF/F filter (25 mm diameter) onto pre-combusted (450 °C for 6 h) glass vials. Even though these filters have a larger pore size, as compared to 0.2 µm polycarbonate filters, they have advantages that demonstrated their application in this research [18]. Then, the EEMs spectra of the DOM were measured with F-7100 fluorescence spectrophotometer (Tokyo, Japan). The voltage of photomultiplier tube (PMT) was set to 700 V. Fluorescence spectra detected subsequent scanning of excitation (Ex) from 200 to 450 nm and emission (Em) from 250 to 550 nm. Ex and Em slits were maintained at 5 nm and the scanning speed was set at 12,000 nm/min.
Instrument corrections were performed according to the procedure recommended by the Hitachi F-7100 instruction manual. Blank subtraction using ultrapure water (Milli-Q) was performed for each DOM spectrum in order to remove most of the Raman scatter. The correction was followed by Raman calibration according to the literature [19]. Fluorescence information for all data was used to assess using water Raman units (R.U.). Fluorescence indices were further derived from the EEMs: fluorescence index (FI) [20], biological index (BIX) [21], β/α (a ratio of two known fluorescing components [21], and humification index (HIX) [22].

2.5. Elemental Stoichiometry Analysis

The dissolved organic carbon (DOC) was measured using a total organic carbon analyzer (TOC-3100, Jena, Germany). To determine the particulate organic carbon (POC) and particulate organic nitrogen (PON) in S. dohrnii, cells were harvested using pre-combusted (450 °C for 6 h) GF/F glass fiber filters (25 mm diameter). The samples were acidified with 200 μL of 0.2 N HCl and dried overnight in an oven at 60 °C before analysis with a Costech Elemental Analyzer (ECS4010, Milan, Italy)

2.6. Statistical Analysis

In this study, Statistical analysis of all data was performed with unpaired t-test analysis using SPSS software (version 26.0). Triplicate samples of each condition were taken into consideration, and comparison was done between groups of cells grown at penicillin and Zn2+. The correlation analysis and chromophoric dissolved organic matter (CDOM) associated variables were obtained using the “ggplot2”, “corrplot”, “RColorBrewer” and “reshape2” package in RStudio software. The measured data were reported as mean ± standard deviation (SD). The value of p < 0.05 was considered a statistically significant difference.

3. Results

3.1. Growth Profiles of S. dohrnii

S. dohrnii was cultivated in artificial seawater without the lag phase (Figure 1a). After 2 days of cultivation, S. dohrnii had the highest algal abundance of (3.10 ± 0.07) × 108 (Blank) and (3.60 ± 0.05) × 108 cells/L (SA), respectively (Figure 1a). The algal abundance of S. dohrnii significantly decreased from around (2.03 ± 0.05) × 108 (SZ) to (0.04 ± 0.01) × 108 and (0.02 ± 0.01) × 108 cells/L (SAZ), respectively, after 8 days of cultivation. In other words, the cells concentration in the SZ and SAZ treatments decreased from day 0 and approached zero at day 8 (Figure 1a). As listed in Table 1, specific growth rates for each of treatment were (0.389 ± 0.006) d−1 for Blank, and (0.492 ± 0.004) d−1 for SA. The doubling times were (1.779 ± 0.011) d and (1.407 ± 0.007) d for Blank and SA. There was no significant difference between both groups. The specific growth rates and doubling times of SZ and SAZ showed a negative increasing trend, so they are not shown in Table 1. The effects of antibiotics and Zn2+ on the Chl a content of S. dohrnii are shown in Figure 1b. In the whole culture times, there were significant differences among four cultures. The Chl a content of S. dohrnii also indicated that SA grew best in artificial seawater compared with the other cultures (Blank, SZ, and SAZ) (Figure 1b).

3.2. Chlorophyll Fluorescence

Photosynthesis is one of the major metabolic activities of algae cultivated in the natural environment. Nevertheless, chlorophyll fluorescence of cells was analyzed to assess the growth of S. dohrnii in response to various treatments in artificial seawater.
The effects of different treatments (penicillin and Zn2+) on the photosynthetic property of S. dohrnii were evaluated by monitoring the chlorophyll fluorescence characteristics. For these fluorescence variables (i.e., fix area, QY, Fv/Fm, and Fv/Fo), there was a significant increase in Blank and SA during the first two days, followed by a general decrease. SZ and SAZ gradually decreased and tended to zero throughout the culture time. Moreover, we found that Blank was generally higher than the other treatments in variables of QY, Fv/Fm, and Fv/Fo, except for the fix area. This suggests that the addition of penicillin and Zn2+ affected the chlorophyll fluorescence properties of S. dohrnii.
As shown in Figure 2, a higher maximum PS II efficiency activity was found in SA than the other three conditions (Blank, SZ, and SAZ), meanwhile, values of fix area, QY, Fv/Fm, and Fv/Fo significantly decreased at the end of cultivation (p < 0.05). Looking at Figure 2a, it is apparent that the fix area changes trend significantly with Blank and SA in the whole culture stage compared with SZ and SAZ. In addition, QY, Fv/Fm, Fv/Fo had similar trends, and the differences among treatments were also more significant (p < 0.05, Figure 2b–d).

3.3. DOC, POC, PON Concentrations, and POC/PON

There were significant differences in carbon and nitrogen concentrations between the four cultures (Table 2). The carbon concentration of the four cultures increased on day 14. The largest increase occurred in DOC, increasing between day 0 and day 14 by 0.189 mg/L for SA. The highest POC valus of SA were in the degradation phase, while the POC values of SAZ were reduced compared with the other cultures. In addition, for PON values, there was a general increase between day 0 and day 14, with an increase of 0.040 mg/L for Blank, 0.032 mg/L for SA, 0.011 mg/L for SZ, and 0.001 mg/L for SAZ. However, the POC/PON increased in all culture groups except for the SAZ, where it decreased, and the highest increase was observed in the SA.

3.4. Fluorescence Characteristics

The fluorescence patterns were similar between all treatment groups, with two fluorophores (peak T) being the most obvious (Figure 3, Table 3). The peak patterns of remained consistent throughout the culture cultivation period. The SA exhibited a single-peak pattern on day 0, and the overall peak pattern shifted to longer wavelengths with increasing culture time. A similar situation occurred in the SZ, unstructured fluorescence with slightly enhanced fluorescence appears around peak T. The SZ essentially formed a three-peak pattern on day 14.
The fluorescence indices were further used as variables indicating changes in fluorescence characteristics under the different treatments of S. dohrnii. From Figure 4, we can see the different trends of fluorescence indices for each treatment. The FI and HIX showed overall an increasing trend, except for FI in Blank. In contrast, BIX and β/α generally showed a decreasing trend, moreover, the values of Blank and SA were higher than treatments of SZ and SAZ.
Generally, the fluorescence intensity changes of the peaks (A, C, M, and T) were basically similar, which increased with increasing culture time (Figure 5). The fluorescence intensity of SZ was higher in peaks A and M than the others. For peaks (A, M, and T), Blank had the highest value and generallyhad a higher value than others. Additionally, for peak C, the value of SA was generally higher compared to the other treatments. In addition, there was no significant change in SZ and SAZ during the culture time (Figure 5b,c). The SAZ had a brief increase on the first day, then became flat or decreased (Figure 5b,c).

4. Discussion

4.1. Growth Conditions of S. dohrnii under Different Treatments

When antibiotic stress is applied, it is well recognized that antibiotics inhibit the growth of bacteria and usually also influence the growth of algae. In addition, antibiotics might be altered the S. dohrnii-associated bacterial community diversity. It was noteworthy that the antibiotic used in this study was penicillin at a concentration of 2 µg/L. The increase in the number of cells in S. dohrnii implies that the cause may be due to the antibiotics removing bacteria that are harmful to the growth of the algae [27,28]. One possible explanation might be due to a lack of substrate competition from fast-growing bacteria, or release of the pressure from bacterial degradation. However, most previous studies reported that antibiotics, such as erythromycin and chloramphenicol, can inhibit the growth of algae [29,30]. Additionally, higher concentration of antibiotics had a direct adverse effect on the growth of algae like florfenicol, furazolidone, and above-mentioned antibiotics. The concentration and type of antibiotics were both important factors. Several studies have shown that Chl a in algal cells is also affected to some extent when the algae are stressed. As the concentration of heavy metal ions increases, Chl a suffers more negative effects. The accumulation of reactive oxygen species damages the algal cell structure and limits the synthesis of Chl a. However, based on our observation, the values of algal abundance, Chl a, and chlorophyll fluorescence characteristics were different from the other treatment groups (Figure 1 and Figure 2). Previous studies have concluded that antibiotics and heavy metal ions affect the growth or specific metabolic pathways of eukaryotes to varying degrees. Together, we could suggest that penicillin (2 µg/L) and Zn2+ (10 µmol/L) indirectly affect the physiological state of S. dohrnii.

4.2. Chlorophyll Fluorescence Variables of S. dohrnii under Different Treatments

Photosynthetic activity parameters are widely used to describe the photosynthetic characteristics of algal cells [31]. Besides, photosynthetic activity parameters provide a comprehensive understanding of the performance variables of microalgal cell photosystems under antibiotic and heavy metal ion stress, the specific processes of the toxic effects of pollutants on microalgae still need more penetrating studies. Fv/Fm is the main parameter that measures photosynthetic performance and is an important index that directly expresses the photosynthetic efficiency of microalgae. It has been suggested that the stress-induced decrease in Fv/Fm is a short-term response of the photosystem under stress conditions, which may be a reconstructed equilibrium between light energy uptake and utilization by microalgae, minimizing damage to the algae [32]. Several studies have shown that the photosynthetic efficiency of algae decreases when subjected to environmental stress [33,34]. In this study, the Fv/Fm and Fv/Fo ratios of the algae decreased rapidly with increasing incubation time, indicating that the photosynthetic system of the microalgae was inhibited due to the addition of Zn2+. This may be due to the fact that heavy metal ions blocked photosynthetic electron transfer between qa and qb, which in turn formed more qb-non-reducing PS II reaction centers and this led to a reduction in oxygen evolution from PS II reaction centers. In this study, we found that the variation in Fv/Fm and Fv/Fo ratios were different for all cultures, suggesting that penicillin (2 µg/L) and Zn2+ (10 µmol/L) impact photosynthetic electron transport in algal cells.

4.3. Analysis of Fluorescence Characteristics

Correlation analysis showed significant variability between the responses of penicillin (2 µg/L) and Zn2+ (10 µmol/L) addition to the different treatments (Figure 6). Moreover, strong correlations were found between the variables and indices (Figure 6). The Chl a was negatively correlated with the algal abundance, which positively correlated with the chlorophyll fluorescence variables (i.e., fix area, QY, Fv/Fm, and Fv/Fo) and fluorescence peaks (i.e., peaks A, M, T, and C) in Blank and SA (Figure 6a,b). However, there are generally opposite results for SA and SAZ (Figure 6c,d). These correlations indicated that Chl a can be used as a factor indicating the growth status of microalgae. In this study, the reduction of photosynthesis could be well associated with the change of PS II function in excess Zn2+ concentration. More generally, zinc is indispensable for electron transport in photosynthesis and by various enzyme systems as an essential element for metabolic and physiological processes. Numerous studies suggested that inhibition of photosynthesis by metal ions had been observed in algae [35,36]. As the concentration of Zn2+ exceeded 1 µmol/L, the growth of Scenedesmus subspicatus and Chlamydomonas reinhardtii was inhibited [37]. Once concentration exceeded 5 µmol/L, the relative electron transport rate and photochemical efficiency of algal cells were also seriously inhibited [38]. However, Zn2+ stress at 10 µmol/L not only inhibited the relative photosynthetic electron transfer efficiency, but also reduced the functionality of mitochondrial membranes and Chl a content, which ultimately affected algal growth and organic matter production [39].
Some laboratory experiments have depended on additions of carbon or high nutrients substrates to investigate DOM formation by microalgae or bacteria [40]. In this study, our maximum DOM fluorescence intensity for all treatments (SA, SZ, and SAZ) was low, except for the Blank; less than fluorescence intensities in several laboratory experiments [40]. This phenomenon is most likely due to the addition of penicillin and Zn2+, which affect the production and fluorescence intensity of diatom S.dohrnii-derived DOM. In addition, it may also be related to the species of microalgae or culture medium. Taken together, our previous study and results suggest that the fluorescence intensities generated in microalgae culture experiments are relatively low when the variability of the instrument is taken into account. Indeed, background fluorescence is helpful for monitoring the low DOM fluorescence by microalgae.
All four cultures produced a pattern of two peaks that were dominated by DOM fluorophores, which suggests different compounds (e.g., aromatic amino acids). This two-peak pattern has been previously demonstrated in monocultures and oceanic origin [41]. The peak is similar to a protein resembles the amino acid tryptophan, and has been confirmed that it plays an important role in the growth of algae [42]. More generally, the differing fluorescence in the region of peak T have been considered as fluorophores present in the amino acid tryptophan. Thus far, a number of studies have reported diffusion in peak T, however, these fluorophores could easily be misinterpreted as humic-like substances, especially in natural samples (freshwater and coastal systems). Since the algal medium in this experiment was an inorganic medium, the observed diffusion of peak T was likely the effect of antibiotics and Zn2+ on algae or microbially-transformed planktonic material. A number of recent studies, CDOM generated in culture work on diatoms, prasinophytes, and bacteria showed similar fluorescence patterns to those reported in this study [43]. Although the major fluorophores were similar between individual treatment, the prevalent fluorescence patterns generated overall by algae further supports DOM. However, in previous studies, elevated fluorescence was shown in the region of peak T, which differs from the fluorescence intensity of our study (SZ and SAZ). Taken collectively, these results suggest that penicillin and Zn2+ affect the generation of DOM fluorescence peaks.
The fluorescence index provided a clear insight into the process of DOM changes. The values of FI were all greater than 1.8, indicating that the fluorescence component of OM was mainly produced by microorganisms [44]. The ratio of two known fluorescing components (β/α, where β and α represent more recently derived organic matter and highly decomposed organic matter, respectively). BIX can be used as an indicator of DOM traceability in aquatic ecosystems, and higher values indicated higher degradation of DOM. The significant changes in β/α and BIX values over a short period of time indicated that endogenous carbon products are most likely produced through bacterial processing of DOM. The HIX is a fluorescence index of the degree of organic matter degradation, with higher values characteristic of higher molecular weight and aromatic compounds (i.e., HIX is directly proportional to the humic content of DOM) [45]. The degree of humification gradually intensified with increasing experimental days in all treatments, especially SA. This indicates that the alteration of the algal DOM pool by penicillin and Zn2+ led to the change to a more fluorescent component.

5. Conclusions

In this work, utilizing combined penicillin and Zn2+, the photosynthetic activity and chromophoric dissolved organic matter of S. dohrnii were investigated to evaluate the physiological properties and dissolved organic matter characteristics. For the addition of penicillin (2 µg/L) alone, higher values were shown for certain variables compared to other treatments, such as algal abundance, Chl a, specific growth rate, DOC, POC, POC/PON, HIX, and peak C. High concentrations of Zn2+ (10 µmol/L) can also severely inhibit the electron transfer rate and photochemical efficiency of algal cells. Moreover, Zn2+ plays a dominant role in the combined effect of penicillin and Zn2+. Since only penicillin (2 µg/L) and Zn2+ (10 µmol/L) were selected for this experiment, there were limitations in the choice of pollutant types and concentrations. However, this still provides data to support the investigation of pollutant stress on marine diatoms. In addition, the proliferation of diatoms can cause the initiation of potentially harmful blooms (red tides), and this study also provides a data base for the management of China’s nearshore aquatic environment.

Author Contributions

Conceptualization, J.S. and Y.L.; methodology, Y.L. and X.L.; formal analysis, Y.L. and X.L.; resources, J.S.; writing—original draft preparation, Y.L.; writing—review and editing, Y.L. and J.S.; visualization, Y.L.; supervision, J.S.; project administration, J.S.; funding acquisition, J.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the National Key Research and Development Project of China (2019YFC1407805), National Natural Science Foundation of China (41876134) and the Changjiang Scholar Program of Chinese Ministry of Education (T2014253) to Jun Sun.

Conflicts of Interest

The authors declare that they have no conflict of interest.

References

  1. Schaller, J.; Brackhage, C.; Mkandawire, M.; Dudel, E.G. Metal/metalloid accumulation/remobilization during aquatic litter decomposition in freshwater: A review. Sci. Total Environ. 2011, 409, 4891–4898. [Google Scholar] [CrossRef]
  2. Stevenson, F.J. Humus Chemistry: Genesis, Composition, Reactions; John Wiley & Sons: Hoboken, NJ, USA, 1994. [Google Scholar]
  3. Chen, M.; Hur, J. Pre-treatments, characteristics, and biogeochemical dynamics of dissolved organic matter in sediments: A review. Water Res. 2015, 79, 10–25. [Google Scholar] [CrossRef]
  4. Chen, W.; Liu, X.Y.; Yu, H.Q. Temperature–dependent conformational variation of chromophoric dissolved organic matter and its consequent interaction with phenanthrene. Environ. Pollut. 2017, 222, 23–31. [Google Scholar] [CrossRef]
  5. Chen, W.; Teng, C.Y.; Qian, C.; Yu, H.Q. Characterizing properties and environmental behaviors of dissolved organic matter using two-dimensional correlation spectroscopic analysis. Environ. Sci. Technol. 2019, 53, 4683–4694. [Google Scholar] [CrossRef]
  6. Nebbioso, A.; Piccolo, A. Molecular characterization of dissolved organic matter (DOM): A critical review. Anal. Bioanal. Chem. 2013, 405, 109–124. [Google Scholar] [CrossRef]
  7. Park, M.; Snyder, S.A. Sample handling and data processing for fluorescent excitation-emission matrix (EEM) of dissolved organic matter (DOM). Chemosphere 2018, 193, 530–537. [Google Scholar] [CrossRef]
  8. Rodríguez-Vidal, F.J.; García-Valverde, M.; Ortega-Azabache, B.; González-Martínez, Á.; Bellido-Fernández, A. Characterization of urban and industrial wastewaters using excitation-emission matrix (EEM) fluorescence: Searching for specific fingerprints. J. Environ. Manag. 2020, 263, 110396. [Google Scholar] [CrossRef]
  9. Kula, M.; Kalaji, H.M.; Skoczowski, A. Culture density influence on the photosynthetic efficiency of microalgae growing under different spectral compositions of light. J. Photochem. Photobiol. B 2017, 167, 290–298. [Google Scholar] [CrossRef] [PubMed]
  10. Boyd, P.W.; Hutchins, D.A. Understanding the responses of ocean biota to a complex matrix of cumulative anthropogenic change. Mar. Ecol. Prog. Ser. 2012, 470, 125–135. [Google Scholar] [CrossRef] [Green Version]
  11. Liang, Y.; Koester, J.A.; Liefer, J.D.; Irwin, A.J.; Finkel, Z.V. Molecular mechanisms of temperature acclimation and adaptation in marine diatoms. ISME J. 2019, 13, 2415–2425. [Google Scholar] [CrossRef] [PubMed]
  12. Moss, B. The influence of environmental factors on the distribution of freshwater algae: An experimental study: II. The role of pH and the carbon dioxide-bicarbonate system. J. Ecol. 1973, 61, 157–177. [Google Scholar] [CrossRef]
  13. Thangaraj, S.; Sun, J. Transcriptomic reprogramming of the oceanic diatom Skeletonema dohrnii under warming ocean and acidification. Environ. Microbiol. 2021, 23, 980–995. [Google Scholar] [CrossRef]
  14. Gu, H.; Zhang, X.; Sun, J.; Luo, Z. Diversity and seasonal occurrence of Skeletonema (Bacillariophyta) species in Xiamen Harbour and surrounding seas, China. Cryptogam. Algol. 2012, 33, 245–263. [Google Scholar] [CrossRef]
  15. Kester, D.R.; Duedall, I.W.; Connors, D.N.; Pytkowicz, M.R. Preparation of artificial seawater. Limnol. Oceanogr. 1967, 12, 176–179. [Google Scholar] [CrossRef]
  16. Mera, R.; Torres, E.; Abalde, J. Effects of sodium sulfate on the freshwater microalga Chlamydomonas moewusii: Implications for the optimization of algal culture media. J. Phycol. 2016, 52, 75–88. [Google Scholar] [CrossRef]
  17. Markou, G.; Depraetere, O.; Muylaert, K. Effect of ammonia on the photosynthetic activity of Arthrospira and Chlorella: A study on chlorophyll fluorescence and electron transport. Algal Res. 2016, 16, 449–457. [Google Scholar] [CrossRef]
  18. Coble, P.G. Characterization of marine and terrestrial DOM in seawater using excitation-emission matrix spectroscopy. Mar. Chem. 1996, 51, 325–346. [Google Scholar] [CrossRef]
  19. Lawaetz, A.J.; Stedmon, C.A. Fluorescence intensity calibration using the Raman scatter peak of water. Appl. Spectrosc. 2009, 63, 936–940. [Google Scholar] [CrossRef] [PubMed]
  20. Mcknight, D.; Boyer, E.; Westerhoff, P.K.; Doran, P.T.; Kulbe, T.; Andersen, D. Andersen. Spectrofluorometric characterization of dissolved organic matter for indication of precursor organic material and aromaticity. Limnol. Oceanogr. 2001, 46, 38–48. [Google Scholar] [CrossRef]
  21. Parlanti, E.; Wörz, K.; Geoffroy, L.; Lamotte, M. Dissolved organic matter fluorescence spectroscopy as a tool to estimate biological activity in a coastal zone submitted to anthropogenic inputs. Org. Geochem. 2000, 31, 1765–1781. [Google Scholar] [CrossRef]
  22. Ohno, T. Fluorescence inner-filtering correction for determining the humification index of dissolved organic matter. Environ. Sci. Tech. 2002, 36, 742–746. [Google Scholar] [CrossRef]
  23. Yamashita, Y.; Panton, A.; Mahaffey, C.; Jaffé, R. Assessing the spatial and temporal variability of dissolved organic matter in Liverpool Bay using excitation-emission matrix fluorescence and parallel factor analysis. Ocean Dyn. 2011, 61, 569–579. [Google Scholar] [CrossRef]
  24. Stedmon, C.A.; Markager, S.; Bro, R. Tracing dissolved organic matter in aquatic environments using a new approach to fluorescence spectroscopy. Mar. Chem. 2003, 82, 239–254. [Google Scholar] [CrossRef]
  25. Murphy, K.R.; Stedmon, C.A.; Waite, T.D.; Ruiz, G.M. Distinguishing between terrestrial and autochthonous organic matter sources in marine environments using fluorescence spectroscopy. Mar. Chem. 2008, 108, 40–58. [Google Scholar] [CrossRef]
  26. Coble, P.G.; Del Castillo, C.E.; Avril, B. Distribution and optical properties of CDOM in the Arabian Sea during the 1995 Southwest Monsoon. Deep. Sea Res. Part II Top. Stud. Oceanogr. 1998, 45, 2195–2223. [Google Scholar] [CrossRef]
  27. Jones, A.K.; Rhodes, M.E.; Evans, S.C. The use of antibiotics to obtain axenic cultures of algae. Br. Phycol. J. 1973, 8, 185–196. [Google Scholar] [CrossRef] [Green Version]
  28. Strasserf, R.J.; Srivastava, A. Polyphasic chlorophyll a fluorescence transient in plants and cyanobacteria. Photochem. Photobiol. 1995, 61, 32–42. [Google Scholar] [CrossRef]
  29. Campa-Córdova, A.I.; Luna-Gonzalez, A.; Ascencio, F.; Cortés-Jacinto, E.; Cáceres-Martínez, C.J. Effects of chloramphenicol, erythromycin, and furazolidone on growth of Isochrysis galbana and Chaetoceros gracilis. Aquaculture 2006, 260, 145–150. [Google Scholar] [CrossRef]
  30. Lai, H.T.; Hou, J.H.; Su, C.I.; Chen, C.L. Effects of chloramphenicol, florfenicol, and thiamphenicol on growth of algae Chlorella pyrenoidosa, Isochrysis galbana, and Tetraselmis chui. Ecotox. Environ. Saf. 2009, 72, 329–334. [Google Scholar] [CrossRef]
  31. Dąbrowski, P.; Baczewska-Dąbrowska, A.H.; Bussotti, F.; Pollastrini, M.; Piekut, K.; Kowalik, W.; Wróbel, J.; Kalaji, H.M. Photosynthetic efficiency of Microcystis ssp. under salt stress. Environ. Exp. Bot. 2014, 186, 104459. [Google Scholar] [CrossRef]
  32. Srivastava, A.; Guissé, B.; Greppin, H.; Strasser, R.J. Regulation of antenna structure and electron transport in photosystem II of Pisum sativum under elevated temperature probed by the fast polyphasic chlorophyll a fluorescence transient: OKJIP. Biochim. Biophys. Acta (BBA) Bioenerg. 1997, 1320, 95–106. [Google Scholar] [CrossRef] [Green Version]
  33. Patil, S.; Pandit, R.; Lali, A. Photosynthetic acclimation of Chlorella saccharophila to heat stress. Phycol. Res. 2017, 65, 160–165. [Google Scholar] [CrossRef]
  34. Solovchenko, A.; Baulina, O.; Ptushenko, O.; Gorelova, O. Ultrastructural patterns of photoacclimation and photodamage to photosynthetic algae cell under environmental stress. Physiol. Plant. 2019, 166, 251–263. [Google Scholar] [CrossRef]
  35. Clijsters, H.; Van Assche, F. Inhibition of photosynthesis by heavy metals. Photosynth. Res. 1985, 7, 31–40. [Google Scholar] [CrossRef] [PubMed]
  36. Che, X.; Ding, R.; Zhang, Q.; Li, Y.; Sun, Q.; Li, Y.; Zhang, Z.; Wang, W.; Gao, H. The severe toxicity of CuO nanoparticles to the photosynthesis of the prokaryotic algae Arthrospira sp. Environ. Sci. Pollut. Res. 2021, 28, 54105–54116. [Google Scholar] [CrossRef]
  37. Knauer, K.; Behra, R.; Sigg, L. Effects of free Cu2+ and Zn2+ ions on growth and metal accumulation in freshwater algae. Environ. Toxicol. Chem. 1997, 16, 220–229. [Google Scholar] [CrossRef]
  38. Baker, N.R.; Fernyhough, P.; Meek, I.T. Light-dependent inhibition of photosynthetic electron transport by zinc. Physiol. Plant. 1982, 56, 217–222. [Google Scholar] [CrossRef]
  39. Plekhanov, S.E.; Chemeris, Y.K. Early toxic effects of zinc, cobalt, and cadmium on photosynthetic activity of the green alga Chlorella pyrenoidosa Chick S-39. Biol. Bull. 2003, 3, 506–511. [Google Scholar] [CrossRef]
  40. Kinsey, J.D.; Corradino, G.; Ziervogel, K.; Schnetzer, A.; Osburn, C.L. Formation of chromophoric dissolved organic matter by bacterial degradation of phytoplankton-derived aggregates. Front. Mar. Sci. 2018, 4, 430. [Google Scholar] [CrossRef]
  41. Ziervogel, K.; Osburn, C.; Brym, A.; Battles, J.; Joye, S.; D’Souza, N.; Montoya, J.; Passow, U.; Arnosti, C. Linking heterotrophic microbial activities with particle characteristics in waters of the Mississippi River Delta in the aftermath of hurricane Isaac. Front. Mar. Sci. 2016, 3, 8. [Google Scholar] [CrossRef] [Green Version]
  42. Stedmon, C.A.; Markager, S. Tracing the production and degradation of autochthonous fractions of dissolved organic matter by fluorescence analysis. Limnol. Oceanogr. 2005, 50, 1415–1426. [Google Scholar] [CrossRef]
  43. Fukuzaki, K.; Imai, I.; Fukushima, K.; Ishii, K.I.; Sawayama, S.; Yoshioka, T. Fluorescent characteristics of dissolved organic matter produced by bloom-forming coastal phytoplankton. J. Plankton Res. 2014, 36, 685–694. [Google Scholar] [CrossRef] [Green Version]
  44. Loginova, A.N.; Thomsen, S.; Engel, A. Chromophoric and fluorescent dissolved organic matter in and above the oxygen minimum zone off Peru. J. Geophys. Res. Ocean 2016, 121, 7973–7990. [Google Scholar] [CrossRef]
  45. Huguet, A.; Vacher, L.; Relexans, S.; Saubusse, S.; Froidefond, J.M.; Parlanti, E. Properties of fluorescent dissolved organic matter in the Gironde Estuary. Org. Geochem. 2009, 40, 706–719. [Google Scholar] [CrossRef]
Plants 10 02684 g001 550

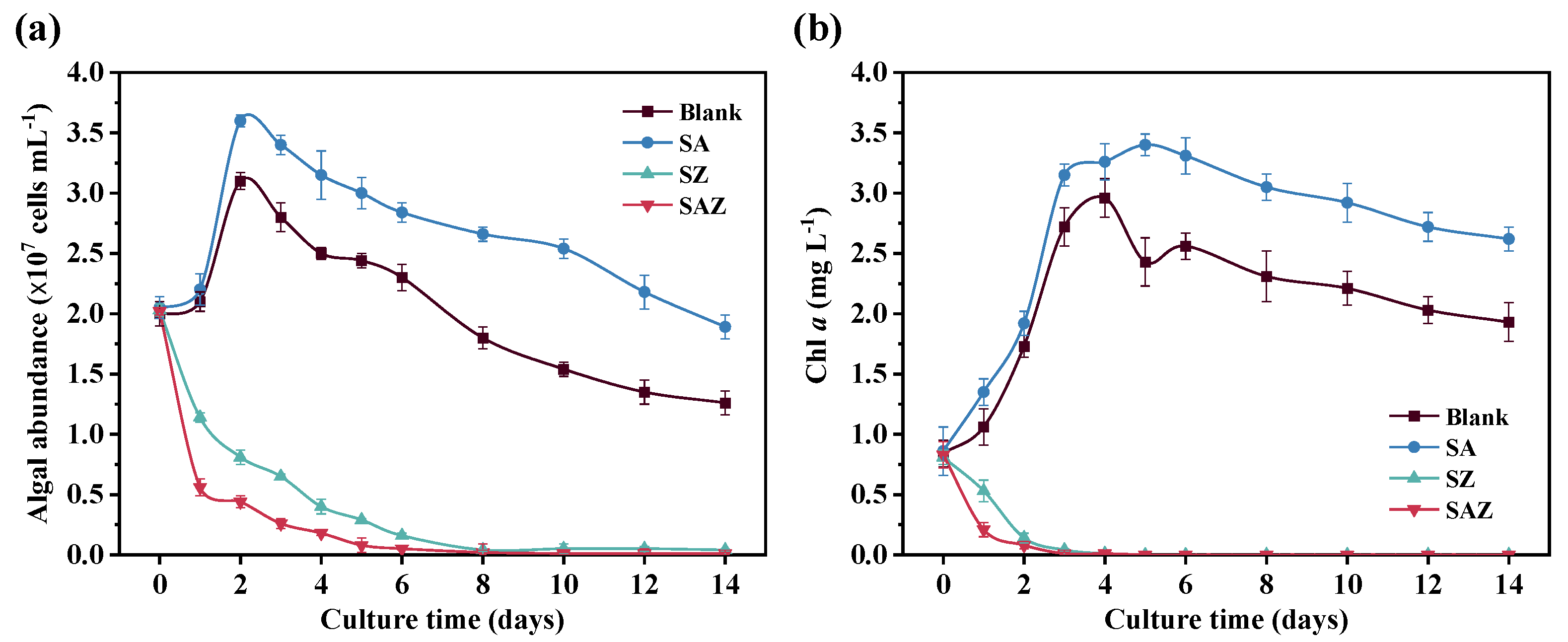

Figure 1. Growth curves (a) and Chl a concentration (b) of S. dohrnii with different treatment in artificial seawater. Blank, S. dohrnii only; SA, with penicillin for S. dohrnii; SZ, with Zn2+ for S. dohrnii; SAZ, with penicillin and Zn2+ for S. dohrnii. Each value represents mean ± SD (n = 3). Note error bars are smaller than the symbol sizes in some cases.
Figure 1. Growth curves (a) and Chl a concentration (b) of S. dohrnii with different treatment in artificial seawater. Blank, S. dohrnii only; SA, with penicillin for S. dohrnii; SZ, with Zn2+ for S. dohrnii; SAZ, with penicillin and Zn2+ for S. dohrnii. Each value represents mean ± SD (n = 3). Note error bars are smaller than the symbol sizes in some cases.
Plants 10 02684 g001
Plants 10 02684 g002 550
Figure 2. Chlorophyll fluorescence characteristics of S. dohrnii with different treatment in artificial seawater. Blank, S. dohrnii only; SA, with penicillin for S. dohrnii; SZ, with Zn2+ for S. dohrnii; SAZ, with penicillin and Zn2+ for S. dohrnii. Each value represents mean ± SD (n = 3). Note error bars are smaller than the symbol sizes in some cases.
Figure 2. Chlorophyll fluorescence characteristics of S. dohrnii with different treatment in artificial seawater. Blank, S. dohrnii only; SA, with penicillin for S. dohrnii; SZ, with Zn2+ for S. dohrnii; SAZ, with penicillin and Zn2+ for S. dohrnii. Each value represents mean ± SD (n = 3). Note error bars are smaller than the symbol sizes in some cases.
Plants 10 02684 g002
Plants 10 02684 g003 550

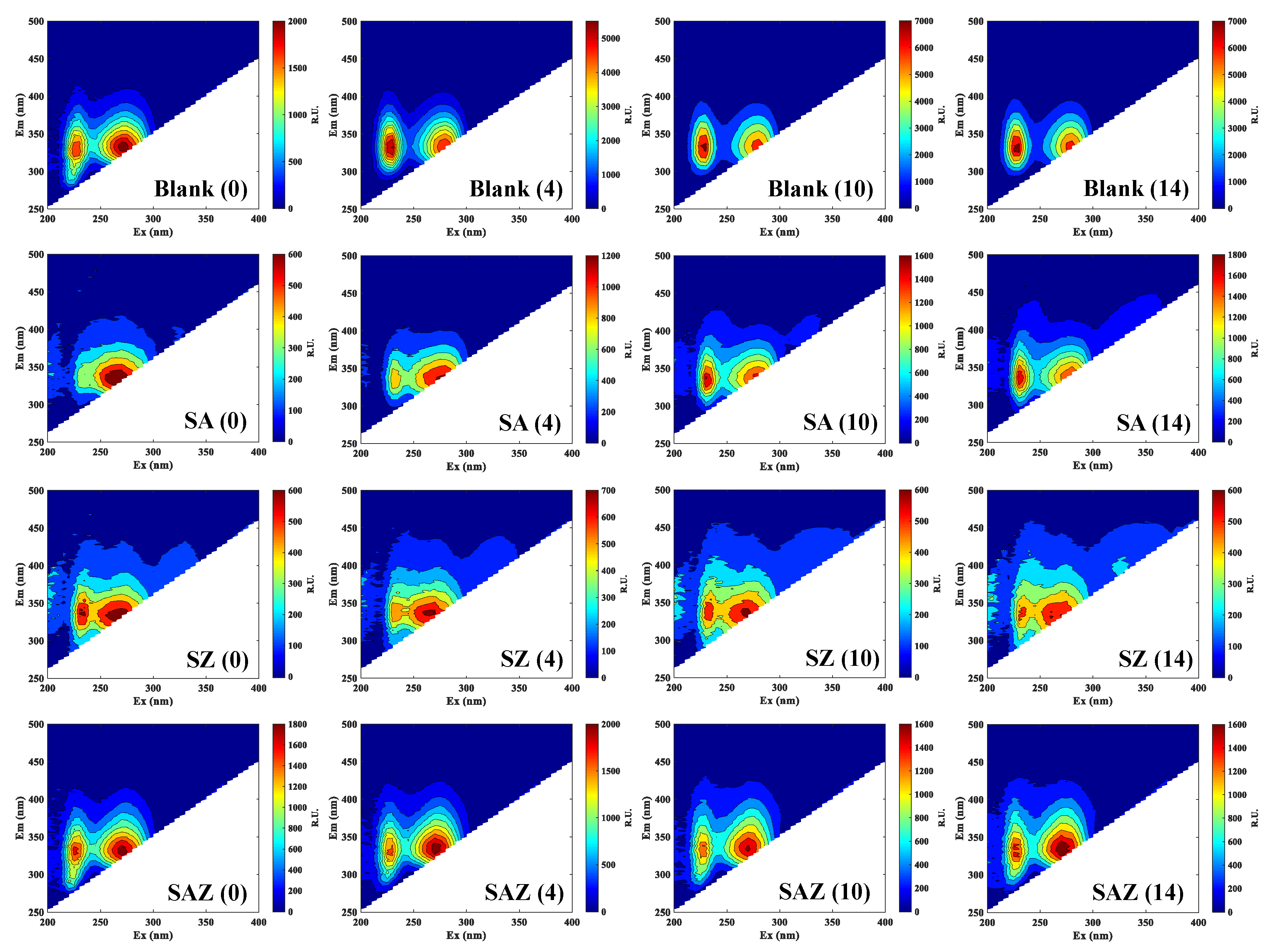

Figure 3. EEMs of DOM fluorescence for S. dohrnii with different treatment at four time point. Note that different color bars are used for each group (Raman units, R.U.). Blank, S. dohrnii-only; SA, with penicillin for S. dohrnii; SZ, with Zn2+ for S. dohrnii; SAZ, with penicillin and Zn2+ for S. dohrnii. (0), (4), (10), and (14) are represented as 0, 4, 10, and 14 days, respectively.
Figure 3. EEMs of DOM fluorescence for S. dohrnii with different treatment at four time point. Note that different color bars are used for each group (Raman units, R.U.). Blank, S. dohrnii-only; SA, with penicillin for S. dohrnii; SZ, with Zn2+ for S. dohrnii; SAZ, with penicillin and Zn2+ for S. dohrnii. (0), (4), (10), and (14) are represented as 0, 4, 10, and 14 days, respectively.
Plants 10 02684 g003
Plants 10 02684 g004 550
Figure 4. Changes in fluorescence indices of S.dohrnii of different treatments during the culture time. (a–d) are represented as FI, BIX, β/α, and HIX, respectively. Error bars represent the standard error for duplicate cultures. Note error bars are smaller than the symbol sizes in some cases.
Figure 4. Changes in fluorescence indices of S.dohrnii of different treatments during the culture time. (a–d) are represented as FI, BIX, β/α, and HIX, respectively. Error bars represent the standard error for duplicate cultures. Note error bars are smaller than the symbol sizes in some cases.
Plants 10 02684 g004
Plants 10 02684 g005 550

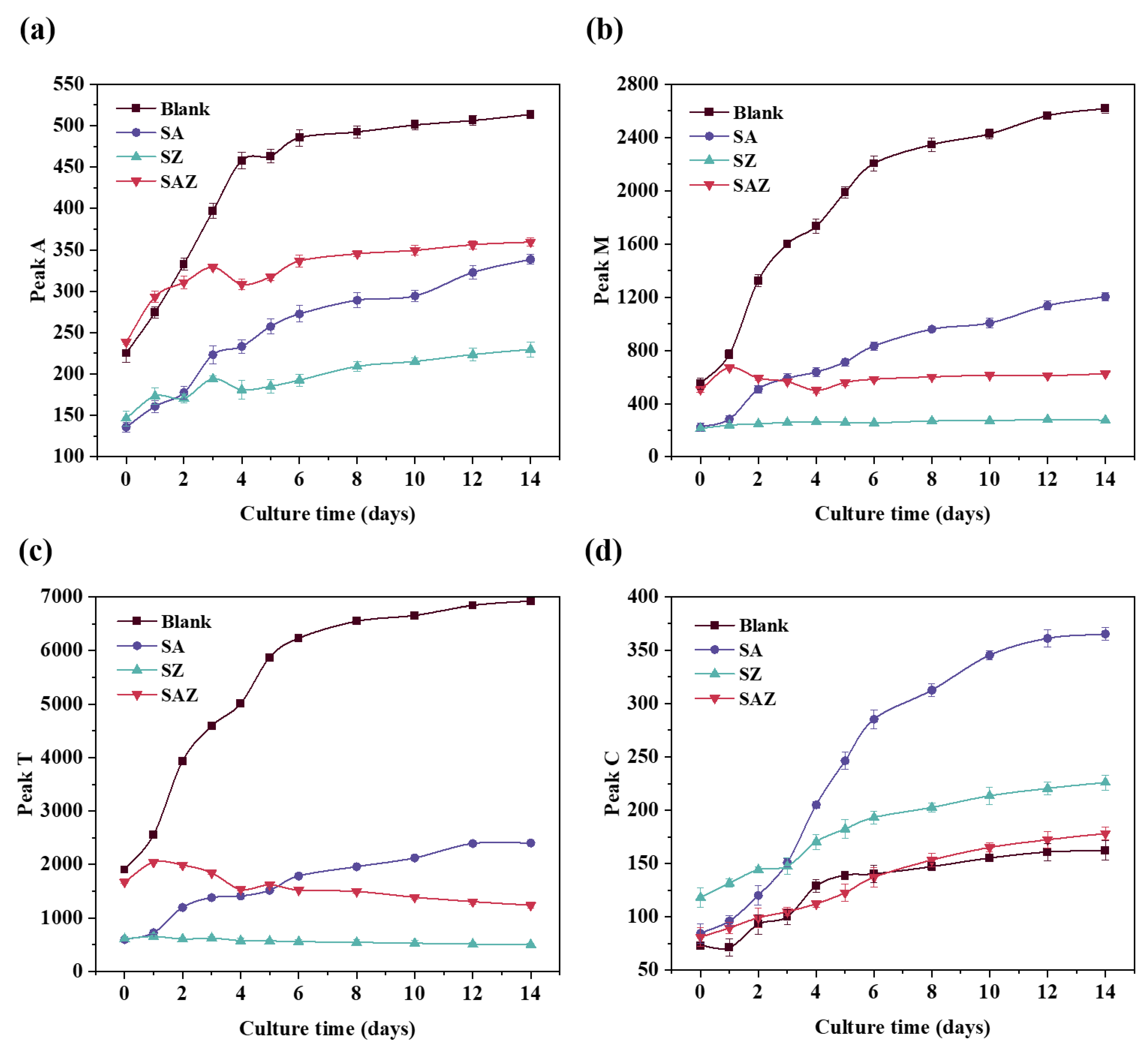

Figure 5. Changes in fluorescence peaks of S. dohrnii in the different treatments during the culture time. (a–d) are represented as peaks A, M, T, and C, respectively. Error bars represent the standard error for duplicate cultures. Note error bars are smaller than the symbol sizes in some cases.
Figure 5. Changes in fluorescence peaks of S. dohrnii in the different treatments during the culture time. (a–d) are represented as peaks A, M, T, and C, respectively. Error bars represent the standard error for duplicate cultures. Note error bars are smaller than the symbol sizes in some cases.
Plants 10 02684 g005
Plants 10 02684 g006 550
Figure 6. Correlation analysis between different variables of S. dohrnii with different treatment in artificial seawater. (a–d) are represented as Blank, SA, SZ, and SAZ, respectively. Note the color and size of the pie indicate the correlation coefficient. The blue color indicates positive correlation and red color indicates negative correlation.
Figure 6. Correlation analysis between different variables of S. dohrnii with different treatment in artificial seawater. (a–d) are represented as Blank, SA, SZ, and SAZ, respectively. Note the color and size of the pie indicate the correlation coefficient. The blue color indicates positive correlation and red color indicates negative correlation.
Plants 10 02684 g006
Table
Table 1. Specific growth rate and doubling time of S. dohrnii with different treatment in artificial seawater.
Table 1. Specific growth rate and doubling time of S. dohrnii with different treatment in artificial seawater.
Treatment GroupsSpecific Growth Rate (/d)Doubling Time (d)
S. dohrnii only (Blank)0.389 ± 0.006 a1.779 ± 0.011 a
S. dohrnii with penicillin (SA)0.492 ± 0.004 b1.407 ± 0.007 b
Values within the same row with different letters represent significant difference (p < 0.05). Each value represents mean ± SD (n = 3).
Table
Table 2. Dissolved, particulate organic carbon, particulate organic nitrogen concentrations, and particulate organic carbon to nitrogen ratios for the four different cultures.
Table 2. Dissolved, particulate organic carbon, particulate organic nitrogen concentrations, and particulate organic carbon to nitrogen ratios for the four different cultures.
Treatment GroupsDOCPOCPONPOC/PON
Day 0Day 14Day 0Day 14Day 0Day 14Day 0Day 14
Blank0.368 ± 0.007 a0.537 ± 0.008 a0.086 ± 0.005 a0.394 ± 0.014 a0.017 ± 0.003 a0.057 ± 0.011 a5.059 ± 0.004 a6.912 ± 0.012 a
SA0.375 ± 0.006 a0.564 ± 0.010 b0.087 ± 0.005 a0.413 ± 0.011 b0.016 ± 0.003 a0.048 ± 0.016 a5.438 ± 0.004 b8.604 ± 0.013 b
SZ0.379 ± 0.011 a0.423 ± 0.013 c0.086 ± 0.008 b0.141 ± 0.017 c0.018 ± 0.005 a0.029 ± 0.009 a4.778 ± 0.005 c5.035 ± 0.014 c
SAZ0.374 ± 0.009 a0.416 ± 0.014 c0.088 ± 0.015 c0.073 ± 0.018 d0.016 ± 0.007 a0.017 ± 0.006 b5.500 ± 0.011 b4.294 ± 0.015 d
DOC, dissolved organic carbon; POC, particulate organic carbon; PON, particulate organic nitrogen; POC/PON, particulate organic carbon to nitrogen ratios. Values within the same row with different letters represent significant difference (p < 0.05). Each value represents mean ± SD (n = 3).
Table
Table 3. Central regions of EEM fluorescence attributed to different sources of organic matter compared with previous studies.
Table 3. Central regions of EEM fluorescence attributed to different sources of organic matter compared with previous studies.
Traditional PeakEx/EmDescriptionProbable OriginComparison with Previous Studies
Peak A250(325)/425Humic-likeTerrestrialHumic-like C1: 320 (250)/422 [23] Humic-like C4: 325 (250)/416 [24]
Peak C320-360/420-460Humic-likeTerrestrial/autochthonousHumic-like P8: <260 (355)/434 [25]
Peak M290-310/370-420Humic-likemicrobial
processing of organic matter		Humic-like P1: 310/414 [25]
Peak T225(275)/330-340Tryptophan-likeAutochthonous/amino acids, free or bound in proteinsTryptophan-like, protein-like peak T: 225(275)/340 [26]
