Genome-Wide Identification and Characterization of Oil-Body-Membrane Proteins in Polyploid Crop Brassica napus

by
Wei Zhao
1,2,
Jun Liu
2,
Lunwen Qian
1,
Mei Guan
1,3,4 and
Chunyun Guan
1,3,4,*
1
College of Agronomy, Hunan Agricultural University, Changsha 410128, China
2
Key Laboratory of Biology and Genetic Improvement of Oil Crops, Ministry of Agriculture and Rural Affairs, Oil Crops Research Institute, Chinese Academy of Agricultural Sciences, Wuhan 430062, China
3
Oil Crops Research, Hunan Agricultural University, Changsha 410128, China
4
Hunan Branch of National Oilseed Crops Improvement Center, Changsha 410128, China
*
Author to whom correspondence should be addressed.
Plants 2022, 11(17), 2241; https://doi.org/10.3390/plants11172241
Submission received: 25 July 2022 / Revised: 12 August 2022 / Accepted: 26 August 2022 / Published: 29 August 2022
(This article belongs to the Special Issue Molecular Strategies for Improving Agronomic Traits in Crops)
Browse Figures
Review Reports Versions Notes

Abstract

:
Oil-body-membrane proteins (OBMPs) are essential structural molecules of oil bodies and also versatile metabolic enzymes involved in multiple cellular processes such as lipid metabolism, hormone signaling and stress responses. However, the global landscape for OBMP genes in oil crops is still lacking. Here, we performed genome-wide identification and characterization of OBMP genes in polyploid crop Brassica napus. B. napus contains up to 88 BnaOBMP genes including 53 oleosins, 20 caleosins and 15 steroleosins. Both whole-genome and tandem duplications have contributed to the expansion of the BnaOBMP gene family. These BnaOBMP genes have extensive sequence polymorphisms, and some harbor strong selection signatures. Various cis-acting regulatory elements involved in plant growth, phytohormones and abiotic and biotic stress responses are detected in their promoters. BnaOBMPs exhibit differential expression at various developmental stages from diverse tissues. Importantly, some BnaOBMP genes display spatiotemporal patterns of seed-specific expression, which could be orchestrated by transcriptional factors such as EEL, GATA3, HAT2, SMZ, DOF5.6 and APL. Altogether, our data lay the foundations for studying the regulatory mechanism of the seed oil storage process and provide candidate genes and alleles for the genetic improvement and breeding of rapeseed with high seed oil content.

1. Introduction

Brassica napus L. (known as rapeseed, oilseed rape and rapa), a relatively recent allotetraploid formed from hybridization between Brassica rapa and Brassica oleracea, is an important oilseed crop and widely cultivated in the world [1,2]. Rapeseed provides more than 13% of the world’s supply of vegetable oil [3]. Thus, increasing seed oil content (SOC) is one of the most important breeding objectives for rapeseed with the greatest economic significance [4]. Over the past decades, many QTLs (quantitative trait loci) controlling SOC have been identified in B. napus, and significant progress has been achieved in breeding rapeseed varieties with high oil content [5,6]. However, the molecular mechanism underlying the regulation of seed oil metabolism, particularly the storage process, is still poorly understood in B. napus.
Lipids, mainly triacylglycerols (TAGs), are the main reserves in B. napus seeds and stored in oil bodies (OBs; known as lipid droplets, oil droplets or oleosomes) [7]. OBs are specialized organelles acting as neutral lipid storage compartments, which are widespread in both prokaryotic and eukaryotic cells [8,9,10,11]. The formation of OBs begins on the endoplasmic reticulum (ER), where TAGs are synthesized in maturing seeds, and then bud off from the ER membrane as droplets consisting of an oil core and a hydrophilic surface with a phospholipid monolayer [12]. The structure and size of OBs are highly dynamic during seed development, and various oil-body-membrane proteins (OBMPs) wrap around the surface to stabilize the OBs and exert metabolic functions [13,14,15]. Previous studies showed that overexpression of some OBMP genes could regulate oil body size, as well as seed size and weight, to influence oil accumulation in seeds [16,17,18].
The OBMP gene family is composed of three main classes including oleosin, caleosin and steroleosin [19]. Oleosin is a relatively small protein of 15~26 kilodaltons (kDa), with a conserved central domain of approximately 70 uninterrupted nonpolar residues, which could form a hydrophobic hairpin [20,21]. The two arms of this hairpin are linked by a proline (Pro) loop (called Pro knot) with three conserved Pro residues and one Ser residue. The N- and C-terminal peptides of oleosin could form amphipathic α-helical structures interacting horizontally with the phospholipid monolayer, acting as a receptor for the binding of metabolic enzymes or regulatory proteins. Oleosin genes are widespread from green algae to higher plants [20]. Six oleosin lineages have been recognized including primitive (P), universal (U), tapetum (T), mesocarp (M), and seed low-molecular-weight (SL) and high-molecular-weight (SH) oleosins [22,23,24]. The Arabidopsis thaliana genome has 17 oleosin genes of which OLE1 and OLE2 are the most abundant in seeds. Double oleosin mutant (i.e., ole1 and ole2) seeds have enlarged OBs and exhibit severely defective germination [25]. In addition, the seeds of the oleosin mutants are sensitive to freezing stress [26], indicating that oleosins function in enhancing plant survival during winter.
Like oleosins, caleosins are also structural proteins of OBs, consisting of a conserved hydrophobic central domain with a proline knot motif. Particularly, they contain an N-terminal hydrophilic domain with a single Ca2+-binding site, EF-hand motif, and possess an enzyme activity as peroxygenase [27]. Caleosin genes have been found ubiquitously in plants [28]. Among the eight caleosins identified in A. thaliana, CLO1 is preferentially expressed in developing seeds, and clo1 mutant seeds exhibit distorted vacuole morphology and a significant delay in the storage lipid degradation [29]. In addition, caleosins display calcium-binding properties and play crucial roles in many aspects of growth and development such as cell division, photosynthesis, polarity formation, apoptosis and stress resistance [30,31]. Steroleosins are known as sterol dehydrogenases due to the fact of their sterol-binding and sterol-coupling dehydrogenase activity [9,32,33], and they are reported to have functions related to sterol-regulated signal transduction, seed maturation and germination [33]. Unlike oleosin and caleosin, steroleosin has two main structural domains including an N-terminal hydrophobic domain, which contains a conserved proline knob instead of the proline knot, and a C-terminal domain exhibiting an NADP(H)-binding subdomain and a sterol-binding subdomain [9,32]. Various steroleosin genes have been discovered in A. thaliana [34], Pinus massoniana [35] and Sesamum indicum [36].
Although OBMP family genes have been studied in several plant species, the comprehensive identification and characterization of this gene family from important oil seed corps is lacking. In the present study, we performed a genome-wide identification of OBMP family genes in B. napus and 54 other genomes from green algae to angiosperms. The gene structures, phylogenetic relationships, cis-acting regulatory elements in promoters, sequence polymorphisms and expression patterns of BnaOBMPs were analyzed. We also identified transcriptional factors that potentially regulate the expression of BnaOBMP genes during seed development. Our results help to further elucidate the molecular mechanism of the seed oil storage process and provide new targets for the selection of rapeseed with high SOC.

2. Results

2.1. Identification, Properties and Genomic Distributions of BnaOBMP Genes

To identify all the members of the OBMP gene family in rapeseed, we used protein sequences of 33 A. thaliana OBMP genes, including 17 oleosins, 8 caleosins and 8 steroleosins (Table S1), as queries to search against the protein dataset of B. napus var. ZS11 with BLASTP setting the E-value at 1 × 10−5. The peptides of putative BnaOBMPs with the best hits on A. thaliana oleosin, caleosin or steroleosin proteins were further used to predict functional domains in the Pfam database to confirm the presence of the oleosin domain (PF01277), the caleosin domain (PF05042) or the steroleosin domain (PF00106). Finally, a total of 88 BnaOBMP genes were identified in rapeseed of which 43 and 45 genes originated from the A and C subgenomes, respectively (Table 1). Based on the functional domains of each BnaOBMP contained, these genes could be divided into 53 oleosins, 20 caleosins and 15 steroleosins (Table 1). The 53 oleosin genes could be further classified into four subfamilies of 27 T, 8 SL, 9 SH and 9 U oleosins in rapeseed. Meanwhile, we also found 44 and 47 OBMP genes in its two ancestors of B. rapa var. Z1 and B. oleracea var. HDEM, respectively (Table S1). Additionally, we identified OBMP genes in fifty-one other genomes covering green algae, mosses, gymnosperms and angiosperms and found that B. napus contained the greatest number of OBMP family genes (Figure S1).
The transcript length of BnaOBMPs varied from 240 (BnaOBMP.T6) to 1392 (BnaOBMP.S13) base pairs (bp). All identified BnaOBMP genes encoded proteins with a size ranging from 79 (BnaOBMP.T6) to 463 (BnaOBMP.S13) amino acids (aa), a molecular weight (MW) from 7.93 (BnaOBMP.T6) to 51.97 (BnaOBMP.S13) kDa, an isoelectric point (pI) from 4.93 (BnaOBMP.C4) to 11.56 (BnaOBMP.T3), an instability index from 13.84 (BnaOBMP.SH5) to 66.84 (BnaOBMP.S13), an aliphatic index from 48.8 (BnaOBMP.T25) to 139.32 (BnaOBMP.T20) and a grand average of hydropathy (GRAVY) from −0.864 (BnaOBMP.T13) to 1.597 (BnaOBMP.T6) (Table 1). Twenty-six BnaOBMPs were predicted to be localized in the nucleus of which six were also predicted to be mitochondria-localized proteins (Table 1).
To attain a holistic view of BnaOBMP gene distribution on the rapeseed genome, the 88 BnaOBMPs were mapped on the corresponding chromosomes according to their physical positions. Almost all of the BnaOBMPs were localized in the chromosome regions with relatively higher gene density in rapeseed, particularly towards the terminal regions (Figure 1). The rapeseed genome had a very unequal distribution of BnaOBMP genes among the nineteen different chromosomes, and the gene numbers varied from one (C05 and A09) to eleven (A03). Moreover, some homologous chromosomes of the A and C subgenomes contained a comparable number of BnaOBMP genes such as four in both A01 and C01, eight in both A02 and C02, and eight in A10 and nine in C09. Notably, the T oleosin genes showed an aggregated distribution on the terminal regions of A02 (BnaOBMP.T1, BnaOBMP.T2 and BnaOBMP.T3), A03 (BnaOBMP.T4, BnaOBMP.T5, BnaOBMP.T6 and BnaOBMP.T7), A10 (BnaOBMP.T10, BnaOBMP.T11, BnaOBMP.T12, BnaOBMP.T13 and BnaOBMP.T14), C02 (BnaOBMP.T15, BnaOBMP.T16 and BnaOBMP.T17), C03 (BnaOBMP.T18, BnaOBMP.T19 and BnaOBMP.T20) and C09 (BnaOBMP.T23, BnaOBMP.T24, BnaOBMP.T25, BnaOBMP.T26 and BnaOBMP.T27).

2.2. Phylogeny, Gene Structures and Crucial Motifs of BnaOBMPs

To explore the molecular evolution of the OBMP gene family in B. napus, a total of 212 OBMP genes from B. napus, B. rapa, B. oleracea and A. thaliana were used to construct an unrooted phylogenetic tree using the maximum likelihood (ML) method. According to the phylogenetic relationships of these OBMP genes, they could be divided into three independent classes, which is consistent with classification by the functional domains (i.e., oleosin, caleosin and steroleosin) contained (Figure 2a). Moreover, the oleosin class could be further categorized into four subclasses, corresponding to the SH, SL, T and U subfamilies (Figure 2a).
Based on the gene information of the genome available in the BnPIR database (http://cbi.hzau.edu.cn/bnapus/ (accessed on 8 January 2022), we performed a gene structure analysis on the BnaOBMPs. The adjacent BnaOBMP genes in the phylogenetic tree, which were derived from the homologous A and C subgenomes of rapeseed, respectively, exhibited similar gene structures (Figure 2b). For the BnaOBMP genes of the caleosin or steroleosin subfamilies, their exon features of order, length and number were largely conserved among different members (Figure 2b). On the contrary, the BnaOBMP genes from the oleosin subclasses showed varied gene structures. For examples, the SH and SL oleosins and most of the T oleosins contained two exons and one intron, while all of the U oleosins and three T oleosin genes (i.e., BnaOBMP.T6, BnaOBMP.T12 and BnaOBMP.T25) had only one exon, and the BnaOBMP.T8 and BnaOBMP.T21 oleosin genes had four and three exons, respectively (Figure 2b). Additionally, the conserved motifs of BnaOBMP proteins were identified using MEME, and three distinct conserved motifs (i.e., Motifs 1, 2 and 3) were found (Figure 2b). Motif 1 was a proline knot with four invariable residues of the proline knot sequence (-PX5SPX3P-), Motif 2 was a Ca2+-binding site, and Motif 3 was an NADPH-binding domain (Figure 2c). The sequence homology of BnaOBMP proteins was determined through multiple sequence alignment. In B. napus, the protein sequences of caleosins consisted of an H-form insertion, a Ca2+-binding motif and a proline knot (Figure S2). All the oleosins comprised an N-arm of a Pro loop, a proline knot and a C-arm of a Pro loop (Figure S3), and the steroleosins harbored one proline knob, one NADPH-binding motif and a sterol-binding domain in the C-terminal (Figure S4).

2.3. Synteny and Gene Duplication Modes of BnaOBMP Genes

Gene duplications are considered to be one of the major driving forces in the evolution of genomes and expansions of gene families [37]. Whole-genome duplication, segmental duplication and tandem duplication are the major causes of gene family expansion in plants [38]. Based on the synteny and collinearity of B. napus genome from all-against-all pairwise alignment of all the proteins, we identified the duplicated events for BnaOBMP genes. Approximately 82.9% (73/88) of the BnaOBMP genes were found associated with at least one collinear gene pair (Figure 3a). A total of 165 gene pairs with 72 (accounting for 81.82%) genes were identified as WGD/segmental duplication (Figure 3a,b). In addition, 15 (accounting for 17.04%) tandem duplicated genes were identified within 6 tandem duplicated gene clusters, and they all belonged to the T oleosin subfamily (Figure 3a,b). To better understand different selective constraints on the BnaOBMP gene family, the nonsynonymous substitution/synonymous substitution (Ka/Ks) ratios of the OBMP gene pairs between B. napus and A. thaliana were calculated (Figure S5). Except for BnaOBMP.T5, BnaOBMP.T10, BnaOBMP.T15, BnaOBMP.T18, BnaOBMP.T24, BnaOBMP.SH9, BnaOBMP.SL7 and BnaOBMP.S13, all other orthologous OBMP gene pairs had Ka/Ks  <  1. In addition, the Ka/Ks ratios of T oleosin genes were substantially higher than the other OBMP genes (Figure S5).

2.4. Cis-Acting Regulatory Elements in the Promoters of BnaOBMP Genes

The cis-acting elements in the promoter region play vital roles in the regulation of gene expression and also function to coordinate responses to developmental and environmental cues in plants [39]. To identify the putative cis-acting elements of BnaOBMP genes, the genomic DNA sequences from the transcription initiation site (+1) to 2 kilo bases (Kb) upstream of the BnaOBMP genes were extracted for cis-acting elements profiling using PlantCARE. All the BnaOBMP gene promoters possessed various cis-acting regulatory elements (Figure 4). Based on the functional annotation of these cis-acting elements, they could be classed into three main groups including plant growth and development, phytohormone responsive and abiotic and biotic stress responsive. Specifically, the BnaOBMP genes contained multiple phytohormone responsive elements, such as ABRE (abscisic acid-responsive element), AuxRE (auxin-responsive element), ERE (ethylene-responsive element), GARE (gibberellin-responsive element), MeJARE (MeJA-responsive element) and SARE (salicylic acid-responsive element), which suggests that the expression of BnaOBMP genes might be induced by different phytohormones. Among these phytohormone-responsive elements, the ABRE and MeJARE elements showed higher frequency, whereas AuxRE and GARE had a lower frequency in the promoters of BnaOBMP genes (Figure 4). Among the cis-acting regulatory elements, LTR (light-responsive element) exhibited the most abundance in the promoters of BnaOBMP genes. In addition, diverse cis-acting regulatory elements involved in abiotic and biotic stress-responsive elements, such as ARE (anoxic-responsive element), DSRE (defense- and stress-responsive element), DIRE (drought-responsive element), DRE (damage-responsive element), LTRE (low-temperature-responsive element) and WRE (wound-responsive element), were also identified in the promoter regions of BnaOBMP genes.

2.5. Extensive Sequence Polymorphisms of the BnaOBMP Genes

DNA sequence polymorphisms in the gene can provide insights into the evolutionary forces acting on populations and species adapting to different environments [40]. Based on the genomic resequencing dataset of worldwide rapeseed accessions [41], we performed a variation analysis on the BnaOBMP genes to assess their sequence polymorphisms. The polymorphism sites of exons and introns in the BnaOBMP genes ranged from 2 (BnaOBMP.T15) to 86 (BnaOBMP.T26) and 2 (BnaOBMP.SH8) to 951 (BnaOBMP.S1), respectively (Table S2). Among the BnaOBMP genes, twelve genes contained 1 to 5 splicing variants, twenty-seven genes had one to three stop-gain variants, and four genes harbored one stop-loss variant, which indicates that these genes exhibited loss of function (Table S2). Among the BnaOBMP genes, BnaOBMP.U9 exhibited the highest coding sequence variation ratio of 0.167, while BnaOBMP.T15 had the lowest variation ratio of 0.003 (Table S2). The pi (π) values of the nucleotide diversity parameters extended from 0.000087 (BnaOBMP.T16) to 0.01528 (BnaOBMP.T9). The BnaOBMP genes of BnaOBMP.T9 (π = 0.01528), BnaOBMP.U9 (π = 0.00986), BnaOBMP.T14 (π = 0.00871), BnaOBMP.U7 (π = 0.00834), BnaOBMP.C4 (π = 0.00772) and BnaOBMP.SL3 (π = 0.00764) showed relatively higher nucleotide diversity (Figure 5a). In addition, the π values of BnaOBMP genes derived from the A and C subgenomes showed no significant difference (Student’s t-test, p-value = 0.055). To study the population selection pressures for BnaOBMP genes, we conducted neutrality test statistics using Tajima’s D-test method. Of all the BnaOBMP genes, approximately 27.3% (24/88) had positive Tajima’s D values, while the others were negative (Figure 5b). Notably, Tajima’s D values for four BnaOBMP genes, including BnaOBMP.S13 (2.48971), BnaOBMP.T14 (2.74572), BnaOBMP.U7 (2.7529) and BnaOBMP.C7 (4.01958), were over 2, while Tajima’s D values for eight BnaOBMP genes, including BnaOBMP.SL4 (−2.14472), BnaOBMP.SH8 (−2.04585), BnaOBMP.C19 (−2.1825), BnaOBMP.T15 (−2.10059), BnaOBMP.T21 (−2.05404), BnaOBMP.T22 (−2.00284), BnaOBMP.T24 (−2.08246) and BnaOBMP.T25 (−2.247), were less than −2, suggesting that these genes were under strong selection (positive or negative). The selection pressures on the twelve BnaOBMPs in rapeseed were also explored based on the Ka/Ks ratios. A Ka/Ks ratio greater than 1, equal to 1 and less than 1 indicated positive selection, neutral evolution and purifying selection at a low evolutionary rate, respectively. Among these BnaOBMP genes, except for BnaOBMP.S13, the Ka/Ks ratio values of the others were all less than 1 (Figure S6).

2.6. Diverse Expression Patterns of BnaOBMP Family Genes

To examine the expression patterns of the BnaOBMP genes during growth and development in rapeseed, we reanalyzed the publicly available RNA-Seq datasets (database accession: PRJNA394926 and PRJNA311067), which were obtained from eight tissues at different developmental stages including root (seedling), stem (seedling), leaf (mature), flower bud, sepal, stamen, pistil (new, blossoming and wilting) and seed (2, 4, 6 and 8 weeks after pollination (WAP)). Diverse expression patterns were observed for different subfamilies of BnaOBMP genes in rapeseed (Figure 6a). Of the caleosin genes, five members (i.e., BnaOBMP.C1, BnaOBMP.C9, BnaOBMP.C10, BnaOBMP.C19 and BnaOBMP.C20) were specifically expressed in seed (6 and 8 WAP), four members (i.e., BnaOBMP.C7, BnaOBMP.C8, BnaOBMP.C16 and BnaOBMP.C17) exhibited relatively high expression levels in root, five members (i.e., BnaOBMP.C2, BnaOBMP.C3, BnaOBMP.C11, BnaOBMP.C12 and BnaOBMP.C18) were highly expressed in floral organs, while six members (i.e., BnaOBMP.C4, BnaOBMP.C5, BnaOBMP.C6, BnaOBMP.C13, BnaOBMP.C14 and BnaOBMP.C15) displayed higher expression level in mature leaf of rapeseed. For the steroleosin genes, all members were preferentially expressed in seed, except for BnaOBMP.S1 in pistil, BnaOBMP.S8 in flower bud and BnaOBMP.S15 in root. In addition, BnaOBMP.S7 and BnaOBMP.S9 were unexpressed in all tissues examined. For the oleosin genes, all the SH, SL and U oleosin genes were specifically expressed in seed, except for BnaOBMP.U1 and BnaOBMP.U5, which were expressed in flower bud, while all the T oleosins, except for BnaOBMP.T1 and BnaOBMP.T8, were highly expressed in flower bud (Figure 6a).
We further examined the expression difference of BnaOBMP genes between young (at 20 days after flowering (DAF)) and mature (at 40 DAF) seeds among different rapeseed accessions using the publicly available RNA-Seq dataset (database accession: CRA003544) (Figure 6b). Principal component analysis (PCA) analysis revealed that the 560 seed samples could be clustered into two distinct groups corresponding to the 20 DAF and the 40 DAF groups (Figure S7). The 40 DAF group showed more divergent distribution compared to the 20 DAF group for PC1, indicating that the expression of BnaOBMP genes was more diverse in mature seeds of rapeseed. Approximately 79.5% (70/88) of BnaOBMP genes, including 13 caleosins, 42 oleosins and 15 steroleosins, showed low expression levels (fragments per kilobase of exon per million fragments mapped (FPKM) <10) in the young seed samples. In contrast, approximately 43.1% (38/88) of BnaOBMP genes of 7 caleosins, 26 oleosins and 5 steroleosins exhibited low expression levels in the mature seeds (Figure 6b). Obviously, the SH and SL oleosin genes showed the highest expression levels in the seeds of the worldwide collected rapeseed accessions at 40 DAF compared to those at 20 DAF (Figure 6b). Moreover, there were 28 BnaOBMPs, including 5 caleosins, 18 oleosins and 5 steroleosins, that seemed to be unexpressed in all the seed samples of rapeseed (Figure 6b).

2.7. Quantitative Real-Time PCR (qRT-PCR) Analysis of the BnaOBMP Genes

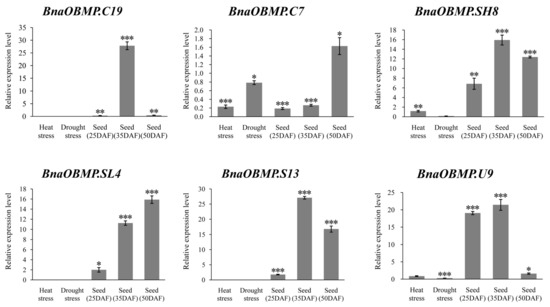

To further validate the functional roles of BnaOBMPs under abiotic stresses and during seed development, six of the BnaOBMP genes from different subfamilies were selected for examining expression levels using qRT-PCR in the cultivated species of rapeseed (ZS11). These genes included two caleosins (i.e., BnaOBMP.C19 and BnaOBMP.C7), three oleosins (i.e., BnaOBMP.SH8, BnaOBMP.SL4 and BnaOBMP.U9) and one steroleosin (i.e., BnaOBMP.S13). After a 3 h heat treatment, the expression level of BnaOBMP.C7 was significantly downregulated by approximately five-fold compared with the control, while BnaOBMP.SH8 was significantly upregulated in the leaves of rapeseed (Figure 7). After a 3 day drought treatment, the expression levels of BnaOBMP.C7, BnaOBMP.U9 and BnaOBMP.SH8 were reduced (Figure 7). In contrast, BnaOBMP.C19, BnaOBMP.SL4 and BnaOBMP.S13 showed no detectable expression in rapeseed leaves. Compared to seeds of 15 DAF (early seed development), the expression levels of BnaOBMP.C19, BnaOBMP.SH8, BnaOBMP.S13 and BnaOBMP.U9 increased in seeds of 25 DAF (seed filling stage) and reached a peak in seeds of 35 DAF (seed filling stage) and then decreased in seeds of 50 DAF (seed maturation stage). Both BnaOBMP.C7 and BnaOBMP.SL4 exhibited significantly induced expression during the development of seed (Figure 7). qRT-PCR analysis validated the gene expression patterns identified by RNA-seq.

2.8. Co-Expression and Gene Regulatory Network of BnaOBMPs during Seed Development

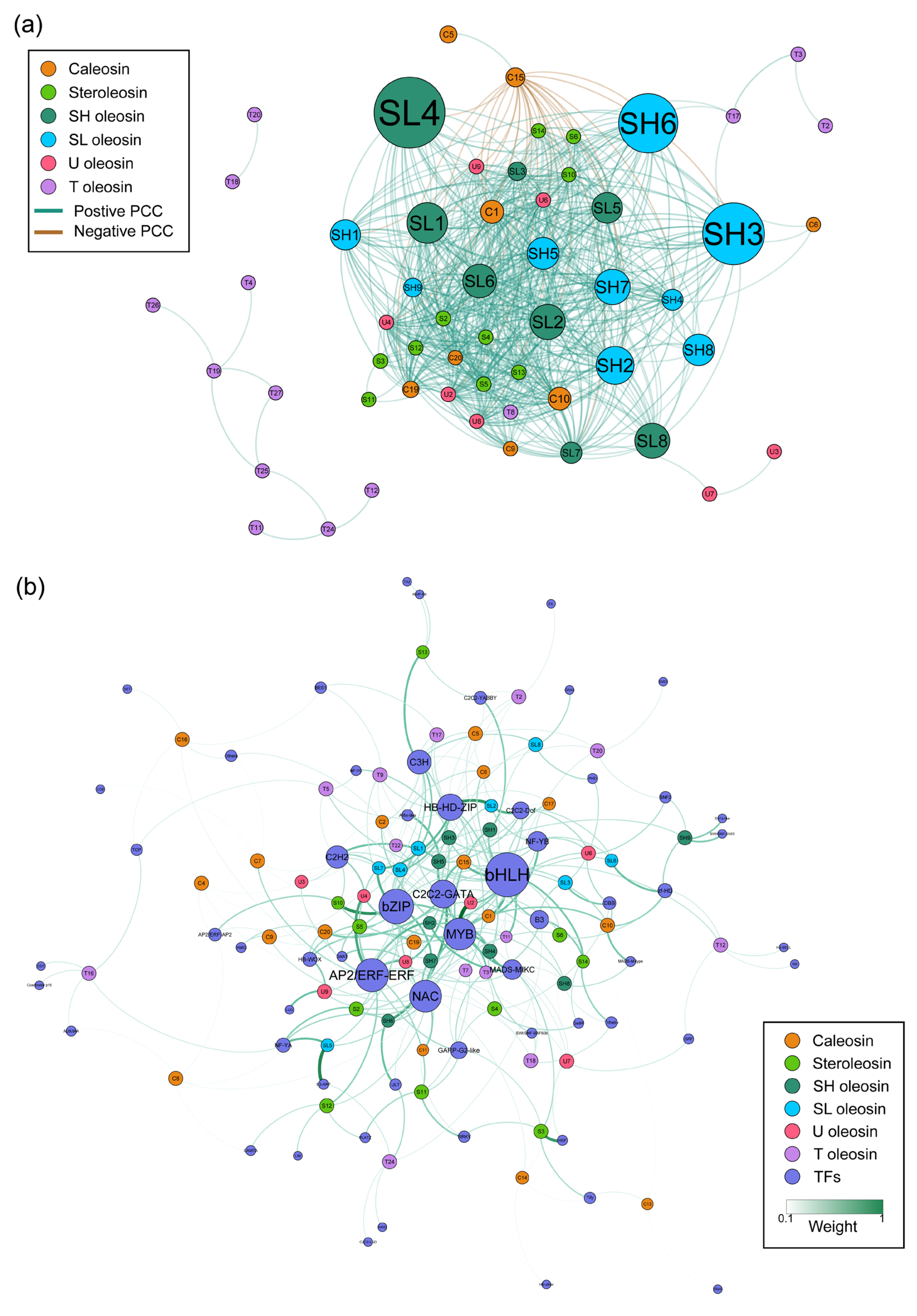

In order to comprehensively analyze the gene interactions and regulatory relationships of OBMP genes during seed development, the previous seed RNA-seq data were employed to build a co-expression and gene regulatory network. We calculated the Pearson correlation coefficients (PCCs) of the expression levels between BnaOBMP gene pairs (Figure S8). As the gene expression correlation matrix of the 88 BnaOBMP genes shows, the caleosins of BnaOBMP.C3, BnaOBMP.C4, BnaOBMP.C5, BnaOBMP.C12, BnaOBMP.C15, BnaOBMP.C16 and BnaOBMP.C18 and the T oleosins of BnaOBMP.T11, BnaOBMP.T12, BnaOBMP.T14, BnaOBMP.T24, BnaOBMP.T25, BnaOBMP.T26 and BnaOBMP.T27 had negative correlations with most of the other BnaOBMP genes, while the rest of the genes exhibited positive correlations with each other (Figure S8). Subsequently, all gene pairs with significant PCCs (p-value ≤ 0.01 and |PCC| > 0.6) were extracted and used to construct co-expression networks. The co-expression networks of BnaOBMPs were constituted with 602 edges and 56 nodes including 38 oleosins, 8 caleosins and 10 steroleosins (Figure 8a). There were twenty-eight BnaOBMP gene pairs showing negative correlations (p-value ≤ 0.01 and PCC < −0.6), which were between BnaOBMP.C15 and other BnaOBMPs including BnaOBMP.C1, BnaOBMP.C10, BnaOBMP.C19, BnaOBMP.C20, BnaOBMP.S2, BnaOBMP.S6, BnaOBMP.S10, BnaOBMP.S14, BnaOBMP.SH1, BnaOBMP.SH2, BnaOBMP.SH3, BnaOBMP.SH4, BnaOBMP.SH5, BnaOBMP.SH6, BnaOBMP.SH7, BnaOBMP.SH8, BnaOBMP.SH9, BnaOBMP.SL1, BnaOBMP.SL2, BnaOBMP.SL3, BnaOBMP.SL4, BnaOBMP.SL5, BnaOBMP.SL6, BnaOBMP.SH7, BnaOBMP.U2, BnaOBMP.U4, BnaOBMP.U6, BnaOBMP.U8 and BnaOBMP.U9, while a total of 574 BnaOBMP gene pairs displayed positive correlations. Particularly, over a half of these gene pairs (316/574) exhibited strong positive correlations (p-value ≤ 0.01 and PCC > 0.8).
To explore transcription factors involved in the regulation of OBMP genes during seed development, we further constructed a seed-specific gene regulatory network (GRN) using GENIE3 algorithm in B. napus. By filtering for the genes expressed > 1 FPKM in at least one of the seed samples, we captured 61,907 genes, including 4643 transcription factors (TFs) and 64 BnaOBMP genes, for GRN construction. The top 5 TFs of each BnaOBMP connected were extracted from the GRN and used to construct a subnetwork of BnaOBMP-GRN (Figure 8b). The classification of these TFs in BnaOBMP-GRN revealed that the expression of BnaOBMP genes were potentially regulated by various types of TFs such as ZIP, C2C2-GATA, HB-HD-ZIP, HB-WOX, C2H2, NF-YB, C3H, bHLH, AP2/ERF-ERF, NAC, GARP-G2-like, MYB and C2C2-dof (Figure 8b). Notably, a total of 159 hub TFs were identified in BnaOBMP-GRN (Table S3). For examples, the bZIP gene of BnaA04G0262900ZS encoded ABSCISIC ACID-INSENSITIVE 5-like protein 3, had the greatest hub value, the candidate targets of which were BnaOBMP.S5, BnaOBMP.SH3, BnaOBMP.SL7, BnaOBMP.SL3, BnaOBMP.SH9 and BnaOBMP.U9. In addition, the C2C2-GATA gene of BnaA08G0133800ZS encoded GATA transcription factor 8-like protein, which might regulate the expression of BnaOBMP.SH3, BnaOBMP.SH6, BnaOBMP.SL3, BnaOBMP.SL8, BnaOBMP.C17 and BnaOBMP.S6.

3. Discussion

OBs share common features in all kingdoms of life [42], consisting of a densely packed hydrophobic core of neutral lipids enclosed by a phospholipid monolayer decorated by three main classes of oil-body-membrane proteins (OBMP) including oleosins, caleosins and steroleosins [13,42]. Oleosins are the most abundant protein constituents and are sufficient to cover the whole surface of a seed OB [43]. Oleosins play important roles in the formation and stabilization of OBs during seed and pollen grain development as well as in OB turnover [26]. Caleosin is a common OB surface protein found in a wide range of plant species [44]. Caleosin has a Ca2+-binding motif, which has the ability to bind calcium. Recent studies have suggested that caleosins also possess peroxygenase activities that convert hydroperoxides of α-linolenic acid to various oxylipins as phytoalexins [27,45]. Steroleosins belong to hydroxysteroid dehydrogenases (HSDs), consisting of a sterol-binding site and an NADPH-binding site involved in some biological functions related to membrane remodeling and lipid signaling [32,46,47]. Thus, OBMP is not only the key structural molecule for the formation and stabilization of OBs but may also exert a myriad of cellular functions related to carbon, energy and lipid metabolisms; stress responses; hormone signaling pathways; be involved in various aspects of plant growth and development.
As the second-largest source of vegetable oil, rapeseed is an important worldwide oilseed crop [2]. Their seeds contain lipids as major storage reserves, which is up to 50% of the dry weight, and the main component of lipids is triacylglycerol stored in oil bodies [48]. To investigate the function of oil-body-membrane proteins from important oil crops, we performed identification and characterization of the OBMP gene family in the polyploid crop B. napus in the present study. A total of 88 OBMP genes were found in all of the nineteen chromosomes of rapeseed, which were classed into 53 oleosins (27 T, 8 SL, 9 SH and 9 U), 20 caleosins and 15 steroleosins based on their functional domains and phylogenetic relationships (Table 1). Compared to the number of OBMP genes identified in the species from green algae to higher plants, B. napus contained the most abundant OBMP genes, suggesting the massive expansion of this gene family in rapeseed (Figure S1). The A and C subgenomes of B. napus contained 43 and 45 BnaOBMP genes, respectively, which is comparable to the 44 and 47 genes identified in B. rapa and B. oleracea, respectively (Table 1 and Table S1). Moreover, the BnaOBMP genes from the A and C subgenomes showed conserved synteny and gene order (Figure 3). These results indicate that B. napus retained the vast majority of OBMP genes from its two ancestors during the allopolyploidization.
Gene and genome duplications gave rise to the number of genes, resulting in functional redundancy and differentiation of genes, enabling genome-wide adaptation to various environments during evolution [37]. The previous study revealed that the crucifer (Brassicaceae) lineage experienced two whole-genome duplications (WGDs) and one whole-genome triplication event (WGT), shared by most dicots [49]. Moreover, the Brassica species experienced an extra WGT event approximately 15.9 million years ago compared with A. thaliana [50]. B. napus is a relatively new species of the Brassica genus, with a short history of post-Neolithic speciation (~7500 years) and domestication (~700 years). Consistent with these WGD and WGT events, the OBMP genes experienced gene duplication events leading to an expanded OBMP gene family in rapeseed. The WGD or segmentally duplicated genes accounted for the majority of BnaOBMP gene family. Particularly, all of the caleosins and steroleosins resulted from WGD or segmental duplication in rapeseed. The tandemly duplicated genes were also detected in the BnaOBMP gene family, and all fifteen tandemly duplicated genes belonged to T oleosins, which might be the result of the aggregated distribution of T oleosins in the chromosomes of the rapeseed genome. Furthermore, the BnaOBMP genes showed different levels of polymorphism. Most of the BnaOBMP genes had Ka/Ks ratios less than 1 and Tajima’s D values less than 0, suggesting that the BnaOBMP gene family experienced strong purifying (stabilizing) selection rather than positive selection during the evolution. In addition, the Ka/Ks ratios were substantially highest among the T oleosins than other BnaOBMP genes, implying that T oleosins evolved faster than the other BnaOBMP genes in rapeseed. Altogether, these results revealed that the BnaOBMP gene family expanded primarily by gene duplications with WGD/segmental duplication being the major driving force in B. napus.
Oil bodies, as essential lipid storage organelles in the seeds of plants, play important roles in seed germination and the postgerminative growth of seedlings, as well as many other cellular processes such as stress responses, lipid metabolism, organ development, and hormone signaling. These biological functions of seed OBs depend on OBMP proteins, which are embedded in the OB phospholipid monolayer. Our results revealed that various cis-acting regulatory elements exist in the promoters of BnaOBMP genes. The cis-acting regulatory elements exert various functions associated with plant growth and development, phytohormone responsive, and abiotic and biotic stress responsive such as ABRE (abscisic acid-responsive element), AuxRE (auxin-responsive element), ERE (ethylene-responsive element), ARE (anoxic-responsive element), DIRE (drought-responsive element) and LTRE (low-temperature-responsive element). This suggests that BnaOBMP genes could be induced by different phytohormone and stress signals so as to adjust OBs to different environmental conditions.
Unraveling the expression pattern of different OB proteins throughout seed development is crucial for improving our understanding of OB formation. A previous study revealed that accumulation of oleosins S1-S5 and caleosin CLO1 began at approximately 12 days after pollination (DAP), while steroleosin SLO1 accumulated later at approximately 25 DAP, and then they all increased rapidly and reached a peak at 55–60 DAP in A. thaliana, as analyzed by immunoblot [51]. We found that the expression of most BnaOBMP genes were upregulated along the development of the seed and showed the highest expression levels at the late stages, which is consistent with the previous study. Although OBs occur minimally in nonstorage vegetative organs, we also observed that some BnaOBMP genes exhibited high expression in flower bud, pistils, leaves, stems and roots, indicating that OBs are present in these tissues. For example, T oleosins, except for BnaOBMP.T1 and BnaOBMP.T8, were preferentially highly expressed in flower bud. Some caleosins showed higher expression levels in flower bud, stamen, pistil, leaf and root. For steroleosins, BnaOBMP.S1 showed the highest expression level in pistil, while BnaOBMP.S15 was highly expressed in root. These results suggested that OBs could be not only present in seed as storage warehouses but also exist in nonstorage vegetative organs as detoxification refuges.
Genes involved in the same process usually have similar expression patterns, and they typically grouped into the same module in co-expression analysis. Here, based on the co-expression networks of BnaOBMPs, the BnaOBMP family genes showed a similar tendency and gathered closely together in one cluster during seed development in B. napus. Strong positive correlations were observed between the members of the BnaOBMP gene family. Meanwhile, only a few significant negative correlations appeared between BnaOBMP.C15 and the others. The results suggested that the BnaOBMP genes might share functional redundancy in B. napus. To discern gene transcriptional regulatory mechanisms of BnaOBMP genes, we constructed a regulatory network incorporating TF information by GENIE3. Previous studies demonstrated that a GENIE3 network could provide biologically relevant transcription factor-target relationships in wheat [52,53]. Our BnaOBMP-GRN network revealed that the BnaOBMP genes could be regulated by various transcript factors. After prioritization of the candidate regulatory genes, the top hub transcription factor was the bZIP gene of BnaA04G0262900ZS encoded ABSCISIC ACID-INSENSITIVE 5 (ABI5)-like protein 3 (EEL). The Arabidopsis EEL (known as AtbZIP12) is transcription factor homologous to ABI5, which is a key player in light-, abscisic acid-, and gibberellin-signaling pathways to precisely control seed maturation and germination [54,55,56]. In addition, some other hub TFs, such as GATA3, HAT2, SMZ, DOF5.6 and APL, might also play important roles in the regulation of BnaOBMPs during OB formation in rapeseed, which needs further investigation.
In conclusion, our results reveal that B. napus had an expansion of the OBMP gene family due to the fact of WGD and tandem duplications. These BnaOBMP genes contain extensive sequence polymorphisms, and some members may have experienced strong selection. Various cis-acting regulatory elements involved in plant growth, phytohormone and abiotic and biotic stress responses were found in their promoter regions. In addition, both transcriptomic and qRT-PCR analyses corroborated that BnaOBMPs exhibited spatiotemporal expression patterns and are preferentially expressed in seeds. The genetic variations (i.e., SNPs or InDels) of BnaOBMP genes can be used as molecular markers to select rapeseed cultivars with high seed oil content (SOC). Moreover, further manipulating the expression patterns of some candidate BnaOBMPs during seed development using genetic engineering techniques, such as transgenic technology and CRISPR/Cas9 tools, would contribute to the increase in the SOC in rapeseed.

4. Materials and Methods

4.1. Identification and Property Analysis of BnaOBMP Genes

The OBMP genes in A. thaliana were retrieved from the TAIR (http://www.arabidopsis.org/ (accessed on 7 January 2022) database. The protein sequences, coding sequences (CDS), genome sequences and annotation of Brassica napus var. ZS11 were obtained from BnPIR database (http://cbi.hzau.edu.cn/bnapus/ (accessed on 8 January 2022). The protein sequences of B. rapa var. Z1 and B. oleracea var. HDEM were downloaded from the GENOSCOPE database (http://www.genoscope.cns.fr/ (accessed on 8 January 2022). The protein sequences of the other 51 species were obtained from the NCBI database (https://www.ncbi.nlm.nih.gov/ (accessed on 12 January 2022). The peptides of the OBMP proteins of A. thaliana were used as queries in a BLASTP (version 2.2.26) search against all the annotated protein sequences of B. napus with an E-value threshold of 1 × 10−5. Then, the sequences of the predicted BnaOBMP proteins were searched against all the annotated proteins of A. thaliana. The putative BnaOBMPs with the best hits on A. thaliana OBMP proteins remained. For further confirmation of BnaOBMP proteins, the oleosin domain (PF01277), the caleosin domain (PF05042) or the steroleosin domains (PF00106 or PF13561) from the Pfam database (http://pfam.xfam.org/ (accessed on 17 February 2022) were applied as queries to search against the putative BnaOBMP protein sequences using HMMER (version 3.2.1) with anE-value setting of 1 × 10−5. The OBMP genes of other species were also identified in this way. The properties of each BnaOBMP, including molecular weight (MW), isoelectric point (pI), instability index, aliphatic index and grand average of hydropathy (GRAVY), were calculated using the ProtParam tool (https://web.expasy.org/protparam/ (accessed on 9 March 2022). The subcellular localization of each BnaOBMP was predicted by LOCALIZER (https://localizer.csiro.au/ (accessed on 28 March 2022).

4.2. Gene Structure and Chromosomal Localization Analysis

Based on the genome annotation of B. napus var. ZS11, available from the BnPIR database (http://cbi.hzau.edu.cn/bnapus/ (accessed on 8 January 2022)), a graphical representation of the exon–intron structure of each BnaOBMP gene was drawn using Gene Structure Display Server 2.0 (http://gsds.cbi.pku.edu.cn/ (accessed on 12 March 2022)). The schematic map of the BnaOBMP genes on chromosomes was plotted using R software with RIdeogram package (version 0.2.2) according to their physical chromosomal locations on B. napus.

4.3. Cis-Acting Regulatory Elements and Motif Analysis

The 2 Kb sequence upstream from the transcription start site of each BnaOBMP gene was defined as the promoter region and was extracted from the B. napus genome sequence. The cis-acting regulatory elements within the promoters were analyzed by PlantCARE (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/ (accessed on 23 March 2022)).

4.4. Multiple Sequence Alignments and Conserved Motif Analysis

MUSCLE (version 3.8) was used to align the OBMP protein sequences of B. napus, B. rapa, B. oleracea and A. thaliana with default parameters. The MEME suite (https://meme-suite.org/meme/ (accessed on 14 April 2022)) was employed to identify the motifs with conserved amino acids in the protein sequences of BnaOBMPs with default parameters.

4.5. Phylogenetic Analysis

Based on the multiple sequence alignments of OBMP proteins from B. napus, B. rapa, B. oleracea and A. thaliana, IQ-TREE (version 2.0.3) was employed to reconstruct a maximum likelihood (ML) gene tree with 1000 replicates. The VT + F + R4 model was the best-fit evolutionary model selected by ModelFinder implemented in IQ-TREE. The obtained ML gene trees were visualized using iTOL (https://itol.embl.de/ (accessed on 24 March 2022)).

4.6. Synteny and Duplicate Gene Analysis

The syntenic blocks and gene duplications were identified within the B. napus, B. rapa, B. oleracea and A. thaliana genomes using MCScanX (version 3.8.31) with the default parameters. The circos graph with the genomic collinearity of BnaOBMP genes was plotted using the Rcircos package in R software (version 3.6.1).

4.7. Sequence Variations and Polymorphism Analysis

The publicly available genomic resequencing dataset of different B. napus accessions from around the world (database accession: SRP155312) was collected from the National Center of Biotechnology Information (NCBI) database [41]. The alignment and variant calling were performed using Sentieon DNASeq Variant Calling Workflow [57]. Variant annotation was achieved by ANNOVAR (version 20220320) based on the annotation of the B. napus var. ZS11 genome. The sequence diversity metrics, including pairwise nucleotide variation as a measure of variability (π) and selection statistics (Tajima’s D) of BnaOBMP genes, were calculated by vcftools (version 0.1.13) based on SNP distribution.

4.8. Expression Analysis of BnaOBMP Genes

The publicly available RNA-seq datasets (database accession: PRJNA394926 and PRJNA311067) of eight tissues (i.e., root, stem, leaf, flower bud, sepal, stamen, pistil and seed) collected from different developmental stages [58,59] and an RNA-Seq dataset (database accession: CRA003544) of 20 DAF and 40 DAF seeds of 280 B. napus germplasm accessions [60] were downloaded from the NCBI and NGDC databases, and they were used for gene expression profiling. Mapping of these RNA-Seq reads against the B. napus var. ZS11 reference genome using HISAT2 (version 2.1.0) with the default settings. The reads count per gene was calculated with HTSeq (version 0.9.172) and was further used to calculate the FPKM values for the quantification of gene expression. The heatmaps were visualized using the pheatmap package (version 1.0.12) in R software (version 3.6.1). The principal component analysis was performed using the function prcomp() in the R software.

4.9. Plant Materials and Treatments

The seeds of the rapeseed cultivar ZS11 were germinated on a filter paper saturated with distilled water in darkness at 22 °C for 3 days. The seedling plants were transplanted to soil culture pots in a greenhouse to grow for six weeks under well-controlled conditions as follows: a temperature of 25 °C, light intensity of 150 μmol m−2s−1 provided by a high-pressure sodium lamp, and a humidity of 50–60%. Then, the rapeseed plants before the bolting stage were chosen for analysis. The top third of fully expanded leaves from rapeseed plants were sampled as a control before being stressed for the following experiments. The drought and heat stress treatments were conducted in plant growth chambers with well-controlled temperature and humidity. For the drought treatment, water was withdrawn for 7 days, and then the plants were rewatered to recover from the stress. The growth chamber was programmed as follows: 40% humidity in 16 h light at a temperature of 25 °C; 45% humidity in 8 h dark at a lower temperature of 22 °C. Leaf samples were collected 3 days after drought treatment. For heat treatment, the growth chamber was set at 60% humidity in 16 h light at a high temperature of 40 °C, followed with 55% humidity in 8 h dark at a temperature of 35 °C. Heat-treated leaf samples were collected at a time point of 3 h during the stress treatment. Rapeseed seeds at 15, 25, 35 and 50 days after flowering of the ZS11 plants cultivated in the experimental field were sampled for analysis. All samples were immediately frozen using liquid nitrogen after being detached, and they were stored at −80 °C for further assay.

4.10. RNA Isolation and qRT-PCR Analysis

Total RNA was extracted from each sample using an RNA extraction kit (Takara, Dalian, China) following the manufacturer’s procedure. Two micrograms of total RNA were used to synthesize the first-strand cDNA using the Prime Script RT reagent Kit (Takara, Dalian, China) according to the manufacturer’s protocol. Quantitative real-time PCR was performed using 2 μL of cDNA in a 20 μL reaction volume with SYBR Premix Ex Taq (Takara) on a 7500-Fast real-time PCR System (Applied Biosystems). Gene-specific primers were designed and are listed in the Supplementary Materials (Table S4). The thermal cycler was set as follows: an initial incubation at 50 °C for 2 min and 95 °C for 5 min, followed by 40 cycles at 95 °C for 30 s, 55 °C for 30 s and 72 °C for 30 s. All qRT-PCR reactions were assayed in triplicates. The relative quantification of transcription level was determined by the methods described previously [61].

4.11. Pearson Correlation and Gene Regulatory Network Analysis

Based on the previous seed RNA-seq (database accession: CRA003544) analysis results, the PCC values and significant of correlations among BnaOBMP genes were calculated using the function rcorr() of R software (version 3.6.1). The genes with FPKM >1 in at least one of the 560 seed samples of B. napus were selected and used to construct the gene regulatory network (GRN) using GENIE3 (version 1.19.0). The TFs of B. napus identified by iTAK (version 1.7) were used as candidate regulators for the GRN construction. Gephi (version 0.9.2) was used to calculate network metrics and create visualization graphs.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants11172241/s1, Figure S1: Number of OBMP genes identified from each of the plant genomes; Figure S2: Pileup of the sequences of all caleosins in B. napus aligned with the MUSCLE method in MEGA software; Figure S3: Pileup of the sequences of all U, SL, SH and T oleosins in B. napus aligned with the MUSCLE method in MEGA software; Figure S4: Pileup of the sequences of all steroleosins in B. napus aligned with the MUSCLE method in MEGA software; Figure S5: Selective pressures for OBMP genes in B. napus as revealed in nonsynonymous and synonymous substitution (Ka/Ks) ratios; Figure S6: Ka, Ks and Ka/Ks ratios of 12 OBMP genes under selection in B. napus; Figure S7: PCA plot of all the seed samples of 280 B. napus accessions; Figure S8: Correlation matrix of gene expression levels among BnaOBMP genes; Table S1: Summary information of the OBMP gene family in A. thaliana, B. rapa and B. oleracea; Table S2: Statistic of the variations of BnaOBMP genes; Table S3: Hub genes of BnaOBMP-GRN network in B. napus; Table S4. List of primers for qRT-PCR.

Author Contributions

Conceptualization, W.Z.; Funding acquisition, C.G.; Investigation, W.Z.; Methodology, W.Z. and L.Q.; Project administration, M.G. and C.G.; Writing—original draft, W.Z.; Writing—review and editing, J.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (grant number: 31801399) and the Research Foundation of the Education Bureau of Hunan Province, China (grant number: 21A0135).

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lu, K.; Wei, L.; Li, X.; Wang, Y.; Wu, J.; Liu, M.; Zhang, C.; Chen, Z.; Xiao, Z.; Jian, H.; et al. Whole-Genome Resequencing Reveals Brassica Napus Origin and Genetic Loci Involved in Its Improvement. Nat. Commun. 2019, 10, 1154. [Google Scholar] [CrossRef] [PubMed]
  2. Chalhoub, B.; Denoeud, F.; Liu, S.; Parkin, I.A.P.; Tang, H.; Wang, X.; Chiquet, J.; Belcram, H.; Tong, C.; Samans, B.; et al. Early Allopolyploid Evolution in the Post-Neolithic Brassica Napus Oilseed Genome. Science 2014, 345, 950–953. [Google Scholar] [CrossRef] [PubMed]
  3. Lu, C.; Napier, J.A.; Clemente, T.E.; Cahoon, E.B. New Frontiers in Oilseed Biotechnology: Meeting the Global Demand for Vegetable Oils for Food, Feed, Biofuel, and Industrial Applications. Curr. Opin. Biotechnol. 2011, 22, 252–259. [Google Scholar] [CrossRef] [PubMed]
  4. Hua, W.; Liu, J.; Wang, H. Molecular Regulation and Genetic Improvement of Seed Oil Content in Brassica Napus L. Front. Agric. Sci. Eng. 2016, 3, 186–194. [Google Scholar] [CrossRef]
  5. Liu, S.; Fan, C.; Li, J.; Cai, G.; Yang, Q.; Wu, J.; Yi, X.; Zhang, C.; Zhou, Y. A Genome-Wide Association Study Reveals Novel Elite Allelic Variations in Seed Oil Content of Brassica Napus. Theor. Appl. Genet. 2016, 129, 1203–1215. [Google Scholar] [CrossRef]
  6. Wang, B.; Wu, Z.; Li, Z.; Zhang, Q.; Hu, J.; Xiao, Y.; Cai, D.; Wu, J.; King, G.J.; Li, H.; et al. Dissection of the Genetic Architecture of Three Seed-Quality Traits and Consequences for Breeding in Brassica napus. Plant Biotechnol. J. 2017, 16, 1336–1348. [Google Scholar] [CrossRef]
  7. Lu, S.; Sturtevant, D.; Aziz, M.; Jin, C.; Li, Q.; Chapman, K.D.; Guo, L. Spatial Analysis of Lipid Metabolites and Expressed Genes Reveals Tissue-Specific Heterogeneity of Lipid Metabolism in High- And Low-Oil Brassica napus L. seeds. Plant J. 2018, 94, 915–932. [Google Scholar] [CrossRef] [PubMed]
  8. Hashemi, H.F.; Goodman, J.M. The Life Cycle of Lipid Droplets. Curr. Opin. Cell Biol. 2015, 33, 119–124. [Google Scholar] [CrossRef] [PubMed]
  9. Chapman, K.D.; Dyer, J.M.; Mullen, R.T. Biogenesis and Functions of Lipid Droplets in Plants: Thematic Review Series: Lipid Droplet Synthesis and Metabolism: From Yeast to Man. J. Lipid Res. 2012, 53, 215–226. [Google Scholar] [CrossRef] [PubMed]
  10. Huang, A.H.C. Oil Bodies and Oleosins in Seeds. Annu. Rev. Plant Biol. 1992, 43, 177–200. [Google Scholar] [CrossRef]
  11. Le Moigne, D.; Guéguen, N.; Salvaing, J. Lipid Droplets in Plants: More Than a Simple Fat Storage. Adv. Bot. Res. 2021, 101, 191–223. [Google Scholar] [CrossRef]
  12. Jackson, C.L. Lipid Droplet Biogenesis. Curr. Opin. Cell Biol. 2019, 59, 88–96. [Google Scholar] [CrossRef] [PubMed]
  13. Huang, A.H. Plant Lipid Droplets and Their Associated Proteins: Potential for Rapid Advances. Plant Physiol. 2017, 176, 1894–1918. [Google Scholar] [CrossRef]
  14. Gidda, S.K.; Park, S.; Pyc, M.; Yurchenko, O.; Cai, Y.; Wu, P.; Andrews, D.W.; Chapman, K.D.; Dyer, J.M.; Mullen, R.T. Lipid Droplet-Associated Proteins (LDAPs) Are Required for the Dynamic Regulation of Neutral Lipid Compartmentation in Plant Cells. Plant Physiol. 2016, 170, 2052–2071. [Google Scholar] [CrossRef] [PubMed]
  15. Pyc, M.; Gidda, S.K.; Seay, D.; Esnay, N.; Kretzschmar, F.K.; Cai, Y.; Doner, N.M.; Greer, M.S.; Hull, J.J.; Coulon, D.; et al. LDIP Cooperates with SEIPIN And LDAP to Facilitate Lipid Droplet Biogenesis in Arabidopsis. Plant Cell 2021, 33, 3076–3103. [Google Scholar] [CrossRef]
  16. Chen, K.; Yin, Y.; Liu, S.; Guo, Z.; Zhang, K.; Liang, Y.; Zhang, L.; Zhao, W.; Chao, H.; Li, M. Genome-Wide Identification and Functional Analysis of Oleosin Genes in Brassica Napus L. BMC Plant Biol. 2019, 19, 294. [Google Scholar] [CrossRef]
  17. Hu, Y.; Wu, G.; Cao, Y.; Wu, Y.; Xiao, L.; Li, X.; Lu, C. Breeding Response of Transcript Profiling in Developing Seeds of Brassica Napus. BMC Mol. Biol. 2009, 10, 49. [Google Scholar] [CrossRef] [PubMed]
  18. Greer, M.S.; Cai, Y.; Gidda, S.K.; Esnay, N.; Kretzschmar, F.K.; Seay, D.; McClinchie, E.; Ischebeck, T.; Mullen, R.T.; Dyer, J.M.; et al. SEIPIN Isoforms Interact with the Membrane-Tethering Protein VAP27-1 for Lipid Droplet Formation. Plant Cell 2020, 32, 2932–2950. [Google Scholar] [CrossRef]
  19. Shao, Q.; Liu, X.; Su, T.; Ma, C.; Wang, P. New Insights into the Role of Seed Oil Body Proteins in Metabolism and Plant Development. Front. Plant Sci. 2019, 10, 1568. [Google Scholar] [CrossRef] [PubMed]
  20. Huang, C.-Y.; Huang, A.H.C. Unique Motifs and Length of Hairpin in Oleosin Target the Cytosolic Side of Endoplasmic Reticulum and Budding Lipid Droplet. Plant Physiol. 2017, 174, 2248–2260. [Google Scholar] [CrossRef] [Green Version]
  21. Jolivet, P.; Roux, E.; D’Andrea, S.; Davanture, M.; Negroni, L.; Zivy, M.; Chardot, T. Protein Composition of Oil Bodies in Arabidopsis Thaliana Ecotype WS. Plant Physiol. Biochem. 2004, 42, 501–509. [Google Scholar] [CrossRef]
  22. Huang, M.-D.; Huang, A.H. Bioinformatics Reveal Five Lineages of Oleosins and the Mechanism of Lineage Evolution Related to Structure/Function from Green Algae to Seed Plants. Plant Physiol. 2015, 169, 453–470. [Google Scholar] [CrossRef] [PubMed]
  23. Huang, M.-D.; Huang, A.H.C. Subcellular Lipid Droplets in Vanilla Leaf Epidermis and Avocado Mesocarp Are Coated with Oleosins of Distinct Phylogenic Lineages. Plant Physiol. 2016, 171, 1867–1878. [Google Scholar] [CrossRef]
  24. Huang, C.Y.; Chen, P.-Y.; Huang, M.-D.; Tsou, C.-H.; Jane, W.-N.; Huang, A.H.C. Tandem Oleosin Genes in A Cluster Acquired in Brassicaceae Created Tapetosomes and Conferred Additive Benefit of Pollen Vigor. Proc. Natl. Acad. Sci. USA 2013, 110, 14480–14485. [Google Scholar] [CrossRef] [PubMed]
  25. Siloto, R.M.; Findlay, K.; Lopez-Villalobos, A.; Yeung, E.C.; Nykiforuk, C.L.; Moloney, M.M. The Accumulation of Oleosins Determines the Size of Seed Oilbodies in Arabidopsis. Plant Cell 2006, 18, 1961–1974. [Google Scholar] [CrossRef] [PubMed]
  26. Shimada, T.L.; Shimada, T.; Takahashi, H.; Fukao, Y.; Hara-Nishimura, I. A Novel Role for Oleosins in Freezing Tolerance of Oilseeds in Arabidopsis thaliana. Plant J. 2008, 55, 798–809. [Google Scholar] [CrossRef] [PubMed]
  27. Hanano, A.; Burcklen, M.; Flenet, M.; Ivancich, A.; Louwagie, M.; Garin, J.; Blée, E. Plant Seed Peroxygenase is an Original Heme-oxygenase with an EF-hand Calcium Binding Motif. J. Biol. Chem. 2006, 281, 33140–33151. [Google Scholar] [CrossRef]
  28. Charuchinda, P.; Waditee-Sirisattha, R.; Kageyama, H.; Yamada, D.; Sirisattha, S.; Tanaka, Y.; Mahakhant, A.; Takabe, T. Caleosin from Chlorella vulgaris TISTR 8580 is Salt-Induced and Heme-Containing Protein. Biosci. Biotechnol. Biochem. 2015, 79, 1119–1124. [Google Scholar] [CrossRef]
  29. Shen, Y.; Xie, J.; Liu, R.-D.; Ni, X.-F.; Wang, X.-H.; Li, Z.-X.; Zhang, M. Genomic Analysis and Expression Investigation of Caleosin Gene Family in Arabidopsis. Biochem. Biophys. Res. Commun. 2014, 448, 365–371. [Google Scholar] [CrossRef]
  30. Aubert, Y.; Vile, D.; Pervent, M.; Aldon, D.; Ranty, B.; Simonneau, T.; Vavasseur, A.; Galaud, J.-P. RD20, a Stress-Inducible Caleosin, Participates in Stomatal Control, Transpiration and Drought Tolerance in Arabidopsis thaliana. Plant Cell Physiol. 2010, 51, 1975–1987. [Google Scholar] [CrossRef] [Green Version]
  31. Kim, Y.Y.; Jung, K.W.; Yoo, K.S.; Jeung, J.U.; Shin, J.S. A Stress-Responsive Caleosin-Like Protein, AtCLO4, Acts as a Negative Regulator of ABA Responses in Arabidopsis. Plant Cell Physiol. 2011, 52, 874–884. [Google Scholar] [CrossRef]
  32. Lin, L.J.; Tai, S.S.K.; Peng, C.C.; Tzen, J.T.C. Steroleosin, a Sterol-Binding Dehydrogenase in Seed Oil Bodies. Plant Physiol. 2002, 128, 1200–1211. [Google Scholar] [CrossRef] [PubMed]
  33. Baud, S.; Dichow, N.R.; Kelemen, Z.; D’Andréa, S.; To, A.; Berger, N.; Canonge, M.; Kronenberger, J.; Viterbo, D.; Dubreucq, B.; et al. Regulation of HSD1 in Seeds of Arabidopsis thaliana. Plant Cell Physiol. 2009, 50, 1463–1478. [Google Scholar] [CrossRef]
  34. Aziz, U.; Saleem, N.; Tang, T.; Zhang, M. Genomic Analysis and Expression Investigation of Steroleosin Gene Family in Arabidopsis Thaliana. J. Anim. Plant Sci. 2020, 30, 133–146. [Google Scholar] [CrossRef]
  35. Pasaribu, B.; Chung, T.-Y.; Chen, C.-S.; Jiang, P.-L.; Tzen, J.T. Identification of Steroleosin in Oil Bodies of Pine Megagametophytes. Plant Physiol. Biochem. 2016, 101, 173–181. [Google Scholar] [CrossRef] [PubMed]
  36. Chen, E.C.; Tai, S.S.; Peng, C.-C.; Tzen, J.T. Identification of Three Novel Unique Proteins in Seed Oil Bodies of Sesame. Plant Cell Physiol. 1998, 39, 935–941. [Google Scholar] [CrossRef]
  37. Moore, R.C.; Purugganan, M.D. The Early Stages of Duplicate Gene Evolution. Proc. Natl. Acad. Sci. USA 2003, 100, 15682–15687. [Google Scholar] [CrossRef]
  38. Cannon, S.B.; Mitra, A.; Baumgarten, A.; Young, N.D.; May, G. The Roles of Segmental and Tandem Gene Duplication in The Evolution of Large Gene Families in Arabidopsis Thaliana. BMC Plant Biol. 2004, 4, 10. [Google Scholar] [CrossRef] [PubMed]
  39. Schmitz, R.J.; Grotewold, E.; Stam, M. Cis-Regulatory Sequences in Plants: Their Importance, Discovery, and Future Challenges. Plant Cell 2021, 34, 718–741. [Google Scholar] [CrossRef]
  40. Orr, H.A. The Population Genetics of Adaptation: The Adaptation of DNA Sequences. Evolution 2002, 56, 1317–1330. [Google Scholar] [CrossRef] [PubMed]
  41. Wu, D.; Liang, Z.; Yan, T.; Xu, Y.; Xuan, L.; Tang, J.; Zhou, G.; Lohwasser, U.; Hua, S.; Wang, H.; et al. Whole-Genome Resequencing of a Worldwide Collection of Rapeseed Accessions Reveals the Genetic Basis of Ecotype Divergence. Mol. Plant 2018, 12, 30–43. [Google Scholar] [CrossRef] [PubMed]
  42. Murphy, D.J. The Dynamic Roles of Intracellular Lipid Droplets: From Archaea to Mammals. Protoplasma 2011, 249, 541–585. [Google Scholar] [CrossRef]
  43. Zhi, Y.; Taylor, M.C.; Campbell, P.M.; Warden, A.C.; Shrestha, P.; El Tahchy, A.; Rolland, V.; Vanhercke, T.; Petrie, J.R.; White, R.G.; et al. Comparative Lipidomics and Proteomics of Lipid Droplets in the Mesocarp and Seed Tissues of Chinese Tallow (Triadica sebifera). Front. Plant Sci. 2017, 8, 1339. [Google Scholar] [CrossRef] [PubMed]
  44. Song, W.; Qin, Y.; Zhu, Y.; Yin, G.; Wu, N.; Li, Y.; Hu, Y. Delineation of Plant Caleosin Residues Critical for Functional Divergence, Positive Selection and Coevolution. BMC Evol. Biol. 2014, 14, 124. [Google Scholar] [CrossRef] [PubMed]
  45. Blée, E.; Boachon, B.; Burcklen, M.; Le Gaé, M.; Abdulsamie, H.; Heintz, D.; Ehlting, J.; Herrfurth, C.; Feussner, I.; Bessoule, J.J. The Reductase Activity of the Arabidopsis Caleosin Responsive to Dessication20 Mediates Gibberellin-Dependent Flowering Time, Abscisic Acid Sensitivity, And Tolerance to Oxidative Stress. Plant Physiol. 2014, 166, 109–124. [Google Scholar] [CrossRef] [PubMed]
  46. Lindemann, P. Steroidogenesis in Plants-Biosynthesis and Conversions of Progesterone and Other Pregnane Derivatives. Steroids 2015, 103, 145–152. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, Z.; Cheng, Z.J.; Gan, L.; Zhang, H.; Wu, F.Q.; Lin, Q.B.; Wang, J.L.; Wang, J.; Guo, X.P.; Zhang, X.; et al. OsHSD1, a Hydroxysteroid Dehydrogenase, is Involved in Cuticle Formation and Lipid Homeostasis in Rice. Plant Sci. 2016, 249, 35–45. [Google Scholar] [CrossRef] [PubMed]
  48. Xiao, Z.; Zhang, C.; Tang, F.; Yang, B.; Zhang, L.; Liu, J.; Huo, Q.; Wang, S.; Li, S.; Wei, L.; et al. Identification of Candidate Genes Controlling Oil Content by Combination of Genome-Wide Association and Transcriptome Analysis in the Oilseed Crop Brassica Napus. Biotechnol. Biofuels 2019, 12, 216. [Google Scholar] [CrossRef] [PubMed]
  49. Bowers, J.E.; Chapman, B.A.; Rong, J.; Paterson, A.H. Unravelling Angiosperm Genome Evolution by Phylogenetic Analysis of Chromosomal Duplication Events. Nature 2003, 422, 433–438. [Google Scholar] [CrossRef]
  50. Cheng, F.; Wu, J.; Wang, X. Genome Triplication Drove the Diversification of Brassica Plants. Hortic. Res. 2014, 1, 14024. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  51. Jolivet, P.; Boulard, C.; Bellamy, A.; Valot, B.; d’Andréa, S.; Zivy, M.; Nesi, N.; Chardot, T. Oil Body Proteins Sequentially Accumulate throughout Seed Development in Brassica Napus. J. Plant Physiol. 2011, 168, 2015–2020. [Google Scholar] [CrossRef] [PubMed]
  52. Harrington, S.A.; Backhaus, A.E.; Singh, A.; Hassani-Pak, K.; Uauy, C. The Wheat GENIE3 Network Provides Biologically-Relevant Information in Polyploid Wheat. G3 Genes Genomes Genet. 2020, 10, 3675–3686. [Google Scholar] [CrossRef] [PubMed]
  53. Ramírez-González, R.H.; Borrill, P.; Lang, D.; Harrington, S.A.; Brinton, J.; Venturini, L.; Davey, M.; Jacobs, J.; van Ex, F.; Pasha, A.; et al. The Transcriptional Landscape of Polyploid Wheat. Science 2018, 361, 3083–3109. [Google Scholar] [CrossRef]
  54. Bensmihen, S.; Giraudat, J.; Parcy, F. Characterization of Three Homologous Basic Leucine Zipper Transcription Factors (Bzip) of the ABI5 Family During Arabidopsis Thaliana Embryo Maturation. J. Exp. Bot. 2005, 56, 597–603. [Google Scholar] [CrossRef]
  55. Bensmihen, S.; Rippa, S.; Lambert, G.; Jublot, D.; Pautot, V.; Granier, F.; Giraudat, J.; Parcy, F. The Homologous ABI5 and EEL Transcription Factors Function Antagonistically to Fine-Tune Gene Expression during Late Embryogenesis. Plant Cell 2002, 14, 1391–1403. [Google Scholar] [CrossRef]
  56. Collin, A.; Daszkowska-Golec, A.; Szarejko, I. Updates on the Role of Abscisic Acid Insensitive 5 (ABI5) and Abscisic Acid-Responsive Element Binding Factors (ABFs) in ABA Signaling in Different Developmental Stages in Plants. Cells 2021, 10, 1996. [Google Scholar] [CrossRef] [PubMed]
  57. Kendig, K.I.; Baheti, S.; Bockol, M.A.; Drucker, T.M.; Hart, S.N.; Heldenbrand, J.R.; Hernaez, M.; Hudson, M.E.; Kalmbach, M.T.; Klee, E.W.; et al. Sentieon DNASeq Variant Calling Workflow Demonstrates Strong Computational Performance and Accuracy. Front. Genet. 2019, 10, 736. [Google Scholar] [CrossRef] [PubMed]
  58. Sun, F.; Fan, G.; Hu, Q.; Zhou, Y.; Guan, M.; Tong, C.; Li, J.; Du, D.; Qi, C.; Jiang, L.; et al. The High-Quality Genome of Brassica Napus Cultivar ‘ZS11’ Reveals the Introgression History in Semi-Winter Morphotype. Plant J. 2017, 92, 452–468. [Google Scholar] [CrossRef] [PubMed]
  59. Wan, H.; Cui, Y.; Ding, Y.; Mei, J.; Dong, H.; Zhang, W.; Wu, S.; Liang, Y.; Zhang, C.; Li, J.; et al. Time-Series Analyses of Transcriptomes and Proteomes Reveal Molecular Networks Underlying Oil Accumulation in Canola. Front. Plant Sci. 2017, 7, 2007. [Google Scholar] [CrossRef] [PubMed]
  60. Tang, S.; Zhao, H.; Lu, S.; Yu, L.; Zhang, G.; Zhang, Y.; Yang, Q.Y.; Zhou, Y.; Wang, X.; Ma, W.; et al. Genome- and Transcriptome-Wide Association Studies Provide Insights into the Genetic Basis of Natural Variation of Seed Oil Content in Brassica Napus. Mol. Plant 2020, 14, 470–487. [Google Scholar] [CrossRef]
  61. Livak, K.J.; Schmittgen, T.D. Analysis of Relative Gene Expression Data Using Real-Time Quantitative PCR and the 2-ΔΔCT Method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Plants 11 02241 g001 550

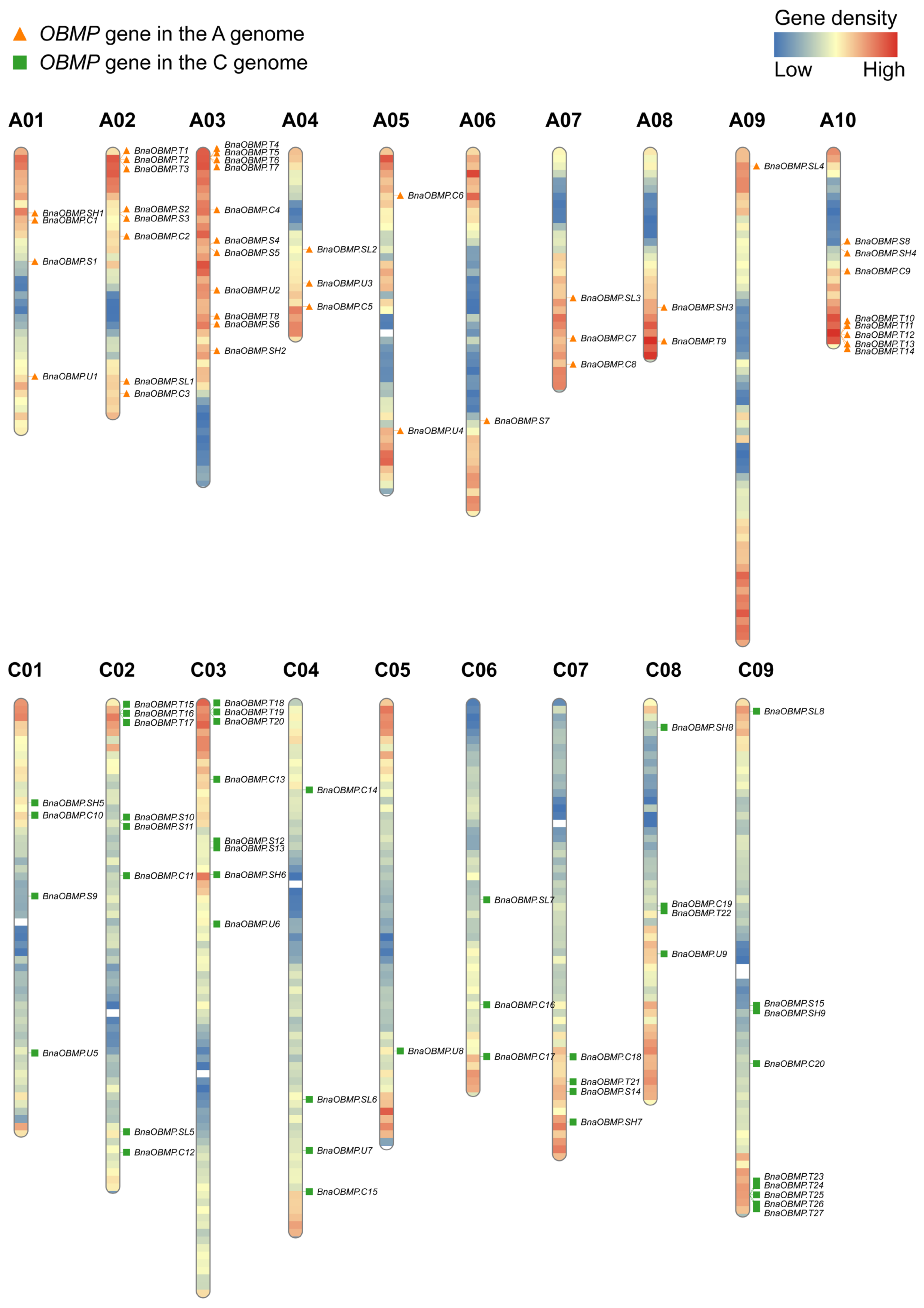

Figure 1. Genomic distributions of BnaOBMP genes on B. napus chromosomes. The BnaOBMPs were plotted based on the location of the genes and the length of the chromosomes. The orange triangles and green squares represent BnaOBMP genes in the A and C subgenomes, respectively. The color on each chromosome denotes the gene density from low (blue) to high (red) by the frequency per 1 mega base (Mb).
Figure 1. Genomic distributions of BnaOBMP genes on B. napus chromosomes. The BnaOBMPs were plotted based on the location of the genes and the length of the chromosomes. The orange triangles and green squares represent BnaOBMP genes in the A and C subgenomes, respectively. The color on each chromosome denotes the gene density from low (blue) to high (red) by the frequency per 1 mega base (Mb).
Plants 11 02241 g001
Plants 11 02241 g002 550

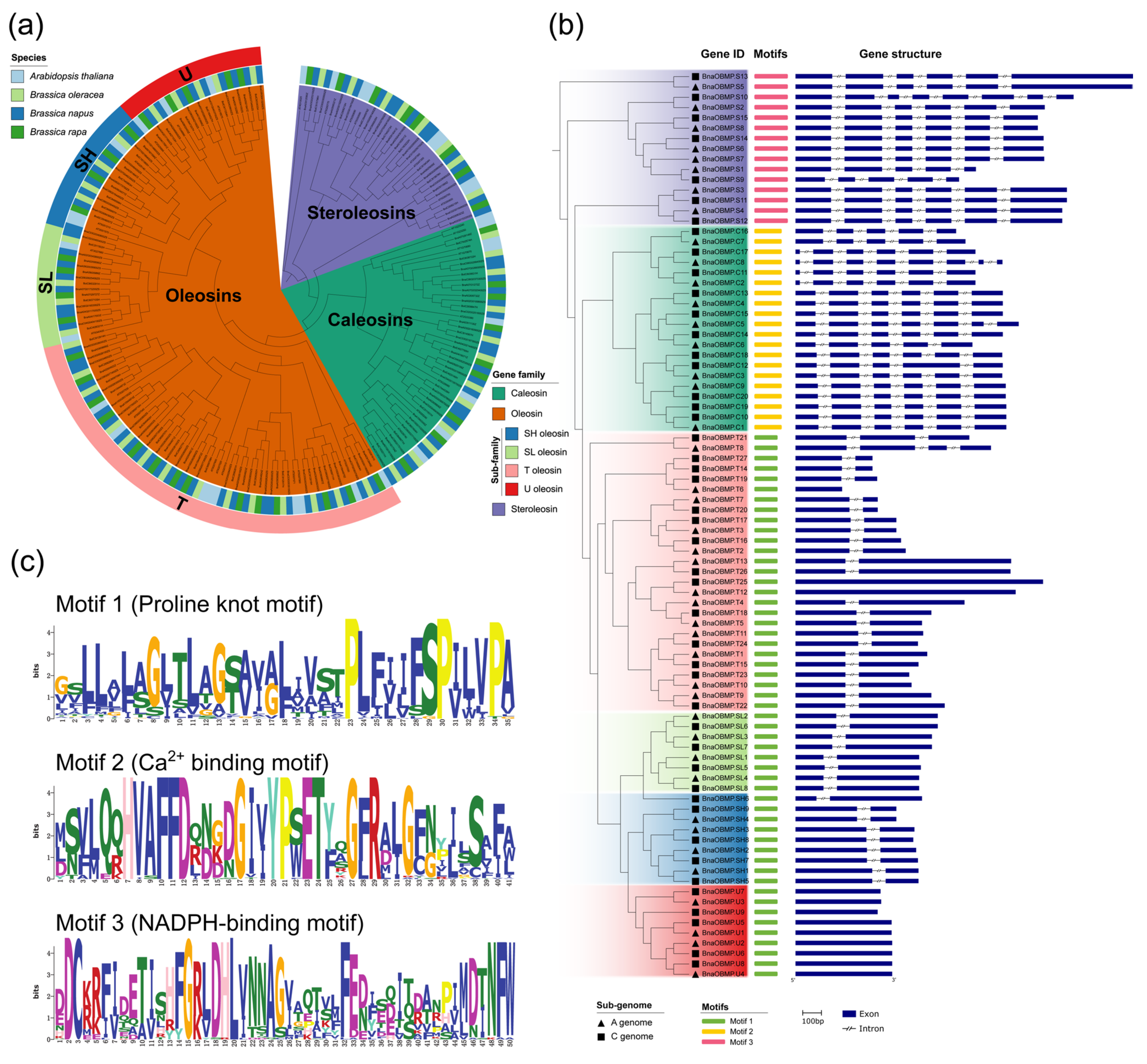

Figure 2. Phylogenetic relationships, motifs and gene structures of BnaOBMPs. (a) Phylogenetic relationships of BnaOBMPs, BraOBMPs, BolOBMPs and AtOBMPs. The unrooted tree was generated using IQ-TREE software by the ML method. The outermost track represents the subfamily of oleosins including U (red), SH (blue), ST (light green) and T (pink) oleosins. The middle track marks the species by the corresponding colors shown in the color legend at the top left. The inner track represent the ML tree and the phylogenetic classes of OBMP genes including oleosins (orange), caleosins (green) and steroleosins (light blue). The color legend for the OBMP gene family is shown at the bottom right. (b) A schematic diagram of the exon–intron organization of OBMP genes in B. napus. The phylogenetic tree of BnaOBMPs is placed at the left, and the background colors represent phylogenetic classes. The black triangles and squares represent BnaOBMP genes in the A and C sub genomes of B. napus, respectively. The blue boxes and shrunken lines indicate exons and introns, respectively. The length scale bar is 100 bp. The diverse conserved motifs of BnaOBMPs are marked by different colored boxes including Motif 1 (green), Motif 2 (yellow) and Motif 3 (pink). (c) The conserved domain sequence model of Motifs 1, 2 and 3. Motif 1 is a proline knot motif including four invariable residues of the proline knot sequence (-PX5SPX3P-). Motif 2 is a Ca2+-binding motif. Motif 3 is an NADPH-binding motif.
Figure 2. Phylogenetic relationships, motifs and gene structures of BnaOBMPs. (a) Phylogenetic relationships of BnaOBMPs, BraOBMPs, BolOBMPs and AtOBMPs. The unrooted tree was generated using IQ-TREE software by the ML method. The outermost track represents the subfamily of oleosins including U (red), SH (blue), ST (light green) and T (pink) oleosins. The middle track marks the species by the corresponding colors shown in the color legend at the top left. The inner track represent the ML tree and the phylogenetic classes of OBMP genes including oleosins (orange), caleosins (green) and steroleosins (light blue). The color legend for the OBMP gene family is shown at the bottom right. (b) A schematic diagram of the exon–intron organization of OBMP genes in B. napus. The phylogenetic tree of BnaOBMPs is placed at the left, and the background colors represent phylogenetic classes. The black triangles and squares represent BnaOBMP genes in the A and C sub genomes of B. napus, respectively. The blue boxes and shrunken lines indicate exons and introns, respectively. The length scale bar is 100 bp. The diverse conserved motifs of BnaOBMPs are marked by different colored boxes including Motif 1 (green), Motif 2 (yellow) and Motif 3 (pink). (c) The conserved domain sequence model of Motifs 1, 2 and 3. Motif 1 is a proline knot motif including four invariable residues of the proline knot sequence (-PX5SPX3P-). Motif 2 is a Ca2+-binding motif. Motif 3 is an NADPH-binding motif.
Plants 11 02241 g002
Plants 11 02241 g003 550

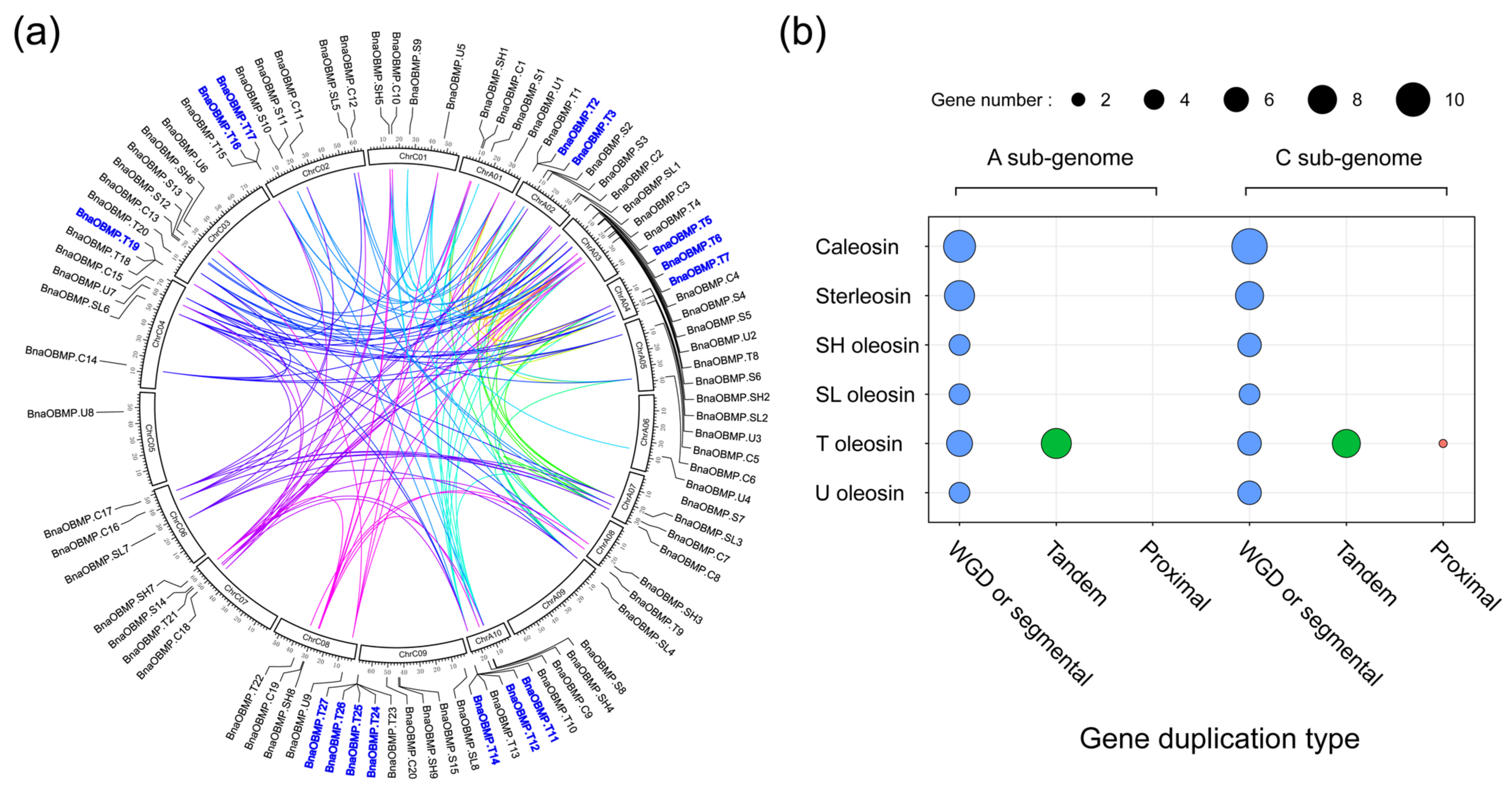

Figure 3. Collinear correlations and gene duplication type of the BnaOBMP family genes. (a) Collinear correlations of OBMP genes in B. napus. The circle boxes represent chromosomes with names. The scale on the circle is in mega bases. BnaOBMP gene IDs on the chromosomes indicate their physical positions. The inner lines indicate the collinear correlations between BnaOBMP gene pairs. Gene IDs marked by a blue font signify tandem duplication clusters. (b) The gene numbers for each family of BnaOBMPs with different gene duplication types. The x- and y-axes represent the gene duplication type and OBMP gene subfamilies, respectively. The size of the circles indicates the gene number. The A and C subgenomes are shown in the left and right panels, respectively.
Figure 3. Collinear correlations and gene duplication type of the BnaOBMP family genes. (a) Collinear correlations of OBMP genes in B. napus. The circle boxes represent chromosomes with names. The scale on the circle is in mega bases. BnaOBMP gene IDs on the chromosomes indicate their physical positions. The inner lines indicate the collinear correlations between BnaOBMP gene pairs. Gene IDs marked by a blue font signify tandem duplication clusters. (b) The gene numbers for each family of BnaOBMPs with different gene duplication types. The x- and y-axes represent the gene duplication type and OBMP gene subfamilies, respectively. The size of the circles indicates the gene number. The A and C subgenomes are shown in the left and right panels, respectively.
Plants 11 02241 g003
Plants 11 02241 g004 550

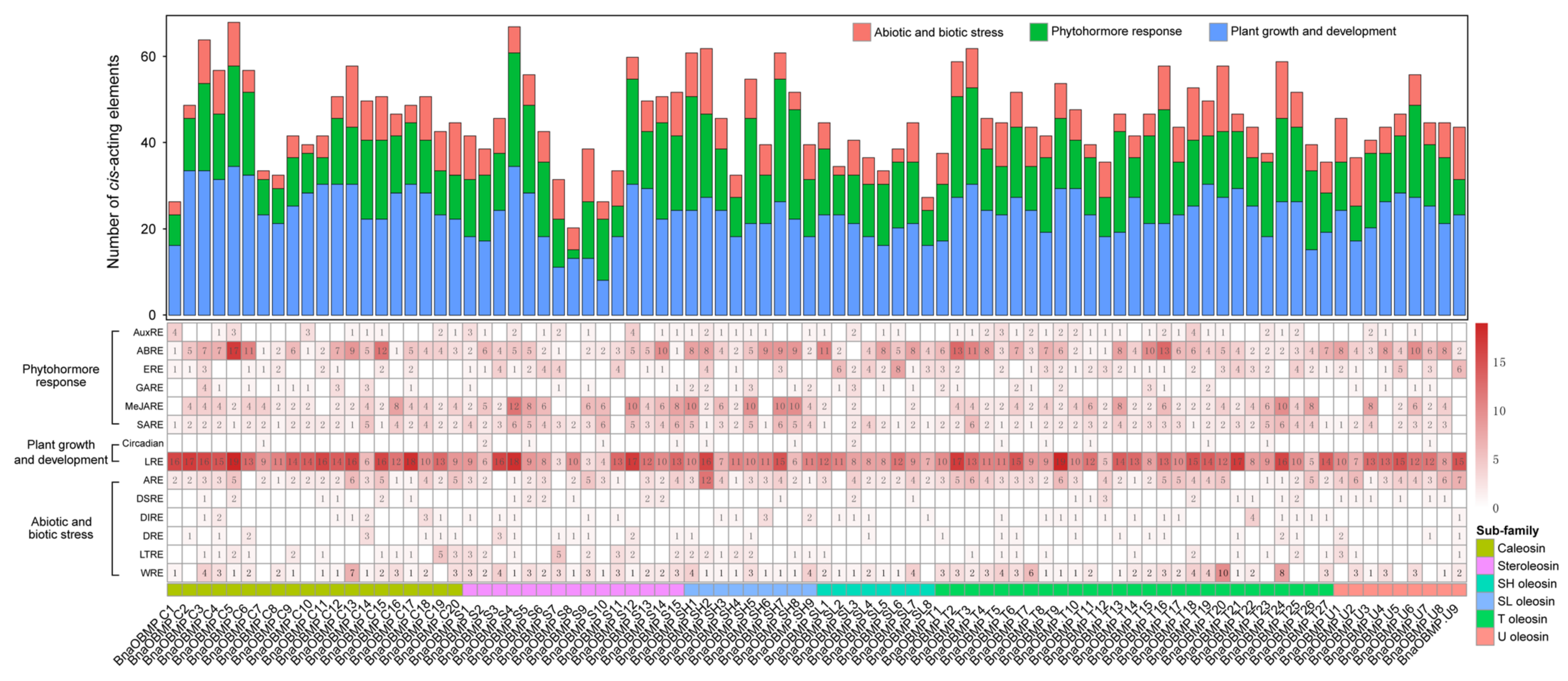

Figure 4. Cis-acting regulatory elements in the promoter region of BnaOBMP Genes. The upper panel of the bar plot represents the total number of cis-acting regulatory elements in each gene promoter region. The bars with different colors represent different types of cis-acting regulatory elements involving in abiotic and biotic stress response (red), phytohormone response (green) and plant growth and development (blue). The lower panel of the heatmap indicates the numbers of various cis-acting regulatory elements in these BnaOBMP genes. The color intensity of the cell denotes the number from low (white) to high (red). The numbers are displayed in the cells. The different OBMP gene subfamilies are marked by corresponding colors that are shown in the color legend at the bottom right.
Figure 4. Cis-acting regulatory elements in the promoter region of BnaOBMP Genes. The upper panel of the bar plot represents the total number of cis-acting regulatory elements in each gene promoter region. The bars with different colors represent different types of cis-acting regulatory elements involving in abiotic and biotic stress response (red), phytohormone response (green) and plant growth and development (blue). The lower panel of the heatmap indicates the numbers of various cis-acting regulatory elements in these BnaOBMP genes. The color intensity of the cell denotes the number from low (white) to high (red). The numbers are displayed in the cells. The different OBMP gene subfamilies are marked by corresponding colors that are shown in the color legend at the bottom right.
Plants 11 02241 g004
Plants 11 02241 g005 550

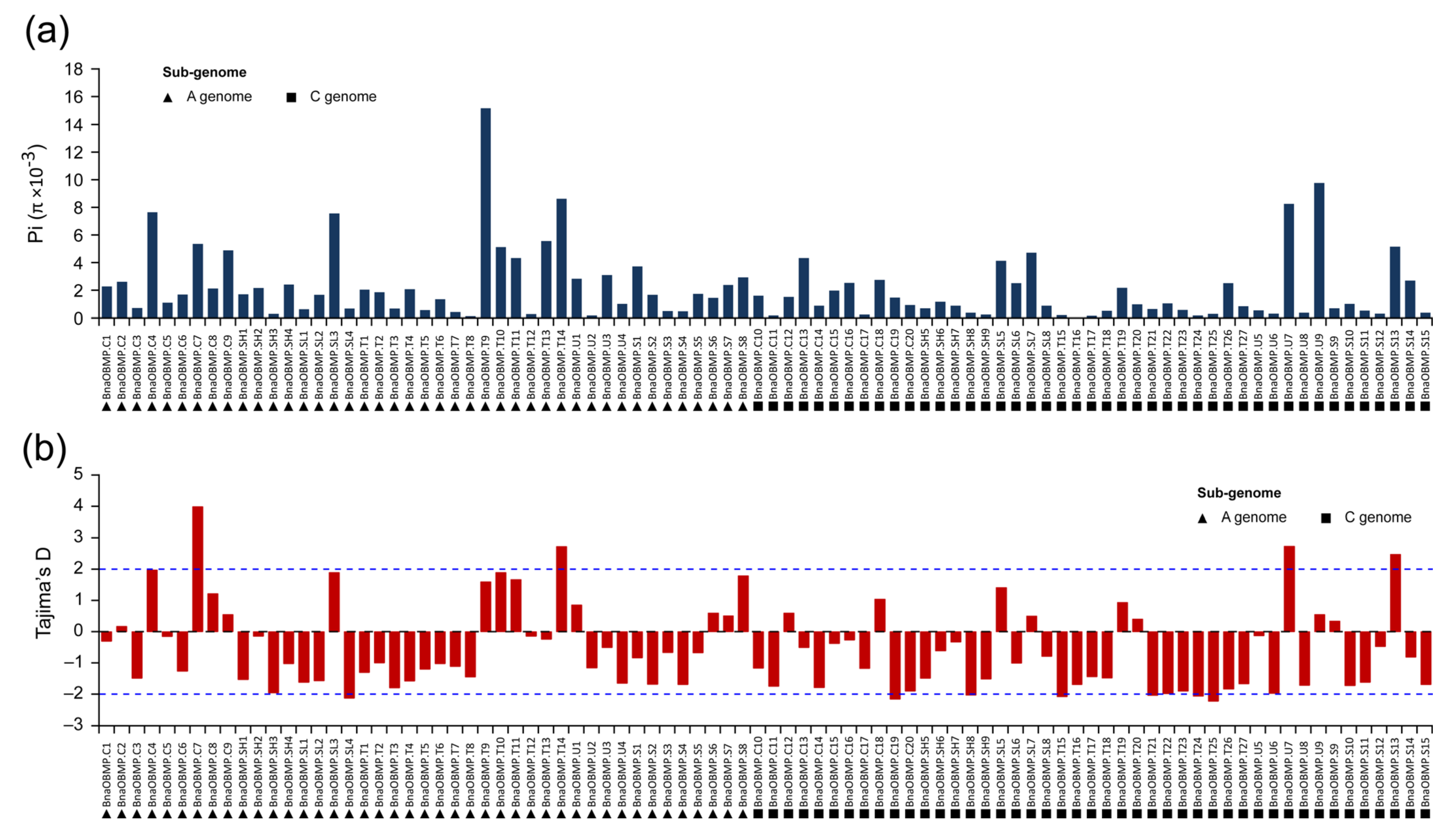

Figure 5. Observed pi (π) and Tajima’s D values for BnaOBMP genes. (a) Pi (π) values for each BnaOBMP gene. The black triangles and squares represent BnaOBMP genes in the A and C subgenomes of B. napus, respectively. (b) Tajima’s D values for the BnaOBMP genes. The BnaOBMP genes derived from the A subgenome and C subgenome are marked by black triangles and squares, respectively. The blue, dashed lines represent the cutoff of 2 and −2. The black, dashed line represents the baseline of 0.
Figure 5. Observed pi (π) and Tajima’s D values for BnaOBMP genes. (a) Pi (π) values for each BnaOBMP gene. The black triangles and squares represent BnaOBMP genes in the A and C subgenomes of B. napus, respectively. (b) Tajima’s D values for the BnaOBMP genes. The BnaOBMP genes derived from the A subgenome and C subgenome are marked by black triangles and squares, respectively. The blue, dashed lines represent the cutoff of 2 and −2. The black, dashed line represents the baseline of 0.
Plants 11 02241 g005
Plants 11 02241 g006 550

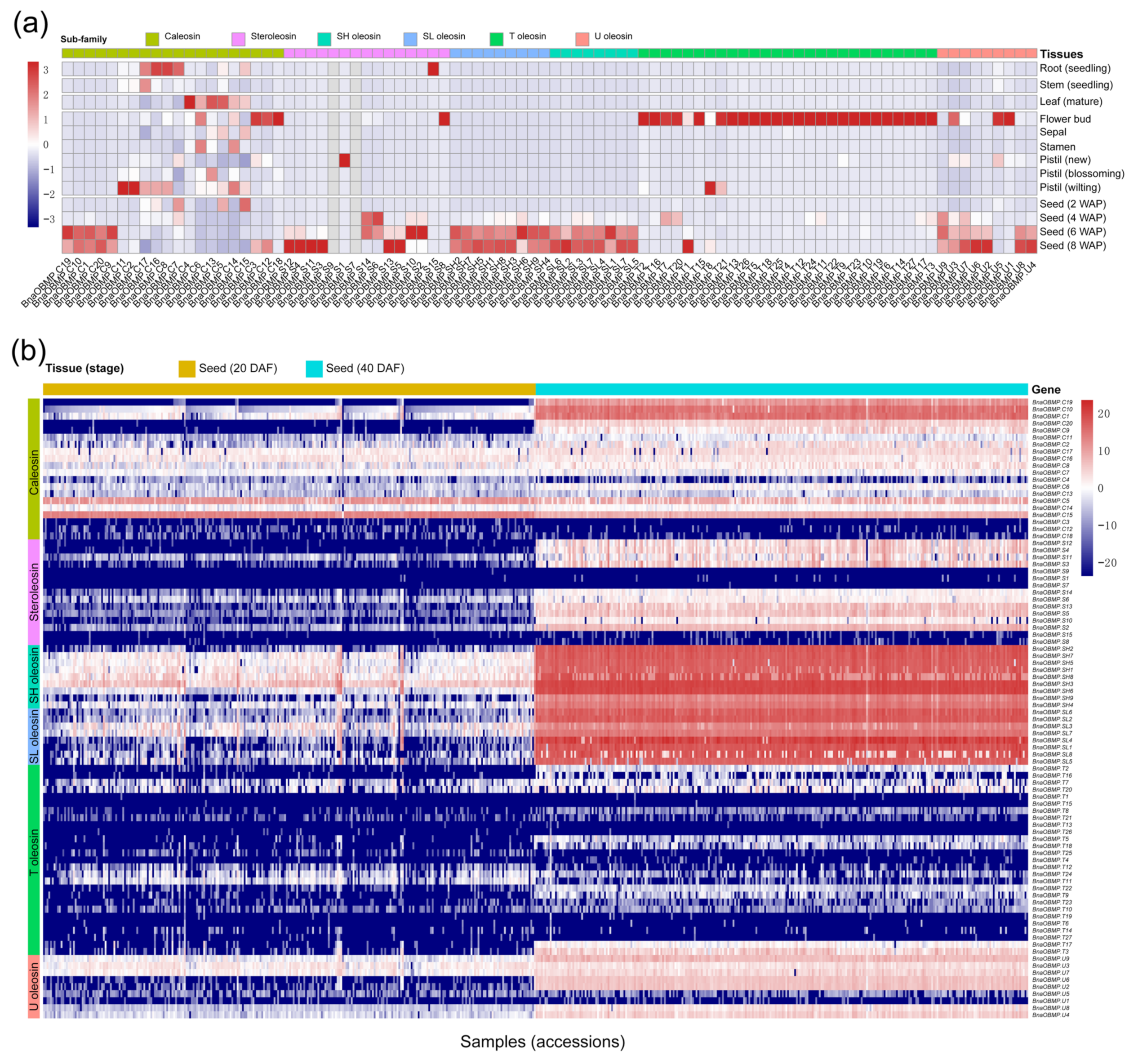

Figure 6. Expression analysis of the BnaOBMP genes in B. napus. (a) Expression patterns of the BnaOBMP genes in various tissues at different developmental stages. The color of each cell indicate the expression level of each BnaOBMP gene from low (blue) to high (red), expressed as log10FPKM. The OBMP gene subfamilies are marked by different colors that are shown in the color legend at the top. The tissues are listed at the right, with stages noted in the parentheses. (b) Expression patterns of the BnaOBMP genes in 20 DAF and 40 DAF seeds of 280 B. napus accessions. The 20 DAF (brown) and 40 DAF (cyan) seed samples of 280 B. napus accessions are displayed. Each OBMP gene subfamily is marked by the corresponding color on the left.
Figure 6. Expression analysis of the BnaOBMP genes in B. napus. (a) Expression patterns of the BnaOBMP genes in various tissues at different developmental stages. The color of each cell indicate the expression level of each BnaOBMP gene from low (blue) to high (red), expressed as log10FPKM. The OBMP gene subfamilies are marked by different colors that are shown in the color legend at the top. The tissues are listed at the right, with stages noted in the parentheses. (b) Expression patterns of the BnaOBMP genes in 20 DAF and 40 DAF seeds of 280 B. napus accessions. The 20 DAF (brown) and 40 DAF (cyan) seed samples of 280 B. napus accessions are displayed. Each OBMP gene subfamily is marked by the corresponding color on the left.
Plants 11 02241 g006
Plants 11 02241 g007 550
Figure 7. qRT-PCR verification that the expression of some representative BnaOBMP genes responded to heat and drought stresses (leaves) as well as during seed development. Statistically significant differences (Student’s t-test) are indicated as followed: * p < 0.05, ** p < 0.01, *** p < 0.001.
Figure 7. qRT-PCR verification that the expression of some representative BnaOBMP genes responded to heat and drought stresses (leaves) as well as during seed development. Statistically significant differences (Student’s t-test) are indicated as followed: * p < 0.05, ** p < 0.01, *** p < 0.001.
Plants 11 02241 g007
Plants 11 02241 g008 550
Figure 8. Co-expression and gene regulatory networks of BnaOBMP genes during seed development. (a) Co-expression network of BnaOBMP genes. The OBMP gene families are marked by different colors as shown in the color legend at the top left. The sizes of circles indicate the average expression levels of the BnaOBMP genes. The lines represent the positive (green) and negative (brown) correlations between BnaOBMP genes. (b) Gene regulatory networks of the BnaOBMP genes. The OBMP gene families and TFs are marked by corresponding colors shown in the color legend at the bottom right. The size of the circles indicates the degree of each node. The color and thickness of the lines represent the weight between TFs and BnaOBMPs from weak (white) to strong (green). The gene names are labeled on the nodes.
Figure 8. Co-expression and gene regulatory networks of BnaOBMP genes during seed development. (a) Co-expression network of BnaOBMP genes. The OBMP gene families are marked by different colors as shown in the color legend at the top left. The sizes of circles indicate the average expression levels of the BnaOBMP genes. The lines represent the positive (green) and negative (brown) correlations between BnaOBMP genes. (b) Gene regulatory networks of the BnaOBMP genes. The OBMP gene families and TFs are marked by corresponding colors shown in the color legend at the bottom right. The size of the circles indicates the degree of each node. The color and thickness of the lines represent the weight between TFs and BnaOBMPs from weak (white) to strong (green). The gene names are labeled on the nodes.
Plants 11 02241 g008
Table
Table 1. Summary information on OBMP family genes in B. napus.
Table 1. Summary information on OBMP family genes in B. napus.
Gene NameLocus NameGene Location 1mRNA
(bp)		Protein
(aa)		MW (kDa)pIInstability
Index		Aliphatic
Index		GRAVYHomolog of
Arabidopsis		Domain
(Start–End aa)		Subcellular Localization 2
BnaOBMP.C1BnaA01G0161500ZSA01:9597423-9598812:−73824528.125.8151.6880.53−0.249AT4G26740PF05042 (64––230)-
BnaOBMP.C2BnaA02G0189800ZSA02:11721396-11722848:+57919221.509.3836.2971.72−0.491AT1G70670PF05042 (16––182)-
BnaOBMP.C3BnaA02G0368700ZSA02:32467336-32469224:−71723827.117.7740.6164.83−0.387AT5G29560PF05042 (60–227)-
BnaOBMP.C4BnaA03G0160900ZSA03:8240819-8242440:−72023926.864.9343.0377.53−0.374AT2G33380PF05042 (59–225)-
BnaOBMP.C5BnaA04G0214400ZSA04:20989630-20991888:−73224327.325.245.4274.28−0.368AT2G33380PF05042 (58–229)-
BnaOBMP.C6BnaA05G0108500ZSA05:6320856-6322131:+63321023.595.9852.0573.43−0.46AT2G33380PF05042 (83–196)-
BnaOBMP.C7BnaA07G0266500ZSA07:25170417-25171498:−59719822.419.2839.7571.97−0.462AT1G70670PF05042 (22–188)-
BnaOBMP.C8BnaA07G0320400ZSA07:28607934-28611160:+57919221.437.14075.21−0.446AT1G70670PF05042 (16–175)-
BnaOBMP.C9BnaA10G0113200ZSA10:16318187-16319594:+73524427.965.7448.3675.61−0.271AT5G55240PF05042 (63–228)-
BnaOBMP.C10BnaC01G0206600ZSC01:15403062-15404481:−73824528.135.8150.5580.53−0.245AT4G26740PF05042 (64–230)-
BnaOBMP.C11BnaC02G0251600ZSC02:23385393-23386865:+57919221.519.4436.6471.72−0.493AT1G70670PF05042 (16–182)-
BnaOBMP.C12BnaC02G0494300ZSC02:59864850-59869109:−78926230.058.441.2569.27−0.271AT5G29560PF05042 (60–151)-
BnaOBMP.C13BnaC03G0187300ZSC03:10665491-10667041:−72023926.825.1847.0277.95−0.35AT2G33380PF05042 (58–225)-
BnaOBMP.C14BnaC04G0135700ZSC04:12075783-12077313:+72023926.945.348.2973.89−0.4AT2G33380PF05042 (58–225)-
BnaOBMP.C15BnaC04G0525300ZSC04:65070023-65071948:−72023926.925.1146.475.52−0.357AT2G33380PF05042 (58–225)-
BnaOBMP.C16BnaC06G0299400ZSC06:40411272-40412854:−54918220.449.3438.2771.32−0.486AT1G70670PF05042 (22–150)-
BnaOBMP.C17BnaC06G0373300ZSC06:47245132-47246570:+57919221.637.1340.9771.67−0.557AT1G70670PF05042 (16–182)-
BnaOBMP.C18BnaC07G0337800ZSC07:47280426-47281567:−71723827.127.7240.6463.24−0.384AT5G29560PF05042 (60–227)-
BnaOBMP.C19BnaC08G0170100ZSC08:28001595-28004342:−73824528.065.6550.1784.49−0.228AT4G26740PF05042 (64–230)-
BnaOBMP.C20BnaC09G0377100ZSC09:48175369-48176860:−73524428.215.945.1276.02−0.273AT5G55240PF05042 (63–228)-
BnaOBMP.SH1BnaA01G0146600ZSA01:8662825-8663674:+56418720.689.4516.0480.86-0.365AT4G25140PF01277 (56–166)-
BnaOBMP.SH2BnaA03G0484200ZSA03:26812679-26813659:+55218320.009.316.1184.81−0.234AT4G25140PF01277 (47–157)-
BnaOBMP.SH3BnaA08G0173700ZSA08:21101718-21102518:−54318019.519.1520.3984.61−0.248AT4G25140PF01277 (46–156)-
BnaOBMP.SH4BnaA10G0084300ZSA10:13352481-13353065:+45014915.5710.130.73104.090.286AT5G51210PF01277 (30–133)-
BnaOBMP.SH5BnaC01G0186400ZSC01:13785999-13786868:+56418720.699.3313.8477.22−0.392AT4G25140PF01277 (56–166)-
BnaOBMP.SH6BnaC03G0340600ZSC03:23254070-23254745:+58219320.748.1133.297.460AT3G01570PF01277 (35–146)-
BnaOBMP.SH7BnaC07G0462300ZSC07:55880971-55881762:+56118620.569.1518.9982.9−0.354AT4G25140PF01277 (47–156)-
BnaOBMP.SH8BnaC08G0164400ZSC08:27380598-27381601:+53717819.349.1523.3485.56−0.266AT4G25140PF01277 (46–156)-
BnaOBMP.SH9BnaC09G0330400ZSC09:41213467-41214734:+45014915.719.9927.21104.090.311AT5G51210PF01277 (30–129)-
BnaOBMP.SL1BnaA02G0345800ZSA02:30864089-30865051:+56718820.009.1530.6397.02−0.005AT3G27660PF01277 (47–159)-
BnaOBMP.SL2BnaA04G0117500ZSA04:13444417-13445612:−66322023.029.137.9479.36−0.051AT5G40420PF01277 (69–181)N
BnaOBMP.SL3BnaA07G0173200ZSA07:19858586-19859760:−63321022.079.5532.5782.71−0.085AT5G40420PF01277 (62–175)N
BnaOBMP.SL4BnaA09G0039900ZSA09:2460103-2460989:+56718819.876.9137.4296.970.045AT3G27660PF01277 (47–159)-
BnaOBMP.SL5BnaC02G0465400ZSC02:57176242-57177199:+57619120.247.8925.31101.10.058AT3G27660PF01277 (49–161)-
BnaOBMP.SL6BnaC04G0404100ZSC04:52895656-52896822:−66322023.088.7838.7876.73−0.093AT5G40420PF01277 (69–181)N
BnaOBMP.SL7BnaC06G0165300ZSC06:26572577-26573813:−63321022.129.4230.9684.1−0.102AT5G40420PF01277 (62–175)N
BnaOBMP.SL8BnaC09G0025400ZSC09:1687415-1688286:+56718819.846.9734.8896.440.048AT3G27660PF01277 (47–159)-
BnaOBMP.T1BnaA02G0026000ZSA02:1608761-1609763:−60920219.689.644.16107.620.9AT5G07600PF01277 (11–90)-
BnaOBMP.T2BnaA02G0026100ZSA02:1624573-1625565:−49816515.931151.09107.580.704AT5G07571PF01277 (17–102)N; M
BnaOBMP.T3BnaA02G0026200ZSA02:1626996-1628100:−45014914.9011.5655.55108.260.632AT5G07560PF01277 (20–104)N; M
BnaOBMP.T4BnaA03G0028000ZSA03:1342717-1343698:−80126626.6110.2156.3778.050.056AT5G07530PF01277 (11–94)N
BnaOBMP.T5BnaA03G0028100ZSA03:1345527-1346506:−58219320.3110.1622.9588.45−0.041AT5G07530PF01277 (29–138)N
BnaOBMP.T6BnaA03G0028200ZSA03:1348599-1348838:−240797.935.7523.08136.081.597AT5G07550PF01277 (6–79)-
BnaOBMP.T7BnaA03G0028300ZSA03:1357612-1358652:−35411712.1210.324.94126.750.907AT5G07571PF01277 (20–102)-
BnaOBMP.T8BnaA03G0411600ZSA03:22258477-22262582:+79826529.458.9852.6693.09−0.191AT5G61610PF01277 (15–101)-
BnaOBMP.T9BnaA08G0259200ZSA08:25566988-25567994:−63020920.349.740.6699.430.75AT5G07520PF01277 (13–93)-
BnaOBMP.T10BnaA10G0262800ZSA10:24709253-24710147:−52817517.0210.1236.57111.090.85AT5G07520PF01277 (11–92)-
BnaOBMP.T11BnaA10G0262900ZSA10:24715581-24716318:−58819519.5610.9148.78119.330.832AT5G07530PF01277 (32–112)-
BnaOBMP.T12BnaA10G0263000ZSA10:24721512-24722645:−113437737.649.4631.5450.77−0.699AT5G07530PF01277 (34–91)N
BnaOBMP.T13BnaA10G0263100ZSA10:24729750-24731926:−104134635.139.5122.7452.6−0.846AT5G07540PF01277 (10–95)N
BnaOBMP.T14BnaA10G0263200ZSA10:24734513-24735216:−32710811.0311.1723.9116.570.807AT5G07550PF01277 (4–87)N
BnaOBMP.T15BnaC02G0028100ZSC02:1962414-1963372:−56418718.619.5234.62109.840.86AT5G07600PF01277 (11–90)-
BnaOBMP.T16BnaC02G0028400ZSC02:1980601-1981530:−47415715.2310.7249.53109.870.73AT5G07571PF01277 (18–102)N; M
BnaOBMP.T17BnaC02G0028500ZSC02:1982990-1984077:−45014914.8211.2850.09107.650.682AT5G07560PF01277 (20–104)N; M
BnaOBMP.T18BnaC03G0034800ZSC03:1785288-1786673:−63020921.9910.1325.9981.67−0.219AT5G07530PF01277 (29–138)N
BnaOBMP.T19BnaC03G0034900ZSC03:1800558-1801344:−35111612.059.320.83106.120.459AT5G07550PF01277 (7–89)N
BnaOBMP.T20BnaC03G0035100ZSC03:1811774-1812971:−35411712.0810.326.11139.321.065AT5G07571PF01277 (20–100)-
BnaOBMP.T21BnaC07G0383700ZSC07:50568325-50569786:+75625127.859.2251.4594.82−0.139AT5G61610PF01277 (14–101)-
BnaOBMP.T22BnaC08G0242800ZSC08:33696624-33697687:+69923221.839.748.5992.590.678AT5G07520PF01277 (13–92)-
BnaOBMP.T23BnaC09G0577200ZSC09:65491385-65492265:−51617116.6610.3938.55107.370.839AT5G07520PF01277 (11–92)-
BnaOBMP.T24BnaC09G0577300ZSC09:65495132-65495850:−56118618.8210.9148.1121.340.844AT5G07530PF01277 (32–112)-
BnaOBMP.T25BnaC09G0577400ZSC09:65498951-65500225:−127542442.089.5236.7548.8−0.714AT5G07530PF01277 (34–94)N
BnaOBMP.T26BnaC09G0577500ZSC09:65503871-65505231:−103834534.849.4731.3553.88−0.827AT5G07540PF01277 (10–95)N
BnaOBMP.T27BnaC09G0577600ZSC09:65506819-65507518:−32710811.0610.6427.25112.960.776AT5G07550PF01277 (4–87)N
BnaOBMP.U1BnaA01G0326200ZSA01:30207288-30207782:+49516418.149.3932.9196.40.232AT3G18570PF01277 (43–150)-
BnaOBMP.U2BnaA03G0354100ZSA03:18830098-18830595:−49816517.826.3840.1495.760.421AT3G18570PF01277 (45–151)-
BnaOBMP.U3BnaA04G0171900ZSA04:17911089-17911529:+44114615.658.6640.0392.880.277AT2G25890PF01277 (27–135)-
BnaOBMP.U4BnaA05G0373400ZSA05:37373072-37373569:+49816517.939.5233.3997.520.339AT3G18570PF01277 (43–151)-
BnaOBMP.U5BnaC01G0403700ZSC01:46777791-46778285:+49516417.869.128.2598.170.347AT3G18570PF01277 (43–150)-
BnaOBMP.U6BnaC03G0429600ZSC03:29754802-29755299:−49816517.776.937.83101.70.474AT3G18570PF01277 (45–151)-
BnaOBMP.U7BnaC04G0469500ZSC04:59628156-59628593:+43814515.517.8538.1794.210.308AT2G25890PF01277 (26–134)-
BnaOBMP.U8BnaC05G0413200ZSC05:46507388-46507885:+49816517.999.5232.8796.30.352AT3G18570PF01277 (43–151)-
BnaOBMP.U9BnaC08G0042100ZSC08:3813516-3813938:−42314015.6110.1663.2108.710.513AT1G48990PF01277 (48–140)-
BnaOBMP.S1BnaA01G0228500ZSA01:15029365-15042028:−65121624.505.8624.88114.630.381AT3G47360PF00106 (48–144);N
BnaOBMP.S2BnaA02G0152000ZSA02:8745424-8747467:+93631134.338.0428.99103.440.342AT5G50770PF00106 (48–237);-
BnaOBMP.S3BnaA02G0152200ZSA02:8762187-8763861:+105034939.046.0439.7290.770.052AT5G50700PF00106 (48–236);-
BnaOBMP.S4BnaA03G0246000ZSA03:12864562-12866180:+102634138.286.1634.0792.610.119AT5G50700PF00106 (48–235);-
BnaOBMP.S5BnaA03G0253100ZSA03:13272696-13274906:+138646151.616.8461.5773.99−0.305AT4G10020PF00106 (50–237);N
BnaOBMP.S6BnaA03G0430100ZSA03:23315422-23317643:−93030934.698.7727.53110.10.302AT3G47360PF00106 (48–236);N
BnaOBMP.S7BnaA06G0259900ZSA06:36071053-36075029:+93331035.307.6424.24108.810.214AT3G47360PF00106 (48–236);-
BnaOBMP.S8BnaA10G0081400ZSA10:12976837-12979574:+90029933.148.9142.98108.230.233AT5G50690PF00106 (48–234);N; M
BnaOBMP.S9BnaC01G0292700ZSC01:26062383-26082083:−56418720.936.1522.08100.110.16AT3G47360PF00106 (11–161);N
BnaOBMP.S10BnaC02G0194700ZSC02:16258391-16263882:+94531434.798.8627.39105.250.285AT5G50770PF00106 (48–244);-
BnaOBMP.S11BnaC02G0194900ZSC02:16283980-16285900:+105034939.116.2640.9189.940.046AT5G50700PF00106 (48–236);-
BnaOBMP.S12BnaC03G0290800ZSC03:18818616-18820197:+102634138.246.1633.3992.020.109AT5G50700PF00106 (48–235);-
BnaOBMP.S13BnaC03G0300500ZSC03:19724445-19726858:+139246351.976.7166.8473.46−0.331AT4G10020PF00106 (50–237);N
BnaOBMP.S14BnaC07G0404100ZSC07:51850357-51852617:+93030934.738.7725.47110.420.32AT3G47360PF00106 (48–236);N
BnaOBMP.S15BnaC09G0327500ZSC09:40510021-40511538:−90029933.269.0545.99108.230.225AT5G50690PF00106 (48–235);N; M
1 Chromosome: start position–end position: strand; (−) antisense strand of chromosome; (+) positive-sense strand of chromosome; 2 nucleus (N); mitochondria (M).
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Zhao, W.; Liu, J.; Qian, L.; Guan, M.; Guan, C. Genome-Wide Identification and Characterization of Oil-Body-Membrane Proteins in Polyploid Crop Brassica napus. Plants 2022, 11, 2241. https://doi.org/10.3390/plants11172241

AMA Style

Zhao W, Liu J, Qian L, Guan M, Guan C. Genome-Wide Identification and Characterization of Oil-Body-Membrane Proteins in Polyploid Crop Brassica napus. Plants. 2022; 11(17):2241. https://doi.org/10.3390/plants11172241

Chicago/Turabian Style

Zhao, Wei, Jun Liu, Lunwen Qian, Mei Guan, and Chunyun Guan. 2022. "Genome-Wide Identification and Characterization of Oil-Body-Membrane Proteins in Polyploid Crop Brassica napus" Plants 11, no. 17: 2241. https://doi.org/10.3390/plants11172241

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
