Genome-Wide Identification of the PP2C Gene Family and Analyses with Their Expression Profiling in Response to Cold Stress in Wild Sugarcane

by
Xing Huang
1,†,
Yongsheng Liang
2,†,
Ronghua Zhang
1,
Baoqing Zhang
1,
Xiupeng Song
1,
Junxian Liu
1,
Manman Lu
1,
Zhenqiang Qin
1,
Dewei Li
1,
Song Li
1,* and
Yangrui Li
1,*
1
Sugarcane Research Institute, Guangxi Academy of Agricultural Sciences/Sugarcane Research Center, Chinese Academy of Agicultural Sciences/Guangxi Key Laboratory of Sugarcane Genetic Improvement/Key Laboratory of Sugarcane Biotechnology and Genetic Improvement (Guangxi), Ministry of Agriculture, Nanning 530007, China
2
Nanning Institute of Agricultural Sciences, Nanning 530021, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(13), 2418; https://doi.org/10.3390/plants12132418
Submission received: 17 April 2023 / Revised: 9 June 2023 / Accepted: 15 June 2023 / Published: 22 June 2023
Browse Figures
Review Reports Versions Notes

Abstract

:
Type 2C protein phosphatases (PP2Cs) represent a major group of protein phosphatases in plants, some of which have already been confirmed to play important roles in diverse plant processes. In this study, analyses of the phylogenetics, gene structure, protein domain, chromosome localization, and collinearity, as well as an identification of the expression profile, protein–protein interaction, and subcellular location, were carried out on the PP2C family in wild sugarcane (Saccharum spontaneum). The results showed that 145 PP2C proteins were classified into 13 clades. Phylogenetic analysis suggested that SsPP2Cs are evolutionarily closer to those of sorghum, and the number of SsPP2Cs is the highest. There were 124 pairs of SsPP2C genes expanding via segmental duplications. Half of the SsPP2C proteins were predicted to be localized in the chloroplast (73), with the next most common predicted localizations being in the cytoplasm (37) and nucleus (17). Analysis of the promoter revealed that SsPP2Cs might be photosensitive, responsive to abiotic stresses, and hormone-stimulated. A total of 27 SsPP2Cs showed cold-stress-induced expressions, and SsPP2C27 (Sspon.01G0007840-2D) and SsPP2C64 (Sspon.03G0002800-3D) were the potential hubs involved in ABA signal transduction. Our study presents a comprehensive analysis of the SsPP2C gene family, which can play a vital role in the further study of phosphatases in wild sugarcane. The results suggest that the PP2C family is evolutionarily conserved, and that it functions in various developmental processes in wild sugarcane.

1. Introduction

The phosphorylation and dephosphorylation of proteins are functionally reversible processes that can affect the growth and development of a variety of plants [1]. As important phosphatases, serine/threonine protein phosphatases (PSPs) were first classified into type 1 and type 2 in animals on the basis of their substrate specificity and pharmacological properties [2]. Type 2 phosphatase (PP2) functions to phosphorylate the alpha subunit of phosphatase kinase and is not regulated by inhibitors. PP2 can be further divided into three types, PP2A, 2B, and 2C, of which PP2C is regulated by Mg2+ [3]. The Mg2+-dependent PP2C protein is less abundant in mammals but ubiquitous in plants [4].
The PP2C protein is the main phosphatase family member in plants, accounting for 60–70% of the total phosphatase, such as 62.7% in Arabidopsis thaliana and 68.9% in Oryza sativa [5]. The high proportion of PP2C proteins suggests that they have important evolutionary significance in plants and may be involved in various cellular functions in plants. The PP2C phosphatase family in plants is considered a regulator of signal transduction and can be activated by a variety of environmental stresses or developmental signals to function [4,6]. More and more PP2C family proteins in plants have been identified and studied in recent years. There are 86, 94, 62, and 95 PP2C proteins in Brachypodium distachyon [7], Medicago truncatula [8], Fragaria vesca [9], and Triticum aestivum [10], respectively. Such a large number of PP2C proteins in plants indicates that they play an irreplaceable role in the growth and development of plants.
The PP2C family in rice and Arabidopsis has been further divided into 11 subfamilies (A–H) [5]. The PP2Cs share sequence conservation and similar evolutionary relationships in different plants [11]. A highly conserved motif located near the C-terminus of the catalytic domain of the PP2C protein of the D subfamily was found in Arabidopsis, which is an auxin-induced SMALL AUXIN UP RNA (SAUR) and is necessary for binding; hence, the mutation of this motif enables plants to express immunity to SAUR and SAUR–PP2C. Subfamily D can affect the proliferative process of plant cells by regulating PM-H1-ATPase activity [12]. Arabidopsis PP2C-type phosphatase 1 (AP2C1) interacts with certain members of the MAPK cascade (MPK3, MPK4, and MPK6), thereby regulating plant immunity and the response to hormones [13,14]. In Arabidopsis, ABI1 and ABI2 in subfamily A are the two most widely studied typical PP2C proteins. They play a regulatory role in the ABA signaling pathway and are important members in the ABA signal transduction process. They have integrated ABA and the function of Ca2+ signaling and phosphorylation-dependent response pathways. PP2Cs play a key role in ABA signal transduction and can modulate plant responses to different abiotic stresses by interacting with different target proteins [15]. The protein PP2C5 in Arabidopsis has been identified as a MAPK phosphatase, which colocalizes and interacts with stress-induced MPK3, MPK4, and MPK6 mainly in the nucleus, and changes in the expression level of PP2C5 can affect the expression of MAPK activation [16]. In addition, the PP2C38 protein in Arabidopsis can participate in the regulation of the phosphorylation of BIK1 protein and play a negative role in the immune response of plants [17].
A PP2C protein In alfalfa, MP2C (Medicago sativa phosphase 2C), has also been shown to be involved in the regulation of stress-induced MAPK cascades [18]. The overexpression of the maize ZmPP2C gene in Arabidopsis can reduce plant tolerance to salt and drought [19]; heterologous expression of the PP2C-a10 protein in wheat can regulate seed germination in Arabidopsis and adaptation to drought [20]. In addition, OsPP2C09 in rice positively regulates plant growth and negatively regulates plant drought resistance by participating in the ABA signaling pathway, and further studies have confirmed that, under drought stress, OsPP2C09-mediated ABA desensitization contributes to rice root elongation [21]; OsPP2C27 in rice can dephosphorylate OsMAPK3 and OsbHLH002, thereby negatively regulating plant tolerance to low temperatures [22]. The PP2C protein has various functions in plants, the most important of which is involved in regulating the tolerance of plants to stress.
Sugarcane is an important cash crop. Its cultivation can not only provide food and beverage needs, but also sugar, alcohol, and other industrial raw materials. Sugarcane cultivation plays an important role in promoting the development of local economy. Sugarcane is one of the world’s major industrial raw materials, with about 250 million hectares of sugarcane planted globally. Brazil, India, China, Thailand, and the United States are the world’s major sugarcane-producing countries. China is one of the major sugarcane producers in the world, and its sugarcane cultivation area is mainly distributed in the southern region. According to statistics, China’s sugarcane plantation area is about 600,000 hectares, mainly distributed in Guangxi, Yunnan, Hainan, Guangdong, and other provinces.
Although sugarcane has strong adaptability, its tolerance to low temperatures is not very strong, which directly causes certain limitations to the planting area of sugarcane. Under normal natural conditions, sugarcane production is limited by the weather. However, when sugarcane encountered rare, large-scale, continuous low-temperature, and freezing extreme weather, a survey in the contour zone at different levels found that the sugarcane growing point and the cane stem tissue were damaged or necrotic after the disaster.
The PP2C phosphatase family plays an important role in the process of the plant response to abiotic stress. On the basis of the sequenced genome data of sugarcane and combined with transcriptomic data analysis, this study aims to use bioinformatics methods to analyze the PP2C phosphatase family in sugarcane. At the same time, the mechanism of PP2C protein in sugarcane involved in the low-temperature stress response is explored to provide evidence for further understanding the mechanism of low-temperature tolerance in sugarcane and to provide a theoretical basis for improving varieties.

2. Results

2.1. Genome-Wide Identification of Sugarcane PP2C Gene

The PP2C domains of the candidate proteins we identified from the sugarcane genome were verified with the Pfam and SMART websites, and the results showed that there were 145 PP2C proteins in sugarcane; the basic information on these proteins, including the gene ID, protein size, and isoelectric point pI, is listed in Table S1. A detailed analysis of the physicochemical properties of the SsPP2C family of proteins shows that the amino-acid sequence length of PP2C proteins in sugarcane ranges from 225 aa (Sspp2c140) to 1081 aa (Sspp2c73), and most SsPP2C proteins containing only one PP2C domain have an average length of 400 aa. In addition, the predicted molecular weight (MW) ranges from 24.30 kDa (Sspp2c140) to 119.98 kDa (Sspp2c73), and the isoelectric point (pI) varies from 4.58 (Sspp2c61) to 9.38 (Sspp2c32).

2.2. Phylogenetic Analysis, Gene Structure, and Protein Motif Analysis

In order to comprehensively understand the evolutionary relationship of PP2C family proteins in sugarcane, we used MEGA (version 7.0.26) to align the PP2C proteins of sugarcane, Amborella trichopoda, Arabidopsis, rice (Oryza sativa), foxtail millet (Setaria italica) maize (Zea mays), and sorghum (Sorghum bicolor) and compared them using MEGA. A phylogenetic tree was constructed on the basis of the alignment results (Figure 1).
According to phylogenetic analysis with Arabidopsis of PP2C family proteins, SsPP2C proteins were divided into 13 subfamilies. Among all the subfamilies, the subfamily with the largest number of SsPP2C proteins was the F subfamily, with 37 members; the second was subfamily D, with 30 SsPP2C proteins; there were 24 PP2Cs in subfamily A and 37 members in subfamily G; in the remaining subfamilies, there were 0–9 SsPP2Cs, and one SsPP2C protein was not classified into a subfamily (Figure 1 and Figure 2).
In addition, by comparing the distribution of PP2C proteins in different subfamilies in different species, it can be found that the distribution of PP2C proteins in different subfamilies was similar, and the proportion of PP2C proteins in different subfamilies was also similar, indicating that their functions were similar.
In the process of phylogenetic tree construction of sugarcane PP2C proteins and PP2C proteins of rice, maize, and sorghum, it was found that SsPP2C proteins tend to aggregate with SbPP2C proteins, while PP2C proteins of other species tend to form separate branches. Therefore, the PP2C protein is highly conserved in different species, and the PP2C protein in sugarcane is more closely related in evolution to that in sorghum (Figure S1).
To investigate whether the structures of sugarcane PP2C genes are similar in different subfamilies, we analyzed the CDS sequence and genome sequence of the SsPP2C gene by comparing the structure of the SsPP2C gene (Figure 2). The results showed that the number of exons of the sugarcane PP2C gene varied from one to 14, with an average of six. In addition, SsPP2C genes belonging to the same subfamily tended to have the same exon/intron structure pattern, and almost every member of the subfamily had a high degree of similarity in exon number and even exon length. This shows that these proteins may have similarities in their functions.
To further understand the SsPP2C protein, we used the online software MEME to detect these conserved protein motifs; the results identified a total of 10 conserved motifs (Figure 2 and Figure 3), and it was found that the SsPP2C proteins belonging to the same subfamily have similar motifs and sequence modes. Furthermore, motifs 2, 3, 4, and 5 formed the basic PP2C domain, whereas motif 8 occurred only in subfamily D proteins. Lastly, the analysis of the gene structure and protein motifs also showed that the composition of theSsPP2C motif was consistent with its gene structure.

2.3. Analysis of cis-Elements in the Promoter Region of Sugarcane PP2C Gene

The function of the gene is directly linked to the cis-acting elements in the promoter region; thus, in order to study the potential function of the SsPP2C genes, we also analyzed the promoter regions of these PP2C genes. The cis-acting elements contained in the 2 kb genome sequence upstream of the SsPP2C gene transcription initiation site was analyzed by searching PlantCARE online database (http://bioinformatics.psb.ugent.be/wedescriptionbtools/plantcare/html/, accessed on 6 May 2021) (Table S3), and 11 of the 122 cis-elements are shown in Figure S2.
In this study, we detected a total of 122 functionally relevant cis-acting elements including common eukaryotic regulatory elements such as TATA-box, and the details of these 122 cis-acting elements are shown in Table S2. Statistical analysis of the element categories contained in the promoter regions of all SsPP2C genes found that, in addition to a large number of light-responsive elements in the promoter regions of all SsPP2C genes, more than half of the promoter regions of sugarcane PP2C genes contained different plant hormones. Response elements, such as the MeJA, ABA, and SA response elements, indicated that most of the PP2C proteins in sugarcane may be involved in the regulation of hormone responses. In terms of abiotic stress, we also found that almost all SsPP2C gene promoter regions have light-inducible response elements, and more than half of the SsPP2C gene promoter regions contain drought-inducible response elements and low-temperature response elements, indicating that the SsPP2C protein family is involved in the process of sugarcane defense against a variety of abiotic stresses. In addition, it was observed that very few SsPP2C genes may be involved in the regulation of flavonoid biosynthesis genes and the regulation of plant damage.

2.4. Chromosomal Location, Gene Duplication, and Collinearity Analysis

To analyze the chromosomal distribution of SsPP2C genes, we mapped each gene and marked its location on the corresponding chromosome (Figure 4). The results showed that 145 SsPP2C genes could be located on 32 chromosomes of sugarcane. The SsPP2C genes located on chromosomes were unevenly distributed on chromosomes, and Chr1A was the most abundant (11), followed by Chr1B (9), Chr5C (8), Chr1D (7), etc. From the haplotype genome, the numbers distributed on the A, B, C, and D genomes were 39, 38, 37, and 31, respectively. There was only one SsPP2C gene in Chr6 of each sub-genome. These results suggest that the SsPP2C gene is not only unevenly distributed within each subfamily but also unevenly distributed across different chromosomes.
In addition, after rigorous screening, we found a total of 124 pairs of symbiotic homologous genes in the sugarcane SsPP2C family, involving 108 SsPP2C genes; they were all found to be segmental duplication events, and no tandem duplication gene pairs were found (Figure 5). More importantly, this indicated that the increase in the number of SsPP2C gene families was mainly due to chromosome polyploidy, especially concentrated on chromosomes 3, 4, and 5, followed by chromosomes 1 and 8.
In order to explore the homology of the PP2C gene in sugarcane and other plants, we conducted a homology analysis on the PP2C gene in sugarcane and another three species. The results showed that a total of 130 SsPP2Cs genes have orthologs in rice (81), sorghum (107), and maize (104). The results showed that the SsPP2C gene showed high collinearity with the three species, and the SsPP2C gene had the highest homology with the PP2C gene of sorghum, followed by maize (Figure 6).

2.5. Prediction of Subcellular Localization of SsPP2C Protein

Subcellular localization prediction indicated that the SsPP2C protein was mainly distributed in the chloroplast (74), cytoplasm (37), and nucleus (17), followed by the extracellular matrix mitochondria and peroxisomes (Table S4). Nearly 50% of PP2C proteins were predicted to be localized on the chloroplast, which indicated that the SsPP2C protein may play a role in photosynthesis signal transduction. Furthermore, SsPP2C proteins belonging to one subfamily tend to localize to the same subcellular location. The above results not only proved the high similarity of the proteins of each subfamily but also provided evidence for the further study of the function of the SsPP2C protein.

2.6. Functional Analysis of SsPP2C Genes under Cold Conditions

According to the recently sequenced transcriptome data of the gene expression level in wild sugarcane after low-temperature treatment, a total of 27 SsPP2Cs were screened out at the transcriptional level in response to cold tolerance (Tables S5 and S6; Figure 7). Compared with the control, eight SsPP2C genes were upregulated and 18 were downregulated during the cold treatment for 0.1, 1, and 6 h. After exposure to low-temperature treatment for 0.5 h and 1 h, 24 SsPP2C genes had a remarkable tendency to recover to the expression level of untreated specimens (control). SsPP2C1 showed continuous upregulation under cold conditions from 1 h to 6 h, while SsPP2C91 and SsPP2C97 were downregulated until 6 h of cold conditions.
We selected 10 genes for qRT-PCR and conducted linear correlation analysis. The results showed that there was a high correlation R2 = 0.9229 between the two methods (Figure S4). Furthermore, we performed qRT-PCR in the time course of expression of PP2C genes during cold stress exposure, which further confirmed the high credibility of transcriptome data (Figure S5).

2.7. Construction of Protein–Protein Interaction Network of SsPP2C Protein

We predicted the network diagram of their interaction among all the SsPP2C proteins using STRING (Figure 8). The results showed that these low-temperature-induced SsPP2C proteins were related to calcium signaling, MAPK cascade, ABA, light, and other processes in sugarcane cells. In addition, SsPP2C74 (Sspon.04G0026520-1T) was a potential hub protein among these SsPP2Cs, with 42 possible linear interacting proteins; it may simultaneously participate in calcium, the ABA signaling pathway, MAPK cascade, and the light-mediated signal transduction pathway.
Gene expression profiles generally reflect the biological function. According to the results of transcriptome sequencing of sugarcane genes after low-temperature (4 °C) treatment in our laboratory, we screened a total of 27 SsPP2Cs that responded to low-temperature stress, which exhibited a differential expression pattern (Figure 7). In addition, we predicted the network diagram of their interaction using STRING (Figure 9). The results showed that five low-temperature-induced SsPP2C proteins (SsPP2C27, SsPP2C64, SsPP2C31, SsPP2C110, and SsPP2C144) had a strong interactional relationship and SsPP2C27 (Sspon.01G0007840-2D) and SsPP2C64 (Sspon.03G0002800-3D) were potential hub proteins among these SsPP2Cs, involved in ABA signal transduction through interaction with PYL and DIP proteins.

2.8. Subcellular Localizations of SsPP2C Proteins

To confirm the subcellular locations of SsPP2C proteins predicted by Plant-mPLoc, SsPP2C27, SsPP2C31, SsPP2C64, and SsPP2C110 were selected from three classes to perform subcellular localization analysis. As shown in Figure 10, the green fluorescent protein (GFP) signals of the positive controls were observed throughout the protoplasts, and the same distribution feature of fluorescent signals for SsPP2C27, SsPP2C64, and SsPP2C110 was observed. On the other hand, fluorescent signals of SsPP2C31 were found at the margin of the protoplast, and the fluorescence signal intensity was significantly higher than that of other fusion proteins, suggesting that the SsPP2C31 protein might be localized in the cytoplasm and plasma membrane.

3. Discussion

The PP2C phosphatase family is the most abundant phosphatase family in plants. It is evolutionarily conserved and participates in the regulation of various plant growth and development processes, especially in plant adaptation to stress. PP2C-type phosphatases are considered to be a representative family of PPM phosphatases. PP2Cs are widely distributed in eukaryotes. A total of 16 different PP2C genes were identified in the human genome, encoding at least 22 isozymes, mainly involved in cell growth and cellular stress signaling, and PP2Cs can act as cells in almost all stress-related situations and as inhibitors of stress signaling. Researchers have identified a total of 76 PP2C proteins in Arabidopsis [23], accounting for more than 60% of Arabidopsis protein phosphatases.
This study provides a comprehensive analysis of the PP2C family in sugarcane based on the sequenced sugarcane genome data. The results show that the PP2C proteins in sugarcane were divided into 13 subfamilies with a total of 145 members, which were similar to those in maize and sorghum and much higher than those in Amborella trichopoda, Arabidopsis, millet, and rice. These results indicate that both genes underwent a wide expansion in sugarcane compared to Arabidopsis. Furthermore, in lower plants such as Chlamydomonas reinhardtii and mosses such as Physocmitrela patens, the genome size is comparable to higher plants such as Arabidopsis and rice [24,25,26,27], but the quantity of PP2C proteins varies widely, such as 10 in green algae, 50 in bryophytes, 70–130 in plants such as Arabidopsis, rice, and maize [23], and only 48 in Amborella trichopoda. It can be seen that the expansion and diversification of the PP2C gene family may be closely related to the evolutionary process of plants from lower to higher.
SsPP2C members in the same group exhibit relatively the similar molecular weight and pI values, while different groups possess different pIs and molecular weight. These variations would lead to changes in gene structure and constitution of the protein domain, playing important roles in the PP2C family’s evolution.
The results of gene (intron–exon) structure analysis of the PP2C family of different plants showed that the PP2C genes in different plants have a certain degree of conservation in structure. For example, the number of introns in Arabidopsis ranges from zero to 12, while the rice PP2C gene contains 0–18 introns [5,28], that of upland cotton (Gossypium hirsutum) contains 1–10 introns [29], and that of turnip (Brassica rapa) contains 0–19 introns [30]. In addition, members belonging to the same subfamily have certain similarities in their intron–exon structure and gene length, indicating their close evolutionary relationship and conservation of the gene structure among different plant species. On the other hand, researchers have detected the occurrence of many chromosomal duplication events in both Arabidopsis and rice PP2C gene families, indicating that chromosomal duplication has a role in promoting the expansion and evolution of PP2C genes in the process of plant evolution [5]. In addition, the chromosomal duplication event in rice can not only promote the expansion of the PP2C gene but also plays a certain role in the diversification of the OsPP2C gene family function, because, in addition to some duplicated gene pairs showing conservation, other duplication pairs exhibit neofunctionalization and pseudo functionalization [28]. From the results of this study, polyploidy is the main reason for the sharp increase in the number of PP2C genes in sugarcane.
The function of a protein is often closely related to the domains it contains. Therefore, in order to understand the function of PP2C protein, it is of great significance to analyze its domains. Domain analysis of PP2C proteins in eukaryotes revealed that the PP2C domain can appear at both the N- and the C-termini [11]. For example, most of the PP2C proteins in Arabidopsis have the catalytic domain at the C-terminus, while a few Arabidopsis PP2Cs, especially those belonging to the F group, have the catalytic domain at the N-terminus [4]. These structural differences may indicate that their functions are also diverse. Detailed sequence analysis of the domains of PP2C proteins can not only reveal some unique domains and motifs in plant PP2C proteins but also allow a preliminary analysis of their possible functions. For example, the kinase-interacting motif (KIM) domain, a motif that can interact with MAPK, is present in most members of the Arabidopsis B family PP2C and regulates plant immunity and the response to hormones [13,14]. Furthermore, KIM motifs are found in the PTP proteins of most organisms and are essential for the functional activity of PP2Cs in regulating MAPK signaling in plants. In addition to the KIM motif, another conserved domain in PP2C protein is the fork point-associated domain (FHA). The FHA domain, the only known phosphorylated protein-binding domain, is present in a variety of proteins with diverse functions and is especially prevalent in proteins involved in DNA damage responses [31,32].
At present, studies have confirmed that many PP2C protein family members can participate in the regulation of various plant adaptation mechanisms to stress [20,21,22,33,34,35,36]. For example, in rice, OsPP2C27 can dephosphorylate OsMAPK3 and OsbHLH0002, thereby negatively regulating the adaptation of rice to low temperatures [22]. In Arabidopsis, the PP2C-type phosphatase PIA1 (PP2C induced by AvrRpm1) has been shown to be involved in the regulation of defense responses [33]. The PP2C-a10 protein in wheat can play a role in seed development and plant drought tolerance after heterologous expression in Arabidopsis [20]. PP2Cs play a key role in ABA signal transduction and can modulate plant responses to different abiotic stresses by interacting with different target proteins. In Arabidopsis, the core model of the ABA signaling pathway, the PYL(PYR/PYL/RCAR)–PP2C–SnRK2 model, was also identified, which catalyzes the phosphorylation of the corresponding downstream effectors, thereby activating the relevant stress in plants [34]. MAPK cascades can play an important role in the response to cold stress in plants [35]. ABA-dependent cold-responsive gene expression is also considered to be an important pathway for plants to respond to cold stress [36]. Therefore, whether PP2C protein, as a regulatory protein related to two signaling pathways, plays a role in the low-temperature signal response, as well as its mechanism of action in the low-temperature signal response, can be further studied and has important theoretical significance. In addition, OsPP2C09 in rice negatively regulates plant drought resistance [21]. OsPP2C27 in rice negatively regulates plant tolerance to low temperatures [22]. In our study, 32 SsPP2Cs responded to cold stress, and five of them were predicted to have an interaction with PYL and DIP proteins, which verified their potentially important roles in the core model of ABA signaling pathway PYL(PYR/PYL/RCAR)–PP2C–SNRK2 [34]. It can be seen that PP2C protein has various functions in plants, the most important of which is its involvement in regulating the tolerance of plants to stress. However, the role of PP2C protein involved in sugarcane cold stress needs further clarification.

4. Materials and Methods

4.1. Identification, Classification, and Protein Characteristics of PP2C Protein in Wild Sugarcane

To identify members of the PP2C phosphatase family in sugarcane, we searched the publicly published sugarcane genome database with the keyword “PP2C”, followed by using the Pfam (http://pfam.xfam.org/, accessed on 7 May 2021) and SMART (http://smart.embl-heidelberg.de/, accessed on 7 May 2021) websites to test whether the candidate proteins contained the PP2C domain. The amino-acid sequences and PP2C proteins of Amborella trichopoda, Arabidopsis, O. sativa, Sorghum bicolor, Zea mays, and Setaria italica were downloaded from the EKPD website (http://ekpd.biocuckoo.org/, accessed on 7 May 2021). The CDS sequence and the PP2C domain were verified in the same way as the sugarcane PP2C protein. The compute pI/MW tool of the ExPASy Server [37] was used to calculate protein properties such as the molecular weight (MW) and theoretical isoelectric point (pI). The ProtComp website (http://www.softberry.com/, accessed on 7 May 2021) was used to analyze the subcellular localization of the SsPP2C protein. In addition, the PP2C protein sequences of the above plants were subjected to evolutionary analysis [38].

4.2. SsPP2Cs Phylogenetic Tree, Gene Structure, Conserved Motifs, and Protein Domain Analysis

Homology analysis of SsPP2Cs was carried out as described in previous studies [39]. The SsPP2C, ArPP2C, AtPP2C, OsPP2C, ZmPP2C, SiPPP2C, and SSsPP2C protein sequences were aligned using the Clustal W program [40] and phylogenetically analyzed using MEGA X [41], followed by the JTT amino-acid substitution model [42], which uses the maximum likelihood (ML) to construct an unrooted phylogenetic tree. The evolutionary tree was beautified and visualized by the online software Evolview (V3) [43,44]. The online gene structure display server (GSDS: http://gsds.cbi.pku.edu.ch, accessed on 8 May 2021) was used to study the gene structure of SsPP2C gene family members [45]. The MEME (version 5.0.4) online search tool [46] was used to identify conserved motifs among related proteins in the SsPP2C gene family, and the number of selected motifs was defined as 10 except for the default setting. In addition, we utilized the InterPro database (http://www.ebi.ac.uk/interpro/, accessed on 8 May 2021) to predict the conserved domains of the SsPP2C protein family [47] and visualized them using Evolview online software (V3).

4.3. Analysis of Cis-Acting Elements of SsPP2Cs Promoter

To identify cis-acting elements in the promoter sequences of sugarcane PP2C family genes, the genomic sequence 2000 bp upstream of the transcription start site was analyzed using the online PlantCARE database [48]. Then, the obtained cis-acting elements were classified and counted, and the statistical results were drawn as a histogram using sigma plot 12.5 software. In addition, Venn diagrams between different kinds of cis-acting elements were drawn using the online Venn diagram drawing website Draw Venn Diagram (http://bioinformatics.psb.ugent.be/webtools/Venn/, accessed on 9 May 2021).

4.4. Chromosome Localization and Collinearity Analysis

We used TBtools (V1.098) to extract the location of the SsPP2C gene from the genome annotation gff3 file and then used MCScan X [49] to carry out collinearity analysis of members of the sugarcane PP2C family, as well as three other plants (rice, maize, and sorghum). Chromosome localization images, collinearity analysis images, and synteny analysis images were obtained.

4.5. Transcriptional Analysis of SsPP2C Genes under Cold Stress of Wild Sugarcane

The transcriptome data used in this paper were all obtained by screening the existing sequencing data in our laboratory (http://www.ncbi.nlm.nih.gov/sra/, accessed on 10 May 2021, accession number PRJNA636260). The method involves screening the gene numbers of sugarcane PP2C genes from all gene differential expression databases, extracting their expression, and using the FPKM value for normalization.

4.6. Protein–Protein Interaction Analysis of Transcriptome Data

The interaction among all sugarcane PP2C proteins and the differentially expressed SsPP2Cs after low-temperature treatment was predicted online using STRING (http://string-db.org/, accessed on 10 May 2021), a website for searching interacting proteins. Confidence was set to a high level (>0.4). The protein–protein interaction network was then plotted and beautified using Cytoscape (version 3.8.0) (http://www.cytoscape.org/, accessed on 10 May 2021).

4.7. Determination of Subcellular Localization of SsPP2C Proteins

The subcellular localization sites were predicted by Plant-mPLoc (http://www.csbio.sjtu.edu.cn/bioinf/plant-multi/, accessed on 10 May 2021). The CDS sequences of SsPP2C27, SsPP2C31, SsPP2C64, and SsPP2C110 without a termination codon were fused to the N-terminal of GFP under the control of the CaMV 35S promoter in the pBI121 vector using an In-Fusion® HD Cloning Kit (Takara, Dalian, China). The fusion constructs were delivered into rice protoplasts. After incubation for 12–18 h, The GFP fluorescent images were photographed with a confocal laser scanning microscope (OLYMPUS, Tokyo, Japan, Olympus FV3000 viewer).

4.8. qRT-PCR Analysis

Total RNA was extracted from the control and cold-treated plants after 6 h using Trizol reagent (Invitrogen, Carsbad, CA, USA) and then digested with DNase I (TaKaRa) at 37 °C for 30 min to remove contaminating DNA. The qRT-PCR reaction was carried out in an Mx3000PTM Real-Time PCR system (Stratagene, La Jolla, CA, USA). qRT-PCR was performed in a 20 µL reaction mixture containing 2 µL of template cDNA, 10 µL of SYBR Green Realtime PCR Master Mix (TaKaRa, Dalian, China), 0.4 µL ROX as reference dye, 0.4 µL (10μM) of each primer, and 6.8 µL of RNA-free water.
The PCR reaction was run as follows: 94 °C for 5 min, and then 40 cycles of 5 s at 94 °C, 30 s at 60 °C, and 20 s at 72 °C, followed by single cycles of 95 °C for 1 min, 55 °C for 30 s, and 95 °C for 30 s for the dissociation stage. The expression levels of the transcripts were normalized to the endogenous genes GAPDH. Each set of experiments was replicated three times. The primers were designed for our selected genes with Primer3 primer (www.bioinfo.ut.ee/primer3-0.4.0/, accessed on 20 May 2023); refer to Table S7 for primer sequences. Relative expression levels of target genes were calculated using the 2−ΔΔCt method. In order to further confirm the credibility of transcriptome data, an Excel table was used to analyze the linear correlation between qRT-PCR results and transcriptome results of selected genes.

5. Conclusions

In conclusion, a total of 145 PP2C family proteins in wild sugarcane were identified and classified into 13 clades. Phylogenetic analyses revealed that SsPP2Cs were evolutionarily closer to those of sorghum, and the number of SsPP2Cs was the highest. A total of 124 pairs of SsPP2C genes were found, expanding via segmental duplications. Half of the SsPP2C proteins functioned in the chloroplast (73), with the next largest localization being in the cytoplasm (37) and nucleus (17). The cis-acting element analysis of the promoter region of SsPP2C genes revealed that SsPP2Cs might be photosensitive, responsive to abiotic stresses, and hormone-stimulated. A total of five low-temperature-induced SsPP2C proteins had a strong interactional relationship, and SsPP2C27 and SsPP2C64 were potential hub proteins among these SsPP2Cs, involved in ABA signal transduction under cold stress. Our study presents a comprehensive analysis of the SsPP2Cs gene family; hopefully, it can help us to better understand the mechanism of sugarcane adaptation to the environment and lay the foundation for improving varieties.
Taken together, our findings suggest that the candidate SsPP2Cs should be the critical regulator of cold stress tolerance, which provide important insights into the molecular mechanism underlying cold stress response in sugarcane. However, there are few reports about the transgenic studies and functional identification of PP2C genes regulating cold stress tolerance, which may be due to the lack of an efficient genetic transformation system. For future study, transgenic studies should be performed on the candidate genes identified in present study, to further verify the underlying molecular mechanisms of these genes regulating cold stress tolerance.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants12132418/s1: Figure S1. Phylogenetic analysis of PP2C proteins among other plants. All the IDs and sequences are provided in Table S2; Figure S2. Analysis of cis-elements in SsPP2C promoter regions; Figure S3. Heatmap of the differentially expressed SsPP2C responses to cold stress; Figure S4. Coefficient analysis between transcriptomics data and qRT-PCR expression of selected candidate genes. The values of the X-axis represent the fold-change value of the transcriptome, while the values of the Y-axis represent the fold-change values of qRT-PCR; Figure S5. The differences between qRT-PCR and transcriptome in time course of expression of PP2C genes during cold stress exposure; Table S1. List of 145 PP2C genes in paper mulberry and their basic characterizations; Table S2. The original gene IDs and the new IDs of the PP2C genes used in this study; Table S3. Analysis of cis-elements in SsPP2C promoter regions; Table S4. The prediction of the subcellular localization of SsPP2C genes; Table S5. The FPKM value of all SsPP2Cs under cold stress; Table S6. The FPKM value of SsPP2Cs in response to cold stress; Table S7. The primers used for qRT-PCR.

Author Contributions

Conceptualization, S.L. and Y.L. (Yangrui Li); methodology, X.H., Y.L. (Yongsheng Liang) and R.Z.; software, X.H.; formal analysis, R.Z., Z.Q., D.L., X.S. and B.Z.; data curation, X.H., M.L. and J.L.; writing—original draft preparation, X.H. and Y.L. (Yongsheng Liang); writing—review and editing, S.L. and Y.L. (Yangrui Li); project administration, S.L. and Y.L. (Yangrui Li); funding acquisition, S.L. and Y.L. (Yangrui Li). All authors have read and agreed to the published version of the manuscript.

Funding

This work was funded by the National Natural Foundation of China (31660356), the National Modern Agriculture Industry Technology System of Guangxi Sugarcane Innovation Team Projects (gjnytxgxcxtd-2021-03), and the Guangxi Academy of Agricultural Sciences Project (Guinongke2021YT013, Guinongke2021YT014, and Guinongke2023YM53).

Data Availability Statement

The transcriptome data used in this paper were all obtained by screening the existing sequencing data in our laboratory (http://www.ncbi.nlm.nih.gov/sra/, accession number PRJNA636260).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Luan, S. Protein phosphatases in plants. Annu. Rev. Plant Biol. 2003, 54, 63–92. [Google Scholar] [CrossRef] [PubMed]
  2. Cohen, P. The structure and regulation of protein phosphatases. Annu. Rev. Biochem. 1989, 58, 453–508. [Google Scholar] [CrossRef] [PubMed]
  3. Kerk, D.; Bulgrien, J.; Smith, D.W.; Barsam, B.; Veretnik, S.; Gribskov, M. The complement of protein phosphatase catalytic subunits encoded in the genome of Arabidopsis. Plant Physiol. 2002, 129, 908–925. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Schweighofer, A.; Hirt, H.; Meskiene, I. Plant PP2C phosphatases: Emerging functions in stress signaling. Trends Plant Sci. 2004, 9, 236–243. [Google Scholar] [CrossRef]
  5. Xue, T.; Wang, D.; Zhang, S.; Ehlting, J.; Ni, F.; Jakab, S.; Zheng, C.; Zhong, Y. Genome-wide and expression analysis of protein phosphatase 2C in rice and Arabidopsis. BMC Genom. 2008, 9, 550. [Google Scholar] [CrossRef] [Green Version]
  6. Bheri, M.; Mahiwal, S.; Sanyal, S.K.; Pandey, G.K. Plant protein phosphatases: What do we know about their mechanism of action? FEBS J. 2020, 288, 756–785. [Google Scholar] [CrossRef]
  7. Cao, J.; Jiang, M.; Li, P.; Chu, Z. Genome-wide identification and evolutionary analyses of the PP2C gene family with their expression profiling in response to multiple stresses in Brachypodium distachyon. BMC Genom. 2016, 17, 175. [Google Scholar] [CrossRef] [Green Version]
  8. Yang, Q.; Liu, K.; Niu, X.; Wang, Q.; Wan, Y.; Yang, F.; Li, G.; Wang, Y.; Wang, R. Genome-wide identification of PP2C genes and their expression profiling in response to drought and cold stresses in Medicago truncatula. Sci. Rep. 2018, 8, 12841. [Google Scholar] [CrossRef] [Green Version]
  9. Haider, M.S.; Khan, N.; Pervaiz, T.; Zhongjie, L.; Nasim, M.; Jogaiah, S.; Mushtaq, N.; Jiu, S.; Jinggui, F. Genome-wide identification, evolution, and molecular characterization of the PP2C gene family in woodland strawberry. Gene 2019, 702, 27–35. [Google Scholar] [CrossRef]
  10. Yu, X.; Han, J.; Wang, E.; Xiao, J.; Hu, R.; Yang, G.; He, G. Genome-wide identification and homoeologous expression analysis of PP2C genes in Wheat (Triticum aestivum L.). Front. Genet. 2019, 10, 561. [Google Scholar] [CrossRef] [Green Version]
  11. Singh, A.; Pandey, A.; Srivastava, A.K.; Tran, L.-S.P.; Pandey, G.K. Plant protein phosphatases 2C: From genomic diversity to functional multiplicity and importance in stress management. Crit. Rev. Biotechnol. 2016, 36, 1023–1035. [Google Scholar] [CrossRef]
  12. Wong, J.H.; Spartz, A.K.; Park, M.Y.; Du, M.; Gray, W.M. Mutation of a conserved motif of PP2C.D phosphatases confers SAUR immunity and constitutive activity. Plant Physiol. 2019, 181, 353–366. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Sidonskaya, E.; Schweighofer, A.; Shubchynskyy, V.; Kammerhofer, N.; Hofmann, J.; Wieczorek, K.; Meskiene, I. Plant resistance against the parasitic nematode Heterodera schachtii is mediated by MPK3 and MPK6 kinases, which are controlled by the MAPK phosphatase AP2C1 in Arabidopsis. J. Exp. Bot. 2016, 67, 107–118. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Schweighofer, A.; Kazanaviciute, V.; Scheikl, E.; Teige, M.; Doczi, R.; Hirt, H.; Schwanninger, M.; Kant, M.; Schuurink, R.; Mauch, F.; et al. The PP2C-type phosphatase AP2C1, which negatively regulates MPK4 and MPK6, modulates innate immunity, jasmonic acid, and ethylene levels in Arabidopsis. Plant Cell 2007, 19, 2213–2224. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. De Zelicourt, A.; Colcombet, J.; Hirt, H. The role of MAPK modules and ABA during abiotic stress signaling. Trends Plant Sci. 2016, 21, 677–685. [Google Scholar] [CrossRef] [PubMed]
  16. Brock, A.K.; Willmann, R.; Kolb, D.; Grefen, L.; Lajunen, H.M.; Bethke, G.; Lee, J.; Nürnberger, T.; Gust, A.A. The Arabidopsis mitogen-activated protein kinase phosphatase PP2C5 affects seed germination, stomatal aperture, and abscisic acid-inducible gene expression. Plant Physiol. 2010, 153, 1098–1111. [Google Scholar] [CrossRef] [Green Version]
  17. Couto, D.; Niebergall, R.; Liang, X.; Bücherl, C.A.; Sklenar, J.; Macho, A.P.; Ntoukakis, V.; Derbyshire, P.; Altenbach, D.; Maclean, D.; et al. The arabidopsis protein phosphatase PP2C38 negatively regulates the central immune kinase BIK1. PLoS Pathog. 2016, 12, e1005811. [Google Scholar] [CrossRef] [Green Version]
  18. Umbrasaite, J.; Schweighofer, A.; Meskiene, I. Substrate analysis of Arabidopsis PP2C-Type protein phosphatases. Methods Mol. Biol. 2011, 779, 149–161. [Google Scholar]
  19. Liu, L.; Hu, X.; Song, J.; Zong, X.; Li, D.; Li, D. Over-expression of a Zea mays L. protein phosphatase 2C gene (ZmPP2C) in Arabidopsis thaliana decreases tolerance to salt and drought. J. Plant Physiol. 2009, 166, 531–542. [Google Scholar] [CrossRef]
  20. Yu, X.; Han, J.; Li, L.; Zhang, Q.; Yang, G.; He, G. Wheat PP2C-a10 regulates seed germination and drought tolerance in transgenic Arabidopsis. Plant Cell Rep. 2020, 39, 635–651. [Google Scholar] [CrossRef] [Green Version]
  21. Miao, J.; Li, X.; Li, X.; Tan, W.; You, A.; Wu, S.; Tao, Y.; Chen, C.; Wang, J.; Zhang, D.; et al. OsPP2C09, a negative regulatory factor in abscisic acid signaling, plays an essential role in balancing plant growth and drought tolerance in rice. New Phytol. 2020, 227, 1417–1433. [Google Scholar] [CrossRef] [PubMed]
  22. Xia, C.; Gong, Y.; Chong, K.; Xu, Y. Phosphatase OsPP2C27 directly dephosphorylates OsMAPK3 and OsbHLH002 to negatively regulate cold tolerance in rice. Plant Cell Environ. 2021, 44, 491–505. [Google Scholar] [CrossRef] [PubMed]
  23. Fuchs, S.; Grill, E.; Meskiene, I.; Schweighofer, A. Type 2C protein phosphatases in plants. FEBS J. 2013, 280, 681–693. [Google Scholar] [CrossRef]
  24. Rensing, S.A.; Lang, D.; Zimmer, A.D.; Terry, A.; Salamov, A.; Shapiro, H.; Nishiyama, T.; Perroud, P.-F.; Lindquist, E.A.; Kamisugi, Y.; et al. The Physcomitrella genome reveals evolutionary insights into the conquest of land by plants. Science 2008, 319, 64–69. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Meinke, D.W.; Cherry, J.M.; Dean, C.; Rounsley, S.D.; Koornneef, M. Arabidopsis thaliana: A Model Plant for Genome Analysis. Science 1998, 282, 662–682. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Merchant, S.S.; Prochnik, S.E.; Vallon, O.; Harris, E.H.; Karpowicz, S.J.; Witman, G.B.; Terry, A.; Salamov, A.; Fritz-Laylin, L.K.; Maréchal-Drouard, L.; et al. The Chlamydomonas genome reveals the evolution of key animal and plant functions. Science 2007, 318, 245–250. [Google Scholar] [CrossRef] [Green Version]
  27. Yu, J.; Hu, S.; Wang, J.; Wong, G.K.S.; Li, S.; Liu, B.; Deng, Y.; Dai, L.; Zhou, Y.; Zhang, X.; et al. A draft sequence of the rice genome (Oryza sativa L. ssp. indica). Science 2002, 296, 79–92. [Google Scholar] [CrossRef] [PubMed]
  28. Singh, A.; Giri, J.; Kapoor, S.; Tyagi, A.K.; Pandey, G.K. Protein phosphatase complement in rice: Genome-wide identification and transcriptional analysis under abiotic stress conditions and reproductive development. BMC Genom. 2010, 11, 435. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  29. Shazadee, H.; Khan, N.; Wang, J.; Wang, C.; Zeng, J.; Huang, Z.; Wang, X. Identification and expression profiling of protein phosphatases (PP2C) gene family in Gossypium hirsutum L. Int. J. Mol. Sci. 2019, 20, 1395. [Google Scholar] [CrossRef] [Green Version]
  30. Khan, N.; Ke, H.; Hu, C.M.; Naseri, E.; Haider, M.S.; Ayaz, A.; Khan, W.A.; Wang, J.; Hou, X. Genome-Wide identification, evolution, and transcriptional profiling of PP2C gene family in Brassica rapa. Biomed Res. Int. 2019, 2019, 2965035. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  31. Wagner, T.; André-Leroux, G.; Hindie, V.; Barilone, N.; Lisa, M.-N.; Hoos, S.; Raynal, B.; Normand, B.V.-L.; O’hare, H.M.; Bellinzoni, M.; et al. Structural insights into the functional versatility of an FHA domain protein in mycobacterial signaling. Sci. Signal. 2019, 12, eaav9504. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  32. Mahajan, A.; Yuan, C.; Lee, H.; Chen, E.S.-W.; Wu, P.-Y.; Tsai, M.-D. Structure and function of the phosphothreonine-specific FHA domain. Biochemestry 2008, 1, re12. [Google Scholar] [CrossRef] [PubMed]
  33. Widjaja, I.; Lassowskat, I.; Bethke, G.; Eschen-Lippold, L.; Long, H.-H.; Naumann, K.; Dangl, J.L.; Scheel, D.; Lee, J. A protein phosphatase 2C, responsive to the bacterial effector AvrRpm1 but not to the AvrB effector, regulates defense responses in Arabidopsis. Plant J. 2010, 61, 249–258. [Google Scholar] [CrossRef] [PubMed]
  34. Zhu, J.K. Abiotic stress signaling and responses in plants. Cell 2016, 167, 313–324. [Google Scholar] [CrossRef] [Green Version]
  35. Li, H.; Ding, Y.; Shi, Y.; Zhang, X.; Zhang, S.; Gong, Z.; Yang, S. MPK3- and MPK6-mediated ICE1 phosphorylation negatively regulates ICE1 stability and freezing tolerance in Arabidopsis. Dev. Cell 2017, 43, 630–642. [Google Scholar] [CrossRef] [Green Version]
  36. Sharma, P.; Sharma, N.; Deswal, R. The molecular biology of the low-temperature response in plants. Bioessays 2010, 27, 1048–1059. [Google Scholar] [CrossRef]
  37. Wilkins, M.R.; Gasteiger, E.; Bairoch, A.; Sanchez, J.C.; Williams, K.L.; Appel, R.D.; Hochstrasser, D.F. Protein identification and analysis tools in the ExPASy Server. Methods Mol. Biol. 1999, 112, 531–552. [Google Scholar]
  38. Goodstein, D.M.; Shu, S.; Howson, R.; Neupane, R.; Hayes, R.D.; Fazo, J.; Mitros, T.; Dirks, W.; Hellsten, U.; Putnam, N.; et al. Phytozome: A comparative platform for green plant genomics. Nucleic Acids Res. 2012, 40, D1178–D1186. [Google Scholar] [CrossRef]
  39. Ayaz, A.; Huang, H.; Zheng, M.; Zaman, W.; Li, D.; Saqib, S.; Zhao, H.; Lü, S. Molecular cloning and functional analysis of GmLACS2-3 reveals its involvement in cutin and suberin biosynthesis along with abiotic stress tolerance. Int. J. Mol. Sci. 2021, 22, 9175. [Google Scholar] [CrossRef]
  40. Larkin, M.A.; Blackshields, G.; Brown, N.P.; Chenna, R.; McGettigan, P.A.; McWilliam, H.; Valentin, F.; Wallace, I.M.; Wilm, A.; Lopez, R.; et al. Clustal W and clustal X version 2.0. Bioinformatics 2007, 23, 2947–2948. [Google Scholar] [CrossRef] [Green Version]
  41. Kumar, S.; Stecher, G.; Li, M.; Knyaz, C.; Tamura, K. MEGA X: Molecular evolutionary genetics analysis across computing platforms. Mol. Biol. Evol. 2018, 35, 1547–1549. [Google Scholar] [CrossRef] [PubMed]
  42. Darriba, D.; Taboada, G.L.; Doallo, R.; Posada, D. ProtTest 3: Fast selection of best-fit models of protein evolution. Bioinformatics 2011, 27, 1164–1165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. He, Z.; Zhang, H.; Gao, S.; Lercher, M.J.; Chen, W.H.; Hu, S. Evolview v2: An online visualization and management tool for customized and annotated phylogenetic trees. Nucleic Acids Res. 2016, 44, W236–W241. [Google Scholar] [CrossRef] [PubMed]
  44. Zhang, H.; Gao, S.; Lercher, M.J.; Hu, S.; Chen, W.-H. EvolView, an online tool for visualizing, annotating and managing phylogenetic trees. Nucleic Acids Res. 2012, 40, W569–W572. [Google Scholar] [CrossRef] [PubMed]
  45. Hu, B.; Jin, J.; Guo, A.-Y.; Zhang, H.; Luo, J.; Gao, G. GSDS 2.0: An upgraded gene features visualization server. Bioinformatics 2015, 31, 1296–1297. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  46. Bailey, T.L.; Boden, M.; Buske, F.A.; Frith, M.; Grant, C.E.; Clementi, L.; Ren, J.; Li, W.W.; Noble, W.S. MEME SUITE: Tools for motif discovery and searching. Nucleic Acids Res. 2009, 37, W202–W208. [Google Scholar] [CrossRef]
  47. Mitchell, A.L.; Attwood, T.K.; Babbitt, P.C.; Blum, M.; Bork, P.; Bridge, A.; Brown, S.D.; Chang, H.-Y.; El-Gebali, S.; Fraser, M.I.; et al. InterPro in 2019: Improving coverage, classification and access to protein sequence annotations. Nucleic Acids Res. 2019, 47, D351–D360. [Google Scholar] [CrossRef] [Green Version]
  48. Lescot, M.; Déhais, P.; Thijs, G.; Marchal, K.; Moreau, Y.; Van de Peer, Y.; Rouzé, P.; Rombauts, S. PlantCARE, a database of plant cis-acting regulatory elements and a portal to tools for in silico analysis of promoter sequences. Nucleic Acids Res. 2002, 30, 325–327. [Google Scholar] [CrossRef]
  49. Wang, Y.; Tang, H.; DeBarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.-H.; Jin, H.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef] [Green Version]
Plants 12 02418 g001 550

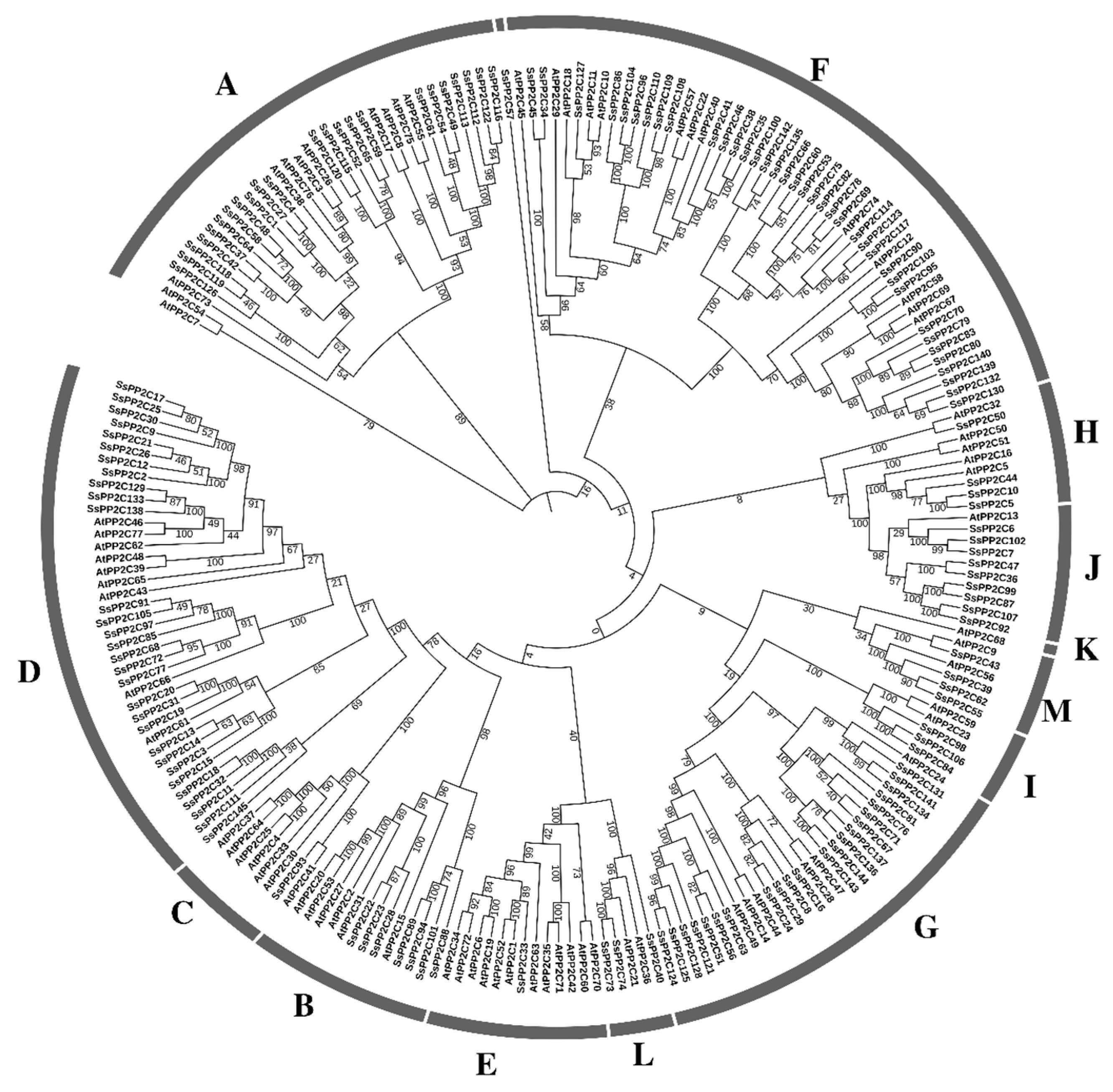

Figure 1. Phylogenetic analysis of PP2C proteins among wild sugarcane and Arabidopsis.
Figure 1. Phylogenetic analysis of PP2C proteins among wild sugarcane and Arabidopsis.
Plants 12 02418 g001
Plants 12 02418 g002 550

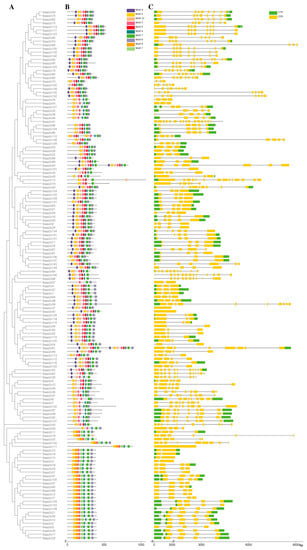

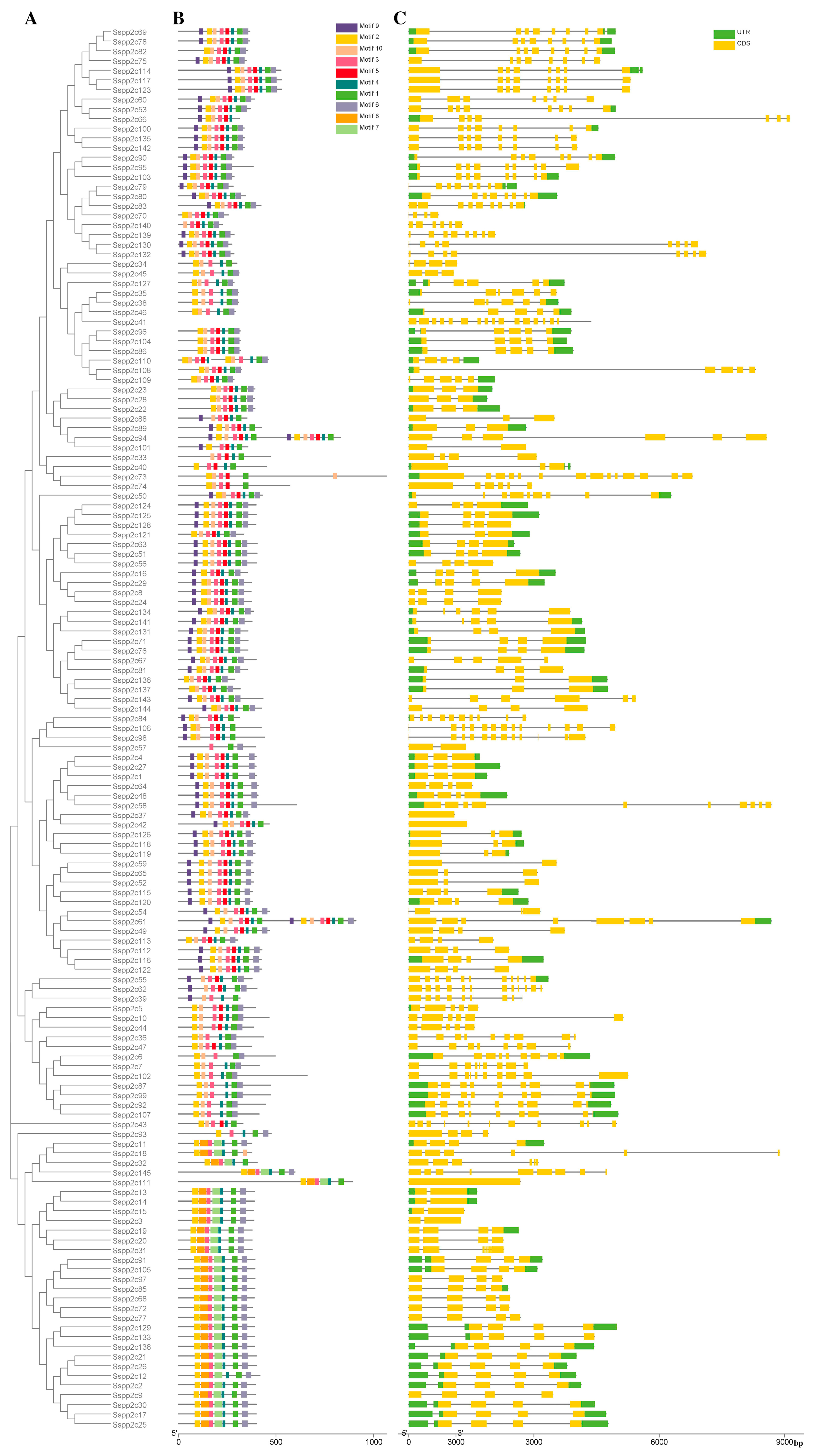

Figure 2. Analysis of gene structure and protein conserved motif of Sspp2Cs: (A) phylogenetic tree of SsPP2Cs; (B) gene structure; (C) conserved motifs.
Figure 2. Analysis of gene structure and protein conserved motif of Sspp2Cs: (A) phylogenetic tree of SsPP2Cs; (B) gene structure; (C) conserved motifs.
Plants 12 02418 g002
Plants 12 02418 g003 550

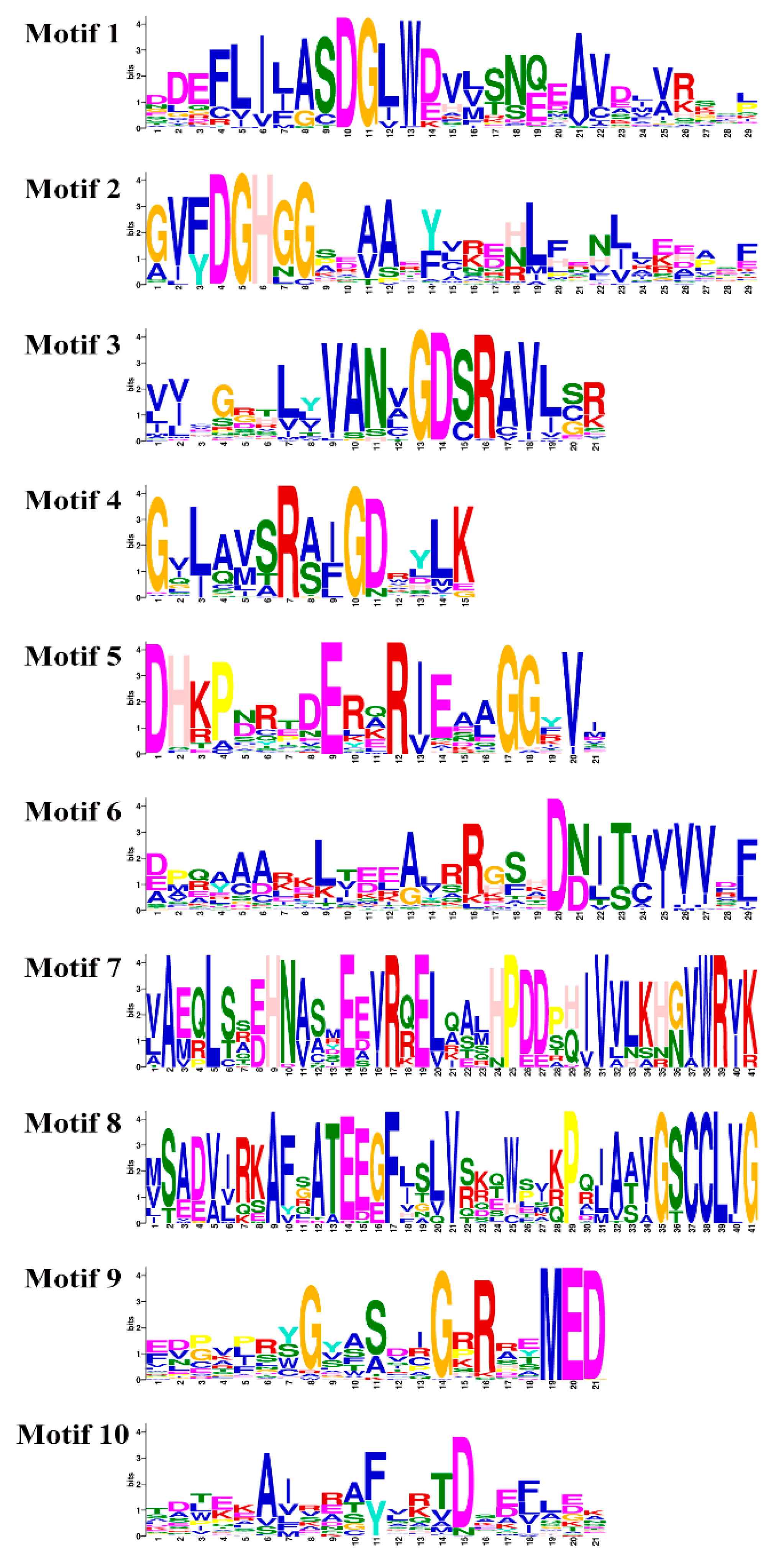

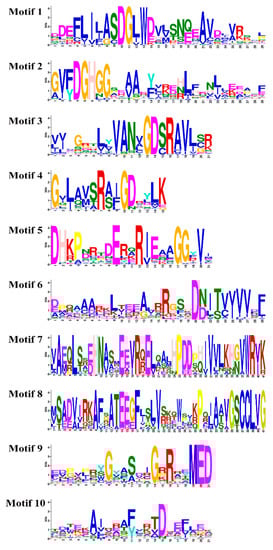

Figure 3. Conserved motif sequence of SsPP2C proteins.
Figure 3. Conserved motif sequence of SsPP2C proteins.
Plants 12 02418 g003
Plants 12 02418 g004 550

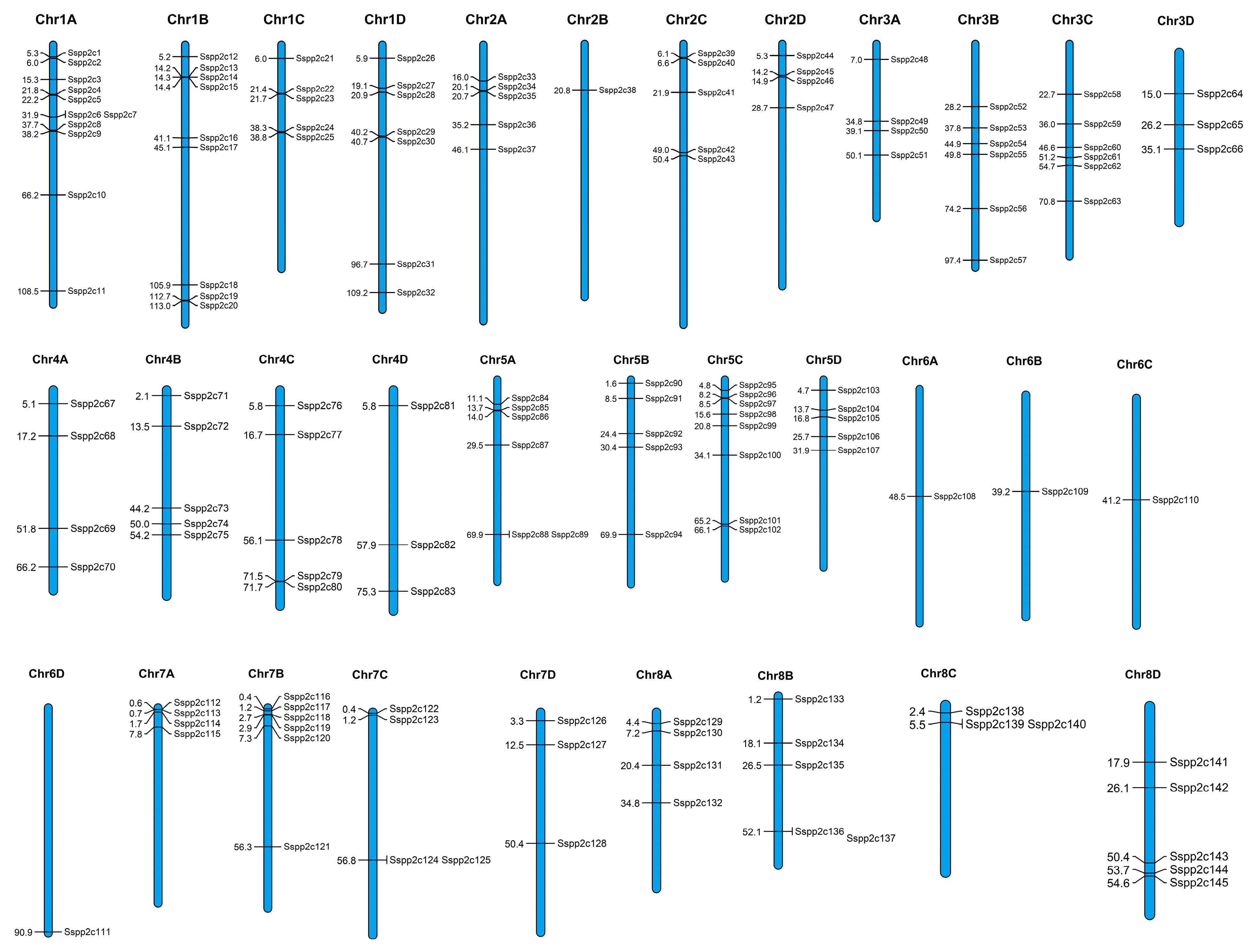

Figure 4. Chromosomal locations of SsPP2C genes.
Figure 4. Chromosomal locations of SsPP2C genes.
Plants 12 02418 g004
Plants 12 02418 g005 550

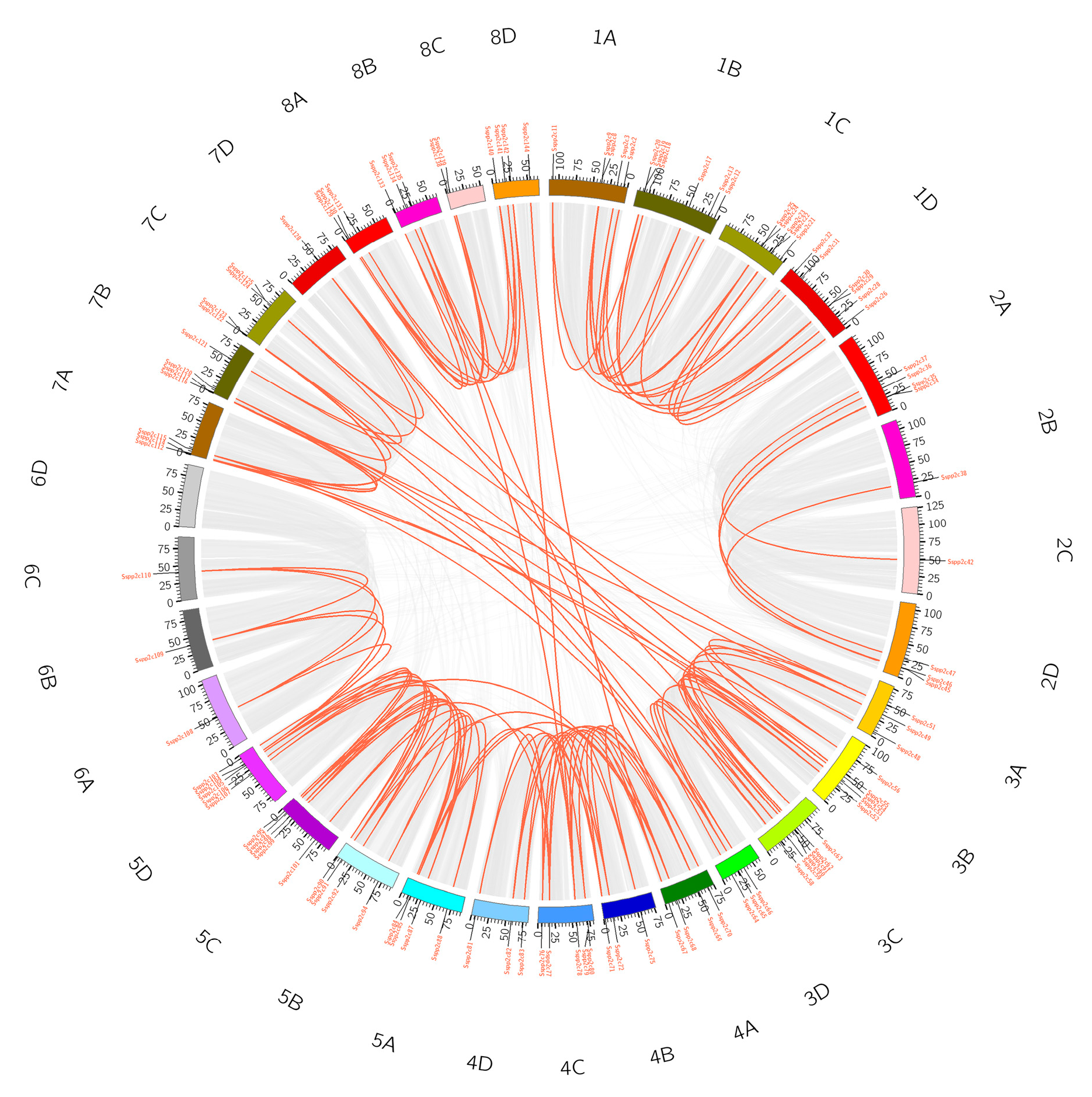

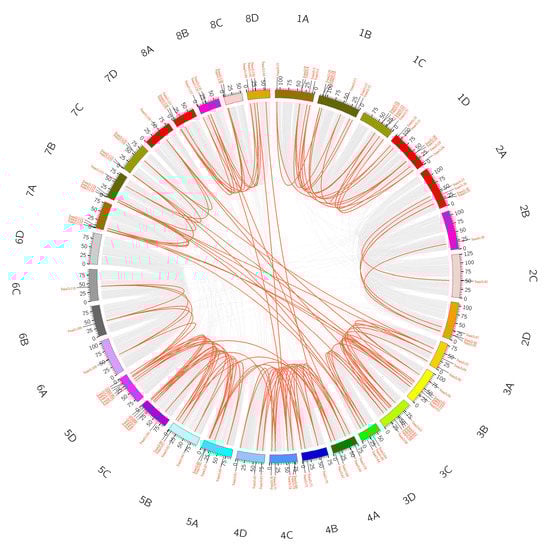

Figure 5. Duplication analysis of SsPP2C genes.
Figure 5. Duplication analysis of SsPP2C genes.
Plants 12 02418 g005
Plants 12 02418 g006 550

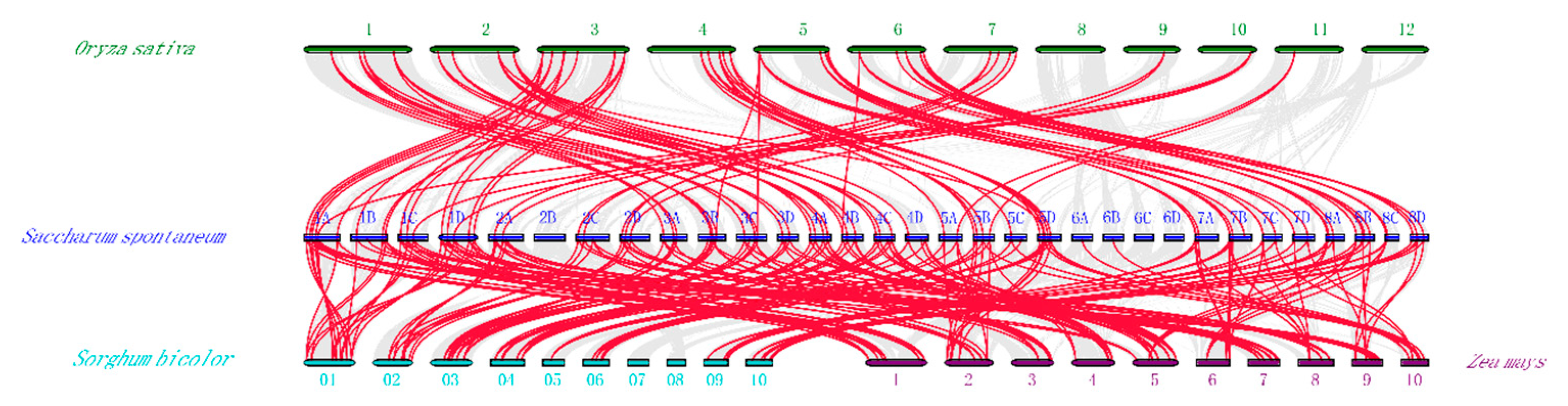

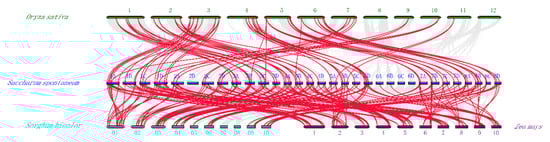

Figure 6. Synteny analysis among PP2C genes in wild surgacane and other plant species.
Figure 6. Synteny analysis among PP2C genes in wild surgacane and other plant species.
Plants 12 02418 g006
Plants 12 02418 g007 550

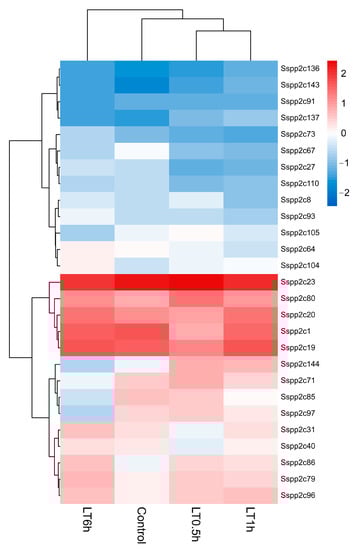

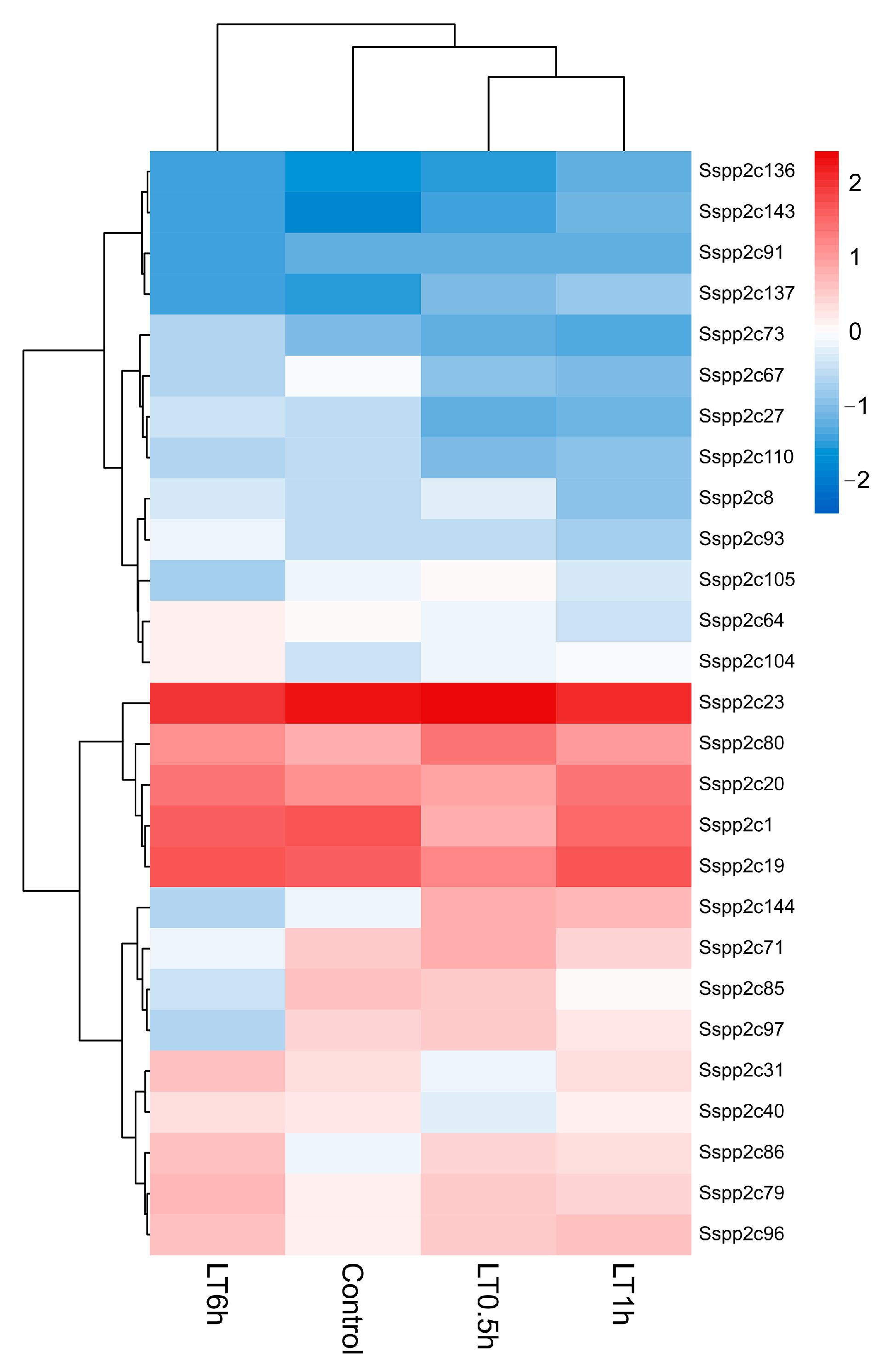

Figure 7. The heatmap of SsPP2C genes responding to low temperatures at transcription.
Figure 7. The heatmap of SsPP2C genes responding to low temperatures at transcription.
Plants 12 02418 g007
Plants 12 02418 g008 550

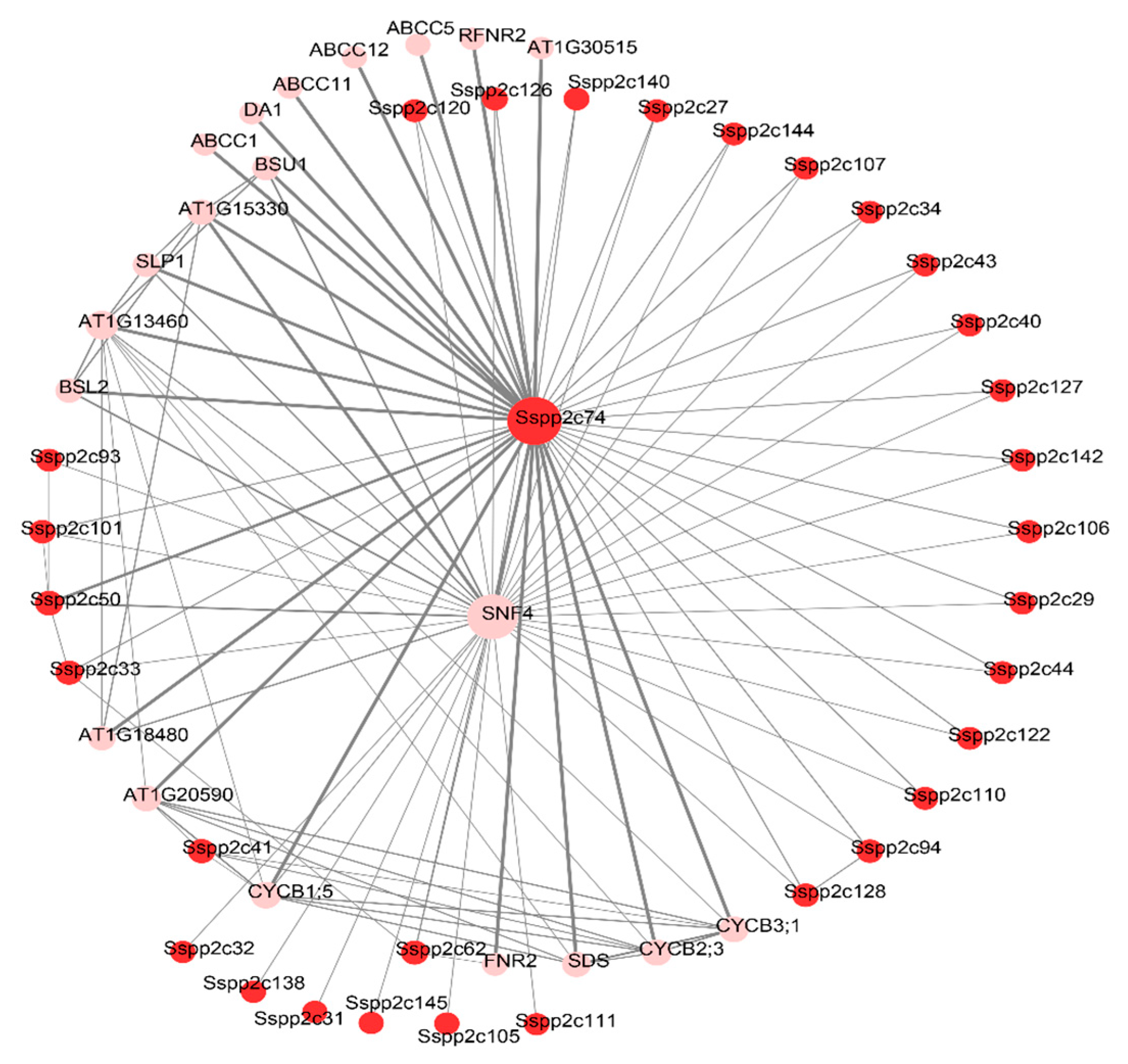

Figure 8. Protein–protein interaction analysis of all SsPP2Cs.
Figure 8. Protein–protein interaction analysis of all SsPP2Cs.
Plants 12 02418 g008
Plants 12 02418 g009 550

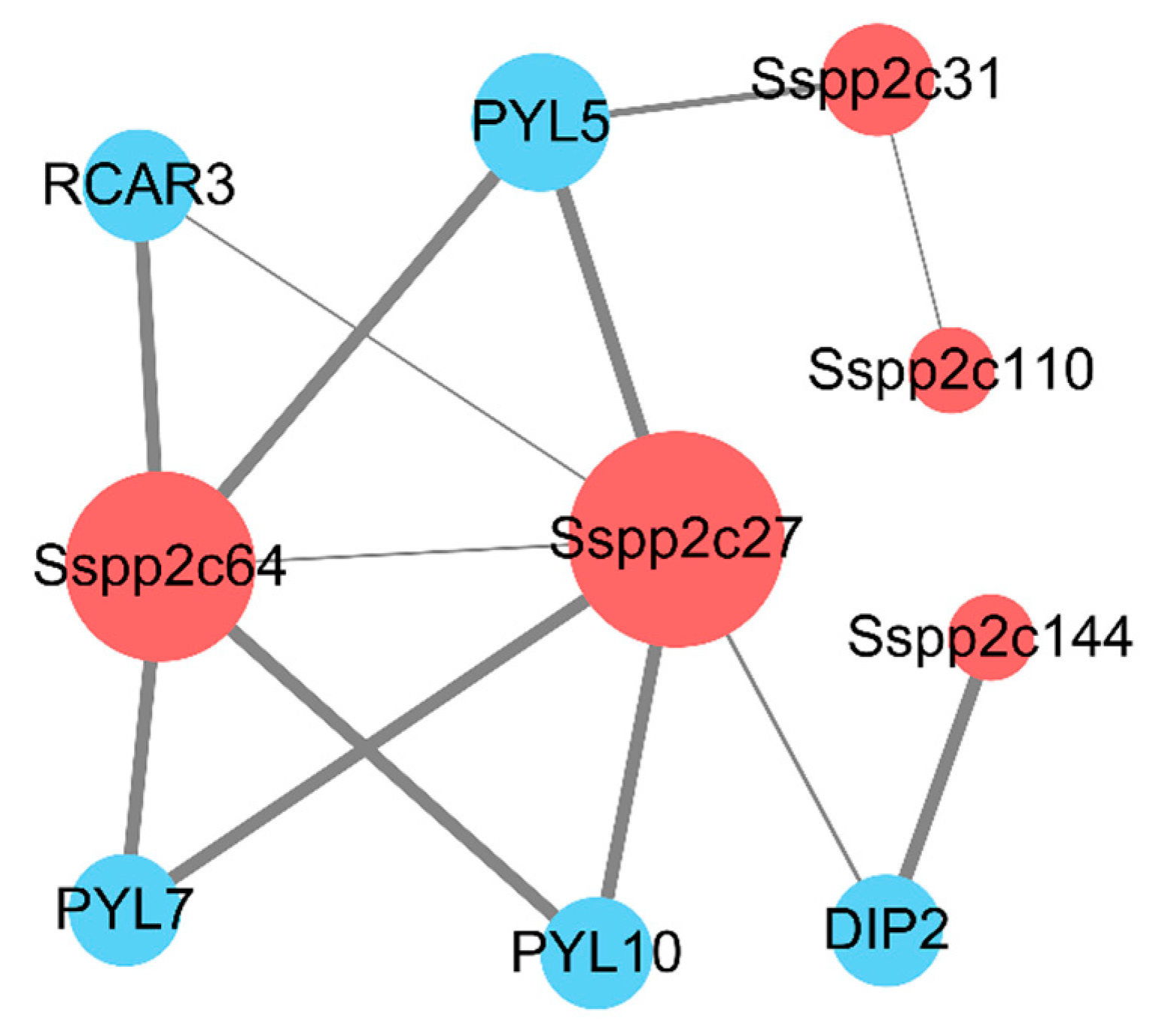

Figure 9. The protein–protein interaction analysis of SsPP2Cs responding to low temperature.
Figure 9. The protein–protein interaction analysis of SsPP2Cs responding to low temperature.
Plants 12 02418 g009
Plants 12 02418 g010 550
Figure 10. Subcellular localization of SsPP2C27, SsPP2C31, SsPP2C64, and SsPP2C110 in rice leaf protoplasts expressing green fluorescent protein (GFP). Scale bars represent 5 μm.
Figure 10. Subcellular localization of SsPP2C27, SsPP2C31, SsPP2C64, and SsPP2C110 in rice leaf protoplasts expressing green fluorescent protein (GFP). Scale bars represent 5 μm.
Plants 12 02418 g010
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Huang, X.; Liang, Y.; Zhang, R.; Zhang, B.; Song, X.; Liu, J.; Lu, M.; Qin, Z.; Li, D.; Li, S.; et al. Genome-Wide Identification of the PP2C Gene Family and Analyses with Their Expression Profiling in Response to Cold Stress in Wild Sugarcane. Plants 2023, 12, 2418. https://doi.org/10.3390/plants12132418

AMA Style

Huang X, Liang Y, Zhang R, Zhang B, Song X, Liu J, Lu M, Qin Z, Li D, Li S, et al. Genome-Wide Identification of the PP2C Gene Family and Analyses with Their Expression Profiling in Response to Cold Stress in Wild Sugarcane. Plants. 2023; 12(13):2418. https://doi.org/10.3390/plants12132418

Chicago/Turabian Style

Huang, Xing, Yongsheng Liang, Ronghua Zhang, Baoqing Zhang, Xiupeng Song, Junxian Liu, Manman Lu, Zhenqiang Qin, Dewei Li, Song Li, and et al. 2023. "Genome-Wide Identification of the PP2C Gene Family and Analyses with Their Expression Profiling in Response to Cold Stress in Wild Sugarcane" Plants 12, no. 13: 2418. https://doi.org/10.3390/plants12132418

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
