Detrimental Effects of Induced Soil Compaction on Morphological Adaptation and Physiological Plasticity of Selected Multipurpose Tree Species

by
Muhammad Asif
1,
Muhammad Farrakh Nawaz
1,2,
Irfan Ahmad
1,
Muhammad Haroon U. Rashid
1,*,
Taimoor Hassan Farooq
3,
Muhammad Kashif
4,
Sadaf Gul
5 and
Qian Li
3,6,*
1
Department of Forestry and Range Management, University of Agriculture, Faisalabad 38000, Pakistan
2
Institute of Environmental Studies, University of Karachi, Karachi 75270, Pakistan
3
Bangor College China, A Joint Unit of Bangor University and Central South University of Forestry and Technology, Changsha 410004, China
4
Department of Mathematics and Statistics, University of Agriculture, Faisalabad 38000, Pakistan
5
Department of Botany, University of Karachi, Karachi 75270, Pakistan
6
College of Forestry, Central South University of Forestry and Technology, Changsha 410004, China
*
Authors to whom correspondence should be addressed.
Plants 2023, 12(13), 2468; https://doi.org/10.3390/plants12132468
Submission received: 16 May 2023 / Revised: 13 June 2023 / Accepted: 16 June 2023 / Published: 28 June 2023
(This article belongs to the Section Plant Ecology)
Browse Figures
Versions Notes

Abstract

:
Soil compaction has become a global problem affecting soil worldwide. With an increased population, more demands for food and wood have resulted in intensive cultivation and increased mechanization of our farmlands and irrigated plantations. The use of heavy machinery results in soil compaction, which affects the entire soil ecosystem. This study was conducted to analyze the impact of compacted soil on germination and initial growth stages of four major agro-forest trees of central Punjab, Pakistan. Morpho-physiological traits of all selected species (Eucalyptus camaldulensis, Albizia lebbeck, Vachellia nilotica, and Zyziphus mauritiana) were measured against soil compaction. Results indicated that the root and shoot length, biomass, root–shoot ratio, diameter at root collar, no. of leaves and branches, leaf area, germination, and survival %, and physiological traits (i.e., photosynthetic rate, transpiration rate, stomatal conductance, internal CO2 concentration, and photosynthetic water use efficiency) were significantly affected by the induced soil compaction. Eucalyptus camaldulensis Dehnh. performed better and exhibited 96% germination percentage under (1.40 mg m−3) compaction level and gradually decreased by 11% with the increase of compaction level (1.80 mg m−3). It shows that the shorter roots developed due to soil compaction decreased water use efficiency, photosynthesis, and whole-plant physiological performance. The findings concluded that judicious use of machinery is highly desired for sustainable and good-quality wood production from farm trees.

1. Introduction

Agriculture is the basis of the economy for many developing nations like Pakistan. The diverse climatic conditions of Pakistan are not only suitable for agriculture but also conducive for forestry and agro-forestry [1]. Soil is one of the most important factors as far as agriculture and forestry are concerned. Soil quality plays a critical role in the progress and survival of societies in a specific region [2]. It provides the necessities of life and other valuable products to human beings [3]. To handle universal issues like food shortage, environmental and climatic instability, and energy and water crisis, the sustainable use of soil is essential. However, intensive cultivation has increased the mechanization of our farmlands and irrigated plantations [4]. This increased use of machinery for different operations in agriculture and forestry has resulted in soil compaction [5,6]. The use of heavy machinery in forest operations has several advantages, including increased productivity and efficiency [6]. On the other hand, the major problem is the compaction of soil, i.e., a rise in soil parts per unit of volume [7,8]. Compaction of soil is the process by which soil bulk density is increased, and soil particles/grains become compacted, resulting in closer interaction with each other and reduced porosity and volume resulting in limited root penetration, poor soil infiltration, and drainage [9,10].
The compaction of soil has become a global issue. Soil compaction changes the physical soil structure, affecting the chemical properties of soil, soil microorganisms, plant growth, and its development [11,12]. Nowadays, forestry operations in all developed countries are carried out by using vehicular machines. This vehicular intervention causes soil compaction and affects physical and chemical soil quality in the arable operation [8]. The systematization of farms and forest areas has become a crucial community need. This includes intensive cropping patterns that directly or indirectly affect soil structure and ultimately result in soil degradation [13,14]. An area of about 32 million hectares in Europe, 17 million hectares in Africa, 10 million hectares in Asia, 4 million hectares in Australia, and a few parts of Northern America has been estimated as affected by soil compaction [11,15].
Many studies have been conducted to study soil compaction-tolerant crop plants, but studies reporting soil compaction tolerance of trees are scarce [16]. Most reviews investigated the undesirable impacts of compaction on crops and grazing areas [5]. Similar impacts were found in the woodlands of pine species that were subjected to heavy vehicular traffic during felling and other silvicultural operations [17]. Generally, soil compaction adversely affects seedling emergencies [9], limits shoot development, and stunts root growth [6]. Soil compaction negatively affects soil surface quality, and rare cases have been reported where the slight removal of the upper layer of compacted soil was advantageous for coarse particle soils [18]. It is also worth mentioning that the major needs for industrial wood (72%) and fuelwood (90%) in Pakistan are fulfilled by the wood coming from farmlands [19]. So, in the future, the proposed increased use of machinery for cultivation in Pakistan can drastically affect trees growing on farmlands.
Agro-forestry systems based on Eucalyptus camaldulensis, Albizia lebbeck, Vachellia nilotica, and Zyziphus mauritiana are sustainable alternative land-use systems for improving soil structure and obtaining biological development on a sustained basis in irrigated agricultural systems [20,21]. These tree species are most suitable for reforestation of marginal lands and agro-forestry systems [21]. The agro-forestry industry in Pakistan offers several advantages for rural populations, including forest timber, fuelwood, fodder, food, and incomes, significantly impacting the daily lives of rural communities [21,22].
Considering these conditions around the globe, it is worth mentioning that no appreciable research has been conducted to examine the impact of soil compaction on the growth of native agro-forest trees. Keeping in view the severity of the soil compaction problem in agro-forestry systems, the current research was enacted to investigate the negative impacts of soil compaction on different morpho-physiological traits and the ameliorative effect of agro-forest trees including E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana during their initial stages of growth against the soil compaction problem. For this research, these agro-forest tree species were selected because of their multiple uses, high timber worth, importance for fodder production, firewood purpose, and value for soil conservation so that they can be successfully grown in diverse areas with different soil textures.

2. Material and Methods

2.1. Site Description

A controlled condition trial was conducted in the Department of Forestry and Range Management Research Area. In this study, the impact of soil compaction was assessed on a bed nursery where four selected farm tree species (E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana) were raised (seeds) (Figure 1). The selected site was situated at 73.077° Longitude and 31.443° Latitude. Complete soil analysis was conducted for five randomly collected soil samples from the nursery at two depths (Table 1 and Table 2). The average minimum and maximum temperatures of January were 4.1 °C and 19.4 °C in the arid and semi-arid regions of Faisalabad. The mean annual rainfall is up to 375 mm. Rainfall is season-specific, and approximately half of the total rainfall occurs in July and August during the monsoon. Climatic data during the study period were collected from a nearby meteorological station at the University of Agriculture, Faisalabad, Pakistan (Table 3).

2.2. Experimental Design

Nursery soil was loamy, having dry bulk densities around 1.3 ± 0.03 mg m−3 (Table 4). The experiment was conducted in earthen beds to reduce the risk of compaction variability. Five nursery beds (treatments) were prepared. The boundary was highlighted and marked using a rope, and then brick alignment was done. The soil was dragged to form sub-paths of 0.85 m wide and 3.65 m long along with the main central path, which was 3 m in width and 11.58 m in length. Sunken beds 3.65 m long and 1.82 m wide were made and lined with bricks. After removing stubbles and weeding, all the paths and beds were leveled. A manual soil compactor having 10 kg of weight from a 0.25 m height was continuously dropped and lifted to adjust the compaction levels of the prepared beds. A cone penetrometer fitted with a 25 mm diameter was used to check the compaction level quickly, in which the dial gauge provides a clear readout of penetration [23]. Then, the final bulk densities were measured for each bed (Table 4).

2.3. Plant Sowing and Harvesting

Seeds of four selected agro-forest tree species were sown in prepared beds. Five levels of compaction were taken, i.e., T1 (1.30 BD) mg m−3, T2 (1.40 BD) mg m−3, T3 (1.55 BD) mg m−3, T4 (1.65 BD) mg m−3, and T5 (1.80 BD) mg m−3 as given in (Figure 1). Sixty seeds were used per species per bed under one treatment. However, six replications were used within each bed to achieve the desired numbers. Different cultural practices (weeding, cleaning, irrigation, etc.) were carried out as required. Before sowing seeds, flood irrigation and then sprinkling were applied until germination. After complete germination, light flood irrigation was carried out again. Data regarding the following parameters were recorded regularly.

2.4. Morphological Parameters Used in the Study

Plants were harvested (20 plants/specie/treatment), and root length, shoot length, diameter at root collar, root-fresh weight, root-dry weight, shoot-fresh weight, shoot-dry weight, root–shoot ratio, germination percentage, survival percentage, no. of leaves, no. of branches, and leaf area were measured. Immediately after harvest (after about 7–8 months), the plants, root, and shoot length were measured with measuring tape, while the vernier caliper was used to determine the diameter of the root collar. After measuring root and shoot fresh weight, plant samples were put into the oven (DGH-9202 series thermal electric thermostat drying oven) at 75 °C for 24 h for the drying process, then the biomass of root and shoot samples was weighed with an electrical balance (electronic scale JJ3000B, Shanghai Shenguang Instrument Co.,Ltd, Shanghai, China). Germination and survival percentage was recorded regularly. Leaf area was measured using a leaf area meter (YAXIN-1241/CI-20-CID).

2.5. Physiological Parameters Used in the Study

Net photosynthetic rate, transpiration rate, stomatal conductance, internal carbon dioxide concentration, and photosynthetic water use efficiency were determined using the IRGA, LCA-4, Analytical Development Company, Hoddesdon, England [24,25,26].

2.6. Statistical Analysis

Analysis of variance (two factorial under RCBD) for the effect of species, treatments, and interaction between them was carried out on different morphophysiological traits and biomass distribution. All statistical analyses were performed using the SPSS Statistical Package (SPSS 17.0, SPSS Ins., Chicago, IL, USA). Results were statistically analyzed using a p < 0.05 significance level. Graph Pad Prism 9 software was used to make graphs.

3. Results

3.1. Root Length and Shoot Length

A significant difference was observed in root length (RL) against different soil compaction levels (p < 0.01). The interaction between species and treatment observed significant (p < 0.01) variations. In E. camaldulensis, Z. mauritiana, V. nilotica, and A. lebbeck, maximum RL 19.33 ± 0.88, 11.83 ± 0.16, 11.33 ± 0.33, and 10.67 ± 0.33 cm was observed in T1 treatment while T5 treatment observed lower RL in all species (Figure 2a). Shoot length (SL) varied significantly (p < 0.01) in all species; meanwhile, there were significant differences found in the interaction between species and treatments (p < 0.01). SL observed was greater in E. camaldulensis 38.66 ± 0.33 cm while Z. mauritiana 18.33 ± 0.33 cm produced shorter stems under T1 treatment than E. camaldulensis. Overall, E. camaldulensis exhibited higher RL and SL compared to other species except for T4 and T5. Plant morphological growth decreased as the compaction levels increased (Figure 2b).

3.2. Diameter at the Root Collar

In terms of diameter at root collar (DRC), all species were found to vary significantly (p < 0.01) in response to different soil compaction levels, and the interaction between species and treatment was also significant (p < 0.01). DRC was revealed in all species with the trend of E. camaldulensis > A. lebbeck > V. nilotica > Z. mauritiana under similar compaction levels except T4 and T5. Results demonstrated that DRC increased as the compaction level decreased in all species (Figure 2c).

3.3. Biomass Distribution

Root and shoot (fresh and dry weight) were significantly different in all species, while the interaction between species and treatment also revealed significant (p < 0.01) in response to different compaction levels. E. camaldulensis observed greater root biomass (T1, T2, and T3), whereas Z. mauritiana exhibited lower biomass under different compaction levels. In terms of shoot biomass, the same trend was found in root biomass. Consequently, the root and shoot biomass of all species decreased as the compaction level increased. In terms of root–shoot ratio, E. camaldulensis was found to be greater than other species. The root–shoot ratio was analyzed directly proportional to compaction levels except for V. nilotica and Z. mauritiana (Figure 3). However, the interaction between species and treatment showed significant behavior (p = 0.001).

3.4. Plant Organs Distribution

According to the statistical analysis, the growth of different plant organs (leaves, branches, leaf area) was observed to be significant (p < 0.01) in all species. In contrast, the interaction between species and treatment revealed significance in leaves (p = 0.05), branches (p < 0.01), and leaf area (p < 0.01) in response to soil compaction. Results concluded that Z. mauritiana recorded a maximum no. of leaves, while the larger leaf area and higher no. of branches were observed in E. camaldulensis under treatment (T1) compared to other species. All plant organs found a decline in growth in response to high compaction levels (T5), as shown in (Table 5).

3.5. Physiological Plant Trait

Net photosynthetic rate, transpiration rate, stomatal conductance, internal CO2 concentration, and photosynthetic water use efficiency varied significantly (p < 0.01) in all species, whereas the interaction between species and treatments was observed to be significant (p = 0.01). E. camaldulensis indicated a maximum photosynthetic rate of 6.92 ± 0.27 µmol CO2 m−2S−1. Consequently, the transpiration rate was higher in A. lebbeck 7.7 ± 0.11 mmol H2O m−2S−1. E. camaldulensis showed higher stomatal conductance of 1.32 ± 0.01 mol m−2S−1, an internal CO2 concentration of 13.6 ± 0.11 µmol m−2S−1, and photosynthetic WUE of 5.6 ± 0.05% was recorded under lower compaction. However, a decline in physiological traits was found under (T5) treatment (high compaction) in all species (Figure 4).

3.6. Germination Rate and Survival Percentage

It was observed that the response of the germination rate of all species was significant, and the interaction between species and treatment was also significantly varied (p < 0.01) in all treatments. Maximum germination of 96% was observed in E. camaldulensis under (T2) treatment, while 93% in A. lebbeck, 81.67% in V. nilotica, and 40.67% in Z. mauritiana in response to T1 treatment. The minimum germination rate of all species was found in (T5) treatment (Figure 5). All species’ response of survival percentage was significantly different in different imposed treatments. A. lebbeck found a greater survival percentage of 97% when treatment (T1) was applied to the growing media (Figure 5).

4. Discussion

The current study assessed the growth response of four major agro-forest species (E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana) against soil compaction. The growth of selected species was strongly affected by increasing soil compaction level, which supported the concept that increasing bulk density decreases all measured morpho-physiological traits of the seedlings. Increasing soil bulk density particularly influences root development [12,27]. Penetration of roots improves pore continuity, lowers bulk density, and enhances soil aeration, whereas biological waste provides minerals that will improve soil fertility [28,29].
E. camaldulensis was the better-ranked species that exhibited maximum root and shoot growth (at < 1.65 mg m−3), whereas Z. mauritiana showed minimum growth under all applied compaction levels (Figure 2). Increased soil resistance can enhance plant stress by reducing growth performance (plant biomass, root and shoot length, and diameter) (Figure 2 and Figure 3) and boosting seedling mortality [30,31,32,33]. Roots in compacted soils can be thicker and shorter, although, in good conditions, they can grow largely in width to maintain overground development and have the potential to tolerate increased penetration resistance [34,35]. Compaction can influence primary root growth immediately after germination [10].
Root and shoot biomass growth response of all species was revealed better against control treatment, which worsened with the increased level of soil compaction [6,36,37]. As shown in Figure 3, E. camaldulensis indicated greater root and shoot biomass under no compaction (1.30 mg m−3) or light compaction (1.55 mg m−3). In comparison, a sudden decline was found in response to high compaction levels (1.80 mg m−3) as compared to other species [38]. Compaction can seriously damage the emergence and growth of the seedlings and can severely affect the root system of plants by reducing their competence to retrieve nutrients in the soil but had a moderate effect on shoot growth. When soils are extremely compacted, the movement of ions, oxygen, microorganisms, and water in the soil is decreased because macropores turn into micropores which strictly confine the root and shoot growth [6,10,39]. According to the studies of Alameda and Villar [40], an increase in soil strength can affect the architecture and overall biomass production of roots of woody plants due to the restricted availability of nutrients [38,41]. This ultimately results in poor leaf growth, decreased photosynthetic and transpiration rate, poor stomatal conductance, and poor water use efficiency [39,40,42].
The maximum root-to-shoot ratio was observed for E. camaldulensis in highly compacted soil (Figure 3). It was considered that the root-to-shoot ratio response to soil compaction is inappropriate to evaluate its overall impact on plant growth because it depends on soil type, water contents, and light conditions (1.55 mg m−3) [27,41]. E. camaldulensis produced a maximum leaf area and a number of branches, although a greater number of leaves were observed in Z. mauritiana, under control conditions and at a light compaction level (1.55 mg m−3) (Table 5). These results align with the findings of [37,43], who suggested that intense compaction results in poor growth of plant parts. However, E. camaldulensis showed a comparatively high germination percentage at light compaction compared to others [44].
A meta-analysis by Mariotti et al. [42] showed that higher compaction reduced the photosynthesis of the leaves. This relates to our findings; the maximum rate of photosynthesis was recorded in E. camaldulensis under control conditions, whereas reduction in photosynthesis was influenced by the high intensity of compaction level (Figure 4a). Compaction has been considered to limit the availability of water and nutrients and diminution in the leaf photosynthesis of plants [17]. Soil compaction also restricts root hydraulic conductivity, which plays a major role in water absorption. A considerable decrease in transpiration was found to accompany lower photosynthesis [45]. The current study exhibited a high transpiration rate in A. lebbek, and the decline was seen in Z. mauritiana at control conditions. However, a decline in transpiration in all species was found at a high compaction level (Figure 4b). These outcomes recommend that soil compaction shortened main roots and negatively affected plant physiology and drought stress tolerance of the seedlings. As in compacted soils, stomatal closure results in a reduction in the availability of CO2 in the mesophyll [42,46].
Moreover, excess light energy and reactive oxygen species formation (ROS) might be induced and inflict further damage to photosynthesis [33]. A decrease in chlorophyll fluorescence characteristics justified this prediction in several experiments [33,47]. In our findings, higher stomatal conductance, internal CO2 concentration, and Photosynthetic WUE were recorded in E. camaldulensis followed by the remaining species in control conditions (Figure 4c–e); however, highly compacted soil exposed a decline in mentioned physiological attributes. Different growth response (regarding morphology and physiology) of species mentioned above exactly matches with the findings of [39], which stated that different plant species have different tolerance level against soil compaction-compacted agricultural lands may limit the growth and survival of only a few species and vice versa. But in developing countries (like Pakistan), resources are scarce to avoid subsoil compaction to address such issues.
The compaction of the soil can generally influence the soil ecology negatively [17]. However, soil compaction causes physical changes that may not lead to significant changes in nutrient availability to plants [48]. This may be due to greater root-to-soil contact for nutrients; however, compaction usually reduces the lengthening of the primary root for nutrient absorption [49]. The nutritional availability of plants also refers to soil microbial activity. Due to the compaction of soils, unfavorable soil conditions might alter the entire structures of the bacterial community [50,51]. Different results of the current study may be due to differences in soil texture and its ability to retain water. Loamy to clay soil was used that can become compacted easily [31,52], which may have resulted in oxygen-deficit soil with low moisture contents and porosity. Since the overall porosity of the soil decreases as a result of soil compaction, the water penetration rate in the soil may be used to determine soil compaction [53]. Water penetration is weaker in extremely compacted soil than in uncompacted soil in the same soil type [54]. Moreover, moderate compaction of coarse-textured soil generally improves root contact with soil, which helps in better nutrient absorption [6,55].

5. Conclusions

This study measured the extent to which the morphological and physiological attributes of the agro-forestry tree species decreased after manually induced soil compaction and expressed a rise in bulk density. For evaluating compaction, soil bulk densities were used as an index. It was concluded that soil compaction has a generally detrimental influence on growth. It can be managed by improving the accumulation of organic matter and mechanization to enhance plant growth. In the future, this issue can be re-addressed in areas with serious vehicular traffic on other soil types.

Author Contributions

Conceptualization: M.A. and M.F.N.; methodology: I.A. and M.H.U.R.; validation: M.H.U.R.; formal analysis: M.H.U.R. and M.F.N.; investigation: T.H.F. and S.G.; data curation: M.K.; writing—original draft preparation: M.H.U.R.; writing—review and editing: M.F.N., I.A., Q.L., and T.H.F.; visualization: M.H.U.R. and S.G.; supervision: M.F.N. and M.A.; funding acquisition: M.F.N. and Q.L. All authors have read and agreed to the published version of the manuscript.

Funding

The study was funded by the Science and Technology Innovation Project of Hunan Provincial Forestry and Grassland Bureau (XLK201985), the Silviculture Theories and Technology Teaching Project of Central South University of Forestry and Technology (18190004), and the Talents Acquisition Project of Central South University of Forestry and Technology (11180248).

Data Availability Statement

Data can be provided by formal request to corresponding author (MHUR).

Acknowledgments

This research was also financially supported by the International Foundation for Science (IFS), Agreement No. D/5279-1. We would like to thank the support of the nursery staff of the Department of Forestry and Range Management, University of Agriculture Faisalabad.

Conflicts of Interest

The authors declare that no conflict of interest exist.

Abbreviations

Eucalyptus camaldulensisE. camaldulensis
Albizia lebbeckA. lebbeck
Vachellia niloticaV. nilotica
Zyziphus mauritianaZ. mauritiana
Bulk DensityBD
Root lengthRL
Shoot lengthSL
Diameter at root collarDRC
Photosynthetic Water Use EfficiencyPhotosynthetic WUE

References

  1. Saqib, M.; Akhtar, J.; Abbas, G.; Murtaza, G. Enhancing food security and climate change resilience in degraded land areas by resilient crops and agroforestry. In Climate Change-Resilient Agriculture and Agroforestry; Springer: Berlin/Heidelberg, Germany, 2019; pp. 283–297. [Google Scholar]
  2. Muñoz-Rojas, M.; Erickson, T.E.; Dixon, K.W.; Merritt, D.J. Soil quality indicators to assess functionality of re-stored soils in degraded semiarid ecosystems. Restor. Ecol. 2016, 24, S43–S52. [Google Scholar] [CrossRef]
  3. Díaz, S.; Demissew, S.; Carabias, J.; Joly, C.; Lonsdale, M.; Ash, N.; Larigauderie, A.; Adhikari, J.R.; Arico, S.; Báldi, A.; et al. The IPBES Conceptual Framework—Connecting nature and people. Curr. Opin. Environ. Sustain. 2015, 14, 1–16. [Google Scholar] [CrossRef] [Green Version]
  4. Morgado, R.; Ribeiro, P.F.; Santos, J.L.; Rego, F.; Beja, P.; Moreira, F. Drivers of irrigated olive grove expansion in Mediterranean landscapes and associated biodiversity impacts. Landsc. Urban Plan. 2022, 225, 104429. [Google Scholar] [CrossRef]
  5. Ferrara, C.; Barone, P.M.; Salvati, L. Towards a socioeconomic profile for areas vulnerable to soil compaction? A case study in a Mediterranean country. Geoderma 2015, 247, 97–107. [Google Scholar] [CrossRef]
  6. Ahmad, I.; Gilani, M.; Wu, P. Cuttings growth response of Dalbergia sissoo (shisham) to soil compaction stress. Appl. Ecol. Environ. Res. 2019, 17, 1049–1059. [Google Scholar] [CrossRef]
  7. Arman, Z.; Nikooy, M.; Tsioras, P.A.; Heidari, M.; Majnounian, B. Physiological workload evaluation by means of heart rate monitoring during motor-manual clearcutting operations. Int. J. For. Eng. 2021, 32, 91–102. [Google Scholar] [CrossRef]
  8. Cambi, M.; Certini, G.; Neri, F.; Marchi, E. The impact of heavy traffic on forest soils: A review. For. Ecol. Manag. 2015, 338, 124–138. [Google Scholar] [CrossRef]
  9. Jourgholami, M.; Majnounian, B.; Abari, M.E. Effects of tree-length timber skidding on soil compaction in the skid trail in Hyrcanian forest. For. Syst. 2014, 23, 288. [Google Scholar] [CrossRef] [Green Version]
  10. Kormanek, M.; Głąb, T.; Banach, J.; Szewczyk, G. Effects of soil bulk density on sessile oak Quercus petraea Liebl. seedlings. Eur. J. For. Res. 2015, 134, 969–979. [Google Scholar] [CrossRef] [Green Version]
  11. Nawaz, M.F.; Bourrie, G.; Trolard, F. Soil compaction impact and modelling. A review. Agron. Sustain. Dev. 2013, 33, 291–309. [Google Scholar] [CrossRef] [Green Version]
  12. de Moraes, M.T.; Debiasi, H.; Franchini, J.C.; Mastroberti, A.A.; Levien, R.; Leitner, D.; Schnepf, A. Soil compaction impacts soybean root growth in an Oxisol from subtropical Brazil. Soil Tillage Res. 2020, 200, 104611. [Google Scholar] [CrossRef]
  13. Martins, P.C.; Dias Junior, M.D.; Ajayi, A.E.; Takahashi, E.N.; Tassinari, D. Soil compaction during harvest operations in five tropical soils with different textures under eucalyptus forests. Ciência e Agrotecnologia 2018, 42, 58–68. [Google Scholar] [CrossRef] [Green Version]
  14. Ampoorter, E.; De Schrijver, A.; Van Nevel, L.; Hermy, M.; Verheyen, K. Impact of mechanized harvesting on compaction of sandy and clayey forest soils: Results of a meta-analysis. Ann. For. Sci. 2012, 69, 533–542. [Google Scholar] [CrossRef] [Green Version]
  15. Ogilvie, C.M.; Ashiq, W.; Vasava, H.B.; Biswas, A. Quantifying root-soil interactions in cover crop systems: A review. Agriculture 2021, 11, 218. [Google Scholar] [CrossRef]
  16. Donovan, M.; Monaghan, R. Impacts of grazing on ground cover, soil physical properties and soil loss via surface erosion: A novel geospatial modelling approach. J. Environ. Manag. 2021, 287, 112206. [Google Scholar] [CrossRef]
  17. Somerville, P.D.; May, P.B.; Livesley, S.J. Effects of deep tillage and municipal green waste compost amendments on soil properties and tree growth in compacted urban soils. J. Environ. Manag. 2018, 227, 365–374. [Google Scholar] [CrossRef]
  18. Li, B.; Wu, S.; Zhou, S.; Wang, T.; Chen, H. Quantifying and mapping threats to soil biodiversity in Nanjing, China. Eur. J. Soil Biol. 2017, 82, 72–80. [Google Scholar] [CrossRef]
  19. Baig, M.B.; Burgess, P.J.; Fike, J.H. Agroforestry for healthy ecosystems: Constraints, improvement strategies and extension in Pakistan. Agrofor. Syst. 2021, 95, 995–1013. [Google Scholar] [CrossRef]
  20. Yasin, G.; Nawaz, M.F.; Yousaf, M.T.B.; Gul, S.; Qadir, I.; Niazi, N.K.; Sabir, M.A. Carbon stock and CO2 sequestration rate in linearly planted Vachellia nilotica farm trees. Pak. J. Agric. Sci. 2020, 57, 807–814. [Google Scholar]
  21. Ullah, A.; Zeb, A.; Saqib, S.E.; Kächele, H. Landscape co-management and livelihood sustainability: Lessons learned from the billion trees afforestation project in Pakistan. Land Use Policy 2022, 115, 106034. [Google Scholar] [CrossRef]
  22. Farooq, T.; Gautam, N.; Rashid, M.; Gilani, M.; Nemin, W.; Nawaz, M.; Islam, W.; Zainab, M.; Wu, P. Contributions of agroforestry on socioeconomic conditions of farmers in central Punjab, Pakistan—A case study. Cercet. Agron. Mold. 2018, 2, 91–101. [Google Scholar] [CrossRef]
  23. ASAE S313.3; Soil Cone Penetrometer. American Society of Agricultural and Biological Engineers (ASABE): St Joseph, MI, USA, 2011.
  24. Rahneshan, Z.; Nasibi, F.; Moghadam, A.A. Effects of salinity stress on some growth, physiological, biochemical parameters and nutrients in two pistachio (Pistacia vera L.) rootstocks. J. Plant Interact. 2018, 13, 73–82. [Google Scholar] [CrossRef] [Green Version]
  25. Rizwan, M.; Ali, S.; Abbas, T.; Adrees, M.; Zia-Ur-Rehman, M.; Ibrahim, M.; Abbas, F.; Qayyum, M.F.; Nawaz, R. Residual effects of biochar on growth, photosynthesis and cadmium uptake in rice (Oryza sativa L.) under Cd stress with different water conditions. J. Environ. Manag. 2018, 206, 676–683. [Google Scholar] [CrossRef] [PubMed]
  26. Mejía-de Tafur, M.S.; Riaño-Herrera, N.M.; Urrego-Mesa, J.B.; Ibarra-Espinosa, D.M.; Zapata-Duque, C.M. Effect of soil water availability on gas exchange in young trees of Eucalyptus grandis W. Hill ex Maiden. Acta Agron. 2017, 66, 549–557. [Google Scholar] [CrossRef]
  27. Jourgholami, M. Effects of soil compaction on growth variables in Cappadocian maple (Acer cappadocicum) seedlings. J. For. Res. 2018, 29, 601–610. [Google Scholar] [CrossRef]
  28. Erb, K.H.; Kastner, T.; Plutzar, C.; Bais, A.L.; Carvalhais, N.; Fetzel, T.; Gingrich, S.; Haberl, H.; Lauk, C.; Niedertscheider, M.; et al. Unexpectedly large impact of forest management and grazing on global vegetation biomass. Nature 2018, 553, 73–76. [Google Scholar] [CrossRef]
  29. Bodner, G.; Mentler, A.; Keiblinger, K. Plant Roots for Sustainable Soil Structure Management in Cropping Systems. In The Root Systems in Sustainable Agricultural Intensification; John Wiley & Sons: Hoboken, NJ, USA, 2021; pp. 45–90. [Google Scholar]
  30. Magagnotti, N.; Spinelli, R.; Güldner, O.; Erler, J. Site impact after motor-manual and mechanised thinning in Mediterranean pine plantations. Biosyst. Eng. 2012, 113, 140–147. [Google Scholar] [CrossRef]
  31. Hartmann, M.; Niklaus, P.A.; Zimmermann, S.; Schmutz, S.; Kremer, J.; Abarenkov, K.; Lüscher, P.; Widmer, F.; Frey, B. Resistance and resilience of the forest soil microbiome to logging-associated compaction. ISME J. 2014, 8, 226–244. [Google Scholar] [CrossRef]
  32. Marchi, E.; Picchio, R.; Mederski, P.S.; Vusić, D.; Perugini, M.; Venanzi, R. Impact of silvicultural treatment and forest operation on soil and regeneration in Mediterranean Turkey oak (Quercus cerris L.) coppice with standards. Ecol. Eng. 2016, 95, 475–484. [Google Scholar] [CrossRef]
  33. Cambi, M.; Hoshika, Y.; Mariotti, B.; Paoletti, E.; Picchio, R.; Venanzi, R.; Marchi, E. Compaction by a forest machine affects soil quality and Quercus robur L. seedling performance in an experimental field. For. Ecol. Manag. 2017, 384, 406–414. [Google Scholar] [CrossRef]
  34. Nadezhdina, N.; Prax, A.; Čermák, J.; Nadezhdin, V.; Ulrich, R.; Neruda, J.; Schlaghamersky, A. Spruce roots under heavy machinery loading in two different soil types. For. Ecol. Manag. 2012, 282, 46–52. [Google Scholar] [CrossRef]
  35. Cambi, M.; Mariotti, B.; Fabiano, F.; Maltoni, A.; Tani, A.; Foderi, C.; Laschi, A.; Marchi, E. Early response of Quercus robur seedlings to soil compaction following germination. Land Degrad. Dev. 2018, 29, 916–925. [Google Scholar] [CrossRef]
  36. Ramalingam, P.; Kamoshita, A.; Deshmukh, V.; Yaginuma, S.; Uga, Y. Association between root growth angle and root length density of a near-isogenic line of IR64 rice with Deeper Rooting 1 under different levels of soil compaction. Plant Prod. Sci. 2017, 20, 162–175. [Google Scholar] [CrossRef] [Green Version]
  37. Asif, M.; Nawaz, M.F.; Siddiqui, M.T.; Maqsood, M. Effect of induced soil compaction on the ecomorphological traits of early stage Bombax ceiba stumps. Pak. J. Agric. Sci. 2020, 57, 815–822. [Google Scholar]
  38. Silva, S.R.; Barros, N.F.D.; Novais, R.F.D.; Comerford, N.B. Eucalyptus growth and phosphorus nutritional efficiency as affected by soil compaction and phosphorus fertilization. Commun. Soil Sci. Plant Anal. 2018, 49, 2700–2714. [Google Scholar] [CrossRef] [Green Version]
  39. Nawaz, M.F.; Bourrié, G.; Trolard, F.; Ranger, J.; Gul, S.; Niazi, N.K. Early detection of the effects of compaction in forested soils: Evidence from selective extraction techniques. J. Soils Sediments 2016, 16, 2223–2233. [Google Scholar] [CrossRef]
  40. Alameda, D.; Villar, R. Linking root traits to plant physiology and growth in Fraxinus angustifolia Vahl. seedlings under soil compaction conditions. Environ. Exp. Bot. 2012, 79, 49–57. [Google Scholar] [CrossRef]
  41. Jourgholami, M.; Khoramizadeh, A.; Zenner, E.K. Effects of soil compaction on seedling morphology, growth, and architecture of chestnut-leaved oak (Quercus castaneifolia). iForest-Biogeosci. For. 2016, 10, 145–153. [Google Scholar] [CrossRef] [Green Version]
  42. Mariotti, B.; Hoshika, Y.; Cambi, M.; Marra, E.; Feng, Z.; Paoletti, E.; Marchi, E. Vehicle-induced compaction of forest soil affects plant morphological and physiological attributes: A meta-analysis. For. Ecol. Manag. 2020, 462, 118004. [Google Scholar] [CrossRef]
  43. Tracy, S.R.; Black, C.R.; Roberts, J.A.; Sturrock, C.; Mairhofer, S.; Craigon, J.; Mooney, S.J. Quantifying the impact of soil compaction on root system architecture in tomato (Solanum lycopersicum) by X-ray micro-computed tomography. Ann. Bot. 2012, 110, 511–519. [Google Scholar] [CrossRef] [Green Version]
  44. Ampoorter, E.; De Frenne, P.; Hermy, M.; Verheyen, K. Effects of soil compaction on growth and survival of tree saplings: A meta-analysis. Basic Appl. Ecol. 2011, 12, 394–402. [Google Scholar] [CrossRef] [Green Version]
  45. Picchio, R.; Tavankar, F.; Nikooy, M.; Pignatti, G.; Venanzi, R.; Lo Monaco, A. Morphology, growth and architecture response of beech (Fagus orientalis Lipsky) and maple tree (Acer velutinum Boiss.) seedlings to soil compaction stress caused by mechanized logging operations. Forests 2019, 10, 771. [Google Scholar] [CrossRef] [Green Version]
  46. Lombardini, L.; Rossi, L. Ecophysiology of plants in dry environments. In Dryland Ecohydrology; Springer: Cham, Switzerland, 2019; pp. 71–100. [Google Scholar] [CrossRef]
  47. Philip, E.; Azlin, Y.N. Measurement of soil compaction tolerance of Lagestromia speciosa (L.) Pers. using chlorophyll fluorescence. Urban For. Urban Green. 2005, 3, 203–208. [Google Scholar] [CrossRef]
  48. Norris, C.E.; Hogg, K.E.; Maynard, D.G.; Curran, M.P. Stumping trials in British Columbia—Organic matter removal and compaction effects on tree growth from seedlings to midrotation stands. Can. J. For. Res. 2014, 44, 1402–1418. [Google Scholar] [CrossRef]
  49. De La Fuente, L.M.; Ovalle, J.F.; Arellano, E.; Ginocchio Cea, R. Use of alternative containers for promoting deep rooting of native forest species used for dryland restoration: The case of Acacia caven. iForest-Biogeosci. For. 2017, 10, 776–782. [Google Scholar] [CrossRef] [Green Version]
  50. Riggert, R.; Fleige, H.; Horn, R. An assessment scheme for soil degradation caused by forestry machinery on skid trails in Germany. Soil Sci. Soc. Am. J. 2019, 83, S1–S12. [Google Scholar] [CrossRef]
  51. Jacoby, R.; Peukert, M.; Succurro, A.; Koprivova, A.; Kopriva, S. The role of soil microorganisms in plant mineral nutrition—Current knowledge and future directions. Front. Plant Sci. 2017, 8, 1617. [Google Scholar] [CrossRef] [Green Version]
  52. Daliakopoulos, I.N.; Tsanis, I.K.; Koutroulis, A.; Kourgialas, N.N.; Varouchakis, A.E.; Karatzas, G.P.; Ritsema, C.J. The threat of soil salinity: A European scale review. Sci. Total Environ. 2016, 573, 727–739. [Google Scholar] [CrossRef]
  53. Arthur, E.; Schjønning, P.; Moldrup, P.; Tuller, M.; de Jonge, L.W. Density and permeability of a loess soil: Long-term organic matter effect and the response to compressive stress. Geoderma 2013, 193, 236–245. [Google Scholar] [CrossRef]
  54. Czarnecki, J.; Brennensthul, M.; Białczyk, W.; Ptak, W.; Gil, Ł. Analysis of traction properties and power of wheels used on various agricultural soils. Agric. Eng. 2019, 23, 13–23. [Google Scholar] [CrossRef] [Green Version]
  55. Salmond, J.A.; Tadaki, M.; Vardoulakis, S.; Arbuthnott, K.; Coutts, A.; Demuzere, M.; Dirks, K.N.; Heaviside, C.; Lim, S.; Macintyre, H.; et al. Health and climate related ecosystem services provided by street trees in the urban environment. Environ. Health 2016, 15, 95–111. [Google Scholar] [CrossRef] [PubMed] [Green Version]
Plants 12 02468 g001 550

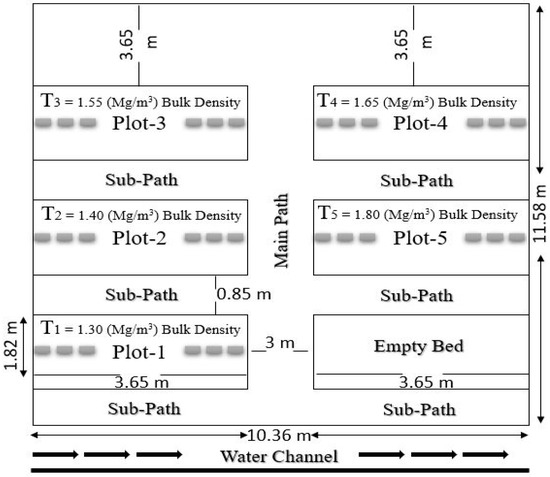

Figure 1. Nursery beds layout and dimensions for a controlled experiment.
Figure 1. Nursery beds layout and dimensions for a controlled experiment.
Plants 12 02468 g001
Plants 12 02468 g002 550

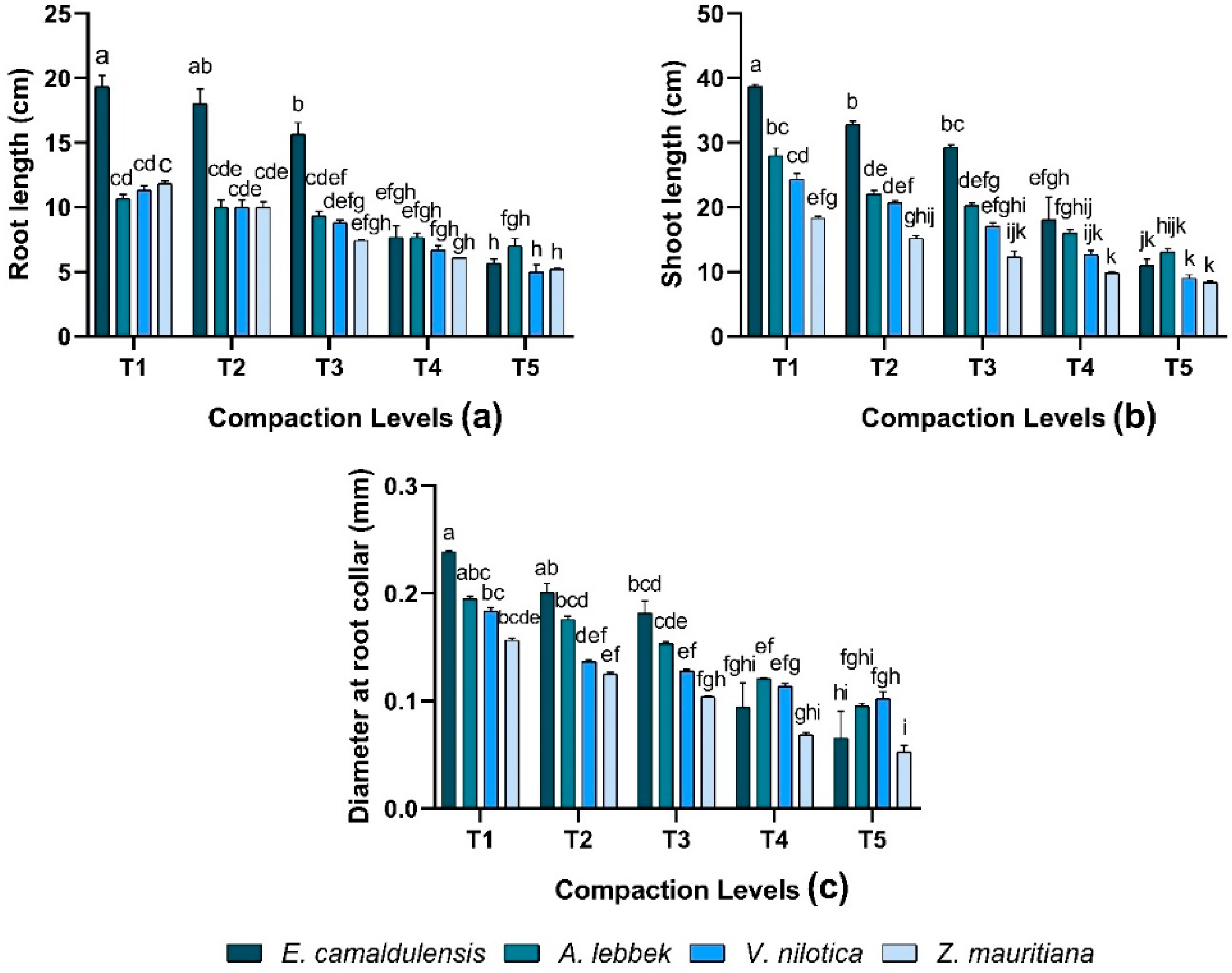

Figure 2. Effect of soil compaction on root length (cm), shoot length (cm), and diameter at root collar (mm) of different agro-forest tree species (a–c). Note: Values are mean ± SE. For root length, shoot length, and diameter at root collar, there were significant differences (p < 0.05) by the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Figure 2. Effect of soil compaction on root length (cm), shoot length (cm), and diameter at root collar (mm) of different agro-forest tree species (a–c). Note: Values are mean ± SE. For root length, shoot length, and diameter at root collar, there were significant differences (p < 0.05) by the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Plants 12 02468 g002
Plants 12 02468 g003 550

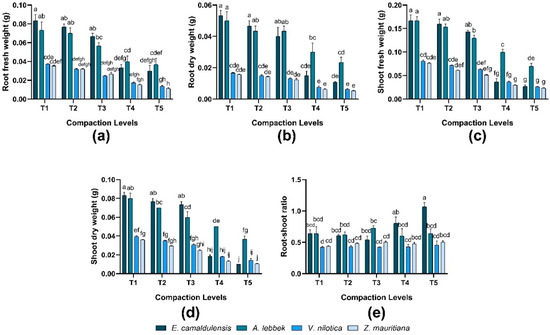

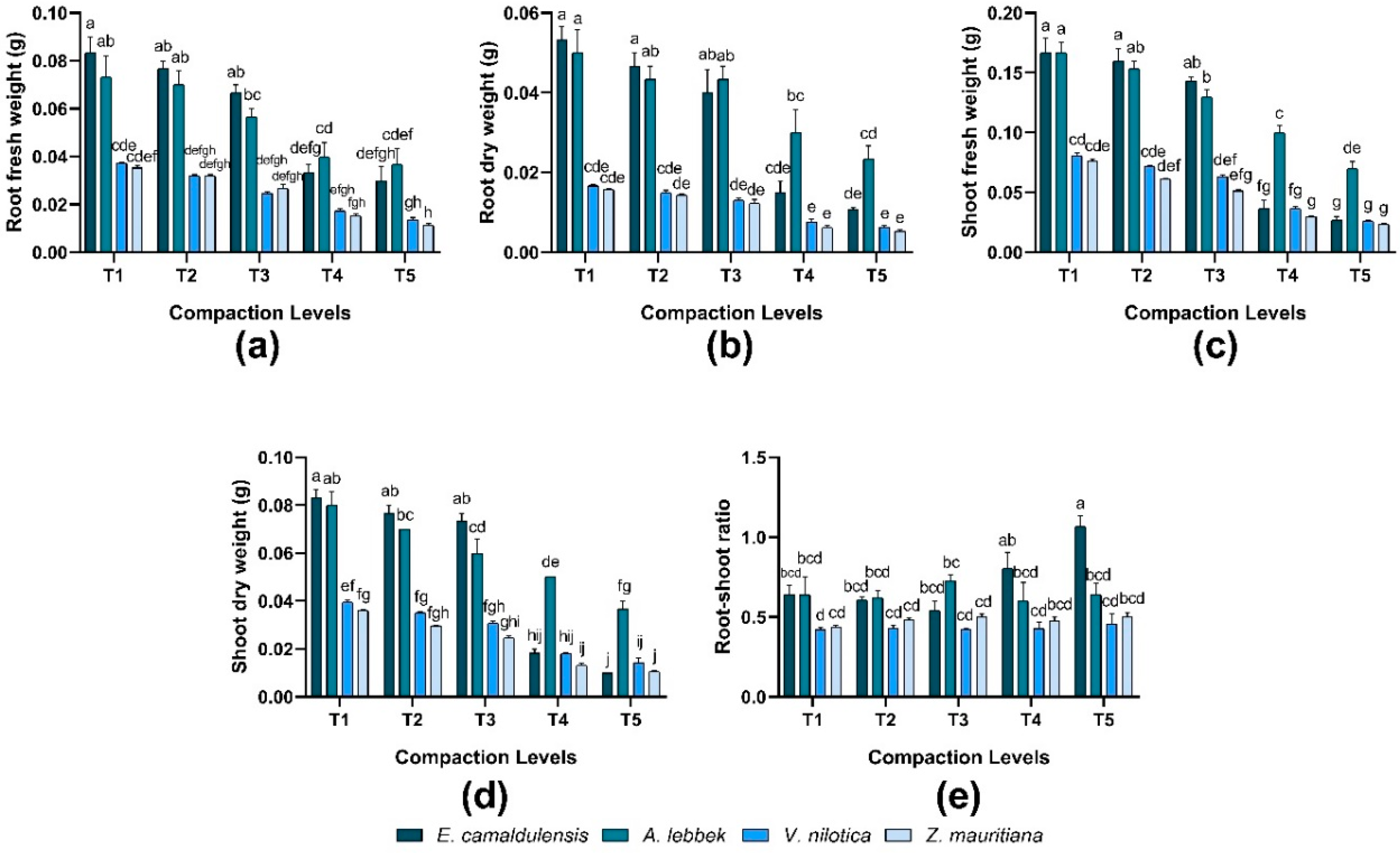

Figure 3. Effect of soil compaction on root and shoot weights (fresh and dry) g and root–shoot ratio (dry weights) of different agro-forest tree species (a–e). Note: Values are mean ± SE. For root and shoot (fresh and dry weights) and root–shoot ratio, there were significant differences (p < 0.05) by the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Figure 3. Effect of soil compaction on root and shoot weights (fresh and dry) g and root–shoot ratio (dry weights) of different agro-forest tree species (a–e). Note: Values are mean ± SE. For root and shoot (fresh and dry weights) and root–shoot ratio, there were significant differences (p < 0.05) by the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Plants 12 02468 g003
Plants 12 02468 g004 550
Figure 4. Effect of soil compaction on plant physiological traits of different agro-forest tree species (a–e). Note: Values are mean ± SE. For physiological traits, there were significant differences (p < 0.05) in the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Figure 4. Effect of soil compaction on plant physiological traits of different agro-forest tree species (a–e). Note: Values are mean ± SE. For physiological traits, there were significant differences (p < 0.05) in the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Plants 12 02468 g004
Plants 12 02468 g005 550

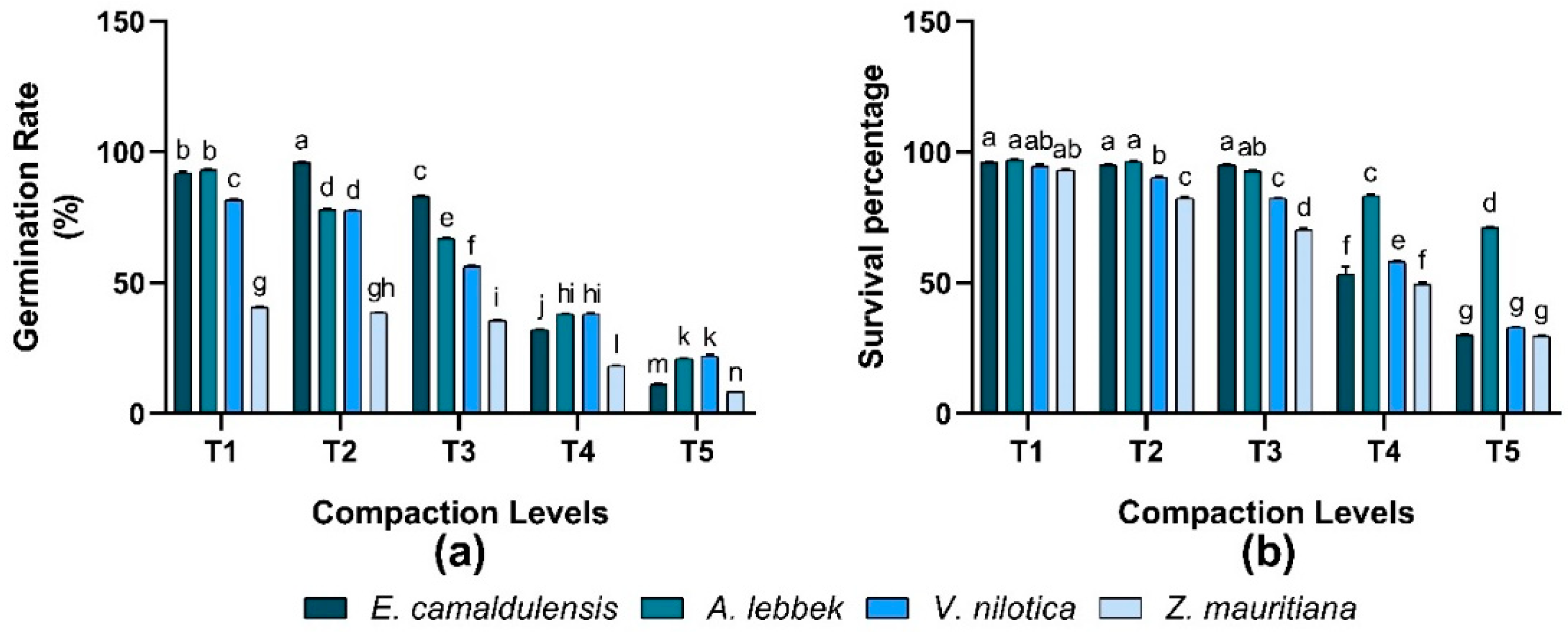

Figure 5. Effect of soil compaction on plant germination rate and survival percentage (%) of different agro-forest tree species (a,b). Note: Values are mean ± SE. For germination rate and survival percentage, there were significant differences (p < 0.05) by the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Figure 5. Effect of soil compaction on plant germination rate and survival percentage (%) of different agro-forest tree species (a,b). Note: Values are mean ± SE. For germination rate and survival percentage, there were significant differences (p < 0.05) by the different lowercase letter(s) among E. camaldulensis, A. lebbeck, V. nilotica, and Z. mauritiana in different compaction levels.
Plants 12 02468 g005
Table
Table 1. Texture of nursery soil.
Table 1. Texture of nursery soil.
Sand (%)Silt (%)Clay (%)
0–15 cm (Loam)40 ± 345 ± 315 ± 2
15–30 cm (Sandy loam)69 ± 518.5 ± 212.5 ± 2
Table
Table 2. Chemical properties of nursery soil.
Table 2. Chemical properties of nursery soil.
pH* EC
(dSm−1)		** TSS
(ppm)		Nitrogen
(%)		Phosphorous
(ppm)		Potassium
(ppm)		Organic Matter (%)
0–15 cm8.0 ± 0.011.68 ± 0.11176 ± 350.07 ± 0.0053.9 ± 0.1280 ± 51.54 ± 0.05
15–30 cm8.2 ± 0.021.35 ± 0.11236 ± 100.05 ± 0.0059.8 ± 0.2250 ± 50.91 ± 0.02
* EC = Electrical conductivity; ** TSS = Total soluble salts.
Table
Table 3. Climatic conditions of the experimental site.
Table 3. Climatic conditions of the experimental site.
Months
/Years		Temperature (°C)* R.H.
(%age)		Rainfall
(mm)		Sunshine Duration
(Hours)		** Pan Evap.
(mm)		*** Evap.
Transp.
(mm)		Wind
Speed
(km/h)
Max.Min.Avg.
Nov/201827.012.419.774.60.66.91.91.43.4
Dec/201821.76.514.181.50.76.91.00.92.9
Jan/201919.27.013.180.718.05.41.20.84.8
Feb/201920.39.114.779.064.26.71.61.14.4
Mar/201926.013.819.968.555.78.93.02.14.8
Apr/201935.020.627.842.531.29.05.43.85.0
May/201939.023.931.446.539.110.16.84.85.0
Jun/201942.427.434.947.835.510.18.56.05.7
Jul/201938.028.033.062.7102.87.45.53.95.8
Aug/201938.028.533.272.580.97.74.53.24.3
* R.H. = Relative humidity; ** Pan Evap = Pan evaporation; *** Evap Transp. = Evapotranspiration.
Table
Table 4. Bulk densities (controlled, 10%, 20%, 30%, and 40%, established in a nursery for experimentation).
Table 4. Bulk densities (controlled, 10%, 20%, 30%, and 40%, established in a nursery for experimentation).
BedsBed-1 (T1)
Controlled		Bed-2 (T2)
(10%)		Bed-3 (T3)
(20%)		Bed-4 (T4)
(30%)		Bed-5 (T5)
(40%)
B. Densities (mg m−3)1.3 ± 0.031.40 ± 0.051.55 ± 0.041.65 ± 0.081.8 ± 0.1
Table
Table 5. Effect of soil compaction on plant organs distribution of different agro-forest tree species.
Table 5. Effect of soil compaction on plant organs distribution of different agro-forest tree species.
T1T2T3T4T5
No. of LeavesE. camaldulensis
A. lebbeck
V. nilotica
Z. mauritiana		65.67 ± 1.7659.00 ± 1.1554.00 ± 1.0036.33 ± 3.2826.67 ± 2.85
56.00 ± 1.0049.33 ± 1.4541.33 ± 3.2824.00 ± 1.0016.00 ± 1.53
47.33 ± 1.7643.33 ± 0.8835.67 ± 1.8625.00 ± 2.3119.33 ± 0.33
69.66 ± 0.8856.33 ± 2.3349.00 ± 2.6542.00 ± 0.5728.33 ± 5.70
No. of BranchesE. camaldulensis
A. lebbeck
V. nilotica
Z. mauritiana		20.67 ± 1.3316.00 ± 1.1514.33 ± 0.665.66 ± 0.664.66 ± 0.33
12.00 ± 0.5710.33 ± 0.339.00 ± 0.577.66 ± 0.335.66 ± 0.33
6.00 ± 0.575.33 ± 0.335.00 ± 0.573.33 ± 0.332.33 ± 0.33
17.33 ± 0.3315.33 ± 0.3312.33 ± 1.206.00 ± 1.733.66 ± 0.66
Leaf Area (mm2)E. camaldulensis
A. lebbeck
V. nilotica
Z. mauritiana		936.6 ± 1.95866.5 ± 2.11822.5 ± 1.57617.6 ± 33.0479.9 ± 34.6
76.40 ± 0.7270.30 ± 0.7062.26 ± 0.6643.73 ± 0.3833.13 ± 2.50
6.20 ± 0.055.80 ± 0.055.76 ± 0.035.53 ± 0.035.48 ± 0.04
62.37 ± 1.2761.96 ± 0.2960.53 ± 0.2059.06 ± 0.5258.26 ± 0.08
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Asif, M.; Nawaz, M.F.; Ahmad, I.; Rashid, M.H.U.; Farooq, T.H.; Kashif, M.; Gul, S.; Li, Q. Detrimental Effects of Induced Soil Compaction on Morphological Adaptation and Physiological Plasticity of Selected Multipurpose Tree Species. Plants 2023, 12, 2468. https://doi.org/10.3390/plants12132468

AMA Style

Asif M, Nawaz MF, Ahmad I, Rashid MHU, Farooq TH, Kashif M, Gul S, Li Q. Detrimental Effects of Induced Soil Compaction on Morphological Adaptation and Physiological Plasticity of Selected Multipurpose Tree Species. Plants. 2023; 12(13):2468. https://doi.org/10.3390/plants12132468

Chicago/Turabian Style

Asif, Muhammad, Muhammad Farrakh Nawaz, Irfan Ahmad, Muhammad Haroon U. Rashid, Taimoor Hassan Farooq, Muhammad Kashif, Sadaf Gul, and Qian Li. 2023. "Detrimental Effects of Induced Soil Compaction on Morphological Adaptation and Physiological Plasticity of Selected Multipurpose Tree Species" Plants 12, no. 13: 2468. https://doi.org/10.3390/plants12132468

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
