Genome-Wide Identification and Expression Analysis of Auxin Response Factor (ARF) Gene Family in Panax ginseng Indicates Its Possible Roles in Root Development

by
Min Yan
1,†,
Yan Yan
1,†,
Ping Wang
1,
Yingping Wang
1,
Xiangmin Piao
1,
Peng Di
1,* and
Deok-Chun Yang
2,*
1
State Local Joint Engineering Research Center of Ginseng Breeding and Application, Jilin Agricultural University, Changchun 130118, China
2
Graduate School of Biotechnology, College of Life Science, Kyung Hee University, Yongin-si 17104, Gyeonggi-do, Republic of Korea
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2023, 12(23), 3943; https://doi.org/10.3390/plants12233943
Submission received: 16 October 2023 / Revised: 13 November 2023 / Accepted: 21 November 2023 / Published: 23 November 2023
(This article belongs to the Special Issue Hormonal Interactions in the Regulation of Plant Development)
Browse Figures
Review Reports Versions Notes

Abstract

:
Auxin-responsive factors (ARFs) are an important class of transcription factors and are an important component of auxin signaling. This study conducted a genome-wide analysis of the ARF gene family in ginseng and presented its findings. Fifty-three ARF genes specific to ginseng (PgARF) were discovered after studying the ginseng genome. The coding sequence (CDS) has a length of 1092–4098 base pairs and codes for a protein sequence of 363–1565 amino acids. Among them, PgARF32 has the least number of exons (2), and PgARF16 has the most exons (18). These genes were then distributed into six subgroups based on the results obtained from phylogenetic analysis. In each subgroup, the majority of the PgARF genes displayed comparable intron/exon structures. PgARF genes are unevenly distributed on 20 chromosomes. Most PgARFs have B3 DNA binding, Auxin_resp, and PB1 domains. The PgARF promoter region contains various functional domains such as plant hormones, light signals, and developmental functions. Segmental duplications contribute to the expansion of the ARF gene family in ginseng, and the genes have undergone purifying selection during evolution. Transcriptomic results showed that some PgARFs had different expression patterns in different parts of ginseng; most PgARFs were affected by exogenous hormones, and a few PgARFs responded to environmental stress. It is suggested that PgARF is involved in the development of ginseng by regulating hormone-mediated genes. PgARF14, PgARF42, and PgARF53 are all situated in the nucleus, and both PgARR14 and PgARF53 noticeably enhance the growth length of roots in Arabidopsis. Our findings offer a theoretical and practical foundation for exploring PgARFs’ role in the growth of ginseng roots.

1. Introduction

Transcription factors (TFs) have a vital function in all aspects of plant growth and development, including basal metabolism, cell differentiation and organ formation. These factors are present in all biological processes [1]. TFs serve as crucial nodes in regulatory networks, and variations in their expression levels can influence subsequent pathway gene expression [2,3]. This, in turn, impacts plant morphogenesis as downstream gene activation or inhibition happens [4,5,6]. Transcription factors typically possess multiple modules with distinct structures, serving two fundamental purposes: identifying and binding the specific DNA sequence on the target gene and recruiting additional proteins to facilitate downstream reactions. The DNA-binding domain is responsible for executing these functions, frequently serving as a dimer with a unique dimerization motif, as seen in the DNA-binding domain of the ARF [7,8].
ARF is a transcription factor discovered in the promoter of primary/early growth hormone response genes and specifically binds to the TGTCTC growth hormone response element (AuxRE) [9]. The ARF has three domains: the DNA-binding structural domain (DBD), the middle region (MR), and the phox and Bem1 (PB1) domain [10,11]. Since the three characteristic ARF structural domains mentioned above are functionally independent, certain ARF genes without specific protein structural domains are involved in plant growth [12]. The N-terminal DBD of ARF has been identified as a plant-specific B3-type DBD [13]. Phylogenetic trees created with just the DBD protein sequences of ARF closely resemble those generated with the complete protein sequences, indicating that this domain contributes to functional specificity [9,14]. An MR is composed of either an activating domain (AD) or a repressor domain (RD). The function of the MR to either activate or inhibit is determined by its amino acid composition [15]. PB1 resembles AUX/IAA structural domains III and IV. It often forms homodimers with ARF proteins or heterodimers with AUX/IAA proteins [16,17].
Several ARFs are believed to function in an auxin-dependent manner, and the pathway that relies on auxin-dependent signaling is one of the most fully described models. The pathway operates via the disinhibition mechanism, whereby auxin prompts the breakdown of AUX/IAA proteins, thereby releasing dimerized ARF proteins and activating downstream genes [18]. Other ARFs are thought to have alternative and auxin-independent mechanisms of action, such as the AtARF2-MR-TPL mutual inhibition that underlies root hair formation [19]. ARFs are also incorporated into more complex transcription factor complexes to integrate signals from additional hormone signaling pathways and react to environmental stresses [20].
Up to now, the ARF genes of Arabidopsis (23 ARFs), rice (25 ARFs), soybeans (51 ARFs), peaches (17 ARFs), carnations (29 ARFs), peanuts (30 ARFs), and eggplants (20 ARFs) have been identified through whole-genome analysis [16,21,22,23,24,25,26]. There are 23 ARF genes in Arabidopsis, of which 1 is a pseudogene. ARF1 is the first transcription factor identified by a yeast one-hybrid assay containing a core motif [27]. ARF1 is a transcriptional repressor [28]. ARF2 is associated with senescence and abscission of plant flowers and leaves. ARF1/ARF2 double mutants had similar phenotypes to single mutants, but both phenotypic traits are further enhanced, indicating that ARF1 and ARF2 act partially redundantly [28,29]. ARF3 and ARF4 contribute to the development of reproductive and nutritional tissues [30]. ARF5 is involved in both the formation of vascular tissue and hypocotyl development [31,32]. Functional redundancy exists between ARF6 and ARF8, which are associated with pistil and stamen reproductive capacity. ARF6/ARF8 double mutants display shortened stamen filaments and delayed anther dehiscence, leading to the manifestation of female sterility in plants [33]. The double mutation of AtARF7/AtARF19 hindered the formation of adventitious roots and resulted in a decrease in lateral root quantity. However, a single mutation did not significantly affect the development of adventitious and lateral roots, suggesting functional redundancy between the two [34]. There were 25 OsARFs identified from rice, and in the prediction of OsARF protein, nine were identified as activators and the rest as inhibitors. OsARF1 and OsARF23 actively respond to auxin with increased transcripts, in contrast to OsARF5, OsARF14, and OsARF21 with decreased transcripts [35]. SlARF2 of Solanum lycopersicum regulates lateral root growth and flower development [36]. In the peach, PpARF7 and PpARF12 are involved in flower bud formation and fruit softening, respectively [23].
While the ARF gene family plays an essential part in the majority of plant activities, spanning from germination to senescence, as well as influencing plant responses towards exogenous hormones and abiotic stresses, no research has yet identified and analyzed ARF genes in Panax ginseng. As a result, we conducted a genome-wide identification and analysis of the ginseng ARF gene family, constructing a phylogenetic tree and categorizing the ARF genes into distinct branches using a phylogenetic approach. The basic composition of the PgARF gene was analyzed, and the similarities and differences in structure and composition of the PgARF gene and protein were obtained. The expression data of PgARF genes were analyzed under environmental stress conditions and in different plant parts. Additionally, exogenous hormones were applied to ginseng, and its transcriptome data were analyzed to determine the expression variables of PgARF genes. The results showed the expression of different PgARF genes under different exogenous hormone treatments, indicating that the expression patterns of different PgARF genes differ. The roles of PgARF14, PgARF42, and PgARF53, which may affect ginseng root formation, were investigated in Arabidopsis thaliana. Their roles in root growth were preliminarily probed to provide a theoretical and experimental framework for the next step of research on the molecular mechanisms by which phytohormones and PgARF genes play a role in the growth and development of ginseng roots.

2. Results

2.1. Identification, Classification, and Phylogenetic Analysis of PgARF

We identified 53 genes encoding ARF transcription factors in the ginseng genome database and named them PgARF1-PgARF53 (Table S1). The complete PgARF sequences are listed in Table S2. The open reading frame of the PgARFs ranges from 1092 (PgARF53) to 4698 (PgARF46) bp, which predicts the encoding of proteins with 363–1565 amino acids. The molecular weight of the protein varies between 40,550.85 and 173,376.03 Da. Among them, PgARF32 has the least number of exons (2), and PgARF16 has the most exons (18). The isoelectric point range is 5.23 (PgARF50)-9.41 (PgARF48) pH (Table S1).
We generated a phylogenetic tree by employing the complete amino acid sequences of 53 PgARFs, 22 AtARFs, and 27 OsARFs. The phylogenetic analysis revealed that the ARF family proteins of Panax ginseng, Oryza sativa, and Arabidopsis thaliana can be classified into six distinct groups. There are subgroups Ia, Ib, and Ic in group I; subgroups IIa and IIb in group II; and group III (Figure 1). Subgroup Ia contains six ARF proteins (four PgARFs, one AtARF, one OsARF); subgroup Ib contains 14 ARF proteins (8 PgARFs, 2 AtARFs, 4 OsARFs); and the Ic subgroup contains 10 ARF proteins (4 PgARFs, 2 AtARFs, 4 OsARFs). Subgroup IIa contains 32 ARF proteins (14 PgARFs, 12 AtARFs, 6 OsARFs), and subgroup IIb contains 13 ARF proteins (7 PgARFs, 2 AtARFs, 4 OsARFs). Group III includes 27 ARF proteins (16 PgARFs, 3 AtARFs, 8 OsARFs). This classification result is consistent with that of physic nut [37]. The analysis of phylogenetic tree results (Figure 1) also showed that most PgARFs were more closely related to AtARFs than OsARFs. For example, in the two main branches in subgroup Ia, four PgARFs (PgARF4, PgARF42, PgARF50, PgARF52) are in the same branch as AtARF5, and the other branch is only OsARF11.
We have examined the exon distribution of the PgARFs. The results showed that all PgARFs had multiple exons (Figure 2B). Most PgARF members within the same group demonstrated comparable structures in their exons and introns. For example, six PgARFs of subgroup Ib have 14–15 exons; 12 PgARFs of group III have 3–4 exons. Although the number of exons of PgARF varies amongst subgroups, they are largely similar. The exons–introns of the PgARFs in each subgroup had similar structures in number and length. This result further supports the classification of PgARF family members in this study.

2.2. Protein Conservation Motif Analysis of PgARF

Domain features of 53 PgARF proteins were analyzed using the MEME online analysis tool. Ten individual motifs were found in 53 PgARF proteins, which we named motifs 1–10 (Figure 2A) (Figure S1). The DBD domain sequence contains motif1, motif3, and motif10; the Auxin_resp domain corresponds to motif8; and the PBI domain has motif9 and motif5. It is worth mentioning that motif5 also corresponds to the protein sequence of the AUX_IAA domain. These motifs detected homologous sequences in Arabidopsis and rice ARF proteins [21], demonstrating that their composition is highly conserved across species. However, motif2, motif4, motif6, and motif7 lack homologous sequences in the protein databases SMART and Pfam, so the function of some putative motifs is unclear.
The findings indicate that each PgARF protein possesses a consistent B3 domain at the N-terminus (Figure 2A). Most PgARF proteins contain the Auxin_resp domain, except PgARF26 and PgARF35 (Figure 2A). The PB1 domain, also known as CTD, mediates protein–protein interactions and can control the expression of auxin-responsive genes through homologous or heterologous dimerization of ARF-Aux/IAA or ARF-ARF. In this study, 11 PgARF proteins do not contain CTD, namely PgARF2, PgARF6, PgARF9, PgARF15, PgARF20, PgARF32, PgARF39, PgARF46, PgARF48, PgARF52, and PgARF53, and the proportion of PgARFs (20.75%) with a CTD truncation was much lower than that of MtARFs (54%). CTD-truncated MtARFs in Medicago truncatula provide evidence for the auxin-independent regulation of ARF genes [38]. Therefore, it is speculated that these CTD-truncated PgARFs may also regulate plant life activities in an auxin-independent pathway. Furthermore, 32 PgARFs have AUX_IAA domains, which may affect their function. It is worth mentioning that among the branches of the phylogenetic tree, the motifs contained in each branch are structurally specific, which means that PgARFs in the same group may have similar functions.

2.3. Analysis of Cis-Elements of PgARF Family Promoters

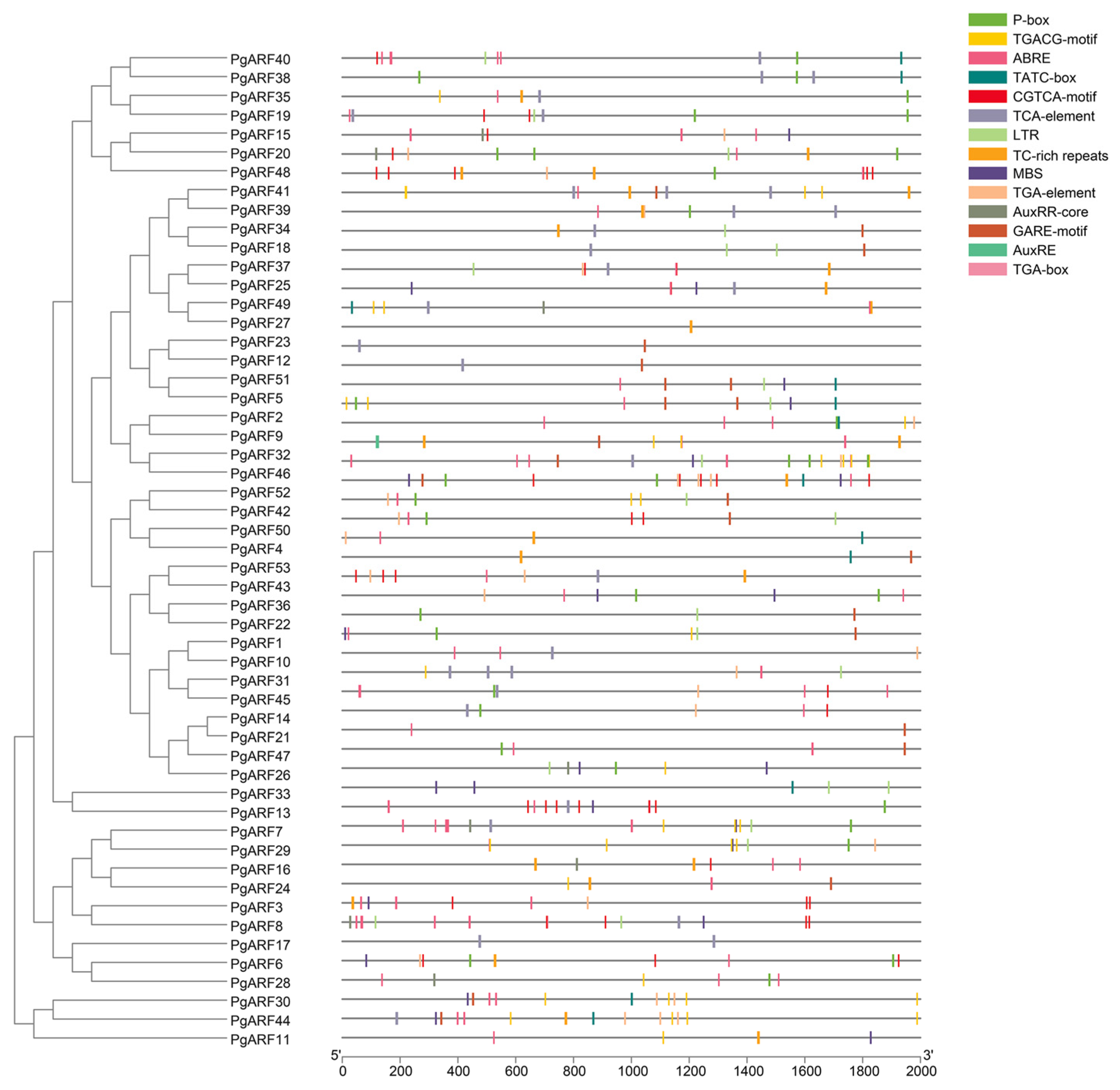

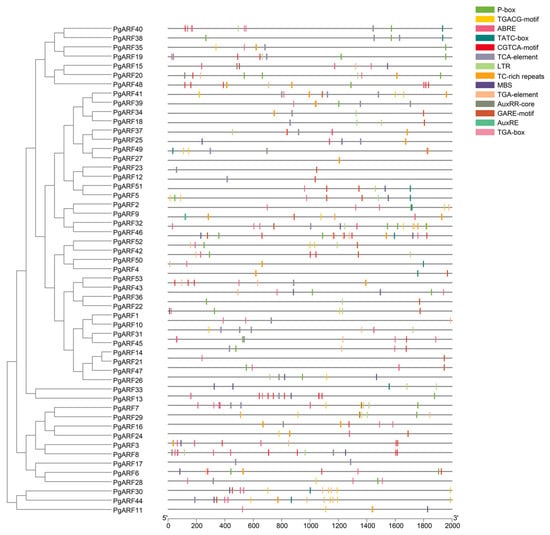

The cis-acting elements that can regulate gene expression contained in the promoter (upstream 2000 bp) region of PgARFs were analyzed using the PlantCare online tool (Figure 3). Cis-acting elements are divided into seven types: developmental-related elements, environmental stress-related elements, hormone-responsive elements, promoter-related elements, binding site-related elements, light-responsive elements, and other elements. To investigate the impact of abiotic stress on the expression of PgARF, this study focused on the analysis of hormone-responsive factors and environmental stress-related factors (Figure 3).
The hormone-responsive elements in the PgARF family account for about 3.21% of the total elements, including elements related to auxin (TGA-element, TGA-box, AuxRR-core, AuxRE), gibberellin (TATC-box, P-box, GARE-motif)), abscisic acid (ABRE), salicylic acid (TCA-element), and methyl jasmonate (TGACG-motif, CGTCA-motif); these hormones may affect the expression level of PgARF. The environmental stress-related elements include drought (MBS) and low temperature (LTR), and these two environmental stresses may affect genes with these two elements.

2.4. Chromosomal Distribution and Collinearity Analysis of PgARF

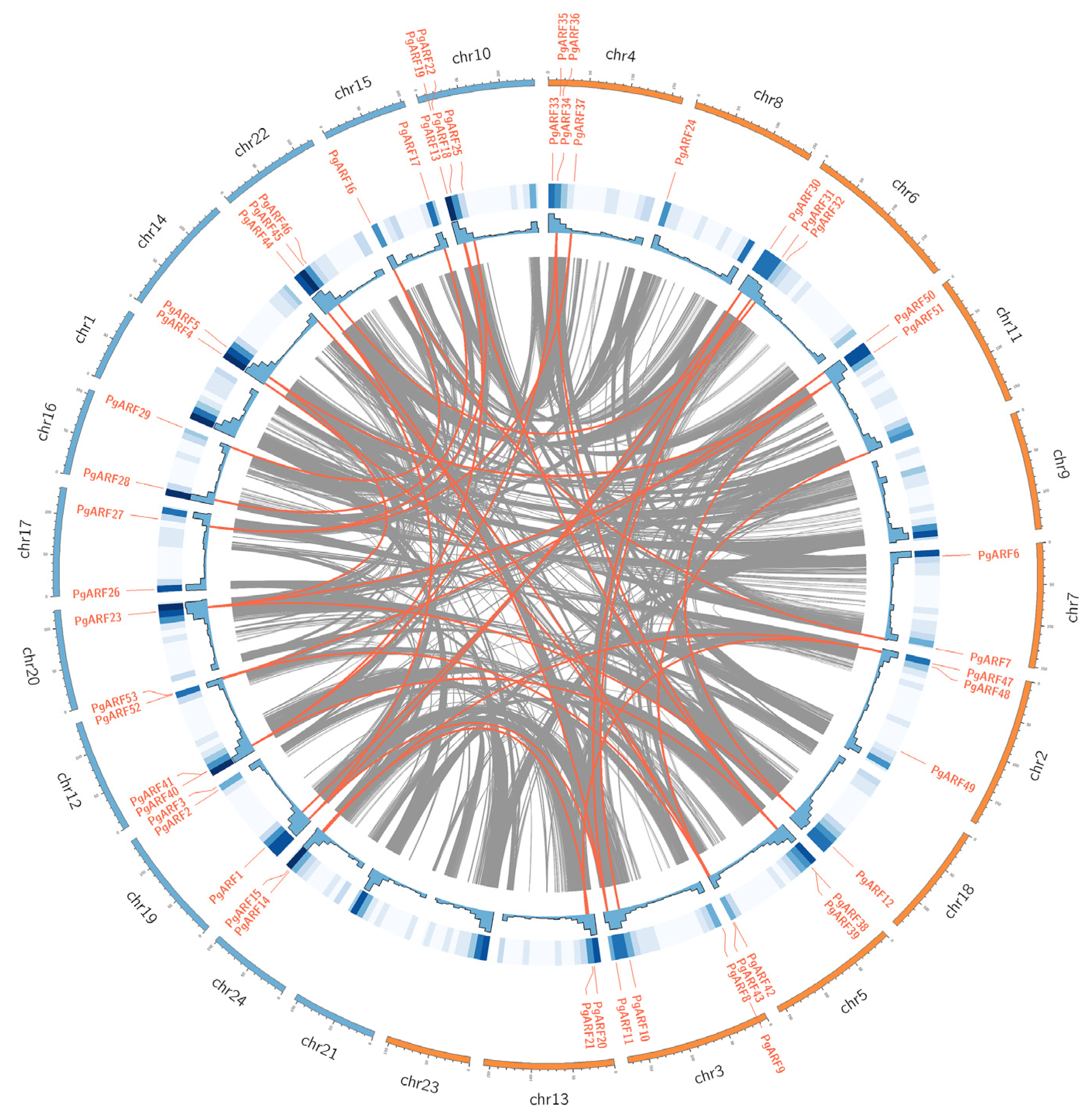

The analysis of chromosome distribution revealed that 53 PgARFs exhibited uneven distribution across 20 chromosomes (Figure 4) (Table S1). Among them, there are the most genes distributed on chr4 and chr10, with five PgARFs each; then, there are chr3, chr5, and chr12 with four PgARFs; there are three PgARFs on chr2, chr6, chr19, and chr22, respectively; and only one PgARF was distributed on chr8, chr18, and chr20; The remaining eight chromosomes contain two PgARFs (Figure 4).
According to previous reports [22], 25 segmental duplications were identified in PgARFs (Figure 4, Table S3). To investigate the possible selective pressure on PgARF, Ka/Ks ratios were calculated. The findings indicate that PgARF is predominantly impacted by purification selection during its evolution, as all PgARF gene pairs had Ka/Ks values less than 1 (Table S4).

2.5. Synteny and Evolutionary Analyses of PgARF and Other Plants’ ARF

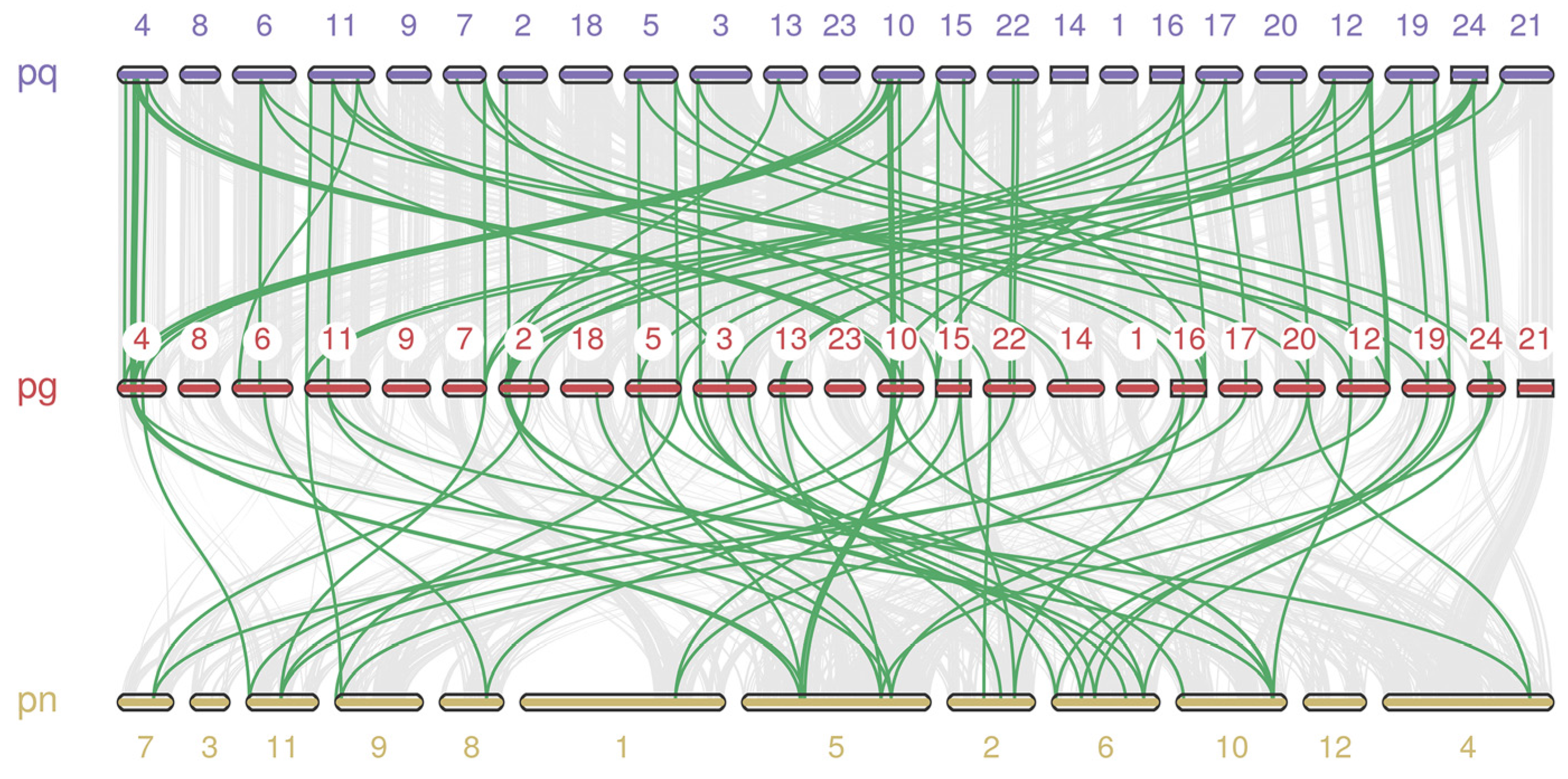

To explore the potential evolutionary clues of PgARF, a comparative collinear map of Panax ginseng and the other two species of Panax was constructed (Figure 5). The two plants are Panax quinquefolius and Panax notoginseng, respectively. According to the comparative collinear map of the three plants (Figure 5), 33 PgARFs were homologous to the ARF genes of Panax quinquefolius, and 32 PgARFs were homologous to the ARF genes of Panax notoginseng. In the report by Wang [39], the Modern Panax genome is formed by the core-eudicot genome undergoing three whole-genome duplications (WGD); these three WGDs include γ-triplication events and Panax-specific WGDs (Pg-β and Pg-α). The difference in the number of homologous genes between PgARF-PnARF and PgARF-PqARF is tiny, confirming the previous conclusions.

2.6. Expression Profiles of PgARF in Different Tissues and Growth Years

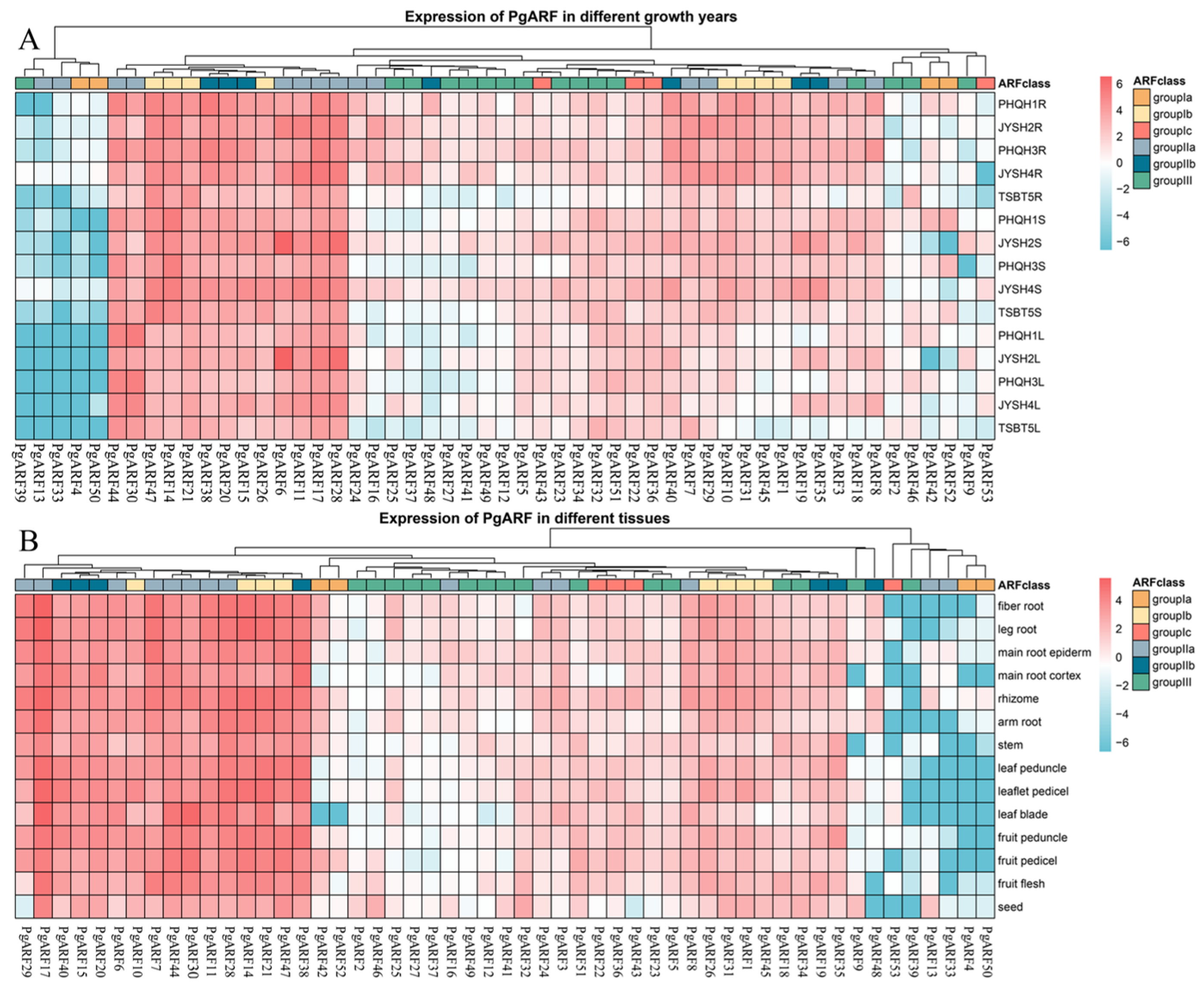

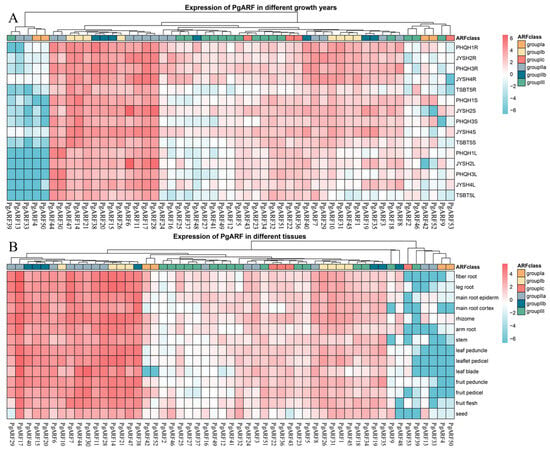

As depicted in Figure 6A, around 24 PgARFs (45.28%) are expressed in the roots, stems, and leaves of ginseng aged 1–5 years, with some genes showing tissue-specific expression. Compared with other PgARFs, the expression levels of PgARF17, PgARF47, PgARF14, PgARF28, PgARF30, and PgARF28 were relatively high. Of all the genes, PgARF17 stands out as having a stable and high level of expression in the root, suggesting that its presence may be critical for the development of root tissue. The expression of PgARF14 was remarkably high in the stem, indicating its significant involvement in stem growth. PgARF30 expression in leaves was significantly higher than in roots and stems, being the highest of the three. This gene is potentially essential for leaf growth and development. PgARF28 displays high expression levels in 2-year-old stems and leaves, indicating a possible role in the development of ginseng stems and leaves (Figure 6A).
Using existing transcriptome data [40], we analyzed the expression of PgARFs in different parts of ginseng, including the fiber root, leg root, main root epiderm, main root cortex, rhizome, arm root, stem, leaf peduncle, leaflet pedicel, fruit peduncle, fruit pedicel, fruit flesh, and seed. A heatmap depicting the expression levels in these various parts of ginseng roots (Figure 6B) was generated. Gene expression results showed that about 37 PgARFs (69.81%) were expressed in all sites. PgARFs exhibit distinct expression patterns in diverse tissues. For example, PgARF17 is the most expressed gene in all roots, leaves, fruits, and seeds. Other sections exhibit substantial expression, suggesting that this gene plays a crucial function in the complete process of plant growth and development. PgARF14 was significantly expressed in branch roots, fibrous roots, and rhizomes. The expression level of PgARF30 in leaves was slightly lower than PgARF17, and the expression level in leaves was much higher than that in petioles and pedicels. PgARF28 was the most expressed gene in the stem, but the expression level of this gene in each tissue was not specific. PgARF7 was the most expressed gene in fresh fruit, but its expression was also significant in fruit stems (Figure 6B).

2.7. Expression Profiles of PgARF under Different Environmental Stresses and Hormone Treatments

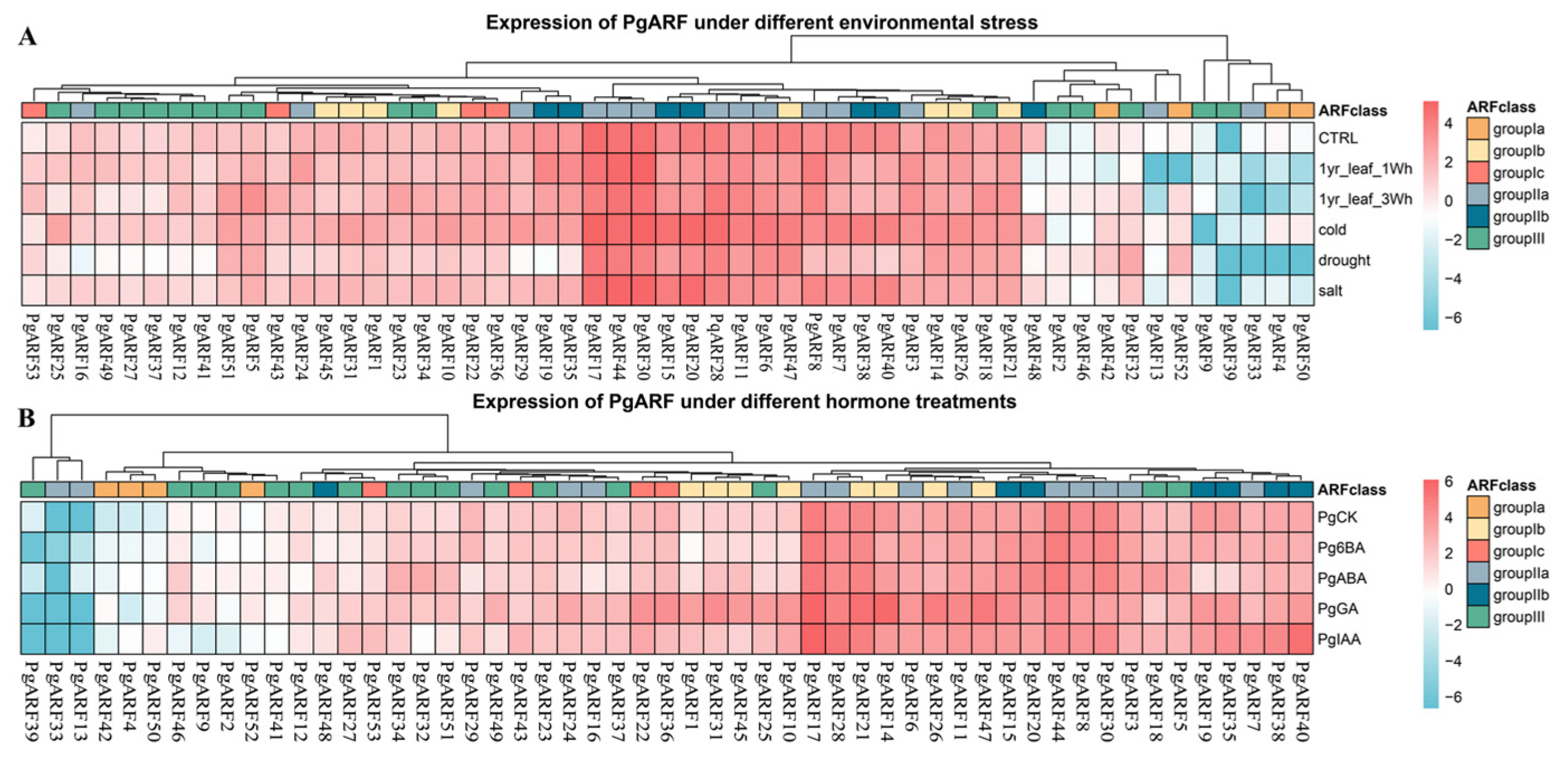

We analyzed the response of PgARF under abiotic stress treatments using the data of cold, heat, drought, and salt from the publicly available ginseng dataset [41]. As shown in Figure 7A, many PgARFs showed similar expression trends after abiotic stress treatment. The results showed that three PgARFs were not expressed in any tissue under any treatment, namely PgARF9, PgARF33, and PgARF39. The PgARFs under different treatments had different expression patterns: In 1-year-old leaves, only PgARF53 was significantly changed after a 1-week heat treatment compared with the control group. However, seven PgARFs (PgARF5, PgARF23, PgARF32, PgARF43, PgARF46, PgARF51, PgARF53) were significantly changed during the 3-week heat treatment. The expression levels of PgARF53 underwent significant changes during the 1-week and 3-week heat treatments. This indicates a potential role for the protein in the response of ginseng to heat stress.
In the cold treatment, notable alterations occurred in the expression of three PgARFs (PgARF15, PgARF50, PgARF51), with the expression of PgARF25 being altered by over 4-fold, potentially implicating PgARF25 in contributing to ginseng’s drought resistance. It is worth mentioning that the expression of PgARF51 changes when ginseng is subjected to cold and heat stress, and PgARF51 may regulate the response of ginseng to external temperature.
Under drought stress, expression levels of PgARF2, PgARF42, and PgARF46 significantly increased compared to the control group, while the expression of PgARF52 was more than four times higher. In salt treatment, only PgARF2 and PgARF32 showed significant increases compared to the control group.
To examine the impact of external hormones on PgARF expression levels, four exogenous hormones were administered to ginseng (auxin, gibberellin, cytokinin, and abscisic acid). In analyzing them at the transcriptomic level, the expression heat map of PgARFs under different hormone stress was obtained (Figure 7B). Compared to the blank control group, the 6BA hormone treatment resulted in minimal changes in the expression of PgARFs, with only two genes, PgARF4 and PgARF42, exhibiting significant changes. Under ABA stress, nine PgARFs (16.98%) exhibited significant changes in expression levels, specifically PgARF4, PgARF18, PgARF32, PgARF34, PgARF42, PgARF46, PgARF48, PgARF50, and PgARF51. In the group of subjects treated with IAA, 10 PgARFs (18.87%) exhibited noteworthy variations in their levels of expression when contrasted with the control group that received no treatment. Seven of these PgARFs exhibited notable changes, including PgARF7, PgARF11, PgARF17, PgARF27, PgARF28, PgARF42, and PgARF53. Meanwhile, the expression levels of PgARF4, PgARF40, and PgARF50 were significantly elevated. Under GA stress, both the increased expression of PgARFs and the significantly increased number of PgARFs were the highest. Compared with the blank control, the expression levels of 15 PgARFs (28.30%) were significantly increased in GA treatment, and the expression levels of 10 PgARFs were significantly increased under GA stress (respectively, PgARF10, PgARF14, PgARF21, PgARF22, PgARF26, PgARF36, PgARF47, PgARF49, PgARF51, PgARF52). Moreover, the expression levels of five PgARFs increased significantly, namely PgARF1, PgARF25, PgARF31, PgARF42, and PgARF46. Among them, this experiment showed that PgARF31 had the most increased expression among all hormone treatments. This result indicates that PgARFs may be insensitive to 6BA and more involved in plant life activities mediated by IAA and GA.
The ARF genes in Arabidopsis have been classified into three classes, with class A containing the ARF genes AtARF5, AtARF6, AtARF7, AtARF8, and AtARF19. Class A ARFs are thought to work in a growth factor-dependent manner, but class A ARFs can also respond to environmental signals through auxin-independent pathways and regulate plant growth and development. In addition, A class ARF-AUX/IAA interactions are relevant in different developmental environments. However, this does not mean that ARFs of class A interact with other molecular signals only through the PB1 structural domain; for example, interactions with chromatin remodelers SPLAYED (SYD) and BRAHMA (BRM) have been described only in AtARF5, which are involved in ARF5-MR, but the specific regions that regulate them have not been identified. Similarly, in the context of auxin control of lateral root formation, interactions with the Mediator complex are only available in AtARF7 and AtARF19, but the structural domains with which they interact are not yet known [17].
In the phylogenetic tree of this study (Figure 1), PgARF14, PgARF42, and PgARF53 are all in the branch I, but clustered with AtARFs of different A classes: PgARF14 and AtARF6 and AtARF8 are in subgroup Ib, PgARF42 and AtARF5 are in subgroup Ia, PgARF53 and AtARF7 and AtARF19 are in subgroup Ic. In terms of the structural domains of the protein molecules, both PgARF14 and PgARF42 contained DBD, Auxin_resp, and PB1, and PgARF53 had only DBD, Auxin_resp, and no PB1. However, in exogenous hormone treatments, PgARF14 showed a significant change in expression after GA treatment, and PgARF42 responded to 6BA and ABA. On the contrary, PgARF53, which has no PB1 structure, did show a significant increase in expression after IAA and GA treatments. Therefore, PgARF14, PgARF42, and PgARF53 were selected for further experiments.

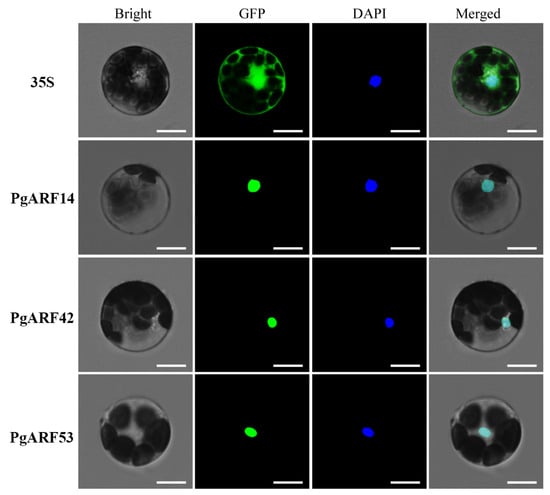

2.8. Subcellular Localization of PgARF14, PgARF42, and PgARF53

The expression vectors, composed of the target genes (35S:GFP-PgARF14, 35S:GFP-PgARF42, and 35S:GFP-PgARF53), were transformed into Arabidopsis protoplasts along with empty vectors. The obtained subcellular localization results (Figure 8) confirmed the nuclear expression of PgARF14, PgARF42, and PgARF53, as clear GFP fluorescent signals were detected in the nucleus.

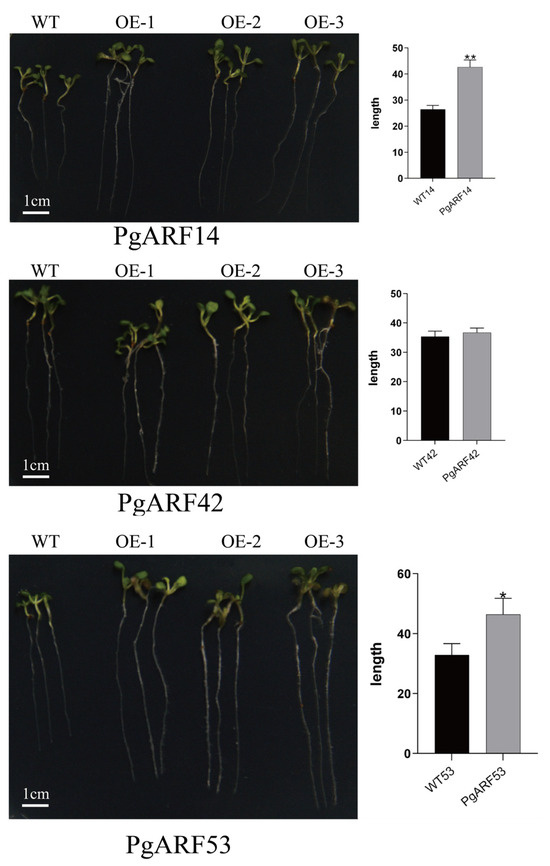

2.9. PgARF14 and PgARF53 Increase the Root Length in Arabidopsis

Root lengths of Arabidopsis seedlings were evaluated utilizing Image J 1.53t. A one-way ANOVA was conducted in GraphPad for data analysis. Transgenic Arabidopsis root length data were collected for T2 generations of PgARF14, PgARF42, and PgARF53. According to the results of the analyses (Figure 9), the root length data of PgARF14 were highly significantly different from those of WT-PgARF14. The root length of PgARF42 was not statistically different from WT-PgARF42. The root length data of PgARF53 was significantly different from WT-PgARF53. The root lengths of transgenic Arabidopsis of PgARF14 and PgARF53 were longer than their wild-type controls.

3. Discussion

Currently, there exists limited knowledge regarding ginseng’s growth, development, and response to abiotic stress. And the homology and function of PgARF are not clear. A total of 53 PgARFs were identified in this study. In the ginseng genome, the number of PgARF family genes exceeds that of Arabidopsis, which has 23 AtARFs, or rice, which has 25 AtARFs [21,42]. The number of genes depends on the genome size and gene duplication events of the plant [43], so one possible explanation for the higher number of PgARFs is that segmental duplications play an important role in the expansion of the PgARF gene family. We divided PgARFs into six subgroups, similar to those in rice and Arabidopsis (Figure 1). In the phylogenetic tree diagram, PgARFs and AtARFs are significantly more closely related. In addition, the phylogenetic tree also showed that there were 16 PgARFs (30.2%, 16/53) in group III, while only three AtARFs (13.6%, 3/22) were classified into this group (Figure 1). This implies that this gene set may have been present in both Arabidopsis and ginseng. However, it was lost from the Arabidopsis lineage during evolution [23].
Evolutionary relationships between species can also be revealed by the degree of difference in intron–exon patterns of genes [23]. The intron–exon splicing arrangement and intron number of PgARFs in the ginseng genome are similar to those reported in Arabidopsis, rice [21], and maize [35]. For example, the ginseng ARF gene family has the least number of introns in the group III genes (Figure 2.). Similarly, in Arabidopsis, rice and maize, there is also a subgroup of genes with only 1–3 introns [21,35]. Analysis of the conserved domains of PgARF proteins showed that all PgARF proteins have a conserved N-terminal DBD domain (motif 1), indicating that ARFs are highly conserved in various plants during evolution. Furthermore, each subgroup has a specific motif composition structure (Figure 2). These features of conserved domains of PgARF proteins are also found in plants such as Arabidopsis, rice, and maize [35]. Overall, most PgARF genes in the same group have similar gene structures and conserved motifs, which further supports their classification and evolutionary relationship between groups described in this study [37].
The level of gene expression is frequently associated with its function. Thus far, detailed investigations into the expression of ARF genes in ginseng have not been conducted despite the expression patterns of ARF genes in other plants, including rice, maize, and Arabidopsis, having been established [20,34]. In this study, the expression of PgARF under different hormone stresses was detected at the transcriptional level, and the expression of PgARFs in different groups at different times and under different stresses was also collected. Studies have shown that many ARFs regulate the development of plant roots, stems, leaves, and flowers [12,44]. The analysis showed that the expression of PgARF17 was the highest in the root (Figure 6B), but it was significantly expressed in other parts, and the expression level of PgARF17 in the root was also the highest in the expression heat map in different years (Figure 6A), although PgARF17 was expressed in other parts of ginseng. The expression of PgARF17 is not specific, but in the expression heatmap of different years, there is a high level of expression in the root in each year, and in the phylogenetic tree clustering (Figure 1), PgARF17 and AtARF2 are in the same subgroup IIa. Hence, it is hypothesized that PgARF17 is a crucial ARF gene in the growth of ginseng roots. The expression level of PgARF30 in leaves is slightly lower than that of PgARF17, but its expression level in leaves is much higher than in petioles and pedicels. It has been reported to have partial functional redundancy with its homologous gene AtARF2 in Arabidopsis, which regulates leaf senescence and flower organ shedding [28]. Based on the specific high-level transcription of PgARF30 in leaves, it is inferred that it could contribute to the growth and development of leaves. While AtARF5 is necessary for radicle formation, the expression levels of the four genes belonging to the same group PgARFs are all low (Figure 6B). It is speculated that the regulatory effect of ARFs on the growth and development of ginseng roots may be different from that of Arabidopsis.
Phytohormones are involved in various plant responses to environmental stimuli and stresses by altering the expression levels of many ARF genes. However, few studies have investigated ginseng’s response to abiotic stress and related signal transduction. In this study, we built expression heat maps of PgARF family genes in response to several hormones. ARF has an auxin-dependent signal transduction pathway and an auxin-independent signal transduction pathway when regulated by auxin [40]. Under auxin stress, a total of 10 PgARFs were significantly increased in expression, of which 7 PgARFs (PgARF4, PgARF7, PgARF11, PgARF17, PgARF40, PgARF42, PgARF50) had AUX/IAA domains. PgARF4 and PgARF50 clustered with AtARF5 (Figure 1), and these two genes may be involved in developing ginseng flowers. Among auxin-independent signaling, one is related to root hair development, and inhibition through the AtARF2-MR-TPL interaction underlies root hair formation. AtARF2-MR comprises both an EAR motif and a BRD domain, which facilitates its binding to both the N-terminal and the C-terminal sections of TPL/TPR [19]. Single mutations of these two inhibitory domains had less effect on AtARF2 inhibition in root hairs, whereas double mutations strongly affected this inhibition. The two mutations additionally impacted the time of flowering and size of seeds, which are two phenotypes distinctive to ARF2 mutants. PgARF28 is sensitive to exogenous auxin and has no AUX/IAA structure, and PgARF28 is significantly expressed in roots (Figure 9), so it is speculated that PgARF28 may play a role in the development of ginseng roots. Among the 15 PgARFs whose expression levels were significantly increased under GA3 stress, 7 PgARFs (PgARF1, PgARF10, PgARF14, PgARF21, PgARF26, PgARF31, and PgARF47) were in the Ib subfamily—the subfamily where AtARF6 and AtARF8 belong.
Transcriptomic analysis has demonstrated that the transcriptional levels of numerous ARF genes alter under plant responses to abiotic stressors. Auxins play critical roles in plant responses to abiotic stresses through complex metabolic and signaling networks [45]. In bananas, most ARF genes are altered in expression under salinity and osmotic stress [46]. In rice, OsARF11 and OsARF15 display differential expression under salt stress conditions, indicating their role in the plant’s response to stress [47]. This study revealed that a multitude of PgARFs are capable of responding to abiotic stress factors such as salt, cold, heat, and hormonal stress at the transcriptional level. Moreover, it was observed that the majority of these genes fall under the IIa and IIb subgroups (Figure 1 and Figure 7). The intron–exon structure of the group II gene sequence is different from that of other groups, which may affect its function and action pathway.
The experimental findings reveal that transforming the target gene of Arabidopsis thaliana resulted in a significant difference in the root length of PgARF14 when compared to the WT-PgARF14. Furthermore, in the results of the phylogenetic analysis of this study (Figure 1), PgARF14 was categorized in subgroup Ib of the phylogenetic tree, grouped with AtARF8, which has been shown to regulate not only hypocotyl development but also to influence the growth of the primary root [48]. PgARF14 contains cis-acting elements which react specifically to gibberellins. Treatment with exogenous gibberellins may result in a significant increase in its expression. The role of auxin in activating GA biosynthesis is established, but the intricate levels of interaction between these two hormones are still being investigated [49]. In addition, gibberellic acid (GA) has the potential to affect the regulatory pathway of auxin and cytokinin, specifically ARR1-SHY2-PIN. Elevated concentrations of GA impede ARR1 expression by triggering the breakdown of Della proteins, which takes place during the growth stage of meristematic tissue. Consequently, this results in low levels of SHY2 that promote cytokinesis [49,50]. The DELLA-ABI4-HY5 module, in turn, can act as a molecular chain that integrates GA and light signaling to control hypocotyl elongation, with DELLAs directly interacting with and inhibiting the DNA-binding activity of ABI4. In turn, ABI4 binds to ELONGATED HYPOCOTYL 5 (HY5), a key factor in light signaling, and its feedback regulates the GA2ox GA catabolism gene expression, thereby regulating GA levels [5]. Therefore, despite being expressed at high levels in rhizomes and fibrous roots rather than the taproot, PgARF14 is thought to regulate the growth and development of the taproot.
There was no significant variance observed in the root length between WT-PgARF42 and PgARF42. According to the phylogenetic tree, PgARF42 was categorized in subgroup Ia along with AtARF5. AtARF5 has been reported to have a vital role in initiating and localizing lateral roots. However, this function can only be observed at the cellular level [51]. Therefore, other methods may be required to observe potential differences between PgARF42 transgenic plants and wild-type controls. PgARF42 showed sensitivity to drought stress. It has been shown that MiRNA390, ta-siRNA, and ARF co-regulate the auxin pathway, e.g., the promotion of lateral root growth in poplar under salt stress [52]. It is therefore hypothesized that PgARR42 may affect the growth and development of ginseng in other ways.
The root length of PgARF53 differed significantly from WT-PgARF53. PgARF53 is situated in the Ic subgroup of the phylogenetic tree, and AtARF7 and AtARF19 are also clustered in this group. AtARF7 and AtARF19 are key regulators of lateral root growth and development [53]. PgARF53 expression was significantly elevated after IAA and GA treatments, so it may regulate ginseng growth and development through the molecular signaling network between GA and IAA. The expression of PgARF53 in Arabidopsis resulted in root length variations, likely due to the use of the 35S promoter, which activates PgARF53 expression throughout all parts of Arabidopsis. However, the heatmap (Figure 6) showed that the expression of PgARF53 in ginseng may be tissue-specific and lower in ginseng roots. In the phylogenetic tree (Figure 1), none of the other PgARF genes (PgARF22, PgARF36, PgARF43) clustered in the same subgroup with PgARF53 were tissue-specific in expression, and they were widely expressed in ginseng at different ages and tissue sites, whereas PgARF53 was structurally different from the other three homologous PgARF genes: PgARF53 lacks the PB1 structural domain. Therefore, although PgARF53 can cause root elongation in Arabidopsis, its role in ginseng development needs to be verified by further studies.

4. Materials and Methods

4.1. Identification and Annotation of ARF Genes in Panax ginseng

The Panax ginseng genomic data were downloaded from the National Center for Biotechnology Information (https://www.ncbi.nlm.nih.gov, (accessed on 3 April 2022)) (https://ngdc.cncb.ac.cn/, (accessed on 3 April 2022)) [39], under the project number PRJNA752920. The ARF datasets for Arabidopsis thaliana and Oryza sativa are from PlantTFDB (http://planttfdb.cbi.pku.edu.cn/, (accessed on 3 April 2022)).
The Hidden Markov Model (HMM) was used to identify PgARF in the ginseng genome. In HMM profiles, the parameters were default, and the cutoff was 0.01. Then, the candidate PgARFs containing the ARF signature domains were detected and screened through the Pfam (http://pfam.xfam.org/, (accessed on 10 April 2022)) and SMART (http://smart.embl.de/, (accessed on 12 April 2022)) databases. Candidate PgARFs were further validated using the NCBI Conserved Domain Database (CDD) (http://www.omicsclass.com/article/310, (accessed on 15 April 2022)) to ensure that they contained ARF domains.
The physicochemical properties of PgARF proteins, including length of DNA and protein sequences (len_cds/len_pro), molecular weight of protein (MW), and isoelectric point (pI), were analyzed using online tools—the Sequence Manipulation Suite (http://www.detaibio.com/sms2/index.html, (accessed on 22 April 2022)) [54].

4.2. Phylogenetic analysis of PgARF with AtARFs and OsARFs

Full-length ARF proteins were aligned using ClustalW with default parameters. The phylogenetic tree of Panax ginseng ARF was established by the Maximum Likelihood of IQ-TREE [55]. For the ARF phylogenetic tree between Panax ginseng and other species, MEGAX was used to make the tree using the neighbor-joining method and 1000 bootstrap replicates. Phylogenetic tree results were further annotated in the online tool Evolview (https://www.evolgenius.info/evolview/#/treeview, (accessed on 10 May 2022)). [56]

4.3. Exon–Intron Structure, Conserved Motif, and Cis-Acting Element Analysis

Conserved motifs of ginseng ARF were analyzed using the MEME Suite (MEME—Submission form (meme-suite.org) (accessed on 10 May 2022)) [57], and the CDS structure was visualized with TBtools [58]. The cis-acting elements of ginseng ARFs were analyzed online on the PlantCARE website (https://bioinformatics.psb.ugent.be/webtools/plantcare/html/, (accessed on 10 May 2022)) [59], and the results were annotated using Tbtools.

4.4. Chromosomal Location, Duplication, Synteny, and Evolution Analyses PgARF

The MCScanX software (https://github.com/wyp1125/MCScanX, (accessed on 18 March 2019)) [60] facilitated interspecies and intraspecies covariance analysis of proteins. Duplicate gene classifier scripts within the program quantified various forms of duplication, including WGD, segment, tandem, dispersed, and proximal duplications. The resulting data were visualized using Circos [61]. Non-synonymous substitution rates (Ka) and synonymous substitution rates (Ks) were calculated for duplicate gene pairs using KaKs-Calculator-2.0. Ka/Ks ratios were used to analyze environmental selection pressures [62].

4.5. PgARF Gene Expression Analysis

The RNASeq datasets of 14 different tissues of ginseng are from NCBI (PRJNA302556) [40]. Downloaded 15 RNA-Seq datasets of ginseng under abiotic stress from the Ginseng Genome Database (http://ginsengdb.snu.ac.kr/transcriptome, (accessed on 20 September 2022). php, No.24-No.38) [41]. The datasets of different years of ginseng are from NCBI (PRJNA762437) [63]. The clean reads were aligned with the ginseng genome data using HISAT 2.2.1 software. The Cufflinks were merged with Cuffmerge and the expression value of each transcript was analyzed with Cuffdiff. Differentially expressed genes (DEGs) between different samples were identified using the fragments per kilobase of exon per million mapped reads (FPKM) method [64].

4.6. Subcellular Localization

Vectors were constructed using 35S-GFP, PgARF14, PgARF42, and PgARF53 to generate 35S:GFP-PgARF14, 35S:GFP-PgARF42, and 35S:GFP-PgARF53, respectively. Protoplasts were then prepared from cells taken from the 5th to 7th leaves of Arabidopsis plants aged 3–4 weeks. The protoplasts that were transformed using 35S:GFP-PgARF14, 35S: GFP-PgARF42, and 35S: GFP-PgARF53 were subjected to observation and photography under confocal microscopy.

4.7. Plant Materials

Ginseng seedlings were grown in the Plant Physiology Laboratory of Jilin Agricultural University, China. Ginseng seeds were vernalized and planted in sandy soil. Cultivation was then carried out in a greenhouse at 25 °C. The photoperiod was 16 h light/8 h dark. Five-week-old ginseng seedlings with three real leaves and growing well were selected. Ordinary distilled water was used as a blank control group. Distilled water, ABA (50 mM), IAA (10 mM), 6BA (75 mM) and GA3 (100 mM) were sprayed evenly on the leaves of ginseng seedlings, respectively. There were five groups of ginseng seedlings with four hormones and a blank control, with three biological replicates in each group. Leaf samples collected at 5 h after hormone treatment were cryopreserved in a −80 °C ultra-low temperature freezer until analysis.
Arabidopsis (wild-type Col-0) was used for this study. The coding sequences of PgARF14, PgARF42, and PgARF53 were inserted into the pCambia1300-3×FLAG vector. The resulting recombinant vector was transformed into Arabidopsis plants via inflorescence infiltration. PCR identification was performed on positive plants screened using 1/2MS medium containing hygromycin, and the electrophoresis map of the PCR identification results is shown in Figure S2. Positive plants were selected for further cultivation and phenotype observation. Arabidopsis chamber growth conditions were temperature 21 °C, illuminance 2000–3000 lx, light duration 14 h/day, humidity 40–60%, nutrient soil/vermiculite/perlite = 1:1:1. a light density of ~120 µmol m−2 s−1.

4.8. Statistical Analysis

The lengths of the roots of Arabidopsis were measured via ImageJ 1.53t. Subsequently, a one-way ANOVA was carried out for the root length data with GraphPad. The statistical significance was determined based on probability values, where p > 0.05 indicated no significant difference, 0.01 < p < 0.05 indicated a significant difference, and p < 0.01 indicated a highly significant difference.

5. Conclusions

In this study, we identified 53 PgARF genes in the ginseng genome. Phylogeny, gene structure, and functional motifs were also analyzed. PgARF genes were clustered into six different subgroups, similar to previous phylogenetic studies of Arabidopsis ARF. Analysis of the transcriptome data indicated that PgARF had different expression patterns in different parts of ginseng; most PgARFs were affected by exogenous hormones, and a few PgARFs were responsive to environmental stresses. This suggests that PgARF can potentially participate in various stages of ginseng growth and regulate a variety of hormones to participate in ginseng growth and development. Overexpression of both PgARF14 and PgARF53 regulated the elongation of Arabidopsis roots, whereas the effect of PgARF42 on the length of root was not significant. The expression of PgARF53 in ginseng may be tissue-specific. Moreover, it lacks the PB1 structural domain, which makes the mechanism of its expression in ginseng potentially different from that of PgARF14. Our study provided us with an understanding of the diversity of ARF genes in ginseng and provided a theoretical and experimental basis for further studies on the effects of hormones on ginseng growth and development. In addition, deeper studies on PgARF are needed to explore the molecular mechanisms by which it functions in the hormone signaling network to regulate ginseng growth and development.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants12233943/s1, Figure S1: Details of motifs1-10 of PgARFs; Figure S2: transgenic validation; Table S1: Physicochemical properties of PgARFs; Table S2: PgARF sequences; Table S3: Segmentally duplicated PgARF gene pairs; Table S4: Ka/Ks of PgARF gene pairs; Table S5: Sequences of PgARF14, PgARF42 and PgARF53.

Author Contributions

M.Y. and Y.Y. contributed to the manuscript writing, genome analysis, and transgenic analysis. P.W. and X.P. contributed to transcriptome analysis and co-expression analysis. Y.W., P.D. and D.-C.Y. contributed to the experimental design. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Science and Technology Development Project of Jilin Province (20210509022RQ), the Jilin Province Science and Technology Development Project (20210101190JC), the National Key Research and Development Program of China (2021YFD1600900), the Natural Science Foundation of China (U21A20405), and the Jilin College Students’ Innovation and Entrepreneurship Training Program (S202110193148).

Data Availability Statement

Data is contained within the article and Supplementary Materials.

Conflicts of Interest

The authors declare no conflict of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript; or in the decision to publish the results.

References

  1. Lai, X.; Chahtane, H.; Martin-Arevalillo, R.; Zubieta, C.; Parcy, F. Contrasted evolutionary trajectories of plant transcription factors. Curr. Opin. Plant Biol. 2015, 37, 33. [Google Scholar] [CrossRef] [PubMed]
  2. Benfey, P.N. Toward a systems analysis of the root. Cold Spring Harb. Symp. Quant. Biol. 2012, 77, 91–96. [Google Scholar] [CrossRef]
  3. Ayaz, A.; Saqib, S.; Huang, H.; Zaman, W.; Lü, S.; Zhao, H. Genome-wide comparative analysis of long-chain acyl-CoA synthetases (LACSs) gene family: A focus on identification, evolution and expression profiling related to lipid synthesis. Plant Physiol. Bioch. 2021, 161, 1–11. [Google Scholar] [CrossRef] [PubMed]
  4. Soltis, D.E.; Soltis, P.S.; Albert, V.A.; Oppenheimer, D.G.; DePamphilis, C.W.; Ma, H.; Frohlich, M.W.; Theißen, G. Missing links: The genetic architecture of flower and floral diversification. Trends Plant Sci. 2002, 1, 22–31. [Google Scholar] [CrossRef] [PubMed]
  5. Xiong, H.; Lu, D.; Li, Z.; Wu, J.; Ning, X.; Lin, W.; Bai, Z.; Zheng, C.; Sun, Y.; Chi, W.; et al. The DELLA-ABI4-HY5 module integrates light and gibberellin signals to regulate hypocotyl elongation. Plant Commun. 2023, 4, 100597. [Google Scholar] [CrossRef]
  6. Lu, L.; Zhai, X.; Li, X.; Wang, S.; Zhang, L.; Wang, L.; Jin, X.; Liang, L.; Deng, Z.; Li, Z.; et al. Met1-specific motifs conserved in OTUB subfamily of green plants enable rice OTUB1 to hydrolyse Met1 ubiquitin chains. Nat. Commun. 2022, 13, 4672. [Google Scholar] [CrossRef]
  7. Boer, D.R.; Freire-Rios, A.; van den Berg, W.A.M.; Saaki, T.; Manfield, I.W.; Kepinski, S.; López-Vidrieo, I.; FrancoZorrilla, J.M.; de Vries, S.C.; Solano, R.; et al. Structural Basis for DNA Binding Specificity by the Auxin-Dependent ARF Transcription Factors. Cell 2014, 156, 577–589. [Google Scholar] [CrossRef]
  8. Strader, L.; Weijers, D.; Wagner, D. Plant transcription factors-being in the right place with the right company. Curr. Opin. Plant Biol. 2022, 65, 102136. [Google Scholar] [CrossRef]
  9. Ulmasov, T.; Hagen, G.; Guilfoyle, T.J. Dimerization and DNA binding of auxin response factors. Plant J. Cell Mol. Biol. 1999, 19, 309–319. [Google Scholar] [CrossRef]
  10. Ulmasov, T.; Hagen, G.; Guilfoyle, T.J. Activation and Repression of Transcription by Auxin-Response Factors. Proc. Natl. Acad. Sci. USA 1999, 96, 5844–5849. [Google Scholar] [CrossRef]
  11. Nanao, M.H.; Vinos-Poyo, T.; Brunoud, G.; Thevenon, E.; Mazzoleni, M.; Mast, D.; Laine, S.; Wang, S.; Hagen, G.; Li, H.; et al. Structural basis for oligomerization of auxin transcriptional regulators. Nat. Commun. 2014, 5, 3617. [Google Scholar] [CrossRef]
  12. Li, W.; Chen, F.; Wang, Y.; Zheng, H.; Yi, Q.; Ren, Y.; Gao, J. Genome-wide identification and functional analysis of ARF transcription factors in Brassica juncea var. tumida. PLoS ONE 2020, 15, e232039. [Google Scholar] [CrossRef] [PubMed]
  13. Hagen, T.J.G.A. Auxin response factors. Curr. Opin. Plant Biol. 2007, 10, 453–460. [Google Scholar]
  14. Szemenyei, H.; Hannon, M.; Long, J.A. TOPLESS Mediates Auxin-Dependent Transcriptional Repression During Arabidosis Embryogenesis. Science 2008, 319, 1384–1386. [Google Scholar] [CrossRef] [PubMed]
  15. Shen, C.; Wang, S.; Bai, Y.; Wu, Y.; Zhang, S.; Chen, M.; Guilfoyle, T.J.; Wu, P.; Qi, Y. Functional analysis of the structural domain of ARF proteins in rice (Oryza sativa L.). J. Exp. Bot. 2010, 61, 3971–3981. [Google Scholar] [CrossRef] [PubMed]
  16. Okushima, Y.; Overvoorde, P.J.; Arima, K.; Alonso, J.M.; Chan, A.; Chang, C.; Ecker, J.R.; Hughes, B.; Lui, A.; Nguyen, D.; et al. Functional Genomic Analysis of the AUXIN RESPONSE FACTOR Gene Family Members in Arabidopsis thaliana: Unique and Overlapping Functions ofARF7 andARF19. Plant Cell 2005, 17, 444–463. [Google Scholar] [CrossRef] [PubMed]
  17. Kim, J.; Harter, K.; Theologis, A. Protein–protein interactions among the Aux/IAA proteins. Proc. Natl. Acad. Sci. USA 1997, 94, 11786–11791. [Google Scholar] [CrossRef] [PubMed]
  18. Cancé, C.; Martin Arevalillo, R.; Boubekeur, K.; Dumas, R. Auxin response factors are keys to the many auxin doors. New Phytol. 2022, 235, 402–419. [Google Scholar] [CrossRef] [PubMed]
  19. Choi, H.S.; Seo, M.; Cho, H.T. Two TPL-Binding Motifs of ARF2 Are Involved in Repression of Auxin Responses. Front. Plant Sci. 2018, 9, 372. [Google Scholar] [CrossRef]
  20. Chandler, J.W. Auxin response factors. Plant Cell Environ. 2016, 39, 1014–1028. [Google Scholar] [CrossRef]
  21. Wang, D.; Pei, K.; Fu, Y.; Sun, Z.; Li, S.; Liu, H.; Tang, K.; Han, B.; Tao, Y. Genome-wide analysis of the auxin response factors (ARF) gene family in rice (Oryza sativa). Gene 2007, 394, 13–24. [Google Scholar] [CrossRef] [PubMed]
  22. Ha, C.V.; Le, D.T.; Nishiyama, R.; Watanabe, Y.; Sulieman, S.; Tran, U.T.; Mochida, K.; Dong, N.V.; Yamagu-chi-Shinozaki, K.; Shinozaki, K.; et al. The auxin response factor transcription factor family in soybean: Genome-wide identification and expression analyses during development and water stress. DNA Res. 2013, 20, 511–524. [Google Scholar] [PubMed]
  23. Diao, D.; Hu, X.; Guan, D.; Wang, W.; Yang, H.; Liu, Y. Genome-wide identification of the ARF (auxin response factor) gene family in peach and their expression analysis. Mol. Biol. Rep. 2020, 47, 4331–4344. [Google Scholar] [CrossRef] [PubMed]
  24. Liu, R.; Guo, Z.; Lu, S. Genome-Wide Identification and Expression Analysis of the Aux/IAA and Auxin Response Factor Gene Family in Medicago truncatula. Int. J. Mol. Sci. 2021, 22, 10494. [Google Scholar] [CrossRef] [PubMed]
  25. Luo, L.; Wan, Q.; Yu, Z.; Zhang, K.; Zhang, X.; Zhu, S.; Wan, Y.; Ding, Z.; Liu, F. Genome-Wide Identification of Auxin Response Factors in Peanut (Arachis hypogaea L.) and Functional Analysis in Root Morphology. Int. J. Mol. Sci. 2022, 23, 5309. [Google Scholar] [CrossRef] [PubMed]
  26. Chen, J.; Wang, S.; Wu, F.; Wei, M.; Li, J.; Yang, F. Genome-Wide Identification and Functional Characterization of Auxin Response Factor (ARF) Genes in Eggplant. Int. J. Mol. Sci. 2022, 23, 6219. [Google Scholar] [CrossRef] [PubMed]
  27. Tim Ulmasov, G.H.T.J. ARF1, a Transcription Factor That Binds to Auxin Response Elements. Science 1997, 276, 1864–1868. [Google Scholar] [CrossRef]
  28. Christine, M.; Ellis, P.N.J.C. AUXIN RESPONSE FACTOR1and AUXIN RESPONSE FACTOR2 regulate senescence and floral organ abscission in Arabidopsis thaliana. Development 2005, 132, 4563–4574. [Google Scholar]
  29. Guilfoyle, T.J.; Ulmasov, T.; Hagen, G. The ARF family of transcription factors and their role in plant hormone-responsive transcription. Cell. Mol. Life Sci. 1998, 54, 619–627. [Google Scholar] [CrossRef]
  30. Pekker, I.; Alvarez, J.P.; Eshed, Y. Auxin Response Factors Mediate Arabidopsis Organ Asymmetry via Modulation of KANADI Activity. Plant Cell 2005, 17, 2899–2910. [Google Scholar] [CrossRef]
  31. Hardtke, C.S.; Berleth, T. The Arabidopsis gene MONOPTEROS encodes a transcription factor mediating embryo axis formation and vascular development. EMBO J. 1998, 17, 1405–1411. [Google Scholar] [CrossRef] [PubMed]
  32. Hardtke, C.S.; Ckurshumova, W.; Vidaurre, D.P.; Singh, S.A.; Stamatiou, G.; Tiwari, S.B.; Hagen, G.; Guilfoyle, T.J.; Berleth, T. Overlapping and non-redundant functions of the Arabidopsis auxin response factors MONOPTEROS and NONPHOTOTROPIC HYPOCOTYL 4. Development 2004, 131, 1089–1100. [Google Scholar] [CrossRef] [PubMed]
  33. Wu, M.F.; Tian, Q.; Reed, J.W. Arabidopsis microRNA167 controls patterns of ARF6 and ARF8 expression, and regulates both female and male reproduction. Development 2006, 133, 4211–4218. [Google Scholar] [CrossRef] [PubMed]
  34. Wilmoth, J.C.; Wang, S.; Tiwari, S.B.; Joshi, A.D.; Hagen, G.; Guilfoyle, T.J.; Alonso, J.M.; Ecker, J.R.; Reed, J.W. NPH4/ARF7 and ARF19 promote leaf expansion and auxin-induced lateral root formation. Plant J. 2005, 43, 118–130. [Google Scholar] [CrossRef] [PubMed]
  35. Xing, H.; Pudake, R.N.; Guo, G.; Xing, G.; Hu, Z.; Zhang, Y.; Sun, Q.; Ni, Z. Genome-wide identification and expression profiling of auxin response factor (ARF) gene family in maize. BMC Genom. 2011, 12, 178. [Google Scholar] [CrossRef]
  36. Ren, Z.; Liu, R.; Gu, W.; Dong, X. The Solanum lycopersicum auxin response factor SlARF2 participates in regulating lateral root formation and flower organ senescence. Plant Sci. 2017, 256, 103–111. [Google Scholar] [CrossRef] [PubMed]
  37. Tang, Y.; Bao, X.; Liu, K.; Wang, J.; Zhang, J.; Feng, Y.; Wang, Y.; Lin, L.; Feng, J.; Li, C. Genome-wide identification and expression profiling of the auxin response factor (ARF) gene family in physic nut. PLoS ONE 2018, 13, e201024. [Google Scholar] [CrossRef]
  38. Liu, B.; Zhu, J.; Lin, L.; Yang, Q.; Hu, B.; Wang, Q.; Zou, X.X.; Zou, S.Q. Genome-Wide Identification and Co-Expression Analysis of ARF and IAA Family Genes in Euscaphis konishii: Potential Regulators of Triterpenoids and Anthocyanin Biosynthesis. Front. Genet. 2021, 12, 737293. [Google Scholar] [CrossRef]
  39. Wang, Z.H.; Wang, X.F.; Lu, T.; Li, M.R.; Jiang, P.; Zhao, J.; Liu, S.T.; Fu, X.Q.; Wendel, J.F.; Van de Peer, Y.; et al. Reshuffling of the ancestral core-eudicot genome shaped chromatin topology and epigenetic modification in Panax. Nat. Commun. 2022, 13, 1902. [Google Scholar] [CrossRef]
  40. Wang, K.; Jiang, S.; Sun, C.; Lin, Y.; Yin, R.; Wang, Y.; Zhang, M. The Spatial and Temporal Transcriptomic Land-scapes of Ginseng, Panax ginseng C. A. Meyer. Sci. Rep.-UK 2015, 5, 18283. [Google Scholar] [CrossRef]
  41. Kim, N.H.; Jayakodi, M.; Lee, S.C.; Choi, B.S.; Jang, W.; Lee, J.; Kim, H.H.; Waminal, N.E.; Lakshmanan, M.; van Nguyen, B.; et al. Genome and evolution of the shade-requiring medicinal herb Panax ginseng. Plant Biotechnol. J. 2018, 16, 1904–1917. [Google Scholar] [CrossRef]
  42. Wu, P.; Zhou, C.; Cheng, S.; Wu, Z.; Lu, W.; Han, J.; Chen, Y.; Chen, Y.; Ni, P.; Wang, Y.; et al. Integrated genome sequence and linkage map of physic nut (Jatropha curcas L.), a biodiesel plant. Plant J. 2015, 81, 810–821. [Google Scholar] [CrossRef]
  43. Ayaz, A.; Huang, H.; Zheng, M.; Zaman, W.; Li, D.; Saqib, S.; Zhao, H.; Lü, S. Molecular Cloning and Functional Analysis of GmLACS2-3 Reveals Its Involvement in Cutin and Suberin Biosynthesis along with Abiotic Stress Tolerance. Int. J. Mol. Sci. 2021, 22, 9175. [Google Scholar] [CrossRef] [PubMed]
  44. Marin, E.; Jouannet, V.; Herz, A.; Lokerse, A.S.; Weijers, D.; Vaucheret, H.; Nussaume, L.; Crespi, M.D.; Maizel, A. miR390, Arabidopsis TAS3 tasiRNAs, and Their AUXIN RESPONSE FACTOR Targets Define an Autoregulatory Network Quantitatively Regulating Lateral Root Growth. Plant Cell 2010, 22, 1104–1117. [Google Scholar] [CrossRef] [PubMed]
  45. Kazan, K. Auxin and the integration of environmental signals into plant root development. Ann. Bot.-Lond. 2013, 112, 1655–1665. [Google Scholar] [CrossRef] [PubMed]
  46. Hu, W.; Zuo, J.; Hou, X.; Yan, Y.; Wei, Y.; Liu, J.; Li, M.; Xu, B.; Jin, Z. The auxin response factor gene family in banana: Genome-wide identification and expression analyses during development, ripening, and abiotic stress. Front. Plant Sci. 2015, 6, 742. [Google Scholar] [CrossRef] [PubMed]
  47. Jain, M.; Khurana, J.P. Transcript profiling reveals diverse roles of auxin-responsive genes during reproductive development and abiotic stress in rice. FEBS J. 2009, 276, 3148–3162. [Google Scholar] [CrossRef] [PubMed]
  48. Xi, D.; Chen, X.; Wang, Y.; Zhong, R.; He, J.; Shen, J.; Ming, F. Arabidopsis ANAC092 regulates auxin-mediated root development by binding to the ARF8 and PIN4 promoters. J. Integr. Plant Biol. 2019, 61, 1015–1031. [Google Scholar] [CrossRef] [PubMed]
  49. He, H.; Yamamuro, C. Interplays between auxin and GA signaling coordinate early fruit development. Hortic. Res.-Engl. 2022, 9, uhab78. [Google Scholar] [CrossRef]
  50. Hu, J.; Su, H.; Cao, H.; Wei, H.; Fu, X.; Jiang, X.; Song, Q.; He, X.; Xu, C.; Luo, K. AUXIN RESPONSE FACTOR7 integrates gibberellin and auxin signaling via interactions between DELLA and AUX/IAA proteins to regulate cambial activity in poplar. Plant Cell 2022, 34, 2688–2707. [Google Scholar] [CrossRef]
  51. Dastidar, M.G.; Scarpa, A.; Mägele, I.; Ruiz Duarte, P.; Born, P.; Bald, L.; Jouannet, V.; Maizel, A. ARF5/MONOPTEROS directly regulates miR390 expression in the Arabidopsis thaliana primary root meristem. Plant Direct 2019, 3, e116. [Google Scholar] [CrossRef] [PubMed]
  52. He, F.; Xu, C.; Fu, X.; Shen, Y.; Guo, L.; Leng, M.; Luo, K. The MicroRNA390/TRANS-ACTING SHORT INTERFER-ING RNA3 Module Mediates Lateral Root Growth under Salt Stress via the Auxin Pathway1. Plant Physiol. (Bethesda) 2018, 177, 775–791. [Google Scholar] [CrossRef] [PubMed]
  53. Okushima, Y.; Fukaki, H.; Onoda, M.; Theologis, A.; Tasaka, M. ARF7 and ARF19 Regulate Lateral Root Formation via Direct Activation of LBD/ASL Genes in Arabidopsis. Plant Cell 2007, 19, 118–130. [Google Scholar] [CrossRef] [PubMed]
  54. Stothard, P. The Sequence Manipulation Suite: JavaScript Programs for Analyzing and Formatting Protein and DNA Sequences. Biotechniques 2000, 28, 1102–1104. [Google Scholar] [CrossRef] [PubMed]
  55. Nguyen, L.T.; Schmidt, H.A.; von Haeseler, A.; Minh, B.Q. IQ-TREE: A fast and effective stochastic algorithm for es-timating maximum-likelihood phylogenies. Mol. Biol. Evol. 2015, 32, 268–274. [Google Scholar] [CrossRef] [PubMed]
  56. Subramanian, B.; Gao, S.; Lercher, M.J.; Hu, S.; Chen, W.H. Evolview v3: A webserver for visualization, annotation, and management of phylogenetic trees. Nucleic Acids Res. 2019, 47, W270–W275. [Google Scholar] [CrossRef] [PubMed]
  57. Timothy, L.; Bailey, J.J.C.E. The MEME Suite. Nucleic Acids Res. 2015, 43, W39–W49. [Google Scholar]
  58. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An Integrative Toolkit Developed for Interactive Analyses of Big Biological Data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  59. Rombauts, S.; Dehais, P.; Van Montagu, M.; Rouze, P. PlantCARE, a plant cis-acting regulatory element database. Nucleic Acids Res. 1999, 27, 295–296. [Google Scholar] [CrossRef]
  60. Wang, Y.; Tang, H.; Debarry, J.D.; Tan, X.; Li, J.; Wang, X.; Lee, T.; Jin, H.; Marler, B.; Guo, H.; et al. MCScanX: A toolkit for detection and evolutionary analysis of gene synteny and collinearity. Nucleic Acids Res. 2012, 40, e49. [Google Scholar] [CrossRef]
  61. Krzywinski, M.; Schein, J.; Birol, I.; Connors, J.; Gascoyne, R.; Horsman, D.; Jones, S.J.; Marra, M.A. Circos: An in-formation aesthetic for comparative genomics. Genome Res. 2009, 19, 1639–1645. [Google Scholar] [CrossRef]
  62. Wang, D.; Zhang, Y.; Zhang, Z.; Zhu, J.; Yu, J. KaKs_Calculator 2.0: A Toolkit Incorporating Gamma-Series Methods and Sliding Window Strategies. Genom. Proteom. Bioinform. 2010, 1, 77–80. [Google Scholar] [CrossRef]
  63. Fang, X.; Wang, M.; Zhou, X.; Wang, H.; Wang, H.; Xiao, H. Effects of growth years on ginsenoside biosynthesis of wild ginseng and cultivated ginseng. BMC Genom. 2022, 23, 325. [Google Scholar] [CrossRef]
  64. Trapnell, C.; Roberts, A.; Goff, L.; Pertea, G.; Kim, D.; Kelley, D.R.; Pimentel, H.; Salzberg, S.L.; Rinn, J.L.; Pachter, L. Differential gene and transcript expression analysis of RNA-seq experiments with TopHat and Cufflinks. Nat. Protoc. 2012, 7, 562–578. [Google Scholar] [CrossRef]
Plants 12 03943 g001

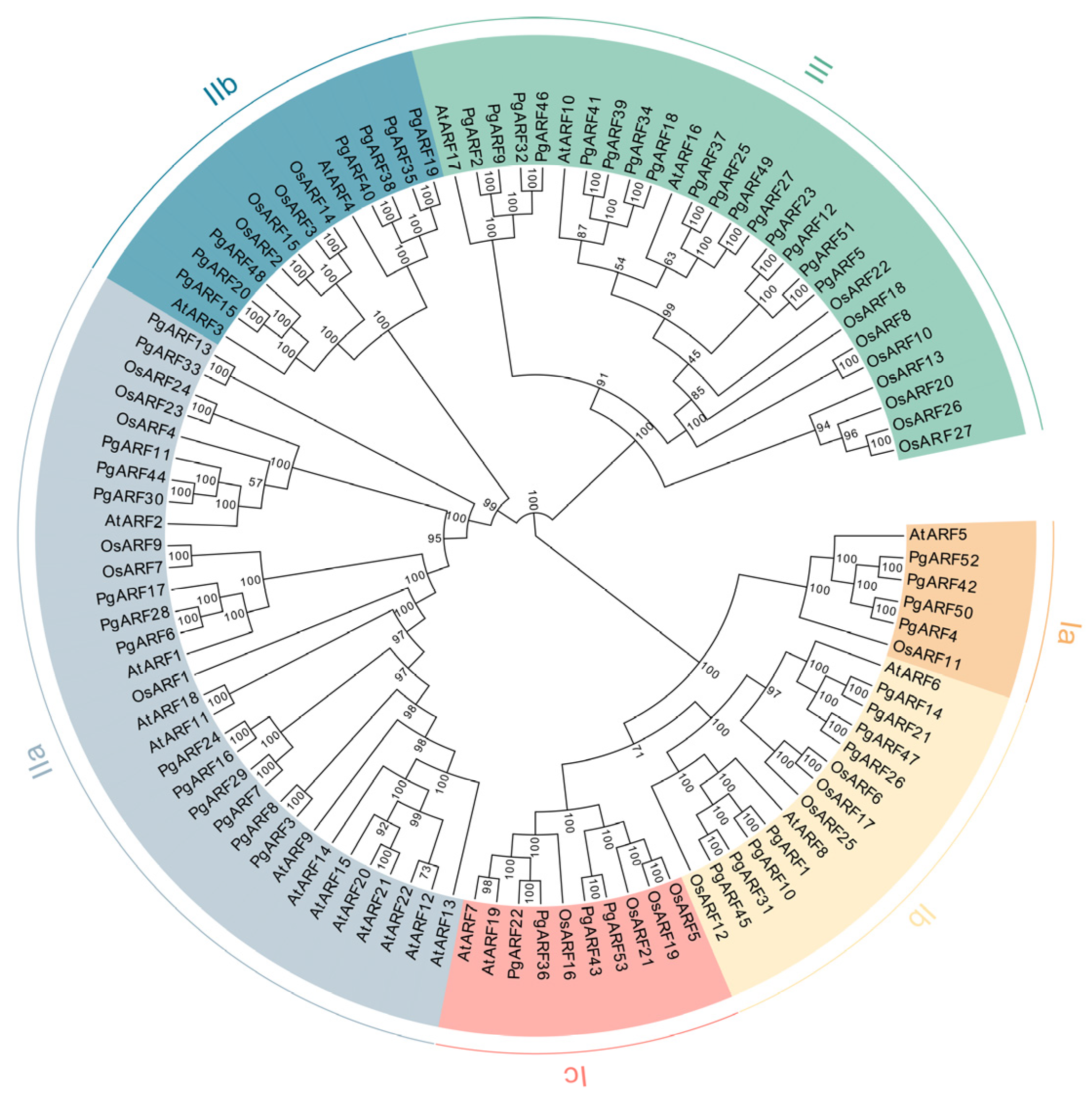

Figure 1. Phylogenetic tree of PgARF proteins. Phylogenetic tree based on the ARFs protein family in three plants. The phylogenetic tree has three branches. Clade I is subdivided into Ia, Ib, and Ic, and clade II into IIa and IIb. At, Arabidopsis; Os, rice; Pg, ginseng. The number stands for the confidence of the branch.
Figure 1. Phylogenetic tree of PgARF proteins. Phylogenetic tree based on the ARFs protein family in three plants. The phylogenetic tree has three branches. Clade I is subdivided into Ia, Ib, and Ic, and clade II into IIa and IIb. At, Arabidopsis; Os, rice; Pg, ginseng. The number stands for the confidence of the branch.
Plants 12 03943 g001
Plants 12 03943 g002

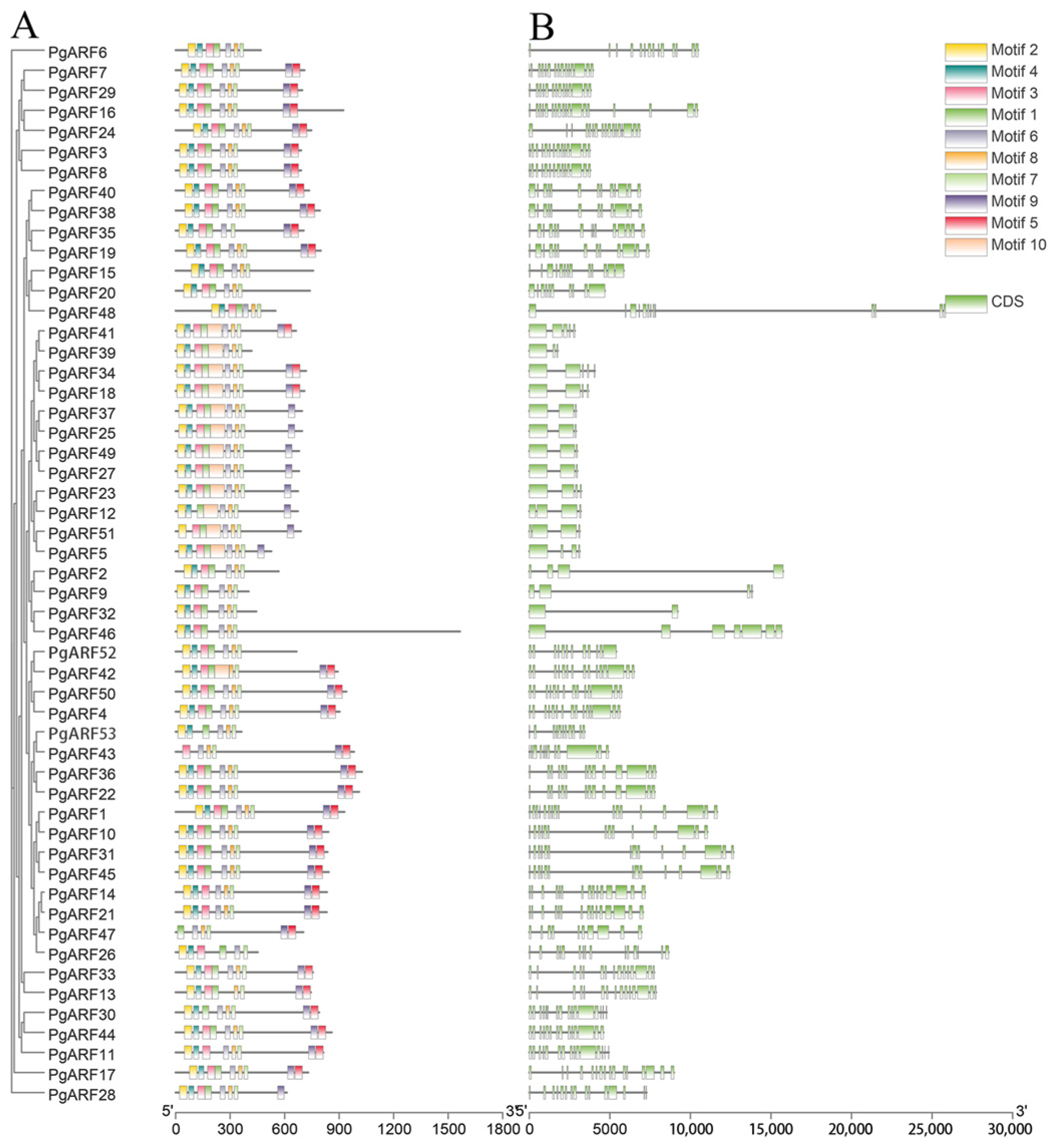

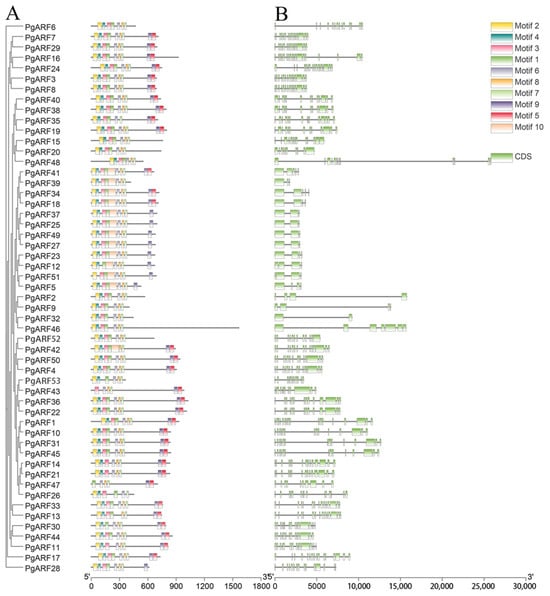

Figure 2. Analysis of protein conserved domains (A) and gene structure (B) of PgARF. Coding and noncoding regions are represented by green boxes and thin lines, respectively; gray lines represent non-conserved sequences, and each conserved domain motif is represented by a numbered colored square to the right.
Figure 2. Analysis of protein conserved domains (A) and gene structure (B) of PgARF. Coding and noncoding regions are represented by green boxes and thin lines, respectively; gray lines represent non-conserved sequences, and each conserved domain motif is represented by a numbered colored square to the right.
Plants 12 03943 g002
Plants 12 03943 g003
Figure 3. Hormone-responsive and stress-responsive cis-acting elements in ginseng ARF genes. Gray lines represent gene sequences, and each cis-acting element is represented by an annotated colored square on the right.
Figure 3. Hormone-responsive and stress-responsive cis-acting elements in ginseng ARF genes. Gray lines represent gene sequences, and each cis-acting element is represented by an annotated colored square on the right.
Plants 12 03943 g003
Plants 12 03943 g004
Figure 4. Chromosomal distribution and synteny analysis of ginseng ARF gene. Gray lines indicate all commonality blocks in the ginseng genome, and orange lines indicate duplicated ARF gene pairs. The blue boxes and histograms indicate the gene density of different chromosomes. Chromosome numbers are shown at the top of each chromosome.
Figure 4. Chromosomal distribution and synteny analysis of ginseng ARF gene. Gray lines indicate all commonality blocks in the ginseng genome, and orange lines indicate duplicated ARF gene pairs. The blue boxes and histograms indicate the gene density of different chromosomes. Chromosome numbers are shown at the top of each chromosome.
Plants 12 03943 g004
Plants 12 03943 g005
Figure 5. Homology analysis of Panax quinquefolius, Panax notoginseng, and Panax ginseng ARF genes. Gray lines in the background indicate collinear blocks in ginseng and other plant genomes, while green lines highlight collinear gene pairs.
Figure 5. Homology analysis of Panax quinquefolius, Panax notoginseng, and Panax ginseng ARF genes. Gray lines in the background indicate collinear blocks in ginseng and other plant genomes, while green lines highlight collinear gene pairs.
Plants 12 03943 g005
Plants 12 03943 g006
Figure 6. Expression patterns of PgARF genes in different growth years and different tissues. (A) Expression of PgARF genes in different growth years: R, root; S, stem; L, leaf. (B) Expression of PgARF genes expression in different tissues. The expression level of PgARF is represented by red to blue from high to low, and the red and blue on the right indicate the level of expression. The top of the figure shows the grouping of the phylogenetic tree, and the right side shows the color of each subgroup.
Figure 6. Expression patterns of PgARF genes in different growth years and different tissues. (A) Expression of PgARF genes in different growth years: R, root; S, stem; L, leaf. (B) Expression of PgARF genes expression in different tissues. The expression level of PgARF is represented by red to blue from high to low, and the red and blue on the right indicate the level of expression. The top of the figure shows the grouping of the phylogenetic tree, and the right side shows the color of each subgroup.
Plants 12 03943 g006
Plants 12 03943 g007
Figure 7. Expression patterns of PgARF genes under different environmental stresses and hormone treatments. (A) Expression of PgARF genes under different environmental stresses; (B) expression of PgARF genes expression under different hormone treatments. The expression level of PgARFs are represented by red to blue from high to low, and the red and blue on the right indicate the level of expression. The top of the figure shows the grouping of the phylogenetic tree, and the right side shows the color of each subgroup. CK–control group; 6BA—cytokinin; ABA—abscisic acid; GA—gibberellin; IAA—auxin.
Figure 7. Expression patterns of PgARF genes under different environmental stresses and hormone treatments. (A) Expression of PgARF genes under different environmental stresses; (B) expression of PgARF genes expression under different hormone treatments. The expression level of PgARFs are represented by red to blue from high to low, and the red and blue on the right indicate the level of expression. The top of the figure shows the grouping of the phylogenetic tree, and the right side shows the color of each subgroup. CK–control group; 6BA—cytokinin; ABA—abscisic acid; GA—gibberellin; IAA—auxin.
Plants 12 03943 g007
Plants 12 03943 g008
Figure 8. Subcellular localization analysis of PgARF14, PgARF42, and PgARF53. Scale bar = 10 μm.
Figure 8. Subcellular localization analysis of PgARF14, PgARF42, and PgARF53. Scale bar = 10 μm.
Plants 12 03943 g008
Plants 12 03943 g009
Figure 9. Overexpression of PgARF14 and PgARF53 in Arabidopsis promotes root development. Significant analysis of root development morphology and corresponding main root length difference between PgARF14, PgARF42, and PgARF53 transgenic Arabidopsis and wild control group. The first group from the left is the control group, and the three groups to the right are three groups of transgenic Arabidopsis for each gene. * is significant difference, ** is extremely significant difference.
Figure 9. Overexpression of PgARF14 and PgARF53 in Arabidopsis promotes root development. Significant analysis of root development morphology and corresponding main root length difference between PgARF14, PgARF42, and PgARF53 transgenic Arabidopsis and wild control group. The first group from the left is the control group, and the three groups to the right are three groups of transgenic Arabidopsis for each gene. * is significant difference, ** is extremely significant difference.
Plants 12 03943 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yan, M.; Yan, Y.; Wang, P.; Wang, Y.; Piao, X.; Di, P.; Yang, D.-C. Genome-Wide Identification and Expression Analysis of Auxin Response Factor (ARF) Gene Family in Panax ginseng Indicates Its Possible Roles in Root Development. Plants 2023, 12, 3943. https://doi.org/10.3390/plants12233943

AMA Style

Yan M, Yan Y, Wang P, Wang Y, Piao X, Di P, Yang D-C. Genome-Wide Identification and Expression Analysis of Auxin Response Factor (ARF) Gene Family in Panax ginseng Indicates Its Possible Roles in Root Development. Plants. 2023; 12(23):3943. https://doi.org/10.3390/plants12233943

Chicago/Turabian Style

Yan, Min, Yan Yan, Ping Wang, Yingping Wang, Xiangmin Piao, Peng Di, and Deok-Chun Yang. 2023. "Genome-Wide Identification and Expression Analysis of Auxin Response Factor (ARF) Gene Family in Panax ginseng Indicates Its Possible Roles in Root Development" Plants 12, no. 23: 3943. https://doi.org/10.3390/plants12233943

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
