Tomato Mutants Reveal Root and Shoot Strigolactone Involvement in Branching and Broomrape Resistance

by
Uri Karniel
1,†,
Amit Koch
2,†,
Nurit Bar Nun
1,
Dani Zamir
2 and
Joseph Hirschberg
1,*
1
Department of Genetics, Alexander Silberman Institute of Life Sciences, The Hebrew University of Jerusalem, Jerusalem 9190401, Israel
2
Robert H. Smith Institute of Plant Sciences and Genetics, The Hebrew University of Jerusalem, Rehovot 7610001, Israel
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2024, 13(11), 1554; https://doi.org/10.3390/plants13111554
Submission received: 25 April 2024 / Revised: 29 May 2024 / Accepted: 3 June 2024 / Published: 4 June 2024
(This article belongs to the Section Crop Physiology and Crop Production)
Browse Figures
Versions Notes

Abstract

:
The phytohormones strigolactones (SLs) control root and shoot branching and are exuded from roots into the rhizosphere to stimulate interaction with mycorrhizal fungi. The exuded SLs serve as signaling molecules for the germination of parasitic plants. The broomrape Phelipanche aegyptiaca is a widespread noxious weed in various crop plants, including tomato (Solanum lycopersicum). We have isolated three mutants that impair SL functioning in the tomato variety M82: SHOOT BRANCHING 1 (sb1) and SHOOT BRANCHING 2 (sb2), which abolish SL biosynthesis, and SHOOT BRANCHING 3 (sb3), which impairs SL perception. The over-branching phenotype of the sb mutants resulted in a severe yield loss. The isogenic property of the mutations in a determinate growth variety enabled the quantitative evaluation of the contribution of SL to yield under field conditions. As expected, the mutants sb1 and sb2 were completely resistant to infection by P. aegyptiaca due to the lack of SL in the roots. In contrast, sb3 was more susceptible to P. aegyptiaca than the wild-type M82. The SL concentration in roots of the sb3 was two-fold higher than in the wild type due to the upregulation of the transcription of SL biosynthesis genes. This phenomenon suggests that the steady-state level of root SLs is regulated by a feedback mechanism that involves the SL signaling pathway. Surprisingly, grafting wild-type varieties on sb1 and sb2 rootstocks eliminated the branching phenotype and yield loss, indicating that SL synthesized in the shoots is sufficient to control shoot branching. Moreover, commercial tomato varieties grafted on sb1 were protected from P. aegyptiaca infection without significant yield loss, offering a practical solution to the broomrape crisis.

Graphical Abstract

1. Introduction

Strigolactones (SLs) are a group of conserved carotenoid-derived hormones present across all land plants. They were first characterized as potent stimulant crystalline compounds that induced the germination of the parasitic weed Striga lutea [1]. Further research showed that SLs are involved in plant development and responses to biotic and abiotic stresses and rhizosphere signaling [2,3,4,5]. One of the most important roles of SLs is to suppress axillary bud growth and shoot branching [6,7,8,9]. SLs also affect root architecture [10,11] and are involved in other processes, ranging from seed germination to senescence [4,12,13,14]. Recent evidence has revealed crosstalk mechanisms between SLs and other phytohormones [15,16].
Below the ground, SLs are exuded from roots, stimulating various processes in the rhizosphere. An important role of SLs is the establishment of a beneficial symbiosis with arbuscular mycorrhizal fungi through promoting root colonization and hyphal branching, which improves the plant’s mineral nutrition [5]. It was shown that a deficiency in the primary nutrients phosphate and nitrogen induces SL biosynthesis and response [17,18]. SLs promote plant defense against root-knot nematodes in tomato (Solanum lycopersicum) by influencing the accumulation of the phytohormones jasmonic acid and abscisic acid in the roots [19].
SLs exuded by the roots stimulate the germination of several parasitic plant species, most of which belong to the Orobanchaceae (broomrapes) family. This family comprises the Striga, Orobanche, and Phelipanche genera, among the most numerous holoparasitic weeds responsible for severe damage to crop yield worldwide [20]. Phelipanche aegyptiaca spp. (Egyptian broomrape) is a widespread noxious weed in tomato fields in Africa, the Middle East, and the Mediterranean [21]. This parasitic plant can cause severe yield loss ranging from 5% to 100% [22]. The life cycle of P. aegyptiaca starts with seed germination in response to SL released by the host plant, followed by attachment to the host roots and haustorium formation toward the vascular system of host roots, resulting in a compatible interaction. The inflorescence of the parasitic plant emerges from the soil and develops flowers that produce a massive number of seeds [23].
The initial steps in SL biosynthesis in plants occur in the plastids. This process starts with the isomerization of the C9-C10 double-bond of all-trans β-carotene to produce 9-cis-β-carotene, catalyzed by the carotene isomerase DWARF27 (D27) [24]. Further reactions, catalyzed by carotenoid cleavage dioxygenase 7 (CCD7) and CCD8, convert 9-cis β-carotene to carlactone, the common precursor for all the divergent active molecules in the SL family (Alder et al. 2012) [25,26]. Subsequent reactions in the cytosol are catalyzed by cytochrome P450 enzymes, which convert carlactone into carlactonic acid and functional SLs through hydroxylation and oxidation reactions [24,27,28,29,30] (Figure 1).
The perception pathway of SLs starts with their binding by the receptor DWARF14 (D14) [31,32]. This binding leads to the recruitment of the F-box protein MORE AXILLARY BRANCHES 2 (MAX2), which targets the repressor proteins DWARF53 and SUPPRESSOR OF MAX2 1-LIKE (SMXL) for ubiquitination and subsequent degradation in the proteasome, resulting in the activation of various SLs’ downstream target genes [33]. The receptor D14, which belongs to the α/β-hydrolase enzyme superfamily, is conserved in all land plants [13,34] and has recently been characterized in tomato (Solanum lycopersicum) [35].
Tomato is a major horticultural crop of global importance, and the parasitic weed P. aegyptiaca endangers its cultivation in vast areas worldwide [20]. Several strategies have been developed to cope with broomrapes [21]. Most use chemicals, including herbicides, soil fumigation that kill the parasites, and field treatment before cultivation with SL analogs, in a process known as ‘suicidal germination’ [36,37]. Apart from these methods, breeding P. aegyptiaca-resistant varieties, based on the host’s low exudation of the SL stimulants, has been attempted [22,38,39,40,41,42,43,44]. Some were based on impairing the functions of the carotenoid cleavage enzymes CCD7 and CCD8, which are involved in the SLs’ biosynthesis pathway.
Here, we describe identifying and characterizing isogenic tomato mutants impaired in the CCD7 and CCD8 enzymes and a mutant in the SL-receptor D14. The molecular and physiological characterization of these mutants shed new light on SLs functioning in tomato, the regulation of their synthesis, and their effects on broomrape resistance.

2. Results

2.1. Isolation and Molecular Characterization of SL Mutants

The collection of ethylmethane sulfonate (EMS)-mutagenized tomato plants (Solanum lycopersicum cv M82) [45] was screened for mutants with alternative growth habits. Three mutants with increased shoot branching were identified (Figure S1A) and named SHOOT-BRANCHING1 (sb1), SHOOT-BRANCHING2 (sb2), and SHOOT-BRANCHING3 (sb3). The distinctive phenotype suggested that these mutants were impaired in strigolactone (SL) functions. The over-branching phenotype caused a significant reduction in total fruit yield due to the decrease in fruit size and fruit set (Figure 2 and Figure S1B).
The amount of SL in the mutants’ roots was estimated using a bioassay of the germination of P. aegyptiaca seeds (Materials and Methods). The results showed that root extracts from sb1 and sb2 plants starved for phosphate did not induce the germination of P. aegyptiaca compared with the wild-type line M82 (Figure 3A). In contrast, the root extract from sb3 increased the germination rate of P. aegyptiaca by two-fold compared to M82 (Figure 3A). These results explain the high susceptibility of the sb3 plant to infection by P. aegyptiaca in the field (Figure S2). The response of the sb mutants to infection by P. aegyptiaca was measured in a field infested with seeds of this parasite by the number of broomrape inflorescences per plot. No broomrape inflorescences were found in mutants sb1 and sb2, indicating that they were resistant to infection by P. aegyptiaca (Figure 3B). These results agree with the finding that sb1 and sb2 lack SLs. In contrast, the infection of sb3 plants was more than 50 percent higher than that of wild-type M82 plants. The increased susceptibility of sb3 plants to P. aegyptiaca corresponds to the higher level of SL in this mutant’s roots (Figure 3A,B).
Mutations in tomato that impair strigolactone biosynthesis have previously been reported in the carotenoid cleavage dioxygenase enzymes SlCCD7 (Solyc01g090660.2) and SlCCD8 (Solyc08g066650.2) [7,40,44,46,47,48]. The genes SlCcd7 and SlCcd8 were sequenced in the SHOOT-BRANCHING mutants and compared with M82. The sequence data showed that the mutations in sb1 and sb2 are in SlCcd7 and SlCcd8, respectively (Table 1). The gene SlCcd7 encodes a polypeptide with 663 amino acid residues and a molecular weight of 75 kDa. The gene SlCcd7 from the mutant sb1 contains two mutations that alter the splice site of exon #7 (Figure S3A). An alternative splicing event in intron #6 creates a seven-nucleotide deletion in the mRNA, leading to a frameshift mutation and a truncated polypeptide (Figure S3B). CCD8 in tomato is a 64.7 kDa polypeptide with 579 amino acid residues. A point mutation of G to A in position 2659 of SlCcd8 from sb2 creates a missense mutation that changes glutamate to lysine in mutant sb2 (Figure S4A,B).
In contrast to sb1 and sb2, the third mutant sb3 exhibited high shoot branching and a higher SL concentration. This finding suggested that sb3 is involved not in the SLs’ biosynthesis but in one of the genes that participated in the SLs’ signaling pathway. Three major components are involved in the SLs’ perception pathway: the a/b-fold hydrolase D14, the F-box protein MAX2, and the repressor protein D53 [25,49]. The recessive nature of sb3 eliminated the possibility of gain of function mutation in this mutant’s D53 repressor. Furthermore, comparing the two tomato orthologous genes, Solyc07g055120 and Solyc12g010900, from sb3 and M82 indicated no polymorphism in their sequences. However, a mutation in sb3 was discovered in the gene SlDwarf14 (slD14) (Solyc04g077860), which encodes a 29.8 kDa protein with 267 amino acid residues (Table 1, Figure S5A). The G to A mutation at position 2582 in the slDwarf14 gene from sb3 eliminates the splice site in exon #2, resulting in 17 nucleotides being deleted in the mRNA caused by alternative splicing that produces a truncated protein (Figure S5B).
The higher concentration of SL in sb3 suggested that strigolactone signaling is involved in regulating the steady-state level of the phytohormone. Therefore, the expression of the genes SlD27, the first step in strigolactone biosynthesis, and SlCcd8 were analyzed in the roots of sb3 and WT (M82). Despite the SLs’ abundance, the expression of these genes was higher in sb3 compared with M82 (Figure 4). Since the mutation in sb3 eliminates the SL receptor D14, this result suggests a feedback regulation of the SL biosynthesis genes operating through SL perception and signal transduction.

2.2. The Phenotype of sb Mutants in Grafting Experiments

Different grafting combinations using the sb mutants were carried out to estimate the contributions of roots and shoots to the SL in the plant. In these experiments, the SL mutants sb1 and sb3 and the wild type (M82) served as rootstocks and scions in all combinations, and several morphologic traits were measured (Figure S6). The parameter with the highest correlation to the branching phenotype was the ratio between the number of branches and the stem length (Figure 5A and Table S1). As expected, the grafting of sb1 scion on sb1 rootstock exhibited the typical over-branching phenotype. However, reciprocal grafting between the wild-type M82 and the sb1 mutant did not significantly impact branching, suggesting that the shoot compensated for the SL deficiency in the roots, and vice versa (Figure 5A). The over-branching phenotype due to the inhibition of SL perception seen in the self-grafted sb3 mutant was restored when M82 was grafted on sb3 rootstock but not in the reciprocal grafting. This result indicates that the SL regulation on the branching is confined to the shoot SL signal transduction, lacking in the sb3 scion. The yield parameters of the grafted plants generally corresponded to the degree of branching despite minor deviations that could reflect other unknown effects of the SLs on fruit or root development.
We have observed that plants of mutants sb1 and sb2 grown in the P. aegyptiaca-infested field were not infected. This phenomenon can be attributed to the lack of SLs in these mutants. Therefore, we tested the resistance to P. aegyptiaca of a wild-type tomato variety grafted on sb1 rootstock in a P. aegyptiaca-infested field. As illustrated in Figure 6, sb1 rootstock rendered resistance to P. aegyptiaca in an infected field where wild-type plants are infected and eventually die. To evaluate the effectiveness of sb1 as a rootstock for commercial tomato varieties, scions from the commercial varieties sft3 and H4107 were grafted onto sb1 rootstock, and their yields were tested under standard horticulture conditions in a non-infested field (Figure 7). The fruit yield of plants grafted onto sb1 was not significantly different from that of plants grafted onto M82. Therefore, we conclude that the mutant rootstock caused no yield loss.

3. Discussion

3.1. Isogenic Mutations in Strigolactone Synthesis and Perception

Strigolactones are a class of plant hormones that regulate various aspects of plant growth and development, including branching and root architecture, and play crucial roles in interactions between soil organisms and roots. In the present study, we identified and characterized loss-of-function mutations in tomato (S. lycopersicum cv. M82) that impair strigolactone biosynthesis, sb1 and sb2, and perception, sb3. The mutations sb1 and sb3 in the SlCcd7 and SlD14 genes occurred at splicing sites, leading to aberrant transcripts that create early stop codons. The mutation sb2 in the SlCcd8 gene causes a substitution of the negatively charged amino acid glutamic acid with the positively charged lysine at position 529 of the CCD8 protein. This glutamic acid residue is conserved in all CCD8 proteins examined in monocots and dicots [50], so the substitution likely impairs the enzymatic activity. The original mutants obtained through EMS mutagenesis [45] were backcrossed with the parental M82 wild-type line, and the characteristic over-branching phenotype co-segregated with the mutations in the respective genes among all F2 offspring in a typical 3:1 ratio. Mutations in SL biosynthesis genes in tomato have previously been described [7,38,40,42,48,51,52]. However, these mutants were isolated in different lines with diverse genetic backgrounds, making phenotypic characterizations of quantitative effects impossible to compare. In this study, we analyzed three mutations that affect SL functioning in an entirely isogenic background, allowing for accurate comparisons of the specific impact of SL on growth and agronomic traits.
The over-branching in the SL mutants was accompanied by a reduction in total fruit yield, which was partly caused by a significant decrease in fruit size (Figure 2). It is unclear whether the reduction in fruit size is a direct effect of the lack of SL signaling on fruit development or a result of a different allocation of photosynthates between the fruits and the enlarged vegetative organs of the plant. The latter option is supported by the grafting experiments, where the fruit yield was inversely proportional to the degree of branching in all grafting combinations (Figure 5 and Table S1).
The mutation sb3 in the SL receptor D14 exposed differences between the absence of SLs and impairment in SL perception and signaling. A lack of strigolactones in the mutants sb1 and sb2 reduced fruit yield by 33 percent, compared with a 45 percent reduction when the SL perception was eliminated in sb3. The more severe effect in the absence of the D14 receptor can be attributed to the distinct influence on gene expression when the D14 protein is present but not induced by SLs compared to the condition where it is absent. The most likely explanation relates to the fact that perception of strigolactones by D14 requires the interaction with the F-box protein MAX2 to target proteins, such as SMXL/D53 repressor of SL signaling, for ubiquitin-dependent degradation [4,28,32,53]. Although strigolactones facilitate the interaction of D14 with MAX2, a residual small interaction may occur in the absence of SL. Other explanations might be feasible if the D14 protein serves other yet unknown functions unrelated to SL or if the higher SL concentrations in sb3 (Figure 3) cause detrimental effects through a D14-independent mechanism.
It was demonstrated that the D14 receptor protein degrades SL upon perception [32]. The elevated concentration of SL in the sb3 roots, which was also manifested by a higher infestation of P. aegyptiaca in the field (Figure 3), can be attributed in part to the lack of SL hydrolysis by D14. However, as seen in Figure 4, the transcript levels of SL-biosynthesis genes SlD27 and SlCcd8 were 5- and 2.5-fold higher, respectively, when D14 signaling was blocked. These data strongly suggest that increased synthesis of SL underlies the higher SL levels in sb3 roots, suggesting a feedback mechanism controlling the steady-state level of SL that involves SL signaling and the regulation of gene expression. This conclusion is supported by related phenomena observed in other plant species. In a D14 mutant in rice (Oryza sativa), the levels of epi-5-deoxystrigol in the roots were higher than in the wild type [54]. Mutations in the genes for D53, a repressor of SL signaling, led to the upregulation of D10, an orthologue gene of CCD8 [55]. In the rms2 (D53 orthologue) mutant in pea (Pisum sativum), the expression of RMS5 (CCD7 orthologue) and RMS1 (CCD8 orthologue) genes was elevated [56]. In Arabidopsis, mutations in MAX2 (D53 orthologue) and D14 enhanced the expression of the SL biosynthesis genes MAX3 (CCD7 orthologue) and MAX4 (CCD8 orthologue) [28,57]. It was shown in rice that a paralog of the SL receptor D14, WARF14-LIKE (D14L), positively regulates SL biosynthesis [58].

3.2. Graft Transmissible Effects of SL

The over-branching phenotype of the SL-deficient mutant sb1 mostly disappeared when it was grafted onto a wild-type rootstock (Figure 5A, Table S1), supporting the notion that the roots are the primary site of SL biosynthesis, which are transported acropetally to the shoots through the xylem [28,47,59]. Similar results were previously reported in other plant species [28,59,60,61,62,63]. Over-branching, accompanied by loss of fruit yield, was also recovered in a wild-type (M82) scion grafted onto the SL-deficient rootstock of sb1 (Figure 5 and Table S1). This result indicates that SLs constitutively synthesized in shoots at >100-fold lower levels than in the roots [59] can compensate for SL-deficient roots and comply with the finding that SL synthesized in shoots control axillary bud outgrowth in apple (Malus × domestica) [64].
In contrast, M82 rootstocks did not complement the branching phenotype of sb3 (Figure 5), indicating that lack of SL signaling in the shoot determines the over-branching phenotype regardless of SL levels. Grafting experiments in peas showed that the shoot branching phenotype of a scion lacking D14 was partially rescued by WT rootstocks [65,66]. It was demonstrated that the D14 protein in pea is transmissible from roots to shoots [66]. Our data indicate that, similar to petunia and Arabidopsis [62,67], this phenomenon is not observed in tomato.
The branching index of the grafting combination sb1/sb3 was lower than in each mutation individually despite the higher SL concentration in sb3 roots (Figure 5). However, the fruit yield loss was the same (Figure 5 and Table S1). A possible explanation for this inconsistency is that the higher SL concentration in the sb3 roots also exists in the sb1 lower parts of the grafted shoots, where the wild-type D14 receptor properly transduces it to limit branching. However, SLs involved in fruit development are solely provided by the shoots and are deficient in sb1.

3.3. A Genetic Solution to Broomrape Infestation

The Egyptian broomrape (Phelipanche aegyptiaca) is a highly damaging parasitic weed that attacks the roots of various crops, including tomato. P. aegyptiaca infestations severely damage tomato plants and lead to devastating yield losses [20]. Various methods have been used to cope with P. aegyptiaca infections in tomato fields [21,22], but these methods often come with economic and environmental costs associated with the use of chemicals. Developing tomato varieties resistant to P. aegyptiaca is a promising approach for improving tomato agriculture by reducing yield losses, minimizing environmental impacts, and promoting sustainable and efficient farming practices.
Strigolactones are critical to parasitic weed infestation. Broomrape seeds require the presence of strigolactones in the soil to trigger their germination and subsequent attachment to the host plant’s roots. Plant mutants lacking SL or containing altered SL composition are less susceptible or even resistant to broomrape ([39,42,43,48,68,69,70] and Figure 3). Since SL in the soil is produced by the plant and exuded into the soil from the roots, SL-deficient roots can be used as rootstocks for plants of elite varieties. However, SL deficiency also causes severe yield loss due to the over-branching phenotype. The grafting experiments indicate that SL-deficient rootstock provides P. aegyptiaca resistance to wild-type scion (Figure 6), while the wild-type shoot compensates for the adverse influence on branching and fruit yield (Figure 5). The field trial of commercial elite tomato varieties grafted on sb1 rootstock proves that lack of strigolactones in the roots does not affect the yield (Figure 7). This result indicates that any potential detrimental effects on root architecture in sb1 rootstock were not manifested by loss of yield, and the lack of SL-dependent communication between roots and beneficial soil microbes for enhancing nutrient uptake is irrelevant in a well-irrigated and fertilized field. Given that these roots confer resistance to broomrape, this method offers an effective solution for growing tomatoes in fields infected with P. aegyptiaca.

4. Materials and Methods

4.1. Plant Material and Growth Conditions

Tomato cultivar M82 served as a reference ‘wild type’. Seeds from that variety were treated with ethylmethane sulfonate (EMS) or fast neutron bombardment [45]). Visual screening of M2 plants identified several mutants with over-branching phenotypes. Following the measurement of the resistance level against P. aegyptiaca, infection in an inoculated field was established using the identified over-branching lines. Three mutant lines, sb1, sb2, and sb3, were isolated and further studied in this research. The commercial hybrids sft3 and H4107 used as scions in this study were obtained from Prof. Dani Zamir’s laboratory. Root extracts for qPCR and P. aegyptiaca germination bioassay were performed from five-week-old hydroponically grown plants in Hoagland medium in the greenhouse. For the bioassay analysis, the Hoagland medium was changed to Hoagland without phosphate for four days, followed by a water-only medium for three days to elevate the SL synthesis in Pi-starved condition.
The field trials presented in this study were performed during three growing seasons. In 2016 and 2017, they were conducted in the Eden research station and the Gadash Ein Harod. In 2018, the field trials were conducted at the Western Galilee Experimental station in Akko and Eden research station. The Akko experiments were performed in a wide-spacing planting density of one plant per 1 m2. The plants in the Eden experiment were grown in plots of 27 plants per 5 m2. Seedlings were grown in the greenhouse for 35 days and then transplanted to the field at the beginning of March in Eden and April in Akko.
Grafting experiments were conducted during the summer of 2018 in the Western Galilee experimental station in Akko, Israel. Grafted plants were prepared by Hishtil Nursery (Ashkelon, Israel, URL: https://www.hishtil.com/ accessed on 3 June 2024), as described [46]. Twenty-one days post-germination, sterile-grown seedlings were sectioned within the hypocotyl region, and the combinations of scion and rootstock were aligned to form a graft union. The grafted plants were transplanted to the field in April. The experiment examined individual plants in a completely randomized design in two blocks, and plant experiments were represented by a minimum of 15 replicates in each block. M82, sb1, and sb3 seedlings were used for reciprocal and self-grafting as a control. Two types of measurements were performed. The first, which included vegetative and growth characteristics, was performed about 40 days after planting. The second, which included yield and fruit traits, was performed during harvesting, about 100 days after planting.

4.2. DNA Extraction and Sequencing

DNA was extracted from young tomato leaves of approximately 15 mg, as previously described [71]. Genomic DNA of the genes SlCcd7 (Solyc01g090660.2), SlCcd8 (Solyc08g066650.2), and slDWARF14 (Solyc04g077860.2) was amplified via PCR from total genomic DNA, using a Readymix kit (PCR-ReadyTM High Yield, Syntezza Biosciences, Jerusalem, Israel). These genes’ whole DNA lengths were sequenced and compared to the Solanum lycopersicum reference genome (build SL2.40 in URL: http://solgenomics.net/). The mutations that located in these genes were identified by sequencing using the following primers: 5′-AGTGTCTTTTAGCACCACATGT-3′ (Forward) and 5′-CTTCAAGTCTTGCAACTACTTCA-3′ (Reverse) for SlCcd7, 5′-CAGAACAGGGCCAAATGACC-3′ (Forward) and 5′-ACCAAGGTCAGCTTCTTTTCC-3′ for SlCcd8, and 5′-CCTTAGTTTATGTTTGACAAAATTCAT-3′ (Forward) and 5′-CAAACAATGTTATGTCTGGTCTCA-3′ (Reverse) for slDWARF14.

4.3. RNA Extraction, cDNA Sequencing, and Measurement of mRNA with Quantitative Real-Time RT-PCR

RNA extraction from hydroponically grown tomato roots was extracted from approximately 200 mg tissue with TRI Reagent RNA isolation reagent (Sigma-Aldrich Israel Ltd., an affiliate of Merck KGaA, Rehovot, Israel) according to the manufacturer’s protocol. Reverse transcription and DNase treatment were performed with the iScript™ gDNA Clear cDNA Synthesis Kit #172-5035 (Bio-Rad Laboratories Ltd., Rishon Le Zion, Israel). In order to detect genomic DNA contamination, the cDNA was amplified using ACTIN primers 5′-TTGCTGACCGTATGAGCAAG-3′ (Forward) and 5′-GGACAATGGATGGACCAGAC-3′ (Reverse), which differentiate between genomic DNA and cDNA sequences. The cDNA was amplified using the ProFlex PCR System (Applied Biosystems by Thermo Fisher Scientific, Airport City, Israel). To investigate the effect of the mutations located in exon junctions in the genes SlCcd7 and SlDWARF14 on the transcript, the cDNA of these genes was amplified and sequenced using the primers 5′-TCTTAACGTTCGGGTCGTCG-3′ (Forward) and 5′-GGTACAGAGTGGTCCCTTGC-3′ (Reverse) for slDWARF14, as well as 5′-TGAATGGAACAAAGCAGCAG-3′ (Forward) and 5′-GTTGGTAGGAGCCCAAAAGC-3′ for SlCcd7.
Quantitative polymerase chain reactions were performed using the Applied Biosystems™ Fast SYBR™ Green Master Mix on a StepOnePlus™ Real-Time PCR System (Applied Biosystems by Thermo Fisher Scientific, Airport City, Israel). Cycling conditions were 95 °C for 20 s, followed by 40 cycles of 95 °C for 3 s and 60 °C for 30 s and fluorescence acquisition at 60 °C. The relative mRNA level was determined for each gene in three biological replicates. The gene ACTIN (using the primers described above) served as a control for normalization. slD27 was amplified using the primers 5′-TCCCTAAGCCTATTCTTTCTCTG-3′ (Forward) and 5′-TCACCTCACAAGGTCCAACTA-3′ (reverse); slCcd8 was amplified using the primers 5′-CCAATTGCCTGTAATAGTTCC-3′ (Forward) and 5′-GCCTTCAACGACGAGTTCTC-3′ (Reverse).

4.4. Strigolactone Quantification Bioassay

The amount of SL in the mutants’ roots was estimated using a bioassay based on the germination of P. aegyptiaca seeds [72,73]. Three-week-old seedlings of wild type (M82) and the mutants sb1, sb2, and sb3 were transferred from soil to a hydroponic growth system on Hoagland medium in the greenhouse for 3–4 weeks. Then, the medium was changed to Hoagland, which lacked the Pi required to induce SL synthesis. After one week, root samples (5–10 g fresh weight) were ground in a mortar and pestle with liquid nitrogen and then extracted with ethyl acetate in a glass tube. The tubes were vortexed for 10 min and then centrifuged at 12,000× g for 5 min, and the organic phase was transferred to a glass vial. The extraction of the root pellet was repeated once more, and the extract was dried under nitrogen gas. The dried SL samples were dissolved in sterile distilled water to adjust the concentrations equivalent to 1 g root fresh weight per 1 mL of water. The vials were stored at −20 °C. Phelipanche aegyptiaca (Pers.) seeds were collected from fields near Kfar Yehoshua and Mevo Hama, Israel. Dry seeds of P. aegyptiaca were surface-sterilized in 70% ethanol for 2 min, rinsed three times with distilled sterile water, then sterilized in 3% NaOCl for 3 min, and again rinsed three times with sterile distilled water. Seeds of P. aegyptiaca were placed for three days in six-well Elisa plates (Nunc, Roskilde, Denmark), moistened with 0.6 mL of sterile distilled water on a fiberglass filter paper (GF/A Whatman, Maidstone, UK) at 25 °C in the dark. After three days, the water was removed, and 200 µL of root extracts was applied to the disks. This amount was determined after the calibration of the bioassay with root extracts from M82 roots that were applied in different dilutions (Figure S7). The treated seeds were incubated in the dark at 25 °C for two weeks. All the germination treatments were conducted under aseptic conditions. The germination response of the P. aegyptiaca seeds was observed 14 days after stimulation by the root extracts. Dry seeds moistened only with deionized water were used as a control. Water alone did not induce any germination. Germinated and non-germinated seeds were counted under a microscope.

5. Conclusions

In the last two decades, strigolactones (SLs) have emerged as key signaling molecules in plant development and interaction with symbiotic soil fungi. These phytohormones, primarily synthesized in the roots, play a pivotal role in regulating plant architecture in response to nutrient availability in the soil by reducing shoot branching and enhancing lateral root growth.
Our quantitative data on isogenic tomato mutations that impair SL biosynthesis and signaling yielded substantial conclusions on SL function in an important crop plant. The yield of grafted tomato plants unveiled a significant SL biosynthesis in the shoots that revokes the excessive branching phenotype resulting from SL deficiency in roots. This phenomenon was proven valuable by utilizing a SL-deficient rootstock resistant to the broomrape Phelipanche aegyptiaca.
Our study uncovered a feedback process controlling the steady-state level of SL in roots that links the SL signaling pathway. This mechanism showcases the plant’s ability to fine-tune its SL production in response to internal cues, ensuring optimal growth and development.
Lastly, through grafting experiments, we have shown that elite tomato varieties grafted onto SL-deficient rootstock exhibit resistance to infection by the parasitic plant P. aegyptiaca without a yield loss, demonstrating a practical application for mitigating the global threat of broomrape infestations, as this method offers a sustainable approach to safeguarding tomato cultivation.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13111554/s1. Table S1. Characterizing morphological traits in grafted plants with reciprocal combinations of the mutants sb1 and sb3 and M82 (Scion/rootstock). Data represent an average of 15 independent replications (±SE), conducted in the west region of Akko research station, 2018. Figure S1. (A) The branching pattern of the wild type (WT) M82 line and its isogenic mutants sb2 and sb3. The branching phenotype of sb1 is identical to sb2. (B) Typical plants of M82 and the mutant sb1 at harvest stage. Figure S2. Infection of the tomato by P. aegyptiaca. Plants of sb3 (left bottom) next to WT grown in a field contaminated with P. aegyptiaca, two days before harvested. Figure S3 (A) The genomic sequence of the gene slCcd7 (Solyc01g090660) and mutations in sb1. Exons are highlighted in yellow. The two mutations in the mutant sb1 are indicated. An alternative splicing with a cryptic splice site creates a seven-nucleotide deletion in the mRNA (underlined in position 3269–3275). (B) The amino acid sequence of the CCD7 polypeptide in tomato. Figure S4 (A) The genomic sequence of the gene SlCcd8 (Solyc08g066650). Exons are highlighted in yellow. The G to A mutation at position 2659 in slCcd8 from the mutant sb2 is indicated. (B) The amino acid sequence of CCD8 and the glutamate to lysine mutation in sb2. Figure S5. (A) The genomic sequence of the gene slDwarf14 (slD14) (Solyc04g077860). Exons are highlighted in yellow. The G to A mutation at position 2582 in slD14 from the mutant sb3 is indicated. The 17 nucleotides sequence deletion in the mRNA, resulting from an alternative splicing is underlined. (B) The amino acid sequence DWARF14 in wild type and sb3. Figure S6. Growth habit of WT (M82), sb1 and sb3 mutants in different grafting combinations (scion/rootstock). Figure S7: Calibration of SLs measurement based on P. aegyptiaca seed germination induced by root extracts from M82 (wild type) in differential dilutions. The dilutions were applied with water, and the control represents water without the root extract. Germination was recorded after 7 and 14 days.

Author Contributions

A.K., U.K., D.Z. and J.H. conceived and designed the research plan. A.K. isolated and characterized the SL mutants and carried out the field trials. U.K. carried out the genetic and molecular analyses. N.B.N. analyzed the root SLs. The manuscript was written by U.K. and A.K. and edited by J.H. and D.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was supported by the Israel Science Foundation Grant No. 1930/18 to J.H., and European Commission Horizon 2020, through the HARNESSTOM grant agreement no. 101000716 to D.Z.).

Data Availability Statement

Data are contained within the article and Supplementary Materials.

Acknowledgments

We thank Itay Zemach for providing assistance in the early stage of this research, Edan Rochsar and Yael Goldberg for their technical support, and Zehava Cohen for providing the creative graphical abstract.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Cook, C.E.; Whichard, L.P.; Turner, B.; Wall, M.E.; Egley, G.H. Germination of witchweed (Striga lutea Lour.): Isolation and properties of a potent stimulant. Science 1966, 154, 1189–1190. [Google Scholar] [CrossRef] [PubMed]
  2. Xie, X.; Yoneyama, K.; Yoneyama, K. The strigolactone story. Annu. Rev. Phytopathol. 2010, 48, 93–117. [Google Scholar] [CrossRef] [PubMed]
  3. Ruyter-Spira, C.; Al-Babili, S.; van der Krol, S.; Bouwmeester, H. The biology of strigolactones. Trends Plant Sci. 2012, 18, 72–83. [Google Scholar] [CrossRef] [PubMed]
  4. Al-Babili, S.; Bouwmeester, H.J. Strigolactones, a novel carotenoid-derived plant hormone. Annu. Rev. Plant Biol. 2015, 66, 161–186. [Google Scholar] [CrossRef] [PubMed]
  5. Kyozuka, J.; Nomura, T.; Shimamura, M. Origins and evolution of the dual functions of strigolactones as rhizosphere signaling molecules and plant hormones. Curr. Opin. Plant Biol. 2022, 65, 102–154. [Google Scholar] [CrossRef] [PubMed]
  6. Umehara, M.; Hanada, A.; Yoshida, S.; Akiyama, K.; Arite, T.; Takeda-Kamiya, N.; Magome, H.; Kamiya, Y.; Shirasu, K.; Yoneyama, K.; et al. Inhibition of shoot branching by new terpenoid plant hormones. Nature 2008, 455, 195–200. [Google Scholar] [CrossRef] [PubMed]
  7. Vogel, J.T.; Walter, M.H.; Giavalisco, P.; Lytovchenko, A.; Kohlen, W.; Charnikhova, T.; Simkin, A.J.; Goulet, C.; Strack, D.; Bouwmeester, H.J.; et al. SlCCD7 controls strigolactone biosynthesis, shoot branching and mycorrhiza-induced apocarotenoid formation in tomato. Plant J. 2010, 61, 300–311. [Google Scholar] [CrossRef] [PubMed]
  8. Domagalska, M.A.; Leyser, O. Signal integration in the control of shoot branching. Nat. Rev. Mol. Cell Biol. 2011, 12, 211–221. [Google Scholar] [CrossRef] [PubMed]
  9. Barbier, F.F.; Dun, E.A.; Kerr, S.C.; Chabikwa, T.G.; Beveridge, C.A. An update on the signals controlling shoot branching. Trends Plant Sci. 2019, 24, 220–236. [Google Scholar] [CrossRef]
  10. Koltai, H. Strigolactones are regulators of root development. New Phytol. 2011, 190, 545–549. [Google Scholar] [CrossRef]
  11. Khuvung, K.; Silva Gutierrez, F.A.O.; Reinhardt, D. How strigolactone shapes shoot architecture. Front. Plant Sci. 2022, 13, 889045. [Google Scholar] [CrossRef] [PubMed]
  12. Zwanenburg, B.; Blanco-Ania, D. Strigolactones: New plant hormones in the spotlight. J. Exp. Bot. 2018, 69, 2205–2218. [Google Scholar] [CrossRef] [PubMed]
  13. Waters, M.T.; Gutjahr, C.; Bennett, T.; Nelson, D.C. Strigolactone signaling and evolution. Annu. Rev. Plant Biol. 2017, 68, 291–322. [Google Scholar] [CrossRef] [PubMed]
  14. Trasoletti, M.; Visentin, I.; Campo, E.; Schubert, A.; Cardinale, F. Strigolactones as a hormonal hub for the acclimation and priming to environmental stress in plants. Plant Cell Environ. 2022, 45, 3611–3630. [Google Scholar] [CrossRef] [PubMed]
  15. Omoarelojie, L.O.; Kulkarni, M.G.; Finnie, J.F.; Van, S.J. Strigolactones and their crosstalk with other phytohormones. Ann. Bot. 2019, 124, 749–767. [Google Scholar] [CrossRef] [PubMed]
  16. Wu, F.; Gao, Y.; Yang, W.; Sui, N.; Zhu, J. Biological functions of strigolactones and their crosstalk with other phytohormones. Front. Plant Sci. 2022, 13, 821563. [Google Scholar] [CrossRef] [PubMed]
  17. Lopez-Raez, J.A.; Charnikhova, T.; Gomez-Roldan, V.; Matusova, R.; Kohlen, W.; De, V.R.; Verstappen, F.; Puech-Pages, V.; Becard, G.; Mulder, P.; et al. Tomato strigolactones are derived from carotenoids and their biosynthesis is promoted by phosphate starvation. New Phytol. 2008, 178, 863–874. [Google Scholar] [CrossRef] [PubMed]
  18. Umehara, M.; Hanada, A.; Magome, H.; Takeda-Kamiya, N.; Yamaguchi, S. Contribution of strigolactones to the inhibition of tiller bud outgrowth under phosphate deficiency in rice. Plant Cell Physiol. 2010, 51, 1118–1126. [Google Scholar] [CrossRef] [PubMed]
  19. Xu, X.; Fang, P.; Zhang, H.; Chi, C.; Song, L.; Xia, X.; Shi, K.; Zhou, Y.; Zhou, J.; Yu, J. Strigolactones positively regulate defense against root-knot nematodes in tomato. J. Exp. Bot. 2019, 70, 1325–1337. [Google Scholar] [CrossRef]
  20. Joel, D.M.; Gressel, J.; Musselman, L.J. Parasitic Orobanchaceae: Parasitic Mechanisms and Control Strategies; Springer: Berlin/Heidelberg, Germany, 2013; pp. 1–513. [Google Scholar]
  21. Eizenberg, H.; Goldwasser, Y. Control of Egyptian broomrape in processing tomato: A summary of 20 years of research and successful implementation. Plant Dis. 2018, 102, 1477–1488. [Google Scholar] [CrossRef]
  22. Hershenhorn, J.; Eizenberg, H.; Dor, E.; Kapulnik, Y.; Goldwasser, Y. Phelipanche aegyptiaca management in tomato. Weed Res. 2009, 49, 34–47. [Google Scholar] [CrossRef]
  23. Matusova, R.; Rani, K.; Verstappen, F.W.; Franssen, M.C.; Beale, M.H.; Bouwmeester, H.J. The strigolactone germination stimulants of the plant-parasitic Striga and Orobanche spp. are derived from the carotenoid pathway. Plant Physiol. 2005, 139, 920–934. [Google Scholar] [CrossRef] [PubMed]
  24. Jia, K.P.; Baz, L.; Al-Babili, S. From carotenoids to strigolactones. J. Exp. Bot. 2018, 69, 2189–2204. [Google Scholar] [CrossRef] [PubMed]
  25. Bonhomme, S.; Guillory, A. Synthesis and signalling of strigolactone and KAI2-ligand signals in bryophytes. J. Exp. Bot. 2022, 73, 4487–4495. [Google Scholar] [CrossRef] [PubMed]
  26. Yoneyama, K.; Brewer, P.B. Strigolactones, how are they synthesized to regulate plant growth and development? Curr. Opin. Plant Biol. 2021, 63, 102072. [Google Scholar] [CrossRef] [PubMed]
  27. Wakabayashi, T.; Hamana, M.; Mori, A.; Akiyama, R.; Ueno, K.; Osakabe, K.; Osakabe, Y.; Suzuki, H.; Takikawa, H.; Mizutani, M.; et al. Direct conversion of carlactonoic acid to orobanchol by cytochrome P450 CYP722C in strigolactone biosynthesis. Sci. Adv. 2019, 5, eaax9067. [Google Scholar] [CrossRef] [PubMed]
  28. Mashiguchi, K.; Seto, Y.; Yamaguchi, S. Strigolactone biosynthesis, transport and perception. Plant J. 2021, 105, 335–350. [Google Scholar] [CrossRef] [PubMed]
  29. Wakabayashi, T.; Moriyama, D.; Miyamoto, A.; Okamura, H.; Shiotani, N.; Shimizu, N.; Mizutani, M.; Takikawa, H.; Sugimoto, Y. Identification of novel canonical strigolactones produced by tomato. Front. Plant Sci. 2022, 13, 1064378. [Google Scholar] [CrossRef]
  30. Wang, Y.; Durairaj, J.; Suárez Duran, H.G.; van Velzen, R.; Flokova, K.; Liao, C.Y.; Chojnacka, A.; MacFarlane, S.; Schranz, M.E.; Medema, M.H.; et al. The tomato cytochrome P450 CYP712G1 catalyses the double oxidation of orobanchol en route to the rhizosphere signalling strigolactone, solanacol. New Phytol. 2022, 235, 1884–1899. [Google Scholar] [CrossRef] [PubMed]
  31. Yao, R.; Ming, Z.; Yan, L.; Li, S.; Wang, F.; Ma, S.; Yu, C.; Yang, M.; Chen, L.; Chen, L.; et al. DWARF14 is a non-canonical hormone receptor for strigolactone. Nature 2016, 536, 469–473. [Google Scholar] [CrossRef]
  32. Seto, Y.; Yasui, R.; Kameoka, H.; Tamiru, M.; Cao, M.M.; Terauchi, R.; Sakurada, A.; Hirano, R.; Kisugi, T.; Hanada, A.; et al. Strigolactone perception and deactivation by a hydrolase receptor DWARF14. Nat. Commun. 2019, 10, 191. [Google Scholar] [CrossRef]
  33. Wang, L.; Wang, B.; Yu, H.; Guo, H.; Lin, T.; Kou, L.; Wang, A.; Shao, N.; Ma, H.; Xiong, G.; et al. Transcriptional regulation of strigolactone signalling in Arabidopsis. Nature 2020, 583, 277–281. [Google Scholar] [CrossRef]
  34. Bythell-Douglas, R.; Rothfels, C.J.; Stevenson, D.W.D.; Graham, S.W.; Wong, G.K.; Nelson, D.C.; Bennett, T. Evolution of strigolactone receptors by gradual neo-functionalization of KAI2 paralogues. BMC Biol. 2017, 15, 52–0397. [Google Scholar] [CrossRef]
  35. Li, Z.; Pi, Y.; Zhai, C.; Xu, D.; Ma, W.; Chen, H.; Li, Y.; Wu, H. The strigolactone receptor SlDWARF14 plays a role in photosynthetic pigment accumulation and photosynthesis in tomato. Plant Cell Rep. 2022, 41, 2089–2105. [Google Scholar] [CrossRef] [PubMed]
  36. Fernandez-Aparicio, M.; Delavault, P.; Timko, M.P. Management of infection by parasitic weeds: A review. Plants 2020, 9, 1184. [Google Scholar] [CrossRef] [PubMed]
  37. Kountche, B.A.; Jamil, M.; Yonli, D.; Nikiema, M.P.; Blanco-Ania, D.; Asami, T.; Zwanenburg, B.; Al-Babili, S. Suicidal germination as a control strategy for Striga hermonthica (Benth.) in smallholder farms of sub-Saharan Africa. Plants People Planet 2019, 1, 107–118. [Google Scholar] [CrossRef]
  38. Dor, E.; Alperin, B.; Wininger, S.; Ben-Dor, B.; Somvanshi, V.S.; Koltai, H.; Kapulnik, Y.; Hershenhorn, J. Characterization of a novel tomato mutant resistant to the weedy parasites Orobanche and Phelipanche spp. Euphytica 2010, 171, 371–380. [Google Scholar] [CrossRef]
  39. Dor, E.; Yoneyama, K.; Wininger, S.; Kapulnik, Y.; Yoneyama, K.; Koltai, H.; Xie, X.; Hershenhorn, J. Strigolactone deficiency confers resistance in tomato line SL-ORT1 to the parasitic weeds Phelipanche and Orobanche spp. Phytopathology 2011, 101, 213–222. [Google Scholar] [CrossRef]
  40. Hasegawa, S.; Tsutsumi, T.; Fukushima, S.; Okabe, Y.; Saito, J.; Katayama, M.; Shindo, M.; Yamada, Y.; Shimomura, K.; Yoneyama, K.; et al. Low infection of Phelipanche aegyptiaca in Micro-Tom mutants deficient in CAROTENOIDCLEAVAGE DIOXYGENASE 8. Int. J. Mol. Sci. 2018, 19, 2645. [Google Scholar] [CrossRef]
  41. Bai, J.; Wei, Q.; Shu, J.; Gan, Z.; Li, B.; Yan, D.; Huang, Z.; Guo, Y.; Wang, X.; Zhang, L.; et al. Exploration of resistance to Phelipanche aegyptiaca in tomato. Pest. Manag. Sci. 2020, 76, 3806–3821. [Google Scholar] [CrossRef]
  42. Bari, V.K.; Nassar, J.A.; Aly, R. CRISPR/Cas9 mediated mutagenesis of MORE AXILLARY GROWTH 1 in tomato confers resistance to root parasitic weed Phelipanche aegyptiaca. Sci. Rep. 2021, 11, 3905–82897. [Google Scholar] [CrossRef]
  43. Galili, S.; Hershenhorn, J.; Smirnov, E.; Yoneyama, K.; Xie, X.; Amir-Segev, O.; Bellalou, A.; Dor, E. Characterization of a chickpea mutant resistant to Phelipanche aegyptiaca Pers. and Orobanche crenata Forsk. Plants 2021, 10, 2552. [Google Scholar] [CrossRef] [PubMed]
  44. Aly, R.; Matzrafi, M.; Bari, V.K. Using biotechnological approaches to develop crop resistance to root parasitic weeds. Planta 2021, 253, 97. [Google Scholar] [CrossRef]
  45. Menda, N.; Semel, Y.; Peled, D.; Eshed, Y.; Zamir, D. In silico screening of a saturated mutation library of tomato. Plant J. 2004, 38, 861–872. [Google Scholar] [CrossRef] [PubMed]
  46. Koltai, H.; LekKala, S.P.; Bhattacharya, C.; Mayzlish-Gati, E.; Resnick, N.; Wininger, S.; Dor, E.; Yoneyama, K.; Yoneyama, K.; Hershenhorn, J.; et al. A tomato strigolactone-impaired mutant displays aberrant shoot morphology and plant interactions. J. Exp. Bot. 2010, 61, 1739–1749. [Google Scholar] [CrossRef]
  47. Kohlen, W.; Charnikhova, T.; Liu, Q.; Bours, R.; Domagalska, M.A.; Beguerie, S.; Verstappen, F.; Leyser, O.; Bouwmeester, H.; Ruyter-Spira, C. Strigolactones are transported through the xylem and play a key role in shoot architectural response to phosphate deficiency in nonarbuscular mycorrhizal host Arabidopsis. Plant Physiol. 2011, 155, 974–987. [Google Scholar] [CrossRef]
  48. Bari, V.K.; Nassar, J.A.; Kheredin, S.M.; Gal-On, A.; Ron, M.; Britt, A.; Steele, D.; Yoder, J.; Aly, R. CRISPR/Cas9-mediated mutagenesis of CAROTENOID CLEAVAGE DIOXYGENASE 8 in tomato provides resistance against the parasitic weed Phelipanche aegyptiaca. Sci. Rep. 2019, 9, 11438–47893. [Google Scholar] [CrossRef]
  49. Burger, M.; Chory, J. The many models of strigolactone signaling. Trends Plant Sci. 2020, 25, 395–405. [Google Scholar] [CrossRef]
  50. Batra, R.; Agarwal, P.; Tyagi, S.; Saini, D.K.; Kumar, V.; Kumar, A.; Kumar, S.; Balyan, H.S.; Pandey, R.; Gupta, P.K. A study of CCD8 genes/proteins in seven monocots and eight dicots. PLoS ONE 2019, 14, e0213531. [Google Scholar] [CrossRef]
  51. Kretzschmar, T.; Kohlen, W.; Sasse, J.; Borghi, L.; Schlegel, M.; Bachelier, J.B.; Reinhardt, D.; Bours, R.; Bouwmeester, H.J.; Martinoia, E. A petunia ABC protein controls strigolactone-dependent symbiotic signalling and branching. Nature 2012, 483, 341–344. [Google Scholar] [CrossRef]
  52. Zhang, Y.; Cheng, X.; Wang, Y.; Díez-Simón, C.; Flokova, K.; Bimbo, A.; Bouwmeester, H.J.; Ruyter-Spira, C. The tomato MAX1 homolog, SlMAX1, is involved in the biosynthesis of tomato strigolactones from carlactone. New Phytol. 2018, 219, 297–309. [Google Scholar] [CrossRef] [PubMed]
  53. Stirnberg, P.; Furner, I.J.; Ottoline Leyser, H.M. MAX2 participates in an SCF complex which acts locally at the node to suppress shoot branching. Plant J. 2007, 50, 80–94. [Google Scholar] [CrossRef] [PubMed]
  54. Arite, T.; Umehara, M.; Ishikawa, S.; Hanada, A.; Maekawa, M.; Yamaguchi, S.; Kyozuka, J. d14, a strigolactone-insensitive mutant of rice, shows an accelerated outgrowth of tillers. Plant Cell Physiol. 2009, 50, 1416–1424. [Google Scholar] [CrossRef] [PubMed]
  55. Zhou, F.; Lin, Q.; Zhu, L.; Ren, Y.; Zhou, K.; Shabek, N.; Wu, F.; Mao, H.; Dong, W.; Gan, L.; et al. D14-SCF(D3)-dependent degradation of D53 regulates strigolactone signalling. Nature 2013, 504, 406–410. [Google Scholar] [CrossRef] [PubMed]
  56. Johnson, X.; Brcich, T.; Dun, E.A.; Goussot, M.; Haurogné, K.; Beveridge, C.A.; Rameau, C. Branching genes are conserved across species. Genes controlling a novel signal in pea are coregulated by other long-distance signals. Plant Physiol. 2006, 142, 1014–1026. [Google Scholar] [CrossRef] [PubMed]
  57. Mashiguchi, K.; Sasaki, E.; Shimada, Y.; Nagae, M.; Ueno, K.; Nakano, T.; Yoneyama, K.; Suzuki, Y.; Asami, T. Feedback-regulation of strigolactone biosynthetic genes and strigolactone-regulated genes in Arabidopsis. Biosci. Biotechnol Biochem. 2009, 73, 2460–2465. [Google Scholar] [CrossRef] [PubMed]
  58. Mashiguchi, K.; Morita, R.; Tanaka, K.; Kodama, K.; Kameoka, H.; Kyozuka, J.; Seto, Y.; Yamaguchi, S. Activation of strigolactone biosynthesis by the DWARF14-LIKE/KARRIKIN-INSENSITIVE2 pathway in mycorrhizal angiosperms, but Not in Arabidopsis, a non-mycorrhizal plant. Plant Cell Physiol. 2023, 64, 1066–1078. [Google Scholar] [CrossRef] [PubMed]
  59. Kameoka, H.; Kyozuka, J. Spatial regulation of strigolactone function. J. Exp. Bot. 2018, 69, 2255–2264. [Google Scholar] [CrossRef]
  60. Beveridge, C.A.; Symons, G.M.; Turnbull, C.G. Auxin inhibition of decapitation-induced branching is dependent on graft-transmissible signals regulated by genes Rms1 and Rms2. Plant Physiol. 2000, 123, 689–698. [Google Scholar] [CrossRef]
  61. Morris, S.E.; Turnbull, C.G.; Murfet, I.C.; Beveridge, C.A. Mutational analysis of branching in pea. Evidence that Rms1 and Rms5 regulate the same novel signal. Plant Physiol. 2001, 126, 1205–1213. [Google Scholar] [CrossRef]
  62. Simons, J.L.; Napoli, C.A.; Janssen, B.J.; Plummer, K.M.; Snowden, K.C. Analysis of the DECREASED APICAL DOMINANCE genes of petunia in the control of axillary branching. Plant Physiol. 2007, 143, 697–706. [Google Scholar] [CrossRef] [PubMed]
  63. Mashiguchi, K.; Seto, Y.; Onozuka, Y.; Suzuki, S.; Takemoto, K.; Wang, Y.; Dong, L.; Asami, K.; Noda, R.; Kisugi, T.; et al. A carlactonoic acid methyltransferase that contributes to the inhibition of shoot branching in Arabidopsis. Proc. Natl. Acad. Sci. USA 2022, 119, e2111565119. [Google Scholar] [CrossRef] [PubMed]
  64. Foster, T.M.; Ledger, S.E.; Janssen, B.J.; Luo, Z.; Drummond, R.S.M.; Tomes, S.; Karunairetnam, S.; Waite, C.N.; Funnell, K.A.; van Hooijdonk, B.M.; et al. Expression of MdCCD7 in the scion determines the extent of sylleptic branching and the primary shoot growth rate of apple trees. J. Exp. Bot. 2018, 69, 2379–2390. [Google Scholar] [CrossRef]
  65. Beveridge, T.J.; Kadurugamuwa, J.L. Periplasm, periplasmic spaces, and their relation to bacterial wall structure: Novel secretion of selected periplasmic proteins from Pseudomonas aeruginosa. Microb. Drug Resist. 1996, 2, 1–8. [Google Scholar] [CrossRef] [PubMed]
  66. Kameoka, H.; Dun, E.A.; Lopez-Obando, M.; Brewer, P.B.; de Saint, G.A.; Rameau, C.; Beveridge, C.A.; Kyozuka, J. Phloem transport of the receptor DWARF14 protein Is required for full function of strigolactones. Plant Physiol. 2016, 172, 1844–1852. [Google Scholar] [CrossRef]
  67. Chevalier, F.; Nieminen, K.; Sánchez-Ferrero, J.C.; Rodríguez, M.L.; Chagoyen, M.; Hardtke, C.S.; Cubas, P. Strigolactone promotes degradation of DWARF14, an a/b hydrolase essential for strigolactone signaling in Arabidopsis. Plant Cell. 2014, 26, 1134–1150. [Google Scholar] [CrossRef]
  68. Gobena, D.; Shimels, M.; Rich, P.J.; Ruyter-Spira, C.; Bouwmeester, H.; Kanuganti, S.; Mengiste, T.; Ejeta, G. Mutation in sorghum LOW GERMINATION STIMULANT 1 alters strigolactones and causes Striga resistance. Proc. Natl. Acad. Sci. USA 2017, 114, 4471–4476. [Google Scholar] [CrossRef]
  69. Li, C.; Dong, L.; Durairaj, J.; Guan, J.C.; Yoshimura, M.; Quinodoz, P.; Horber, R.; Gaus, K.; Li, J.; Setotaw, Y.B.; et al. Maize resistance to witchweed through changes in strigolactone biosynthesis. Science 2023, 379, 94–99. [Google Scholar] [CrossRef] [PubMed]
  70. Pavan, S.; Schiavulli, A.; Marcotrigiano, A.R.; Bardaro, N.; Bracuto, V.; Ricciardi, F.; Charnikhova, T.; Lotti, C.; Bouwmeester, H.; Ricciardi, L. Characterization of low-strigolactone germplasm in pea (Pisum sativum L.) resistant to crenate broomrape (Orobanche crenata Forsk.). Mol. Plant Microbe Interact. 2016, 29, 743–749. [Google Scholar] [CrossRef]
  71. Eshed, Y.; Zamir, D. An introgression line population of Lycopersicon pennellii in the cultivated tomato enables the identification and fine mapping of yield-associated QTL. Genetics 1995, 141, 1147–1162. [Google Scholar] [CrossRef]
  72. Sun, Z.; Hans, J.; Walter, M.H.; Matusova, R.; Beekwilder, J.; Verstappen, F.W.; Ming, Z.; van Echtelt, E.; Strack, D.; Bisseling, T.; et al. Cloning and characterisation of a maize carotenoid cleavage dioxygenase (ZmCCD1) and its involvement in the biosynthesis of apocarotenoids with various roles in mutualistic and parasitic interactions. Planta 2008, 228, 789–801. [Google Scholar] [CrossRef] [PubMed]
  73. Wang, J.Y.; Chen, G.E.; Jamil, M.; Braguy, J.; Sioud, S.; Liew, K.X.; Balakrishna, A.; Al-Babili, S. Protocol for characterizing strigolactones released by plant roots. STAR Protoc. 2022, 3, 101352. [Google Scholar] [CrossRef] [PubMed]
Plants 13 01554 g001

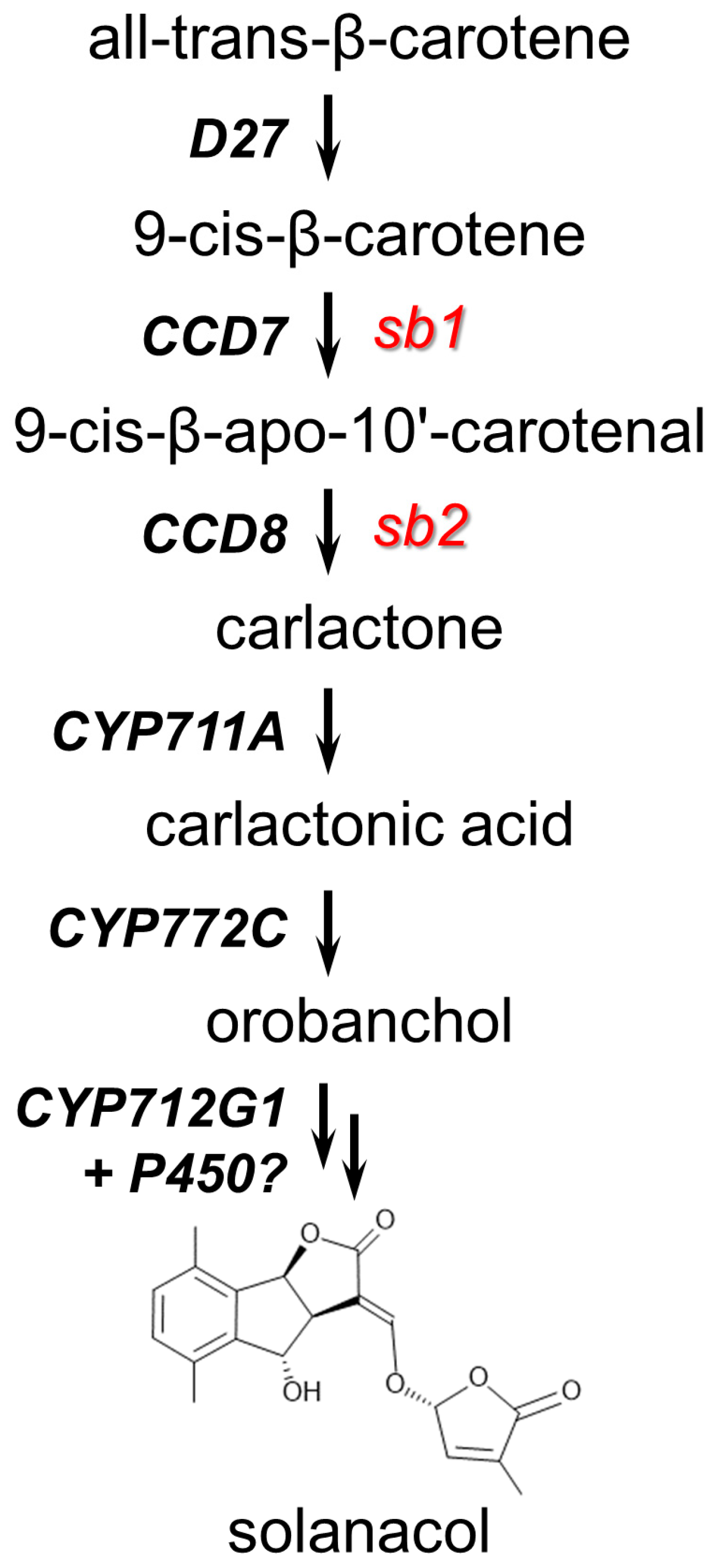

Figure 1. The strigolactone biosynthesis pathway in tomato. D27—β-carotene isomerase; CCD7—carotenoid cleavage dioxygenase 7; CCD8—carotenoid cleavage dioxygenase 8; CYP711A (MAX1), CYP722C, and CYP712G1 are P450 oxygenases; sb1 and sb2 are mutations of the genes SlCcd7 and SlCcd8, respectively.
Figure 1. The strigolactone biosynthesis pathway in tomato. D27—β-carotene isomerase; CCD7—carotenoid cleavage dioxygenase 7; CCD8—carotenoid cleavage dioxygenase 8; CYP711A (MAX1), CYP722C, and CYP712G1 are P450 oxygenases; sb1 and sb2 are mutations of the genes SlCcd7 and SlCcd8, respectively.
Plants 13 01554 g001
Plants 13 01554 g002

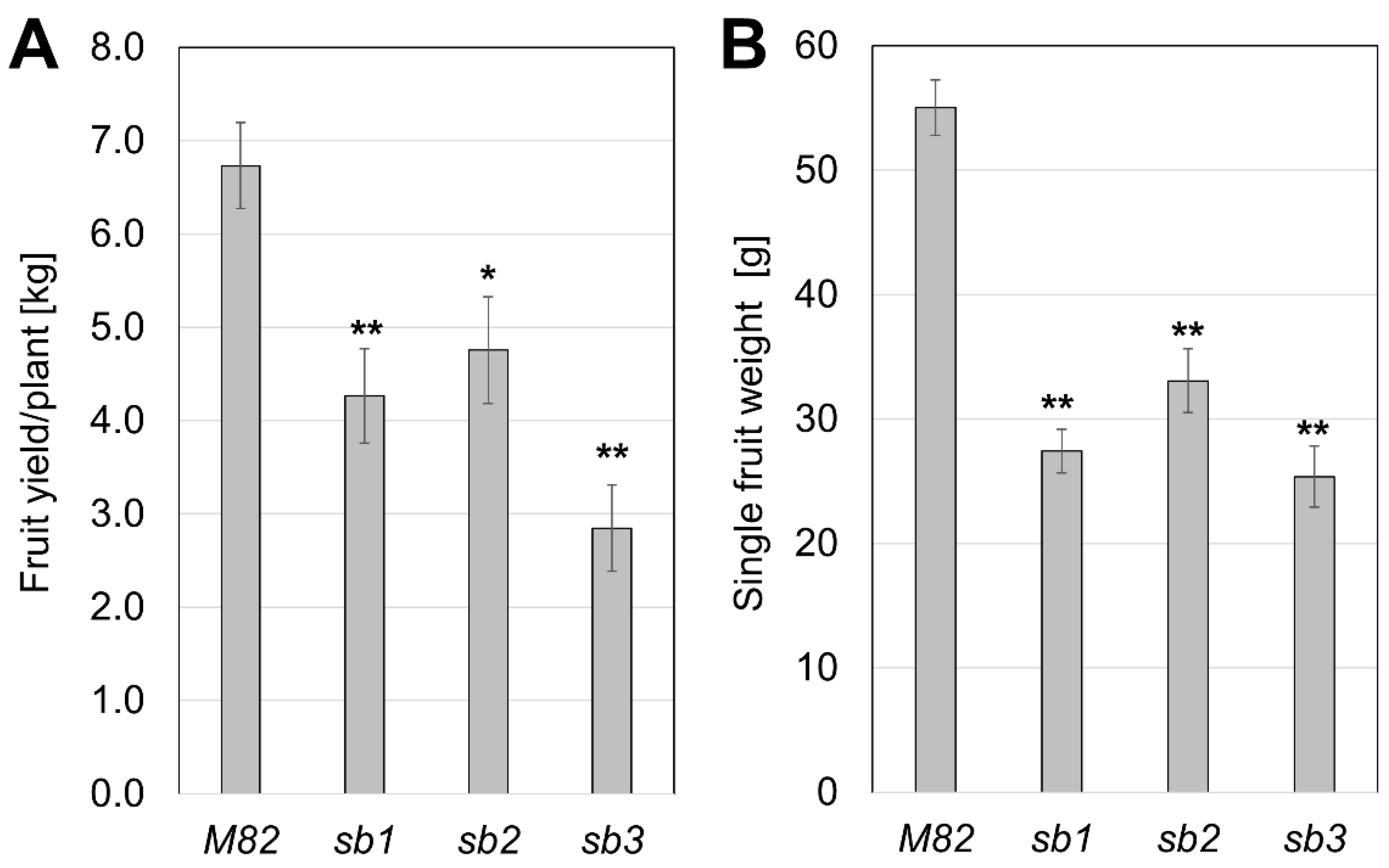

Figure 2. Yield parameters in field-grown SL mutants. Fruit yield [kg/plant] (A) and single fruit weight [g] (B) at the time of harvest of the wild type (M82) and the isogenic mutants sb1, sb2, and sb3 (n ≥ 10, ±SE, * p < 0.05, ** p < 0.01).
Figure 2. Yield parameters in field-grown SL mutants. Fruit yield [kg/plant] (A) and single fruit weight [g] (B) at the time of harvest of the wild type (M82) and the isogenic mutants sb1, sb2, and sb3 (n ≥ 10, ±SE, * p < 0.05, ** p < 0.01).
Plants 13 01554 g002
Plants 13 01554 g003

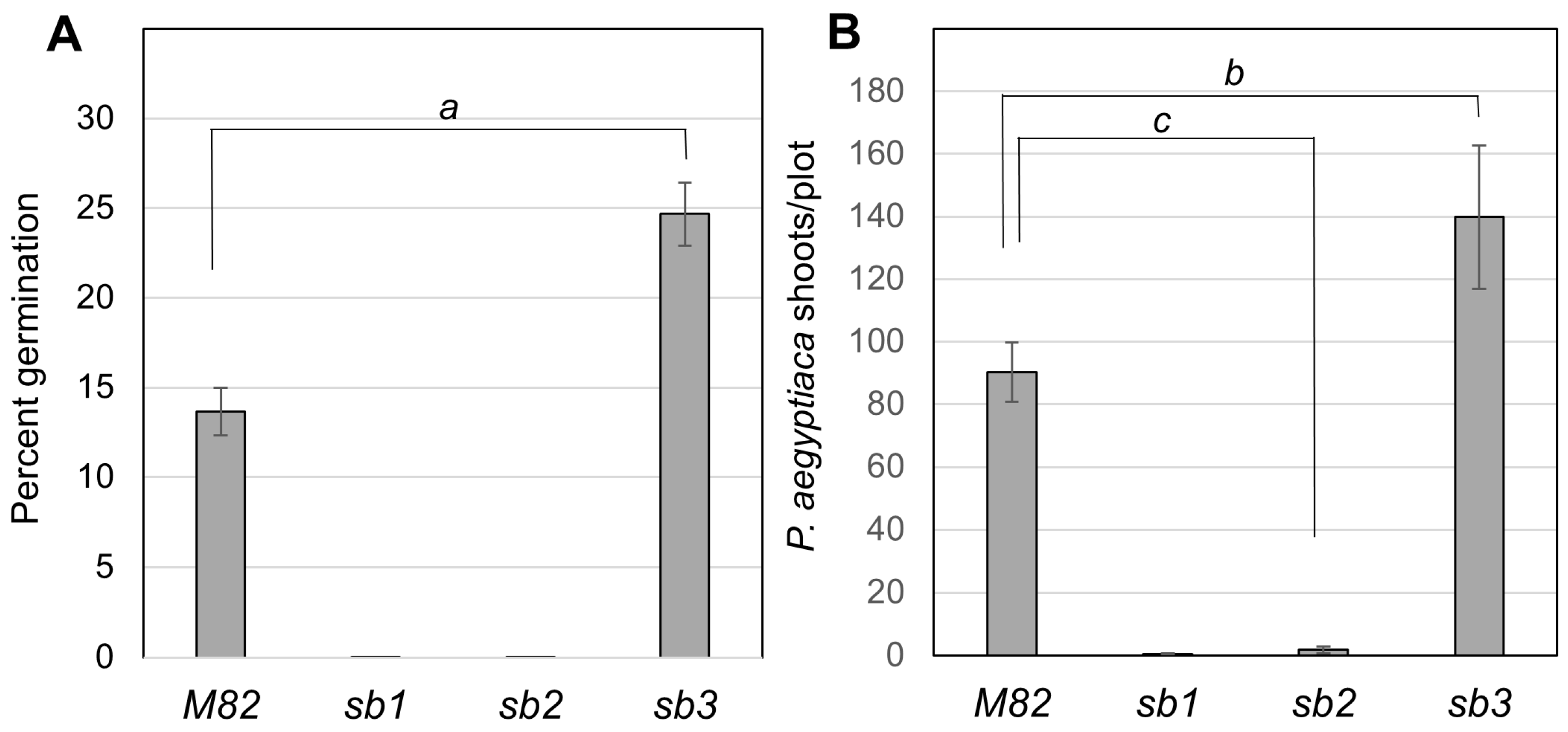

Figure 3. Root strigolactone and broomrape susceptibility of SL mutants. (A) The quantification of SL in roots of M82 and the mutants sb1, sb2, and sb3 based on the germination rate of P. aegyptiaca seeds induced by root extracts. Germination was recorded after 14 days. There was no germination in sb1 and sb2 assays. Data represent an average of three independent replications (n = 3, ±SE, a, p < 0.05). (B) Infection of field-grown tomato mutants sb1, sb2 and sb3 and the wild-type M82 by P. aegyptiaca (n = 5, ±SE, b, p = 0.096; c, p < 0.001).
Figure 3. Root strigolactone and broomrape susceptibility of SL mutants. (A) The quantification of SL in roots of M82 and the mutants sb1, sb2, and sb3 based on the germination rate of P. aegyptiaca seeds induced by root extracts. Germination was recorded after 14 days. There was no germination in sb1 and sb2 assays. Data represent an average of three independent replications (n = 3, ±SE, a, p < 0.05). (B) Infection of field-grown tomato mutants sb1, sb2 and sb3 and the wild-type M82 by P. aegyptiaca (n = 5, ±SE, b, p = 0.096; c, p < 0.001).
Plants 13 01554 g003
Plants 13 01554 g004

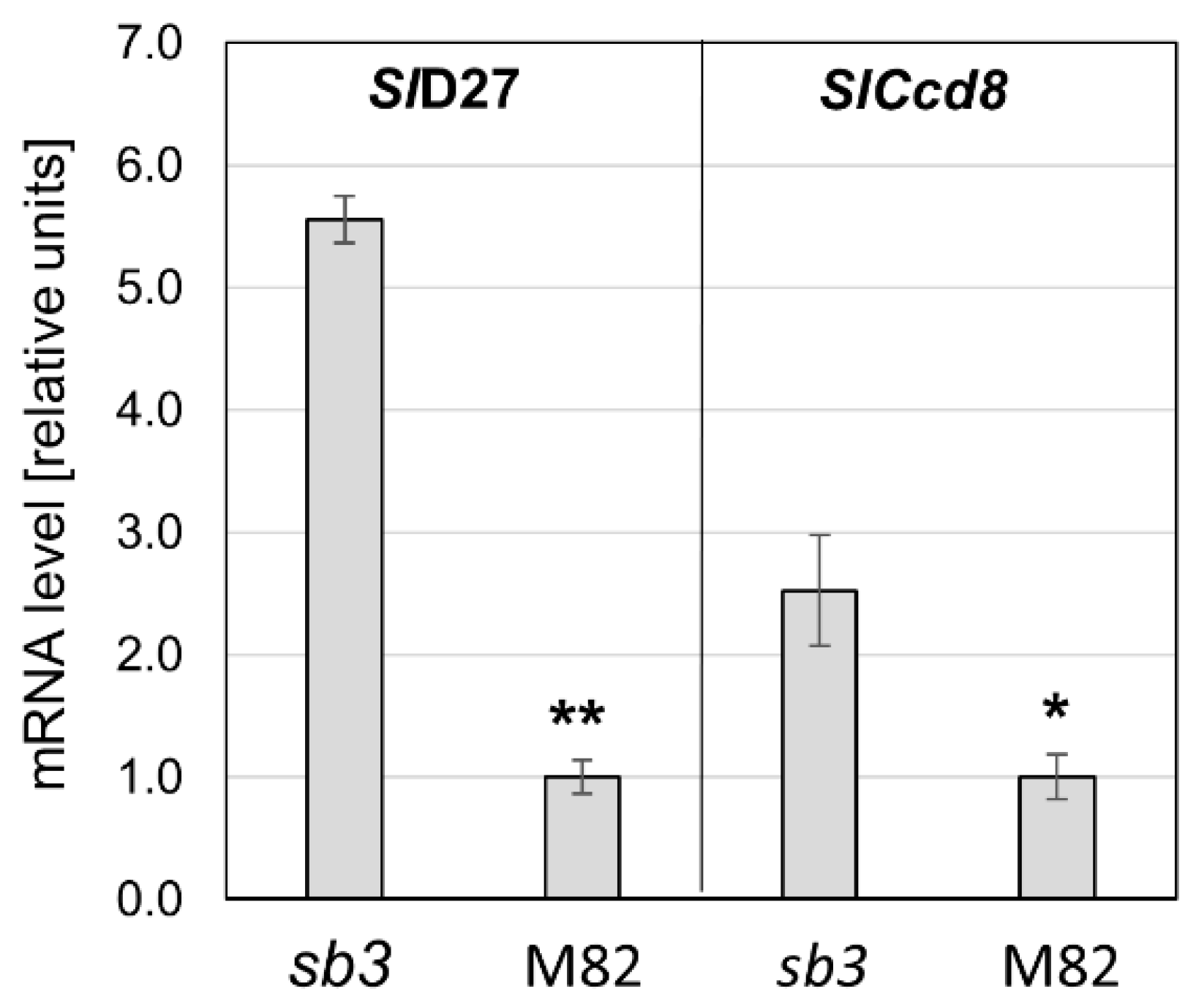

Figure 4. The quantification of the mRNA of the genes encoding slD27 and SlCCD8 in the roots of the mutant sb3 and the wild-type M82. (n = 3, ±SE, * p < 0.05, ** p < 0.01).
Figure 4. The quantification of the mRNA of the genes encoding slD27 and SlCCD8 in the roots of the mutant sb3 and the wild-type M82. (n = 3, ±SE, * p < 0.05, ** p < 0.01).
Plants 13 01554 g004
Plants 13 01554 g005

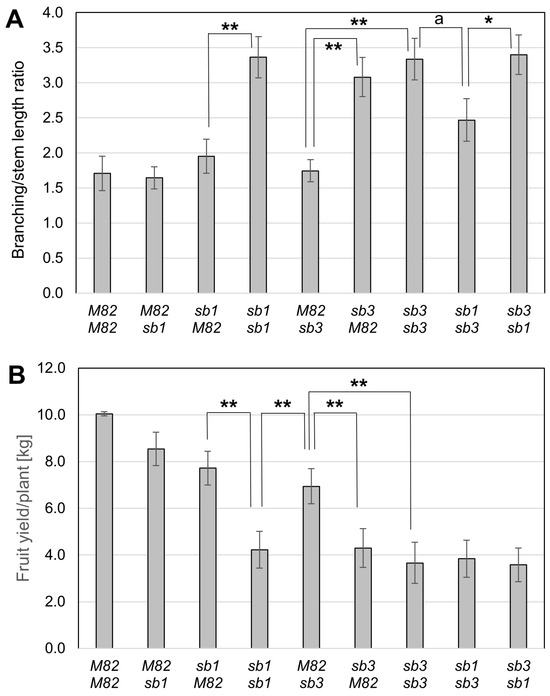

Figure 5. Root and shoot contribution to branching (A) and fruit yield (B) in plants with different grafting combinations (scion/rootstock) of the mutants sb1 and sb3 and the wild-type M82. The branching rate was determined as the number of branches per shoot length in centimeters. At least three plants from each grafting combination were characterized for branching and ten for yield (±SE, a = 0.0505, * p < 0.05, ** p < 0.01).
Figure 5. Root and shoot contribution to branching (A) and fruit yield (B) in plants with different grafting combinations (scion/rootstock) of the mutants sb1 and sb3 and the wild-type M82. The branching rate was determined as the number of branches per shoot length in centimeters. At least three plants from each grafting combination were characterized for branching and ten for yield (±SE, a = 0.0505, * p < 0.05, ** p < 0.01).
Plants 13 01554 g005
Plants 13 01554 g006

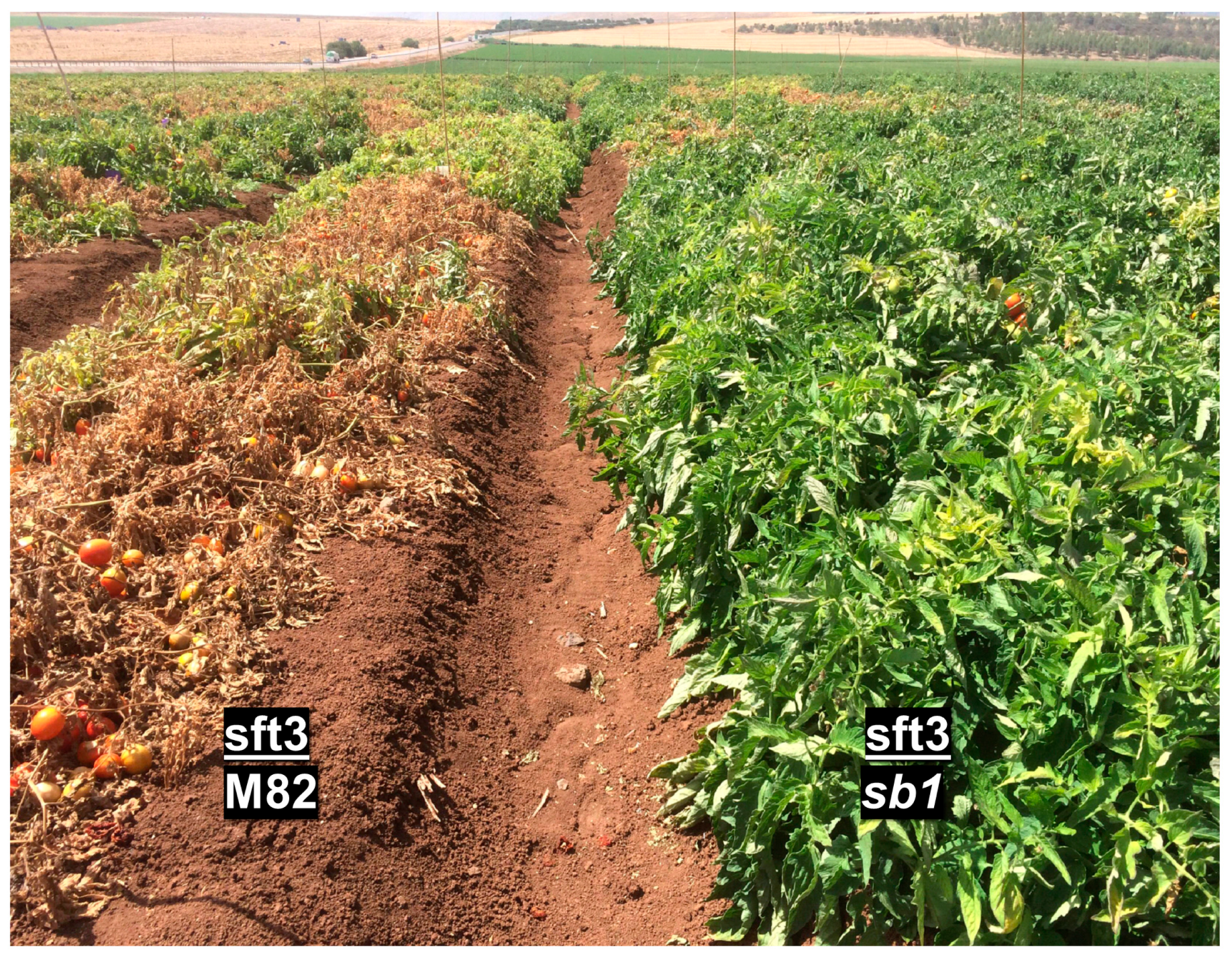

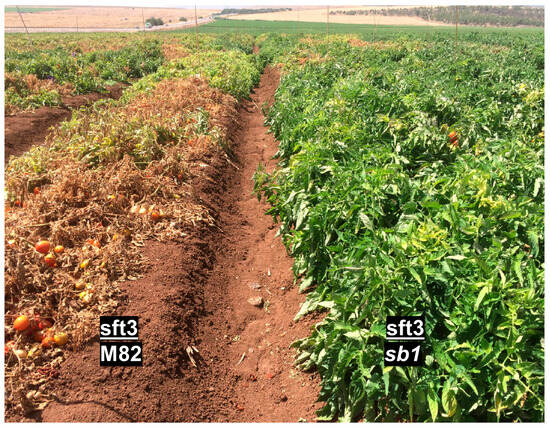

Figure 6. The resistance to P. aegyptiaca of grafted tomato plants. The cultivated tomato variety sft3 was grafted on sb1 (right) or M82 (left) rootstocks. Plants were grown in a highly infested field in Ein Harod. The picture was taken two weeks before harvest.
Figure 6. The resistance to P. aegyptiaca of grafted tomato plants. The cultivated tomato variety sft3 was grafted on sb1 (right) or M82 (left) rootstocks. Plants were grown in a highly infested field in Ein Harod. The picture was taken two weeks before harvest.
Plants 13 01554 g006
Plants 13 01554 g007

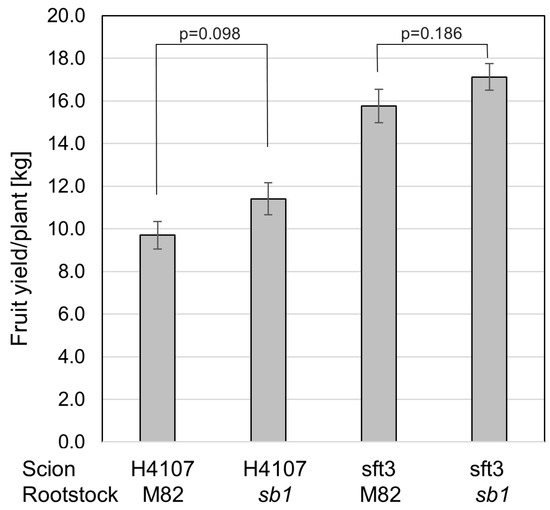

Figure 7. The performance of sb1 as a rootstock compared with M82 in commercial tomato varieties in a field not infested by P. aegyptiaca. The total fruit yield of field-grown commercial varieties sft3 and H4107 grafted on sb1 or M82 rootstock. (n = 18, ±SE).
Figure 7. The performance of sb1 as a rootstock compared with M82 in commercial tomato varieties in a field not infested by P. aegyptiaca. The total fruit yield of field-grown commercial varieties sft3 and H4107 grafted on sb1 or M82 rootstock. (n = 18, ±SE).
Plants 13 01554 g007
Table 1. Mutations identified in the over-branching tomato mutants.
Table 1. Mutations identified in the over-branching tomato mutants.
GeneLocusMutationImpact of the Mutation
Carotenoid cleavage dioxygenase 7 (SlCcd7) Solyc01g090660sb1G→C Position 3268
G→T position 3272		Intron/exon #7 junction, deletion of 7bp in the mRNA of Ccd7 exon #7
Carotenoid cleavage dioxygenase 8 (SlCcd8) Solyc08g066650sb2G→A Position 2659A change from Glu529 to Lys
α/β-hydrolase receptor Dwarf14 (D14)
Solyc04g077860		sb3G→A position 1582Intron/exon #2 junction, deletion of 17 bp in the mRNA of DWARF14 exon #2
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Karniel, U.; Koch, A.; Bar Nun, N.; Zamir, D.; Hirschberg, J. Tomato Mutants Reveal Root and Shoot Strigolactone Involvement in Branching and Broomrape Resistance. Plants 2024, 13, 1554. https://doi.org/10.3390/plants13111554

AMA Style

Karniel U, Koch A, Bar Nun N, Zamir D, Hirschberg J. Tomato Mutants Reveal Root and Shoot Strigolactone Involvement in Branching and Broomrape Resistance. Plants. 2024; 13(11):1554. https://doi.org/10.3390/plants13111554

Chicago/Turabian Style

Karniel, Uri, Amit Koch, Nurit Bar Nun, Dani Zamir, and Joseph Hirschberg. 2024. "Tomato Mutants Reveal Root and Shoot Strigolactone Involvement in Branching and Broomrape Resistance" Plants 13, no. 11: 1554. https://doi.org/10.3390/plants13111554

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
