Elevated CO₂ and Nitrogen Supply Boost N Use Efficiency and Wheat (T. aestivum cv. Yunmai) Growth and Differentiate Soil Microbial Communities Related to Ammonia Oxidization

Abstract

Elevated CO₂ levels (eCO₂) pose challenges to wheat (Triticum aestivum L.) growth, potentially leading to a decline in quality and productivity. This study addresses the effects of two ambient CO₂ concentrations (aCO₂, daytime/nighttime = 410/450 ± 30 ppm and eCO₂, 550/600 ± 30 ppm) and two nitrogen (N) supplements (without N supply—N0 and with 100 mg N supply as urea per kg soil—N100) on wheat (T. aestivum cv. Yunmai) growth, N accumulation, and soil microbial communities related to ammonia oxidization. The data showed that the N supply effectively mitigated the negative impacts of eCO₂ on wheat growth by reducing intercellular CO₂ concentrations while enhancing photosynthesis parameters. Notably, the N supply significantly increased N concentrations in wheat tissues and biomass production, thereby boosting N accumulation in seeds, shoots, and roots. eCO₂ increased the agronomic efficiency of applied N (AE_N) and the physiological efficiency of applied N (PE_N) under N supply. Plant tissue N concentrations and accumulations are positively related to plant biomass production and soil NO₃⁻-N. Additionally, the N supply increased the richness and evenness of the soil microbial community, particularly Nitrososphaeraceae, Nitrosospira, and Nitrosomonas, which responded differently to N availability under both aCO₂ and eCO₂. These results underscore the importance and complexity of optimizing N supply and eCO₂ for enhancing crop tissue N accumulation and yield production as well as activating nitrification-related microbial activities for soil inorganic N availability under future global environment change scenarios.

1. Introduction

As CO₂ is a fundamental component of photosynthesis, its increase can initially seem beneficial, promoting faster growth and potentially higher yields in various plant species [1]. This suggests a promising aspect for promoting agricultural productivity, yet the benefits are shadowed by complex challenges (IPCC, 2021) [2]. Elevated CO₂ (eCO₂) levels (2.0 to 2.4 ppm per year since 2000) contribute to global warming, altering weather patterns and threatening food security through the potential loss of crop diversity and productivity in most regions [3]. Furthermore, the nutritional quality of crop produce can be diminished under higher CO₂ conditions, impacting human health by reducing the availability of essential nutrients in staple foods [4,5]. Therefore, understanding the relationship among CO₂, plant growth, and human living necessitates a nuanced approach, acknowledging both the potential short-term gains in agricultural productivity and the long-term implications or risks for human well-being and environmental sustainability [2,6,7].

Wheat (Triticum aestivum L.) stands as one of the three primary cereals of global agricultural economy and food security since it serves as a primary food source for a significant portion of the world’s population [8]. Cultivated in a diverse range of climates and regions, wheat varieties are incredibly adaptable, with growth regions ranging from the sunny fields of the Mediterranean to the colder, temperate zones of Asia, Australasia, Europe, and North America [8]. This adaptability has made wheat not only a staple food but also a versatile ingredient found in an array of products, such as bread, pasta, and cereals. However, wheat production faces challenges, including climate change, pests, diseases, and the need for sustainable farming practices to ensure that this vital crop can continue to feed the ever-increasing global population [8]. Elevated CO₂ enhances photosynthesis and water efficiency in wheat but reduces stomatal conductance, nitrogen (N), and grain quality, with cultivar-dependent impacts on yield and nutrient content, offering insights for future cultivation strategies [5,9,10]. Under conditions of ample N supply, plants exposed to eCO₂ can effectively absorb N, maintaining minimal losses of this nutrient through foliar processes [11]. However, higher N application rates do not mean higher N use efficiency [12].

High N levels can alter soil microbial communities and reduce biodiversity by favoring certain species over others, potentially disrupting natural soil processes and ecosystem services [13]. Nitrogen supplies, especially those high in ammonium or urea, can increase soil acidity, leading to a decrease in soil pH, which can affect the availability of other nutrients and the activity of soil microorganisms [14]. To address environmental changes, such as eCO₂, soil microorganisms can adjust by modifying their metabolic activities and population structures [15]. These adaptations subsequently influence plant growth and the overall well-being of the soil ecosystem. Observations have indicated that eCO₂ can result in a notable decrease in soil NO₃⁻-N concentrations, potentially attributable to enhanced plant absorption or losses through leaching into groundwater and emissions into the atmosphere [16,17,18]. Elevated CO₂ also influences the soil microbial community indirectly through alterations in plant metabolism and root exudates, with a notable impact observed in C₃ plant species [19]. There are limited understandings of how eCO₂ impacts the structure and, more importantly, the function of rhizosphere and root-surface-associated microbial communities. Current research primarily has focused on the structure of rhizosphere microbial communities, with less attention given to those associated directly with the root surface [19,20,21]. When N availability is abundant, microbial activity and N utilization are boosted by higher CO₂ levels. This has substantial implications for comprehending the effects of eCO₂ on C and N dynamics within ecosystems [22,23]. Previous research has demonstrated that when N is supplied, the activity and abundance of denitrifiers possessing nirS, nirK, and nosZ genes are notably influenced in the wheat rhizosphere [24]. Under eCO₂, there is a marked increase in the population of ammonia-oxidizing archaea (AOA) and ammonia-oxidizing bacteria (AOB), which significantly enhances the nitrification potential in topsoil [25]. The interplay between eCO₂ and human-induced N inputs has a notable impact on the dynamics of soil microbial communities and their functioning, which can lead to shifts in microbial diversity, activity, and the ecological roles that they perform, ultimately influencing soil fertility and plant growth [26,27,28]. Meanwhile, eCO₂ may hinder the microbial process, potentially by disrupting the microbial capacity for intracellular electron transport and utilization [29].

As atmospheric CO₂ concentrations continuously increase, it becomes crucial to reassess N fertilization practices to optimize soil and crop management. By doing so, we can enhance agricultural yields by leveraging the benefits of higher CO₂ levels, ensure the maintenance of crop quality, and reduce the environmental risks associated with N runoff and leaching. Current indoor studies lack the ability to fully account for the comprehensive impacts of environmental factors or the specific conditions found in actual field settings. Consequently, we implemented an automated system to control environmental factors (e.g., similar light, temperature, and humidity were automatically adjusted inside and outside the glass growth chamber), allowing us to monitor both plant and soil characteristics [30,31]. This system measures changes in plant growth parameters, soil physicochemical properties, and soil microbial community composition. We hypothesized that (1) eCO₂ and N supply could increase N concentrations in wheat tissues, and (2) the soil microbial community would be altered under eCO₂ and/or N supply. The present study aimed to boost wheat yield and quality while providing a theoretical foundation for a rational N fertilization strategy in the context of rising CO₂ concentrations and altered soil microbial communities. The results generated from this study would then advise agricultural practices, helping manage soil microorganisms for effective adaptation to climate change, thereby promoting agricultural sustainability.

2. Results

2.1. Variation in Plant Growth Characteristics

Under aCO₂, N100 significantly increased seed number, seed production, and shoot biomass and root biomass production (Figure 1B–E) and significantly decreased the height of wheat (Figure 1A). Under eCO₂, N100 significantly increased the height of wheat, seed number, seed production, and shoot biomass and root biomass production. Elevated CO₂ and N input did change the harvest index (Figure 1). Elevated CO₂ significantly decreased plant height, seed number, seed production, and root biomass production under N0, while N100 prevented these reductions (Figure 1A–C,E).

2.2. Variation in Basic Photosynthetic Characteristics

The effects of CO₂ and N supply on photosynthesis parameters during the booting stage of wheat was found to be diverse and differed between aCO₂ and eCO₂ conditions. Under aCO₂, the application of N fertilizer significantly decreased the intercellular CO₂ concentration (Ci) (Figure 2C), which suggested that higher N availability might reduce the internal CO₂ concentration within the leaf, potentially due to increased photosynthetic activity or altered stomatal behavior. However, under eCO₂, this effect was not observed, indicating that eCO₂ might mitigate or alter the response of Ci to N supply. There was no significant change in the net photosynthesis rate (Pn) (Figure 2A), transpiration rate (E) (Figure 2B), and stomatal conductance (Gs) (Figure 2D) under both aCO₂ and eCO₂ with N100 supply. This suggested that while N supply could influence photosynthetic parameters, its impact on these specific metrics was not significant under these tested conditions.

All the measured parameters, including Ci, Pn, E, and Gs, were significantly greater under eCO₂ than under aCO₂ for both N0 and N100 treatments (Figure 2). This indicates that eCO₂ generally enhanced wheat’s photosynthetic capacity, potentially due to the direct effect of higher CO₂ levels on photosynthesis, known as the CO₂ fertilization effect. This effect can increase the net photosynthetic rate by reducing photorespiration and increasing the efficiency of the Calvin cycle. Additionally, there was no significant change in the net photosynthetic rate of N0 under eCO₂, suggesting that even without additional N supply, eCO₂ can promote photosynthesis in wheat. Overall, these results indicated that eCO₂ enhanced various aspects of photosynthesis in wheat during the booting stage, potentially leading to increased C assimilation and growth. The differential responses to N supply under aCO₂ and eCO₂ highlighted the importance of considering both CO₂ levels and N availability when assessing plant photosynthetic performance and productivity.

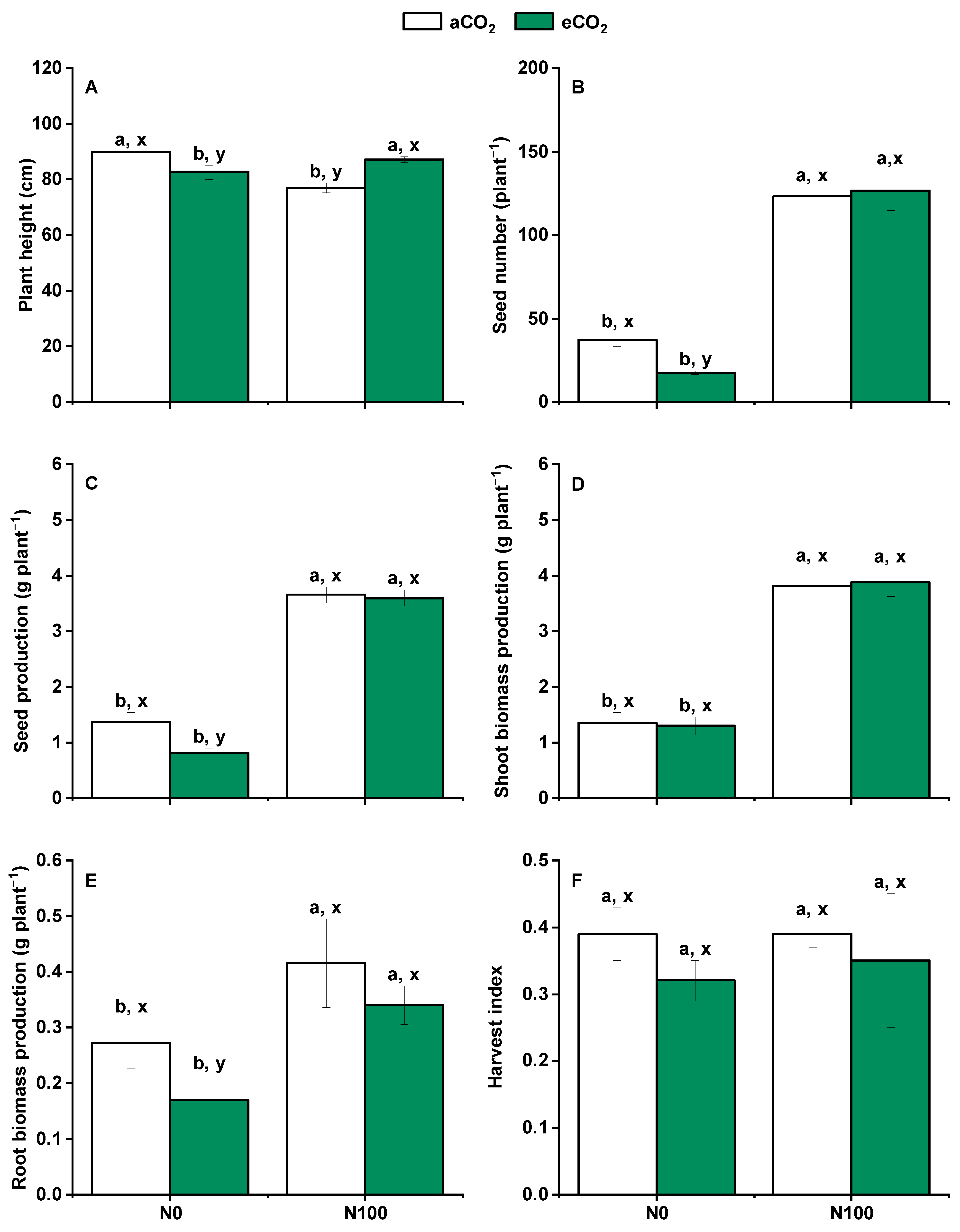

Figure 1. Effects of CO₂ and N supply on 5-month-old wheat at harvest. (A) Plant height; (B) Seed number; (C) Seed production; (D) Shoot (stem and leaf) biomass production; (E) Root biomass production; (F) Harvest index = seed production/shoot biomass. Data are means ± SE (n = 3). Lower-case letters above the bars indicate a significant difference between N supplies for the same aCO₂ treatment (a, b) or eCO₂ treatment (A,B) and between CO₂ concentrations for the same N treatment (x, y) at p < 0.05. Abbreviations: aCO₂, atmospheric CO₂; eCO₂, elevated CO₂; N0, no N supply; N100, 100 mg N kg⁻¹ DW soil.

Figure 1. Effects of CO₂ and N supply on 5-month-old wheat at harvest. (A) Plant height; (B) Seed number; (C) Seed production; (D) Shoot (stem and leaf) biomass production; (E) Root biomass production; (F) Harvest index = seed production/shoot biomass. Data are means ± SE (n = 3). Lower-case letters above the bars indicate a significant difference between N supplies for the same aCO₂ treatment (a, b) or eCO₂ treatment (A,B) and between CO₂ concentrations for the same N treatment (x, y) at p < 0.05. Abbreviations: aCO₂, atmospheric CO₂; eCO₂, elevated CO₂; N0, no N supply; N100, 100 mg N kg⁻¹ DW soil.

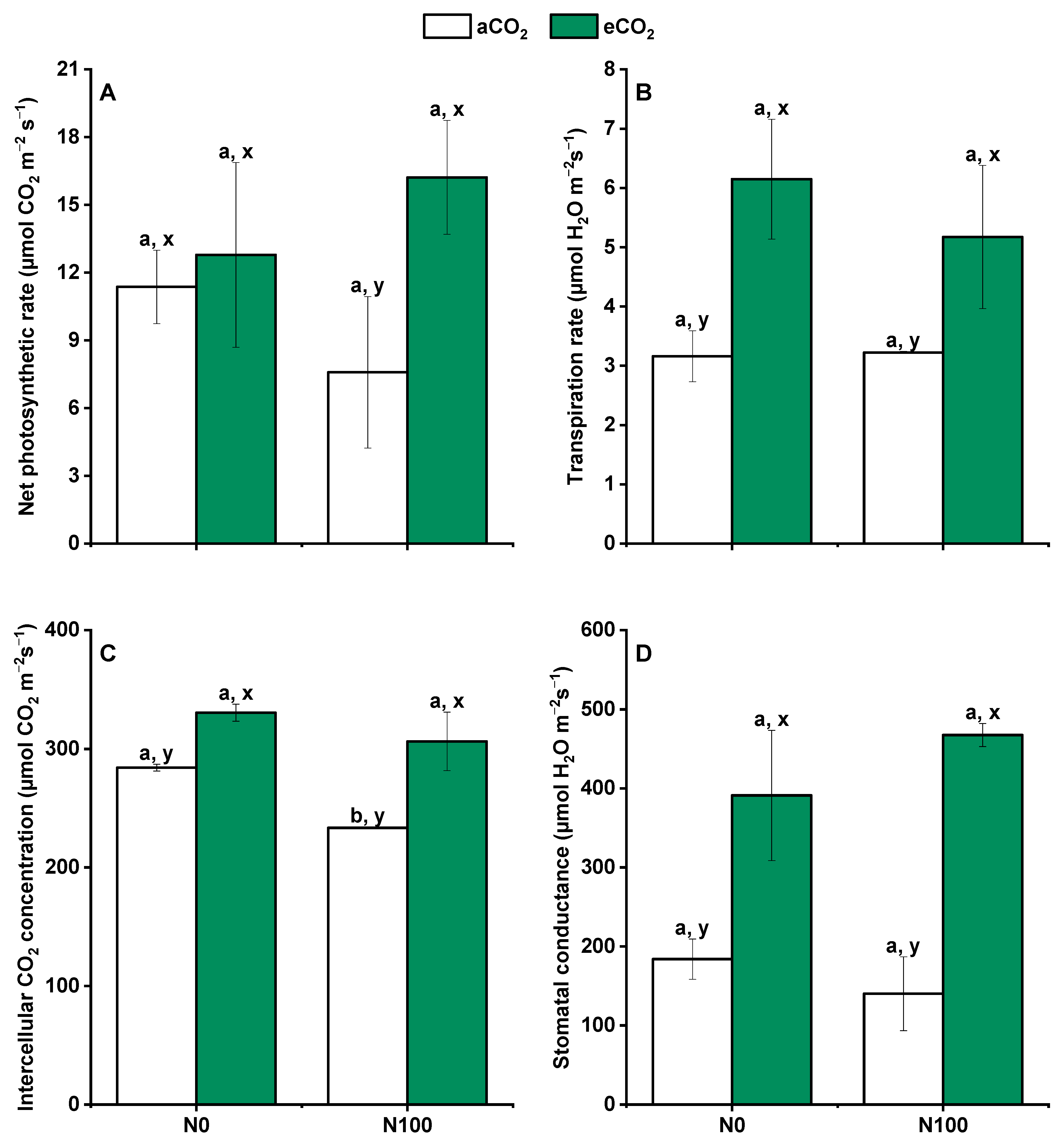

Figure 2. Effects of CO₂ and N supply on photosynthesis parameters during the booting stage of 5-month-old wheat. (A) Net photosynthetic rate; (B) Transpiration rate; (C) Intercellular CO₂ concentration; (D) Stomatal conductance. Data are means ± SE (n = 3). Lower-case letters above the bars indicate a significant difference between N supplies for the same aCO₂ treatment (a, b) or eCO₂ treatment (A,B) and between CO₂ concentrations for the same N treatment (x, y) at p < 0.05. Abbreviations: aCO₂, atmospheric CO₂; eCO₂, elevated CO₂; N0, no N supply; N100, 100 mg N kg⁻¹ DW soil.

Figure 2. Effects of CO₂ and N supply on photosynthesis parameters during the booting stage of 5-month-old wheat. (A) Net photosynthetic rate; (B) Transpiration rate; (C) Intercellular CO₂ concentration; (D) Stomatal conductance. Data are means ± SE (n = 3). Lower-case letters above the bars indicate a significant difference between N supplies for the same aCO₂ treatment (a, b) or eCO₂ treatment (A,B) and between CO₂ concentrations for the same N treatment (x, y) at p < 0.05. Abbreviations: aCO₂, atmospheric CO₂; eCO₂, elevated CO₂; N0, no N supply; N100, 100 mg N kg⁻¹ DW soil.

2.3. Variation in Tissue N Concentrations

Under aCO₂ conditions, N100 resulted in a significant improvement in seed, shoot, and root N concentrations (Figure 3A,C,E), indicating that higher N availability enhanced N content in these tissues. However, this N supply did not significantly influence the seed, shoot, and root N accumulation (Figure 3B,D,F). These results indicate that while the concentration of N in plant tissues increased, the total amount of N that accumulated in these tissues did not change significantly. Under eCO₂ conditions, N supply significantly increased N concentrations in seeds, shoots, and roots. This suggested that eCO₂ enhanced the responsiveness of plants to N supply in terms of tissue N content. The level of N accumulation under N supply was significantly increased in shoots and roots but did not show a significant increase in seeds under eCO₂. These results indicated that eCO₂ might alter the distribution of N within the plant, favoring accumulation in certain tissues over others. Interestingly, shoot N concentrations for the N0 treatment were significantly greater under eCO₂ than under aCO₂, while they were similar in shoots for the N100 and also in seeds and roots for under N0 and N100, regardless of N fertilization. These findings suggested that eCO₂ might influence N uptake or internal N redistribution even in the absence of additional N supply.

Regarding N accumulation in N0, seeds exhibited significantly decreased N accumulation, and shoots exhibited increased N accumulation under eCO₂. Roots showed no significant change. This indicated a shift in N allocation under eCO₂, potentially favoring shoot growth at the expense of seed N accumulation when the N supply is limited. The increasing trend of N accumulation in shoots and roots and the decreasing trend in seeds under eCO₂ were further aggravated by N supply. This suggested that eCO₂ and N supply interact to influence N distribution within the plant, potentially affecting crop yield and quality. Overall, the interactive effect of N supply and eCO₂ on N concentrations was observed in both shoots and seeds (Figure 3), highlighting the complex interplay between CO₂ levels and N availability in shaping plant N dynamics and potentially impacting agricultural productivity and sustainability.

2.4. Changes in Soil pH, Organic Matter, and Concentrations of NH₄⁺ and NO₃⁻

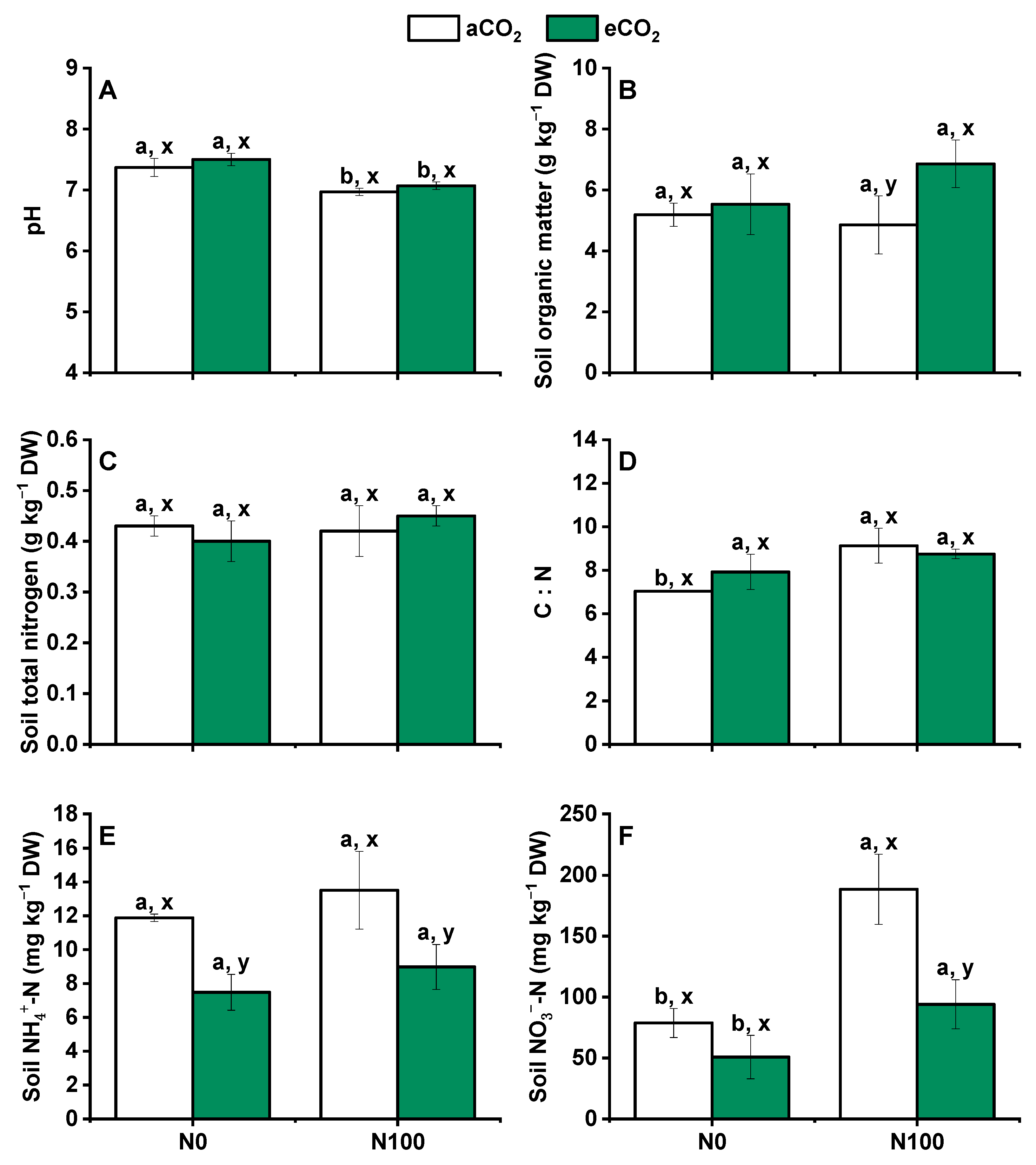

Under both aCO₂ and eCO₂, N supply led to a significant decrease in soil pH (Figure 4A). This was likely due to the acidifying effect of N fertilizers, which can release hydrogen ions into soil to decrease pH. Nitrogen supply did not result in changes in soil organic matter (Figure 4B), soil total N (Figure 4C), and soil NH₄⁺-N concentrations (Figure 4E), but a significant increase in soil NO₃⁻-N concentrations (Figure 4F) was noted, indicating that the N supply enhanced the availability of NO₃⁻, a more mobile inorganic N form in soil. Under aCO₂, the N supply also significantly increased the C-to-N (C/N) ratio. This suggested that while the N supply increased soil N, it might not proportionally increase soil organic matter, leading to a higher C/N ratio. Under both N0 and N100, the C/N ratio, soil NH₄⁺-N, and soil NO₃⁻-N were significantly lower under eCO₂ than under aCO₂ (Figure 4C–E). This indicated that eCO₂ might influence the soil N cycle, potentially reducing the availability of both ammonium and NO₃⁻ in soil. Contrastingly, both soil organic matter and total N exhibited significant increases under both N0 and N100, with the exception of soil organic matter under N0. This suggested that the N supply generally enhanced soil N and organic matter, but the response to eCO₂ could vary depending on the level of N supply. Overall, these results indicated that the N supply decreased soil pH, while eCO₂ decreased the C/N ratio, soil NH₄⁺-N, and soil NO₃⁻-N concentrations. These findings highlight the complex interactions among CO₂ levels, N supply, and soil properties, which can influence soil fertility and plant nutrition.

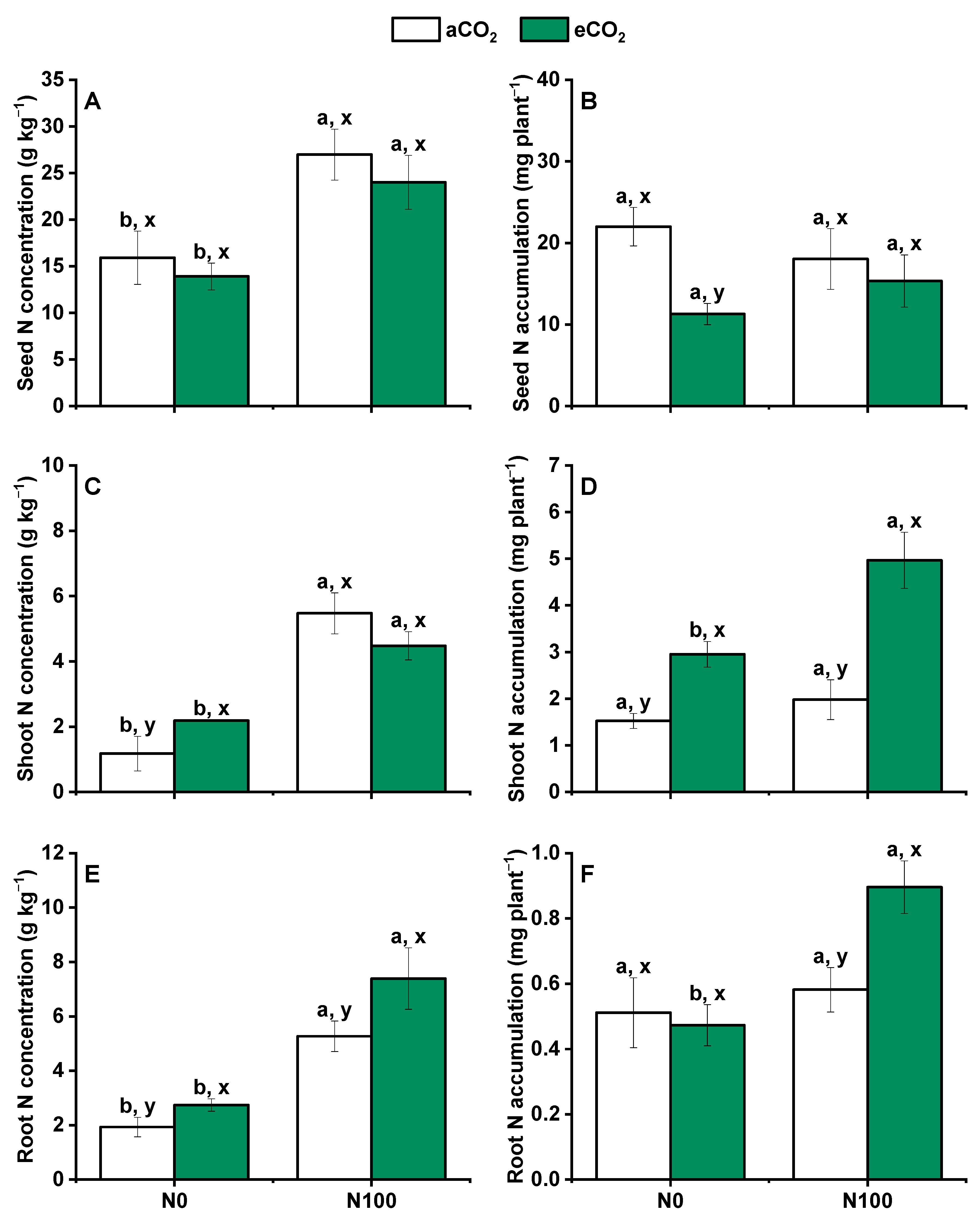

Figure 3. Effects of CO₂ and N supply on tissue N concentrations and accumulations in seed (A,D), shoot (stem and leaf) (B,E) and root (C,F) of 5-month-old wheat at harvest. Data are means ± SE (n = 3). Lower-case letters above the bars indicate significant differences between N supplies for the same aCO₂ treatment (a, b) or eCO₂ treatment (A,B) and between CO₂ treatments for the same N treatment (x, y) at p < 0.05. Abbreviations: aCO₂, atmospheric CO₂; eCO₂, elevated CO₂; N0, no N supply; N100, 100 mg N kg⁻¹ DW soil.

Figure 3. Effects of CO₂ and N supply on tissue N concentrations and accumulations in seed (A,D), shoot (stem and leaf) (B,E) and root (C,F) of 5-month-old wheat at harvest. Data are means ± SE (n = 3). Lower-case letters above the bars indicate significant differences between N supplies for the same aCO₂ treatment (a, b) or eCO₂ treatment (A,B) and between CO₂ treatments for the same N treatment (x, y) at p < 0.05. Abbreviations: aCO₂, atmospheric CO₂; eCO₂, elevated CO₂; N0, no N supply; N100, 100 mg N kg⁻¹ DW soil.

2.5. Nitrogen Use Efficiency

Under N100 supply, eCO₂ enhanced the agronomic efficiency of applied N (AE_N) and physiological efficiency of applied N (PE_N) compared to aCO₂ conditions, as indicated in

Table 1. Agronomic indices of N use efficiency.

	REN (%)	AEN (g g−1)	PEN (g g−1)	PFPN (g g−1)
aCO2	37.35 ± 2.27 x	8.89 ± 0.89 x	23.89 ± 3.1 x	0.15 ± 0.01 x
eCO2	34.24 ± 5.44 x	10.84 ± 3.16 x	31.3 ± 6.02 x	0.14 ± 0.03 x

Abbreviations: aCO₂, ambient CO₂; eCO₂, elevated CO₂. Data are means ± SE (n = 3). Lower-case letters above the bars indicate a significant difference between CO₂ concentrations in the same N treatment (x, y) at p < 0.05.

. This suggested that eCO₂ promoted a more efficient use of applied N in terms of yield and biomass production per unit of N applied. However, eCO₂ decreased the crop recovery efficiency of applied N (RE_N) and partial factor productivity of applied N (PFP_N) compared to aCO₂ under N100 supply (Table 1). This indicated that while eCO₂ improved the utilization efficiency of applied N within the plant, it might reduce the overall recovery of applied N by the crop and the productivity per unit of N applied in terms of total biomass or yield. These findings highlight the complex interactions between CO₂ levels and N use efficiency in crops, with eCO₂ potentially altering the balance among N uptake, utilization, and productivity.

2.6. Characters of Relationships between Soil Inorganic N and Plant N

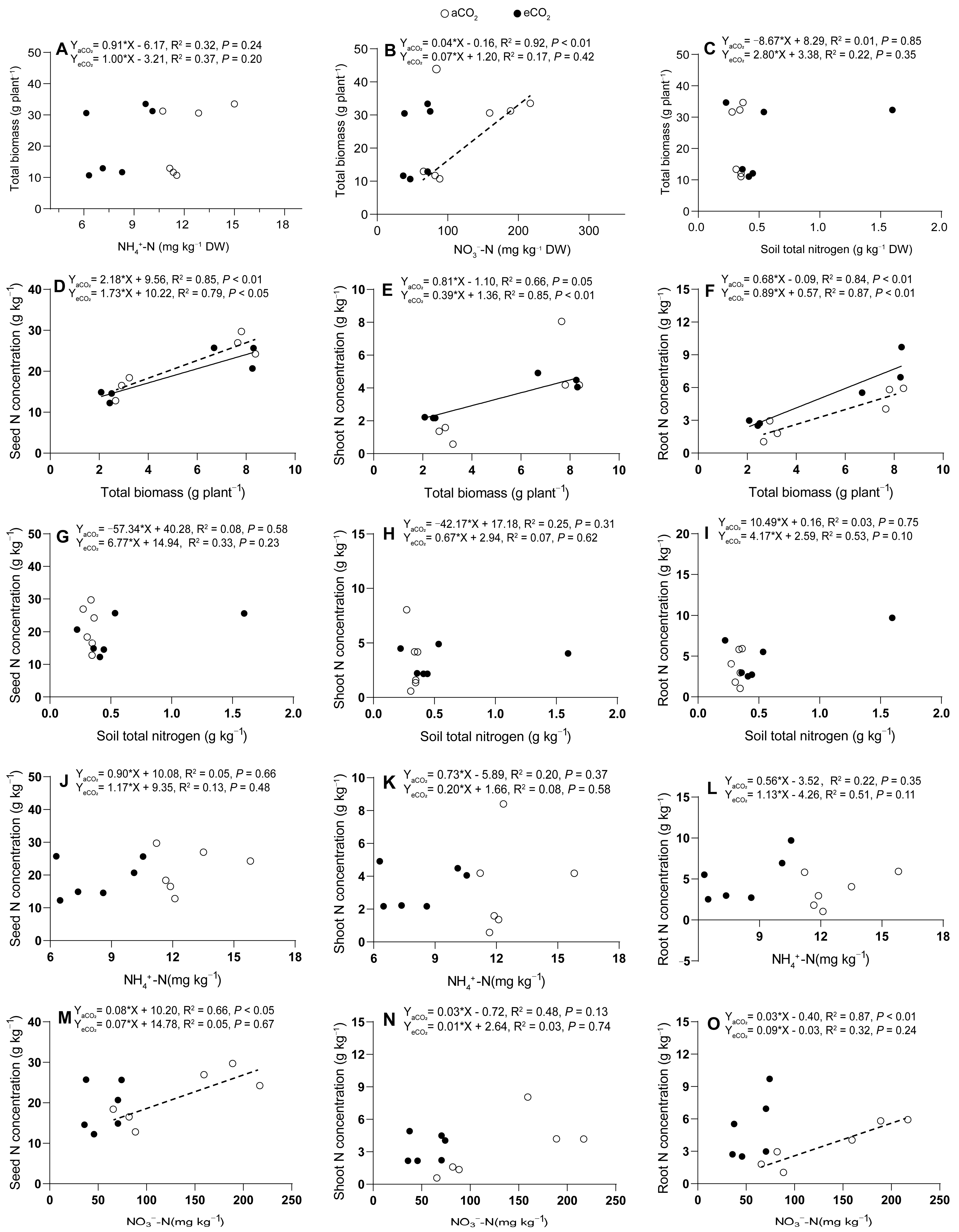

Wheat total biomass production exhibited varied correlations with soil and plant tissue N concentrations under different CO₂ conditions. Under eCO₂, wheat biomass production did not show significant correlations with soil NH₄⁺-N (p = 0.20–0.24, Figure 5A), soil total N concentrations (p = 0.35–0.85, Figure 5C), or soil NO₃⁻-N (p = 0.42, Figure 5B). Similarly, under aCO₂, there was no significant correlation between wheat biomass production and shoot total N concentrations (p = 0.05, Figure 5E). However, under aCO₂, wheat biomass production significantly positively correlated with soil NO₃⁻-N (p < 0.01, Figure 5B), indicating a strong relationship between soil NO₃⁻ availability and biomass production. Additionally, under eCO₂, wheat biomass production showed a significant positive correlation with shoot N concentration (p < 0.05, Figure 5E), suggesting an enhanced role of shoot N in biomass production under eCO₂. Furthermore, wheat biomass production significantly positively correlated with seed N concentration under both aCO₂ and eCO₂ (P_aCO2 < 0.01, P_eCO2 < 0.05, Figure 5D) and root N concentration under both aCO₂ and eCO₂ (P_aCO2 < 0.01, P_eCO2 < 0.05, Figure 5F), highlighting the importance of seed and root N accumulation in biomass production across different CO₂ levels. Plant tissue total N concentrations, on the other hand, did not show significant correlations with soil total N concentrations (p = 0.10–0.75, Figure 5G–I), soil NH₄⁺-N (p = 0.11–0.66, Figure 5J–L), or soil NO₃⁻-N (p = 0.13–0.74, Figure 5M–O) except for seed and root N concentrations under aCO₂, which significantly positively correlated with soil NO₃⁻-N (P_seed < 0.05, P_root < 0.01). These suggest that while soil NO₃⁻ availability is important for seed and root N accumulation under aCO₂, the relationship between plant tissue N and soil N forms is complex and varies with CO₂ levels and plant tissues.

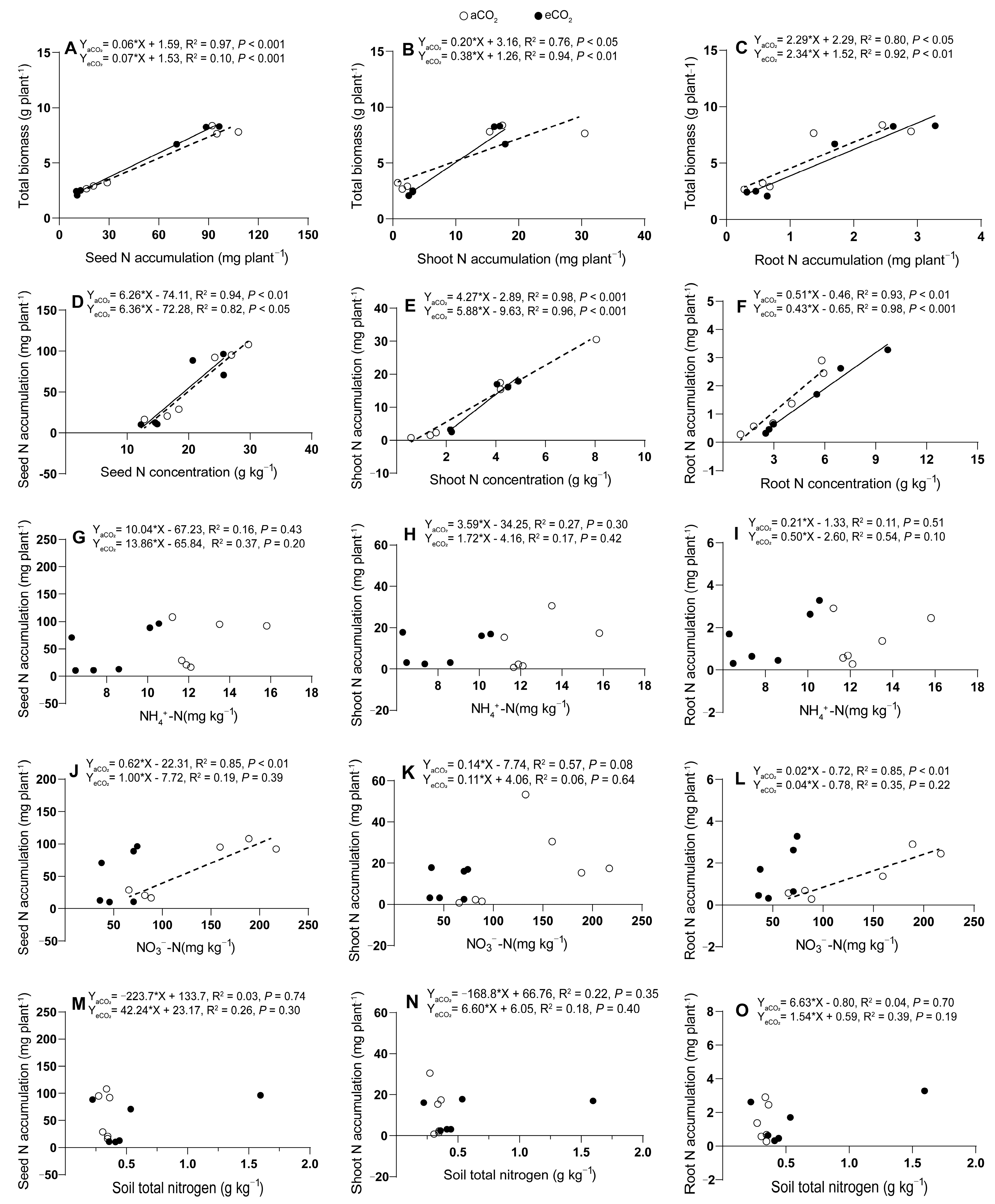

Wheat seed, shoot, and root N accumulation exhibited positive correlations with total wheat biomass production under both aCO₂ and eCO₂. Specifically, under aCO₂, significant positive correlations were observed for seed (p < 0.001), shoot (p < 0.05), or root (p < 0.05) N accumulation and total biomass production (Figure 6A–C). Under eCO₂, these correlations became even stronger, with seed (p < 0.001), shoot (p < 0.01), and root (p < 0.01) N accumulation showing highly significant positive relationships with total biomass (Figure 6A–C). The eCO₂ enhanced relationship between biomass production and shoot N accumulation suggested a more efficient utilization of N in biomass production under eCO₂. Plant tissue total N concentrations and N accumulations were found to correlate significantly positively under both aCO₂ and eCO₂. Under aCO₂, significantly positive correlations were observed for seed (p < 0.01), shoot (p < 0.001), and root (p < 0.01) N concentrations with total biomass (Figure 6D–F). Under eCO₂, these correlations persisted, with seed (p < 0.05), shoot (p < 0.001), and root (p < 0.001) N concentrations showing significantly positive relationships with total biomass (Figure 6D–F). However, wheat tissue N accumulation did not show significant correlations with soil NH₄⁺-N (p = 0.10–0.51, Figure 6G–I), soil total N concentrations (p = 0.19–0.74, Figure 6M–O), or soil NO₃⁻-N (p = 0.08–0.64, Figure 6J–L) under both aCO₂ and eCO₂. Soil NO₃⁻-N was found to correlate significantly and positively with seed and root N accumulation (P_seed < 0.01, P_root < 0.01, Figure 6J,L), indicating a specific relationship between soil NO₃⁻-N availability and N accumulation in these plant tissues.

2.7. Soil Microbial Community Composition and Species Abundance

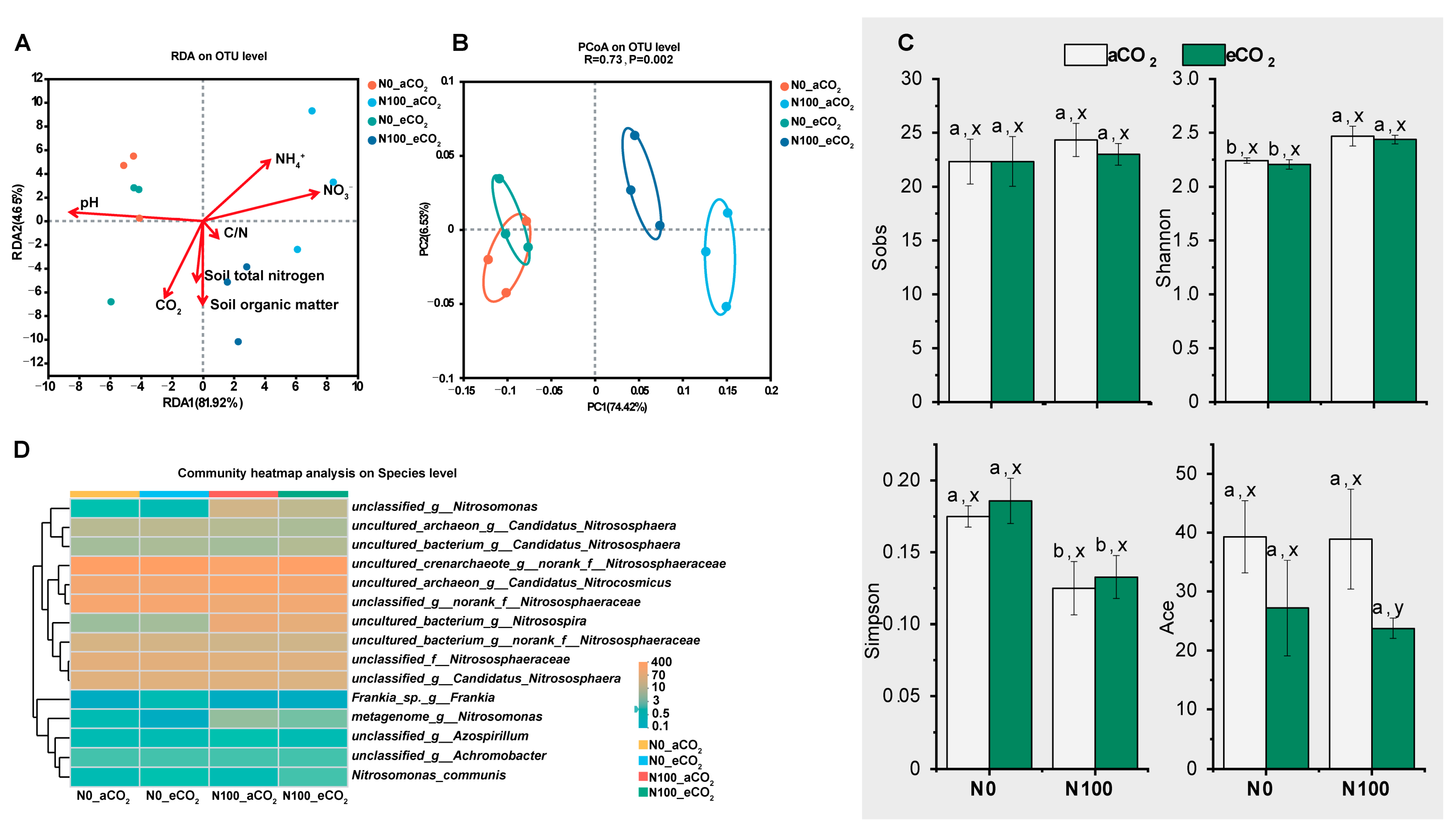

The differences in the soil microbial community between different treatments were assessed using Illumina MiSeq sequencing of the V3–V4 region of bacterial 16S rRNA gene. These Illumina MiSeq sequencing assays were performed by followed by the instructions from the facility of an Il-559 lumina, San Diego, CA, USA. A total of 516,804 valid sequences were obtained from the soil sample, with an average of 43,067 individual sample sequence counts per sample.

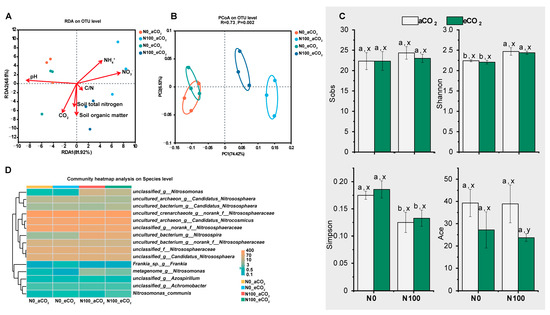

Alpha diversity is an ecological metric that assesses the variety and even distribution of taxonomic groups within a single sample [32]. Elevated CO₂ did not significantly affect the Sobs index, Shannon index, or Simpson index under both N0 and N100, while the Ace index had a decreasing trend. Under both aCO₂ and eCO₂, N100 significantly increased the Shannon index but decreased the Simpson index (Figure 7C). N100 significantly influenced N cycling microorganisms (p = 0.002), while the influence of eCO₂ on communities was higher under N100 than under N0 (Figure 7B). We performed redundancy analysis (RDA) to show the correlation between samples under different treatments, environmental factors, and soil N cycling microorganisms. The RDA results (RDA1 = 81.92%, RDA2 = 4.65%) showed that soil pH was the most influential factor on soil N cycling microorganisms followed by NH₄⁺-N and NO₃⁻-N (Figure 7A). Under both aCO₂ and eCO₂, the N supply notably increased the relative abundance of unclassified_g_Nitrosomonas and uncultured_bacterium_g_Nitrosospira at the species level. eCO₂ treatment notably decreased metagenome_g_Nitrosomonas and increased Frankia_sp._g_Frankia under N0 (Figure 7D).

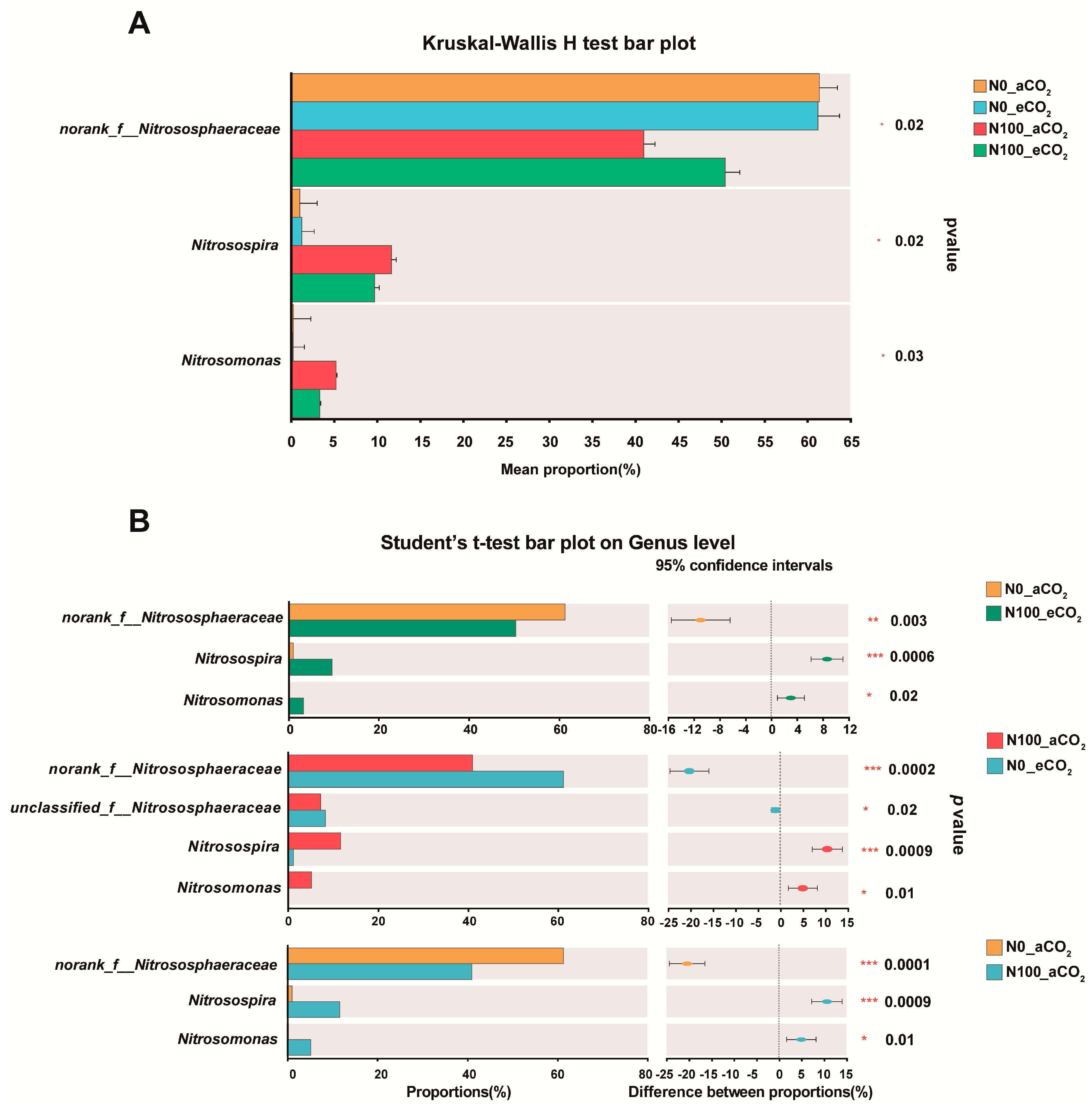

Significant differences among four treatments were observed in the relative abundance of soil N cycling microorganisms at the genus level of the 3 most abundant genera (Figure 8A). These 3 genera were dominating the communities for N cycling in soil from all treatments. Nitrososphaeraceae was the main microbial genus present at N0 under both aCO₂ and eCO₂ (p < 0.001–0.01). Nitrosospira and Nitrosomonas in the soil under N100 treatment were more abundant compared to N0 under both aCO₂ and eCO₂ (p < 0.001–0.05) (Figure 8B). These results meant that the N supply was the main factor influencing soil microbial communities.

3. Discussion

3.1. Nitrogen Supply Generally Rebalanced the Effects of eCO₂ on Wheat Growth

Elevated CO₂ (eCO₂) did not significantly increase wheat biomass production; in fact, it somewhat reduced the growth biomass under N0 (Figure 1B–E). This result was in a disagreement with results from other studies [5,9,33] because a good normal biomass production needs an element match-up of C and N stoichiometry [34] and also highly depends on cultivars as two out five wheat cultivars had a lower shoot dry weight production under 800 ppm CO₂ than under 400 ppm CO₂ [9]. Compared to aCO₂ (400 ppm), an NH₄⁺-tolerant pea (Pisum sativum L. cv. snap pea) plant under eCO₂ (800 ppm) had to cope with an unbalanced C-to-N ratio due to a limited C sink strength and/or constrains in leaf N content in order to promote photosynthetic efficiency and C allocation into sugars (glucose and sucrose) under moderate (2.5 mM) or high (10 mM) NH₄⁺ supplement [35]. Moreover, a meta-analysis of 22 studies showed that an enhanced aboveground biomass production and grain yield was only observed when 18 barley genotypes were cultivated under a combination of eCO₂ (651–720 ppm) and a higher N rate (151–200 kg ha⁻¹) [36]. In addition, a review on studies between 1986 and 2022 (n = 20) showed that strawberry yield was also decreased under 1588 ± 582 CO₂ ppm than under aCO₂ [37]. Nevertheless, the N supply and CO₂ treatment did not significantly influence the harvest index (Figure 1F). In general, the effect of CO₂ fertilization on photosynthesis had been significantly reduced globally during the last four decades (1982 to 2015) [38], although the study’s key conclusion was not robust mainly due to negligence regarding the role of the photosynthetic enzyme ribulose-1,5-bisphosphate carboxylase-oxygenase [39].

When the environmental CO₂ concentration increased from 372 ppm to 605 ppm, the response for wheat yield indicated that at about 600 ppm CO₂, the stimulation of yield tended to stabilize, suggesting the existence of a plateau phase, beyond which the yield might not be significantly increased [40]. Furthermore, the response of wheat to the increase in CO₂ concentration is significantly related to the productivity of the growth site [41]. In systems with a lower productivity, the relative stimulation effect of CO₂ on yield was stronger [42]. Wheat biomass production was significantly increased by N100 supply under both atmospheric CO₂ (aCO₂) and eCO₂ (Figure 1B–E), which was consistent with results from other studies [43,44]. This suggests that N generally boosts wheat biomass by supporting essential physiological processes, whereas eCO₂ decreases biomass by disrupting nutrient balance and water relations or limitations. In the latter case, our results indeed showed that eCO₂ significantly decreased the water use efficiency at the leaf scale (WUEi) under N0 (Figure S2). As a result, the fertilization effect of eCO₂ on wheat biomass production can only be achieved when N and/or water supplementation are adequate. This illustrates the complex interplay between these factors in plant growth.

3.2. Elevated CO₂ Changed the Decreasing Trend of N Supply on Photosynthesis Parameters

The effects of N fertilizer and CO₂ concentration on the photosynthetic parameters of wheat were different. The stomatal conductance and net photosynthetic rate were lower at N100 than at N0 under aCO₂. In addition, the intercellular CO₂ concentration was significantly decreased at N100 under aCO₂, but the photosynthesis parameters under eCO₂ were not significantly affected by N supply during the booting stage (Figure 2). Nitrogen is essential for plant photosynthesis because its availability significantly influences the efficiency of the photosynthetic process and, by extension, the overall growth and performance of plants [45]. A study performed by Wu et al. also showed that N application had significant decrease on the intercellular CO₂ concentration of wheat at the booting stage [46]. Applying excessive N fertilizer may lead to an over-absorption of N by plants, which can increase the chlorophyll content in wheat, enhance the rate of photosynthesis, and thus increase the rate of CO₂ absorption, resulting in a reduction of leaf intercellular CO₂ concentrations [46,47,48]. Elevated CO₂ significantly increased the photosynthetic parameters under both N0 and N100 (Figure 2). A study measured photosynthesis in winter wheat and rice under different CO₂ levels and also found that eCO₂ generally increased net photosynthesis by 10–40% at different development stages [49,50]. The increase in CO₂ concentration to some extent compensates for the restrictive effect of N fertilizer application on the formation during the booting stage.

3.3. Nitrogen Supply Mitigated the Reduction of Seed N Accumulation with eCO₂ Treatment

Elevated CO₂ increased N concentrations in both shoots and roots of wheat but decreased the seed N concentration under N0 (Figure 3A,C,E, Figure 5J,M). N100 enhanced such increasing trends in seed and root N concentrations, while shoot N concentrations were decreased under eCO₂ (Figure 3A,C,E). These results were similar to Andrea et al.’s study demonstrating that eCO₂ reduced the N content and nutritional quality of wheat and other crops [51,52]. Elevated CO₂ significantly decreased seed N accumulation under N0, while this trend was stopped under N100 (Figure 3B). These results might explain why eCO₂ and increased N fertilizer significantly increased the number of tillers (Figure S1) and aboveground dry biomass of wheat (Figure 1) but reduced the leaf chlorophyll content (as a proxy for plant N content) [53]. However, of note, N accumulation in shoots and roots was much higher at eCO₂ than at aCO₂ under N100 (Figure 3D,F). Studies have focused on the regulation of N allocation in plants by N application rates. During the period from flowering to maturity, the N translocation in individual plant aboveground organs decreased with the downward spatial position [54]. Increased N application could effectively enhance the absorption of N, delaying leaf senescence and death (Figure 5O and Figure 6L). It is hence important to fertilize at the proper stage of wheat.

3.4. Elevated CO₂ Decreased Active Nitrogen under Both N0 and N100

The pH decreased because of nitrification ($2\mathrm{N}{\mathrm{H}}_4^{+}+3{\mathrm{O}}_2\to 2\mathrm{N}{\mathrm{O}}_3^{-}+4{\mathrm{H}}^{+}+2{\mathrm{H}}_2\mathrm{O}$) under both aCO₂ and eCO₂, which is important for plant growth [55] (Figure 4A). The concentrations of NH₄⁺ and NO₃⁻ under eCO₂ were significantly decreased under both N0 and N100, while soil total N and C/N under aCO₂ and eCO₂ did not significantly change under both N0 and N100 (Figure 4C,E,F). The increase in CO₂ concentration could increase the biomass in the upper part of the crop, thereby increasing the crop’s demand for N [56]. The average soil total N value is 0.9 g kg⁻¹ [57], and it was barren compared to the soil used in this study (soil total N = 0.53 g kg⁻¹). Studies have shown that an increased CO₂ concentration can promote the growth and development of crop root systems, expand the distribution of root systems in soil, and increase the absorption of N [58]. Because the concentration of CO₂ is much higher (about 10–50 times) in soil than in the atmosphere, the increase in the CO₂ concentration in the atmosphere has almost no direct impact on soil microorganisms [59]. Instead, it has an indirect effect on soil microorganisms by affecting the root secretions and falling objects of the crop, further affecting soil N conversion [60].

3.5. Elevated CO₂ Increased N Use Efficiency for Plant Growth but Not for Yield Production under N100

Research has shown that N use efficiency is a critical factor in agricultural production and environmental sustainability [61]. The concept of N use efficiency is defined as the flux ratio between plant dry matter production and N uptake, which is essential for understanding plant growth strategies and ecosystem productivity [62]. The physiological efficiency of applied N (PE_N) indicates the amount of biomass produced per unit of N absorbed by the plant [63], while the partial factor productivity of applied N (PFP_N) reflects the yield increase per unit of N input [64], showing the marginal return on N use [65]. The crop recovery efficiency of applied N (RE_N, [66]) is an indicator of how much of the N input is effectively utilized by the crop, while AE_N (agronomic efficiency of applied N) is often used to evaluate the effectiveness of N fertilizers [67]. Elevated CO₂ decreased RE_N and PFP_N and increased AE_N and PE_N under N100 in this study (Table 1). These results were supported by the N concentrations and accumulations (Figure 1, Figure 3, Figure 5 and Figure 6). This could mean an increase in the growth rate and overall biomass of plants in eCO₂ environments, even if the plants are not grown to harvest grains or produce high yields. Elevated CO₂ generally results in increased grain production but lower grain quality, particularly with regard to N concentration and protein content, which can lead to increased “hidden hunger” problems [68]. The free amino acid and protein contents of cereals grown under eCO₂ conditions are expected to decrease significantly [42]. The availability of N limited the effect of CO₂ fertilization; that is, eCO₂ increased plant biomass more significantly when the supply of N was sufficient [52]. Total biomass is related positively to seed, shoot, and root N concentration and accumulation under both aCO₂ and eCO₂ (only eCO₂ for shoot N concentration) (Figure 5D–F and Figure 6A–C). Soil NO₃⁻-N is related positively to seed and root N concentration and accumulation under aCO₂ (Figure 5M,O). These results were similar to common eCO₂ results indicating an increase of grain yield but a decrease of grain quality, particularly in N concentration and protein content [42,68].

3.6. Influence of eCO₂ and N100 on the Relative Abundance and Structure of N Cycling Microorganisms

Nitrogen supply led to the decreasing pH, which is the most important factor for microbial community composition in this study (Figure 4A and Figure 7A). Soil acidification is a critically topic soil issue, and it has also been demonstrated that soil acidification significantly influenced plant diversity, species richness, and the occurrence of species [69]. Previous research indicates that soil acidification can result from N deposition, acid rain, and continuous cropping practice [70,71,72,73]. Nutrient-induced changes in soil pH are a primary driver controlling diversity–function relationships [74]. Although eCO₂ significantly influenced plant production, it did not significantly affect soil N cycling microorganisms (Figure 1 and Figure 7B,C). A study has shown that eCO₂ had no significant effect on nitrification, while AOA communities are more responsive to elevated temperature than AOB communities [75]. N100 significantly increased the richness and evenness of the community and the relative abundance of Nitrosomonas and Nitrosospira (Figure 7B–D). Nitrososphaeraceae was significantly higher at N0 than at N100 under both aCO₂ and eCO₂, while contrasting results were obtained for Nitrosomonas and Nitrosospira (Figure 8B). Different N requirements are noted between archaea and bacteria involved in N oxidation; for example, the requirements for Nitrososphaeraceae (archaea) versus Nitrosomonas and Nitrosospira (bacteria) are influenced by their distinct ecological roles, metabolic capacities, and evolutionary adaptations [76]. AOA communities often thrive in environments with low ammonia concentrations and can tolerate a wider range of temperatures and pH levels, while AOB communities typically prefer higher ammonia concentrations and may be more sensitive to extreme environmental conditions [77]. These may be the reason why AOA and AOB communities differentiate beneath soil niches under different N supplies and eCO₂ levels.

4. Materials and Methods

4.1. Description of the Experiment Site

The experiment site is located in the National Monitoring Base of Purple Soil Fertility and Fertilizer Effect (29°48′ N, 106°24′ E, 266.3 m above sea level) on the Beibei campus of Southwest University, Chongqing, China, which is located within the purple hilly region with a subtropical monsoon climate. Over the past three decades, the mean annual sunshine was 1276.7 h, the mean annual precipitation was 1145.5 mm, and the mean annual temperature was 18.4 °C. During the experiment period, the atmospheric CO₂ (aCO₂) concentration was ~415 ppm at this experiment site. The soil is classified as a purple soil (Eutric Regosol, FAO Soil Classification System), which has evolved from purple mud and shale of the Jurassic Shaximiao Formation [78] and exhibits the following basic chemical properties: pH 7.4 (1:2.5 W/V, soil/water), 9.00 g kg⁻¹ organic matter, 0.53 g kg⁻¹ total N, 7.81 mg kg⁻¹ NH₄⁺, and 16.47 mg kg⁻¹ NO₃⁻.

4.2. Design and Description of Custom-Built Chambers

The experiment was carried out in 6 identical enclosed gas chambers (length × width × height = 1.5 m × 1.0 m × 2.5 m), which were made of a 10 mm thickness steel frame covered with transparent glass (90% light transmission rate) (Yutao Glass Company, Chongqing, China). The gas flow solenoid valve (AirTAC (China)Co., Ltd., Ningbo, China) was connected to the metal cylinder containing pure CO₂ as the gas source. Each chamber had two air pumps (suction and intake), and the excess CO₂ and water vapor were balanced with 1 M NaOH solution and anhydrous CaCl₂ in the chamber, respectively. A hanging air conditioner (Gree, Zhuhai Gree company, Zhuhai, China) was installed on the top of the chamber to regulate the air temperature. An atmospheric light, temperature, and humidity sensor (Jingxun Electronic Technology, Weihai, China) and CO₂ concentration detector (infrared CO₂ sensor module B-530, ELT SENSOR Corp, Bucheon-si, Republic of Korea) were installed at the middle of the chamber. All these devices were deployed using fully automatic control device (DSS-QZD, Qingdao Shengsen Numerical Control Technology Institute, Qingdao, China). The whole system can automatically control the temperature, humidity, and CO₂ concentration inside and outside the glass chamber and ensure that the CO₂ concentration was maintained as required by the experiment in the chamber [30].

4.3. Designs of Experiment and Preparation of Materials

Based on the field-detected CO₂ concentration, we set up two CO₂ concentration treatments: (1) atmospheric CO₂ (aCO₂, 410 ppm during daytime/460 ppm at night) and (2) eCO₂ (eCO₂, 550 ppm during daytime/610 ppm at night). The time of day and night for CO₂ treatment varied with the local sunrise and sunset and also with seasons.

Wheat seeds (T. aestivum cv. Yunmai) were sterilized with a 6% (v/v) hydrogen peroxide and germinated on sterile filter paper [79]. Germinated wheat seeds were sown in plastic pots (diameter = 22 cm, height = 20 cm, each containing 5 kg soil), and 4 uniform seedlings were grown inside the growth chambers until they reached the harvest stage (5 months old).

Along with the addition of P (100 mg P kg⁻¹ DW soil, Ca(H₂PO₄)₂) and K (126 mg K kg⁻¹ DW soil, K₂SO₄), two N fertilization treatments were also applied as follows: (1) no N supply (N0) and (2) 100 mg N kg⁻¹ DW soil (N100). As a result, the experiment had four treatments (two CO₂ levels and two N fertilization rates) for a total of 12 pots (each treatment had three pots or replicates). All fertilizers were thoroughly mixed with the soil before wheat planting. The potting preparation, row spacing, N supply, and irrigation followed common cultivation practices in the local area, and no pesticides or fungicides were used. To ensure a similar environment for all plants, the potted plants in the growth chamber were rotated once per week. Adequate irrigation was provided to maintain soil moisture at ~ 70 ± 5% of field capacity.

4.4. Measurement of Photosynthetic Parameters

During the grain booting stage of wheat, photosynthetic parameters were measured. Wheat plants with similar growth were selected, and the flag leaves of their main stem were used for measuring photosynthetic parameters. These measurements were conducted between 8:30 to 11:30 a.m. in sunny morning of 9 April 2019 using a Li-6400XT portable photosynthesis system (Li-Cor Inc., Lincoln, NE, USA) equipped with an internal red-blue light source. The light intensity was set to 1000 μmol m⁻² s⁻¹. The CO₂ concentration in the reference chamber was set to 410 μmol mol⁻¹ for the N0 and N100 treatments under aCO₂ and 550 μmol mol⁻¹ for the N0 and N100 treatments under eCO₂. The net photosynthetic rate (Pn), stomatal conductance (Gs), intercellular CO₂ concentration (Ci), and transpiration rate (E) were recorded, respectively.

The formula for calculating instantaneous water use efficiency at the leaf scale (WUEi) is given by [80,81]:

$${\mathrm{WUE}}_{\mathrm{i}}={\displaystyle \frac{\mathrm{Pn}}{\mathrm{E}}}$$

Here,

• Pn is the leaf net photosynthetic rate (μmol CO₂ m⁻² s⁻¹);
• E is the transpiration rate (μmol H₂O m⁻² s⁻¹); and
• WUE_i is the instantaneous water use efficiency at the leaf scale (μmol CO₂ μmol⁻¹ H₂O).

4.5. Preparation of Plant and Soil Samples

Plant and soil samples were collected at wheat harvest (5 months old) as depicted in Figure S3 by individuals wearing disposable gloves to avoid contamination. Plant height measurements were conducted using a tape measure from the ground to the top of the spike (excluding awns) and recorded in centimeters immediately prior to destructive sampling. Plants were further divided into roots, stems, leaves, and ears. Plant samples were dried in an oven at 70 °C for 72 h. The ears were threshed, and the number of grains per plant was also documented. The dry weight of seed, shoot, and root biomass production was recorded. Harvest index was determined using the established formula as previously described in the literature [82,83]:

$$\mathrm{H}\mathrm{arvest} \mathrm{index}={\displaystyle \frac{\mathrm{Seed} \mathrm{production}}{\mathrm{Shoot} \mathrm{biomass} \mathrm{production}}}$$

A total of 10 soil cores from different locations within the same pot were collected to create a composite sample for minimizing spatial variability. Any plant material or debris was removed from soil samples. The collected soil samples were packed in sterile Ziplock bags, transported to the laboratory in a portable refrigerator (−18 °C), and stored at −80 °C for soil DNA extraction. A portion of soil samples were ground through 2 mm and 0.25 mm sieves and air-dried for soil physical and chemical properties analysis.

4.6. Determination of Plant and Soil Chemical Characters

Using a LE438 composite electrode meter (Mettler Toledo Instrument Co., Ltd., Shanghai, China), soil pH was determined with a soil to water ratio of 1:2.5 (W/V). Determination of soil organic matter was performed using the K₂Cr₂O₇ external heating method, and soil total N was assessed using the Kjeldahl method. Soil soluble inorganic N (NH₄⁺-N and NO₃⁻-N) was measured using colorimetric methods with a spectrometer (UV-1800, AOE Instruments, Shanghai, China) at 625 nm (only the same amount of reagent but no soil leaching solution at 625 nm as a blank control) [84] and 275 nm (deionized water at 220 nm as blank control) [85], respectively. Plant total N was determined using the H₂SO₄-H₂O₂ digestion and distillation method, which involved boiling the test solution with a mixture of sulfuric acid and hydrogen peroxide. All the parameters were determined according to relevant methodologies [86].

4.7. Calculations of Nitrogen Use Efficiency

RE_N—Crop recovery efficiency of applied N (g increase in N uptake per g N applied):

RE_N (%) = (U_N − U₀)/F_N

PE_N—Physiological efficiency of applied N (g yield increase per g increase in N uptake from fertilizer):

PE_N (g g⁻¹) = (Y_N − Y₀)/(U_N − U₀)

PFP_N—Partial factor productivity of applied N (often simply called N use efficiency or NUE) (g harvest product per g N applied):

PFP_N (g g⁻¹) = Y_N/F_N

AE_N—Agronomic efficiency of applied N (g yield increase per g N applied):

AE_N (g g⁻¹) = (Y_N − Y₀)/F_N

The meanings of these short terms were as follows: F_N—amount of (fertilizer) N applied (g kg⁻¹ DW); Y_N—crop yield with applied N (g kg⁻¹ DW); Y₀—crop yield (g kg⁻¹ DW) in a control treatment with no N; U_N—total plant N uptake in aboveground biomass at maturity or harvest (g kg⁻¹ DW) in a plot that received N; U₀—the total N uptake in aboveground biomass at maturity or harvest (g kg⁻¹ DW) in a place that received no N.

4.8. Analysis of Soil Bacterial and Archaeal Community Based on Illumina Sequencing

Total DNA of soil microorganisms was extracted from 2 mL sludge using a FastDNA^® SPIN Kit for Soil (MP Biomedicals, LLC, Irvine, CA, USA). The specific operation was strictly performed in accordance with the kit’s instructions. The extracted total microbial DNA was stored in a refrigerator at −20 °C for future assays. The extracted genomic DNA was assessed using 1% agarose gel electrophoresis (Bio-Rad Inc., Hercules, CA, USA) and a NanoDrop-2000 Spectrophotometer (NanoDrop Technologies Inc., Wilmington, DE, USA). Three replicates were extracted from each composite soil sample, and the extracted DNA was pooled together. Each treatment had three composite DNA samples. The bacterial community composition of rhizosphere soil was analyzed using high-throughput amplification sequencing. A forward primer 515FmodF (GTGYCAGCMGCCGCGGTAA) and a reverse primer 806RmodR (GGACTACNVGGGTWTCTAAT) were used for bacterial and archaeal 16S rRNA gene PCR amplification of the V4 region and then sequenced by following the assay instructions of Illumina MiSeq sequencing technology (Il-559 Illumina, San Diego, CA, USA). The operational taxonomic units (OTUs) were classified by Usearch (v7.1) with a 97% sequence similarity threshold. The microbial community structure and relative abundance were obtained by OTUs with an online platform, namely, the Majorbio Cloud (https://cloud.majorbio.com/ (accessed on 20 June 2024)).

4.9. Statistical Analysis

SPSS 19.0 (SPSS Inc., Chicago, IL, USA) was used to analyze differences between different treatments using one-way ANOVA. Data (means ± SE, n = 3) were compared using the Duncan’s multiple range test at p < 0.05 level. GraphPad Prism (GraphPad Software 8.0.2) was used to analyze characters of relationships. Alpha diversity analyses were completed utilizing the QIIME2 platform, followed by a visualization of all the results with graphical representations generated using mothur (version v.1.30.2 https://mothur.org/wiki/calculators/ (accessed on 21 June 2024) [87]. Variations in the relative abundances of bacterial species were described in a heat map that was generated using the vegan package in the 3.3.1 R version. Principal coordinate analysis (PCoA) was achieved based on the Bray-Curtis distance matrix derived from the OTU information of each sample using R version 3.3.1 [88]. Redundancy analysis (RDA) was performed to clarify the relationships between sample distributions and environmental factors [89]. First, detrended correspondence analysis (DCA) was applied to the species-sample data matrix, derived from 97% OTU similarity, to determine the gradient length. Based on the DCA results, the bioenv function was then used to assess the maximum Pearson correlation coefficient between environmental factors and community distributions for identifying a subset of significantly environmental factors. The species distribution table and the complete set of environmental factors or the identified subset were then subjected to RDA. The significance of the RDA results was evaluated using a permutation test analogous to ANOVA, implemented using the vegan package of R version 3.3.1. This package also facilitated the RDA analysis and graphical representation. The Kruskal–Wallis H test and the Student’s t test were performed using the stats package in R version 3.3.1. Briefly, the Kruskal–Wallis H test, a non-parametric method, was employed to assess differences among multiple groups of samples, while the Student’s t test for equal variances was utilized to evaluate whether the means of two sample groups with homoscedasticity (equal variances) were identical. These analyses were performed to determine significant differences in species distribution between the groups and to adjust the p values using appropriate multiple correction methods.

5. Conclusions

In this study, we examined the impact of elevated CO₂ levels (eCO₂) and N (N) supply on wheat growth, photosynthesis, and N accumulation in plant tissues as well as soil microbial community dynamics. Our findings indicate that the N supply can counteract the growth suppression effect caused by eCO₂ by significantly reducing intercellular CO₂ concentrations and enhancing photosynthesis parameters. The application of N increased the concentration of N in the seeds, shoots, and roots of wheat, with biomass production under eCO₂ further contributing to enhanced N accumulation in these plant parts. This suggests that a higher requirement for N under eCO₂ conditions improves N utilization and absorption efficiency in wheat. Additionally, N supply was found to significantly increase the richness and evenness of the microbial community, indicating an impact on soil biodiversity. Our study also shed light on the responses of specific nitrification-related microbial taxa, such as Nitrososphaeraceae, Nitrosospira, and Nitrosomonas, to N supply under both atmospheric CO₂ (aCO₂) and eCO₂ conditions. These microbes exhibited differential responses, with N supply essentially dividing the microbial communities into two distinct groups under both CO₂ conditions. The findings underscore the critical role of increased N supply in enhancing seed N accumulation, facilitating the activity of nitrification-related microorganisms, and potentially improving wheat growth and soil health. This research highlights the importance of adjusting N fertilization strategies to mitigate the challenges posed by elevated CO₂ levels, thus contributing to the sustainable improvement of soil fertility and plant productivity in the context of climate change.
