Genomic Survey of LRR-RLK Genes in Eriobotrya japonica and Their Expression Patterns Responding to Environmental Stresses

by
Mengqi Yang
,
Tian Min
,
Teja Manda
,
Liming Yang
* and
Delight Hwarari
*
State Key Laboratory of Tree Genetics and Breeding, College of Biology and the Environment, Nanjing Forestry University, Nanjing 210037, China
*
Authors to whom correspondence should be addressed.
Plants 2024, 13(17), 2387; https://doi.org/10.3390/plants13172387
Submission received: 30 July 2024 / Revised: 20 August 2024 / Accepted: 23 August 2024 / Published: 27 August 2024
(This article belongs to the Special Issue Mechanisms of Plant Regulation against Environmental Stress)
Browse Figures
Versions Notes

Abstract

:
The impact of global warming is increasing and thus exacerbating environmental stresses that affect plant yield and distribution, including the Eriobotrya japonica Lindl (Loquat tree). Eriobotrya japonica, a member of the Rosaceae family, is valued not only for its nutritious fruit but also for its medicinal purposes, landscape uses, and other pharmacological benefits. Nonetheless, the productivity of Eriobotrya japonica has raised a lot of concern in the wake of adverse environmental conditions. Understanding the characteristics of the LRR-RLK gene family in loquat is crucial, as these genes play vital roles in plant stress responses. In this study, 283 LRR-RLK genes were identified in the genome of E. japonica that were randomly positioned on 17 chromosomes and 24 contigs. The 283 EjLRR-RLK proteins clustered into 21 classes and subclasses in the phylogenetic analysis based on domain and protein arrangements. Further explorations in the promoter regions of the EjLRR-RLK genes showed an abundance of cis-regulatory elements that functioned in growth and development, phytohormone, and biotic and abiotic responses. Most cis-elements were present in the biotic and abiotic responses suggesting that the EjLRR-RLK genes are invested in regulating both biotic and abiotic stresses. Additional investigations into the responses of EjLRR-RLK genes to abiotic stress using the RT-qPCR revealed that EjLRR-RLK genes respond to abiotic stress, especially heat and salt stresses. Particularly, EjapXI-1.6 and EjapI-2.5 exhibited constant upregulation in all stresses analyzed, indicating that these may take an active role in regulating abiotic stresses. Our findings suggest the pivotal functions of EjLRR-RLK genes although additional research is still required. This research aims to provide useful information relating to the characterization of EjLRR-RLK genes and their responses to environmental stresses, establishing a concrete base for the following research.

1. Introduction

Eriobotrya japonica Lindl. (Rosaceae) is an evergreen shrub or small tree, with a rounded crown, short trunk, and woody twigs, and is native to southern China. Normally referred to as the Loquat tree, it is famous as a Chinese medicine for soothing sore throats and coughs; its other benefits include fruits and landscape [1], natural dye and bio-mordant [2], and other pharmacological benefits [3,4]. However, the growth, development, and yield of the Loquat tree is often severely affected by abiotic stresses such as low temperature, high temperature, and drought and is on the verge of extinction due to global climate change [5] and other environmental stresses [6].
The Leucine-rich repeat-like kinases (LRR-RLKs) are critical for plant growth and development and also play a crucial role in plant adaptation to environmental stresses [7]. They form one of the largest gene families in plants [8]. Their biochemical structures consist mainly of three functional domains: an extracellular domain (ECD), an intracellular kinase domain (KD), and a transmembrane domain [9]. The extracellular leucine-rich repeat (LRR) domains are involved in protein–protein interactions, and intracellular serine/threonine kinase domains mediate signal transductions [9,10]. Furthermore, the large expands of LRR repeats in the LRR-RLK ECD perceive a wide range of ligands, such as minute compounds, peptides, and other proteins [11]. The intracellular kinase domain (KD) observable in protein kinases contains 12 conserved subdomains that depict identical core two-lobed catalytic structures in three dimensions (3D) [12,13]. In addition, LRR-RLK categorization is mostly based on the phylogeny of KDs, classifying plant LRR-RLK genes into 15–29 subgroups [14,15]. Several subclasses have been shown to share a rich conserved expanse of leucine denoted by a LxxLxLxNxL(s/t)GxLPxxLxx, with L denoting the hydrophobic amino acid, N for asparagine, threonine, serine, or cysteine, and x representing any variable residue [16]. Additionally, the ‘L(s/t)GxLP’ region has been shown to shape into a plant-specific β-strand that detects the conformation of the LRR stacks into super-helical structures. The ‘LxxLxxN’ region was also shown to model a curved parallel sheet lining within the edge of their solenoid [17].
Given the increase in the prevalence of climate change and abiotic stressors, understanding the function of LRR-RLK genes in response to stresses has become important. LRR-RLK genes mediated drought responses by modulating stomatal closures, root architecture, and the expression of drought-responsive genes [18,19]. For example, the ERECTA in A. thaliana has been shown to regulate stomatal density size [20]. LRR-RLK genes have been implicated in cold stress responses by modulating cold acclimation processes and triggering the expression of cold-responsive genes. Additional investigations exhibited that LRR-RLKs modulated the production of reactive oxygen species (ROS) and stabilized the cellular structure, thereby maintaining metabolic functions [21,22]. Heat stress poses a significant threat to plants, reducing yields and quality. The LRR-RLK genes modulated heat shock proteins (HSPs) and other mechanisms that maintained protein stability and prevented cell damage under high temperatures [23]. In salt stress, the LRR-RLKs regulated ion transporters, osmolyte production, and salt stress-responsive gene expression [24].
Although the LRR-RLKs are significant for plant adaptation to environmental stresses, they pose several limitations. One major limitation is their functional redundancy, making it complex to understand the precise function of individual genes [21]. Another is potential pleiotropic effects, where their overexpression or silencing may lead to unplanned results on plant growth and development [7]. For instance, certain LRR-RLKs may enhance salt stress while at the same time reducing yield. Nonetheless, advancements in plant biochemistry and molecular biology provide endless prospects for LRR-RLKs in crop improvements. Fields of study in transcriptomics and gene editing, CRISP/Cas 9, may offer ways to overcome these limitations.
Over time, research has identified and elucidated the LRR-RLK gene family in several plants and revealed their functions in the regulation of environmental stress, including heat, cold, drought, salt, and nutrient treatment [21,25]. To mention a few, LRR-RLK genes have been identified in several plants, including Arabidopsis [26], Zea mays [27], rosacea plants [28], Saccharum [29], and Gossypium species [30]. However, the LRR-RLK gene family has not been identified in the Eriobotrya japonica. In this research, we identified 283 LRR-RLK genes in Eriobotrya japonica that were located on 17 chromosomes and several contigs. We performed several analyses, including evolution, domain conservation and arrangements, and gene expression responses to gain insight into their function roles. Thus, we concluded that this research provided valuable gene-based information for additional molecular breeding programs to improve plant abiotic tolerances.

2. Results

2.1. Genome-Wide Identification and Classification of the LRR-RLK Genes in Eriobotrya japonica

To gain insight into the distribution of the LRR-RLK genes in Eriobotrya japonica, we mined for protein kinases (PKs) in the E. japonica genome resources. We identified 1829 typical protein kinases (Supplementary File S1); after removing redundant and overlapping sequences, 283 EjLRR-RLK protein sequences were obtained. The 283 EjLRR-RLK proteins carried typical conserved domains, an extracellular domain (ECD), a transmembrane domain, and an intracellular kinase domain (KD) (Figure 1a; Supplementary Figure S3). In addition, the obtained EjLRR-RLK ECD were branded with varying LRR repeats. Then, the 283 EjLRR-RLKs were classified and renamed into 12 classes and 9 subclasses labeled in Roman numeral (I-XIII) based on previous publications in Arabidopsis and rice [7,17]. Our findings showed that Class IV and VIV in A. thaliana were absent in E. japonica. Furthermore, classes I, VI, X, and XI had additional classifications of two subclasses, VII had three subclasses, and the rest had no additional classifications (Supplementary File S2). Subclasses XI-1 and III were the core subclasses with 63 and 57 members, respectively. While the other subclasses contained at most 25 members and at least 2 members. In addition, protein lengths varied based on group classifications (Supplementary File S2), subfamily XI-1 had the longest protein sequences ranging from 874 to 1257 amino acids (aas), and that of subfamily Xb-1 ranged from as low as 363 aas. The physicochemical analyses showed an isoelectric point (pI) range of 4.5 to 6.7, and a subcellular localization in the plasma membrane Supplementary File S2.
In addition, the TBtools software v 2.112 was used to determine the gene location on each chromosome (Figure 1b; Supplementary File S2). All the EjLRR-RLKs were located on 17 chromosomes and 24 contigs, with each chromosome carrying at least 27 genes. Additional information relating to EjLRR-RLKs is available in (Supplementary File S2).

2.2. Gene Structure and Conserved Domain Analyses

Gene structure prediction provides substantial insight into a gene family’s evolution [31]. Exon and intron numbers of the obtained EjLRR-RLKs varied and suggested clustering of the 283 genes into identical classes based on their variations (Supplementary Figure S1; Figure 2a–d). Classes Xb-2, Xa-1, VII-2, XII, XI-1, III, IX, and Xb-2 had between one and two exons and at most two introns at the sequence terminals. The remaining classes had more than three exons; surprisingly, family XIIIb was without introns and with more than three exons. Interestingly, different gene classes had different exon structures; those with fewer exons had elongated exons, and most gene classes had intron structures that were nearly the same size, except Xb-3, which had an elongated intron flanking its C-terminal. The PKinase and LRR domains commonly make up the fundamental structure of the LRR-RLK gene [7]. Analysis in the LRR-RLK conserved domains showed that protein domain compositions of distinct subclasses differ (Figure 2c). The Pkinase and LRRNT_2 (leucine repeat N-terminal) were present in most subclasses (Figure 2b; Supplementary File S1, Supplementary Figure S1). Additionally, some subclasses, including XI, II, and XIII had a combined Pkinase and Pkinase_Tyr domains with a maximum of six conserved domains, and subfamily XI possessed the largest number of conserved domains.

2.3. Phylogenetic Analysis of the LRR-RLK Gene Family

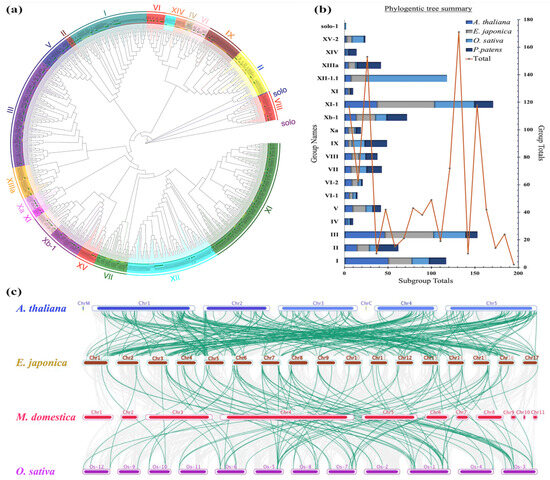

Gene constructions and functionality are facilitated by the systematic classifications of a gene family controlled by protein phylogenetics. In this study, a phylogenetic tree was constructed using the MEGA X software using the neighbor-joining tree (NJT) method (Figure 3a). In total, 1032 LRR-RLK full protein sequences from four plants, A. thaliana, E. japonica, O. sativa, and P. patens, were grouped into several classes and subclasses by earlier studies [28,30]. In detail, the LRR-RLK proteins showed a diversification that formed 5 branches, 21 cluster groups that made up 15 classes, and 7 subclasses. This finding also showed that all these cluster groups had fanned out from a common ancestral LRR-RLK protein. This finding implies that the LRR-RLKs diverged through speciation mostly from a single ancestral protein, probably via adaption and other evolutionary strategies. A more thorough examination revealed that two main branches carried subfamily VIII-1 and family II and a solo rice LRR-RLK protein. In addition, classes XI-1 and III were the largest clusters with 340 and 146 protein sequences, respectively (Figure 3b). Also, it can be inferred that protein sequences clustered in identical classes or subclasses may exhibit similar protein domains, structures, and possible functions. In this research, LRR-RLK proteins from E. japonica were randomly distributed in all the cluster groups except in the classes XIV and IV. This may suggest that EjLRR-RLK clustered with other proteins in similar cluster groups have identical characteristics. Notably, some EjLRR-RLK proteins clustered in similar classes with the P. patens showing that they carry evolutionarily conserved domains.

2.4. Gene Duplication, Gene Collinearity, and Ratio of the Number of Nonsynonymous Substitutions per Nonsynonymous Site (Ka) to the Number of Synonymous Substitutions per Synonymous Site (Ks)

The collinearity analysis showed that E. japonica had more orthologous genes with A. thalina as compared to M. domestica and O. sativa (Figure 3c). Indicating that E. japonica might be evolutionary closer to A. thaliana than M. domestica and O. sativa. Gene duplication poses an impact on the expansion of certain plant gene classes [32]. Two key gene duplication events have been shown to significantly contribute to this expansion, namely segmental and tandem duplication events [33]. Selection pressure on particular DNA or protein is evaluated by the synonymous and nonsynonymous values and their ratios [34]. In this research, we calculated these values to gain insight into the origin of the duplicated genes (Figure 4a; Supplementary File S3). We observed 106 connected genes, all but EjXIIIa-7 linked to EjXIIIa-8 had Ka/Ks ratios less than 1 (Ka/Ks < 1), showing a purifying selection. This result is evidence that the EjLRR-RLK genes are crucial for adaptation of the E. japonica to environmental stresses.

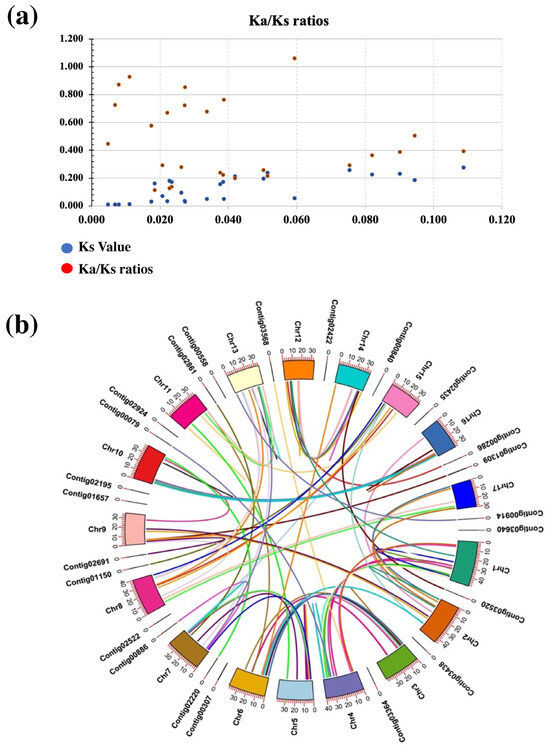

To understand the method of gene expansion in the EjLRR-RLK gene family, we compared the tandem and segmental duplications in E. japonica LRR-RLK genes using the synteny analysis (Figure 4b). Results showed 18 tandem arrays, contributing 59% (18/104) of the duplicated genes. Most of the tandem duplication were present in the XI family contributing 27.8% (5/18) of the total tandem arrays. Segmental duplication is another source of gene family enlargement; it upsurges gene and genome densities [35]. We obtained 88 segmental duplications that contributed 83% (88/106) toward the expansion of the EjLRR-RLK gene family (Figure 4b). Most segmental duplications were present in III and XI-1 classes contributing 26% (23/88) and 23% (20/88) of the total segmental duplications. Similar results were reported in the gene duplication studies of other Rosaceae genomes [28].

2.5. Putative cis-Regulatory Elements

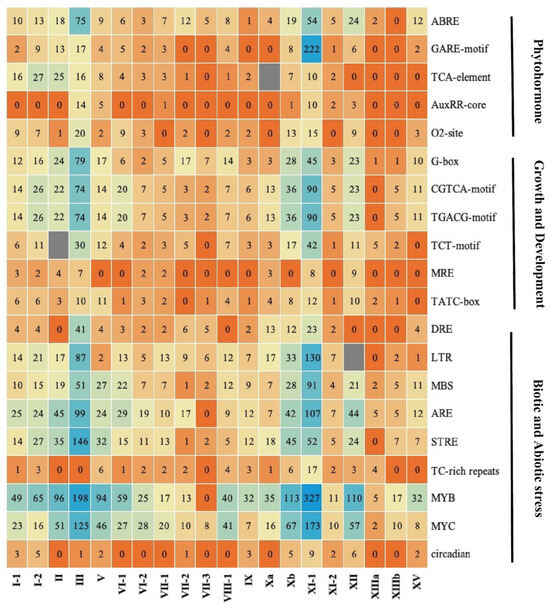

Comprehension of gene transcriptional regulation and function entails an evaluation of the cis-regulatory elements found in the promoter region [36]. In this research, a 2 kb region of the discovered EjLRR-RLK genes was considered as a potential promoter region. Using the online Plant Care Database, 6281 cis-regulatory elements were identified and categorized into three response factors, growth and development, hormonal responses, and biotic and abiotic responses. (Supplementary Figure S2; Supplementary File S4; Figure 5). Interestingly, their distributions and compositions varied with individual genes. However, we observed that within the same classes and subclasses, the cis-element distributions exhibited a relatively similar trend. Comparisons of the various response components revealed that two of them, growth and development, and biotic and abiotic responses accounted for 22% and 64% of the total elements. Furthermore, of all the response factors examined, classes III and XI-1 had the most cis-elements, indicating that these classes have functional roles related to growth and development as well as biotic and abiotic responses. Particularly, EjXI-1.30, EjXI-1.5, and EjI-3 were rich in biotic and abiotic responses, including ABRE, GARE-motif, DRE, and the LTR. This finding suggests that these genes are critical in drought, cold, heat, and salt stress responses (Supplementary Figure S2). Wholly, this finding implies that the EjLRR-RLK genes are responsive to diverse stimuli, including abiotic stresses.

2.6. Protein–Protein Interaction and 3D-Protein Anlyses

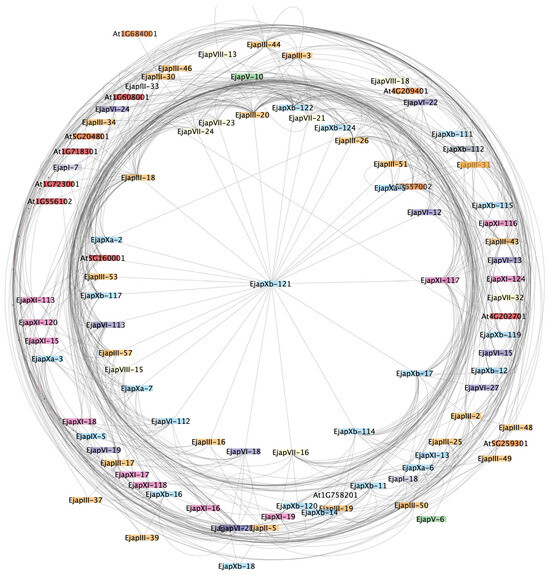

Protein–protein interactions (PPIs) are essential in defining protein functions and the effect of protein absence or presence. We used the online String database to examine the protein interactions among different LRR-RLK proteins (Figure 6). The findings revealed that EjLRR-RLK protein classes intricately link to perform different functional roles. Hence, we concluded that interactions among EjLRR-RLK protein classes facilitate plant responses to environmental stress and their respective regulations. We observed that the protein families were densely interconnected. Several LRR-RLK groups interacted with each other probably for efficient role functions. This finding suggested that the LRR-RLK gene family in E. japonica interact to perform their biological roles. In detail, most of the proteins were linked to EjapXB-12.1 of group II, suggesting a possibility that this gene may act as a control hub mediating several protein functions [17].
On the other hand, research has shown that LRR repeats present in a protein are responsible for protein stacking into super-helical forms [29]. In this study, we used the online SWISS-model tool to examine the structures of 15 EjLRR-RLK proteins. Generally, the hydrophobic regions of the EjLRR-RLKs were buried in inner superhelices created by multiple LRRs. Furthermore, the variable residues of the LRR backbone exhibited lower hydrophilicity than anticipated to support correct protein folding, while the conserved residues were more hydrophobic than the variable residues. In detail, the EjLRR-RLKs from various classes showed distinct protein structures; however, those from classes VII, IX, X, and XII exhibited relatively different structures (Figure 7).

2.7. Gene Ontology (GO) Analysis of EjLRR-RLK Genes

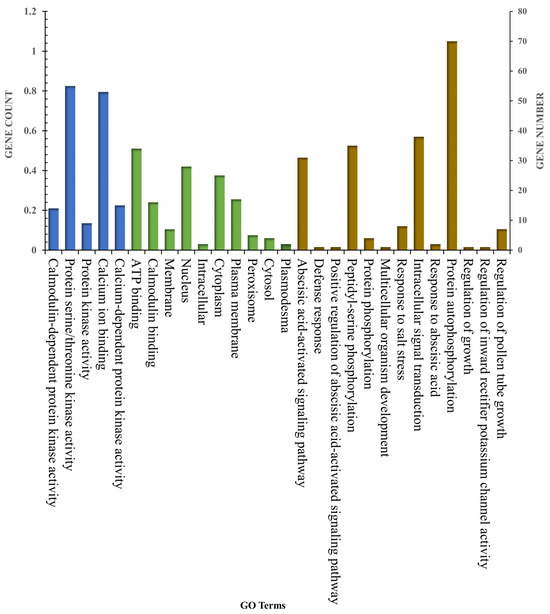

To predict the possible roles of the identified EjLRR-RLK genes, the Gene Ontology Annotations were retrieved and grouped into three groups, including cellular components (CC), molecular function (MF), and biological processes (BP) (Figure 8). In particular, the molecular function category had the largest number of genes present. All the EjLRR-RLKs searched were involved in ATP binding, protein binding, and DNA binding. This suggests that EjLRR-RLK genes are well invested in binding. However, other single genes were involved in GTPase activator activity and transmembrane receptor protein tyrosine kinase function. In the CC category, genes were present in the nucleus and cytoplasm separately, affirming previous findings that LRR-RLKs are localized in the cytoplasm and nucleus (Figure 8). In the BP processes, all the EjLRR-RLK genes were involved in protein phosphorylation and two were involved in DNA-templated transcription and pollen recognition separately (Figure 8). Wholly, this finding suggests that the EjLRR-RLK gene family functions are diverse and play diverse roles in E. japonica.

2.8. RT-qPCR Expression Patterns of EjLRR-RLK Genes

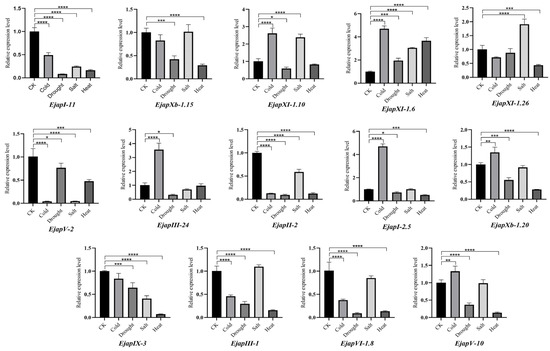

The RT-qPCR analysis measured the relative expression patterns of 14 EjLRR-RLK genes in the leaves (Figure 9). The EjLRR-RLK genes were selected based on the cis-regulatory elements and the expression values of their homologs in other publications. Generally, most of the EjLRR-RLK genes had higher expression values than the control check (CK). In detail, at least 50% of the investigated genes were highly upregulated in the cold stress. Notably, EjapXI-1.6 and EjapI-2.5 were found to be above 4-fold higher than the control sample, while EjapXI-10, EjapXb, and EjapI-2.5 had a fold change two times that of the control. Similar results were observed in the salt stress; most of the EjLRR-RLK genes had a higher fold change. The expression values of EjapXI-1.10 and EjapIII-1 had a fold change above two. Wholly, we observed higher expression values of the selected EjLRR-RLK genes in cold and drought stress. Therefore, it can be summarized that EjLRR-RLK genes are involved in abiotic stress responses and different gene classes exhibit different expression patterns suggesting that different EjLRR-RLK genes regulate abiotic stresses differently.

3. Discussion

The LRR-RLK genes form one of the largest gene classes in plants; they are involved in critical plant roles, including plant growth and development, and stress responses [7]. Several pieces of research have already identified the LRR-RLK genes in numerous plant species such as citrus species, maize, Populus trichocarpa, Rosaceae species, and others [26,27,28,29,30]. Here, we characterized 283 EjLRR-RLK genes far more than those in A. thaliana and O. sativa [7]. The main reason may be that E. japonica possesses a large genome size of 749.3 Mb and 17 chromosomes, compared to A. thaliana with 125 Mb and 5 chromosomes as well as O. sativa with 430 Mb size and 12 chromosomes. The identified EjLRR-RLK genes carried both the LRR repeats and RLK domains although most of the subclasses had a Pkinase domain and LRRNT_2 (leucine-rich N-terminal). Prior research indicated that the Pkinase domain is evolutionarily conserved from E. coli to humans [37] and functions in diverse cellular processes, including divisions, cell proliferation, differentiation, and apoptosis [37]. The transcription of the RLKs has also been shown to be regulated in response to stress at different levels of gene responses [38]. To support this phenomenon, other RLKs have been shown in various cellular processes including the FSL2-, EFR-, and CERK1-mediated signaling pathways that modulate PTI activation triggering plant immunity [39]. This finding suggests that the EjLRR-RLKs may possess an extended range of functionality.
Variations in gene family sizes are often associated with gene duplication events [31,40]. In this research, we inferred that the size of the EjLRR-RLK gene family was, to a larger extent, affected by both the genome and duplication events [40]. According to earlier research, tandem and segmental duplications are two important types of gene duplication events that account for over 50% of all gene family expansions in the Rosaceae gene classes [28]. We observed that tandem and segmental duplications contributed 16% and 79%, respectively, toward the expansion of the EjLRR-RLK gene family. An in-depth investigation revealed that the tandem duplication was greater in specific classes and subclasses. Particularly, the classes (Class XI) with the highest number of EjLRR-RLKs were also the ones that had grown due to tandem duplications. Additionally, the collinearity analysis showed that E. japonica had more orthologous genes with A. thaliana as compared to M. domestica and O. sativa. This finding offers insight into the possible functions of the EjLRR-RLKs by relating to their characterized homologs in A. thaliana.
The Ka/Ks values demonstrated a Ka/Ks ratio less than 1, signifying a purifying selection except for EjXIIIa-7 linked with EjXIIIa-8, which showed a positive selection, suggesting that these genes showing purifying selection might be part of the genes that contributed to the E. japonica adaption to external environmental stress [41].
The phylogenetic and evolutionary analysis of protein classes aids in the comprehension of the progressive development and function of the proteins [42]. In this research, the phylogenetic analysis of the LRR-RLK proteins in E. Japonica showed proteins clustering into 21 classes and subclasses (I–XV); however, some classes were absent. Additionally, this classification was based on similarities in the protein domain and configurations. The highest number of proteins was found in classes III and XI, indicating a rather high level of protein duplication in these classes. The fact that EjLRR-RLKs and other LRR-RLKs from different plant species, such as A. thaliana, clustered within the same classes, signifies that these proteins may have comparable functional roles. Additionally, EjLRR-RLKs were fully represented in almost all phylogenetic classes, implying a wide range of gene functionality. Interestingly, some EjLRR-RLKs clustered together with P. patens, suggesting that these genes are well conserved, since P. patens has become a plant model of choice, providing clues to plant mechanisms essential in the eco-evo-devo biology in plant fields [43,44].
A plant’s ability to acclimate to various developmental processes and environmental stimuli is influenced by its gene structure, which plays a significant role in the evolution of multigene classes [45]. The gene structure analysis of the EjLRR-RLK gene family members revealed differences that were consistent with the 15-family member classification (I–XV) and the phylogenetic relationships. Exon and intron numbers varied with gene sequences, as revealed by gene analysis in this study. Classes Xb-2, Xa-1, VII-2, XII, XI-1, III, IX, and Xb-2, for example, had exon ranges between 1-3 accompanied by 2 or 1 introns flanking the N- and C- terminals, whereas the remaining gene classes had more than 3 exons. The development of introns is an important process in genome evolution and an adaptive measure in species evolution [46]. The induction and quick processing of proteins following a stress response has been linked to an intronic deletion in the genes. Thus, this deletion has also been linked to the fast expression of genes under different stress responses.
The LRR-RLKs are critical in numerous biological activities, including growth and development, and stress responses. Primarily, their interactions with other proteins and amongst themselves are vital for their function [47]. Thus, hetero- and/or homodimerization activates the LRR-RLKs [47]. For instance, heterodimerization between BRASSINOSTREOID INSENSETIVE 1 (LRR-RLK BAK1) and its co-receptor BRI1-ASSOCOATED RECEPTOR KINASE; brassinosteroid signaling is essential in plant growth and development [48,49]. In this study, we showed that EjLRR-RLKs are densely interconnected, possibly to relay signals to the downstream components. In other studies, BAKI1 was also shown to interact with ER or ERL1 to regulate stomatal patterning [50].
In addition, plant LRR-RLKs constitute essential membrane-localized receptors that control plant development by sensing a variety of ligands. However, some RLKs occur in other places, such as the wall-associated kinases (WAKs) linked to the pectin fraction of the cell wall [51] and cytoplasmic-type RLKs localized in the cytoplasm [52]. In this study, we examined the cis-regulatory elements found in the identified LRR-RLK gene promoter regions. The biotic and abiotic stress response elements, as well as growth and development, were abundant in the promoter regions of the EjLRR-RLKs. A larger percentage was attributed to the stress-responsive classes, these included DRE, LTR, ARE, STRE, MYB, and MYC, suggesting that the EjLRR-RLK genes are actively involved in the transduction of environmental stress signals. DRE cis-elements have also been shown in A. thaliana to regulate cold- and drought stress similar to the C-repeat and low-temperature-responsive promoter elements [53].
To supplement the analysis, we performed the Gene Ontology (GO) analysis using data readily available on the Rosacea depository. Retrieved datasets were categorized into three terms: Biological Processes, Molecular Functions, and Cellular Processes. Most of the EjLRR-RLK genes were present in protein phosphorylation attesting to the previous fact that EjLRR-RLK genes are well conserved, and they carry the PKinase domain. Research has also shown that protein phosphorylation usually results in a functional change in the target protein by changing enzyme activity, cellular location, and protein-to-protein associations [54]. Other GO terms had a greater representation of EjLRR-RLK genes in ATP binding and protein binding processes, also suggesting that the EjLRR-RLK genes actively link with other proteins for effective gene function and that they are implicated in diverse cellular functions. In other studies, the RLKs have been revealed to converge with the receptor-like proteins (RLPs), triggering different responses and gene transductions [55].
Most important to this research is the gene expression analysis of the EjLRR-RLK genes. Research has shown that LRR-RLK genes are essential for plant adaption through regulating the abiotic stresses [24]. To confirm this assertion, we performed an RT-qPCR and analyzed the expression levels of 14 EjLRR-RLKs. Our results revealed that at least 50% of the analyzed EjLRR-RLK genes are upregulated during cold, drought, salt, and heat stress. Notably, EjapXI-1.6 and EjapI-2.5 were highly upregulated during the cold stress, while EjapXI-1.10 and EjapIII-1 were highly upregulated in salt stress. Several RLKs in Arabidopsis from distinct subclasses are also reported to modulate salt stress, including RPK1, CYSTEINE-RICH RLK (CRK36), PROLINE-RICH-EXTENSIN-LIKE RLK4 (PREK4), and the GUARD CELL HYDROGEN PEROXIDE-RESISTANT 1 (GHR1) [38,56,57,58,59,60]. In M. pohlia nutans, PnLRR-RLK exhibited increased tolerances to salt stress and ABA stress, which doubled with an increase in HKT1, SOS3, P5CS1, and DH1 salt tolerance genes. In addition, ABA stress was regulated through a decrease in expression of the ABA synthesis genes, like NCED3, ABA1, and AAO3, and ABA early response genes, MYB2, RD22, RD29A, and DREB2A [24,61], suggesting that EjLRR-RLKs may also regulate salt stress by interfering with the ABA-signaling pathway
Drought is a major abiotic stress affecting plant growth and distribution. Therefore, ABA acts as a key mediator of the drought stress response regulating the expression of osmotic response genes, physiological response, and plant growth. An LRR-RLK protein HSL3 negatively regulates stomatal closure by varying the amount of H2O2 in guard cells; as a result, it was determined that HSL3 is involved in the regulatory response to drought stress [19]. Rice’s PHYTOSULFOKINE RECEPTOR (PSKR) was elevated by ABA, which also improved Arabidopsis’ resistance to drought by increasing stomatal closure and controlling ROS activity in guard cells. Subsequent investigations revealed that OsPSRR15 increases drought stress by directly interacting with AtPYL9 and OsPYL11, its orthologue, through the nucleus and plasma membrane’s kinase domain [62,63]. Nonetheless, a few genes were upregulated in the drought and heat stresses here. Therefore, we concluded that different EjLRR-RLK genes regulate abiotic stresses differently.
We also exhibited that the EjLRR-RLK genes respond to cold stress. Previous research has also demonstrated the regulation of cold stress by the LRR-RLK genes. For instance, In G. soja, GsLRPK, an LRR-RLK gene, was shown to interact with cold-responsive genes downstream to regulate and increased cold stress tolerances in Arabidopsis. Further investigation into the biochemical reactions of the GsLRPK showed kinase activities [64]. The PHLOEM INTERCALATED WITH XYLEM-LIKE 1 (PXL1) was shown to be also essential in the regulation of the cold stress through the regulation of the activities of the ROS. In addition, PXL1 phosphorylates the HISTIDINE-RICH DEHYDRIN1 (HIRD1) and the LIGHT-HARVESTING PROTEIN COMPLEX 1, which further activates the downstream cold-responsive genes [65]. Research has also demonstrated that the LRR-RLK genes regulate different abiotic stresses by interacting with several pathways such as the MAPK cascade (through sequential phosphorylation reactions), the ABA-signaling pathways, and the Ca2+-influx, suggesting that the EjLRR-RLKs may also regulate abiotic stress by interacting with these pathways or more. In M. truncatula, a novel LRR-RLK gene MtCTLK1 showed increased cold tolerance, which was accompanied by an increase in antioxidant enzymatic functions and proline accumulation; additional investigations also showed higher transcript levels of CBFs and CBF-dependent cold-responsive genes, showing that the LRR-RLK genes may regulate cold stress through the CBF pathway [65,66,67]. In Arabidopsis, the AtLRRop2 carrying four LRR motifs was shown to regulate cold stress due to the repeat LRR motifs and their protein-to-protein interactions [68]. A wheat LRR-RLK gene, SOMATIC EMBRYOGENESIS RECEPTOR KINASE (SERK), interacts with TaDJA7 to activate the HTSPs and has a dual role in heat tolerance and biotic stress resistance against P. striiforms F. sp. Triitcii [23]. Another LRR-RLK gene PHLOEM INTERCALATED WITH XYLEM-LIKE 1 (PXL1) in Arabidopsis is responsive to heat and cold stress and phosphorylates AtHIRD1 and AtLHCA1 to regulate the signal transduction pathways in response to temperature changes [65].
Wholly, this research can be summarized; thus, EjLRR-RLK genes are a large gene family that has expanded probably due to gene duplications. Through adaptions, they have diversified into several classes that perform different roles including regulation of the abiotic stresses.

4. Materials and Methods

4.1. Identification and Classification of EjLRR-RLK Gene

To identify the LRR-RLK gene family in the Eriobotrya japonica, the E. japonica genome and genome resources were mined from the Eriobotrya japonica v1.0 GDR (https://www.rosaceae.org/Analysis/14720732; accessed on 21 March 2023) [69]. The A. thaliana LRR-RLK genes obtained from TAIR (https://www.arabidopsis.org/browse/genefamily/leuc.jsp; accessed on 21 March 2023) served as a reference. Using the PBLAST tool available on the website and a standard HMMER search in Tbtools [70] with an E-value cut-off of 0.0001, putative protein kinases (PKs) were discovered. The Hidden Markov Models of the typical Pkinase clade [Pkinase (PF00069) and Pkinase_Tyr (PF07714)] were obtained from the Pfam database v.28 [71]. Typical protein kinases were considered to have at least 50% coverage of the Pfam domain model [28]. Following this screening, putative EjLRR-RLKs were further authenticated using SMART (http://smart.embl-heidelberg.de/; accessed on 21 March 2023) and CDD search from the NCBI CDD (Conserved Domains Database (CDD) and Resources (nih.gov)). Furthermore, the detected protein kinases (PKs) were categorized into classes and subclasses at an E-value cut-off of 0.0001 using previously described HMMs of various typical PK classes and subclasses [72]. The phylogenetic classification of model plant species A. thaliana, O. sativa, P. patens, and C. reinhardtii was used to authenticate this HMM subfamily classification [72]. LRR-RLK genes of other plant genomes including Marchantia polymorpha, Oryza sativa, and Vitis vinifera were obtained from the Phytozome v13 (https://phytozome-next.jgi.doe.gov/, accessed on 21 March 2023) and previous publications (Supplementary File S5).
Furthermore, the DeepLoc-2.0 program (https://services.healthtech.dtu.dk/services/DeepLoc-2.0/; accessed on 28 April 2023) was used to identify the subcellular localization of all identified LRR-RLK proteins. Previous techniques employed by Hwarari et al. [31] were used to examine the conserved domain (CDD), motif number and configurations, and cis-elements.

4.2. Multiple Alignments and Phylogenetic Analysis of EjLRR-RLK Genes

The phylogenetic classification of protein sequences provides essential information related to protein evolution and possibly function. In this study, we used full-length LRR-RLK protein sequences from four plant species, Marchantia polymorpha, Oryza sativa, Vitis vinifera, and Eriobotrya japonica, to construct a phylogenetic tree. The MUSCLE program in Mega X was used to perform multiple alignments and a maximum likelihood phylogenetic tree was built at a 1000 bootstrap value. To validate the ML phylogenetic tree, the neighbor-joining tree (NJT) approach was used to construct a phylogenetic tree using MEGA X software based on amino acid alignments. The p-distance model was used with a replication bootstrap value of 1000 times. Then, the Evolview [73] and iTOL online tools (iTOL: Interactive Tree Of Life (embl.de)) were employed to enhance the appearance of the tree [74].

4.3. Chromosome Location, Gene Duplication, and Synteny Analysis of EjLRR-RLK Genes

The gene location information was retrieved from the genomic resources and further mapped using the Tbtools program. The gene synteny analysis is crucial in understanding gene evolutionary relationships providing precise predictions on genome evolution and gene regulation and function. We used the default parameters of McScanX in Tbtools for synteny analysis and the synonymous and non-synonymous ratios were calculated using the Tbtools’ Ka/Ks calculator. By comparing the LRR-RLK gene in each chromosome’s or contig’s matching position, the tandem and segmental repeated genes were found, and neighboring genes were identified as tandem duplicated genes.

4.4. Cis-Regulatory Elements and Gene Ontology Analyses of EjLRR-RLK Genes

To analyze the abundances of cis-regulatory elements present in the E. japonica LRR-RLK genes, a 2kB expanse was regarded as the promoter region, and all the identified EjLRR-RLK genes were submitted to the PlantCARE database for additional predictions (http://bioinformatics.psb.ugent.be/webtools/plantcare/html; accessed on 21 March 2023). The results were visualized using a heatmap generated with the TBTools software. The gene ontology (GO) analysis provides a basis and set of models for analyzing and predicting gene functions, specifically designed for computational presentations [75]. To gain insight into the possible functions of EjLRR-RLKs, GO datasets of E. japonica were retrieved from the Eriobotrya japonica Genome v1.0 Assembly and Annotation database (https://www.rosaceae.org/Analysis/14720732; accessed on 14 June 2023).

4.5. Protein-to-Protein Interaction and Three-Dimensional (3D) Protein Structures of EjLRR-RLK Proteins

The three-dimensional structure helps to predict the possible protein functions; by using the SWISS-MODEL database (www.swissmodel.expasy.org/; accessed on 27 April 2023), PDB files corresponding to the EjLRR-RLK protein were obtained using the homology modeling method. The PDB files were visualized using the Chimera X-1.61 software (http://www.cgl.ucsf.edu/chimera/; accessed on 21 March 2023). The obtained full protein sequences of E. japonica LRR-RLKs were further submitted into the STRING database (http://string-db.org, retrieved on 27 April 2023) to predict the protein interactions. The network was then beautified using the Cytoscape software (v3.9.1).

4.6. Plant Material, Treatment, and RT-qPCR Expression Analysis

Plant materials were collected from the Nanjing Forestry, College of Biology and the Environment, and grown under natural conditions in the loquat germplasm resource preservation garden. The seedlings used in this experiment grew to almost 0.6 m with at least 5 mature leaves and were divided into 4 batches of 3 seedlings per batch and 3 biological replicates. The seedlings were set to stress treatment. The batches were subjected to four different treatments: 4 °C for cold stress treatment, 40 °C heat stress, drought conditions set at 40% polyethylene glycol/PEG600, and salt stress saline solutions of 150 mM NaCl (Sodium Chloride) were added to the soil medium. Both tender and mature leaves were collected from the seedlings after 3 days of stress and then placed in liquid nitrogen (N) for quick freeze and stored at −80 °C for additional analyses.
The expression patterns of EjLRR-RLK genes were analyzed under four abiotic stresses (cold, heat, drought, and salt) as treatments of both the treated and control plants using the RT-qPCR analysis. Total RNA extraction was performed on the E. japonica leaves using the KK-rapid plant total RNA extraction kit (Beijing Zoman Biotechnology Co., Ltd., Beijing, China). The quality of total extracted RNA samples was analyzed using agarose gel electrophoresis (Supplementary Figure S4) and RNA integrity number (RIN) was evaluated by Agilent 2100. The first-strand cDNA was generated using the acquired RNA and an Evo M-MLV RT kit (GDNA. CLEAN for QPCRII AG 11,711; Accurate Biotechnology Co., Ltd., Changsha city, Hunan province, China). Three replicates were used for the technical experiments. In addition, the Roche LightCycler®480 real-time PCR equipment (Solna, Sweden) SYBR-green was used for the qPCR investigations using the 2−ΔΔCT method to determine the genes’ relative expression levels. Furthermore, the EF1α and UBCE genes were utilized as internal reference genes, and gene primers were designed using Primer 5.0 (Supplementary File S6). The melting curve graphs were used to ensure the accuracy and reliability of the qPCR results (Supplementary Figure S5). Additionally, all of the primers were examined using agarose gel electrophoresis, and their primer specificity was confirmed by PCR before RT-qPCR analysis. The RT-qPCR result was shown in GraphPad Prism-10.

4.7. Statistical Approaches

The relative expression of each EjLRR-RLK gene is represented by the vertical bars; error bars were generated as mean ± the Standard Deviation (SD) of the three independent replicates. The statistical significance of the differences was validated by Dunnett’s multiple comparison test (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).

5. Conclusions

Plants continue to evolve to adapt to external abiotic stresses. The knowledge of plant gene structures and possible functions is crucial in aiding plants’ adaptation. In this study, we identified 283 LRR-RLK genes in E. japonica, which we concluded to have increased due to two gene duplication events, segmental and tandem duplications. Additional investigation through gene structure, comparative phylogeny, and cis-acting elements exhibited a clustering into subclasses based on protein domain arrangements, intron, and exon numbers and arrangements. Additionally, we concluded that these attributes provide the basis of gene function and responses to abiotic stress. To ascertain this claim, we performed qPCR analysis of 14 EjLRR-RLK genes, which were selected based on cis-regulatory analysis. Interestingly, each family showed differing responses to the cold, heat, drought, and salt stresses. However, from this analysis, we concluded that EjLRR-RLK genes regulate abiotic stress. Wholly, this study can be summed as that: LRR-RLK genes are present and well conserved in the E. japonica. Additionally, they function to modulate the abiotic stresses at varying degrees; this attribute can be related to their gene structure arrangements and/or protein domain presence and arrangements.

Supplementary Materials

The following supporting information can be downloaded at https://www.mdpi.com/article/10.3390/plants13172387/s1. Supplementary Figure S1. Conserved analysis in EjLRR-RLK full protein sequences. Far left, the EjLRR-RLK NJT phylogenetic tree generated using the TBtools v 1.611. Followed by the conserved motif analysis of EjLRR-RLKs, motifs are numbered. Second from far right is the conserved domain analysis. Far right, shows the conserved exon-intron arrangements in EjLRR-RLK genes, defined in the top right corner. Supplementary Figure S2. Putative cis-elements present in the EjLRR-RLK genes showing their respective positions. Supplementary Figure S3. 15 Motif logos of EjLRR-RLKs searched through the MEME tool; accessed on 21 March 2023. Supplementary Figure S4. RNA quality investigation. M stands for Marker DL2000; 1–15: RNA product (1–3: CK; 4–6: Cold; 7–9: Drought; 10–12: Salt; 13–15: Heat). Supplementary Figure S5. qPCR melting curves of 15 representative EjLRR-RLKs illustrating the specificity of the amplified product. The single, shar peak indicates a specific product, while the absence of additional peaks confirms the lack of primer-dimers or non-specific amplification. Supplementary File S1. Eriobotrya japonica genome resource for known PKs and identified 1829 typical PKs. Supplementary File S2. The physiochemical properties of identified 283 EjLRR-RLK protein sequences, showing their gene, protein, and accession IDs. Supplementary File S3. The synonymous, nonsynonymous values, and their ratios of linked EjLRR-RLK genes. Calculated using the TBtools software v 1.611. Supplementary File S4. Putative cis-elements present in the EjLRR-RLK genes showing their respective positions. Supplementary File S5. LRR-RLK genes from other plants including Marchantia polymorpha, Oryza sativa, and Vitis vinifera obtained from the Phytozome v13 (https://phytozome-next.jgi.doe.gov/; accessed on 21 March 2023) and previous publications. Supplementary File S6. qPCR primers for EjLRR-RLK genes and the EF1-alpha.

Author Contributions

Conceptualization, D.H. and L.Y.; methodology, D.H., M.Y. and T.M. (Tian Minand); software, D.H.; validation, D.H., M.Y. and T.M. (Teja Manda); formal anaysis, D.H., M.Y. and T.M. (Tian Minand); investigation, D.H., M.Y. and T.M. (Tian Minand); resources, D.H., M.Y. and T.M. (Teja Manda); data curation, D.H., M.Y. and T.M. (Tian Minand); writing—original draft preparation, D.H.; writing—review and editing, D.H., M.Y. and T.M. (Tian Minand); visualization, D.H., M.Y. and T.M. (Teja Manda); supervision, D.H. and L.Y.; project administration, D.H. and L.Y.; funding acquisition, M.Y. and L.Y. All authors have read and agreed to the published version of the manuscript.

Funding

This research work was funded by the Research Startup Fund for High-Level and Highly Educated Talents of Nanjing Forestry University.

Data Availability Statement

The genome and gene information used in this research are readily available at the Eriobotrya japonica database v1.0 GDR (https://www.rosaceae.org/Analysis/14720732; accessed on 21 March 2023). Those of Arabidopsis thaliana are readily available at (https://www.arabidopsis.org/browse/genefamily/leuc.jsp; accessed on 21 March 2023).

Acknowledgments

We are grateful to the editors and the reviewers for the effort and time spent giving helpful comments to improve our work.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Badenes, M.L.; Martínez-Calvo, J.; Llácer, G. Analysis of a germplasm collection of loquat (Eriobotrya japonica Lindl.). Euphytica 2000, 114, 187–194. [Google Scholar] [CrossRef]
  2. Zhang, Y.; Zhou, Q.; Rather, L.J.; Li, Q. Agricultural waste of Eriobotrya japonica L.(Loquat) seeds and flora leaves as source of natural dye and bio-mordant for coloration and bio-functional finishing of wool textile. Ind. Crops Prod. 2021, 169, 113633. [Google Scholar] [CrossRef]
  3. Baljinder, S.; Seena, G.; Dharmendra, K.; Vikas, G.; Bansal, P. Pharmacological potential of Eriobotrya japonica—An overview. Int. Res. J. Pharm 2010, 1, 95–99. [Google Scholar]
  4. Zhu, X.; Wang, L.; Zhao, T.; Jiang, Q. Traditional uses, phytochemistry, pharmacology, and toxicity of Eriobotrya japonica leaves: A summary. J. Ethnopharmacol. 2022, 298, 115566. [Google Scholar] [CrossRef] [PubMed]
  5. Wang, D.; Chen, Q.; Guo, Q.; Xia, Y.; Jing, D.; Liang, G. Metabolomic analyses reveal potential mechanisms induced by melatonin application for tolerance of water deficit in loquat (Eriobotrya japonica Lindl.). Sci. Hortic. 2023, 308, 111569. [Google Scholar] [CrossRef]
  6. Zhang, Y.; Yao, Q.; Li, J.; Wang, Y.; Liu, X.; Hu, Y.; Chen, J. Contributions of an arbuscular mycorrhizal fungus to growth and physiology of loquat (Eriobotrya japonica) plants subjected to drought stress. Mycol. Prog. 2015, 14, 1–11. [Google Scholar] [CrossRef]
  7. Liu, P.-L.; Du, L.; Huang, Y.; Gao, S.-M.; Yu, M. Origin and diversification of leucine-rich repeat receptor-like protein kinase (LRR-RLK) genes in plants. BMC Evol. Biol. 2017, 17, 47. [Google Scholar] [CrossRef]
  8. Shiu, S.-H.; Bleecker, A.B. Receptor-like kinases from Arabidopsis form a monophyletic gene family related to animal receptor kinases. Proc. Natl. Acad. Sci. USA 2001, 98, 10763–10768. [Google Scholar] [CrossRef]
  9. Gou, X.; He, K.; Yang, H.; Yuan, T.; Lin, H.; Clouse, S.D.; Li, J. Genome-wide cloning and sequence analysis of leucine-rich repeat receptor-like protein kinase genes in Arabidopsis thaliana. BMC Genom. 2010, 11, 1–15. [Google Scholar] [CrossRef]
  10. Park, S.; Moon, J.-C.; Park, Y.C.; Kim, J.-H.; Kim, D.S.; Jang, C.S. Molecular dissection of the response of a rice leucine-rich repeat receptor-like kinase (LRR-RLK) gene to abiotic stresses. J. Plant Physiol. 2014, 171, 1645–1653. [Google Scholar] [CrossRef]
  11. Bojar, D.; Martinez, J.; Santiago, J.; Rybin, V.; Bayliss, R.; Hothorn, M. Crystal structures of the phosphorylated BRI 1 kinase domain and implications for brassinosteroid signal initiation. Plant J. 2014, 78, 31–43. [Google Scholar] [CrossRef] [PubMed]
  12. Hanks, S.K.; Quinn, A.M.; Hunter, T. The protein kinase family: Conserved features and deduced phylogeny of the catalytic domains. Science 1988, 241, 42–52. [Google Scholar] [CrossRef]
  13. Adams, J.A. Kinetic and catalytic mechanisms of protein kinases. Chem. Rev. 2001, 101, 2271–2290. [Google Scholar] [CrossRef] [PubMed]
  14. Han, G.Z. Origin and evolution of the plant immune system. New Phytol. 2019, 222, 70–83. [Google Scholar] [CrossRef] [PubMed]
  15. Shiu, S.-H.; Karlowski, W.M.; Pan, R.; Tzeng, Y.-H.; Mayer, K.F.; Li, W.-H. Comparative analysis of the receptor-like kinase family in Arabidopsis and rice. Plant Cell 2004, 16, 1220–1234. [Google Scholar] [CrossRef]
  16. Kobe, B.; Kajava, A.V. The leucine-rich repeat as a protein recognition motif. Curr. Opin. Struct. Biol. 2001, 11, 725–732. [Google Scholar] [CrossRef]
  17. Chen, T. Identification and characterization of the LRR repeats in plant LRR-RLKs. BMC Mol. Cell Biol. 2021, 22, 9. [Google Scholar] [CrossRef]
  18. Li, X.; Ahmad, S.; Guo, C.; Yu, J.; Cao, S.; Gao, X.; Li, W.; Li, H.; Guo, Y. Identification and characterization of LRR-RLK family genes in potato reveal their involvement in peptide signaling of cell fate decisions and biotic/abiotic stress responses. Cells 2018, 7, 120. [Google Scholar] [CrossRef]
  19. Liu, X.-s.; Liang, C.-c.; Hou, S.-g.; Wang, X.; Chen, D.-h.; Shen, J.-l.; Zhang, W.; Wang, M. The LRR-RLK protein HSL3 regulates stomatal closure and the drought stress response by modulating hydrogen peroxide homeostasis. Front. Plant Sci. 2020, 11, 548034. [Google Scholar] [CrossRef]
  20. Nanda, A.K.; El Habti, A.; Hocart, C.H.; Masle, J. ERECTA receptor-kinases play a key role in the appropriate timing of seed germination under changing salinity. J. Exp. Bot. 2019, 70, 6417–6435. [Google Scholar] [CrossRef]
  21. Tyagi, S.; Shumayla; Upadhyay, S.K. Chapter 13—Role of leucine-rich repeat receptor-like kinases in abiotic and biotic stress responses in plants. In Plant Receptor-Like Kinases; Upadhyay, S.K., Shumayla, Eds.; Academic Press: Cambridge, MA, USA, 2023; pp. 239–255. [Google Scholar]
  22. Ma, Q.; Hu, Z.; Mao, Z.; Mei, Y.; Feng, S.; Shi, K. The novel leucine-rich repeat receptor-like kinase MRK1 regulates resistance to multiple stresses in tomato. Hortic. Res. 2022, 9, uhac149. [Google Scholar] [CrossRef]
  23. Shi, Y.; Bao, X.; Song, X.; Liu, Y.; Li, Y.; Chen, X.; Hu, X. The LRR-RLK Protein TaSERK1 Positively Regulates High-temperature Seedling Plant Resistance to Puccinia striiformis f. sp. tritici through Interacting with TaDJA7. Phytopathology 2023, 113, 1325–1334. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, J.; Liu, S.; Li, C.; Wang, T.; Zhang, P.; Chen, K. PnLRR-RLK27, a novel leucine-rich repeats receptor-like protein kinase from the Antarctic moss Pohlia nutans, positively regulates salinity and oxidation-stress tolerance. PLoS ONE 2017, 12, e0172869. [Google Scholar] [CrossRef]
  25. Soltabayeva, A.; Dauletova, N.; Serik, S.; Sandybek, M.; Omondi, J.O.; Kurmanbayeva, A.; Srivastava, S. Receptor-like Kinases (LRR-RLKs) in response of plants to biotic and abiotic stresses. Plants 2022, 11, 2660. [Google Scholar] [CrossRef] [PubMed]
  26. Kemmerling, B.; Halter, T.; Mazzotta, S.; Mosher, S.; Nürnberger, T. A genome-wide survey for Arabidopsis leucine-rich repeat receptor kinases implicated in plant immunity. Front. Plant Sci. 2011, 2, 88. [Google Scholar] [CrossRef]
  27. Song, W.; Wang, B.; Li, X.; Wei, J.; Chen, L.; Zhang, D.; Zhang, W.; Li, R. Identification of immune related LRR-containing genes in maize (Zea mays L.) by genome-wide sequence analysis. Int. J. Genom. 2015, 2015, 231358. [Google Scholar]
  28. Sun, J.; Li, L.; Wang, P.; Zhang, S.; Wu, J. Genome-wide characterization, evolution, and expression analysis of the leucine-rich repeat receptor-like protein kinase (LRR-RLK) gene family in Rosaceae genomes. BMC Genom. 2017, 18, 1–15. [Google Scholar] [CrossRef]
  29. Cheng, W.; Wang, Z.; Xu, F.; Ahmad, W.; Lu, G.; Su, Y.; Xu, L. Genome-Wide identification of LRR-RLK family in saccharum and expression analysis in response to biotic and abiotic stress. Curr. Issues Mol. Biol. 2021, 43, 1632–1651. [Google Scholar] [CrossRef]
  30. Sun, R.; Wang, S.; Ma, D.; Liu, C. Genome-wide analysis of LRR-RLK gene family in four Gossypium species and expression analysis during cotton development and stress responses. Genes 2018, 9, 592. [Google Scholar] [CrossRef]
  31. Hwarari, D.; Guan, Y.; Li, R.; Movahedi, A.; Chen, J.; Yang, L. Comprehensive Bioinformatics and Expression Analysis of TCP Transcription Factors in Liriodendron chinense Reveals Putative Abiotic Stress Regulatory Roles. Forests 2022, 13, 1401. [Google Scholar] [CrossRef]
  32. Freeling, M. Bias in plant gene content following different sorts of duplication: Tandem, whole-genome, segmental, or by transposition. Annu. Rev. Plant Biol. 2009, 60, 433–453. [Google Scholar] [CrossRef] [PubMed]
  33. Zhu, B. Tandem Duplications, Segmental Duplications and Deletions, and Their Applications. In Proceedings of the Computer Science–Theory and Applications: 15th International Computer Science Symposium in Russia, CSR 2020, Yekaterinburg, Russia, 29 June–3 July 2020; pp. 79–102. [Google Scholar]
  34. Dzinyela, R.; Hwarari, D.; Alhassan, A.R.; Suglo, P.; Movahedi, A. Bioinformatics and expression analysis of the NRL gene family in Populus trichocarpa. Genet. Resour. Crop Evol. 2024, 11, 1–16. [Google Scholar] [CrossRef]
  35. Cantsilieris, S.; Sunkin, S.M.; Johnson, M.E.; Anaclerio, F.; Huddleston, J.; Baker, C.; Dougherty, M.L.; Underwood, J.G.; Sulovari, A.; Hsieh, P. An evolutionary driver of interspersed segmental duplications in primates. Genome Biol. 2020, 21, 1–35. [Google Scholar] [CrossRef]
  36. Chang, W.-C.; Lee, T.-Y.; Huang, H.-D.; Huang, H.-Y.; Pan, R.-L. PlantPAN: Plant promoter analysis navigator, for identifying combinatorial cis-regulatory elements with distance constraint in plant gene groups. BMC Genom. 2008, 9, 1–14. [Google Scholar] [CrossRef]
  37. Manning, G.; Whyte, D.B.; Martinez, R.; Hunter, T.; Sudarsanam, S. The Protein Kinase Complement of the Human Genome. Science 2002, 298, 1912–1934. [Google Scholar] [CrossRef] [PubMed]
  38. Tanaka, H.; Osakabe, Y.; Katsura, S.; Mizuno, S.; Maruyama, K.; Kusakabe, K.; Mizoi, J.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Abiotic stress-inducible receptor-like kinases negatively control ABA signaling in Arabidopsis. Plant J. 2012, 70, 599–613. [Google Scholar] [CrossRef]
  39. Yeh, Y.-H.; Panzeri, D.; Kadota, Y.; Huang, Y.-C.; Huang, P.-Y.; Tao, C.-N.; Roux, M.; Chien, H.-C.; Chin, T.-C.; Chu, P.-W. The Arabidopsis malectin-like/LRR-RLK IOS1 is critical for BAK1-dependent and BAK1-independent pattern-triggered immunity. Plant Cell 2016, 28, 1701–1721. [Google Scholar] [CrossRef]
  40. Clark, J.W.; Donoghue, P.C. Whole-genome duplication and plant macroevolution. Trends Plant Sci. 2018, 23, 933–945. [Google Scholar] [CrossRef]
  41. Wang, D.; Zhang, S.; He, F.; Zhu, J.; Hu, S.; Yu, J. How Do Variable Substitution Rates Influence Ka and Ks Calculations? Genom. Proteom. Bioinform. 2009, 7, 116–127. [Google Scholar] [CrossRef]
  42. Heslop-Harrison, J.; Schwarzacher, T.; Liu, Q. Polyploidy: Its consequences and enabling role in plant diversification and evolution. Ann. Bot. 2023, 131, 1–10. [Google Scholar] [CrossRef]
  43. Kohchi, T.; Yamato, K.T.; Ishizaki, K.; Yamaoka, S.; Nishihama, R. Development and Molecular Genetics of Marchantia polymorpha. Annu. Rev. Plant Biol. 2021, 72, 677–702. [Google Scholar] [CrossRef] [PubMed]
  44. Schaefer, D.G.; Zrÿd, J.-P. The Moss Physcomitrella patens, Now and Then. Plant Physiol. 2001, 127, 1430–1438. [Google Scholar] [CrossRef]
  45. Seni, S.; Singh, R.K.; Prasad, M. Dynamics of epigenetic control in plants via SET domain containing proteins: Structural and functional insights. Biochim. et Biophys. Acta (BBA)-Gene Regul. Mech. 2023, 1866, 194966. [Google Scholar] [CrossRef]
  46. Lynch, M. Intron evolution as a population-genetic process. Proc. Natl. Acad. Sci. USA 2002, 99, 6118–6123. [Google Scholar] [CrossRef]
  47. Wang, Z.; Meng, P.; Zhang, X.; Ren, D.; Yang, S. BON1 interacts with the protein kinases BIR1 and BAK1 in modulation of temperature-dependent plant growth and cell death in Arabidopsis. Plant J. 2011, 67, 1081–1093. [Google Scholar] [CrossRef]
  48. Amorim-Silva, V.; García-Moreno, Á.; Castillo, A.G.; Lakhssassi, N.; Esteban del Valle, A.; Pérez-Sancho, J.; Li, Y.; Posé, D.; Pérez-Rodriguez, J.; Lin, J. TTL proteins scaffold brassinosteroid signaling components at the plasma membrane to optimize signal transduction in Arabidopsis. Plant Cell 2019, 31, 1807–1828. [Google Scholar] [CrossRef]
  49. Nicaise, V.; Joe, A.; Jeong, B.r.; Korneli, C.; Boutrot, F.; Westedt, I.; Staiger, D.; Alfano, J.R.; Zipfel, C. Pseudomonas HopU1 modulates plant immune receptor levels by blocking the interaction of their mRNAs with GRP7. EMBO J. 2013, 32, 701–712. [Google Scholar] [CrossRef]
  50. Meng, X.; Chen, X.; Mang, H.; Liu, C.; Yu, X.; Gao, X.; Torii, K.U.; He, P.; Shan, L. Differential function of Arabidopsis SERK family receptor-like kinases in stomatal patterning. Curr. Biol. 2015, 25, 2361–2372. [Google Scholar] [CrossRef] [PubMed]
  51. Lim, C.W.; Yang, S.H.; Shin, K.H.; Lee, S.C.; Kim, S.H. The AtLRK10L1.2, Arabidopsis ortholog of wheat LRK10, is involved in ABA-mediated signaling and drought resistance. Plant Cell Rep. 2015, 34, 447–455. [Google Scholar] [CrossRef] [PubMed]
  52. Zhang, P.; Zhang, Z.; Wang, J.; Cong, B.; Chen, K.; Liu, S. A novel receptor-like kinase (PnRLK-1) from the Antarctic moss Pohlia nutans enhances salt and oxidative stress tolerance. Plant Mol. Biol. Report. 2015, 33, 1156–1170. [Google Scholar] [CrossRef]
  53. Maruyama, K.; Todaka, D.; Mizoi, J.; Yoshida, T.; Kidokoro, S.; Matsukura, S.; Takasaki, H.; Sakurai, T.; Yamamoto, Y.Y.; Yoshiwara, K.; et al. Identification of cis-acting promoter elements in cold- and dehydration-induced transcriptional pathways in Arabidopsis, rice, and soybean. DNA Res. 2012, 19, 37–49. [Google Scholar] [CrossRef]
  54. Stout, T.; Foster, P.; Matthews, D. High-throughput structural biology in drug discovery: Protein kinases. Curr. Pharm. Des. 2004, 10, 1069–1082. [Google Scholar] [CrossRef] [PubMed]
  55. Ma, X.; Xu, G.; He, P.; Shan, L. SERKing coreceptors for receptors. Trends Plant Sci. 2016, 21, 1017–1033. [Google Scholar] [CrossRef] [PubMed]
  56. Hua, D.; Wang, C.; He, J.; Liao, H.; Duan, Y.; Zhu, Z.; Guo, Y.; Chen, Z.; Gong, Z. A plasma membrane receptor kinase, GHR1, mediates abscisic acid-and hydrogen peroxide-regulated stomatal movement in Arabidopsis. Plant Cell 2012, 24, 2546–2561. [Google Scholar] [CrossRef] [PubMed]
  57. Lee, I.C.; Hong, S.W.; Whang, S.S.; Lim, P.O.; Nam, H.G.; Koo, J.C. Age-dependent action of an ABA-inducible receptor kinase, RPK1, as a positive regulator of senescence in Arabidopsis leaves. Plant Cell Physiol. 2011, 52, 651–662. [Google Scholar] [CrossRef]
  58. Osakabe, K.; Osakabe, Y.; Toki, S. Site-directed mutagenesis in Arabidopsis using custom-designed zinc finger nucleases. Proc. Natl. Acad. Sci. USA 2010, 107, 12034–12039. [Google Scholar] [CrossRef]
  59. Bai, L.; Zhang, G.; Zhou, Y.; Zhang, Z.; Wang, W.; Du, Y.; Wu, Z.; Song, C.P. Plasma membrane-associated proline-rich extensin-like receptor kinase 4, a novel regulator of Ca2+ signalling, is required for abscisic acid responses in Arabidopsis thaliana. Plant J. 2009, 60, 314–327. [Google Scholar] [CrossRef]
  60. Osakabe, Y.; Maruyama, K.; Seki, M.; Satou, M.; Shinozaki, K.; Yamaguchi-Shinozaki, K. Leucine-rich repeat receptor-like kinase1 is a key membrane-bound regulator of abscisic acid early signaling in Arabidopsis. Plant Cell 2005, 17, 1105–1119. [Google Scholar] [CrossRef]
  61. Wang, J.; Zhang, P.; Liu, S.; Cong, B.; Chen, K. A leucine-rich repeat receptor-like kinase from the Antarctic moss Pohlia nutans confers salinity and ABA stress tolerance. Plant Mol. Biol. Report. 2016, 34, 1136–1145. [Google Scholar] [CrossRef]
  62. Nagar, P.; Sharma, N.; Jain, M.; Sharma, G.; Prasad, M.; Mustafiz, A. OsPSKR15, a phytosulfokine receptor from rice enhances abscisic acid response and drought stress tolerance. Physiol. Plant. 2022, 174, e13569. [Google Scholar] [CrossRef]
  63. Wang, Q.; Zhao, X.; Sun, Q.; Mou, Y.; Wang, J.; Yan, C.; Yuan, C.; Li, C.; Shan, S. Genome-wide identification of the LRR-RLK gene family in peanut and functional characterization of AhLRR-RLK265 in salt and drought stresses. Int. J. Biol. Macromol. 2024, 254, 127829. [Google Scholar] [CrossRef]
  64. Yang, L.; Wu, K.; Gao, P.; Liu, X.; Li, G.; Wu, Z. GsLRPK, a novel cold-activated leucine-rich repeat receptor-like protein kinase from Glycine soja, is a positive regulator to cold stress tolerance. Plant Sci. 2014, 215, 19–28. [Google Scholar] [CrossRef]
  65. Jung, C.G.; Hwang, S.-G.; Park, Y.C.; Park, H.M.; Kim, D.S.; Park, D.H.; Jang, C.S. Molecular characterization of the cold-and heat-induced Arabidopsis PXL1 gene and its potential role in transduction pathways under temperature fluctuations. J. Plant Physiol. 2015, 176, 138–146. [Google Scholar] [CrossRef] [PubMed]
  66. Geng, B.; Wang, Q.; Huang, R.; Liu, Y.; Guo, Z.; Lu, S. A novel LRR-RLK (CTLK) confers cold tolerance through regulation on the C-repeat-binding factor pathway, antioxidants, and proline accumulation. Plant J. 2021, 108, 1679–1689. [Google Scholar] [CrossRef] [PubMed]
  67. Fàbregas, N.; Lozano-Elena, F.; Blasco-Escámez, D.; Tohge, T.; Martínez-Andújar, C.; Albacete, A.; Osorio, S.; Bustamante, M.; Riechmann, J.L.; Nomura, T. Overexpression of the vascular brassinosteroid receptor BRL3 confers drought resistance without penalizing plant growth. Nat. Commun. 2018, 9, 4680. [Google Scholar] [CrossRef]
  68. Park, H.C.; Kim, D.W.; Park, J.; Baek, D.; Yun, D.-J. AtLRRop2, an leucine-rich repeat-only protein, mediates cold stress response in Arabidopsis thaliana. Plant Biotechnol. Rep. 2021, 15, 641–649. [Google Scholar] [CrossRef]
  69. Wang, Y. A draft genome, resequencing, and metabolomes reveal the genetic background and molecular basis of the nutritional and medicinal properties of loquat (Eriobotrya japonica (Thunb.) Lindl). Hortic. Res. 2021, 8, 231. [Google Scholar] [CrossRef] [PubMed]
  70. Chen, C.; Chen, H.; Zhang, Y.; Thomas, H.R.; Frank, M.H.; He, Y.; Xia, R. TBtools: An integrative toolkit developed for interactive analyses of big biological data. Mol. Plant 2020, 13, 1194–1202. [Google Scholar] [CrossRef]
  71. Mistry, J.; Chuguransky, S.; Williams, L.; Qureshi, M.; Salazar, G.A.; Sonnhammer, E.L.L.; Tosatto, S.C.E.; Paladin, L.; Raj, S.; Richardson, L.J.; et al. Pfam: The protein families database in 2021. Nucleic Acids Res. 2020, 49, D412–D419. [Google Scholar] [CrossRef] [PubMed]
  72. Lehti-Shiu, M.D.; Shiu, S.-H. Diversity, classification and function of the plant protein kinase superfamily. Philos. Trans. R. Soc. B Biol. Sci. 2012, 367, 2619–2639. [Google Scholar] [CrossRef]
  73. Subramanian, B.; Gao, S.; Lercher, M.J.; Hu, S.; Chen, W.-H. Evolview v3: A webserver for visualization, annotation, and management of phylogenetic trees. Nucleic Acids Res. 2019, 47, W270–W275. [Google Scholar] [CrossRef] [PubMed]
  74. Letunic, I.; Bork, P. Interactive Tree Of Life (iTOL) v5: An online tool for phylogenetic tree display and annotation. Nucleic Acids Res. 2021, 49, W293–W296. [Google Scholar] [CrossRef] [PubMed]
  75. Thomas, P.D. The Gene Ontology and the Meaning of Biological Function. Methods Mol. Biol. 2017, 1446, 15–24. [Google Scholar] [CrossRef] [PubMed]
Plants 13 02387 g001

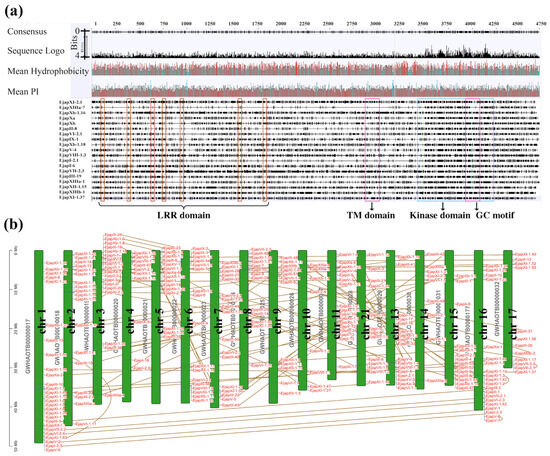

Figure 1. Characterization of EjLRR-RLK genes. (a) Depicts the multiple sequence alignments of EjLRR-RLK proteins as generated by Geneious Prime, showing typical conserved motifs and domains labeled in black. LRR domain: conserved LRR repeats region, TM domain: transmembrane domain and the GC motif is marked yellow within the kinase domain. The isoelectric point (pI) and the hydrophobicity graphs are shown above the image of multiple sequence alignments marked in red. (b) The chromosomal locations and their respective gene collinearities. Each chromosome is marked in black, and all genes are marked in red. Their respective location and sizes are shown by a far-left scale.
Figure 1. Characterization of EjLRR-RLK genes. (a) Depicts the multiple sequence alignments of EjLRR-RLK proteins as generated by Geneious Prime, showing typical conserved motifs and domains labeled in black. LRR domain: conserved LRR repeats region, TM domain: transmembrane domain and the GC motif is marked yellow within the kinase domain. The isoelectric point (pI) and the hydrophobicity graphs are shown above the image of multiple sequence alignments marked in red. (b) The chromosomal locations and their respective gene collinearities. Each chromosome is marked in black, and all genes are marked in red. Their respective location and sizes are shown by a far-left scale.
Plants 13 02387 g001
Plants 13 02387 g002

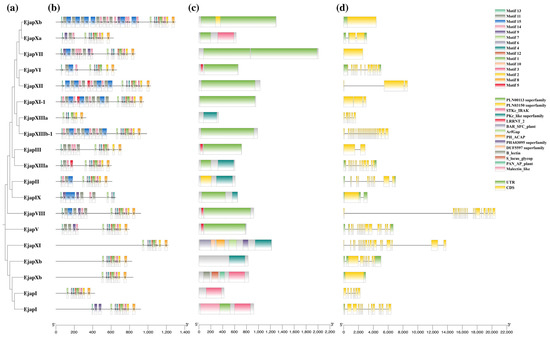

Figure 2. Gene evolution and domain conservation in EjLRR-RLK genes. (a) The phylogenetic relationships of LRR-RLKs as generated using the Mega software v 11.0.13. Representative EjLRR-RLK proteins were used for the evolutionary analysis. (b) The motifs in the LRR-RLK proteins, shown in different colors, as described in the top right corner key. (c) Conserved domain analysis, each conserved domain is depicted in a different color as defined in the key second from the top. (d) Exon–intron arrangements are shown in green for UTR (intron) and yellow for CDS (exon).
Figure 2. Gene evolution and domain conservation in EjLRR-RLK genes. (a) The phylogenetic relationships of LRR-RLKs as generated using the Mega software v 11.0.13. Representative EjLRR-RLK proteins were used for the evolutionary analysis. (b) The motifs in the LRR-RLK proteins, shown in different colors, as described in the top right corner key. (c) Conserved domain analysis, each conserved domain is depicted in a different color as defined in the key second from the top. (d) Exon–intron arrangements are shown in green for UTR (intron) and yellow for CDS (exon).
Plants 13 02387 g002
Plants 13 02387 g003
Figure 3. Evolution analysis of the LRR-RLK genes in E. japonica. (a) The phylogenetic relationship of 1032 LRR-RLK proteins. Different color schemes show each of the groups denoted as I–XV. (b) Summary of the LRR-RLK total numbers in (a). (c) The interspecies LRR-RLK gene collinearity between E. japonica, A. thaliana, O. sativa, and M. domestica. Green curvy lines show collinearity and chromosomes are labelled above.
Figure 3. Evolution analysis of the LRR-RLK genes in E. japonica. (a) The phylogenetic relationship of 1032 LRR-RLK proteins. Different color schemes show each of the groups denoted as I–XV. (b) Summary of the LRR-RLK total numbers in (a). (c) The interspecies LRR-RLK gene collinearity between E. japonica, A. thaliana, O. sativa, and M. domestica. Green curvy lines show collinearity and chromosomes are labelled above.
Plants 13 02387 g003
Plants 13 02387 g004
Figure 4. The synonymous and nonsynonymous values of identified EjLRR-RLKs. (a) The Ka, Ks-values, and their respective Ka/ks ratios. Dots in the graph are defined in the key below. (b) The synteny analysis in E. japonica genes. Each chromosome is labeled outside and a colored curvy line linking individual chromosomes represents linked genes. The sizes of each chromosome are shown outside graduated chromosomes.
Figure 4. The synonymous and nonsynonymous values of identified EjLRR-RLKs. (a) The Ka, Ks-values, and their respective Ka/ks ratios. Dots in the graph are defined in the key below. (b) The synteny analysis in E. japonica genes. Each chromosome is labeled outside and a colored curvy line linking individual chromosomes represents linked genes. The sizes of each chromosome are shown outside graduated chromosomes.
Plants 13 02387 g004
Plants 13 02387 g005
Figure 5. Cis-regulatory elements of EjLRR-RLKs. Total numbers of cis-regulatory elements identified in E. japonica LRR-RLK promoter regions. LRR-RLK genes are denoted in the x-axis, while the boxes show varying numbers. Different color backgrounds reflect different ranges.
Figure 5. Cis-regulatory elements of EjLRR-RLKs. Total numbers of cis-regulatory elements identified in E. japonica LRR-RLK promoter regions. LRR-RLK genes are denoted in the x-axis, while the boxes show varying numbers. Different color backgrounds reflect different ranges.
Plants 13 02387 g005
Plants 13 02387 g006
Figure 6. Protein interaction network of EjLRR-RLKs. Different color schemes show different EjLRR-RLK groups.
Figure 6. Protein interaction network of EjLRR-RLKs. Different color schemes show different EjLRR-RLK groups.
Plants 13 02387 g006
Plants 13 02387 g007
Figure 7. Three-dimensional protein structures of EjLRR-RLKs representatives from each subfamily.
Figure 7. Three-dimensional protein structures of EjLRR-RLKs representatives from each subfamily.
Plants 13 02387 g007
Plants 13 02387 g008
Figure 8. Gene ontology analysis in E. japonica LRR-RLKs, categorized by biological processes (shaded in blue), molecular functions (shaded in brown), and cellular components (shaded in green). The chart highlights the predominant roles of these genes in processes such as signal transduction, receptor activity, and membrane localization, reflecting their roles in plant immunity and plant growth.
Figure 8. Gene ontology analysis in E. japonica LRR-RLKs, categorized by biological processes (shaded in blue), molecular functions (shaded in brown), and cellular components (shaded in green). The chart highlights the predominant roles of these genes in processes such as signal transduction, receptor activity, and membrane localization, reflecting their roles in plant immunity and plant growth.
Plants 13 02387 g008
Plants 13 02387 g009
Figure 9. The relative expression patterns of 14 EjLRR-RLK genes in different abiotic stresses, cold, drought, salt, and heat, compared to control check (CK) using the RT-qPCR. The values were illustrated as bars using Graph Pad Prism. The asterisk (*) above the bars shows significant differences. The statistical significance of the differences was validated by Dunnett’s multiple comparison test (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Figure 9. The relative expression patterns of 14 EjLRR-RLK genes in different abiotic stresses, cold, drought, salt, and heat, compared to control check (CK) using the RT-qPCR. The values were illustrated as bars using Graph Pad Prism. The asterisk (*) above the bars shows significant differences. The statistical significance of the differences was validated by Dunnett’s multiple comparison test (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001).
Plants 13 02387 g009
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yang, M.; Min, T.; Manda, T.; Yang, L.; Hwarari, D. Genomic Survey of LRR-RLK Genes in Eriobotrya japonica and Their Expression Patterns Responding to Environmental Stresses. Plants 2024, 13, 2387. https://doi.org/10.3390/plants13172387

AMA Style

Yang M, Min T, Manda T, Yang L, Hwarari D. Genomic Survey of LRR-RLK Genes in Eriobotrya japonica and Their Expression Patterns Responding to Environmental Stresses. Plants. 2024; 13(17):2387. https://doi.org/10.3390/plants13172387

Chicago/Turabian Style

Yang, Mengqi, Tian Min, Teja Manda, Liming Yang, and Delight Hwarari. 2024. "Genomic Survey of LRR-RLK Genes in Eriobotrya japonica and Their Expression Patterns Responding to Environmental Stresses" Plants 13, no. 17: 2387. https://doi.org/10.3390/plants13172387

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
