Article

Improving Cuticle Thickness and Quality Traits in Table Grape cv. ‘Italia’ Using Pre-Harvest Treatments

by
Paolo La Spada
1,
Alberto Continella
1,*,
Eva Dominguez
2,*,
Antonio Heredia
3 and
Alessandra Gentile
1
1
Dipartimento Agricoltura Alimentazione e Ambiente (Di3A), Università degli Studi di Catania, 95123 Catania, Italy
2
Instituto de Hortofruticultura Subtropical y Mediterránea La Mayora, Universidad de Málaga—Consejo Superior de Investigaciones Científicas, Departamento de Mejora Genética y Biotecnología, Estación Experimental La Mayora, Algarrobo-Costa, E-29750 Málaga, Spain
3
Instituto de Hortofruticultura Subtropical y Mediterránea La Mayora, Universidad de Málaga—Consejo Superior de Investigaciones Científicas, Departamento de Biología Molecular y Bioquímica, Universidad de Málaga, E-29071 Málaga, Spain
*
Authors to whom correspondence should be addressed.
Plants 2024, 13(17), 2400; https://doi.org/10.3390/plants13172400
Submission received: 29 July 2024 / Revised: 19 August 2024 / Accepted: 21 August 2024 / Published: 28 August 2024
(This article belongs to the Section Crop Physiology and Crop Production)
Browse Figures
Review Reports Versions Notes

Abstract

:
Table grape viticulture, due to the impact of climate change, will have to face many challenges in the coming decades, including resistance to pathogens and physiological disorders. Our attention was focused on fruit cracking due to its ubiquitous presence in several species. This study explores the effects of three different treatments on the epidermis and cuticle of table grape berries by evaluating the impact of the girdling technique on various fruit quality parameters, including cuticle thickness, sugar content, acidity, color, bunch weight, and rheological properties. The treatments were (1) calcium chloride (CaCl2), (2) calcium chloride + salicylic acid (CaCl2 + SA), and (3) calcium chloride + Ascophyllum nodosum (CaCl2 + AN), with and without girdling, plus an untreated control. This research was conducted over the 2021–2022 growing season in a commercial vineyard in Licodia Eubea, Sicily, Italy. The results indicate significant variations in cuticle thickness and other qualitative traits throughout the growth and ripening phases, with notable differences depending on the treatment used. This study’s findings suggest that specific treatments can influence the structural integrity of the grape cuticle, potentially impacting the fruit’s susceptibility to cracking and overall marketability. The findings provide valuable insights into the role of chemical treatments and cultural techniques in enhancing fruit quality and resistance to environmental stresses in table grape cultivation.

1. Introduction

Table grape represents a significant fruit crop globally and is a fundamental sector of the world economy. It has expanded markedly in recent decades due to various factors, including enhanced international trade, rising global incomes, advancements in technology, and heightened awareness of the health advantages associated with consuming fruits and vegetables [1]. Over the past decade, the world production of table grapes has amounted to 31.5 million tons. Presently, China is the primary producer, with India, Turkey, Egypt, and Iran contributing substantially to the total production [2]. Table grape viticulture will have to face numerous challenges, including resistance to pathogens (e.g., fungi, bacteria, viruses) and tolerance to physiological disorders, among which fruit cracking is a significant issue in vineyards. Fruit cracking can cause the fruit to look unappealing, diminish its quality and shelf life, and increase its vulnerability to biotic infections, ultimately resulting in fruits that cannot be sold [3]. Generally, fruit cracking is a common physiological disorder of horticultural crops, including sweet cherry, apple, litchi, pomegranate, citrus, plum, grape, fig, and tomato [4,5,6,7]. Aside from affecting the fruit’s appearance, cracking can also make the fruits more susceptible to biotic infection, thus causing significant economic losses [8]. It is forecasted that the frequency of extreme weather events will increase in the coming years, e.g., excessive rainfall [9]; these extreme events may increase the incidence of fruit cracking. Cracking susceptibility includes internal factors within the fruit itself and external environmental factors, such as cultivation management, irrigation, nutrition, and environmental conditions, e.g., temperature, wind, and light [4,5,10]. In addition, epidermal thickness, the sub-epidermis, and the cuticle have been reported to play a role in fruit cracking, and their interactions with environmental factors have also been studied [11,12,13,14,15].
A pivotal and critical role is played by the plant cuticle, which is an outer membrane that covers all non-woody aerial parts of the plants. It is an efficient barrier to water loss, attenuates ultraviolet light absorption, and protects the plant from biotic and abiotic environmental stresses [15]. The cuticle has a composite nature; it is composed of a lipid matrix named cutin intertwined with cell-wall polysaccharides and with embedded phenolics and waxes. The cuticle exhibits notable changes in the deposition, composition, and physicochemical properties among species, as well as during its growth and development [16,17].
If the cuticle cannot fully protect the plant from excessive water loss or uptake, pest attacks or environmental stresses could more efficiently affect yield, depreciating the fruits or even rendering them unmarketable. Cuticle mechanical properties are also important for fungal pathogen penetration by highly localized appressorial pressure [18], for oviposition substrate choice by insects [19], and for susceptibility to fruit cracking [20,21].
Several authors have dealt with mineral compounds, in particular, calcium in its various forms [22,23,24,25,26,27] and plant growth regulators [28,29,30,31,32]. In particular, gibelleric acid (GA) has been used in a lot of different species to reduce fruit cracking, as shown by some authors [33,34,35,36]. Regarding the application of GA4+7, the authors of [32] found that in mixture with 6-benxyladenine (BA), it may affect the peel characteristics of cv. ‘Pink Lady’ in reducing calyx-end cracking, while biostimulants [37,38,39,40,41,42,43] have been shown to improve cuticle features and resistance to cracking, increasing quality and resistance to abiotic and biotic stress both pre- and post-harvest. This study aimed to assess the effects of various treatments on the cuticle thickness, fruit quality (including the sugar content, acidity, and color), bunch weight, and rheological properties of the fruits. In detail, we investigated the effects on the cuticle of the ‘Italia’ table grape variety using three treatments with commercial products, namely (1) calcium chloride, CaCl2, (2) calcium chloride + salicylic acid girdled, CaCl2 + SA, and (3) calcium chloride + A. nodosum, CaCl2 + AN, using untreated plants as the control. Additionally, we have explored in each treatment the girdling technique and how it influenced the cuticle thickness, fruit quality (including sugar content, acidity, and color), bunch weight, and the rheological properties of the fruits.

2. Results and Discussion

In this work, the approach used was focused on the effects of the compounds and the girdling technique on the thickness of the cuticle and the changes in the fruit’s qualitative traits during the development and ripening phases of the cv. ‘Italia’ table grape. Our results are divided into two main categories for clarity. Section 2.1 examines the histological results, focusing on the thickness of the cuticle. Section 2.2 addresses the quality aspects, including chemical, rheological, and colorimetric parameters, to provide a comprehensive overview of the qualitative characteristics of the analyzed samples.

2.1. Histological Results

As illustrated in Figure 1, a difference in the cuticle thickness during the growth phases of the ‘Italia’ variety was observed in the untreated vines. Specifically, the cuticle thickness decreased from the third sampling (BBCH75), which exhibited the lowest values (2.19 µm), to the ripening phenological phase (BBCH89). The cuticle thickness varied during grape berry development, as reported by [44,45], indicating that the decline in thickness cuticle accompanies the fruit growth, thus resulting in one of the factors that affects fruit cracking. The daily growth accompanied by a decreasing cuticle thickness can favor microfractures [46], which, in the last stages of growth, can lead to fruit cracking [47] and, consequently, increase susceptibility to biotic and abiotic stress factors. Cuticle thickness can vary widely among grape cultivars, e.g., in ‘Merlot’ berries, it did not change significantly between the hard green and the onset of ripening stages, while it increased in ‘Concord’ berries [47]. The influence of the phenological stage on ‘Italia’ table grape cuticle thickness is further confirmed by a highly significant p-value (<0.0001).
The evaluation of the treatments started at the second phenological stage (BBCH73, peppercorn-sized berries). Figure 2 shows cross-sections of the fruit pericarp highlighting the cuticular layer differences at this stage for the different treatments, and Table 1 shows the differences in cuticle thickness. The grapes treated with CaCl2 + SA displayed the lowest cuticle thickness (4.32 µm), whereas the CaCl2 + AN treatment showed the highest (5.12 µm). However, no differences were observed between the other treatments (control and CaCl2) during this phase. A study conducted on apples using CaCl2 by [48] showed no change in the cuticle thickness compared to the control; this result may be related to our findings on CaCl2 in this phase. The results obtained in the ‘Italia’ table grape treated with CaCl2 + AN in this phenological phase seem to agree with the results reported by [37], where A. nodosum reduced the percentage of sweet cherry cracking damage in the ‘Skeena’ and ‘Sweetheart’ cultivars grafted onto Gisela 6. Also, the reduced cuticle thickness observed after the CaCl2 + SA treatment is similar to the results obtained by [49] in shallot, where the treatment with biosilica and salicylic acid had a negative impact on the cuticle thickness compared to the treatment with only biosilica. These results confirm the negative interaction between CaCl2 and salicylic acid found by [50] in various fruits.
Girdling is a technique widely used to obtain larger fruits [51,52]. The effect of girdling was studied in combination with the different treatments starting from the third phenological stage (BBCH75—pea-sized berry). Figure 3 shows images of pericarp fruit sections at this stage, highlighting the cuticular layer differences among the different combined treatments and the control. The cuticle thickness is presented in Table 2.
The vines treated with calcium chloride (CaCl2) showed no differences in cuticle thickness based on girdling. However, girdling did have an impact on the other treatments and the control. In these cases, girdling yielded a reduced cuticle thickness compared to the ungirdled vines. The results obtained in this phenological phase evince that the treatments with A. nodosum (CaCl2 + AN_U) and salicylic acid without girdling (CaCl2 + SA_U) resulted in a thicker cuticle than the CaCl2 + SA_G and CaCl2 + AN_G treatments. This denotes how A. nodosum may have a positive effect on the thickness of the cuticle, as reported by [37], which indicated a reduction in the cracking index of cherry. Salicylic acid, in contrast with the results in the previous phenological phase (BBCH73), had a positive effect on the cuticle thickness, as found by [21] on blueberry (Vaccinium virgatum), if not influenced by girdling. According to the results obtained in the previous phenological phase (BBCH73) and the results in [49], contextual factors, such as the different phenological phases, could play a role in modifying the plant’s response to the compounds and, consequently, the thickness of the cuticle. The girdling technique seemed to confirm its contribution to increasing susceptibility to cracking, as it has been reported by [5,53,54]. Interestingly, girdling did not seem to have an impact on the cuticle thickness in vines treated solely with calcium chloride, whereas in untreated vines, a negative effect was observed. This seems to point out a positive effect of calcium that counteracts the effect of girdling, which was also reported by [48] in apple.
During the phenological phase BBCH81 (beginning of ripening) (Figure 4 and Table 2), the effects of the different treatments were more notable (p-value < 0.0001). The lowest cuticle thickness was observed in the vines girdled and treated with calcium chloride, contrary to what was observed in the previous stage. This could be due to an acceleration in the ripening process caused by the girdling technique [55,56]. Again, unlike the previous stage, the cuticles from the girdled vines treated with CaCl2 showed a lower thickness (and similar to the girdled control) compared to those from the ungirdled vines. These results seem to be a late effect of the girdling, which influenced the cuticle thickness. However, in the vines treated with salicylic acid and A. nodosum, no differences in cuticle thickness were observed between the girdled and ungirdled vines.
In the last phenological stage studied, BBCH89 (berries ripe for harvest) (Figure 5 and Table 2), no differences were observed due to girdling, except for the untreated control, where girdling yielded fruits with a lower cuticle thickness. Nevertheless, and despite not being different, the girdled vines yielded a lower cuticle thickness in the different treatments compared to the ungirdled ones. These results obtained with girdling indicate that there was an influence on cuticle thickness, although this may vary with the phenological stage of development. Regardless of the treatment and girdling, the thickness of the cuticle decreased with fruit growth.

2.2. Fruit Quality Assays

The penetration test conducted on the fruits at harvest (phenological phase BBCH89) assessed the effect of the treatments (p-value < 0.0001). The effect of girdling on the table grapes modified various parameters, but its effect on fruit texture is unclear, as also reported by [57]. Yahuaca et al. [58] found a firmness reduction of 9.1% in ‘Red Malaga’ grape, but according to our data, the treatment with CaCl2 and the girdling technique influenced the fruit’s resistance to penetration (4.63 N for CaCl2_G; 3.61 N for CaCl2_U) (Table 3). All other treatments exhibited an opposite trend to that observed with CaCl2, and the resistance to penetration was higher in the ungirdled compared to the girdled, even if no variations were observed. It seems that the influence of the compounds used for this test may have also influenced the response of the plants to the girdling. Interestingly, the results obtained in the CaCl2 + SA_U (5.02 N) treatment showed the highest value, confirming what was found in previous research [59] on the positive effect of salicylic acid on fruit firmness. Generally, it can be concluded that the resistance to penetration appeared to be influenced by both the treatment and the girdling technique.
Texture profile analysis (TPA) was conducted on four parameters; the data are shown in Table S1. The parameters used for the TPA were hardness (the highest peak force measured during the first compression), whose mean values ranged between 18.261 and 23.101; cohesiveness (the area underneath the second compression curve divided by the area underneath the first compression curve), whose mean values ranged between 0.191 and 0.700; springiness (a ratio of a product’s recovery to its original height), whose mean values ranged between 1.343 and 1.937; chewiness (hardness × cohesiveness × springiness), whose mean values ranged between 6.357 and 8.600. The results found in the literature seem to be controversial; some of the compounds used singularly, such as salicylic acid on apricots [60], showed an effect on the fruit textural properties. A CaCl2 treatment at the post-harvest stage had a strong effect on frozen mangoes using the dipping technique, as reported by [61]. The effect of A. nodosum did not seem to be strongly related to textural properties, but it could increase firmness, delaying the maturation process [62]. Finally, the effect of girdling is controversial because it appears to be strongly dependent on the variety and the timing of application [57]. Our results indicate that neither the treatment nor the girdling technique influenced the parameters.
Our results demonstrated that the combination of girdling and the tested compounds did not produce an effect on textual properties.
Analyses of the total soluble solids (TSS), whose mean values ranged between 16.54 and 17.10, and titratable acidity (percentage of tartaric acid), whose mean values ranged between 0.77 and 0.87, did not manifest any treatment differences, as shown in Table S2.
The weights of 54 bunches evaluated at ripening indicate a trend toward weight increase due to girdling (Figure 6).
However, the treatment involving CaCl2 + SA_G combined with the girdling technique showed an effect (p-value < 0.0001), with the average weight of the bunches exceeding 1 kg (average of 1.19 kg), as shown in Figure 6. This result is supported by those of authors who highlighted the importance of salicylic acid to prevent weight loss [63,64,65].
The results obtained from the colorimetric analysis of the fruits (Table 4) indicate that the brightness (L) presented a higher value in the untreated and ungirdled control, in accordance with [51], while all the other treatments were not different. The hue angle was not influenced either by the treatment nor by girdling. The color intensity, measured by Chroma, presented very interesting data regarding the treatment with A. nodosum and the interaction with the girdling: the lowest value was found in the girdled and the highest value in the ungirdled, in line with the ability of A. nodosum to delay the maturation of table grapes [62]. In the analysis, we evaluated the ‘a’ component, which serves as an indicator of the green/red intensity, with the observed values ranging from −3.5 to −4.5. The lower the value, the more intense the green appears. In the salicylic acid treatments, there was a remarkable difference between the girdled and ungirdled plants, with the first ones exhibiting the most intense green (−4.5). In contrast, the ungirdled plants showed a lighter green (−3.8). Interestingly, the treatment with A. nodosum demonstrated the opposite trend, with the ungirdled plants recording a deeper green (−4.3), while those girdled, a paler green (−3.5). The ‘b’ component measures the color spectrum between blue and yellow, and all values leaned toward yellow. The most prominent yellow was observed in the treatment combining calcium and A. nodosum, which showed the highest value. The remaining treatments did not show significant differences. Overall, the differences may be linked to the secondary metabolism induced by the tested compounds [66].

3. Materials and Methods

3.1. Sampling

This study was conducted in a commercial vineyard in the countryside of Licodia Eubea (CT), Sicily, at GPS coordinates N 37°07′40.4″ and E 14°37′24.8″ during the 2021–2022 growing season. The vineyard, planted in 2015, was of cv ‘Italia’ table grape grafted onto RU 140 rootstock (Ruggeri 140). The vines were spaced 2.5 m apart within the rows and 2.5 m between the rows and trained using the Italian ‘Tendone’ overhead system [67]. The experimental design was a randomized block design with 54 vines in total, with 5 vines per treatment replicated 3 times each, as depicted in Figure 7. To mitigate edge effects, the field portions were centrally located, avoiding the field’s perimeter. The trial was conducted over the growing seasons from May to September 2021. Each replicate consisted of 15 vine trunks, excluding the 3 vines of a control with similar vegetative and productive characteristics. The treatments were applied using a battery-operated manual pump to ensure precision and minimize drift and included calcium chloride (CaCl2), calcium chloride combined with salicylic acid (CaCl2 + SA), and calcium chloride combined with A. nodosum (CaCl2 + AN). The control plants were treated only with water (C). After the second sampling, the girdling technique [52] was performed at the phenological phase BBCH73 (berries peppercorn size). Out of the 54 vines involved in this trial, we performed the girdling (G) technique on 26 of them (CaCl2_G, CaCl2 + SA_G, CaCl2 + AN_G, and C_G) to assess its impact on the cuticle thickness of the fruits and development and quality parameters. The harvest was conducted on the same day for all the treatments. The method utilized to assess fruit ripeness was the value of the total soluble solids, which should be above 15, measured using a portable digital refractometer (Atago PR-32, Atago Ltd., Tokyo, Japan) [68].
The concentrations of chemical compounds were reported on the product labels for calcium chloride (300 g/hl) and A. nodosum (1.5 L/ha), while for salicylic acid, 1 mmol L−1 was applied as reported by [69]. We took samples during five phenological stages: BBCH71 (fruit set), BBCH73 (peppercorn-sized berries, bunches begin to hang), BBCH75 (pea-sized berries, bunches hang), BBCH81 (beginning of ripening, berries begin to develop variety-specific color), and BBCH89 (complete ripening) [70].

3.2. Chemical Compounds

To perform the field study, we used two commercial products: one for calcium chloride (7% NaCl2), and the other one for an Ascophyllum nodosum product consisting of 100% seaweed extract, which also contained 0.2% organic carbon and 0.7 g/L of mannitol. The salicylic acid used to prepare the solution was a high-purity laboratory-grade reagent (99% purity) known for its excellent solubility, produced by Sigma-Aldrich, USA.

3.3. Fruit Quality Analyses

Once ripe, a total of 54 bunches were collected and were singularly weighed. The total soluble solids (TSS, °Brix) and titratable acidity of tartaric acid (TA, expressed in %) of the fruit juice were measured by a Brix–acidity meter (model PAL-BX/ACID F5, Atago, Japan) on 3 independent replicates of 10 fruits for each treatment.
The color was determined using 30 fruits per treatment in triplicate with a Minolta colorimeter (CR-400; Minolta Camera Co., Tokyo, Japan). The wavelength used to perform this analysis was 400–750 nm. The fruits selected for the colorimetric analysis were placed transversely on the instrument, taking care to avoid any ambient light interference with the measurements, and ensuring that the fruit was in perfect contact with the device. Using the CIE (Commission International de l’Eclairage, Vienna, Austria) (L*, a*, b*) color scale [71], the Chroma (color saturation, Chroma = (a*2 + b*2)1/2) and hue angle (H° = tan − 1 (b*/a*)) were calculated.

3.4. Texture and TPA Analyses

The texture of 30 fruits in triplicate per treatment was measured using a texture analyzer (TA.XT. plus-Stable Micro System, Godalming, UK), and the data were analyzed with the instrument software “Exponent” (version 6,1,27,0). A load cell of 30 Kg and a cylindrical probe with a 2.0 mm diameter were used. The maximum force required to compress 5 mm of pulp at a speed of 1 mm s−1 was recorded using the protocol described by [72].
Another 30 fruits in triplicate per treatment were also used to conduct a TPA (texture profile analysis) on the parameters of hardness, cohesiveness, springiness, and chewiness using a compression plate and a probe with a diameter of 100 mm (P100).

3.5. Embedding Protocol

Five fruits were randomly selected from the bunch from each treatment in each phenological stage and embedded with the JB4 embedding kit protocol, as recommended by the producer (Polyscience Inc., USA). The selected samples were cut into small pieces (<2 mm) to enhance the penetration of the embedding resin and achieve a higher quality of the embedded samples.

3.6. Brightfield Microscopy and Image Analyses

The resin-embedded samples were cut into 3 µm-thick slices using a manual microtome (Leica, Wetzlar, Germany, RM2125). Each sample was triplicated, resulting in a minimum of 21 to 24 cut sections per slide. The sections were dried at 47 °C and then stained with Sudan IV dye (Sigma-Aldrich, USA) to highlight the cuticle. Subsequently, the samples were examined under a bright-field optical microscope (Leica, Wetzlar, Germany, DM 2500), and the cuticle thickness was determined using Fiji software version 2.9.0 [73]. A minimum of 50 measurements per sample, phenological stage, and treatment were analyzed.

3.7. Statistical Analysis

Statistical analyses were conducted utilizing Minitab software version 20. The general linear model (GLM) test was applied to all data, with the Bonferroni post hoc test employed to adjust for multiple comparisons, using a significance threshold of p-value < 0.05.

4. Conclusions

This research contributes to a better understanding of fruit cracking disorder by providing insights into the development of cuticle thickness in ‘Italia’ table grapes during growth and ripening. We observed a significant decrease in the cuticle thickness across five developmental stages, confirming that thinner cuticles can lead to fruit cracking and increased susceptibility to various stresses. The impacts of different treatments, especially those involving calcium chloride (CaCl2), salicylic acid (SA), and A. nodosum (AN), on cuticle thickness highlight their significant roles in preserving the structural integrity of the grape cuticle during critical growth phases. Notably, the combination of CaCl2 and AN generally resulted in a thicker cuticle, indicating the effect of A. nodosum in enhancing the fruit’s structural resilience and potential resistance to cracking. In contrast, the effects of salicylic acid were subtler, showing potential benefits especially when not combined with girdling, suggesting that treatment combinations can influence table grape’s resistance to various stresses. Our study also explored the effects of girdling, confirming its potential to enhance bunch weight, although the outcomes varied depending on the treatment applied and the timing of application. Beyond structural changes, our investigation extended to other quality parameters of the fruit. Key findings included improvements with treatments using CaCl2 + SA, the fruits of which exhibited the greatest firmness and an increase in bunch weight when combined with girdling. Although the treatments had a relatively mild impact on the fruit color, possibly due to changes in the secondary metabolism, the texture profile analysis (TPA) showed no significant differences among the treatments, indicating that the concentrations and methods used may not sufficiently alter the textural properties. Some of our findings offer significant insights for further investigation into the role of salicylic acid and the seaweed A. nodosum in enhancing the physical characteristics of the fruit cuticle to ensure structural stability. These should be examined independently of the interactions with calcium chloride and without girdling at various concentrations to assess their effects on the table grape cv ‘Italia’.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13172400/s1. Table S1: Texture profile analyses of ‘Italia’ berries. TPA data (texture profile analyses) of ‘Italia’ berries at the phenological stage BBCH89 (complete ripening). Data presented as the means. Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled. Table S2: Total soluble solids and titratable acidity in % of tartaric acid of ‘Italia’ berries. TSS (total soluble solids) and TA (titratable acidity) of ‘Italia’ berries at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: Ungirdled.

Author Contributions

Conceptualization, P.L.S.; methodology, P.L.S. and E.D.; formal analysis, P.L.S.; investigation, P.L.S.; data curation, P.L.S.; writing—original draft preparation, P.L.S.; writing—review and editing, A.C., E.D., A.H., and A.G.; supervision, A.C., E.D., A.H., and A.G.; funding acquisition, A.C. and A.G. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the University of Catania, Ph.D. grant in Agriculture, Food and Environmental Science—XXXVII Cycle.

Data Availability Statement

The original data presented in this study are available at https://doi.org/10.17632/bt4yxs7w5k.1 (accessed on 15 July 2024).

Acknowledgments

The authors would like to thank Giuseppe Di Modica for his willingness to make his company available to conduct the experimental field trials. They would also like to thank Manuela Vega Sanchez of the SCAI of the University of Malaga for her valuable suggestions in the analysis of the images.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Torres-Palazzolo, C.; Ferreyra, S.; Hugalde, I.P.; Kuhn, Y.; Combina, M.; Ponsone, M.L. Recent advances in biocontrol and other alternative strategies for the management of postharvest decay in table grapes. Int. J. Food Microbiol. 2024, 420, 110766. [Google Scholar] [CrossRef] [PubMed]
  2. International Organisation of Vine and Wine. Annual Assessment of the World Vine and Wine Sector in 2022. 2022. Available online: https://www.oiv.int/sites/default/files/documents/OIV_Annual_Assessment-2023.pdf (accessed on 27 June 2024).
  3. Shi, H.; Zhou, X.; Qin, M.; Wang, W.; He, X.; Zhou, W. Effect of cacl2 sprays in different fruit development stages on grape berry cracking. Front. Plant Sci. 2022, 13, 870959. [Google Scholar] [CrossRef] [PubMed]
  4. Simon, G. Review on rain induced fruit cracking of sweet cherries (Prunus avium L.), its causes and the possibilities of prevention. Int. J. Hortic. Sci. 2006, 12, 27–35. [Google Scholar] [CrossRef]
  5. Khadivi-Khub, A. Physiological and genetic factors influencing fruit cracking. Acta Physiol. Plant 2015, 37, 1718. [Google Scholar] [CrossRef]
  6. Karantzi, A.D.; Kafkaletou, M.; Tsaniklidis, G.; Bai, J.; Christopoulos, M.V.; Fanourakis, D.; Tsantili, E. Preharvest foliar salicylic acid sprays reduce cracking of fig fruit at harvest. Appl. Sci. 2021, 11, 11374. [Google Scholar] [CrossRef]
  7. Correia, S.; Schouten, R.; Silva, A.P.; Gonçalves, B. Sweet cherry fruit cracking mechanisms and prevention strategies: A review. Sci. Hortic. 2018, 240, 369–377. [Google Scholar] [CrossRef]
  8. Peet, M.M. Fruit cracking in tomato. Horttechnology 1992, 2, 216–223. [Google Scholar] [CrossRef]
  9. Intergovernmental Panel on Climate Change. Weather and climate. In Climate Change 2021—The Physical Science Basis; Cambridge University Press: Cambridge, UK, 2023; pp. 1513–1766. [Google Scholar]
  10. La Spada, P.; Dominguez, E.; Continella, A.; Heredia, A.; Gentile, A. Factors influencing fruit cracking: An environmental and agronomic perspective. Front. Plant Sci. 2024, 15, 1343452. [Google Scholar] [CrossRef]
  11. Brüggenwirth, M.; Knoche, M. Factors affecting mechanical properties of the skin of sweet cherry fruit. J. Am. Soc. Hort. Sci. 2016, 141, 45–53. [Google Scholar] [CrossRef]
  12. Brüggenwirth, M.; Knoche, M. Mechanical properties of skins of sweet cherry fruit of differing susceptibilities to cracking. J. Am. Soc. Hort. Sci. 2016, 141, 162–168. [Google Scholar] [CrossRef]
  13. Brüggenwirth, M.; Fricke, H.; Knoche, M. Biaxial tensile tests identify epidermis and hypodermis as the main structural elements of sweet cherry skin. AoB Plants 2014, 6, plu019. [Google Scholar] [CrossRef] [PubMed]
  14. Matas, A.J.; López-Casado, G.; Cuartero, J.; Heredia, A. Relative humidity and temperature modify the mechanical properties of isolated tomato fruit cuticles. Am. J. Bot. 2005, 92, 462–468. [Google Scholar] [CrossRef] [PubMed]
  15. Domínguez, E.; Cuartero, J.; Heredia, A. An overview on plant cuticle biomechanics. Plant Sci. 2011, 181, 77–84. [Google Scholar] [CrossRef] [PubMed]
  16. Khanal, B.P.; Knoche, M. Mechanical properties of cuticles and their primary determinants. J. Exp. Bot. 2017, 68, 5351–5367. [Google Scholar] [CrossRef] [PubMed]
  17. Fernández-Muñoz, R.; Heredia, A.; Domínguez, E. The role of cuticle in fruit shelf-life. Curr. Opin. Biotechnol. 2022, 78, 102802. [Google Scholar] [CrossRef]
  18. Curvers, K.; Seifi, H.; Mouille, G.; de Rycke, R.; Asselbergh, B.; Van Hecke, A.; Vanderschaeghe, D.; Höfte, H.; Callewaert, N.; Van Breusegem, F.; et al. Abscisic acid deficiency causes changes in cuticle permeability and pectin composition that influence tomato resistance to Botrytis cinerea. Plant Physiol. 2010, 154, 847–860. [Google Scholar] [CrossRef]
  19. Matushkina, N.; Gorb, S. Mechanical properties of the endophytic ovipositor in damselflies (Zygoptera, Odonata) and their oviposition substrates. Zoology 2007, 110, 167–175. [Google Scholar] [CrossRef]
  20. Hetzroni, A.; Vana, A.; Mizrach, A. Biomechanical characteristics of tomato fruit peels. Postharvest Biol. Technol. 2011, 59, 80–84. [Google Scholar] [CrossRef]
  21. Jiang, B.; Liu, R.; Fang, X.; Tong, C.; Chen, H.; Gao, H. Effects of salicylic acid treatment on fruit quality and wax composition of blueberry (Vaccinium virgatum Ait). Food Chem. 2022, 368, 130757. [Google Scholar] [CrossRef]
  22. Vangdal, E.; Hovland, K.L.; Børve, J.; Sekse, L.; Slimestad, R. Foliar application of calcium reduces postharvest decay in sweet cherry fruit by various mechanisms. Acta Hortic. 2008, 768, 143–148. [Google Scholar] [CrossRef]
  23. Erogul, D. Effect of preharvest calcium treatments on sweet cherry fruit quality. Not. Bot. Horti Agrobot. Cluj-Napoca 2014, 42, 150–153. [Google Scholar] [CrossRef]
  24. Demirsoy, L.K.; Bilgener, S. The effects of preharvest calcium hydroxide applications on cracking in 0900 ‘Zirat’, ‘Lamberbert’ and ‘Van’ Sweet cherries. Acta Hortic. 1998, 657–662. [Google Scholar] [CrossRef]
  25. Lang, G.; Guimond, C.; Southwick, S.; Kappel, F.; Flore, J.A.; Facteau, T.; Azarenko, A. Performance of calcium/sprinkler-based strategies to reduce sweet cherry rain-cracking. Acta Hortic. 1998, 649–656. [Google Scholar] [CrossRef]
  26. Wójcik, P.; Akgül, H.; Demirtaş, İ.; Sarısu, C.; Aksu, M.; Gubbuk, H. Effect of preharvest sprays of calcium chloride and sucrose on cracking and quality of ‘burlat’ sweet cherry fruit. J. Plant Nutr. 2013, 36, 1453–1465. [Google Scholar] [CrossRef]
  27. Winkler, A.; Knoche, M. Calcium and the physiology of sweet cherries: A review. Sci. Hortic. 2019, 245, 107–115. [Google Scholar] [CrossRef]
  28. Continella, A.; Ferlito, F.; Gentile, A.; La Malfa, S. Effect of plant growth regulators for enhancing fruit quality in Italian citrus industry. Acta Hortic. 2023, 139–146. [Google Scholar] [CrossRef]
  29. Davis, K.; Stover, E.; Wirth, F. Economics of fruit thinning: A review focusing on apple and citrus. Horttechnology 2004, 14, 282–289. [Google Scholar] [CrossRef]
  30. Ginzberg, I.; Stern, R.A. Strengthening fruit-skin resistance to growth strain by application of plant growth regulators. Sci. Hortic. 2016, 198, 150–153. [Google Scholar] [CrossRef]
  31. Stern, R.; Ben-Arie, R.; Ginzberg, I. Reducing the incidence of calyx cracking in ‘Pink Lady’ apple using a combination of cytokinin (6-benzyladenine) and gibberellins (GA4+7). J. Hortic. Sci. Biotechnol. 2013, 88, 147–153. [Google Scholar] [CrossRef]
  32. Ginzberg, I.; Fogelman, E.; Rosenthal, L.; Stern, R.A. Maintenance of high epidermal cell density and reduced calyx-end cracking in developing ‘Pink Lady’ apples treated with a combination of cytokinin 6-benzyladenine and gibberellins A4+A7. Sci. Hortic. 2014, 165, 324–330. [Google Scholar] [CrossRef]
  33. Usenik, V. Physicochemical changes of sweet cherry fruits related to application of gibberellic acid. Food Chem. 2005, 90, 663–671. [Google Scholar] [CrossRef]
  34. Yılmaz, C.; Özgüven, A.I. The effects of some plant nutrients, gibberellic acid and pinolene treatments on the yield, fruit quality and cracking in pomegranate. Acta Hortic. 2009, 205–212. [Google Scholar] [CrossRef]
  35. Suran, P.; Vávra, R.; Zelený, L. Effectiveness of potential products to reduce rain cracking of cherry fruit. Acta Hortic. 2016, 183–186. [Google Scholar] [CrossRef]
  36. Zhang, M.; Liu, Y.; Chen, Z.; Zhi, Z.; Wang, A.; Yue, H.; Li, F.; Zhang, S.; Zhu, G. Progress in fruit cracking control of gibberellic acid and abscisic acid. Forests 2024, 15, 547. [Google Scholar] [CrossRef]
  37. Correia, S.; Oliveira, I.; Queirós, F.; Ribeiro, C.; Ferreira, L.; Luzio, A.; Silva, A.P.; Gonçalves, B. Preharvest application of seaweed based biostimulant reduced cherry (Prunus avium L.) cracking. Procedia Environ. Sci. 2015, 29, 251–252. [Google Scholar] [CrossRef]
  38. Rouphael, Y.; Colla, G. Editorial: Biostimulants in agriculture. Front. Plant Sci. 2020, 11, 40. [Google Scholar] [CrossRef]
  39. Gonçalves, B.; Morais, M.C.; Sequeira, A.; Ribeiro, C.; Guedes, F.; Silva, A.P.; Aires, A. Quality preservation of sweet cherry cv. ‘staccato’ by using glycine-betaine or Ascophyllum nodosum. Food Chem. 2020, 322, 126713. [Google Scholar] [CrossRef]
  40. Kazan, K.; Lyons, R. Intervention of phytohormone pathways by pathogen effectors. Plant Cell 2014, 26, 2285–2309. [Google Scholar] [CrossRef]
  41. Correia, S.; Schouten, R.; Silva, A.P.; Gonçalves, B. Factors Affecting Quality and Health Promoting Compounds during Growth and Postharvest Life of Sweet Cherry (Prunus avium L.). Front. Plant Sci. 2017, 8, 2166. [Google Scholar] [CrossRef]
  42. Afonso, S.; Oliveira, I.; Meyer, A.S.; Gonçalves, B. Biostimulants to Improved Tree Physiology and Fruit Quality: A Review with Special Focus on Sweet Cherry. Agronomy 2022, 12, 659. [Google Scholar] [CrossRef]
  43. Battacharyya, D.; Babgohari, M.Z.; Rathor, P.; Prithiviraj, B. Seaweed extracts as biostimulants in horticulture. Sci. Hortic. 2015, 196, 39–48. [Google Scholar] [CrossRef]
  44. Commenil, P.; Brunet, L.; Audran, J.-C. The development of the grape berry cuticle in relation to susceptibility to bunch rot disease. J. Exp. Bot. 1997, 48, 1599–1607. [Google Scholar] [CrossRef]
  45. Christensen, J.V. Cracking in Cherries. Acta Agric. Scand. 1973, 23, 52–54. [Google Scholar] [CrossRef]
  46. Knoche, M.; Lang, A. Ongoing growth challenges fruit skin integrity. CRC Crit. Rev. Plant Sci. 2017, 36, 190–215. [Google Scholar] [CrossRef]
  47. Chang, B.-M.; Keller, M. Cuticle and skin cell walls have common and unique roles in grape berry splitting. Hortic. Res. 2021, 8, 168. [Google Scholar] [CrossRef] [PubMed]
  48. Trentham, W.R.; Sams, C.E.; Conway, W.S. Histological effects of calcium chloride in stored apples. J. Am. Soc. Hort. Sci. 2008, 133, 487–491. [Google Scholar] [CrossRef]
  49. Indarwati, L.D.; Sulistyaningsih, E.; Kurniasih, B. Impact of salicylic acid and biosilica application on plant growth of shallot under water deficit. IOP Conf. Ser. Earth Environ. Sci. 2021, 883, 012049. [Google Scholar] [CrossRef]
  50. Schlegel, T.K.; Schönherr, J. Selective permeability of cuticles over stomata and trichomes to calcium chloride. Acta Hortic. 2002, 91–96. [Google Scholar] [CrossRef]
  51. Timpanaro, N.; Ferlito, F.; Amenta, M.; Torrisi, B.; Allegra, M.; Rapisarda, P.; Romeo, F.V. Effect of branch girdling on berry traits, chemical and sensory characteristics of ‘Italia’ and ‘Victoria’ table grapes. N. Z. J. Crop Hortic. Sci. 2023, 51, 52–68. [Google Scholar] [CrossRef]
  52. Goren, R.; Huberman, M.; Goldschmidt, E.E. Girdling: Physiological and horticultural aspects. In Horticultural Reviews; Janick, J., Ed.; Wiley: Hoboken, NJ, USA, 2003; pp. 1–36. [Google Scholar]
  53. Krajewski, A.; Ebert, T.; Schumann, A.; Waldo, L. Pre-Harvest Fruit Splitting of Citrus. Agronomy 2022, 12, 1505. [Google Scholar] [CrossRef]
  54. Rabe, E.; van Rensburg, P.; van der Walt, H.; Bower, J. Factors influencing preharverst fruit splitting in Ellendale (C. reticulata). Horts 1990, 25, 1135f–1135. [Google Scholar] [CrossRef]
  55. Soltekin, O.; Candemir, A.; Altindisli, A. Effects of cane girdling on yield, fruit quality and maturation of (Vitis vinifera L.) cv. Flame Seedless. BIO Web Conf. 2016, 7, 01032. [Google Scholar] [CrossRef]
  56. Peng, Y.; Gu, X.; Zhou, Q.; Huang, J.; Liu, Z.; Zhou, Y.; Zheng, Y. Molecular and physiologic mechanisms of advanced ripening by trunk girdling at early veraison of ‘Summer Black’ grape. Front. Plant Sci. 2022, 13, 1012741. [Google Scholar] [CrossRef]
  57. Tóth, A.M.; Zsófi, Z.; Veres, S. Cane girdling influence on the berry texture properties of three table grape varieties. Horticulturae 2022, 8, 1101. [Google Scholar] [CrossRef]
  58. Yahuaca, J.B.; Martínez-Peniche, R.; Madero, E.; Reyes, J.L. Effects of ethephon and girdling on firmness of “red malaga” table grape. Acta Hortic. 2001, 121–124. [Google Scholar] [CrossRef]
  59. Giménez, M.J.; Valverde, J.M.; Valero, D.; Guillén, F.; Martínez-Romero, D.; Serrano, M.; Castillo, S. Quality and antioxidant properties on sweet cherries as affected by preharvest salicylic and acetylsalicylic acids treatments. Food Chem. 2014, 160, 226–232. [Google Scholar] [CrossRef]
  60. Ali, S.; Masud, T.; Abbasi, K.S.; Mahmood, T.; Ali, A. Effect of Different Concentrations of Salicylic Acid on Keeping Quality of Apricot cv. Habi at Ambient Storage. Food Chem. Toxicol. 2013, 2, 69–78. [Google Scholar]
  61. Sirijariyawat, A.; Charoenrein, S. Texture and Pectin Content of Four Frozen Fruits Treated with Calcium. J. Food Process. Preserv. 2014, 38, 1346–1355. [Google Scholar] [CrossRef]
  62. Salvi, L.; Brunetti, C.; Cataldo, E.; Niccolai, A.; Centritto, M.; Ferrini, F.; Mattii, G.B. Effects of Ascophyllum nodosum extract on Vitis vinifera: Consequences on plant physiology, grape quality and secondary metabolism. Plant Physiol. Biochem. 2019, 139, 21–32. [Google Scholar] [CrossRef]
  63. Babalar, M.; Asghari, M.; Talaei, A.; Khosroshahi, A. Effect of pre- and postharvest salicylic acid treatment on ethylene production, fungal decay and overall quality of Selva strawberry fruit. Food Chem. 2007, 105, 449–453. [Google Scholar] [CrossRef]
  64. Shafiee, M.; Taghavi, T.S.; Babalar, M. Addition of salicylic acid to nutrient solution combined with postharvest treatments (hot water, salicylic acid, and calcium dipping) improved postharvest fruit quality of strawberry. Sci. Hortic. 2010, 124, 40–45. [Google Scholar] [CrossRef]
  65. Lo’ay, A.A.; El-Boray, M.S. Improving fruit cluster quality attributes of ‘Flame Seedless’ grapes using preharvest application of ascorbic and salicylic acid. Sci. Hortic. 2018, 233, 339–348. [Google Scholar] [CrossRef]
  66. Champa, W.A.H.; Gill, M.I.S.; Mahajan, B.V.C.; Arora, N.K. Preharvest salicylic acid treatments to improve quality and postharvest life of table grapes (Vitis vinifera L.) cv. Flame Seedless. J. Food Sci. Technol. 2015, 52, 3607–3616. [Google Scholar] [CrossRef] [PubMed]
  67. McLeod, T. Viticultural opportunities in Argentina. In Wines and Vines; Hiaring Company: Delhi, India, 1998; Volume 8. [Google Scholar]
  68. Mencarelli, F.; Bellincontro, A.; DiRenzo, G. Post-Harvest Technologies|Inpho|Food and Agriculture Organization of the United Nations. Grape: Post-harvest Operations. 2005. Available online: https://www.fao.org/fileadmin/user_upload/inpho/docs/Post_Harvest_Compendium_-_Grape.pdf (accessed on 17 August 2024).
  69. Correia, S.; Santos, M.; Glińska, S.; Gapińska, M.; Matos, M.; Carnide, V.; Schouten, R.; Silva, A.P.; Gonçalves, B. Effects of exogenous compound sprays on cherry cracking: Skin properties and gene expression. J. Sci. Food Agric. 2020, 100, 2911–2921. [Google Scholar] [CrossRef] [PubMed]
  70. Meier, U. BBCH-Monograph: Growth Stages of Mono- and Dicotyledonous Plants, 2nd ed.; Technical Report; Julius Kühn-Institut (JKI), Bundesforschungsinstitut für Kulturpflanzen: Quedlinburg, Germany, 2001; p. 158. [Google Scholar]
  71. McLaren, K. Food colorimetry. In Developments in Food Colours; Jack K. Burgess: Clayton, NC, USA, 1980. [Google Scholar]
  72. Silva, V.; Pereira, S.; Vilela, A.; Bacelar, E.; Guedes, F.; Ribeiro, C.; Silva, A.P.; Gonçalves, B. Preliminary insights in sensory profile of sweet cherries. Foods 2021, 10, 612. [Google Scholar] [CrossRef]
  73. Schindelin, J.; Arganda-Carreras, I.; Frise, E.; Kaynig, V.; Longair, M.; Pietzsch, T.; Preibisch, S.; Rueden, C.; Saalfeld, S.; Schmid, B.; et al. Fiji: An open-source platform for biological-image analysis. Nat. Methods 2012, 9, 676–682. [Google Scholar] [CrossRef]
Plants 13 02400 g001

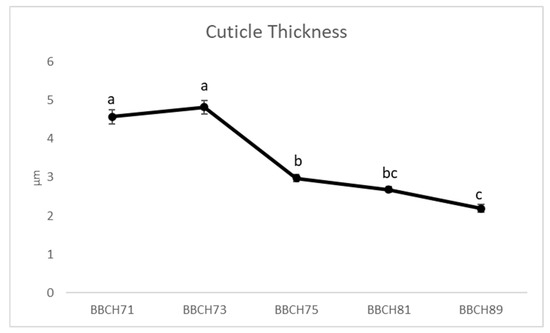

Figure 1. ‘Italia’ fruit cuticle thickness (µm) among the phenological stages of BBCH71 (fruit set), BBCH73 (peppercorn-sized berries, bunches begin to hang), BBCH75 (pea-sized berries, bunches hang), BBCH81 (beginning of ripening) BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05).
Figure 1. ‘Italia’ fruit cuticle thickness (µm) among the phenological stages of BBCH71 (fruit set), BBCH73 (peppercorn-sized berries, bunches begin to hang), BBCH75 (pea-sized berries, bunches hang), BBCH81 (beginning of ripening) BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05).
Plants 13 02400 g001
Plants 13 02400 g002
Figure 2. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight the cuticle at the phenological phase BBCH73 (peppercorn-sized berries, bunches begin to hang). Magnification: 20X; scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Untreated; (b) calcium chloride; (c) calcium chloride + salicylic acid; (d) calcium chloride + A. nodosum. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Figure 2. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight the cuticle at the phenological phase BBCH73 (peppercorn-sized berries, bunches begin to hang). Magnification: 20X; scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Untreated; (b) calcium chloride; (c) calcium chloride + salicylic acid; (d) calcium chloride + A. nodosum. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Plants 13 02400 g002
Plants 13 02400 g003
Figure 3. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight cuticle at the phenological phase BBCH75 (pea-sized berries, bunches hang). Magnification: 20X; scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Calcium chloride + salicylic acid, girdled; (b) calcium chloride + salicylic acid, ungirdled; (c) calcium chloride + A. nodosum, girdled; (d) calcium chloride + A. nodosum, girdled; (e) calcium chloride, girdled; (f) calcium chloride, ungirdled; (g) untreated, girdled; (h) untreated, ungirdled. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Figure 3. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight cuticle at the phenological phase BBCH75 (pea-sized berries, bunches hang). Magnification: 20X; scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Calcium chloride + salicylic acid, girdled; (b) calcium chloride + salicylic acid, ungirdled; (c) calcium chloride + A. nodosum, girdled; (d) calcium chloride + A. nodosum, girdled; (e) calcium chloride, girdled; (f) calcium chloride, ungirdled; (g) untreated, girdled; (h) untreated, ungirdled. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Plants 13 02400 g003
Plants 13 02400 g004
Figure 4. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight cuticles at the phenological phase BBCH81 (beginning of ripening). Magnification: 20X scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Calcium chloride + salicylic acid, girdled; (b) calcium chloride + salicylic acid, ungirdled; (c) calcium chloride + A. nodosum, girdled; (d) calcium chloride + A. nodosum, girdled; (e) calcium chloride, girdled; (f) calcium chloride, ungirdled; (g) untreated, girdled; (h) untreated, ungirdled. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Figure 4. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight cuticles at the phenological phase BBCH81 (beginning of ripening). Magnification: 20X scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Calcium chloride + salicylic acid, girdled; (b) calcium chloride + salicylic acid, ungirdled; (c) calcium chloride + A. nodosum, girdled; (d) calcium chloride + A. nodosum, girdled; (e) calcium chloride, girdled; (f) calcium chloride, ungirdled; (g) untreated, girdled; (h) untreated, ungirdled. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Plants 13 02400 g004
Plants 13 02400 g005
Figure 5. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight cuticle at the phenological phase BBCH89 (complete ripening). Magnification: 20X; scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Calcium chloride + salicylic acid, girdled; (b) calcium chloride + salicylic acid, ungirdled; (c) calcium chloride + A. nodosum, girdled; (d) calcium chloride + A. nodosum, girdled; (e) calcium chloride, girdled; (f) calcium chloride, ungirdled; (g) untreated, girdled; (h) untreated, ungirdled. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Figure 5. ‘Italia’ table grape berries. Sections of 3 µm dyed red with Sudan IV to highlight cuticle at the phenological phase BBCH89 (complete ripening). Magnification: 20X; scale bar: 50 µm. SA: salicylic acid; AN: A. nodosum. (a) Calcium chloride + salicylic acid, girdled; (b) calcium chloride + salicylic acid, ungirdled; (c) calcium chloride + A. nodosum, girdled; (d) calcium chloride + A. nodosum, girdled; (e) calcium chloride, girdled; (f) calcium chloride, ungirdled; (g) untreated, girdled; (h) untreated, ungirdled. Arrows indicate the cuticles for better interpretation of the grape berry skin structure under different treatments.
Plants 13 02400 g005
Plants 13 02400 g006

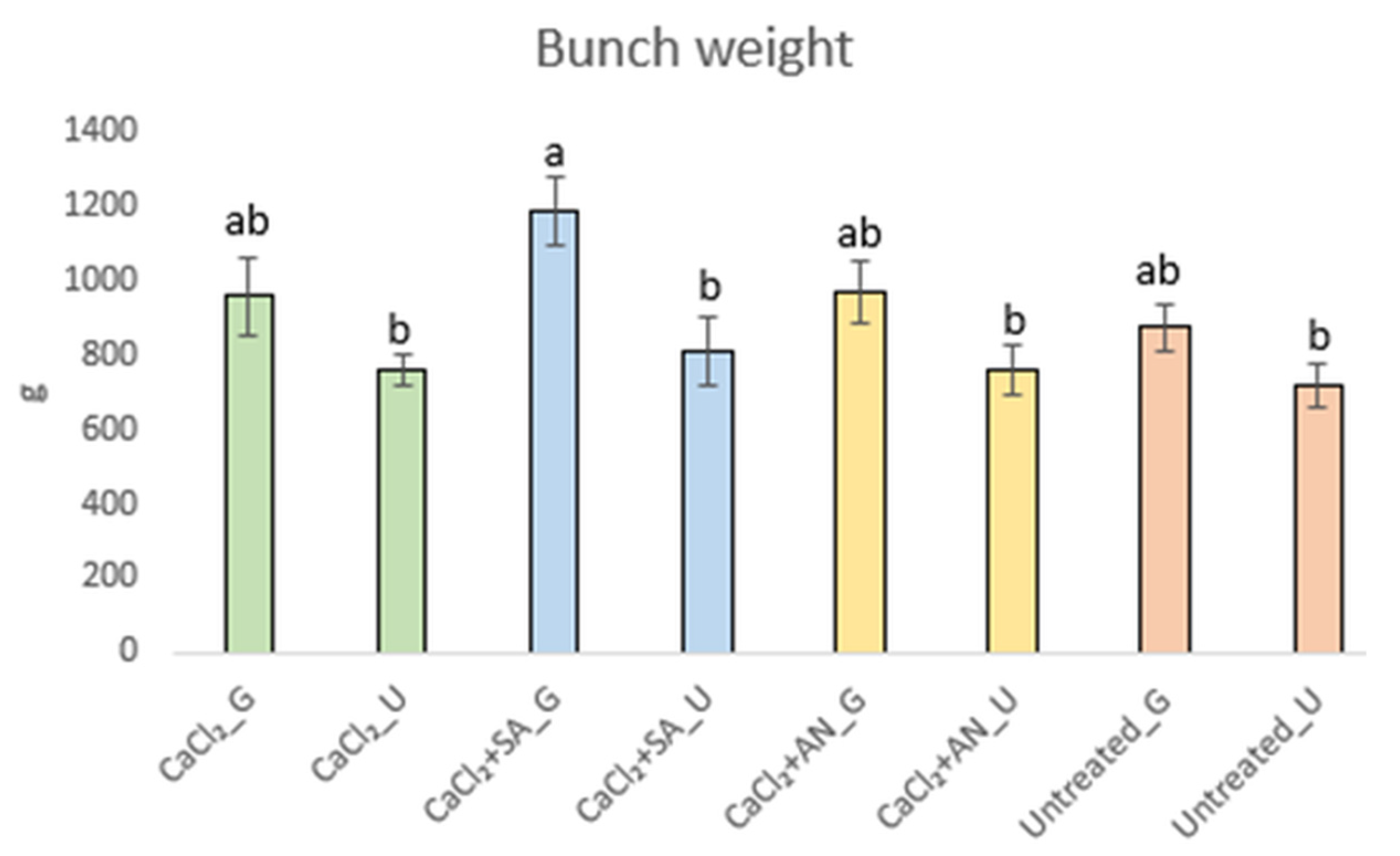

Figure 6. Bunch weights (g) of ‘Italia’ table grapes at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
Figure 6. Bunch weights (g) of ‘Italia’ table grapes at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
Plants 13 02400 g006
Plants 13 02400 g007

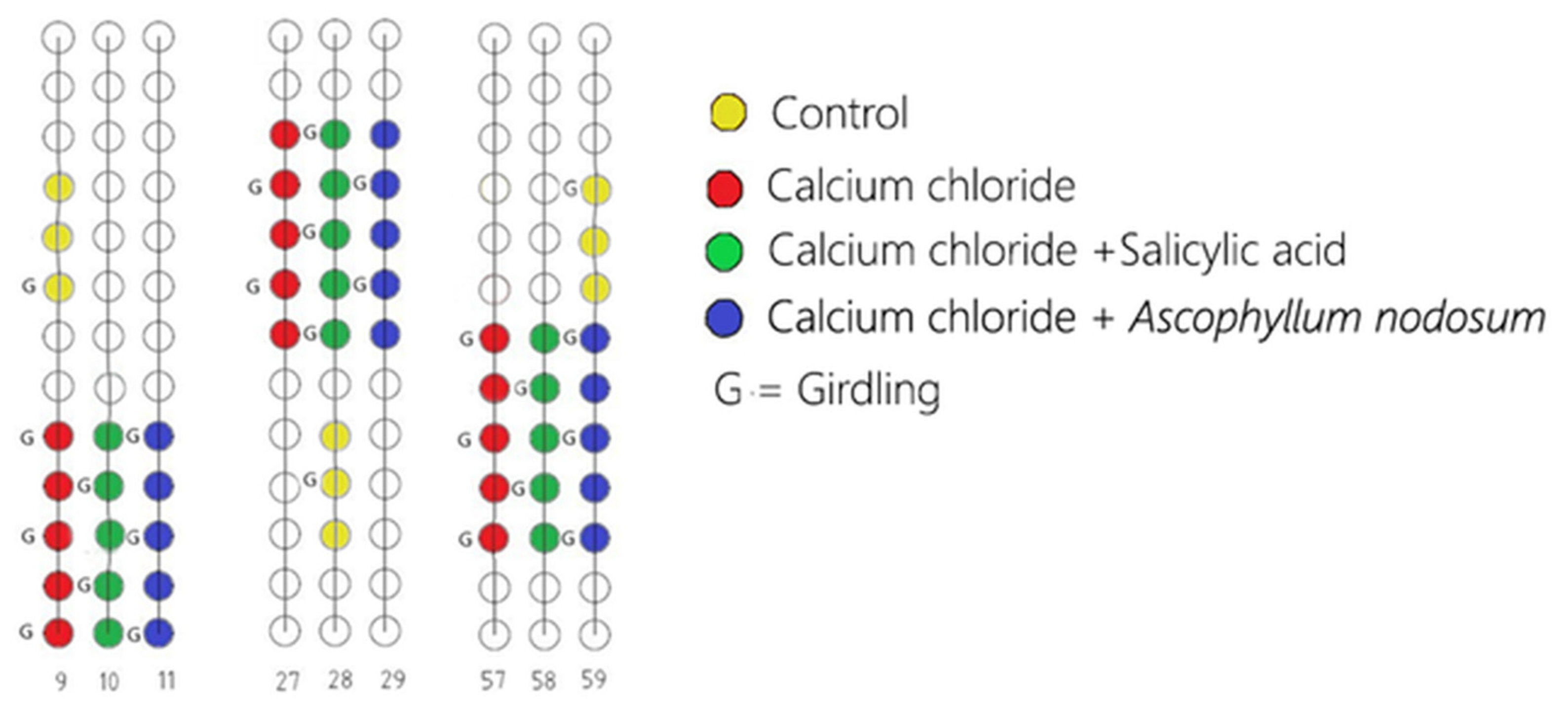

Figure 7. Scheme of the experimental design of the ‘Italia’ table grape field. CaCl2 (calcium chloride); CaCl2 + SA (calcium chloride + salicylic acid); CaCl2 + AN (calcium chloride + Ascophyllum nodosum); in both girdled (G) and ungirdled conditions.
Figure 7. Scheme of the experimental design of the ‘Italia’ table grape field. CaCl2 (calcium chloride); CaCl2 + SA (calcium chloride + salicylic acid); CaCl2 + AN (calcium chloride + Ascophyllum nodosum); in both girdled (G) and ungirdled conditions.
Plants 13 02400 g007
Table 1. Comparison of ‘Italia’ fruit cuticle thickness (µm) among different treatments at the phenological stage BBCH73 (peppercorn-sized berries, bunches begin to hang). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum.
Table 1. Comparison of ‘Italia’ fruit cuticle thickness (µm) among different treatments at the phenological stage BBCH73 (peppercorn-sized berries, bunches begin to hang). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum.
TreatmentCuticle Thickness (µm) BBCH73
CaCl24.89 ± (0.22) ab
CaCl2 + SA4.32 ± (0.11) b
CaCl2 + AN5.12 ± (0.24) a
Untreated4.82 ± (0.17) ab
Table 2. Overview of ‘Italia’ fruit cuticle thickness (µm) data from three phenological stages: BBCH75 (pea-sized berries, bunches hang); BBCH81 (beginning of ripening); BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
Table 2. Overview of ‘Italia’ fruit cuticle thickness (µm) data from three phenological stages: BBCH75 (pea-sized berries, bunches hang); BBCH81 (beginning of ripening); BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
TreatmentCuticle Thickness (µm)
BBCH75		Cuticle Thickness (µm)
BBCH81		Cuticle Thickness (µm)
BBCH89
CaCl2_G3.31 ± (0.03) a2.03 ± (0.05) e1.71 ± (0.04) c
CaCl2_U3.32 ± (0.07) a3.41 ± (0.08) a1.93 ± (0.07) abc
CaCl2 + SA_G2.81 ± (0.06) bc2.53 ± (0.09) cd2.05 ± (0.09) ab
CaCl2 + SA_U3.40 ± (0.12) a2.60 ± (0.04) cd1.91 ± (0.06) abc
CaCl2 + AN_G2.56 ± (0.06) bc2.76 ± (0.08) bc2.06 ± (0.07) ab
CaCl2 + AN_U3.43 ± (0.10) a2.93 ± (0.10) b1.83 ± (0.042) bc
Untreated_G2.49 ± (0.06) c2.36 ± (0.06) de1.76 ± (0.07) bc
Untreated_U2.97 ± (0.09) ab2.68 ± (0.07) bcd2.19 ± (0.10) a
Table 3. Penetration force data (N) of ‘Italia’ berries at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
Table 3. Penetration force data (N) of ‘Italia’ berries at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
TreatmentPenetration Force (N)
CaCl2_G4.63 ± (0.15) ab
CaCl2_U3.61 ± (0.12) d
CaCl2 + SA_G4.66 ± (0.13) ab
CaCl2 + SA_U5.01 ± (0.12) a
CaCl2 + AN_G4.21 ± (0.15) bc
CaCl2 + AN_U4.73 ± (0.16) ab
Untreated_G3.99 ± (0.12) cd
Untreated_U4.54 ± (0.16) abc
Table 4. Colorimetric parameters of ‘Italia’ berries at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
Table 4. Colorimetric parameters of ‘Italia’ berries at the phenological stage BBCH89 (complete ripening). Data presented as the means ± (SE). Different letters indicate significant differences (p-value < 0.05). SA: salicylic acid; AN: A. nodosum; G: girdled; U: ungirdled.
TreatmentLabChromaHue°
CaCl2_G40.40 ± (0.20) b−4.21 ± (0.10) cd11.39 ± (0.13) ab12.20± (0.15) abc110.23 ± (0.38) a
CaCl2_U39.84 ± (0.24) b−3.99 ± (0.10) abc10.63 ± (0.17) bc11.27± (0.20) cd108.30 ± (1.60) a
CaCl2 + SA_G39.69 ± (0.20) b−4.54 ± (0.12) d11.33 ± (0.20) ab12.25± (0.21) ab110.51 ± (1.18) a
CaCl2 + SA_U40.56 ± (0.18) b−3.86 ± (0.11) abc11.36 ± (0.23) ab12.02± (0.25) abcd108.86 ± (0.44) a
CaCl2 + AN_G39.72 ± (0.17) b−3.51 ± (0.14) a10.43 ± (0.17) c11.07 ± (0.19) d108.89 ± (0.47) a
CaCl2 + AN_U40.28 ± (0.17) b−4.34 ± (0.16) cd11.95 ± (0.22) a12.80 ± (0.25) a110.22 ± (0.36) a
Untreated_G40.20 ± (0.20) b−3.65 ± (0.10) ab11.05 ± (0.21) bc11.68± (0.21) bcd108.58 ± (0.46) a
Untreated_U41.50 ± (0.23) a−4.19± (0.12) bcd11.42 ± (0.22) ab12.19± (0.24) abc108.93 ± (1.16) a
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

La Spada, P.; Continella, A.; Dominguez, E.; Heredia, A.; Gentile, A. Improving Cuticle Thickness and Quality Traits in Table Grape cv. ‘Italia’ Using Pre-Harvest Treatments. Plants 2024, 13, 2400. https://doi.org/10.3390/plants13172400

AMA Style

La Spada P, Continella A, Dominguez E, Heredia A, Gentile A. Improving Cuticle Thickness and Quality Traits in Table Grape cv. ‘Italia’ Using Pre-Harvest Treatments. Plants. 2024; 13(17):2400. https://doi.org/10.3390/plants13172400

Chicago/Turabian Style

La Spada, Paolo, Alberto Continella, Eva Dominguez, Antonio Heredia, and Alessandra Gentile. 2024. "Improving Cuticle Thickness and Quality Traits in Table Grape cv. ‘Italia’ Using Pre-Harvest Treatments" Plants 13, no. 17: 2400. https://doi.org/10.3390/plants13172400

APA Style

La Spada, P., Continella, A., Dominguez, E., Heredia, A., & Gentile, A. (2024). Improving Cuticle Thickness and Quality Traits in Table Grape cv. ‘Italia’ Using Pre-Harvest Treatments. Plants, 13(17), 2400. https://doi.org/10.3390/plants13172400

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
