Inhibition of Potato Fusarium Wilt by Bacillus subtilis ZWZ-19 and Trichoderma asperellum PT-29: A Comparative Analysis of Non-Targeted Metabolomics

by
Jianxiu Hao
1,†,
Zhen Wang
1,2,†,
Yuanzheng Zhao
3,
Shujie Feng
2,
Zining Cui
2,
Yinqiang Zhang
1,
Dong Wang
1,* and
Hongyou Zhou
1,*
1
Key Laboratory of Biopesticide Creation and Resource Utilization in Inner Mongolia Autonomous Region, College of Horticulture and Plant Protection, Inner Mongolia Agricultural University, Hohhot 010020, China
2
Guangdong Province Key Laboratory of Microbial Signals and Disease Control, Guangzhou 510642, China
3
Institute of Plant Protection, Inner Mongolia Academy of Agricultural & Animal Husbandry Sciences, Hohhot 010031, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Plants 2024, 13(7), 925; https://doi.org/10.3390/plants13070925
Submission received: 16 February 2024 / Revised: 6 March 2024 / Accepted: 13 March 2024 / Published: 22 March 2024
(This article belongs to the Special Issue Emerging Topics in Biological Control of Plant Diseases)
Browse Figures
Review Reports Versions Notes

Abstract

:
Potato Fusarium Wilt is a soil-borne fungal disease that can seriously harm potatoes throughout their growth period and occurs at different degrees in major potato-producing areas in China. To reduce the use of chemical agents and improve the effect of biocontrol agents, the inhibitory effects of the fermentation broth of Bacillus subtilis ZWZ-19 (B) and Trichoderma asperellum PT-29 (T) on Fusarium oxysporum were compared under single-culture and co-culture conditions. Furthermore, metabolomic analysis of the fermentation broths was conducted. The results showed that the inhibitory effect of the co-culture fermentation broth with an inoculation ratio of 1:1 (B1T1) was better than that of the separately cultured fermentation broths and had the best control effect in a potted experiment. Using LC-MS analysis, 134 metabolites were determined and classified into different types of amino acids. Furthermore, 10 metabolic pathways had the most significant variations, and 12 were related to amino acid metabolism in the KEGG analysis. A correlation analysis of the 79 differential metabolites generated through the comprehensive comparison between B, T, and B1T1 was conducted, and the results showed that highly abundant amino acids in B1T1 were correlated with amino acids in B, but not in T.

1. Introduction

Potato (Solanum tuberosum L.; family: Solanaceae) is an annual herbaceous plant and the fourth largest food crop in the world, providing various nutrients, such as vitamins, to humans [1]. Potato is the main food crop in China given their high consumption value, with a planting area of 4.915 million hm2 and producing 91.881 million t, accounting for 28.3% of the global total planted area and 24.8% of the total production, respectively, in 2019 [2,3]. China currently has the largest potato planting area, yield, and harvest globally [4]. Issues such as single planting techniques, shortened crop rotation cycles, and decreased cultivation levels have disrupted soil microbial communities, leading to increases in various potato diseases, among which Fusarium wilt is particularly severe [5,6,7]. Generally, it causes a reduction of about 30% in production and, in some continuous cropping plots, causes more than 78% of plants to die, seriously restricting the healthy and steady development of China’s potato production and processing industry [8]. Potato farmers mostly use chemical agents to control Fusarium wilt, but the frequent use of such chemical pesticides negatively affects the environment and food safety [9,10]. Biological control is harmless and long term and is an effective method for preventing and controlling diseases [11]. Bacillus spp. exert antagonistic effects against various pathogenic fungi and bacteria [12]. Trichoderma is an important biocontrol fungus that can control plant diseases through mechanisms such as competition, the production of antibacterial secondary metabolites, parasitism, and the induction of plant disease resistance [13]. To date, more than 300 secondary metabolites have been isolated from Trichoderma, of which more than 45 antimicrobial metabolites have been identified, which are directly related to the efficacy of Trichoderma for biological control [14]. However, the use of a single strain often faces issues such as unstable colonisation, whereas the combined use of multiple strains can improve antibacterial activity and enhance their ability to adapt to the environment [15,16,17]. Thus, using multiple microorganisms to jointly control plant diseases can improve the effectiveness of biological control [18]. Wei [19] found that Bacillus subtilis and Chaetomium globosum had a better control effect on cucumber wilt disease when combined than when applied individually.
Metabolomics technology is used to study metabolites in biological samples, helping to identify and determine mechanisms of action [20,21]. Liquid chromatography–mass spectrometry (LC-MS), gas chromatography–mass spectrometry (GC-MS), and nuclear magnetic resonance have promoted the rapid development of metabolomics [22,23]. For example, metabolomics technology has been used to identify the metabolites, targets, and mechanisms of action of biocontrol bacteria against pathogenic bacteria. Xu et al. (2019) analysed the antifungal activity and functional components of cell-free supernatants from Bacillus amyloliquefaciens LZN01, which inhibits Fusarium oxysporum f. sp. niveum growth [24]. Fan et al. (2022) revealed the biocontrol mechanism of Purpureocillium lilacinum by studying its fermentation broth activity and metabolites [25]. Hao et al. (2023) identified 6-PP from a fermentation solution of Trichoderma asperellum PT-15 and applied it to the nutrient solution of soilless-cultivated tomatoes to prevent and control tomato Fusarium wilt [26].
In our previous studies, the volatile compound 2-methylbenzothiazole from B. subtilis S-16 had evident inhibitory effects against the mycelium growth of Sclerotinia sclerotiorum and Botrytis cinerea. A combination ratio of S-16 and PT-29 of 2:1 exhibited the best control against potato Verticillium wilt [27,28]. In the present study, a single-culture and co-culture fermentation solution of B. subtilis ZWZ-19 and T. asperellum PT-29 were used to carry out bacteriostatic tests on their ability to control Fusarium oxysporum. We also verified their preventive effect against potato Fusarium wilt in potted experiments and carried out a metabolomic analysis using LC-MS/MS. Our findings provided new ideas for the biological control of Fusarium wilt.

2. Materials and Methods

2.1. Pathogens, Biocontrol Strains, and Plants

Fusarium oxysporum (GenBank accession: OR523626), which causes potato Fusarium wilt, and the biocontrol fungus Trichoderma asperellum PT-29 were cultured on Petri dishes containing potato dextrose agar (PDA). The biocontrol bacterium B. subtilis ZWZ-19 was cultured in Luria–Bertani (LB) medium. Pathogen and biocontrol strains were obtained from the Fungus Preservation Collection of the Inner Mongolia Agricultural University, China. Susceptible potato plants were provided by the Inner Mongolia Potato Breeding Center, China.

2.2. Preparation of the Fermentation Broth and Observation of Morphological Characteristics among Different Culture Methods

Referring to the study by Wu et al. (2018) [15], with minor modifications, the fermentation solution was prepared as follows: B. subtilis ZWZ-19 was cultured on LB medium for 2 days, and a single colony was selected for further incubation on LB broth in a shaking incubator at 180 rpm and 28 °C for 24 h until the OD600 value was 1.0. Then, 3 mL ZWZ-19 culture fluid was separately inoculated onto 100 mL potato dextrose broth (PDB) and fermented for 3 days at 180 rpm and 28 °C. The resulting fermentation solution named B. T. asperellum PT-29 was cultured on PDA and incubated at 28 °C for 3 days. The spores were washed with sterile water, filtered through sterilised absorbent cotton, and inoculated on PDB. The final concentration of spores was adjusted to 106 spores mL−1. The samples were then cultured in a shaking incubator at 180 rpm and 28 °C for 24 h until the OD600 value was 1.0. Then, 3 mL PT-29 was added to 100 mL PDB and fermented for 3 days at 180 rpm and 28 °C, resulting in a fermentation broth named T. Broth B1T2 contained 2 mL PT-29 and 1 mL ZWZ-19 co-inoculated into 100 mL PDB and fermented at 180 rpm and 28 °C for 3 days. Broth B2T1 contained 2 mL ZWZ-19 and 1 mL PT-29 co-inoculated into 100 mL PDB and fermented at 180 rpm and 28 °C for 3 days. Broth B1T1 contained 1.5 mL PT-29 and 1.5 mL ZWZ-19 co-inoculated into 100 mL PDB medium and fermented at 180 rpm and 28 °C for 3 days. For the control, 3 mL PDB culture solution was inoculated into 100 mL PDB medium and fermented at 180 rpm and 28 °C for 3 days. The morphological characteristics of the different cultivation methods were observed.

2.3. Inhibition of F. oxysporum ZY-7 by Fermentation Solution

The aseptic fermentation filtrate was obtained by filtering through a 0.22 μm aseptic filter. Then, 2.5 mL of the filtrate of each group was added to 10 mL of PDA medium cooled to 55 °C in every Petri dish. Subsequently, circular fungal blocks with a diameter of 8 mm were collected using a punch tool and placed at the plate centre for incubation at 25 °C for 3 days. Finally, the colony diameter was measured, and the inhibition rate was calculated as follows:
Inhibition rate (%) = (Control colony diameter − Treatment colony diameter)/Control colony diameter × 100% [29].
Generally, if the inhibition rate exceeds 50%, this indicates a good inhibitory effect [8].

2.4. Control Effect of the Fermentation Broth on Potato Fusarium Wilt

The spore concentration of the F. oxysporum isolate was adjusted to 1 × 106 spores m−1 and was used to inoculate potato plants with five or six leaves planted in pots. And then, the fermentation liquid from each group was poured into the pots. The amount of inoculation and fermentation liquid was 50 mL. Furthermore, the disease index and control effect of potato Fusarium wilt were tested after 15 d [30]. The same 6 groups as in Section 2.2 were established, each with three replicates with 10 potato plants per replicate.
SPSS 25.0 software (IBM Corp, Armonk, NY) was used for one-way ANOVA analysis and Graphpad 8.0 (Inc., San Diego, CA, USA) software was used for mapping.

2.5. LC-MS/MS Analysis of the Fermentation Broth of T. asperellum PT-29 and B. subtilis ZWZ-19 Co-Culture

According to the test results of Section 2.3 and Section 2.4, the fermentation broths B1T1, B, and T were filtered through a sterilised Millipore filter of pore size 0.22 µm and sent to Beijing Novogene Technology Co., Ltd., Beijing, China for metabolomics testing.
The method proposed by Hu et al. (2023) [31] was slightly modified. All samples were thawed at 4 °C and mixed evenly. Each 1 mL sample was placed in a 1.5 mL centrifuge tube and centrifuged for 10 min at 4500 rpm/min. Then, 200 μL of supernatant was added to 400 μL of extract solution (methanol/acetonitrile = 3:1) and left to stand for 1 h at 4 °C following vortex oscillation. Next, the supernatant was centrifuged at 12,000 rpm/min and 4 °C for 15 min, and then an equal volume of 50% methanol aqueous solution was added. Subsequently, 100 μL of solution containing 50% methanol of each sample was centrifuged for 15 min at 12,000 rpm/min and 4 °C again. Finally, 20 µL of each sample was used for quality control analysis, and the remaining sample was used for LC-MS.
For chromatographic analysis, the samples were placed in an 8 °C automatic sampler and passed through an ultrahigh performance liquid chromatography system. The HSS T3 1.7 µm (2.1 × 50 mm) chromatographic column was used for gradient elution. The injection volume was 5 μL, the flow rate was 0.4 mL/min, and the column temperature was 40 °C. The chromatographic mobile phases used were as follows: A: 5 mM ammonium formate in water, B: acetonitrile, C: 0.1% formic acid in water, and D: 0.1% formic acid in acetonitrile. The gradient elution procedure was as follows: 0–1 min, D changed linearly from 10% to 30%; 1–19 min, D changed linearly from 30% to 95%; 20–21 min, D changed linearly from 95% to 10%; 21–25 min, D was maintained at 10%. A Thermo QEHF-X instrument was used for electrospray ionisation, and the cation–anion ionisation mode was used for mass spectrometry. The positive and negative ion-spray voltage was 2.50 kV. The sheath gas was 50 arb, and the auxiliary gas was 13 arb. The capillary temperature was 325 °C, the capillary voltage was 35 V/−15 V, and the full scan was conducted at a resolution of 60,000 with a scope of 80–1000 m/z. CID was applied for the secondary dissociation at a fragmentor voltage of 30 eV [23].

2.6. Metabolomics Data Analysis

The original data obtained from mass spectrometry were imported into Compound Discoverer 3.1 software for spectral processing and database searching to qualitatively and quantitatively determine metabolites. Quality control was performed on the data to ensure the accuracy and reliability of the results. Next, multivariate statistical analysis was conducted on the metabolites, including principal component analysis (PCA) and partial least squares discriminant analysis (PLS-DA), to reveal the differences in metabolic patterns among the different groups. Hierarchical clustering and metabolite correlation analyses were used to reveal the relationships between different samples [32]. The databases KEGG, HMDB, and LIPID MAPS were used to annotate the identified metabolites and understand their functional properties and classifications.

3. Results

3.1. Morphological Characteristics of B. subtilis ZWZ-19 and T. asperellum PT-29 and Their Inhibitory Effects on F. oxysporum

B. subtilis ZWZ-19 and T. asperellum PT-29 were cultured in different culture styles in different proportions, and their morphological characteristics were observed. Fermentation broth B of ZWZ-19 showed a milky white suspension, whereas fermentation broth T of PT-29 was relatively light and beige, with dense hyphae, after being cultured separately for 3 days. After 3 days of co-cultivation, the fermentation broth B1T1 appeared bright yellow, and the mycelium was clearly visible. The fermentation broth B2T1 turned slightly yellow, indicating that ZWZ-19 was dominant and that a small number of PT-29 mycelia were clustered together (Table 1). B2T1 had a higher inhibitory effect on F. oxysporum than T but a lower effect than B. The inhibitory effect of B1T1 was better than that of B, T, B2T1, and B1T2 (Figure 1A,B). The control effects observed in the pot experiment were consistent with these results (Figure S1). Thus, B1T1 has a significantly better inhibitory effect on F. oxysporum than other fermentation broths.

3.2. Annotation and Multivariate Statistical Analysis of Metabolites

Through LC-MS/MS analysis, 134 different metabolites were annotated based on the KEGG, HMDB, and LipidMaps databases, among which 47 metabolites were annotated from KEGG and HMDB databases, 14 from HMDB and LipidMaps databases, 3 metabolites from all three databases, 62 metabolites from the HMDB database, and only 4 metabolites from KEGG and LipidMaps databases, respectively, including 30 types of amino acid, 27 types of organoheterocyclic compounds, 18 types of benzenoid, 31 types of lipids and lipid-like molecules, 6 types of nucleosides, 2 types of amines, and 16 other types (Table S1). Among these metabolites, several substances were reported to inhibit Fusarium oxysporum like aconitic acid, alpha amino acid, phenylalanine, hydroxyproline, etc. [33,34,35].
PCA and OPLS-DA can effectively extract the main information from samples and maximise the differentiation between each group of samples to explore differential metabolites [36]. Based on the results in Section 3.1, the following metabolome analysis only focuses on the co-cultured fermentation solution B1T1, which exhibited the best control effect, and the single-culture broths B and T. Differences in metabolite levels between groups were analysed through PCA and OPLS-DA. The results showed significant differences in metabolite components between B and T, B1T1 and B, and B1T1 and T (Figure 2).

3.3. Analysis of Differential Metabolites in Single- and Co-Culture Fermentation Solutions of B. subtilis ZWZ-19 and T. asperellum PT-29

According to LC-MS/MS analysis, differential metabolites were screened by comparing B and T, B1T1 and B, and B1T1 and T based on variable importance projection (VIP) > 1.2 and fold change (FC) ≥3 and ≤0.1. Between B and T, there were 71 differential metabolites, of which 42 were upregulated and 29 were downregulated; between B1T1 and B, there were 90 differential metabolites, of which 58 were upregulated and 34 were downregulated. Between B1T1 and T, there were 34 differential metabolites, of which 20 were upregulated and 14 were downregulated (Table 2).

3.4. Comprehensive Comparison of Metabolite Differences

A total of 79 compounds were found to significantly differ among B, T, and B1T1. We found 29 compounds at significantly high proportions in B, 32 in T, and 18 in B1T1 (Figure 3).

3.5. Comparison of Amino Acid Production in Fermentation Broths

When B. subtilis ZWZ-19 and T. asperellum PT-29 were co-cultured, there were more types of amino acids in B1T1 than in pure cultures B and T (Table 3).

3.6. KEGG Signal Pathway Analysis of Differential Metabolites

KEGG analysis was conducted on the 79 differential metabolites generated from the comprehensive comparison of B, T, and B1T1. The integrative calculation of impact and −log (p) indicated that the metabolites were involved in 10 metabolic pathways and 3 were related to the metabolism of amino acids, such as alanine, aspartate, and glutamate metabolism. (Table S2, Figure 4).

3.7. Correlation Analysis of Differential Metabolites

Correlation analysis of metabolomics can reveal the relationships between metabolites. An increase in the production of one substance can promote or inhibit the production of another. We conducted a correlation analysis of the 79 differential metabolites generated through a comprehensive comparison of B, T, and B1T1. Positive correlations were observed among N-acetyl-L-tyrosine, d-ala-d-alanine, urocanic acid, 2-hydroxyphenylalanine, and Gly-Phe levels in B1T1 cells. 2-hydroxyphenylalanine (B1T1) and LL-2,6-diaminopimelate were abundant in B1B1 and were significantly correlated with indole-3-butyric acid in B. LL-2,6-diaminopimelate (B1T1) was abundant in B1T1 and presented a positive correlation with L-malate in B. There were also positive correlations between 8-aminooctanoic acid and L-malate, between L-methionine sulfoxide and indole-3-butyric, and between Gly-Phea and indole-3-butyric acid in B1T1 and B. The amino acids with abundance in B1T1 had no correlation with amino acids in T. For example, the abundant amino acid N6-Acetyl-L-lysine, LL-2,6-Diaminopimelate in B1T1 were highly correlated with Deoxyguanosine and DL-m-Tyrosine in B respectively.These results showed that the effect on amino acid yield of the co-culture mainly depended on B but not on T (Figure 5).

4. Discussion

Farmers use chemical pesticides as the main control measure for potato wilt disease, but the frequent use of chemical pesticides has a serious impact on the environment and food safety [37]. In our previous studies, we found that the volatile substance 2-methylbenzothiazole in ZWZ-19 has a strong inhibitory effect on Sclerotinia sclerotiorum and Botrytis cinerea [27]. In addition, the control effect of combining ZWZ-19 and PT-29 at a 2:1 ratio on potato Verticillium wilt reached 69.23% [28]. In the present study, we compared the inhibitory effects of B. subtilis ZWZ-19 and T. asperellum PT-29 on F. oxysporum and their control effects on potato wilt under single-culture and co-culture conditions. In addition, we analysed the metabolites of ZWZ-19 and PT-29 under single- and co-culture conditions using LC–MS/MS. The experimental results obtained in this study provide new ideas for the prevention and control of potato wilt disease and provide a theoretical basis for the development of microbial pesticides.
As a broad-spectrum agent, B. subtilis in co-culture fermentation broths can control maize sheath blight and strawberry powdery mildew [38,39,40]. However, the control of plant diseases using the co-culture fermentation broth of T. asperellum has not been reported to date. Wu et al. found that the antimicrobial effect of a co-culture fermentation broth of B. amyloliquefaciens ACCC11060 and T. asperellum GDFS1009 was significantly higher than that of pure cultures [41]. In the present study, we found that the co-cultured broth containing B. subtilis ZWZ-19 and T. asperellum PT29 at a ratio of 2:1 had the best effect on controlling potato wilt disease, with inhibition rates of 68.07% and 76.16%, respectively. These results are consistent with those reported by Wu et al. (2018) [15].
In microbial co-cultures, microorganisms interact with each other and compete for limited nutrients and living spaces. These interactions stimulate the production of bioactive secondary metabolites that cannot be obtained from corresponding pure cultures [15]. In the present study, we annotated 134 substances, 34 of which accounted for 25% of the total. Meanwhile the inhibition rate against Staphylococcus aureus and 15 biosynthesised metabolites was detected by optimising the fermentation conditions of a co-culture of Aspergillus sydowii and Bacillus subtilis in [42]. That study suggested that new antibacterial substances could be discovered by optimising the co-culture conditions of ZWZ-19 and PT29.
There were more types of amino acids in B1T1 than in B and T. Amino acids have a wide range of applications in food and feed biotechnology and are also used as intermediates in the chemical industry [15]. For examples, Vancomycin is a sugar skin antibiotic that binds to D-Ala-D-Ala to inhibit bacterial cell wall growth, which leads to bacterial cell apoptosis, and Isotretinoin is a type of systemic tretinoin that has significant anti-inflammatory effects [43,44]. A total of 79 metabolites were involved in 26 metabolic pathways, of which 10 pathways were highly variable, and 12 pathways were associated with amino acid metabolism based on the KEGG analysis (Figure 4). Among the 10 metabolic pathways, 5 have been reported to be related to the biological control of pathogens. They participated in the biological control of pathogens through different metabolic pathways. One was involved in cell signal transduction, such as cell wall synthesis, jasmonic acid signal transduction, and auxin regulation, like inositol phosphate metabolism [45]; one induced plant resistance to infection by pathogens, such as Pyruvate metabolism, and three acted through the inhibition of pathogenic bacteria and through competition [46,47,48] (Table S2). These results were somewhat different to those reported by Wu et al. [15]. Another unreported metabolic pathway is worth studying in the future. Correlation analysis is important to determine the association between different compounds. During production, the yield of one compound can be increased by increasing the amount of the other [49]. Positive correlations were observed between N-acetyl-L-tyrosine, D-Ala-D-Ala, and others. 2-hydroxyphenylalanine and LL-2,6-diaminopimelate were abundant in B1T1 and were significantly correlated with Indole-3-butyric acid in B. LL-2,6-Diaminopimelate was abundant in B1T1, which presented a positive correlation with L-malate in B. Furthermore, this positive correlation occurred between 8-aminooctanoic acid and L-malate, between L-methionine sulfoxide and Indole-3-butyric, and between Gly-Phea and indole-3-butyric acid in B1T1 and B (Figure 5). The amino acids with high yields in B1T1 were not correlated with the amino acids in T. These results showed that the effect on the amino acid yield of the co-culture mainly depended on B, but not on T.

5. Conclusions

In terms of plant disease and pest control, the overuse of chemical pesticides has seriously threatened the environment and food safety. Therefore, it is important to explore environmentally friendly control strategies. Increasing attention has been paid to the use of effective microorganisms to control plant diseases. Some studies have reported that a combination of several biocontrol bacteria is more effective against plant diseases than a single bacterium. The combined use of biocontrol bacteria is a novel strategy for controlling plant diseases. The combined use of biocontrol bacteria involves complex processes. In the future, we will further explore the separation and extraction of active antibacterial ingredients in co-culture fermentation systems and study the differences in metabolic pathways, thereby providing theoretical support for the industrialisation of biocontrol agents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/plants13070925/s1, Table S1: Details of all annotated compounds based on LC-MS/MS; Table S2: Significantly changed KEGG pathways; Figure S1: Control effects in potted experiments.

Author Contributions

Conceptualisation, J.H. and Z.W.; methodology, J.H. and D.W.; software, S.F. and Y.Z. (Yinqiang Zhang); validation, J.H. and Z.C.; formal analysis, J.H. and Z.C.; investigation, S.F.; data curation, J.H. and Y.Z. (Yuanzheng Zhao); writing—original draft preparation, J.H.; writing—review and editing, J.H. and Z.W.; supervision, H.Z.; project administration, H.Z.; funding acquisition, H.Z. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by central guidance for local scientific and technological development funds, grant number 2023ZY0014; the Inner Mongolia Natural Science Foundation, grant number 2021BS03008; basic research business fees for universities directly under the Mongolian Autonomous Region, grant number BR22-11-14 and BR22-13-11; the Open Project of Guangdong Province Key Laboratory of Microbial Signals and Disease Control, grant number MSDC2023-04.

Data Availability Statement

The data supporting this study can be accessed by contacting the first author by e-mail at [email protected].

Acknowledgments

The authors thank all editors and reviewers for their comments on this manuscript.

Conflicts of Interest

The authors declare no conflicts of interest. The funders had no role in the design of the study; in the collection, analyses, or interpretation of data; in the writing of the manuscript, or in the decision to publish the results.

References

  1. Ding, K.; Wang, L.; Tian, G.; Wang, H.; Li, F.; Pan, Y.; Pang, Z.; Shan, Y. Response of potato growth and physiological characteristics to water stress. Crops 2023, 4, 16–21. [Google Scholar] [CrossRef]
  2. Liu, Y.; Yi, X.; Luo, Q.; Gao, M.; Zhang, M. Analysis of potato trade and marketing strategy in China. Chin. Agric. Sci. Bull. 2016, 32, 180–185. [Google Scholar]
  3. Jia, R.; Kang, L.; Zhao, Y.; An, L.; Zhang, Z.; Zhao, J.; Xu, L.; Zhang, J. Isolation, identification and their biological characteristics of pathogens of potato Fusarium wilt in Yinshan area, Inner Mongolia. J. Zhejiang Univ. 2023, 49, 65–75. [Google Scholar]
  4. Jansky, S.; Jin, L.; Xie, K.; Xie, C.; Spooner, D. Potato production and breeding in China. Potato Res. 2009, 52, 57–65. [Google Scholar] [CrossRef]
  5. Li, J.; Li, M.; Hui, N.; Wang, L.; Ma, Y.; Qi, Y. Population dynamics of major pathogenic fungi in soil of potato continuous cropping fields. Acta Prataculturae Sin. 2016, 22, 147–152. [Google Scholar]
  6. Gao, Z.; Hu, Y.; Han, M.; Xu, J.; Wang, X.; Liu, L.; Tang, Z.; Jiao, W.; Jin, R.; Liu, M. Effects of continuous cropping of sweet potatoes on the bacterial community structure in rhizospheric soil. BMC Microbiol. 2021, 21, 102. [Google Scholar] [CrossRef] [PubMed]
  7. Osdaghi, E.; van der Wolf, J.M.; Abachi, H.; Li, X.; De Boer, S.H.; Ishimaru, C.A. Bacterial ring rot of potato caused by Clavibacter sepedonicus: A successful example of defeating the enemy under international regulations. Mol. Plant Pathol. 2022, 23, 911–932. [Google Scholar] [CrossRef] [PubMed]
  8. Xia, S.; Niu, Z.; Li, Q.; Zhang, L.; Sheng, W. Research progress and control measures of Fusarium wilt of potato. Heilongjiang Agric. Sci. 2022, 2, 89–94. [Google Scholar]
  9. Xu, S.; Xie, X.W.; Zhang, Y.; Shi, Y.; Chai, A.; Li, L.; Li, B. Screening of biocontrol Bacillus isolate against potato Fusarium wilt and Its biocontrol effect. Chin. J. Biol. Control 2020, 36, 761–770. [Google Scholar] [CrossRef]
  10. Li, L.; Zhu, T.; Song, Y.; Feng, L.; Kear, P.J.; Riseh, R.S.; Sitohy, M.; Datla, R.; Ren, M. Salicylic acid fights against Fusarium wilt by inhibiting target of rapamycin signaling pathway in Fusarium oxysporum. J. Adv. Res. 2022, 39, 1–13. [Google Scholar] [CrossRef]
  11. Ben Khedher, S.B.; Mejdoub-Trabelsi, B.; Tounsi, S. Biological potential of Bacillus subtilis V26 for the control of Fusarium wilt and tuber dry rot on potato caused by Fusarium species and the promotion of plant growth. Biol. Control 2021, 152, 104444. [Google Scholar] [CrossRef]
  12. Collinge, D.B.; Jensen, D.F.; Rabiey, M.; Sarrocco, S.; Shaw, M.W.; Shaw, R.H. Biological control of plant diseases–what has been achieved and what is the direction? Plant Pathol. 2022, 71, 1024–1047. [Google Scholar] [CrossRef]
  13. Ferreira, F.V.; Musumeci, M.A. Trichoderma as biological control agent: Scope and prospects to improve efficacy. World J. Microbiol. Biotechnol. 2021, 37, 90. [Google Scholar] [CrossRef] [PubMed]
  14. Li, Z.; Li, X.; Ren, Y. Role of Trichoderma viride histone deacetylase gene TvRpd3 in the biocontrol of Trichoderma. Acta Microbiol. Sin. 2023, 63, 3560–3573. [Google Scholar] [CrossRef]
  15. Wu, Q.; Ni, M.; Dou, K.; Tang, J.; Ren, J.; Yu, C.; Chen, J. Co-culture of Bacillus amyloliquefaciens ACCC11060 and Trichoderma asperellum GDFS1009 enhanced pathogen-inhibition and amino acid yield. Microb. Cell Factor. 2018, 17, 155. [Google Scholar] [CrossRef]
  16. Wang, Y.; Pruitt, R.N.; Nürnberger, T.; Wang, Y. Evasion of plant immunity by microbial pathogens. Nat. Rev. Microbiol. 2022, 20, 449–464. [Google Scholar] [CrossRef]
  17. Ma, Q.; Cong, Y.; Feng, L.; Liu, C.; Yang, W.; Xin, Y.; Chen, K. Effects of mixed culture fermentation of Bacillus amyloliquefaciens and Trichoderma longibrachiatum on its constituent strains and the biocontrol of tomato Fusarium wilt. J. Appl. Microbiol. 2022, 132, 532–546. [Google Scholar] [CrossRef]
  18. Zhang, X.; Lin, W.; Li, Q.; Liu, R.; Liu, J.; Wang, M.; Wang, Y.F.; Zhao, D.; Zhang, C. Construction and Optimization of a Co-culture System of Anti-Phytophth nicotianae Trichoderma asperellum HG1 and Bacillus subtilis Tpb55. Chin. Tob. Sci. 2022, 43, 61–68. [Google Scholar] [CrossRef]
  19. Wei, Y. Study on Isolation and Identification of Bacillus subtilis and Its Synergism with Chaetomium globosum for Control of Cucumber Fusarium Wilt. Ph.D. Thesis, Shandong Agricultural University, Tai’an, China, 2019. [Google Scholar]
  20. Kaddurah-Daouk, R.; Krishnan, K.R. Metabolomics: A global biochemical approach to the study of central nervous system diseases. Neuropsychopharmacology 2009, 34, 173–186. [Google Scholar] [CrossRef]
  21. Wishart, D.S. Applications of metabolomics in drug discovery and development. Drugs R D 2008, 9, 307–322. [Google Scholar] [CrossRef]
  22. Dunn, W.B.; Ellis, D.I. Metabolomics: Current analytical platforms and methodologies. TrAC Trends Anal. Chem. 2005, 24, 285–294. [Google Scholar] [CrossRef]
  23. Xu, W. Different Analysis in Camel Milk Components before and after Fermentation Based on Non-Targeted Metabolomics. Ph.D. Thesis, Inner Mongolia Agricultural University, Inner Mongolia, China, 2023. [Google Scholar]
  24. Xu, W.; Wang, H.; Lv, Z.; Shi, Y.; Wang, Z. Antifungal activity and functional components of cell-free supernatant from Bacillus amyloliquefaciens LZN01 inhibit Fusarium oxysporum f. sp. niveum growth. Biotechnol. Biotechnol. Equip. 2019, 33, 1042–1052. [Google Scholar] [CrossRef]
  25. Fan, L.; Guo, Y.; Zhao, X.; Sun, M.; Li, S. Biocontrol activities and metabolome analysis of microsclerotia fermentation filtrate of Purpureocillium lilacinum. Chin. J. Biol. Control 2022, 38, 821–830. [Google Scholar] [CrossRef]
  26. Hao, J.; Wuyun, D.; Xi, X.; Dong, B.; Wang, D.; Quan, W.; Zhang, Z.; Zhou, H. Application of 6-pentyl-α-pyrone in the nutrient solution used in tomato soilless cultivation to inhibit Fusarium oxysporum HF-26 growth and development. Agronomy 2023, 13, 1210. [Google Scholar] [CrossRef]
  27. Hu, J.; Wang, D.; Dong, B.; Meng, H.; Zhao, J.; Zhou, H. The inhibitory effect of the volatile compound 2-methyl benzothiazole on pathogenic fungi Sclerotinia sclerotiorum and Botrytis cinerea. J. Plant Prot. 2021, 48, 781–788. [Google Scholar] [CrossRef]
  28. He, S. Preparation of Compound Bacteria for Biocontrol of Potato Verticillium Wilt. Ph.D. Thesis, Inner Mongolia Agricultural University, Inner Mongolia, China, 2021. [Google Scholar]
  29. Lee, T.; Park, D.; Kim, K.; Lim, S.M.; Yu, N.H.; Kim, S.; Kim, H.Y.; Jung, K.S.; Jang, J.Y.; Park, J.C. Characterization of Bacillus amyloliquefaciens DA12 showing potent antifungal activity against mycotoxigenic Fusarium species. Plant Pathol. J. 2017, 33, 499–507. [Google Scholar] [CrossRef]
  30. Choi, H.W.; Ahsan, S.M. Biocontrol activity of Aspergillus terreus ANU-301 against two distinct plant diseases, tomato Fusarium Wilt and potato soft rot. Plant Pathol. J. 2022, 38, 33–45. [Google Scholar] [CrossRef] [PubMed]
  31. Hu, Y.; Yu, Q.; Guo, X.; Wei, X.; Wei, K.; Miu, J. Analysis of different metabolites in different parts of Valeriana jatamansi jones based on non-targeted metabolomics. Mod. Chin. Med. 2023, 25, 1619–1626. [Google Scholar] [CrossRef]
  32. Liang, W.; Zheng, F.; Chen, T.; Zhang, X.; Xia, Y.; Li, Z.; Lu, X.; Zhao, C.; Xu, G. Nontargeted screening method for veterinary drugs and their metabolites based on fragmentation characteristics from ultrahigh-performance liquid chromatography-high-resolution mass spectrometry. Food Chem. 2022, 369, 130928. [Google Scholar] [CrossRef] [PubMed]
  33. Guo, X.; Li, K.; Sun, Y.; Zhang, L.; Hu, X.; Xie, H. Allelopathic effects and identification of alleochemicals in grape root exudates. Acta Hortic. Sin. 2010, 37, 861–868. [Google Scholar] [CrossRef]
  34. Jin, M.; Ding, K.; Lin, M.; Wu, S.; Su, F. The extraction and purification of the antifungal substances to the Fusarium oxysporum from the Paenibacillus polymyxa S960. J. Anhui Agric. Univ. 2020, 47, 798–804. [Google Scholar] [CrossRef]
  35. Wang, W.; Shi, G.; Su, G.; Mou, X.; Zhu, Y.; Yang, H.; LI, M. Analysis of inhibitory effect Aconitic Acid against Fusarium oxysporum f.sp. lili. Acta Agric. Boreali-Occident. Sin. 2022, 31, 224–232. [Google Scholar]
  36. Gong, Y.; Zhou, G.; Peng, S.; Wu, Z.; Liu, J.; Huang, H.; Chen, Z. Differential analysis of the metabolites on Citrus Pericarp Brownspot based on untargeted metabolomics. J. Chin. Inst. Food Sci. Technol. 2022, 22, 316–324. [Google Scholar] [CrossRef]
  37. Kromann, P.; Miethbauer, T.; Ortiz, O.; Forbes, G. Review of potato biotic constraints and experiences with integrated pest management interventions. In Integrated Pest Management; Pimentel, D., Peshin, R., Eds.; Springer: Dordrecht, The Netherlands, 2014. [Google Scholar] [CrossRef]
  38. Zhou, H.; Chu, G.; Duan, H.; Yang, S.; Chen, S.; Zhang, J. Effects of co-culture of two biocontrol bacteria on inhibition of Rhizocto solani and growth promotion of maize seedings. J. Anhui Sci. Technol. Univ. 2023, 37, 41–48. [Google Scholar] [CrossRef]
  39. Hu, H.; Wang, K.; Li, M.; Zhou, R. Efficacy test of several Bacillus subtilis fermentation broth to control strawberry disease. Hubei Agric. Sci. 2002, 2, 52. [Google Scholar]
  40. Lv, J.; Zhang, C.; Qu, T.; Liu, Y.; Hu, S.; Zhao, Y.; Zhang, B. Inhibitory effect of Trichoderma asperellum HG1 and Bacillus subtilis Tpb55 on Botrytis cinerea. China Plant Prot. 2022, 42, 21–25. [Google Scholar]
  41. Karuppiah, V.; Vallikkannu, M.; Li, T.; Chen, J. Simultaneous and sequential based co-fermentations of Trichoderma asperellum GDFS1009 and Bacillus amyloliquefaciens 1841: A strategy to enhance the gene expression and metabolites to improve the bio-control and plant growth promoting activity. Microb. Cell Fact. 2019, 18, 185. [Google Scholar] [CrossRef] [PubMed]
  42. Wang, Y.; Chen, Y.; Fan, L.; Ma, G.; Li, S.; Sun, M.; Bao, Z. Biocontrol and growth-promoting activities of Clonostachys rosea and Bacillus subtilis. Chin. J. Biol. Control 2022, 38, 222–229. [Google Scholar] [CrossRef]
  43. Chen, Y. Study on Dynamic Combinatorial Chemistry of Vancomycin. Ph.D. Thesis, Peking Union Medical College, Beijing, China, 2009. [Google Scholar]
  44. Guo, J. Effects of isotretinoin combined with tacrolimus ointment on adverse reactions in patients with seborrheic dermatitis. Syst. Med. 2023, 8, 155–158. [Google Scholar] [CrossRef]
  45. Kanter, U.; Usadel, B.; Guerineau, F.; Li, Y.; Pauly, M.; Tenhaken, R. The inositol oxygenase gene family of Arabidopsis is involved in the biosynthesis of nucleotide sugar precursors for cell-wall matrix polysaccharides. Planta 2005, 221, 243–254. [Google Scholar] [CrossRef]
  46. Peng, J.; Dong, B.; Wang, D.; Zhou, H. Analysis of differential metabolites of sunflower induced by virulent Verticillium dahlia V33 and hypovirulent Gibellulopsis nigrescens Vn-1. J. Phytopathol. 2022, 170, 349–358. [Google Scholar] [CrossRef]
  47. Xia, F.; Zhang, C.; Wu, Z.; Cao, S.; Wu, P. Antibacterial effect and mechanism of citric acid on spoilage bacteria edible mushroom. J. Shaanxi Univ. Sci. Technol. 2023, 41, 40–45. [Google Scholar] [CrossRef]
  48. Chen, C.; Wang, L.; Adilamu, A.; Zhang, N.; Zhang, W.; Dong, H. The inhibitory activity of copper-aspartate complexes on Erwinia amylovora and its growth-promoting effect on plants. J. Tarim Univ. 2023, 35, 44–51. [Google Scholar]
  49. Xia, J.; Wishart, D.S. Web-based inference of biological patterns, functions and pathways from metabolomic data using MetaboAnalyst. Nat. Protoc. 2011, 6, 743–760. [Google Scholar] [CrossRef] [PubMed]
Plants 13 00925 g001

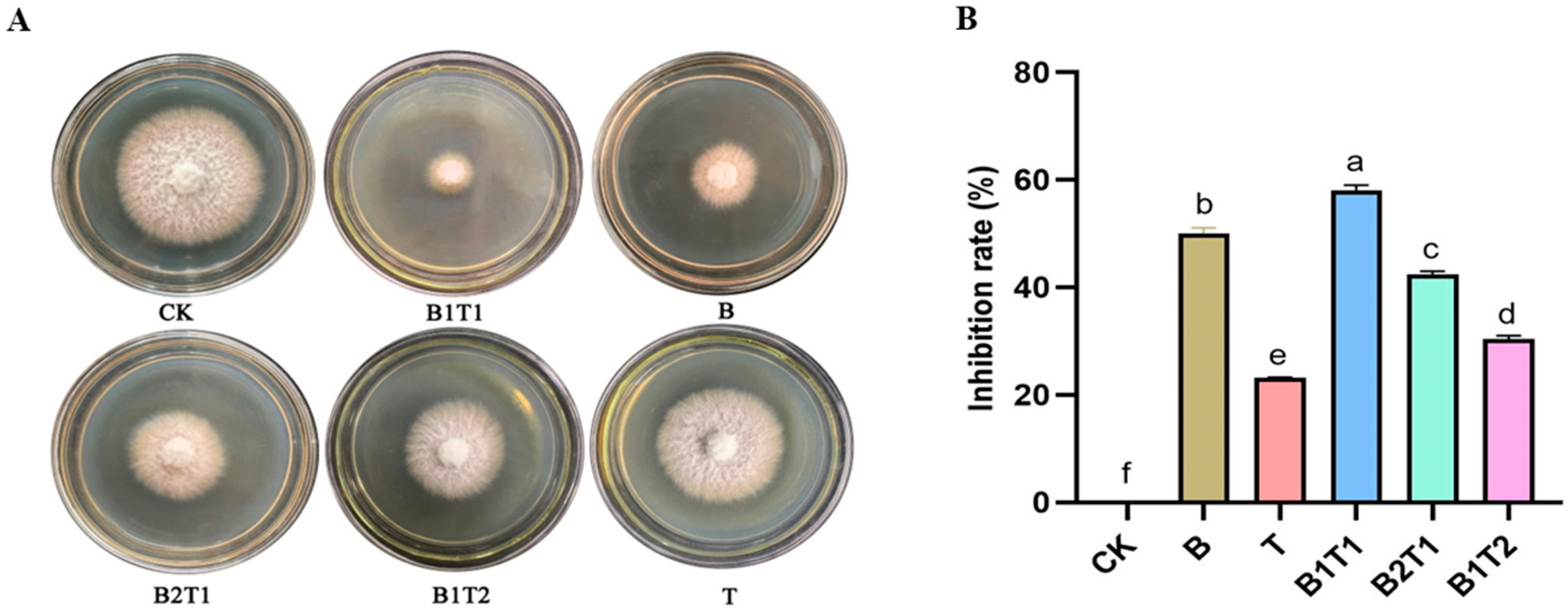

Figure 1. Inhibitory effects of fermentation broths of B. subtilis ZWZ-19 and T. asperellum PT-29 on F. oxysporum. (A,B) Inhibition effects and rates of fermentation broths on F. oxysporum in different culture methods by plate tests and different letters above bars (Tukey’s multiple range test, p < 0.05) indicated significant differences.
Figure 1. Inhibitory effects of fermentation broths of B. subtilis ZWZ-19 and T. asperellum PT-29 on F. oxysporum. (A,B) Inhibition effects and rates of fermentation broths on F. oxysporum in different culture methods by plate tests and different letters above bars (Tukey’s multiple range test, p < 0.05) indicated significant differences.
Plants 13 00925 g001
Plants 13 00925 g002

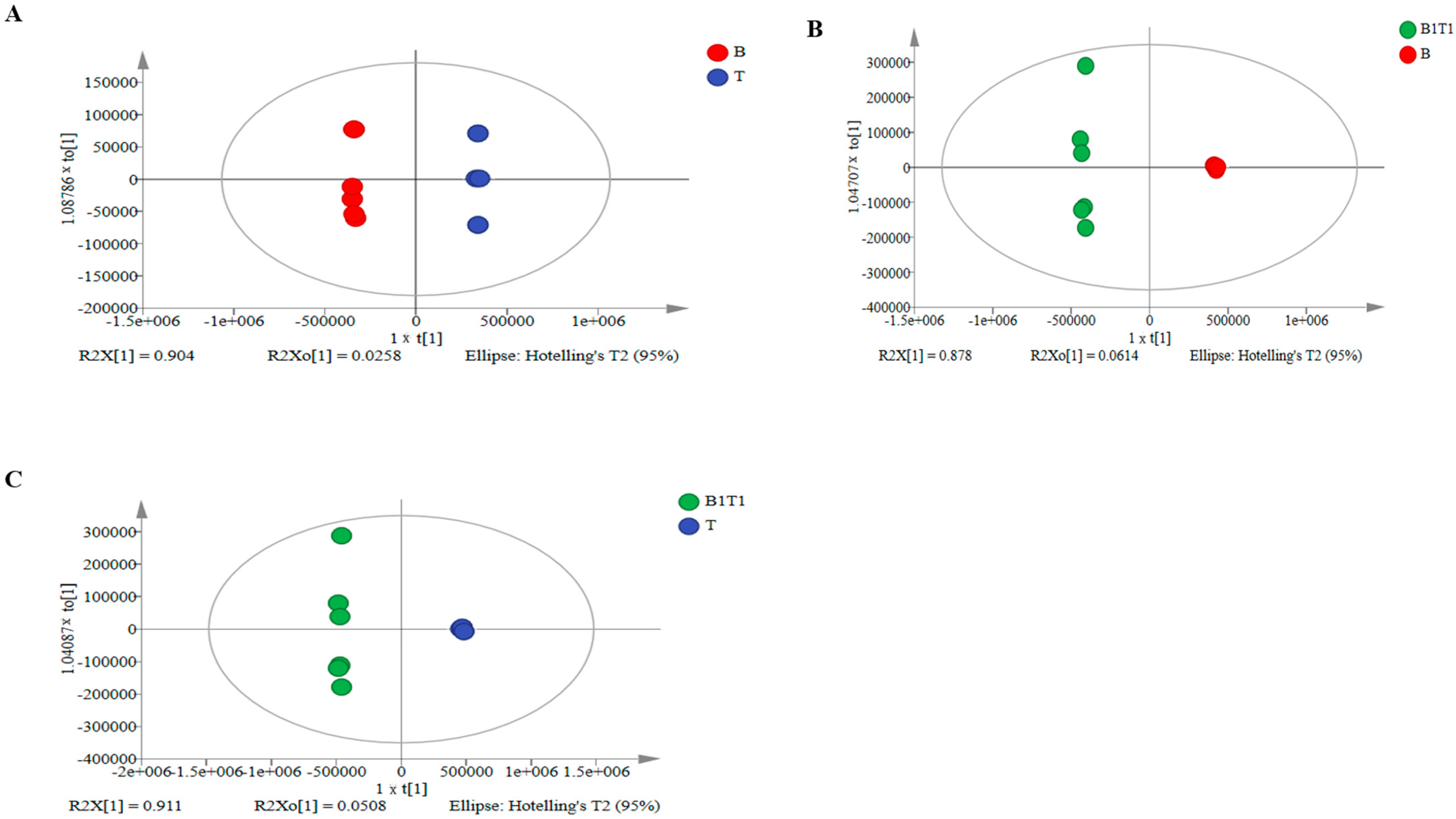

Figure 2. OPLS-DA analysis of the metabolism differences among the fermentation solutions from single-culture and co-culture of B. subtilis ZWZ-19 and T. asperellum PT-29 based on LC–MS/MS. (A) Differences in pure culture fermentation solutions between B and T. (B) Differences of fermentation solutions between B1T1 and B, (C) Differences of fermentation solutions between B1T1 and T.
Figure 2. OPLS-DA analysis of the metabolism differences among the fermentation solutions from single-culture and co-culture of B. subtilis ZWZ-19 and T. asperellum PT-29 based on LC–MS/MS. (A) Differences in pure culture fermentation solutions between B and T. (B) Differences of fermentation solutions between B1T1 and B, (C) Differences of fermentation solutions between B1T1 and T.
Plants 13 00925 g002
Plants 13 00925 g003

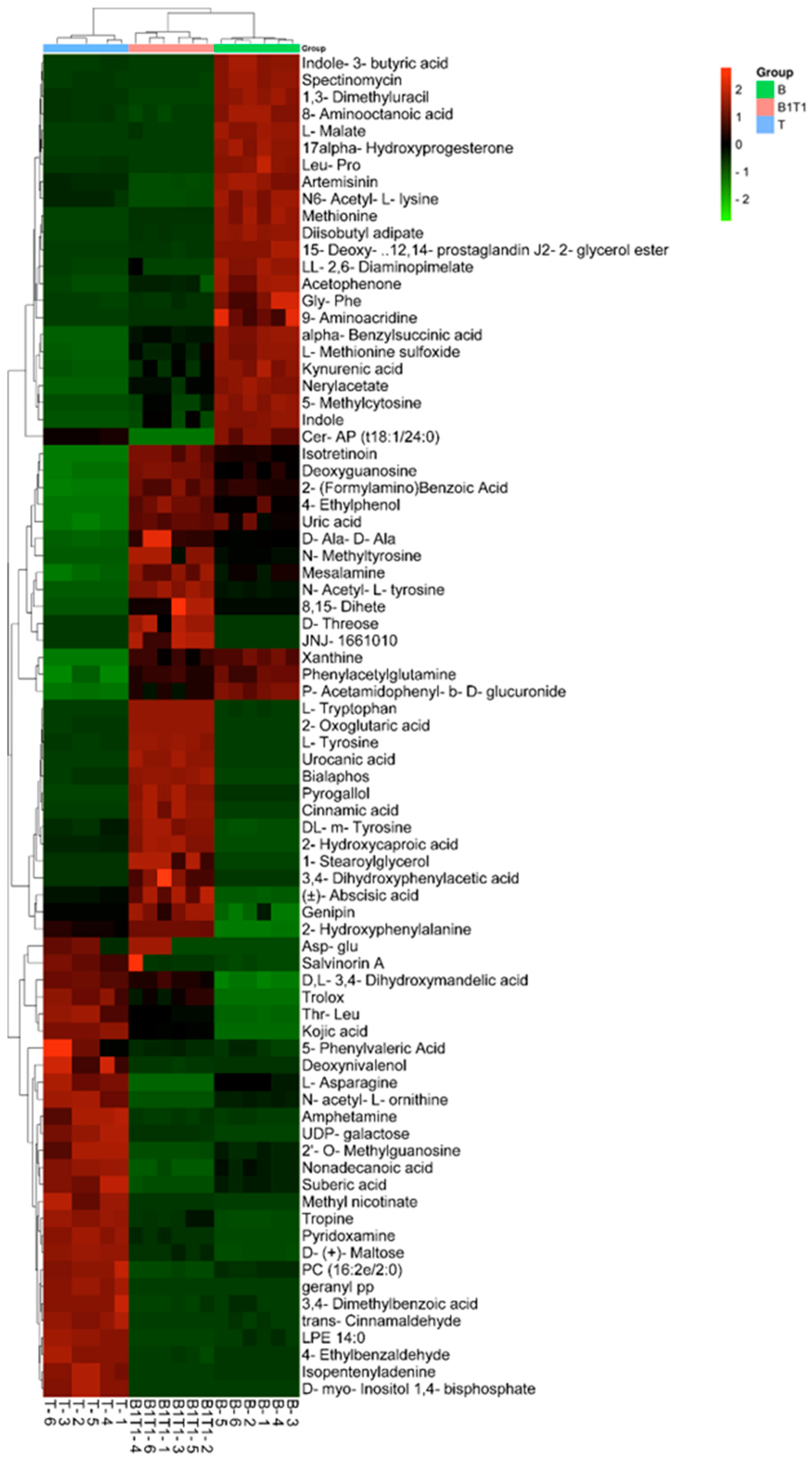

Figure 3. Heatmap of metabolites among the fermentation solutions from pure-cultivation and co-cultivation of B. subtilis ZWZ-19 and T. asperellum PT-29.
Figure 3. Heatmap of metabolites among the fermentation solutions from pure-cultivation and co-cultivation of B. subtilis ZWZ-19 and T. asperellum PT-29.
Plants 13 00925 g003
Plants 13 00925 g004

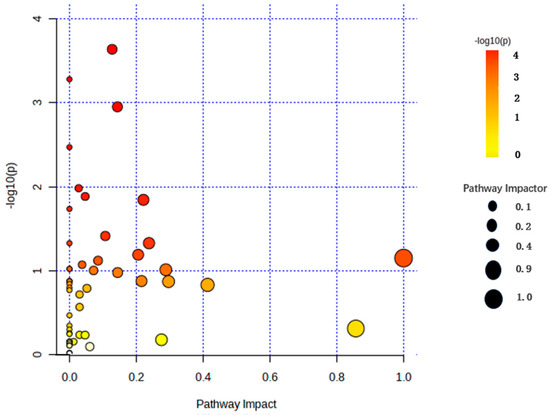

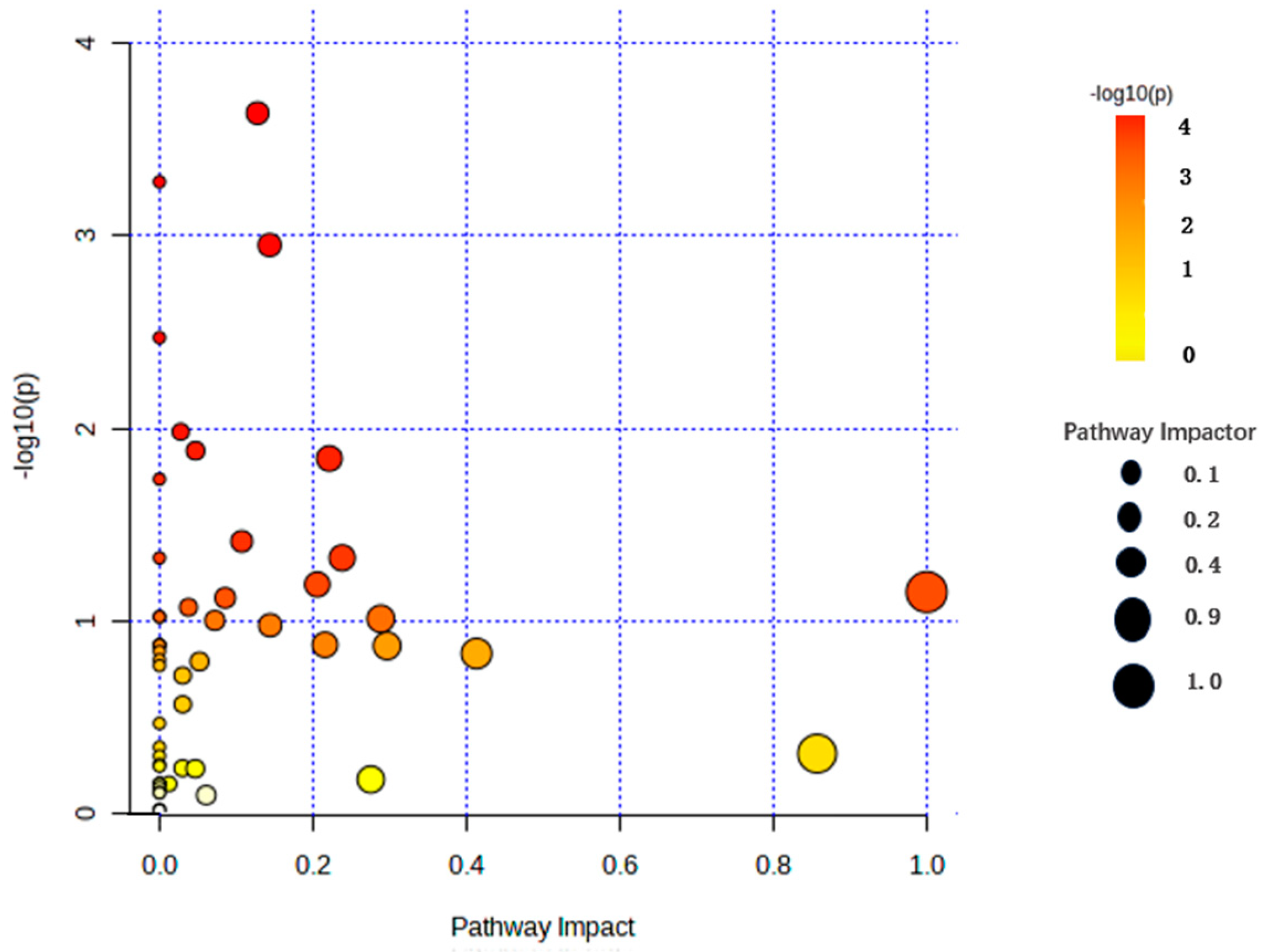

Figure 4. KEGG pathway analysis of the metabolites.
Figure 4. KEGG pathway analysis of the metabolites.
Plants 13 00925 g004
Plants 13 00925 g005

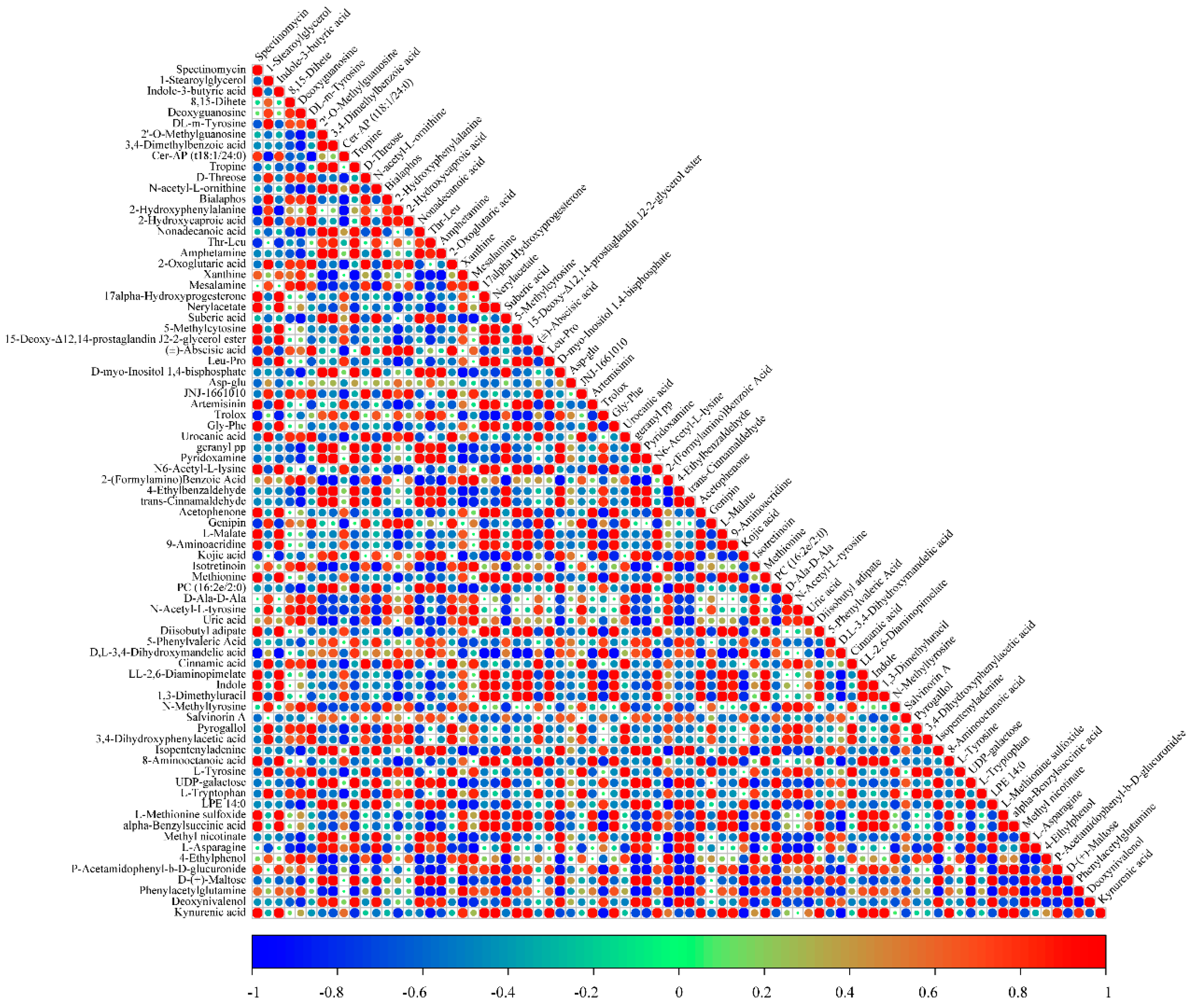

Figure 5. Correlation analysis of metabolites. Red indicates significant positive correlation, blue indicates significant negative correlation, and white indicates no correlation.
Figure 5. Correlation analysis of metabolites. Red indicates significant positive correlation, blue indicates significant negative correlation, and white indicates no correlation.
Plants 13 00925 g005
Table 1. Morphology of single-culture and co-culture fermentation broths of B. subtilis ZWZ-19 and T. asperellum PT-29.
Table 1. Morphology of single-culture and co-culture fermentation broths of B. subtilis ZWZ-19 and T. asperellum PT-29.
TreatmentsInoculation AmountMorphology
(mL)
B. subtilisT. asperellum
ZWZ-19PT-29
CK00None
B30Milky white suspension
T03Beige suspension with dense mycelium
B1T11.51.5Bright yellow suspension with high viscosity mycelium
B2T121Yellowish suspension with small amounts of mycelium
B1T212Dark yellow suspension with slightly more mycelium
Table 2. Differential metabolite comparison between fermentation solutions of single-cultures and co-cultures of B. subtilis ZWZ-19 and T. asperellum PT-29.
Table 2. Differential metabolite comparison between fermentation solutions of single-cultures and co-cultures of B. subtilis ZWZ-19 and T. asperellum PT-29.
TypesB vs. TB1T1 vs. BB1T1 vs. T
TotalUpregulation
Quantity		Downregulation
Quantity		TotalUpregulation
Quantity		Downregulation
Quantity		TotalUpregulation
Quantity		Downregulation
Quantity
Organoheterocyclic compounds 20146221111321
Benzenoids104616142000
Lipids and lipid-like molecules16882010101055
Amino acids12931613517107
Nucleosides541633110
Organic acids312422101
Others523651220
Total714229905834342014
Table 3. Amino acid production under different cultivation types.
Table 3. Amino acid production under different cultivation types.
CultivationCompoundVIPp-Value
BL-Malate1.39 × 10−8 1.58013773
B1,3-Dimethyluracil1.25 × 10−61.546674027
BPhenylacetylglutamine6.69 × 10−61.505866262
BL-Methionine sulfoxide8.67 × 10−41.528419213
BKojic acid1.83 × 10−31.577939364
BL-Asparagine8.65 × 10−31.523708247
B1T1N-Acetyl-L-tyrosine2.86 × 10−71.570824956
B1T1D-Ala-D-Ala2.15 × 10−51.571912954
B1T12-Hydroxyphenylalanine1.12 × 10−51.667481741
B1T1L-Tyrosine1.61 × 10−41.539024139
B1T1LL-2,6-Diaminopimelate1.90 × 10−41.560211492
B1T1Isotretinoin1.93 × 10−41.577901393
B1T18-Aminooctanoic acid1.16 × 10−3 1.539511272
B1T1Urocanic acid1.97 × 10−3 1.606733748
B1T1Gly-Phe3.15 × 10−31.607442416
TAsp-glu6.00 × 10−61.611481292
TThr-Leu2.14 × 10−41.666121562
TN-acetyl-L-ornithine2.69 × 10−41.677736612
TPyridoxamine2.35 × 10−31.599751113
TNicotinuric Acid3.47 × 10−31.484749249
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Hao, J.; Wang, Z.; Zhao, Y.; Feng, S.; Cui, Z.; Zhang, Y.; Wang, D.; Zhou, H. Inhibition of Potato Fusarium Wilt by Bacillus subtilis ZWZ-19 and Trichoderma asperellum PT-29: A Comparative Analysis of Non-Targeted Metabolomics. Plants 2024, 13, 925. https://doi.org/10.3390/plants13070925

AMA Style

Hao J, Wang Z, Zhao Y, Feng S, Cui Z, Zhang Y, Wang D, Zhou H. Inhibition of Potato Fusarium Wilt by Bacillus subtilis ZWZ-19 and Trichoderma asperellum PT-29: A Comparative Analysis of Non-Targeted Metabolomics. Plants. 2024; 13(7):925. https://doi.org/10.3390/plants13070925

Chicago/Turabian Style

Hao, Jianxiu, Zhen Wang, Yuanzheng Zhao, Shujie Feng, Zining Cui, Yinqiang Zhang, Dong Wang, and Hongyou Zhou. 2024. "Inhibition of Potato Fusarium Wilt by Bacillus subtilis ZWZ-19 and Trichoderma asperellum PT-29: A Comparative Analysis of Non-Targeted Metabolomics" Plants 13, no. 7: 925. https://doi.org/10.3390/plants13070925

APA Style

Hao, J., Wang, Z., Zhao, Y., Feng, S., Cui, Z., Zhang, Y., Wang, D., & Zhou, H. (2024). Inhibition of Potato Fusarium Wilt by Bacillus subtilis ZWZ-19 and Trichoderma asperellum PT-29: A Comparative Analysis of Non-Targeted Metabolomics. Plants, 13(7), 925. https://doi.org/10.3390/plants13070925

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
